Ultrasound-Assisted Vacuum Impregnation as a Strategy for the Management of Potato By-Products

Abstract

One of the most important problems of the modern world is food wastage. The issue occurs at every stage of the food chain, requiring new sustainable production and processing technologies. The processing of production waste and making it a wholesome ingredient may be a good opportunity to promote more sustainable development. This study analyzes the process of enrichment of model by-product (irregular potatoes cubes) with a functional compound (ascorbic acid) through vacuum impregnation, with two experiments on variants of the process, standard (VI) and ultrasonic-assisted (UVI). The research covers complete processing, including the stage of preserving impregnated products by convective drying. The analysis includes the impregnation efficiency, drying kinetics, and energy consumption, and selected quality parameters of the material, namely color and water activity. Based on the results, ultrasound increased the impregnation efficiency, but the quantitative effect depends on the application period. Ultrasound had a positive effect on the kinetics and energy consumption of convective drying. Ultrasound did not reduce quality. The proposed technology may be useful during the processing of by-products.

1. Introduction

One of the most important problems of the modern world is the enormous amount of food wastage. It is estimated that about 1.3 billion tons of food is lost, which constitutes one-third of total production. This issue concerns food production, processing, distribution, and consumption [1]. Thus, possibilities for more sustainable use of food are sought. Various strategies are proposed. Foley et al. [2] advise both boosting production, especially on underperforming lands, and changes in eating habits—less food resource-intensive diets. Thi et al. [3] point to the need to develop new, sustainable food production and processing technologies, especially in developing countries. The re-use by-products from food processing and re-introducing them in the production cycle [4] is a strategy that is worth considering for the development of more sustainable technologies. Potato processing is a food industry that generates a very large amounts of waste—up to 40% of the raw material introduced into the technological process is waste [5,6].

Potato (Solanum tuberosum L.) is a very popular vegetable. The tuber is the nutritious part of this plant and its chemical composition depends on the variety, climatic conditions, and cultivating techniques. In addition to energy, high-quality protein, and dietary fiber, potatoes provide significant amounts of several vitamins (including vitamin C) and minerals. Ascorbic acid (vitamin C), is essential for the proper functioning of the human body, and is involved in many biochemical reactions, removes free radicals, affects the body’s resistance to infections, and is one of the most important antioxidants. Moreover, vitamin C has bacteriostatic and bactericidal properties against some microorganisms and lowers the risk of cancer. Unfortunately, the content of ascorbic acid diminishes greatly during the storage and processing of fruit and vegetables. Vitamin C is very sensitive to environmental pH (alkaline and neutral), oxygen, metal ions, high temperature, and the activity of oxidizing enzymes, under which it decomposes or loses its biological activity. Vitamin C losses during food processing caused, i.e., by thermal treatment can reach 50–90% [7,8].

One of the most frequent processing directions of potatoes is the production of French fries or chips. In these processes, the final products have to have a specific shape, thus cutting and sorting generate a large number of raw material losses. However, this waste is still of full value. Enriching these by-products with vitamin C [9,10] and reusing them in dried form as a functional ingredient, for example, in instant foods is a promising strategy.

The enriching of such by-products can be carried out by means of vacuum impregnation (VI). This process is based on the replacement of native liquids and gases from the porous structure of food products into a specially prepared solution—impregnant. The mass transport in VI is the result of a mechanically generated pressure gradient. The main aim of vacuum impregnation is to provide or strengthen the health-promoting properties in food products, including specific sensory and physicochemical properties [11].

VI is a two-stage process. In the first, the so-called vacuum stage, the raw material is placed in a solution of the desired compound, then the pressure is reduced and native fluids located in porous space are removed. In the second, the so-called relaxation stage, the pressure is restored to atmospheric conditions and the open pores/capillaries of the material are filled—impregnated—with the solution [12,13]. It is assumed that vacuum impregnation proceeds through the hydrodynamic mechanism (HDM), and simultaneously, due to deformation-relaxation phenomena (DRP), which are well described in the literature [11,14,15].

In the case of some raw materials, mass transfer is difficult due to their structure and/or composition. The main factor influencing the susceptibility to VI is porosity. The lower the porosity, the more difficult the impregnation. Compared to other raw materials, e.g., apples, which have a porosity of about 25%, potatoes have very low porosity, i.e., around 2% [16]. High starch content and tissue density also significantly affect the susceptibility to the VI process. One of the techniques for intensification of unit operations is the use of ultrasound, which, so far, has been successfully applied in osmotic dehydration [17,18], drying [19], or vacuum impregnation [20,21]. The important factor that decides on the positive effect of ultrasound is the phenomenon of so-called acoustic cavitation. During this process, the bubbles of gas and/or vapor are formed, grow, and, finally, implode in liquid located in the pores of the material being impregnated. As a result of the implosion, the local temperature and pressure increase rapidly (up to thousands °C, and hundreds atm), which causes further phenomena that intensify the mass transfer (mixing, micro-jets, viscosity drop, etc.). At the same time, the bubbles expand the pores and create new ones, increasing the porosity of the material, and thus the volume available for impregnation liquid [19,22].

As reported by Mashkour et al. [20] impregnation of whole potatoes with 1% (w/w) solution of iron ions followed by ultrasound pretreatment (140 W and 37 kHz) contributes to an increase in the amount of iron that remains after cooking, which is a very positive effect. It also was found that above a certain limit value of the acoustic power, an unacceptable leakage of the substance occurs, which is unfavorable for the final product quality. Increased loss of ions may prove that excessively high ultrasound intensity leads to permanent damage of the cellular structure. Thus, it is very important to control the US intensity and operate in a safe range. On the other hand, in the presented work the temperature of the solution was not controlled during the ultrasound action. In a thermally uncontrolled chamber degradation of nutrients or intensification of leakage is quite probable. Thus, tests in thermally controlled conditions could be very useful and would facilitate the assessment of ultrasound impact itself while excluding the effect of temperature.

The semi-products obtained after VI are not microbiologically stable and susceptible to spoilage and decomposition processes. For this reason, they must undergo further processing. One of the most common food preservation processes is drying. During drying, the unbound moisture is removed from the material, which reduces the water activity and thus increases the microbiological stability of vegetables and fruit. Drying, like most processing operations, is a thermal process and leads to many unfavorable changes such as shrinkage, color change, biochemical changes, loss of nutrients, vitamins, etc. For this reason, it is very important to determine the nutrient content of the dried product and assess the impact of this unit-operation on the product quality and durability of the introduced VI compound [13,23,24].

Convective drying with hot air (CV or HAD) is one of the most commonly used methods of thermal moisture removal. Unfortunately, this process is very slow and energy-consuming. It is estimated that various drying operations can consume up to 25% of the total energy used in the industry. However, this number depends on the country and the structure of the economy. Such high energy consumption is a significant problem in countries where energy production is based mainly on fossil fuels (e.g., coal or oil). Firstly, fossil sources are non-renewable, and secondly, such energy production will put a heavy burden on the environment. Legal regulations aimed at reducing the emission of environmentally harmful factors such as greenhouse gases, increase production costs and the market price of products, which affects the purchasing power of consumers. For these reasons, alternative methods of processing and drying are sought to reduce the drying time, maintain (or improve product) quality, and, most importantly, reduce energy consumption [19,25,26].

In the works published so far, the use of ultrasound was primarily aimed at increasing the efficiency of a given process (drying, extraction, freezing, osmotic dehydration, etc.) [17,18,19]. However, their influence on the vacuum impregnation and energy consumption of subsequent processing was not analyzed in detail. Taking into account that the acoustic cavitation caused by ultrasounds usually causes permanent changes in the structure of the raw material (increase in porosity, decrease in cohesion), it is reasonable to assume that these changes may affect the kinetics and energy consumption in the subsequent processing (e.g., by drying). However, there are no studies confirming such effects.

The research presented in this paper was aimed at determining the possibility of enriching a model by-product with a functional compound through vacuum impregnation (VI). Additionally, the influence of ultrasound—as a recognized factor intensifying the exchange processes—on the efficiency of vacuum impregnation, the kinetics of post-processing (convective drying), and the selected quality parameters of the obtained products were studied. Specific energy consumption in the drying processes was also analyzed to better assess the proposed technology in terms of sustainability and environmental impact.

2. Materials and Methods

2.1. Material

Potatoes (Solanum tuberosum L.) ‘Colomba’ were bought at a local market and stored for at least 24 h under refrigeration at 4 °C. Before processing, the tubers were peeled and then cut into irregular cubes of c.a. 15 mm using a commercial food preparation machine RG-100 (Hallde, Sweden). During each experiment, irregular potato cubes were used. This form of the raw material can be considered as a model by-product. The mass of a single batch was 400 g.

2.2. Vacuum Impregnation

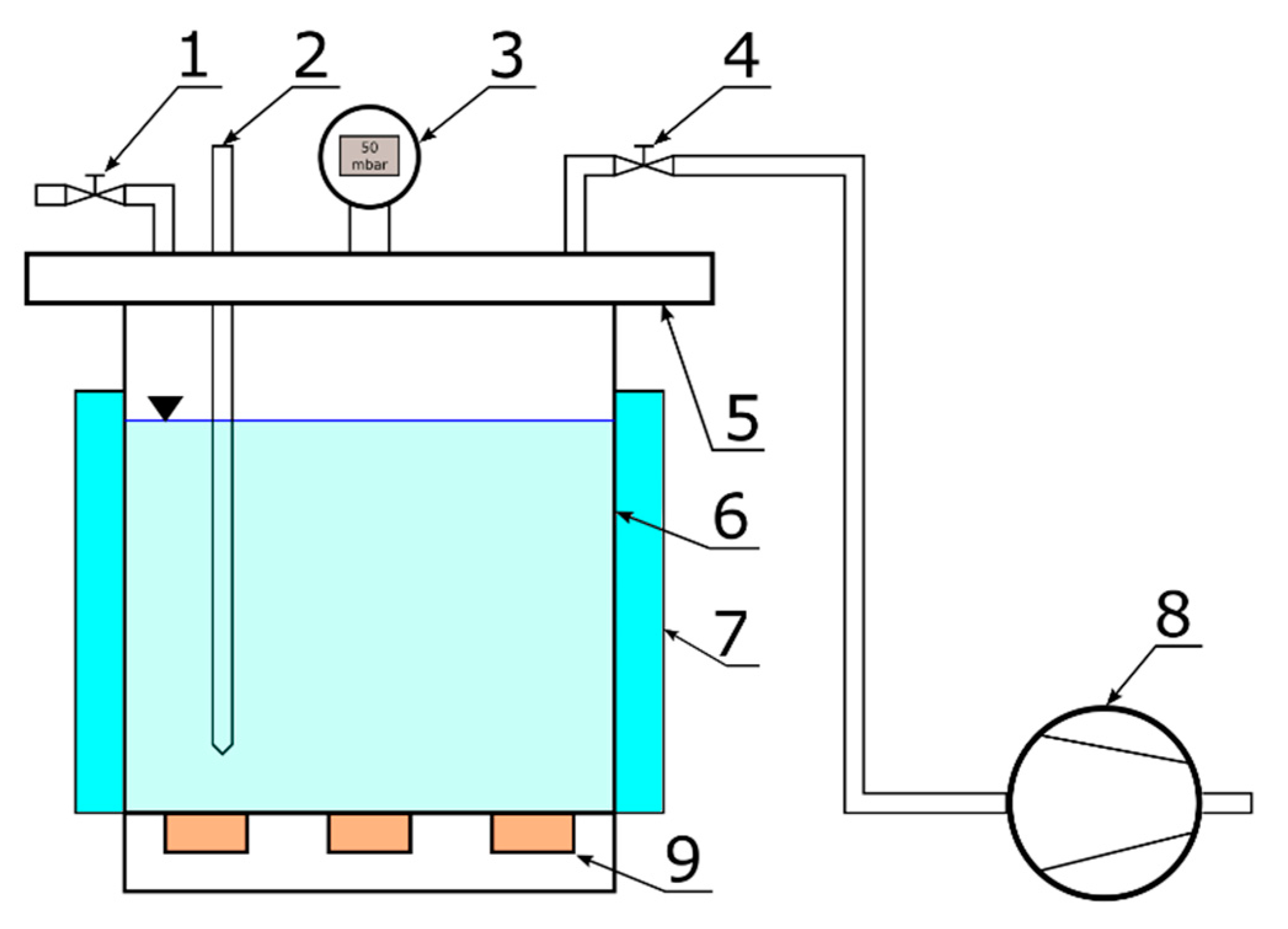

Vacuum impregnation processes were carried out in the IS-PP apparatus (INTERSONIC Sp. z o.o., Olsztyn, Poland), the diagram of which is presented in Figure 1.

The impregnation was carried out in a 5% (w/w) aqueous solution of analytically pure ascorbic acid (Chempur, Piekary Śląskie, Poland). During each process, 2 kg of the solution was used so the ratio of the weight of raw material to the solution was 1:5. The temperature of the solution was measured with the Pt100 sensor (2) and kept constant at c.a. 25 °C using a water jacket (7).

In the course of the research, four different impregnation processes were analyzed. Details of the impregnation processes are presented in

Table 1. Description of the impregnation processes.

Process	Duration (min)		Ultrasound
	Vacuum Period	Relaxation Period
VI	30	30	-
UVI1	30	30	during vacuum period
UVI2	30	30	during relaxation period
UVI3	30	30	during vacuum and relaxation periods

VI—vacuum impregnation, UVI—ultrasound-assisted vacuum impregnation.

.

The prepared potato cubes were placed in the processing chamber (6) (Figure 1) into which the impregnating solution was next poured. The chamber was then closed with a lid (5) and a vacuum was generated over the solution using a vacuum pump (8). The current chamber pressure was measured with a digital pressure gauge (3). When the assumed pressure (50 mbar) was reached, the valve (4) was closed and the vacuum period was started. The raw material and the solution were kept under these conditions for a strictly defined time. After the assumed vacuum time had elapsed, the valve (1) was gradually opened and the chamber was aerated. When the ambient pressure was restored, the cubes were left in the solution for a specified period—the relaxation period.

During the ultrasound-assisted processes (UVI), the ultrasonic waves at a frequency of 35 kHz were generated in the solution by the piezoelectric transducers (9) (Figure 1) attached to the bottom of the chamber. The effective power of ultrasound, measured with the calorimetric method [27], was 40 W. After the assumed time had elapsed, the solution was discharged from the chamber and the batch was drawn onto the screen. Next, the samples were rinsed with tap water to get rid of the excess impregnation solution from the surface and allowed to drain for 3 min. After this time, the batch was divided into two parts and placed in barrier polypropylene bags which were then sealed. One bag was placed in the refrigerator at 4 °C, and the second one in the freezer at −50 °C.

2.3. Convective Drying

In the next stage, the impregnated samples were submitted to convective drying in a laboratory hybrid dryer (PROMIS-TECH, Wrocław, Poland) [28]. For each of the impregnated semi-products, the same parameters of the drying air were used, i.e., air temperature of 70 °C and air velocity of 4 m/s. During the drying process, the mass and temperature of the material being dried were periodically recorded, which could determine the kinetics of the process.

The kinetics of the drying process was assessed based on moisture content (MC), moisture ratio (MR), drying rate (DR), and drying time (DT). The moisture content of the sample at any time t (different from 0) was determined based on the following relationship presented:

$$MC(t)=\frac{m(t)-m_s}{m(t)},$$

(1)

where m(t) is the mass of sample at time t, m_s is the mass of dry matter determined through drying in a convective dryer at 105 °C until constant weight.

Based on the obtained results the relative moisture content (MR) was calculated using the following equation:

$$MR(t)=\frac{MC(t)-M{C}_f}{M{C}_0-M{C}_f},$$

(2)

where MC₀ is the initial moisture content and MC_f is the final moisture content of the dried material.

The initial moisture content (MC₀) was determined using a moisture analyzer XM120 (precision 0.01%) produced by Precisa (Dietikon, Switzerland).

The average drying rate (DR) was calculated based on the following equation:

$$DR=\frac{\Delta m_w}{DT},$$

(3)

where Δm_w is the mass of moisture (water) evaporated during drying and DT is the total drying time.

Additionally, each process was assessed in terms of energy consumption (EC), which was measured for the whole drying system with the use of a standard electricity meter (precision 0.01 kWh). Next, the specific energy consumption (SEC) was calculated in accordance with the following equation:

$$SEC=\frac{3.6\cdot EC}{\Delta m_w},$$

(4)

where 3.6 is the value of 1 kWh calculated to MJ.

All the results of drying parameters analyzed in the studies were compared with the control sample, i.e., raw potatoes dried only convectively without impregnation (CV).

2.4. Evaluation of the Effectiveness of the Vacum Impregnation

The effectiveness of vacuum impregnation was assessed based on ascorbic acid content (AAC) in the impregnated semi-products and dried products. The content of ascorbic acid was determined using the HPLC method.

Raw and impregnated material (about 10 g) and dried material (about 1 g) were homogenized with 25 mL 1% meta-phosphoric acid (Sigma Aldrich, Steinheim, Germany) in an IKA T-25 homogenizer (Staufen, Germany). Next, the samples were shaken for 15 min, after which they were centrifuged for 15 min in an MPW-351R centrifuge (Warszawa, Poland) at 3800× g. After the centrifugation, the precipitate was again extracted with 10 mL 1% meta-phosphoric acid. The combined supernatants were filled to 50 mL with 1% meta-phosphoric acid. 1 mL of extract and 1 mL of 5% dithiothreitol (Sigma Aldrich, Buchs, Switzerland) made up to 10 mL with 1% meta-phosphoric acid. The samples were analyzed using the LC Agilent Technologies 1200 Rapid Resolution (Waldbronn, Germany) system equipped with a Poroshell 120, SB-C18 column (⌀4.6 × 150 mm, 2.7 µm) (Agilent Technologies, Wilmington, NC, USA). Mobile phases were methanol (Sigma Aldrich, Steinheim, Germany) (phase A) and 0.005 mol/L KH₂PO₄ solutions (Sigma Aldrich, Tokyo, Japan) (phase B). For the detection of ascorbic acid, a gradient of methanol (solvent A) per 0.005 mol/L KH₂PO₄ and pH 2.6 (solvent B) was used according to the following program: linear increment starting with 5% A to 22% in 6 min and then returned to the initial conditions within the next 9 min with a flow rate of 0.7 mL/min. The eluate was detected with a UV-Vis detector set at 245 nm [29]. Ascorbic acid was identified by comparing its retention time with that of an ascorbic acid standard (Sigma Aldrich, St. Louis, MO, USA).

2.5. Measurement of the Selected Product Quality Parameters

The quality of the semi-products and dry products was judged on the basis of color change (dE) and water activity (a_w). The color of the raw material, impregnated semi-products, and dried products were measured with the use of a CR400 colorimeter (Konica Minolta, Osaka, Japan) and expressed in the CIELAB color space. Before measurements, 10 potato cubes were ground in the A11 Basic laboratory mill (IKA, Staufen, Germany). The ground sample was immediately placed in a special sample holder and the tristimulus color parameters (L*, a*, b*) were measured 5 times. This procedure was repeated 5 times, so the total number of color measurement points was 25. Then the data were averaged and, on their basis, the total color change (dE) was calculated in accordance with the equation:

$$dE=\sqrt{{\left(L_0^{*}-L_s^{*}\right)}^2+{\left(a_0^{*}-a_s^{*}\right)}^2+{\left(b_0^{*}-b_s^{*}\right)}^2},$$

(5)

where L* indicates lightness, and a* and b* are the chromaticity parameters that indicate color directions: from red to green (a*) and from yellow to blue (b*), index 0 denotes the raw material and s denotes the processed sample (impregnated semi-product or dried product).

Water activity (a_w) was measured for fresh and processed potato using the LabMaster-aw Standard meter (precision 0.001) produced by Novasina AG (Lachen, Switzerland). The a_w analysis was also performed on the ground sample (similar to the color measurement). Paste from raw material or impregnated semi-product and powder from the dried sample were placed in special measuring vessels in a thermostatic chamber of the a_w meter. The temperature inside the chamber was fixed at 298 K. The measurement was done automatically and terminated if the change in a_w value was smaller than 0.001 for 10 min.

2.6. Statistical Analysis

Data shown are mean ± standard deviation. Additionally, one-way ANOVA and Tukey post-hoc mean comparison were performed. Statistically significant differences at the level of p ≤ 0.05 are marked with different letters. All calculations were performed using Statistica ver. 12 software produced by StatSoft (StatSoft, Tulsa, Oklahoma, OK, USA).

3. Results and Discussion

3.1. Vacuum Impregnation Effectiveness

The effectiveness of vacuum impregnation was assessed based on the ascorbic acid content (AAC) determined for semi-products (after vacuum impregnation) and dried products. In Figure 2, the average ascorbic acid content for a particular type of sample is presented.

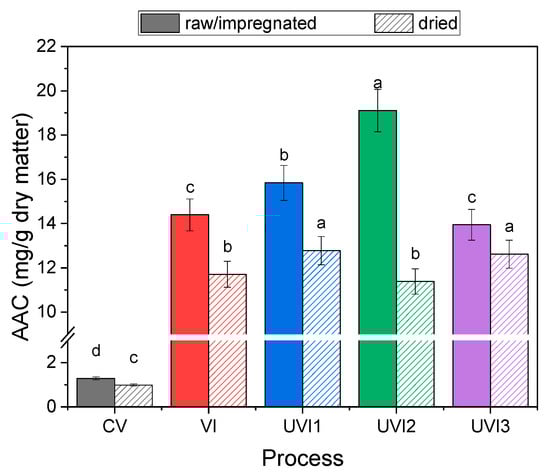

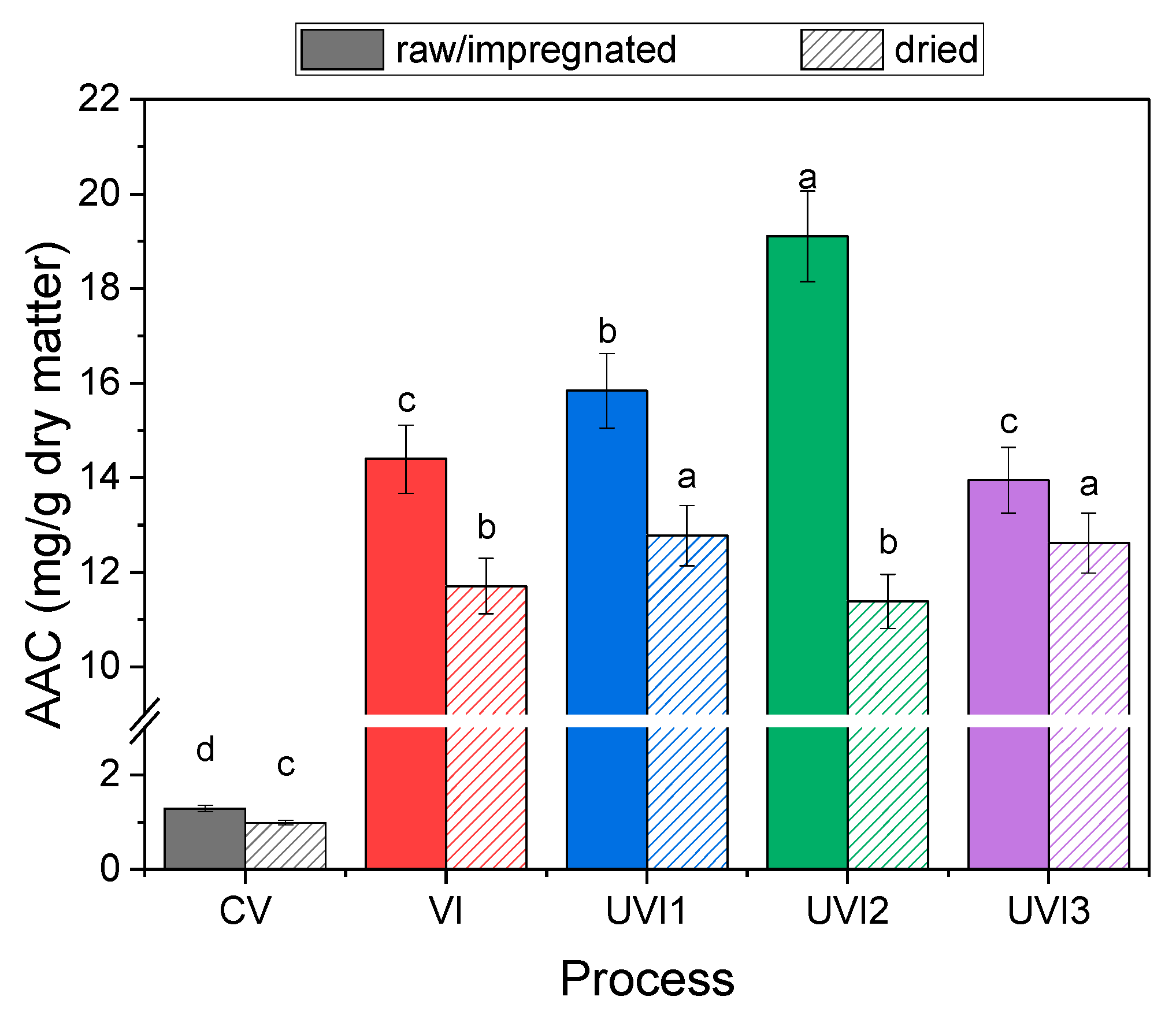

The standard process of vacuum impregnation (VI) of potato cubes caused an 11-fold increase in ascorbic acid content compared to the raw material (Figure 2). Nine times higher AAC in the impregnated with 10% ascorbic acid solution of whole potato tuber at 93.3 mbar vacuum pressure during 60 min and relaxation time lasting 3 h, was found by Hironaka et al. [30]. The application of VI combined with ultrasound during the vacuum (UVI1) or relaxation (UVI2) stage resulted in a 10% and 33% increase of AAC, respectively (compared to VI). In turn, the use of ultrasound during both vacuum and relaxation stages (UVI3) caused AAC in tested samples comparable to VI. Application of ultrasound for a longer time, in this case, may cause a reaction, which initiates the formation of free radicals that affect the content of ascorbic acid [31]. A similar effect was found by Nowacka et al. [32] during ultrasound-assisted osmotic dehydration of whole cranberries when using ultrasound for an extended period (60 min).

Convective drying of fresh potato cubes resulted in a loss of ascorbic acid amounting to 23%, while, in the VI samples, losses were 19%. In potato cubes subjected to ultrasound-assisted vacuum impregnation, the drying process contributed to decreasing AAC about 19%, 40%, and 10% for UVI1, UVI2, and UVI3, respectively. According to references, the loss of vitamin C during the drying of potatoes may reach 50% [33]. The highest decrease of vitamin C was found for samples processed with UVI2. The high AAC may result in a greater susceptibility to the Maillard reaction of potato cubes. Thermal treatment under aerobic conditions caused the conversion of ascorbic acid by dehydroascorbic acid to furan-type compounds, lactones, acids, 3-hydroxy-2-pyrone, furaldehyde, and 5-hydroxymethylfuraldehyde [34]. Hence, if the level of tissue impregnation with ascorbic acid is too high, it may be disadvantageous due to the intensification of changes related to non-enzymatic browning.

3.2. Convective Drying Kinetics

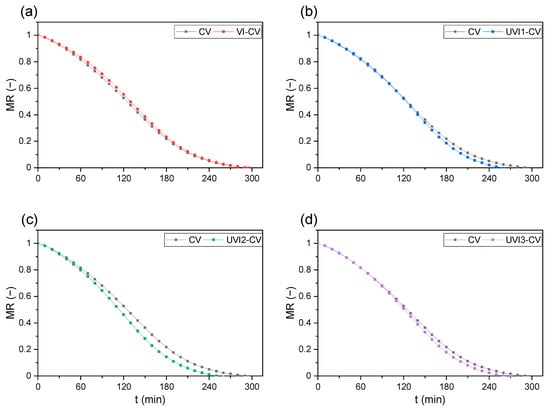

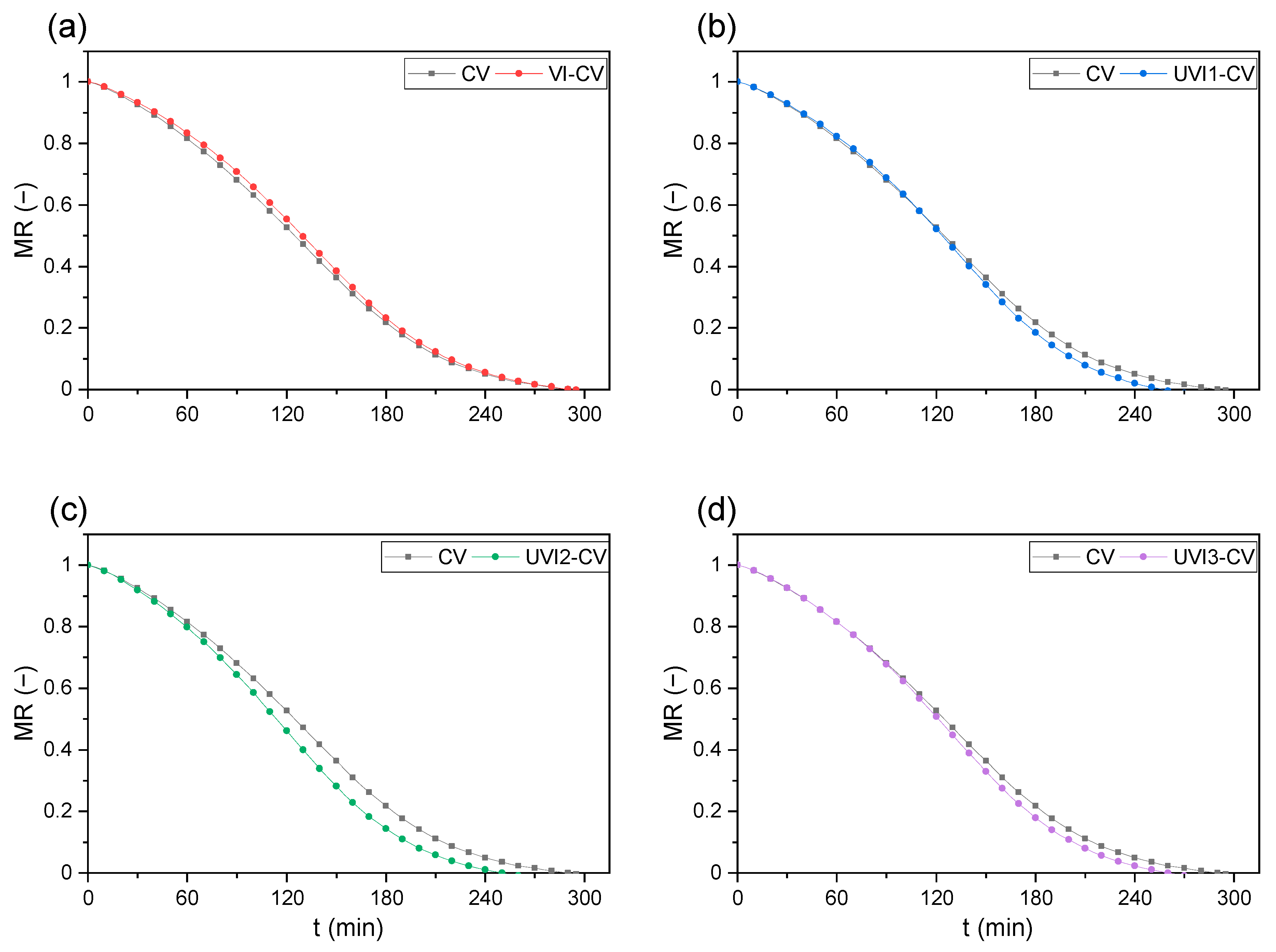

The drying kinetics of potatoes were evaluated based on drying curves representing the relative moisture content—moisture ratio (MR) change as a function of time (t). In Figure 3 the plots of MR for individual drying processes are presented.

The curves obtained for the drying of semi-products of impregnation (VI, UVI1-3) were compared within a framework of a single graph to the convective process (CV).

Comparing the curves shown in Figure 3a, it can be seen that VI did not influence the kinetics of drying significantly. The use of ultrasound during vacuum impregnation changed the drying kinetics. The course of MR curves for samples impregnated with ultrasonic assistance shows that in the first period of drying the speed of this process was similar to the referential process (CV), while in the second period it was accelerated (Figure 3b–d). The samples processed with the UVI1 and UVI3 processes had a similar course of MR curves (Figure 3b,d).

Acceleration of the drying process in the second period may indicate structural changes in the processed potato, as the rate of drying in this period is generally controlled by the diffusion of moisture inside the material. The more effective it is, the faster the drying. The complicated structure of biological materials (vegetables and fruit) means that this stage is usually very slow. It is assumed that for most vegetables and fruit, the first drying period—with a constant drying rate, does not occur at all and the process takes place in the second (diffusion-controlled) period—with a falling drying rate. Thus, changes in the internal structure may contribute to an increase in the drying rate. It was stated in the literature that ultrasound induces structural changes, i.e., an increase in pore/capillary diameter, new pores/capillaries formation, and a kind of intercellular channels leading to loosening structure of potato tissue [21,35]. This stays in good agreement with the results obtained during this research.

However, it should be emphasized that analysis of the course and slope of the drying curves, only provides information concerning the instantaneous rate of the process. To fully determine the impact of individual impregnation processes on the drying kinetics, the average rate and time of drying for individual processes should be analyzed. In

Table 2. Average drying rate (DR), drying time (DT), and specific energy consumption (SEC) for particular VI processes.

Process	DR 10 (g/min)	Change (%)	DT (min)	Change (%)	SEC 10 (MJ/kg)	Change (%)
CV	4.81 ± 0.24 c	-	290 ± 14.5 a	-	1.60 ± 0.08 c	-
VI-CV	4.84 ± 0.15 c	0.70%	290 ± 6.9 a	−0.06%	1.57 ± 0.07 c	−1.15%
UVI1-CV	5.50 ± 0.01 ab	14.43%	252 ± 3.4 b	−13.01%	1.40 ± 0.02 ab	−12.84%
UVI2-CV	5.56 ± 0.09 a	15.63%	247 ± 3.7 c	−14.71%	1.38 ± 0.01 b	−13.98%
UVI3-CV	5.44 ± 0.08 b	13.15%	255 ± 0.2 b	−12.04%	1.43 ± 0.01 a	−10.56%

Mean ± standard deviation. Letters ^a, ^b, ^c indicates the statistical significance of the differences between the values in accordance to ANOVA and Tukey post-hoc mean comparison. Values marked with a different letter in a column are statistically different at p ≤ 0.05.

, the average drying rate (DR), drying time (DT), and specific energy consumption (SEC) are presented. To facilitate the assessment of individual processes, the change in the value of a given parameter in relation to the CV process was calculated.

The obtained values of the average drying rate and drying times are consistent with the results of the analysis of MR(t) curves. The lowest value of DR was recorded for the convective process (CV). Despite a slight decrease in the instantaneous drying rate of VI-CV (Figure 3a), a statistically significant change in DR and reduction of the DT were not observed for this process (Table 2). This may be due to very low porosity and high density of fresh potato. As reported, e.g., by Karathanos et al. [36] the porosity of raw potatoes equals only 2%. Furthermore, during the second stage of VI, i.e., restoration of atmospheric pressure the deformation-relaxation phenomena shrink the capillaries in a potato tissue, to an even smaller volume than before processing. At the same time, the pressure change inside the capillaries causes the material to fill intensively with the impregnating solution [11,13]. Thus, the rather low vacuum use in this study, as well as the low porosity of this vegetable, did not have a substantial effect on additional structural changes that could affect the course of the drying kinetics.

Similar results were observed by Pasławska et al. [37] during drying of kale in a fluidized bed. Initial vacuum impregnation of the kale leaves resulted in an increase in the drying rate in the first process period and a decrease in the second one. The authors concluded that a decrease in DR can be attributed to the presence of the impregnating solution, which slowed down the diffusion of water in the deeper layers of the tissue by penetrating them. Moreover, it was found that the dehydration of the kale impregnated in onion juice was larger compared to sodium chloride solution, as onion juice contains more water-soluble compounds.

The use of ultrasound in the VI process caused a significant increase in DR and shortening of DT in relation to the CV and VI-CV samples. In the most favorable case (UVI2-CV), the increase in the average drying speed was about 15.63%, which led to a reduction in drying time by about 14.71% (Table 2). The smallest changes, in line with the observations of MR(t) curves, were recorded for the UVI3-CV process (an increase in DR by 13.15% and shortening of DT by 12.04%). Taking into account the relatively low ultrasound power (40 W), the achieved results should be considered very positive. The application of low-power ultrasound was a well-thought-out and justified tactic from the sample integrity point of view. In this way, an effort was made to prevent the potatoes from an excessive change in structure and loss of valuable nutrients.

Another positive effect of using ultrasound during vacuum impregnation was the reduction of energy consumption during drying. A statistically significant increase in DR and reduction in DT observed for the samples pretreated with ultrasound (UVI1-3-CV) caused a 10.56–13.98% reduction in energy consumed per 1 kg of evaporated moisture (Table 2, SEC), compared to the convective process (CV). In the case of the VI-CV process, the reduction in SEC was negligible (1.15%) which results from a similar value of average DR and DT compared to CV.

The obtained results prove that proper preparation of the raw material (pre-treatment) can lead to a reduction in energy consumption in the main processing operation (in this case, drying). The use of ultrasound during vacuum impregnation allowed not only to increase the degree of impregnation with ascorbic acid but also to “loosen” the structure of the raw material (increase in porosity, microchannel formation, and breakdown of starch). As a result, the diffusion of moisture during the drying process was easier, the drying speed was higher and the drying time was shorter, which ultimately contributed to the reduction in the amount of energy needed for drying.

3.3. Quality Parameters

3.3.1. Color

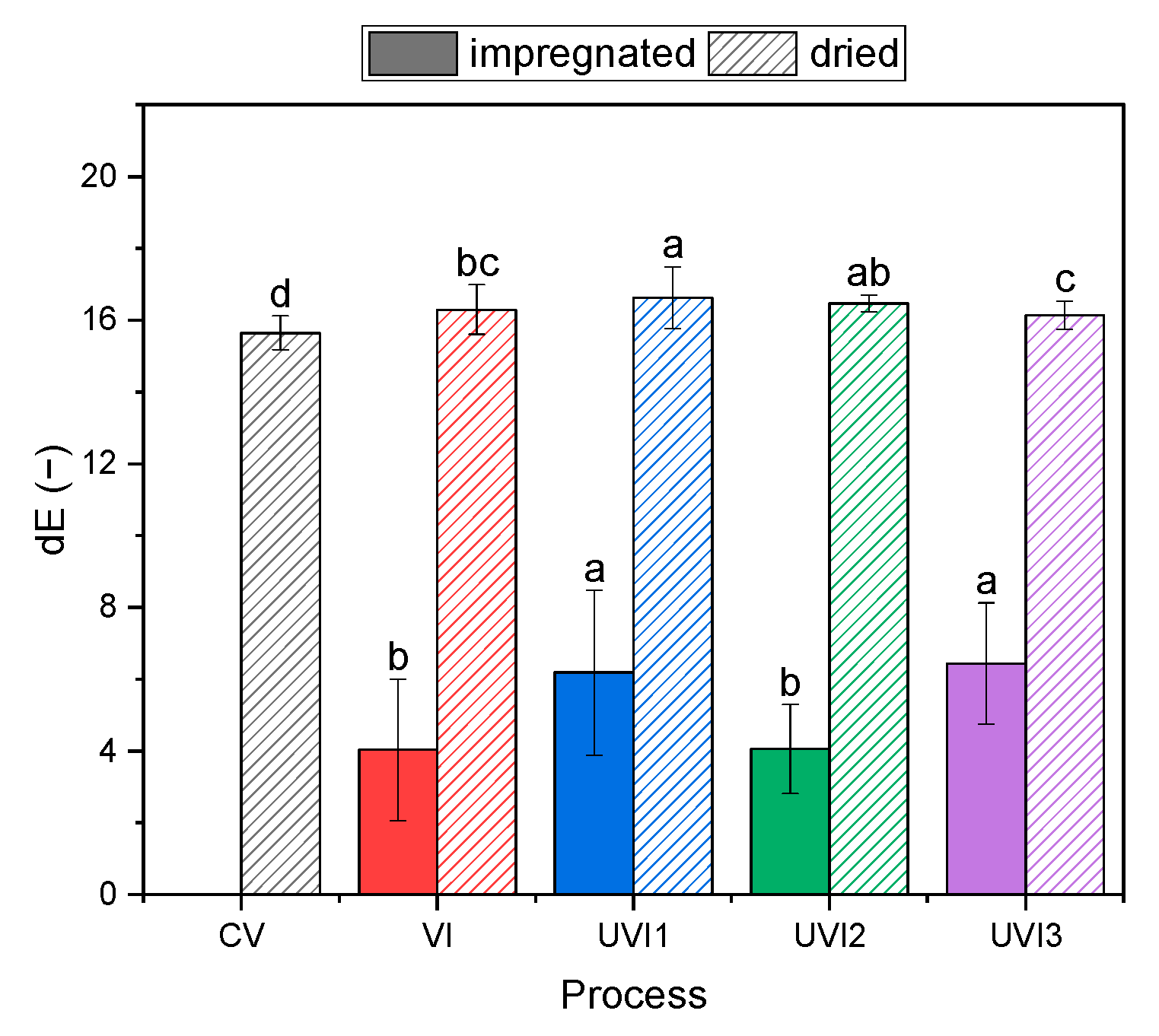

Figure 4 shows the total color change (dE) for impregnated and dried samples. The dE value presents the change in color parameters of processed samples in relation to the raw material.

Vacuum impregnation of the potato cube, regardless of the method used, resulted in a significant color change in relation to the raw material. The dE values for the impregnated samples ranged from 4 to 6. The color change in the impregnation step may result from introducing a solution into the plant tissue. As follows for the results (Figure 4—filled bars), the content of ascorbic acid (impregnation solution) in the impregnated potatoes did not visibly influence their color.

The drying process changed the color of the impregnated potatoes remarkably. All dried samples had a value of dE exceeding 15 (Figure 4—hatched bars). The color change during drying results from mainly enzymatic (e.g., peroxidase browning) and non-enzymatic (e.g., Maillard reactions) processes that take place at elevated temperature in an oxygen-rich environment [24]. Convective drying results in greater color changes of samples than vacuum impregnation.

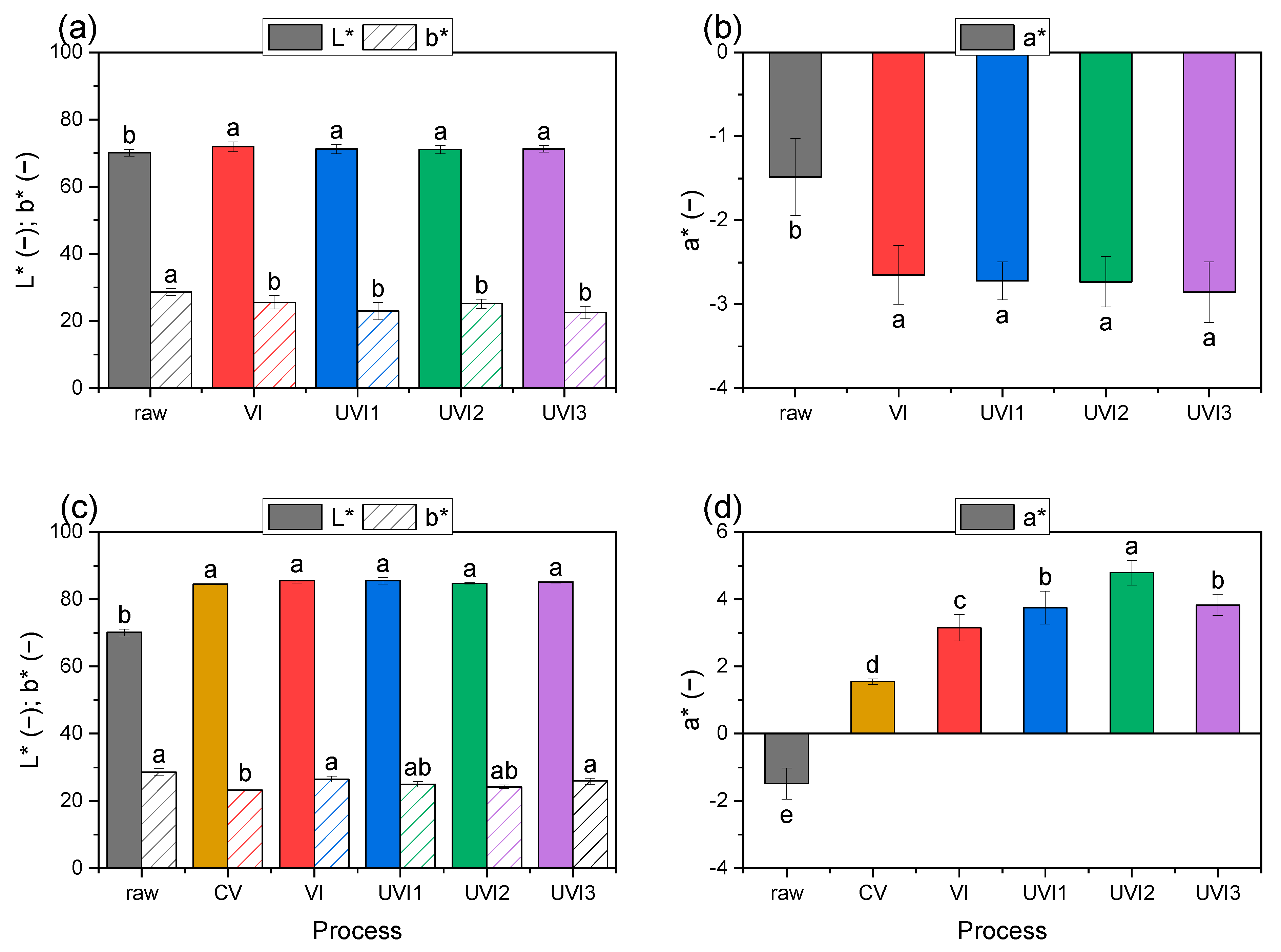

Because the dE usually does not fully reflect the changes in color, a detailed analysis of the tristimulus color parameters (L*, a*, and b*) was performed. Figure 5 shows the average value ± standard deviation for each parameter separately.

The data presented in the graphs confirm that the color change was influenced by the vacuum impregnation processes as well as drying. In the case of the impregnated samples, the difference in lightness L* (Figure 5a) was statistically significant as compared to raw potato. However, regardless of the impregnation variant the average relative change in L*, calculated in relation to the raw material, remained at the level of 1.84%. Thus, it may be assumed that the different variants of vacuum impregnation used in the studies did not affect the lightness of the impregnated samples. A similar tendency was observed in the case of a* and b* parameters. The difference in b* was smaller and indicates a reducing the share of yellow color. Greater and statistically significant changes took place in the case of a*. Impregnated semi-products were characterized by a lower value of a* (Figure 5b), which means a growth of the translucency and a color shift towards shades of green.

In the case of dried products, the difference in L* was also statistically significant compared to raw potato. The average relative change was 21.31%, which indicates that the dried products were lighter in comparison to raw material (Figure 5c). However, no significant differences between the dried samples were found. The differences in b* for dried products were mostly not statistically significant (Figure 5c) as compared to raw potato. Similar to impregnated products, for the dry samples the highest differences were observed in a*. It was a statistically significant difference compared to raw material. The increase in a* parameter (Figure 5d) indicates a color shift towards the red tone. Moreover, it was found that the value of a* parameter in dry potato samples correlates well with the ascorbic acid content in the impregnated semi-products (compare Figure 2—filled bars and Figure 5d). This may indicate that the change in a* parameter of the dry potatoes was mainly caused by non-enzymatic browning.

3.3.2. Water Activity

The next important quality indicator evaluated in these studies was water activity (a_w). This parameter takes a value from 0 (bone-dry material) to 1 (pure water) and depends on the availability of water in the food products. Since water is essential for the growth of most spoilage and decay microorganisms (bacteria, yeasts, molds, etc.). This parameter can determine the microbiological stability and shelf life of food. It is assumed that if the a_w is below 0.6 the food is well preserved—stable in terms of decaying processes [38]. The results of water activity for raw material, impregnated, and dried potatoes are shown in Figure 6.

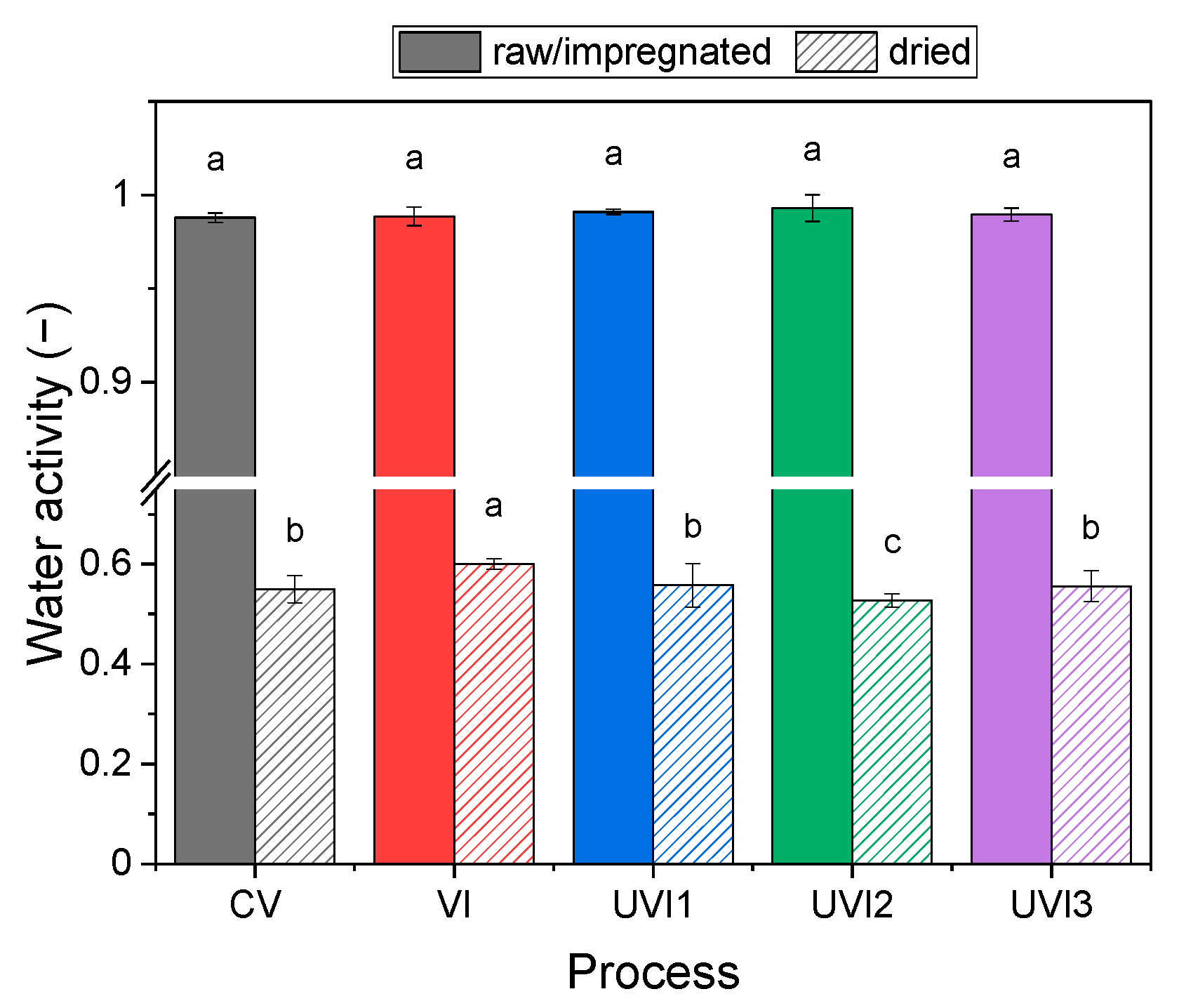

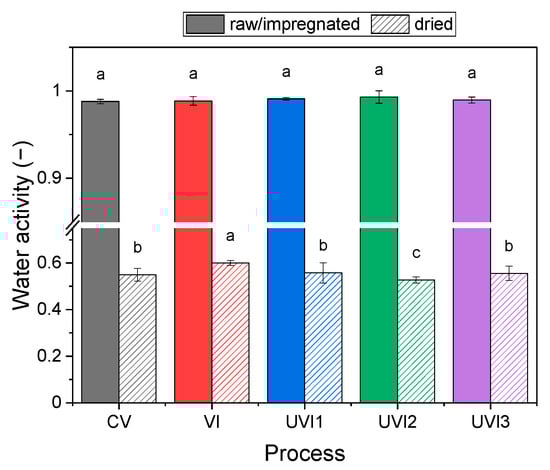

As shown in Figure 6, the water activity for fresh and impregnated samples is quantitatively similar, i.e., in the range of 0.988–0.993. On the one hand, it means that the water contained in the biological material forms a solution of many chemical compounds, and, therefore, its water activity is lower than that of pure water (solvent). On the other hand, it can be stated that the vacuum impregnation did not cause any statistically significant changes in the water activity of the potatoes, and ascorbic acid did not act as a suppressor of water activity.

Taking into account the values for dried samples, it can also be stated that the drying process was successful and, in most cases, the samples had a value of a_w below the threshold of 0.6, which means no microbial proliferation [23]. The only exception is sample VI-CV, where a_w exceeds slightly the critical threshold. In this case, the development of osmophilic yeasts and few molds cannot be excluded [39,40]. A high value of water activity may result from the impregnation of the tissue, not only with ascorbic acid but also with water, which penetrates deeper into the tissue and becomes more strongly bonded by gelatinization during drying. In practice, the drying of fruit and vegetables is carried out to the specific values of water activity (in relation to the requirements of the standards). Furthermore, long-lasting drying and thus reduction of a_w to very low values may cause a case hardening. A lower a_w value for samples subjected to ultrasound-assisted impregnation (UVI1-3-CV) (in comparison to VI-CV samples) may result from structural changes and easier diffusion of moisture inside the material during drying. It is in good agreement with the results of the kinetic parameters (DR, DT).

4. Conclusions

The processing of plant materials such as vegetables and fruit is necessary due to their perishability. Processing operations, however, generate significant amounts of waste that increase food losses. On the other hand, the waste generated during production often requires further processing operations (e.g., drying) allowing for its safe disposal or recycling. Such operations increase the consumption of energy, which negatively affects the energy efficiency of the process and natural environment. The results presented in this paper encourage optimism about the application potential of the analyzed process. Thanks to the use of ultrasound-assisted vacuum impregnation, it is possible to obtain products with a high content of impregnating compounds (in this case, ascorbic acid). In this way, it is possible to transform worthless production waste into a valuable product. Furthermore, changes caused by the action of ultrasound may contribute to the improvement of energy efficiency of further processing processes (in this case drying), which is undoubtedly an added value. However, the effective application of this process, both in potato and other plant materials requires further research concerning optimization of process parameters and determination of the impact of ultrasound on the varied structure of raw materials.
