# A Trial-and-Error Toll Design Method for Traffic Congestion Mitigation on Large River-Crossing Channels in a Megacity

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Problem Statement

#### 3.1. Demand Function

#### 3.2. Mathematical Model

## 4. The Trial-and-Error Toll Design Method

Algorithm 1: A trial-and-error algorithm | |

1 | Set the iteration counter $n=0$. Set the initial upper |

bound of $x$ and $y$, i.e., $\overline{x}$ and $\overline{y}$. Let ${x}^{u,n}$ and ${x}^{l,n}$ denote the adjusted lower and upper bound of $x$ in $n$th iteration. Let ${y}^{u,n}$ and ${y}^{l,n}$ denote the adjusted lower and upper bound of $y$ in $n$th iteration. Set ${x}^{u,n}=\overline{x}$, ${x}^{l,n}=0$, ${y}^{u,n}=\overline{y}$, ${y}^{l,n}=0$. Set the error gap $\mathsf{\epsilon}>0$. | |

2 | Adjust the tolls with the following formula: ${x}^{n}=({x}^{u,n}+{x}^{l,n})/2$ ${y}^{n}=({y}^{u,n}+{y}^{l,n})/2$ |

3 | Observe the ${X}^{n}$ and ${Y}^{n}$. If ${X}^{n}\in \left[{C}_{1}-\mathsf{\epsilon},{C}_{1}+\mathsf{\epsilon}\right]$, ${Y}^{n}\in \left[{C}_{2}-\mathsf{\epsilon},{C}_{2}+\mathsf{\epsilon}\right]$, the Pareto-optimal solution has obtained. |

4 | Remove the infeasible region according to the observed ${X}^{n}$ and ${Y}^{n}$ and update the lower and upper bound ${x}^{u,n}$, ${x}^{l,n}$, ${y}^{u,n}$, ${y}^{l,n}$ of $x$ and $y$, respectively. |

5 | Let $n=n+1$. Go back to Step 2. |

## 5. Numerical Experiments

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Gu, W. A Sustainable Strategy to Address Traffic Congestion on Nanjing River-Crossing Channels. Available online: http://news.xhby.net/nj/zx/202004/t20200413_6598720.shtml (accessed on 17 January 2021).
- Chen, M. Some Thought of the Traffic Congestion on Nanjing Yangtze River Bridge. Available online: http://m.xinhuanet.com/js/2019-01/07/c_1123953980.htm (accessed on 17 January 2021).
- Wang, S.; Zhang, W.; Qu, X. Trial-and-error train fare design scheme for addressing boarding/alighting congestion at CBD stations. Transp. Res. Part B Methodol.
**2018**, 118, 318–335. [Google Scholar] [CrossRef] - Liu, J.; Wang, R. Daily Traffic Volume is Keeping Increasing on the Nanjing Yangtze River Bridge. Available online: http://js.people.com.cn/n2/2020/0930/c360302-34327756.html (accessed on 17 January 2021).
- Chen, X.; Kim, I. Modelling rail-based park and ride with environmental constraints in a multimodal transport network. J. Adv. Transp.
**2018**, 2018, 15. [Google Scholar] [CrossRef][Green Version] - Chen, X.; Liu, Z.; Currie, G. Optimizing location and capacity of rail-based Park-and-Ride sites to increase public transport usage. Transp. Plan. Technol.
**2016**, 39, 507–526. [Google Scholar] [CrossRef] - Liu, Z.; Chen, X.; Meng, Q.; Kim, I. Remote park-and-ride network equilibrium model and its applications. Transp. Res. Part B Methodol.
**2018**, 117, 37–62. [Google Scholar] [CrossRef] - Huang, D.; Chen, X.; Liu, Z.; Lyu, C.; Wang, S.; Chen, X. A static bike repositioning model in a hub-and-spoke network framework. Transp. Res. Part E Logist. Transp. Rev.
**2020**, 141, 102031. [Google Scholar] [CrossRef] - Huang, D.; Gu, Y.; Wang, S.; Liu, Z.; Zhang, W. A two-phase optimization model for the demand-responsive customized bus network design. Transp. Res. Part C Emerg. Technol.
**2020**, 111, 1–21. [Google Scholar] [CrossRef] - Cheng, Q.; Liu, Z.; Szeto, W.Y. A cell-based dynamic congestion pricing scheme considering travel distance and time delay. Transp. B Transp. Dyn.
**2019**, 7, 1286–1304. [Google Scholar] [CrossRef] - Liu, Z.; Meng, Q. Bus-based park-and-ride system: A stochastic model on multimodal network with congestion pricing schemes. Int. J. Syst. Sci.
**2014**, 45, 994–1006. [Google Scholar] [CrossRef] - Liu, Z.; Meng, Q.; Wang, S. Speed-based toll design for cordon-based congestion pricing scheme. Transp. Res. Part C Emerg. Technol.
**2013**, 31, 83–98. [Google Scholar] [CrossRef][Green Version] - Liu, Z.; Meng, Q.; Wang, S. Variational inequality model for cordon-based congestion pricing under side constrained stochastic user equilibrium conditions. Transp. A Transp. Sci.
**2014**, 10, 693–704. [Google Scholar] [CrossRef] - Liu, Z.; Wang, S.; Meng, Q. Optimal joint distance and time toll for cordon-based congestion pricing. Transp. Res. Part B Methodol.
**2014**, 69, 81–97. [Google Scholar] [CrossRef] - Liu, Z.; Wang, S.; Zhou, B.; Cheng, Q. Robust optimization of distance-based tolls in a network considering stochastic day to day dynamics. Transp. Res. Part C Emerg. Technol.
**2017**, 79, 58–72. [Google Scholar] [CrossRef] - Liu, Z.; Zhang, Y.; Wang, S.; Li, Z. A trial-and-error method with autonomous vehicle-to-infrastructure traffic counts for cordon-based congestion pricing. J. Adv. Transp.
**2017**, 2017, 9243039. [Google Scholar] [CrossRef][Green Version] - Meng, Q.; Liu, Z. Impact analysis of cordon-based congestion pricing on mode-split for a bimodal transportation network. Transp. Res. Part C Emerg. Technol.
**2012**, 21, 134–147. [Google Scholar] [CrossRef] - Meng, Q.; Liu, Z. Trial-and-error method for congestion pricing scheme under side-constrained probit-based stochastic user equilibrium conditions. Transportation
**2011**, 38, 819–843. [Google Scholar] [CrossRef] - Meng, Q.; Liu, Z.; Wang, S. Optimal distance tolls under congestion pricing and continuously distributed value of time. Transp. Res. Part E Logist. Transp. Rev.
**2012**, 48, 937–957. [Google Scholar] [CrossRef] - Vickrey, W.S. Point of view: Principles and applications of congestion pricing. TR News
**1993**, 167, 4–5. [Google Scholar] - Downs, A. Point of view: Implementing peak-hour road pricing at fullscale: Finding solutions to practical problems. TR News
**1993**, 167, 7–9. [Google Scholar] - Li, M.Z.F. The role of speed-flow relationship in congestion pricing implementation with an application to Singapore. Transp. Res. Part B Methodol.
**2002**, 36, 731–754. [Google Scholar] [CrossRef] - Yang, H.; Meng, Q.; Lee, D. Trial-and-error implementation of marginal-cost pricing on networks in the absence of demand functions. Transp. Res. Part B Methodol.
**2004**, 38, 477–493. [Google Scholar] [CrossRef] - Yang, H.; Xu, W.; Meng, Q. A sequential experimental approach for analyzing second-best road pricing with unknown demand functions. In Proceedings of the 16th International Symposium on Transportation and Traffic Theory, College Park, MD, USA, 19–21 July 2005. [Google Scholar]
- Zhao, Y.; Kockelman, K.M. On-line marginal-cost pricing across networks: Incorporating heterogeneous users and stochastic equilibria. Transp. Res. Part B Methodol.
**2006**, 40, 424–435. [Google Scholar] [CrossRef][Green Version] - Han, D.; Yang, H. Congestion pricing in the absence of demand functions. Transp. Res. Part E Logist. Transp. Rev.
**2009**, 45, 159–171. [Google Scholar] [CrossRef] - Xu, W.; Yang, H.; Han, D. Sequential experimental approach for congestion pricing with multiple vehicle types and multiple time periods. Transp. B Transp. Dyn.
**2013**, 1, 136–152. [Google Scholar] [CrossRef] - Meng, Q.; Xu, W.; Yang, H. Trial-and-error procedure for implementing a road-pricing scheme. Transp. Res. Rec.
**2005**, 1923, 103–109. [Google Scholar] [CrossRef] - Yang, H.; Xu, W.; He, B.S.; Meng, Q. Road pricing for congestion control with unknown demand and cost functions. Transp. Res. Part C Emerg. Technol.
**2010**, 18, 157–175. [Google Scholar] [CrossRef] - Han, D.; Xu, W.; Yang, H. Solving a class of variational inequalities with inexact oracle operators. Math. Methods Oper. Res.
**2010**, 71, 427–452. [Google Scholar] [CrossRef] - Zhou, B.; Bliemer, M.; Yang, H.; He, J. A trial-and-error congestion pricing scheme for networks with elastic demand and link capacity constraints. Transp. Res. Part B Methodol.
**2015**, 72, 77–92. [Google Scholar] [CrossRef] - Ye, H.; Yang, H.; Tan, Z. Learning marginal-cost pricing via a trial-and-error procedure with day-to-day flow dynamics. Transp. Res. Part B Methodol.
**2015**, 81, 794–807. [Google Scholar] [CrossRef] - Guo, R.Y.; Yang, H.; Huang, H.J.; Tan, Z. Link-based day-to-day network traffic dynamics and equilibria. Transp. Res. Part B Methodol.
**2015**, 71, 248–260. [Google Scholar] [CrossRef] - Xu, M.; Meng, Q.; Huang, Z. Global convergence of the trial-and-error method for the traffic-restraint congestion-pricing scheme with day-to-day flow dynamics. Transp. Res. Part C Emerg. Technol.
**2016**, 69, 276–290. [Google Scholar] [CrossRef] - Zhou, B.; Xu, M.; Zhang, Y. A trial-and-error congestion pricing method for day-to-day dynamic network flows considering travelers’ heterogeneous inertia patterns. Math. Probl. Eng.
**2019**, 2019, 8514765. [Google Scholar] [CrossRef][Green Version]

Potential Cases (Infeasible Regions Are Indicated by the Shadow Segment) | |
---|---|

(i) ${X}^{n}\ge {C}_{1}$, ${Y}^{n}\ge {C}_{2}$, ${X}^{n}+{Y}^{n}>{C}_{1}+{C}_{2}$. | (ii) ${X}^{n}\le {C}_{1}$, ${Y}^{n}\le {C}_{2}$, ${X}^{n}+{Y}^{n}<{C}_{1}+{C}_{2}$. |

(iii) ${X}^{n}\ge {C}_{1}$, ${Y}^{n}\le {C}_{2}$, ${X}^{n}+{Y}^{n}\ge {C}_{1}+{C}_{2}$. | (iv) ${X}^{n}\ge {C}_{1}$, ${Y}^{n}\le {C}_{2}$, ${X}^{n}+{Y}^{n}\le {C}_{1}+{C}_{2}$. |

(v) ${X}^{n}\le {C}_{1}$, ${Y}^{n}\ge {C}_{2}$, ${X}^{n}+{Y}^{n}\ge {C}_{1}+{C}_{2}$. | (vi) ${X}^{n}\le {C}_{1}$, ${Y}^{n}\ge {C}_{2}$, ${X}^{n}+{Y}^{n}\le {C}_{1}+{C}_{2}$. |

Unknown Demand Functions: |
---|

${f}_{1}(x)=0.3\mathrm{exp}(-0.3x)$, $0\le {f}_{1}(x)\le 1,x\in [0,\overline{x}]$. ${g}_{1}(x)=0.7\mathrm{exp}(-0.3x)$, $0\le {g}_{1}(x)\le 1,x\in [0,\overline{x}]$. ${h}_{1}(x-y)=\{\begin{array}{c}1,-\overline{y}\le x-y\le 0\\ 1-{(x-y)}^{2}/{\overline{x}}^{2},0x-y\le \overline{x}.\end{array}$ ${f}_{2}(y)=0.5\mathrm{exp}(-0.2y)$, $0\le {f}_{2}(y)\le 1,y\in [0,\overline{y}]$. ${g}_{2}(y)=0.9\mathrm{exp}(-0.2y)$, $0\le {g}_{2}(y)\le 1,y\in [0,\overline{y}]$. ${h}_{2}(y-x)=\{\begin{array}{c}1,-\overline{x}\le y-x\le 0\\ 1-{(y-x)}^{2}/(2{\overline{y}}^{2}),0y-x\le \overline{y}.\end{array}$ |

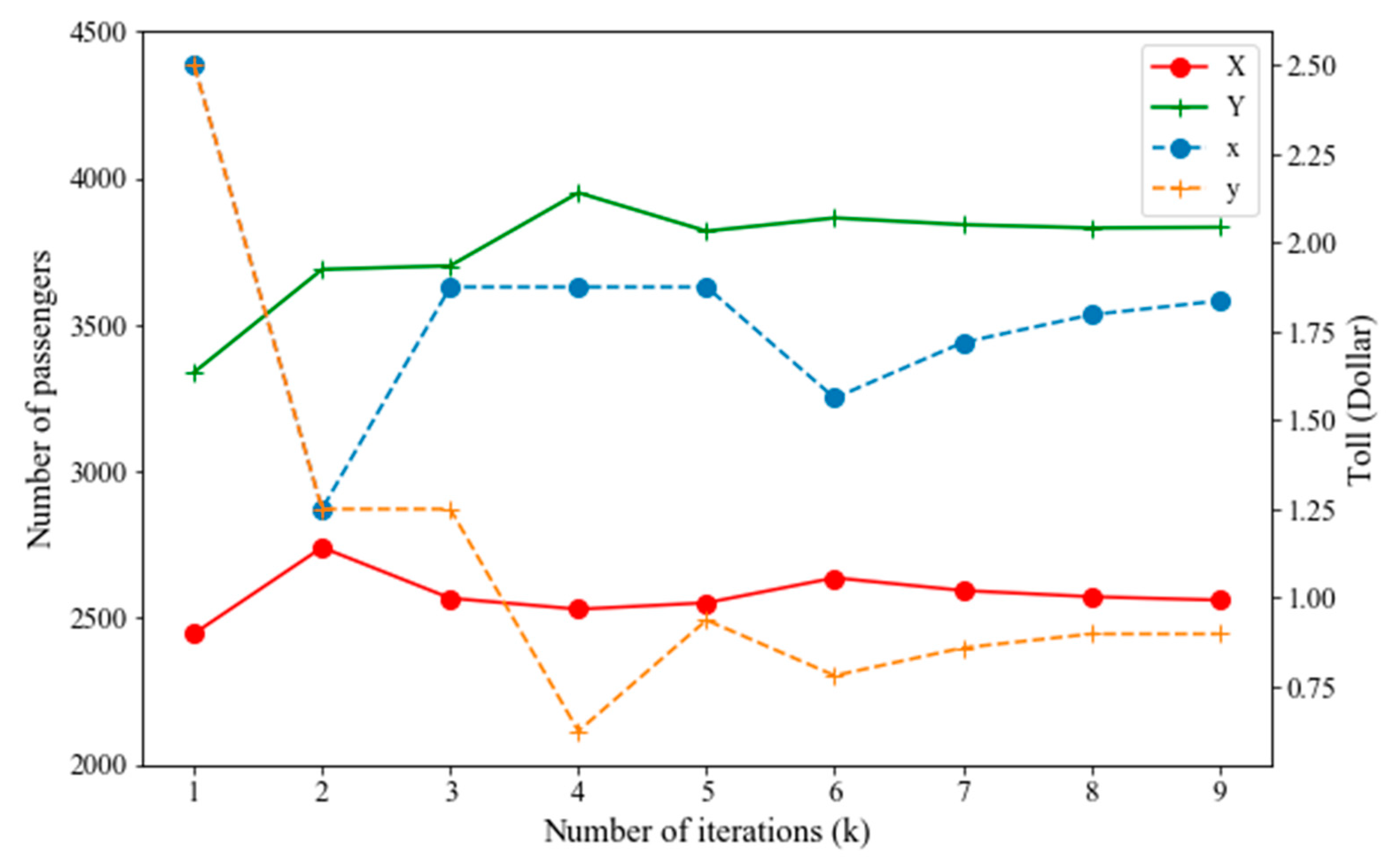

$\mathit{n}$ | $\mathit{x}$ | $\mathit{y}$ | $\mathit{X}$ | $\mathit{Y}$ | $\underset{\_}{\mathit{x}}$ | $\overline{\mathit{x}}$ | $\underset{\_}{\mathit{y}}$ | $\overline{\mathit{y}}$ | Case |
---|---|---|---|---|---|---|---|---|---|

1 | 2.5 | 2.5 | 2446.19 | 3337.32 | 0.0 | 2.5 | 0.0 | 2.0 | (ii) |

2 | 1.25 | 1.25 | 2740.21 | 3688.75 | 1.25 | 2.5 | 0.0 | 2.5 | (iii) |

3 | 1.25 | 1.25 | 2566.96 | 3701.25 | 1.25 | 2.5 | 0.0 | 1.25 | (vi) |

4 | 1.875 | 0.625 | 2529.46 | 3950.29 | 1.25 | 2.5 | 0.625 | 1.25 | (v) |

5 | 1.875 | 0.9375 | 2551.33 | 3819.34 | 1.25 | 1.875 | 0.625 | 0.9375 | (ii) |

6 | 1.875 | 0.78125 | 2636.54 | 3864.43 | 1.5625 | 1.875 | 0.78125 | 0.9375 | (i) |

7 | 1.5625 | 0.859375 | 2593.23 | 3841.48 | 1.71785 | 1.875 | 0.859275 | 0.9375 | (i) |

8 | 1.71875 | 0.8984375 | 2572.11 | 3830.31 | 1.796875 | 1.875 | 0.859375 | 0.9375 | (iii) |

9 | 1.796875 | 0.8984375 | 2560.52 | 3832.60 | 1.796875 | 1.875 | 0.859375 | 0.8984375 | (vi) |

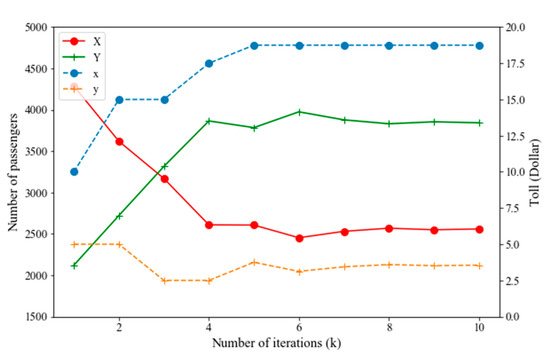

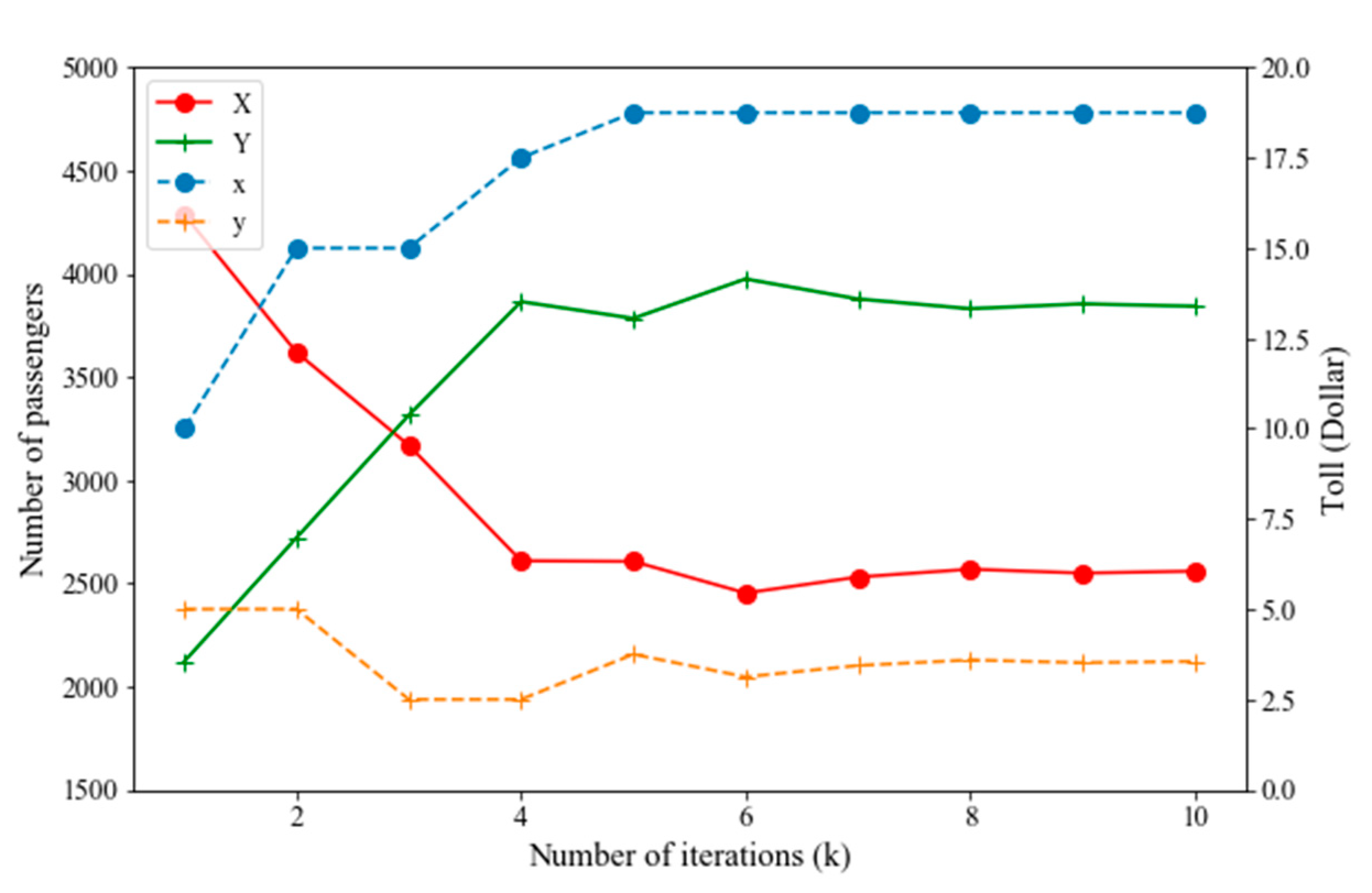

$\mathit{n}$ | $\mathit{x}$ | $\mathit{y}$ | $\mathit{X}$ | $\mathit{Y}$ | $\underset{\_}{\mathit{x}}$ | $\overline{\mathit{x}}$ | $\underset{\_}{\mathit{y}}$ | $\overline{\mathit{y}}$ | Case |
---|---|---|---|---|---|---|---|---|---|

1 | 10 | 5 | 4286.62 | 2121.46 | 10.0 | 20.0 | 0.0 | 10.0 | (iii) |

2 | 15 | 5 | 3619.32 | 2721.46 | 10.0 | 20.0 | 0.0 | 5.0 | (vi) |

3 | 15 | 2.5 | 3169.32 | 3315.13 | 15.0 | 20.0 | 0.0 | 5.0 | (iii) |

4 | 17.5 | 2.5 | 2609.13 | 3865.13 | 17.5 | 20.0 | 2.5 | 5.0 | (i) |

5 | 18.75 | 3.75 | 2606.27 | 3784.36 | 17.5 | 20.0 | 2.5 | 3.125 | (vi) |

6 | 18.75 | 3.125 | 2453.15 | 3975.35 | 17.5 | 20.0 | 3.125 | 3.75 | (v) |

7 | 18.75 | 3.4375 | 2530.49 | 3875.48 | 17.5 | 20.0 | 3.4375 | 3.75 | (v) |

8 | 18.75 | 3.59375 | 2568.58 | 3831.08 | 17.5 | 20.0 | 3.4375 | 3.59375 | (vi) |

9 | 18.75 | 3.515625 | 2549.58 | 3854.70 | 17.5 | 20.0 | 3.515625 | 3.59375 | (v) |

10 | 18.75 | 3.5546875 | 2559.09 | 3842.87 | 17.5 | 20.0 | 3.5546875 | 3.59375 | (v) |
