Chemical, Thermal, and Rheological Performance of Asphalt Binder Containing Plastic Waste

Abstract

In order to meet the environmental needs caused by large plastic waste accumulation, in the road construction sector, an effort is being made to integrate plastic waste with the function of polymer into asphalt mixtures; with the purpose of improving the mechanical performance of the pavement layers. This study focuses on the effect of a recycled mixture of plastic waste on the chemical, thermal, and rheological properties of designed asphalt blends and on the identification of the most suitable composition blend to be proposed for making asphalt mixture through a dry modification method. Thermo-gravimetric analysis, differential scanning calorimetry, and Fourier transform infrared spectroscopy analysis were carried out to investigate the effect of various concentrations and dimensions of plastic waste (PW) on the neat binder (NB). The frequency sweep test and the multiple stress creep and recovery test were performed to analyze the viscoelastic behavior of the asphalt blends made up of PW in comparison with NB and a commercial modified bitumen (MB). It has been observed that the presence of various types of plastic materials having different melting temperatures does not allow a total melting of PW powder at the mixing temperatures. However, the addition of PW in the asphalt blend significantly improved the aging resistance without affecting the oxidation process of the plastic compound present in the asphalt blend. Furthermore, when the asphalt blend mixed with 20% PW by the weight of bitumen is adopted into the asphalt mixture as polymer, it improves the elasticity and strengthens the mixture better than the mixture containing MB.

1. Introduction

The global plastics economy is mainly linear: plastics are produced, used, and generally disposed of with no recovery. In order to preserve the environment while meeting consumption demands, a global effort to shift the linear economy into a circular model must be made [1,2]. A circular economy model suggests the promotion and revalorization of plastics already in circulation [3]. To date one of the main environmental problems is pollution due to plastic waste: it degrades in a very long time and consequently ends up filling beaches, seas, and other natural places, when not correctly recycled or reused. Indeed, the COVID-19 pandemic has highlighted the need for single-use plastics since potential health risks and societal fears concerning virus-contaminated products introduce consumer fears of reuse [3]. Nevertheless, these socio-material challenges need a systematic approach to plastic waste management. On this basis, the sector of asphalt pavement construction has provided a good opportunity to recycle, reuse, and reduce plastic waste. For this reason, many researchers in the road construction sector are investigating the reuse of plastics/polymers into bituminous mixtures [4]. The employment of polymers as bitumen modifiers has been generally studied for decades. Polymer modification of bitumen is already practiced by the asphalt industry with the aim to improve the properties related to road pavement resistance. Indeed, it has been proved that the addition of polymer into binder enhances its stiffness at high temperature, its moisture resistance, and its fatigue life [5].

Some authors have shown that using a 4.5% of SBS polymer with high-vinyl content by weight of the binder increase the number of fatigue cycles to failure when compared to a commercial polymer-modified bitumen and a virgin bitumen at any strain level [6]. Furthermore, it was found that the modification of neat bitumen using a hybrid combination of styrene-ethylene/propylene-styrene (SEPS) and montmorillonite (MMT) clay improves not only its performance at high temperature but also the aging resistance due to a lower increase in carbonyl functional groups when exposed to oxidation [7].

As a consequence of the massive plastic waste that is generated worldwide, the use of waste plastics/polymers has been also investigated. According to Wu and Montalvo [8] and Vargas and Hanandeh [9], the major types of waste polymers used to modify bitumens are polyethylene teraphthalate (PET) [10,11], which not only reduced the amount of binder required for the optimization of an asphalt mixture but also produced a significant decrease in plastic deformations; high-density polyethylene (HDPE) [12], whose optimum content between 6 and 10% was found to improve the fatigue phenomenon where the number of loading cycles increases; polyvinyl chloride (PVC) [13], which increases the strength and stability of the mix; low-density polyethylene (LDPE) [14,15,16], which has been found to play important roles in asphalt’s low-temperature properties and hot storage stability; polypropylene (PP) [17], which produced increases of viscosity, softening point, flash point, and the decreasing of density when added to a commercial neat bitumen, penetration, and solubility, and polystyrene (PS) [18] that can be reduced 1% of bitumen in mixture replacing it producing an extra-rigidity on the final asphalt mixture. Other polymers that are attracting researchers’ attention are ethylene-vinyl acetate (EVA) [19,20,21], polyurethane (PU) [22,23,24], acrylonitrile butadiene styrene (ABS) [25], and polycarbonate [26].

Among the waste plastic polymers, polyethylene (PE) is considered the most effective for bitumen modification [27,28].

For example, Padhan and Sreeram [29] evaluated the effect of adding PE into a neat commercial-grade VG 10 binder with a 2:1 ratio to modify it. Better performances were obtained, in particular, the addition of PE exhibited higher softening point and rotational viscosity values, and lower penetration values than the neat binder.

Kakar et al. [30] showed that the addition of 5% PE by mass to the binder lead to an increase in the resistance to the rutting with respect to commercial polymer-modified binders.

Brasiliero et al. [31] analyzed the feasibility of using two percentages (6.5 and 12.5% by the weight of binder) of flakes made from recycled PE as binder modifiers. It was found that as the amount of PE increases the binder shows similar properties of a modified binder manufactured in the refinery, leading to an increase of the complex modulus and at the same time a reduction of the phase angle at high temperature.

Some studies were focused on the effect of mixing high-density polyethylene (HDPE) (melting point at 180 °C), low-density polyethylene (LDPE) (melting point at 160 °C), and polypropylene (PP) (melting point at 190 °C) on the viscoelastic performance of a traditional binder [32]. It has been shown that the addition of LDPE at loading above 2% by the weight of binder increase the viscoelastic behavior of the bitumen [33] while the addition of PE at loading between 2% and 8% by the weight of the binder [34] improves the fatigue performance of the binder with an increase of the failure values (Nf).

Nizamuddin et al. [5] reported that the addition of recycled LDPE as a modifier for bitumen showed significant improvements in the physical, chemical, rheological and thermal properties of base bitumen. Specifically, a concentration between 3 and 6% by the weight of bitumen is suggested to enhance sustainability and increase performance, thus favoring its use during construction. Other researchers have studied different plastic waste blends to find the optimum compositions for pavements that could withstand heavily loaded vehicles and hot climates. Particularly, several studies have been conducted on the reuse of PET widely used in the production of beverage containers and polyester textiles [35]. Merkel et al. [35] showed that additives made from deconstructed PET wastes, chemically modified through aminolysis to obtain terephthalic amides, improve the performance properties of asphalt at various experimental conditions.

It has already been proven that the mixtures containing waste plastic bottles have lower optimum asphalt content compared to the conventional mixture, which could reduce the amount of asphalt binder used in road construction [36]. When plastic wastes are used as modifiers into asphalt mixtures [37], the performance properties of the asphalt mixture are enhanced, in particular, the mixture turns to be less sensitive to moisture damage.

Given the above scenario, the aim of the present research is to investigate the effect of various concentrations and dimensions of plastic waste (PW), mainly composed of a mixture of PET and PE, on the structural, thermal, and rheological properties of asphalt blends, and, in a preliminary analysis, the feasibility to introduce PW into asphalt mixture through a dry method, to obtain performance similar to those of mixture containing commercial modified bitumen. A series of tests have been carried out as synthetized in the experimental program shown in Figure 1. The first phase of the research deals with the investigation of the main properties of the materials that are adopted for making the asphalt blends, and the asphalt mixtures, i.e., neat bitumen (NB) 50/70 penetration grade, modified bitumen 10/40–70 (MB), plastic waste, and limestone aggregates. After that, the asphalt blends containing PW were prepared, and jointly the basic properties in terms of ring and ball (EN 1427 [38]) and viscosity (EN 13702 [39]) were analyzed. Chemical characterization and a thermal degradation analysis were carried out on the asphalt blends to explore the effect of PW when mixed at a high temperature of 150 °C with NB. Subsequently, the main rheological properties were assessed, including the two binders (NB and MB), by means of a dynamic shear rheometer (DSR) and performing a frequency sweep (FS) test (EN 14770 [40]) and a multiple stress creep and recovery (MSCR) test (EN 16659 [41]). After the identification of the most suitable asphalt blend with PW among those analyzed, the same amount of PW corresponding to this blend was used for the preparation of an asphalt mixture optimized according to the Superpave procedures through the dry method, in compliance with the same volumetric properties of a traditional hot mix asphalt with NB and a hot mix asphalt prepared with MB, used as control mixes. On the three obtained mixtures, the indirect tensile strength (EN 12697-23 [42]) and the moisture damage (EN 12697-12 [43]) tests were performed to investigate the effect of PW within an asphalt mixture.

2. Materials and Methods

2.1. Materials

2.1.1. Binders

The neat bitumen (NB), 50/70 penetration grade, was obtained from an oil refinery in Southern Italy. The blends were prepared using NB while a modified bitumen 10/40–70 (MB) was used as a control binder.

Table 1. Bitumen basic properties.

Properties	Unit	Standard	Bitumen
			NB	MB
Penetration at 25 °C	dmm	EN 1426 [44]	68	52
Softening point (R&B)	°C	EN 1427 [38]	46	87
Dynamic viscosity at 135 °C	Pa s	EN 13702 [39]	0.25	1.38
Dynamic viscosity at 100 °C			4.10	9.18
Dynamic viscosity at 60 °C			185	1560

gives a summary of the results of some tests performed on the two bitumens.

2.1.2. Plastic Waste

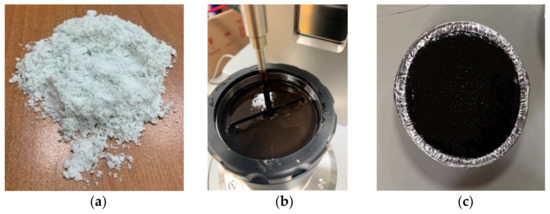

The plastic waste (PW) used as a modifier was obtained from the mechanical shredding of plastic bottles and made up of different plastic waste types, PET, HDPE, LDPE, and PE (see Figure 2a). The shredded plastic was washed and then dried by centrifugation and airstream ventilation for the removal of non-plastic residual material. The final size was obtained by an extruder equipped with a series of perforated plates whose diameter range from 4 to 0.125 mm.

2.1.3. Preparation of the Bituminous Blends

Two different samples of PW were adopted to obtain the modified bituminous blends: (a) PW with size/diameter ranging from 4 mm to 0.063 mm, and (b) PW with size/diameter ranging from 4 mm to 0.25 mm.

Therefore, three bituminous blends were prepared as follows:

• NB mixed with 10% PW by the weight of NB whose size ranges between 4 and 0.25 mm, (B1).
• NB mixed with 10% PW by the weight of NB whose size ranges between 4 and 0.063 mm, (B2).
• NB mixed with 20% PW by the weight of NB whose size ranges between 4 and 0.063 mm, (B3).

An asphalt blend with NB plus 20% PW by the weight of NB whose size ranges between 4 and 0.25 mm was not studied, since the obtained compound was not workable.

The blend preparation consisted of the following steps [45]: first of all, the bitumen was preheated in a metal container at 150 °C for 1 h, and then poured into a steel container previously oven heated to 150 °C. A known amount of PW was slowly added to the bitumen and then mixed in the mixer at 4500 rpm speed for approximately 10 min (see Figure 2b), until a homogeneous compound was reached (see Figure 2c).

A preliminary analysis was made in terms of ring and ball (R&B) by comparing NB with the obtained three mixtures (B1, B2, and B3) to assess the effect derived from the addition of PW. As can be seen from the results reported in

Table 2. Basic properties of studied materials: ring and ball and viscosity at 100 °C and 135 °C.

Sample	R&B	Viscosity at 100 °C	Viscosity at 135 °C
	(°C)	(Pa × s)	(Pa × s)
MB	87.0	9.18	1.38
NB	46.0	4.10	0.25
B1	56.8	19.73	1.56
B2	55.2	8.83	4.93
B3	86.3	15.62	2.45

, R&B values of B1, B2, and B3 samples have been improved by 23, 20, and 88%, respectively, in comparison with NB.

As expected, the viscosity values (see Table 2) of the three blends B1, B2, and B3 are higher than those of NB, at both 100 °C and 135 °C. In particular, at 100 °C, the lowest increase (115%) was shown by the B2 sample while the highest (381%) was obtained by the B1 sample, while at 135 °C keeping constant the PW amount at 10%, B1 shows a lower viscosity value (68%) compared to B2.

It is worth noting that, both at 100 °C and 135 °C, the 10% PW blends show viscoelastic properties similar to the MB sample, in particular, the B2 sample at 100 °C and the B1 sample at 135 °C.

It is noticeable from the above results that the increase of the PW content with a narrower size range gives rise to blends more sensitive to the temperature and, therefore, more workable during the blending operation at temperatures around 150 °C.

2.1.4. Grading Curve with Limestone Aggregates

An asphalt concrete (AC) grading curve with a maximum size of 20 mm (AC20) for a binder layer was designed in this study by adopting four different sizes of limestone aggregates provided by a local quarry in southern Italy;

Table 3. Aggregate main properties.

	Los Angeles (%) EN 1097-2 [46]	Shape Index (%) EN 933-4 [47]	Flat Index (%) EN 933-3 [48]	Sand Equivalent (%) EN 933-8 [49]	Gsa (g/cm3) EN 1097-6 [50]	Gsb (g/cm3) EN 1097-6 [51]
Coarse aggregate
Limestone 10/18	20.6	4	8	n.d. *	2.694	2.686
Limestone 6/12	20.1	8	11	n.d.	2.713	2.687
Fine aggregate
Limestone sand	n.d.	n.d.	n.d.	95.3	2.718	2.679
Limestone filler	n.d.	n.d.	n.d.	n.d.	2.737	2.737

* n.d. = not determined.

shows the mechanical and volumetric properties (apparent specific gravity (Gsa) and bulk specific gravity (Gsb)) of the limestone aggregates.

The design of the grading curve was defined according to the following requirements:

• EN 13108-1 [51] (see Table 1 in EN 13108-1);
• Special tender documents of southern Italy for a binder layer;
• Superpave requirements, according to the control points, defined for a nominal maximum aggregate size of 19 mm, and a sand restricted zone to be avoided for compatibility problems [52];
• Maximum-density gradation, according to the Fuller and Thompson equation, to be avoided (n = 0.45) [53].

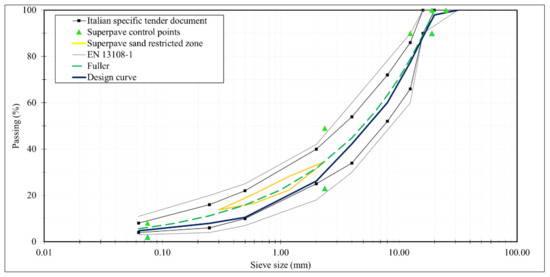

The obtained design curve is reported in Figure 3.

2.1.5. Mix Design

According to the purpose of the study, to carry out the analysis on the asphalt mixture when PW is added using the dry method, it was necessary to optimize, in the first analysis, a hot mix asphalt with NB (HMA_NB) and a hot mix asphalt made up of MB (HMA_MB), with the same volumetric properties [54]. The Superpave protocol was followed for the mix design phase, adopting a gyratory compactor to make cylindrical specimens (see Figure 4b) in compliance with EN 12697-31 [55].

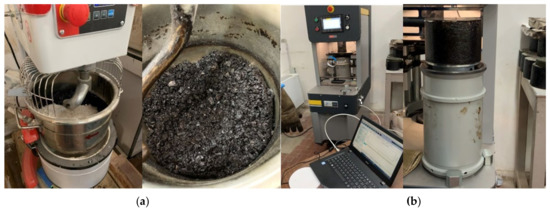

The mixing procedure adopted to define the optimum binder content (OBC) for both HMA_NB and HMA_MB was as follows:

• The aggregates were oven heated at 180 °C, and since NB and MB showed different viscosity values (see Section 2.1.3) and therefore required different mixing temperatures, NB, and MB were preheated respectively at 150 and 185 °C.
• The coarse aggregates and sand were blended with the bitumen for 4 min at the mixing temperature depending on binder type, after that the filler was added and the mixing continued for others 5 min (see Figure 4a).

After the mixing phase, the mixture was put in the oven for 2 h to reach a uniformity compaction temperature of 150 and 175 °C for HMA_NB and HMA_PMB, respectively. To satisfy the Superpave requirement for a Va equal to 4% at Ndes, 100 and 112 were found to be the appropriate Ndes for HMA_NB and HMA_MB respectively. The results of the mix design are shown in

Table 4. Superpave optimization: HMA_NB vs. HMA_PMB volumetric properties.

Mixture	Va (%)	VMA (%)	VFA (%)	%Gmm at Ndes (%)	Dust Portion (-)
HMANB	4.0	14.2	70.6	85.57%	1.1
HMAMB	4.1	14.4	71.8	95.90%	1.1

.

2.2. Methods

2.2.1. Chemical Characterization: Fourier Transform Infrared Spectroscopy-FTIR

FTIR spectra were recorded at room temperature by using an infrared spectrometer (model Frontier Dual Ranger, PerkinElmer, Waltham, MA, USA) in attenuated total reflectance (ATR) mode from 650 to 4000 cm⁻¹ [2,56]. Spectra were recorded at 4 cm⁻¹ resolutions and reported the average of 64 scans. It has been proved by several researchers [57] that infrared spectroscopy (FTIR) in ATR mode is an efficient and reliable method to investigate and monitor the chemical arrangement (i.e., oxidative phenomena) and structure of asphalt samples. Hence, it has been used to analyze NB, its composite samples, B1, B2, B3, and MB.

In the region ranging from 2000 to 600 cm⁻¹, the main vibration peaks, which are indicators of asphalt binder oxidation level, absorb namely carbonyl (C=O, around 1700 to 1740 cm⁻¹), sulfoxide functional groups (S=O, around 1030 cm⁻¹), along with butadiene (−CH=CH−, 960 cm⁻¹) and styrene (aromatic groups, around 690–750 cm⁻¹) peaks [2].

In order to better understand the influence of PW filler on the chemistry of bitumen, we performed the FTIR characterization of the “neat” PW and of the PW after thermal treatment at 150 °C, which represents the average temperature used for the preparation of bitumen composites. All the spectra were baseline corrected by using Perkin Elmer Spectrum software.

2.2.2. Thermal Degradation Properties (TGA and DSC)

The thermal degradation behavior was evaluated by thermo-gravimetric analysis (TGA) and differential scanning calorimetry (DSC). TGA was carried out in air and in nitrogen flow (flow rate = 40 mL/min) using a TGAQ500 TA instrument, at a heating rate of 10 °C/min in the temperature range from 30 °C to 1000 °C, with sample mass of approximately 10 mg [58,59].

DSC analyses were conducted on Q1000 TA instruments. Samples were first heated from −80 °C to 200 °C and then subjected to cooling up to −80 °C, and finally reheated to 200 °C. The rates of heating and cooling were 10 °C/min.

2.2.3. Properties Investigation of Asphalt Binders and Mixtures

The rheological investigation of the asphalt binders was carried out by means of the frequency sweep (FS) test (EN 14770 [40]) and multiple stress creep and recovery (MSCR) test (EN 16659 [41]).

The FS test was carried out using frequency values falling within a range from 0.1 to 10 Hz (a total of 20 observations were made with a gap of 0.1 for frequencies from 0.1 to 1 Hz, and a gap of 1 Hz for frequencies from 1 to 10 Hz, passing through 1.59 Hz) at six test temperatures (0, 10, 20, 30, 40, and 50 °C). A Dynamic Shear Rheometer (DSR, Anton Paar Smart PAVE 102 type) was used.

A “25 mm plate-plate geometry” with a 1 mm gap was adopted to carry out the rheological analysis at test temperatures above 30 °C, and an “8 mm plate-plate geometry” with a 2 mm gap as the DSR configuration was used to investigate all the specimens at test temperatures below 30 °C.

The ratio between the maximum shear stress (${\tau }_{max}$) and the maximum shear strain (γ_max) determined the complex shear modulus (|G*|) (see Equations (1) and (2)), while the lag between τ_max and γ_max obtained the phase angle (δ).

$$|G^{*}|=\frac{{\tau }_{max}}{{\gamma }_{max}}$$

(1)

$$\left|G^{*}\right|=\sqrt{G{\prime }^2+G{″}^2}=\left|G^{*}\right|·cos\phi +\left|G^{*}\right|·sen\phi$$

(2)

where G′ is the storage modulus and G″ is the loss modulus, both in kPa.

The MSCR test was carried out using DSR. Non-recoverable creep compliance (Jnr), which is one of the parameters that give a measure of the degree of resistance of a bituminous mastic and/or binder to permanent deformations under repeated loading–unloading cycles was established in accordance with EN 16659 [41]: two stress levels of 0.1 kPa and 3.2 kPa, and two test temperatures (40 and 50 °C) were used.

The mean value of non-recoverable creep compliance at the N-th cycle ($J_{nr}^N$, see Equation (3)) and the mean value of the total creep compliance at the N-th cycle ($J_{tot}^N$, see Equation (4)) over ten cycles of creep and recovery was calculated for each temperature under 0.1 and 3.2 kPa.

$$J_{nr}^N=\raisebox{1ex}{${\epsilon }_{10}^N$}\!\left/ \!\raisebox{-1ex}{$\tau $}\right. \left({\mathrm{kPa}}^{-1}\right)$$

(3)

$$J_{tot}^N=\raisebox{1ex}{${\epsilon }_1^N$}\!\left/ \!\raisebox{-1ex}{$\tau $}\right. \left({\mathrm{kPa}}^{-1}\right)$$

(4)

where ${\epsilon }_{10}^N$ is the strain value at the end of the recovery phase (after 10 s) of the N-th cycle, $\tau$ is the applied stress, 0.1 kPa and 3.2 kPa and ${\epsilon }_1^N$ is the strain value at the end of the creep phase (after 1 s) of the N-th cycle.

The indirect tensile strength (ITS) and the indirect tensile stiffness modulus (ITSM) were adopted for the mechanical characterization of the asphalt mixtures.

The ITS was carried out according to EN 12697-23 [42]. The cylindrical specimen to be tested is brought to the specified test temperature of 10 °C, placed in the compression testing machine between the loading strips, and loaded diametrically along the direction of the cylinder axis with a constant speed of displacement until it breaks. The ITS is the maximum tensile stress calculated from the peak load applied at break and the dimensions of the specimen, calculated by using Equation (5).

$$ITS=\frac{2P}{\pi DH}$$

(5)

where ITS is the indirect tensile strength (GPa), P is the peak load (kN), D is the diameter of the specimen (mm), and H is the height of the specimen (mm).

A total of three specimens were tested and the final ITS value was obtained as a mean value of the three determinations.

The stiffness modulus conducted at three different temperatures of 10, 20, and 40 °C was calculated using an indirect tensile load configuration, in compliance with ANNEX C of the EN 12697-26. Since the standard requires that the peak load value shall be adjusted to achieve a target peak transient horizontal deformation of 0.005% of the specimen diameter when the test temperature is 10 °C, the test was conducted under strain control to keep constant the strain level below 50 με for each temperature. The ITSM was calculated using Equation (6).

$$ITM=\frac{F\times \left(\nu +0.27\right)}{z\times h}$$

(6)

where F is the peak value of the applied vertical load (N), z is the amplitude of the horizontal deformation obtained during the load cycle (mm), h is the mean thickness of the specimen (mm), and $\nu$ is Poisson’s ratio (assumed to be 0.35).

3. Results and Discussion

3.1. FTIR Characterization

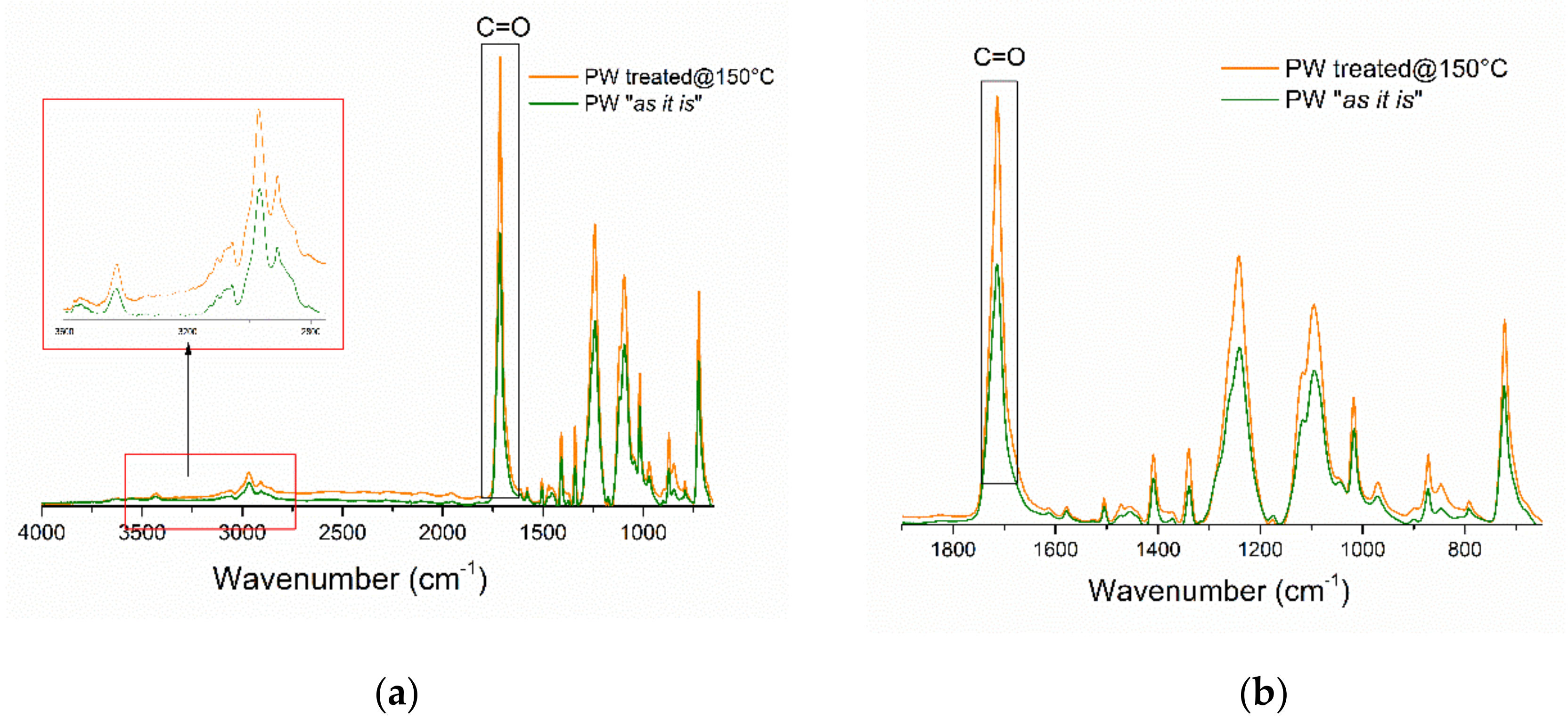

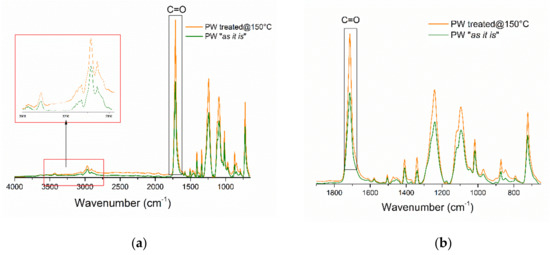

In order to better understand the role of PW in the development of bituminous composites and on their chemistry, the FTIR characterization of “neat” PW and of PW after thermal treatment at 150 °C, which represents the processing temperature for the production of bitumen composites, has been performed. From the analysis of the FTIR spectra related to the PW powders before and after the thermal treatment (see Figure 5), the main characteristic absorption peaks correlated to the various plastic materials contained in the PW (PET, HDPE, LDPE, PP) have been identified. For instance, the C-H stretching vibration absorption, in the range 2964–2910 cm⁻¹, which is from a bond uniquely identified in polymeric materials, along with the stretching vibrations of C-C and C-O-C bonds around 1016 cm⁻¹ and 1100 cm⁻¹ and the bending vibrations of CH₂ at 1293 cm⁻³ were identified. Yet, the specific C=O (carbonyl functional group) vibration peaks, mainly related to the abundant presence of polyesters in the investigated PW, such as PET, were identified at around 1716 cm⁻¹. Moreover, a further sharp peak at 3435 cm⁻¹ was ascribed to the O-H and/or N-H stretching vibrations, attributed to the hydrolytic and oxidizing processes occurring on the surface of the PW [2,60]. The comparison of the spectra before (green curve) and after (red curve) the thermal treatment at 150 °C also shows an increase in the intensity of the carbonyl absorption group (C=O) in the thermally treated sample. This is mainly due to the oxidation of polyolefins (LDPE, HDPE, PP) exposed at high temperatures [2,60].

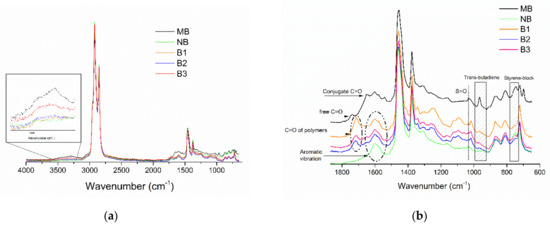

Figure 6 reports the FTIR spectra of neat and composite bitumen samples (MB, NB, B1, B2, and B3), and

Table 5. Assignments of the main IR bands of bitumen samples and their composites.

Assignment	Groups Assignment			Samples
		MB	NB	B1	B2	B3
υst C-H	Aliphatic species	2900	2900	2900	2900	2900
υst C=O	Free carbonyl	1741	n.d.	1716	1716	1716
υst C=O	Conjugate carbonyl	1685	n.d.	n.d.	n.d.	n.d.
υst C=C	Aromatic ring vibration	1605	1601	1590	1590	1590
δ C-H	Methylene	1373	1373	1373	1373	1373
υst S=O	Sufoxide	1033	1030	1031	1031	1031
υst C-O-C	Ether	n.d.	n.d.	1015	1015	1015
υst -HC=CH-	Trans-butadiene block	~965	n.d.	~968	~968	~968
δ C-H	Styrene block	~748	~748	~748	~748	~748
δ C=C	Aromatic ring vibration	813	815	815	815	815

summarizes the main vibrational assignments. The assignments around 2850 cm⁻¹ and 2920 cm⁻¹ were ascribed to the stretching vibrations of the aliphatic C-H bonds and the corresponding bending vibrations were identified at 1460 cm⁻¹. Additionally, the C=C ring vibration bands from aromatic species were recorded at around 1605–1590 cm⁻¹.

In the vibrational range 1500–1800 cm⁻¹, MB showed some oxidized species which come from the aging of SBS moieties contained in the bitumen [57], i.e., the C=O vibration peaks, at 1741 cm⁻¹, are correlated to the free carbonyl, and at 1690 cm⁻¹, are associated to the conjugate carbonyl. This vibration peak was not observed for the NB, thus indicating that the NB is not oxidized. For the samples B1, B2, and B3, the stretching vibrations of free-carbonyl group C=O were recorded at lower wavenumbers, namely around 1716 cm⁻¹. This peak can be correlated to the carbonyl stretching of PW as observed in the spectra reported in Figure 5. This means that the addition of PW in the bitumen blends does not affect the oxidation/aging process of bitumen.

Additionally, for the MB sample and for NB, a new characteristic oxidation peak at around 1030 cm⁻¹ has been observed and identified as the S=O bond in sulfoxide. Instead, in the case of the B1, B2, and B3 blends, in addition to the S=O slight peak (~1033 cm⁻¹), a vibrational peak at 1018 cm⁻¹, attributed to the C-O-C bond of plastic waste, was also observed (Figure 6b).

Furthermore, the vibration peaks associated with the trans-di-substituted –CH=CH− butadiene block (968 cm⁻¹) and to the C-H aromatic mono-substituted (styrene block, at 748 cm⁻¹) have been highlighted in the spectra of MB samples and NB. At the same wavenumber values, a small shoulder has been also recorded for the investigated blends (B1, B2, and B3).

Moreover, a slight band at around 3400 cm⁻¹ (correlated to the -OH-stretching) has been observed for MB samples (mainly for B3), likely related to the oxidation of the polybutadiene portion in the copolymer.

From the discussion above, it can be concluded that the addition of PW does not affect the oxidation process of SBS-based bitumen, but its presence significantly improves the aging resistance if compared to results obtained using other fillers such the crumb rubber, as also observed by other authors [60].

3.2. Thermal Analysis (TGA and DSC) of Neat Plastic Waste, Neat Bitumen, and Their Composites

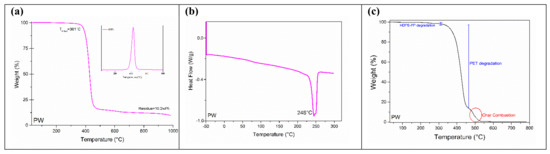

To better evaluate the effect of PW on the thermal behavior of composite bitumen, thermal degradation properties of neat PW through TGA (in both air and N₂ atmosphere) and DSC analysis have been carried out and the results are reported in Figure 7. In particular, TGA in a N2 atmosphere of the PW sample (Figure 7a) showed a degradation step in the range 360–420 °C with an onset temperature at 361 °C, and a corresponding weight loss of about 90%, that is likely related to the thermal degradation of PET. As already evidenced by FTIR analysis, DSC results (see Figure 7b) clearly show that the main component of the mixture is PET, with its typical melting temperature observed at 248 °C. In addition, from TGA under air atmosphere (reported in Figure 7c) the thermogram shows three separate portions of the mass loss curve: the first one correlated to the HDPE/PP mix (around 3 wt% of mass loss) and the second one to the PET (around 84 wt% of weight loss), both degrade quickly into char and volatiles at around 150–250 °C and 377–527 °C, respectively [61]. In the third part, further increase in temperature slowly decomposed (~13%) the char, which is combusted by reacting with oxygen. From this last analysis, it is possible to assume that in the PW mixture there are 96.5 wt% of PET and 3.5 wt% of HDPE/PP mix.

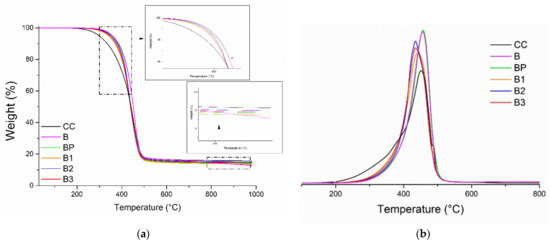

In Figure 8 the thermograms of the MB, NB, and their derivatives are reported. The DTG (see Figure 8b) was used to identify the point at which weight loss is more evident and to determine: (i) the onset degradation temperature (T_onset), (ii) the maximum decomposition temperature (T_max), and (iii) the corresponding weight loss as well as (iv) the yield of residual char. The main data are summarized in

Table 6. Thermal properties of bitumen samples.

Sample	Tonset (°C)	Tmax (°C)	Loss Weight (wt%)	Char (wt%)
PW	361	427	90%	10.20
MB	200	452	84.00	16.00
NB	276	456	85.75	14.25
NBat150°-10 min	278	456	87.00	13.00
B1	275	442	86.20	13.80
B2	275	434	85.00	15.00
B3	276	435	85.30	14.30

. For all the investigated systems, an intense degradation event related to the random break/rupture process and subsequent pyrolysis of the components present in the bitumen samples was observed [62]. The DTG curves (see Figure 8b), showed that MB has the lowest thermal stability with respect to all the other samples, whereas the NB sample exhibited higher thermal stability with respect to its composites. This is due to the presence of the polymeric waste (PET-HDPE-LDPE-PP) which, with its T_max equal to 427 °C, slightly decreases the T_max value of NB from 456 °C to 442, 434, and 435 °C, for the three investigated blends B1, B2, and B3, respectively.

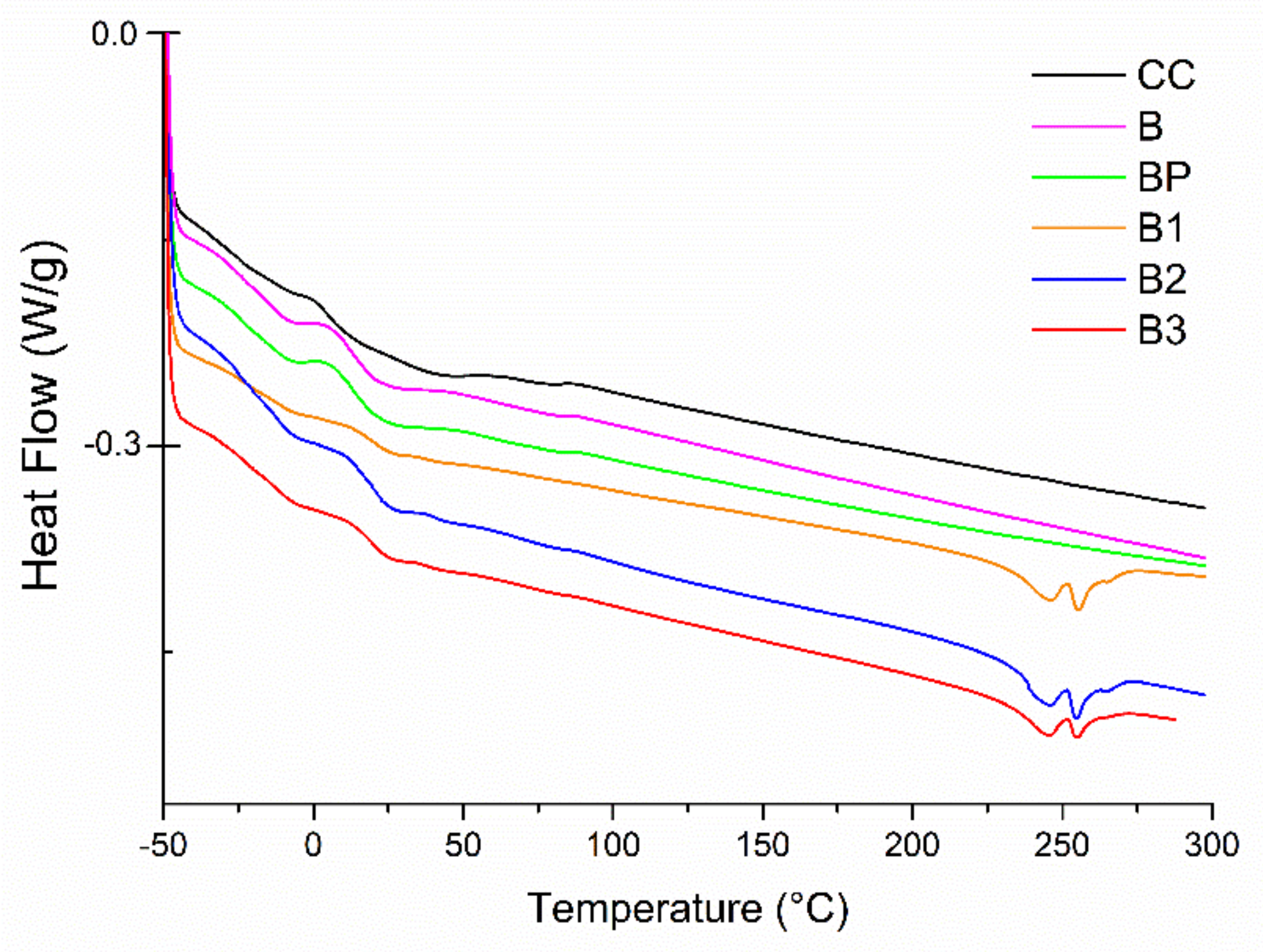

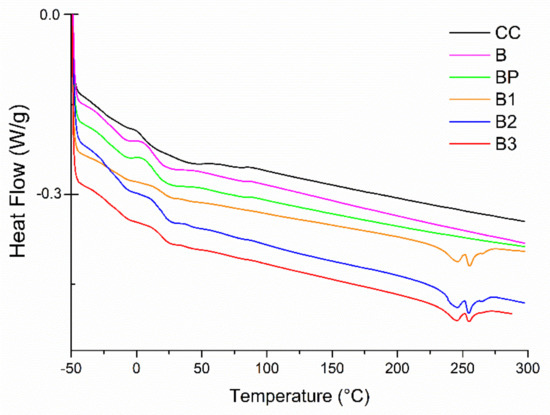

In Figure 9, DSC thermograms of all the investigated samples are reported. MB and NB samples showed glass transition temperature (T_g) values of −20 °C, 10 °C, and 60 °C which Özdemir et al. [63] associated, respectively, to the saturate, aromatic, and resin components of the bitumen. During the evaluation of possible interactions among the components in the bituminous blend, the obtained DSC results showed that the presence of PW does not bring any significant change in the T_g of the composites, whereas some differences can still be observed in the melting temperatures. Indeed, DSC curves revealed two sharp melting peaks (T_m = 246 °C and 256 °C) which indicates, as expected, the presence of plastic components in the blend and, particularly, the presence of different types of polymers in the PW including PET whose crystalline melting temperature is about ∼260 °C. It is worth noting that the blend of bitumen and PW is incompatible in nature [63]. They observed that, at low PW content (up to 5%), the presence of small melting peaks has been observed, indicating some level of compatibility. However, at higher loading content (i.e., 7%), two distinct and sharp melting peaks have been observed, thus indicating a high level of incompatibility of polymers in the bituminous matrix. Similar behavior was observed in the DSC curves of the samples investigated in the present work, thus confirming the incompatibility of the blends.

3.3. Performance Results of Asphalt Binder and Mixtures

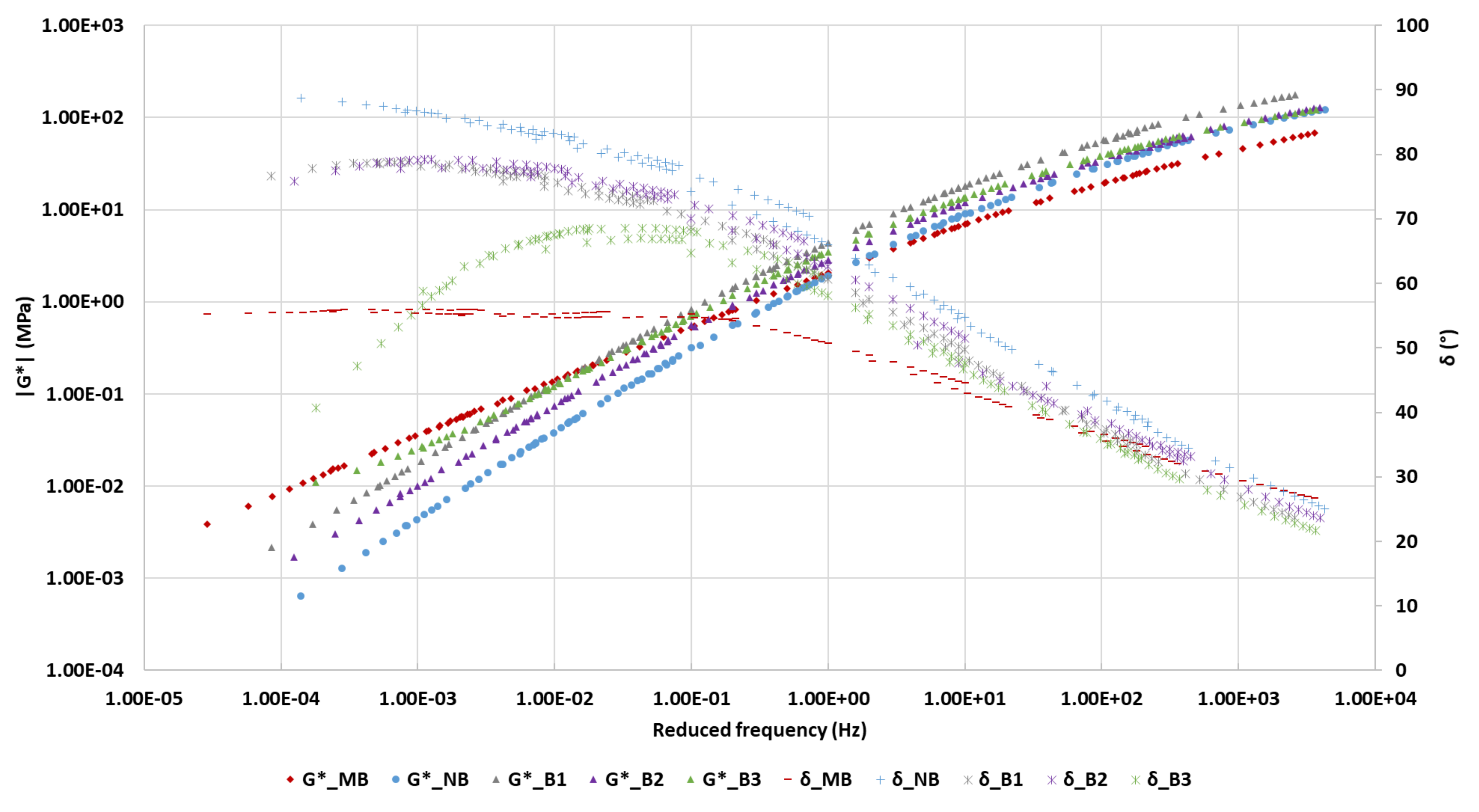

In the first analysis, to evaluate the FS results the master curves have been designed (see Figure 10) [32].

In Figure 10 it can first be observed that the three blends show different behavior as the temperature increases if compared to NB. At low temperatures, the B2 and B3 blends behave in the same way as NB in terms of |G*|, while B1 showed a 47% higher |G*| than NB; at high test temperatures, the behavior of B2 and B3 is changed, resulting in a |G*| value respectively 80 and 333% higher compared to NB.

For test temperatures below 30 °C, B1 returned a |G*| value on average 77% higher than that of NB, while for test temperatures above 30 °C, B3 achieved a |G*| on average 333% higher than NB.

Comparing the three blends (B1, B2, and B3) it is possible to notice that the complex shear modulus of B1 for temperatures below 30 °C is on average 31 and 34% higher than B2 and B3 respectively; at test temperatures above 30 °C B1 is kept above B2 on average by 20%, while compared to B3 is reduced of 37%.

In order to identify if the performance of the three blends matched the modified bitumen (MB), a further comparison between MB and the three blends was carried out. It is noticeable from Figure 10 that MB returned for test temperatures below 40 °C a |G*| value on average 40% lower than the three asphalt blends, instead for temperatures above 40 °C, MB achieved the best performance, in particular |G*| is slightly higher of 5% than B3 that returned the highest |G*| values for high test temperatures in comparison to the remaining blends with PW (B1 and B2).

At high temperatures, the asphalt binders behave like viscous fluids with no capacity for recovering with no viscous component of |G*|, since δ = 0°. Under normal pavement temperature and traffic loading, bituminous binders act with the characteristics of both viscous liquids and elastic solids; when the binders are loaded, part of their deformation is elastic and part is viscous. Even if two binders are viscoelastic and have the same |G*|, the smaller δ value establishes which one is more elastic than the other, and the deformation could be recovered much more from an applied load.

Therefore, an analysis of the phase angle was carried out. First of all, as reported in Figure 10, it is noticeable that the phase angles of the three blends are on average 11% lower than NB; looking in more detail the single blends B1 and B2 returned, in particular, a constant decrease of 8% regardless of the temperatures, while B3 until 30 °C is 14% lower than NB decreasing even more of 19% and 29% at 40 and 50 °C, respectively. In this case, it is evident that the elasticity of the blends is given by the amount of PW that for B3 resulted higher than B1 and B2 and it is not dependent on the PW size since B1 and B3 returned the same δ values.

Comparing the blends with the modified bitumen at 0 °C, the δ values of B1, B2, and MB matched, while B3 returned a 9% lower phase angle values.

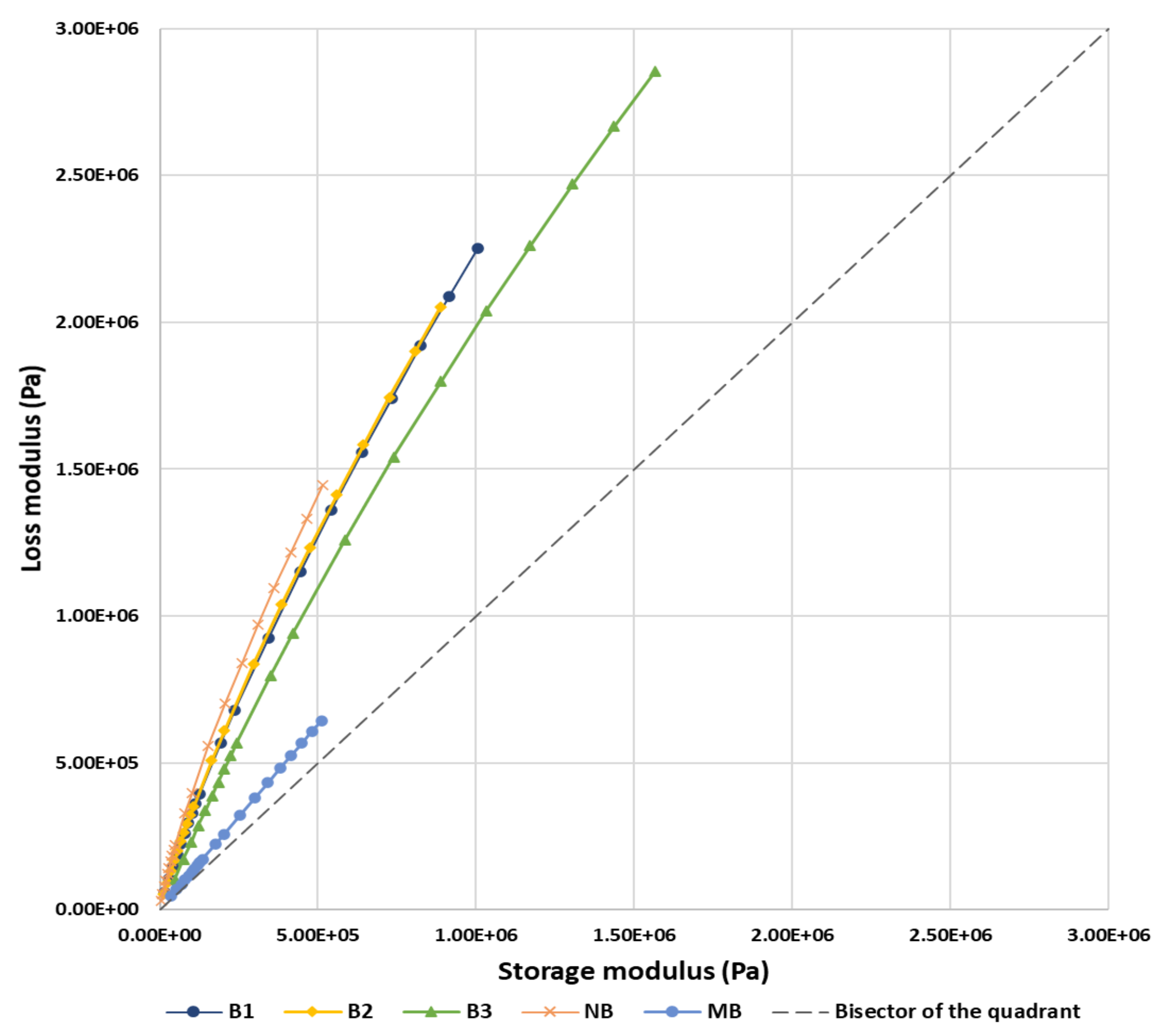

Since 30 °C resulted in a change of behavior for all the solutions so far analyzed, a Cole–Cole diagram at 30 °C was designed to evaluate in more detail the elastic component in the function of the viscous one (see Figure 11).

The elastic degree of the blends, as is shown in Figure 11, was 10%, 8%, and 21% higher than NB for B1, B2, and B3, respectively. The modified bitumen instead, as previously shown by phase angle analysis through the mater curve, returned the highest degree of elasticity between the two bitumen and the three blends.

The measure of the binder’s contribution to mixture permanent deformation is calculated through Jnr. The lower value of Jnr confirms the better performance of the asphalt binder sample against permanent deformation. The results reported in

Table 7. MSCR results: Jnr and Jtot both at 40 and 50 °C.

Sample	Jnr				Jtot
	40 °C		50 °C		40 °C		50 °C
	0.1 kPa	3.2 kPa	0.1 kPa	3.2 kPa	0.1 kPa	3.2 kPa	0.1 kPa	3.2 kPa
NB	0.1628	0.1722	1.1230	1.2119	0.1647	0.1739	1.1266	1.2125
MB	0.0115	0.0185	0.0509	0.0787	0.0170	0.0219	0.0639	0.0903
B1	0.0309	0.0493	0.1746	0.2981	0.0342	0.0515	0.1880	0.3030
B2	0.0360	0.0462	0.2403	0.3575	0.0389	0.0484	0.2538	0.3621
B3	0.0051	0.0205	0.0499	0.1204	0.0152	0.0224	0.0614	0.1258

reveal that by adding the PW the Jnr decreased compared to the neat binder; in fact, taking into account the average at both test temperatures (40 and 50 °C) and both stress levels (0.1 and 3.2 kPa), overall the Jnr values of the three blends (B1, B2, and B3) are on average 82% lower than NB.

Looking into detail at the Jnr value of the three blends at 40 °C, under both 0.1 and 3.2 kPa, B3 was 71% lower than B1 and B2; at the same time, B1 had a 17% lower Jnr value with respect to B2 at 0.1 kPa, while no substantial difference occurs between them at 3.2 kPa.

At the test temperature of 50 °C, under both stress levels, B3 showed lower Jnr values than B1 and B2, 72% and 65%, respectively. Comparing B1 and B2, B1 returned a Jnr value on average 22% lower.

A further comparison was made with the modified bitumen (MB), that compared to NB returned on average 92% lower Jnr values. Among all blends, B3 returned 55% and 2% lower Jnr value compared to MB under 0.1 kPa respectively at 40 and 50 °C.

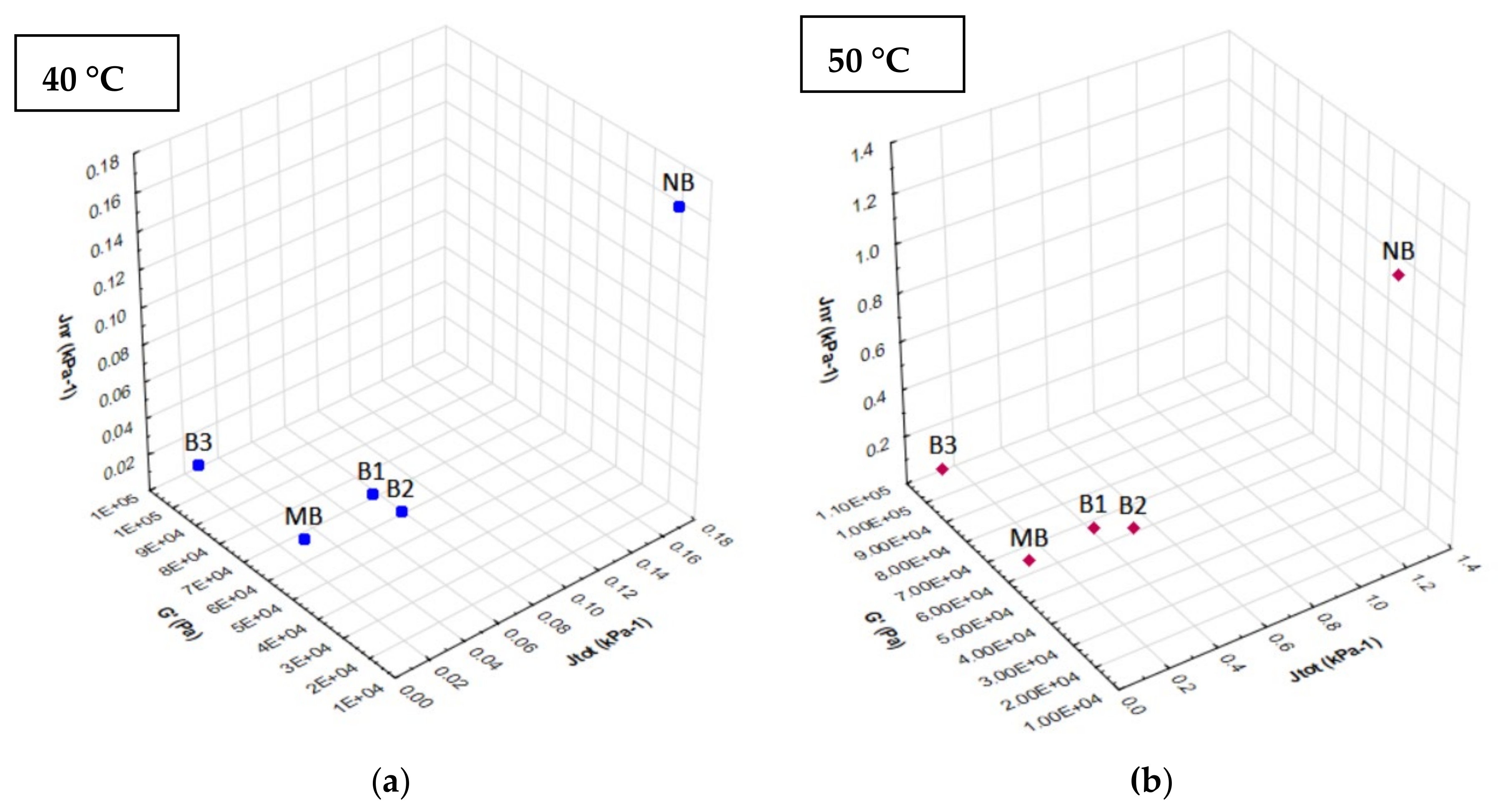

Figure 12 shows two 3D scatter plots where the x-axis shows Jtot, the y-axis shows G′, and the z-axis shows Jnr at the test temperatures of 40 (see Figure 12a) and 50 °C (see Figure 12b). These graphs have been plotted to represent in a synthetic way the degree of elasticity of the blends and the binders, better conveyed through a link between the three characteristic parameters (Jnr, Jtot, and G′). As can be observed from the figure, all the asphalt blends exhibit behavior completely different from NB and near MB, both at 40 and 50 °C. B1 and B2 appear to be closer to modified bitumen, otherwise, the deviation of B3 compared to MB seems more marked compared to other mastics, due to the higher G′ value for B3. Therefore, among all mixtures, B3 is the most elastic, even more so than MB.

The data in Table 7 provide an exhaustive characterization of the blends since the Jtot reported were evaluated immediately before load removal. It is evident from the results that no substantial difference returned the three blends between Jnr and Jtot at the same temperature and stress level, confirming their ability to recover deformation already after one second of the end of the creep phase after load removal.

As can be seen from the results above described, B3 returned the most suitable solution to be compared to a modified bitumen as those objects of the present research.

From the investigation carried out on the asphalt mastics, B3 resulted as the most suitable blends to be reemployed into asphalt mixtures. Therefore, an internal laboratory protocol was pursued for mixing the asphalt mixture with the 20% PW by the weight of NB (HMA_B3) as follows:

• The aggregates were preheated for 4 h at 180 °C.
• The PW stored at room temperature was added directly to the aggregates, before the bitumen. The first blending with coarse aggregates, sand, and PW was performed for 2 min to obtain a homogenous dispersion of all PW particles into the aggregates.
• The next steps involved the addition of the NB, preheated for 1 h at 150 °C, and further mixing, for approximately 5 min until the aggregates were fully coated with bitumen.
• The filler was then added, and further mixing was performed for 5 min.
• After the mixing phase, the mixture was put in the oven for 2 h until it reached a uniform compaction temperature.

Using a Ndes equal to 100 the alternative asphalt mixture, HMA_B3, did not exhibit the same volumetric properties as HMA_NB, since they differed in the Va values, in particular, HMA_B3 did not satisfy the Superpave requirement for a Va of 4% at Ndes. Hence, the number of gyrations used for HMA_B3 was changed and 120 was found to be the appropriate Ndes. The results of the Superpave optimization for HMA_B3 are reported in

Table 8. (a) Superpave optimization: HMA_NB vs. HMA_B3 volumetric properties and (b) ITS and ITSM results.

(a)
Asphalt Mixture	Va	VMA	VFA	%Gmm atNdes	Dust Portion
	(%)	(%)	(%)	(%)	(-)
HMANB	4	14.2	70.6	85.57%	1.1
HMAB3	4	14	71.8	97.64%	1.1
(b)
Asphalt Mixture	ITS (MPa)		ITSM (MPa)
	at 10 °C		at 10 °C	at 20 °C	at 40 °C
HMANB	3.37		14853	8120	773
HMAMB	2.97		15391	8613	1051
HMAB3	4.38		16498	9582	1440

a.

The first mechanical characterization of the asphalt mixtures was carried out through the ITS test, whose results are shown in Table 8b. HMA_B3 showed the highest ITS at 10 °C than the other two mixtures, in particular, it was 47.4 and 30% higher than that of the HMA_MB and HMA_NB, respectively. The asphalt mixture made up of MB revealed the lowest ITS at 10 °C (2.97 MPa). This is related to the MB used for making the asphalt mixture since no differences existed in terms of the grading curves, volumetric properties, or bitumen concentrations among all the optimized mixtures.

Table 8b illustrates the mean ITSM for each of the three asphalt mixtures at 10, 20, and 40 °C. The HMA_B3 exhibited a higher ITSM at all test temperatures, in particular +11% at 10 °C, +18% at 20 °C, and +34% at 40 °C compared to HMA_NB. Comparing HMA_B3 with HMA_MB, a slight increase of 9% at both 10 and 20 °C was observed, while at 30 °C HMA_B3 turned a higher ITSM value of 37%. Therefore, it emerges that, as the temperature increases, the beneficial effect produced by the plastic increases in terms of the final stiffness of the mixture.

In order to better analyze the effect of the introduction of PW in both asphalt binder and asphalt mixtures, all the parameters analyzed either by the mechanical characterization of the mixtures or by the rheological analysis of the asphalt mastics are summarized in

Table 9. Summary of the asphalt blends and mixtures results.

	10 °C			20 °C			40 °C
Asphalt Mixture	HMANB	HMAMB	HMAB3	HMANB	HMAMB	HMAB3	HMANB	HMAMB	HMAB3
ITS (MPa)	3.370	2.970	4.380	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.
ITSM (MPa)	14,853	15,391	16,498	8120	8613	9582	773	1051	1440
Asphalt Binder	NB	MB	B3	NB	MB	B3	NB	MB	B3
|G*| (MPa)	20.080	13.284	25.807	3.601	3.181	5.901	0.853	0.995	0.274
G′ (MPa)	14.410	10.448	20.164	1.837	2.150	3.609	0.151	0.593	0.102
G″ (MPa)	13.8541	8.170	15.931	3.084	2.339	4.647	0.839	0.799	0.254
δ (°)	47.935	41.675	40.003	63.776	49.514	55.954	82.031	53.398	66.808
Jnr (kPa−1)	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.	0.167	0.015	0.013
Jtot (kPa−1)	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.	0.169	0.019	0.019

, as a function of temperature. As it can be seen, for all the parameters analyzed it appears that the best performance is attributable to both asphalt mixtures and the binder containing PW (see the red values in Table 9). The highest stiffness shown by both the binder and the mixture containing PW (via ITSM and |G*|) is fully due to the plastic content because through the FTIR analysis it has been demonstrated that the mixing phase does not produce aging phenomena of bitumen that can stiffen it. In addition, this result was also validated by the analysis of the descriptive parameters of the elasticity of the asphalt mixtures and binders through G′, δ, Jnr, and Jtot which returned a higher elasticity in the case of B3 and HMA_B3; this is obviously due to the solid presence of PW as it has emerged from the TGA and DSC analysis that at the mixing temperatures of 150 °C, used in this case study, do not produce degrading phenomena of PW and above all that, not all types of PW reach their melting point.

4. Conclusions

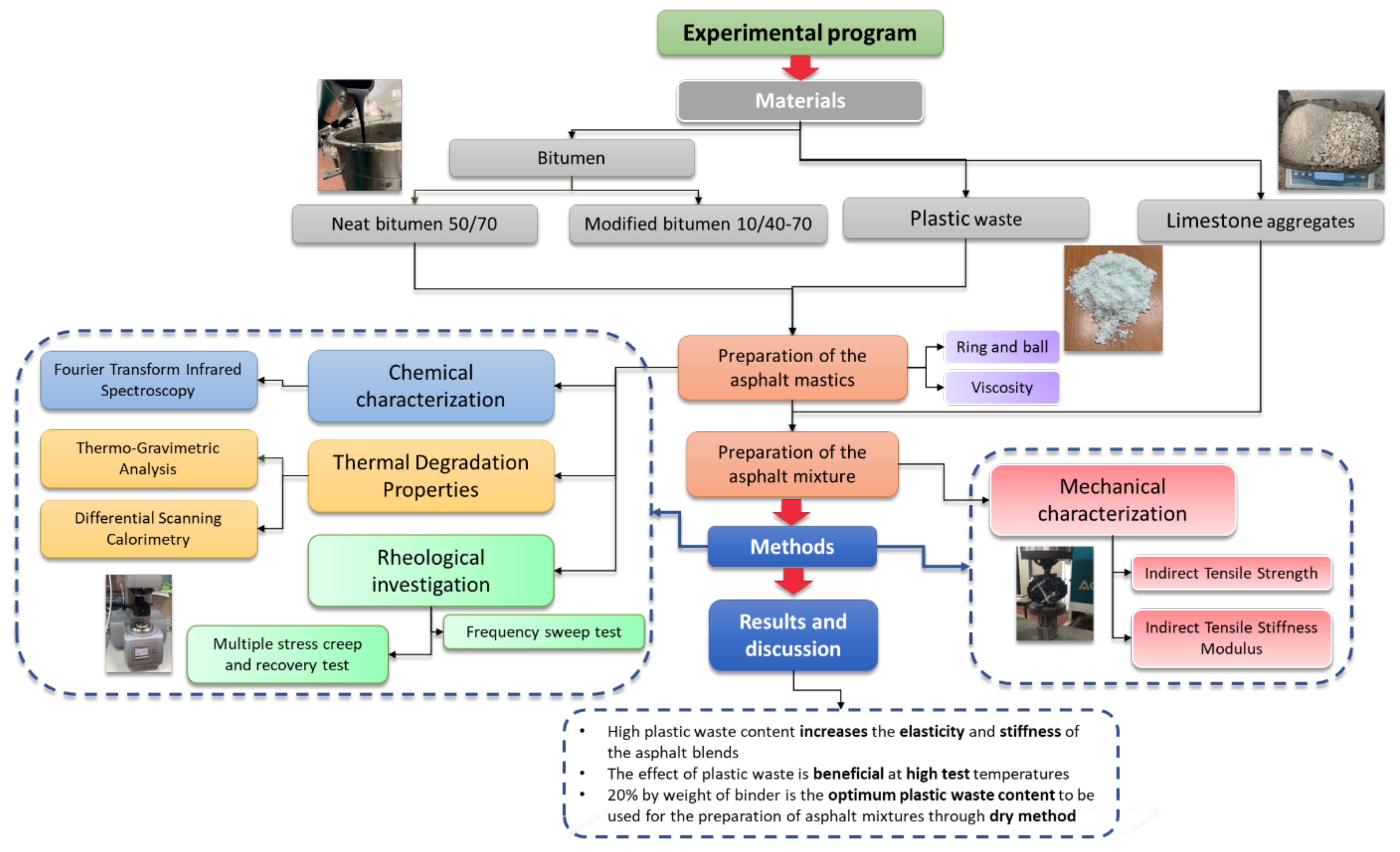

In this study, the effect of the different sizes and contents of plastic waste were assessed through the chemical, thermal, and rheological investigation of asphalt blends mixed with PW in comparison with a neat bitumen 50/70 and modified bitumen. The plastic waste was a mixture of different plastic waste types with a prevalence of PET and PE.

The results obtained lead to the following conclusions:

• FTIR results highlight that the presence of PW does not affect the oxidation process of SBS-based bitumen, but significantly improves the aging resistance if compared to results obtained using other fillers such as crumb rubber.
• From the rheological and mechanical investigation, it can be seen that as the temperature increases, there is an increase of the beneficial effect produced by the addition of PW in both asphalt blends and mixtures.
• A total of 20% PW by weight of NB with a size range between 4 and 0.063 mm was found to be the blend that performs better than the modified bitumen since in terms of stiffness and elasticity; particularly, PW is beneficial to the high temperature achieving lower phase angle and Jnr values (averagely 30% than the other asphalt solutions investigated).
• The adoption of PW as a modifier of the mixture through the dry method, shown by preliminary study on the mechanical characterization of the optimized asphalt mixture by means of Superpave method, was found to produce an increase of the ITS and ITSM at all test temperature in comparison to the asphalt mixtures made up of NB and MB, despite all mixtures having the same volumetric properties.

It was discovered that during the mixing phase of 150 °C, no melting temperatures and degradation process have been achieved by PW that increases the overall strength and elasticity of the innovative asphalt blends and mixtures.
