Dark Fermentation Process Response to the Use of Undiluted Tequila Vinasse without Nutrient Supplementation

by
Juan José Rodríguez-Reyes
1,
Octavio García-Depraect
2,
Roberto Castro-Muñoz
3,4 and
Elizabeth León-Becerril
1,*
1
Department of Environmental Technology, Centro de Investigación y Asistencia en Tecnología y Diseño del Estado de Jalisco, Guadalajara 44270, Mexico
2
Institute of Sustainable Processes, University of Valladolid, 47011 Valladolid, Spain
3
Tecnologico de Monterrey, Campus Toluca, San Antonio Buenavista, Toluca de Lerdo 50110, Mexico
4
Department of Process, Engineering and Chemical Technology, Faculty of Chemistry, Gdansk University of Technology, 80-233 Gdansk, Poland
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(19), 11034; https://doi.org/10.3390/su131911034
Submission received: 21 August 2021 / Revised: 25 September 2021 / Accepted: 29 September 2021 / Published: 5 October 2021
(This article belongs to the Special Issue Sustainable Food Waste Valorisation by Membrane Technology)
Browse Figures
Versions Notes

Abstract

:
The technical feasibility of valorizing tequila vinasse (TV), a wastewater with high pollution potential, through the production of biogenic hydrogen via dark fermentation, has long been proven in diverse lab-scale reactors that were operated either in batch or continuous mode. However, such systems have mainly been tested with diluted streams and nutrient supplementation, hindering the techno-economic attractiveness of the TV-to-hydrogen concept at large scale. In this study, the feasibility of producing hydrogen from high-strength undiluted TV with no added extra nutrients was evaluated under batch mesophilic conditions. Additionally, the use of two different acidogenic inocula obtained either by heat or heat-aeration pretreatment was investigated to get a greater understanding of the effect of inoculum type on the process. The results obtained showed that the TV utilized herein contained macro- and micro-nutrients high enough to support the hydrogenogenic activity of both cultures, entailing average hydrogen yields of 2.4–2.6 NL H2/L vinasse and maximum hydrogen production rates of 1.4–1.9 NL H2/L-d. Interestingly, the consumption of lactate and acetate with the concomitant production of butyrate was observed as the main hydrogen-producing route regardless of the inoculum, pointing out the relevance of the lactate-driven dark fermentative process. Clostridium beijerinckii was ascertained as key bacteria, but only in association with microorganisms belonging to the genera Enterobacter and Klebsiella, as revealed by phylogenetic analyses.

1. Introduction

Hydrogen is a promising energy carrier that could reduce, in the near-to-medium term, the current high dependency on fossil-based energy recovery systems [1]. Nowadays, the hydrogen produced worldwide is mainly used in chemical and petrochemical processes [2]. However, in recent years, hydrogen-powered technologies such as cars and home heating systems have been developed with a few prototypes being already commercially available [1]. Indeed, the Hydrogen Council (https://hydrogencouncil.com) predicts that hydrogen as a fuel will account for 15% of the global energy consumption by 2030. Although hydrogen is currently mainly produced from fossil fuels, there has been an increasing research interest in the production of green hydrogen from renewable sources such as water electrolysis coupled to solar or wind power [2], or by pyrolysis, photofermentation (PF), or dark fermentation (DF) using biomass as the feedstock [3].
DF and PF are ecofriendly processes that are considered advantageous over thermochemical pyrolysis or gasification because they are less energy intensive and flexible enough to use waste and wastewater as feedstocks [4,5]. At this point, it should be noted that DF is the most promising way to produce biogenic hydrogen since it commonly supports higher hydrogen production rates and yields at lower capital and operational costs when compared to PF [3,6]. Additionally, DF not only can be coupled to the mature anaerobic digestion technology to further increase bioenergy recovery via biogas production [7], but also to emerging biotech processes such as bioelectrochemical systems, bioplastics production, photofermentation, among others [8,9].
DF is a complex process, and its efficiency depends on the substrate characteristics, culture conditions and biological factors [10]. Substrate is typically characterized in terms of pH, solids, carbohydrates, proteins, lipids, as well as micronutrients and putative toxic compounds. Although substrates might contain nutrients supporting microbial growth and nutritional requirements, they also might be deficient in key nutrients that are necessary to produce hydrogen efficiently. While it is true that nutrient supplementation may lead to an enhanced DF process, this strategy may be prohibited for economic reasons at industrial levels. Regarding culture conditions, the most important operational parameters include temperature (including mesophilic, thermophilic, and even hyperthermophilic temperatures), pH (typically set between 5.5 and 6.0), oxidation–reduction potential (ORP), substrate-to-biomass ratio (S0/X0), organic loading rate (OLR), and hydraulic retention time (HRT) [10]. Moreover, the type of reactor configuration strongly impacts the hydrogen production efficiency. Different reactors have been reported in the literature, including anaerobic packed-bed reactor (AnPBR), anaerobic structured-bed reactor (AnSTBR), anaerobic fluidized-bed reactor (AnFBR), expanded granular sludge bed reactor (EGSB), up-flow anaerobic sludge blanket reactor (UASB), anaerobic sequencing batch reactor (AnSBR), continuously stirred tank reactor (CSTR) [10], and, more recently, dynamic membrane reactors (DMBR) [11,12]. Among them, the CSTR is perhaps the most widely used reactor configuration to produce biohydrogen via DF due to easy operation and control, as well as owing to its flexibility to operate under suspended and attached biomass configurations; however, DMBRs have sustained very high hydrogen productivities using model substrates [11,13,14], and even more complex ones such as algal biomass [12]. Last but not least, the type of inoculum used, as well as its pretreatment method, are also major factors influencing the DF process.
To achieve high hydrogen production efficiency and stability, microorganisms with a positive function in the overall process such as hydrogen production (e.g., Clostridium), oxygen consumption (e.g., Enterobacter, Klebsiella), or formation of intermediate hydrogen precursors (e.g., Lactobacillus) should be enriched. On the other hand, microorganisms that consume hydrogen, such as propionic fermenters, homoacetogens, and methanogens, should be reduced or, even better, washed out [15]. Inocula are commonly subjected to a pretreatment step to shape the microbial community. Cell washout, acidification, alkalization, aeration, and thermal shock are the most widely used pretreatments [15]. Indeed, as aforementioned, several studies have revealed that the type of inoculum pretreatment is an important factor in the process. For instance, Cai and Wang (2016) compared the performance of an inoculum previously pretreated by heat shock, acidification, or alkalization and observed that the heat pretreatment led to the highest hydrogen yield using glucose as the substrate [16]. Similarly, Toledo-Alarcón et al. (2020) reported that the heat-shock pretreatment was advantageous over the aeration one using glycerol as the substrate [17]. However, the heat-shock pretreatment decreases the bacterial diversity and is not selective enough to distinguish between desirable and undesirable microorganisms [10].
Tequila vinasse (TV), an industrial wastewater generated by the tequila industry, has long been proven as a feasible substrate for DF. In the literature, batch [18], semi-continuous [19], and continuous [7,20,21,22,23] reactor configurations have been reported for hydrogen production from TV. This substrate is commonly characterized by having an acidic pH (3.4–4.5), organic matter content between 20 and 100 g chemical oxygen demand (COD)/L, solids concentration ranging from 25 to 50 g/L, and macronutrients and trace elements [24]. Note that all previous studies dealing with the production of hydrogen from TV have implemented extra nutrient supplementation, except those reported by Toledo-Cervantes et al. (2020) [25] and Arellano-García (2021) [23]. However, in the first report, the fed TV had a low organic matter concentration of 29 g COD/L, while the second study failed to efficiently produce hydrogen from undiluted TV, implying that achieving optimal DF performance using concentrated TV with no added nutrients is a challenging task requiring further research.
With the aim of achieving a cost-effective process within a more realistic scenario that does not require the use of fresh water and extra chemicals, this study aimed to investigate the feasibility of producing hydrogen from high-strength TV (>50 g COD/L) without nutrient enhancement. A systematic comparison of two different hydrogenogenic inocula was also conducted to better understand the role of inoculum type in the hydrogen production kinetics, biochemical pathways, and prevailing microbial communities. The novelty of this study relies on the demonstration that TV with high COD concentrations and with no added extra nutrients can be metabolized into biohydrogen via the lactate-driven DF.

2. Materials and Methods

2.1. Tequila Vinasse

TV was kindly supplied by a factory producing tequila 100% agave located in Tequila, Mexico. The suspended solids contained in the TV were removed by centrifugation (Gea Westfalia™ D2–06-107, Germany). After centrifugation, the TV was stored at 4 °C until usage. Table 1 shows the physicochemical parameters measured from the centrifuged TV, which are further discussed in detail in Section 3.1.

2.2. Inocula

Two different inocula were tested for hydrogen production from TV. The first one was anaerobic granular sludge obtained from an UASB reactor treating organic waste, which was subjected to repeated heat shock-aeration pretreatments in order to kill methanogens while preserving facultative bacteria as well as the sporulating, hydrogen-producing Clostridium spp., as reported by García-Depraect et al. (2017) [26]. The resulting inoculum, hereafter referred to as HATI, is a proven working horse to produce hydrogen via DF [7]. During the experimental period, the HATI inoculum was preserved by refrigeration (at 4 °C), as recommended elsewhere [27]. To inoculate metabolically active bacteria, the microbial consortium was reactivated before each fermentation run. Precultures were incubated for 24 h at 37 °C using a growth medium containing the following constituents (in g/L): lactose 10.0; NH4Cl, 2.4; K2HPO4, 2.4; MgSO4·7H2O, 1.5; KH2PO4, 0.6; CaCl2·2H2O, 0.15; FeSO4·7H2O, 0.05 [28]. On the other hand, the second inoculum tested was anaerobic granular sludge derived from a full-scale internal circulation reactor digesting TV under mesophilic conditions, which was pretreated by heating at 104 °C for 24 h and then ground in a blender and sieved through a 850 μm mesh screen [29].

2.3. Experimental Setup and Operating Conditions

A 3 L jacketed glass reactor (Applikon™, The Netherlands) was used with the following components: a mechanical stirring device (Applikon™, The Netherlands) that was kept at 150 rpm, a pH controller (BC electronics™ pH 7865, Italy) to maintain pH at 6.0 ± 0.05 by dosing a sodium hydroxide (10 N) solution as needed, a thermostat (Lauda™ RA 8, Germany) to maintain the temperature at 35 °C, and a gas flow meter (Bioprocess control™ μFlow, Sweden) to record gas production (Figure 1).
Fermentation runs were carried out in triplicate for each inoculum tested. For runs using the HATI inoculum (runs 1–3), 0.3 L (equivalent to 10% of the working volume) of the precultured microbial consortium and 2.7 L of TV were loaded into the reactor, as previously outlined by García-Depraect and León-Becerril (2018) [18]. In the other case (runs 4–6), 20 g/L of the HTI inoculum and 3 L of TV were fed to the reactor, as previously described by Buitrón and Carvajal (2010) [29]. Here, it is worth mentioning that both specific methodologies employed with each type of inoculum are widely used in the DF of TV. The differences in the way that the runs were carried out, namely, inoculum to substrate ratio and the amount of substrate, were further considered in the analysis and discussion for the sake of comparison. Liquid samples were taken periodically to measure total reducing sugars (TRS), volatile fatty acids (VFAs) and lactate. COD and solids were measured at the start and end of the process, whereas biogas production was monitored throughout the run. Finally, to measure the hydrogen content in the evolved biogas, 25 μL of gas were periodically sampled during the gas production phase and analyzed by gas chromatography.

2.4. Analysis

The analyses for COD, pH, total nitrogen, total phosphorous, and solids were performed according to standard methods [30]. TRS was measured using the 3,5-dinitrosylsalicilic acid (DNS) method, employing glucose for the calibration curve [31]. Hydrogen content in the evolved acidogenic off-gas was measured with a gas chromatograph (PerkinElmer™ Clarus 580, USA) using the operating conditions described by [26]. VFA and lactate were measured by high-performance liquid chromatography (HPLC) according to the procedure described by [18]. Microbial communities present at the rapid phase of hydrogen production were characterized by high-throughput sequencing using the Illumina Miseq platform (Illumina, USA). Genomic DNA was extracted from 0.3 g sample using the MoBio PowerSoil DNA extraction kit (Mo Bio Laboratories Inc., USA) according to the manufacturer’s instructions. The quality and quantity of the extracted DNA were assessed with a NanoDrop-2000 spectrophotometer (Thermo Fisher Scientific, USA), then the DNA samples were analyzed by RTL Genomics (RTL, USA) for 16 rRNA gene sequencing using the universal primers 28F and 388R for bacteria. Bioinformatic data analysis was performed according to RTL’s protocol [22]. Bacteria with less than 1.0% of relative abundance were grouped together as others.

2.5. Data Analysis

Hydrogen production kinetics were fitted to the modified Gompertz model (Equation (1)), where e is the Neperian number, CHP is the maximum cumulative hydrogen production (NmL), Pmax is the maximum hydrogen production rate (NmL/h), t is the incubation time (h), and λ is the lag phase duration (h). CHP was further divided by the volume of TV fed to obtain normalized results. Pmax was divided by the working volume to obtain the maximum hydrogen production rate (HPR, NL/L-d). The gas volume herein reported is normalized to 0 °C and 1 atm. The observed correlation coefficient (R2) value was used to assess the quality of fitting, while sensitivity analysis was used to validate the estimated kinetics parameters [32]. The cultivation time needed to achieve 90% of total hydrogen production (t90) was also estimated as described in Equation (2) [33]. The t90 value is an indicator of the time needed for the fermentation to end, making it useful to evaluate the performance between runs. Finally, significant differences between runs were determined using a homoscedastic Student’s t-test with a 95% confidence level (p-value < 0.05).
H 2 t = C H P ∗ exp − e x p P m a x ∗ e C H P λ − t + 1
t 90 H 2 = C H P P m a x ∗ e 1 − l n − l n   0.90 + λ

3. Results and Discussion

3.1. Evaluation of Nutrients Present in TV

As shown in Table 1, the centrifuged TV presented a relatively high COD content, mainly in the soluble form. As expected, the higher fraction of solids (more than 85% of the total solids) were mostly measured as dissolved solids. Besides fermentable carbohydrates, the TV also contained macro and micronutrients including N, P, Fe, Ni, Mg, Ca, among others, which together were able to support the DF process regardless of the type of inoculum tested, as will be discussed in the following sections. It is well known that microorganisms need several nutrients to grow, and the bacteria involved in DF are no exception. Nutrient deficiencies in the substrate can be the bottleneck for the growth of hydrogen-producing bacteria. Firstly, N and P are needed for cellular growth, including the synthesis of enzymes; Argun et al. (2008) determined that a C/N ratio of 200 and a C/P ratio of 1000 are optimal for hydrogen production from wheat starch [34]. Hydrogen production by Clostridium sp. occurs through the action of the hydrogenase and pyruvate-ferredoxin oxidoreductase enzymes [35]. Both proteins contain Fe atoms [36,37], meaning that enough Fe is needed for hydrogen production. It has been previously determined that FeCl3, at a concentration of 800 mg/L, optimized the hydrogen production [38]. Mg, Na, Zn, and Ca are also important trace elements for the growth of anaerobic bacteria since they are required as enzyme cofactors and in cellular transport processes. Lin and Lay (2005) proposed an optimal formulation containing Mg, Na, Zn, Fe, and N [39].
Table 2 shows a comparison between the nutrients (relative to the carbon content) present in the TV herein used and the optimal nutrient formulation obtained from other studies aiming to maximize the hydrogen production by varying nutrient formulation. The TV showed calcium and sodium levels below those previously ascertained as optimal for hydrogen production, whereas the relative amounts of P, Mg, and Zn were found to be higher than the ones reported in the literature as the optimal. Regarding N content, the concentration present in the TV is lower than the optimal one reported by Oztekin et al. (2008) [40] and Pérez-Rangel et al. (2020) [41], but higher than that reported by Lin and Lay (2005) [39] and Argun et al. (2008) [34]. Likewise, the relative Fe content in the used TV fell well within the values observed elsewhere [39,40]. At this point, it should be noted that it is difficult to make a fair comparison among different hydrogenogenic systems, given that the DF is a complex process itself, and the high variability in set-ups and operating conditions including the type of inoculum and substrate. Furthermore, the physicochemical composition of TV changes considerably from factory to factory; even it may vary from batch to batch within the same factory depending mainly on the characteristics of the agave used to produce tequila. It has been previously reported that special focus must be paid in the content of N and Fe of TV since both might be limiting for hydrogen production [28]. This means that, in the case of nutrient-limiting conditions, tailored nutrient supply should be pursued rather than an indiscriminate use of extra chemicals, which is costly and, consequently, prohibitive to industrial applications.

3.2. Hydrogen Production Performance

The cumulative hydrogen production from TV using either HATI or HTI is shown in Figure 2. Similar hydrogen production profiles were sustained by the inocula tested; in all the cases, they adjusted well to the modified Gompertz model (R2 > 0.99). Methane was not detected throughout all the runs, suggesting that both inoculum pretreatment methods were effective in removing methanogens. The feasibility of producing hydrogen from high-strength, undiluted TV without nutrient supplementation was herein demonstrated for the first time. As seen in Table 3, the use of HATI led to slightly better performance indicators such as higher CHP (2.6 NL H2/L vinasse), HPR (1.9 NL H2/L-d), higher hydrogen content in the biogas (71%), and shorten lag phase (63.3 h). However, no significant differences (p-value > 0.05) were found when compared to the performance exhibited by the HTI inoculum. Some runs were finished before a clear plateau was reached; in those cases, slightly higher hydrogen productions could be expected. Hydrogen yields were similar between the inocula used, ranging from 73.6 to 78.2 NmL H2/g VS added, which are equivalent to 47.8 to 50.7 NmL H2/g COD added. In terms of substrate consumption, the soluble COD removal efficiency ranged from 15% to 17%, while the removal of reducing sugars was between 47 and 51%. The fact that it was feasible to produce hydrogen from TV without the need of adding fresh water to dilute the feeding and/or extra nutrients encourages its use as a DF feedstock.
Regarding other studies dealing with the DF of TV, a comparison of operating conditions and performances is shown in Table 4. García-Depraect and León-Becerril (2018) [18] reported a HPR of 3.8 NL H2/L-d and a hydrogen production yield of 124 NmL H2/g VS added, which are roughly twofold higher than those obtained in the present study, likely due to the different TV used by the authors, which indeed was amended with nutrients. Buitrón et al. reported HPR values of 1.2 and 1.7 NL H2/L-d in semi-continuously [19] and continuously fed [20] reactors, respectively, which are quite similar to those observed in this study; however, the authors diluted the TV and supplemented it with several nutrients to enhance hydrogen production. In another study, Toledo-Cervantes et al. (2020) [25] reported the hydrogen production from undiluted TV (28.1 g COD/L) without extra nutrients, achieving a HPR of 0.5 NL H2/L-d and a hydrogen yield of 0.75 L H2/L of TV. Using undiluted TV (26.2–36.1 g COD/L) without nutrient supply, unstable and very low HPR values (0.06 ± 0.07 NL H2/L-d) were obtained in a CSTR with a stirring rate of 200 rpm and a hydraulic retention time of 6 h [23]. Higher HPR values of up to 12.5 NL H2/L-d have been reported in CSTR systems fed with TV, but at the expense of supplementing extra nitrogen and iron [7,21].
As shown in Figure 2 and Table 3, some variability between runs was observed in hydrogen production. The use of HATI and HTI exhibited variation coefficients in CHP of 20 and 34%, respectively, which are higher than the 7% reported in a batch DF reactor fed with concentrated TV amended with nutrients [18]. Future batchwise studies should thus analyze in detail the variability of the hydrogen performance and the associated metabolic pathways between different batch runs, where low variability or, in other words, high process consistency, should be sought. Likewise, the development of novel integrated approaches devoted to the long-term stability in continuous hydrogen-producing reactors warrants more research. The importance of nutrient addition in the DF of TV was studied by García-Depraect et al. (2019) and showed that TV with a reduced nutrient formulation (containing only N and Fe sources) led to a 39% lower hydrogen yield than when a complex formulation was used [28]. The impact of nutrient addition in the stability and performance of hydrogen-producing reactors continuously fed with TV should be determined in further studies. Similarly, a cost-benefit analysis between the potential higher stability and hydrogen production efficiency and the cost of adding nutrients should be performed.

3.3. Effect of the Inoculum Type on the Microbial Community Composition

The heat-shock pretreatment used in this study (105 °C for 24 h) was aimed at eliminating all non-spore-forming microorganisms while allowing spore-forming, hydrogen-producing bacteria, Clostridium spp., to survive [29]. As seen in Table 5, the only spore-forming microorganisms detected (during the accelerated phase of hydrogen production) in the runs inoculated with the inoculum HTI were bacteria affiliated to the Clostridium genus. Other detected non-spore-forming bacteria such as the genera Prevotella, Enterococcus, Klebsiella, and Enterobacter could be autochthonous microorganisms present in the TV. Indeed, besides Clostridium genus, Klebsiella, Eubacterium, Streptococcus, Lactobacillus have been found to be part of the native microflora of TV [28]. The microbial community analysis of the HTI did not show the presence of a spore-forming facultative anaerobe that could survive the heat-shock treatment (Bacilliales sp.). Clostridium sp. as a strict anaerobe needs an oxygen-free environment to grow, which can be achieved either by inert gas sparging or with the aid of microorganisms that deplete the oxygen. In this regard, it is reasonable to infer that the production of hydrogen using the HTI inoculum was depended on the presence of facultative anaerobes in the substrate, which allowed Clostridium to thrive by creating anaerobic conditions.
On the other hand, the HATI culture underwent a different pretreatment that consisted of repeated light heat-shock and micro-aeration cycles. This pretreatment successfully eliminates methanogens while preserving other non-hydrogen-consumers, which, in turn, may enhance the overall hydrogen production performance [18,26]. Lactobacillus sp. are non-spore-forming, aerotolerant bacteria, which means that they can grow in the presence of oxygen, but unlike facultative anaerobes, they do not metabolize it [35]. This could explain the presence of Lactobacillus in the runs performed with the HATI inoculum but not with the HTI one, which was one remarked difference in the microbial community composition. It has been previously determined the microbial community composition of the HATI inoculum, embracing diverse genera such as Enterobacter, Klebsiella, Prevotella, Lactobacillus, Clostridium, Acetobacter, Citrobacter, Propionibacterium, Actinomyces, Sporolactobacillus, among others [18,26]. Therefore, the presence of facultative anaerobes in these runs could be mainly attributed to the inoculum origin; however, the indigenous microflora of the TV would also have an impact on the overall process performance, a fact that deserves further investigation.

3.4. Effect of the Inoculum Type on the Metabolic Profiles

As seen in Figure 2, the consumption of TRS during the DF process reached values around 50%, 11–12 g equivalent glucose, regardless of the type of inoculum. It is worth mentioning that a higher TRS consumption (82% on average) occurred during the lag phase of hydrogen production. This is indicative that the DF of TV was, to a significant extent, uncoupled from carbohydrates consumption. This uncoupling behavior can be well supported with the lactate-based hydrogen-producing pathways, which have been previously reviewed comprehensively in [10]. Indeed, the observed hydrogen production corroborated well with the consumption of lactate and acetate and the formation of butyrate. The lactate-driven hydrogen fermentation has been reported to take place using TV [7,18,25,28], but also with others such as cheese whey [33], sugarcane vinasse [42], olive mill waste [43], among others.
Using TV and HATI as the major substrate and the inoculum, respectively, it has been shown that lactic acid bacteria (LAB) mainly affiliated to the genus Lactobacillus are responsible for the conversion of carbohydrates to lactate (or lactate plus acetate when the heterolactic pathway became dominant) in a primary fermentation, while hydrogen-producing bacteria (HPB) of the genus Clostridium play a major role in hydrogen production from the lactate in a secondary fermentation [44]. Other authors have reported similar microbial dynamics during the lactate-driven DF process [18,45,46]. At this point, it should be noted that, besides Lactobacillus and Clostridium, other bacteria such as Klebsiella, Prevotella, Enterococcus, and Sporolactobacillus, were also coexisting microorganisms during the process.
As previously mentioned, the consumption of lactate and acetate associated to the concomitant production of butyrate and hydrogen was observed in all the tested runs regardless of the type of inoculum used, except in runs 1 and 4, likely due to the prevalence of other co-existing metabolic pathways such as lactic fermentation. Indeed, an increase in lactate concentration was observed in runs 1 and 4, which coincided with the lowest hydrogen production yield recorded by the inocula used. Interestingly, the presence of LAB in runs 4–6 (those inoculated with the inoculum HTI) was not clear; although the presence of LAB at the rapid phase of hydrogen production was negligible, the microbial composition has been widely reported to be highly dynamic in batch reactors [18,45,46]. The hydrogen production observed was thus supported by the lactate and acetate initially contained in the TV. Those high concentrations of lactate and acetate are suggestive of heterolactic fermentation, which would happen during the collection, handling, or even storage of the TV. Indeed, earlier reports have shown diverse feedstocks with high concentrations of lactate and acetate [47,48,49]. In the literature, the presence of LAB in DF is a cause of controversy due to its different effects on hydrogen production [10,50,51]. In some cases, it has been reported that LAB hinders the production of hydrogen by excreting bacteriocins and/or competing for the substrate (carbohydrates) [52,53,54]; however, in other cases, it has been reported that LAB enhance hydrogen production by providing hydrogen precursors, i.e., lactate [28,33,42].
As seen in Table 5, C. beijerinckii, a known hydrogen producer, was present in all the runs tested regardless of the inoculum used; thus, it was proposed to be the main HPB thanks to its capacity to metabolize lactate into hydrogen [55]. Clostridium sp. cells are known to be the more common hydrogen producers in DF reactors, yielding 1.5–3 mol H2/mol hexose [50]. Thus, it would be expected that a higher abundance of Clostridium spp. correlates well with a higher hydrogen production performance. However, in practice, that correlation is not always observed, or at least not a high correlation, due to the presence of other coexisting HPB or non-HPB, meaning that HPB abundance should be rather interpreted in a comprehensive way. Herein, the relative abundance of C. beijerinckii was not necessarily correlated with a high hydrogen production. The first run of HTI (run 4) showed the highest C. beijerinckii relative abundance (65.7%) but the lowest hydrogen production (1.7 NL H2/L of vinasse), which could be explained by the absence of Enterobacter sp. and Klebsiella sp. A similar trend was observed by Cheng et al. (2011), where the abundance of Clostridium spp. (mainly C. pasteurianum) was directly related to the hydrogen production yield when using sucrose as the substrate. However, when using sugarcane molasses as the substrate, no significant correlation of Clostridium spp. and hydrogen production performance was found due to the dominance of LAB and Klebsiella sp. [56].
In this study, the highest hydrogen yield of 3.4 NL H2/L vinasse was recorded in run 6 using HTI as the inoculum, which showed the highest abundance (56%) of Enterobacter. Likewise, high abundance (55%) of Klebsiella in run 2 using HATI resulted in 3.1 NL H2/L vinasse, pointing out the importance of thriving beneficial bacterial associations like Clostridium-Enterobacter-Klebsiella that can boost the DF process. An increase in the hydrogen production due to the proliferation of Enterobacteriaceae in codominance with Clostridium was also observed by Pattra et al. [57]. Although Clostridium sp. are believed to be the most efficient hydrogen producer, some studies outline that Enterobacter sp. can also yield a high hydrogen production [58,59,60], on some occasions even higher than Clostridium sp. [61]. Considering that, it is interesting to point out that future studies should study the role of Enterobacteriaceae, whose fermentation end metabolites include ethanol, succinate and 2,3-butanediol [35], to better explain the hydrogen production performance. The symbiotic relation between Enterobacteriaceae and Clostridium is explained by the fact that Enterobacteriaceae are facultative anaerobes that generate an anaerobic environment by consuming oxygen [62]. The main hydrogen producers, Clostridium sp., as strict anaerobes, need the mentioned anaerobiosis to grow [35,50]. An oxygen-free environment can be achieved by nitrogen sparging or by microorganisms that deplete oxygen (facultative anaerobes). However, previous studies have stressed that nitrogen sparging not only increases the hydrogen production costs, but also dilutes the hydrogen content in the acidogenic off-gas [59,63], hence, the importance of facultative anaerobes in DF is highlighted.

4. Conclusions

The feasibility of producing hydrogen from undiluted TV without nutrient supplementation using two different fermentative inoculum sources was demonstrated for the first time in this study. Interestingly, the main hydrogen-producing pathway was found to be uncoupled from the metabolization of carbohydrates regardless of the inoculum used. Consequently, hydrogen gas was thus produced from the consumption of lactate, and acetate acting as an electron acceptor, with the concomitant formation of butyrate, reinforcing the emerging concept of favoring the lactate-driven DF process for the effective production of hydrogen from TV. It should be realized that, although there was evidence that it is possible to produce up to 1.9 NL H2/L-d or 2.6 NL H2/L vinasse using high-strength, undiluted TV without nutrient supplementation, those values are lower than previously reported maximum values using TV supplemented with nutrients. The nitrogen and iron content of TV is of special importance, and should be verified to avoid DF inhibition. Besides hydrogen producers, the presence of facultative bacteria was important in the process. Particularly, a high DF process performance was not correlated with Clostridium but with the microbial association of Clostridium-Enterobacter-Klebsiella, which was favorable for oxygen depletion and hydrogen production.

Author Contributions

Conceptualization, O.G.-D. and E.L.-B.; methodology, O.G.-D. and J.J.R.-R.; validation, O.G.-D., R.C.-M. and E.L.-B.; formal analysis, J.J.R.-R.; investigation, J.J.R.-R.; resources, O.G.-D., R.C.-M. and E.L.-B.; writing—original draft preparation, J.J.R.-R.; writing—review and editing, O.G.-D., R.C.-M. and E.L.-B.; visualization, J.J.R.-R.; supervision, O.G.-D. and E.L.-B.; project administration, E.L.-B.; funding acquisition, E.L.-B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Consejo Estatal de Ciencia y Tecnología de Jalisco (COECYTJAL; 8872–2020).

Acknowledgments

J.J. Rodríguez Reyes acknowledges the MSc scholarship provided by CONACYT (743797). R. Castro-Muñoz acknowledges the School of Science and Engineering and the FEMSA-Biotechnology Center at Tecnológico de Monterrey for their support through the Bioprocess (0020209I13) Focus Group. Financial support from the Polish National Agency for Academic Exchange (NAWA) under the Ulam Programme (Agreement No. PPN/ULM/2020/1/00005/U/00001) is also gratefully acknowledged. The financial support from the Regional Government of Castilla y León and the EU-FEDER programme (CLU 2017–09 and UIC 315) is also gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Staffell, I.; Scamman, D.; Velazquez Abad, A.; Balcombe, P.; Dodds, P.E.; Ekins, P.; Shah, N.; Ward, K.R. The role of hydrogen and fuel cells in the global energy system. Energy Environ. Sci. 2019, 12, 463–491. [Google Scholar] [CrossRef] [Green Version]
  2. International Energy Agency. The Future of Hydrogen. Available online: https://iea.blob.core.windows.net/assets/9e3a3493-b9a6-4b7d-b499-7ca48e357561/The_Future_of_Hydrogen.pdf (accessed on 2 October 2021).
  3. Kannah, Y.R.; Kavitha, S.; Karthikeyan, P.O.; Kumar, G.; Dai-Viet, N.V.; Banu, R.J. Techno-economic assessment of various hydrogen production methods—A review. Bioresour. Technol. 2021, 319, 124175. [Google Scholar] [CrossRef]
  4. Lin, C.-Y.; Lay, C.-H.; Sen, B.; Chu, C.-Y.; Kumar, G.; Chen, C.-C.; Chang, J.-S. Fermentative hydrogen production from wastewaters: A review and prognosis. Int. J. Hydrogen Energy 2012, 37, 15632–15642. [Google Scholar] [CrossRef]
  5. Gómez, X.; Fernández, C.; Fierro, J.; Sánchez, M.E.; Escapa, A.; Morán, A. Hydrogen production: Two stage processes for waste degradation. Bioresour. Technol. 2011, 102, 8621–8627. [Google Scholar] [CrossRef]
  6. Zhang, Q.; Zhang, Z. Biological hydrogen production from renewable resources by photofermentation. In Advances in Bioenergy; Elsevier Inc.: Amsterdam, The Netherlands, 2018; Volume 3, pp. 137–160. [Google Scholar]
  7. García-Depraect, O.; Muñoz, R.; van Lier, J.B.; Rene, E.R.; Diaz-Cruces, V.F.; León-Becerril, E. Three-stage process for tequila vinasse valorization through sequential lactate, biohydrogen and methane production. Bioresour. Technol. 2020, 307, 123160. [Google Scholar] [CrossRef]
  8. Mohan, S.V.; Nikhil, G.N.; Chiranjeevi, P.; Reddy, N.C.; Rohit, M.V.; Kumar, A.N.; Sarkar, O. Waste biorefinery models towards sustainable circular bioeconomy: Critical review and future perspectives. Bioresour. Technol. 2016, 215, 2–12. [Google Scholar] [CrossRef]
  9. Bundhoo, Z.M.A. Coupling dark fermentation with biochemical or bioelectrochemical systems for enhanced bio-energy production: A review. Int. J. Hydrogen Energy 2017, 42, 26667–26686. [Google Scholar] [CrossRef]
  10. García-Depraect, O.; Castro-Muñoz, R.; Muñoz, R.; Rene, E.R.; León-Becerril, E.; Valdez-Vazquez, I.; Kumar, G.; Reyes-Alvarado, L.C.; Martínez-Mendoza, L.J.; Carrillo-Reyes, J.; et al. A review on the factors influencing biohydrogen production from lactate: The key to unlocking enhanced dark fermentative processes. Bioresour. Technol. 2021, 324, 124595. [Google Scholar] [CrossRef]
  11. Park, J.-H.; Sim, Y.-B.; Kumar, G.; Anburajan, P.; Park, J.-H.; Park, H.-D.; Kim, S.-H. Kinetic modeling and microbial community analysis for high-rate biohydrogen production using a dynamic membrane. Bioresour. Technol. 2018, 262, 59–64. [Google Scholar] [CrossRef]
  12. Sim, Y.-B.; Jung, J.-H.; Baik, J.-H.; Park, J.-H.; Kumar, G.; Banu, R.J.; Kim, S.-H. Dynamic membrane bioreactor for high rate continuous biohydrogen production from algal biomass. Bioresour. Technol. 2021, 340, 125562. [Google Scholar] [CrossRef]
  13. Jung, J.-H.; Sim, Y.-B.; Park, J.-H.; Pandey, A.; Kim, S.-H. Novel dynamic membrane, metabolic flux balance and PICRUSt analysis for high-rate biohydrogen production at various substrate concentrations. Chem. Eng. J. 2021, 420, 127685. [Google Scholar] [CrossRef]
  14. Park, J.-H.; Park, J.-H.; Sim, Y.-B.; Kim, S.-H.; Park, H.-D. Formation of a dynamic membrane altered the microbial community and metabolic flux in fermentative hydrogen production. Bioresour. Technol. 2019, 282, 63–68. [Google Scholar] [CrossRef]
  15. Dahiya, S.; Chatterjee, S.; Sarkar, O.; Mohan, S.V. Renewable hydrogen production by dark-fermentation: Current status, challenges and perspectives. Bioresour. Technol. 2021, 321, 124354. [Google Scholar] [CrossRef]
  16. Cai, J.; Wang, G. Comparison of different pre-treatment methods for enriching hydrogen-producing bacteria from intertidal sludge. Int. J. Green Energy 2016, 13, 292–297. [Google Scholar] [CrossRef]
  17. Toledo-Alarcón, J.; Cabrol, L.; Jeison, D.; Trably, E.; Steyer, J.-P.; Tapia-Venegas, E. Impact of the microbial inoculum source on pre-treatment efficiency for fermentative H2 production from glycerol. Int. J. Hydrogen Energy 2020, 45, 1597–1607. [Google Scholar] [CrossRef]
  18. García-Depraect, O.; León-Becerril, E. Fermentative biohydrogen production from tequila vinasse via the lactate- acetate pathway: Operational performance, kinetic analysis and microbial ecology. Fuel 2018, 234, 151–160. [Google Scholar] [CrossRef]
  19. Buitrón, G.; Kumar, G.; Martinez-Arce, A.; Moreno, G. Hydrogen and methane production via a two-stage processes (H2-SBR + CH4-UASB) using tequila vinasses. Int. J. Hydrogen Energy 2014, 39, 19249–19255. [Google Scholar] [CrossRef]
  20. Buitrón, G.; Prato-Garcia, D.; Axue, Z.; Zhang, A. Biohydrogen production from tequila vinasses using a fixed bed reactor. Water Sci. Technol. 2014, 70, 1919–1925. [Google Scholar] [CrossRef]
  21. García-Depraect, O.; Diaz-Cruces, V.F.; Rene, E.R.; León-Becerril, E. Changes in performance and bacterial communities in a continuous biohydrogen-producing reactor subjected to substrate- and pH-induced perturbations. Bioresour. Technol. 2020, 295, 122182. [Google Scholar] [CrossRef]
  22. García-Depraect, O.; Muñoz, R.; Rodríguez, E.; Rene, E.R.; León-Becerril, E. Microbial ecology of a lactate-driven dark fermentation process producing hydrogen under carbohydrate-limiting conditions. Int. J. Hydrogen Energy 2021, 46, 11284–11296. [Google Scholar] [CrossRef]
  23. Arellano-García, L.; Velázquez-Fernández, J.B.; Macías-Muro, M.; Marino-Marmolejo, E.N. Continuous hydrogen production and microbial community profile in the dark fermentation of tequila vinasse: Response to increasing loading rates and immobilization of biomass. Biochem. Eng. J. 2021, 172, 108049. [Google Scholar] [CrossRef]
  24. López-López, A.; Davila-Vazquez, G.; León-Becerril, E.; Villegas-García, E.; Gallardo-Valdez, J. Tequila vinasses: Generation and full scale treatment processes. Rev. Environ. Sci. Biotechnol. 2010, 9, 109–116. [Google Scholar] [CrossRef]
  25. Toledo-Cervantes, A.; Villafán-Carranza, F.; Arreola-Vargas, J.; Razo-Flores, E.; Méndez-Acosta, H.O. Comparative evaluation of the mesophilic and thermophilic biohydrogen production at optimized conditions using tequila vinasses as substrate. Int. J. Hydrogen Energy 2020, 45, 11000–11010. [Google Scholar] [CrossRef]
  26. García-Depraect, O.; Gómez-Romero, J.; León-Becerril, E.; López-López, A. A novel biohydrogen production process: Co-digestion of vinasse and Nejayote as complex raw substrates using a robust inoculum. Int. J. Hydrogen Energy 2017, 42, 5820–5831. [Google Scholar] [CrossRef]
  27. García-Depraect, O.; Diaz-Cruces, V.F.; Rene, E.R.; Castro-Muñoz, R.; León-Becerril, E. Long-term preservation of hydrogenogenic biomass by refrigeration: Reactivation characteristics and microbial community structure. Bioresour. Technol. Rep. 2020, 12, 100587. [Google Scholar] [CrossRef]
  28. García-Depraect, O.; Rene, E.R.; Diaz-Cruces, V.F.; León-Becerril, E. Effect of process parameters on enhanced biohydrogen production from tequila vinasse via the lactate-acetate pathway. Bioresour. Technol. 2019, 273, 618–626. [Google Scholar] [CrossRef]
  29. Buitrón, G.; Carvajal, C. Biohydrogen production from Tequila vinasses in an anaerobic sequencing batch reactor: Effect of initial substrate concentration, temperature and hydraulic retention time. Bioresour. Technol. 2010, 101, 9071–9077. [Google Scholar] [CrossRef]
  30. W.E. Federation; A.P.H. Association. Standard Methods for the Examination of Water and Wastewater; American Public Health Association (APHA): Washington, DC, USA, 2005; Volume 21. [Google Scholar]
  31. Miller, G.L. Use of dinitrosalicylic acid reagent for determination of reducing sugar. Anal. Chem. 1959, 31, 426–428. [Google Scholar] [CrossRef]
  32. Alcázar, L.A.; Ancheyta, J. Sensitivity analysis based methodology to estimate the best set of parameters for heterogeneous kinetic models. Chem. Eng. J. 2007, 128, 85–93. [Google Scholar] [CrossRef]
  33. Asunis, F.; De Gioannis, G.; Isipato, M.; Muntoni, A.; Polettini, A.; Pomi, R.; Rossi, A.; Spiga, D. Control of fermentation duration and pH to orient biochemicals and biofuels production from cheese whey. Bioresour. Technol. 2019, 289, 121722. [Google Scholar] [CrossRef]
  34. Argun, H.; Kargi, F.; Kapdan, I.K.; Oztekin, R. Biohydrogen production by dark fermentation of wheat powder solution: Effects of C/N and C/P ratio on hydrogen yield and formation rate. Int. J. Hydrogen Energy 2008, 33, 1813–1819. [Google Scholar] [CrossRef]
  35. Madigan, M.T.; Bender, K.S.; Buckley, D.H.; Sattley, W.M.; Stahl, D.A. Diversity of Bacteria. In Brock Biology of Microorganisms; Pearson: New York, NY, USA, 2019; pp. 530–565. ISBN 9781292235103. [Google Scholar]
  36. Mortenson, L.E. Purification and properties of hydrogenase from Clostridium pasteurianum. Methods Enzymol. 1978, 53, 286–296. [Google Scholar] [CrossRef] [PubMed]
  37. Schönheit, P.; Brandis, A.; Thauer, R.K. Ferredoxin degradation in growing Clostridium pasteurianum during periods of iron deprivation. Arch. Microbiol. 1979, 120, 73–76. [Google Scholar] [CrossRef]
  38. Lee, Y.J.; Miyahara, T.; Noike, T. Effect of iron concentration on hydrogen fermentation. Bioresour. Technol. 2001, 80, 227–231. [Google Scholar] [CrossRef]
  39. Lin, C.Y.; Lay, C.H. A nutrient formulation for fermentative hydrogen production using anaerobic sewage sludge microflora. Int. J. Hydrogen Energy 2005, 30, 285–292. [Google Scholar] [CrossRef]
  40. Oztekin, R.; Kapdan, I.K.; Kargi, F.; Argun, H. Optimization of media composition for hydrogen gas production from hydrolyzed wheat starch by dark fermentation. Int. J. Hydrogen Energy 2008, 33, 4083–4090. [Google Scholar] [CrossRef]
  41. Pérez-Rangel, M.; Barboza-Corona, J.E.; Buitrón, G.; Valdez-Vazquez, I. Essential nutrients for improving the direct processing of raw lignocellulosic substrates through the dark fermentation process. Bioenergy Res. 2020, 13, 349–357. [Google Scholar] [CrossRef]
  42. Fuess, L.T.; dos Santos, G.M.; Delforno, T.P.; de Souza Moraes, B.; da Silva, A.J. Biochemical butyrate production via dark fermentation as an energetically efficient alternative management approach for vinasse in sugarcane biorefineries. Renew. Energy 2020, 158, 3–12. [Google Scholar] [CrossRef]
  43. Mugnai, G.; Borruso, L.; Mimmo, T.; Cesco, S.; Luongo, V.; Frunzo, L.; Fabbricino, M.; Pirozzi, F.; Cappitelli, F.; Villa, F. Dynamics of bacterial communities and substrate conversion during olive-mill waste dark fermentation: Prediction of the metabolic routes for hydrogen production. Bioresour. Technol. 2021, 319, 124157. [Google Scholar] [CrossRef]
  44. García-Depraect, O.; Valdez-Vázquez, I.; Rene, E.R.; Gómez-Romero, J.; López-López, A.; León-Becerril, E. Lactate-and acetate-based biohydrogen production through dark co-fermentation of tequila vinasse and nixtamalization wastewater: Metabolic and microbial community dynamics. Bioresour. Technol. 2019, 282, 236–244. [Google Scholar] [CrossRef]
  45. Detman, A.; Laubitz, D.; Chojnacka, A.; Wiktorowska-Sowa, E.; Piotrowski, J.; Salamon, A.; Kaźmierczak, W.; Błaszczyk, M.K.; Barberan, A.; Chen, Y.; et al. Dynamics and complexity of dark fermentation microbial communities producing hydrogen from sugar beet molasses in continuously operating packed bed reactors. Front. Microbiol. 2021, 11, 612344. [Google Scholar] [CrossRef] [PubMed]
  46. Detman, A.; Laubitz, D.; Chojnacka, A.; Kiela, P.R.; Salamon, A.; Barberan, A.; Chen, Y.; Yang, F.; Błaszczyk, M.K.; Sikora, A. Dynamics of dark fermentation microbial communities in the light of lactate and butyrate production. Microbiome 2021, 9, 158. [Google Scholar] [CrossRef]
  47. Diaz-Cruces, V.F.; García-Depraect, O.; León-Becerril, E. Effect of lactate fermentation type on the biochemical methane potential of tequila vinasse. BioEnergy Res. 2020, 13, 571–580. [Google Scholar] [CrossRef]
  48. Freitas, I.B.F.; de Menezes, C.A.; Silva, E.L. An alternative for value aggregation to the sugarcane chain: Biohydrogen and volatile fatty acids production from sugarcane molasses in mesophilic expanded granular sludge bed reactors. Fuel 2020, 260, 116419. [Google Scholar] [CrossRef]
  49. Andreani, C.L.; Tonello, T.U.; Mari, A.G.; Leite, L.C.C.; Campaña, H.D.; Lopes, D.D.; Rodrigues, J.A.D.; Gomes, S.D. Impact of operational conditions on development of the hydrogen-producing microbial consortium in an AnSBBR from cassava wastewater rich in lactic acid. Int. J. Hydrogen Energy 2019, 44, 1474–1482. [Google Scholar] [CrossRef]
  50. Cabrol, L.; Marone, A.; Tapia-Venegas, E.; Steyer, J.P.; Ruiz-Filippi, G.; Trably, E. Microbial ecology of fermentative hydrogen producing bioprocesses: Useful insights for driving the ecosystem function. FEMS Microbiol. Rev. 2017, 41, 158–181. [Google Scholar] [CrossRef]
  51. Sikora, A.; Błaszczyk, M.; Jurkowski, M.; Zielenkiewicz, U. Lactic acid bacteria in hydrogen-producing consortia: On purpose or by coincidence? Lact. Acid Bact. Food Health Livest. Purp. 2013, 487–514. [Google Scholar] [CrossRef] [Green Version]
  52. Noike, T.; Takabatake, H.; Mizuno, O.; Ohba, M. Inhibition of hydrogen fermentation of organic wastes by lactic acid bacteria. Int. J. Hydrogen Energy 2002, 27, 1367–1371. [Google Scholar] [CrossRef]
  53. Rosa, P.R.F.; Gomes, B.C.; Varesche, M.B.A.; Silva, E.L. Characterization and antimicrobial activity of lactic acid bacteria from fermentative bioreactors during hydrogen production using cassava processing wastewater. Chem. Eng. J. 2016, 284, 1–9. [Google Scholar] [CrossRef]
  54. Gomes, S.D.; Fuess, L.T.; Mañunga, T.; De Lima Gomes, P.C.F.; Zaiat, M. Bacteriocins of lactic acid bacteria as a hindering factor for biohydrogen production from cassava flour wastewater in a continuous multiple tube reactor. Int. J. Hydrogen Energy 2016, 41, 8120–8131. [Google Scholar] [CrossRef] [Green Version]
  55. Matsumoto, M.; Nishimura, Y. Hydrogen production by fermentation using acetic acid and lactic acid. J. Biosci. Bioeng. 2007, 103, 236–241. [Google Scholar] [CrossRef] [PubMed]
  56. Cheng, C.-H.; Hsu, S.-C.; Wu, C.-H.; Chang, P.-W.; Lin, C.-Y.; Hung, C.-H. Quantitative analysis of microorganism composition in a pilot-scale fermentative biohydrogen production system. Int. J. Hydrogen Energy 2011, 36, 14153–14161. [Google Scholar] [CrossRef]
  57. Pattra, S.; Lay, C.-H.; Lin, C.-Y.; O-Thong, S.; Reungsang, A. Performance and population analysis of hydrogen production from sugarcane juice by non-sterile continuous stirred tank reactor augmented with Clostridium butyricum. Int. J. Hydrogen Energy 2011, 36, 8697–8703. [Google Scholar] [CrossRef]
  58. Rao, R.; Basak, N. Optimization and modelling of dark fermentative hydrogen production from cheese whey by Enterobacter aerogenes 2822. Int. J. Hydrogen Energy 2021, 46, 1777–1800. [Google Scholar] [CrossRef]
  59. Torres de Souza, I.; Moreira, F.S.; de Souza Ferreira, J.; Cardoso, V.L.; Batista, F.R.X. Technological advances in hydrogen production by Enterobacter bacteria upon substrate, luminosity and anaerobic conditions. Int. J. Hydrogen Energy 2019, 44, 16190–16198. [Google Scholar] [CrossRef]
  60. Jayasinghearachchi, H.S.; Sarma, P.M.; Singh, S.; Aginihotri, A.; Mandal, A.K.; Lal, B. Fermentative hydrogen production by two novel strains of Enterobacter aerogenes HGN-2 and HT 34 isolated from sea buried crude oil pipelines. Int. J. Hydrogen Energy 2009, 34, 7197–7207. [Google Scholar] [CrossRef]
  61. Argun, H.; Kargi, F.; Kapdan, I.K. Microbial culture selection for bio-hydrogen production from waste ground wheat by dark fermentation. Int. J. Hydrogen Energy 2009, 34, 2195–2200. [Google Scholar] [CrossRef]
  62. Hung, C.H.; Chang, Y.T.; Chang, Y.J. Roles of microorganisms other than Clostridium and Enterobacter in anaerobic fermentative biohydrogen production systems—A review. Bioresour. Technol. 2011, 102, 8437–8444. [Google Scholar] [CrossRef]
  63. Pachapur, V.L.; Sarma, S.J.; Brar, S.K.; Le Bihan, Y.; Buelna, G.; Soccol, C.R. Evidence of metabolic shift on hydrogen, ethanol and 1,3-propanediol production from crude glycerol by nitrogen sparging under micro-aerobic conditions using co-culture of Enterobacter aerogenes and Clostridium butyricum. Int. J. Hydrogen Energy 2015, 40, 8669–8676. [Google Scholar] [CrossRef]
Sustainability 13 11034 g001 550

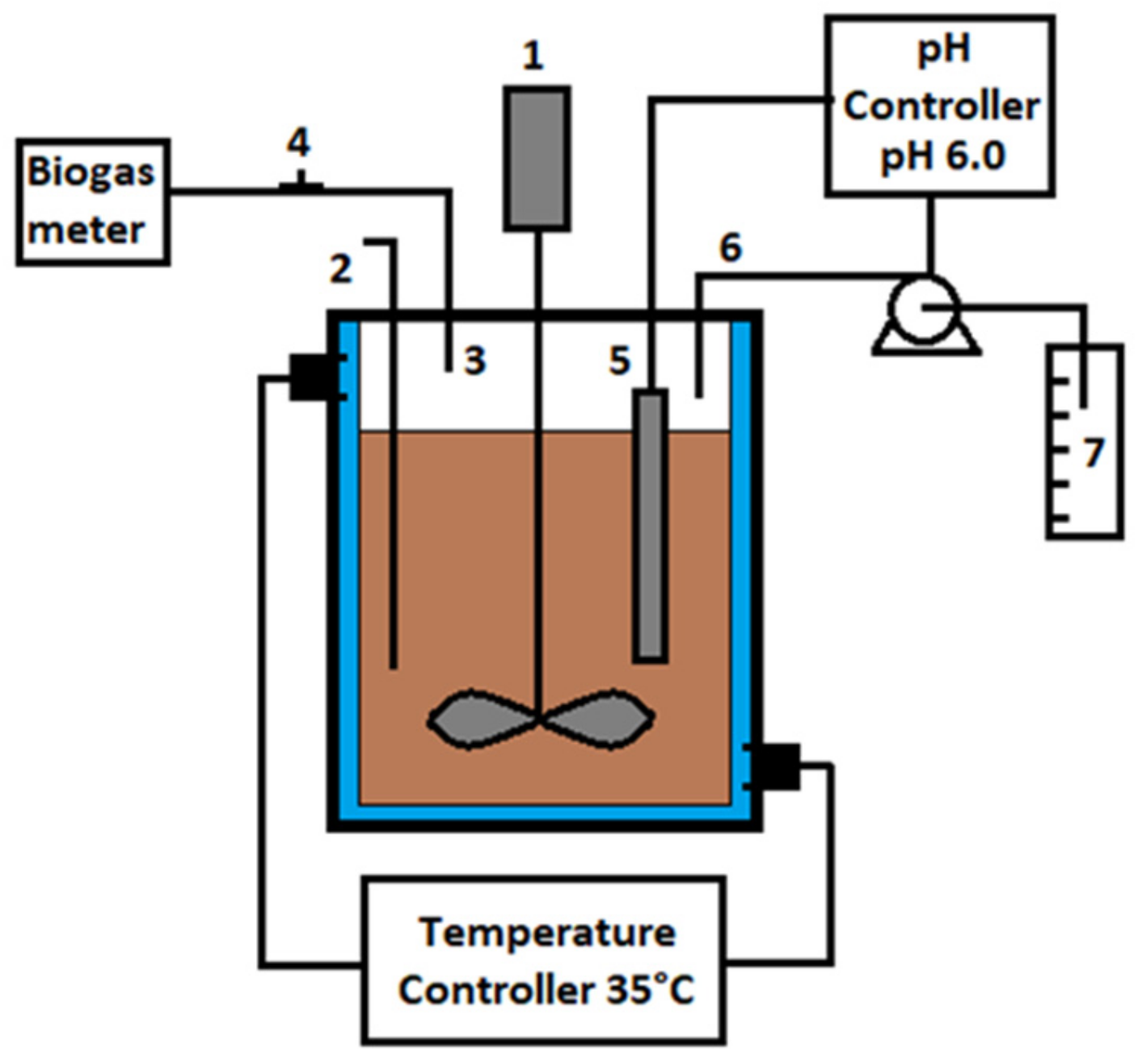

Figure 1. Schematic diagram of the reactor set-up. Mechanical stirring device (1), liquid sampling port (2), gas outlet (3) and sampling port (4), pH meter (6), and graduated cylinder containing 10 M NaOH (7).
Figure 1. Schematic diagram of the reactor set-up. Mechanical stirring device (1), liquid sampling port (2), gas outlet (3) and sampling port (4), pH meter (6), and graduated cylinder containing 10 M NaOH (7).
Sustainability 13 11034 g001
Sustainability 13 11034 g002 550

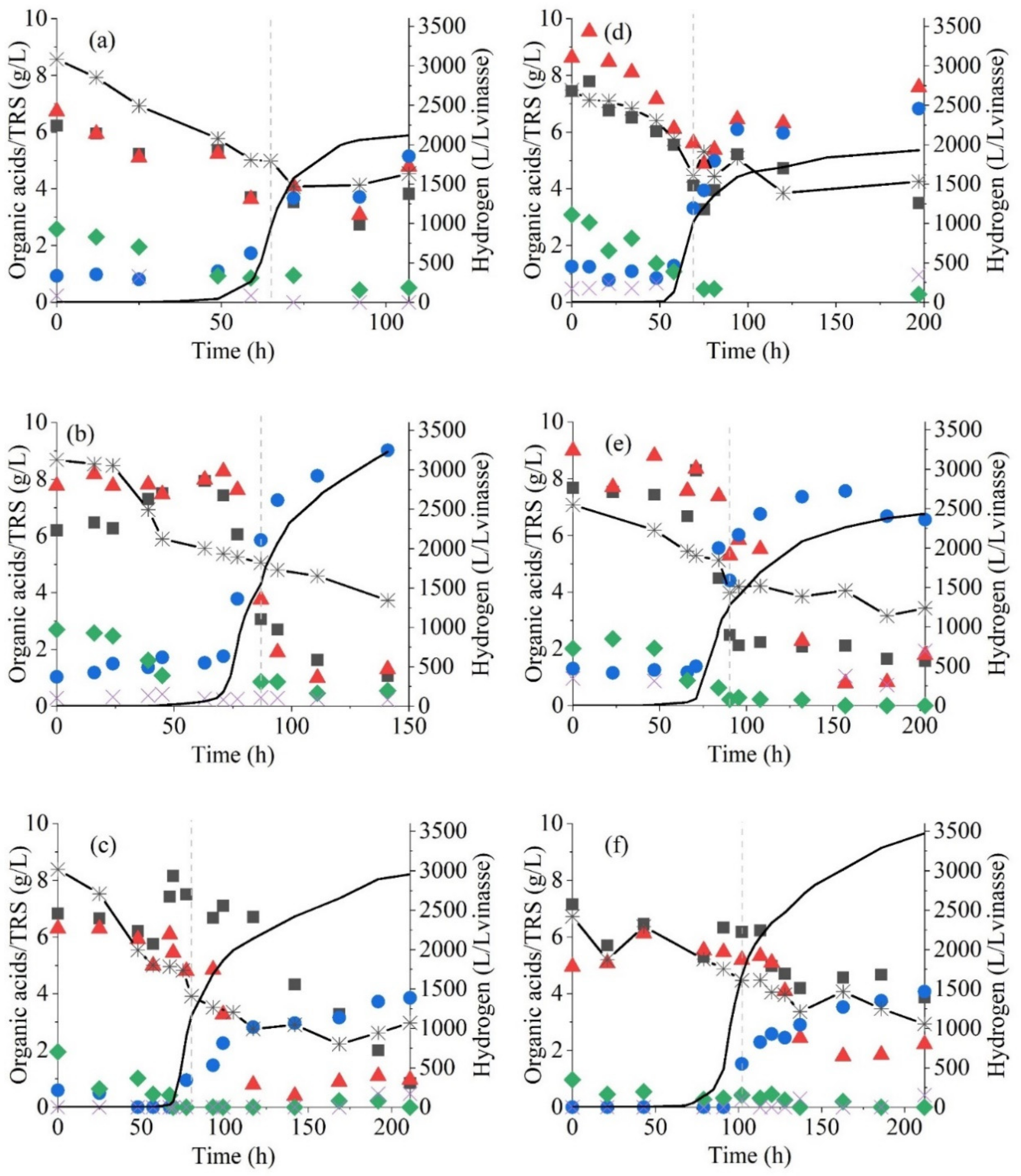

Figure 2. Time course of cumulative hydrogen production (-), total reducing sugars (*), and organic acids such as formate (♦), acetate (■), lactate (▲), propionate (×), and butyrate (●) for the runs conducted with the microbial consortia HATI (run 1 (a), run 2 (b), and run 3 (c)), and HTI (run 4 (d), run 5 (e), and run 6 (f)). Vertical dotted lines show the sampling time for the microbial community analysis.
Figure 2. Time course of cumulative hydrogen production (-), total reducing sugars (*), and organic acids such as formate (♦), acetate (■), lactate (▲), propionate (×), and butyrate (●) for the runs conducted with the microbial consortia HATI (run 1 (a), run 2 (b), and run 3 (c)), and HTI (run 4 (d), run 5 (e), and run 6 (f)). Vertical dotted lines show the sampling time for the microbial community analysis.
Sustainability 13 11034 g002
Table
Table 1. Physicochemical characterization of the tequila vinasse used in the current study.
Table 1. Physicochemical characterization of the tequila vinasse used in the current study.
ParameterValue
pH3.43
Acidity (g CaCO3/L)6.8 ± 0.1
Total COD (g/L)52.1 ± 2.8
Soluble COD (g/L)50.3 ± 4.3
Total organic carbon (g/L)23.5 ± 0.02
Total reducing sugars (g/L)8.1 ± 0.1
Total carbohydrates (g/L)11.9 ± 0.3
Total nitrogen (mg/L)182.5 ± 17.6
Total phosphorous (mg/L)297.5 ± 42.4
Sulfate (mg/L)225.0 ± 0.0
Total solids (g/L)37.1 ± 0.6
Total volatile solids (g/L)33.8 ± 0.6
Total suspended solids (g/L)5.5 ± 0.8
Copper (mg/L)1.0
Iron (mg/L)29.8
Manganese (mg/L)11.2
Zinc (mg/L)1.2
Sodium (mg/L)47.1
Nickel (mg/L)1.0
Magnesium (mg/L)374.0
Molybdenum (mg/L)1.0
Sulfur (mg/L)61.9
Potassium (mg/L)655.0
Calcium (mg/L)493.0
Table
Table 2. Nutrients present in the tequila vinasse used in this study and optimal nutrient formulation for hydrogen production previously reported in other studies. Values are expressed as parts of nutrient per 100 parts of organic carbon.
Table 2. Nutrients present in the tequila vinasse used in this study and optimal nutrient formulation for hydrogen production previously reported in other studies. Values are expressed as parts of nutrient per 100 parts of organic carbon.
SubstrateNPMgFeCaZnNaReference
Wheat powder0.50.1-----[34]
Anaerobic sewage sludge0.2-0.20.0470.0035[39]
Wheat starch20.8-1.5---[40]
Lignocellulose5.70.3--3.8--[41]
Tequila vinasse0.81.31.60.102.10.0050.2This study
Table
Table 3. Comparison of the modified Gompertz model kinetic parameters and other hydrogen production performance indicators obtained with the different microbial consortia tested.
Table 3. Comparison of the modified Gompertz model kinetic parameters and other hydrogen production performance indicators obtained with the different microbial consortia tested.
Inoculum
Performance IndicatorHATIHTIp-Value
CHP (NmL H2/L vinasse)2644 ± 5382490 ± 8040.797
HPRmax (NL H2/L-d)1.89 ± 0.721.43 ± 0.160.339
Lag phase (h)63.3 ± 5.366.9 ± 11.80.660
R20.996 ± 0.0050.995 ± 0.0020.805
t90104 ± 23117 ± 290.570
H2 content (% v/v)71 ± 764 ± 100.350
Hydrogen yield (NmL H2/g VS added)78.2 ± 15.973.6 ± 23.80.797
Hydrogen yield (NmL H2/g COD added)50.7 ± 10.347.8 ± 15.40.797
Soluble COD removal (%)15 ± 117 ± 40.657
TRS removal (%)47 ± 951 ± 70.437
Table
Table 4. Comparison of different reported dark fermentation systems fed with tequila vinasse.
Table 4. Comparison of different reported dark fermentation systems fed with tequila vinasse.
Operation ModepHTemperature (°C)Inoculum PretreatmentHydrogen Production Rate
(NL H2/L-d)		Nutrient SupplementationFeeding Concentration
(g COD/L)		Reference
Batch5.535Heat-aeration3.8Yes58[18]
Semi-continuous4.735Heat1.2Yes16[19]
Continuous5.535Heat1.7Yes8.5[20]
Continuous5.535Heat-aeration12.5Yes42[21]
Continuous5.5N.R.Heat0.06No26[23]
Semi-continuous5.555Heat0.5No29[25]
Batch6.035Heat-aeration 1.9No52This study
N.R.: not reported.
Table
Table 5. Microbial community composition at the accelerated phase of hydrogen production.
Table 5. Microbial community composition at the accelerated phase of hydrogen production.
Microbial SpeciesFacultativeSporulatingH2 Producer HATIHTI
Run 1Run 2Run 3Run 4Run 5Run 6
Prevotella sp.NoNoNo0.00.00.04.00.00.0
Sporolactobacillus terraeNoYesNo0.30.11.40.50.00.1
Enterococcus casseliflavusNo *NoNo0.00.00.013.72.40.0
Lactobacillus caseiNo *NoNo18.67.014.70.10.00.0
Lactobacillus harbinensisNo *NoNo11.92.48.10.00.00.0
Lactobacillus rhamnosusNo *NoNo0.00.81.10.00.00.0
Clostridium beijerinckiiNoYesYes25.88.740.465.737.934.8
Clostridium sp.NoYesYes4.20.94.74.45.12.9
Enterobacter sp.YesNoYes10.925.05.60.016.356.1
Klebsiella sp.YesNoYes18.854.613.40.032.41.2
<1.0%---1.30.11.03.20.00.0
Unclassified---8.20.59.78.25.94.9
* Aerotolerant microorganisms that can grow in the presence of oxygen but not metabolize it [35].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rodríguez-Reyes, J.J.; García-Depraect, O.; Castro-Muñoz, R.; León-Becerril, E. Dark Fermentation Process Response to the Use of Undiluted Tequila Vinasse without Nutrient Supplementation. Sustainability 2021, 13, 11034. https://doi.org/10.3390/su131911034

AMA Style

Rodríguez-Reyes JJ, García-Depraect O, Castro-Muñoz R, León-Becerril E. Dark Fermentation Process Response to the Use of Undiluted Tequila Vinasse without Nutrient Supplementation. Sustainability. 2021; 13(19):11034. https://doi.org/10.3390/su131911034

Chicago/Turabian Style

Rodríguez-Reyes, Juan José, Octavio García-Depraect, Roberto Castro-Muñoz, and Elizabeth León-Becerril. 2021. "Dark Fermentation Process Response to the Use of Undiluted Tequila Vinasse without Nutrient Supplementation" Sustainability 13, no. 19: 11034. https://doi.org/10.3390/su131911034

APA Style

Rodríguez-Reyes, J. J., García-Depraect, O., Castro-Muñoz, R., & León-Becerril, E. (2021). Dark Fermentation Process Response to the Use of Undiluted Tequila Vinasse without Nutrient Supplementation. Sustainability, 13(19), 11034. https://doi.org/10.3390/su131911034

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
