Review

Resource Assessment of Renewable Energy Systems—A Review

by
Kim Maya Yavor
*,
Vanessa Bach
and
Matthias Finkbeiner
Department of Sustainable Engineering, Institute of Environmental Technology, Technische Universität Berlin, 10623 Berlin, Germany
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(11), 6107; https://doi.org/10.3390/su13116107
Submission received: 5 May 2021 / Revised: 22 May 2021 / Accepted: 26 May 2021 / Published: 28 May 2021
(This article belongs to the Section Energy Sustainability)
Browse Figures
Review Reports Versions Notes

Abstract

:
The reduction of greenhouse gas emissions by the energy transition may lead to trade-offs with other impacts on the environment, society, and economy. One challenge is resource use impacts due to increasing demand for high-tech metals and minerals. A review of the current state of the art resource assessment of energy systems was conducted to identify gaps in research and application. Publications covering complete energy systems and supplying a detailed resource assessment were the focus of the evaluation. Overall, 92 publications were identified and categorized by the type of system covered and the applied abiotic resource assessment methods. A total of 78 out of 92 publications covered sub-systems of renewable energy systems, and nine considered complete energy systems and conducted a detailed resource use assessment. Most of the publications in the group “complete energy system and detailed resource assessment” were found in grey literature. Several different aspects were covered to assess resource use. Thirty publications focused on similar aspects including criticality and supply risks, but technology-specific aspects are rarely assessed in the resource assessment of renewable energy systems. Few publications included sector coupling technologies, and among the publications most relevant to the aim of this paper one third did not conduct an indicator-driven assessment.

1. Introduction

Many of the present energy systems depend mainly on fossil resources [1]. The Paris Agreement [2] and the European Green Deal [3] demand high reductions of greenhouse gas emissions, which require switching to renewable energy resources [4] and thus performing an energy transition. Achieving the targets of the energy transition, however, will demand a change in the design of the energy systems and their supporting infrastructure. Energy production will consist of larger shares of renewables and will therefore need supporting infrastructure such as batteries and other storages, more grid infrastructure due to more small producing sites, and sector coupling infrastructure. This leads to a shift in resource use. For example: in 2000 the main resources used by the German energy system were coal, crude oil, oil products and natural gas [1], whereas by 2050 the German energy system will most likely be dependent on copper, aluminum, lithium, nickel, rare earth elements, etc., due to the shift to renewable energies [4]. The needed resources originate from different regions of the world, are available in different amounts and their use might lead to various impacts. Although most publications on resource use of the energy transition do not address threats to the realization of the transition by limited resources [4,5,6,7,8,9,10,11], they do point out impacts on price, environmental issues, social issues, etc. [12,13,14,15,16,17,18]. This makes resources strongly intertwined with the success of the energy transition. Integrating impacts of the changing resource demand and its implications within energy system studies could prevent future challenges or at least buffer them. Further, research for possible limited resources technological or material replacements can be better streamlined. Recycling technologies and infrastructure could be enhanced for materials that are likely to become scarce.
Several reviews in the field of sustainability assessment of energy systems are available. The majority did not focus on resource assessment. Only two reviews focusing on the resource assessment of energy systems were identified, but both covered a specific sub-system and not the complete energy systems: Whereas Habib and Wenzel [19] presented a resource criticality assessment of resources for specific types of wind turbines, Leisegang et al. [20] supplied an in-depth review of resource assessment of aluminum-ion batteries. Other reviews such as [21,22,23,24,25,26,27,28,29] partly included resource assessment but did not focus on it. Romero and Linares [29] for instance, reviewed methods using exergy as a basis for the assessment of energy. Multi-criteria decision analysis methods for the sustainability assessment of energy systems were reviewed by Martín-Gamboa et al. [22], but resource assessment was not explicitly covered. Baumann et al. [21], Peters et al. [23], Jumare et al. [24] and Acar et al. [26] included different sub-systems and did not focus on the resource assessment, while Santoyo-Castelazo and Azapagic [25] presented an overview of general sustainability assessments and Acar et al. [26] covered life cycle assessment (LCA) case studies of energy systems. A systematic literature review concerning the resource use assessment of sub-systems and complete energy systems, however, had not been published to the knowledge of the authors. Therefore, this paper provides such a review of the current state of the art concerning resource assessment of complete energy systems, to identify gaps in research and application.
As the definition of the term “energy system” is ambiguous, clear definitions are needed. In the following the term “complete energy system” is used for a system covering all components needed to run the renewable energy supply of a region. This includes production technologies, the grid as well as energy storage and sector coupling. The term “sub-system” refers to elements of such a system (e.g., a wind turbine, PV panels, batteries, etc.) which are on its own not sufficient to secure the energy supply for a region. Thus, the focus is on complete energy systems, which can deliver a secure energy supply. Due to fluctuations during day and night as well as seasons the secure supply of renewable energy is only given when a complex system of heterogeneous components is implemented [30]. It is therefore not only a matter of up- or down-scaling but rather a balancing act, which should therefore be regarded as one system. Otherwise, burdens might be shifted, and the allocation can be unclear. However, due to the limited number of publications on resource assessment of complete energy systems the scope of the literature review is extended to sub-systems of energy systems as well.
One of the reference systems for the evaluation of the publications is based on Berger et al./Sonderegger et al. [31,32]. They introduced seven questions related to the impacts of mineral resource use (see supporting information, Section S3), based on aspects identified as relevant for resource assessment. For each question, a method was recommended, in order to supply an application-dependent recommendation. A broad range of methods and indicators were introduced to assess the different aspects of resource use, reaching from, e.g., Abiotic Depletion Potential (ADP) [33,34], over Surplus Ore Potential (SOP) [35], LIME [36], Cumulative Exergy Extraction from the Natural Environment (CEENE) [37] to ESSENZ [38,39] and GeoPolRisk [40,41,42]. The methods consider physical depletion, resource quality, resource quality change and its consequences, (economic) externalities due to overexploitation of resources, thermodynamics and the mid- and short-term supply of mineral resources [31,32]. Some of these methods cover many aspects, e.g., the assessment of the mid- and short-term supply covers company concentration, concentration of production and reserves, primary material use, political stability, price, recycling rates, substitutability and furthermore aspects [39,40,41,42,43].
For the case of energy systems, the technology-specific assessment can be relevant. Recycling rates and substitutability of materials can lead to different outcomes when assessed technology-specific [44]. For substitutability, the technology-specific perspective is even more important, as an average substitutability of a material does not necessarily imply a substitutability for a specific product. Therefore, this review will evaluate the literature concerning the coverage of the relevant aspects identified by Berger et al./Sonderegger et al. [31,32] as well as the implementation of technology-specific aspects in the identified publications.
In the following section the methodological structure, the scope, and the evaluation steps of the review are introduced. Section 3 presents and discusses the results of the literature. Finally, conclusions drawn from the review are stated in Section 4.

2. Method

In this section the methodological approach of the literature research and its evaluation according to certain aspects will be introduced (see Section 2.1). Next, the clustering of aspects applied for the evaluation will be presented in Section 2.2, followed by assumptions made in this review in Section 2.3.

2.1. Literture Research and Evaluation

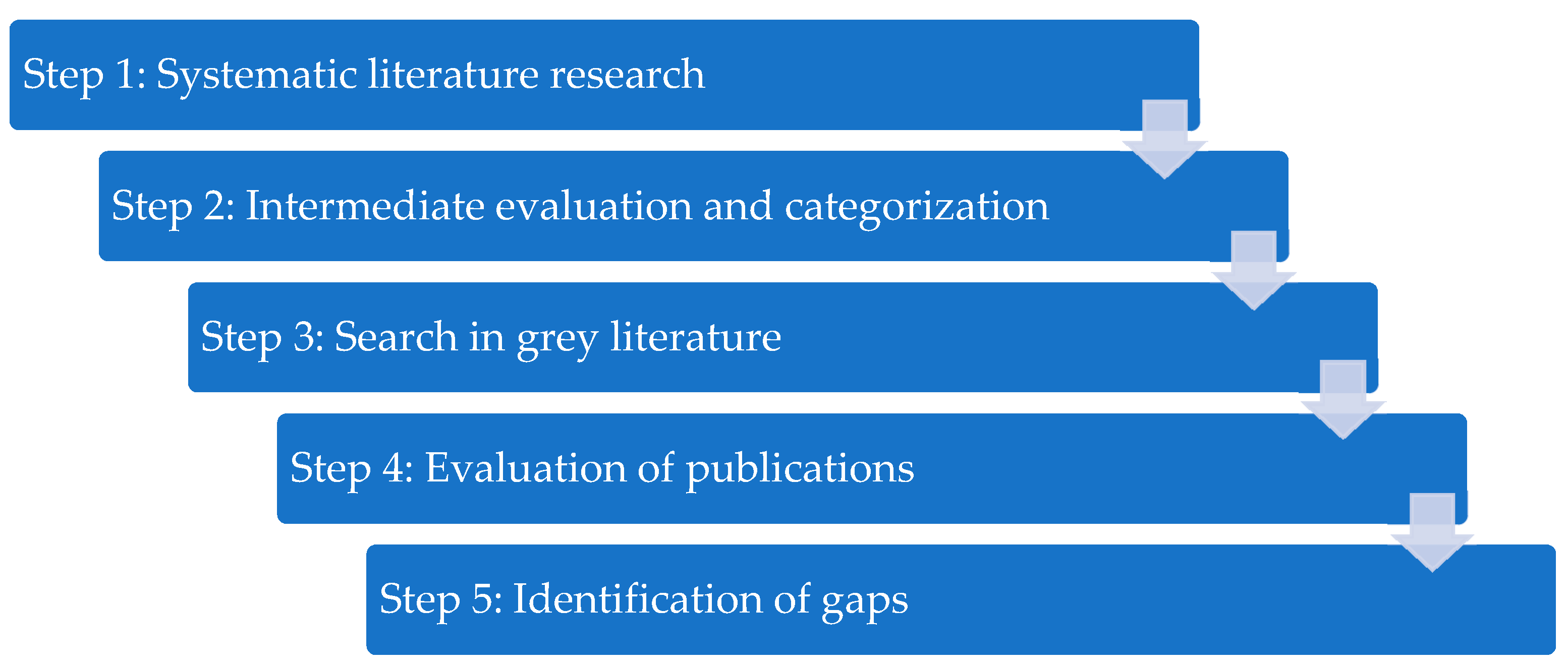

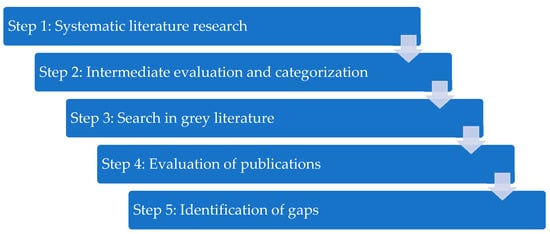

The review was conducted in five main steps as described in the following and shown in Table 1. In step 1 a systematic literature research (SLR) based on keywords was conducted. To ensure coherence with the aim of the paper, inclusion and exclusion criteria for the publications were defined (see Table 1). Thus, the identified publications had to assess a complete renewable energy system or a sub-system and cover its abiotic resource assessment with at least one impact category for at least one abiotic resource. If for example only fossil or nuclear resources were included in the assessment, the publication was dismissed.
In step 2 (see Figure 1), an intermediate evaluation was conducted (see results in Section 3). The derived sample of publications was categorized by two criteria. The first criterion was, how the resource use assessment was carried out. The publications were divided into two groups: one focusing on the assessment of abiotic resource and, assessing at least two aspects of abiotic resources or at least one resource individually (detailed assessment), and another group treating abiotic resources in one aggregated impact category (aggregated assessment). The second criterion was which type of system was assessed. Here the publications were split again. Therefore, two groups dealing with the assessment of complete energy systems resulted and another two groups assessing sub-systems of energy systems, e.g., a specific battery type, solar panels, grids, etc. This categorization resulted in a division into four groups:
  • Complete energy system and aggregated resource assessment
  • Complete energy system and detailed resource assessment
  • Sub-system and aggregated resource assessment
  • Sub-system and detailed resource assessment
As the number of publications in the group “complete energy system and detailed resource assessment” was found to be low after the SLR, the identified publications were complemented by “grey literature”. The grey literature originated from the European Union, Germany and US American institutions. Similar to step 2, the inclusion and exclusion criteria were defined for step 3 (see Table 2). As no database for grey literature is available, a structured keyword driven search could not be conducted. Therefore, publications were directly searched on the publishing institutions websites. The institutions were chosen based on preexisting knowledge and citations in the peer-reviewed literature and the grey literature identified before. This direct targeting of institutions and iterative search process demands preexisting knowledge on possible publishing institutions and leads at the same time to an increasing effort. For these reasons, the geographic scope of the grey literature search was limited to the European Union, Germany, and the USA.
For both searches only literature published between 2010 and 2020 was included in the sample, as the technology develops quickly and so did the models of renewable energy systems. Details on the search and keywords, database and sources, inclusion, and exclusion factors (based on the aim of the paper) are presented in Table 1 and Table 2.
Like the identified publications of the SLR, also the publications derived from grey literature search were categorized in the four groups introduced above.
In step 4 the publications were evaluated) regarding the technologies assessed and the detail of resource assessment, applying the same categories as defined above. An evaluation of the resource aspects and the resources covered in the publications was conducted as well.
Finally, research gaps were identified based on the results of the evaluation in step 5.

2.2. Clustering of Aspects

To better analyze the aspects assessed in the different publications in step 4, the aspects were clustered. The following clusters were introduced:
  • Criticality—when supply risk and vulnerability aspects were assessed, following the definition used by Bach et al. [39];
  • Demand—when demand forecasts were given without the context of further supply risk or vulnerability aspects;
  • Environmental aspects—when any environmental impact was assessed (e.g., climate change impact of material production);
  • Economic aspects—when economic impacts were assessed without the context of further supply risk or vulnerability aspects (e.g., energy return on investment);
  • Material requirement—when the material requirement was assessed without the context of further supply risk or vulnerability aspects;
  • Nexus of material use—when a nexus analysis was applied (a nexus shows among others the impacts of different aspects on one another);
  • Political aspects—when political impacts were assessed without the context of further supply risk or vulnerability aspects (e.g., dependance on China);
  • Resource depletion—when resource depletion indicators were used (e.g., ADP);
  • Resource scarcity—when resource scarcity indicators were used (e.g., Ecoscarcity);
  • Social aspects—when any social impact was assessed;
  • Supply risk—when supply risk aspects were assessed, following the definition used by Bach et al. [39];
  • Thermodynamic aspects—when thermodynamic aspects were assessed (e.g., entropy or exergy).
The clustering could lead to mask certain aspects, e.g., the recycling rate occurred in combination with aspects such as companion metal, company concentration production, demand forecast, political stability, and substitutability. In this review, recycling rates were allocated to the cluster “criticality”; thus, the detailed aspects are not visible anymore. For more transparency on the clustering the originally used aspects can be found in the supporting information, Section S1, Table S1.

2.3. Assumptions

In the evaluation of the assessed technologies, lithium batteries were not treated as sector coupling elements technology, but as storage infrastructure for the grid, as they do not directly transform energy.
Despite the possible benefits of biomass usage as shown by [45], publications focusing exclusively on biomass were dismissed. Biomass is not an abiotic resource, and it is assumed that the reduction of coal firing is correlated with the renewable energy system as a whole. However, when biomass is included in the resource assessment of a broader energy system (including further technologies, e.g., wind turbines) it was included.

3. Results and Discussion

Overall, about 600 sustainability assessments of renewable energy systems or their sub-systems were found during the literature research. Most of the publications did not consider abiotic resources in any way or did not meet the other factors mentioned above (see Table 1). Therefore, the sample included 86 publications. Only three publications covered complete energy systems and a detailed resource assessment (see Section 3.1). Therefore, an additional search in the grey literature was conducted as described in Section 2 and Table 2. Another 6 publications covering complete energy systems and conducting a detailed resource assessment were identified. All together 92 publications were evaluated in this review.

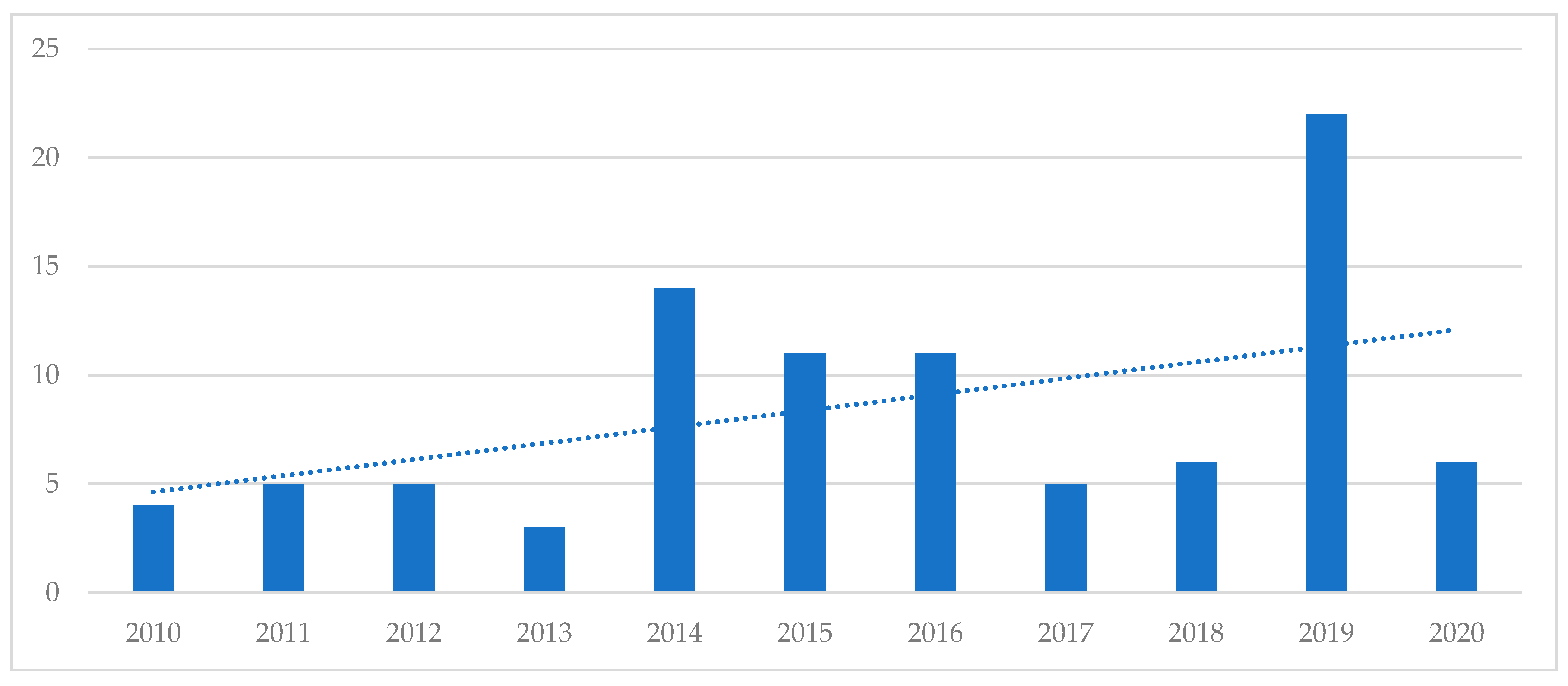

No severe increase of publications over the years could be found (see Figure 2). 22 out of 92 publications were published in 2019. Over 80% of the publications date from 2014 and later. The field of renewable energies and its supporting infrastructure is developing quickly, among others due to its political relevance [2,3]. Additionally, the materials used are changing and being optimized [46,47,48,49]. A clear timeframe had to be set for this study to generate and evaluate results. Therefore, publications on abiotic resource assessment of renewable energy systems published after December 2020 were not included.
The results are presented in three sub-sections, evaluating the technologies, the aspects and the resources covered in the literature.

3.1. Technologies Assessed and Level of Detail in Resource Assessment

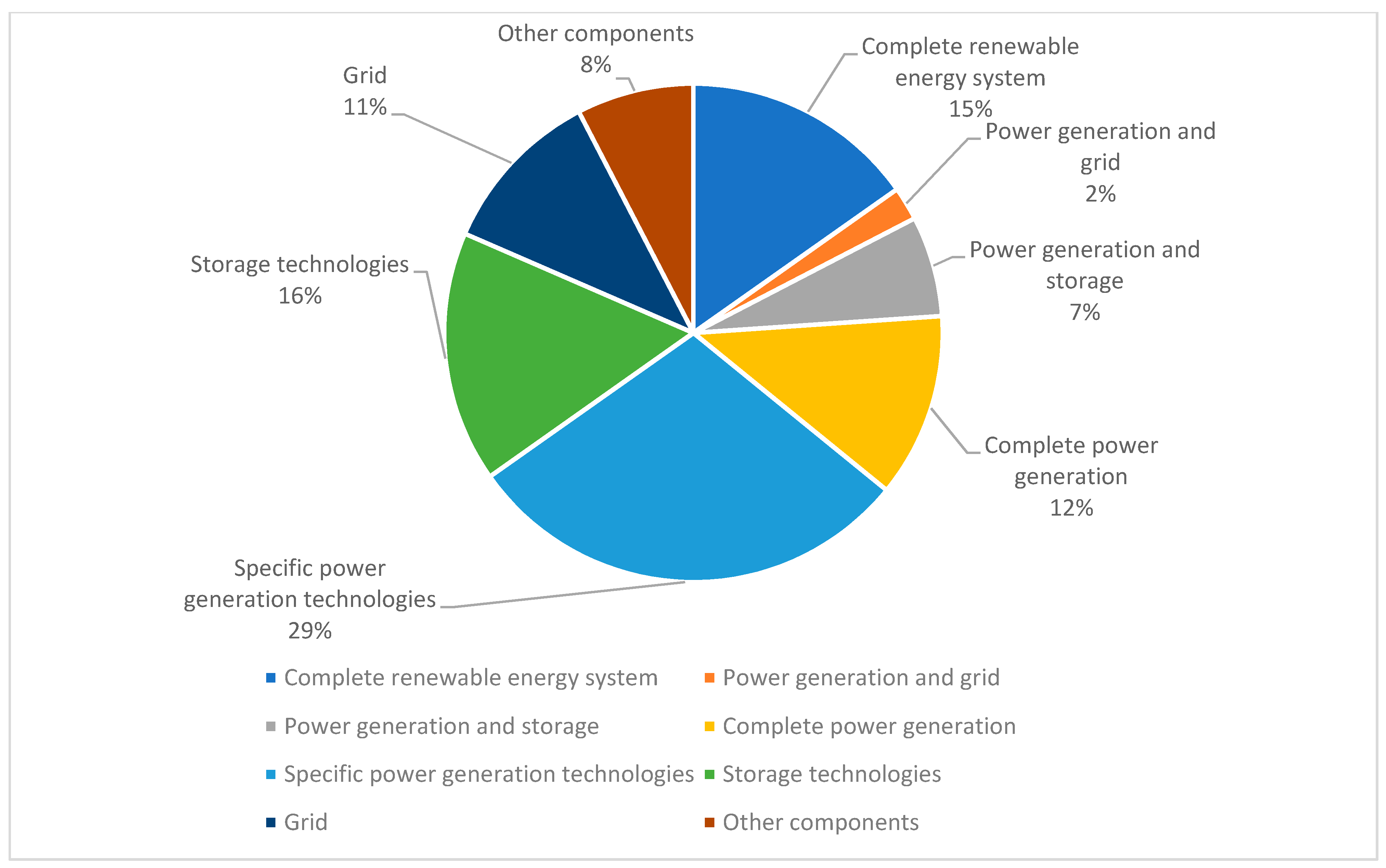

The results of the evaluation of the technologies assessed and the level of detail of the resource assessment are shown in Figure 3 and Table 3. Forty-six publications were focused on the resource assessment of renewable energy systems or sub-systems (Figure 3 and Supplementary Materials, Section S1, Table S1). This means that they assessed at least two aspects of abiotic resources or at least one resource individually. The other 46 publications covered resources, but only with aggregated indicators. A total of 14 publications considered complete energy systems, and out of these 9 publications covered a detailed resource assessment (see Figure 3). Seventy-eight out of 92 of the included publications treated sub-systems of energy systems (see Figure 3).
Most of the publications in the group “complete energy system and detailed resource assessment” were identified when searching for grey literature [4,5,7,9,10,11]. As Moss et al. [5] (grey literature) and Moss et al. [6] (literature in peer-reviewed journal) are based on the same project and cover the same results just with different levels of detail, they will be further referred to together, but counted as two publications.

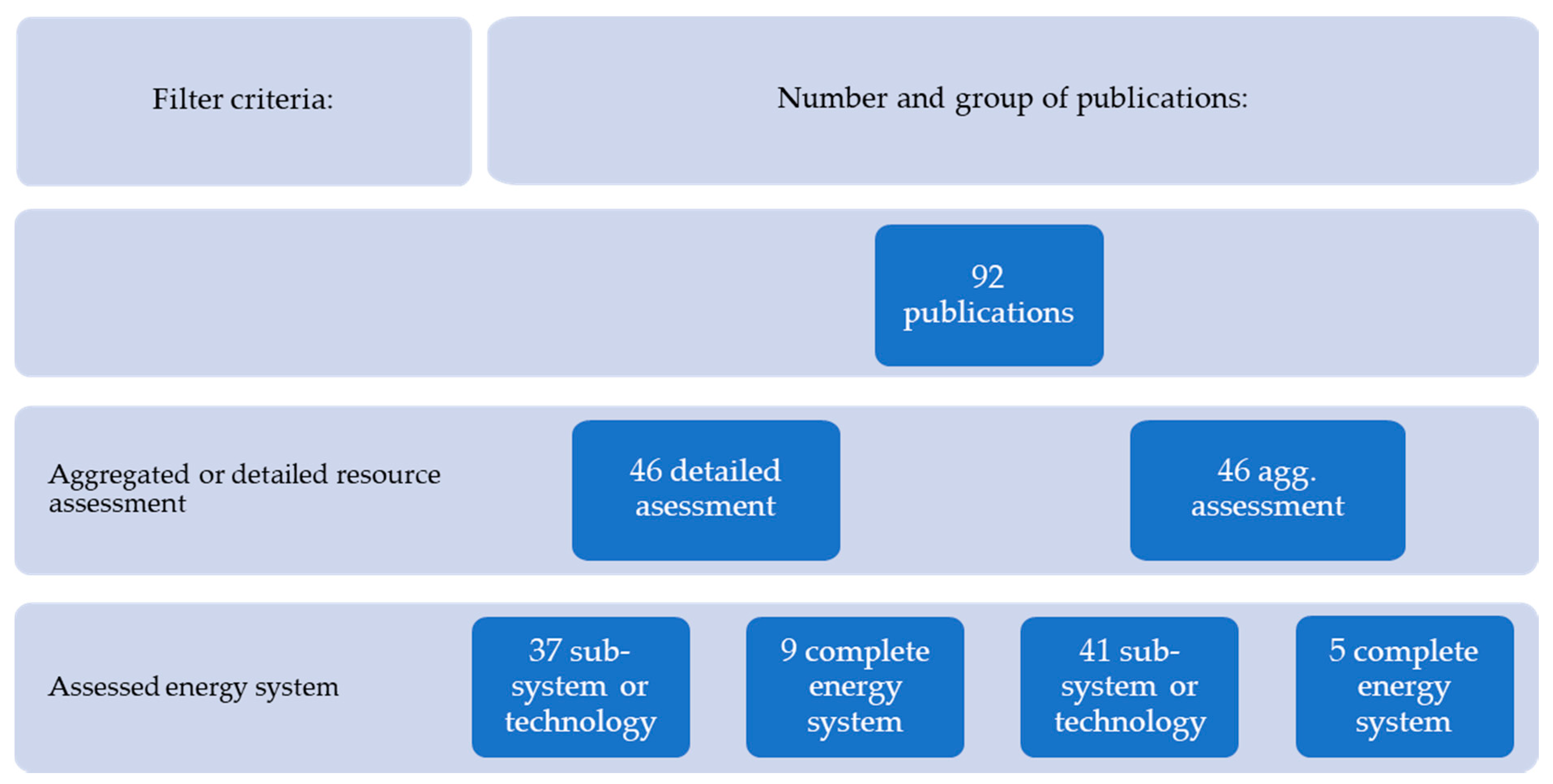

The four groups (see Figure 3) were not equally relevant to the aim of this paper (identify the challenges and research gaps in resource assessment of complete energy systems). As argued before renewable energy systems consist of highly intertwined sub-systems and thus, should be regarded as one product system. Aggregated indicators have the advantage of easy communication, but on the other hand reduce information. The targets of this review demanded a high resolution of the results for each aspect and resource assessed. Therefore, the detailed resource assessments were of importance for this review. In the following sections this group will therefore be given additional focus. A short overview and a comparison of the publications in the group “complete energy system and detailed resource assessment” in given in Table 4.
As mentioned in the introduction the term “energy system” is used for a variety of technologies. This is also reflected in sample (see Figure 4). Most of the publications (63) assessed either only one specific sub-system of energy systems (“specific power generation technologies” and “grid” in Figure 4) or a homogeneous group of sub-systems concerning the functionality of the technologies: either several storage technologies or several power generation technologies (“storage technologies” and “complete power generation” in Figure 4). The share of publications covering inhomogeneous technologies (e.g., “power generation and grid”, “power generation and storage”, “complete renewable energy system”) was less than one-fourth of the publication sample (see Figure 4). The biggest share of the sample analyzed power generating technologies, either only specific power generation technologies or a power generation mix (here: “complete power generation”). Other technologies were rarely treated, e.g., sector coupling technology. Complete energy systems as regarded most relevant for this work (see Section 1), were only treated in 15% of the publications. This indicates lacking research on abiotic resource assessment of complete renewable energy systems.
Further, 10 out of the 46 publications focusing on resources included at least one sector coupling technology. Sector coupling is hardly avoidable in order to reach a stable renewable energy system [30]. Studies in [8,9,50,51] covered the electrolysis, which is needed for hydrogen production. Meylan et al. [52] included the electrolysis and methanation technology needed for the hydrogen and non-fossil gas production. Ostertag et al. [7] considered among others combined heat and power (CHP) and the electrolysis. The assessments of Koning et al. [53] and Lieberei and Gheewala [54] covered CHP. While Tokimatsu et al. [55] and Purr et al. [4] covered several types of hydrogen production and storage, several types of CHP, a variety of types of liquid fuels. They can therefore be regarded as the only two publications in the sample covering the complete sector coupling infrastructure, as it would be needed for the energy transition to be successful in all sectors. Other publications covered different batteries [13,20,56], which could, in cases such as lithium-ion batteries, be considered as sector coupling technologies for the link between energy and mobility, but as stated above were not regarded as such in this paper.
The definition of the energy system assessed within the group “complete energy system and detailed resource assessment” in the different publications was varying. The difference is mainly in the inclusion of sector coupling technology (see Table 4). Purr et al. [4] and Tokimatsu et al. [55] covered the broadest spectrum of technologies in general and, also in particular the broadest spectrum of sector coupling technologies. The spectrum of technologies covered in these two publications is most coherent with the preset energy engineering perspective on the design and composition of renewable energy systems in Germany in 2050 (e.g., [57,58,59,60,61]). Most other publications neglected the sector coupling or regarded it only partly, also it is a crucial element of the energy transition [30].
Overall few publications on complete energy systems supply a detailed resource assessment, most of them origin from grey literature and are therefore not peer-reviewed. Among these publications the definition of the energy system is varying. While two publications [4,55] define a system close to the perspective of current studies for the field of energy engineering [57,58,59,60,61], the other 7 leave out important sector coupling and infrastructure elements. The lack of scientifically revied publications assessing the abiotic resource use of complete energy systems becomes apparent.
Table
Table 3. List of publications by group.
Table 3. List of publications by group.
GroupPublications
Complete Energy system and detailed resource assessment[4,5,6,7,8,9,10,11,55]
Complete Energy system and aggregated resource assessment[62,63,64,65,66]
Sub-system and detailed resource assessment[12,13,19,20,50,51,52,53,54,56,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93]
Sub-system aggregated resource assessment[24,25,26,27,28,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129]
Table
Table 4. Publications with a focus on the assessment of abiotic resources of complete energy systems.
Table 4. Publications with a focus on the assessment of abiotic resources of complete energy systems.
AuthorResourcesAspectsTechnology-Specific AspectsIndicator TypeSector CouplingSummary
Acatech et al. [11]Not specifiedcriticality
demand forecast
environmental impacts
market concentration
material requirement
policy strategies
recycling rate
reserves
social impacts		noneno indicatorsnot specified
-
mainly giving policy recommendations and offering an analysis of the costs and benefits of the different measures
-
recommendations given are not based on an indicator-driven analysis
-
a possible limitation identified however is the dependance on few suppliers for certain materials
American Physical Society [10]Ag, Ce, Co, Dy, Eu, Ga, Gd, Ge, He, In, Ir, La, Li, Lu, Nd, Os, Pd, Pr, Pt, Re, Rh, Ru, Sc, Se, Sm, Tb, Te, Yabundance
companion metal
environmental impacts
geological concentration
geopolitical risk
response times in production and utilization
social impacts		noneno indicatorsnot specified
-
highlights possible “energy-critical elements” that face potential short-term supply disruptions due to increases in demand combined with the inability of the relatively small global market to respond to these.
-
recommendations for governments include: coordination, dissemination of information, establishment of an research and development effort and increased recycling
Moss et al. [5,6]Ag, Cd, Dy, Ga, Hf, In, Mo, Nb, Nd, Ni, Se, Sn, Te, Vmaterial requirement
limitations to expanding supply capacity
likelihood of rapid global demand growth
country concentration
political risk		nonequantitative indicatorsnot included
-
examines the use of metals in nuclear, solar, wind, bioenergy, carbon capture and storage, and electricity grids
-
focusing on materials that due to their high relative economic importance and their high relative supply risk, are considered as critical
-
stresses the importance of market dynamics as they relate to supply chain bottlenecks and offers recommendations relating to the public sharing of data and information, development of supply, international collaboration, research and development investment, recycling, and byproduct production
Ostertag et al. [7]Ag, As, Au, B, Ba, Be, Bi, C, Cd, Co, Cr, Cu, Ga, Ge, Hf, Hg, In, Li, Mg, Mn, Mo, Nb, Ni, Pb, Re, Sb, Sc, Se, Sn, Sr, Ta, Te, Ti, Tl, V, W, Zn, Zrcountry concentration
demand forecast
limitations to expanding supply capacity
political risk		nonequantitative indicatorsCHP and electrolysis
-
based on the method of [5]/[6]; broadening the range of technologies analyzed and updating the results
-
ways of mitigating the supply-chain risks for the critical metals proposed: increasing primary supply, reuse/recycling, and substitution
Purr et al. [4]Explicitly: Ag, Al, C, Co, concrete, Cr, Cu, Fe, Li, Mg, Ni, Pb, PGMs, Si, Zn
Implicitly: further		environmental impacts
raw material consumption
raw material input
total material consumption
total material requirement		nonequantitative indicators, except environmental impactscomplete
-
analyzes 6 scenarios for the German energy transition until 2050 regarding CO2-Emissions and raw material consumption
-
in all scenarios a reduction of the raw material consumption is foreseen to decrease until 2050 (comparing to 2010)
Tokimatsu et al. [55]Aggr. Presentation and additional details on:
Ag, Al, Cd, Co, concrete, Cu, Fe, Ga, Hf, In, Li, Mn, Mo, Ni, Pb, Se, Si, Te, Zn		metal requirementmetal production
nexus of material use and greenhouse gas emissions		nonequantitative indicatorscomplete
-
estimates the metal requirement for various energy scenarios by using a cost-minimizing energy model on the global energy-mineral nexus
-
results conclude a concern regarding the metal requirement and/or availability for certain technologies
Viebahn et al. [8]Cd, Dy, Ga, In, K, La, Li, Nd, Ni, Se, Te, V, Ycritical mineral demandnonequantitative indicatorselectrolysis
-
determines whether the transformation of the German energy system by 2050 may be restricted by a lack of critical minerals; for the relevant technologies
-
roadmaps describing several quantitative market developments in Germany are developed to estimate the current and future demand of specific materials; along these projections potential medium-or long-term mineral resource restrictions are assessed
-
foreseeable path of the energy transition is generally compatible with the availability and supply of resources, some sub-systems could face a supply risk
Wuppertal Institute [9]Cd, Dy, Ga, In, K, La, Li, Nd, Ni, Se, Tr, V, Yavailability
environmental impacts
material requirement
recycling rate
supply risk		recycling rateno indicatorselectrolysis
-
assessed the criticality of all technologies referred to in existing energy scenarios in Germany that may be used in the decades ahead
-
study shows that the geological availability of minerals does not generally represent a limiting factor to the energy transition in Germany; the usage of certain technologies might be limited by the resource availability

3.2. Resource Use Aspects Assessed

Resource use impacts were assessed considering different aspects. Publications with a detailed resource assessment were especially relevant to the aim of this review and will therefore be evaluated in detail in the following. Among the publications supplying an aggregated assessment of resource impact, 24% applied the SOP [35] and 21% the ADP [33,34]. Details on the resource aspects covered in the publications applying an aggregated assessment can be found in the supporting information, Section S4, Figure S1.

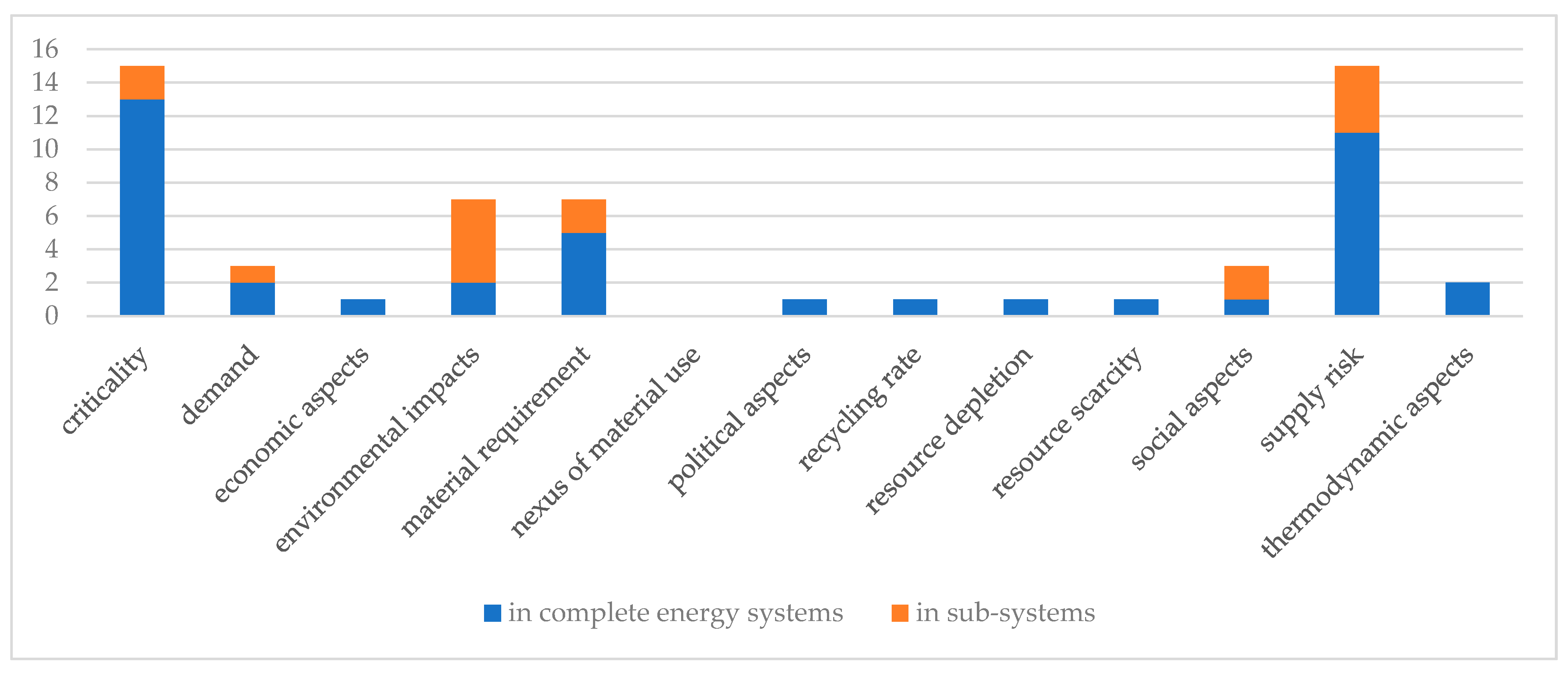

Figure 5 shows resource use aspects covered: the blue bar shows the number of occurrences of an aspect within the group “sub-system and detailed resource assessment”. The orange bar shows the occurrences within the group “complete energy system and detailed resource assessment”. Details on the clustering are given in Section 2. Information on which publication covers which aspect, and the corresponding clusters can be found in the supporting information, Section S1, Table S1.
Overall supply risk and criticality aspects were addressed most often, followed by environmental aspects and material requirement. Thermodynamic aspects were covered in two publications [67,91]. Exergy assessment was carried out in the context of sustainability assessment of energy systems [29,130]. Some aspects, e.g., demand and economic aspects, were in most cases also implicitly covered in the aspects of supply risk and criticality. Therefore, the number of publications covering demand, economic aspects, political aspects, material requirement, etc., in Figure 5 have to be interpreted as the number of publications covering these aspects without the context of other broader clusters.
Few technology-specific impact categories were applied, e.g., importance to clean energy (see supporting information, Section S1, Table S1). In three cases the recycling rate was measured specifically for the assessed technologies [9,67,88]. However, the Wuppertal Institute [9] did not apply an indicator, but conducted a qualitative assessment of the recycling rate.
Regarding the group “complete energy system and detailed resource assessment”, aspects of supply risk and criticality were also the most prominent aspects (see Table 4). Five publications covered environmental aspects [4,9,10,11,55]. However, other aspects considered relevant in the resource assessment presented in the introduction [31,32] are not covered by any of the publications in this group. Thus, only two out of seven questions were addressed, however not using the recommended methods [31,32] ESSENZ [39], GeoPolRisk [43,131] and ADPeconomic reserves [33,34]. The two questions address potential availability issues related to physico-economic scarcity and relative potential accessibility issues related to short-term geopolitical and socioeconomic aspects.
None of the publications address one of the five questions regarding the access of future generations to the minerals.
Another finding within the group of “complete energy system and detailed resource assessment” is that several of the aspects assessments were not indicator-driven (see Table 4). This means that no indicators are defined for the assessed aspect, but were covered by heterogeneous information, e.g., the Wuppertal Institute [9] supplies the worldwide recycling potential for gallium, but qualitative information on nickel. Clearly defined indicators are applied for the assessment of critical mineral demand, material requirement, metal production, nexus of material use and greenhouse gas emissions, limitations to expanding supply capacity, likelihood of rapid global demand growth, country concentration and political risk [5,6,7,8,55]. Purr et al. [4] used quantitative values for assessing material requirement, but qualitatively ones for environmental impacts. [9,10,11] do not apply clearly defined indicators, and further lack a clear definition of the scope of their case study of complete energy system. The diversity of applied indicators and methods indicates a need for a clear definition and methodological approach, in order to improve the interpretations of the results of different studies.
Helbig et al. [12] discussed the fact, that a sufficient number of indicators, weighted specifically to the technology analyzed, is needed to gain a full picture of the supply risks for certain technologies. None of the publications in this group covered enough aspects and included sufficient indicators to generate a detailed analysis for renewable energy systems.
The evaluation of the aspects assessed shows that to gain a broad and comparable resource assessment (not only concerning the supply risk) more aspects need to be covered, a defined scope and an adequate indicator definition are required, and technology-specific aspects should be developed.

3.3. Resources Assessed

The choice of assessed resources was based on different rationales: most of the publications either identified the most relevant resources based on criteria such as criticality (e.g., [50]), or included all resources used in the assessed technology (e.g., [80]). Only the following publications focused exclusively on one resource identified as relevant to the energy transition: Bustamante et Gaustad [72] assessed the supply risk of tellurium based on byproduct minerals, as tellurium is the scarcest material used in CdTe PV cells. Harmsen et al. [78] focused on copper, because its demand is expected to increase in the future, and deteriorating ore quality as well as increasing gross energy requirement are to be expected. Roelich et al. [87] presented their developed methods for neodymium, because it was defined as facing supply disruptions.
Among the publications in the group “complete energy system and detailed resource assessment” the resources graphite (in eight publications), gallium, indium, selenium (in seven publications), silver, cadmium, nickel, and tellurium (in six publications) were included most often (see Table 4). The varying number of resources included in the publications in this group (see Table 4) arises on the one hand from the different definitions of the energy system and on the other from the scope of the study and therefore makes the results hardly comparable.
In conclusion all publications with a scope on “complete energy system and detailed resource assessment” concluded that the physical availability of minerals and metals is not posing a threat to the energy transition. Some technologies might only be implemented in a limited number due to the inadequate availability of minerals and metals, but substitution technologies exist. Thus, the different publications conclude, that the overall target of achieving energy transition is not threatened by limited resource availability. A summary of the publications content can be found in the supporting information, Section S2.

4. Conclusions

Several reviews of the resource assessment of renewable sub-systems exist, but no review of the assessment of complete energy systems was published so far. The paper identified the challenges and research gaps in resource assessment of complete energy systems by conducting a review of existing publications on the topic. The review presents the publications and evaluates the considered technologies, resource aspects and resources assessed. It was found that many methods for resource assessment of energy system sub-systems exist, but only nine publications were identified covering a detailed resource assessment for complete energy systems. Thirty publications focused on similar aspects mainly criticality and supply risks. Nearly no technology-specific aspects are assessed in the resource assessment of renewable energy systems. Few publications included sector coupling technologies. Among the publications most relevant to the aim of this paper one third did not conduct an indicator-driven assessment.
Based on the results, three main research gaps can be identified: First, only few publications cover complete renewable energy systems. Second, the publications covering complete energy systems are partly not indicator-driven and cover only a limited range of aspects relevant for the resource assessment. Lastly, few to no technology-specific aspects are applied.
Another challenge identified is the lack of a clear definition of the scope for an assessment of renewable energy systems, because they cover a variety of heterogeneous sub-systems with largely varying applications within the system.
Many assessment methods especially for sub-systems of energy systems exist and are applied, but a harmonized, comprehensive assessment and perspective on resource use impacts of renewable energy systems is still missing. Further research should fill this gap. Assessment methods enabling a comprehensive assessment of renewable energy systems should be developed. The applicability to complete energy systems and the accounting for the heterogeneity of renewable energy systems should be a crucial aspect of newly developed methods in this field. A detailed evaluation of the resource assessment methods for sub-systems could support the definition of technology-specific aspects within such a method.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/su13116107/s1, Table S1: Publications with a focus on the assessment of abiotic resources of sub-systems, Section S2 with summaries of the publications with focus on resources and an assessment of complete energy systems, Section S3 with additional information on Berger et al. 2019, Figure S1: Aspects covered in the publications applying an aggregated assessment.

Author Contributions

Conceptualization, K.M.Y. and V.B.; methodology, K.M.Y. and V.B.; validation, K.M.Y., V.B. and M.F.; formal analysis, K.M.Y.; investigation, K.M.Y.; data curation, K.M.Y.; writing—original draft preparation, K.M.Y.; writing—review and editing, V.B. and M.F.; visualization, K.M.Y.; supervision, V.B. and M.F. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge support by the Open Access Publication Fund of TU Berlin.

Acknowledgments

Kim Maya Yavor acknowledges funding by the Friedrich-Ebert-Stiftung.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Energy Agency. Available online: https://www.iea.org/data-and-statistics (accessed on 1 April 2021).
  2. United Nations. United Nations/Framework Conventionon Climate Change. In Adoption of the Paris Agreement; United Nations: Paris, France, 2015. [Google Scholar]
  3. European Commission. The European Green Deal; European Commission: Brussels, Belgium, 2019. [Google Scholar]
  4. Purr, K.; Günther, J.; Lehmann, H.; Nuss, P. Wege in Eine Ressourcenschonende Treibhausgasneutralität: RESCUE: Langfasung; Umweltbundesamt. 2019. Available online: https://www.umweltbundesamt.de/sites/default/files/medien/376/publikationen/rescue_studie_cc_36-2019_wege_in_eine_ressourcenschonende_treibhausgasneutralitaet.pdf (accessed on 1 January 2021).
  5. Moss, R.L.; Kara, H.; Kooroshy, J.; Willis, P.; Tzimas, E. Critical Metals in Strategic Energy Technologies: Assessing Rare Metals as Supply-Chain Bottlenecks in Low-Carbon Energy Technologies; Publications Office: Luxembourg, 2011; ISBN 978-92-79-20698-6. [Google Scholar]
  6. Moss, R.L.; Tzimas, E.; Kara, H.; Willis, P.; Kooroshy, J. The potential risks from metals bottlenecks to the deployment of Strategic Energy Technologies. Energy Policy 2013, 55, 556–564. [Google Scholar] [CrossRef]
  7. Ostertag, K.; Morley, N.; Chapman, A.; Thompson, P.; Arendorf, J.; Tzimas, E.; Tercero, E.L.; Willis, P.; Moss, R.; Lüllmann, A.; et al. Critical Metals in the Path Towards the Decarbonisation of the EU Energy Sector: Assessing Rare Metals as Supply-Chain Bottlenecks in Low-Carbon Energy Technologies; Publications Office: Luxembourg, 2013; ISBN 978-92-79-30390-6. [Google Scholar]
  8. Viebahn, P.; Soukup, O.; Samadi, S.; Teubler, J.; Wiesen, K.; Ritthoff, M. Assessing the need for critical minerals to shift the German energy system towards a high proportion of renewables. Renew. Sustain. Energy Rev. 2015, 49, 655–671. [Google Scholar] [CrossRef] [Green Version]
  9. Wuppertal Institut. KRESSE: Kritische Mineralische Ressourcen und Stoffströme bei der Transformation des Deutschen Energieversorgungssystems. Abschlussbericht an das Bundesministerium für Wirtschaft und Energie (BMWi) 2014. Available online: https://epub.wupperinst.org/frontdoor/deliver/index/docId/5419/file/5419_KRESSE.pdf (accessed on 1 January 2021).
  10. American Physical Society; The Materials Research Society. Energy Critical Elements: Securing Materials for Emerging Technologies; APS: Washington, DC, USA, 2011. [Google Scholar]
  11. German National Academy of Sciences Leopoldina; acatech. Raw Materials for the Energy Transition. Securing a Reliable and Sustainable Supply; Acatech, Leopoldina, Union of the German Academies, Eds.; German National Academy of Sciences Leopoldina, acatech—National Academy of Science and Engineering, Union of the German Academies of Sciences and Humanities: Halle (Saale), Germany; Union of the German Academies of Sciences and Humanities: München, Germany, 2018; ISBN 978-3-8047-3664-1. [Google Scholar]
  12. Helbig, C.; Bradshaw, A.M.; Kolotzek, C.; Thorenz, A.; Tuma, A. Supply risks associated with CdTe and CIGS thin-film photovoltaics. Appl. Energy 2016, 178, 422–433. [Google Scholar] [CrossRef]
  13. Helbig, C.; Bradshaw, A.M.; Wietschel, L.; Thorenz, A.; Tuma, A. Supply risks associated with lithium-ion battery materials. J. Clean. Prod. 2018, 172, 274–286. [Google Scholar] [CrossRef]
  14. Bleischwitz, R. Mineral resources in the age of climate adaptation and resilience. J. Ind. Ecol. 2019, 543, 367. [Google Scholar] [CrossRef]
  15. Bobba, S.; Carrara, S.; Huisman, J.; Mathieux, F.; Pavel, C. Critical Raw Materials for Strategic Technologies and Sectors in the EU: A Foresight Study; Publications Office of the European Union: Luxembourg, 2020; ISBN 978-92-76-15336-8. [Google Scholar]
  16. Bradshaw, A.M.; Reuter, B.; Hamacher, T. The Potential Scarcity of Rare Elements for the Energiewende. Green 2013, 3. [Google Scholar] [CrossRef]
  17. Church, C.; Crawford, A. Minerals and the Metals for the Energy Transition: Exploring the Conflict Implications for Mineral-Rich, Fragile States. In The Geopolitics of the Global Energy Transition; Hafner, M., Tagliapietra, S., Eds.; Springer Nature: Berlin/Heidelberg, Germany, 2020; pp. 279–304. ISBN 978-3-030-39066-2. [Google Scholar]
  18. Flamos, A.; Lieu, J.; Doukas, H. Understanding Risks and Uncertainties in Energy and Climate Policy: Multidisciplinary Methods and Tools for a Low Carbon Society; Doukas, H., Flamos, A., Lieu, J., Eds.; Springer Open: Cham, Switzerland, 2019; ISBN 978-3-030-03151-0. [Google Scholar]
  19. Habib, K.; Wenzel, H. Reviewing resource criticality assessment from a dynamic and technology specific perspective—Using the case of direct-drive wind turbines. J. Clean. Prod. 2016, 112, 3852–3863. [Google Scholar] [CrossRef]
  20. Leisegang, T.; Meutzner, F.; Zschornak, M.; Münchgesang, W.; Schmid, R.; Nestler, T.; Eremin, R.A.; Kabanov, A.A.; Blatov, V.A.; Meyer, D.C. The Aluminum-Ion Battery: A Sustainable and Seminal Concept? Front. Chem. 2019, 7, 268. [Google Scholar] [CrossRef] [PubMed]
  21. Baumann, M.; Weil, M.; Peters, J.F.; Chibeles-Martins, N.; Moniz, A.B. A review of multi-criteria decision making approaches for evaluating energy storage systems for grid applications. Renew. Sustain. Energy Rev. 2019, 107, 516–534. [Google Scholar] [CrossRef]
  22. Gamboa, M.; Iribarren, D.; García-Gusano, D.; Dufour, J. A review of life-cycle approaches coupled with data envelopment analysis within multi-criteria decision analysis for sustainability assessment of energy systems. J. Clean. Prod. 2017, 150, 164–174. [Google Scholar] [CrossRef]
  23. Peters, J.F.; Baumann, M.; Zimmermann, B.; Braun, J.; Weil, M. The environmental impact of Li-Ion batteries and the role of key parameters a review. Renew. Sustain. Energy Rev. 2017, 67, 491–506. [Google Scholar] [CrossRef]
  24. Jumare, I.A.; Bhandari, R.; Zerga, A. Environmental Life Cycle Assessment of Grid-Integrated Hybrid Renewable Energy Systems in Northern Nigeria. Sustainability 2019, 11, 5889. [Google Scholar] [CrossRef] [Green Version]
  25. Santoyo-Castelazo, E.; Azapagic, A. Sustainability assessment of energy systems: Integrating environmental, economic and social aspects. J. Clean. Prod. 2014, 80, 119–138. [Google Scholar] [CrossRef]
  26. Acar, C.; Beskese, A.; Temur, G.T. Sustainability analysis of different hydrogen production options using hesitant fuzzy AHP. Int. J. Hydro. Energy 2018, 43, 18059–18076. [Google Scholar] [CrossRef]
  27. Nordelöf, A.; Poulikidou, S.; Chordia, M.; de Oliveira, F.; Tivander, J.; Arvidsson, R. Methodological Approaches to End-Of-Life Modelling in Life Cycle Assessments of Lithium-Ion Batteries. Batteries 2019, 5, 51. [Google Scholar] [CrossRef] [Green Version]
  28. Parihar, A.K.S.; Sethi, V.; Banerjee, R. Sustainability Assessment of Biomass Gasification Based Distributed Power Generation in India. In Proceedings of the First International Conference on Recent Advances in Bioenergy Research; Kumar, S., Khanal, S.K., Yadav, Y.K., Eds.; Springer India: New Delhi, India, 2016; pp. 213–225, ISBN 978-81-322-2771-7. [Google Scholar]
  29. Romero, J.C.; Linares, P. Exergy as a global energy sustainability indicator. A review of the state of the art. Renew. Sustain. Energy Rev. 2014, 33, 427–442. [Google Scholar] [CrossRef]
  30. Quaschning, V. Understanding Renewable Energy Systems, Revised, edition; Routledge: London, UK; Taylor & Francis Group: New York, NY, USA, 2016; ISBN 9781138781948. [Google Scholar]
  31. Berger, M.; Sonderegger, T.; Alvarenga, R.; Bach, V.; Cimprich, A.; Dewulf, J.; Frischknecht, R.; Guinée, J.; Helbig, C.; Huppertz, T.; et al. Mineral resources in life cycle impact assessment: Part II—Recommendations on application-dependent use of existing methods and on future method development needs. Int. J. Life Cycle Assess. 2020, 25, 798–813. [Google Scholar] [CrossRef] [Green Version]
  32. Sonderegger, T.; Berger, M.; Alvarenga, R.; Bach, V.; Cimprich, A.; Dewulf, J.; Frischknecht, R.; Guinée, J.; Helbig, C.; Huppertz, T.; et al. Mineral resources in life cycle impact assessment—part I: A critical review of existing methods. Int. J. Life Cycle Assess. 2020, 25, 784–797. [Google Scholar] [CrossRef]
  33. Guinée, J.B.; Heijungs, R. A proposal for the definition of resource equivalency factors for use in product life-cycle assessment. Environ. Toxicol. Chem. 1995, 14, 917–925. [Google Scholar] [CrossRef]
  34. van Oers, L.; Guinée, J.B.; Heijungs, R. Abiotic resource depletion potentials (ADPs) for elements revisited—updating ultimate reserve estimates and introducing time series for production data. Int. J. Life Cycle Assess. 2020, 25, 294–308. [Google Scholar] [CrossRef] [Green Version]
  35. Vieira, M.D.M.; Ponsioen, T.C.; Goedkoop, M.J.; Huijbregts, M.A.J. Surplus Ore Potential as a Scarcity Indicator for Resource Extraction. J. Ind. Ecol. 2017, 21, 381–390. [Google Scholar] [CrossRef]
  36. Itsubo, N.; Inaba, A. A new LCIA method: LIME has been completed. Int. J. Life Cycle Assess. 2003, 8, 305. [Google Scholar] [CrossRef]
  37. Dewulf, J.; Bösch, M.E.; de Meester, B.; van der Vorst, G.; van Langenhove, H.; Hellweg, S.; Huijbregts, M.A.J. Cumulative exergy extraction from the natural environment (CEENE): A comprehensive life cycle impact assessment method for resource accounting. Environ. Sci. Technol. 2007, 41, 8477–8483. [Google Scholar] [CrossRef]
  38. Bach, V.; Berger, M.; Henßler, M.; Kirchner, M.; Leiser, S.; Mohr, L.; Rother, E.; Ruhland, K.; Schneider, L.; Tikana, L.; et al. Integrated method to assess resource efficiency – ESSENZ. J. Clean. Prod. 2016, 137, 118–130. [Google Scholar] [CrossRef] [Green Version]
  39. Bach, V.; Berger, M.; Finogenova, N.; Finkbeiner, M. Analyzing Changes in Supply Risks for Abiotic Resources over Time with the ESSENZ Method—A Data Update and Critical Reflection. Resources 2019, 8, 83. [Google Scholar] [CrossRef] [Green Version]
  40. Gemechu, E.D.; Helbig, C.; Sonnemann, G.; Thorenz, A.; Tuma, A. Import-based Indicator for the Geopolitical Supply Risk of Raw Materials in Life Cycle Sustainability Assessments. J. Ind. Ecol. 2016, 20, 154–165. [Google Scholar] [CrossRef]
  41. Helbig, C.; Gemechu, E.D.; Pillain, B.; Young, S.B.; Thorenz, A.; Tuma, A.; Sonnemann, G. Extending the geopolitical supply risk indicator: Application of life cycle sustainability assessment to the petrochemical supply chain of polyacrylonitrile-based carbon fibers. J. Clean. Prod. 2016, 137, 1170–1178. [Google Scholar] [CrossRef]
  42. Cimprich, A.; Young, S.B.; Helbig, C.; Gemechu, E.D.; Thorenz, A.; Tuma, A.; Sonnemann, G. Extension of geopolitical supply risk methodology: Characterization model applied to conventional and electric vehicles. J. Clean. Prod. 2017, 162, 754–763. [Google Scholar] [CrossRef] [Green Version]
  43. Cimprich, A.; Bach, V.; Helbig, C.; Thorenz, A.; Schrijvers, D.; Sonnemann, G.; Young, S.B.; Sonderegger, T.; Berger, M. Raw material criticality assessment as a complement to environmental life cycle assessment: Examining methods for product-level supply risk assessment. J. Ind. Ecol. 2019, 23, 1226–1236. [Google Scholar] [CrossRef]
  44. Graedel, T.E.; Allwood, J.; Birat, J.-P.; Buchert, M.; Hagelüken, C.; Reck, B.K.; Sibley, S.F.; Sonnemann, G. What Do We Know About Metal Recycling Rates? J. Ind. Ecol. 2011, 15, 355–366. [Google Scholar] [CrossRef]
  45. Dzikuć, M.; Łasiński, K. Technical and Economic Aspects of Biomass Co-Firing in Coal-Fired Boilers. Int. J. Appl. Mech. Eng. 2014, 19, 849–855. [Google Scholar] [CrossRef] [Green Version]
  46. Kumar, Y.A.; Dasha Kumar, K.; Kim, H.-J. Facile preparation of a highly efficient NiZn2O4-NiO nanoflower composite grown on Ni foam as an advanced battery-type electrode material for high-performance electrochemical supercapacitors. Dalton Trans. 2020, 49, 3622–3629. [Google Scholar] [CrossRef]
  47. Kumar, Y.A.; Sambasivam, S.; Ahmed Hira, S.; Zeb, K.; Uddin, W.; Krishna, T.; Dasha Kumar, K.; Obaidat, I.M.; Kim, H.-J. Boosting the energy density of highly efficient flexible hybrid supercapacitors via selective integration of hierarchical nanostructured energy materials. Electrochim. Acta 2020, 364, 137318. [Google Scholar] [CrossRef]
  48. Kulurumotlakatla, D.K.; Yedluri, A.K.; Kim, H.-J. Hierarchical NiCo2S4 nanostructure as highly efficient electrode material for high-performance supercapacitor applications. J. Energy Storage 2020, 31, 101619. [Google Scholar] [CrossRef]
  49. Kumar, Y.A.; Kumar, K.D.; Kim, H.-J. Reagents assisted ZnCo2O4 nanomaterial for supercapacitor application. Electrochim. Acta 2020, 330, 135261. [Google Scholar] [CrossRef]
  50. Grandell, L.; Lehtilä, A.; Kivinen, M.; Koljonen, T.; Kihlman, S.; Lauri, L.S. Role of critical metals in the future markets of clean energy technologies. Renew. Energy 2016, 95, 53–62. [Google Scholar] [CrossRef]
  51. Kleijn, R.; van der Voet, E. Resource constraints in a hydrogen economy based on renewable energy sources: An exploration. Renew. Sustain. Energy Rev. 2010, 14, 2784–2795. [Google Scholar] [CrossRef]
  52. Meylan, F.D.; Moreau, V.; Erkman, S. Material constraints related to storage of future European renewable electricity surpluses with CO2 methanation. Energy Policy 2016, 94, 366–376. [Google Scholar] [CrossRef]
  53. de Koning, A.; Kleijn, R.; Huppes, G.; Sprecher, B.; van Engelen, G.; Tukker, A. Metal supply constraints for a low-carbon economy? Resour. Conserv. Recycl. 2018, 129, 202–208. [Google Scholar] [CrossRef]
  54. Lieberei, J.; Gheewala, S.H. Resource depletion assessment of renewable electricity generation technologies—comparison of life cycle impact assessment methods with focus on mineral resources. Int. J. Life Cycle Assess. 2017, 22, 185–198. [Google Scholar] [CrossRef]
  55. Tokimatsu, K.; Wachtmeister, H.; McLellan, B.; Davidsson, S.; Murakami, S.; Höök, M.; Yasuoka, R.; Nishio, M. Energy modeling approach to the global energy-mineral nexus: A first look at metal requirements and the 2 °C target. Applied Energy 2017, 207, 494–509. [Google Scholar] [CrossRef]
  56. Sun, X.; Hao, H.; Hartmann, P.; Liu, Z.; Zhao, F. Supply risks of lithium-ion battery materials: An entire supply chain estimation. Mater. Today Energy 2019, 14, 100347. [Google Scholar] [CrossRef]
  57. Sachverständigenrat für Umweltfragen. Wege zur 100% Erneuerbaren Stromversorgung: Sondergutachten, Januar 2011; Erich Schmidt: Berlin, Germany, 2011; ISBN 978-3-503-13606-3. [Google Scholar]
  58. Palzer, A.; Henning, H.-M. A Future German Energy System with a Dominating Contribution from Renewable Energies: A Holistic Model Based on Hourly Simulation. Energy Technol. 2014, 2, 13–28. [Google Scholar] [CrossRef]
  59. Palzer, A.; Henning, H.-M. A comprehensive model for the German electricity and heat sector in a future energy system with a dominant contribution from renewable energy technologies – Part II: Results. Renew. Sustain. Energy Rev. 2014, 30, 1019–1034. [Google Scholar] [CrossRef]
  60. Fraunhofer Institute for Solar Energy Systems ISE. Wege zu Einem Klimaneutralen Energsystem: Die Deutsche Energiewende im Kontext Gesellschaftlicher Verhaltensweisen; Fraunhofer Institute for Solar Energy Systems ISE: Freiburg, Germany, 2020. [Google Scholar]
  61. Fraunhofer Institute for Solar Energy Systems ISE. Wege zu einem klimaneutralen Energiesystem: Die deutsche Energiewende im Kontext Gesellschaftlicher Verhaltensweisen –Update für ein CO2-Reduktionziel von 65% in 2030 und 100% in 2050; Fraunhofer Institute for Solar Energy Systems ISE: Freiburg, Germany, 2020. [Google Scholar]
  62. Aberilla, J.M.; Gallego-Schmid, A.; Stamford, L.; Azapagic, A. Design and environmental sustainability assessment of small-scale off-grid energy systems for remote rural communities. Appl. Energy 2020, 258, 114004. [Google Scholar] [CrossRef]
  63. Berrill, P.; Arvesen, A.; Scholz, Y.; Gils, H.C.; Hertwich, E.G. Environmental impacts of high penetration renewable energy scenarios for Europe. Environ. Res. Lett. 2016, 11, 14012. [Google Scholar] [CrossRef]
  64. Petrillo, A.; Felice, F.; de Jannelli, E.; Autorino, C.; Minutillo, M.; Lavadera, A.L. Life cycle assessment (LCA) and life cycle cost (LCC) analysis model for a stand-alone hybrid renewable energy system. Renew. Energy 2016, 95, 337–355. [Google Scholar] [CrossRef]
  65. Quek, T.A.; Alvin Ee, W.L.; Chen, W.; Ng, T.A. Environmental impacts of transitioning to renewable electricity for Singapore and the surrounding region: A life cycle assessment. J. Clean. Prod. 2019, 214, 1–11. [Google Scholar] [CrossRef]
  66. Xu, L.; Fuss, M.; Poganietz, W.-R.; Jochem, P.; Schreiber, S.; Zoephel, C.; Brown, N. An Environmental Assessment Framework for Energy System Analysis (EAFESA): The method and its application to the European energy system transformation. J. Clean. Prod. 2020, 243, 118614. [Google Scholar] [CrossRef]
  67. Anctil, A.; Fthenakis, V. Critical metals in strategic photovoltaic technologies: Abundance versus recyclability. Prog. Photovolt Res. Appl. 2013, 21, 1253–1259. [Google Scholar] [CrossRef]
  68. Arent, D.; Pless, J.; Mai, T.; Wiser, R.; Hand, M.; Baldwin, S.; Heath, G.; Macknick, J.; Bazilian, M.; Schlosser, A.; et al. Implications of high renewable electricity penetration in the U.S. for water use, greenhouse gas emissions, land-use, and materials supply. Appl. Energy 2014, 123, 368–377. [Google Scholar] [CrossRef]
  69. Ballinger, B.; Schmeda-Lopez, D.; Kefford, B.; Parkinson, B.; Stringer, M.; Greig, C.; Smart, S. The vulnerability of electric-vehicle and wind-turbine supply chains to the supply of rare-earth elements in a 2-degree scenario. Sustain. Prod. Consum. 2020, 22, 68–76. [Google Scholar] [CrossRef]
  70. Beylot, A.; Guyonnet, D.; Muller, S.; Vaxelaire, S.; Villeneuve, J. Mineral raw material requirements and associated climate-change impacts of the French energy transition by 2050. J. Clean. Prod. 2019, 208, 1198–1205. [Google Scholar] [CrossRef]
  71. Boubault, A.; Maïzi, N. Devising Mineral Resource Supply Pathways to a Low-Carbon Electricity Generation by 2100. Resources 2019, 8, 33. [Google Scholar] [CrossRef] [Green Version]
  72. Bustamante, M.L.; Gaustad, G. Challenges in assessment of clean energy supply-chains based on byproduct minerals: A case study of tellurium use in thin film photovoltaics. Appl. Energy 2014, 123, 397–414. [Google Scholar] [CrossRef]
  73. Elshkaki, A. Material-energy-water-carbon nexus in China’s electricity generation system up to 2050. Energy 2019, 189, 116355. [Google Scholar] [CrossRef]
  74. Elshkaki, A.; Shen, L. Energy-material nexus: The impacts of national and international energy scenarios on critical metals use in China up to 2050 and their global implications. Energy 2019, 180, 903–917. [Google Scholar] [CrossRef]
  75. Goe, M.; Gaustad, G. Identifying critical materials for photovoltaics in the US: A multi-metric approach. Appl. Energy 2014, 123, 387–396. [Google Scholar] [CrossRef]
  76. Graedel, T.E.; Nuss, P. Employing Considerations of Criticality in Product Design. JOM 2014, 66, 2360–2366. [Google Scholar] [CrossRef]
  77. Grandell, L.; Höök, M. Assessing Rare Metal Availability Challenges for Solar Energy Technologies. Sustainability 2015, 7, 11818–11837. [Google Scholar] [CrossRef] [Green Version]
  78. Harmsen, J.; Roes, A.L.; Patel, M.K. The impact of copper scarcity on the efficiency of 2050 global renewable energy scenarios. Energy 2013, 50, 62–73. [Google Scholar] [CrossRef]
  79. Jarrett, R.; Dawson, D.; Roelich, K.; Purnell, P. Calculating material criticality of transparent conductive electrodes used for thin film and third generation solar cells. In Proceedings of the 2014 IEEE 40th Photovoltaic Specialists Conference (PVSC), Denver, CO, USA, 8–14 June 2014; IEEE: Piscataway, NJ, USA; pp. 1436–1441, ISBN 978-1-4799-4398-2. [Google Scholar]
  80. Kavlak, G.; McNerney, J.; Jaffe, R.L.; Trancik, J.E. Metal production requirements for rapid photovoltaics deployment. Energy Environ. Sci. 2015, 8, 1651–1659. [Google Scholar] [CrossRef] [Green Version]
  81. Kim, J.; Guillaume, B.; Chung, J.; Hwang, Y. Critical and precious materials consumption and requirement in wind energy system in the EU 27. Appl. Energy 2015, 139, 327–334. [Google Scholar] [CrossRef]
  82. Månberger, A.; Johansson, B. The geopolitics of metals and metalloids used for the renewable energy transition. Energy Strategy Rev. 2019, 26, 100394. [Google Scholar] [CrossRef]
  83. Miyamoto, W.; Kosai, S.; Hashimoto, S. Evaluating Metal Criticality for Low-Carbon Power Generation Technologies in Japan. Minerals 2019, 9, 95. [Google Scholar] [CrossRef] [Green Version]
  84. Mocker, M.; Aigner, J.; Kroop, S.; Lohmeyer, R.; Franke, M. Technologierohstoffe für erneuerbare Energien—Verfügbarkeit und ökologische Aspekte. Chem. Ing. Tech. 2015, 87, 439–448. [Google Scholar] [CrossRef]
  85. Moreau, V.; Dos Reis, P.; Vuille, F. Enough Metals? Resource Constraints to Supply a Fully Renewable Energy System. Resources 2019, 8, 29. [Google Scholar] [CrossRef] [Green Version]
  86. Rabe, W.; Kostka, G.; Smith Stegen, K. China’s supply of critical raw materials: Risks for Europe’s solar and wind industries? Energy Policy 2017, 101, 692–699. [Google Scholar] [CrossRef]
  87. Roelich, K.; Dawson, D.A.; Purnell, P.; Knoeri, C.; Revell, R.; Busch, J.; Steinberger, J.K. Assessing the dynamic material criticality of infrastructure transitions: A case of low carbon electricity. Appl. Energy 2014, 123, 378–386. [Google Scholar] [CrossRef] [Green Version]
  88. Shammugam, S.; Gervais, E.; Schlegl, T.; Rathgeber, A. Raw metal needs and supply risks for the development of wind energy in Germany until 2050. J. Clean. Prod. 2019, 221, 738–752. [Google Scholar] [CrossRef]
  89. U.S. Department of Energy. Critical Materials Strategy; U.S. Department of Energy: Washington, DC, USA, 2010.
  90. U.S. Department of Energy. Critical Materials Strategy; U.S. Department of Energy: Washington, DC, USA, 2011.
  91. Valero, A.; Valero, A.; Calvo, G.; Ortego, A.; Ascaso, S.; Palacios, J.-L. Global material requirements for the energy transition. An exergy flow analysis of decarbonisation pathways. Energy 2018, 159, 1175–1184. [Google Scholar] [CrossRef]
  92. Watari, T.; McLellan, B.C.; Giurco, D.; Dominish, E.; Yamasue, E.; Nansai, K. Total material requirement for the global energy transition to 2050: A focus on transport and electricity. Resour. Conserv. Recycl. 2019, 148, 91–103. [Google Scholar] [CrossRef]
  93. Wentker, M.; Greenwood, M.; Asaba, M.C.; Leker, J. A raw material criticality and environmental impact assessment of state-of-the-art and post-lithium-ion cathode technologies. J. Energy Storage 2019, 26, 101022. [Google Scholar] [CrossRef]
  94. Abu-Rayash, A.; Dincer, I. Sustainability assessment of energy systems: A novel integrated model. J. Clean. Prod. 2019, 212, 1098–1116. [Google Scholar] [CrossRef]
  95. Arvesen, A.; Hauan, I.B.; Bolsøy, B.M.; Hertwich, E.G. Life cycle assessment of transport of electricity via different voltage levels: A case study for Nord-Trøndelag county in Norway. Appl. Energy 2015, 157, 144–151. [Google Scholar] [CrossRef]
  96. Arvesen, A.; Nes, R.N.; Huertas-Hernando, D.; Hertwich, E.G. Life cycle assessment of an offshore grid interconnecting wind farms and customers across the North Sea. Int. J. Life Cycle Assess. 2014, 19, 826–837. [Google Scholar] [CrossRef] [Green Version]
  97. Atilgan, B.; Azapagic, A. Renewable electricity in Turkey: Life cycle environmental impacts. Renew. Energy 2016, 89, 649–657. [Google Scholar] [CrossRef] [Green Version]
  98. Blanco, H.; Codina, V.; Laurent, A.; Nijs, W.; Maréchal, F.; Faaij, A. Life cycle assessment integration into energy system models: An application for Power-to-Methane in the EU. Appl. Energy 2020, 259, 114160. [Google Scholar] [CrossRef]
  99. Bumby, S.; Druzhinina, E.; Feraldi, R.; Werthmann, D.; Geyer, R.; Sahl, J. Life cycle assessment of overhead and underground primary power distribution. Environ. Sci. Technol. 2010, 44, 5587–5593. [Google Scholar] [CrossRef]
  100. Fernandez-Marchante, C.M.; Millán, M.; Medina-Santos, J.I.; Lobato, J. Environmental and Preliminary Cost Assessments of Redox Flow Batteries for Renewable Energy Storage. Energy Technol. 2019, 8, 1900914. [Google Scholar] [CrossRef]
  101. Garcia, R.; Marques, P.; Freire, F. Life-cycle assessment of electricity in Portugal. Appl. Energy 2014, 134, 563–572. [Google Scholar] [CrossRef]
  102. Grunwald, A.; Rösch, C. Sustainability assessment of energy technologies: Towards an integrative framework. Energ. Sustain. Soc. 2011, 1, 1103. [Google Scholar] [CrossRef] [Green Version]
  103. Hacatoglu, K.; Dincer, I.; Rosen, M.A. Sustainability assessment of a hybrid energy system with hydrogen-based storage. Int. J. Hydrog. Energy 2015, 40, 1559–1568. [Google Scholar] [CrossRef]
  104. Hertwich, E.G.; Gibon, T.; Bouman, E.A.; Arvesen, A.; Suh, S.; Heath, G.A.; Bergesen, J.D.; Ramirez, A.; Vega, M.I.; Shi, L. Integrated life-cycle assessment of electricity-supply scenarios confirms global environmental benefit of low-carbon technologies. Proc. Natl. Acad. Sci. USA 2015, 112, 6277–6282. [Google Scholar] [CrossRef] [Green Version]
  105. Holma, A.; Leskinen, P.; Myllyviita, T.; Manninen, K.; Sokka, L.; Sinkko, T.; Pasanen, K. Environmental impacts and risks of the national renewable energy targets–A review and a qualitative case study from Finland. Renew. Sustain. Energy Rev. 2018, 82, 1433–1441. [Google Scholar] [CrossRef]
  106. Hrólfsdorttir, H.B.; Kjeld, A.; Pálsson, M.; Hjartarson, I.; Ingólfsdóttir, G.M.; Bjarnadóttir, H.J. Life cycle assessment of the UGC transmission system in Iceland; Cigrè: Paris, France, 2016. [Google Scholar]
  107. Immendoerfer, A.; Tietze, I.; Hottenroth, H.; Viere, T. Life-cycle impacts of pumped hydropower storage and battery storage. Int. J. Energy Env. Eng. 2017, 8, 231–245. [Google Scholar] [CrossRef] [Green Version]
  108. Jones, C.I.; McManus, M.C. Life-cycle assessment of 11kV electrical overhead lines and underground cables. J. Clean. Prod. 2010, 18, 1464–1477. [Google Scholar] [CrossRef]
  109. Jorge, R.S.; Hertwich, E.G. Environmental evaluation of power transmission in Norway. Appl. Energy 2012, 101, 513–520. [Google Scholar] [CrossRef] [Green Version]
  110. Jorge, R.S.; Hertwich, E.G. Grid infrastructure for renewable power in Europe: The environmental cost. Energy 2014, 69, 760–768. [Google Scholar] [CrossRef]
  111. Jorge, R.S.; Hawkins, T.R.; Hertwich, E.G. Life cycle assessment of electricity transmission and distribution—part 1: Power lines and cables. Int. J. Life Cycle Assess. 2011, 17, 9–15. [Google Scholar] [CrossRef]
  112. Jorge, R.S.; Hawkins, T.R.; Hertwich, E.G. Life cycle assessment of electricity transmission and distribution—part 2: Transformers and substation equipment. Int. J. Life Cycle Assess. 2012, 17, 184–191. [Google Scholar] [CrossRef]
  113. Kim, B.; Azzaro-Pantel, C.; Pietrzak-David, M.; Maussion, P. Life cycle assessment for a solar energy system based on reuse components for developing countries. J. Clean. Prod. 2019, 208, 1459–1468. [Google Scholar] [CrossRef] [Green Version]
  114. Koj, J.C.; Stenzel, P.; Schreiber, A.; Hennings, W.; Zapp, P.; Wrede, G.; Hahndorf, I. Life Cycle Assessment of Primary Control Provision by Battery Storage Systems and Fossil Power Plants. Energy Procedia 2015, 73, 69–78. [Google Scholar] [CrossRef] [Green Version]
  115. Koroneos, C.; Stylos, N. Exergetic life cycle assessment of a grid-connected, polycrystalline silicon photovoltaic system. Int. J. Life Cycle Assess. 2014, 19, 1716–1732. [Google Scholar] [CrossRef]
  116. Lastoskie, C.M.; Dai, Q. Comparative life cycle assessment of laminated and vacuum vapor-deposited thin film solid-state batteries. J. Clean. Prod. 2015, 91, 158–169. [Google Scholar] [CrossRef]
  117. Martín-Gamboa, M.; Iribarren, D.; García-Gusano, D.; Dufour, J. Enhanced prioritisation of prospective scenarios for power generation in Spain: How and which one? Energy 2019, 169, 369–379. [Google Scholar] [CrossRef]
  118. McManus, M.C. Environmental consequences of the use of batteries in low carbon systems: The impact of battery production. Appl. Energy 2012, 93, 288–295. [Google Scholar] [CrossRef] [Green Version]
  119. Moslehi, S.; Arababadi, R. Sustainability Assessment of Complex Energy Systems Using Life Cycle Approach-Case Study: Arizona State University Tempe Campus. Procedia Eng. 2016, 145, 1096–1103. [Google Scholar] [CrossRef] [Green Version]
  120. Oliveira, L.; Messagie, M.; Mertens, J.; Laget, H.; Coosemans, T.; van Mierlo, J. Environmental performance of electricity storage systems for grid applications, a life cycle approach. Energy Convers. Manag. 2015, 101, 326–335. [Google Scholar] [CrossRef]
  121. Pelay, U.; Azzaro-Pantel, C.; Fan, Y.; Luo, L. Life cycle assessment of thermochemical energy storage integration concepts for a concentrating solar power plant. Environ. Prog. Sustain. Energy 2020, 39. [Google Scholar] [CrossRef]
  122. Raugei, M.; Kamran, M.; Hutchinson, A. A Prospective Net Energy and Environmental Life-Cycle Assessment of the UK Electricity Grid. Energies 2020, 13, 2207. [Google Scholar] [CrossRef]
  123. Repele, M.; Bazbauers, G. Life Cycle Assessment of Renewable Energy Alternatives for Replacement of Natural Gas in Building Material Industry. Energy Procedia 2015, 72, 127–134. [Google Scholar] [CrossRef] [Green Version]
  124. Rubio Rodríguez, M.A.; Ruyck, J.; de Díaz, P.R.; Verma, V.K.; Bram, S. An LCA based indicator for evaluation of alternative energy routes. Appl. Energy 2011, 88, 630–635. [Google Scholar] [CrossRef]
  125. Schnuelle, C.; Thoeming, J.; Wassermann, T.; Thier, P.; von Gleich, A.; Goessling-Reisemann, S. Socio-technical-economic assessment of power-to-X: Potentials and limitations for an integration into the German energy system. Energy Res. Soc. Sci. 2019, 51, 187–197. [Google Scholar] [CrossRef]
  126. Troy, S.; Schreiber, A.; Reppert, T.; Gehrke, H.-G.; Finsterbusch, M.; Uhlenbruck, S.; Stenzel, P. Life Cycle Assessment and resource analysis of all-solid-state batteries. Appl. Energy 2016, 169, 757–767. [Google Scholar] [CrossRef]
  127. Turconi, R.; Simonsen, C.G.; Byriel, I.P.; Astrup, T. Life cycle assessment of the Danish electricity distribution network. Int. J. Life Cycle Assess. 2014, 19, 100–108. [Google Scholar] [CrossRef]
  128. Vandepaer, L.; Cloutier, J.; Amor, B. Environmental impacts of Lithium Metal Polymer and Lithium-ion stationary batteries. Renew. Sustain. Energy Rev. 2017, 78, 46–60. [Google Scholar] [CrossRef]
  129. Vandepaer, L.; Cloutier, J.; Bauer, C.; Amor, B. Integrating Batteries in the Future Swiss Electricity Supply System: A Consequential Environmental Assessment. J. Ind. Ecol. 2019, 23, 709–725. [Google Scholar] [CrossRef]
  130. Rosen, M.A.; Dincer, I. Exergy as the confluence of energy, environment and sustainable development. Exergy Int. J. 2001, 1, 3–13. [Google Scholar] [CrossRef]
  131. Cimprich, A.; Karim, K.S.; Young, S.B. Extending the geopolitical supply risk method: Material “substitutability” indicators applied to electric vehicles and dental X-ray equipment. Int. J. Life Cycle Assess. 2018, 23, 2024–2042. [Google Scholar] [CrossRef]
Sustainability 13 06107 g001 550
Figure 1. Methodological structure.
Figure 1. Methodological structure.
Sustainability 13 06107 g001
Sustainability 13 06107 g002 550
Figure 2. Publications by year.
Figure 2. Publications by year.
Sustainability 13 06107 g002
Sustainability 13 06107 g003 550
Figure 3. Categorization of the covered publications.
Figure 3. Categorization of the covered publications.
Sustainability 13 06107 g003
Sustainability 13 06107 g004 550
Figure 4. Share of articles in the evaluated publication sample by the assessed technology.
Figure 4. Share of articles in the evaluated publication sample by the assessed technology.
Sustainability 13 06107 g004
Sustainability 13 06107 g005 550
Figure 5. Number of publications covering specific aspects of resource assessment.
Figure 5. Number of publications covering specific aspects of resource assessment.
Sustainability 13 06107 g005
Table
Table 1. Methodological details on the SLR.
Table 1. Methodological details on the SLR.
Keywords“energy system” + “resources”/“minerals”/“raw materials” + “sustainable”/“sustainability”/“supply risk”/“criticality”
“energy transition” + “resources”
“energy system” + “resource efficiency”
DatabaseWeb of Science
Inclusion factorsScope: covering the assessment of abiotic resources in the context of renewable energy systems or sub-systems
Type of research: case study and theoretical framework
Source: peer-reviewed literature
Time period: published between 2010 and 2020
Language: English
Exclusion factorsScope: no energy system or sub-system, no resource assessment, only fossil or nuclear technologies regarded
Type of research: reviews without own case study
Source:
Time period: published before 2010 or after 2020
Language: any other
Table
Table 2. Methodological details on the grey literature search.
Table 2. Methodological details on the grey literature search.
SourcesInstitutional websites
Inclusion factorsScope: covering the assessment of abiotic resources in the context of renewable energy systems or sub-systems
Type of research: case study and theoretical framework
Source: grey literature from scientific and political institutions of Germany, the European Union, and the USA
Time period: published between 2010 and 2020
Language: English and German
Exclusion factorsScope: no energy system or sub-system, no resource assessment, only fossil or nuclear technologies regarded
Type of research: reviews without own case study
Source: grey literature from other regions
Time period: published before 2010 or after 2020
Language: any other
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yavor, K.M.; Bach, V.; Finkbeiner, M. Resource Assessment of Renewable Energy Systems—A Review. Sustainability 2021, 13, 6107. https://doi.org/10.3390/su13116107

AMA Style

Yavor KM, Bach V, Finkbeiner M. Resource Assessment of Renewable Energy Systems—A Review. Sustainability. 2021; 13(11):6107. https://doi.org/10.3390/su13116107

Chicago/Turabian Style

Yavor, Kim Maya, Vanessa Bach, and Matthias Finkbeiner. 2021. "Resource Assessment of Renewable Energy Systems—A Review" Sustainability 13, no. 11: 6107. https://doi.org/10.3390/su13116107

APA Style

Yavor, K. M., Bach, V., & Finkbeiner, M. (2021). Resource Assessment of Renewable Energy Systems—A Review. Sustainability, 13(11), 6107. https://doi.org/10.3390/su13116107

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
