# Building the Traffic Flow Network with Taxi GPS Trajectories and Its Application to Identify Urban Congestion Areas for Traffic Planning

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- A new traffic flow network model is built based on taxi GPS trajectories. The model is scalable and can reflect the traffic status. The traffic flow network can be employed to investigate traffic congestion problems and facilitate decision making in traffic planning.
- (2)
- The traffic flow network is applied to an actual case of identifying the congestion areas.
- (3)
- Several key problems pertaining to the traffic flow network are discussed.

## 2. Method: Building the Traffic Flow Network

#### 2.1. Data Source

#### 2.2. Overview of Building the Traffic Flow Network

#### 2.3. Procedures of Building the Traffic Flow Network

#### 2.3.1. Data Selection

#### 2.3.2. Building of the Primitive Traffic Flow Network

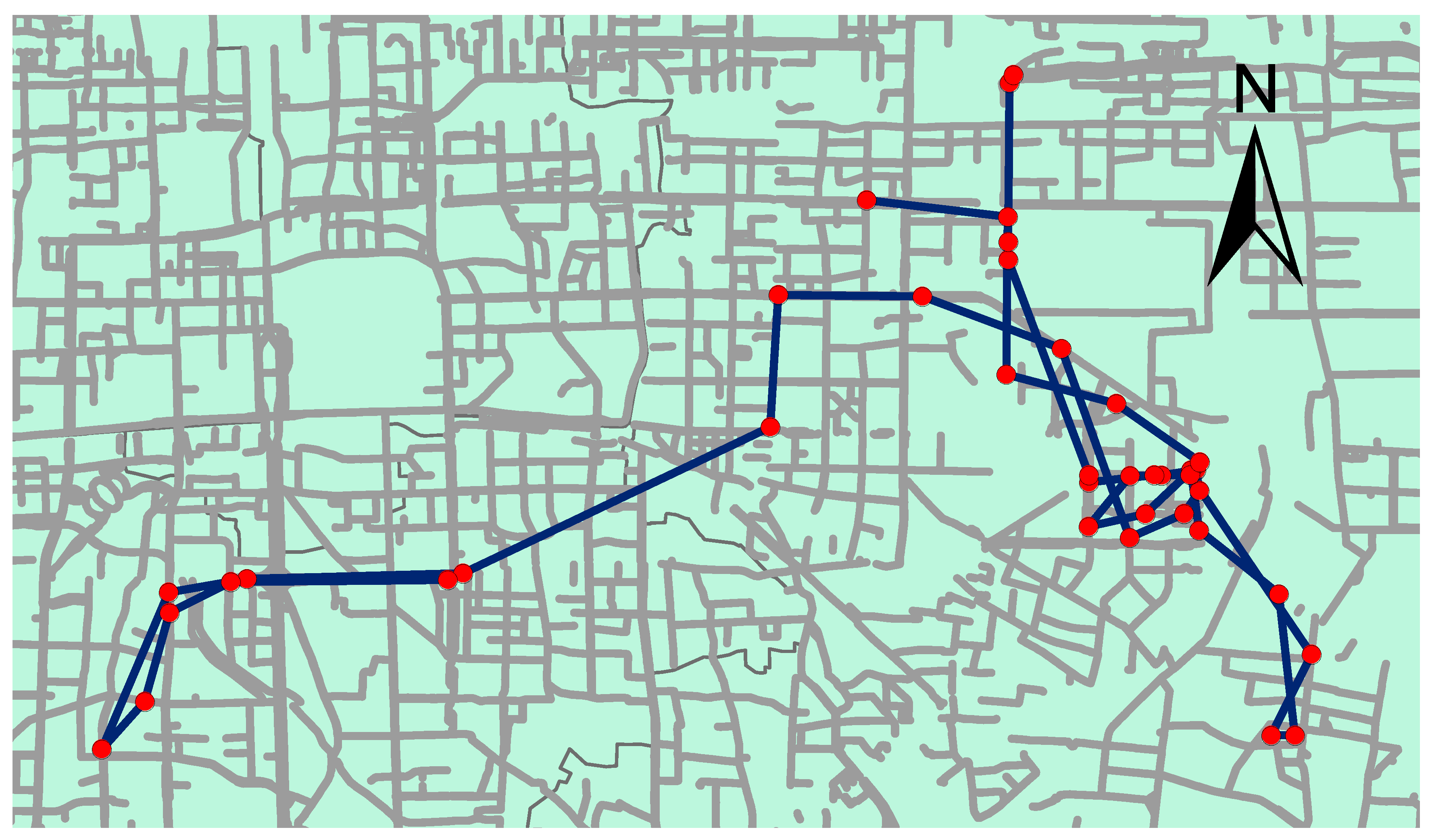

#### 2.3.3. Building of the Final Traffic Flow Network

## 3. Application: Identifying the Congestion Areas for Traffic Planning

#### 3.1. Overview

#### 3.2. Local Weighted Nodal Metrics

#### 3.2.1. Nodal Strength

#### 3.2.2. Average Strength

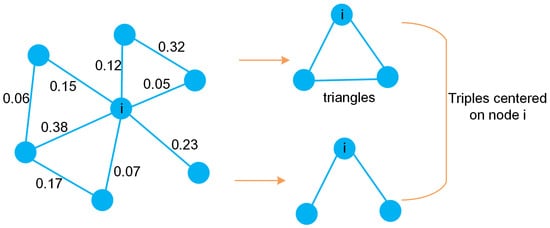

#### 3.2.3. Weighted Clustering Coefficient

#### 3.2.4. Weighted Companion Behaviors

#### 3.3. Results of Identifying the Congestion Areas

#### 3.3.1. Statistics of Nodal Attribute Values

#### 3.3.2. Illustration of the Congestion Nodes

#### 3.3.3. Comparative Evaluation When Using Four Nodal Metrics

## 4. Discussion

#### 4.1. Reliability of the Traffic Flow Network in Identifying the Congestion Areas

#### 4.2. Advantages in the Use of the Traffic Flow Network

#### 4.3. Disadvantages in the Use of the Traffic Flow Network

#### 4.4. Outlook and Future Work

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Sussman, J.S. Perspectives on Intelligent Transportation Systems (ITS); Springer: New York, NY, USA, 2005. [Google Scholar] [CrossRef]
- Ahad, A.; Khan, Z.; Ahmad, S. Intelligent Parking System. World J. Eng. Technol.
**2016**, 4, 160–167. [Google Scholar] [CrossRef] [Green Version] - Xiang, C.; Liuqing, Y.; Xia, S. D2D for Intelligent Transportation Systems: A Feasibility Study. IEEE Trans. Intell. Transp. Syst.
**2015**, 16, 1784–1793. [Google Scholar] [CrossRef] - Xiong, Z.; Sheng, H.; Rong, W.; Cooper, D. Intelligent transportation systems for smart cities: A progress review. Sci. China Inf. Sci.
**2012**, 55, 2908–2914. [Google Scholar] [CrossRef] [Green Version] - Zhang, J.; Wang, F.; Wang, K.; Lin, W.H. Data-Driven Intelligent Transportation Systems: A Survey. IEEE Trans. Intell. Transp. Syst.
**2011**, 12, 1624–1639. [Google Scholar] [CrossRef] - Porta, S.; Crucitti, P.; Latora, V. The Network Analysis of Urban Streets: A Primal Approach. Environ. Plan. Plan. Des.
**2006**, 33, 705–725. [Google Scholar] [CrossRef] [Green Version] - Bin, J.; Christophe, C. Topological analysis of urban street networks. Environ. Plan. B Abstr.
**2004**, 31, 151–162. [Google Scholar] [CrossRef] [Green Version] - Porta, S.; Crucitti, P.; Latora, V. The network analysis of urban streets: A dual approach. Phys. A Stat. Mech. Appl.
**2006**, 369, 853–866. [Google Scholar] [CrossRef] [Green Version] - De Montis, A.; Barthelemy, M.; Chessa, A.; Vespignani, A. The structure of Inter-Urban traffic: A weighted network analysis. Environ. Plan. B Plan. Des.
**2007**, 34, 905–924. [Google Scholar] [CrossRef] [Green Version] - Stefan, L.; Bjorn, G.; Helbing, D. Scaling laws in the spatial structure of urban road networks. Phys. A Stat. Mech. Appl.
**2006**, 363, 89–95. [Google Scholar] [CrossRef] [Green Version] - Paolo, C.; Vito, L.; Sergio, P. Centrality measures in spatial networks of urban streets. Phys. Rev. E
**2006**, 73. [Google Scholar] [CrossRef] [Green Version] - Leung, X.; Chan, S.Y.; Hui, P.; Lio, P. Intra-City Urban Network and Traffic Flow Analysis from GPS Mobility Trace. Phys. Soc.
**2011**, 12, 1047–1056. [Google Scholar] [CrossRef] - Zhong, G.; Yin, T.; Zhang, J.; He, S.; Ran, B. Characteristics analysis for travel behavior of transportation hub passengers using mobile phone data. Transportation
**2018**, 46, 1713–1736. [Google Scholar] [CrossRef] - Zhang, S.; Tang, J.; Wang, H.; Wang, Y.; An, S. Revealing intra-urban travel patterns and service ranges from taxi trajectories. J. Transp. Geogr.
**2017**, 61, 72–86. [Google Scholar] [CrossRef] - Tao, D.; Zhi-Ming, C.; Zhe, C.; Jun, K. Analysis of Taxi Passenger Travel Characteristics Based on Spark Platform. Comput. Syst. Appl.
**2017**, 3, 37–43. [Google Scholar] [CrossRef] - An, S.; Yang, H.; Wang, J. Revealing Recurrent Urban Congestion Evolution Patterns with Taxi Trajectories. ISPRS Int. J. Geo-Inf.
**2018**, 7, 128. [Google Scholar] [CrossRef] [Green Version] - Kan, Z.; Luliang, T.; Kwan Mei-Po, R.; Chang, L.; Dong, L.; Qingquan, L. Traffic congestion analysis at the turn level using Taxis’ GPS trajectory. Comput. Environ. Urban Syst.
**2019**, 74, 229–243. [Google Scholar] [CrossRef] - Liu, C.; Wang, S.; Cuomo, S.; Mei, G. Data analysis and mining of traffic features based on taxi GPS trajectories: A case study in Beijing. Concurr. Comput. Pract. Exp.
**2019**. [Google Scholar] [CrossRef] - Wenhuan, S. A Taxi-Tracking-based Method for Traffic Status Estimation of Urban Road-Network. J. Transp. Inf. Saf.
**2009**, 5, 29–32. [Google Scholar] - Li, S.; Wu, J.; Gao, Z.Y.; Lin, Y.; Fu, B. The analysis of traffic congestion and dynamic propagation properties based on complex network. Acta Phys. Sin.
**2011**, 60. [Google Scholar] [CrossRef] - Wu, J.; Sun, H.; Gao, Z. Dynamic urban traffic flow behavior on scale-free networks. Phys. A Stat. Mech. Appl.
**2008**, 387, 653–660. [Google Scholar] [CrossRef] - Wang, S.; Cuomo, S.; Mei, G.; Cheng, W.; Xu, N. Efficient method for identifying influential vertices in dynamic networks using the strategy of local detection and updating. Future Gener. Comput. Syst.
**2019**, 91, 10–24. [Google Scholar] [CrossRef] - Salavati, C.; Abdollahpouri, A.; Manbari, Z. Ranking nodes in complex networks based on local structure and improving closeness centrality. Neurocomputing
**2018**. [Google Scholar] [CrossRef] - Fornito, A.; Zalesky, A.; Bullmore, E.T. Fundamentals of Brain Network Analysis; Academic Press: Cambridge, MA, USA, 2016. [Google Scholar] [CrossRef]
- Tripathy, R.M.; Bagchi, A.; Jain, M. Complex Network Characteristics and Team Performance in the Game of Cricket. In Big Data Analytics; Springer International Publishing: Berlin/Heidelberg, Germany, 2013; pp. 133–150. [Google Scholar]
- Saramaki, J.; Kivela, M.; Onnela, J.P.; Kaski, K.; Kertesz, J. Generalizations of the Clustering Coefficient to Weighted Complex Networks. Phys. Rev. E
**2007**, 75, 027105. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zheng, Y.; Tang, L.A.; Han, J.; Leung, A.; Hung, C.C.; Peng, W.C.; Yuan, J.; Yuan, N.J. On Discovery of Traveling Companions from Streaming Trajectories. In Proceedings of the 28th International Conference on Data Engineering, Arlington, VA, USA, 1–5 April 2012. [Google Scholar]
- Yuan, N.J.; Zheng, Y.; Xie, X.; Sun, G. T-Drive: Enhancing Driving Directions with Taxi Drivers’ Intelligence. IEEE Trans. Knowl. Data Eng.
**2013**, 25, 220–232. [Google Scholar] [CrossRef] - Center, B.T.D.R. Annual Report of Beijing Traffic Development in 2009. 2009. Available online: http://www.bjtrc.org.cn/List/index/cid/7/p/2.html (accessed on 25 October 2020).
- Liu, D.; Jing, Y.; Chang, B. Identifying influential nodes in complex networks based on expansion factor. Int. J. Mod. Phys. C
**2016**, 27, 1650105. [Google Scholar] [CrossRef] - Bian, T.; Hu, J.; Deng, Y. Identifying influential nodes in complex networks based on AHP. Phys. A Stat. Mech. Appl.
**2017**, 479, 422–436. [Google Scholar] [CrossRef] - Qi, X.; Mei, G.; Cuomo, S.; Xiao, L. A network-based method with privacy-preserving for identifying influential providers in large healthcare service systems. Future Gener. Comput. Syst.
**2020**, 109, 293–305. [Google Scholar] [CrossRef] - Lu, L.; Zhou, T.; Zhang, Q.M.; Stanley, H.E. The H-index of a network node and its relation to degree and coreness. Nat. Commun.
**2016**, 7, 10168. [Google Scholar] [CrossRef] [Green Version] - Jing, F.; Zhuo-qiong, Q.; Guo-qing, Z. A Method for Improving Complex Network Capacity Based on Betweenness Centrality. Comput. Simul.
**2008**, 25, 167–170. [Google Scholar] - Fei, L.; Zhang, Q.; Deng, Y. Identifying influential nodes in complex networks based on the inverse-square law. Phys. A Stat. Mech. Appl.
**2018**, 512, 1044–1059. [Google Scholar] [CrossRef] - Arruda, D.; Ferraz, G. Role of centrality for the identification of influential spreaders in complex networks. Phys. Rev. E
**2014**, 90. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wu, X.; Li, X.; Chen, R. Network Science: An Introduction; Higher Education Press: Beijing, China, 2012. [Google Scholar]

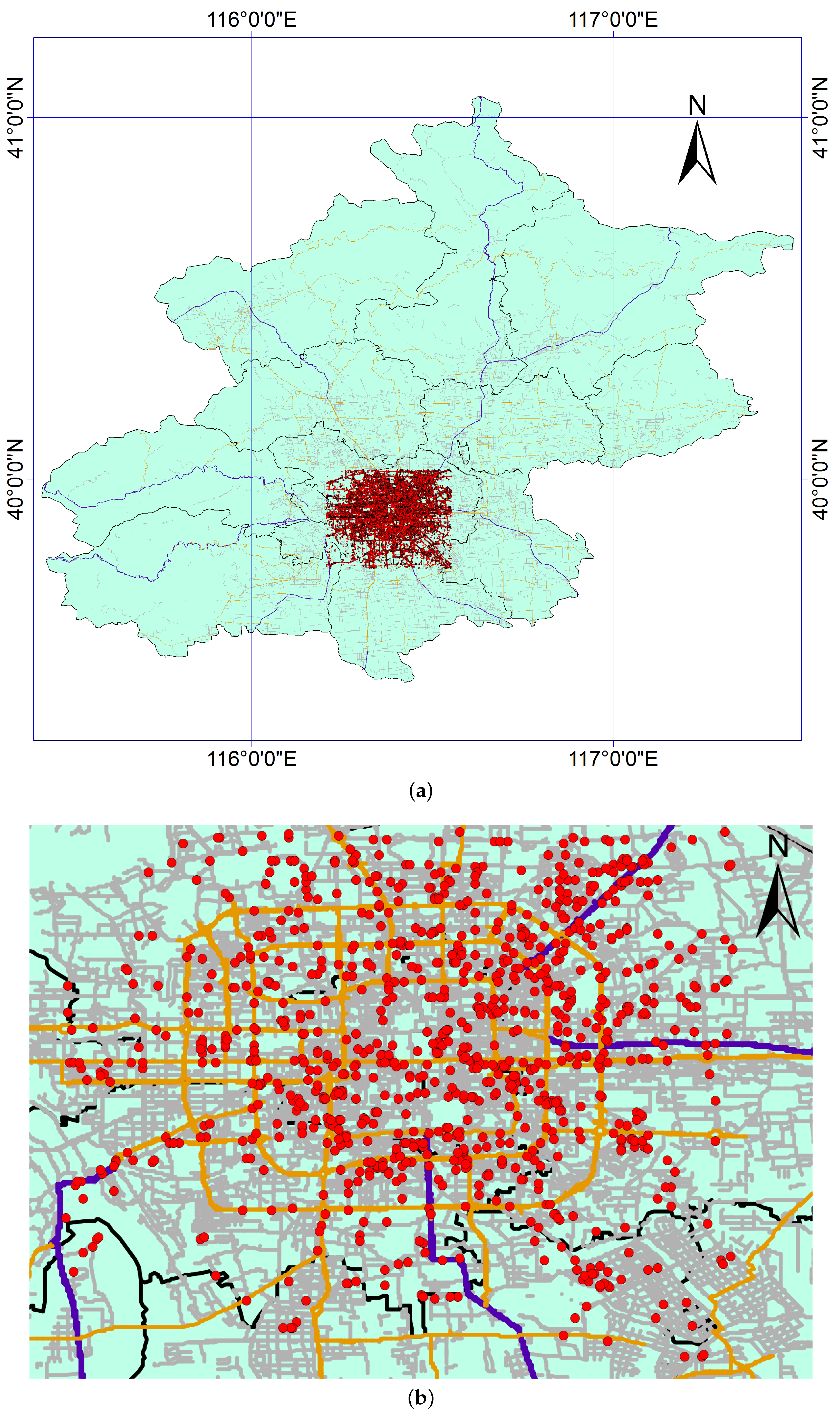

**Figure 1.**Selected taxi GPS trajectories in morning rush hours. (

**a**) Overview; (

**b**) An illustration of random 1000 trajectory nodes.

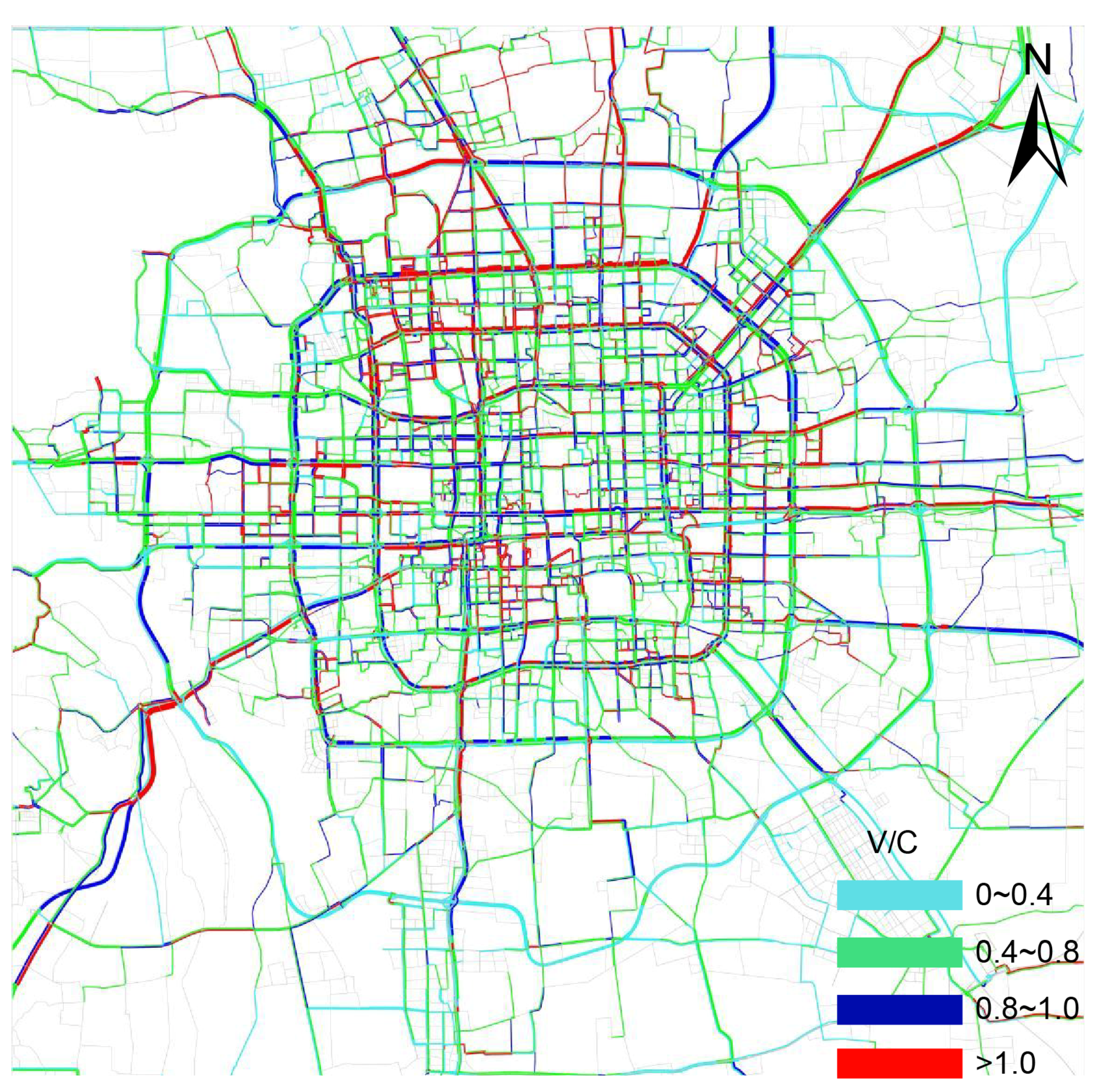

**Figure 2.**The V/C of the morning peak during weekdays in Beijing [29].

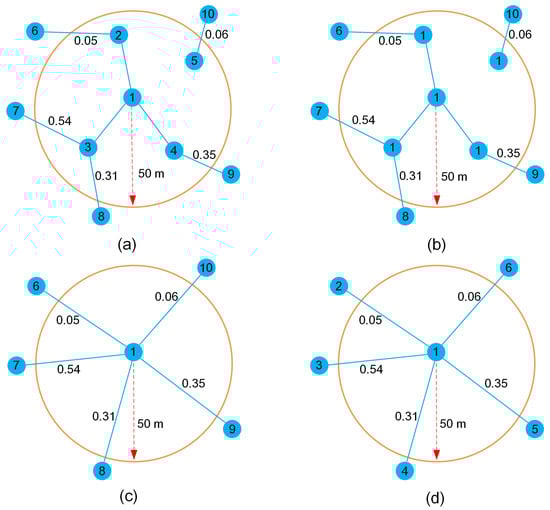

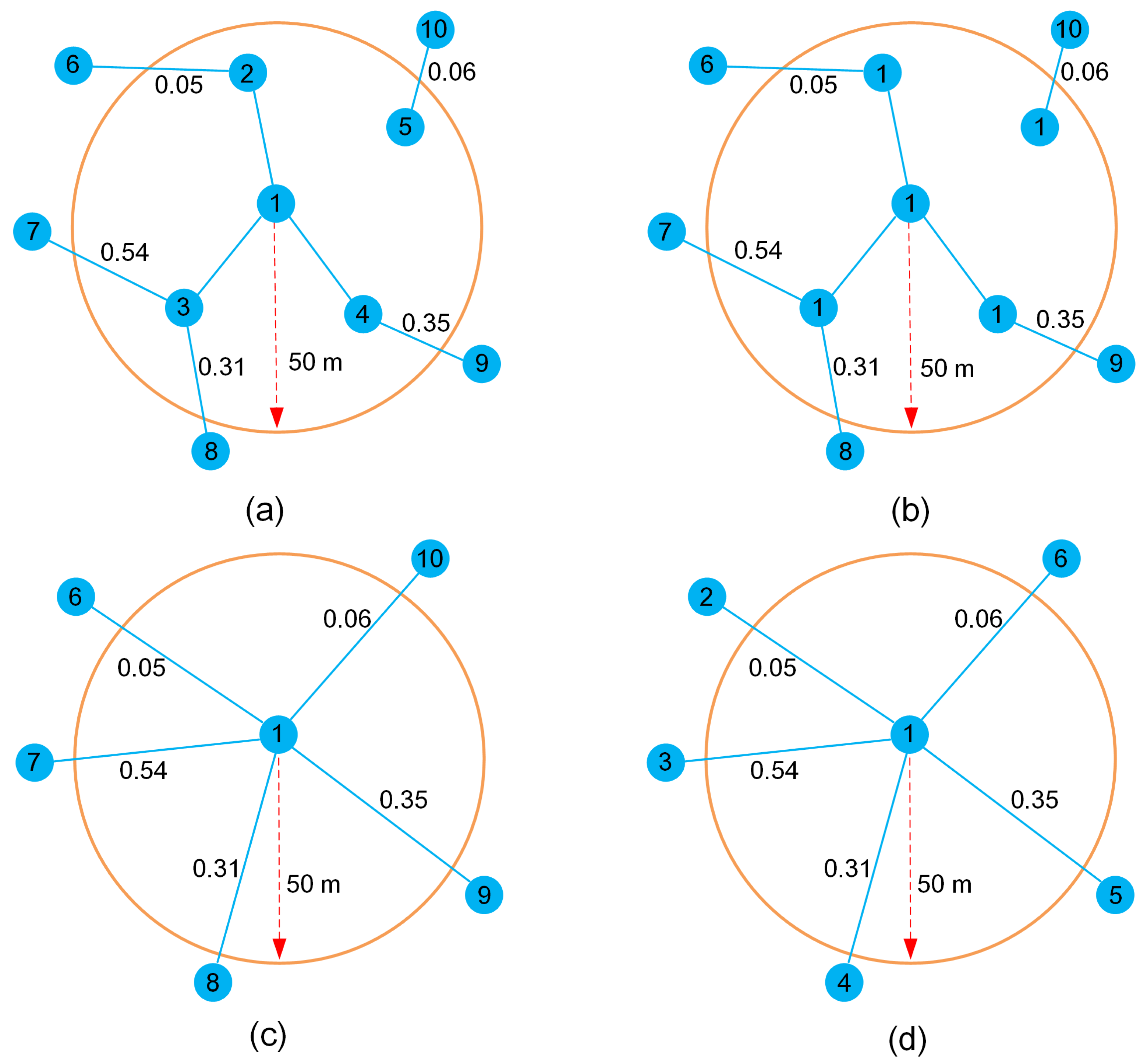

**Figure 3.**Merging of the primitive traffic flow network. (

**a**) Original network; (

**b**) Replacement of the indexes (

**c**) Merging of the network; (

**d**) Updating of the indexes.

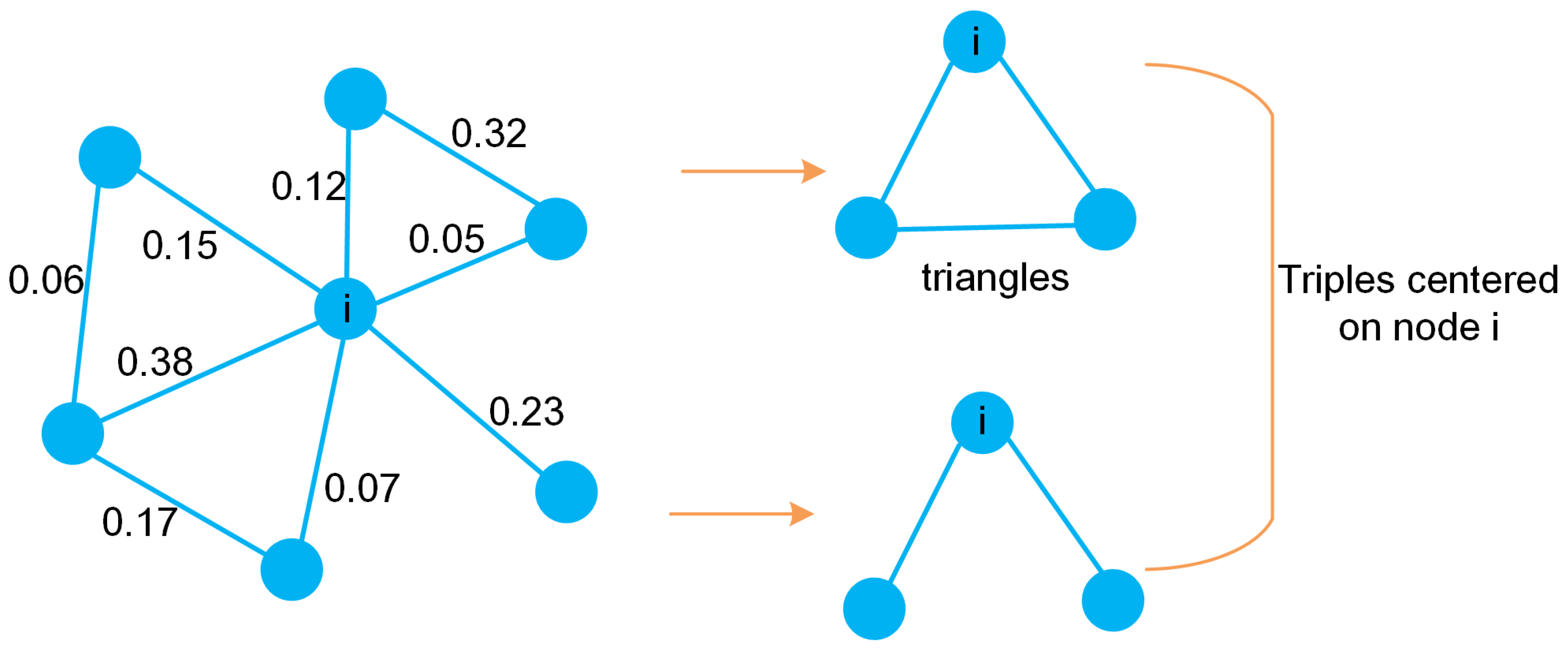

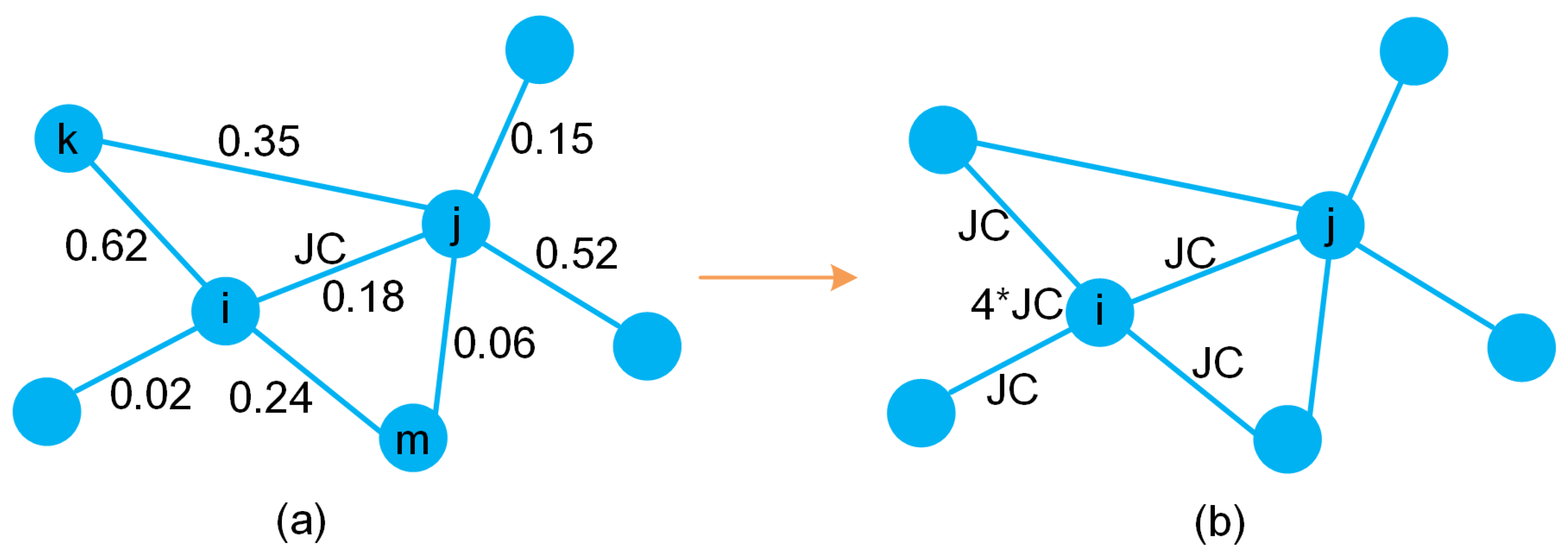

**Figure 6.**Illustration of calculation process. (

**a**) $JC$ of edge $ij$; (

**b**) Companion behaviors of node i.

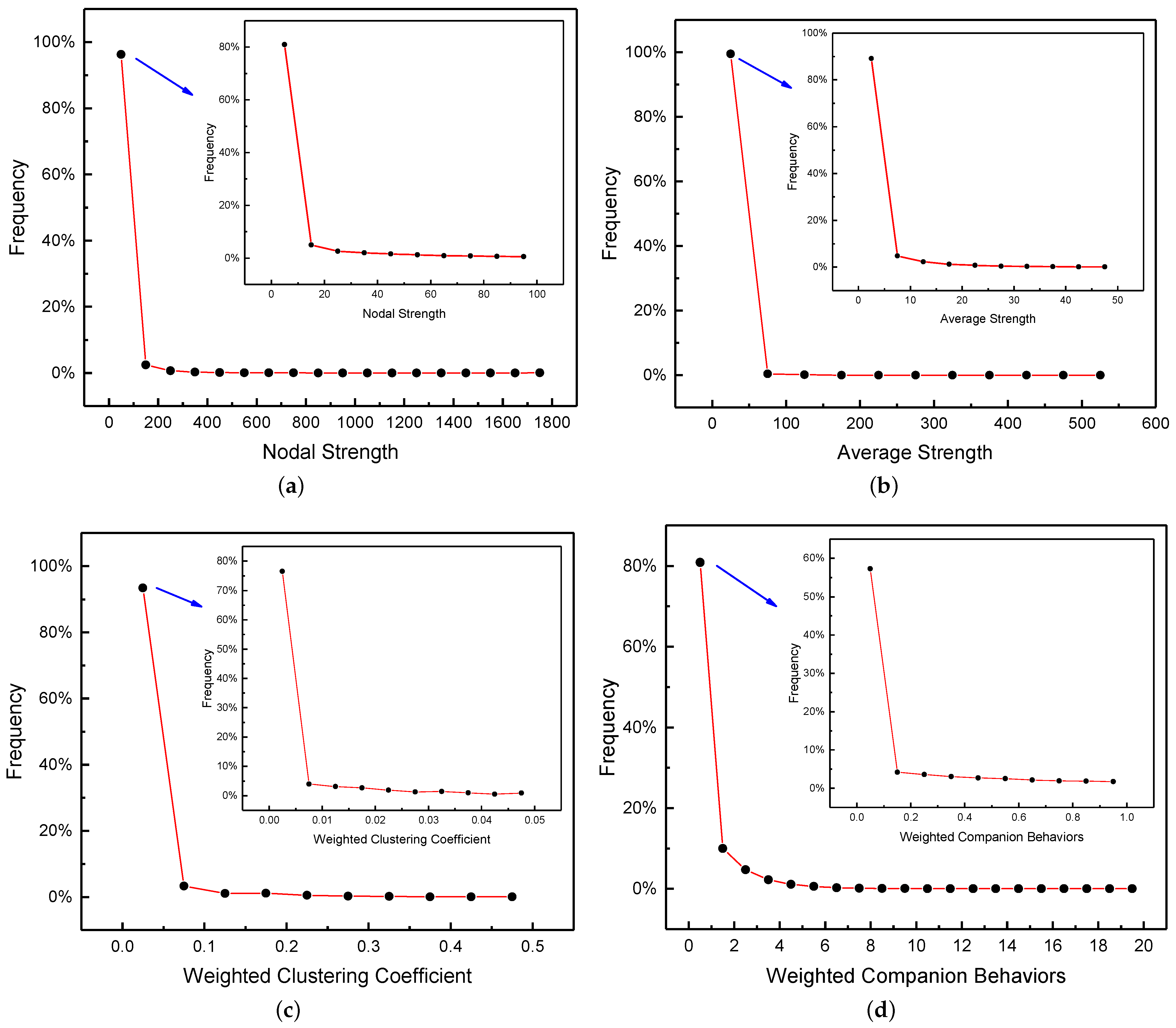

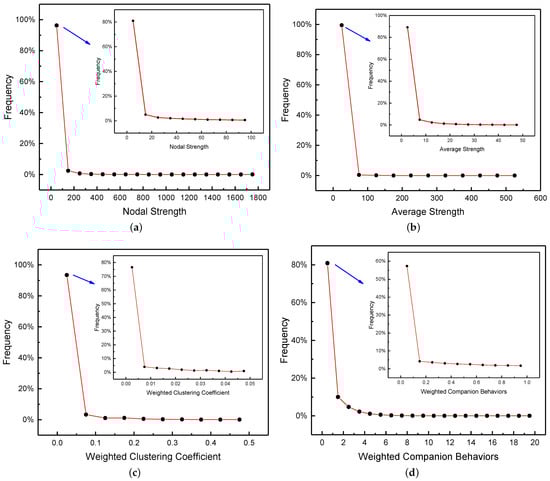

**Figure 7.**Frequency distributions of influential values using the local weighted metrics. (

**a**) Nodal Strength; (

**b**) Average Strength; (

**c**) Weighted clustering coefficient; (

**d**) Weighted companion behaviors.

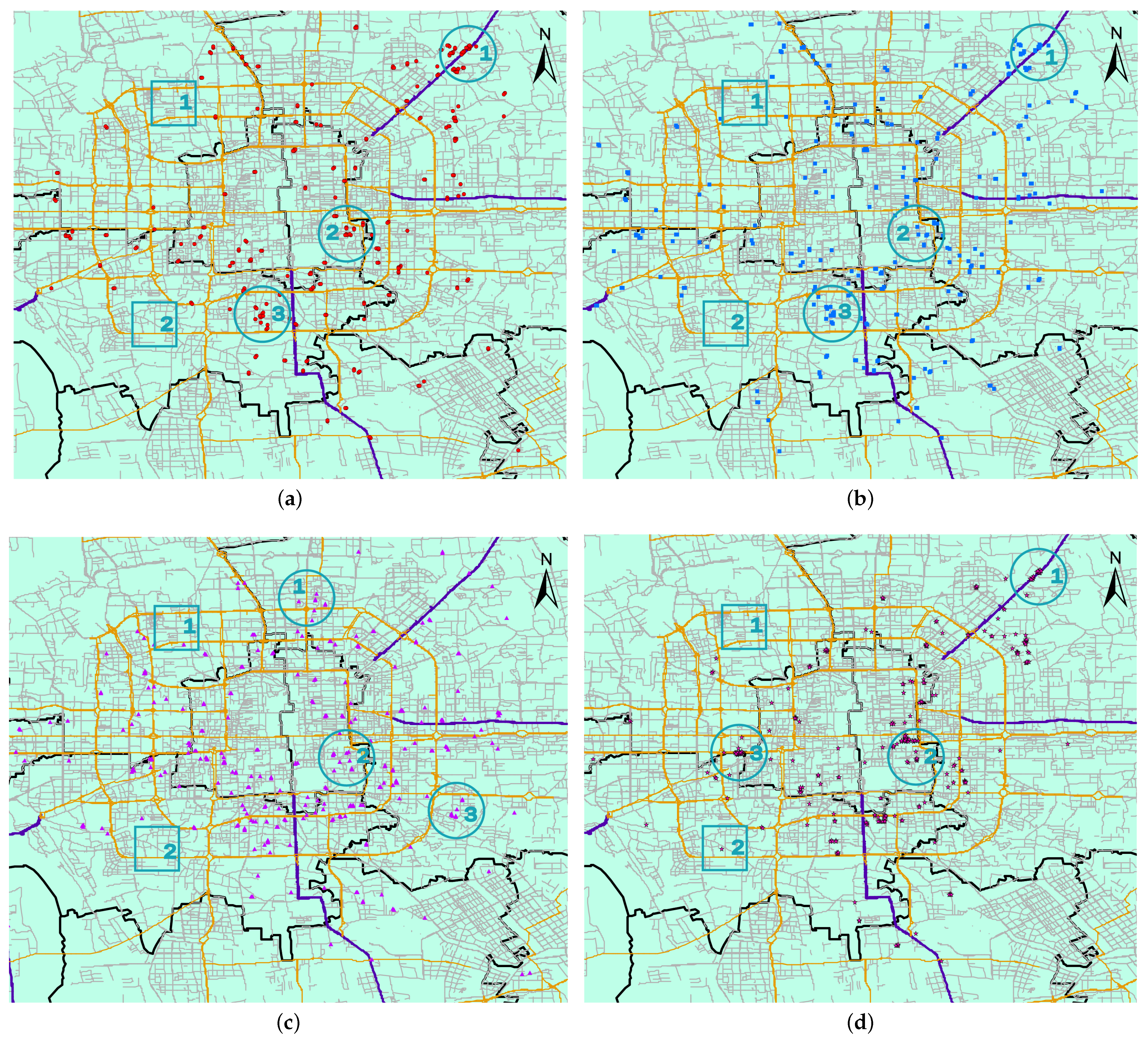

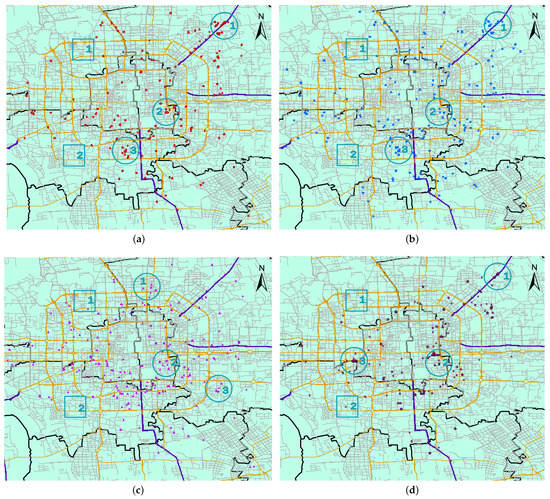

**Figure 8.**Distributions of top 300 congestion nodes identified using the weighted metrics. (
