1. Introduction
According to the United Nations, the average daily consumption of fresh water, per person, in the United States and Europe is between 400 and 600 liters [
1]. According to the World Resources Institute, within 20 years, the South of Europe and the United States will have to deal with an extremely high risk of water stress, meaning that the demand for water will exceed the available resources [
2]. Over the past century, water consumption has increased twice as fast as the rate of population growth. Although water scarcity is partially of natural origin, related to its uneven distribution, most of it has an anthropogenic origin, as fresh water is quite often wasted, polluted, and unsustainably managed [
3,
4]. Water is, and will always be, a valuable resource that must be used wisely.
Sustainability is of growing concern worldwide, mainly among younger generations [
5,
6]. Nevertheless, creative ways to create awareness are needed. With these concerns in mind, several authors have tried to reduce water usage in laboratory practices. Schoeddert et al. [
7] designed a low-cost, easy to make recirculation system for a condenser apparatus, which allows for saving over 14.4 m
3 of cooling water per year. The system was designed for organic chemistry labs and relied on gravity and a small pump to circulate the cooling water between an upper and a lower reservoir while supplying four different workstations at the same time. Baum et al. [
8,
9] modified the traditional condensers used in chemistry laboratories to waterless condensers. First, they used ethylene glycol in a closed condenser as a cooling storage medium, obtaining similar solvent retentions as with a conventional water condenser. Then, using concentrated antifreeze in a closed circuit, they were able to obtain the same separation as conventional condensers using flowing water. The implementation of these condensers can save approximately 13 m
3 of water per year at the laboratories of Butler University. Chan et al. [
10] stated that distillation has a considerable impact on water consumption at student and research labs, and most people involved are not aware of that. Among the distillation processes, the production of distilled water is probably the most water-wasting process. For example, at the Chemical Engineering Department at the University of Porto, the daily consumption of distilled water is around 30 L. To produce this amount of distilled water using a conventional glass distillation apparatus, it would be necessary to waste ca. 550 m
3 of cooling water yearly, i.e., each liter of distilled water requires ca. 70 L of cooling water. To avoid wasting such a large amount of water, a larger scale distillation system in which no water is wasted was developed.
Currently, the most popular teaching method relies on classic lectures with a presentation of concepts and little to no involvement from the students. Despite this, active learning, where students are directly involved with the subject rather than being passive receptors, has been proven to help students retain concepts and information [
7]. Well-designed laboratories for undergraduate engineering programs are essential to achieving pedagogical success. They are considered to be a standard in every area of knowledge of chemical engineering degrees, not only at the University of Porto, but also at other well-ranked universities. From Fluid Mechanics, Heat Transfer [
11,
12], Separation Processes [
13], Reaction Engineering [
14], and Heterogeneous Catalysis [
15] to Corrosion and Materials Science [
16], just to mention a few, the commitment to developing and implementing well-designed educational experiments is critical to providing the conditions to develop hands-on skills. This is not only often reflected by well-ranked student marks, but also by the student response to pedagogical surveys, or even by the feedback given by future employers and professional internship supervisors.
The main goal of this work is to report on the implementation of a large-scale water distillation unit with a closed-circuit condenser, which is used both for educational purposes and as a piece of departmental utility equipment to produce and supply distilled water. The refrigerated water flowing in a closed-circuit condenser exchanges heat with a large water reservoir, which supplies the entire school with fresh water. The equipment was designed to be used during field-trip visits, by undergraduate students attending Chemical Engineering Practices. It integrates concepts of separation processes, heat transfer, control and instrumentation, and industrial design while showing how every process can be improved and made more sustainable and eco-friendly. Besides its pedagogical purposes, the equipment, with a production capacity of 10 liters per hour, is used daily to supply research and educational laboratories. By replacing the conventional glass distillation apparatus, which has open-circuit condensers, by this one with the closed-circuit condenser, the consumption of electricity and refrigeration water was reduced considerably while maintaining the quality of the distilled water.
2. Materials and Methods

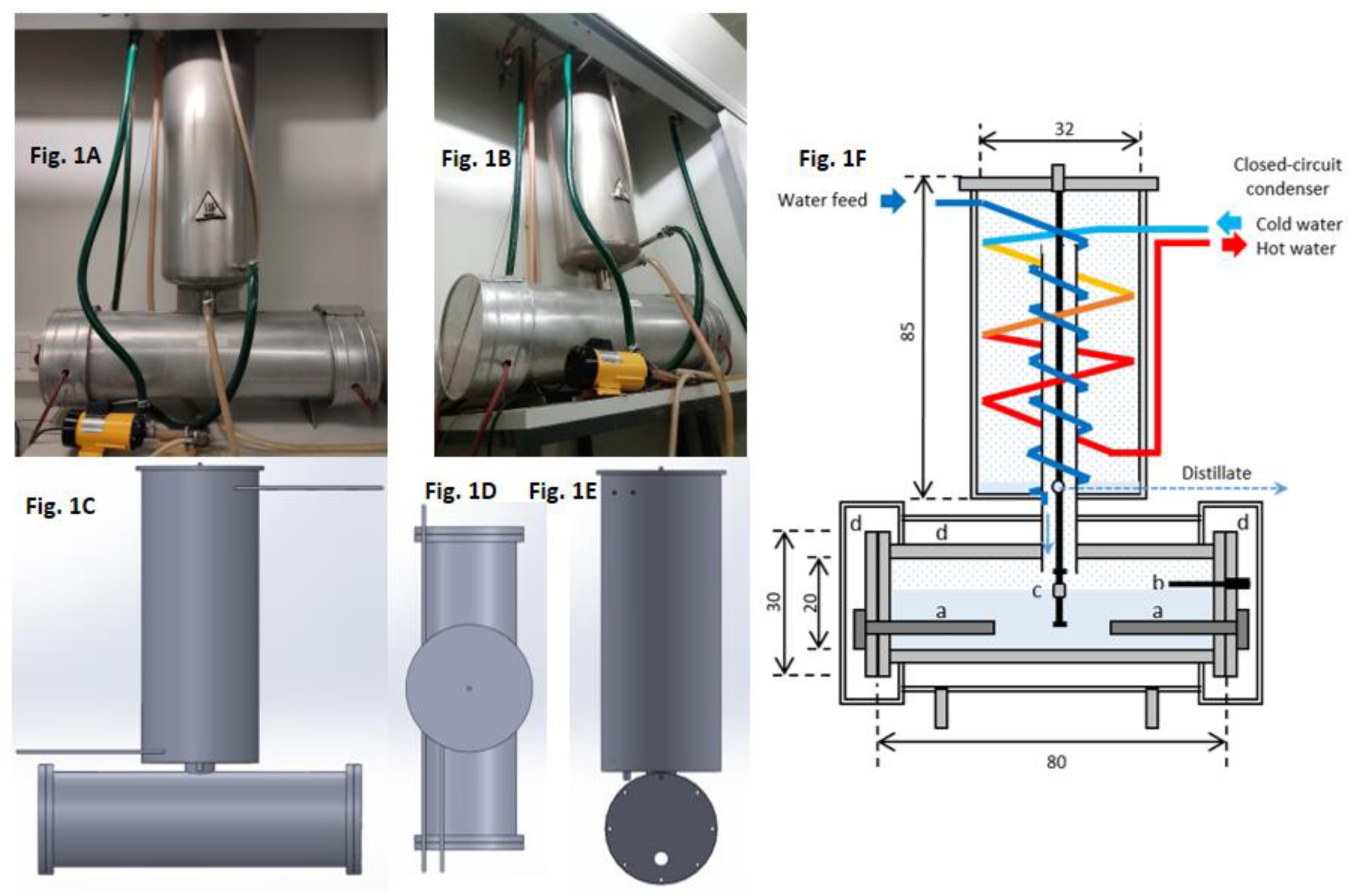

The distillation unit is made of stainless steel and has a reboiler and a condenser, as shown in
Figure 1. The condenser has two coils, one for preheating the feeding water and the other for condensing the steam. The preheating of the feeding water saves electrical energy because the reboiler needs less power. The reboiler has a total water volume of ca. 25 liters when operating at 80% of its capacity. It has two heating resistors of 3000 W each, threaded to each end side (38.1 mm diameter gas threads), and a Pt100 sensor that is inserted laterally for temperature control.
The closed-circuit refrigeration system is composed of an internal and an external coil. The internal coil is used for preheating the feeding water while the external coil is used for condensing the water vapor evolving from the reboiler. A magnetic centrifugal pump (Pan-World, model NH50PX-H) pumps the cooling water—thermal fluid. The external coil, with a total length of 2.8 m, has 6 turns with a diameter of 150 mm and an angle of 20°, resulting in a height of about 1 m (

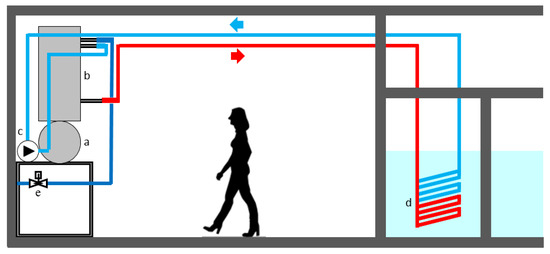

Figure 1). This coil is submerged in the freshwater reservoir of the Faculty of Engineering, which has a capacity of ca. 100 m
3 (
Figure 2). The cooling system is made of 22 mm internal diameter tubes. To avoid oxidation, most of the components are made of stainless steel 316 L.
2.1. Design of the Distillation Unit
The calculation procedure used to design the preheating coil and the internal and external cooling coils is described in detail in
Appendix A.
2.2. Control and Instrumentation of the Distillation Unit

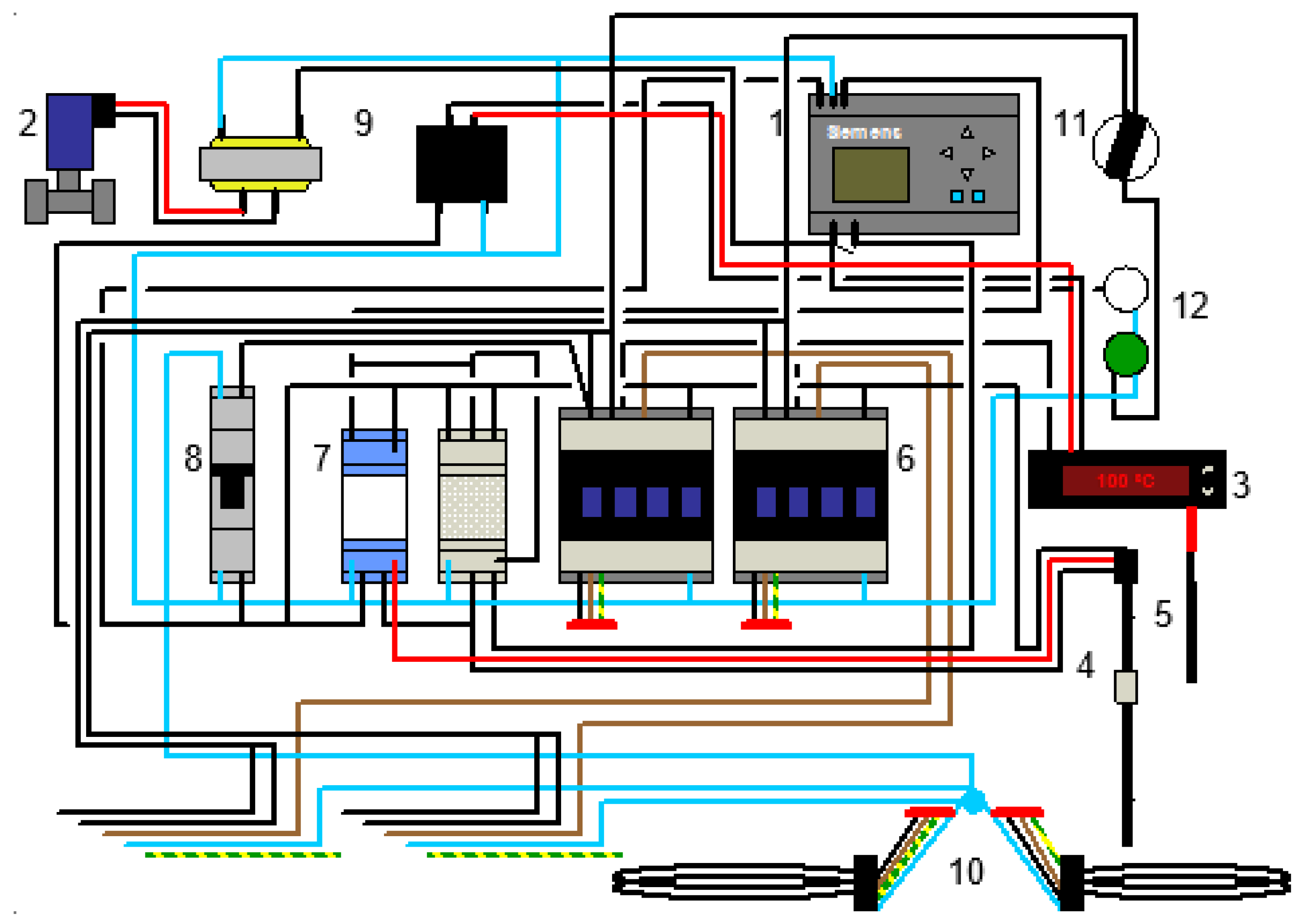

The distillation system is controlled locally using a logic module (Siemens, LOGO! 230 RC). This module is connected to a computer using an acquisition card (NI DAQ 6008) and controlled using an in-house developed program on the LabVIEW platform. Since the computer is connected to the internet, the controlling program can be accessed locally or remotely. The logic module is connected to three solid-state relays, which control the magnetic drive centrifugal pump and the two heating resistors, and to a signal transmitter/amplifier (B.UP 215 C/2MT) connected to a Pt100 sensor (
Figure 3).
The water level inside the reboiler and the activation of the heating resistors are controlled by a floater probe with two levels, minimum and maximum. The probe is connected to two relay switches that activate two contactors (one for each heating resistor) and the water supply on/off solenoid valve. The minimum level was set to 30 mm above the resistors, which are installed 20 mm above the base of the reboiler. The maximum level was set to 180 mm above the base of the reboiler.

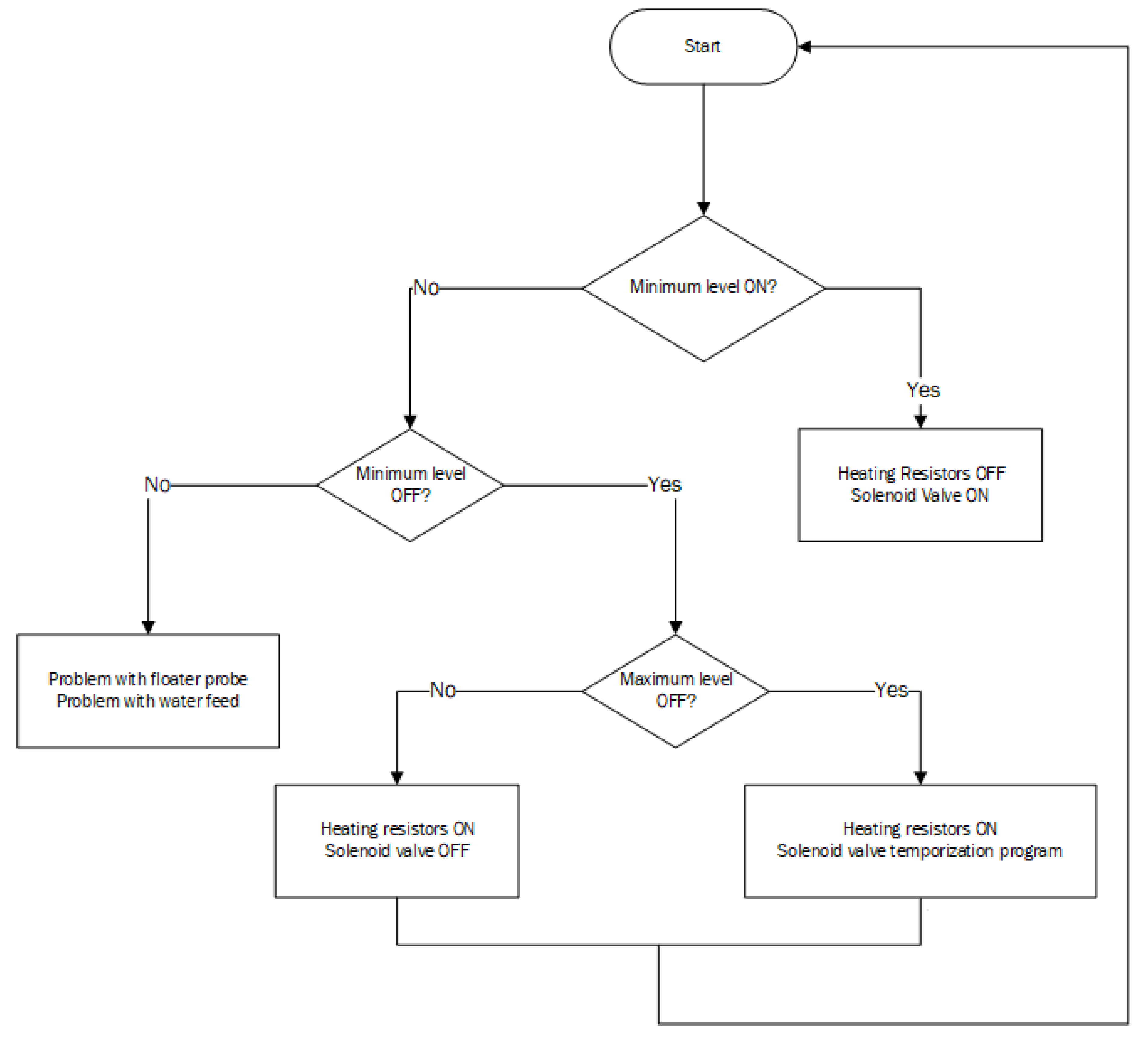

The control of the water level in the reboiler and the activation of the heating resistors are done according to the block diagram shown in
Figure 4.
Briefly, with the floater at the minimum level, the resistors are off and the solenoid valve—for the inlet water—opens. Water starts being fed to the reboiler, which makes the floater gradually rise. When the water reaches a set-point level (the minimum level is turned off), the solenoid valve is closed, and the heating resistors are turned on. At this moment, a timer is also activated at the Siemens logic module or the LabVIEW program, depending on which system is being used to control the operation. The timer switches on and off the relay that activates the water feed solenoid valve (off for 2 min, on for 20 s). When the floater reaches the upper level (the maximum level), the solenoid valve is closed, and water is only fed to the system when the minimum level is reached once again.

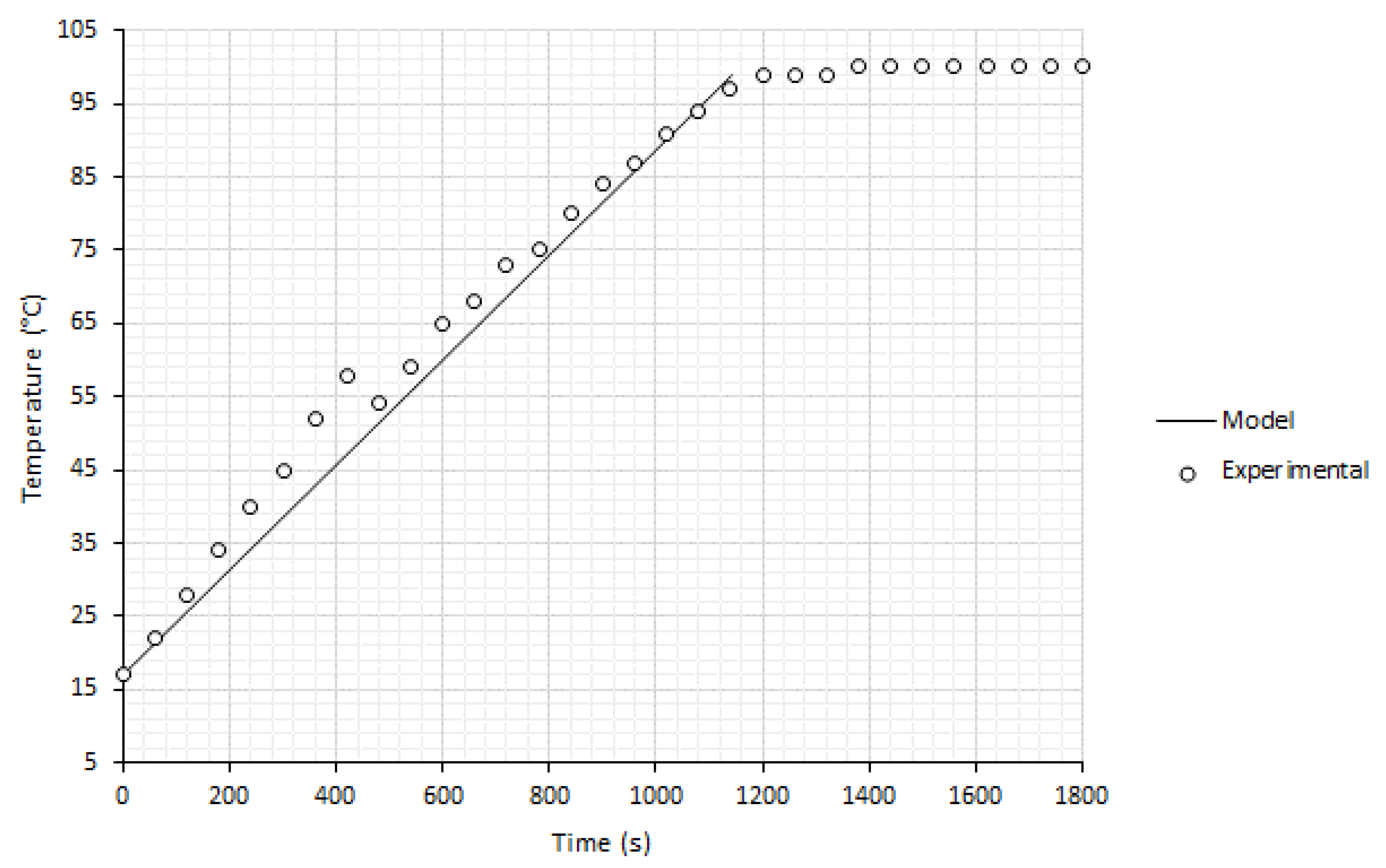

4. Conclusions
A water distillation unit with a closed-circuit refrigeration system was designed, built, and validated. The developed unit wastes no water for condensing the formed steam since it uses a thermal fluid to transfer the heat to a freshwater reservoir with ca. 100 m3 at the Faculty of Engineering, University of Porto. The distillation unit was designed and assembled by the staff and produces high-quality distilled water with a conductivity of 4 μS·cm−1. Compared with conventional lab distillation units, which can consume up to 70 L of fresh water per liter of distilled water, the developed distillation unit saves ca. 500 m3 of fresh water per year, displaying a ROI of ca. 10 months.
Designing a water distillation system may seem like an easy task for undergraduate students, but it requires a strong background in heat transfer and instrumentation. In the framework of Chemical Engineering Laboratories, students at the University of Porto are required to propose strategies for saving water and, in the end, are invited to visit this distillation unit, where they learn about its design, instrumentation, suppliers, and advantages. Back in the classroom, students are required to solve a water distillation problem similar to the one described in this work.
