Analysis of Large-Scale Residential Development on Walking Environments in Surrounding Neighborhoods: A Before-and-After Comparison of Apartment Complex Developments in Seoul, Korea
Abstract
:1. Introduction
Research Background and Objectives
2. Literature Review
Built Environment and Accessibility
3. Methodology
3.1. Case Study Areas
3.2. Method
4. Analysis
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Jacobs, J. The Death and Life of Great American Cities; Random House: New York, NY, USA, 1961. [Google Scholar] [CrossRef]
- Stavrides, S. Inhabited common spaces. In Common Space: The City as Commons; Zed Books: London, UK, 2016; p. 130. [Google Scholar] [CrossRef]
- Blakely, E.J.; Snyder, M.G. Fortress America: Gated communities in the United States; Brookings Institution Press: Washington, DC, USA, 1997. [Google Scholar] [CrossRef]
- Montavon, M.; Steemers, K.; Cheng, V.; Compagnon, R. La Ville Radieuse by Le Corbusier, once again a case study. In Proceedings of the PLEA2006—The 23rd Conference on Passive and Low Energy Architecture, Geneva, Switzerland, 6–8 September 2006. [Google Scholar]
- Corbusier, L. The Radiant City; Faber and Faber Limited: London, UK, 1967. [Google Scholar] [CrossRef]
- Gelézeau, V. On the Republic of Apartments. East Asian Sci. Technol. Soc. Int. J. 2009, 3, 137–145. [Google Scholar] [CrossRef]
- Statistics Korea, Population and Housing Survey. 2018. Available online: https://www.kostat.go.kr/portal/korea/kor_nw/1/2/2/index.board?bmode=read&bSeq=&aSeq=377115&pageNo=1&rowNum=10&navCount=10&currPg=&searchInfo=&sTarget=title&sTxt= (accessed on 29 August 2019).
- Bhiwapurkar, P. Space Syntax and Walkability Analysis in Support of Urban Design Decisions; ARCC Conference Repository: Cincinnati, OH, USA, 2018. [Google Scholar]
- Tanulku, B. Gated communities as spatial manifestations of moral differentiation and competition: An example from Istanbul, Turkey. J. Cult. Geogr. 2016, 33, 310–338. [Google Scholar] [CrossRef]
- Yip, N.M. Walled without gates: Gated communities in Shanghai. Urban Geogr. 2012, 33, 221–236. [Google Scholar] [CrossRef]
- Lynch, K. The Image of the City; MIT Press: Cambridge, MA, USA, 1960; Volume 11. [Google Scholar]
- Moura, F.; Cambra, P.; Goncalves, A.B. Measuring walkability for distinct pedestrian groups with a participatory assessment method: A case study in Lisbon. Landsc. Urban 2017, 157, 282–296. [Google Scholar] [CrossRef]
- Gehl, J. Life Between Buildings: Using Public Space; Island Press: Washington, DC, USA, 2011. [Google Scholar]
- Emery, J.; Crump, C. The WABSA Project: Assessing and Improving Your Community’s Walkability and Bikeability; University of North Carolina at Chapel Hill: Chapel Hill, NC, USA, 2003. [Google Scholar]
- Lu, Y.; Gou, Z.; Xiao, Y.; Sarkar, C.; Zacharias, J. Do transit-oriented developments (TODs) and established urban neighborhoods have similar walking levels in Hong Kong? Int. J. Environ. Res. Pub. Health 2018, 15, 555. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Spinney, J.E.; Millward, H.; Scott, D. Walking for transport versus recreation: A comparison of participants, timing, and locations. J. Phys. Act. Health 2012, 9, 153–162. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.; Moudon, A.V. Correlates of walking for transportation or recreation purposes. J. Phys. Act. Health 2006, 3, S77–S98. [Google Scholar] [CrossRef] [PubMed]
- Cho, B.S.; Yoon, H. An Analysis of the Pedestrian’s Cognitive Characteristics by the Pedestrian Environment Pattern in the Downtown Commercial Area. J. Archit. Inst. Korea Plan. Des. 2003, 19, 97–104. [Google Scholar]
- Grant, J.; Mittelsteadt, L. Types of gated communities. Environ. Plan. B Plan. Des. 2004, 31, 913–930. [Google Scholar] [CrossRef]
- Leisch, H. Gated communities in Indonesia. Cities 2002, 19, 341–350. [Google Scholar] [CrossRef]
- Landman, K. Gated communities in South Africa: Building bridges or barriers. In Proceedings of the International Conference on Private Urban Governance, Mainz, Germany, 6–9 June 2002; Volume 649. [Google Scholar]
- Uçar, M.Y. Twenty-First Century Gated Communities in Istanbul. Master’s Thesis, Charles University, Prague, Czech Republic, 2017. [Google Scholar]
- Failed Architecture—Enclosed Paradise: Istanbul’s Microcities as Megaprojects. Available online: https://failedarchitecture.com/enclosed-paradise-istanbuls-microcities-as-megaprojects/ (accessed on 6 July 2020).
- Landscape Design for Banpo Acro River Park. Available online: http://www.lafent.com/smt_ca/prod/rstview.html?sn=14188 (accessed on 6 July 2020).
- Landman, K.; Schönteich, M. Urban fortresses: Gated communities as a reaction to crime. Afr. Secur. Rev. 2002, 11, 71–85. [Google Scholar] [CrossRef]
- Behind the Pictures—The View of Seoul From Helicopter. Available online: https://tpgod.tistory.com/m/34 (accessed on 6 July 2020).
- Özdemir, N.; Doğrusoy, İ.T. Analysis of the problems of gated communities in terms of public open spaces in the context of man and environment relations. Megaron 2016, 11, 359. [Google Scholar] [CrossRef] [Green Version]
- Özgür, E.F. Sosyal ve mekânsal ayrışma çerçevesinde yeni konutlaşma eğilimleri: Kapalı siteler, İstanbul, Çekmeköy örneği. Planlama 2006, 4, 79–95. [Google Scholar]
- Sevtsuk, A.; Kalvo, R.; Ekmekci, O. Pedestrian accessibility in grid layouts: The role of block, plot and street dimensions. Urban Morphol. 2016, 20, 89–106. [Google Scholar]
- Krier, L. Urban component. Archit. Des. 1984, 54, 43–49. [Google Scholar]
- Mushtaha, E.; Al-Zwaylif, S.; Merabti, F.; Hanane, I. Border vacuum: A study of walkability, liveability and vibrancy around Dubai mall station. Proc. Inst. Civ. Eng. Urban Des. Plan. 2018, 171, 187–201. [Google Scholar] [CrossRef]
- Apak, S. Disintegration of urban housing areas: Districts and new gated housing settlements. ITU J. Fac. Archit. 2015, 12, 141–158. [Google Scholar]
- Hillier, B.; Hanson, J. The Social Logic. of Space; Cambridge University Press: Cambridge, MA, USA, 1984. [Google Scholar] [CrossRef]
- Ratti, C. Space syntax: Some inconsistencies. Environ. Plan. B Plan. Des. 2004, 31, 487–499. [Google Scholar] [CrossRef]
- Porta, S.; Crucitti, P.; Latora, V. The network analysis of urban streets: A primal approach. Environ. Plan. B Plan. Des. 2006, 33, 705–725. [Google Scholar] [CrossRef] [Green Version]
- Sevtsuk, A.; Mekonnen, M. Urban network analysis. Revue Internationale de Géomatique–n 2012, 22, 287–305. [Google Scholar] [CrossRef]
- Sevtsuk, A. Path and place: A study of urban geometry and retail activity in Cambridge and Somerville. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 2010. [Google Scholar]
- Kang, C. The effects of land use accessibility and centrality on land price in Seoul. Seoul Stud. 2014, 15, 19–40. [Google Scholar]
- Sevtsuk, A.; Kalvo, R. Urban Network Analysis Toolbox for Rhinoceros 3D. Plan. Technol. Today 2016, 112, 4–5. [Google Scholar]
- Kim, D.H.; Kim, S.Y. Factors Affecting the Delay in Residential Environment Improvement Projects—Focused on Cases in Seoul. J. Urban Des. Inst. Korea 2011, 12, 163–178. [Google Scholar]
- Kim, S.B. A Studies of Social-Economic Efficiency Evaluation Methods of the Urban Renewal Project: Focus on Hedonic Approach. J. Korean Urban Manag. Assoc. 2016, 29, 131–161. [Google Scholar]
- Handy, S.L.; Niemeier, D.A. Measuring accessibility: An exploration of issues and alternatives. Environ. Plan. A 1997, 29, 1175–1194. [Google Scholar] [CrossRef]
- Lu, Y.; Sarkar, C.; Xiao, Y. The effect of street-level greenery on walking behavior: Evidence from Hong Kong. Soc. Sci. Med. 2018, 208, 41–49. [Google Scholar] [CrossRef] [PubMed]
- Yoon, T.J.; Lee, D.H.; Park, H.S. A study on basic analysis of the correlation between pedestrian environments of local community and apartment complex type—In case of increased length of pedestrian route by closed complex of apartment. J. Korean Inst. Cult. Archit. 2016, 54, 213–220. [Google Scholar]

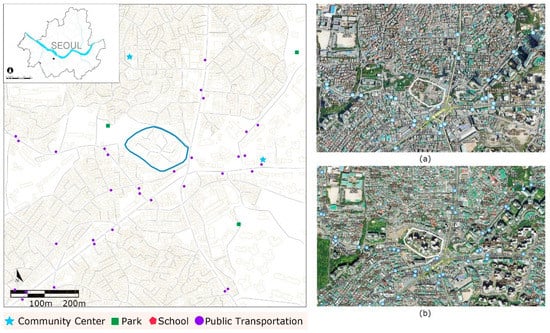

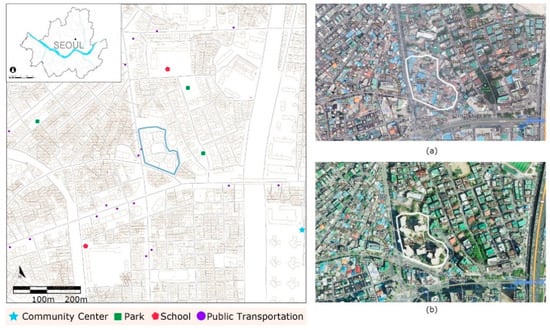

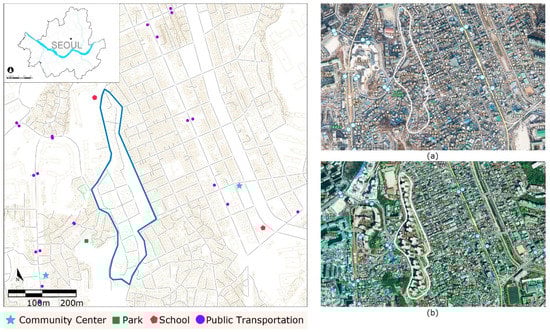

Case | Case 1: Bomun Park AC | Case 2: Lotte Castle AC | Case 3: Sangdo Park AC |
---|---|---|---|
Location | Seongbuk-gu | Dongdaemun-gu | Dongjak-gu |
Project area | 52.246 m2 | 15.380 m2 | 32.001 m2 |
Project type | Redevelopment | Redevelopment | Redevelopment |
Site perimeter length | 1400 m | 520 m | 550 m |
Indicators | Formula | Description * | |
---|---|---|---|

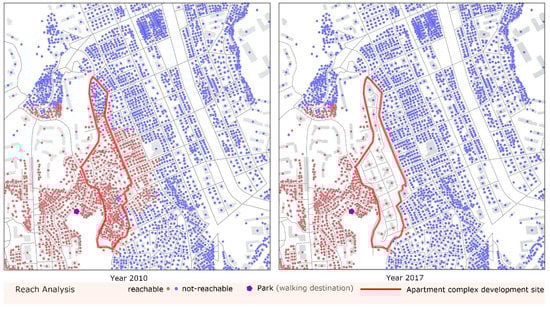

Accessibility measures | Reach | The number of surrounding points (buildings, doorways, bus stops, etc.) that each building reaches within the radius specified in the network. | |

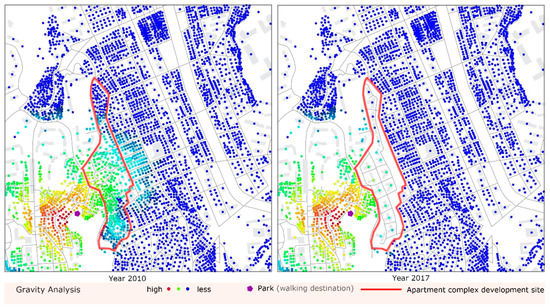

Gravity | The travel cost required to arrive at each of the destinations. Accessibility at the origin is proportional to the attractiveness (weight) of destinations and inversely proportional to the distances between. | ||

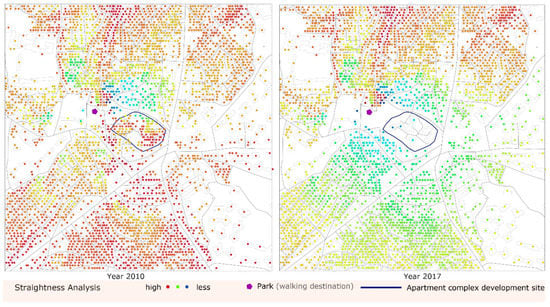

Centrality measures | Straightness | Illustrates the extent to which the shortest paths from origins to destinations resemble straight Euclidian paths. The closer to 1, the more straight the path is. | |

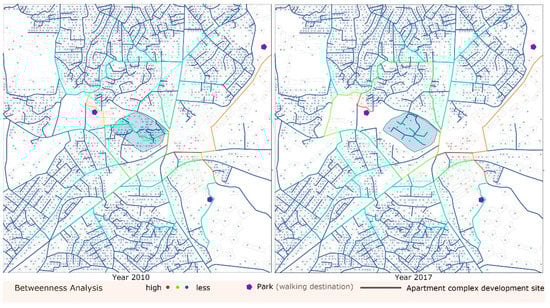

Betweenness | The index divided by the number of paths passing through a specific point by the number of shortest paths between destinations within the set radius. |
Case Study Sites | Before Development | After Development | Percent Change (Inside Origin Points) | ||||
---|---|---|---|---|---|---|---|
Total | Inside | Outside | Total | Inside | Outside | ||
Bomun Park AC (case 1) | 3522 | 367 | 3155 | 3170 | 15 | 3155 | −10.4% |
Lotte Castle AC (case 2) | 2944 | 164 | 2780 | 2785 | 5 | 2780 | −5.4% |
Sangdo Park AC (case 3) | 3230 | 135 | 3095 | 3102 | 7 | 3095 | −3.96% |
Community Centers | Parks | Schools (Elementary) | Public Transport Station | Total Number of Destination Points | |||||
---|---|---|---|---|---|---|---|---|---|
No. | % | No. | % | No. | % | No. | % | ||
Bomun Park AC (case 1) | 2 | 7.7% | 1 | 3.9% | 2 | 7.7% | 21 | 80.8% | 26 |
Lotte Castle AC (case 2) | 1 | 4.2% | 3 | 12.5% | 2 | 8.3% | 18 | 75.0% | 24 |
Sangdo Park AC (case 3) | 2 | 5.3% | 3 | 7.9% | 1 | 2.6% | 32 | 84.2% | 38 |
Before Development of Apartment Complexes, 2010 | After Development of Apartment Complexes, 2017 | Percent Change (2010-2017) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Community Centers | Parks | Schools (Elementary) | Public Transport Stations | Community Centers | Parks | Schools (Elementary) | Public Transport Stations | Community Centers | Parks | Schools (Elementary) | Public Transport Stations | ||
Bomun Park AC (case 1) | Gravity index | 0.285 | 0.112 | 0.320 | 3.082 | 0.295 | 0.096 | 0.320 | 3.008 | 3.41% | −14.72% | −0.01% | −2.41% |
Reach | 0.554 | 0.215 | 0.650 | 6.005 | 0.558 | 0.169 | 0.659 | 5.681 | 0.69% | −21.33% | 1.33% | −5.39% | |
Betweenness | 15.079 | 7.247 | 16.660 | 172.238 | 14.464 | 4.593 | 14.857 | 149.149 | −4.08% | −36.62% | −12.13% | −13.41% | |
Straightness | 0.411 | 0.109 | 0.475 | 4.423 | 0.409 | 0.089 | 0.474 | 4.196 | −0.40% | −18.99% | −0.02% | −5.13% | |
Lotte Castle AC (case 2) | Gravity index | 0.028 | 0.533 | 0.420 | 3.723 | 0.030 | 0.531 | 0.434 | 3.642 | 5.71% | −0.35% | 3.22% | −2.18% |
Reach | 0.054 | 1.070 | 0.876 | 7.445 | 0.057 | 1.059 | 0.901 | 7.279 | 5.71% | −1.04% | 2.72% | −2.23% | |
Betweenness | 0.854 | 26.851 | 22.000 | 176.615 | 0.903 | 25.897 | 22.535 | 168.627 | 5.71% | −3.55% | 2.37% | −4.52% | |
Straightness | 0.040 | 0.742 | 0.651 | 5.600 | 0.042 | 0.752 | 0.672 | 5.478 | 5.71% | 1.23% | 3.12% | −2.17% | |
Sangdo Park AC (case 3) | Gravity index | 0.223 | 0.213 | 0.057 | 4.421 | 0.217 | 0.142 | 0.059 | 4.097 | −2.52% | −3.30% | 3.96% | −7.33% |
Reach | 0.425 | 0.438 | 0.104 | 8.902 | 0.405 | 0.294 | 0.108 | 8.220 | −4.75% | −32.91% | 3.96% | −7.67% | |
Betweenness | 13.347 | 12.693 | 4.307 | 222.428 | 12.593 | 8.772 | 4.484 | 201.113 | −5.65% | −30.89% | 3.96% | −9.58% | |
Straightness | 0.285 | 0.286 | 0.065 | 6.388 | 0.270 | 0.186 | 0.068 | 5.926 | −5.15% | −34.82% | 3.96% | −7.24% |
Before Development of Apartment Complexes, 2010 | After Development of Apartment Complexes, 2017 | Percent Change (2010–2017) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Community Centers | Parks | Schools (Elementary) | Public Transport Stations | Community Centers | Parks | Schools (Elementary) | Public Transport Stations | Community Centers | Parks | Schools (Elementary) | Public Transport Stations | ||
Bomun Park AC (case 1) | Gravity index | 0.296 | 0.098 | 0.320 | 3.100 | 0.296 | 0.096 | 0.319 | 3.017 | 0.00% | −2.17% | −0.20% | −2.67% |
Reach | 0.560 | 0.176 | 0.659 | 5.908 | 0.561 | 0.170 | 0.658 | 5.694 | 0.11% | −3.42% | −0.14% | −3.62% | |
Betweenness | 16.191 | 7.040 | 15.006 | 175.723 | 14.532 | 4.615 | 14.917 | 149.836 | −10.25% | −34.44% | −0.59% | −14.73% | |
Straightness | 0.411 | 0.092 | 0.476 | 4.364 | 0.411 | 0.089 | 0.474 | 4.208 | 0.10% | −3.67% | −0.38% | −3.55% | |
Lotte Castle AC (case 2) | Gravity index | 0.030 | 0.531 | 0.434 | 3.641 | 0.030 | 0.531 | 0.434 | 3.642 | 0.00% | 0.04% | 0.07% | 0.02% |
Reach | 0.057 | 1.059 | 0.902 | 7.277 | 0.057 | 1.059 | 0.903 | 7.278 | 0.00% | 0.03% | 0.04% | 0.01% | |
Betweenness | 0.904 | 27.272 | 23.036 | 174.562 | 0.904 | 25.940 | 22.575 | 168.906 | 0.00% | −4.88% | −2.00% | −3.24% | |
Straightness | 0.042 | 0.752 | 0.673 | 5.478 | 0.042 | 0.752 | 0.673 | 5.480 | 0.00% | 0.02% | 0.04% | 0.02% | |
Sangdo Park AC (case 3) | Gravity index | 0.219 | 0.196 | 0.059 | 4.209 | 0.218 | 0.143 | 0.059 | 4.101 | −0.68% | −27.38% | 0.00% | −2.56% |
Reach | 0.410 | 0.411 | 0.109 | 8.481 | 0.406 | 0.294 | 0.109 | 8.227 | −1.02% | −28.38% | 0.00% | −3.00% | |
Betweenness | 13.588 | 10.816 | 4.494 | 214.937 | 12.622 | 8.791 | 4.494 | 201.551 | −7.11% | −18.72% | 0.00% | −6.23% | |
Straightness | 0.274 | 0.267 | 0.068 | 6.111 | 0.271 | 0.187 | 0.068 | 5.933 | −1.05% | −30.12% | 0.00% | −2.92% |
