Green Roof Design: State of the Art on Technology and Materials
Abstract
:1. Introduction
2. History and Modern Applications
3. Green Roof Benefits
- Shading: Vegetation provides an additional layer that shades the substrate and the roof, blocking part of the incoming solar radiation;
- Evapotranspiration: Plant transpiration and soil evaporation cool the surface of the plants, decreasing the heat flux toward the interior of the building and the urban heat island effect;
- Thermal inertia: The substrate increases the roof thermal mass, delaying and reducing incoming heat fluxes;
- Thermal insulation: The substrate and drainage layers increase the heat resistance of the roof by providing an additional thermal layer.
4. Technology Classification

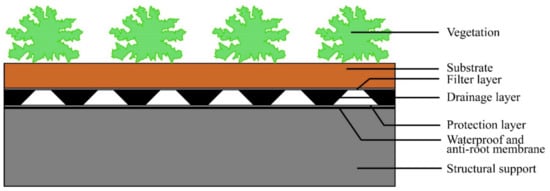

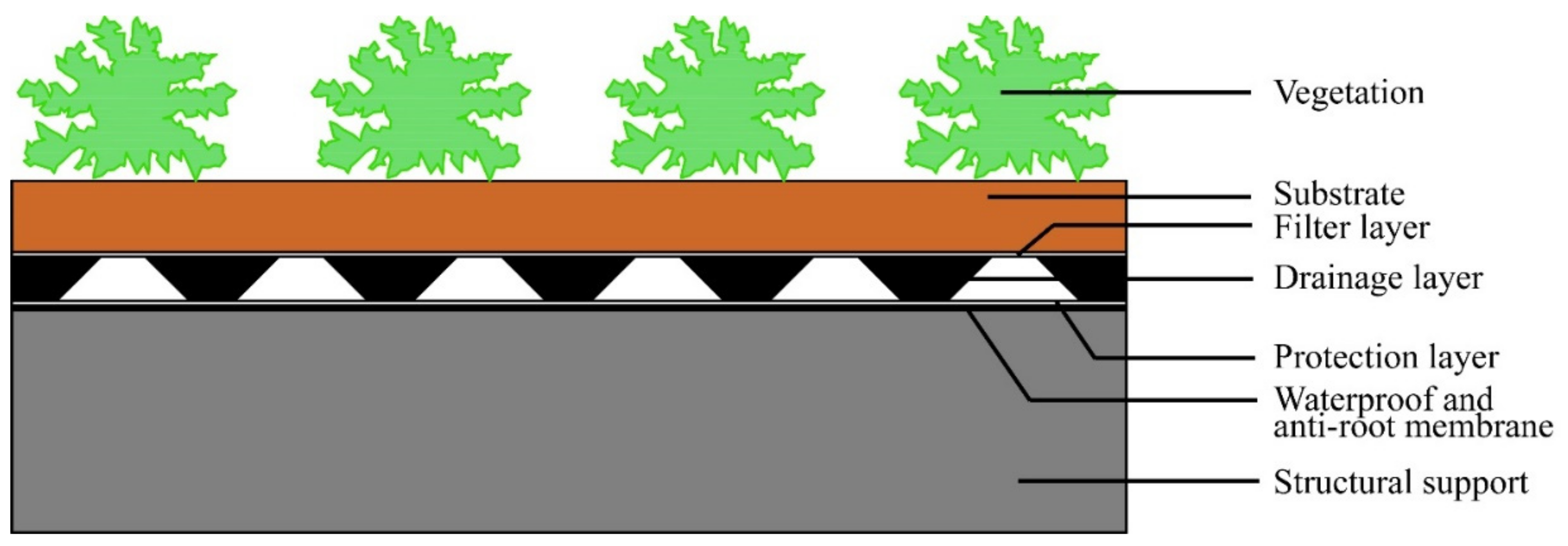

5. Materials and Components
5.1. Waterproof Membrane
- Elastomeric membranes: Characterized by an elastomeric polymer mixed with bitumen, which gives flexibility at low temperatures and excellent elasticity;
- Plastomeric membranes: Characterized by a plastomeric polymer mixed with bitumen, which gives stability at high temperatures and offers high resistance to UV exposure;
- Elasto-Plastomeric membranes: Combines the characteristics of the two membranes above-described.
5.2. Anti-Root Membrane
5.3. Protection Layer

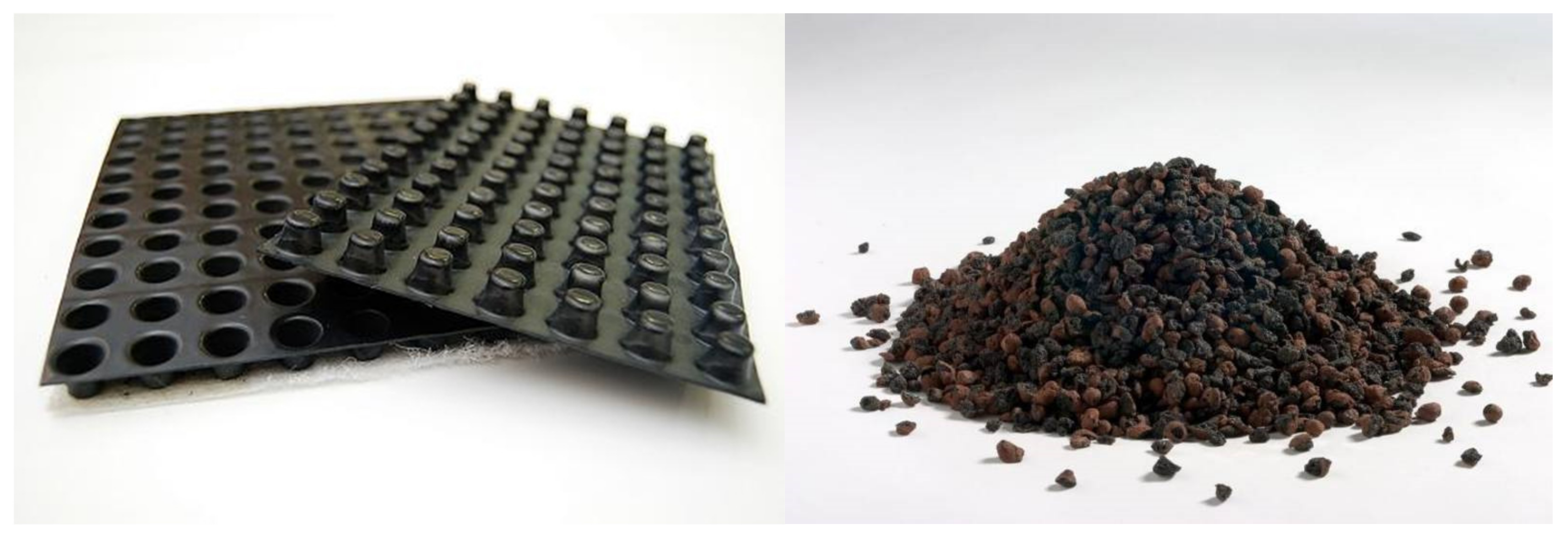

5.4. Water Storage and Drainage Layer
- Granular materials: These have a minimum thickness of 6 cm and a minimum density of 150 kg/m3. If porous, they are also used as water storage. The main aggregates used in green roofs are pozzolana, pumice, lapilli, expanded clay, expanded pearlite, expanded slate, and crushed bricks;
- Modular panels: These have a thickness between 2.5–12 cm and a weight of about 20 kg/m2. These panels are produced with high-strength synthetic or plastic materials (polyethylene or polystyrene) and cavities to store water while still allowing the removal of surplus water.
5.5. Filter Layer
- Granular materials, such as pozzolana, pumice, lapillus, expanded clay, expanded perlite, expanded slate, and crushed bricks, characterized by a water permeability greater than 0.3 m/s;
- Non-woven geotextiles with water permeability greater than 0.3 cm/sl × 10−3 m/s, able to absorb 1.5 L/m2 of water.

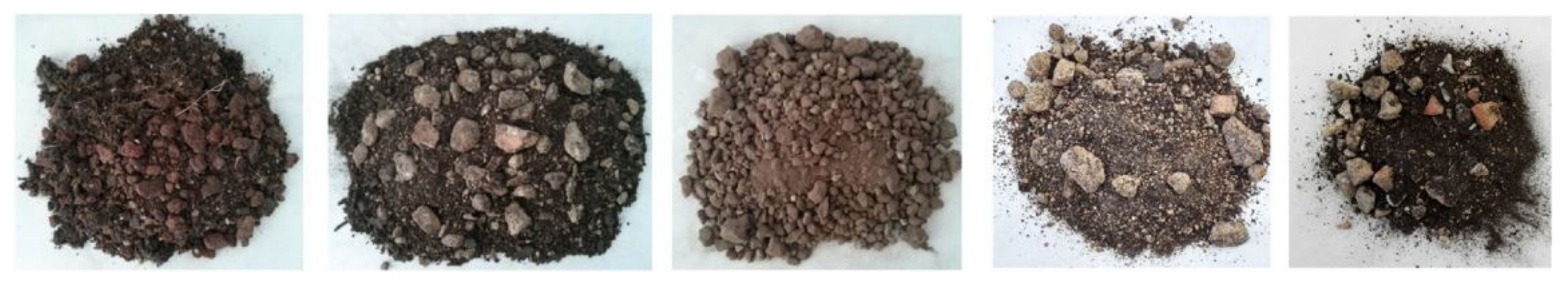

5.6. Substrate
- Physical parameters, such as density, particle size, water permeability, maximum water volume, and maximum air volume in saturated conditions;
- Chemical parameters, such as pH index, electrical conductivity, and quantity of organic matter.
5.6.1. Performance
- High hydraulic conductivity and water retention capacity;
- High aeration and flow attributes;
- Poor leaching and high sorption capacity;
- Lightweight, locally available, and cost effective;
- Stability of the physical and chemical structure in severe climate conditions;
- Minimum organic content;
- Wide variety of vegetation;
- Improved water quality.
5.6.2. Composition

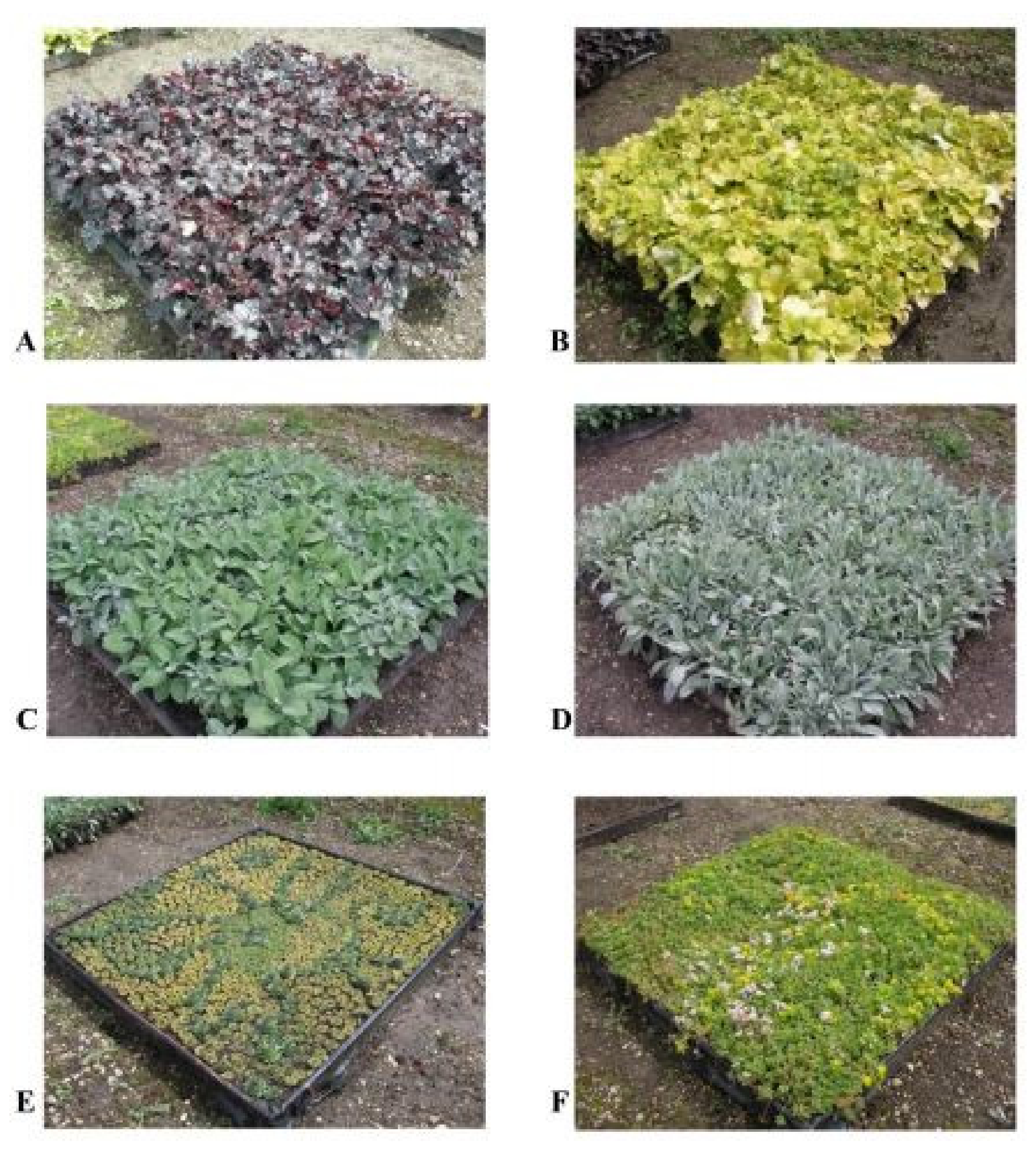

5.7. Vegetation
- 0–5 cm: Sedum, mosses, and lichens;
- 5–10 cm: Short wildflower meadows, long-growing, drought-tolerance, perennials, grasses, alpines, and small bulbs;
- 10–20 cm: A mixture of low or medium perennials, grasses, bulbs and annuals from dry habitats, wildflowers, and hardy sub-shrubs.
5.7.1. Performance
5.7.2. Sedum Species
5.7.3. Other Possible Plant Species

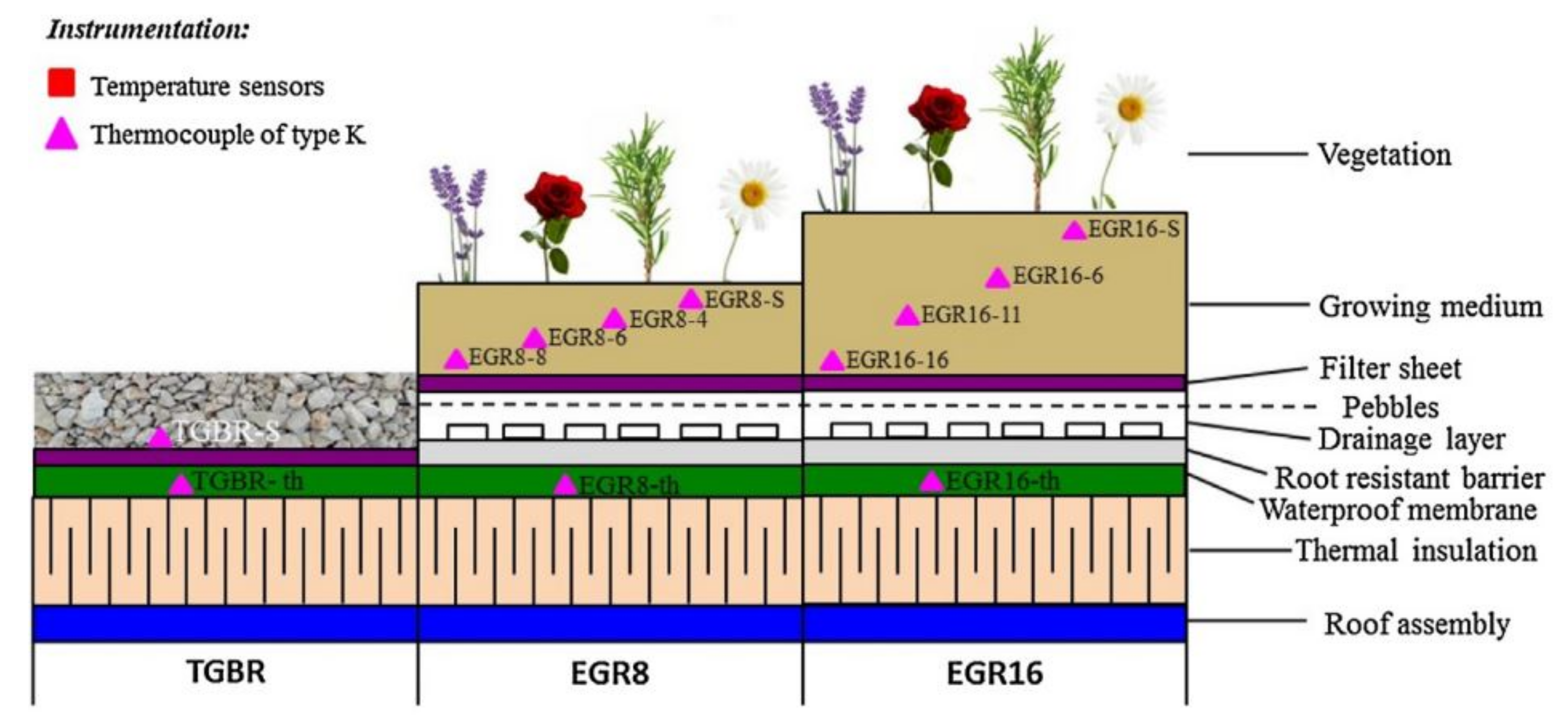

5.8. Green Roof vs. Conventional/Traditional Roofs
6. Design Optimization for Mediterranean Climate
6.1. Influence of Climate Conditions
6.2. Possible Material Selection
6.3. Comparison with Tropical Climate
- Vegetation: Peanut has been found to perform significantly better than Sedum;
- Substrate: A 5 cm layer of soil composed of completely decomposed granite amended with 20% fully mature compost and slow-release fertilizer was suitable for Peanut growth;
- Rockwool layer: The rockwool layer had the benefit of lightweight and exceptionally high-water storage capacity which can enhance water supply to plants.
7. Examples of Products Available in the International Market
- Extensive: They are lightweight and have a shallow build-up height. Suitable plants include various Sedum species, herbs and some grasses. After the establishment of the vegetation, the maintenance is limited to one or two inspections a year.
- Intensive: They are usually multifunctional and accessible. They require more weight and a deeper system build-up. The maintenance is regular and depends on the landscape design and the chosen plant material. Anything is possible from lawns, perennials, shrubs, trees, including other landscape options, such as ponds, pergolas and patios.
- Pedestrian/Vehicular: During the installation of the different build-up layers the waterproofing has to be protected from damage. It is possible to install a protection mat or a drainage layer which functions as a protective layer as well. Driveways on rooftops require both a stable construction and adequate load-bearing capacity. Additionally, to the self-weight and imposed loads on driveways, horizontal forces and torsional movements may occur through acceleration, steering or breaking.
- Photovoltaic-green roof: The panels are covered with a prescribed amount of growing medium and the desired vegetation is then planted. The combined weight of the growing media and plants provides the ballast required by the solar energy system to deal with wind loads. Thanks to this ballast principle, roof membrane penetrations that would normally be necessary for anchoring standard solar energy systems are not required.
- Sloped: The plant selection has to be well adapted to the extreme conditions of steep pitched green roofs, where the solar radiation is the highest on the south facing roof side and the water runoff is much faster compared to a flat roof.
- Lightweight: It comprises mature sedum on 20 mm of extensive substrate and incorporating multifunctional water retention and filter layer. The system is suitable for both new build construction and retrofit refurbishment projects. In most instances an additional drainage layer is not required though on roofs up to 2° or in areas of high rainfall, its inclusion may be necessary.
8. Irrigation Systems in Mediterranean Climate
9. Recycled Materials for Green Roof Layers
10. Discussion
11. Conclusions
