2. Materials and Methods
To analyse the net efficiency of the two domestic heating energy conservation systems (i.e., HEMS and thermal insulation), two methods are applied, namely:
The HAMBASE computer simulation software to analyse the effect of variable room temperatures on energy savings in combination with comfort.
The method of the eco-costs/value ratio (EVR) for the combined analysis of costs, customer perceived value, and eco-costs (a monetised single indicator for LCA, based on the marginal prevention costs of eco-burden).
The calculations on the effect on energy savings resulting from extra insulation are based on the reduction of the thermal resistance (the R-value) of the walls, floors, and roofs. For clarity and simplicity, the influences of heat losses via construction elements are kept outside the system boundaries of the calculations.

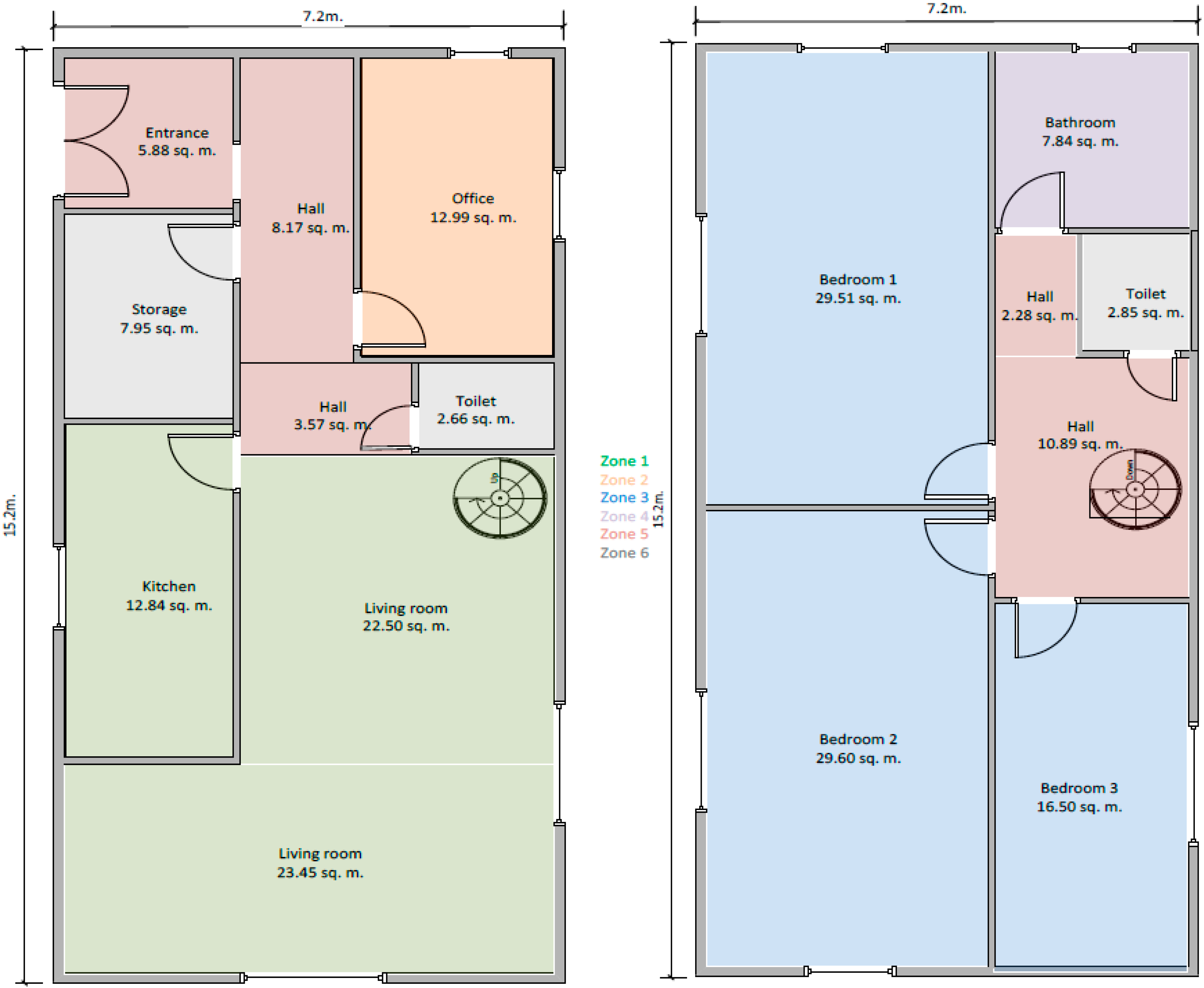

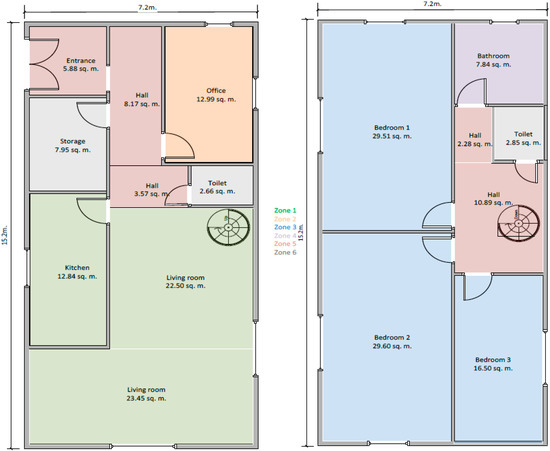

In order to explore the net efficiency of the zoning control strategy, a typical residence, see Figure 3
, is simulated in HAMBASE modelling software [40
], and is subjected to different heating system control strategies. The main objective is to obtain an idea of the relative magnitudes of energy savings and thermal comfort when applying a zoning control strategy: answering the question to what extent zoning control achieves energy savings combined with comfort.
The HAMBASE modelling software has been selected because it allows for the modelling of buildings, zoning strategies, and climate conditions for calculating energy consumption as well as the predicted mean vote (PMV) and predictive percentage dissatisfied (PPD) from the Fanger Model for thermal comfort. This allows for a comparison between energy consumption in MJ and the modelled average customer perceived value in terms of the average score for thermal comfort (PMV) as well as the percentage of residents experiencing thermal discomfort (PPD).
The following four different scenarios have been simulated:
Single thermostat, continuous temperature setting of 21 °C (representing the worst-case scenario).
Single thermostat, day temperature setting of 21 °C, night set-back temperature of 15.5 °C.
One thermostat per floor (2), day temperature setting of 21 °C, zoning (only heating when floor is occupied), day and night set-back temperature of 15.5 °C.
One thermostat per room, day temperature setting of 21 °C, zoning (only heating when room is occupied), day and night set-back temperature of 15.5 °C (representing the hypothetically optimal scenario).
The zoning strategy is based on the following division of different types of rooms in a typical residential building: Zone 1—living room and Kitchen; Zone 2—office/study; Zone 3—bedrooms; Zone 4—bathroom; Zone 5—entrance and hallways; and Zone 6—storage and toilets.
In each scenario, the energy demand for the radiators and the floor-heating systems are calculated. Further details regarding the HAMBASE simulation can be found in Appendix A
(the simulation of scenarios for building energy use). Also, in the Appendix
, the modelling scenario for the simulation of a typical Dutch apartment can be found.
2.2. The EVR and Eco-Efficient Value Creation
The method of the eco-costs/value ratio (EVR) is a combined analysis of the costs, the (market) value, and the eco-costs of a product or product service system. It is LCA based, and is developed for eco-efficient value creation in (product-, service-, and product–service-system) design and innovation. It resolves a basic shortcoming of the LCA benchmarking of two (or more) product or services; LCA benchmarking requires that the products or services in the comparative study have the same functionality and quality (tangible as well as intangible). In innovation, this is never the case, as innovations add either functionality or quality to the benchmark, otherwise the innovation does not make sense. Keeping costs, market value, and eco-costs strictly separate in the analysis has the advantage that the aspects of the production costs and market value are not ignored in the decision-making process for achieving better environmental sustainability. The system can also be applied to analyse and develop business solutions in the circular economy (e.g., cradle-to-cradle systems) [37
Eco-costs are a so-called ‘single indicator’ in LCA. It is a measure to express the amount of environmental burden of a product on the basis of the prevention of that burden; the costs which should be made to reduce the environmental pollution and materials depletion in our world to a level that is in line with the carrying capacity of our earth (the ‘no effect level’). The eco-costs should be regarded as hidden obligations, also called ‘external costs’ in environmental economics.
The eco-costs have been introduced in the Journal of Cleaner Production [42
] and in the International Journal of LCA [43
], and have been updated in 2007, 2012, and 2017 (see, for a short description, http://en.wikipedia.org/wiki/Eco-costs
, accessed August 2018).
The market value equals the price in this EVR analysis for existing products. When a product or service is not yet available on the market, the value equals the willingness to pay (WTP). The costs are defined in the model as the production costs (or life cycle costs), and must not be confused with the price (which is the costs for the consumer). In this paper, the price is used to conduct the analysis, as the focus is on the costs of the consumer. With regard to the value, we have to zoom in to the level of the consumer, revealing a more complex issue, the perception of the individual buyer, see Figure 4
. For definitions, see Table 1

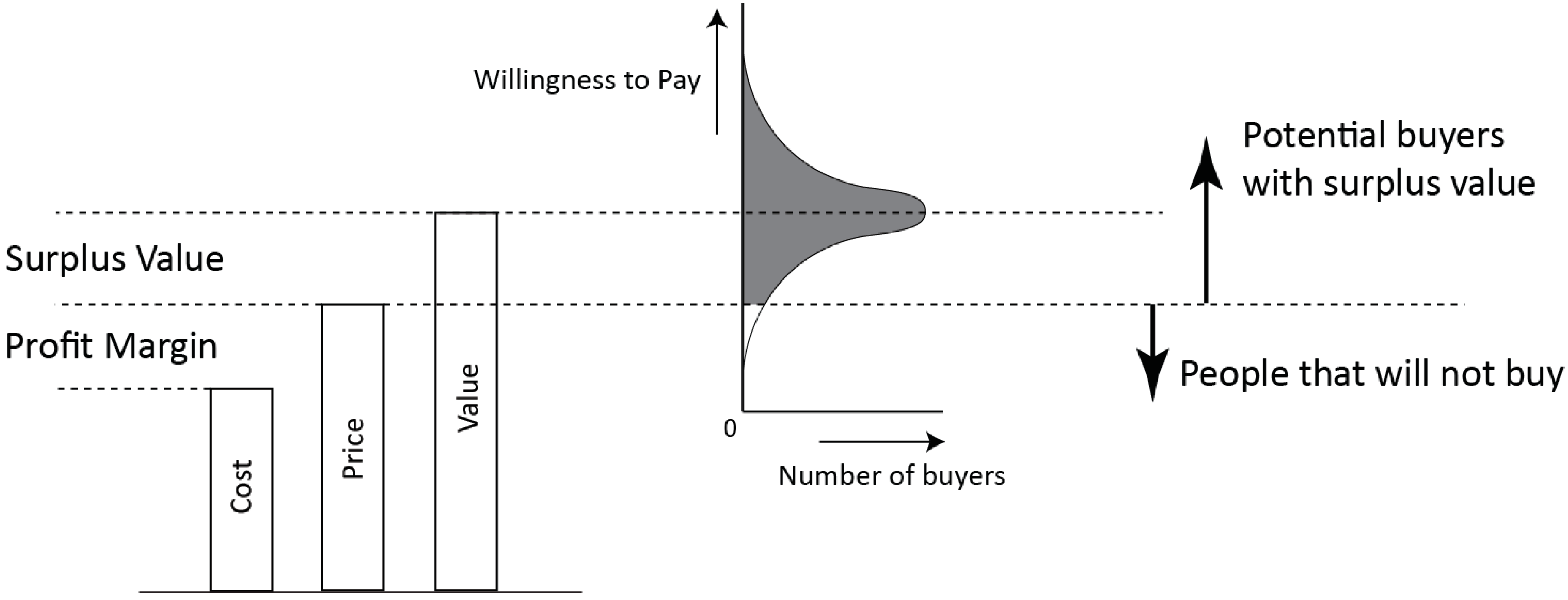

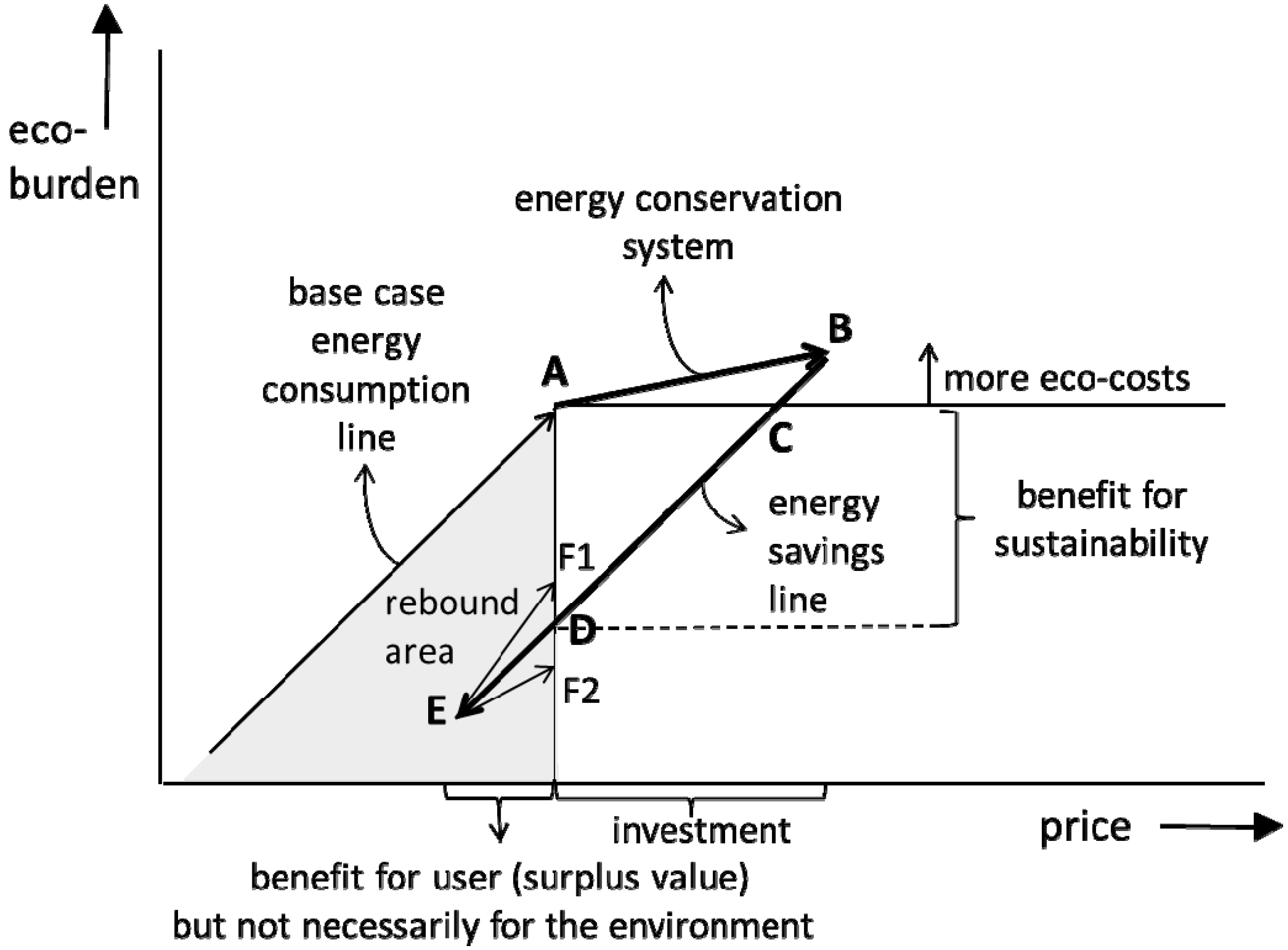

In Figure 4
, the difference between the costs and the price is the profit margin for the seller, and the difference between the price and the (customer perceived) value constitutes the ‘surplus value’. The higher the surplus value, the more desirable the offering is.
The eco-costs/value ratio (EVR) is basically an indicator of the sustainable buying behaviour of consumers. It is also related to the rebound effect, as depicted in Figure 2
As most people are inclined to almost spend in their life all of what they earn, the ratio of eco-burden per euro spent is an important indicator for sustainability. It matters what people buy, for example, do they spend their money on diesel or on their health. The EVR of products in the EU are provided in the literature [44
] (in the eco-costs tables; accessed in 2017). The current average EVR is 0.4 in the EU, so we should aim at a considerable reduction of the EVR, say less than 0.04.
An important issue is that manufacturers cannot improve the EVR of their products just by increasing the price. Figure 4
shows that when the price is more than the value, there is no surplus value, and the product will not be bought.
On a product level, this leads to a ‘double objective’ of the ‘eco-efficient value creation’ in innovation, namely:
create lower eco-costs, and at the same time
create higher value
The higher value enables a higher price, which creates the opportunity to pay the extra costs that are required to lower the eco-costs.
Recent papers [45
] show how such a double objective can be achieved in product design. The consequences for business models in the circular economy are provided in the literature [37
]. Case studies with the consequences for governmental policies are given in the literature [48
3.1. The HEMS Strategy in HAMBASE
shows the findings of the application of the HAMBASE model for the two-story house as well as the four scenarios, as described in Section 2.1
. Insulation is assumed with an R value of two for the outside walls and an R value of five for the roof.
It is clear that, as expected, the energy use is lower for the scenarios where certain zones are not heated during certain periods of time. The best savings are achieved in the third scenario (six room zones), with up to 40% savings of heating energy.
However, in order to fulfil the double objective of the eco-efficient value creation, this should not go hand-in-hand with a lower perceived value, in this case, mainly thermal comfort. As shown in Table 3
, the HAMBASE modelling indicates that the double objective is not achieved; the predicted percentage dissatisfied of the users is significantly higher for the individual zones scenario compared to the baseline scenario. The lack of comfort is probably the main reason for the reported evading success of HEMS [21
]. Modern people seem to want maximum comfort when they can afford it.

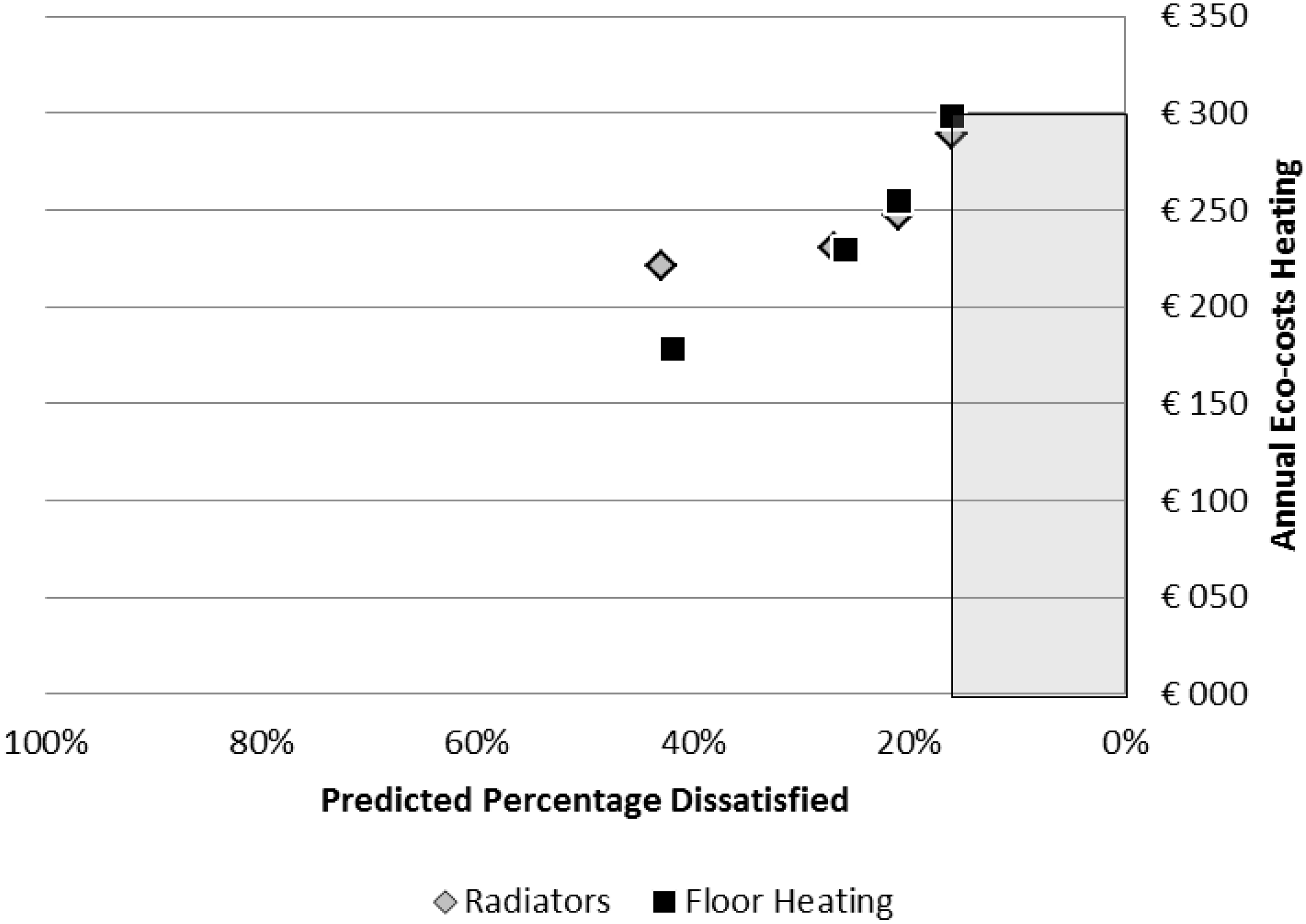

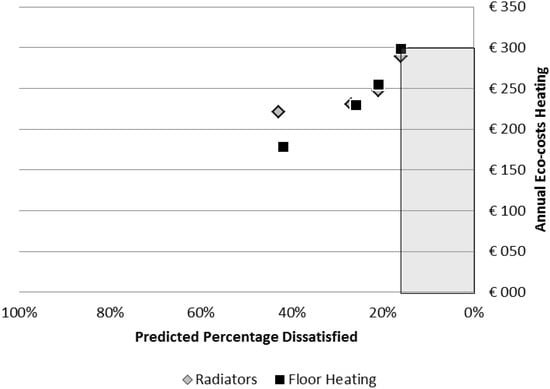

The data are summarized in the EVR chart of Figure 5
. It shows the degree of eco-efficient value creation for the zoning control strategy.
The main finding is that quite significant energy savings can be achieved (up to 40%), however, a lower perceived thermal comfort (increased PPD) is unavoidable. This means that the zoning control strategy has little chance of contributing to a transition towards a more sustainable society, because only a very small percentage of consumers are expected to accept lower thermal comfort in their house for the sake of the environment; zoning control is not able to achieve the double-objective of eco-efficient value creation.
Even if the more intelligent thermostats are considered, which are designed to diminish the hassle of programming and adjusting the settings by ‘sensing/learning’ the user’s behaviour, the physical heating system will require a ‘heat-up time’, resulting in thermal discomfort if the occupants deviate from their usual behaviour. This will eventually lead to users overriding the automatic programming, and decreasing the energy savings.
After a while, only a mild form of temperature setback is applied by users at night and when they are away (e.g., two to max three degrees C lower temperature at periods when people are always at sleep and normally at work). Although many smart thermostats are accompanied by high claims for energy savings, a seemingly more reliable figure is measured by a producer of a popular smart thermostat, who stated that the average savings of 175,000 devices are approximately 5% (https://www.duurzaambedrijfsleven.nl/energie/10903/175000-toon-thermostaten-besparen-5-procent-energie
). The potential of 14.5% savings, in Table 1
, will not last, because of the fact that the corresponding extra 5% loss of comfort (21–16% of Table 3
) is not accepted; the user reverts to a higher setback temperature and a smaller setback time. Independent studies on the heating energy savings of smart thermostats report achieved savings in the range of 3–5% [52
]. This paper assumes slightly higher achievable energy savings of 6.5%, accounting for future innovations as well as user behaviour.
Thermal HEMS systems can be bought in a price range of approximately €600–800 for systems that can control the six zones, and approximately €160–240 for single zone systems, without installation (both types can be programmed to handle time dependent settings, e.g., night setback). We did not include the fact that many HEMS nowadays also require a monthly subscription fee.
The estimated eco-cost of single zone HEMS is €49 [51
] from cradle-to-grave. The eco-costs of a six-zone system is estimated to be €170. The assumption is made that the life span of a central-heating boiler is 15 years, and that the thermostat is replaced then as well (the life span of the automatic valves of the six-zone system is estimated at 30 years). This scenario is depicted in Figure 6

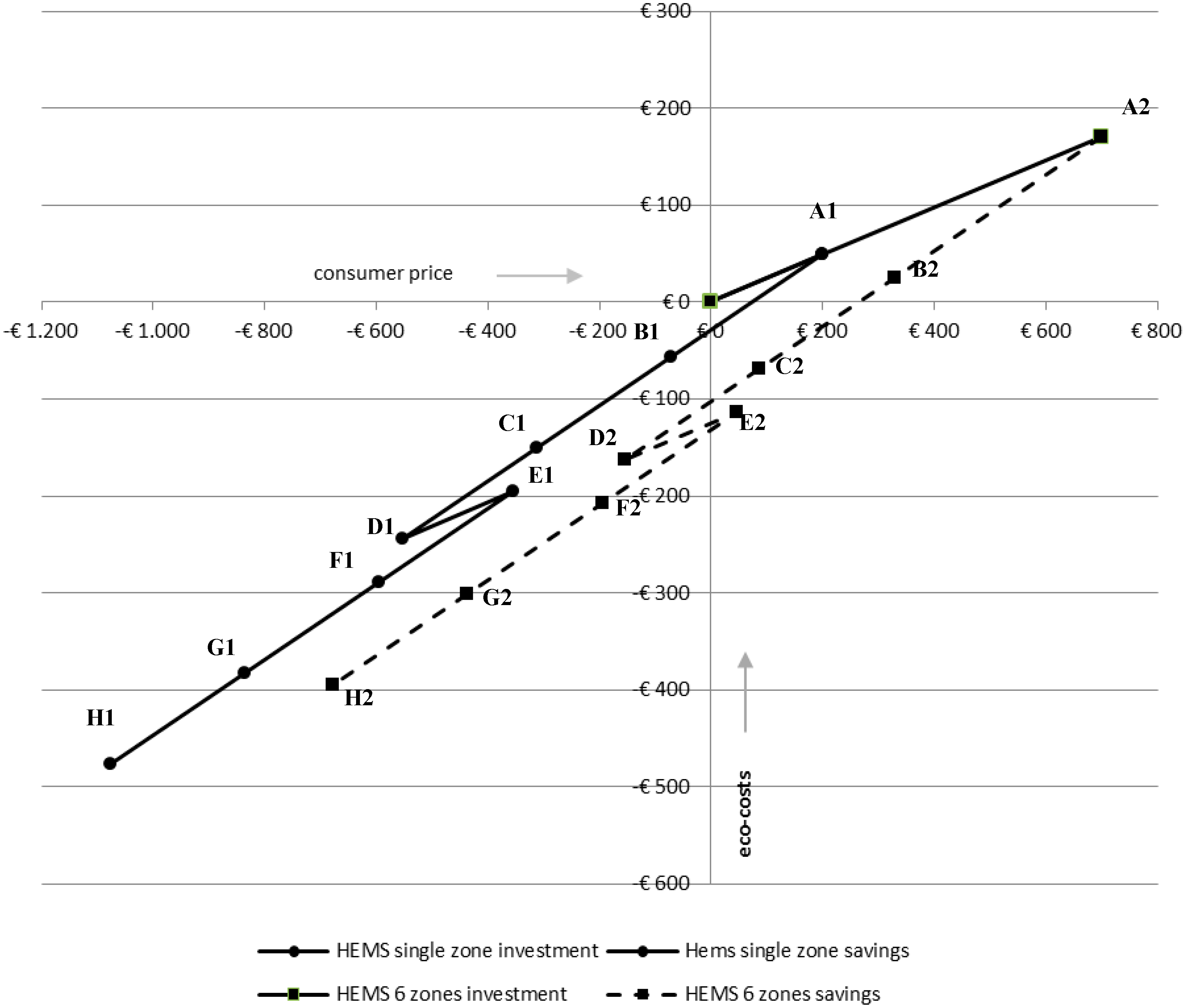

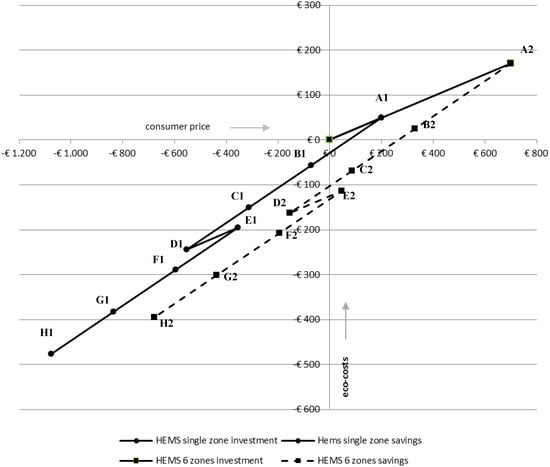

It can be concluded from Figure 6
that the HEMS single zone system scores better than the HEMS six zone system in terms of net price savings, however, the single zone system depends heavily on the rebound effect, as depicted in Figure 4

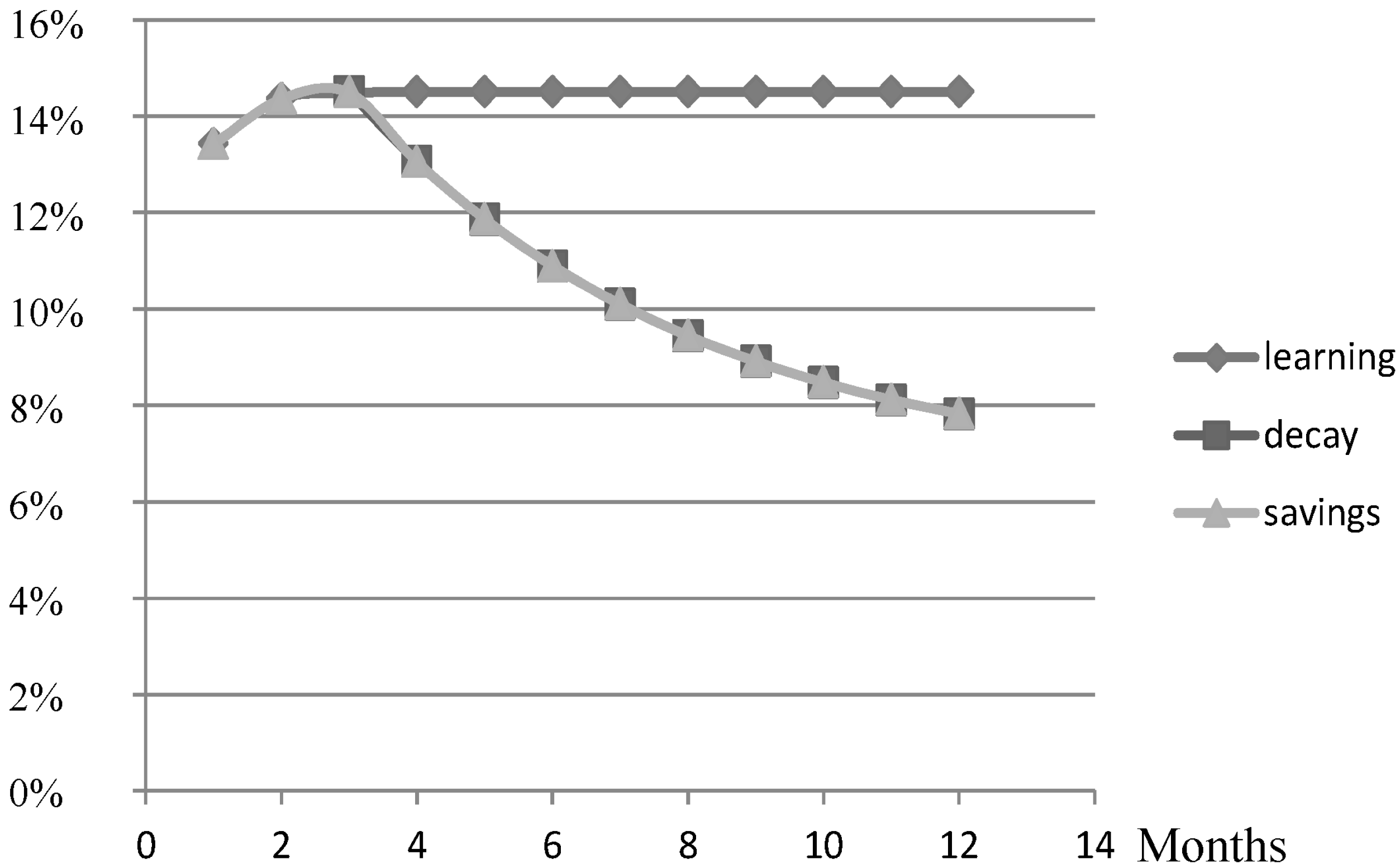

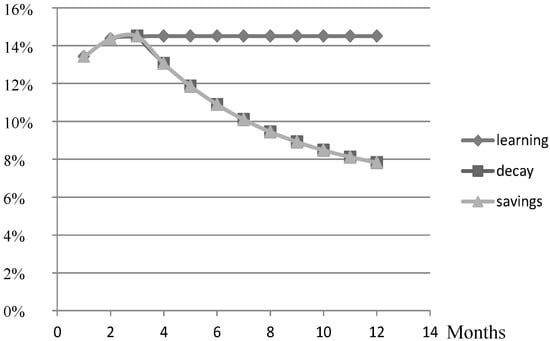

The underlying assumption in Figure 6
is the savings line of Figure 7
. After the introduction of a single zone HEMS, a percentage of 14.5% can be expected (Table 2
, single zone), which is estimated to deteriorate to 6.5%, as described above. In the first weeks there is a steep learning curve, but from the third month on the decay will start. Figure 7
presumes an exponential curve for the learning stage as well as for the decay. The parameters for the decay stage have been chosen so that the curve approaches the measurements [20

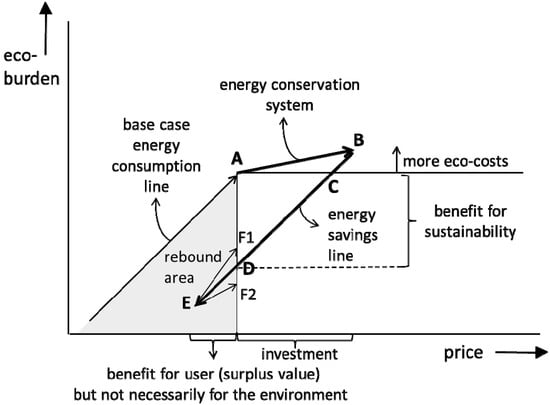

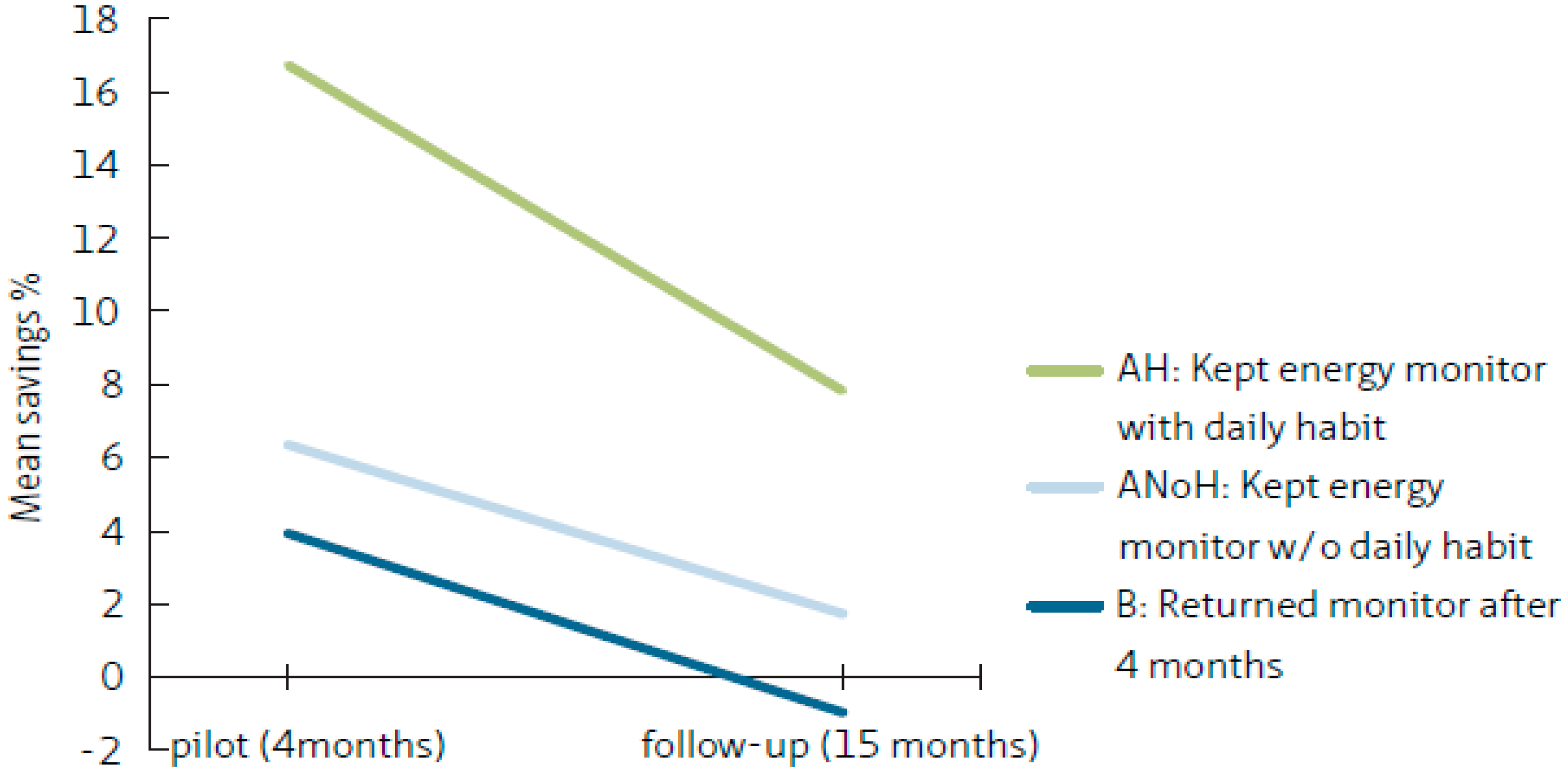

] previously discussed in Figure 1
S = a + b × EXP [−(t − 3)/5], for t > 3, where S is the percentage savings, and t = time in month.
For the single zone Hambase simulation a = 6.5% and b is 8%, which is depicted in the savings line of Figure 7
3.2. The Insulation Strategy
Insulation is an energy conservation strategy that does not compromise thermal comfort, therefore, it has the potential of fulfilling the double objective of eco-efficient value creation, as mentioned in Section 2.2
. On top of that, insulation has the potential for surplus value, as discussed in Section 1.2.3
To find the maximum potential cost savings, as well as savings in the eco-costs, calculations have been made on the reduced heat flux per year through a 1 m2 wall, as a function of the heat resistance of the insulation slab (m2·K/W), the so-called R value. The calculations are based on 3000 heating degree days per annum (which applies to domestic heating in, e.g., the Netherlands, Belgium, the United Kingdom, Denmark, Germany, and the cities of New York and Vancouver).
The base case is R = 2, which refers to a reasonably well insulated house (insulation slab thickness of 7 cm for stone wool, approximately 8 cm for expanded polystyrene [EPS], and 4.4 cm for polyisocyanurate [PIR]). The consequences of thicker insulation slabs have been determined up to R = 8 (approximately 28 cm for stone wool, approximately 31 cm for EPS, and 18 cm for PIR).

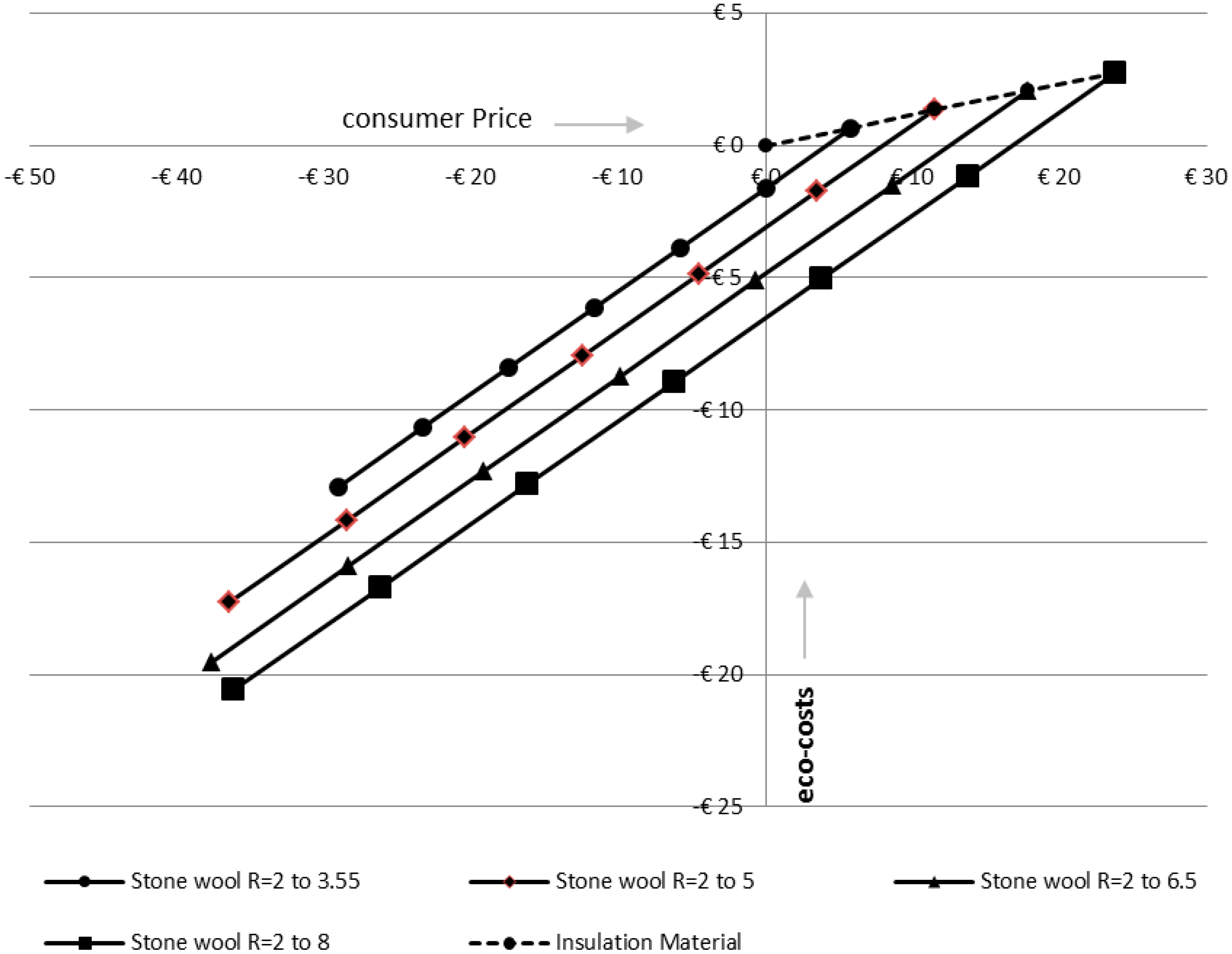

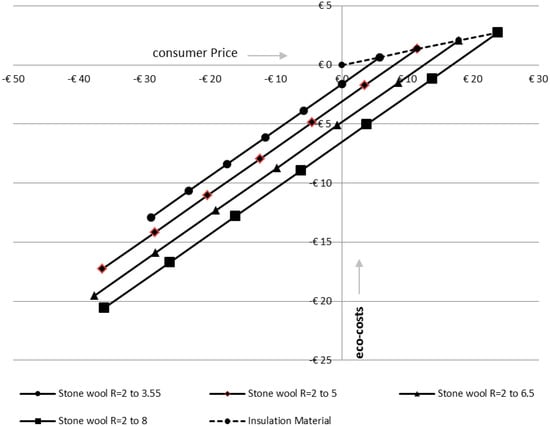

depicts the eco-costs versus the consumer price of stone wool for four cases of increased heat resistance. This graph has the same structure as Figure 2
. The investment is depicted by the line, which starts in the origin, and goes up to eco-costs of approximately €2.73/m2
, corresponding with a price of €23.72/m2
for R = 8 (when the added R value is added, the price and the eco-costs increase). The savings are the lines that go down. The savings in price and eco-costs are related to the reduction of natural gas for heating for a total period of 30 years (six steps over five years).
A remarkable conclusion is that, over a period of 30 years, the differences in net price savings of R = 2 to R = 5, R = 2 to R = 6.5, and R = 2 to R = 8 are rather low, however, higher R values relate to lower eco-costs.
Note that two segments of the savings line have to be distinguished, the lines at the right of the y-axis (consumer price ≥0), and the lines at the left of the y-axis (consumer price ≤0). The savings at the left of the y-axis will have a rebound (as explained in Section 2.2
). At the point of the pay-back time (consumer price = 0 at 5–12 years), there are already remarkable reductions in eco-costs (at the right of the y-axis), especially for high insulation values.
These LCA calculations (for the insulation slabs cradle-to-gate) have been done for other single indicators as well, namely, the carbon footprint (kg CO2
equivalent) and ReCiPe H/A Europe (mPt). Although the indicators are different, the graphs for the stone wool show the same pattern. Table 4

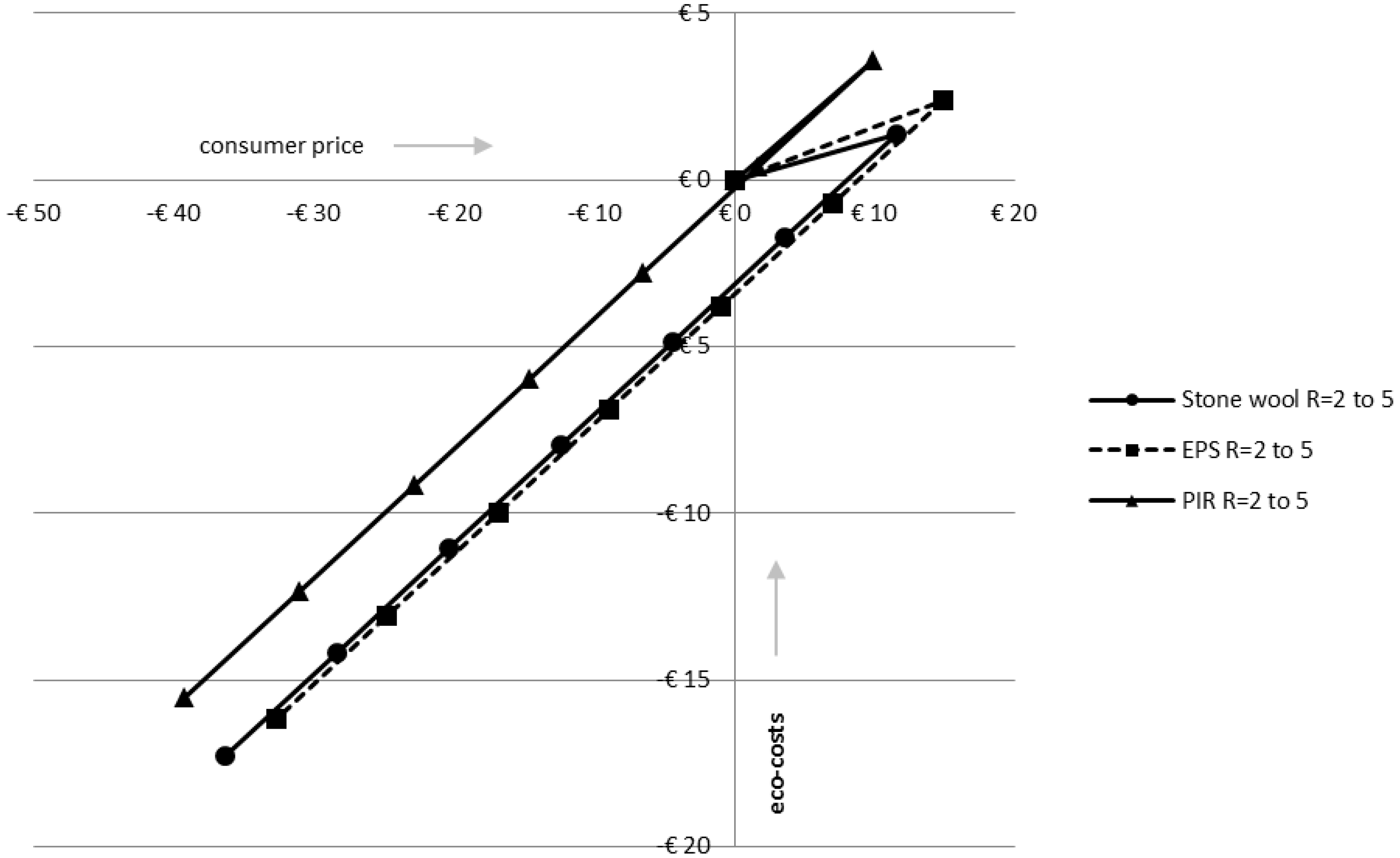

shows the main results on the extra eco-burden of the production, and the reduction of eco-burden in the use phase. Table 4
also shows the results for expanded polystyrene (EPS) and polyisocyanurate (PIR), which are quite similar to the results for stone wool. Table 4
shows that stone wool is the best solution in terms of eco-costs (environmental savings), and that PIR scores better in terms of price (cost savings). This result is also depicted in Figure 9
The results for the PIR insulation are quite remarkable; as the eco-costs/price slope of PIR is similar to the eco-costs/price slope of natural gas, there is, at the pay-out time point, no savings in eco-costs, see Figure 9
. That means that PIR insulation does not have an inherent environmental benefit (see point C and D in Figure 2
, Section 1.2
). Therefore, the environmental benefits of PIR solely depend on the customer behaviour with regard to the rebound effect (i.e., when the savings are spent on products with a low EVR, like diesel for driving, the overall environmental benefit of this type of insulation is negative).
3.3. Combination of Insulation and HEMS
In the Netherlands, new buildings require a minimum of R = 5 insulation, as of 1 January 2015. Potential energy-aware buyers might want to choose between further upgrading their insulation or accept the minimum required insulation combined with the use of a thermal HEMS. The modelled building in HAMBASE (which was modelled as a typical modern Dutch mid-terrace house, see Section 2.1
) and its energy use are calculated for the two conservation strategies for a 113 m2
surface area of the exterior walls. The scenario for insulation is based on a 30 year lifespan, where the thermal HEMS is assumed to have a lifespan of 15 years (the life span of a central-heating boiler). The remote operated valves in the six zone systems are assumed to have a life span of 30 years. The results are depicted in Figure 10
shows rather long pay-out times for the additional investments, almost 20 years for the HEMS single zone system, and approximately 22 years for the additional insulation. The positive aspect of these long pay-back times is that there is hardly a rebound effect. The HEMS six zone system, however, does not even reach the pay-back point within 30 years, and there are hardly eco-costs savings (the eco-pay-back time is 27 years).

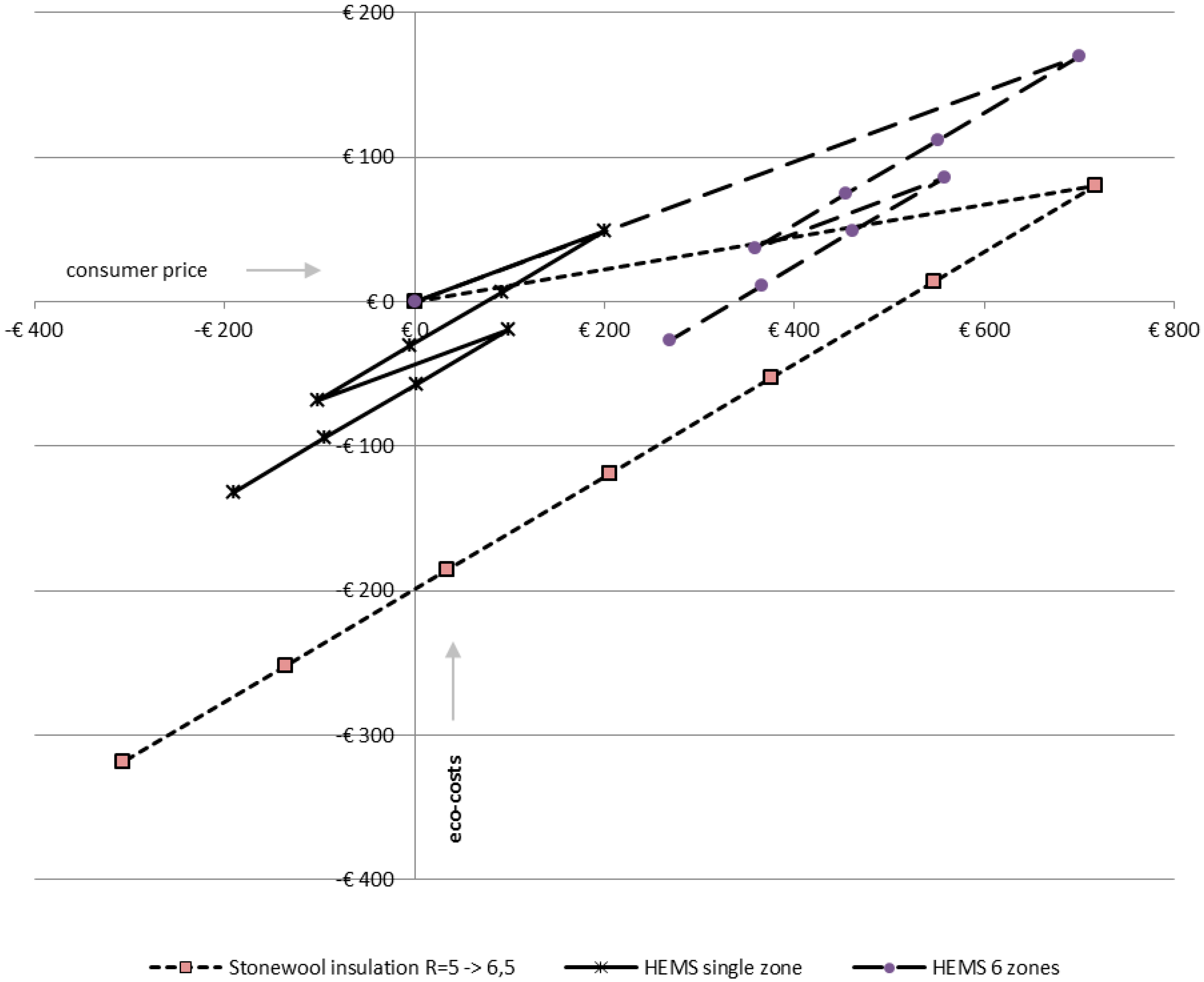

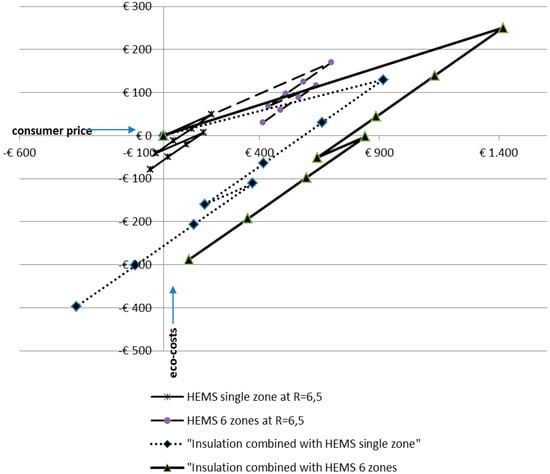

The issue in Figure 10
is whether or not to invest either in HEMS, or in extra insulation (in addition to the insulation of R = 5). Figure 11
depicts the situation when, in addition to the insulation of R = 5, an extra investment is done in an extra insulation plus a HEMS system.
In this multivariate analysis, the cooling of houses has not been analysed, as the forced cooling of houses is not common in the Netherlands. However, the same principle applies to HEMS and insulation, as, in summer, less cooling energy is needed because of improved insulation, whereas with HEMS, the automated setback savings are estimated to be marginal (4%) if the residents do not accept a higher comfort temperature [54
Man-hour installation costs have not been taken into account, as it is assumed that the extra insulation does not require significant extra installation hours for new buildings. For HEMS, these extra installation hours are out-of-scope as well. Additional insulation in existing dwellings, however, usually requires many man-hours. Often, these installation hours are done by the owner (DIY), and, in that case, these hours are not to be counted. When these installation hours are done by a contractor, the installation costs are likely to be substantial. A rule of thumb is that, in that case, €20 per m2 must be added to the investments, which are used in this study. The inclusion of such costs could significantly influence the economic pay-back time, and is likely to cancel out the rebound effect for insulation.
The price increases of natural gas have not been taken into account in the current analysis. Overall, the expectation is that the prices for fossil energy will continue to rise. Especially for insulation strategies, the economic pay-back time could be significantly reduced when prices of energy increase more than inflation.
Another issue is that the surplus value of insulation has not been taken into account in this analysis. In this case, the surplus value can be found in the increased value of the house on re-sale, mainly due to the lowered expected energy bills but also less quantifiable values such as, increased comfort and better noise insulation.
In current policies of many European countries, better insulation of dwellings, and HEMS are regarded as good strategies to reduce greenhouse emissions. This study, however, reveals that, in practice, such strategies may have less effect than the expected environmental impact reductions related to the total potential energy savings, because of the following three main issues:
The environmental impacts related to the production of insulation materials and HEMS
The reversion of changed user behaviour
The rebound effect after the pay-back period
An interesting aspect is that the systems with a long pay-back period have less rebound, resulting in less environmental pollution.
Note that the relative importance of point (a) is higher for single indicators, which takes resource depletion into account (i.e., eco-costs and ReCiPe points), than for, for example, the carbon footprint indicator.
Our case study is about new dwellings where the outside measures are already fixed; it is about the decisions of individual future owners in a later stage of the architectural design, where only the internals can be individualised. Such a case is not much different from existing dwellings. Consequently, the living area (the functional unit in LCA) is a bit smaller. This will result in higher costs (as well as the eco-costs) per m2
. In the example of Section 3.2
, this increase is 0.8% of the floor area for R = 5 to R = 6.5 for stone wool and EPS. The price per m2
living area was approximately €2300 for the house of Figure 5
) in 2015. So, the loss of m2
results in an economic loss of a value of 2300 × 200 × 0.8% = €3679, which is much more than the €718 of the marginal costs required to insulate the house from R = 5 to R = 6.5.
When the inner living area is kept constant, the outside size of the building must be enlarged to accommodate the thicker insulation material. This has the consequence that the building costs of the house will increase (approximately with a similar amount, as calculated above, as the house will be 0.8% larger). The footprint of the house will be more in that case. In the urban areas of big cities, where the price of land is high, the extra costs of land will be even higher than the costs of the insulation material. The price of land in the Netherlands varies from 200–2000 €/m2
, resulting in increased costs of the house of Figure 5
: €175–€1750 (109.5 m2
Please note that the reader is free and encouraged to adapt the assumptions in this approach to their own specific scenario and context. This could include variations to the model applied to simulate energy savings and thermal comfort. Although we feel that the main conclusions regarding energy use and thermal comfort will stand, the magnitude of both metrics might differ slightly. Additionally, other models and simulation software packages might include more or other variables for modelling energy use and thermal comfort that are suitable to other specific situations.
The combined analyses of costs, eco-costs, and value (i.e., the EVR approach) explains the potential magnitude of the rebound effect, as it clearly demonstrates the point of economic and environmental payback and the likelihood for potential rebound effects. The rebound effect plays an important role, because of two issues, namely:
The net environmental benefit of the energy savings is often overestimated because of the rebound effect.
A long financial pay-back time seems to be beneficial for the environmental benefit, as it reduces the rebound effect.
Hence, it is concluded that the eco-efficient value creation approach and the eco-costs/value ratio are valuable design and evaluation tools for balancing ecological and economic considerations.
With regard to the three research questions of Section 1.1
, three conclusions are provided in the following paragraphs: Research Question 1: “Is a HEMS system an efficient and effective solution for energy savings, and if so under which conditions?”. Because of the high absolute price for the insulation of a house compared to HEMS, it is more likely that consumers will invest in HEMS rather than in insulation in their existing houses. This is especially true if the installation costs of insulation are to be included as well. This paper shows that HEMS are a reasonable solution for existing houses with poor insulation (R = 2 or less), see Figure 6
. The strength of HEMS is that the high heat loss due to poor insulation makes it worthwhile to shut off the heating system or reduce the mean temperature settings by 1 or more degrees.
Research Question 2: “Is there an optimum insulation thickness of the outer walls, and if so, what is the optimum for which type of insulation material?”.
The optimal insulation for stone wool, EPS, and PIR seems to be U = 6.5 (±1.5), see Figure 8
and Figure 9
. From an environmental impact perspective, stone wool insulation material has lower impacts than EPS and PIR. The difference in environmental impacts over the full life-cycle between stone wool, EPS, and PIR, however, can be considered to be marginal. The differences in the economic terms over the total life cycle (LCC) are also small, see Table 4
. Research Question 3: “What are the implications of combining a high level of thermal insulation with a HEMS system?”.

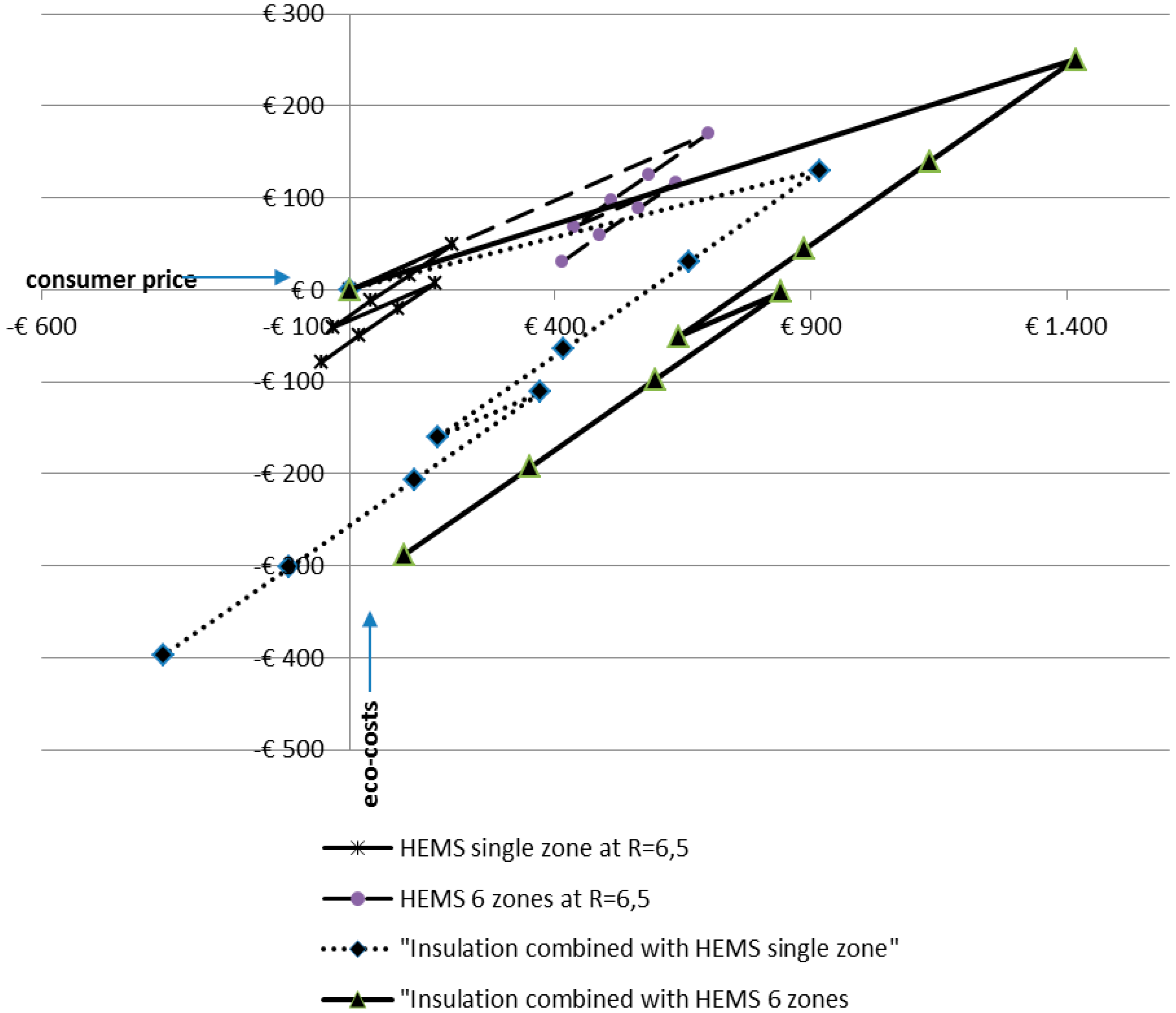

For well insulated houses, HEMS is less effective, see Figure 10
and Figure 11
. However, governmental strategies that only focus on the insulation of newly built houses (R = 5 or more), will result in a transition that is far too slow. This is because of the long life-span of houses (longer than 50 years); it will take a long time before a significant share of houses are well-insulated.
