Changes in the Distribution of Temperature in a Coal Deposit and the Composition of Gases Emitted during Its Heating and Cooling
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
- −
- 0 < G ≤ 0.0025—no actions needed, no fire risk;
- −
- 0.0025 < G ≤ 0.0070—enhanced scrutiny of the atmosphere, more frequent collections of gas samples;
- −
- 0.0070 < G ≤ 0.0300—preventive actions;
- −
- G > 0.0300—firefighting;
2.2. Methods
3. Results and Discussion
3.1. Temperature Changes

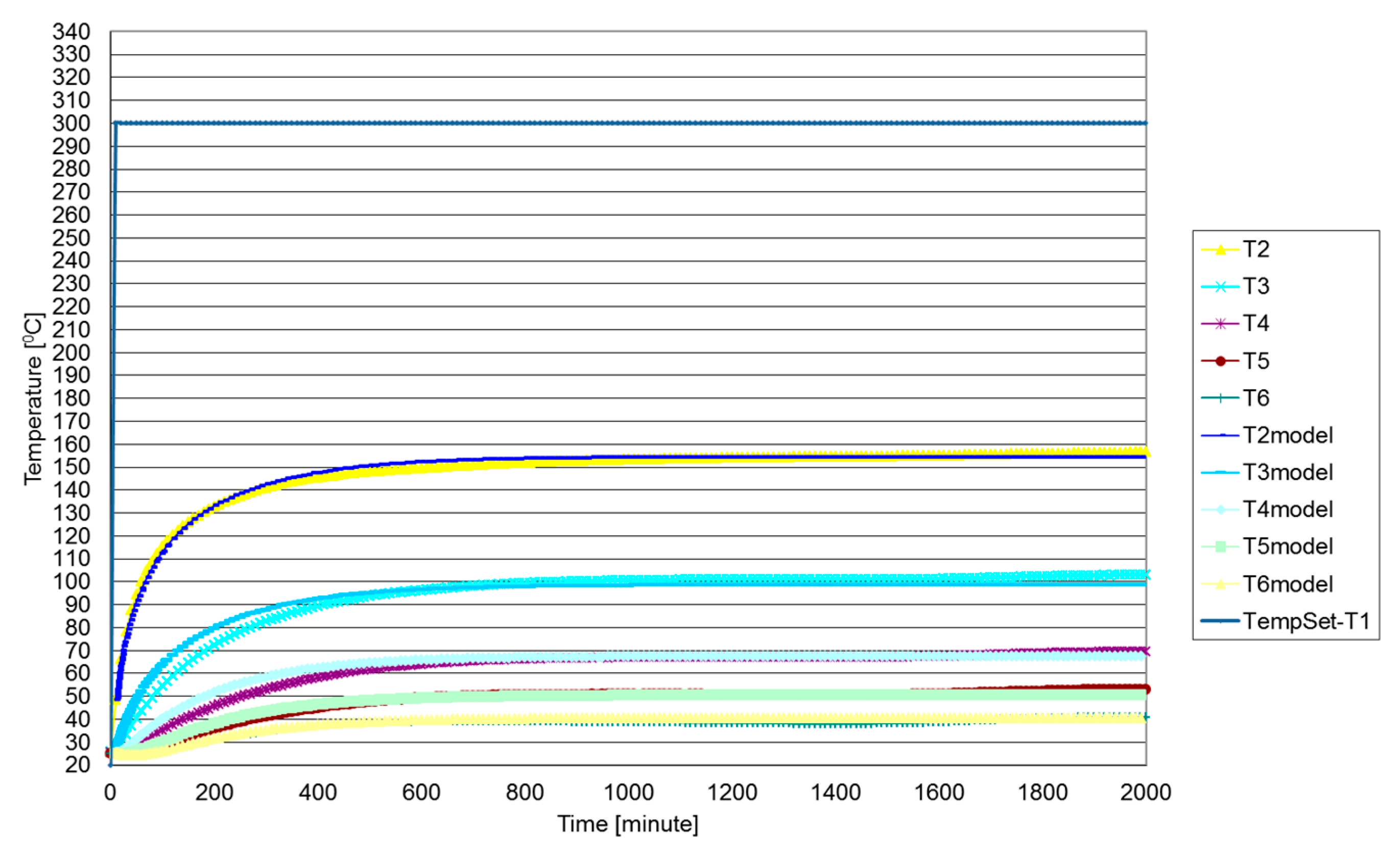

3.2. Simulation of Heating Process

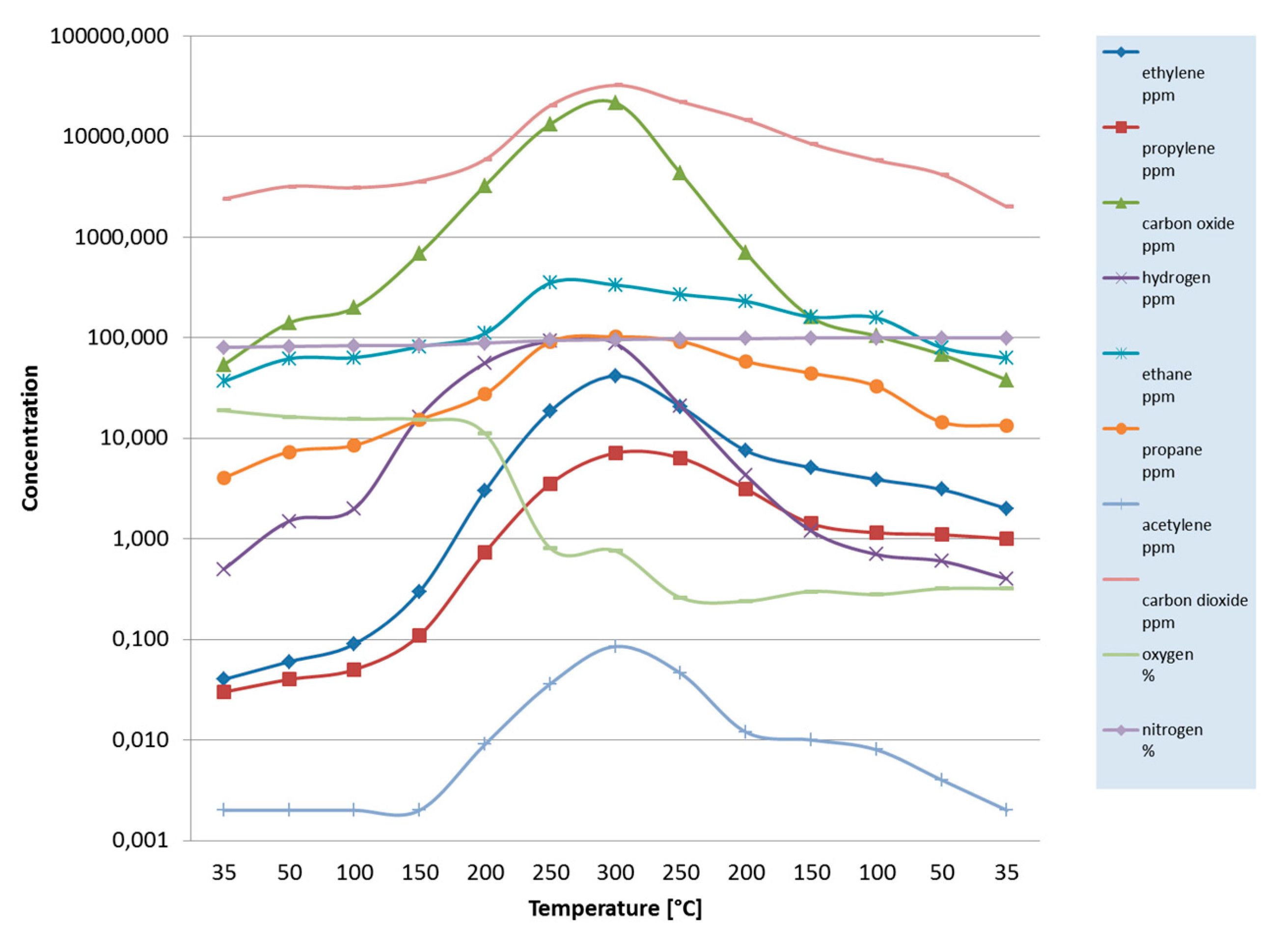

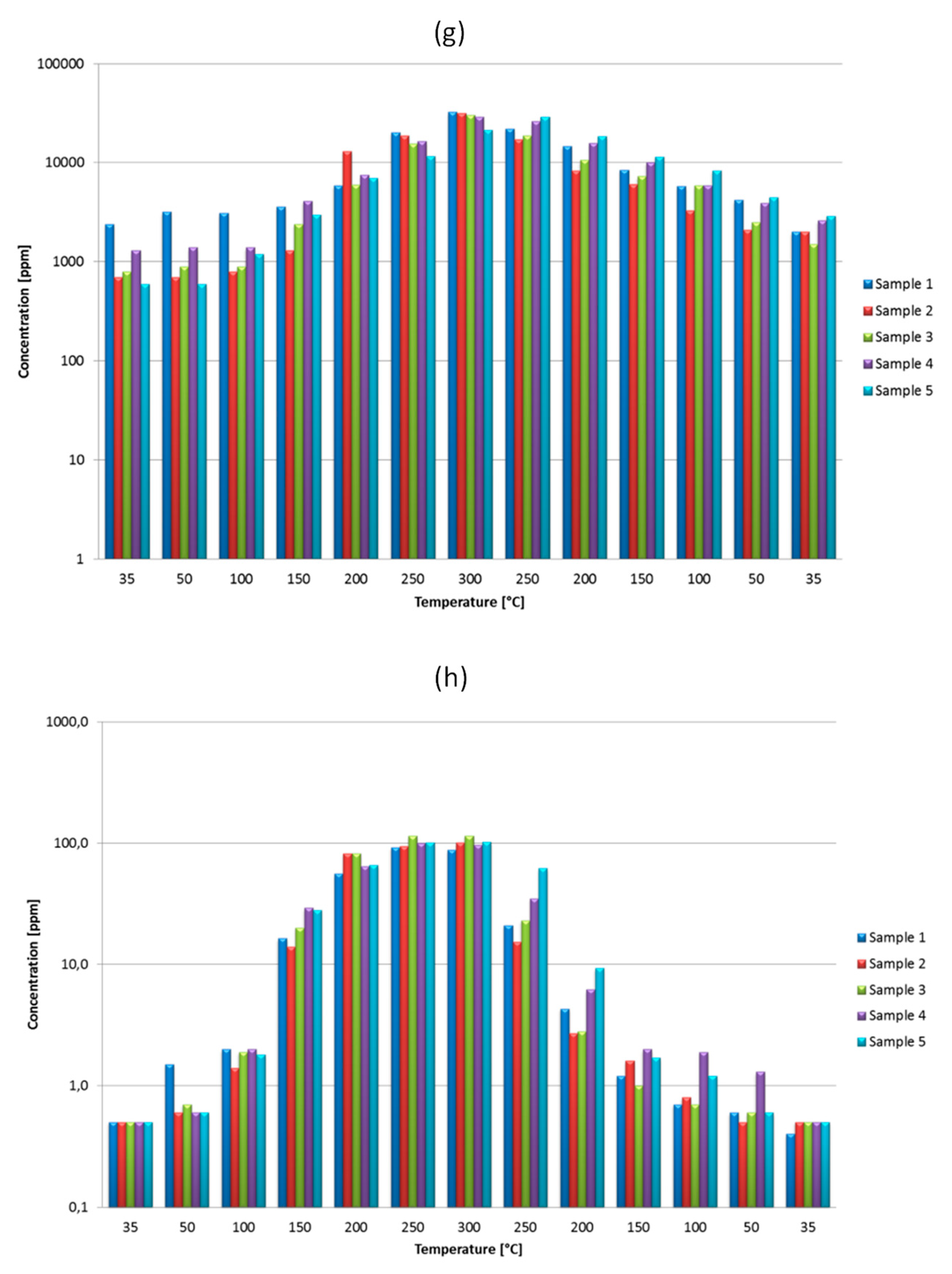

3.3. Gas Concentration Changes
3.4. Analysis of Fire Indices
4. Conclusions
- Changes in temperature in the vicinity of a heating and cooling hot spot were analyzed. The percentages of coal in the reactor for given temperatures were calculated. By comparing the percentages of coal for the same temperature in the hot spot, for the heating phase and cooling phase, significant differences in the distribution of given percentages of coal were observed. For all the coals, the average temperature during the cooling phase was higher at each of the sensors.
- Changes in the concentrations of gases during heating and cooling were analyzed. The dynamics of changes in the concentrations of gases for the tested coals were determined. For samples 1 and 5, the lowest increases were measured for ethane, propane, and carbon dioxide, while the highest were measured for ethylene, propylene, hydrogen, and carbon monoxide. For samples 1, 2, and 4, the lowest increases were measured for ethane and propane and the highest were measured for ethylene, carbon monoxide, and hydrogen. Background values during heating and cooling, i.e., concentrations of gases at the virgin temperature of rocks, were determined. Ethylene was chosen as one of the most characteristic gases, especially for assessing the cooling of coal.
- Changes in the values of fire indices were analyzed. The Graham index during heating was similar for all the tested coals. Hence, the use of the Graham index criteria during heating is perfectly justified. Yet, using the criteria during cooling leads to incorrect conclusions. During cooling, the Litton index assumes the value of 1 (cooling down to the ambient temperature) within the temperature range of 200–100 °C, i.e., it prematurely informs about cooling down. Use of the index based on the ethylene concentration was proposed. During the cooling phase, the index changes linearly.
- It is impossible to assume common criteria to assess the fire hazard for the heating phase and cooling phase. Hence, for the accurate determination of the temperature in the cooling hot spot, it is necessary to conduct model tests for each of the coals and select proper limits.
Author Contributions
Funding
Conflicts of Interest
Appendix A
References
- Adamus, A.; Sancer, J.; Guranova, P.; Zubicek, V. An investigation of the factors associated with interpretation of mine atmosphere for spontaneous combustion in coal mines. Fuel Process. Technol. 2011, 92, 663–670. [Google Scholar] [CrossRef]
- Dai, G.L. Study on the gaseous products in coal oxidation at low temperature. Coal Mine Saf. 2007, 1, 1–4. [Google Scholar]
- Beamish, B.B.; Arisoy, A. Effect of mineral matter on coal self-heating rate. Fuel 2008, 87, 125–130. [Google Scholar] [CrossRef]
- Kuchta, J.M.; Rowe, V.R.; Burgess, D.S. Spontaneous Combustion Susceptibility of U.S. Coals; Report of Investigation, RI-8474; U.S. Dept. of the Interior, Bureau of Mines: Washington, DC, USA, 1980.
- Cygankiewicz, J. About determination of susceptibility of coals to spontaneous combustion using an adiabatic test method. Arch. Min. Sci. 2000, 45, 247–273. [Google Scholar]
- Beamish, B.B.; Barakat, M.A.; George, J.D. Spontaneous-combustion propensity of New Zealand coals under adiabatic conditions. Int. J. Coal Geol. 2001, 45, 217–224. [Google Scholar] [CrossRef]
- Xia, T.; Zhou, F.; Liu, J.; Kang, J.; Gao, F. A fully coupled hydro-thermo-mechanical model for the spontaneous combustion of underground coal seams. Fuel 2014, 125, 106–115. [Google Scholar] [CrossRef]
- Kaji, R.; Hishinuma, Y.; Nakamura, Y. Low temperature oxidation of coals: Effects of pore structure and coal composition. Fuel 1985, 64, 297–302. [Google Scholar] [CrossRef]
- Wang, H.; Dlugogorski, B.Z.; Kennedy, E.M. Coal oxidation at low temperatures: Oxygen consumption, oxidation products, reaction mechanism and kinetic modelling. Prog. Energy Combust. 2003, 29, 487–513. [Google Scholar] [CrossRef]
- Ren, T.X.; Edwards, J.S.; Clarke, D. Adiabatic oxidation study on the propensity of pulverised coals to spontaneous combustion. Fuel 1999, 78, 1611–1620. [Google Scholar] [CrossRef]
- Nugroho, Y.S. Low-temperature oxidation of single and blended coals. Fuel 2000, 79, 1951–1961. [Google Scholar] [CrossRef]
- Beamish, B.B. Comparison of the R70 self-heating rate of New Zealand and Australian coals to Suggate rank parameter. Int. J. Coal Geol. 2005, 64, 139–144. [Google Scholar] [CrossRef]
- Taraba, B.; Pavelec, Z. Investigation of the spontaneous combustion susceptibility of coal using the pulse flow calorimetric method: 25 years of experience. Fuel 2014, 125, 101–105. [Google Scholar] [CrossRef]
- Dudzińska, A.; Cygankiewicz, J. Analysis of adsorption tests of gases emitted in the coal self-heating process. Fuel Process. Technol. 2015, 137, 109–116. [Google Scholar] [CrossRef]
- Zubicek, V.; Adamus, A. Susceptibility of coal to spontaneous combustion verified by modified adiabatic method under conditions of Ostrava–Karvina Coalfield, Czech Republic. Fuel Process. Technol. 2013, 113, 63–66. [Google Scholar] [CrossRef]
- Lu, P.; Liao, G.X.; Sun, J.H.; Li, P.D. Experimental research on index gas of the coal spontaneous at low-temperature stage. J. Loss Prev. Proc. 2004, 17, 243–247. [Google Scholar] [CrossRef]
- Bystroń, H. Fire, ignition and gas explosion during active and passive extinguishing. Arch. Min. Sci. 1997, 42, 3–44. [Google Scholar]
- Mitchell, D.W. Mine Fires, Prevention, Detection, Fighting; Maclean Hunter Pub Comp: Chicago, IL, USA, 1990. [Google Scholar]
- Litton, C.D. Gas Equilibrium in Sealed Coal Mines; R.I.90031; U.S. Dept. of the Interior, Bureau of Mines: Washington, DC, USA, 1986.
- Minister of Economy. Regulation of the Minister of Economy of 28 February 2002 on Work-Related Safety, Conducting Mining Operations and Specialist Fire Fighting Systems in Underground Coal Mines; Ministry of Economy: Warsaw, Poland, 2002.
- Singh, A.K.; Singh, R.V.K.; Singh, M.P.; Chandra, H.; Shukla, N.K. Mine fire gas indices and their application to Indian underground coal mine fires. Int. J. Coal Geol. 2007, 69, 192–204. [Google Scholar] [CrossRef]
- Roberts, A. The Ventilation of Mine Wastes, 5 Mine Ventilation; Cl.-H. Press: London, UK, 1960. [Google Scholar]
- Dudzińska, A.; Howaniec, N.; Smoliński, A. Experimental study on sorption and desorption of propylene on Polish hard coals. Energy Fuels 2015, 29, 4850–4854. [Google Scholar] [CrossRef]
- Chamberlain, E.A.C.; Hall, P.A.; Thilaway, J.T. The Ambient Temperature Oxidation of Coal in Relation to the Early Detection of Spontaneous Heating—Part 1. Min. Eng. 1970, 130, 1–6. [Google Scholar]
Sample 1 | Sample 2 | Sample 3 | Sample 4 | Sample 5 | ||||||
---|---|---|---|---|---|---|---|---|---|---|
g | % | g | % | g | % | g | % | g | % | |
>2 mm | 3 | 1.1 | 6 | 2.0 | 2 | 0.7 | 8.5 | 2.8 | 7.5 | 2.3 |
2–1 mm | 100.5 | 36.5 | 106.5 | 35.5 | 99.5 | 36.4 | 110 | 36.3 | 119.5 | 36.9 |
1–0.7 mm | 57 | 20.7 | 55.5 | 18.5 | 60.5 | 22.2 | 53 | 17.5 | 60 | 18.5 |
0.7–0.5 mm | 40.5 | 14.7 | 46.5 | 15.5 | 39 | 14.3 | 49.5 | 16.3 | 53.5 | 16.5 |
0.5–0.35 mm | 22.5 | 8.2 | 25.5 | 8.5 | 20 | 7.3 | 30.5 | 10.1 | 38 | 11.7 |
0.35–0.25 mm | 10.5 | 3.8 | 18 | 6 | 15 | 5.5 | 20.5 | 6.8 | 20 | 6.2 |
0.25–0.125 mm | 18 | 6.5 | 18 | 6 | 17 | 6.2 | 15 | 5.0 | 13.5 | 4.2 |
<0.125 mm | 23 | 8.4 | 25 | 8 | 20 | 7.3 | 16 | 5.3 | 12 | 3.7 |
Sample No | Transient Moisture Wex PN-G-04511:1980 pt. 2.1 | Moisture Content of Sample Wa PN-G-04560:1998 | Ash Content Aa PN-G-04560:1998 | Volatile Matter Content Va PN-G-04516:1998 | Total Carbon Content Ca PN-G-04571:1998 | Total Sulfur Content Sta PN-G-04571:1998 | Total Hydrogen Content Hta PN-G-04584:2001 | Nitrogen Content Na PN-G-04571:1998 | Oxygen Content Oa PN-G-04571:1998 | Activation Energy A PN-93/G-04558 | Coal Autoinfla-mmability Index Sza PN-93/G-04558 | Autoinfla-mmability Group PN-93/G-04558 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
% Weight | % Weight | % Weight | % Weight | % Weight | % Weight | % Weight | % Weight | % Weight | kJ/mol | °C/min | ||
1 | 2.8 | 2.2 | 6.9 | 29.5 | 81.9 | 0.68 | 4.55 | 1.33 | 6.85 | 61 | 77 | II |
2 | 7.1 | 8.0 | 5.4 | 34 | 69.5 | 0.75 | 4.8 | 1.1 | 11.42 | 47 | 125 | V |
3 | 1.2 | 0.8 | 4.2 | 23 | 87.8 | 0.48 | 3.2 | 1.13 | 8.3 | 60 | 42 | II |
4 | 3.8 | 4.4 | 5.6 | 33.7 | 74.5 | 0.88 | 3.98 | 1.21 | 9.75 | 62 | 83 | III |
5 | 8.8 | 9.2 | 4.9 | 34.1 | 70.6 | 1.10 | 4.72 | 0.79 | 12.28 | 47 | 135 | V |
Ranges of Temperature in Reactor | Temperature in Hot Spot | ||||
---|---|---|---|---|---|
Heating Phase | Cooling Phase | ||||
100 °C | 200 °C | 300 °C | 200 °C | 100 °C | |
up to 50 °C | 96% | 66% | 55% | 62% | 89% |
50–100 °C | 4% | 27% | 34% | 29% | 10% |
100–150 °C | - | 5% | 6% | 5% | - |
150–200 °C | - | 2% | 3% | 2% | - |
200–250 °C | - | - | 1% | 1% | - |
250–300 °C | - | - | 1% | - | - |
