Cardiac Phenotype Associated with Two Heterozygous LMNA Variants

Abstract

Background: Laminopathies are a heterogenous group of heritable diseases caused by variants in the Lamin A/C gene (LMNA). They manifest as cardiac and muscular myopathies, lipodystrophies, neuropathies, and progeria. Cardiac manifestations include dilated cardiomyopathy and arrhythmias. Case presentation: A Finnish woman in her 40s who was found to carry two heterozygous likely pathogenic (LP) variants in LMNA, c.1003C>T p.Arg335Trp and c.1303C>T p.Arg435Cys. She was diagnosed with dilated cardiomyopathy and received cardiac resynchronization therapy with a defibrillator. Conclusions: Double heterozygous LMNA variants are exceedingly rare. Even though the patient presented with two LP variants, the age of onset was typical, and the phenotype was not markedly more severe than in those with only one LP variant.

1. Introduction

Lamin A/C gene (LMNA), located in the human chromosome 1q22, encodes lamin A and lamin C proteins through alternative splicing [1]. Lamin A and C are structural proteins found in the inner nuclear lamina. They provide structural support to the nucleus and help maintain nuclear stability, regulate cell differentiation, and participate in replication of DNA as well as in repair of DNA damage [2].

Genetic variants in LMNA are associated with a heterogeneous group of heritable diseases, referred to as laminopathies. Laminopathies include cardiac and muscular myopathies, lipodystrophies, neuropathies, and premature aging syndromes (progeria). [3]. In this case report, the focus is on LMNA-associated dilated cardiomyopathy (DCM) (OMIM 115200). The most frequently identified LP/P variants associated with DCM include TTN, DSP, LMNA, MYH7, TNNT2, FLNC, RBM20, BAG3, NRAP, DSG2, SCN5A, DES, DMD, MT-TL1, and PKP2, with prevalence rates ranging from 45.3–0.9% of cases [4]. Typically, familial DCM is inherited in an autosomal dominant pattern [5]. DCM presents with systolic dysfunction as well as dilatation of left or both ventricles [5].

LMNA variants are a common cause of familial DCM and account for 6.8% of all cases [6]. Up to 165 different LMNA variants have been found to cause DCM [7]. DCM caused by pathogenic variants in LMNA is progressive and often leads to heart failure and sometimes results in a need of heart transplantation around the ages of 40 to 50 [7]. In Finland, 9% of all heart transplantations are due to LMNA-associated DCM [8].

In addition to heart failure, common clinical findings include early-onset atrioventricular (AV) blocks, atrial fibrillation, ventricular tachycardia, bradycardia, and increased concentration of high sensitivity Troponin T or I. Due to the progressive course of the cardiomyopathy and high risk of life-threatening arrhythmias, most patients eventually require a pacemaker with a defibrillator [7].

In 2023, the European Society of Cardiology (ESC) presented a new phenotype, non-dilated left ventricular cardiomyopathy (NDLVC), which can also be caused by LMNA [9]. It is characterized by non-ischemic left ventricular (LV) scarring or fatty replacement, irrespective of global or regional wall motion abnormalities, or by isolated LV hypokinesia in absence of scarring [9]. It now includes a group of patients previously diagnosed as DCM without dilated LV. The genes most associated with NDLVC overlap with DCM disease genes [9].

2. Detailed Case Description

A Finnish woman in her 40s was found to have two likely pathogenic (LP) allelic variants in LMNA. Typically, only one LP or pathogenic (P) variant has been enough to cause DCM [10,11]. We present a rare case with two heterozygous LP variants in LMNA, the missense variants: LMNA(NM_170707.4):c.1003C>T (p.Arg335Trp) and LMNA (NM_1707.4):c.1303C>T (p.Arg453Cys).

The patient was a physically active woman with a BMI of 20.4 kg/m² and no other comorbidities besides well-controlled hypothyroidism. The patient was referred to hospital emergency after suddenly feeling nauseous while exercising. She was found to have a wide-complex tachycardia up to 245 beats per minute (BPM), compatible with sustained ventricular tachycardia. A cardioversion was conducted at the scene and the rhythm converted into a slow atrial fibrillation with a prolonged QT-interval. In the cardiac care unit (CCU), monitoring showed episodes of complete AV-block and nodal rhythm. A second cardioversion was done eight days later, and sinus rhythm was obtained. ECG in sinus rhythm demonstrated normal PR-time and a narrow QRS complex.

In echocardiography, left ventricular end-diastolic diameter (LVEDD) was 47 mm, left ventricular wall thickness within normal limits. Left ventricular ejection fraction (LVEF) was about 50%. Right ventricle and atrium were mildly enlarged. There was moderate tricuspid regurgitation, tricuspid gradient was 18 mmHg, and tricuspid annular plane systolic excursion (TAPSE) 20 mm.

Due to the undetermined cause of the VT, the patient underwent thorough cardiac assessment. A computed tomography (CT) angiogram was performed to exclude significant coronary artery disease, and the coronaries showed neither atherosclerotic plaques nor narrowing. Cardiac magnetic resonance (CMR) showed a slightly enlarged left ventricle with mildly reduced ejection fraction (Figure 1). The LV wall thickness was normal. In cine images, there was hypokinesia of the basal lateral wall. Intensive transmural late gadolinium enhancement (LGE) was present in the lateral wall (Figure 2). T2 mapping showed myocardial edema predominantly in the lateral wall (Figure 3). T1 mapping revealed diffuse myocardial fibrosis in the LV myocardium (Figure 4). In addition, ¹⁸F-fluorodeoxyglucose-positron emission tomography (FDG-PET) scan excluded inflammatory myocardial diseases such as sarcoidosis.

Endomyocardial fibrosis was suspected, and RV endomyocardial biopsy was taken, but due to scarce sample size, results were inconclusive.

Laboratory results during the 3 weeks of hospitalization: Hb 105–96–121 g/L (reference range 117–155 g/L), Pro-BNP 261–776–702–411 ng/L (<155 ng/L), TnI 78–144–24–11 ng/L (<45 ng/L), ALAT 99–58 U/I (<35 U/I). Transferrin saturation of 5% (17–52%) and ferritin 6 µg/L (15–125 µg/L) indicated iron deficiency anemia.

During the hospitalization, she was suspected to suffer from viral myocarditis due to the intense LGE seen in the CMR. As she no longer suffered from ventricular arrhythmias, she was discharged after three weeks with a plan to follow up in the outpatient clinic.

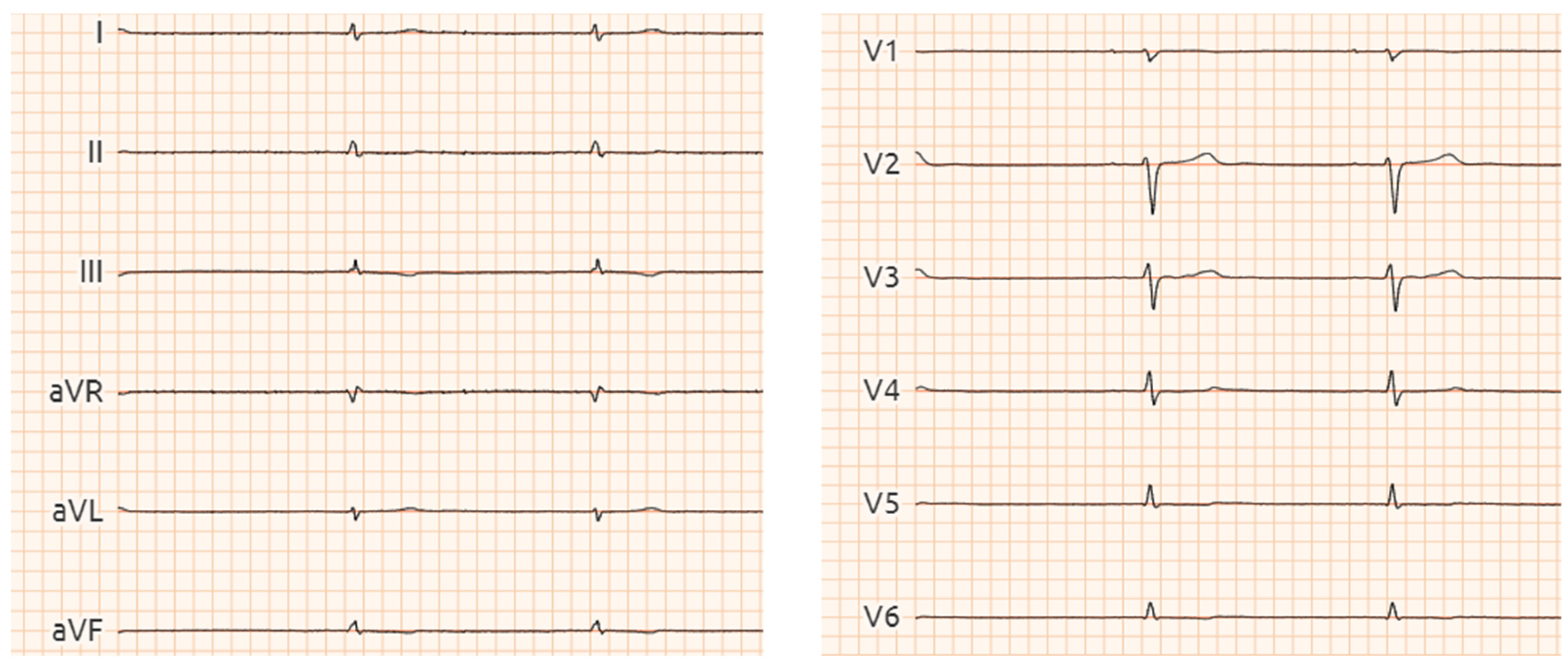

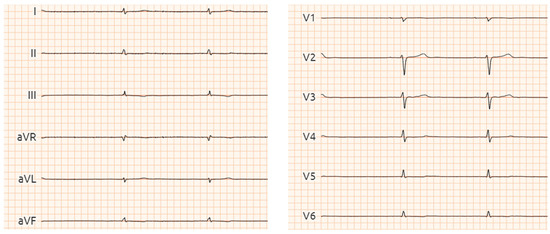

Before the outpatient clinic appointment, it was noted that her ECG showed low voltage QRS complexes and P-waves that were almost absent. (Figure 5) It was also noted that the ECG had been similar already seven years earlier. As the clinical diagnosis of viral myocarditis had remained unsure and the ECG findings sometimes associate with genetic cardiomyopathies, the patient underwent genetic testing. Genetic testing and variant interpretation were performed by Fulgent laboratory, using commercially available DCM next-generation sequencing (NGS) panels with 50 genes listed in

Table 1. Genes included in the Fulgent NGS panel.

ABCC9	ACTC1	ACTN2	ANKRD1	BAG3	CDH2	CRYAB
CSRP3	DES	DMD	DOLK	DSC2	DSG2	DSP
EMD	EYA4	FKTN	FLNC	GLA	HCN4	JPH2
JUP	LAMP2	LDB3	LMNA	MYBPC3	MYH6	MYH7
MYPN	NEXN	NKX2-5	PKP2	PLEKHM2	PLN	RAF1
RBM20	RYR2	SCN5A	SGCD	TAZ	TCAP	TMEM43
TNNC1	TNNI3K	TNNI3K	TNNT2	TPM1	TTN	TXNRD2
VCL

as well as deletion/duplication analysis. Two LP heterozygous missense variants were identified in LMNA: c.1003C>T p.Arg335Trp and c.1303C>T p.Arg435Cys. A binary alignment map (BAM) method determined that the reported variants were located 392 bp apart. Within the BAM file, a few sequencing reads contained both variants, suggesting that these variants are in cis configuration. No additional LP or P variants were identified within the coding region or its immediate vicinity (+/− 20 bp) of the genes listed in Table 1. Therefore, these 2 LMNA variants were considered to cause the patient’s condition, given their presence alongside acute onset VT and clinical findings consistent with cardiomyopathy.

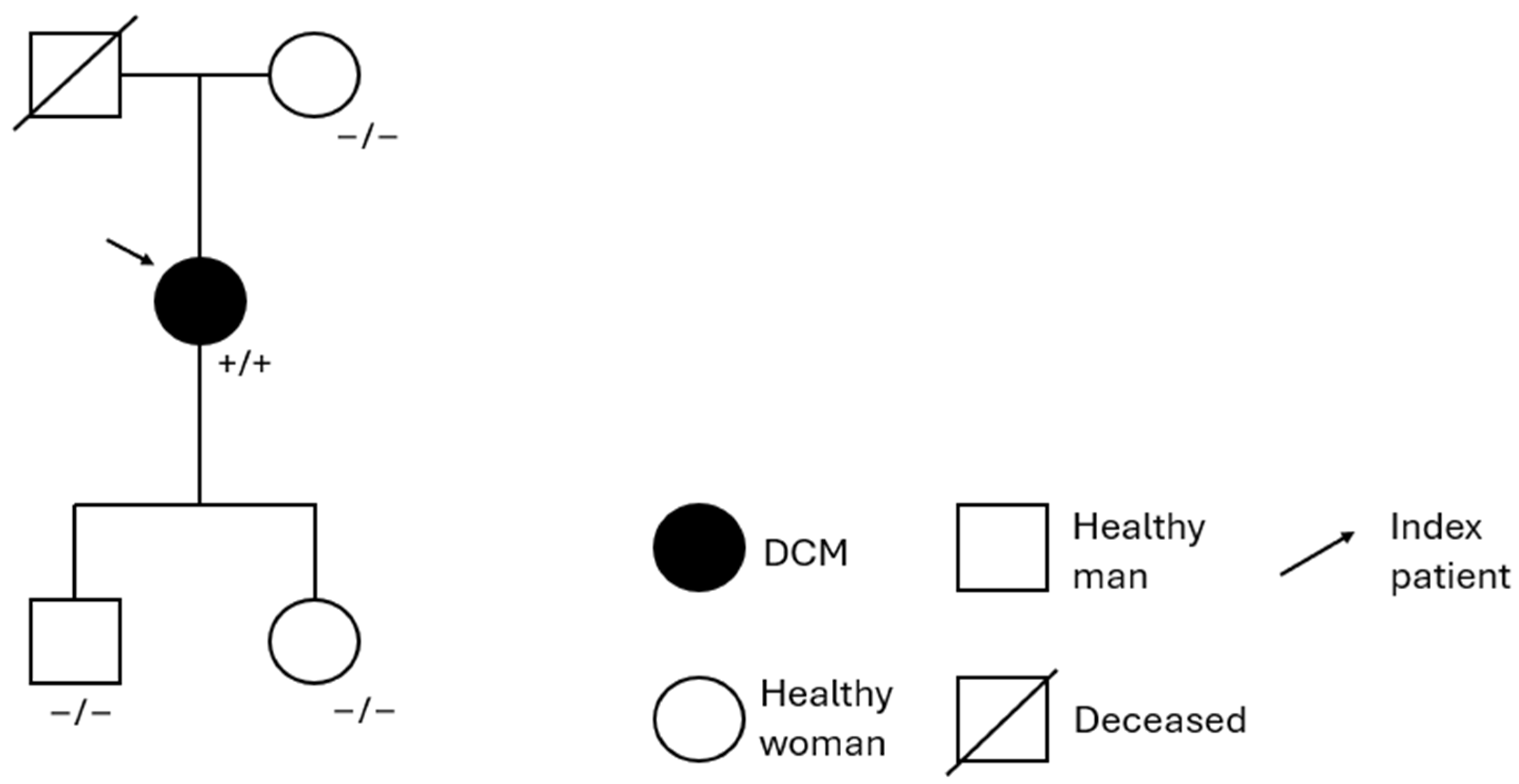

Sanger sequencing of the detected LMNA variants was used to analyze the genotype on available family members. These variants were not identified in the patient’s two children or her mother, indicating that the patient had inherited both variants from her father or one or both variants were de novo (Figure 6). We had no contact with the patient’s paternal family, so further investigations concerning inheritance pattern were not possible.

In our patient, the laminopathy primarily presented with atrioventricular conduction abnormalities, bradycardia, atrial fibrillation/flutter, and VT. The patient later underwent right atrium isthmus ablation, but the atrial flutter persisted as the left atrial flutter had appeared. The clinical entity was interpreted as beginning DCM, as the LVEDD was 50 mm (30 mm/m² of BSA) at the largest and LVEF was 45% at the lowest. However, at the beginning of the symptoms, all the clinical findings would have been compatible with NDLVC, as there was non-ischemic LV scarring with mild LV dilatation. Eventually, the patient underwent CRT-D implantation as secondary prophylaxis due to previous sustained VT. The patient had no symptoms or findings suggesting clinically relevant skeletal muscle myopathy or lipodystrophy.

Currently, patient has occasional mild, transient non-pressing pain behind the sternum. These episodes are more frequent in the evening, and the patient attributes them to stress. After hospitalization, she has returned to her everyday life and continues low-impact exercise. Follow-up continues at the cardiology outpatient clinic.

3. Discussion

Of all DCM cases, 30–50% are inherited with disease-causing variants observed in over 60 genes [12,13]. LMNA accounts for 6.8% of inherited DCM [6]. DCM is typically considered a monogenic disease, although approximately 2% of those who have a genetic predisposition to DCM have two heterozygous LP/P variants [12]. LMNA variants have been reported in combination with pathogenic titin (TTN) variants [14]. Carriers of multiple DCM-related pathogenic variants may suffer from earlier onset of the symptoms and more severe course of the disease [14,15]. To our knowledge, there are only a few reports of patients with compound heterozygous LMNA variants, and none of the patients presented with DCM [16,17,18,19].

As the patient’s father could not be studied, we could not define whether the two likely pathogenic variants are in the same homologous chromosome (cis configuration) or whether the variant alleles are in separate chromosomes (trans configuration). If both variants were in the same chromosome, the other chromosome would produce normal proteins, and the clinical presentation could resemble phenotype of heterozygous LP/P LMNA variant. The phenotype of the index patient, along with the absence of these variants in children, could suggest cis configuration. Additionally, the BAM method used suggested possible cis configuration; however, due to the limited number of supporting reads, parental testing would have been required to confirm this definitively. As this is a retrospective case report, further sequencing was not possible.

The two missense variants observed in the index patient (c.1003C>T p.Arg335Trp and c.1303C>T p.Arg435Cys) have both been reported to cause a range of phenotypes consistent with laminopathies. Multiple cases with similar DCM phenotype in heterozygous state have been reported in different databases as well as other conditions such as Emery–Dreifuss muscular dystrophy and Heart–Hand syndrome [20,21]. LMNA c.1003C>T has been reported to cause phenotype similar to the index, DCM with atrial fibrillation, and non-sustained VT [21,22]. One case with the same variant but with more severe phenotype has been reported to cause DCM leading to relatively early heart transplantation at the age of 39 [23]. Heterozygous LMNA c.1303C>T variant has been reported to cause a range of phenotypes from mild to severe isolated DCM with low ejection fraction but with no arrhythmias [24].

Characteristic ECG findings for LMNA DCM are different arrhythmias such as supraventricular and ventricular tachycardia, bradyarrhythmia, as well as conduction system disorders and flat P waves [25]. First signs and symptoms manifest typically in early to mid-adulthood [26]. Our patient presented with first signs of conduction system disorder in ECG already seven years before the admission to the hospital. LMNA DCM may also present with left ventricular thrombi and severe heart failure at an early age, which the patient had no signs of [27].

As these patients are in high risk of sudden cardiac death, LMNA-risk VTA calculator (2019) can be used to evaluate the five-year risk of life-threatening VT [28]. Factors included in the model are sex, degree of AV-block, type of the LMNA variant, history of non-sustained VT, and LVEF [28]. Based on the current ESC guidelines, primary preventive ICD implantation should be considered in patients with a five-year estimated risk of ≥10% [29].

4. Conclusions

We report a rare case of cardiomyopathy presenting with major electric disturbances and features of borderline DCM and NDLVC caused by two heterozygous LP LMNA variants. Even though the patient presented with two LP variants, the age of onset was typical, and the phenotype was not markedly more severe than in those with only one LP/P variant.
