Research on Road Sense Simulation Control of Steering-by-Wire Based on Sliding Mode Control
Abstract
:1. Introduction
- Aiming at the inaccuracy and oscillation of the road-sensing moment, the source of road-sensing is analyzed, and the kinetics is used to model the back-correcting moment by combining the Magic Formula and the linear two-degree-of-freedom vehicle model, based on which the power-assisted characteristic curves of electric power steering vehicles are added, and auxiliary moments and damping moments are added to simulate real road-sensing.
- To improve the response speed of the system and reduce current oscillations, a sliding mode control (SMC) strategy is used to ensure that the current converges in a finite period of time. The SMC also tracks the road-sensing to simulate the motor currents. The performance of the controller is verified by comparing and evaluating it with a PI controller and a fuzzy PID controller under different operating conditions.

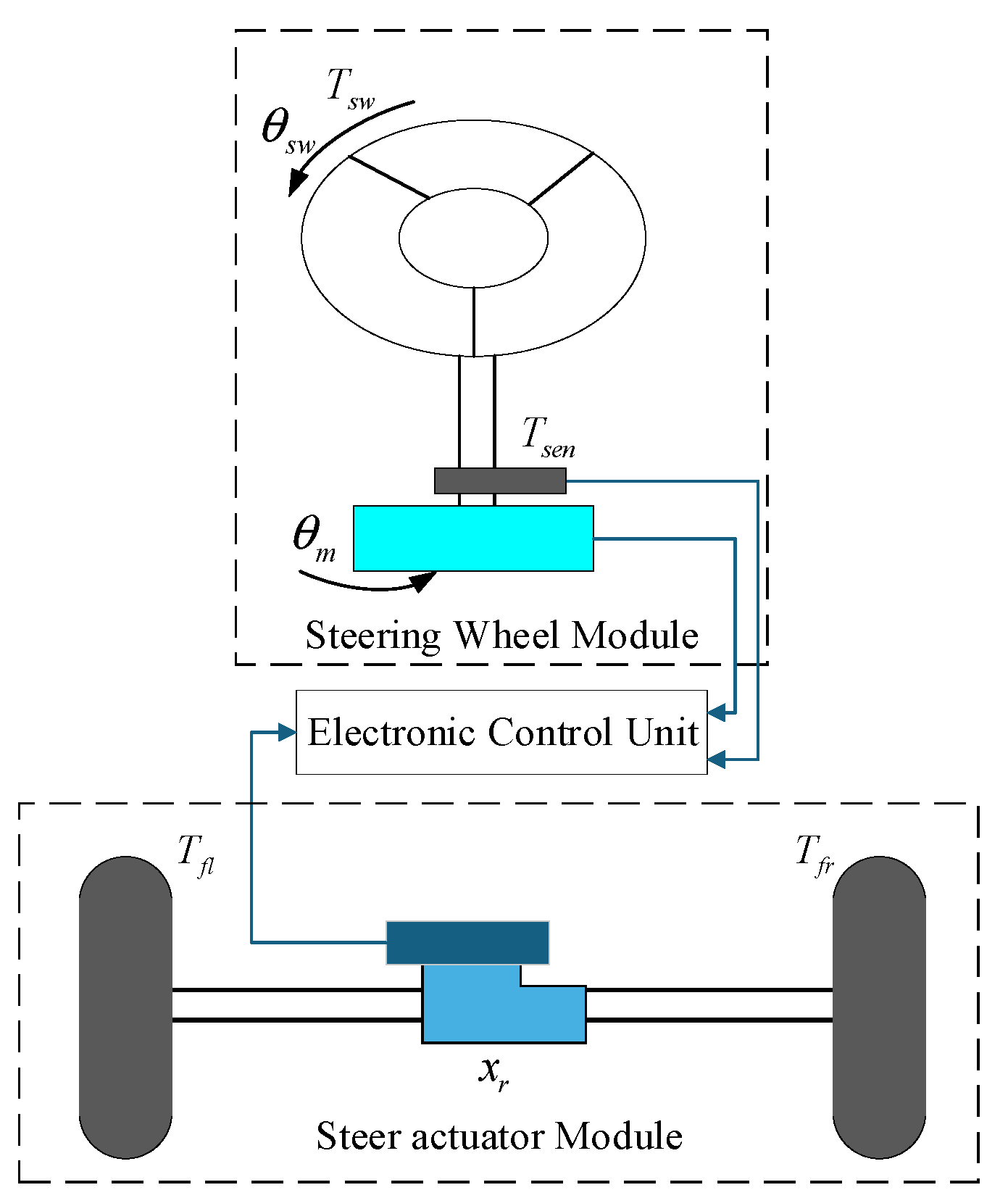

2. Dynamic Modelling of Systems
2.1. Steering Wheel System
2.2. Steering Actuator System

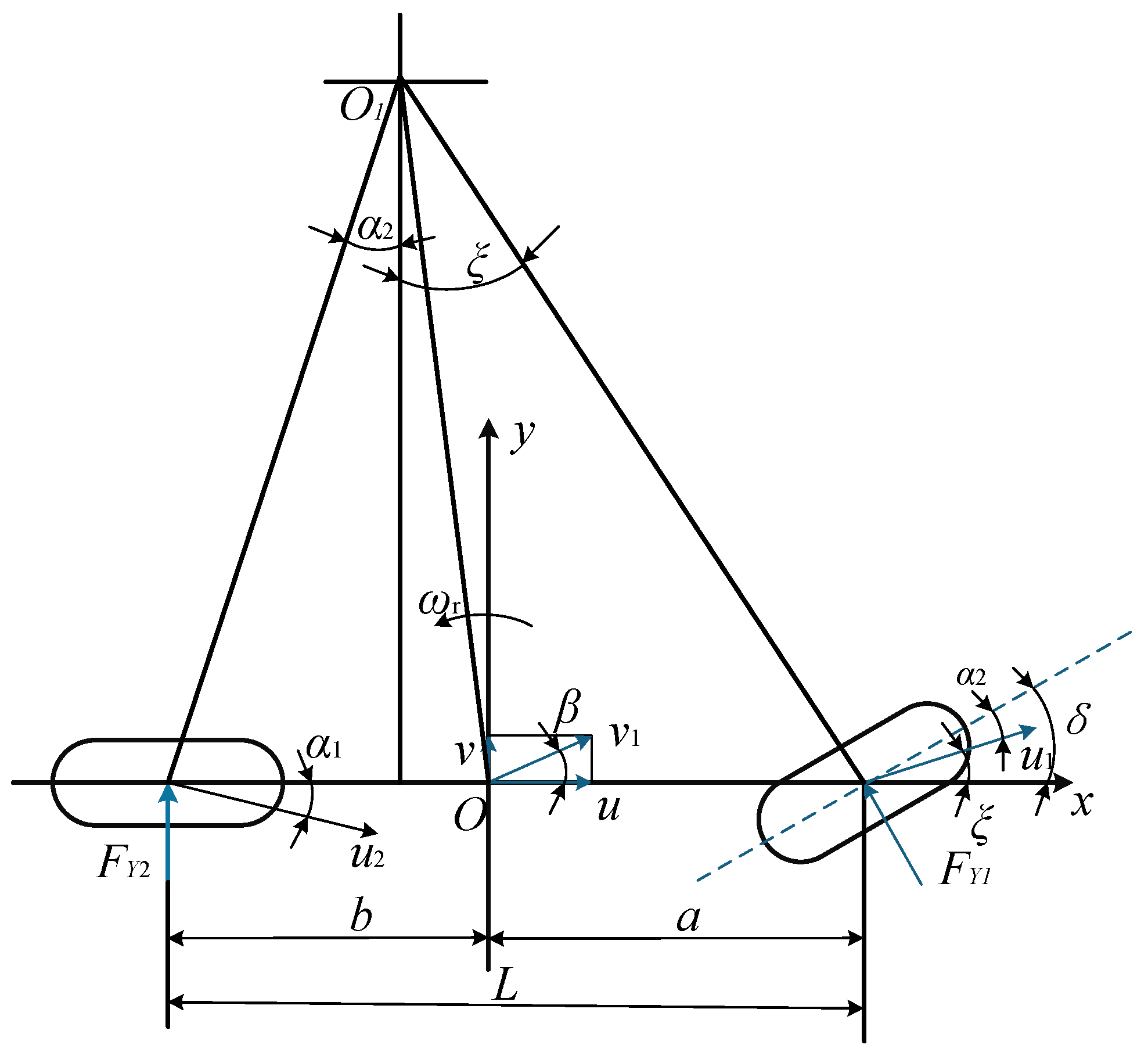

2.3. Two-Degree-of-Freedom (TDF) Vehicle Model
3. Road Sense Feedback Torque Design

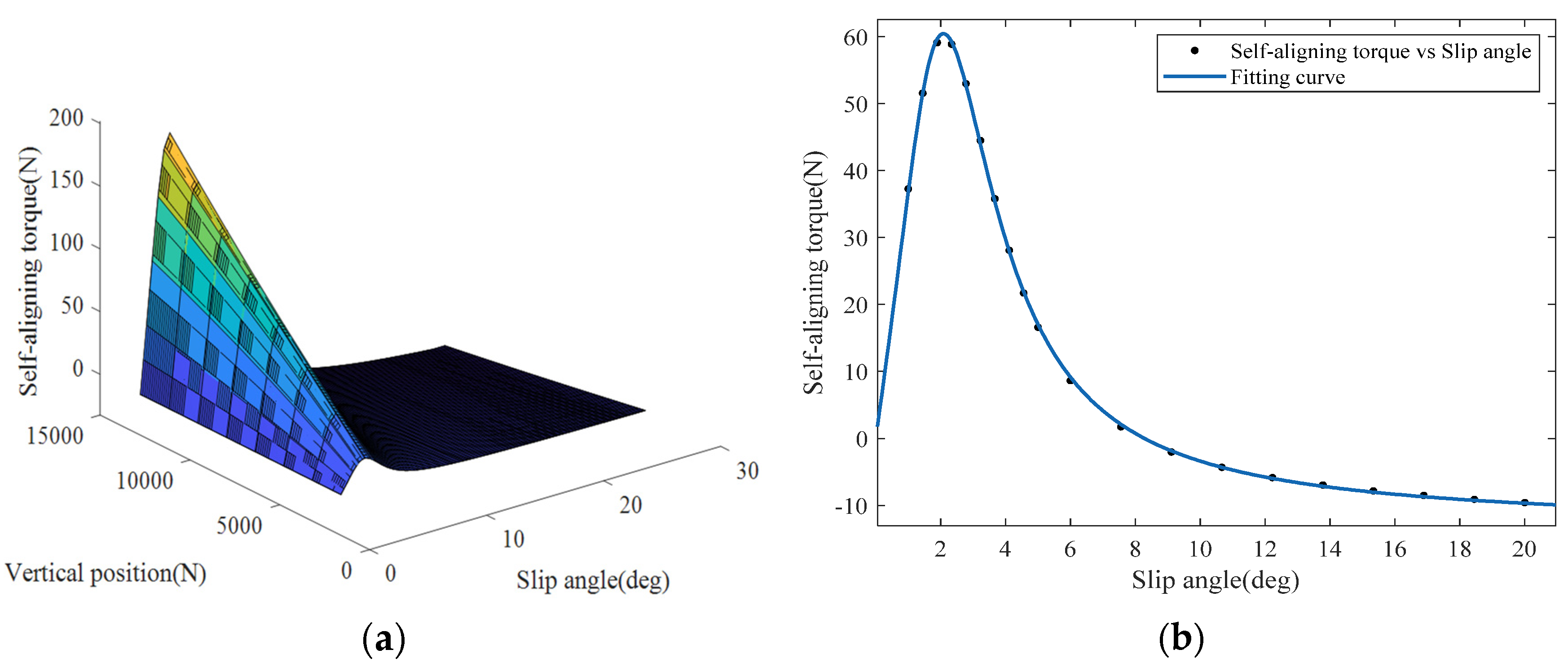

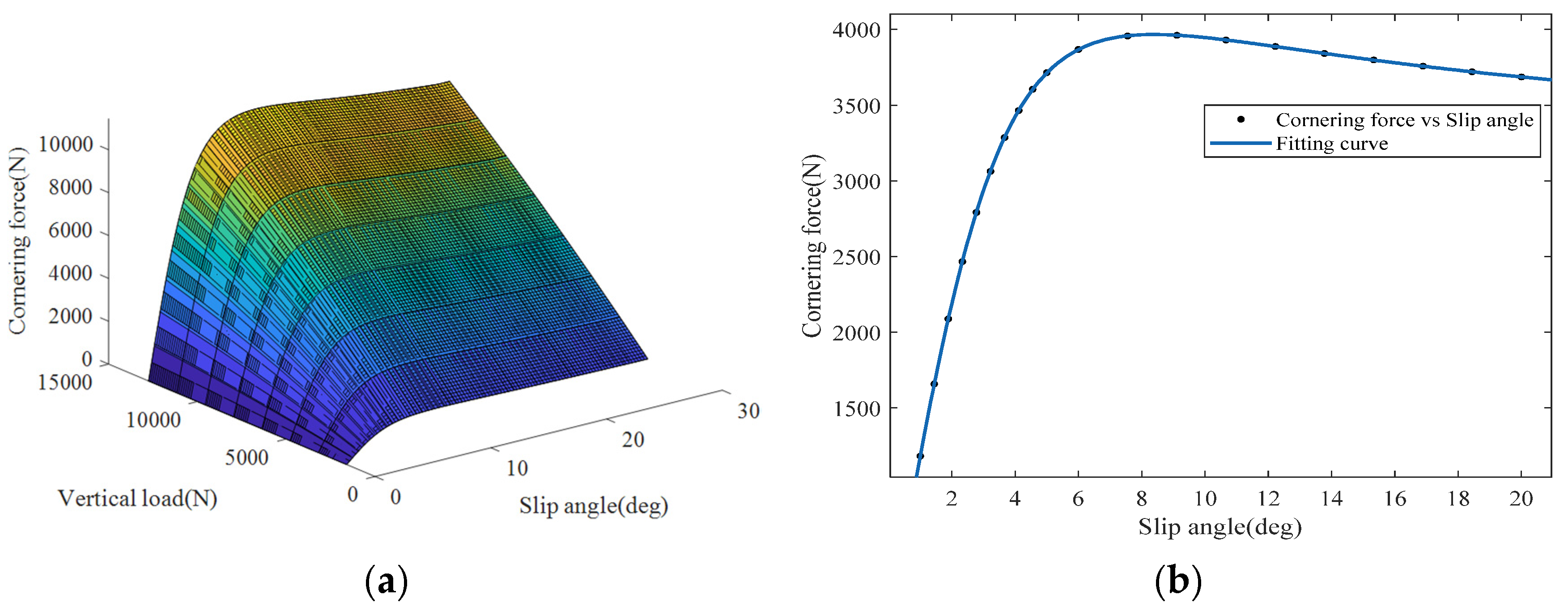

3.1. Calculation of Self-Aligning Torque

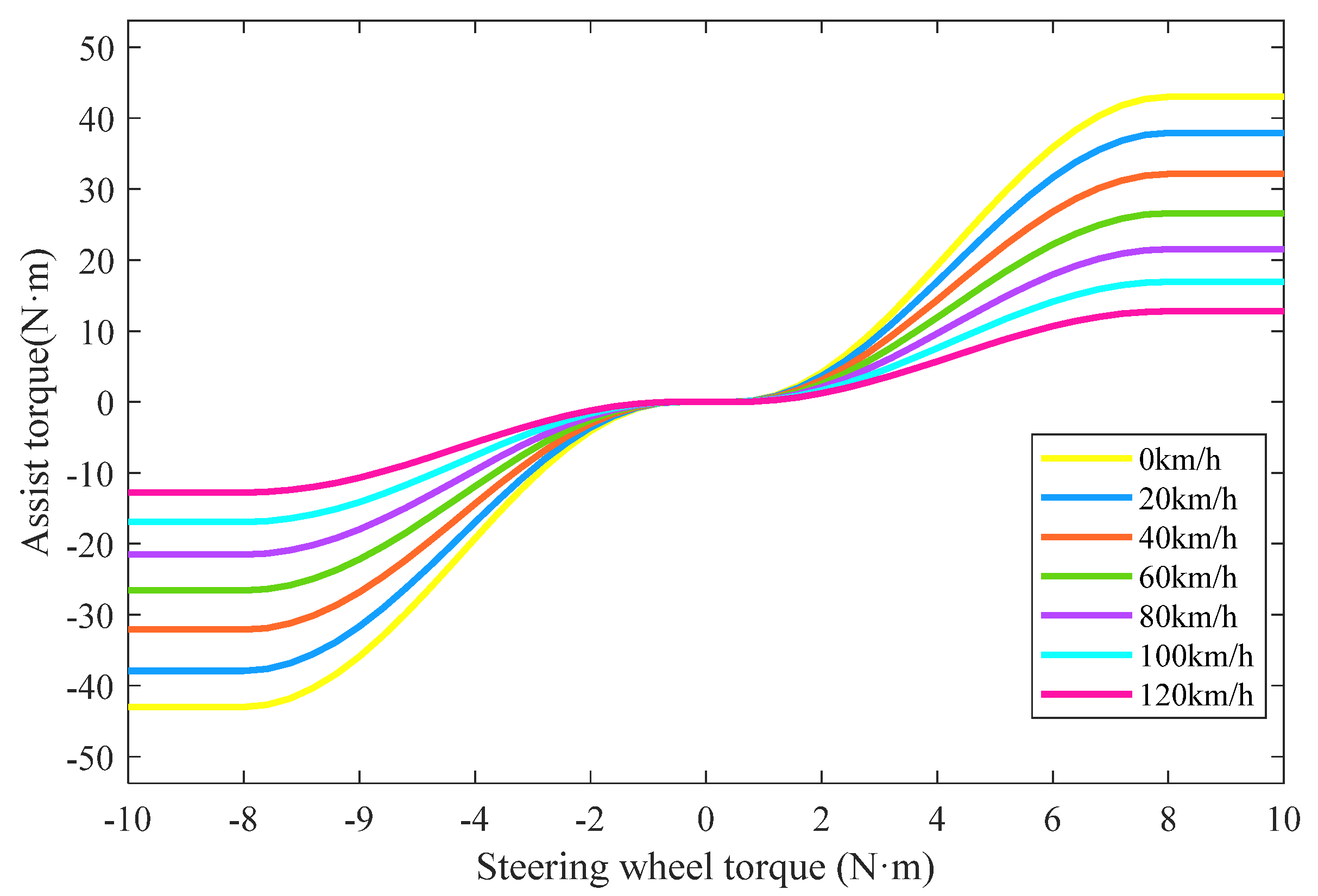

3.2. Assist Torque Design
3.3. Design of Damping and Friction Torque

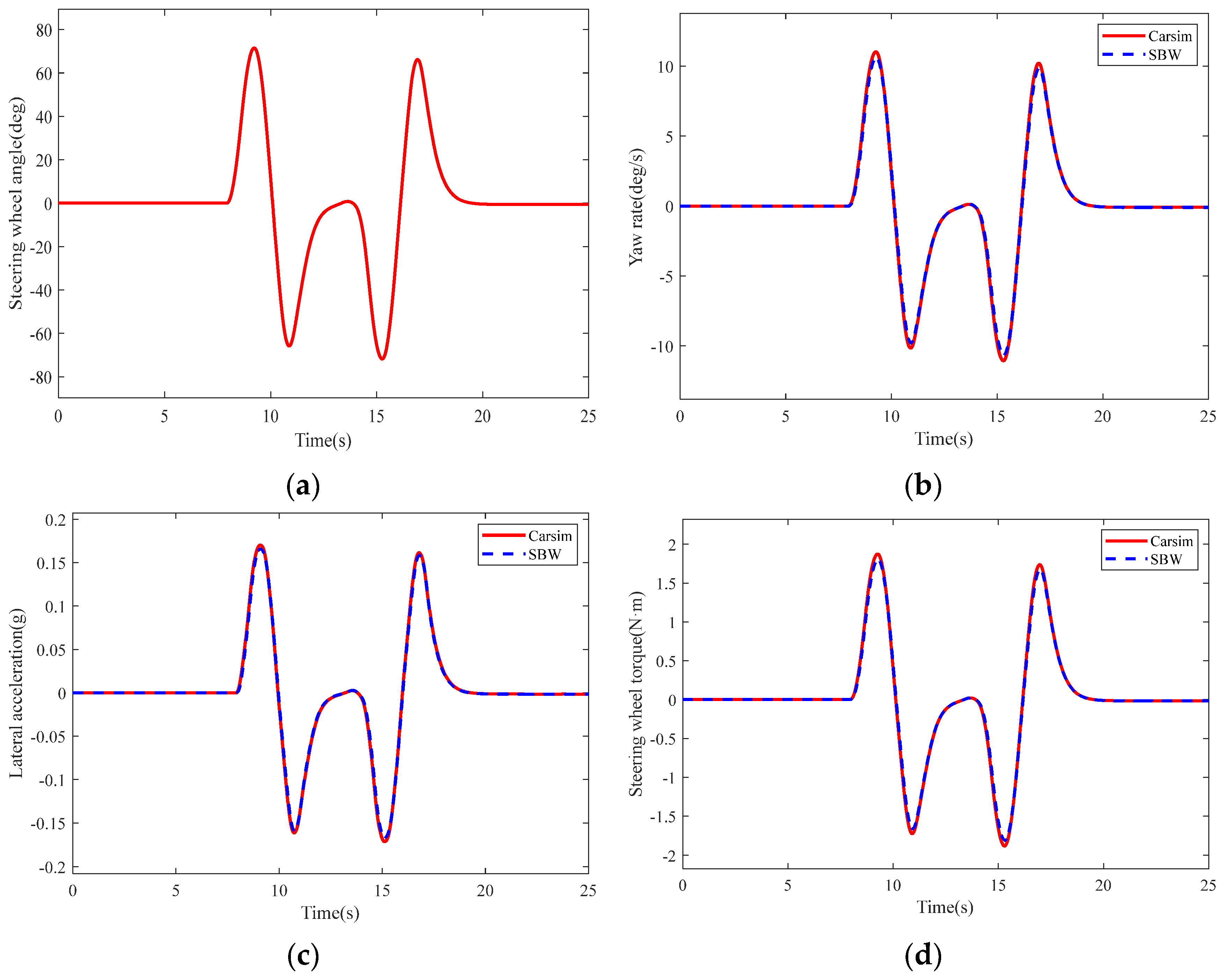

3.4. Simulation Tests
4. PID and SMC Strategy
4.1. PID Control Strategy

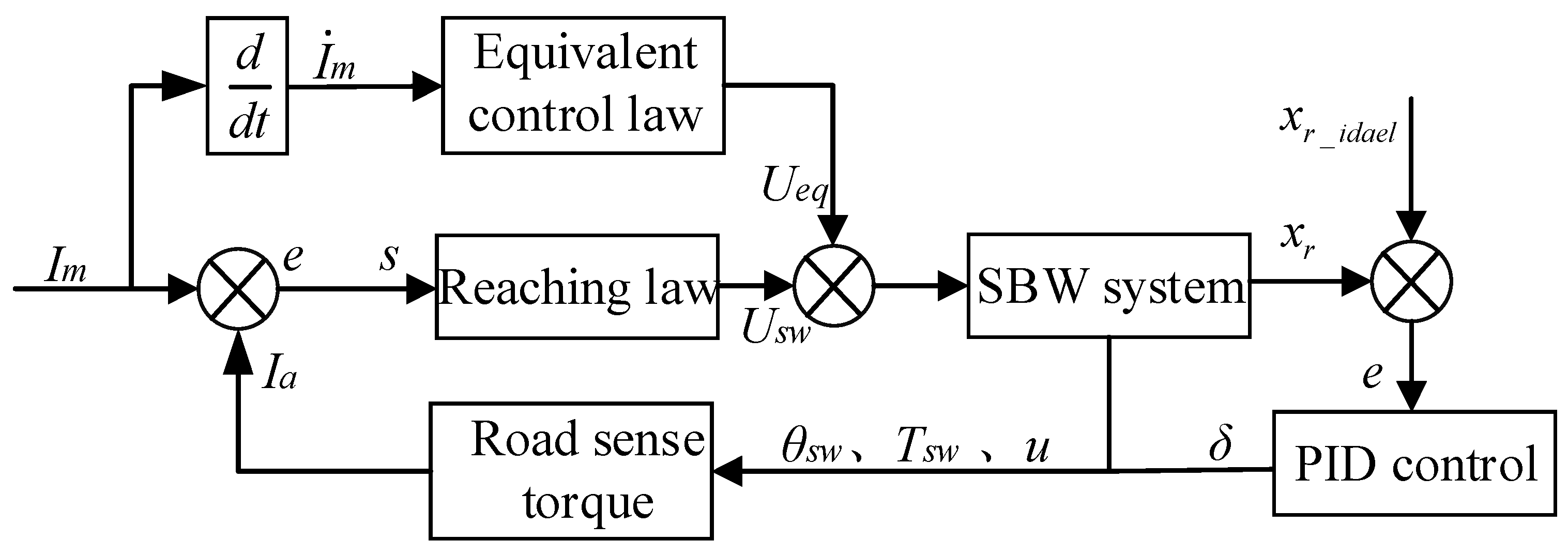

4.2. Design of Sliding Mode Controller
4.3. Closed-Loop Stability Analysis
5. Simulation Test

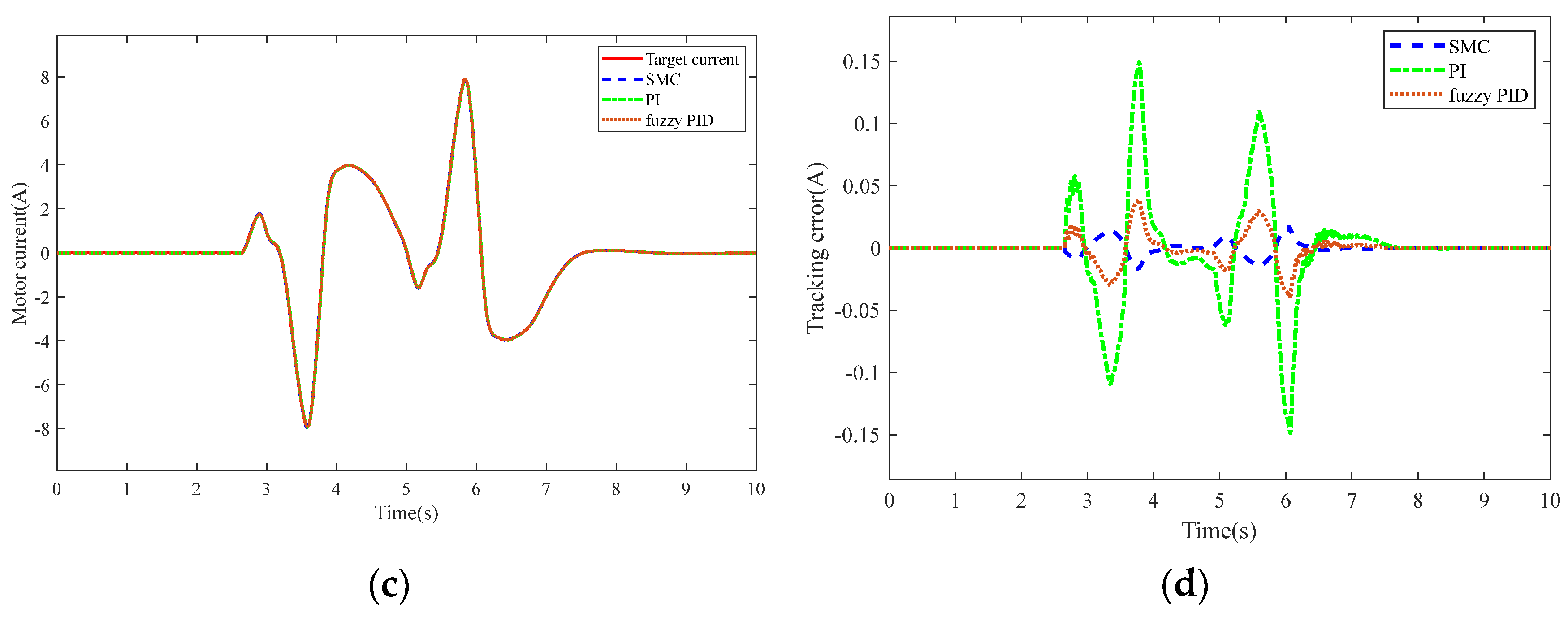

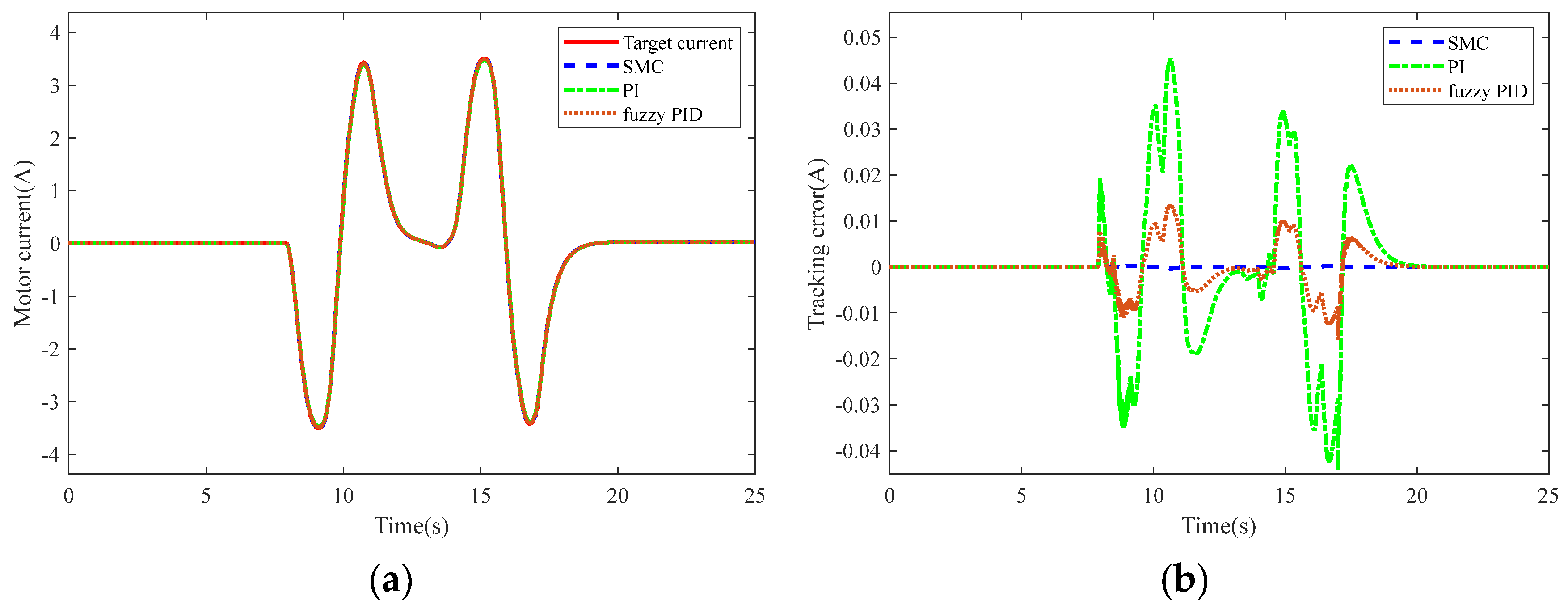

5.1. Double Lane Change Test Conditions

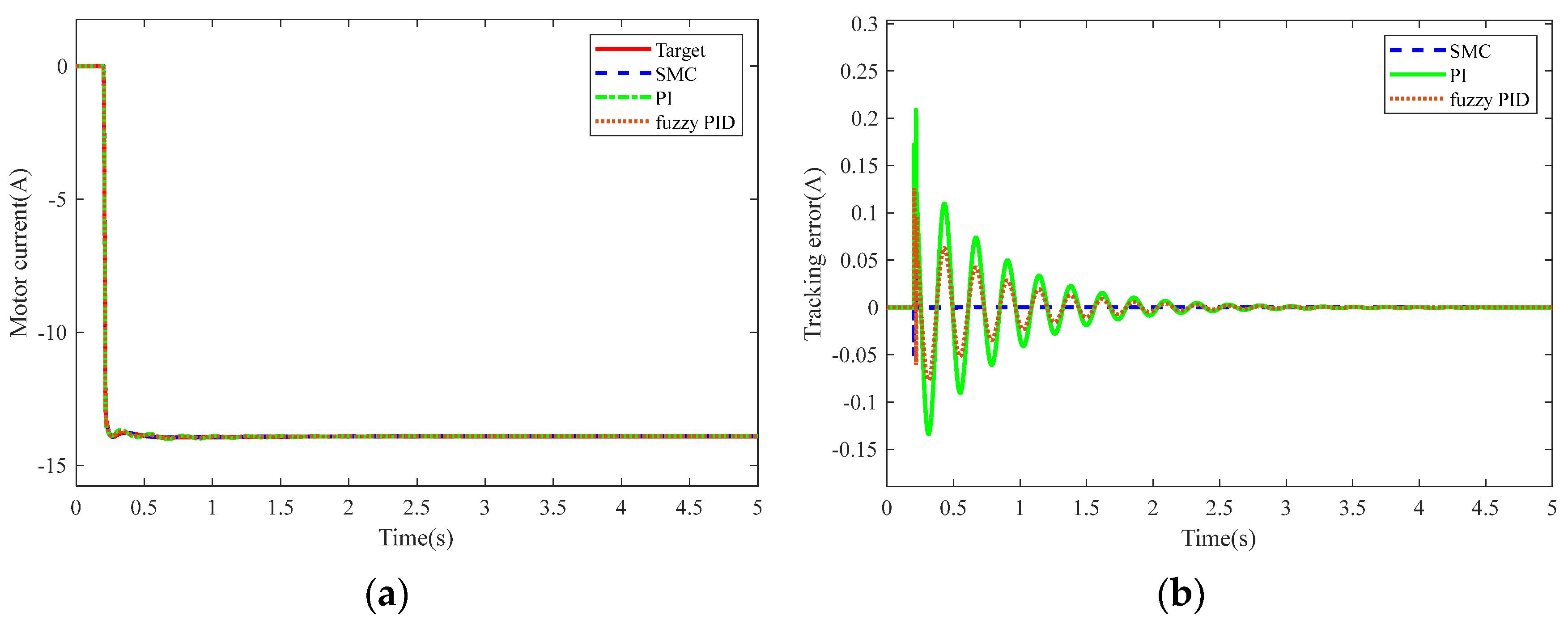

5.2. Step Test Conditions
6. Conclusions
- In the study of road sense simulation algorithms for steer-by-wire, the mainstream three methods include the use of sensors, the establishment of dynamics models, and parameter fitting. Compared with the other two methods, the road sense simulation algorithm proposed in this paper is built on the basis of a nonlinear two-degree-of-freedom vehicle model derived from the Magic Formula, with the addition of the return torque, damping torque, and friction torque, and the accuracy of the model is verified using the Carsim/Simulink co-simulation method. Post-validation, the algorithm enhances response and accelerates convergence, and the maximum steering wheel moment is slightly reduced, thus providing a robust basis for road-sensing simulations.
- This study mainly focuses on the current control strategy of the road-sensing analogue motor and utilizes the sliding mode control method to improve the tracking performance of the current. Through the joint simulation, the sliding mode control controller is compared with PI controller and fuzzy PID controller, and the simulation results show that the designed sliding mode control controller still has good tracking effect at different speeds and under different working conditions, and the overshoot is smaller than both, which can better satisfy the real-time control requirements of the line steering road-sensing simulation.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Mortazavizadeh, S.A.; Ghaderi, A.; Ebrahimi, M.; Hajian, M. Recent Developments in the Vehicle Steer-by-Wire System. IEEE Trans. Transp. Electrif. 2020, 6, 1226–1235. [Google Scholar] [CrossRef]
- Yang, A.X.; Zang, Y.H.; Xu, L.L.; Li, L.Y.; Tan, D.P. A Systematic Review and Future Development of Automotive Chassis Control Technology. Appl. Sci. 2023, 13, 11859. [Google Scholar] [CrossRef]
- Fankem, S.; Müller, S. A new model to compute the desired steering torque for steer-by-wire vehicles and driving simulators. Veh. Syst. Dyn. 2014, 52, 251–271. [Google Scholar] [CrossRef]
- Kirli, A.; Arslan, M.S. Online optimized hysteresis-based steering feel model for steer-by-wire systems. Adv. Mech. Eng. 2016, 8, 15. [Google Scholar] [CrossRef]
- Cheon, D.; Nam, K.; Oh, S. Design and Robust Control of a Precise Torque Controllable Steering Module for Steer-by-Wire Systems. IEEE Trans. Ind. Electron. 2022, 69, 13245–13254. [Google Scholar] [CrossRef]
- Zhang, H.; Wang, Y.Y.; Zhang, G.W.; Tang, C.H. Research on LADRC strategy of PMSM for road-sensing simulation based on differential evolution algorithm. J. Power Electron. 2020, 20, 958–970. [Google Scholar] [CrossRef]
- Gholami, A.; Majidi, M. Development of a neuromuscular driver model with an estimation of steering torque feedback in vehicle steer-by-wire systems. Proc. Inst. Mech Eng Pt K-J. Multi-Body Dyn. 2019, 233, 657–667. [Google Scholar] [CrossRef]
- Van Ende, K.T.R.; Schaare, D.; Kaste, J.; Küçükay, F.; Henze, R.; Kallmeyer, F.K. Practicability study on the suitability of artificial, neural networks for the approximation of unknown steering torques. Veh. Syst. Dyn. 2016, 54, 1362–1383. [Google Scholar] [CrossRef]
- Liang, X.T.; Zhao, L.F.; Wang, Q.D.; Chen, W.W.; Xia, G.; Hu, J.F.; Jiang, P.F. A novel steering-by-wire system with road sense adaptive friction compensation. Mech. Syst. Signal Proc. 2022, 169, 19. [Google Scholar] [CrossRef]
- Liang, W.H.; Zhao, W.Z.; Wang, C.Y.; Zou, S.C. Harmonic suppression and road feeling control of steer-by-wire system with permanent magnet synchronous motor. Mech. Syst. Signal Proc. 2022, 172, 19. [Google Scholar] [CrossRef]
- Yu, L.Y.; Hu, Z.H.; Cai, Y.P.; Hou, Z.Y.; Shi, Y.J.; Wu, B.G.; Tian, M.L. Road Feel Simulation Method with Rack Force Observer for Intelligent Vehicle Steer-by-Wire System. Int. J. Automot. Technol. 2024, 1–14, Early Access. [Google Scholar] [CrossRef]
- Aly, M.; Roman, M.; Rabie, M.; Shaaban, S. Observer-Based Optimal Position Control for Electrohydraulic Steer-by-Wire System Using Gray-Box System Identified Model. J. Dyn. Syst. Meas. Control-Trans. ASME 2017, 139, 9. [Google Scholar] [CrossRef]
- Sun, Z.; Zheng, J.C.; Man, Z.H.; Wang, H. Robust Control of a Vehicle Steer-by-Wire System Using Adaptive Sliding Mode. IEEE Trans. Ind. Electron. 2016, 63, 2251–2262. [Google Scholar] [CrossRef]
- Ye, M.; Wang, H. Robust adaptive integral terminal sliding mode control for steer-by-wire systems based on extreme learning machine. Comput. Electr. Eng. 2020, 86, 16. [Google Scholar] [CrossRef]
- Wang, H.; Xu, Z.M.; Do, M.T.; Zheng, J.C.; Cao, Z.W.; Xie, L.S. Neural-network-based robust control for steer-by-wire systems with uncertain dynamics. Neural Comput. Appl. 2015, 26, 1575–1586. [Google Scholar] [CrossRef]
- Wang, H.; He, P.; Yu, M.; Liu, L.F.; Do, M.T.; Kong, H.F.; Man, Z.H. Adaptive neural network sliding mode control for steer-by-wire-based vehicle stability control. J. Intell. Fuzzy Syst. 2016, 31, 885–902. [Google Scholar] [CrossRef]
- Liu, Y.C.; Wang, X.Y.; Zhang, G.W.; Yuan, Q.; Chen, Z.T.; Li, L. Road Sense Construction for Steer-by-Wire System: Data-Driven Feedback Torque Design and Friction Compensated Explicit Model Predictive Control. IEEE Trans. Transp. Electrif. 2024, 10, 9918–9930. [Google Scholar] [CrossRef]
- Chen, Y. Research on force Feedback Control. Master’s Thesis, Harbin Institute of Technology, Harbin, China, May 2010. [Google Scholar]
- Hang, P.; Chen, X.B.; Fang, S.D.; Luo, F.M. Robust control for four-wheel-independent-steering electric vehicle with steer-by-wire system. Int. J. Automot. Technol. 2017, 18, 785–797. [Google Scholar] [CrossRef]
- Lee, J.; Yi, K.; Lee, D.; Jang, B.; Kim, M.; Hwang, S. Haptic control of steer-by-wire systems for tracking of target steering feedback torque. Proc. Inst. Mech. Eng. Part D-J. Automob. Eng. 2020, 234, 1389–1401. [Google Scholar] [CrossRef]
- Lee, S.; Lee, Y.; Jeong, H.; Lee, M. A Study on the Steering Force Feedback Control of the Steer by Wire System Using HiLS. Trans. KSAE 2021, 29, 49–56. [Google Scholar] [CrossRef]
- Su, C.R.; Li, H.H.; Qiao, B.J.; Wu, X.D. Personalized Steering Feel Design for Steer-by-Wire Systems Based on the Rack Force Estimation. Int. J. Automot. Technol. 2023, 24, 1151–1161. [Google Scholar] [CrossRef]
- Zhang, Q.Y.; Lin, W.P.; Wang, Y.R.; Wu, X.J.; Luo, Y.J. Control Strategy of the Vehicle’s Active Steer by Wire. J. Coast. Res. 2020, 103, 355–360. [Google Scholar] [CrossRef]
- Woo, S.; Heo, C.; Jeong, M.O.; Lee, J.M. Integral Analysis of a Vehicle and Electric Power Steering Logic for Improving Steering Feel Performance. Appl. Sci. 2023, 13, 11598. [Google Scholar] [CrossRef]
- Kim, K.; Lee, J.; Kim, M.; Yi, K. Adaptive Sliding Mode Control of Rack Position Tracking System for Steer-by-Wire Vehicles. IEEE Access 2020, 8, 163483–163500. [Google Scholar] [CrossRef]
- Alagappan, A.V.; Rao, K.V.N.; Kumar, R.K. A comparison of various algorithms to extract Magic Formula tyre model coefficients for vehicle dynamics simulations. Veh. Syst. Dyn. 2015, 53, 154–178. [Google Scholar] [CrossRef]
- Zhao, X.P.; Li, X.; Chen, J.; Men, J.L. Parametric design and application of steering characteristic curve in control for electric power steering. Mechatronics 2009, 19, 905–911. [Google Scholar] [CrossRef]
- Yang, H.H.; Liu, W.T.; Chen, L.; Yu, F. An adaptive hierarchical control approach of vehicle handling stability improvement based on Steer-by-Wire Systems. Mechatronics 2021, 77, 11. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, H.; Zheng, J.C.; Cao, Z.W.; Man, Z.H.; Yu, M.; Chen, L. Adaptive Sliding Mode-Based Lateral Stability Control of Steer-by-Wire Vehicles With Experimental Validations. IEEE Trans. Veh. Technol. 2020, 69, 9589–9600. [Google Scholar] [CrossRef]
Symbol | Value | Unit |
---|---|---|
m | 1270 | kg |
Iz | 1536.7 | kg·m2 |
k1 | −58,058.06 | N/rad |
k2 | −31,092.4 | N/rad |
a | 1.015 | m |
b | 1.895 | m |
Name | Front Axle Tire | Rear Axle Tire | Self-Aligning Torque |
---|---|---|---|
SSE | 42.233 | 13.001 | 1.9903 |
R-square | 0.9999 | 0.9999 | 0.99984 |
Adjusted R-square | 0.9999 | 0.9999 | 0.99986 |
RMSE | 1.6266 | 0.90142 | 0.3527 |

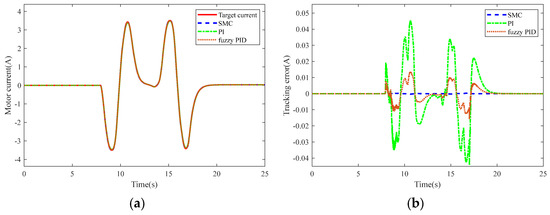

Name | SMC | PI | Fuzzy PID |
---|---|---|---|
Maximum current (A) | 3.5 | 3.478 | 3.496 |
Maximum error (A) | 0.0003 | 0.0453 | 0.0135 |
Maximum deviation (%) | 0.09 | 1.294 | 0.38 |

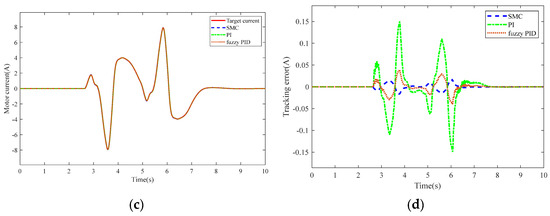

Name | SMC | PI | Fuzzy PID |
---|---|---|---|
Maximum current (A) | 7.8747 | 7.508 | 7.891 |
Maximum error (A) | 0.0168 | 0.152 | 0.038 |
Maximum deviation (%) | 0.21 | 1.9 | 0.49 |

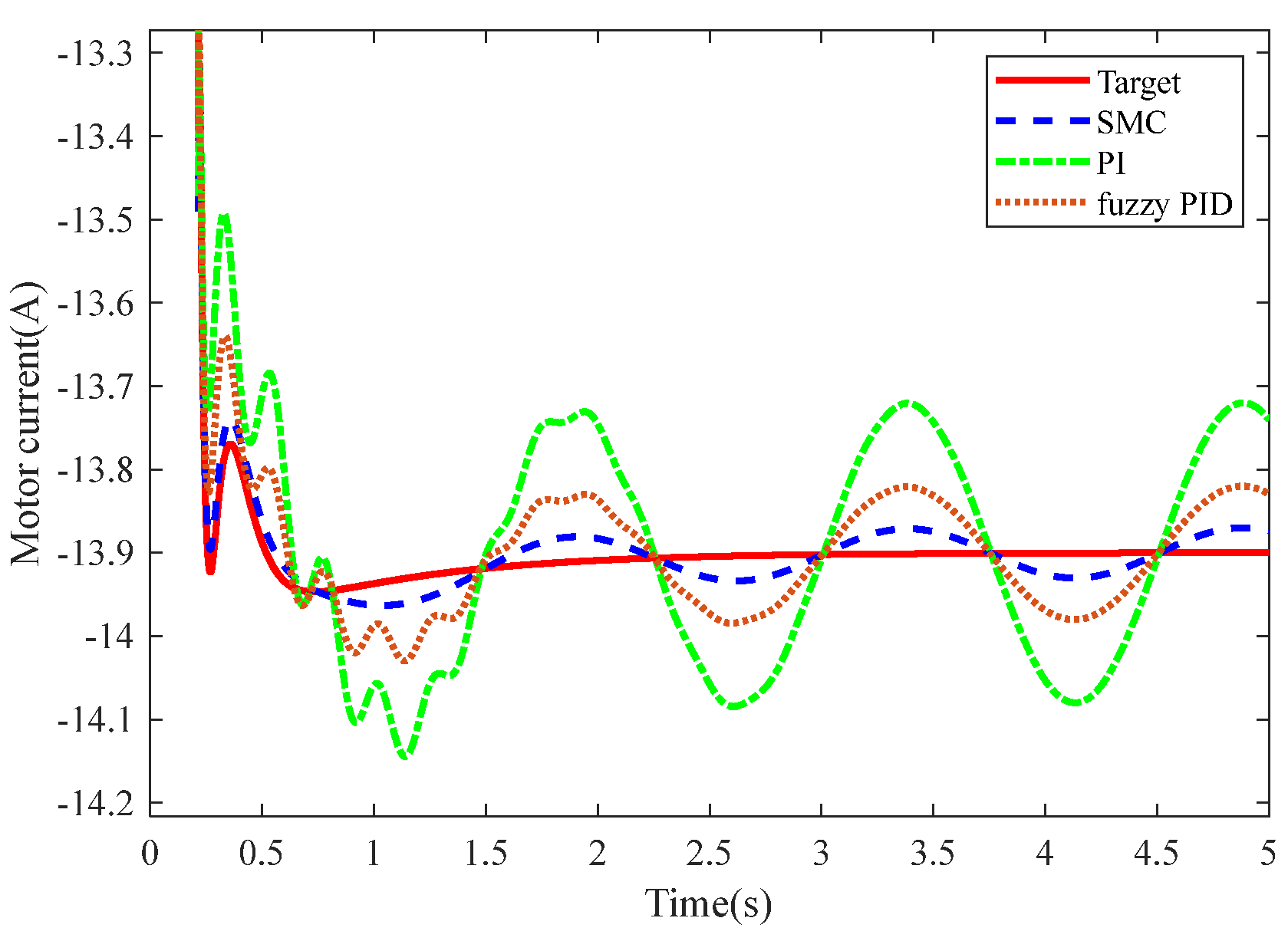

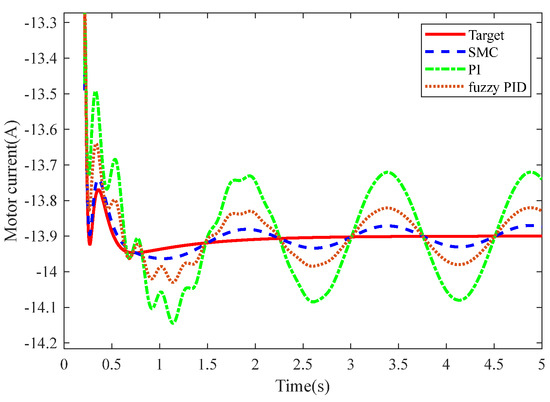

Name | SMC | PI | Fuzzy PID |
---|---|---|---|
Rising time (s) | 0.017 | 0.0175 | 0.037 |
Overshoot (%) | 0.789 | 1.512 | 0.92 |
Steady value | −13.9 | −13.9 | −13.9 |
