# Efficiency Maps of Shifted Inductances Axes Permanent Magnet Synchronous Motors

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Shifted Inductances Axes Permanent Magnet Synchronous Motors (SIAPMSMs)

#### 2.1. SIAPMSM Machines Principle

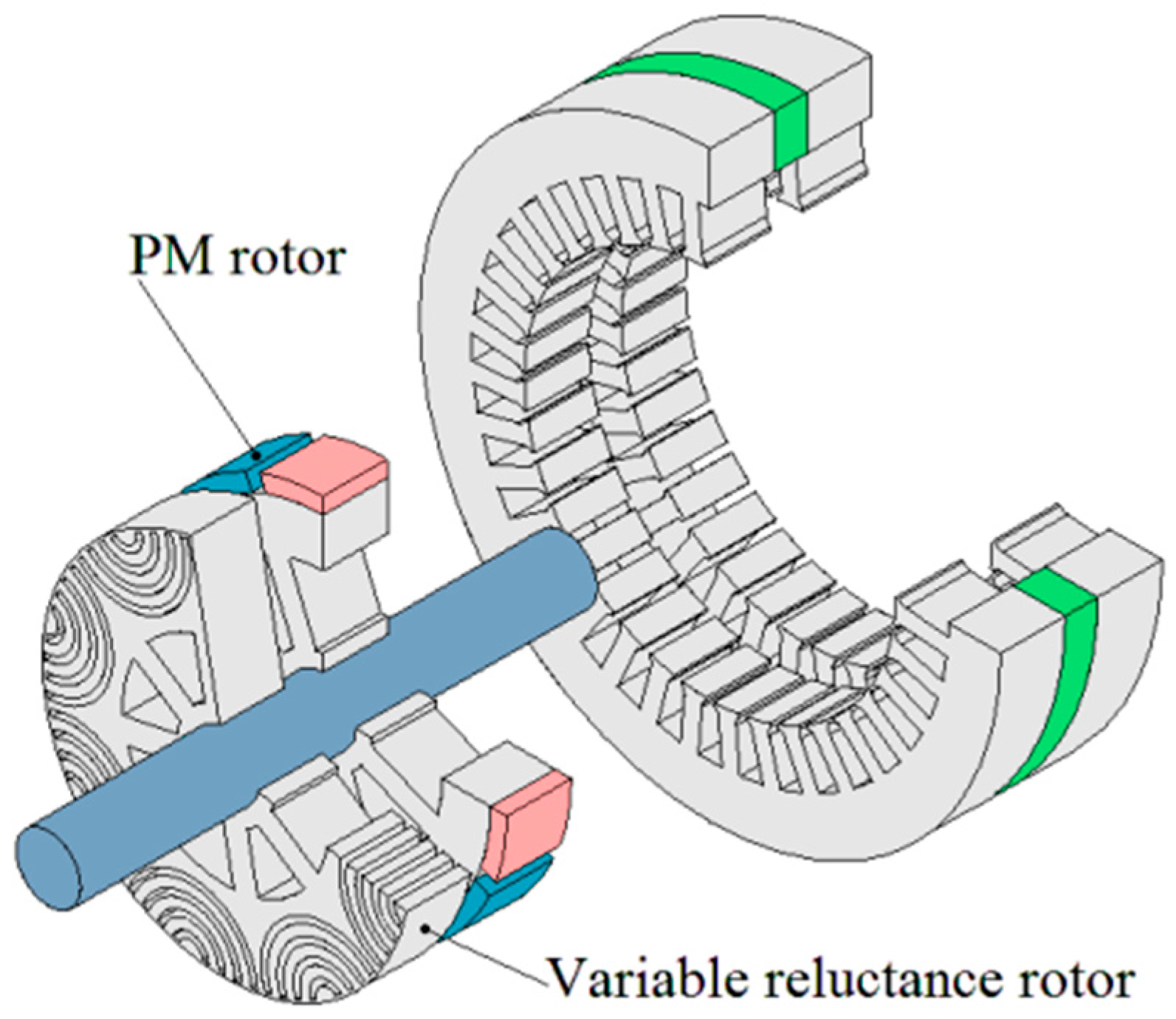

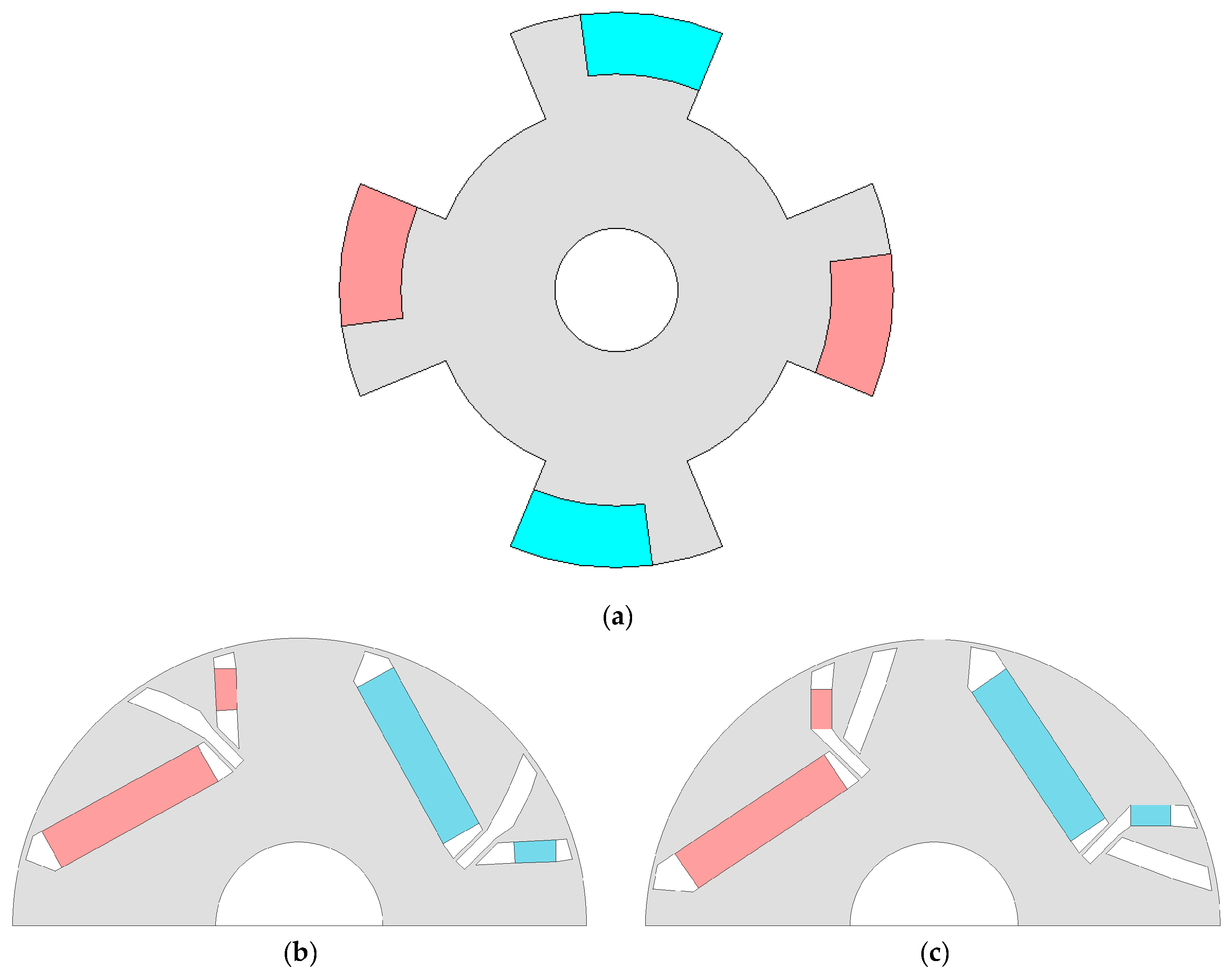

#### 2.2. SIAPMSM Structures

## 3. Modeling of SIAPMSMs

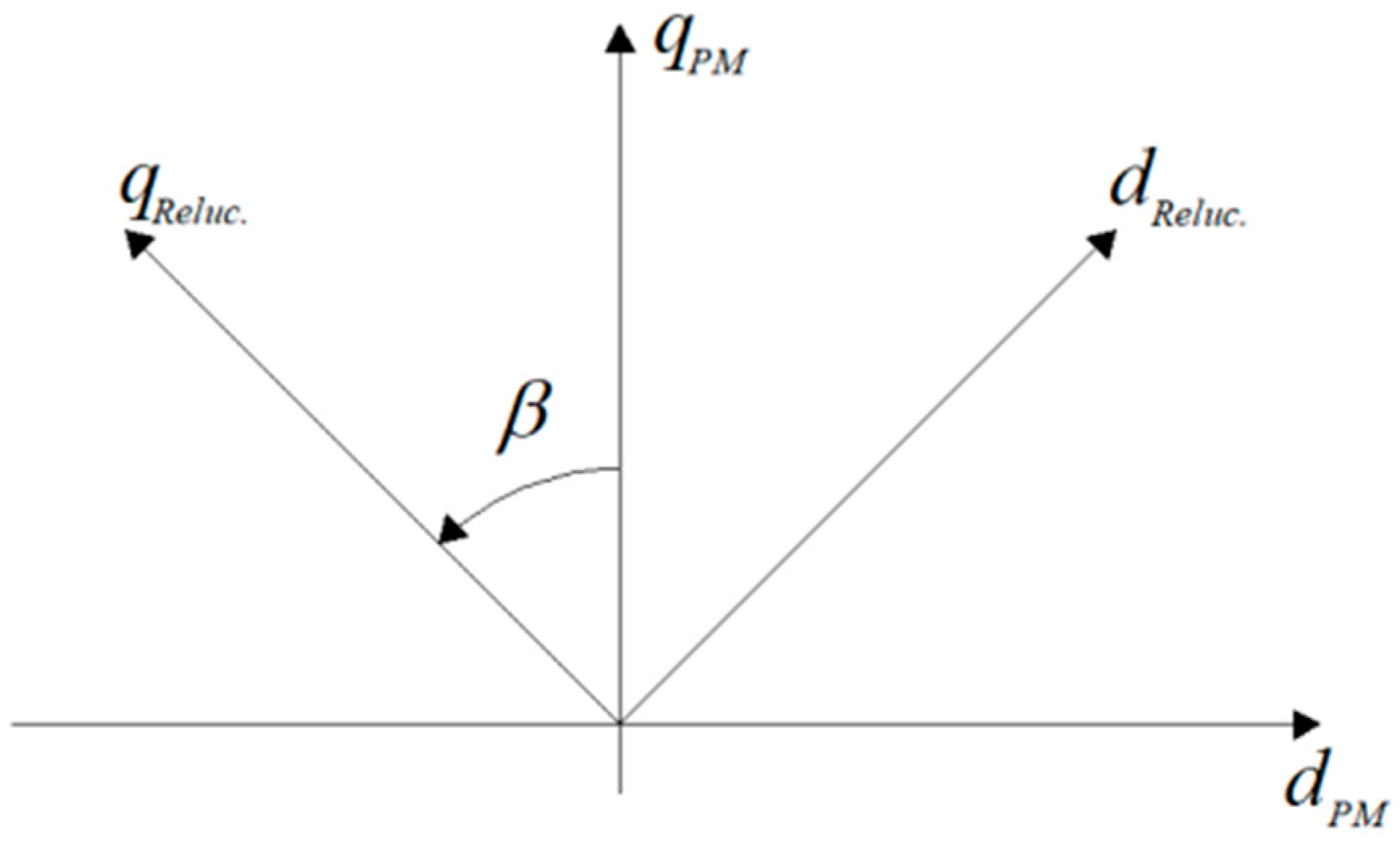

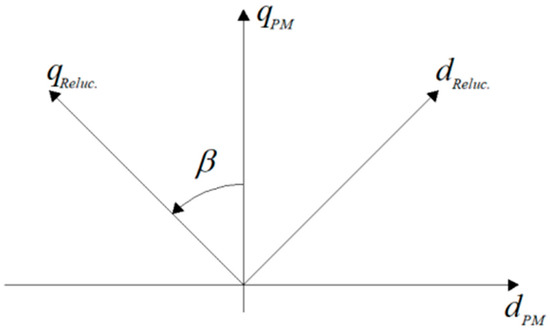

#### 3.1. Decomposition into Two Machines

#### 3.2. Lossless Model

- Symbols ${i}_{d},{i}_{q}$: d and q axes components of armature current;
- Symbols ${v}_{d},{v}_{q}$: d and q axes components of terminal voltage;
- Symbols ${\Phi}_{d},{\Phi}_{q}$: d and q axes components of magnetic flux.

#### 3.2.1. Representation in the ${(d}_{PM},{q}_{PM})$ Referential Frame

#### 3.2.2. Representation in the ${(d}_{Reluc.},{q}_{Reluc.})$ Referential Frame

#### 3.3. Model including the Electromagnetic Losses

- Symbols ${i}_{fd},{i}_{fq}$: d and q axes components of iron loss current;
- Symbols ${R}_{a}$: armature winding resistance per phase;
- Symbols ${R}_{f}$: iron loss resistance.

#### 3.3.1. Representation in the ${(d}_{PM},{q}_{PM})$ Referential Frame

#### 3.3.2. Representation in the ${(d}_{Reluc.},{q}_{Reluc.})$ Referential Frame

#### 3.4. Per-Unit System

## 4. Efficiency Maps of SIAPMSMs

#### 4.1. Presentation of Developed Tool

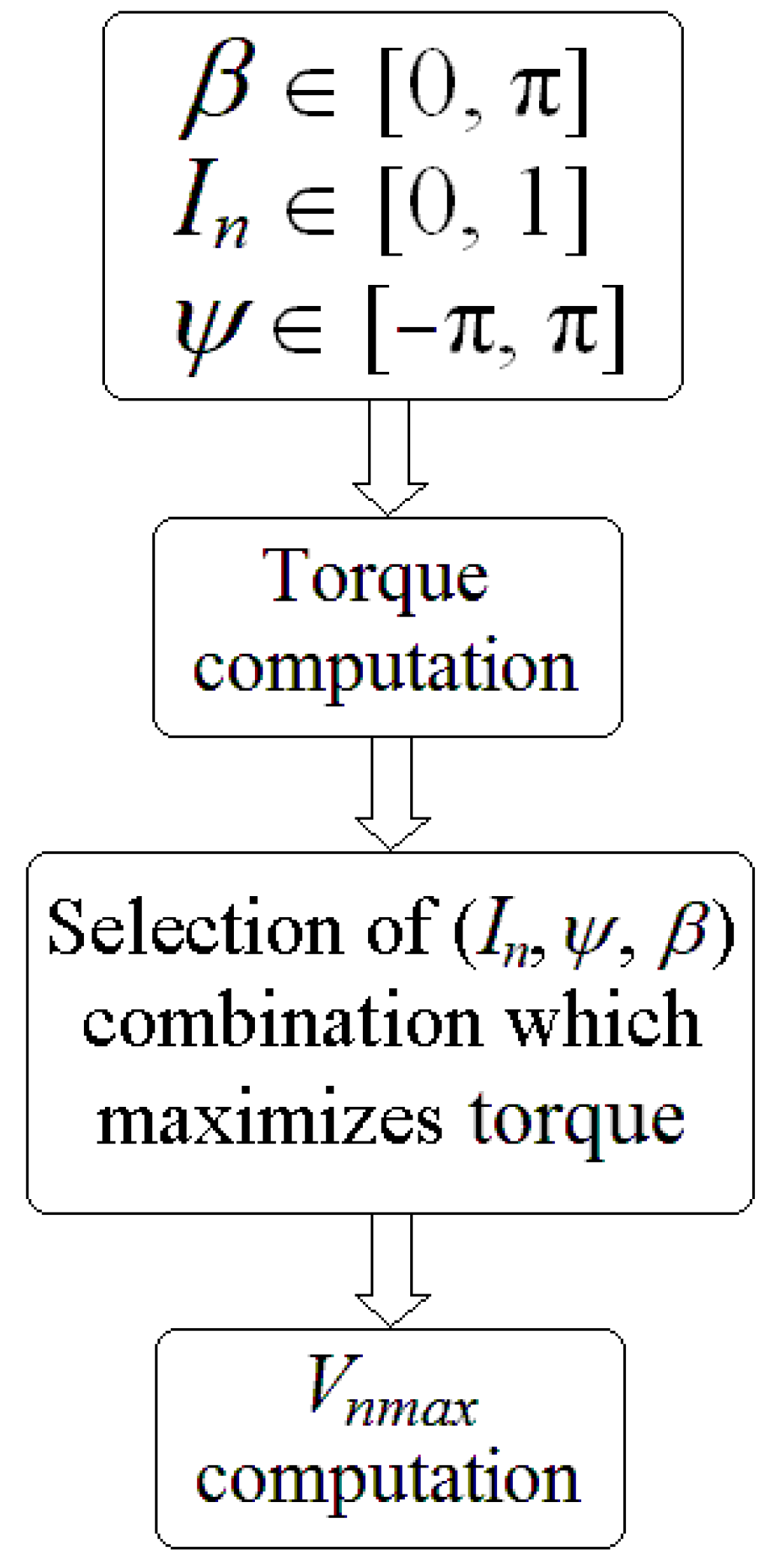

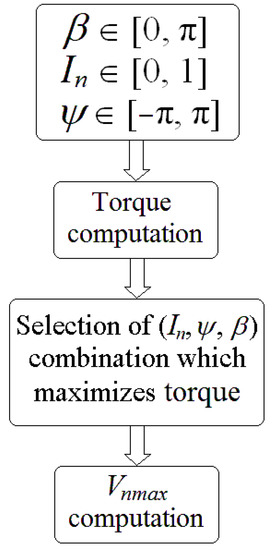

Algorithm 1. MATLAB script for the determination of ${V}_{nmax}$. | |||

$\mathbf{S}\mathbf{t}\mathbf{a}\mathbf{r}\mathbf{t}$ | |||

$\mathrm{V}\mathrm{a}\mathrm{l}\mathrm{u}\mathrm{e}\mathrm{s}\text{}\mathrm{o}\mathrm{f}\text{}{L}_{dn},\rho ,{R}_{an}\text{}\mathrm{a}\mathrm{n}\mathrm{d}\text{}{R}_{fn}\text{}\mathrm{s}\mathrm{h}\mathrm{o}\mathrm{u}\mathrm{l}\mathrm{d}\text{}\mathrm{h}\mathrm{a}\mathrm{v}\mathrm{e}\text{}\mathrm{b}\mathrm{e}\mathrm{e}\mathrm{n}\text{}\mathrm{d}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{n}\mathrm{e}\mathrm{d};$ | |||

${I}_{n}=[0:\u2206{I}_{n}:1];$ | |||

$\psi =[-\pi :\u2206\psi :\pi ];$ | |||

$\beta =[0:\u2206\beta :\pi ];$ | |||

$For\text{}i=1:length\left({I}_{n}\right);$ | |||

$For\text{}j=1:length\left(\psi \right)$ | |||

$For\text{}k=1:length\left(\beta \right)$ | |||

${\Gamma}_{n}^{\prime}\left(k\right)=h\left({I}_{n}\left(i\right),\psi \left(j\right),\beta \left(k\right)\right);\left[\mathrm{s}\mathrm{e}\mathrm{e}\text{}\mathrm{E}\mathrm{q}\mathrm{u}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\text{}\left(36\right)\right]$ | |||

$End$ | |||

$\left[Y1\left(j\right),X1\left(j\right)\right]=max\left({\Gamma}_{n}^{\prime}\right);$ | |||

${\Gamma}_{n1}^{\prime}\left(j\right)={\Gamma}_{n}^{\prime}\left(X1\left(j\right)\right);$ | |||

${\beta}_{1}\left(j\right)=\beta \left(X1\left(j\right)\right);$ | |||

$End$ | |||

$\left[Y2\left(i\right),X2\left(i\right)\right]=max\left({\Gamma}_{n1}^{\prime}\right);$ | |||

${\Gamma}_{n2}^{\prime}\left(i\right)={\Gamma}_{n1}^{\prime}\left(X2\left(i\right)\right);$ | |||

${\beta}_{2}\left(i\right)={\beta}_{1}\left(X2\left(i\right)\right);$ | |||

${\psi}_{1}\left(i\right)=\psi \left(X2\left(i\right)\right);$ | |||

$End$ | |||

$\left[Y3,X3\right]=max\left({\Gamma}_{n2}^{\prime}\right);$ | |||

${I}_{nOpt}={I}_{n}\left(X3\right);$ | |||

${\psi}_{Opt}={\psi}_{1}\left(X3\right);$ | |||

${\beta}_{Opt}={\beta}_{2}\left(X3\right);$ | |||

${V}_{nmaxd}=f\left({I}_{nOpt},{\psi}_{Opt},{\beta}_{Opt}\right);\left[\mathrm{s}\mathrm{e}\mathrm{e}\text{}\mathrm{E}\mathrm{q}\mathrm{u}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\text{}\left(17\right)\right]$ | |||

${V}_{nmaxq}=g({I}_{nOpt},{\psi}_{Opt},{\beta}_{Opt});[\mathrm{s}\mathrm{e}\mathrm{e}\text{}\mathrm{E}\mathrm{q}\mathrm{u}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\text{}(17)]$ | |||

${V}_{nmax}=\mathrm{s}\mathrm{q}\mathrm{r}\mathrm{t}({V}_{nmaxd}^2+{V}_{nmaxq}^2);$ | |||

$\mathbf{E}\mathbf{n}\mathbf{d}$ |

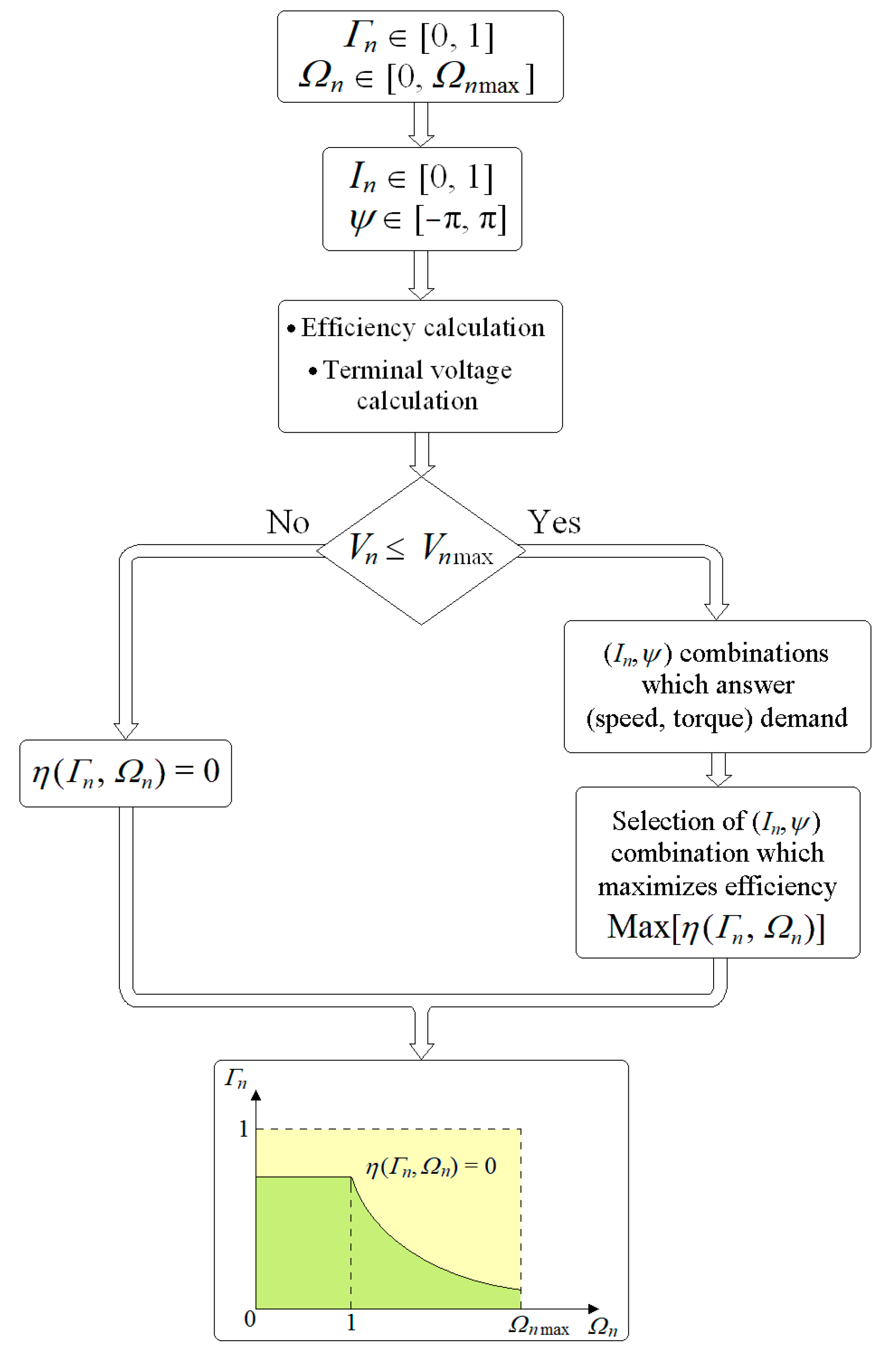

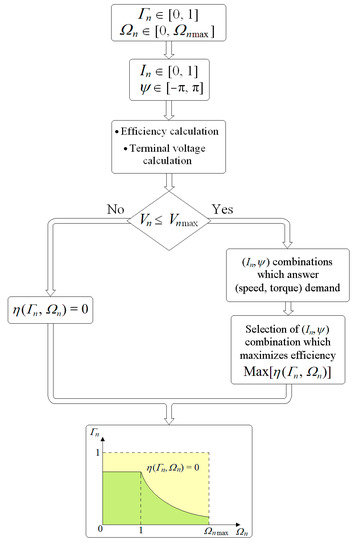

#### 4.2. Validation of Developed Tool

#### 4.2.1. Validation of Developed Tool for the Lossless Case

#### 4.2.2. Validation of Developed Tool for the Case including the Electromagnetic Losses

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

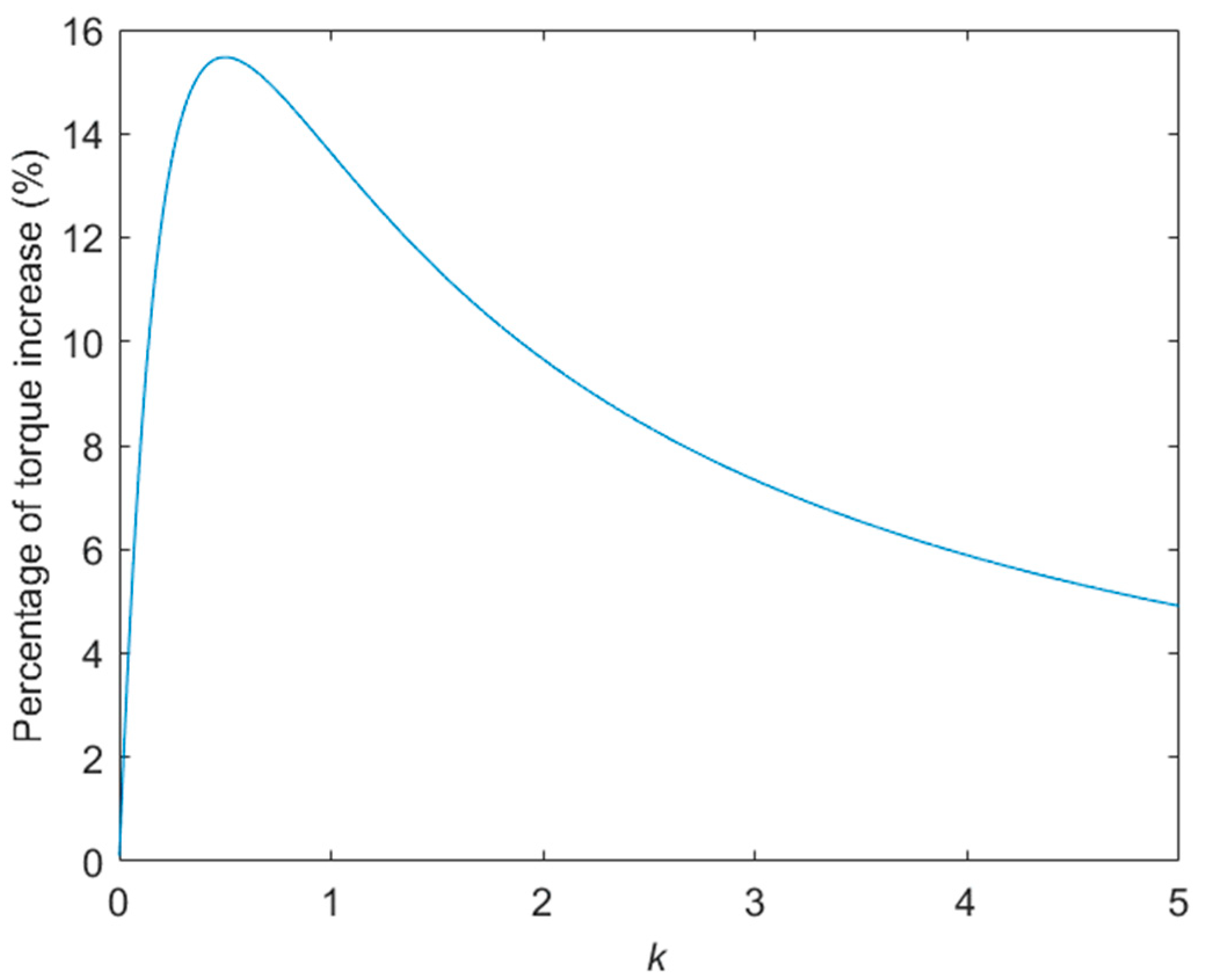

## Appendix A

## References

- Gieras, J.F. Permanent Magnet Motor Technology: Design and Applications, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2010. [Google Scholar]
- Boldea, I.; Tutelea, L.N.; Parsa, L.; Dorrell, D. Automotive electric propulsion systems with reduced or no permanent magnets: An overview. IEEE Trans. Ind. Electron.
**2014**, 61, 5696–5711. [Google Scholar] [CrossRef] - Amara, Y.; Hlioui, S.; Ben Ahmed, H.; Gabsi, G. Power capability of hybrid excited synchronous motors in variable speed drives applications. IEEE Trans. Magn.
**2019**, 55, 1–12. [Google Scholar] [CrossRef] - Zhao, W.; Lipo, T.A.; Kwon, B.-I. Optimal design of a novel asymmetrical rotor structure to obtain torque and efficiency improvement in surface inset PM motors. IEEE Trans. Magn.
**2015**, 51, 8100704. [Google Scholar] - Zhao, W.; Chen, D.; Lipo, T.A.; Kwon, B.-I. Performance improvement of ferrite-assisted synchronous reluctance machines using asymmetrical rotor configurations. IEEE Trans. Magn.
**2015**, 51, 8108504. [Google Scholar] [CrossRef] - Yang, H.; Li, Y.; Lin, H.; Zhu, Z.Q.; Lyu, S.; Wang, H.; Fang, S.; Huang, Y. Novel reluctance axis shifted machines with hybrid rotors. In Proceedings of the 2017 IEEE Energy Conversion Congress and Exposition (ECCE), Cincinnati, OH, USA, 1–5 October 2017. [Google Scholar]
- Takahashi, T.; Miyama, Y.; Nakano, M.; Yamane, K. Permanent Magnet Rotating Electric Machine. Japan PCT Patent Appl. WO 2019/064801 A1, 4 April 2019. [Google Scholar]
- Zhu, Z.Q.; Xiao, Y. Novel magnetic-field-shifting techniques in asymmetric rotor pole interior PM machines with enhanced torque density. IEEE Trans. Magn.
**2022**, 58, 8100610. [Google Scholar] [CrossRef] - Diab, H.; Asfirane, S.; Amara, Y. Power Capability of Shifted Inductances Axes Permanent Magnet Machines. In Proceedings of the 2022 Joint MMM-Intermag Conference INTERMAG, New Orleans, LA, USA, 10–14 January 2022. [Google Scholar]
- Schiferl, R.F.; Lipo, T.A. Power capability of salient pole permanent magnet synchronous motors in variable speed drive applications. IEEE Trans. Ind. Appl.
**1990**, 26, 115–123. [Google Scholar] [CrossRef] - Morimoto, S.; Takeda, Y.; Hirasa, T.; Taniguchi, K. Expansion of operating limits for permanent magnet motor by current vector control considering inverter capacity. IEEE Trans. Ind. Appl.
**1990**, 26, 866–871. [Google Scholar] [CrossRef] - Soong, W.L.; Miller, T.J.E. Field-weakening performance of brushless synchronous AC motor drives. IEE Proc. Electr. Power Appl.
**1994**, 141, 331–340. [Google Scholar] [CrossRef] - Amara, Y.; Hlioui, S.; Ben Ahmed, H.; Gabsi, M. Pre-optimization of hybridization ratio in hybrid excitation synchronous machines using electrical circuits modelling. Math. Comput. Simul.
**2021**, 184, 118–136. [Google Scholar] [CrossRef] - Diab, H.; Asfirane, S.; Amara, Y.; Ben Ahmed, H.; Gabsi, M. Efficiency maps of synchronous machines based on electrical circuits modelling. In Proceedings of the Electrimacs 2022, Nancy, France, 16–19 May 2022. [Google Scholar]
- Amara, Y.; Ben Ahmed, H.; Gabsi, M. Hybrid Excited Synchronous Machines: Topologies, Design and Analysis; Wiley-ISTE: London, UK, 2023. [Google Scholar]
- Xie, Y.; Shao, J.; He, S.; Ye, B.; Yang, F.; Wang, L. Novel PM-Assisted Synchronous Reluctance Machines Using Asymmetrical Rotor Configuration. IEEE Access
**2022**, 10, 79564–79573. [Google Scholar] [CrossRef] - Gosden, D.F.; Chalmers, B.J.; Musaba, L. Drive system design for an electric vehicle based on alternative motor types. In Proceedings of the 1994 Fifth International Conference on Power Electronics and Variable-Speed Drives, London, UK, 26–28 October 1994. [Google Scholar]
- Chalmers, B.J.; Akmese, R.; Musaba, L. PM reluctance motor with two-part rotor. In Proceedings of the IEE Colloquium on New Topologies for Permanent Magnet Machines (Digest No: 1997/090), London, UK, 18 June 1997. [Google Scholar]
- Chalmers, B.J.; Akmese, R.; Musaba, L. Design and field-weakening performance of permanent-magnet/reluctance motor with two-part rotor. IEE Proc. Electr. Power Appl.
**1998**, 145, 133–139. [Google Scholar] [CrossRef] - Bianchi, N.; Bolognani, S.; Chalmers, B.J. Salient-rotor PM synchronous motors for an extended flux-weakening operation range. IEEE Trans. Ind. Appl.
**2000**, 36, 1118–1125. [Google Scholar] [CrossRef] - Geng, W.; Zhang, Z.; Jiang, K.; Yan, Y. A new parallel hybrid excitation machine: Permanent-magnet/variable-reluctance machine with bidirectional field-regulating capability. IEEE Trans. Ind. Electron.
**2015**, 62, 1372–1381. [Google Scholar] [CrossRef] - Wang, Y.; Deng, Z.; Wang, X. A Parallel hybrid excitation flux-switching generator DC power system based on direct torque linear control. IEEE Trans. Energy Convers.
**2012**, 27, 308–317. [Google Scholar] [CrossRef] - Fernandez-Bernal, F.; Garcia-Cerrada, A.; Faure, R. Determination of parameters in interior permanent-magnet synchronous motors with iron losses without torque measurement. IEEE Trans. Ind. Appl.
**2001**, 37, 1265–1272. [Google Scholar] [CrossRef] - Morimoto, S.; Tong, Y.; Takeda, Y.; Hirasa, T. Loss minimization control of permanent magnet synchronous motor drives. IEEE Trans. Ind. Electron.
**1994**, 41, 511–517. [Google Scholar] [CrossRef] - Amara, Y.; Vido, L.; Gabsi, M.; Haong, E.; Ben Ahmed, A.H.; Lécrivain, M. Hybrid excitation synchronous machines: Energy-efficient solution for vehicles propulsion. IEEE Trans. Veh. Technol.
**2009**, 58, 2137–2149. [Google Scholar] [CrossRef] - Soulard, J.; Multon, B. Maximum power limits of small single-phase permanent magnet drives. IEE Proc.-Electr. Power Appl.
**1999**, 146, 457–462. [Google Scholar] [CrossRef] - New Generalized MATLAB Scripts Allowing for the Estimation of the Efficiency Maps for Synchronous Machines. Available online: https://1drv.ms/u/s!Ajoijjw3xSEGgQ5X5oEwhTCM9VXQ?e=zRUYP2 (accessed on 28 April 2023).

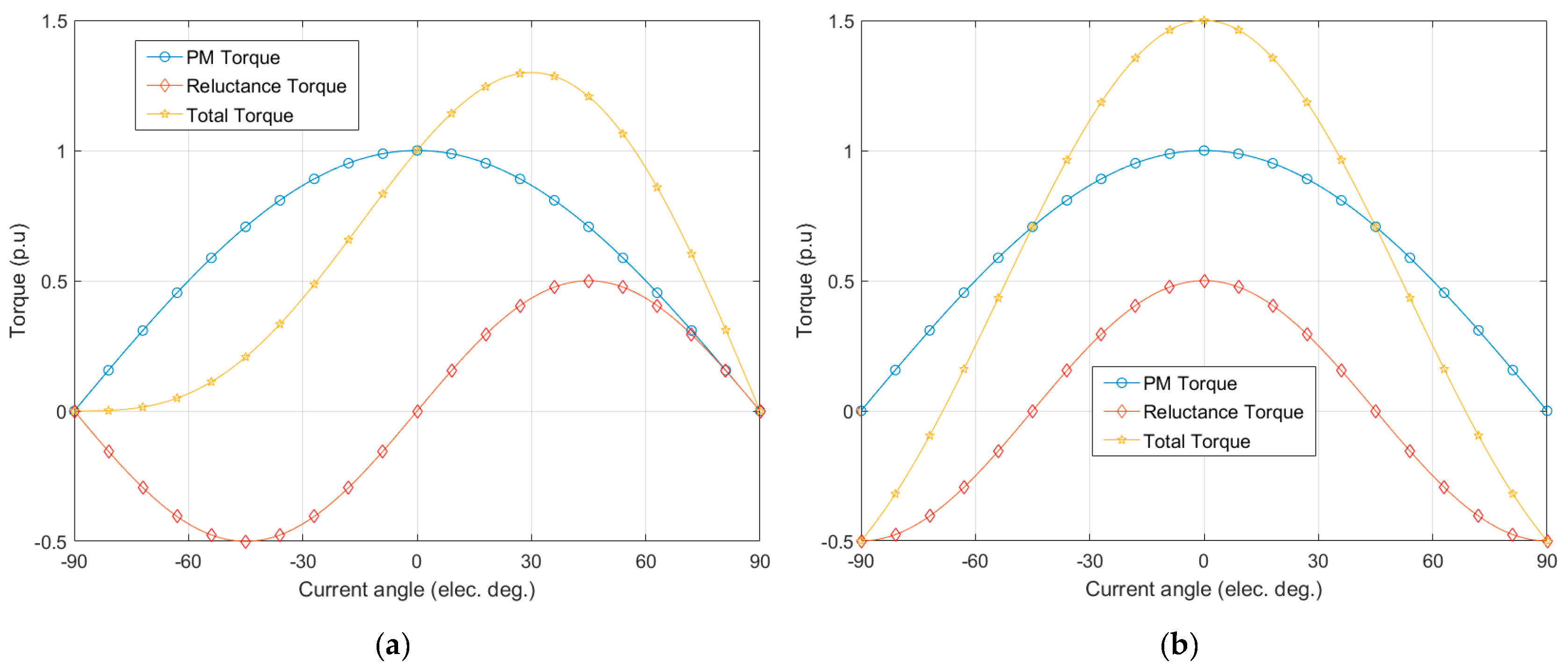

**Figure 2.**Improvement of torque density using SIAPMSM structures (current angle is the phase shift between phase armature currents and EMF). (

**a**) Classical PM Machine, (

**b**) SIAMPMSM $({\psi}_{Opt}=0\xb0)$.

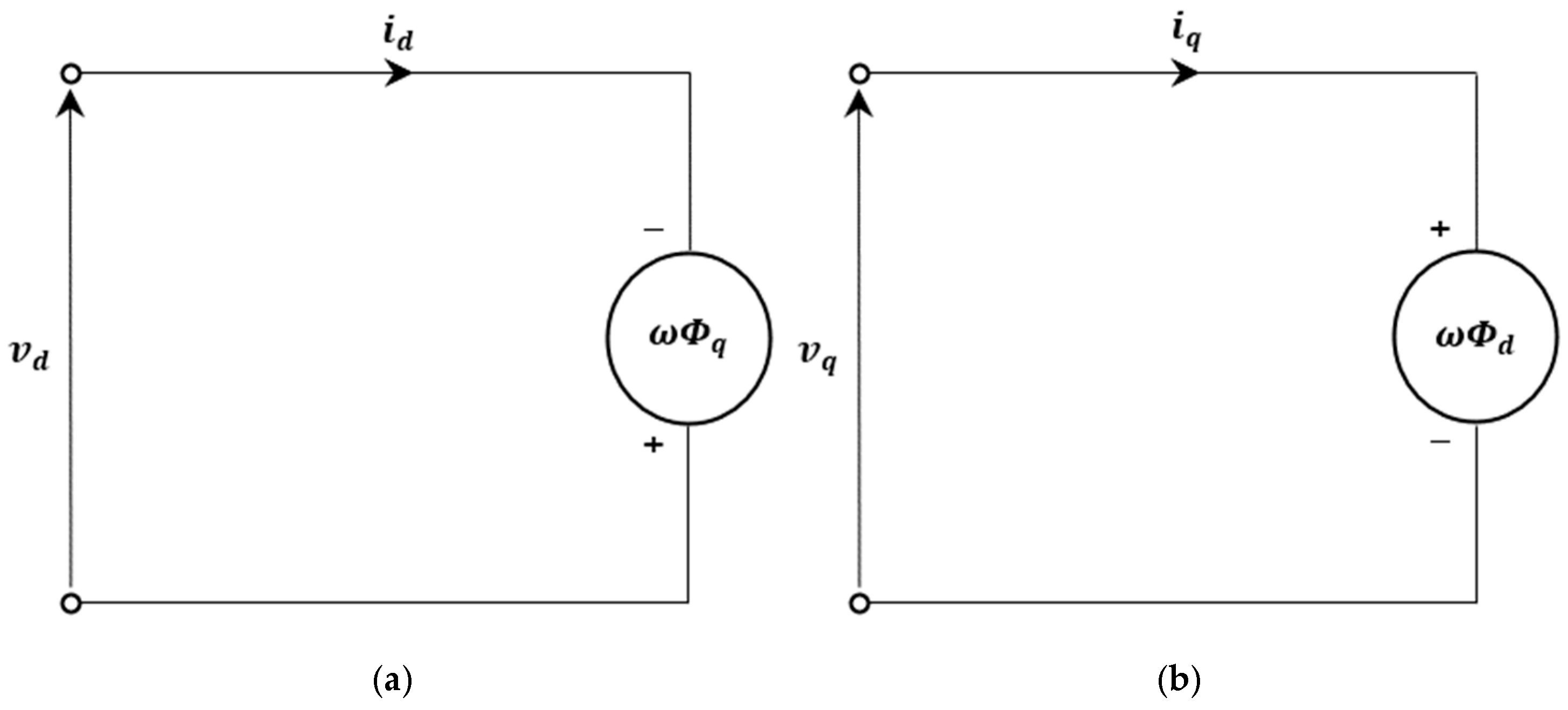

**Figure 5.**Lossless SIAMPMSM equivalent circuits under motor mode operation in the ($d,q$) referential frame. (

**a**) d axis equivalent circuit, (

**b**) q axis equivalent circuit.

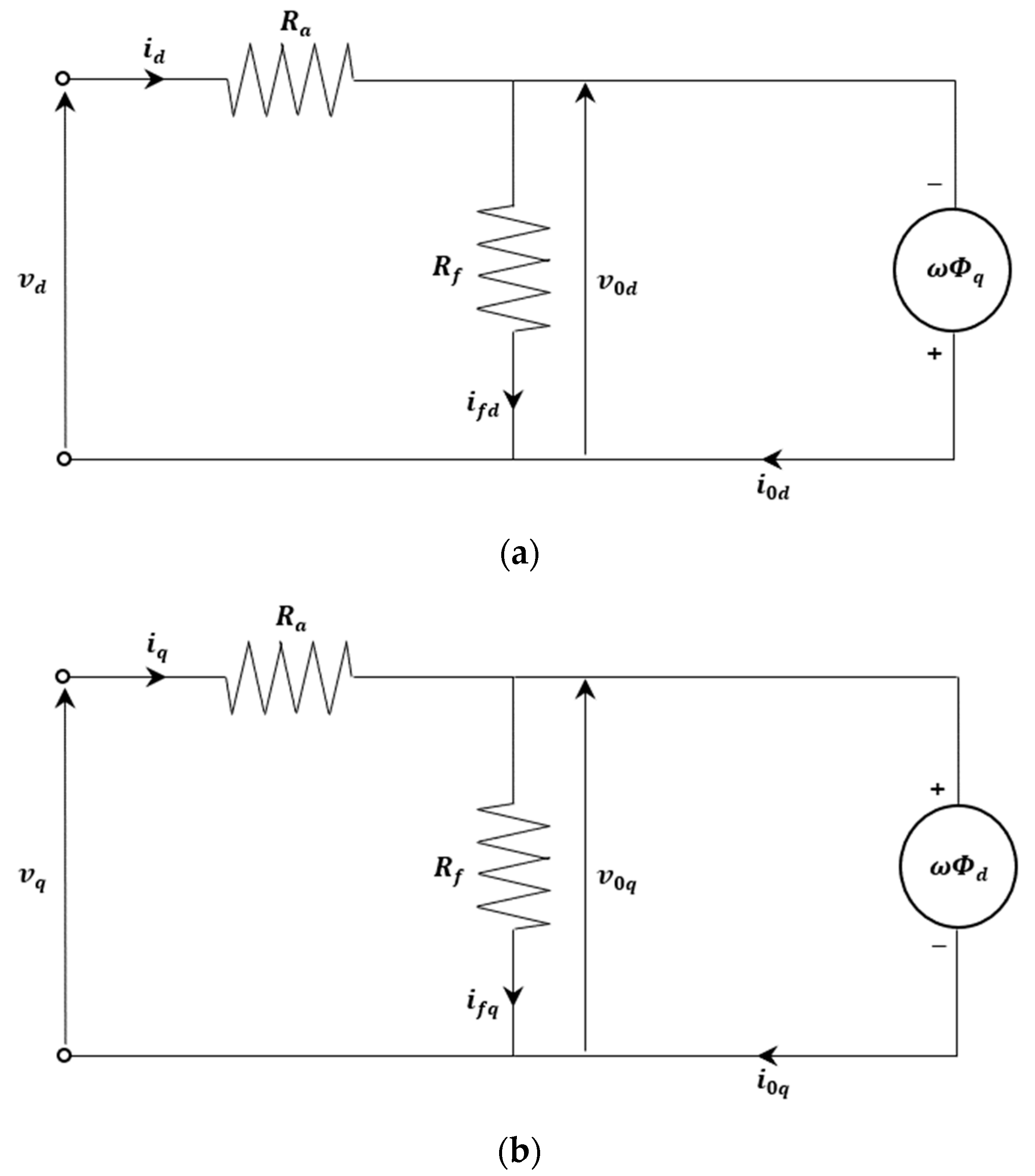

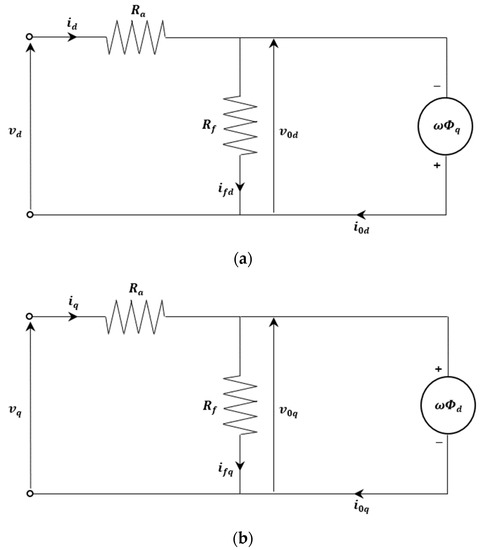

**Figure 6.**SIAMPMM equivalent circuits including the electromagnetic losses. (

**a**) d axis equivalent circuit, (

**b**) q axis equivalent circuit.

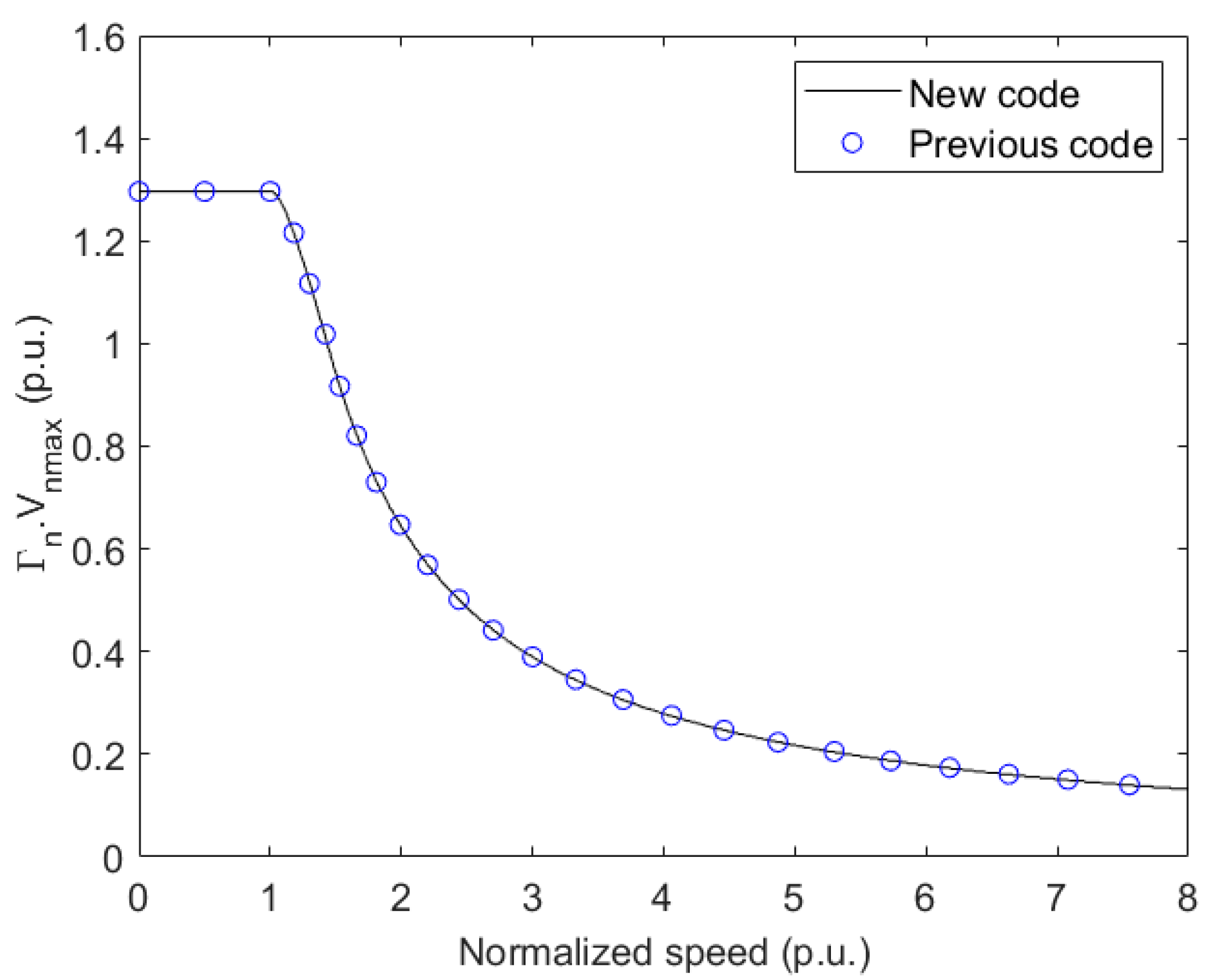

**Figure 9.**Comparison of maximum torque capabilities obtained using new and old codes $({L}_{dn}=2.5,\rho =0.6)$.

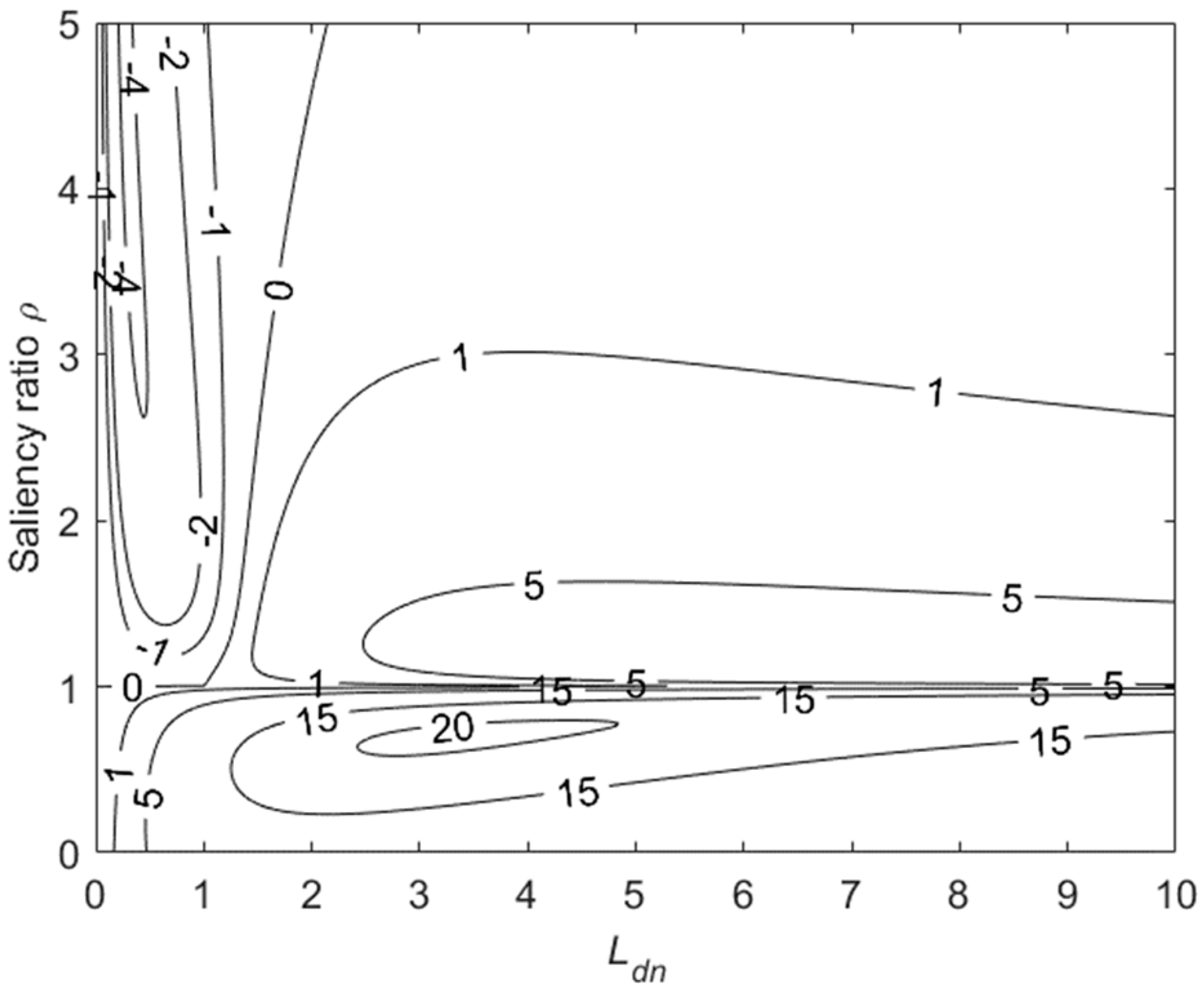

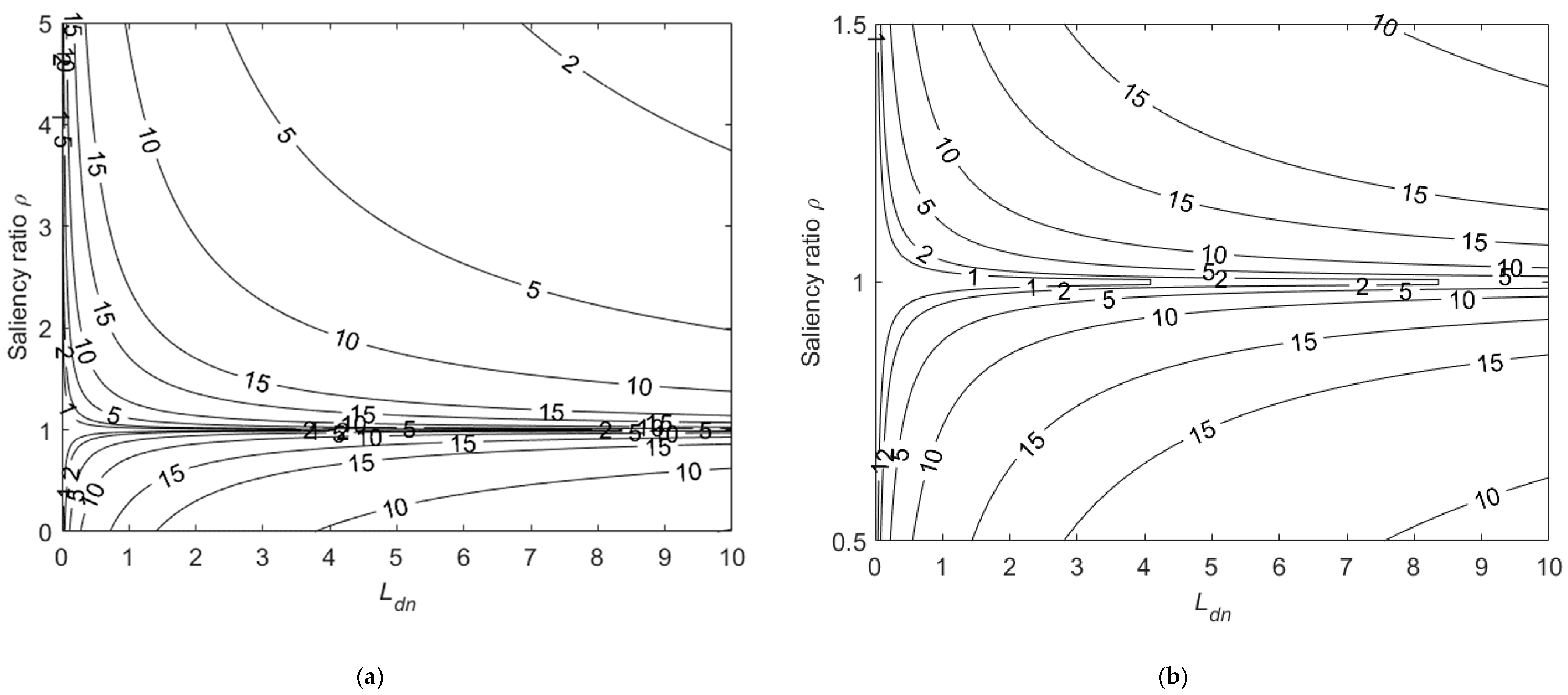

**Figure 10.**Torque increase in the (${L}_{dn},\rho $) plane. (

**a**) ${L}_{dn}\in (0,10]$ and $\rho \in (0,5]$ (

**b**) ${L}_{dn}\in (0,10]$ and $\rho \in \left[0.5,1.5\right].$

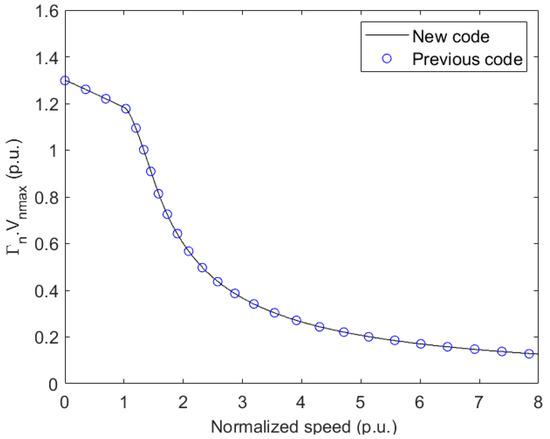

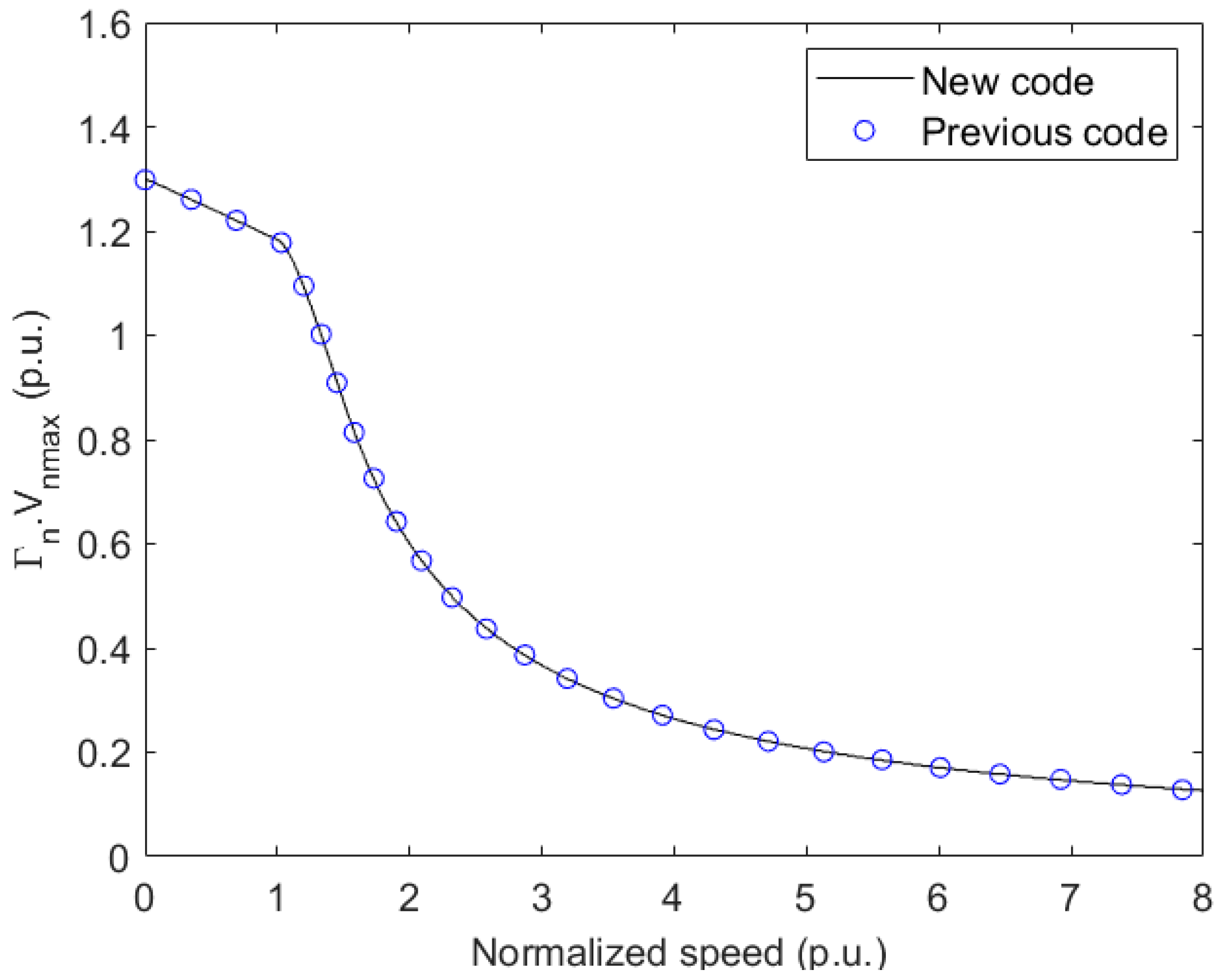

**Figure 12.**Comparison of maximum torque capabilities obtained using new and old codes $({L}_{dn}=2.5,\rho =0.6,{R}_{an}=0.1,$ and ${R}_{fn}=20).$

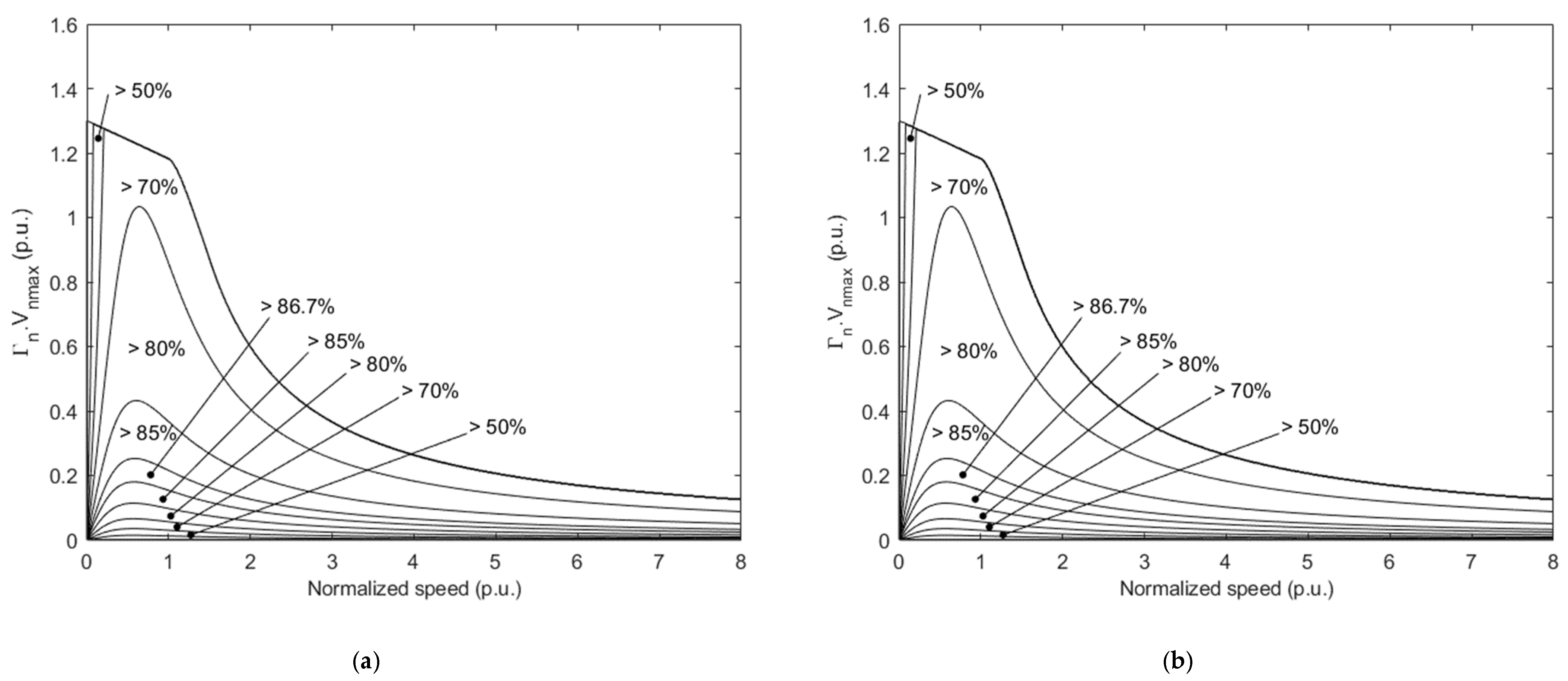

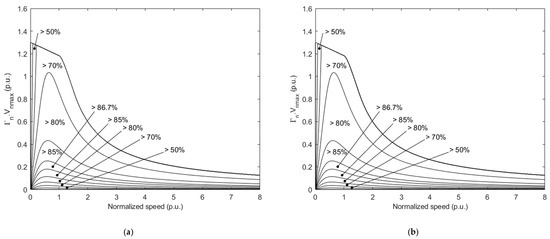

**Figure 13.**Comparison of efficiency maps obtained using new and old codes $({L}_{dn}=2.5,\rho =0.6,{R}_{an}=0.1$, and ${R}_{fn}=20)$. (

**a**) Efficiency maps drawn using the old tool. (

**b**) Efficiency maps drawn using the new tool.
