Proximal Policy Optimization Based Intelligent Energy Management for PlugIn Hybrid Electric Bus Considering Battery Thermal Characteristic
Abstract
:1. Introduction
2. System Modeling of PHEB

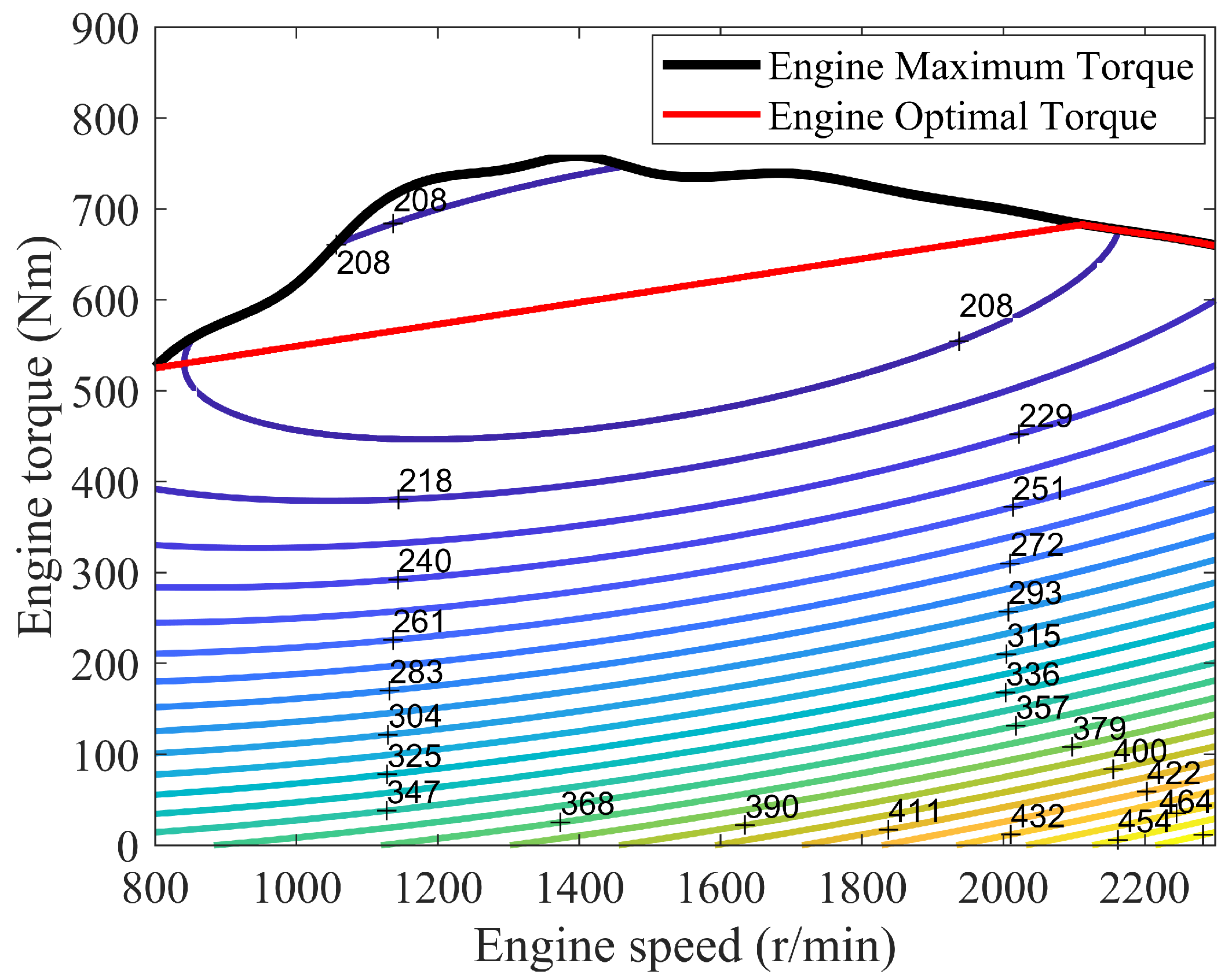

2.1. Engine Model

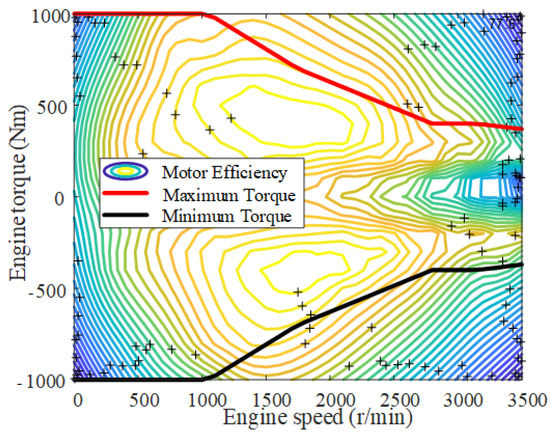

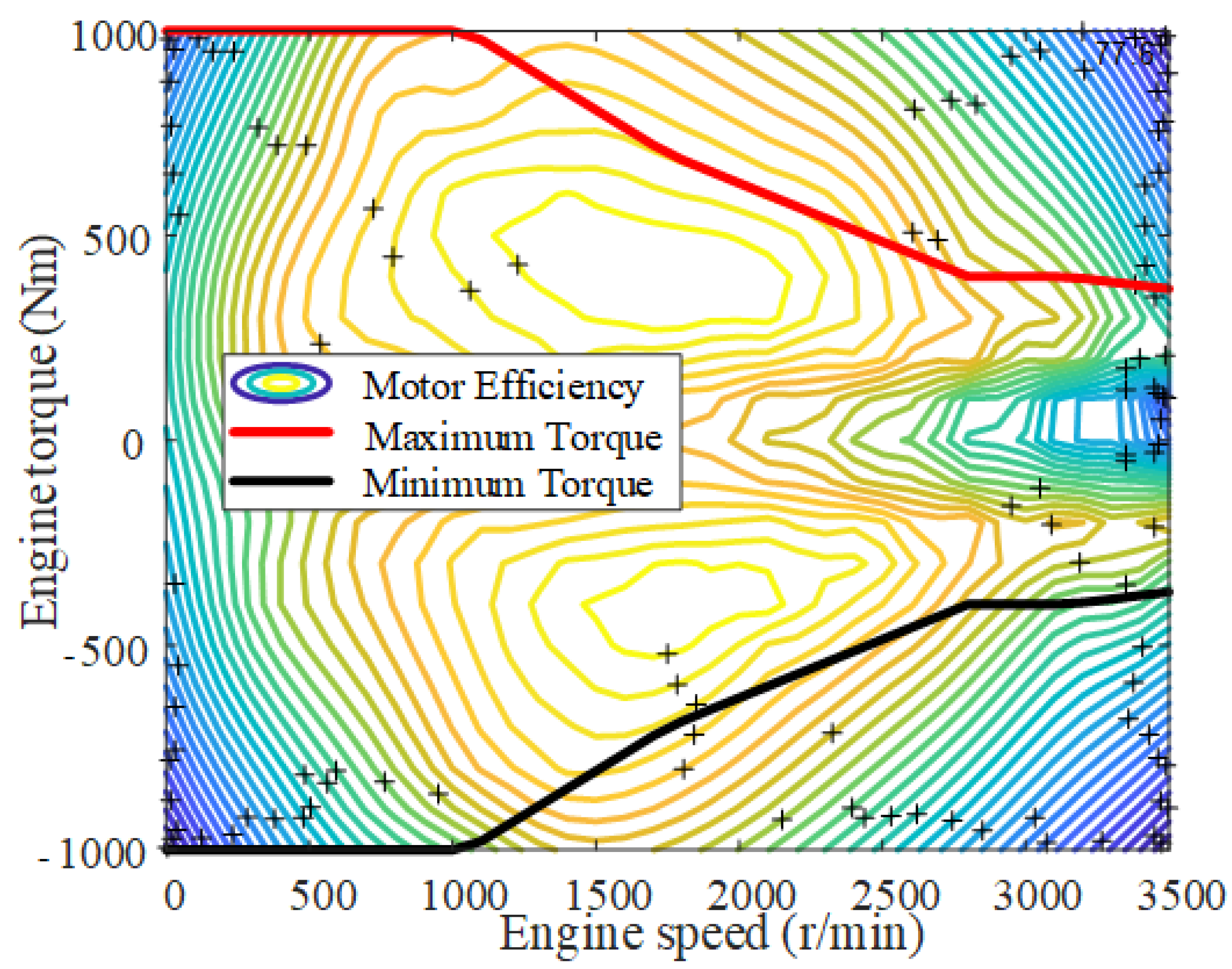

2.2. Motor Model

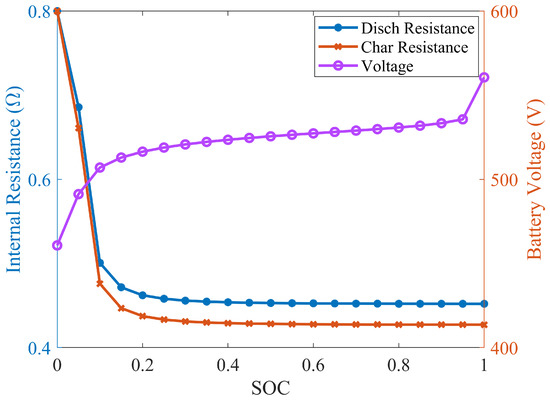

2.3. Battery Electrical Model
2.4. Battery Thermal Model
3. EMSs Based on PPOClip and PPOPenalty

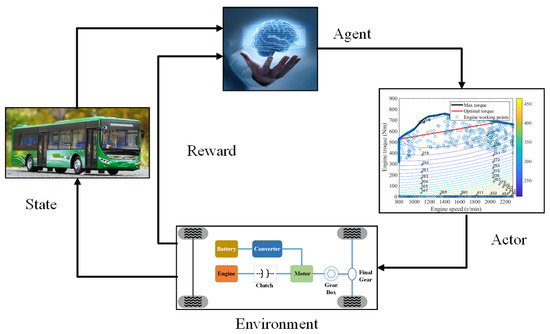

3.1. RL Algorithm
3.2. PPOClip and PPOPenalty Algorithms

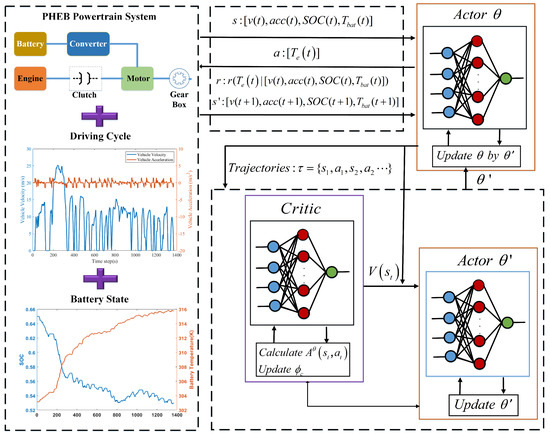

3.3. Design of Network and Algorithm
Algorithm 1 PPOClip and PPOPenalty algorithms.

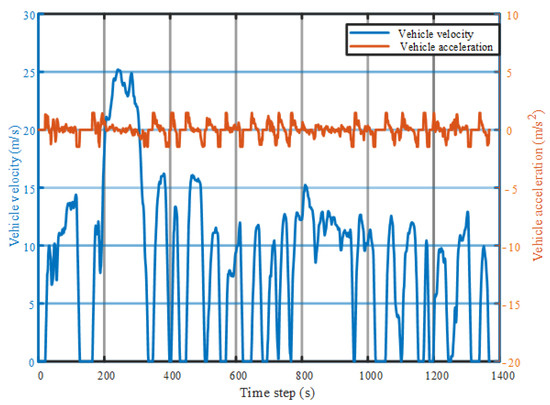

4. Simulation Results and Analysis
4.1. Tradeoff between Multiple Objectives

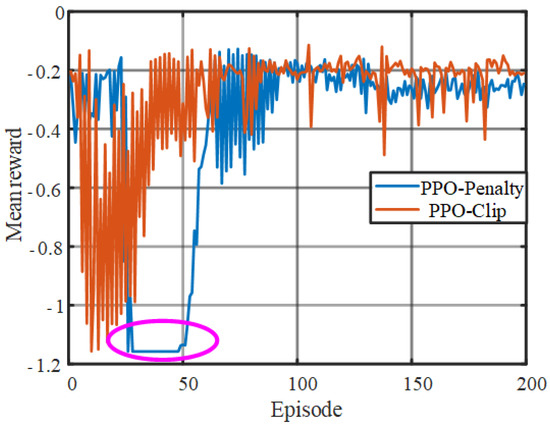

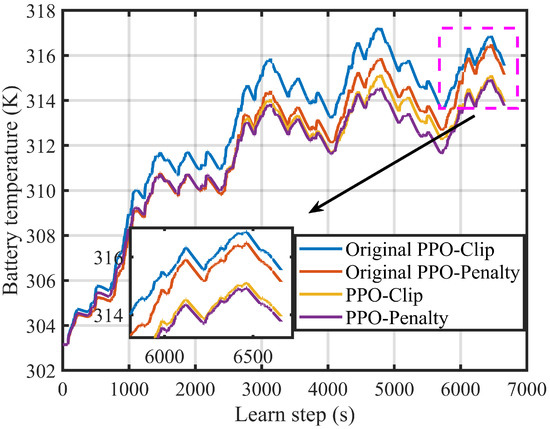

4.2. Effectiveness of EMSs Based on PPOClip and PPOPenalty

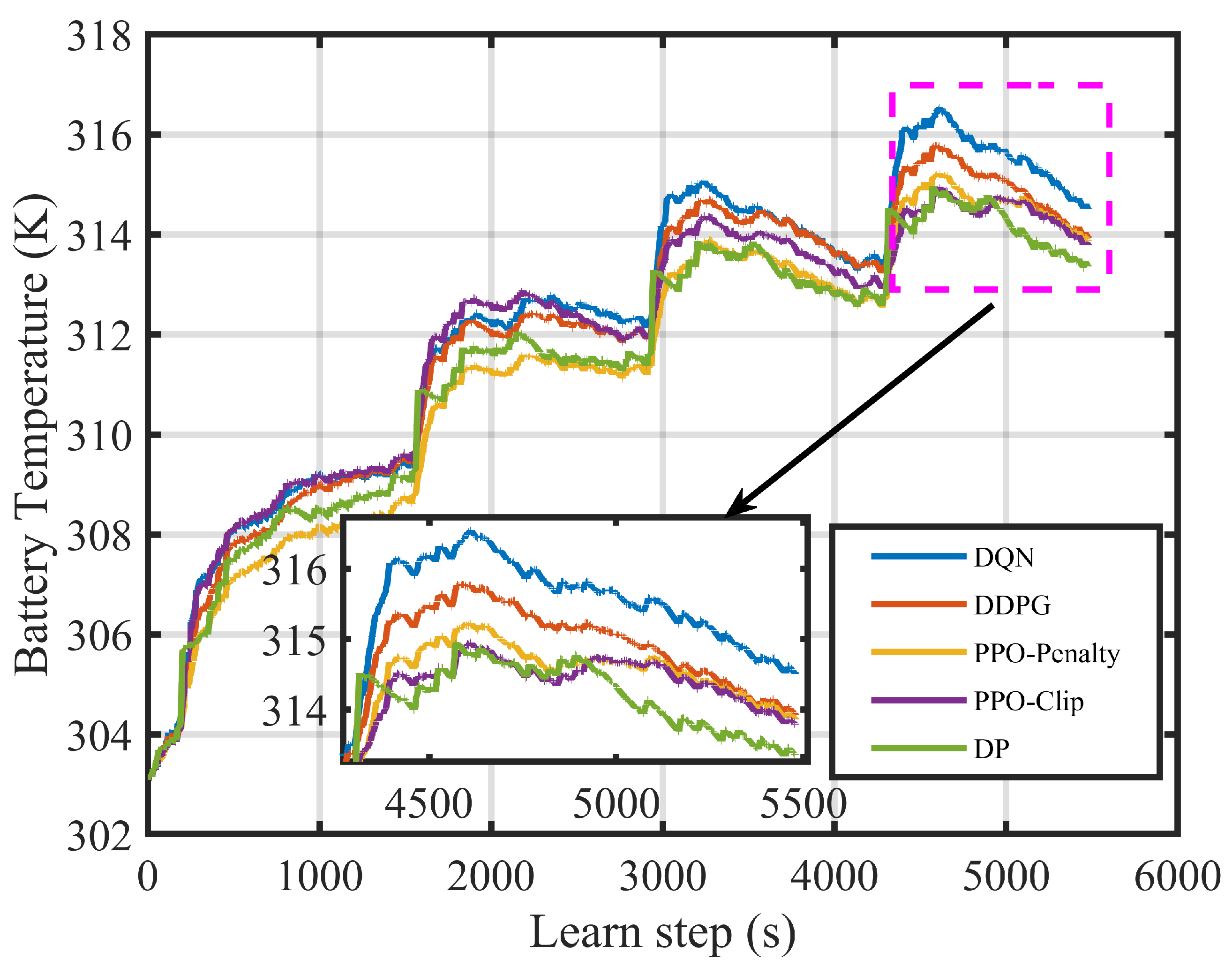

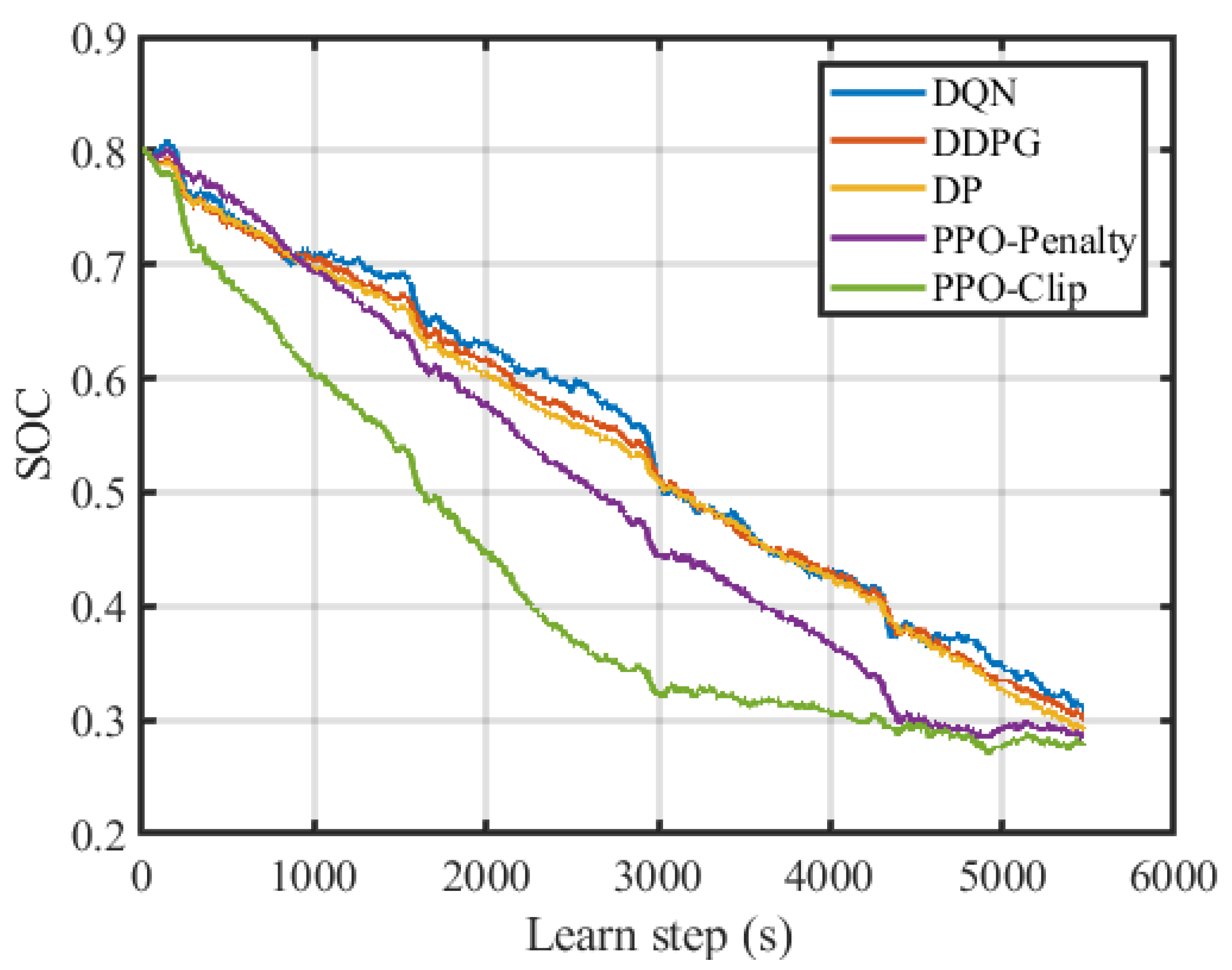

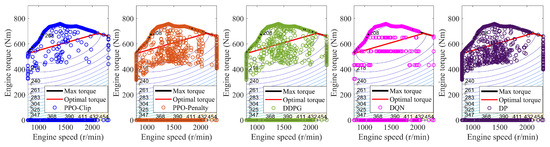

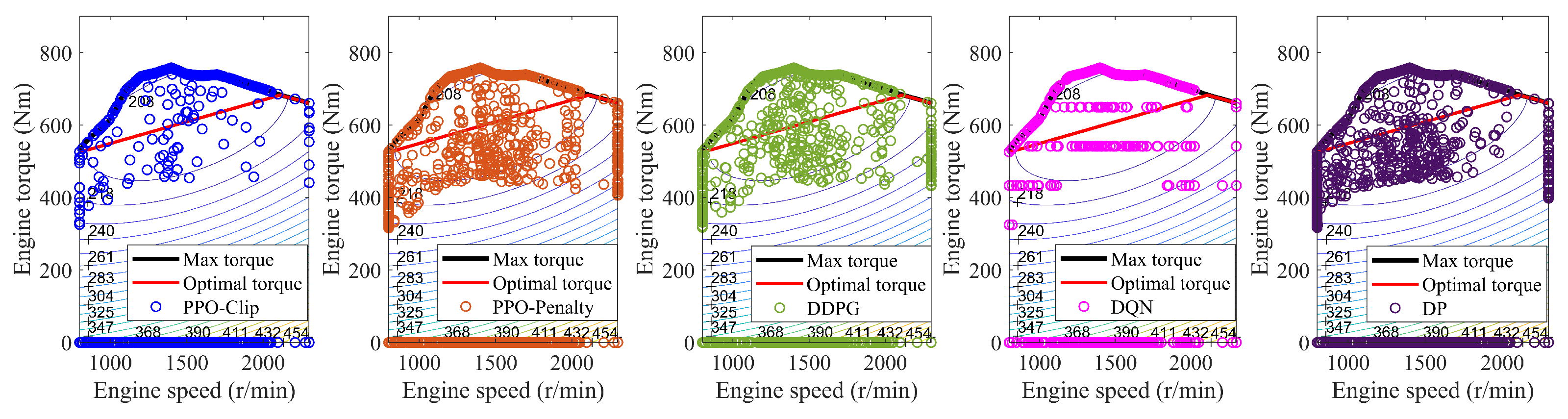

4.3. Superiority of EMSs Based on PPOClip and PPOPenalty

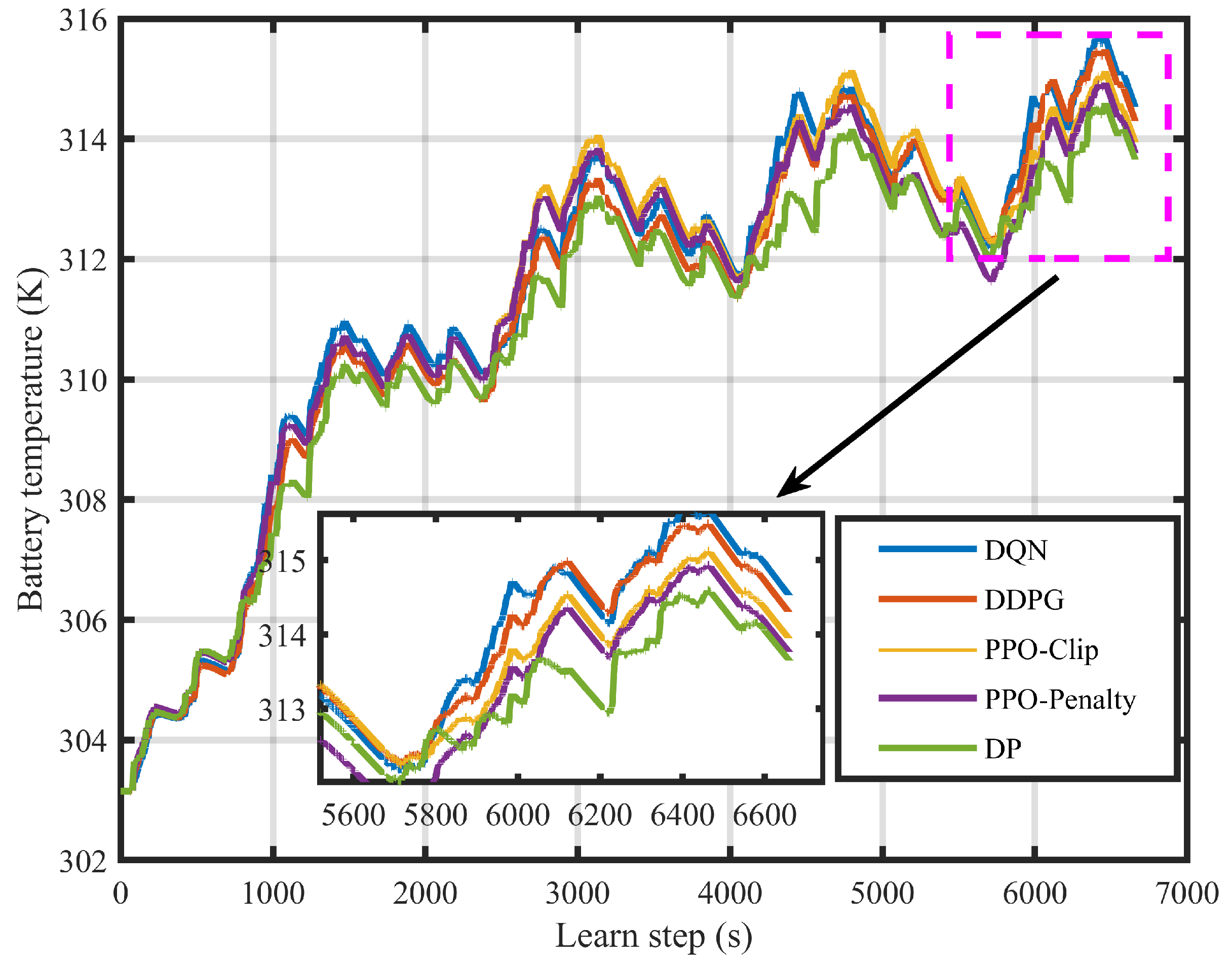

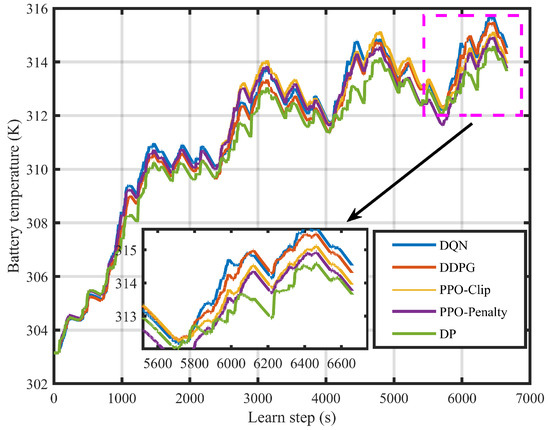

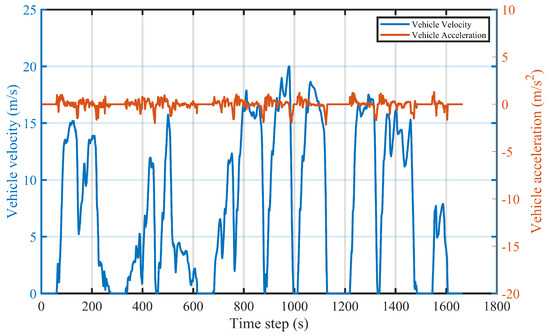

4.4. Adaptability of EMSs Based on PPOClip and PPOPenalty Algorithms

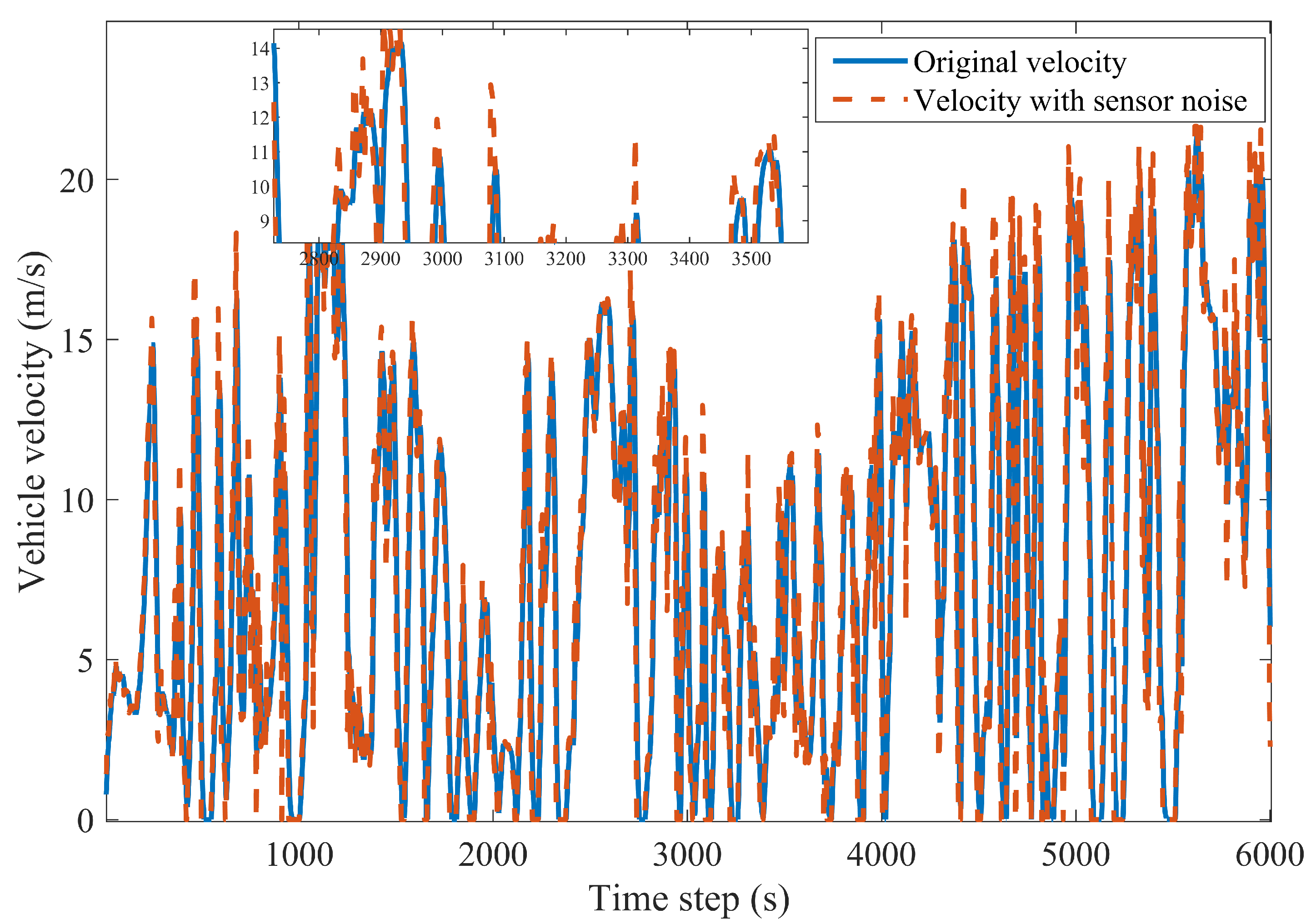

4.5. Robustness of EMSs Based on PPOClip and PPOPenalty
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
${F}_{\mathrm{t}}$  vehicle driving force  ${P}_{\mathrm{bat}}$  total battery power consumption
M  vehicle mass  ${P}_{\mathrm{b}}$  power flowing into or out of the battery
g  gravitational acceleration  ${P}_{\mathrm{l}}$  battery power loss
f  rolling resistance coefficient  ${R}_{\mathrm{b}}$  internal resistance
$\alpha $  road slope  ${I}_{\mathrm{bat}}$  charge and discharge current
${C}_{\mathrm{d}}$  air resistance coefficient  ${U}_{\mathrm{t}}$  terminal voltage
$\rho $  air density  ${T}_{\mathrm{bat}}$  battery temperature
A  vehicle frontal area  ${m}_{\mathrm{b}}$  battery mass
v  vehicle velocity  ${c}_{\mathrm{b}}$  average specific heat capacity
$\delta $  correction factor  h  heat exchange coefficient
${b}_{\mathrm{e}}$  fuel consumption rate  ${A}_{\mathrm{b}}$  heat exchange area
${T}_{\mathrm{e}}$  engine torque  ${T}_{\mathrm{en}}$  environment temperature
${n}_{\mathrm{e}}$  engine speed  ${Q}_{\mathrm{h}}$  battery heating rate
${\eta}_{\mathrm{m}}$  motor operating efficiency  ${T}_{\mathrm{bat}0}$  initial battery temperature
${T}_{\mathrm{m}}$  motor torque  ${T}_{\mathrm{bat\_pre}}$  battery temperature at the previous moment
${n}_{\mathrm{m}}$  motor speed  ${\rho}_{\mathrm{fuel}}$  diesel density
${r}_{k}$  reward function in times of k  ${E}_{\mathrm{m}}$  electric consumption
${Q}^{\theta}$  the actionvalue function  ${\eta}_{\mathrm{e}}$  engine operating efficiency
${Q}_{\mathrm{hv}}$  heating value  ${\gamma}_{\mathrm{l}}$  discount factor
References
 Ahmad, A.; Alam, M.S.; Chabaan, R. A Comprehensive Review of Wireless Charging Technologies for Electric Vehicles. IEEE Trans. Transp. Electrif. 2017, 4, 38–63. [Google Scholar] [CrossRef]
 Zhou, Y.; Ravey, A.; Péra, M.C. A survey on driving prediction techniques for predictive energy management of plugin hybrid electric vehicles. J. Power Sources 2019, 412, 480–495. [Google Scholar] [CrossRef]
 Zhang, Y.; Zhang, C.; Huang, Z.; Xu, L.; Liu, Z.; Liu, M. Realtime energy management strategy for fuel cell range extender vehicles based on nonlinear control. IEEE Trans. Transp. Electrif. 2019, 5, 1294–1305. [Google Scholar] [CrossRef]
 Flah, A.; Chokri, M. A Novel Energy Optimization Approach for Electrical Vehicles in a Smart City. Energies 2019, 12, 929. [Google Scholar]
 Xie, S.; Qi, S.; Lang, K. A datadriven power management strategy for plugin hybrid electric vehicles including optimal battery depth of discharging. IEEE Trans. Ind. Inform. 2019, 16, 3387–3396. [Google Scholar] [CrossRef]
 Mohamed, N.; Aymen, F.; Ali, Z.M.; Zobaa, A.F.; Aleem, S.H.E.A. Efficient Power Management Strategy of Electric Vehicles Based Hybrid Renewable Energy. Sustainability 2021, 13, 7351. [Google Scholar] [CrossRef]
 Sabri, M.F.M.; Danapalasingam, K.A.; Rahmat, M.F. A review on hybrid electric vehicles architecture and energy management strategies. Renewable and Sustainable Energy Reviews. Renew. Sustain. Energy Rev. 2016, 53, 1433–1442. [Google Scholar] [CrossRef]
 Tran, D.D.; Vafaeipour, M.; El Baghdadi, M.; Barrero, R.; Van Mierlo, J.; Hegazy, O. Thorough stateoftheart analysis of electric and hybrid vehicle powertrains: Topologies and integrated energy management strategies. Renew. Sustain. Energy Rev. 2020, 119, 109596. [Google Scholar] [CrossRef]
 Taherzadeh, E.; Dabbaghjamanesh, M.; Gitizadeh, M.; Rahideh, A. A new efficient fuel optimization in blended charge depletion/charge sustenance control strategy for plugin hybrid electric vehicles. IEEE Trans. Intell. Veh. 2018, 3, 374–383. [Google Scholar] [CrossRef]
 Yin, H.; Zhou, W.; Li, M.; Ma, C.; Zhao, C. An adaptive fuzzy logicbased energy management strategy on battery/ultracapacitor hybrid electric vehicles. IEEE Trans. Transp. Electrif. 2016, 2, 300–311. [Google Scholar] [CrossRef]
 Liu, J.; Chen, Y.; Li, W.; Shang, F.; Zhan, J. Hybridtripmodelbased energy management of a PHEV with computationoptimized dynamic programming. IEEE Transactions on Vehicular Technology. IEEE Trans. Veh. Technol. 2017, 67, 338–353. [Google Scholar] [CrossRef]
 Peng, J.; He, H.; Xiong, R. Rule based energy management strategy for a series–parallel plugin hybrid electric bus optimized by dynamic programming. Appl. Energy 2008, 185, 1633–1643. [Google Scholar] [CrossRef]
 Schmid, R.; Buerger, J.; Bajcinca, N. Energy management strategy for pluginhybrid electric vehicles based on predictive PMP. IEEE Trans. Control Syst. Technol. 2021, 29, 2548–2560. [Google Scholar] [CrossRef]
 Xie, S.; Hu, X.; Xin, Z.; Brighton, J. Pontryagin’s minimum principle based model predictive control of energy management for a plugin hybrid electric bus. Appl. Energy 2019, 236, 893–905. [Google Scholar] [CrossRef]
 Hu, X.; Murgovski, N.; Johannesson, L.M.; Egardt, B. Comparison of three electrochemical energy buffers applied to a hybrid bus powertrain with simultaneous optimal sizing and energy management. IEEE Trans. Intell. Trans. Syst. 2014, 15, 1193–1205. [Google Scholar] [CrossRef]
 HadjSaid, S.; Colin, G.; KetfiCherif, A.; Chamaillard, Y. Convex optimization for energy management of parallel hybrid electric vehicles. IFACPapersOnLine. IFACPapersOnLine 2016, 49, 271–276. [Google Scholar] [CrossRef]
 Wang, Y.; Wang, X.; Sun, Y.; You, S. Model predictive control strategy for energy optimization of seriesparallel hybrid electric vehicle. J. Clean. Prod. 2018, 199, 348–358. [Google Scholar] [CrossRef]
 Xie, S.; Hu, X.; Qi, S.; Tang, X.; Lang, K.; Xin, Z.; Brighton, J. Model predictive energy management for plugin hybrid electric vehicles considering optimal battery depth of discharge. Energy 2019, 173, 667–678. [Google Scholar] [CrossRef]
 Zhu, L.; Tao, F.; Fu, Z.; Wang, N.; Ji, B.; Dong, Y. Optimization Based Adaptive Cruise Control and Energy Management Strategy for Connected and Automated FCHEV. IEEE Trans. Intell. Transp. Syst. 2022, 23, 21620–21629. [Google Scholar] [CrossRef]
 Han, J.; Kum, D.; Park, Y. Synthesis of predictive equivalent consumption minimization strategy for hybrid electric vehicles based on closedform solution of optimal equivalence factor. IEEE Trans. Veh. Technol. 2017, 66, 5604–5616. [Google Scholar] [CrossRef]
 Silver, D.; Huang, A.; Maddison, C.J.; Guez, A.; Sifre, L.; Van Den Driessche, G.; Hassabis, D. Mastering the game of Go with deep neural networks and tree search. J. Abbr. 2016, 529, 484–489. [Google Scholar] [CrossRef]
 VázquezCanteli, J.R.; Nagy, Z. Reinforcement learning for demand response: A review of algorithms and modeling techniques. Appl. Energy 2019, 235, 1072–1089. [Google Scholar] [CrossRef]
 Zhou, Q.; Li, J.; Shuai, B.; Williams, H.; He, Y.; Li, Z.; Yan, F. Multistep reinforcement learning for modelfree predictive energy management of an electrified offhighway vehicle. Appl. Energy 2019, 255, 113755. [Google Scholar] [CrossRef]
 Wu, J.; He, H.; Peng, J.; Li, Y.; Li, Z. Continuous reinforcement learning of energy management with deep Q network for a power split hybrid electric bus. Appl. Energy 2018, 222, 799–811. [Google Scholar] [CrossRef]
 Hu, Y.; Li, W.; Xu, K.; Zahid, T.; Qin, F.; Li, C. Energy management strategy for a hybrid electric vehicle based on deep reinforcement learning. Appl. Ences 2018, 8, 187. [Google Scholar] [CrossRef]
 Li, Y.; He, H.; Khajepour, A.; Wang, H.; Peng, J. Energy management for a powersplit hybrid electric bus via deep reinforcement learning with terrain information. Appl. Energy 2019, 255, 113762. [Google Scholar] [CrossRef]
 Wu, Y.; Tan, H.; Peng, J.; Zhang, H.; He, H. Deep reinforcement learning of energy management with continuous control strategy and traffic information for a seriesparallel plugin hybrid electric bus. Appl. Energy 2019, 247, 454–466. [Google Scholar] [CrossRef]
 Lian, R.; Peng, J.; Wu, Y.; Tan, H.; Zhang, H. Ruleinterposing deep reinforcement learning based energy management strategy for powersplit hybrid electric vehicle. Energy 2020, 197, 117297. [Google Scholar] [CrossRef]
 Xu, D.; Cui, Y.; Ye, J.; Cha, S.W.; Li, A.; Zheng, C. A soft actorcriticbased energy management strategy for electric vehicles with hybrid energy storage systems. J. Power Sources 2022, 524, 231099. [Google Scholar] [CrossRef]
 Zhou, J.; Xue, S.; Xue, Y.; Liao, Y.; Liu, J.; Zhao, W. A novel energy management strategy of hybrid electric vehicle via an improved TD3 deep reinforcement learning. Energy 2021, 224, 120118. [Google Scholar] [CrossRef]
 Tang, X.; Chen, J.; Liu, T.; Qin, Y.; Cao, D. Distributed deep reinforcement learningbased energy and emission management strategy for hybrid electric vehicles. IEEE Trans. Veh. Technol. 2021, 70, 9922–9934. [Google Scholar] [CrossRef]
 Liu, T.; Wang, B.; Tan, W.; Lu, S.; Yang, Y. Datadriven transferred energy management strategy for hybrid electric vehicles via deep reinforcement learning. arXiv 2020, arXiv:2009.03289. [Google Scholar]
 Zhou, Q.; Du, C. A twoterm energy management strategy of hybrid electric vehicles for power distribution and gear selection with intelligent stateofcharge reference. J. Energy Storage 2021, 42, 103054. [Google Scholar] [CrossRef]
 Tang, X.; Jia, T.; Hu, X.; Huang, Y.; Deng, Z.; Pu, H. Naturalistic datadriven predictive energy management for plugin hybrid electric vehicles. IEEE Trans. Transp. Electrif. 2020, 7, 497–508. [Google Scholar] [CrossRef]
 Schulman, J.; Wolski, F.; Dhariwal, P.; Radford, A.; Klimov, O. Proximal policy optimization algorithms. arXiv 2017, arXiv:1707.06347. [Google Scholar]
 Heess, N.; TB, D.; Sriram, S.; Lemmon, J.; Merel, J.; Wayne, G.; Silver, D. Emergence of locomotion behaviours in rich environments. arXiv 2017, arXiv:1707.02286. [Google Scholar]
 Du, G.; Zou, Y.; Zhang, X.; Liu, T.; Wu, J.; He, D. Deep reinforcement learning based energy management for a hybrid electric vehicle. Energy 2020, 201, 117591. [Google Scholar] [CrossRef]
 Zhang, B.; Hu, W.; Cao, D.; Huang, Q.; Chen, Z.; Blaabjerg, F. Deep reinforcement learning–based approach for optimizing energy conversion in integrated electrical and heating system with renewable energy. Energy Convers. Manag. 2019, 202, 112199. [Google Scholar] [CrossRef]
 Wang, Y.; Tan, H.; Wu, Y.; Peng, J. Hybrid electric vehicle energy management with computer vision and deep reinforcement learning. IEEE Trans. Ind. Inform. 2020, 17, 3857–3868. [Google Scholar] [CrossRef]
 Wang, W.; Guo, X.; Yang, C.; Zhang, Y.; Zhao, Y.; Huang, D.; Xiang, C. A multiobjective optimization energy management strategy for power split HEV based on velocity prediction. Energy 2022, 238, 121714. [Google Scholar] [CrossRef]
Component  Parameters  Value

Curb mass  10,500 kg
Vehicle  Drag coefficient  0.65
Frontal area  6.75 m${}^{2}$
Battery  Capacity  90 Ah
Voltage  560 V
Motor  Peak power  135 kW
Peak torque  1000 Nm
Engine  Peak power  155 kW
Peak torque  760 Nm
Parameters  Value

Hidden layer  1
Number of neurons  100
Learning rate  0.001 (AN)
0.002 (CN)
Discount factor  0.99
Minibatch size  64

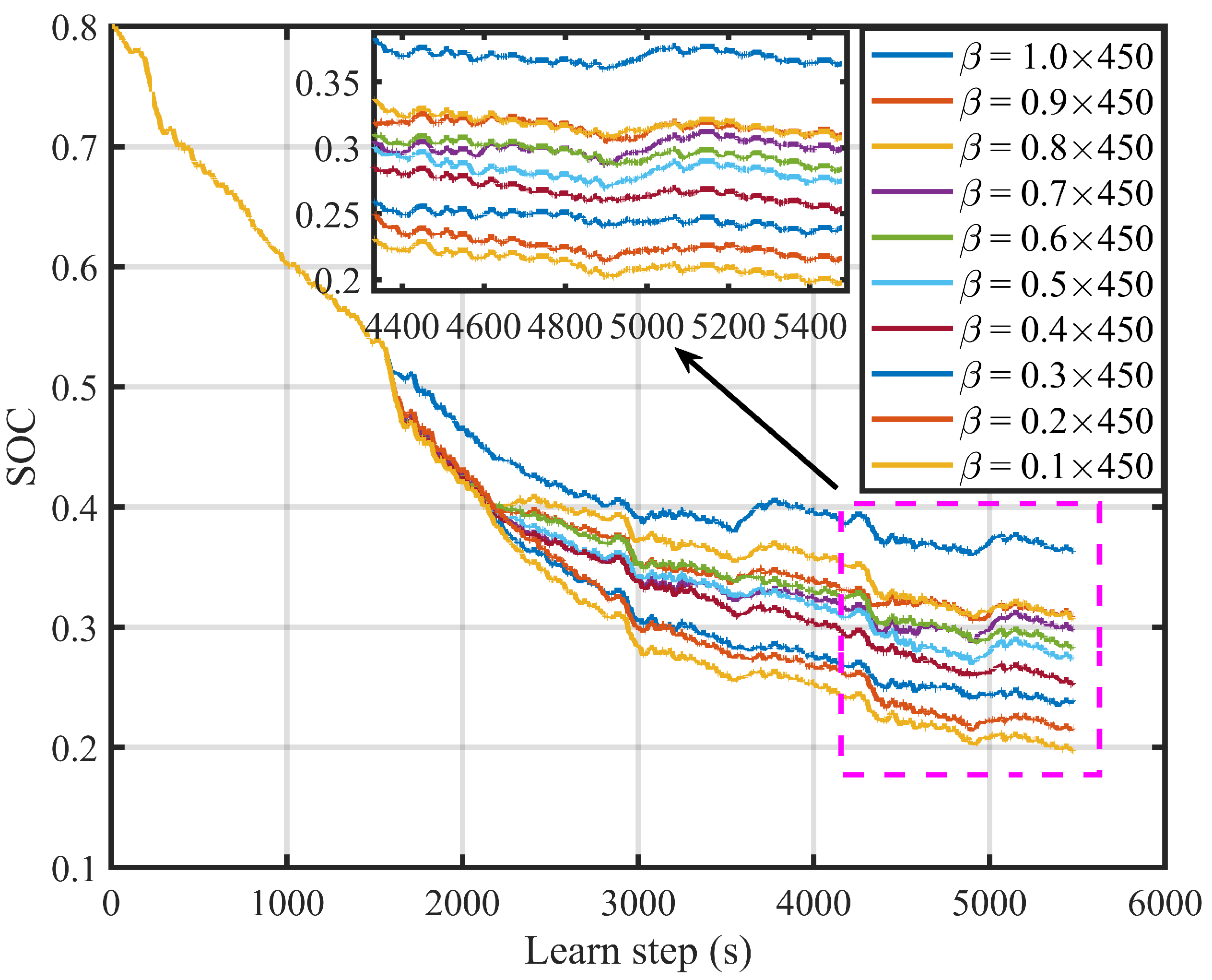

The Weight Coefficient ($\mathit{\beta}$)  Equivalent Fuel Consumption (L/100 km)  Terminal SOC

$\beta $ = 1.00 × 450  19.706  0.364
$\beta $ = 0.90 × 450  19.319  0.309
$\beta $ = 0.80 × 450  18.993  0.308
$\beta $ = 0.70 × 450  18.572  0.299
$\beta $ = 0.60 × 450  18.544  0.284
$\beta $ = 0.50 × 450  18.173  0.275
$\beta $ = 0.40 × 450  18.005  0.254
$\beta $ = 0.30 × 450  17.639  0.239
$\beta $ = 0.20 × 450  17.248  0.216
$\beta $ = 0.10 × 450  16.899  0.198
The Weight of Battery Temperature  Equivalent Fuel Consumption  Terminal SOC  Terminal Battery Temperature

$\gamma $ = 1.00  20.555  0.375  313.066
$\gamma $ = 0.90  19.651  0.320  313.341
$\gamma $ = 0.75  19.057  0.309  313.383
$\gamma $ = 0.60  18.655  0.298  313.553
$\gamma $ = 0.50  17.899  0.276  313.836
$\gamma $ = 0.40  17.714  0.254  313.861
$\gamma $ = 0.25  17.553  0.228  314.195
$\gamma $ = 0.10  16.083  0.161  314.442

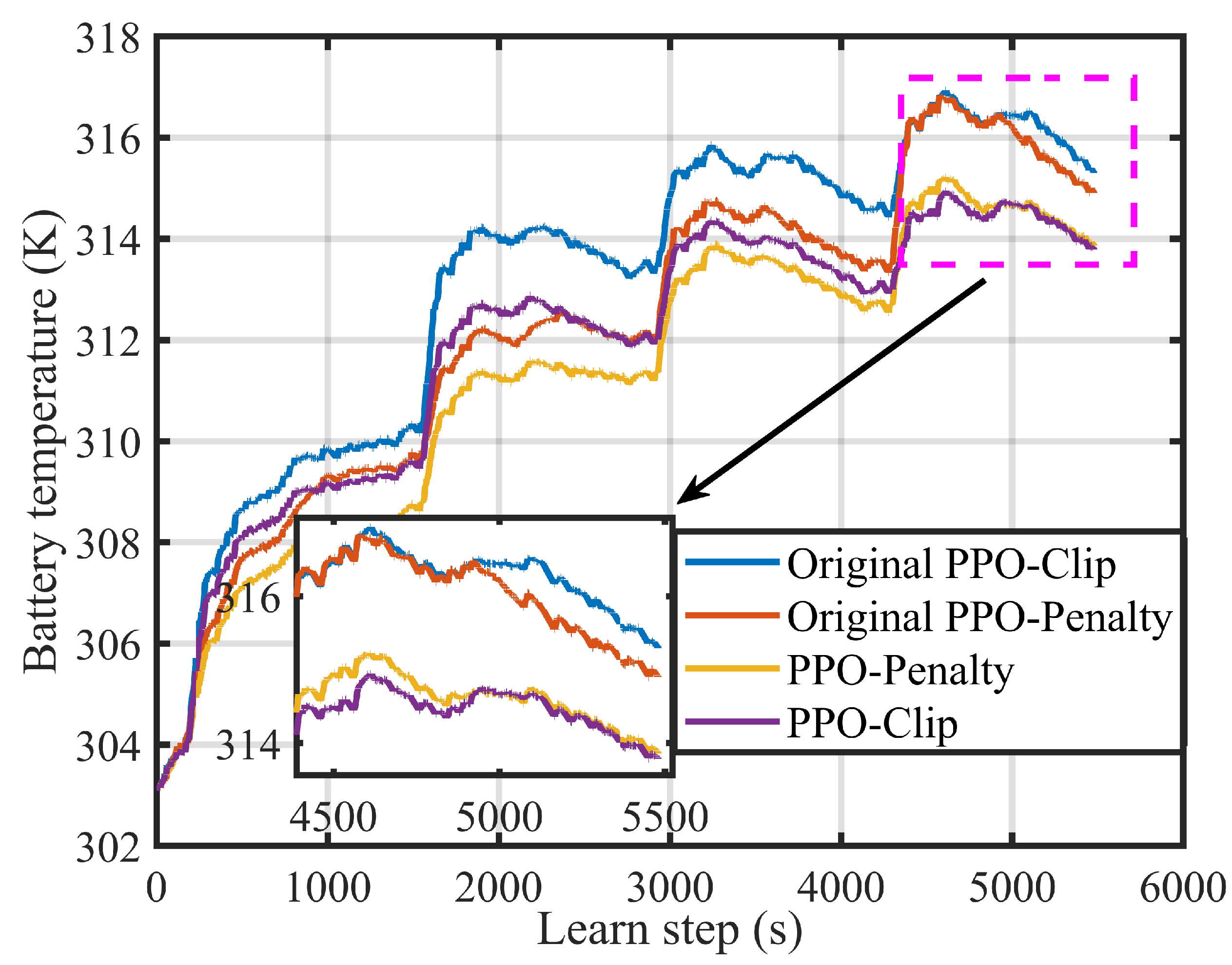

Algorithm  Equivalent Fuel Consumption (L/100 km)  Terminal SOC  Battery Temperature (K)

Original PPOClip  17.873  0.277  315.287
PPOClip  17.779  0.280  313.778
Original PPOPenalty  18.255  0.291  314.892
PPOPenalty  18.205  0.287  313.854
Algorithm  Terminal SOC  Battery Temperature (K)  Computing Time (s)  Equivalent Fuel Consumption (L/100 km)  Saving Rate (%)

DP  0.293  313.369  9504  17.481
DQN  0.310  314.495  1657  19.231  −10.01
DDPG  0.304  313.921  2296  18.917  −8.21
PPOClip  0.280  313.778  1449  17.779  −1.70
PPOPenalty  0.287  313.854  1435  18.205  −4.14
Algorithm  Terminal SOC  Battery Temperature (K)  Equivalent Fuel Consumption (L/100 km)

DP  0.296  313.649  18.679
DQN  0.287  314.519  20.418
DDPG  0.286  314.296  20.093
PPOClip  0.288  313.938  18.960
PPOPenalty  0.293  313.759  19.138
Algorithm  Terminal SOC  Battery Temperature (K)  Computing Time (s)  Equivalent Fuel Consumption (L/100 km)  Saving Rate (%)

DP  0.296  313.649  11,232  18.679
DQN  0.287  314.519  2338  20.418  −9.31
DDPG  0.286  314.296  3556  20.093  −7.59
PPOClip  0.288  313.938  1858  18.960  −1.50
PPOPenalty  0.293  313.759  1855  19.138  −2.45
Algorithm  Terminal SOC  Battery Temperature (K)  Equivalent Fuel Consumption (L/100 km)

DP  0.303  313.124  17.972
ECMS  0.308  314.114  20.122
DQN  0.300  313.552  19.571
DDPG  0.299  313.466  19.228
PPOClip  0.292  313.232  18.026
PPOPenalty  0.302  313.326  18.186
PPOClip
(with sensor noise)  0.306  313.394  18.443
PPOPenalty
(with sensor noise)  0.299  313.437  18.391
