Electric Vehicle Charging Sessions Generator Based on Clustered Driver Behaviors^{ †}
Abstract
:1. Introduction
1.1. Literature Review
1.2. Research Gap and Contributions
 The input dataset of the methodology originates from a standard communication protocol widely available in the interoperability of charging infrastructures. The standard communication protocol allows for applying the methodology on many different and specific use cases (office buildings, shops, houses, etc) and can help to investigate/design different use cases;
 The classification of EV driver’s profiles with similar charging behaviors in order to improve the modeling and simulation results. The classification is performed using a clustering technique. In addition, the Kernel Density Estimation process is used to better capture details of each cluster as well as particular charging behaviors;
 The modularity of the generator, its easeofuse and the standardized output data format are key attributes of its scalability and replicability.
1.3. Structure of Paper
2. Materials and Methods
2.1. Data PreProcessing
2.1.1. Dataset and Features
2.1.2. Data Cleaning
2.2. Clustering Technique
Data Normalization
2.3. Generator Principle
2.3.1. Statistical Distributions
 The probability of having a certain number of charging sessions per day. It has been decided to divide this probability into two probability distributions, mainly one for the working days and one for the weekend days, since the number of sessions are highly different;
 The probability of having an EV plugin and plugout at a certain time;
 The probability of having a certain amount of energy to charge.
2.3.2. Pseudo Algorithm
 Step (1) For each cluster, and for each day to simulate, a function (called f1) determines the number of charging sessions to generate;
 Step (2) For each charging session to generate, two functions (called f2 and f3) determine the plugin and plugout time, and the energy to charge.
Algorithm 1 EV charging session generator

2.4. Validation Criteria
3. Results and Discussion
3.1. Use Case

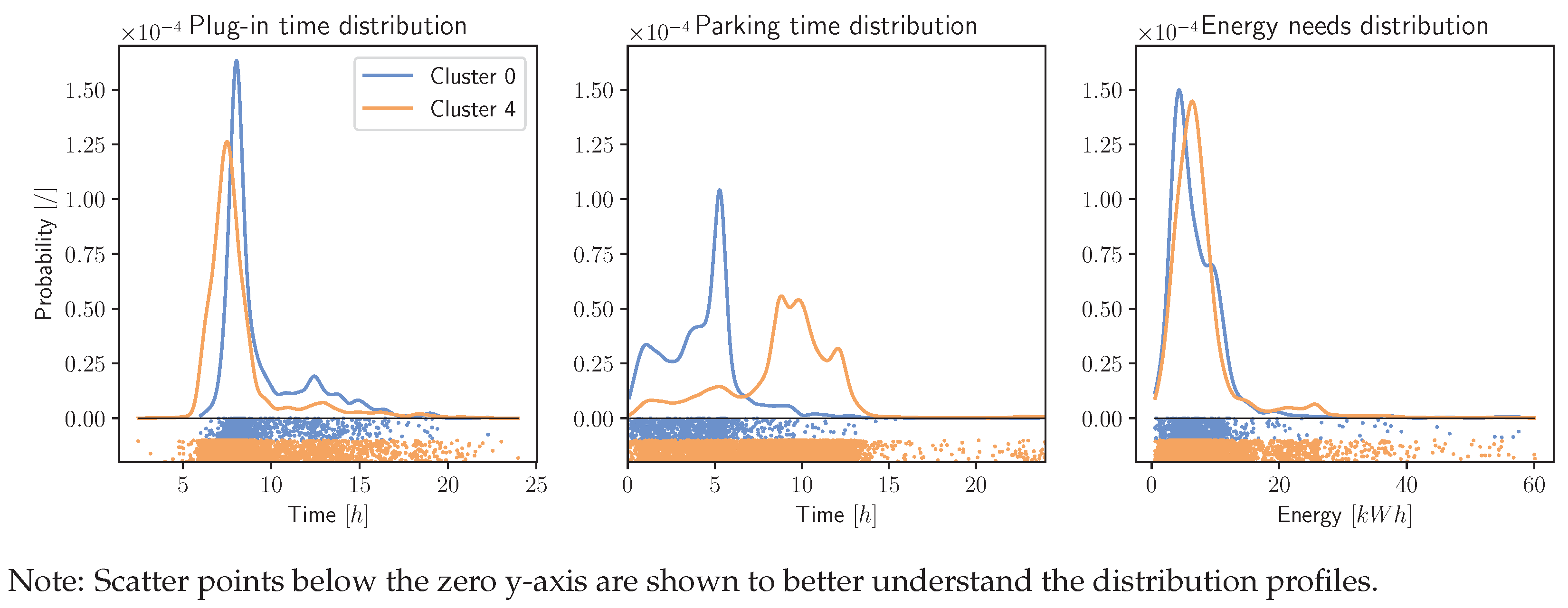

3.2. Clustering Results
3.3. Generator Results

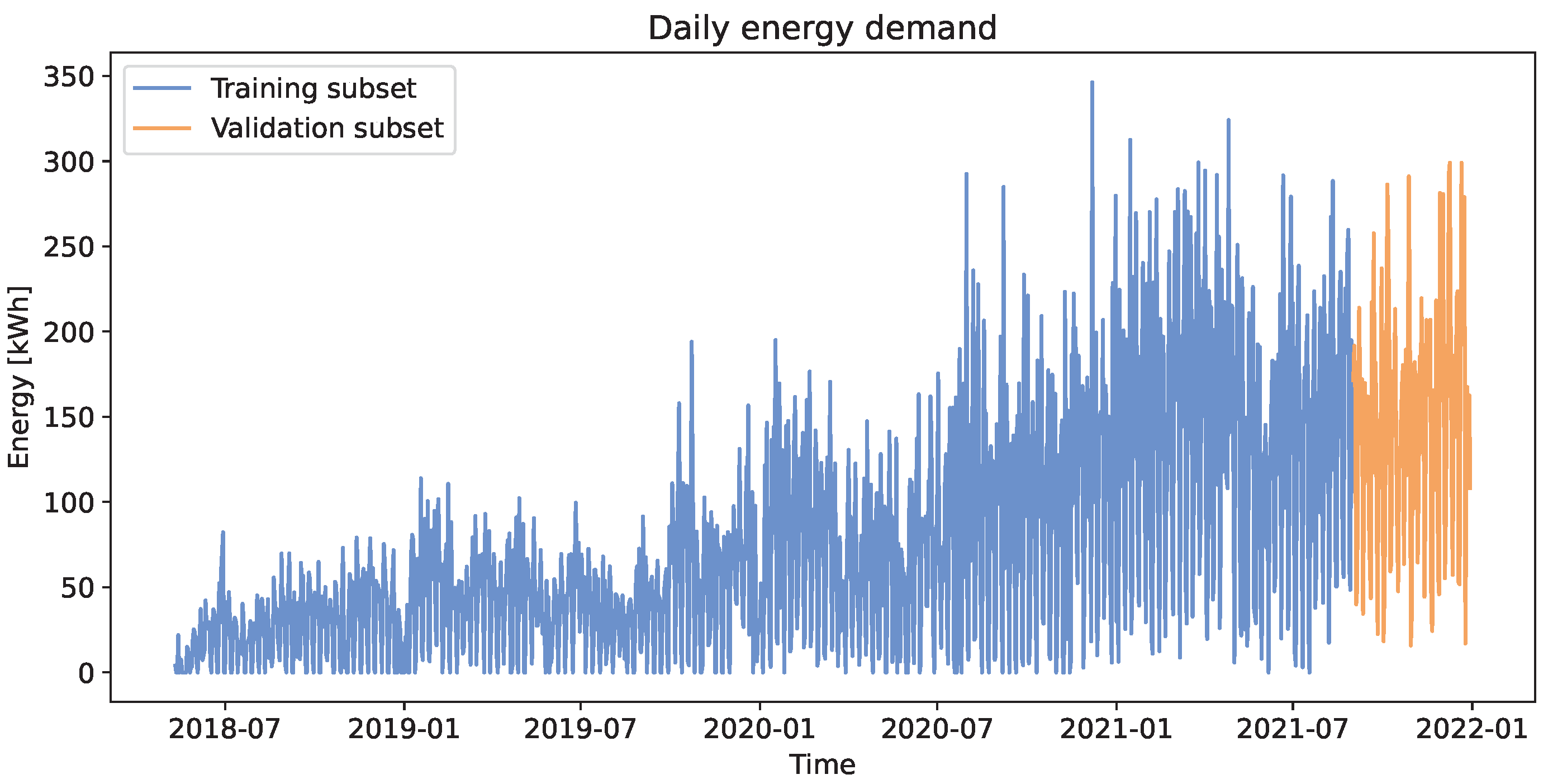

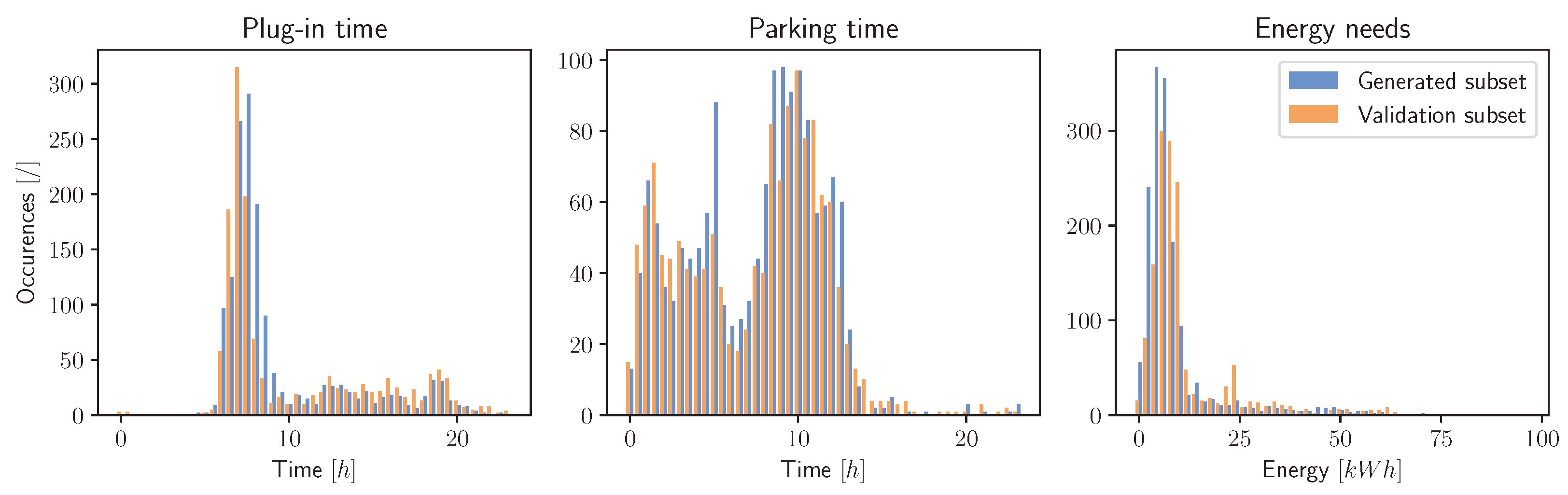

3.3.1. Validation
3.3.2. The Impact of Clustering and Kernel Density Distribution
3.3.3. The Evolution in Charging Behavior
3.4. Simulation Results
3.4.1. Scenario Construction

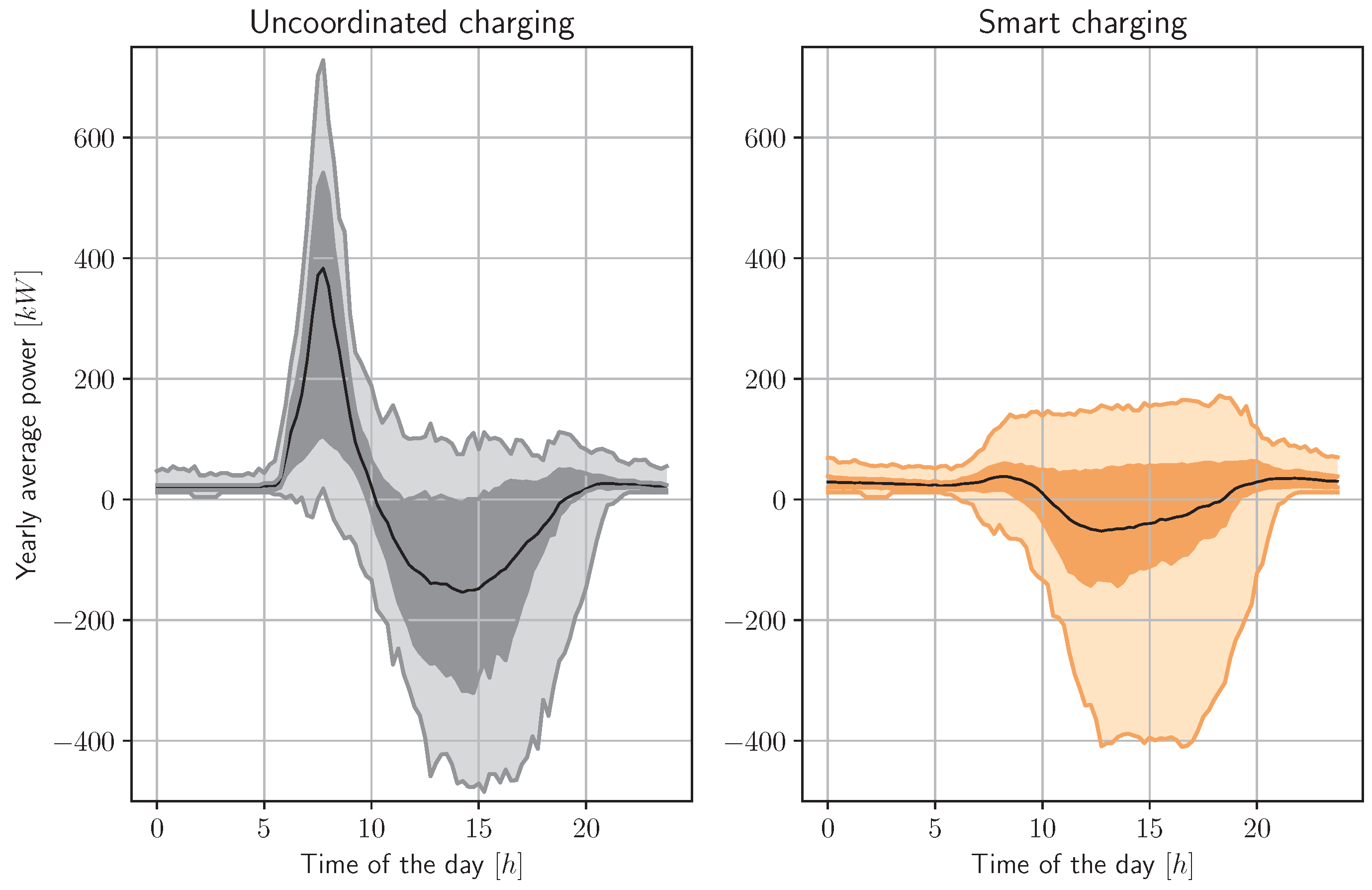

3.4.2. Uncoordinated vs. Smart Charging
4. Conclusions
