Analysis of Stator-Slot Circumferentially Magnetized PM Machines with Full-Pitched Windings

Department of Electronic and Electrical Engineering, University of Sheffield, Mappin Street, Sheffield S1 3JD, UK
*
Author to whom correspondence should be addressed.
World Electr. Veh. J. 2021, 12(1), 33; https://doi.org/10.3390/wevj12010033
Submission received: 20 January 2021 / Revised: 13 February 2021 / Accepted: 18 February 2021 / Published: 23 February 2021
(This article belongs to the Special Issue Novel Permanent Magnet Machines and Drives for Electric Vehicles)

Abstract

:
Stator-slot circumferentially magnetized PM machines (SSCMPMMs) have high fault-tolerant capability. In this paper, the SSCMPMMs with full-pitched windings and different stator slot/rotor pole numbers are investigated, together with the influence of key geometric parameters. It shows that the 12 stator-slots 7 rotor-poles (12S7R) machine delivers the highest torque. It is then compared with the SSCMPMM with tooth-coil windings. The results show that when they have the same active length, the 12S7R machine delivers significantly higher torque and higher efficiency. Furthermore, when the machine length is over around 140 mm, the 12S7R machine is more advantageous in producing high torque and high efficiency. A prototype is manufactured and tested to validate the theoretical analyses.

1. Introduction

Electrical machines with permanent magnets (PMs) mounted in the stator, i.e., stator PM machines, have been attracting interests for the last several decades. The stator PM machines have some inherent advantages over the rotor PM machines, e.g., robust salient pole-rotor structure and easy thermal management for the magnets if the forced liquid cooling is employed.
Much research and development have been done to improve the performance of stator PM machines. The location of PMs results in various stator PM machine topologies. PMs can be mounted in the stator yoke, between the stator teeth, along the stator bore surface, and in the stator slot, known as doubly salient PM machines [1,2,3], switched-flux PM machines [4,5,6,7], flux-reversal PM machines [8,9,10,11,12,13], and stator-slot PM machines [14,15], respectively.
In doubly salient PM machines, PMs are circumferentially magnetized and located in the stator yoke separated by the interval of number of stator teeth equal to the phase number. Hence, they usually use less number and also amount of PMs but have relatively low torque density, although they may exhibit good torque per PM volume. Switched-flux PM machines have circumferentially magnetized PMs sandwiched between the stator teeth and can enhance the airgap flux density by flux focusing, which is favourable for high torque. However, the overload capability of switched-flux PM machines is deteriorated due to high stator core saturation. The airgap flux density in flux-reversal PM machines with a pair of PMs mounted on stator tooth surface relies on the magnet remanence and thickness, and no flux focusing effect can be utilized. It was found that changing the PM arrangement from NSSN type to NSNS type helps to improve the performance almost at no extra cost [16]. Meanwhile, by employing consequent pole PM structure, the PM utilization and electromagnetic performance are both improved [17].
Stator-slot radially magnetized PM machine cannot produce high torque density due to large magnetic reluctance. This issue can be solved by employing Halbach array PM in the stator slot [15]. The side magnets can help to conduct and enhance magnetic flux. The PMs in the stator slots can also be magnetized circumferentially, so-called stator-slot circumferentially magnetized PM machines (SSCMPMMs) [14], as shown in Figure 1. In addition to the merits shared by other stator PM machines, they are fault-tolerant in terms of uncontrolled overvoltage generator fault under high speed flux weakening operation due to low induced back electromotive force (EMF) on open circuit [18]. However, the torque density of the SSCMPMMs needs to be improved, especially at a light load condition.
Coil pitch has a significant influence on the torque performance since it affects slot/pole number combination and winding pitch factor. The authors of [19] analytically investigated the influence of coil pitch of 1, 2, and 3 slot pitches on the back EMF of flux-reversal and switched-flux PM machines. It is also found that for both flux-reversal and switched-flux PM machines, distributed windings help to improve torque density compared with tooth-coil windings [20,21]. Therefore, it is necessary to investigate the influence of coil pitch in SSCMPMMs, which is the subject of this paper.
This paper is arranged as follows: Firstly, the machine topology, operation principle, and slot/pole number combinations are introduced in Section 2. The influence of key geometric parameters of SSCMPMMs is investigated in Section 3. The 12 stator-slots 7 rotor-poles (12S7R) machine with full-pitched windings (FPW) is identified to exhibit the highest torque density and then compared with a 12S10R machine with tooth-coil windings (TCW) in Section 4. Finally, a prototype is manufactured and tested in Section 5, and some conclusions are drawn in Section 6.

2. Machine Topology, Operation Principle, and Slot/Pole Number Combination

Figure 1 shows cross sections of stator-slot PM machines. All the machines have circumferentially magnetized magnets in stator slots and two adjacent magnets have opposite magnetization directions. On open circuit, almost all the PM flux is short-circuited within the stator, Figure 2a. However, when the armature windings are excited, the PM flux are forced into airgap and rotor side, Figure 2b. The amount of PM flux forced into airgap and rotor side depends on the armature field strength. Therefore, the average torque under Id = 0 control can be expressed as
T = 1.5NrψPM(iq)iqNrφPM(Fq)Fq
in which Nr is the rotor-pole number, ψPM(iq) is the PM flux linkage and affected by the armature current iq, and φPM(Fq) is the PM flux and affected by the armature magnetomotive force (MMF) Fq.
Stator-slot PM machines consist of three parts as other flux modulation machines, i.e., armature, PM excitation (PM MMF), and modulation poles (rotor slots). Although the PM MMF is closely related to the armature MMF, stator-slot PM machines still comply to the principle of flux modulation effect. The pole-pair number of armature windings affects the rotor-pole number, and their relationships are determined by [9]
Nr = iNs/2 ± Pa (i = 1, 3, 5···)
in which Nr is the rotor-pole number, Ns is the stator-slot number, i is the odd number, and Pa is the pole-pair number of armature windings. 12S-4R/8R/10R/11R/13R/14R/16R stator-slot PM machines are mentioned in [14], and the corresponding Pa is 2, 2, 4, 5, 5, 4, and 2, respectively, but all with tooth-coil windings. However, there are other combinations, e.g., 12S-5R/7R, whose armature pole-pair number is 1, as shown in Table 1. In this paper, 12 stator-slots machines with FPW and different number of rotor poles are investigated. The coil pitches are 3, 6, 6, and 3 slot pitches, respectively. It should be noted that FPW is not restricted to 12 stator-slots machines.
Taking 12S7R machine for example, as shown in Figure 3, the coil positions in mechanical degree and electrical degree are shown in Figure 3b,c, respectively. Figure 4 shows the winding layout and back EMF phasors of 12S-4R/5R/7R/8R machines. 12S-5R/7R machines have two sets of balanced three-phase windings that are phase shifted by 30 electrical degrees. For 12S-4R/8R stator rotor-pole machines, there is no shift angle between two sets of windings.
The winding factor kw can be expressed as
kw = kd kp
where kd is the winding distribution factor, and kp is the pitch factor. kd is given by
kd = sin(Qvα/2)/(Q sin(vα/2))
where Q is the number of coil-EMF phasors per phase, α is the angle between two adjacent coil-EMF phasors, and v is the harmonic order.
The pitch factor kp is given by [16]
kp = cos(θc/2 − π/2)
where θc is the angular difference between two adjacent slot conductors for the vth harmonics and is expressed as v(2πNr/Ns).
The efficiency can be predicted by considering the total copper loss (Pcu_total), iron loss (Piron), PM eddy current loss (Ppm_eddy), as
η = Pem/(Pem + Pcu_total + Piron + Ppm_eddy)
where Pem is the output power. The total copper loss includes the effective copper loss Pcu_eff and the end-winding copper loss Pcu_end. The end-winding length per turn lend is calculated as
lend = τcπ
where τc is the average coil pitch of the machine. For FPW, τc is calculated as
τc = 2πy(r3yk − 0.5hslot)/Ns
For TCW, τc is calculated as
τc =π(r3yk − 0.5hslot)/Ns + 0.5tw
where r3 is the stator outer radius, yk is the stator yoke width, hslot is the slot depth, tw is the tooth width, and y is the coil pitch in slot pitch.

3. Influence of Key Geometric Parameters

Before investigating the influence of key geometric parameters, optimal models are obtained by global optimization under the following conditions.
(1)
Both machines have the same stator outer diameter, stack length, PM material, and iron steel. The effective copper loss is fixed to 20 W.
(2)
All the optimizations are based on genetic algorithm (GA), and 30 individuals in each population with 35 generations have been employed.
(3)
The optimized parameters are stator yoke width, stator inner radius, stator tooth width, rotor tooth width, rotor slot depth, and PM thickness. Parameters of the optimized machines are listed in Table 2.
The influence of key geometric parameters, i.e., rotor-pole number, stator yoke width, stator tooth width, stator inner diameter, PM thickness, and rotor tooth width, is investigated. As listed in Table 1, when Pa is fixed, there are different rotor-pole numbers that can satisfy (2). For example, when Pa = 1, the rotor-pole number can be chosen as 5, 7, 17, or 19. Figure 5 shows that when the rotor pole number is 5 or 7, higher torque can be generated. Then, the influence of other geometric parameters in 12S-4R/5R/7R/8R machines is further investigated.
Figure 6 shows that larger stator yoke width is required to generate the highest torque for 12S5R and 12S7R, because the armature pole pair number is 1 and larger stator yoke width is required to avoid high saturation. In contrast, 12S4R and 12S8R need smaller optimum stator yoke widths.
Stator tooth width affects the stator tooth saturation and flux modulation effect. As shown in Figure 7, the optimum stator tooth widths range from 3.5–4.5 mm. Figure 8 shows that there exists an optimum stator inner radius to maximize the average torque, when a better balance is achieved between electrical loading and magnetic loading. For 12S-4R/5R/7R/8R, the optimum values are around 20, 18, 19, and 20 mm, respectively, which correspond to the split ratios between the stator inner radius to outer radius of 0.44, 0.4, 0.42, and 0.44.
Figure 9 shows that thicker PMs are favourable to produce maximum torque for 12S-5R/7R machines compared to 12S-4R/8R machines. To explain this, the armature MMF of stator windings is analysed. For simplicity, the input current is normalized, and the turn number per slot is 1. Figure 10 compares the MMFs of the two stator windings with Pa = 1 and Pa = 2. When Pa is smaller, the armature MMF is stronger, and more PM flux can be forced into the airgap and the rotor side under load condition. (1) shows that the average torque is greatly affected by the armature MMF. Hence, the stronger the armature MMF, the higher the PM flux and the thicker the PMs.
When the PM thickness is larger than the optimum values, the copper area and the electrical loading are reduced. Meanwhile, the reduced electrical loading also means decreased PM flux φPM(Fq), as shown in (1).
As can be observed from Figure 11, 12S-4R/5R machines have larger values of optimum rotor tooth width than 12S-7R/8R machines. The former needs wider rotor tooth to collect more flux due to smaller rotor pole number.
Figure 12 compares the torque waveforms of 12S machines with different rotor pole numbers. The corresponding geometric parameters are listed in Table 2. 12S-5R/7R machines deliver higher torque than 12S-4R/8R machines. In addition, the torque ripples of 12R-5R/7R machines are much lower than those of 12S-4R/8R machines, due to larger numbers of least common multiple of stator-slot number and rotor-pole number.

4. Comparison of Stator-Slot PM Machines with Tooth-Coil and Full-Pitched Windings

In this section, the 12S7R machine with FPW is compared with 12S10R with TCW, based on globally optimized topologies.
Figure 13 shows the cross sections of compared stator slot PM machines. M1 (12S7R with FPW) and M2 (12S10R with TCW) are globally optimized. M3 (12S10R with TCW) is optimized under the same PM volume as M1. The parameters are listed in Table 2.
On open circuit, Figure 14a–c, the PM flux linkage only circulates within the stator, if neglecting magnetic saturation. However, there is some “leakage” flux linking the stator and the rotor due to nonlinear BH characteristics of the iron core laminations. Hence, negligible back EMFs and cogging torques can be expected.
On load, Figure 14d–f, the PM flux is forced into the airgap and the rotor side by the armature MMF, and the PM flux has improved saturation in the flux path, i.e., the stator tooth of M1 and the stator yoke of M2. This also explains the small stator yoke width in M2. Although more space is used to accommodate the copper wire, the stator yoke is not saturated on load.
By comparing Figure 14e,f, it can be observed that the on-load flux density in the stator teeth increases when increasing the PM volume. This is due to the fact that the armature MMF Fq can only force PM flux φPM(Fq) into the airgap, and excess PM flux makes the flux path more saturated. Aside from that, the stator slot area is reduced, and so is the armature MMF Fq. Therefore, M3 generates lower torque than M2, as shown in Figure 15.
Figure 15 compares the torques of the three machines. As can be observed, M1 delivers the highest torque, together with the lowest torque ripple. On load, the slot/pole number combination plays an important role in affecting the torque ripple. For M1, the least common multiple LCM is 84, while that of M2 and M3 is 60, which explains the lowest torque ripple of M1. Regarding other electromagnetic performance, only M1 and M2 are compared.
In Figure 16, the airgap flux densities of the two machines are shown. M1 exhibits higher airgap flux density than M2, due to the thicker PMs resulting in more “leakage” flux, which can also be observed in Figure 14.
Similarly, the tendency of the back EMFs of the two machines can be explained. As shown in Figure 17, M1 has higher back EMF than M2.
Cogging torque is mainly affected by the slot/pole number combination and the strength of airgap magnetic field, i.e., the amount of “leakage” flux. M1 exhibits higher cogging torque than M2 due to higher “leakage” flux, as shown in Figure 18.
The least common multiple (LCM) between the stator-slot number and the rotor-pole number of M1 and M2 is 84 and 60, respectively. Therefore, the dominant cogging torque harmonics in one electrical period are 12th and 6th, respectively, as shown in Figure 18b.
Figure 19 shows that both the machines rely on PM torque, and they have negligible reluctance torque. Figure 20 compares the torques versus armature current under Id = 0 control. It should be noted that the SSCMPMMs have antisaturation capability. This antisaturation capability is due to the fact that most of the PM flux circulates within the stator core on open circuit, and the armature MMF forces the PM flux into the airgap and the rotor side at load condition. The magnetic flux path firstly becomes less saturated when the armature current increases. Then, the PM MMF and the armature MMF reach a balance, at which point the main flux path is least saturated. Afterward, the flux path becomes more and more saturated if the armature current is further increased. This phenomenon is indicated by the inductance variation versus armature current, as shown in Figure 21. The inductance variations also indicate that M2 has better overload capability.
Figure 22 compares the power factor of the two machines. M2 exhibits the slightly higher power factor on rated load, due to the smaller inductance. Although M1 has much larger inductance, its electrical frequency is lower.
Figure 23 shows that the efficiencies rise with the increase of speed before reaching their maximum values, due to the increase of output power. M1 always exhibits higher efficiency than M2, albeit with much longer end-windings. The total copper losses including end-windings of M1 and M2 are 43.2 and 143.2 W, respectively.
Figure 24 compares the iron losses and PM losses. Because of the lower airgap flux density on load, as shown in Figure 25, M2 always shows lower iron loss, lower PM loss, and, interestingly, lower efficiency due to lower torque.
Figure 26 compares the torques versus machine length. The machine length is ls + hend. hend is the height of end-winding. The volume of the end-winding Vend and the volume of the effective winding Veff satisfy (10).
Vend/Veff = lend/ls
Vend = π(rb2rt2)hend
Veff = Sslotls
where rb is the radius of slot bottom, rt is the radius of slot top, and Sslot is the total slot area.
As can be observed, when the machine length is smaller than 145 mm, M1 delivers lower torque than M2. However, when the machine length is larger than 145 mm, M1 is more advantageous in producing high torque. Similar efficiency tendency can be observed in Figure 27. M1 is more efficient when the machine length is over 140 mm.

5. Experiment Validation

The 12S7R SSCMPMM with y = 3 is prototyped, as shown in Figure 28. The magnets are inserted into the stator slot after winding the stator. Due to the employment of parallel teeth, the magnets can be stuck in the stator slots. Such practice may be not applicable to mass production. The geometric parameters of the prototype are listed in Table 3.
Although the open-circuit performance is produced by the “leakage” flux, and easily affected by magnetic saturation and material imperfections, it is still worth checking the back EMF. Figure 29 compares the 2D/3D FEA calculated and measured back EMFs, from which we can observe that 2D/3D FEA calculated values are close to the measured ones.
The static torque versus rotor position is measured by injecting dc current (Ia = −2Ib = −2Ic = 10 A) into the three phase windings [22]. The FEA calculated and measured static torques are shown in Figure 30. The measured static torque is around 23.6% and 18% lower than the 2D and 3D FEA calculated values. Similarly, larger difference can be observed between 2D FEA calculated and measured torque versus current curves, as shown in Figure 31.

6. Conclusions

In this paper, stator slot circumferentially magnetized PM machines (SSCMPMMs) with full-pitched windings (FPW) are analysed. The influence of key geometric parameters is investigated for the 12 stator-slots and 4/5/7/8 rotor-poles SSCMPMMs. The 12 stator-slots 7 rotor-poles (12S7R) and 12S5R machines need larger stator yoke width and thicker PMs. The 7 poles rotor can produce the highest torque and the lowest torque ripple.
Compared with 12S10R SSCMPMM with tooth-coil windings (TCW), the 12S7R machine with FPW can deliver around 5.5 times higher torque. Meanwhile, if the total machine length is over around 140 mm, the 12S7R machine can produce higher torque density and higher efficiency compared with its 12S10R counterpart.

Author Contributions

Writing—original draft preparation, H.Q. and H.Y.; writing—review and editing, Z.Q.Z.; supervision, Z.Q.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Z.; Tao, Y.; Yan, Y. Investigation of a new topology of hybrid excitation doubly salient brushless DC generator. IEEE Trans. Ind. Electron. 2012, 59, 2550–2556. [Google Scholar] [CrossRef]
  2. Cheng, M.; Chau, K.T.; Chan, C.C. Static characteristics of a new doubly salient permanent magnet motor. IEEE Trans. Energy Convers. 2001, 16, 20–25. [Google Scholar] [CrossRef] [Green Version]
  3. Chau, K.T.; Sun, Q.; Fan, Y.; Cheng, M. Torque ripple minimization of doubly salient permanent-magnet motors. IEEE Trans. Energy Convers. 2005, 20, 352–358. [Google Scholar] [CrossRef] [Green Version]
  4. Chen, J.T.; Zhu, Z.Q. Winding configurations and optimal stator and rotor pole combination of flux-switching PM brushless AC machines. IEEE Trans. Energy Convers. 2010, 25, 293–302. [Google Scholar] [CrossRef]
  5. Hua, W.; Cheng, M.; Zhu, Z.Q.; Howe, D. Analysis and optimization of back EMF waveform of a flux-switching permanent magnet motor. IEEE Trans. Energy Convers. 2008, 23, 727–733. [Google Scholar] [CrossRef]
  6. Chen, J.T.; Zhu, Z.Q.; Iwasaki, S.; Deodhar, R. A novel E-core flux-switching PM brushless AC machine. In Proceedings of the 2010 IEEE Energy Conversion Congress and Exposition, Atlanta, GA, USA, 12–16 September 2010; pp. 3811–3818. [Google Scholar]
  7. Shao, L.; Hua, W.; Zhu, Z.Q.; Zhu, X.; Cheng, M.; Wu, Z. A novel flux-switching permanent magnet machine with overlapping windings. IEEE Trans. Energy Convers. 2017, 32, 172–183. [Google Scholar] [CrossRef]
  8. More, D.S.; Fernandes, B.G. Analysis of flux-reversal machine based on fictitious electrical gear. IEEE Trans. Energy Convers. 2010, 25, 940–947. [Google Scholar] [CrossRef]
  9. Gao, Y.; Qu, R.; Li, D.; Li, J.; Wu, L. Design of three-phase flux-reversal machines with fractional-slot windings. IEEE Trans. Ind. Appl. 2016, 52, 2856–2864. [Google Scholar] [CrossRef]
  10. Kim, T.H.; Lee, J. A study of the design for the flux reversal machine. IEEE Trans. Magn. 2004, 40, 2053–2055. [Google Scholar] [CrossRef]
  11. Deodhar, R.P.; Andersson, S.; Boldea, I.; Miller, T.J.E. The flux-reversal machine: A new brushless doubly-salient permanent-magnet machine. IEEE Trans. Ind. Appl. 1997, 33, 925–934. [Google Scholar] [CrossRef]
  12. Wang, C.; Nasar, S.A.; Boldea, I. Three-phase flux reversal machine (FRM). IEE Proc. Electric Power Appl. 1999, 146, 139–146. [Google Scholar] [CrossRef]
  13. Wang, C.X.; Boldea, I.; Nasar, S.A. Characterization of three phase flux reversal machine as an automotive generator. IEEE Trans. Energy Convers. 2001, 16, 74–80. [Google Scholar] [CrossRef]
  14. Afinowi, I.A.A.; Zhu, Z.Q.; Guan, Y.; Mipo, J.; Farah, P. A novel brushless AC doubly salient stator slot permanent magnet machine. IEEE Trans. Energy Convers. 2016, 31, 283–292. [Google Scholar] [CrossRef]
  15. Xie, K.; Li, D.; Qu, R.; Yu, Z.; Gao, Y.; Pan, Y. Analysis of a flux reversal machine with quasi-Halbach magnets in stator slot opening. IEEE Trans. Ind. Appl. 2019, 55, 1250–1260. [Google Scholar] [CrossRef]
  16. Li, H.; Zhu, Z.Q. Influence of adjacent teeth magnet polarities on the performance of flux reversal permanent magnet machine. IEEE Trans. Ind. Appl. 2019, 55, 354–365. [Google Scholar] [CrossRef]
  17. Gao, Y.; Qu, R.; Li, D.; Li, J.; Zhou, G. Consequent-pole flux-reversal permanent-magnet machine for electric vehicle propulsion. IEEE Trans. Appl. Supercond. 2016, 26. [Google Scholar] [CrossRef]
  18. Zhu, Z.Q.; Pothi, N.; Xu, P.L.; Ren, Y. Uncontrolled generator fault protection of novel hybrid-excited doubly salient synchronous machines with field excitation current control. IEEE Trans. Ind. Appl. 2016, 55, 3598–3606. [Google Scholar] [CrossRef]
  19. Du, Y.; Xiao, F.; Hua, W.; Zhu, X.; Cheng, M.; Quan, L.; Chau, K.T. Comparison of flux-switching PM motors with different winding configurations using magnetic gearing principle. IEEE Trans. Magn. 2016, 52. [Google Scholar] [CrossRef]
  20. More, D.S.; Fernandes, B.G. Power density improvement of three phase flux reversal machine with distributed winding. IET Electr. Power Appl. 2010, 4, 109–120. [Google Scholar] [CrossRef]
  21. Li, D.; Qu, R.; Li, J.; Xu, W.; Wu, L. Synthesis of switched flux permanent magnet machines. IEEE Trans. Energy Convers. 2016, 31, 106–117. [Google Scholar] [CrossRef]
  22. Zhu, Z.Q. A simple method for measuring cogging torque in permanent magnet machines. In Proceedings of the 2009 IEEE Power & Energy Society General Meeting, Calgary, AB, Canada, 26–30 July 2009. [Google Scholar] [CrossRef]

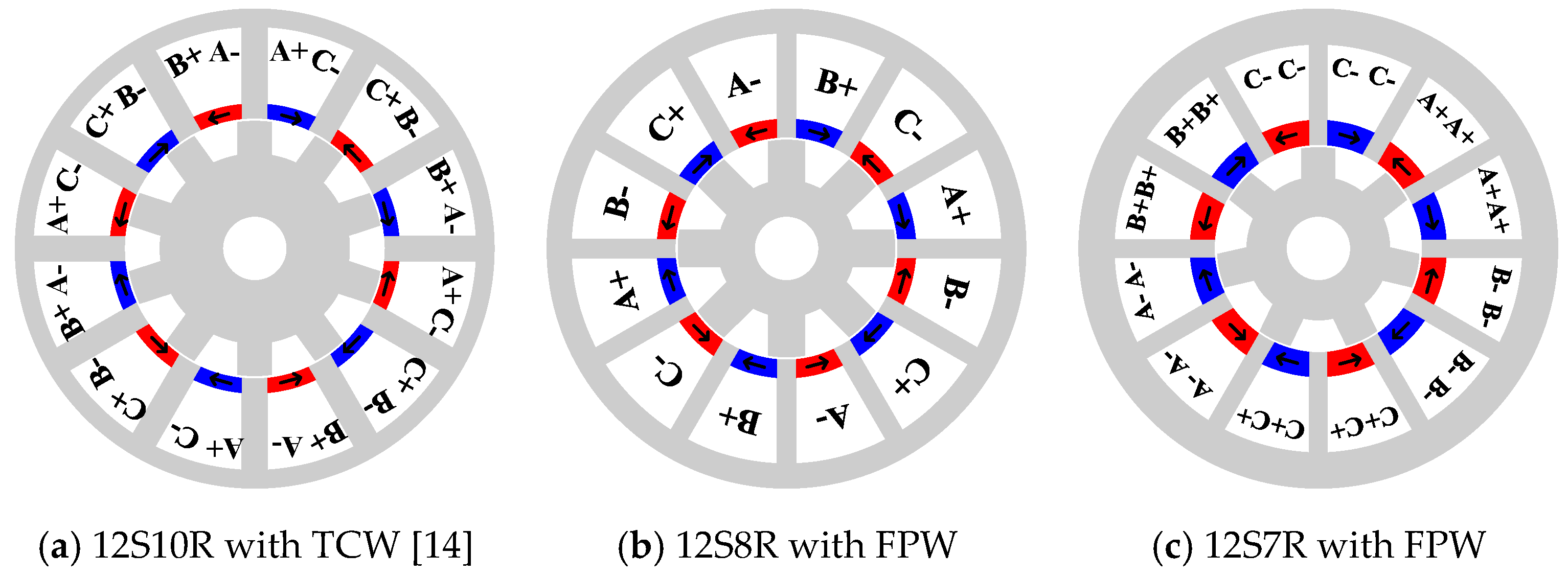

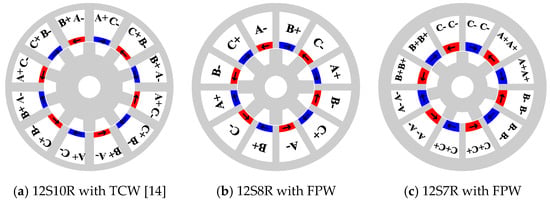

Figure 1. Stator-slot permanent magnet (PM) machines with different winding configurations.
Figure 1. Stator-slot permanent magnet (PM) machines with different winding configurations.
Wevj 12 00033 g001

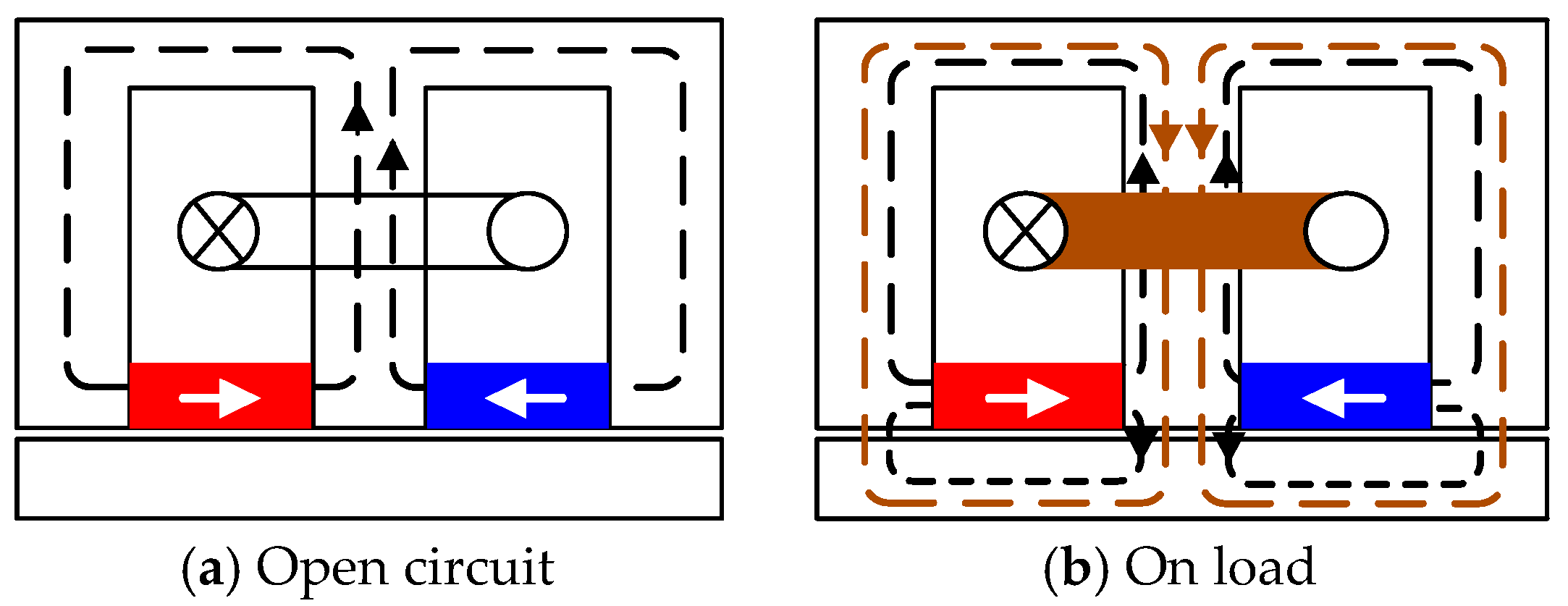

Figure 2. Simplified circuits for illustrating operation principle.
Figure 2. Simplified circuits for illustrating operation principle.
Wevj 12 00033 g002

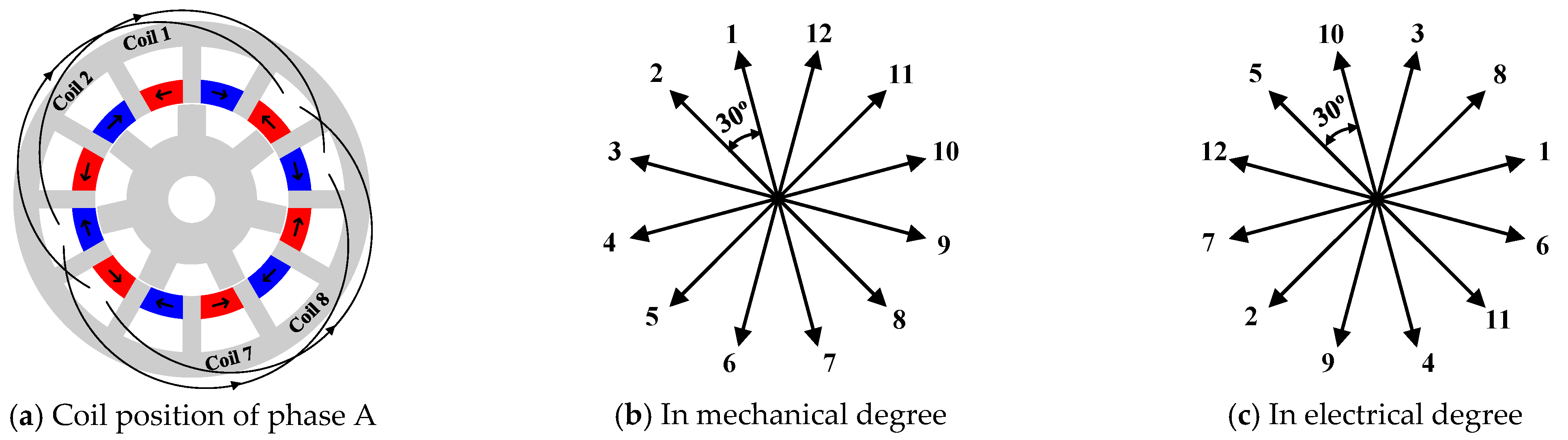

Figure 3. Coil positions of 12S7R stator/rotor-pole machine.
Figure 3. Coil positions of 12S7R stator/rotor-pole machine.
Wevj 12 00033 g003

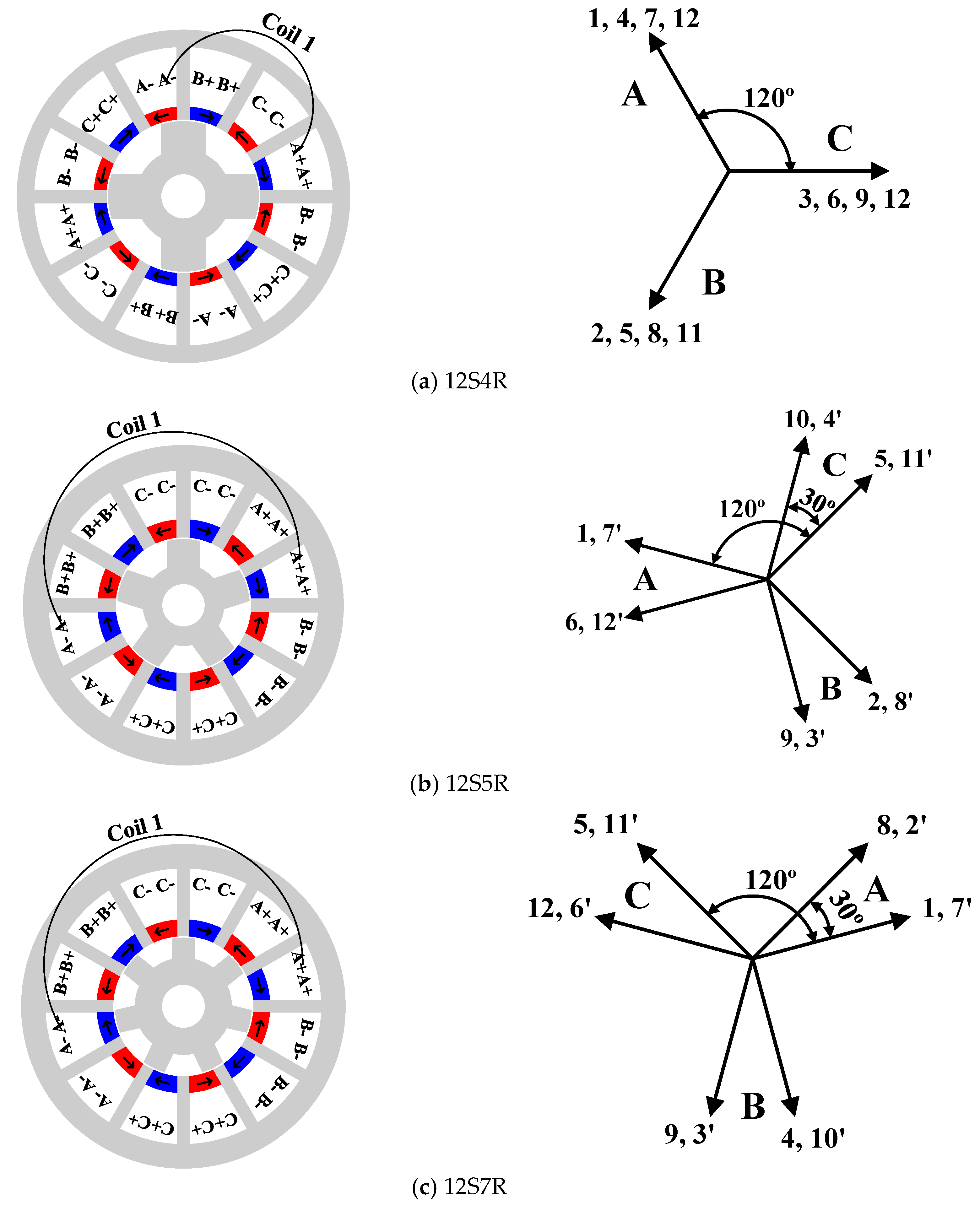

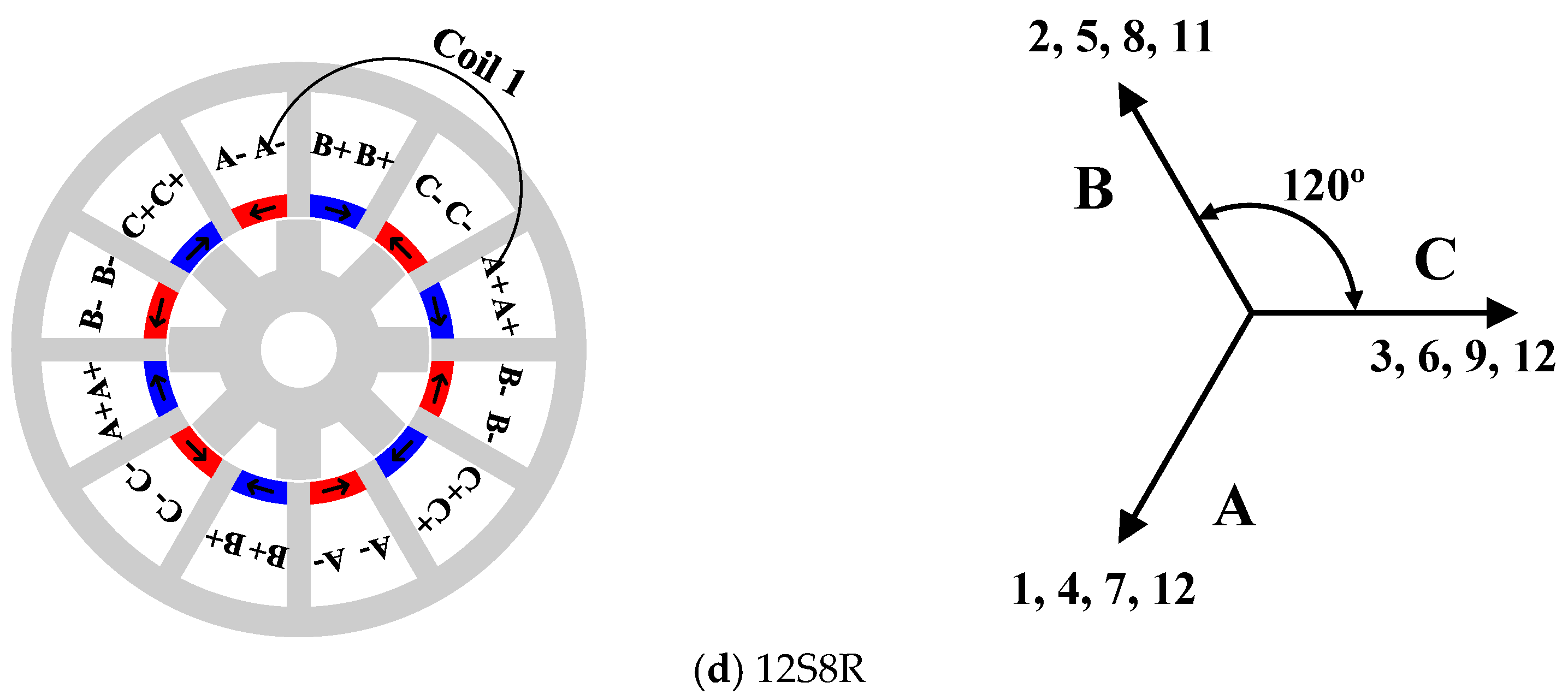

Figure 4. Winding layouts and back electromotive force (EMF) phasors.
Figure 4. Winding layouts and back electromotive force (EMF) phasors.
Wevj 12 00033 g004aWevj 12 00033 g004b

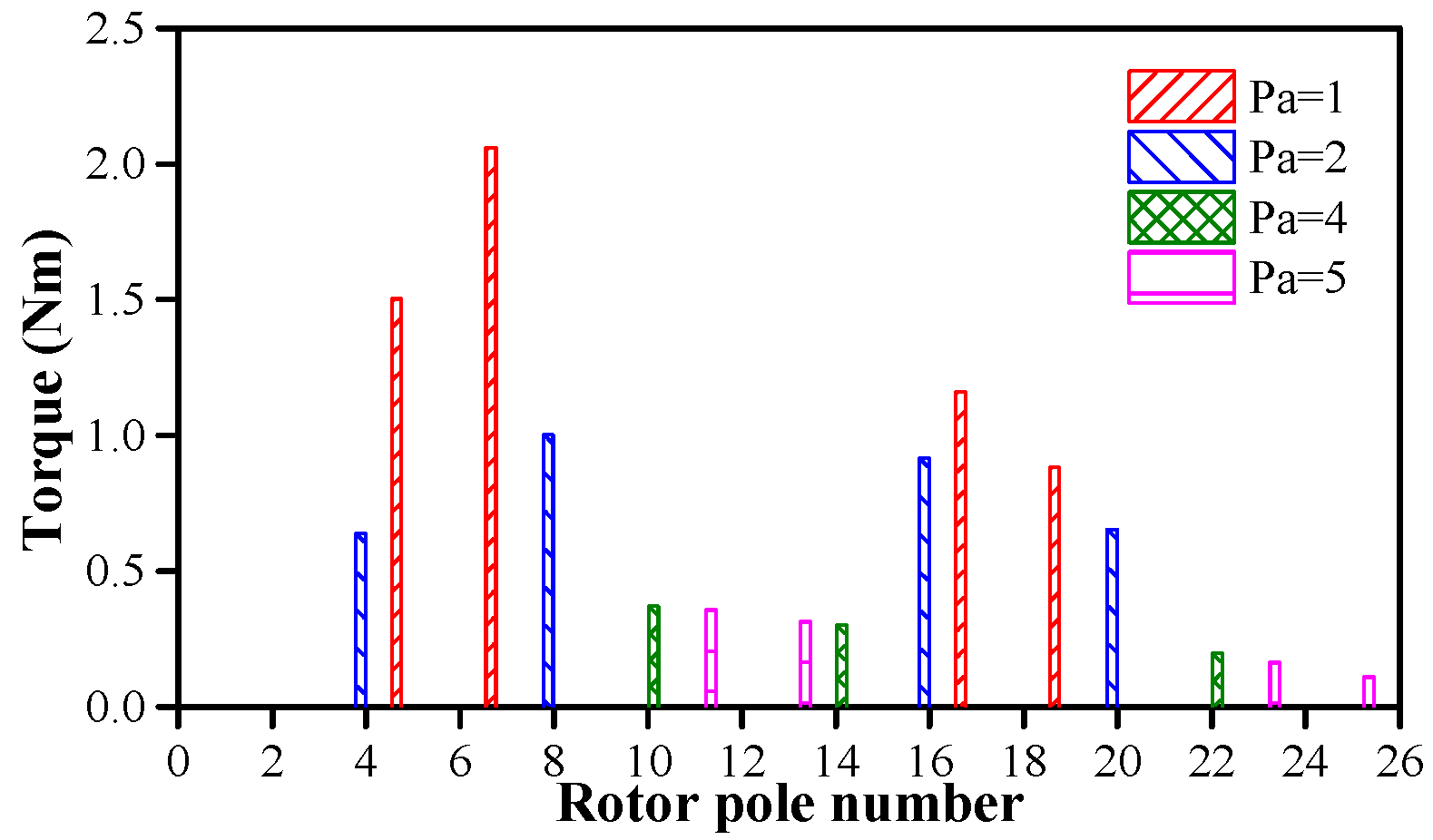

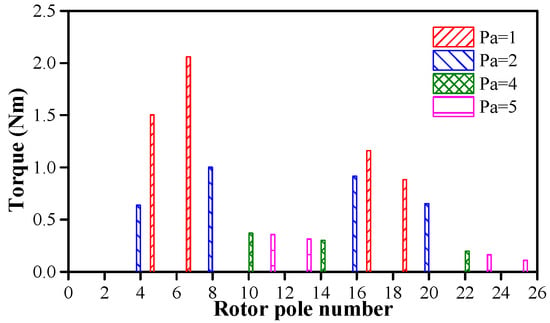

Figure 5. Influence of rotor-pole number on average torque when Pcu_eff = 20 W.
Figure 5. Influence of rotor-pole number on average torque when Pcu_eff = 20 W.
Wevj 12 00033 g005

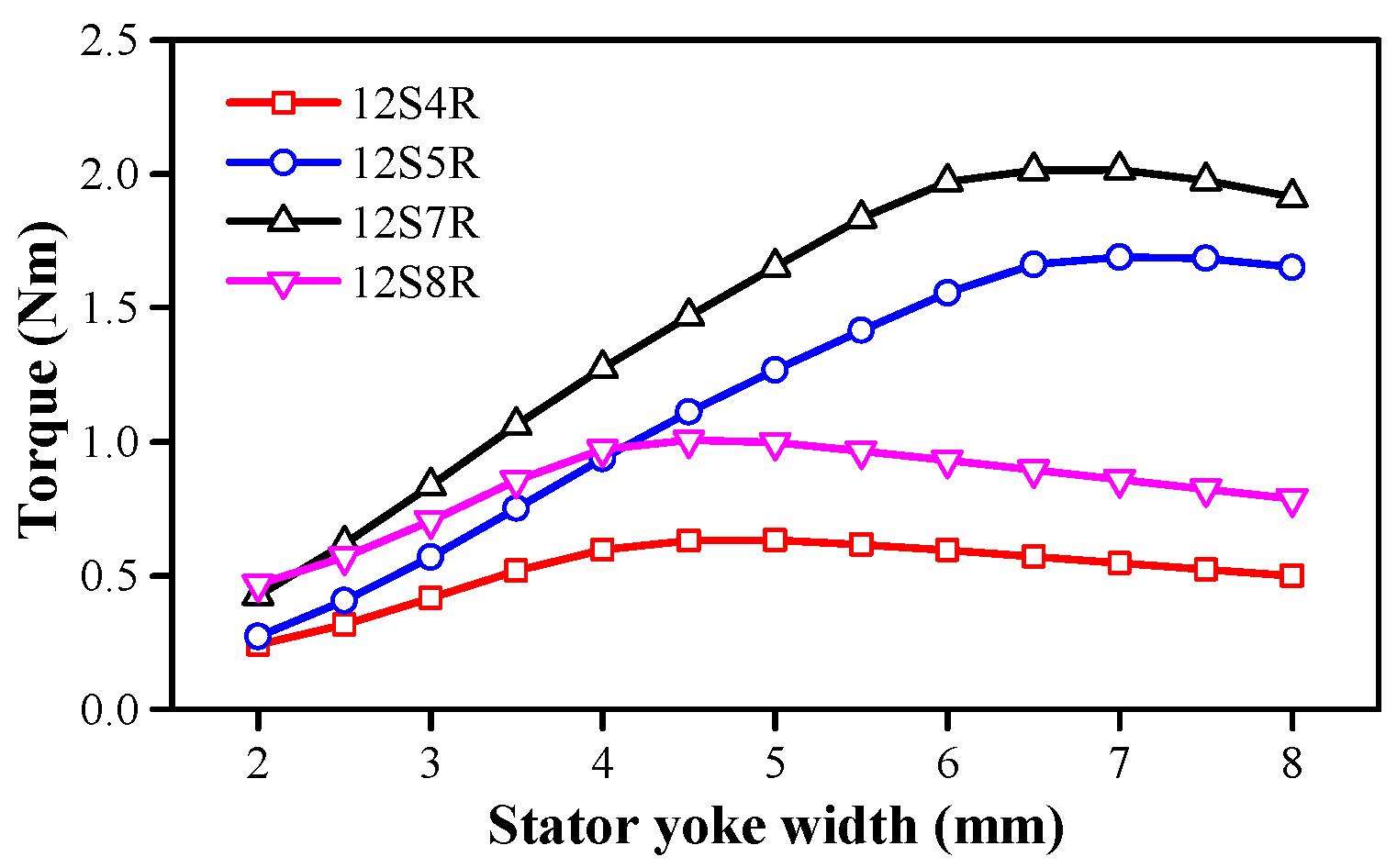

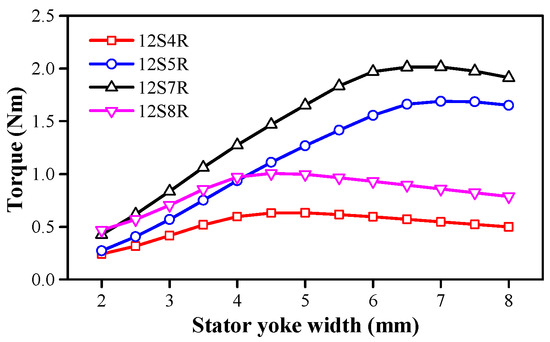

Figure 6. Influence of stator yoke width on average torque when Pcu_eff = 20 W.
Figure 6. Influence of stator yoke width on average torque when Pcu_eff = 20 W.
Wevj 12 00033 g006

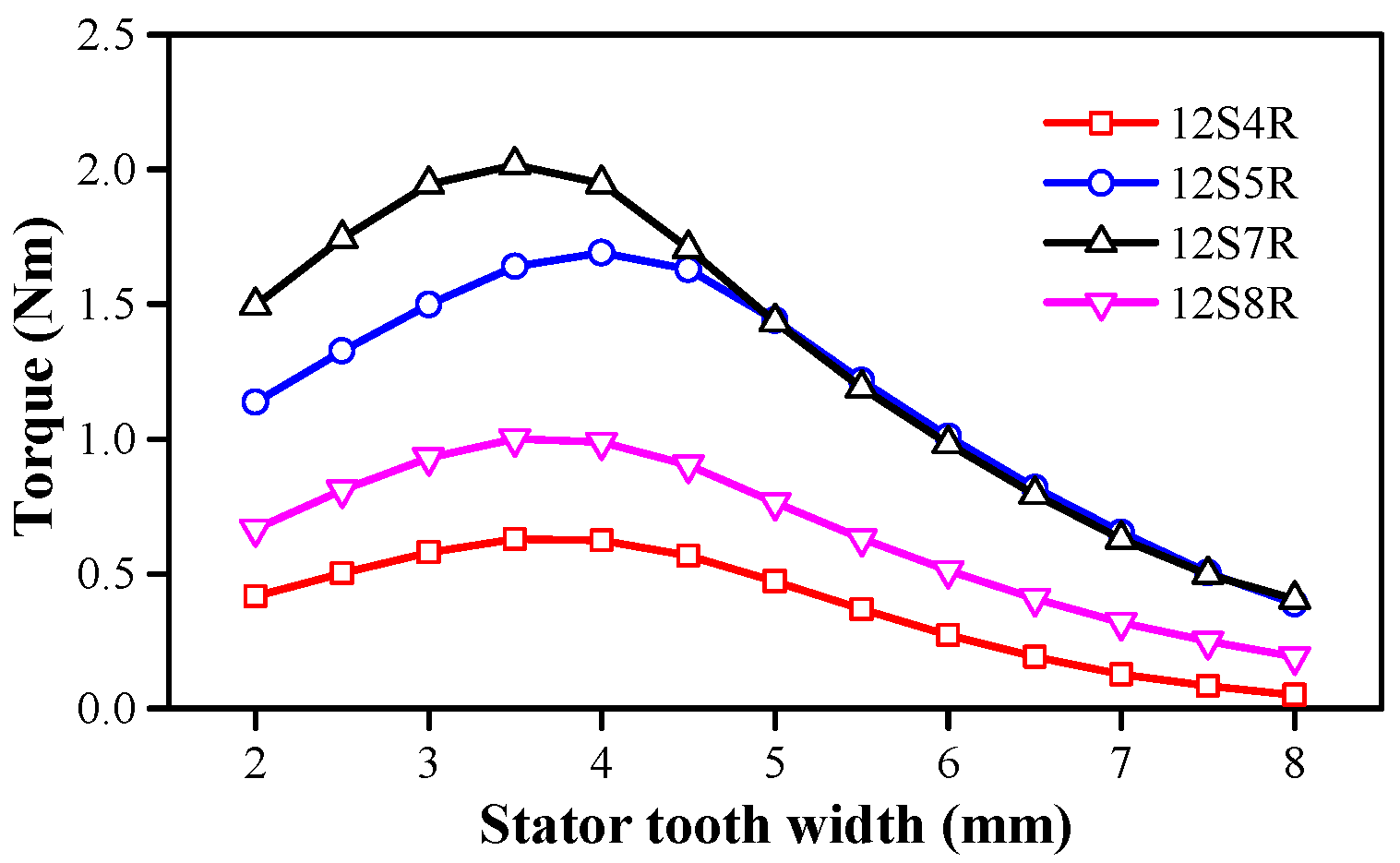

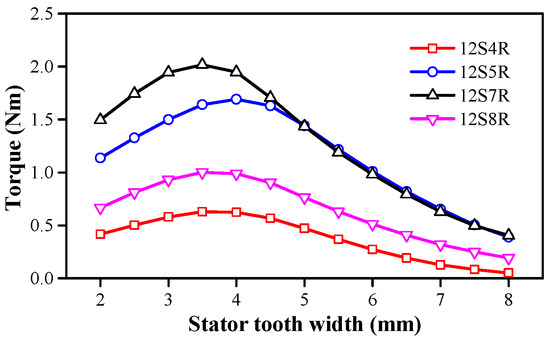

Figure 7. Influence of stator tooth width on average torque when Pcu_eff = 20 W.
Figure 7. Influence of stator tooth width on average torque when Pcu_eff = 20 W.
Wevj 12 00033 g007

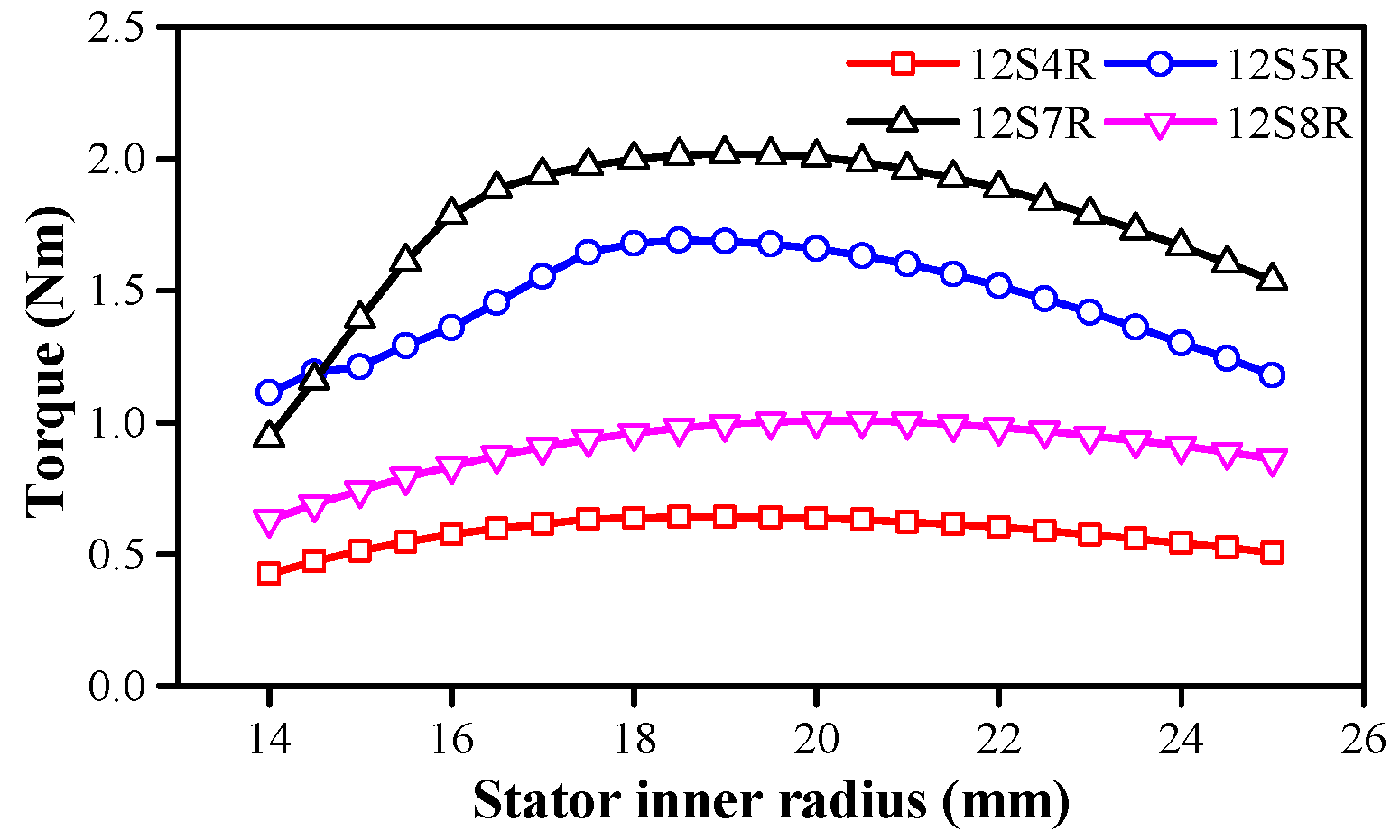

Figure 8. Influence of stator inner radius on average torque when Pcu_eff = 20 W.
Figure 8. Influence of stator inner radius on average torque when Pcu_eff = 20 W.
Wevj 12 00033 g008

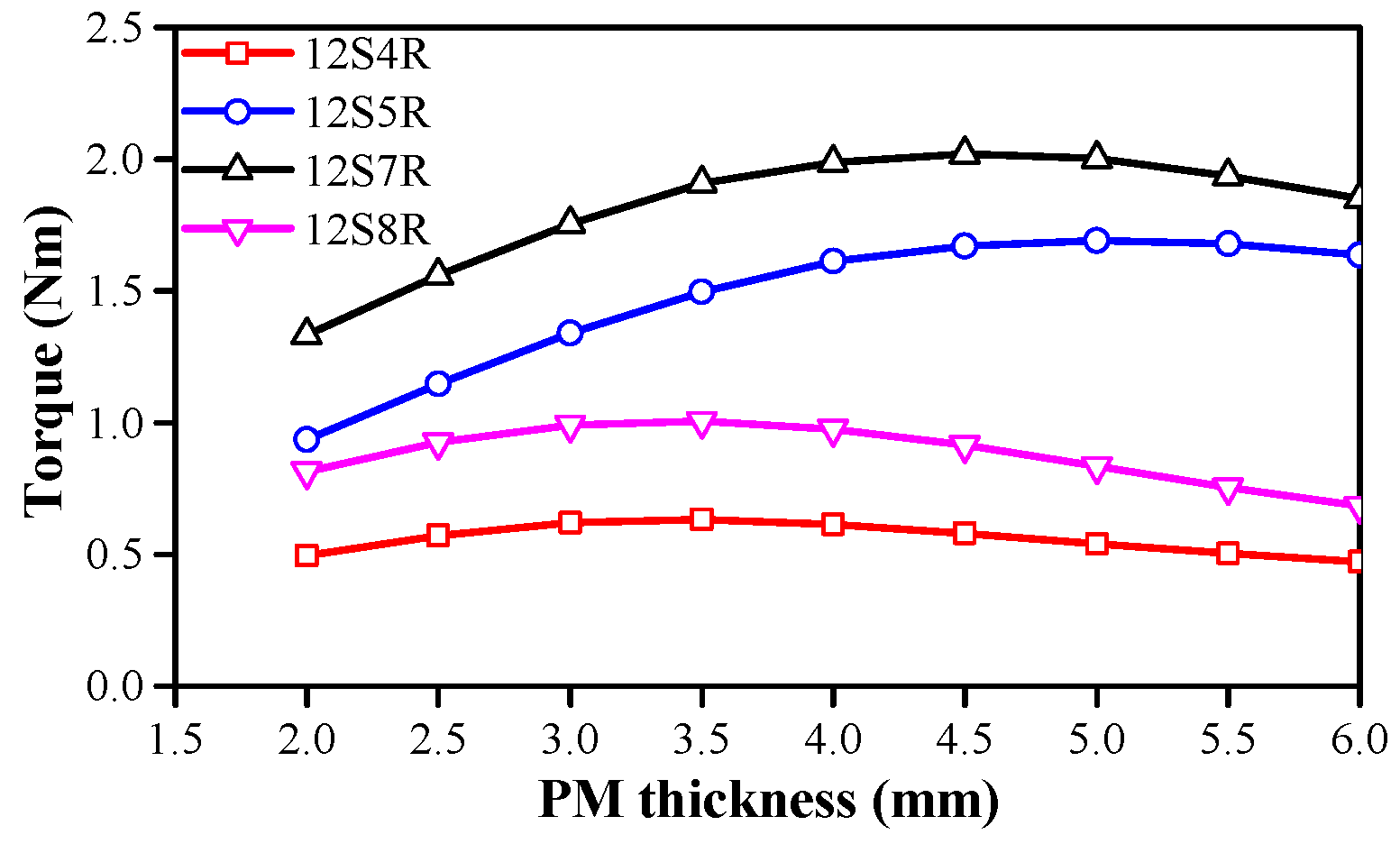

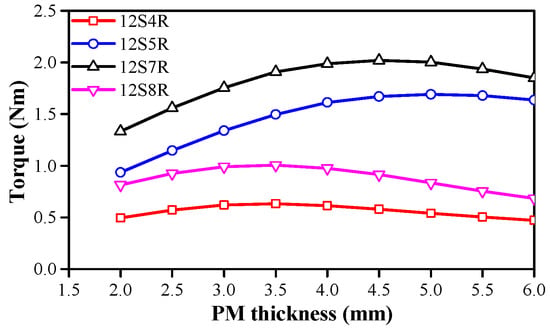

Figure 9. Influence of PM thickness on average torque when Pcu_eff = 20W.
Figure 9. Influence of PM thickness on average torque when Pcu_eff = 20W.
Wevj 12 00033 g009

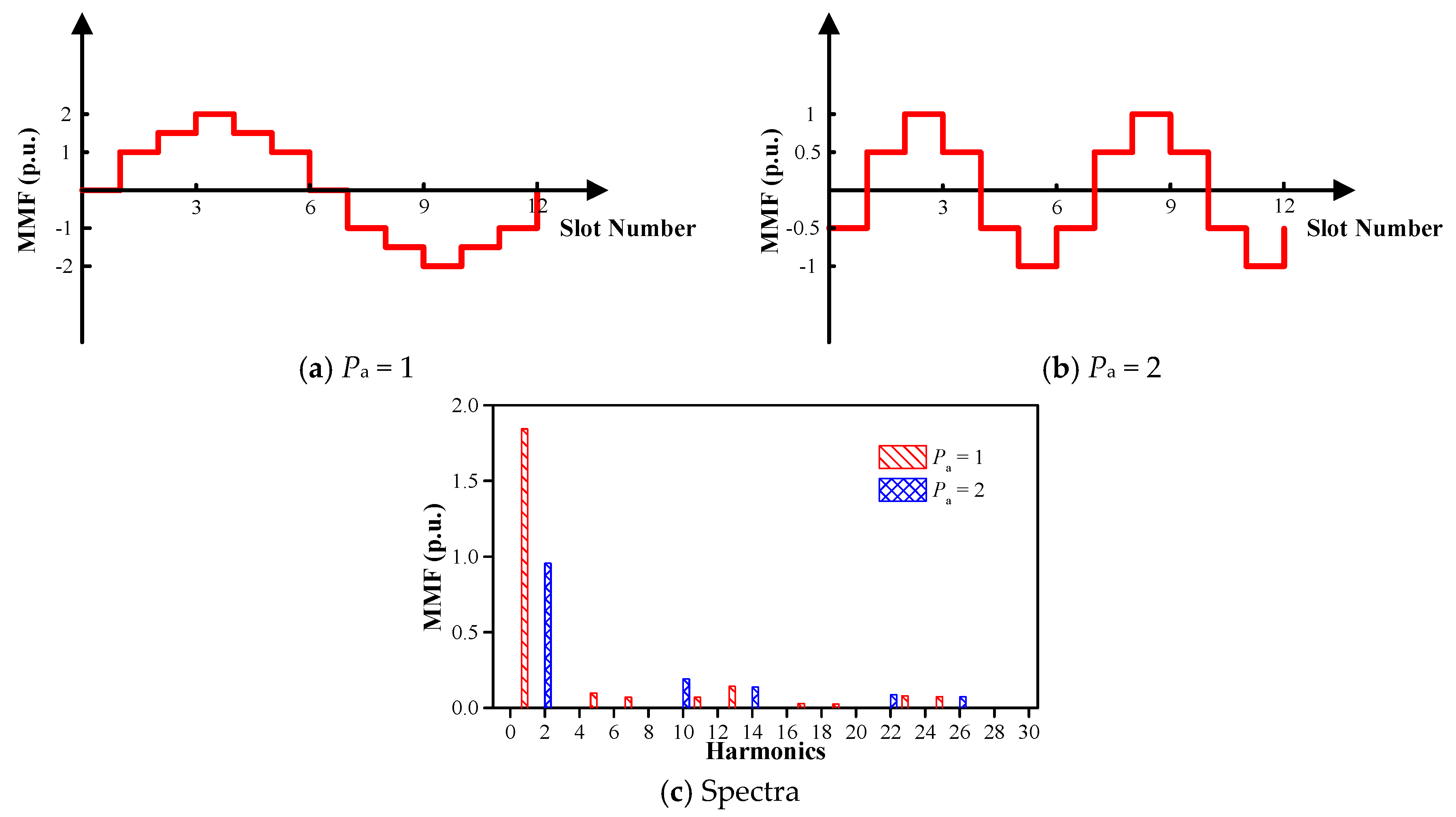

Figure 10. Armature MMFs for Pa = 1 and Pa = 2.
Figure 10. Armature MMFs for Pa = 1 and Pa = 2.
Wevj 12 00033 g010

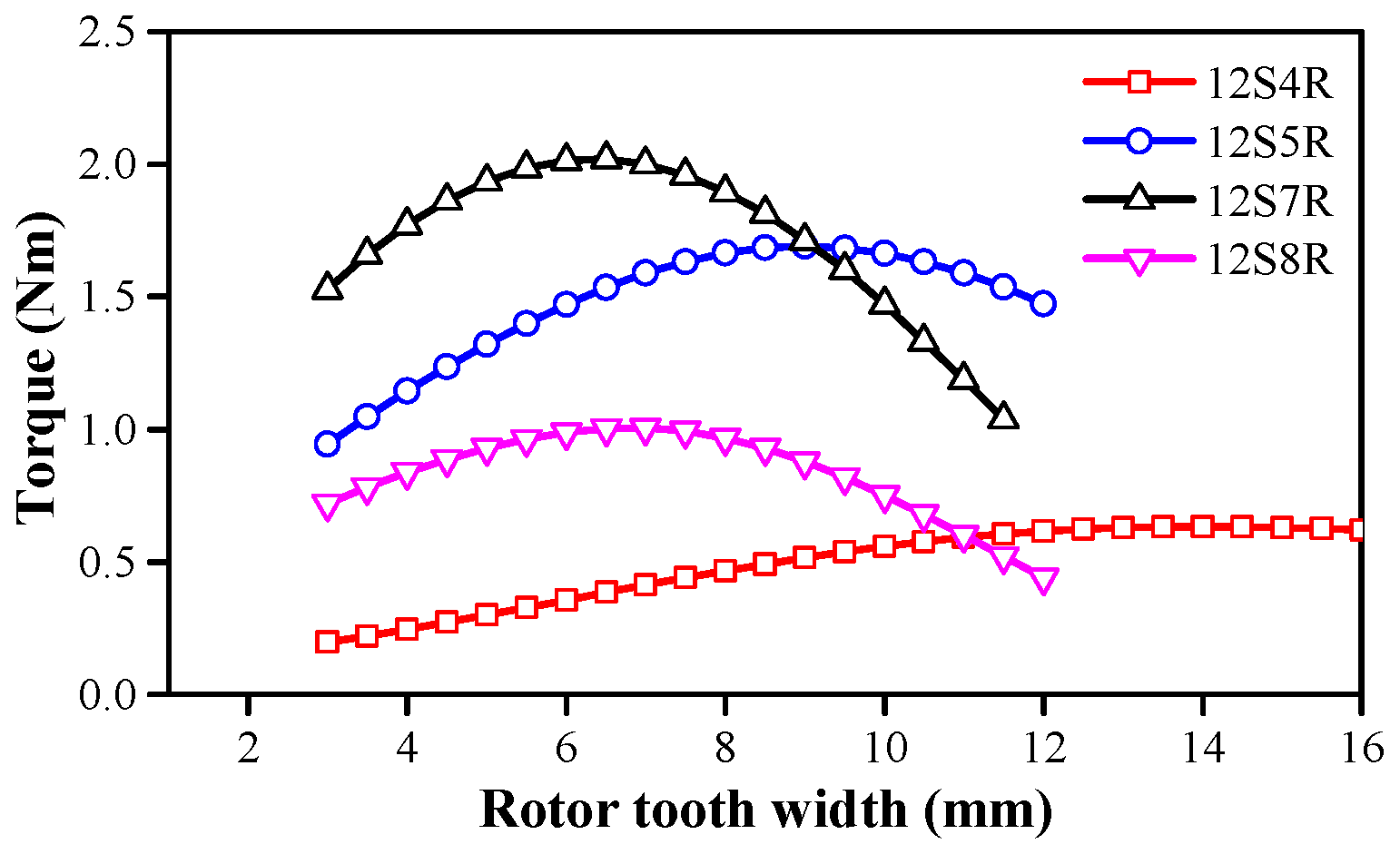

Figure 11. Influence of rotor tooth width on average torque when Pcu_eff = 20 W.
Figure 11. Influence of rotor tooth width on average torque when Pcu_eff = 20 W.
Wevj 12 00033 g011

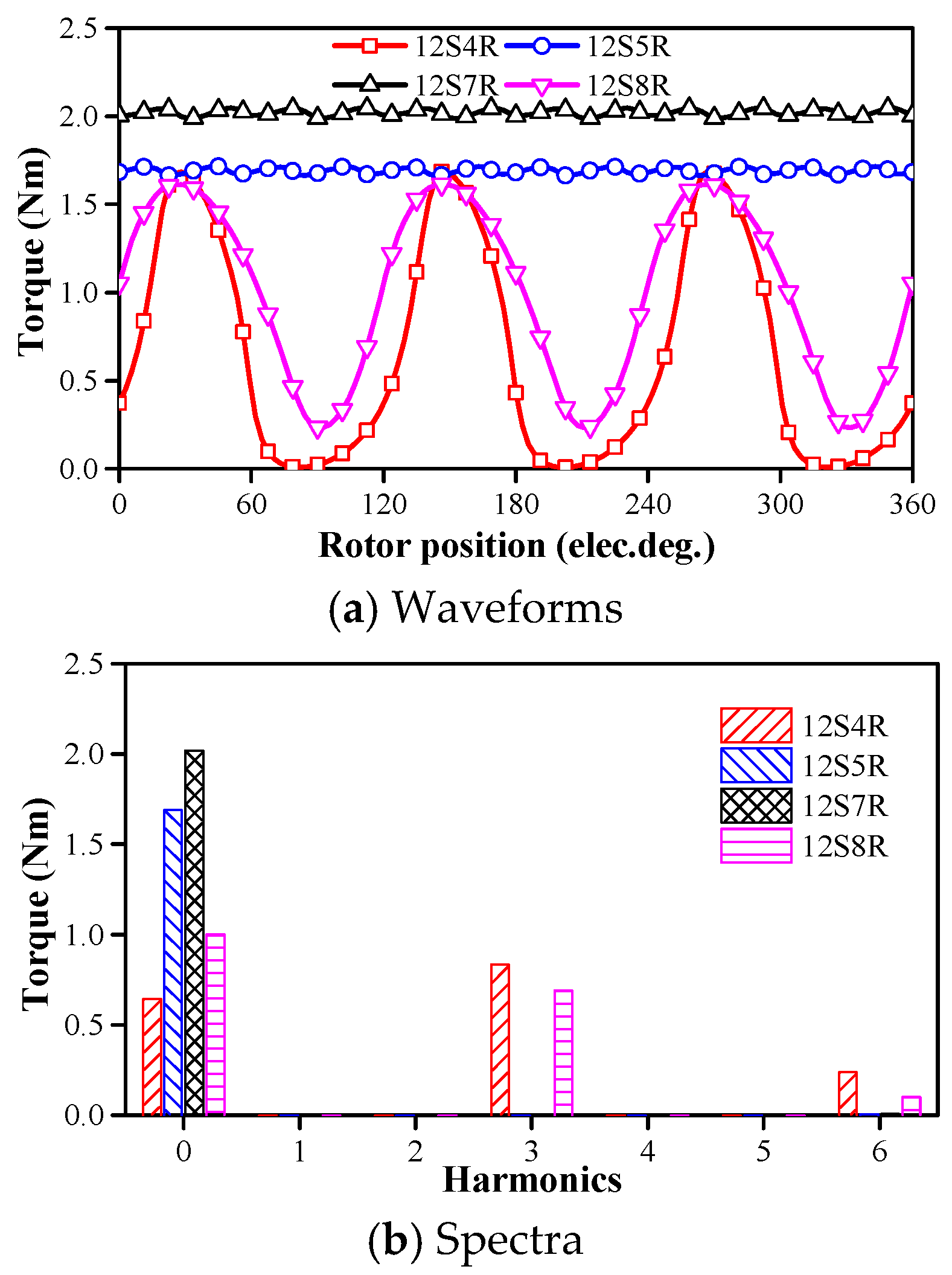

Figure 12. Comparison of torques of 12S-4R/5R/7R/8R machines when Pcu_eff = 20 W.
Figure 12. Comparison of torques of 12S-4R/5R/7R/8R machines when Pcu_eff = 20 W.
Wevj 12 00033 g012

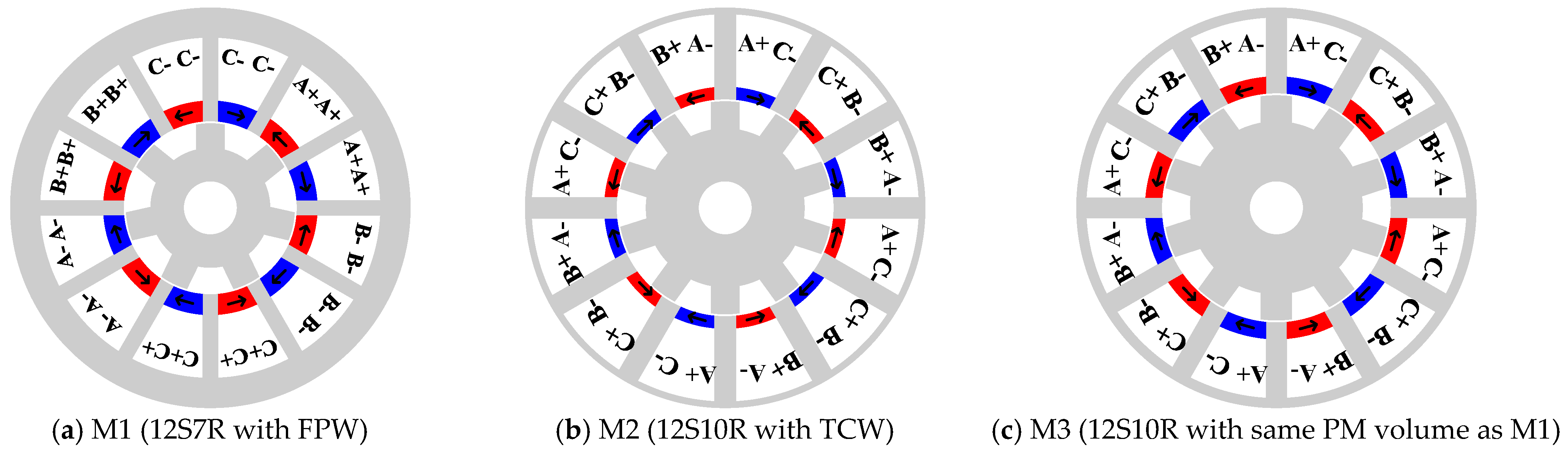

Figure 13. Cross sections of stator-slot PM machines.
Figure 13. Cross sections of stator-slot PM machines.
Wevj 12 00033 g013

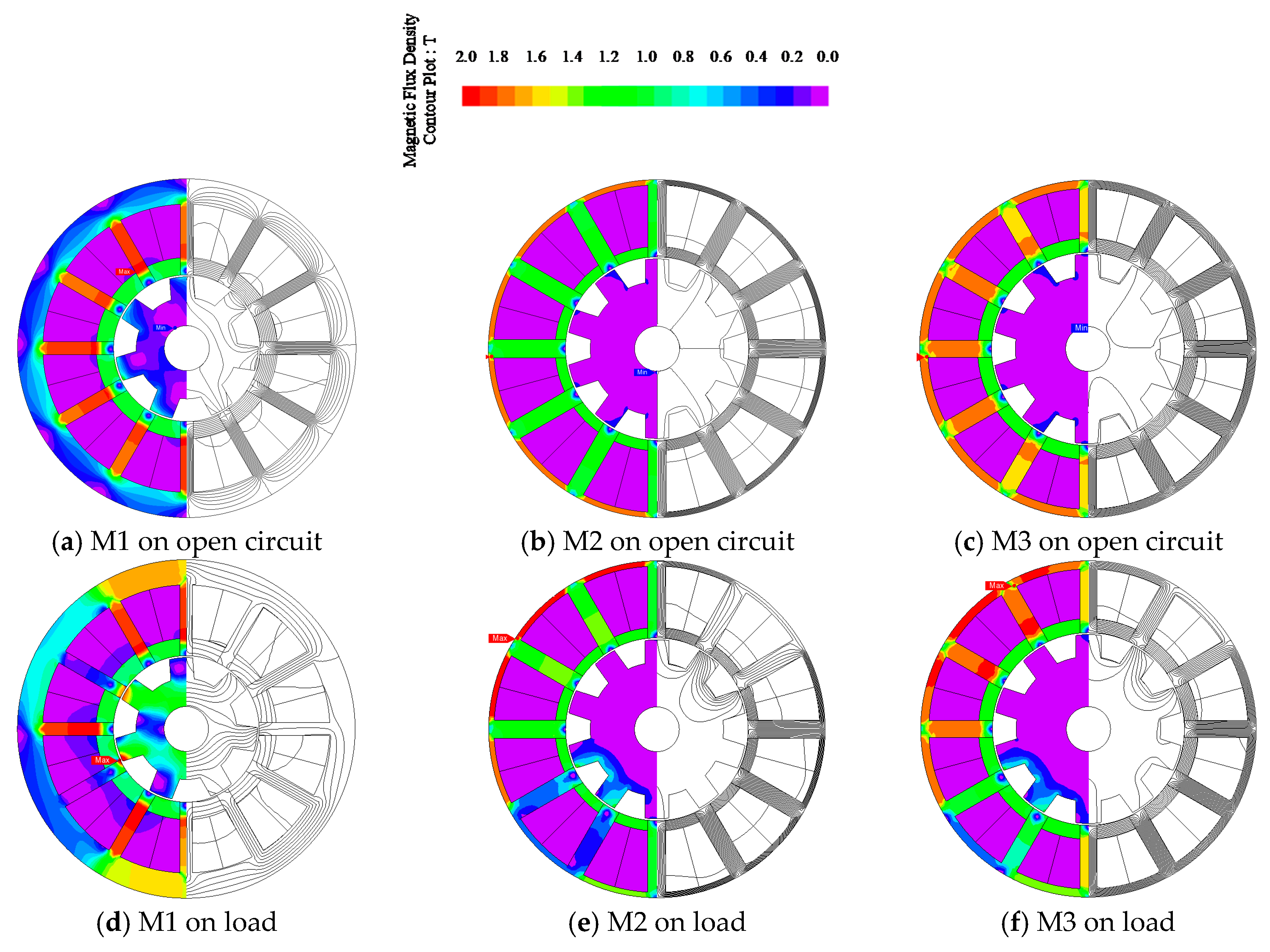

Figure 14. Flux density distributions on open circuit and load (Id = 0 and Iq = 14.14 A).
Figure 14. Flux density distributions on open circuit and load (Id = 0 and Iq = 14.14 A).
Wevj 12 00033 g014

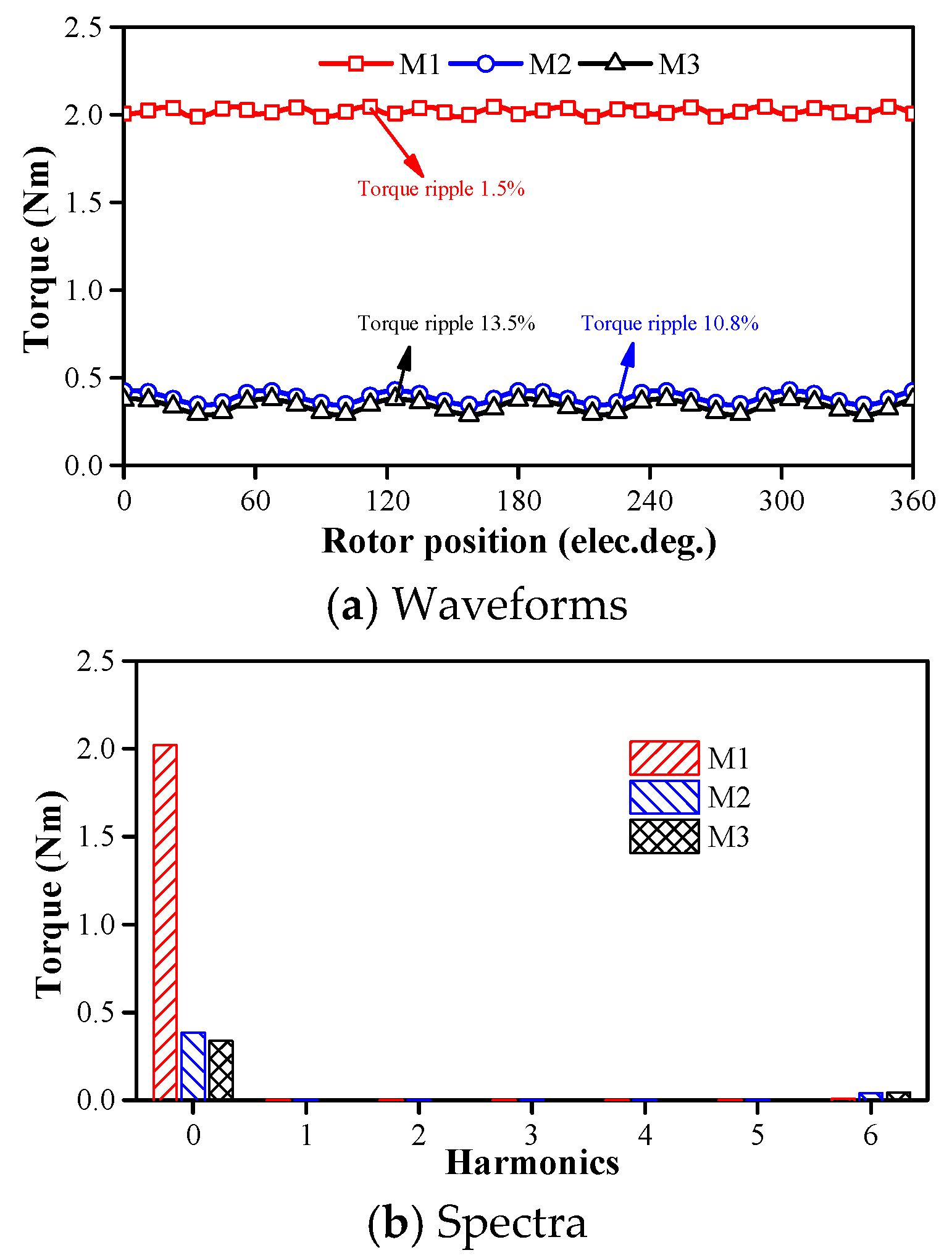

Figure 15. Comparison of torques when Id = 0 and Iq = 14.14 A.
Figure 15. Comparison of torques when Id = 0 and Iq = 14.14 A.
Wevj 12 00033 g015

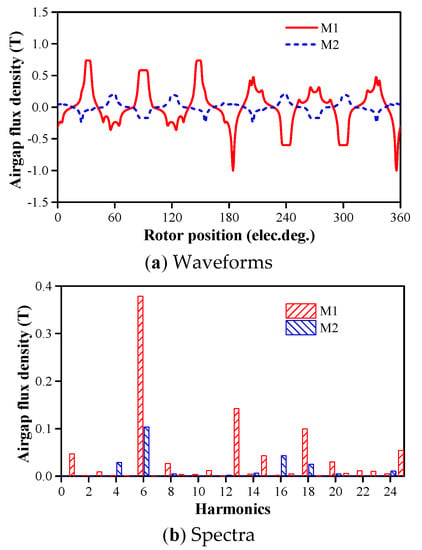

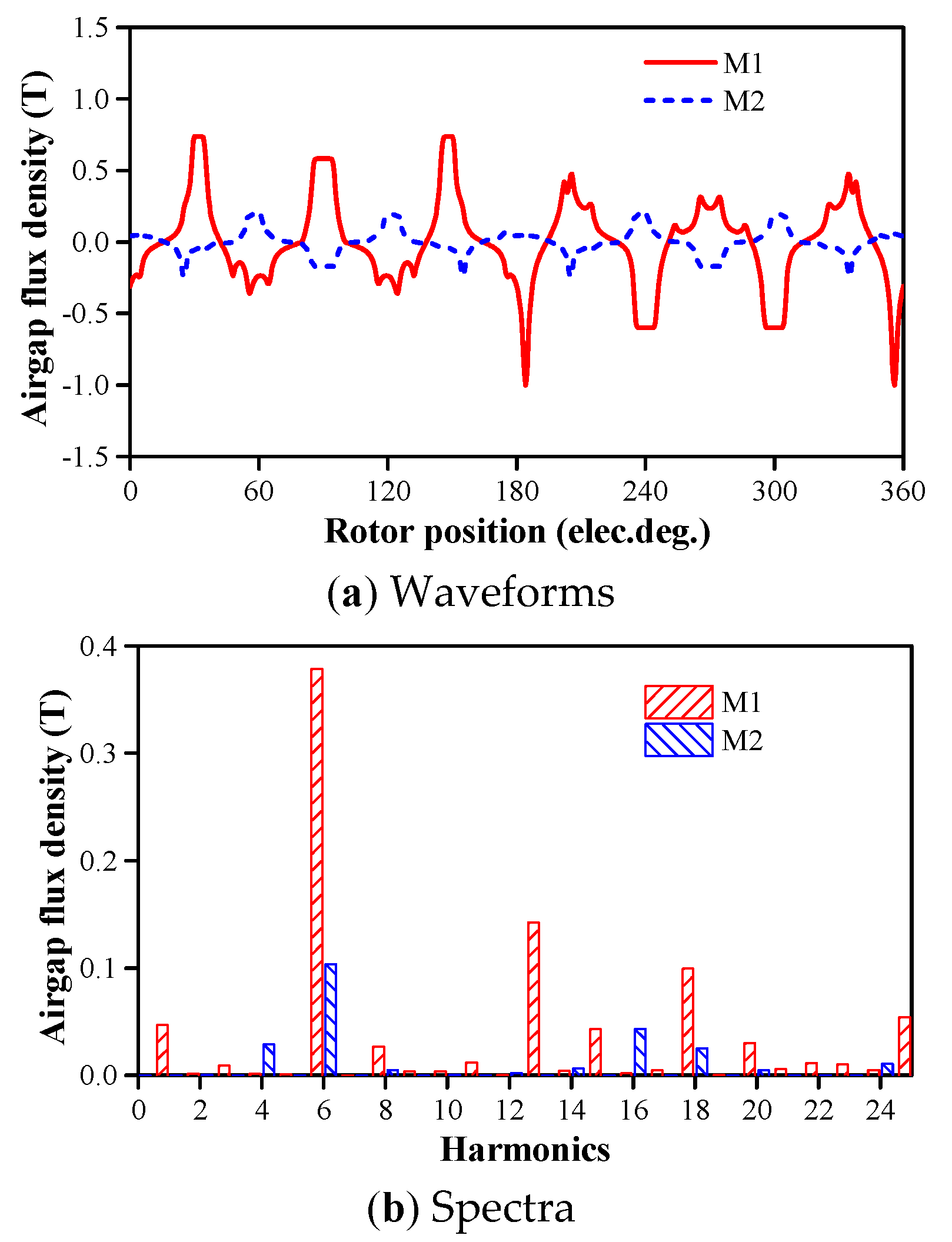

Figure 16. Airgap flux densities on open circuit.
Figure 16. Airgap flux densities on open circuit.
Wevj 12 00033 g016

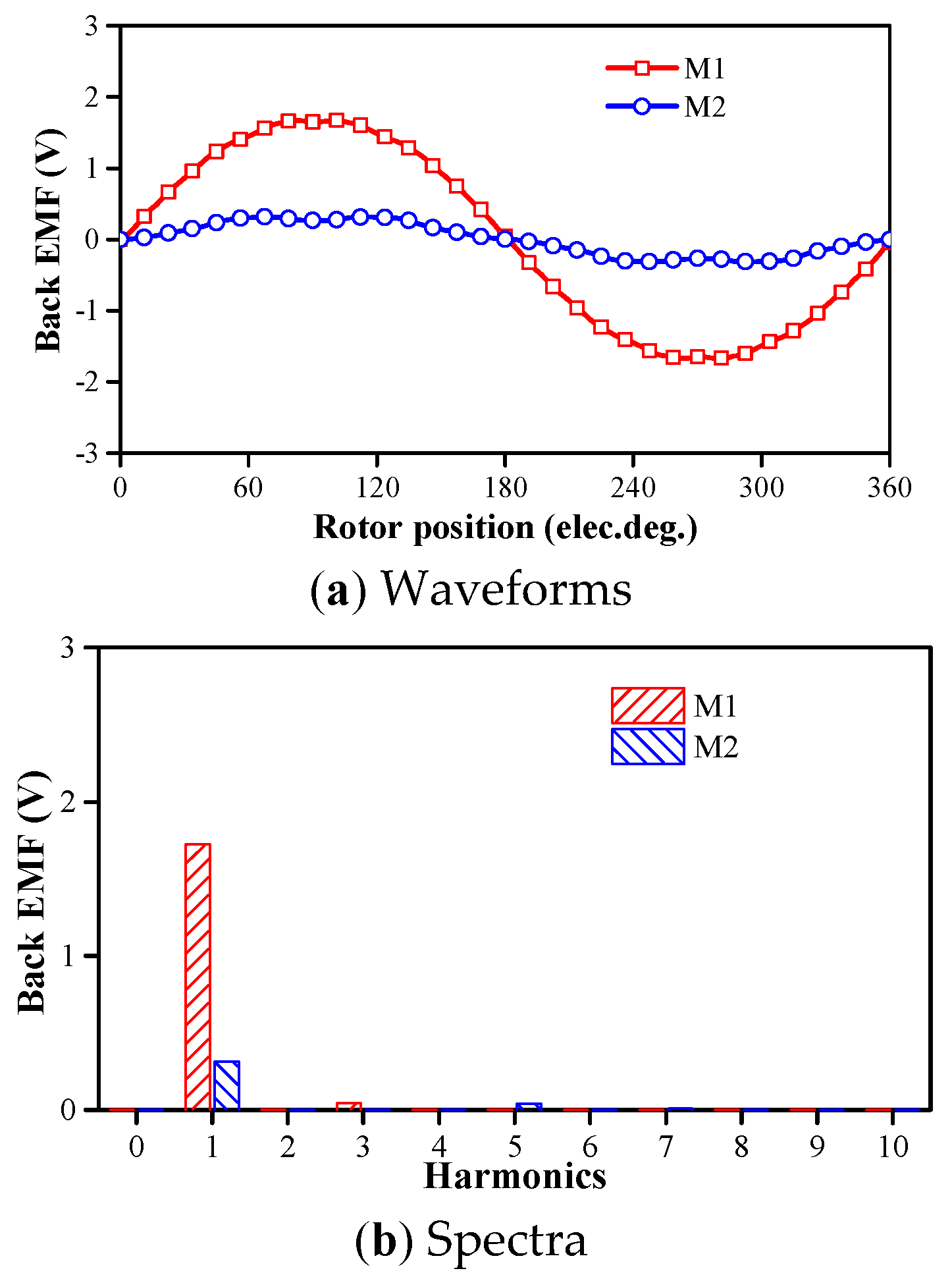

Figure 17. Back EMFs on open circuit at 600 rpm.
Figure 17. Back EMFs on open circuit at 600 rpm.
Wevj 12 00033 g017

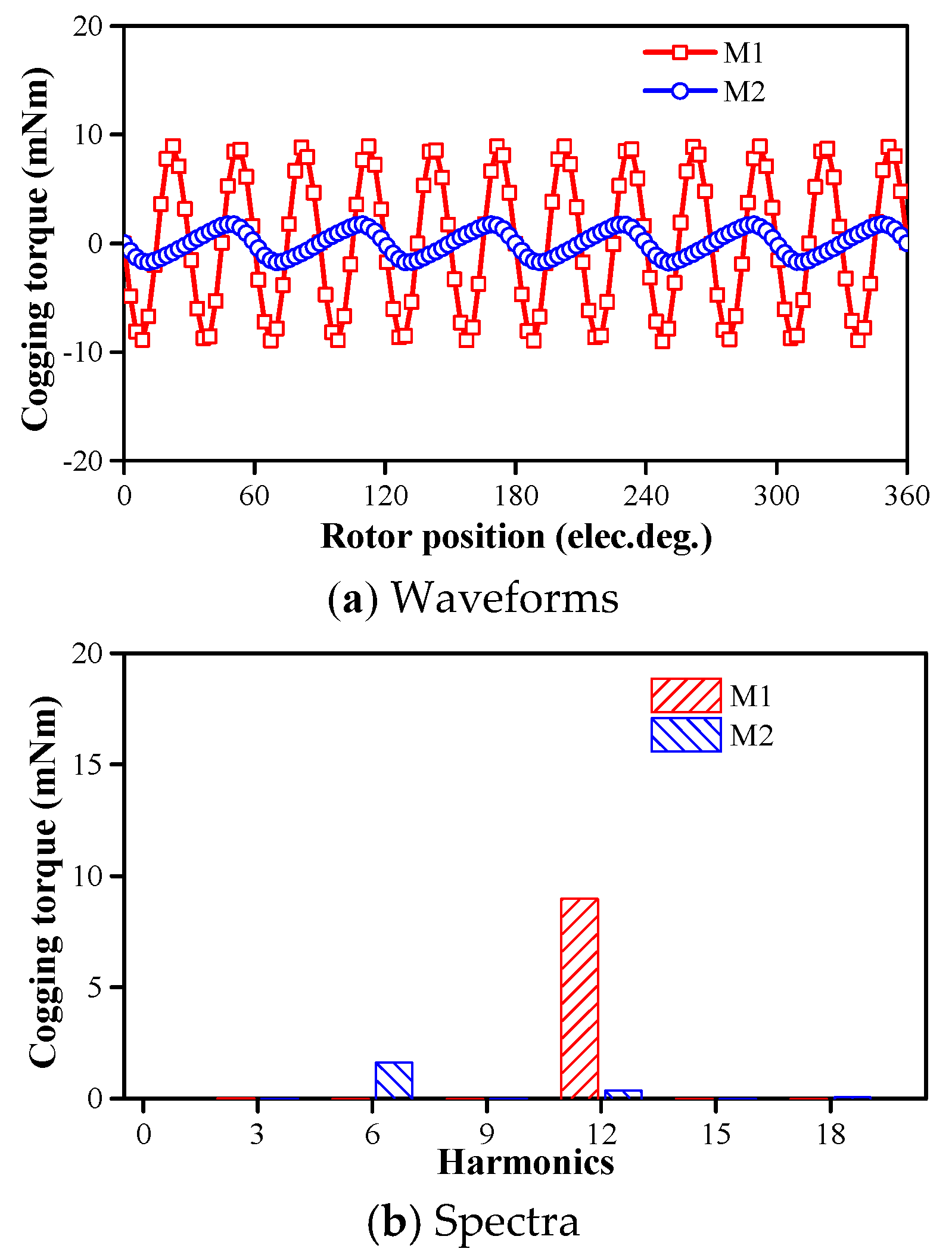

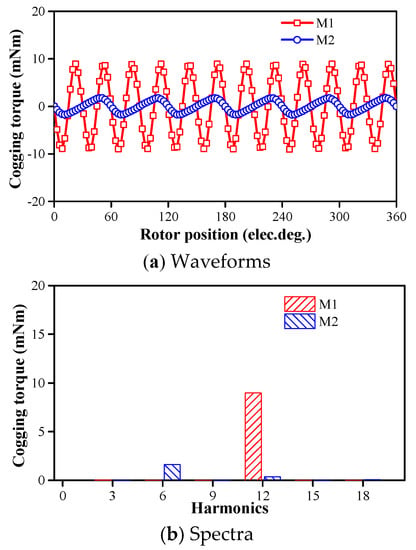

Figure 18. Cogging torques on open circuit.
Figure 18. Cogging torques on open circuit.
Wevj 12 00033 g018

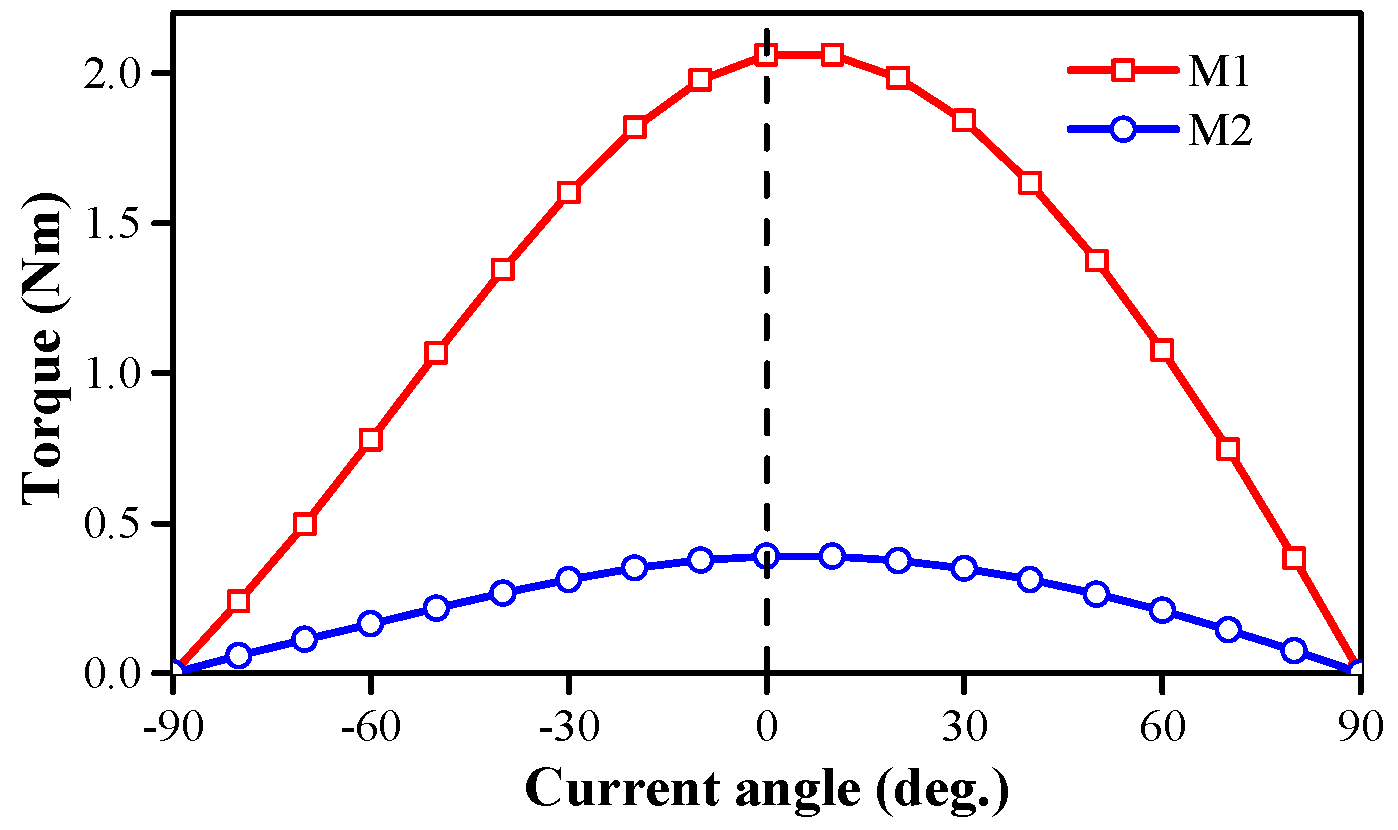

Figure 19. Torques versus current angle when the current amplitude is 14.14 A.
Figure 19. Torques versus current angle when the current amplitude is 14.14 A.
Wevj 12 00033 g019

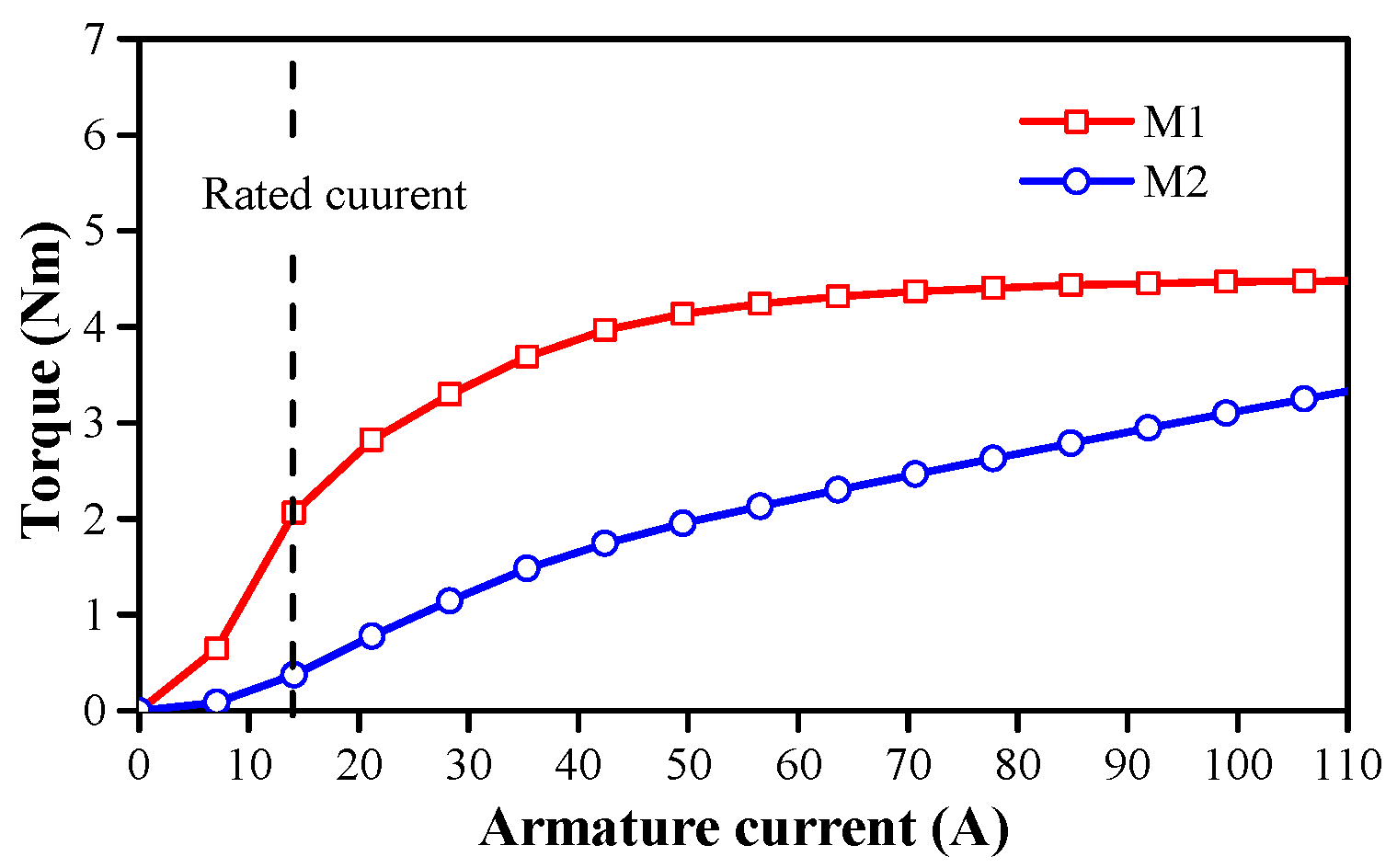

Figure 20. Torques versus armature current when Id = 0.
Figure 20. Torques versus armature current when Id = 0.
Wevj 12 00033 g020

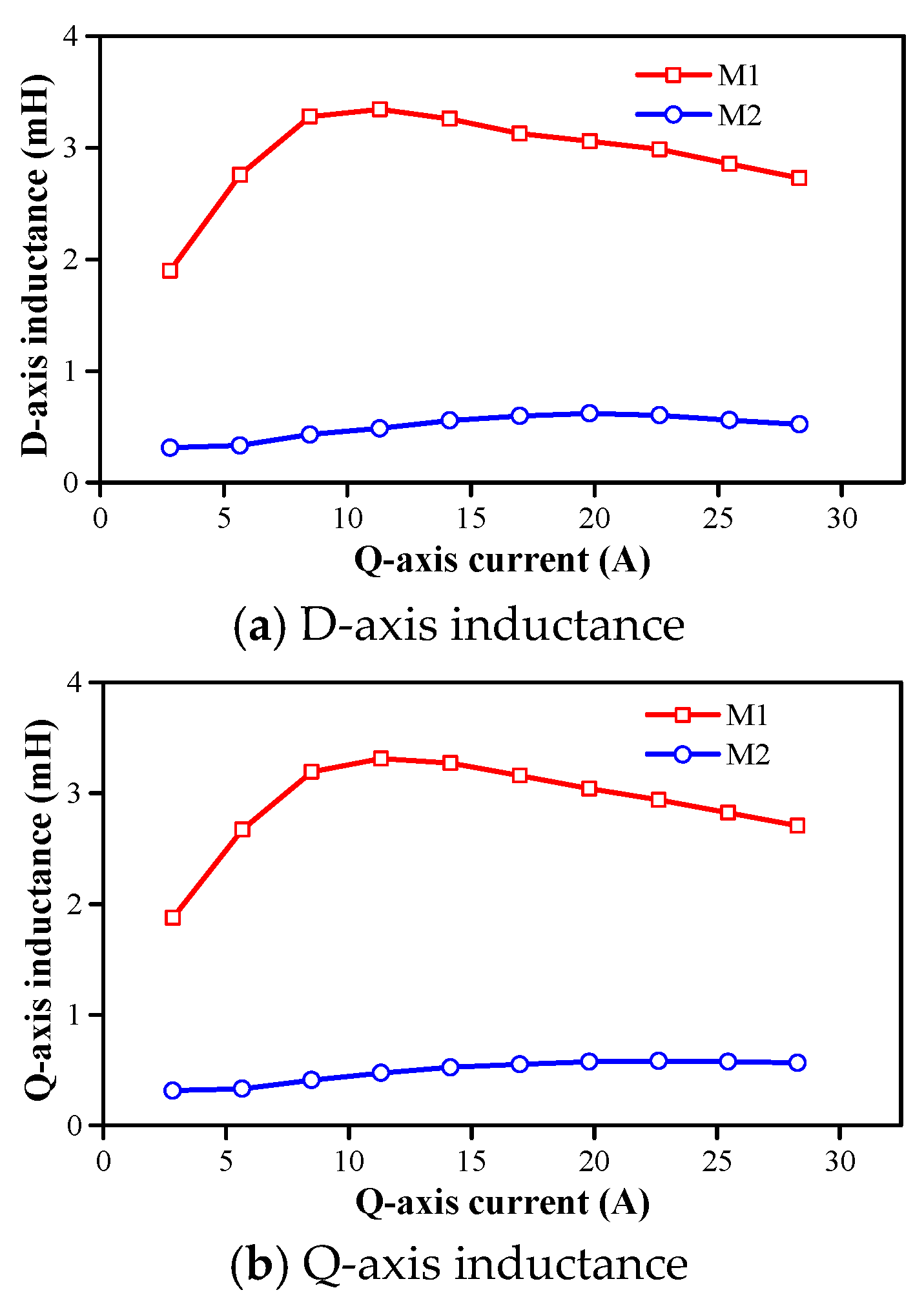

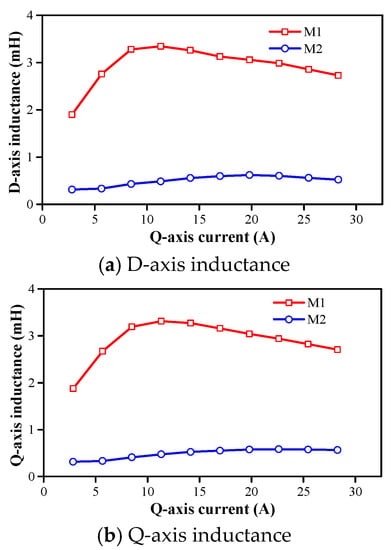

Figure 21. Inductances versus armature current when Id = 0.
Figure 21. Inductances versus armature current when Id = 0.
Wevj 12 00033 g021

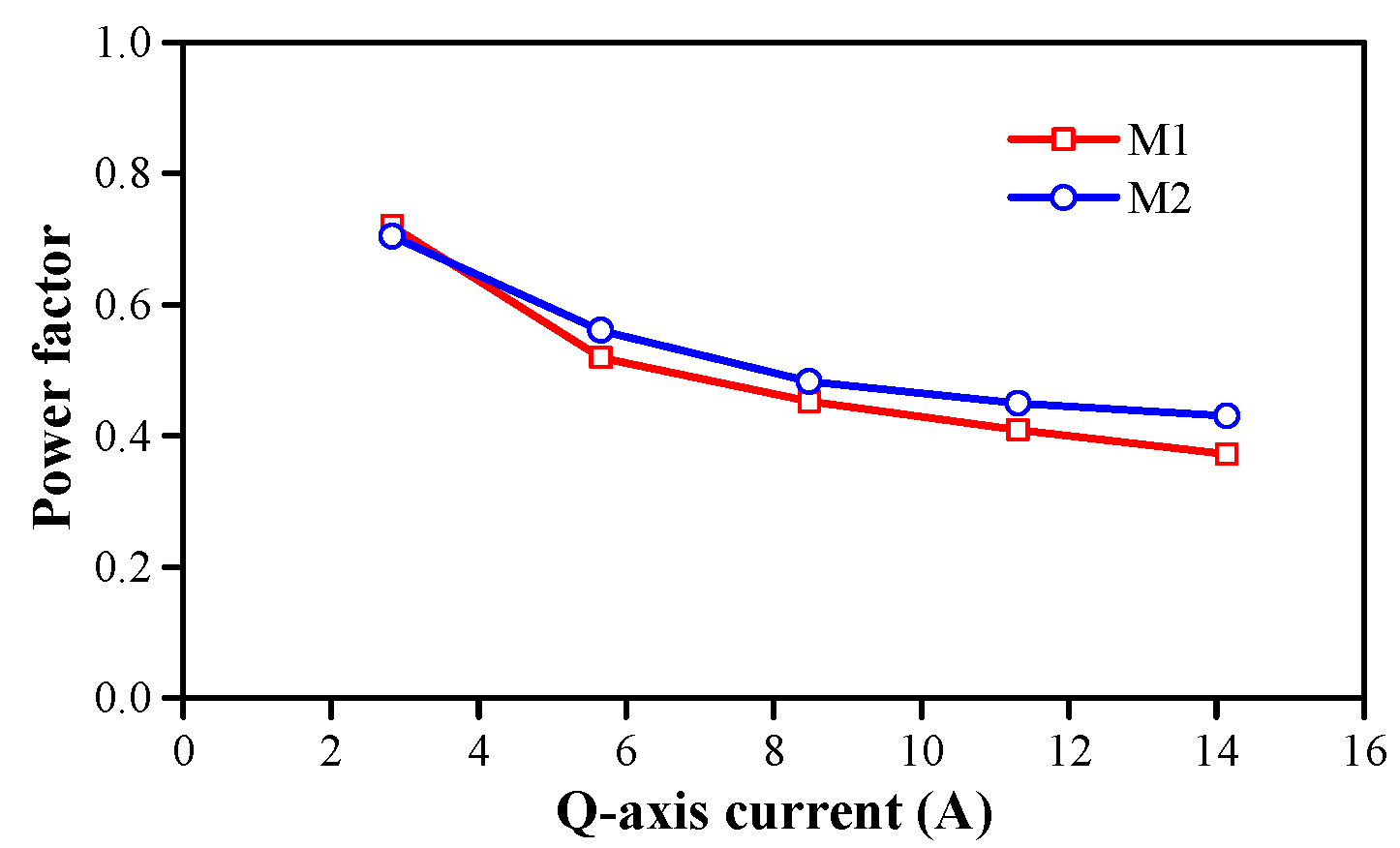

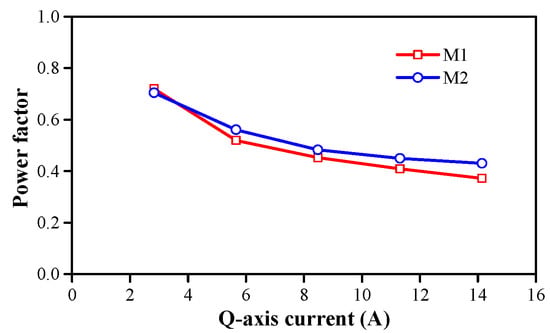

Figure 22. Power factors versus armature current when Id = 0.
Figure 22. Power factors versus armature current when Id = 0.
Wevj 12 00033 g022

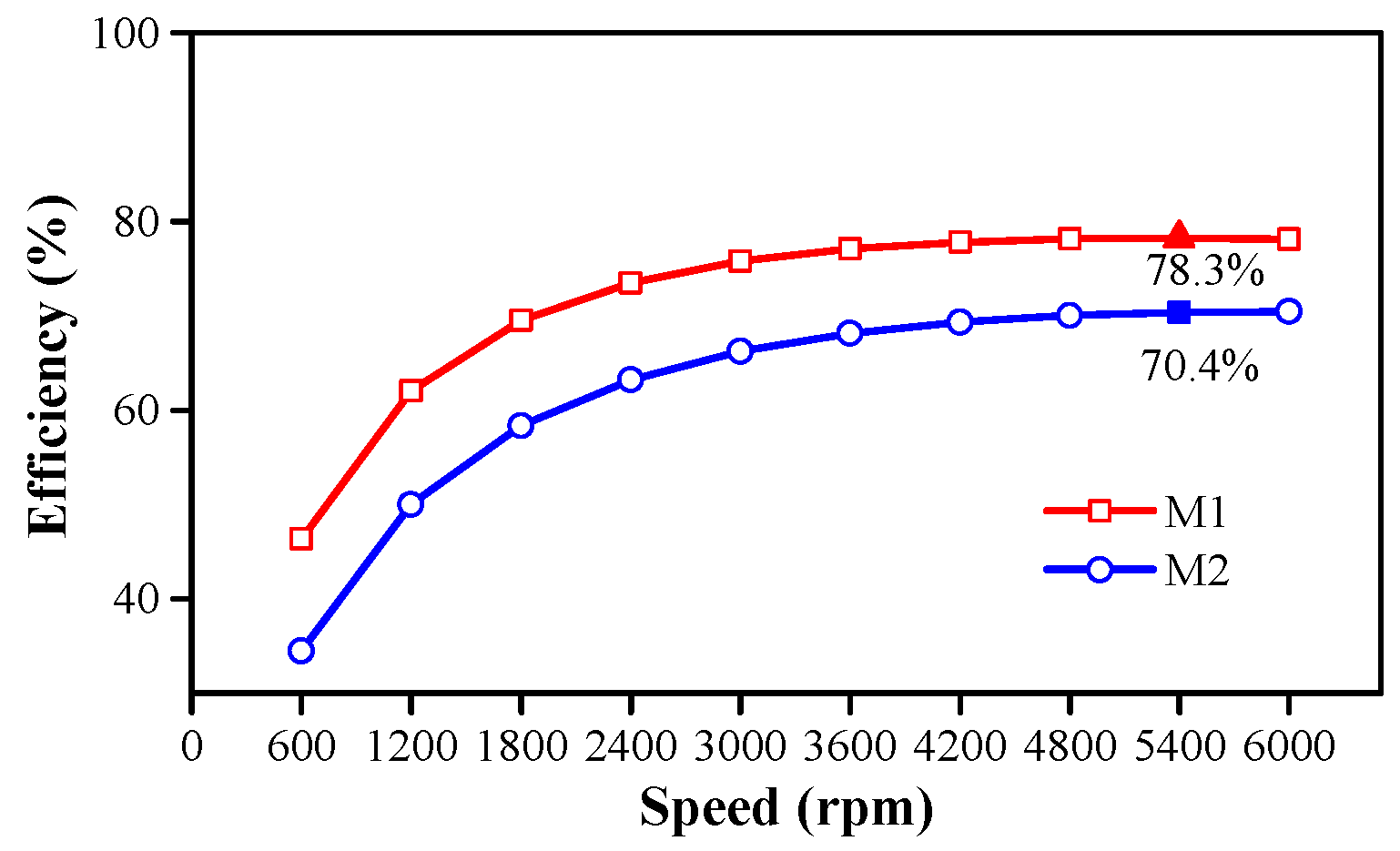

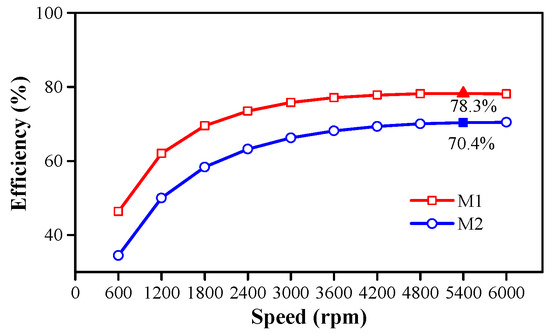

Figure 23. Efficiencies versus speed when Id = 0 and Iq = 14.14 A.
Figure 23. Efficiencies versus speed when Id = 0 and Iq = 14.14 A.
Wevj 12 00033 g023

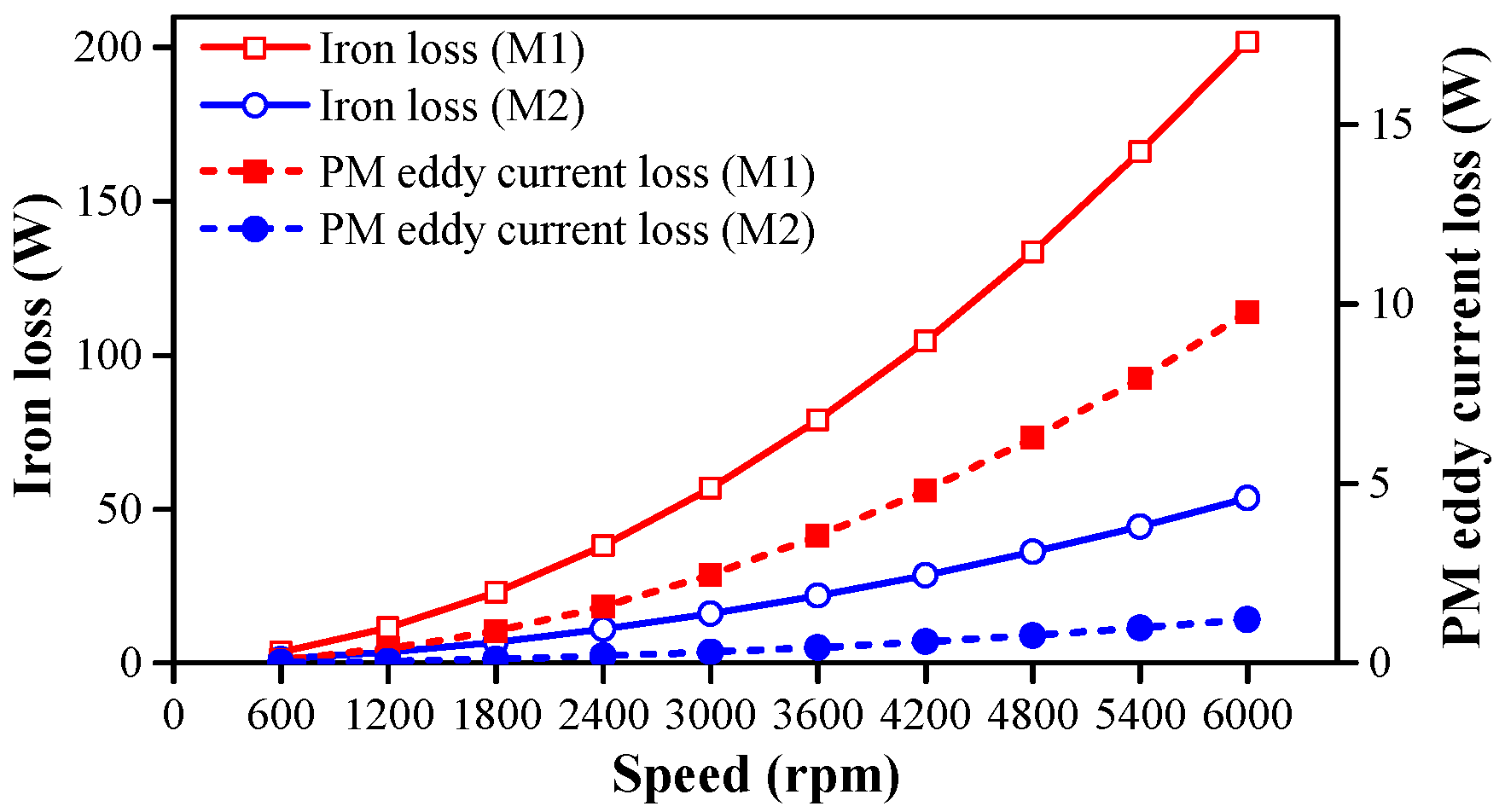

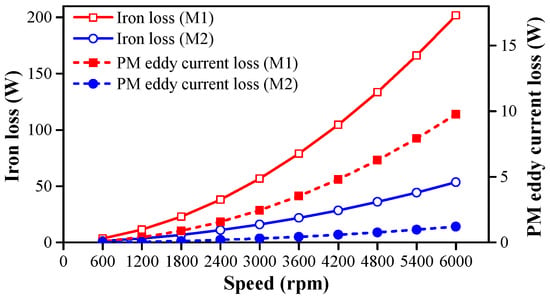

Figure 24. Iron loss and PM loss versus speed when Id = 0 and Iq = 14.14 A.
Figure 24. Iron loss and PM loss versus speed when Id = 0 and Iq = 14.14 A.
Wevj 12 00033 g024

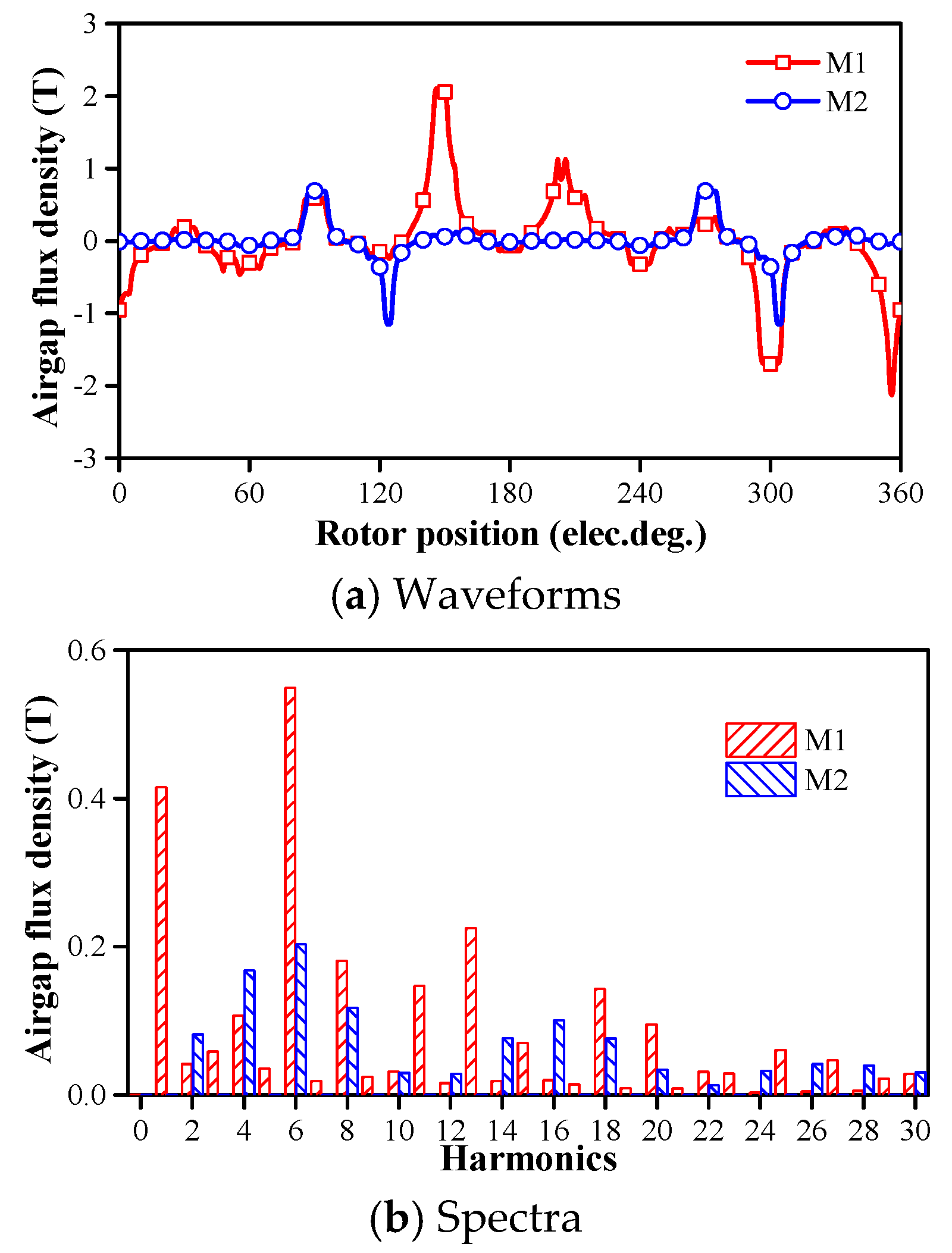

Figure 25. Airgap flux densities when Id = 0 and Iq = 14.14 A.
Figure 25. Airgap flux densities when Id = 0 and Iq = 14.14 A.
Wevj 12 00033 g025

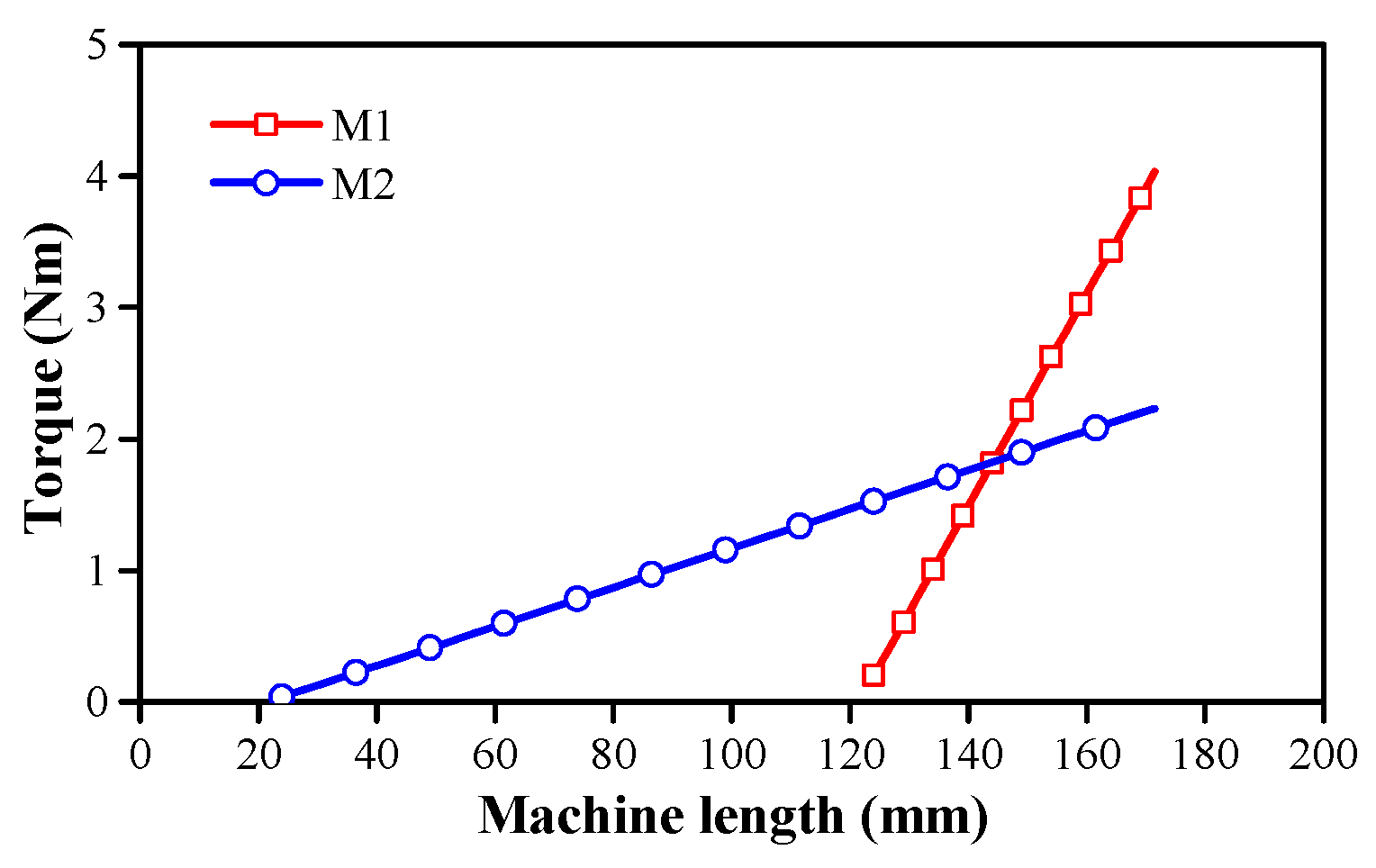

Figure 26. Torques versus machine length when Id = 0 and Iq = 14.14 A.
Figure 26. Torques versus machine length when Id = 0 and Iq = 14.14 A.
Wevj 12 00033 g026

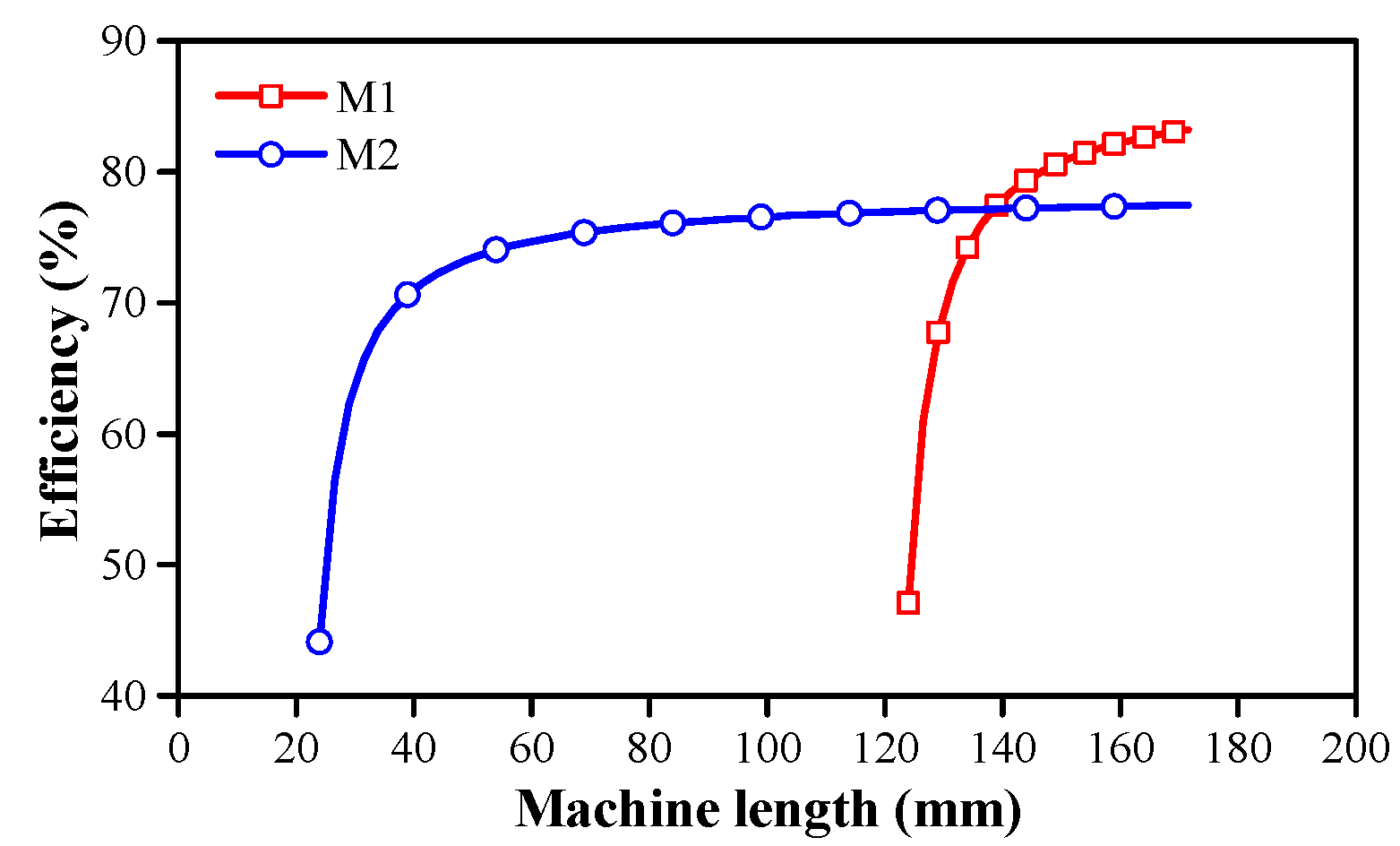

Figure 27. Efficiencies versus machine length when Id = 0 and Iq = 14.14 A at 6000 rpm.
Figure 27. Efficiencies versus machine length when Id = 0 and Iq = 14.14 A at 6000 rpm.
Wevj 12 00033 g027

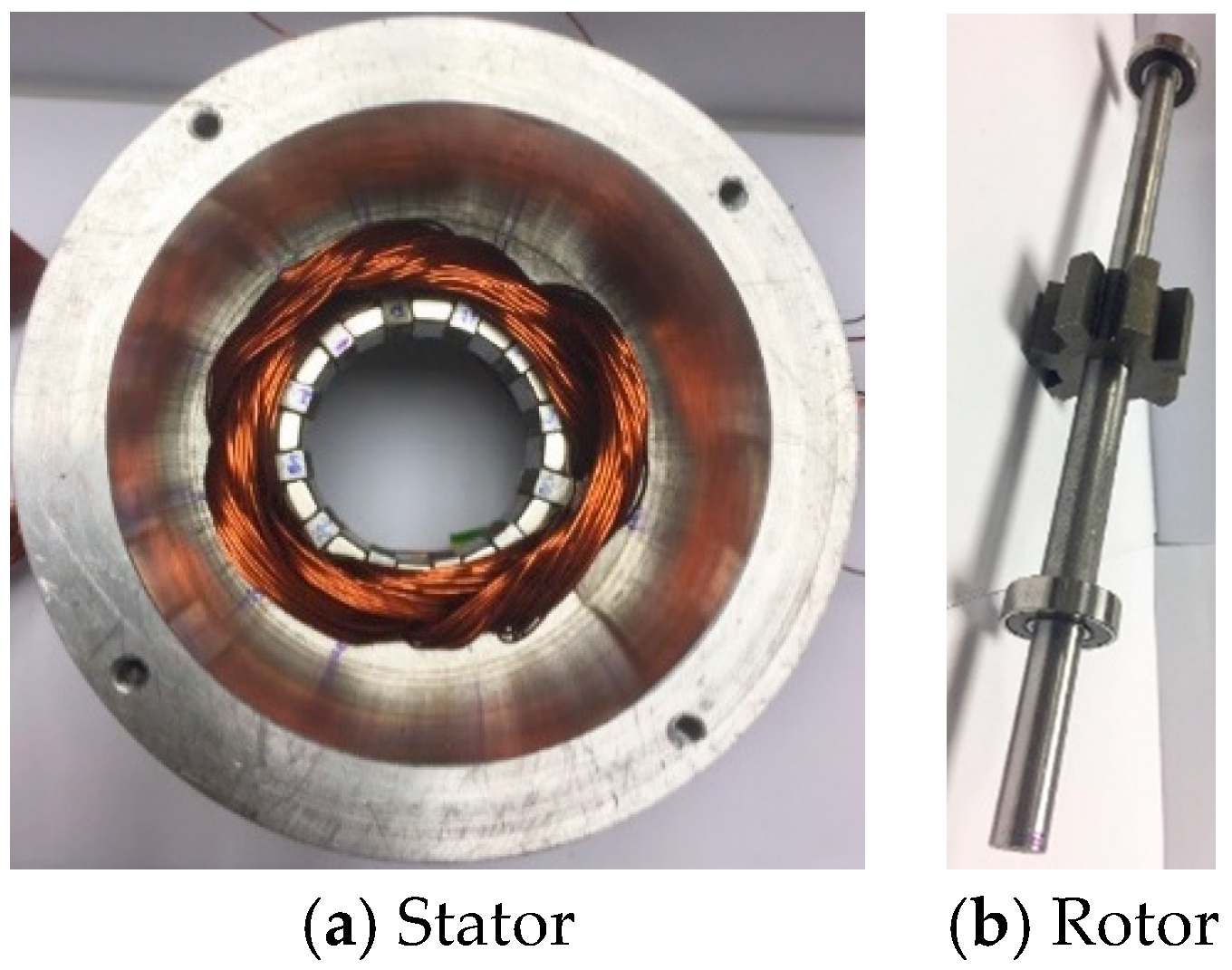

Figure 28. 12S7R prototype machine.
Figure 28. 12S7R prototype machine.
Wevj 12 00033 g028

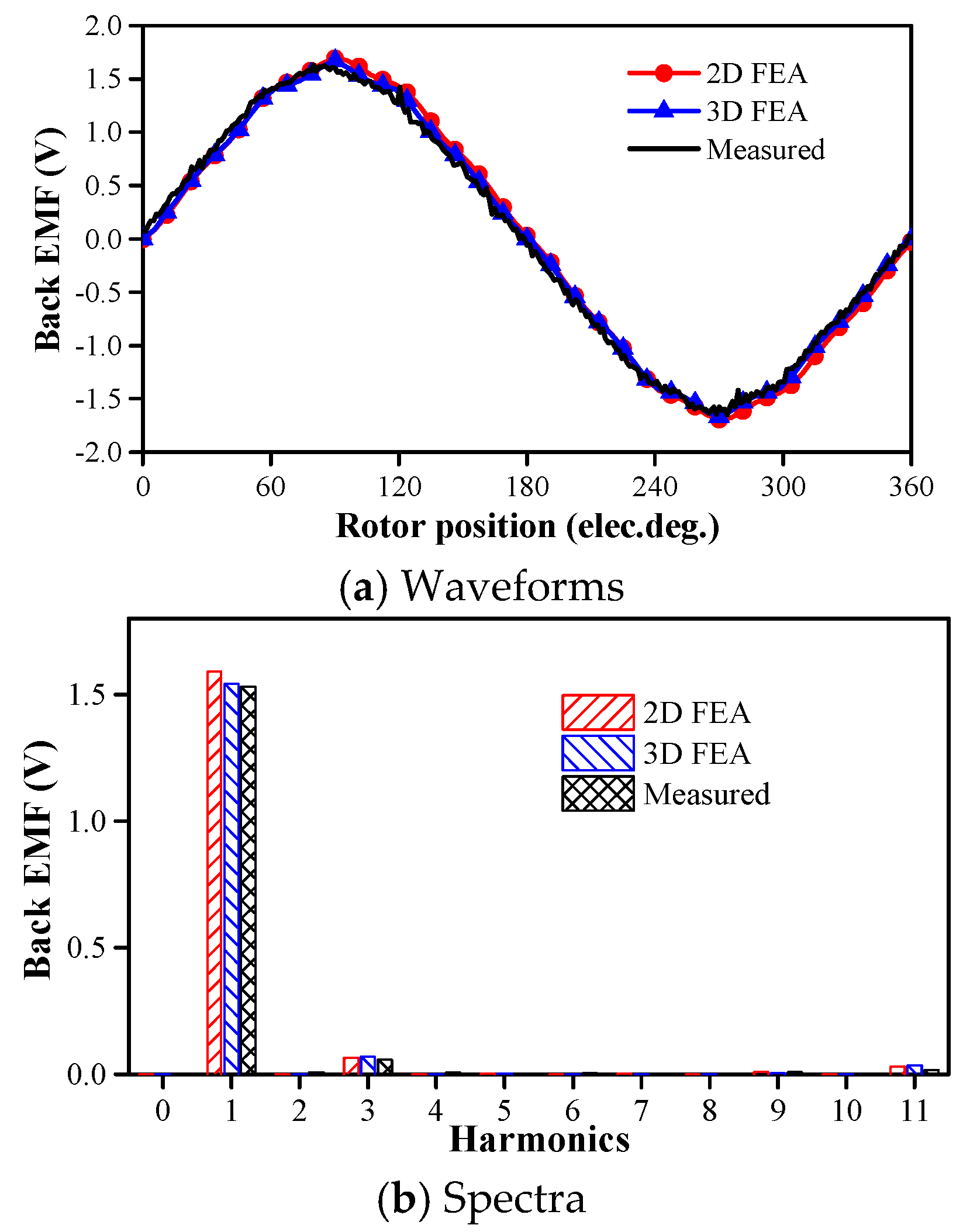

Figure 29. FEA calculated and measured back EMFs at 600 rpm.
Figure 29. FEA calculated and measured back EMFs at 600 rpm.
Wevj 12 00033 g029

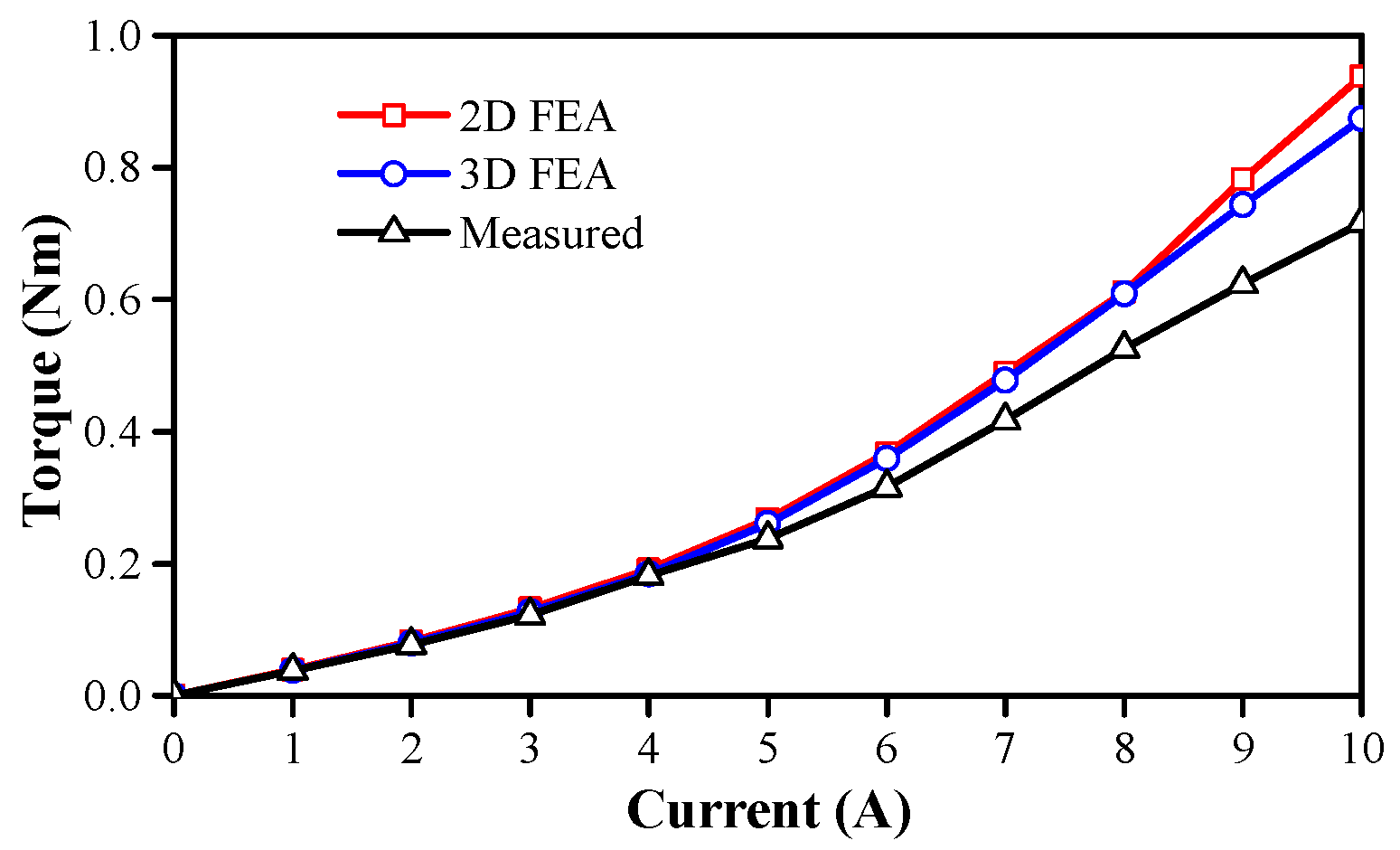

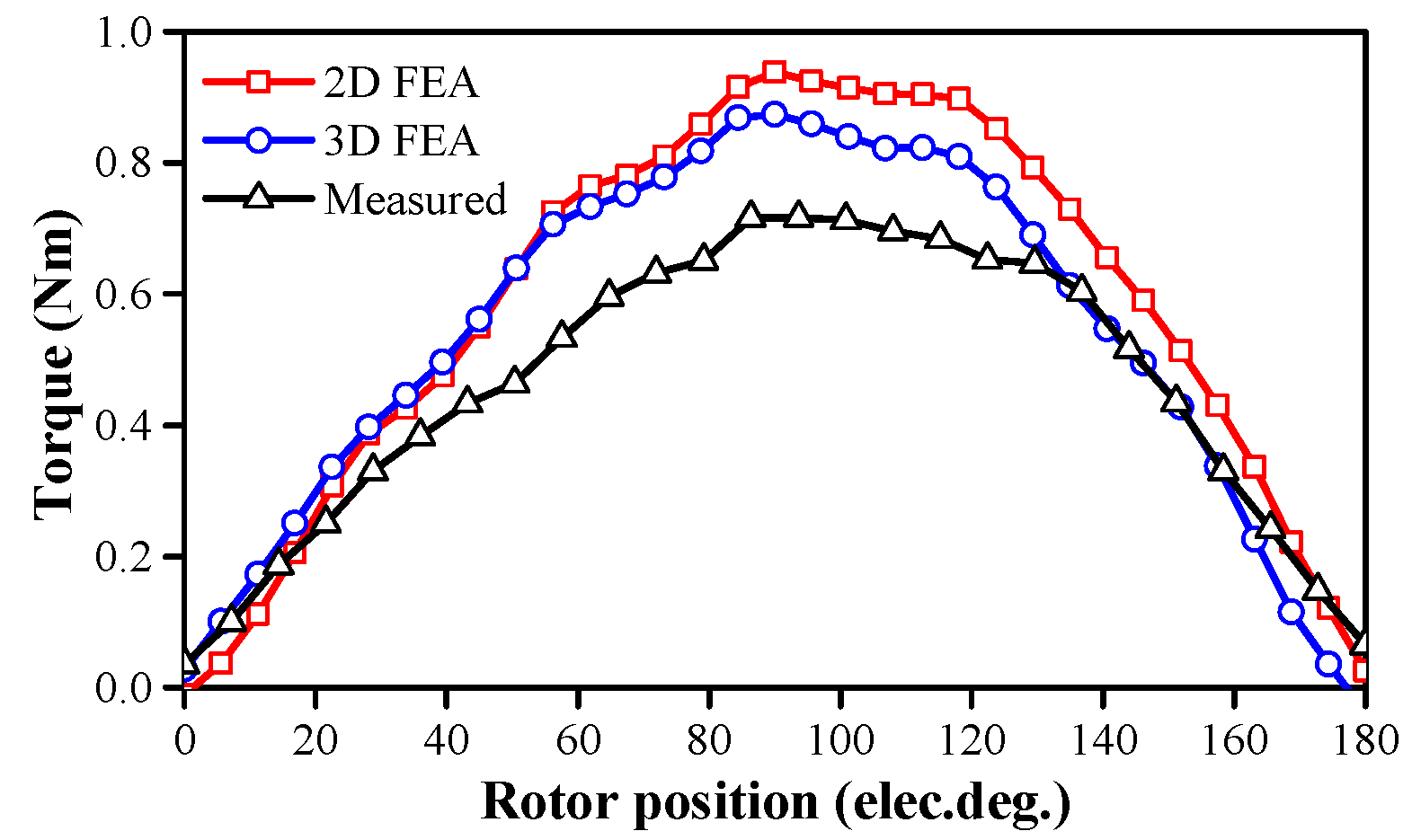

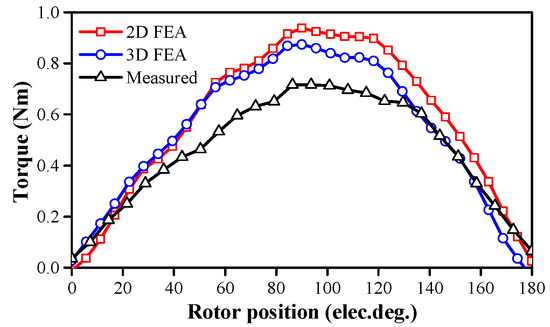

Figure 30. FEA calculated and measured static torques when Ia = −2Ib = −2Ic = 10 A.
Figure 30. FEA calculated and measured static torques when Ia = −2Ib = −2Ic = 10 A.
Wevj 12 00033 g030
Figure 31. FEA calculated and measured torques versus current.
Figure 31. FEA calculated and measured torques versus current.
Wevj 12 00033 g031
Table 1. Different rotor-pole number combinations when Ns = 12.
Table 1. Different rotor-pole number combinations when Ns = 12.
NrPaiNs/2Coil Pitch of Full Pitch
426 (i = 1)3
516 (i = 1)6
716 (i = 1)6
826 (i = 1)3
1046 (i = 1)1
1156 (i = 1)1
13518 (i = 3)1
14418 (i = 3)1
16218 (i = 3)3
17118 (i = 3)6
19118 (i = 3)6
20218 (i = 3)3
Table 2. Parameters of optimized topologies.
Table 2. Parameters of optimized topologies.
Symbol12S4R12S5R12S7R
(M1)
12S8R12S10R
(M2)
12S10R
(M3)
Stator outer radius (mm)45
Stack length (mm)25
Airgap length (mm)0.5
Rated speed (rpm)600
PM materialN32EZ
Br, μr@ 20 °C1.13 T, 1.05
Winding pole pair number211244
Nph128112120128128120
PM thickness (mm)3.55.04.63.452.753.74
Stator inner radius (mm)20.318.619.520.824.425.8
Stator tooth width (mm)3.643.453.644.854.67
Stator yoke width (mm)4.67.16.724.661.422.2
Rotor tooth width (mm)149.16.476.47
Rotor slot depth (mm)7.67.25.67.76.25.9
Rated current (Arms/Apeak)10/14.14
Table 3. Parameters of Prototype.
Table 3. Parameters of Prototype.
Symbol12S7R with y = 3
Stator outer radius (mm)45
Stack length (mm)25
Airgap length (mm)0.5
Winding pole pair number1
Coil pitch (slot pitch)3
Nph120
PM thickness (mm)4.8
Stator inner radius (mm)23
Stator tooth width (mm)4.8
Stator yoke width (mm)7
Rotor tooth width (mm)7.8
Rotor slot depth (mm)7.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qu, H.; Yang, H.; Zhu, Z.Q. Analysis of Stator-Slot Circumferentially Magnetized PM Machines with Full-Pitched Windings. World Electr. Veh. J. 2021, 12, 33. https://doi.org/10.3390/wevj12010033

AMA Style

Qu H, Yang H, Zhu ZQ. Analysis of Stator-Slot Circumferentially Magnetized PM Machines with Full-Pitched Windings. World Electric Vehicle Journal. 2021; 12(1):33. https://doi.org/10.3390/wevj12010033

Chicago/Turabian Style

Qu, Huan, Han Yang, and Zi Qiang Zhu. 2021. "Analysis of Stator-Slot Circumferentially Magnetized PM Machines with Full-Pitched Windings" World Electric Vehicle Journal 12, no. 1: 33. https://doi.org/10.3390/wevj12010033

Article Metrics

Back to TopTop
