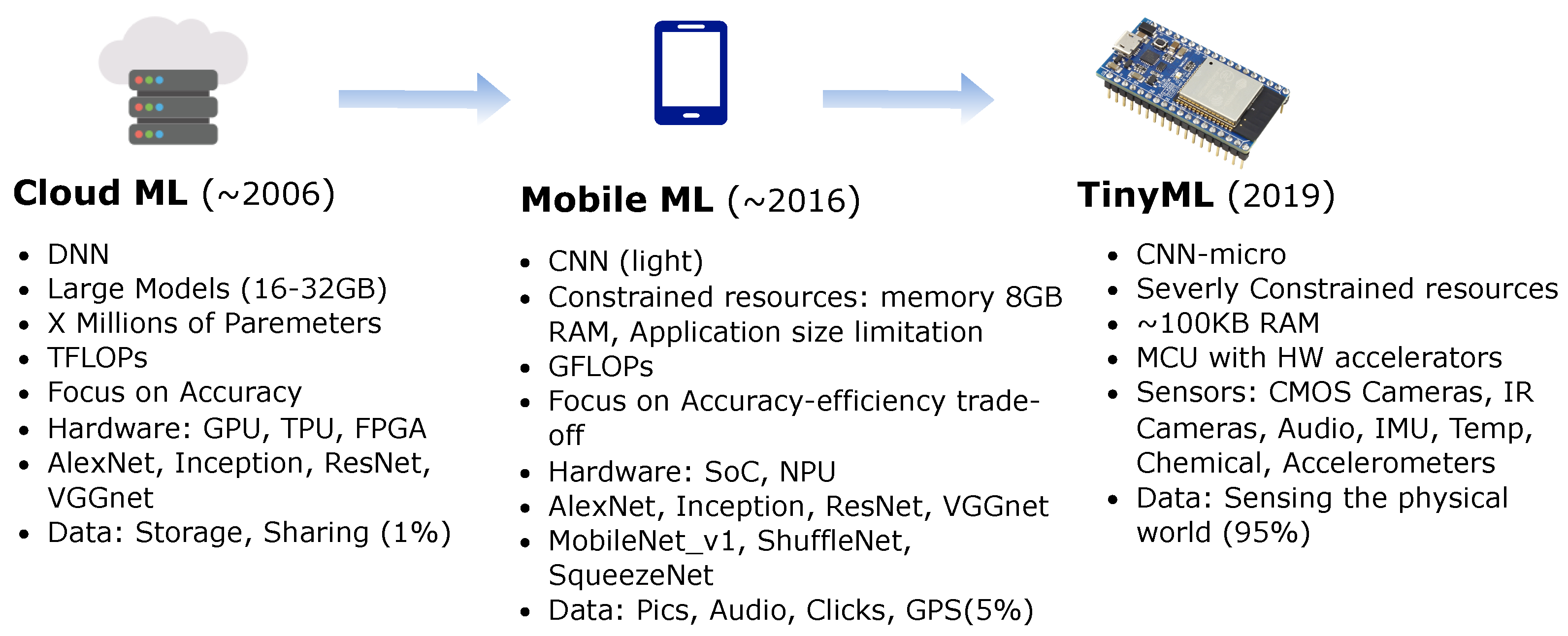

TinyML for Ultra-Low Power AI and Large Scale IoT Deployments: A Systematic Review
- Presentation of major performance measures for the TinyML framework, as well as its definition and overview; examination of important technologies.
- Review of research on TinyML conducted by various research groups and creation of an academic map.
- Identify important obstacles and give a future direction for TinyML research in which we cover numerous concerns.
- To assemble a list of existing TinyML-based toolkits for training and model construction at the edge, where hardware platforms, software programs, and libraries are available.
- Present and analyze TinyML application areas, as well as illustrate various TinyML use cases.
2.2.1. Low Power
2.2.2. Limited Memory
2.2.3. Processor Power
2.2.4. The Machine Learning Is Extensive and Requires Resources
2.2.5. Heterogeneous Hardware
2.2.6. An Absence of Suitable Datasets
2.2.7. Network and Data Administration
2.2.8. New Machine Learning Models Are Required

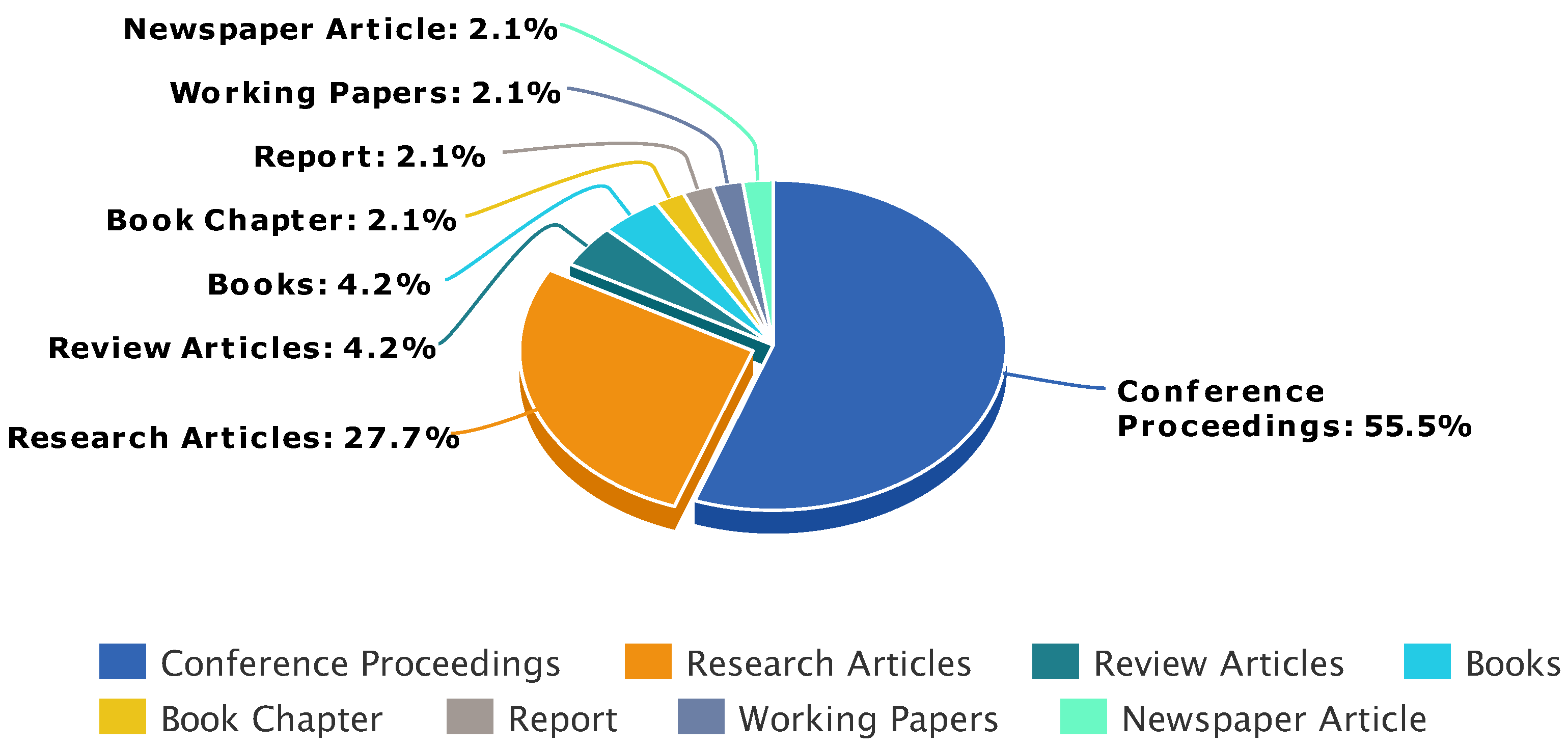

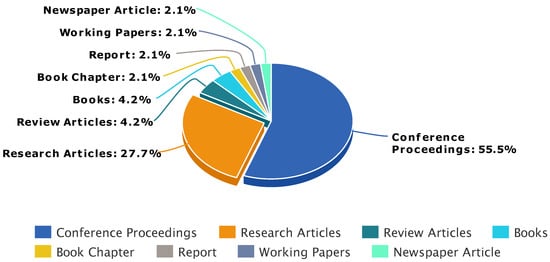

2.3. Academic Map
- For the first search cycle, the term “TinyML” is utilized.
- The term “Tiny ML” is applied to the second search cycle.
- The term “Tiny-ML” is utilized for the third search cycle.
- The term “Tiny Machine Learning” is used in the fourth cycle of searches.
- The fifth search cycle use the term “Tiny Deep Learning”.
- For the sixth search cycle, the term “Tiny-DL” is utilized.
- The seventh search cycle used the term “TinyDL”.
- For the eighth search cycle, the term “Tiny DL” is utilized.
2.4. Tools of TinyML
2.4.2. Software and Libraries
- TensorFlow Lite (TFL): It is a deep learning framework that is open source and supports edge-aware learning inference. This framework may approach edge-aware machine learning at the device by using five important restrictions (e.g., size, latency, connectivity, power consumption and privacy). It is compatible with iOS, embedded Linux, Android, and a range of microcontrollers . Swift, Java, C++, Objective-C, and Python are just a few of the programming languages that are supported for machine learning on edge devices. TFL enables hardware-accelerated model optimization. A wide range of AI applications, including photo and text categorization, question response, object identification, and pose estimation, may be easily handled. Because all operators are coupled to 32-bit ARM builds, the binary size is 1 MB. When particular image classification techniques are used, it can generate a binary file as little as 300 KB. The TFL working process is completed by quantizing the 32-bit floating point values to 8-bit integers, which completes the TF model transformation into a compressed flat buffer (.tflite) and loading into an embedded edge device. A TFL plugin called TensorFlow Lite Micro (TSFM) was created to enable machine learning on ARM Cortex processors with KB memory. TFLM runs on a 32-bit platform and was created in C++ 11. However, it does not offer on-device training.
- NanoEdge AI Studio: Previously known as cartesiam.ai, the software today tests library performance using an emulator before final deployment to the edge and allows for the selection of the best library . It contains various useful features, such as (i) frequency filtering, (ii) restricting the maximum necessary flash memory when creating a project, (iii) flash memory optimization, (iv) real-time search, (v) graphical representation of serial data, and (vi) library selection after comparison. It may be used to discover and classify abnormalities in data sets. It is compatible with the Arduino Nano 33 IoT board as well as the STM32 Nucleo-32 board.
- PyTorch Mobile: Belongs to the PyTorch ecosystem, which aims to make it possible for all stages of machine learning model generation, starting with training (for example, Android, iOS), can be done on smartphones and tablets . Machine learning may be pre-processed in mobile apps using a variety of APIs. Both TorchScript IR detection and scripting are supported. Additionally, the 8-bit quantized XNNPACK kernel is supported for ARM CPUs. Additionally supported are neural processing units, digital signal processors and GPUs. The mobile interpreter enables mobile development optimization. Now supported are question answering, speech recognition, object identification, video processing, and image segmentation.
- uTensor: It is an open-source embedded learning environment that facilitates rapid development and prototyping on IoT edge devices . It includes a future data collection architecture, a graph processing tool and an inference engine. For training, a Keras-made neural network model is required. After that, the learnt model is translated into C++. The model is modified for usage on ST, K64, and Mbed boards with the aid of uTensor. With just 2 KB of storage needed, the uTensor is a tiny device. The use of a Python SDK is required for full configuration of uTensor; it depends on the Jupyter, Python, ST-link toolkits (for ST boards)—uTensor-CLI and Mbed-CLI. A model is built initially, and then the quantization outcome is produced. Writing code for the proper edge devices is the next stage.
- STM32Cube.AI: This is optimization software and code creation for STM32 ARM Cortex Mb-based boards , trying to make machine learning and AI-related jobs simpler. The STM32Cube may be used directly to implement neural networks on the STM32 board. AI will be used to turn neural networks into efficient code for better-suited MCUs. It is capable of employing any trained model produced using conventional tools like MATLAB, ONNX, TFL, and PyTorch. The STM32CubeMX framework that supports STM32Cube originally gave birth to this utility. AI in parameter estimation middleware and code development for the STM32 edge device.
- Edge Impulse: For edge computing systems, it is a cloud service that develops TinyML machine learning models. For edge platforms, it can support AutoML . The building of learning models is also supported across a number of platforms, including smartphones. The learning is done in the cloud, and using a data-forwarding-capable connection, the learned model may be exported to an edge device. Using the integrated Python, Node.js, C++, and Go SDKs, it may be executed locally on a workstation. A WebAssembly library for Impulses is also available.
- Embedded Learning Library (ELL): Microsoft released ELL to enable the TinyML ecosystem for embedded learning . It works with the micro:bit platforms, Raspberry Pi and Arduino. Models built on such devices are internet-independent, therefore no connectivity to the cloud is necessary. Image and audio categorization are presently supported.

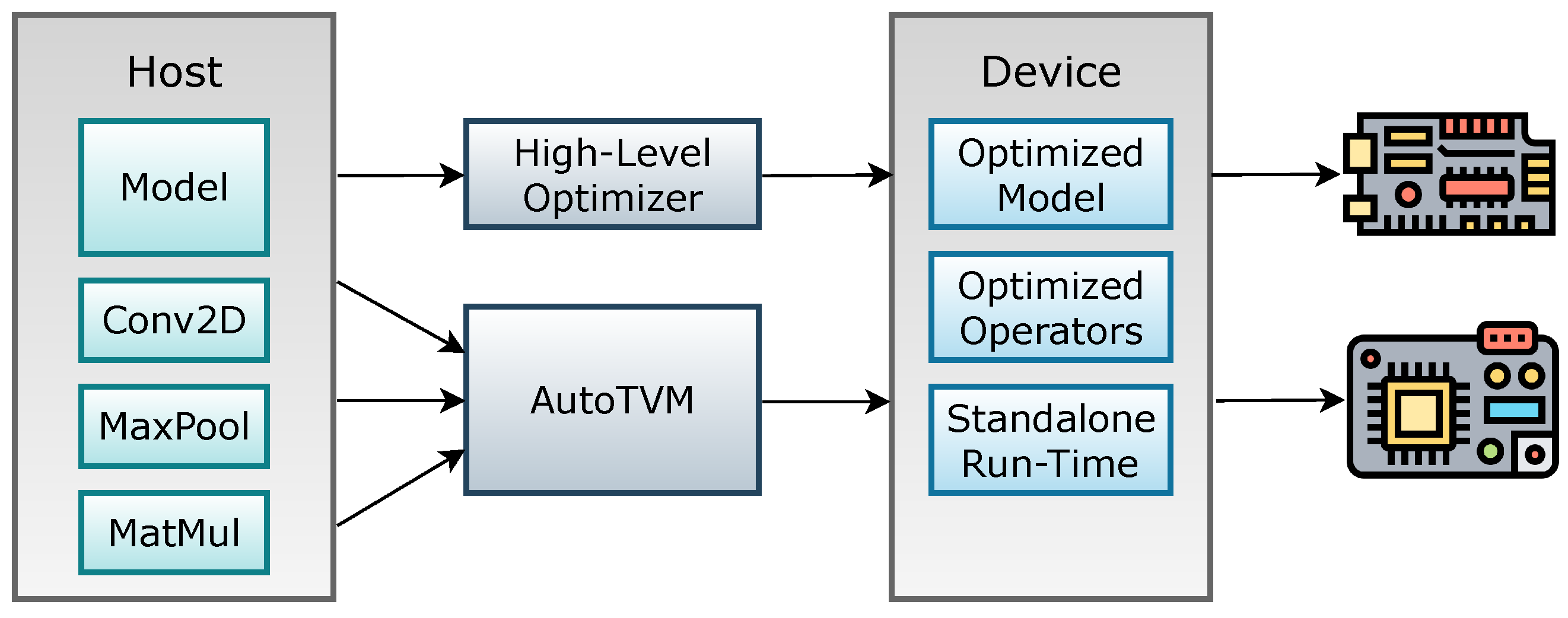

- μTVM: Tensor programming can be conducted on microcontroller devices thanks to the microTVM extension of virtual tensor machines (TVM) as it is currently. The AutoTVM platform, which supports the optimization of tensor programs, makes it possible to optimize these programs . In fact, a USB-JTAG interface links a microcontroller to a computer or high-end device that is simultaneously running the TVM. The PC runs OpenOCD, which connects the microcontroller to the computer. By applying device identification to the TCP port, OpenOCD allows mTVM to operate the microcontroller. The user must submit specifics (such as a method for reading, writing, and executing to the memory of the device, a C cross-compiler toolchain for a microcontroller, a description of the architectural layout of the device, and a section of code to set the device up for operation) in order to receive support from TVM. The MicroSession must connect to the device using the provided way in order for the TVM to function (e.g., OpenOCD). The previously mentioned cross-compiler is then used to cross-compile the TVM runtime. The binary of the produced code is then transferred to the device. The relationship between the TVM and TinyML may be discussed from several angles, including tensor loading, unit loading function calling, and slow execution. In Figure 4, the system model based on TinyML  is shown for building the best models on microcontrollers, sometimes referred to as edge devices.
2.5. TinyML Benefits
- Transition from basic to smart IoT devicesThe capacity of the sensor system to generate massive volumes of raw data has also hindered the ability of cloud computing to process these data. Due to the lack of transmission to the cloud, the abundance of data is wasted at the edge. TinyML enables data analysis in a resource-constrained setting, where every IoT device becomes smart by embedding ML algorithms. A smart car, for instance, creates 1 GB of data per second , whereas the Boeing 787 generates 5 GB per second . Therefore, it would be better to do a preliminary analysis of raw data using ML algorithms on each IoT device in order to gather necessary information and eliminate useless data rather than uploading all raw data to the cloud.
- Network BandwidthIn order to input data, evaluate information, and execute ML algorithms, the “traditional” IoT uses gateways, a network of sensors to gateway networks, cloud services and gateways to the internet network . In contrast, novel techniques of the TinyML have the ability to redefine these criteria in resource-constrained settings by lessening the pervasiveness of cloud services and making other IoT layer services optional.TinyML offers greater independence than standard IoT services thanks to its low transmission and maybe constrained bandwidth capabilities. Furthermore, in a setting with a high density of IoT devices, the bandwidth needed for providing raw data is rather significant. Therefore, analyzing raw data at the edge and only transmitting the information that is essential would significantly minimize the needed bandwidth.
- Security and privacyAs enormous amounts of private data are transferred to the cloud, data security is one of the variables impacting IoT adoption . When third-party suppliers are employed for IoT services, the end user has no idea who owns the data or where their personal information is maintained. Additionally, data transfer makes it simpler for shady individuals to eavesdrop. Therefore, by avoiding data leakage and keeping data confined within the device, privacy and security are strengthened. Since TinyML data is rarely (or never) delivered, it is less vulnerable to attacks. Because of this, TinyML by default has built-in data security and privacy protections.
- LatencyOnce the sensor data is sent from IoT devices to cloud servers, the decision (prediction) generated in the cloud by the IoT devices comes to an end in an IoT ecosystem. This series of events clearly shows that detailed observation of the device is required because to the high latency of the strategy. TinyML is a good way to deal with this issue. Additionally, on safety-critical systems like healthcare (such as microsurgery) and driverless cars, waiting for the cloud to decide might have disastrous consequences. As there is less reliance on external connectivity in such cases, TinyML will act as an infrastructure to enable decreased (near-zero) latency for ML service delivery. Local real-time data processing on the devices enables quicker reaction and analysis in emergency situations. Furthermore, the strain on the cloud is minimized [96,97,98].
- Energy efficiencyAnother major and popular TinyML indicator in MCUs is this one. The majority of IoT devices operate on batteries and are constantly on in an IoT ecosystem. Coin batteries, like the CR2032, are frequently used to power IoT devices, and they should allow them to operate for several months or perhaps several years. To enable the MCU to review the data and power on when necessary, it is usually crucial that the device remain predominantly in a suspended state. Data transport may occasionally use more energy than local ML service provision, too. TinyML would be a very useful tool for resolving these problems .
- ReliabilityThe capacity to do data-driven calculations within the sensor network is the main feature that is much wanted for IoT. TinyML has been recognized as a resolution for executing work in situations where mobile connectivity/internet is extremely restricted, such as offshore and rural areas. IoT services become more dependable as a result.
- Low costFirst off, by limiting data flow, bandwidth requirements are lowered, which results in cost savings. To achieve this, we believe that TinyML solutions paired with cloud technology can enhance the aforementioned performance metrics by adding new data management channels, expanding the capability of current cloud services, or delegating tasks to MCUs. TinyML is therefore the upcoming big thing, and many are touting it as the technology that will fuel the digitization of industries or the Industry 4.0 revolution .
- Data FiltrationThe intelligence of the IoT device enables the designer to examine the data and remove residuals. When deployed in use cases with high traffic volumes, the intelligent support system at the edge can significantly outperform traditional systems. A surveillance system that focuses on anomaly detection, for instance, consists of a number of cameras, and the vast majority of the data that the cameras collect is redundant. In these cases, it makes more sense to filter the extra photographs locally rather than uploading them all to the cloud.

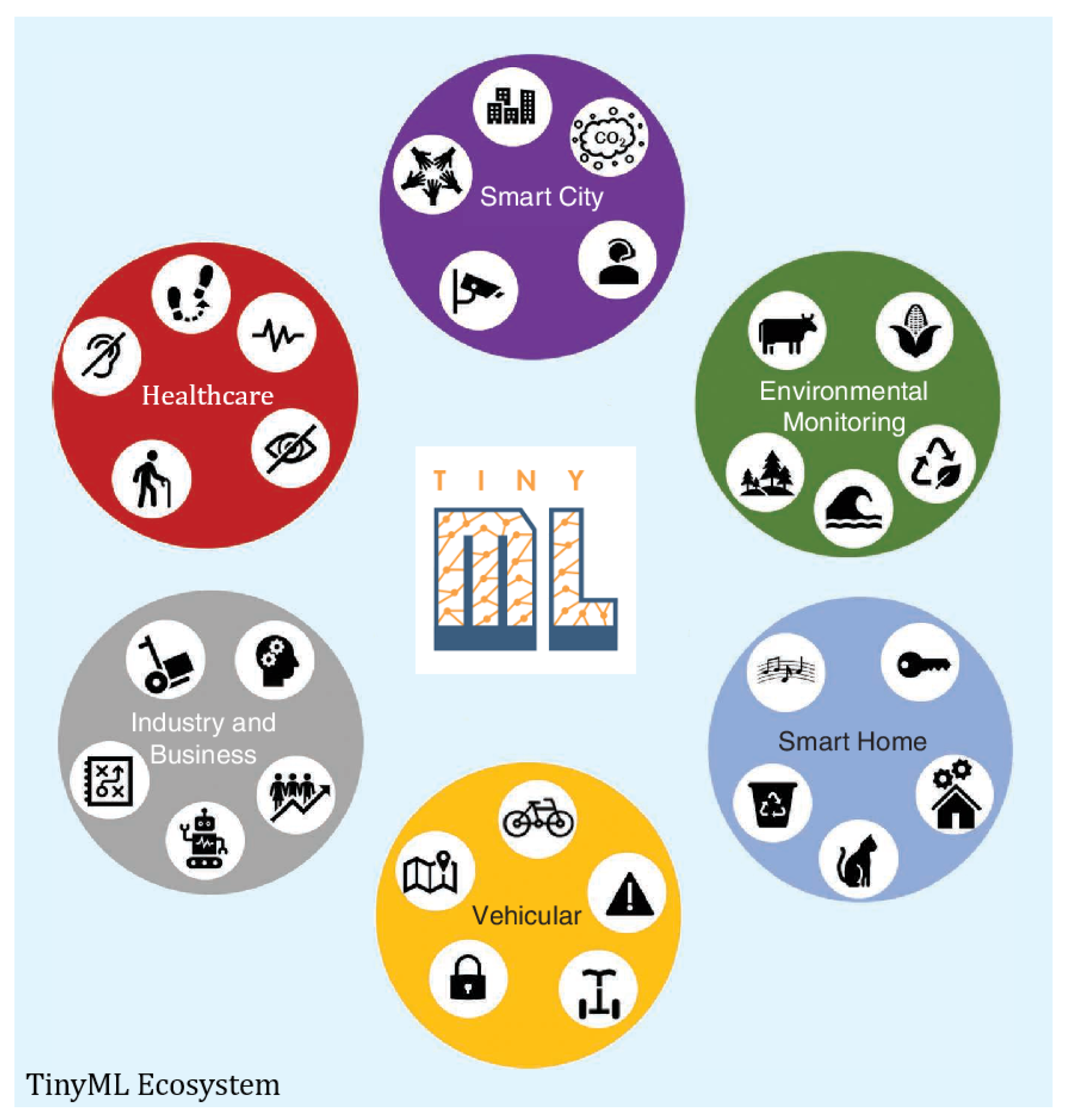

2.6. Applications Areas of TinyML
- Intelligent Objects (IoT):
- Monitoring and Control of the Industry:TinyML has considerable potential influence on the industrial and manufacturing sectors, which are undergoing digitization as part of the Industry 4.0 revolution . MCUs are unable to consistently carry out some operations because of the highly changing compute and memory requirements of the processing activities in these sectors. The incorporation of ML-based decision support systems (DSS) into MCUs, on the other hand, enables them to choose whether to take on a given computational task or offload it to higher processing layers, such the edge or cloud. Furthermore, intelligence along the production chain may be used to improve production processes, decision making, asset monitoring, production and assembly line quality assurance, real-time diagnostics of assembly machines, and so on .
- TinyML in Healthcare:Wearable devices, such as smartwatch, are loaded with a variety of biological sensors that monitor vital functions like as heart rate, blood oxygen concentration, exercise, and even obesity [108,109], and deliver accurate real-time visualization of the current health status of the user in a confidential, safe, and dependable manner. Smart camera sensors capable of monitoring patients in their own environments and swiftly assisting with nurse notification, real-time diagnosis and aid, personalized and translational medicine, and so on [110,111,111]. Additionally, smart microprocessors that utilize TinyML, can effectively predict the likelihood of an accident .
- TinyML in Security and Surveillance:Camera sensors with hardware capable of conducting relatively rapid and accurate visual processing are used in a variety of industries, including tele-health , security and surveillance, services, surveillance, navigation devices, and so on.
- TinyML in Smart Agriculture :TinyML offers a lot of potential in Africa, where embedded systems and artificial intelligence are still underutilized [115,116]. Cassava farming is one of these chances, as it provides a key source of food for hundreds of millions of people each year. However, it is always under threat from many illnesses. To combat it, PlantVillage , an open-source project managed by Penn State University, has created Nuru, an artificial intelligence-based program that can function on mobile phones without internet connectivity—a valuable asset for distant African farmers. By evaluating sensory data in the field, the Nuru app has been successful in minimizing hazards to cassava farming. PlantVillage intends to employ TinyML more widely in the development of Nuru, sending microcontroller sensors to remote farms to offer better monitoring information for analysis. TinyML is also discovering new applications in the agricultural commodities chain, such as coffee beans . For example, two Norwegian businesses, Roest and Soundsensing, have devised a method to automatically recognize the “first crack” of coffee beans during the roasting process. It is critical to identify the first crack since the time spent roasting after the first crack has a major impact on the quality and flavor of the processed beans. To accomplish this task, companies have added a microcontroller with TinyML in their bean roasting equipment, which has increased the efficiency, precision, and scalability of the coffee roasting process. Also, a farmer could with the right equipment as well as with appropriate forecasting models running for weather forecasting, know locally for that particular field its daily weather and its characteristics.
- TinyML in Vehicular Services and Autonomous Vehicles:As more environmentally friendly and healthful vehicles, such as shared bicycles, electric mopeds, scooters, and so on, come into existence, current patterns in urban transportation are changing. However, due to the high energy requirements of their linked on-board units (OBUs), modern vehicle networks largely take into account conventional forms of road transportation including cars, buses, and trucks. Although various attempts to connect bicycles to C-ITS systems have been made , personal autos have not been taken into consideration due to their novelty and inherent limitations. The ability to integrate these devices into C-ITS and smart city ecosystems, on the other hand, is made possible by connecting them with MCU-based OBUs . Thus, basic vehicle services like route planning, device status monitoring, and driving safety and so on  will be accessible to light cars.Autonomous driving has made giant strides since the advent of deep learning (DL). Small vehicles driving choices have historically been off-loaded to remote computers, requiring energy-intensive, time-consuming, and unreliable transfers of raw data. By processing data on-board and immediately controlling the motor controllers, off-system transfers may be avoided. However, because the system is battery-powered, only a tiny portion of the electricity can be sent toward the processing unit, which is the autonomous vehicle’s “brain”. TinyML approaches are therefore required to solve these issues and deal with on-device sensor data processing at the hardware, algorithmic, and software levels.
- TinyML in Smart and Secure Societies:Water systems, a safe food supply chain , intelligent transportation systems, disaster relief , smart energy grids , and emergency response technologies , and so on . Also, efficient defect detection in modern production lines, such as logistics, in numerous stages of the manufacturing process .
- TinyML in Intelligent New Spaces:The collaborative intelligence that now exists in scenarios like smart cities and cognitive buildings, to name a few, will be strengthened by simple objects with ML capabilities. Current IoT-based surveillance and monitoring systems, such as those used for traffic, pollution , and crowd identification, will grow into autonomous and intelligent entities  capable of making quick and decentralized choices. Because of independence from the power grid and the simplicity of installation, items may be installed in isolated and rural locations, creating smart spaces  with smooth mobility between them. Furthermore, lower end-device costs will stimulate their adoption in underserved areas, which may assist revitalize local economies and commercial activity.
2.7. Use Cases of the TinyML
2.7.1. Image Recognition
2.7.2. Hand Gesture Recognition
2.7.3. Face Detection
2.7.4. Anomaly Detection
2.7.5. Phenomenal and Ecological Maintenance
2.7.6. Autonomous Vehicle and Traffic Management

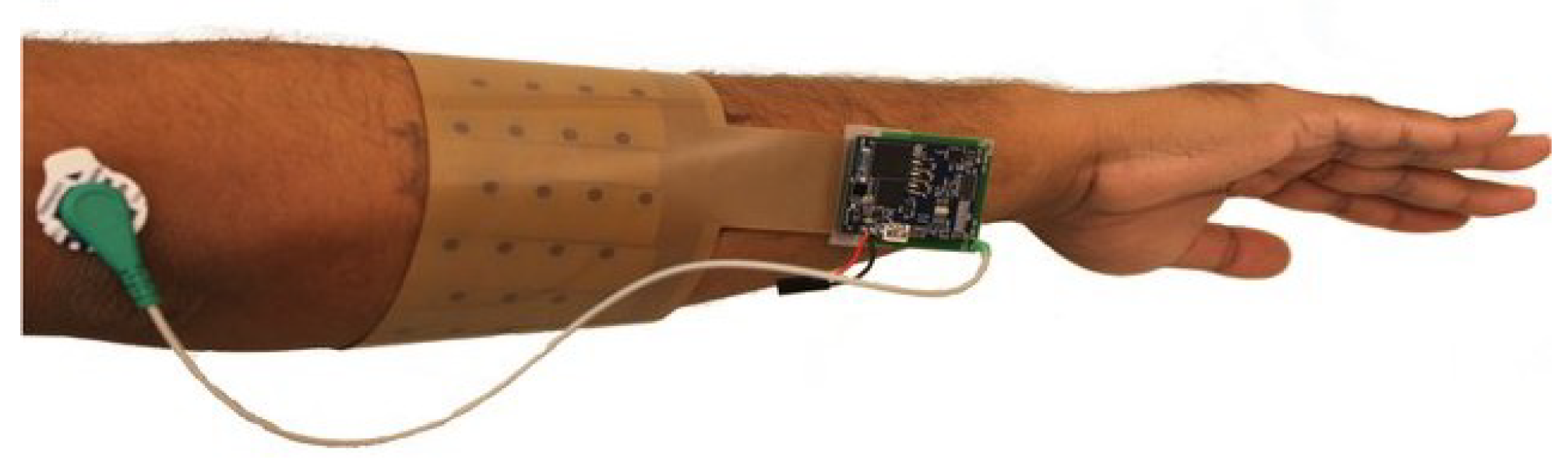

2.7.7. Body Pose Evaluation

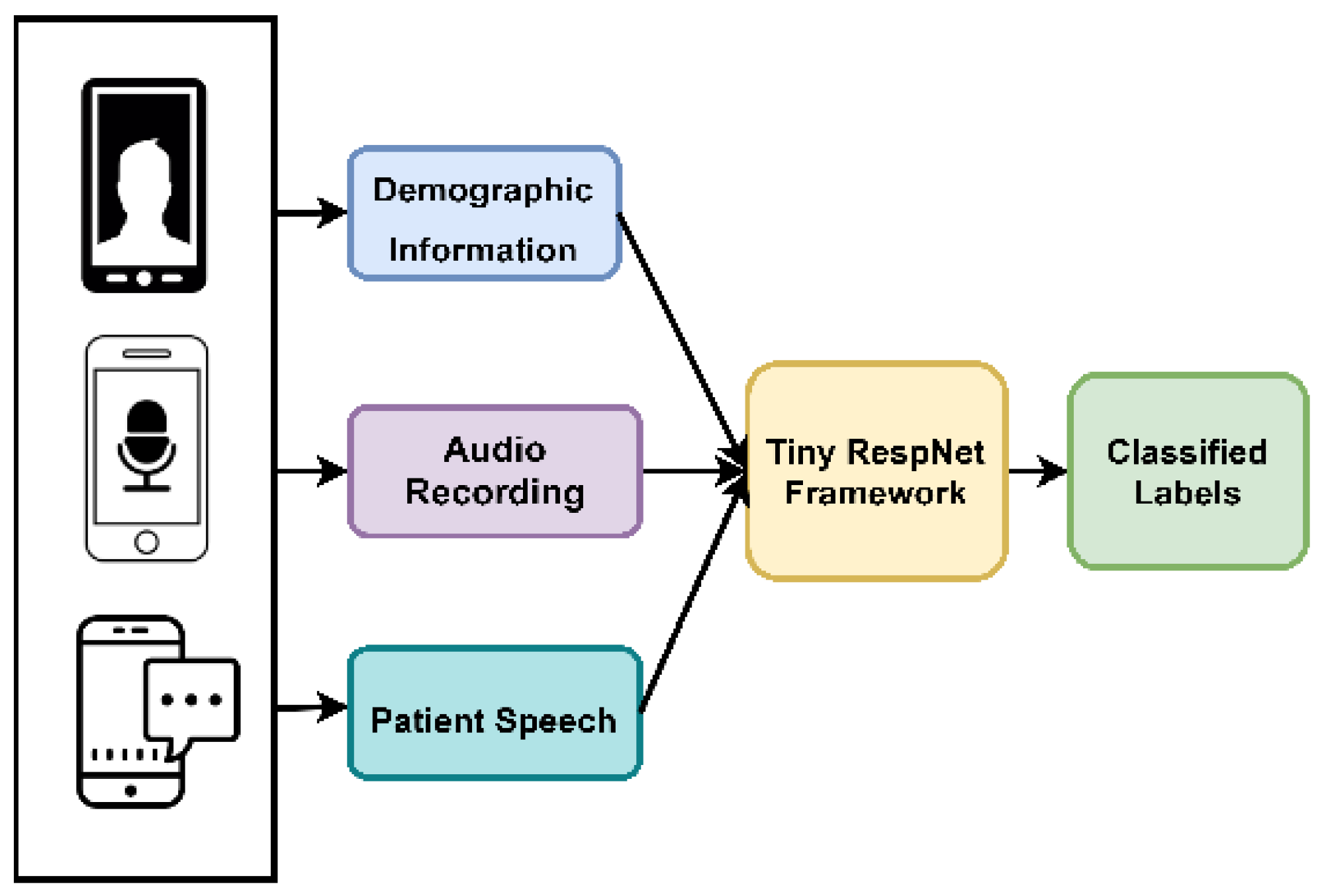

2.7.8. Detection of Respiratory Symptoms Associated with Coughing
2.7.9. Speech-Voice Recognition
2.7.10. Oral Tongue Lesions Pre-Screening

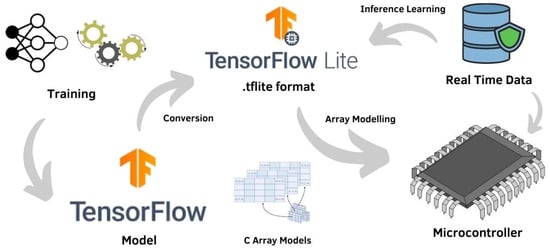

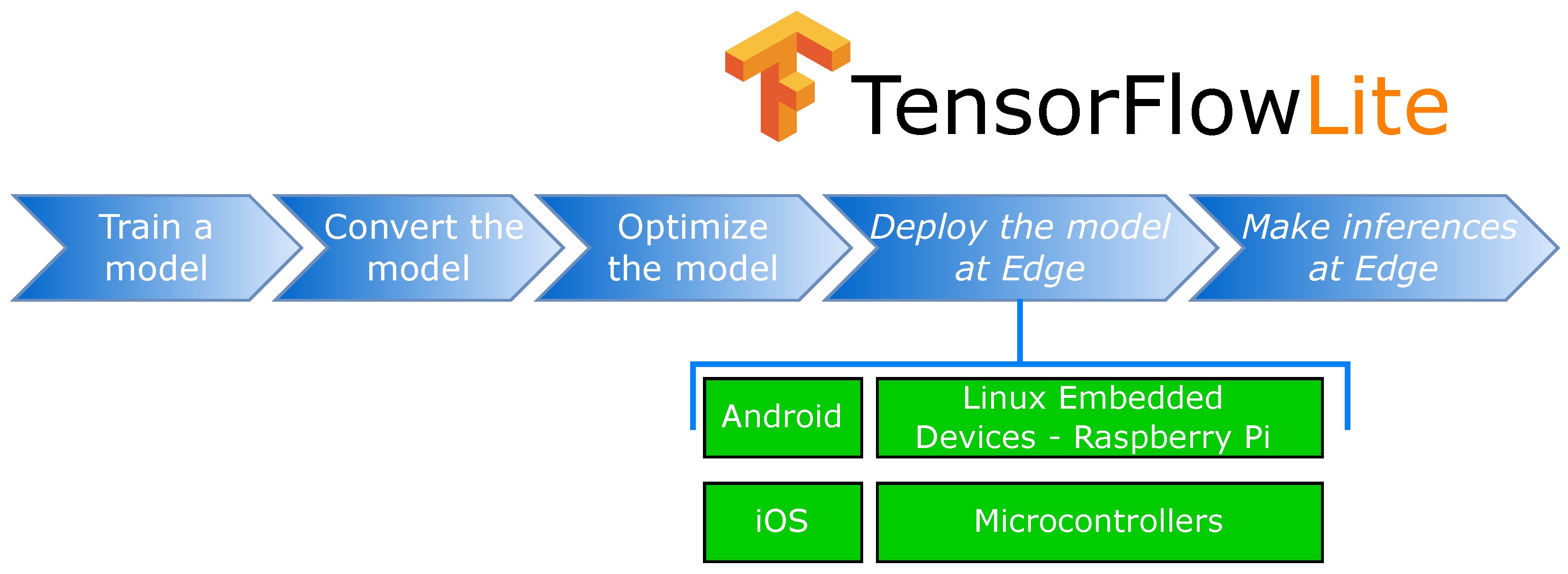

3. TensorFlow Lite—TensorFlow Lite for Micro
- Inability to install models in many embedded architectures easily and portably;
- There is an absence of optimizations that make use of the hardware in question without needing the construction of frameworks to execute platform-specific efforts;
- Lack of productivity tools that link training with platforms and development tools;
- Infrastructure for model calling, quantization, compression, and execution is insufficient;
- Minimum support features for debugging, organization, performance profiling, etc;
- No benchmarks exist that enable manufacturers to precisely and repeatedly measure the performance of their semiconductor;
- There is a lack of testing in real-world applications.
- The compiler-based solution is versatile, portable, and simple to include new applications and features.
- To achieve hardware independence, decrease the use of library requests and external dependencies.
- It allows hardware suppliers to provide kernel-specific optimization platforms without the need to develop hardware-specific compilers.
- Benchmarks adopted by leading benchmarking organizations such as MLPerf are provided.
- The framework is compatible with popular, well-maintained Google apps under development.
- It allows hardware suppliers to easily incorporate optimizations into their kernel to guarantee production performance and hardware benchmarking.
- The TensorFlow Lite model transformation and optimization infrastructure is one of many machine learning ecosystems that the model architecture framework is compatible with.
- Adafruit Circuit Playground Bluefruit
- Kit Discovery STM32F746
- Adafruit EdgeBadge
- Espressif ESP32-DevKitC
- Himax WE-I Plus EVB Endpoint AI Development Board
- Wio Terminal: ATSAMD51
- Kit Adafruit TensorFlow Lite for microcontrollers
- Espressif ESP-EYE
- SparkFun Edge
- Arduino Nano 33 BLE Sense
3.2. Technical Challenges
- Missing features:
- A decentralized market and environment:
- Resources are limited:

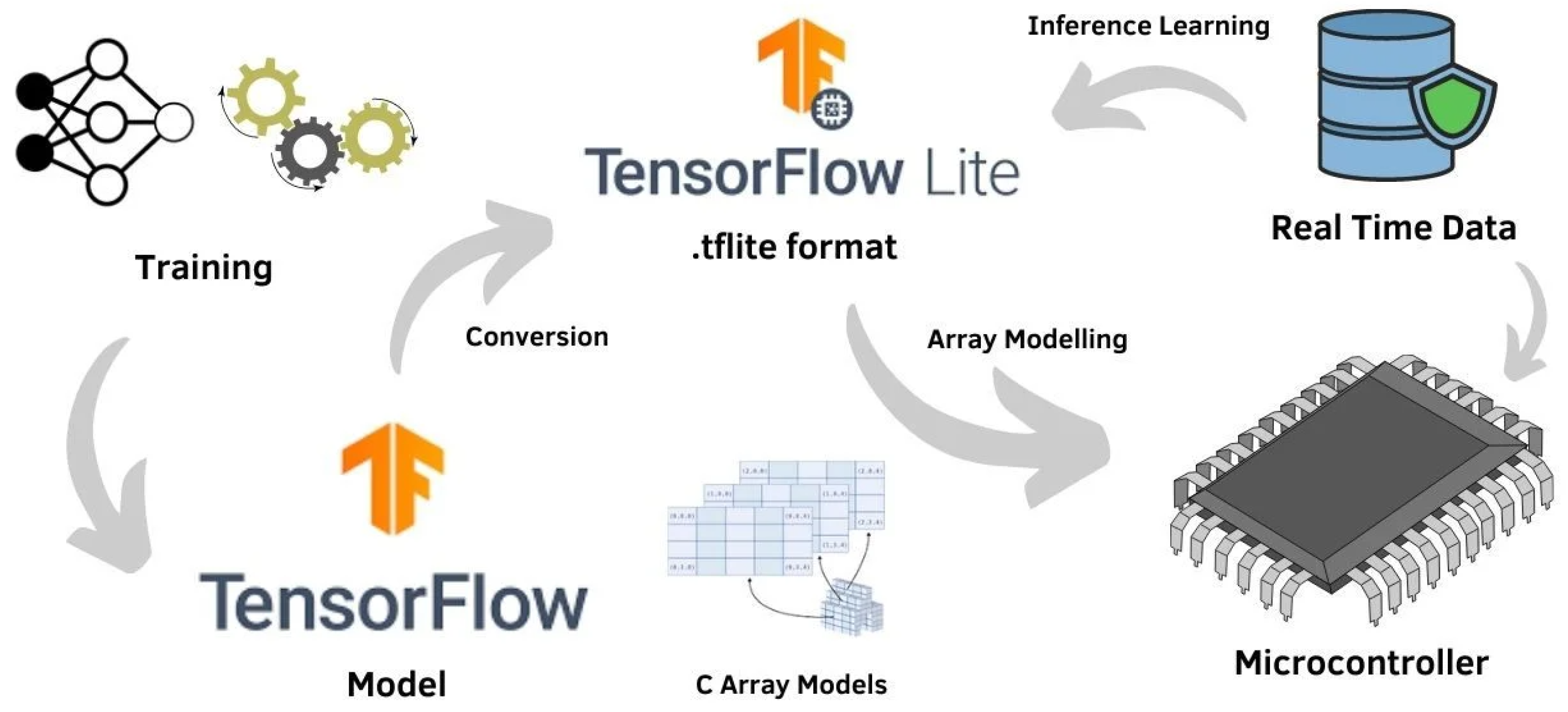

3.3. Implementation of TensorFlow Lite—TensorFlow Lite Micro

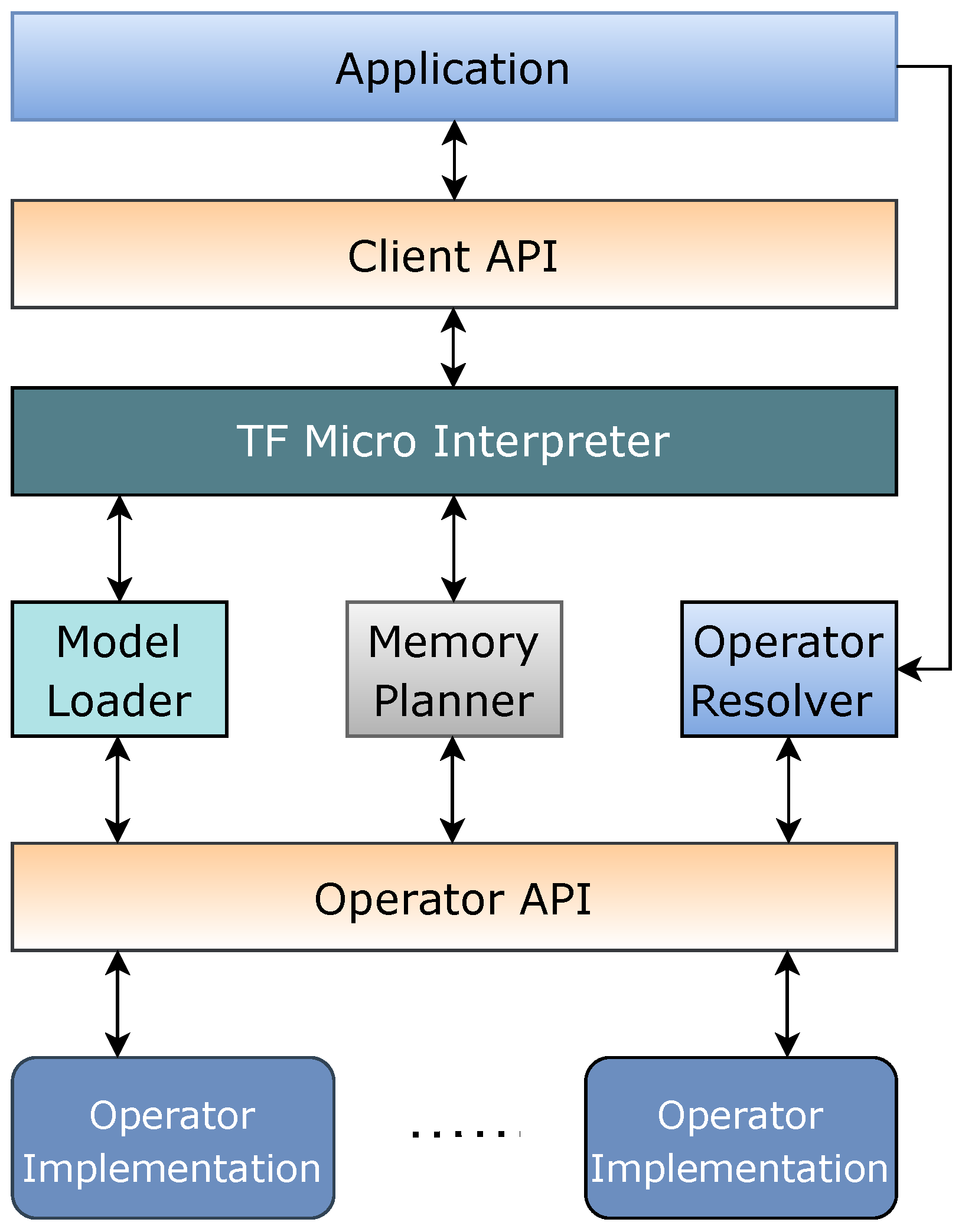

- System overview
- TFLM Interpreter
- Loading of the model
- Model serialization
- Model representation

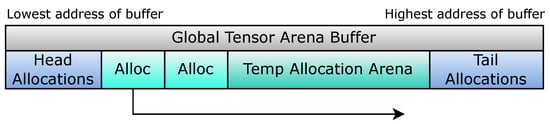

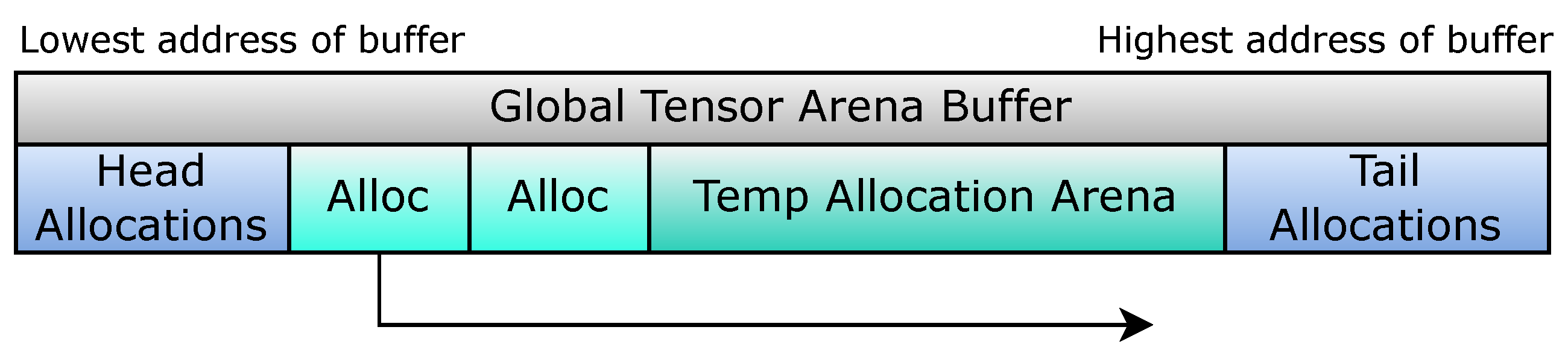

- Memory management
- Persistent Memory and Scratchpads
- Operator Support
- Build all-in-one System
3.4. Summary of TensorFlow Lite
4. Integrating TinyML with Network Technologies

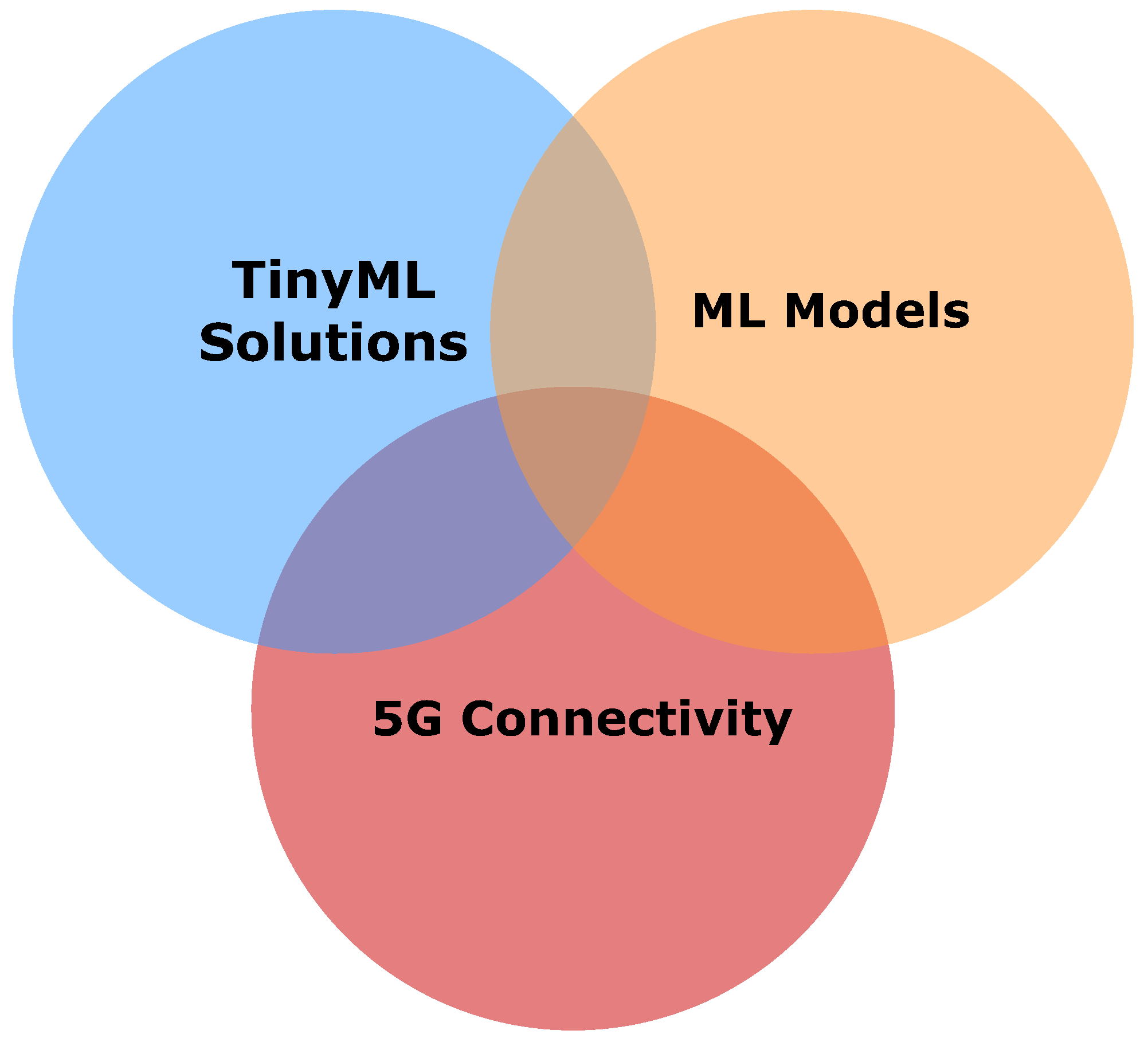

4.1. 5G and TinyML
- A significant number of devices are linked together .
- The goal is to minimize energy use by about 90% .
- It offers massive bandwidth, cheap cost, and extended battery life.
- Unsupervised learning: Unsupervised learning is achievable due to the efficiency of deep learning in processing semi-labeled or unlabeled input. This is essential for dealing with the enormous amounts of unlabeled data that mobile systems frequently deal with.
- In contrast to conventional ML methods, deep learning performance usually increases rapidly as the size of the training data increases. As a result, it can exploit the enormous amounts of mobile data created at high rates of speed.
- Geometric mobile data learning: Geometric mobile data analysis has been transformed by specific deep learning architectures for modeling geometric mobile data.
- Extraction of features: Through layers of varied depths, deep neural networks can automatically retrieve high-level information. This makes it possible to analyze heterogeneous and noisy mobile big data with lower cost human feature engineering.
- Multitask learning: Using transfer learning, features gained from neural networks via hidden layers may be applied to other tasks. This minimizes the processing and memory needs for doing multitask learning in mobile devices.

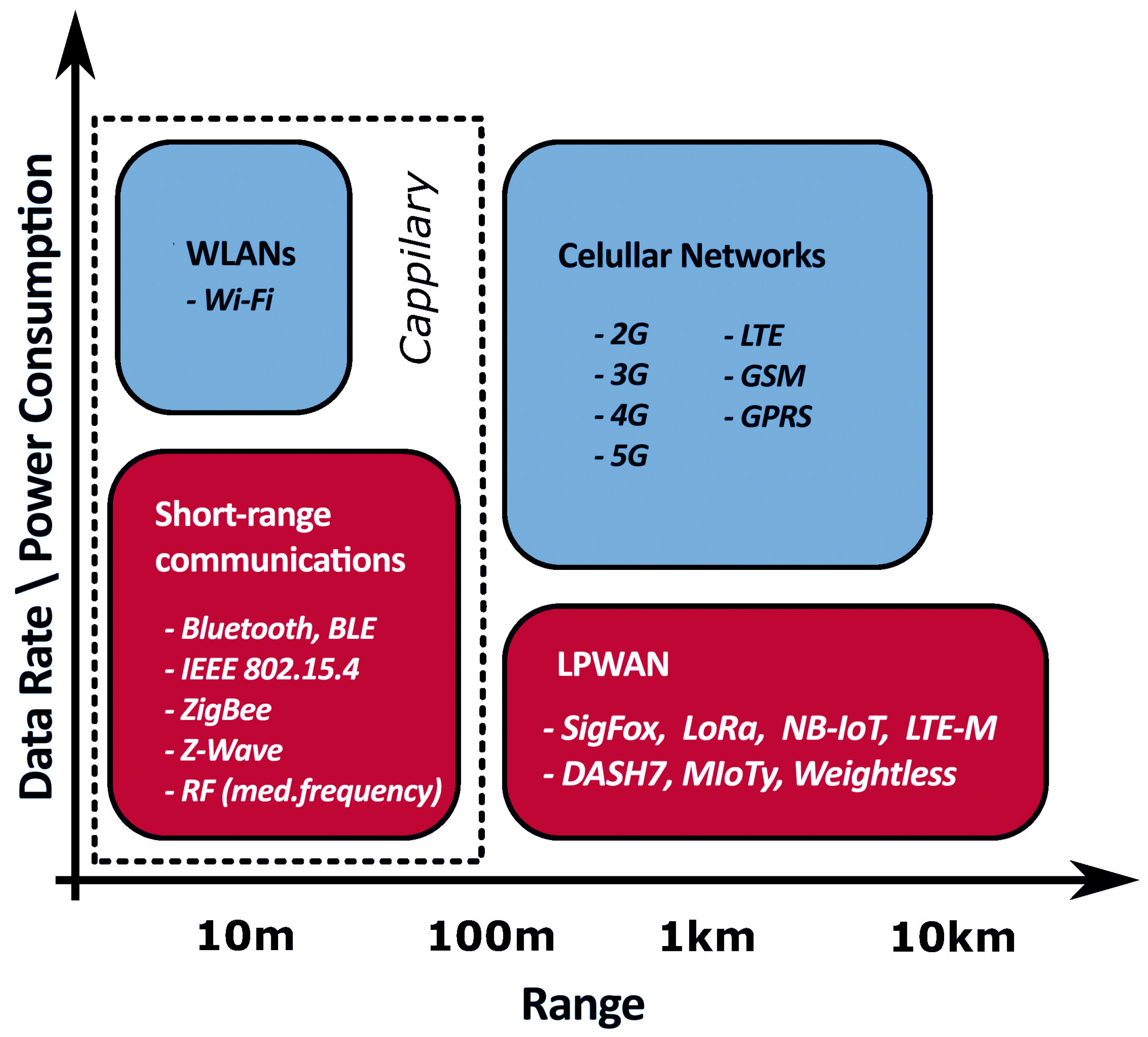

4.2. LPWAN and TinyML on Embedded Devices
5. Discussion and Future Directions
- New dimension: A variety of variables are claimed to influence the development and acceptance of the TinyML standard in the future. An intelligent edge system, for example, necessitates edge software that integrates sophistication, edge-device intelligence consistency, real-time learning, distributed learning, online learning, and data-network management. This partnership should be expanded to strengthen local security and privacy by allowing end-user context to be stored on edge devices. Additionally, it should give priority to improving edge device infrastructure, low-cost knowledge sharing capabilities in edge device systems and edge device platform orchestration. Figure 18 emphasizes the contributions of these factors to the evolution of the TinyML paradigm.
- Support for portability: Another issue that may be overcome by establishing improved compute data delivery methods on Edge platforms is portability support. Location-aware optimization can conserve network capacity and boost network spectrum coverage for edge devices, allowing them to collaborate with neighboring devices. It can therefore contribute to the progressive transfer of know-how and models for others to utilize. Furthermore, the quality of service may be altered to forecast how edge devices would behave when interacting with neighboring nodes. These data may be exchanged across nodes or clouds in the immediate vicinity to forecast the intelligent orientation of edge devices.

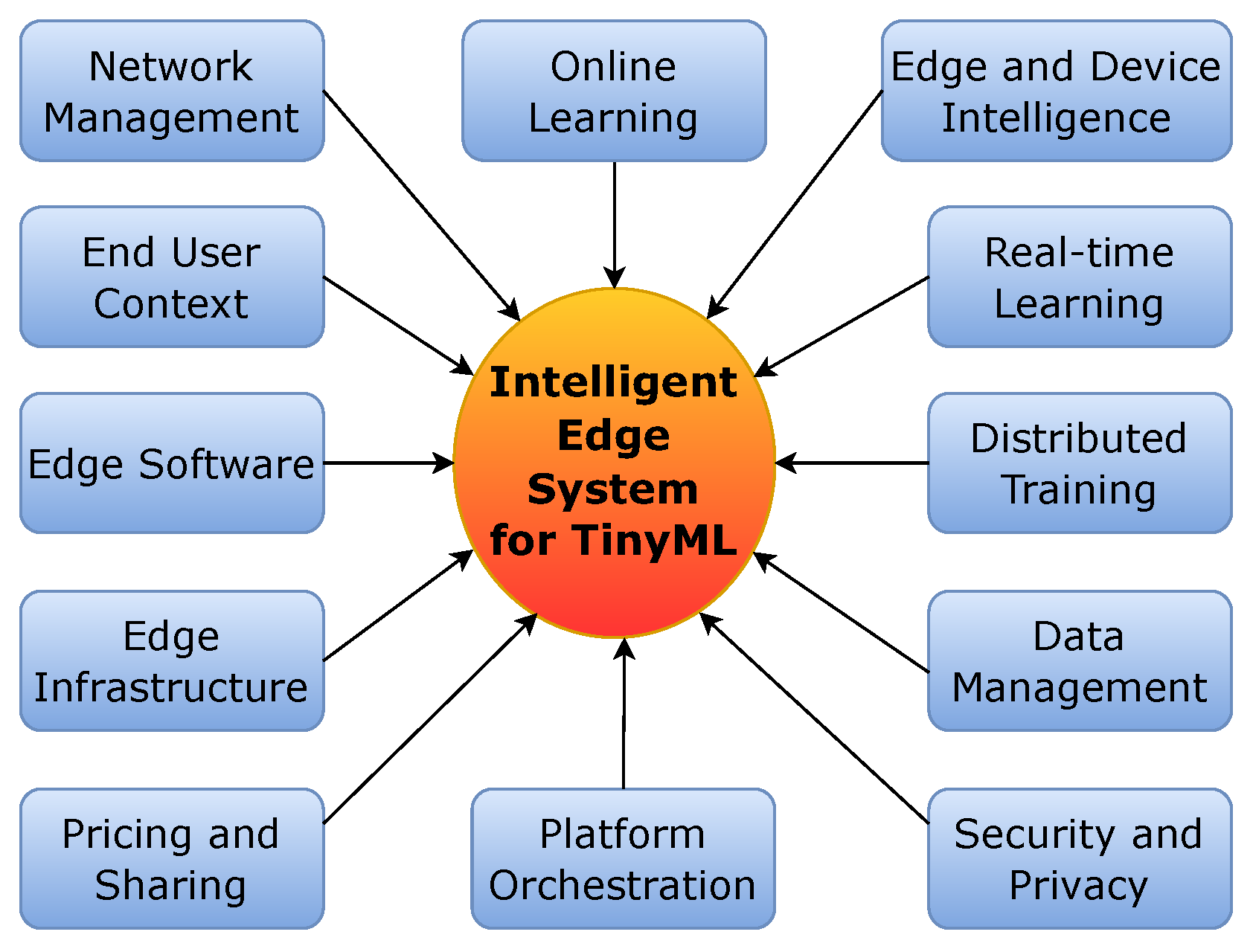

- Edge Intelligence Framework: The following should be the foundation of a standard edge intelligence framework: (i) energy-efficient management, (ii) dynamic task distribution, (iii) data intelligence, (iv) wireless networking, (v) collaborative intelligence, (vi) predictive service quality, (vii) communication service implementation, (viii) real-time inference, (ix) liquid software propagation between edge nodes, and (x) machine learning as a service. From a future-proof learning perspective, take into account implementing such TinyML arrangements to make them compatible with 5G and 6G technologies. Therefore, mmWave xhaul systems have to be included to TinyML systems to enhance ML models optimization. Hypercooperation between the cloud and the edge may thus be implemented in an effective manner [168,169,170].
- Offloading operations: The activation/deactivation of processing tasks can actually be exploited during machine learning scenarios triggered by the edge. These loading methods ought to be included to the dynamic configuration of edge-aware features that is already accessible. Thus, TinyML will enhance the transmission of resource-intensive processes from edge devices with low resources. Interoperability between the edge and the cloud could become more focused as a result. It is necessary to undertake investigations to determine the underlying processes that support these resource allocations (e.g., machine learning, channel bandwidth, memory chunks, data recruitment, sensing capabilities, CPU cycles).
- Future Perspective: TinyML is progressively becoming a must and a reality for making educated decisions in everyday life. Especially for low-power embedded devices used in a variety of applications. To provide consumers with an upgraded user experience, mobile platforms must adjust their orientation to TinyML. TinyML-aware approaches for next age intelligent and wearable devices are recommended for technical developers and enterprises. There is a great requirement to reduce CPU-GPU-TPU interaction, which costs resources, in order to provide smart decision support. Microcontroller makers should prioritize integrated TinyML design standards so that customers do not have to deal with external alignments linked to artificial intelligence. TinyML integration in the realm of IoT-edge analysis should be explored in order to make the application more user-friendly and trustworthy. To assist developers in implementing the market-ready development scenario, a uniform flow methodology should be designed. It is necessary to provide appropriate dataset repositories and lightweight benchmarking tools. TinyML adaptation should target X.0 industrial applications in the future days. Furthermore, such low-memory libraries should be used with 8-bit microcontroller devices. TinyML should be used to resolve latency mitigation in edge-level effects. TinyML is used in low-cost and portable digital devices to deliver immediate input to consumers. TinyML frameworks may be used to reduce needless utilization and reliance on GPUs, TPUs, and cloud platforms.
