Article

Comparative Characterization of a Proposed Generic Nusinersen: Identity of the Oligonucleotide Structure and Equivalence in SMN2 Splicing Activity

by
Serge Taran
,
Maksim Smolov
*,
Maksim Degterev
,
Ivan Lyagoskin
and
Rakhim Shukurov
JSC “GENERIUM”, 14, Vladimirskaya Street, Volginskiy 601125, Vladimir Region, Russia
*
Author to whom correspondence should be addressed.
Pharmaceutics 2026, 18(2), 178; https://doi.org/10.3390/pharmaceutics18020178
Submission received: 8 December 2025 / Revised: 23 January 2026 / Accepted: 26 January 2026 / Published: 29 January 2026
(This article belongs to the Section Biologics and Biosimilars)
Browse Figures
Versions Notes

Abstract

Background/Objectives: Nusinersen is a synthetic antisense RNA oligonucleotide employed in the management of spinal muscular atrophy, a rare neuromuscular disorder, by modulating the alternative splicing of the survival motor neuron 2 (SMN2) gene. GNR-100 represents the first generic version of the reference listed drug (RLD), containing nusinersen sodium as the active pharmaceutical ingredient. We performed comprehensive evaluations in accordance with FDA guidelines, including side-by-side comparative analyses of critical quality attributes, to thoroughly characterize the structural and functional properties of both nusinersen products. Results/Methods: GNR-100 was comprehensively demonstrated to be highly similar to RLD in terms of oligonucleotide structure, physicochemical properties, impurity profile, and in vitro cell-based assays for SMN-gene splice-switching and SMN-protein activity. Structural analyses confirmed that the oligonucleotide primary sequences and chemical structures were identical. The diastereomeric composition and higher-order structures were also similar between the proposed generic and the reference product. Comparable resistance to phosphodiesterase degradation and nearly identical melting temperatures of the oligonucleotide duplexes with their complementary strand further substantiated the structural sameness of the nusinersen products. The impurity profile of the proposed therapeutic oligonucleotide was consistent with that of RLD, and the collectively reduced levels of impurities, as assessed by orthogonal analytical methods, indicated no meaningful impact on the safety profile. Moreover, both products exhibited comparable biological activity in enhancing the production of full-length SMN2 mRNA transcripts and functional SMN protein in fibroblasts derived from SMA patients. Conclusions: These quality studies demonstrate that GNR-100 exhibits no significant differences from the licensed drug across structural, physicochemical, biophysical, and biological attributes, establishing its potential as a cost-effective therapeutic alternative for patients with spinal muscular atrophy.

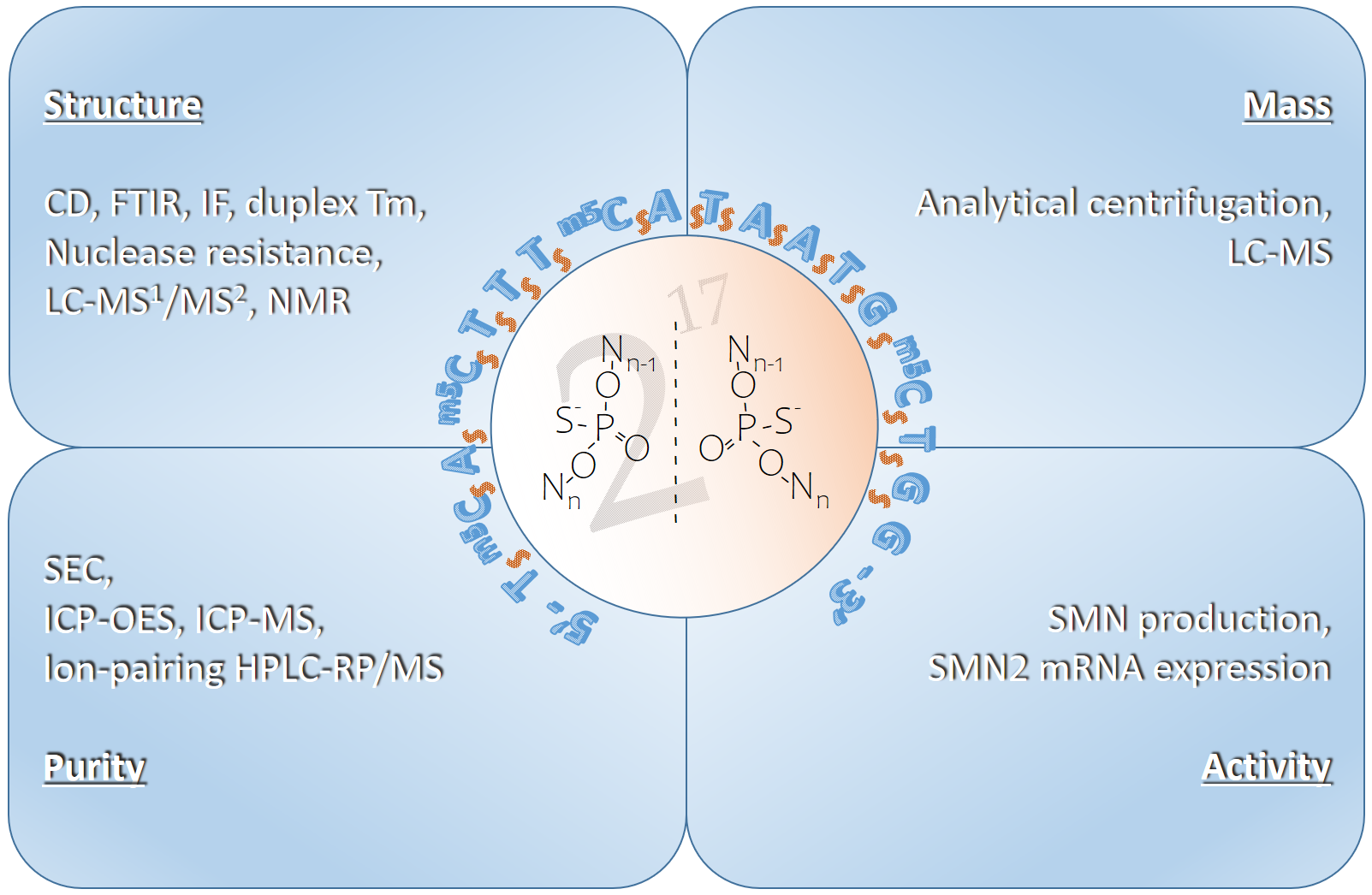

Graphical Abstract

1. Introduction

Nusinersen is an 18-mer synthetic antisense RNA oligonucleotide specifically designed to manage spinal muscular atrophy (SMA), a rare autosomal recessive neuromuscular disease characterized by degeneration of the motor neurons in the anterior horn of the spinal cord, resulting in atrophy of the voluntary muscles of the limbs and trunk [1]. The disease is caused by deletions or mutations in the survival motor neuron 1 gene (SMN1) on the long arm of chromosome 5 (5q13), which results in the absence of SMN protein production [2,3]. This deficit can be partially compensated for by the expression of a nearly identical SMN2 gene. However, due to the single nucleotide C > T difference, skipping of exon 7 occurs in most SMN2 mRNA transcripts, resulting in the encoding of an SMN protein isoform that is unstable and does not function in the same manner as the full-length SMN isoform [4,5]. Nusinersen increases the proportion of full-length SMN2 exon 7 mRNA transcripts by binding to the intronic splicing silencer (ISS N1) located in intron 7 of the SMN2 mRNA precursor. After SMN2 mRNA is synthesized, it can be translated into SMN protein with a full polypeptide chain length and normal functional activity [6,7]. To increase the stability of nusinersen during use, ribose residues are modified with 2′-O-2-methoxyethyl moieties, while the phosphodiesters are replaced with phosphorothioate linkages [8]. Nusinersen is administered directly to the central nervous system via intrathecal injection, with nusinersen sodium as the active pharmaceutical ingredient. Following distribution to the CNS and peripheral tissues, the drug is metabolized via slow hydrolysis by exonucleases, with the primary route of elimination of nusinersen and its metabolites likely being urinary excretion [1,9,10].
Generic formulations of original drugs with proven long-term clinical efficacy can provide equivalent clinical effects at a reduced cost to society [11,12]. GNR-100 is the first generic version comprising nusinersen sodium as the active pharmaceutical ingredient. GNR-100 was approved in Russia to provide greater patient access to nusinersen with efficacy and safety comparable to the marketed reference product. It should be noted that an active ingredient such as nusinersen is classified as “complex generic”, for which regulatory approaches to confirm bioequivalence to the reference drug are still under development and require more attention and consideration of possible risks, thereby imposing additional responsibility on the developer. We conducted comprehensive studies based on FDA guidelines [13], including side-by-side comparative analyses of critical quality attributes, to characterize the structural and functional properties of the proposed and reference nusinersen products synthesized by the conventional automated phosphoramidite method [14,15]. The proposed and reference products were investigated in terms of oligonucleotide structure, physicochemical properties, impurity profile, and in vitro cell-based assays for SMN-gene splice-switching and SMN-protein activity. The quality attributes of GNR-100 were assessed against the reference nusinersen using a detailed characterization described herein to ensure that the functionality and safety of the proposed product are comparable to those of the reference product.

2. Materials and Methods

2.1. Production and Purification of Nusinersen

GNR-100 was synthesized via the standard solid-phase method with 2′-MOE phosphoramidites as the starting material (Figure S1) using well-established automated chemistry [14,15]. The phosphoramidites used to synthesize nusinersen were homogeneous in their chirality and represent commercially available nucleoside precursors. Supplier quality was confirmed by rigorous vendor qualification and incoming quality control. The structure and purity of each phosphoramidite were verified by mass spectrometry, 1H and 31P NMR spectroscopy, and HPLC-RP. The stereochemical integrity of the phosphoramidites remained unchanged throughout the entire manufacturing process with no observed racemization.
The optical density of the cleaved DMT ion was monitored in real time during each synthesis cycle to enable precise control over coupling efficiency and overall process performance, allowing for the identification and mitigation of incomplete or failed sequences.
To ensure structural and qualitative equivalence of GNR-100 to RLD, a tailored purification strategy was developed, employing hydrophobic and ion-exchange HPLC to selectively remove process- and product-related impurities generated during synthesis. A comprehensive analytical control strategy was implemented throughout the process, incorporating ion-pair high-performance liquid chromatography-mass spectrometry (HPLC-MS) for the precise characterization of both intermediates and the final nusinersen product.

2.2. Study Design

Comparative analyses were conducted using 7 production batches of the generic drug product manufactured within a year and 6 commercial batches of the RLD sourced from the European Union, spanning varying expiration dates. The study design, quality attributes, and analytical procedures were aligned with the U.S. Food and Drug Administration guidance for development of generic nusinersen [13]; the regulatory requirements of the local authority in the Eurasian Economic Union (EAEU); and established scientific literature on therapeutic oligonucleotide development, including guidelines from the European Pharmaceutical Oligonucleotide Consortium (EPOC) (http://www.epoc.dev (accessed on 15 November 2025).
Analytical characterization was conducted as detailed in Appendix A.1.
Primary fibroblast samples were derived from three donors diagnosed with spinal muscular atrophy.

2.3. Statistical Evaluation

A quality range (QR) approach was employed to evaluate the comparability of GNR-100 to the RLD product. The QR limits were defined based on the variation observed in the reference product, calculated as the mean ± 2 (or 3) standard deviation (SD). Comparability was established if at least 90% of the values from generic (GNR-100) batches fell within the quality range derived from multiple innovator reference product batches [16,17]. In certain cases, a direct visual comparison was also performed by superimposing the spectral or other profiles of the test product onto the corresponding profiles from the reference batches.
To estimate specific activity, the measured activity for each sample was expressed as a percentage of a reference product lot, which was designated as the standard activity value of 100%.

3. Results

3.1. Physicochemical and Biological Characterization

Current analytical procedures were employed to conduct a comprehensive structural and functional characterization of GNR-100 and the reference nusinersen. The analysis elucidated the primary sequence, chemical structure, and diastereomeric composition alongside spectral signatures, molecular mass, oligonucleotide content, related substances, and key biological attributes of the compared drug products. Where feasible, comparisons were performed in a single head-to-head analytical run under identical conditions across all samples, as this approach enhances the precision and reliability of detecting subtle differences or similarities. Summary results of the comparative characterization of nusinersen drug products are presented in Table 1.

3.2. Evaluation of Chemical Structure and Diastereomeric Composition

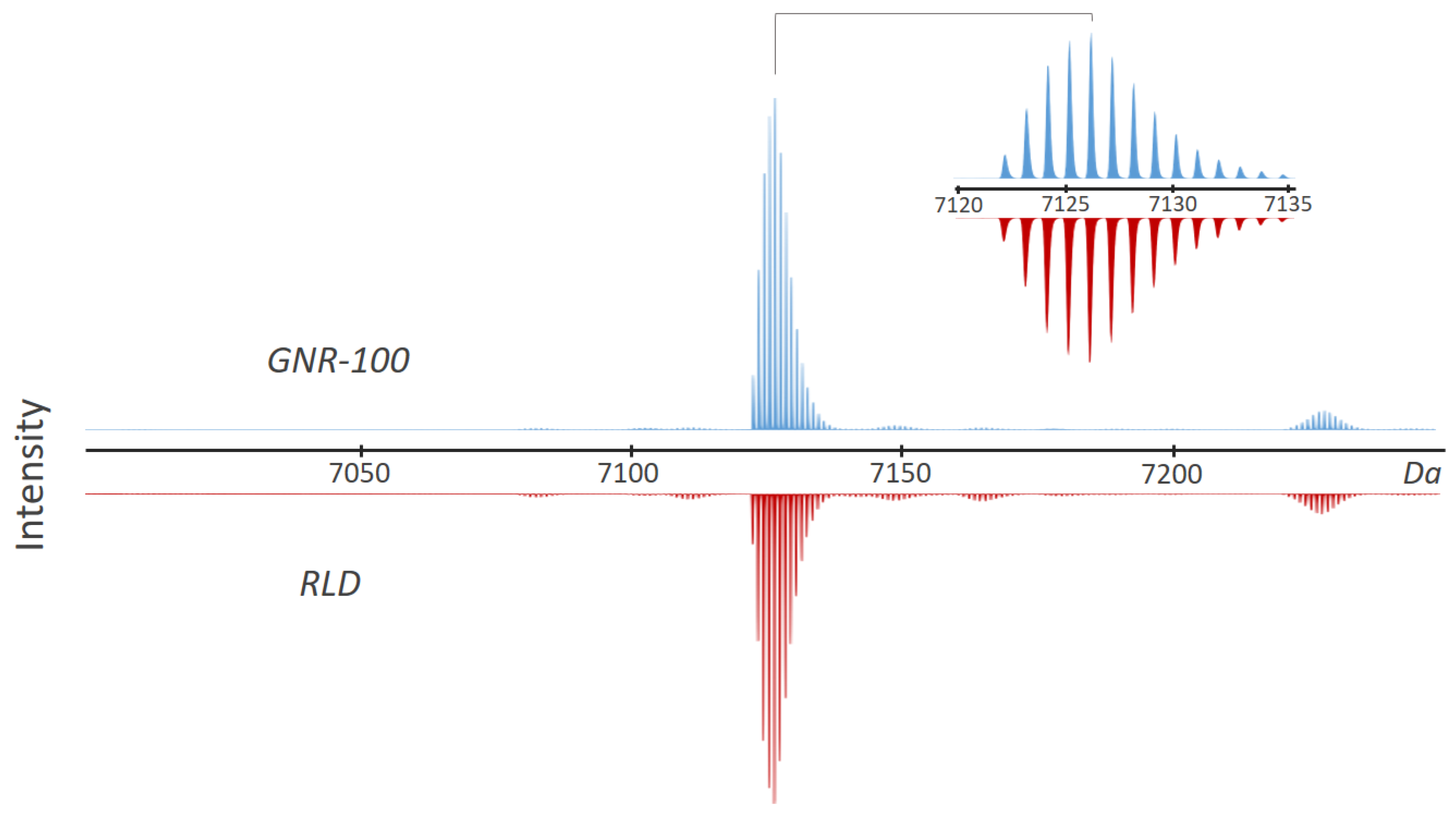

In all instances, the measured monoisotopic masses of nusinersen (M) and the corresponding mass-to-charge ratios (m/z) of its deprotonated ions deviated from the theoretical values by no more than 6 ppm, indicating structural similarity among the studied drug products (Table 2, Figure 1). The molecular masses of the compared drug products were consistent within the analytical uncertainty of the high-speed analytical ultracentrifugation method. However, given the inherent structural complexity of oligonucleotides, molecular mass determination—despite their high-resolution—proved insufficient to conclusively establish structural identity between GNR-100 and the reference nusinersen.

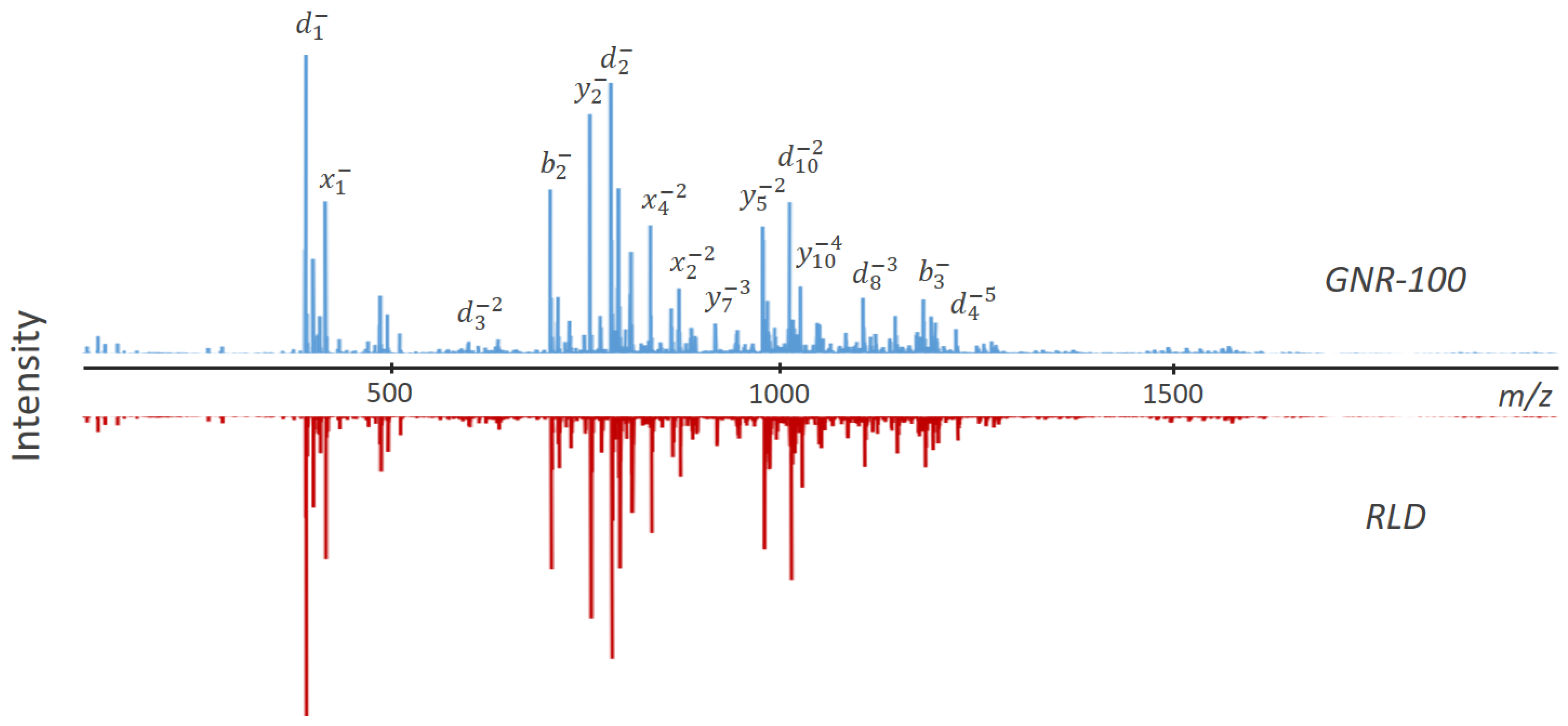

To further elucidate structural equivalence, collision-induced dissociation (CID) was employed to analyze the fragmentation pattern of the isolated ion, (M-7H)7− (m/z 1016.461), yielding comprehensive fragment ion spectra that fully span the oligonucleotide’s primary sequence (Table S1). Comparative analysis of these fragmentation profiles demonstrated a high degree of similarity between the drug products (Figure 2).

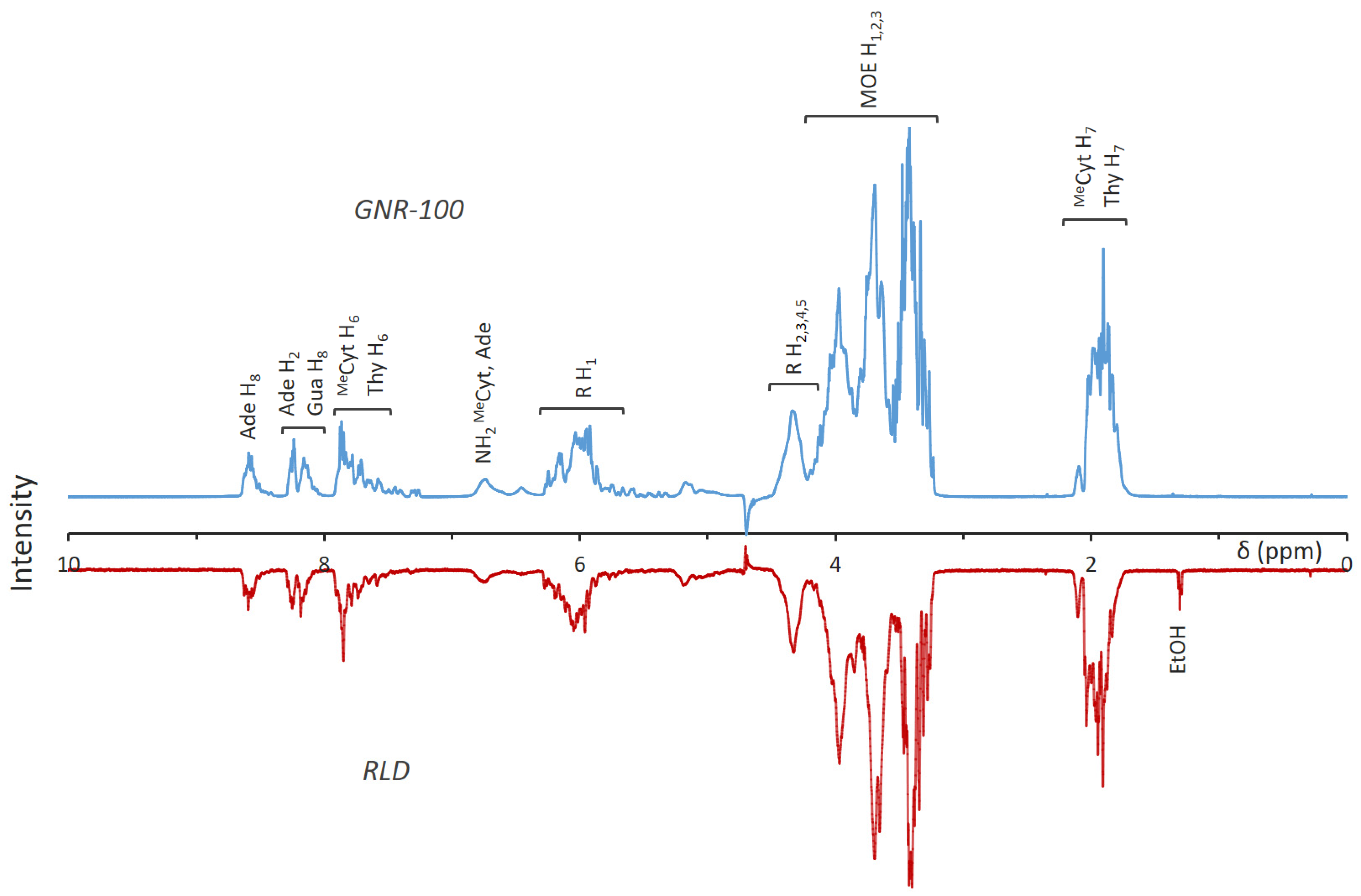

The 1H NMR spectra of the compared drug products exhibited highly similar signal patterns (Figure 3). Resonances in the δH range of 1.6–2.2 ppm were assigned to the methyl protons of thymine (Thy H7) and 5-methylcytosine (MeCyt H7). In the δH region of 3.0–4.5 ppm, signals of the methoxyethyl group protons (MOE H2,3 and H1) were overlapped with those of the ribose ring protons (R H2,3,4,5). Notably, the ribose proton at position 1′ (R H1) resonated downfield at 5.5–6.3 ppm, distinct from the other sugar protons. The resonances of the nitrogenous base protons were observed in the weak field (δH 7.1–8.8 ppm) and are typical for positions 2 (Ade H2), 6 (Thy H6, MeCyt H6), and 8 (Ade H8, Gua H8). Due to acquisition in fluid-attenuated mode, certain individual proton signals were not resolved. Integration of the 1H spectral peaks corroborated the anticipated nucleotide composition and confirmed the structural equivalence of the nitrogenous base proton environments between the compared drug products (Figure S2).

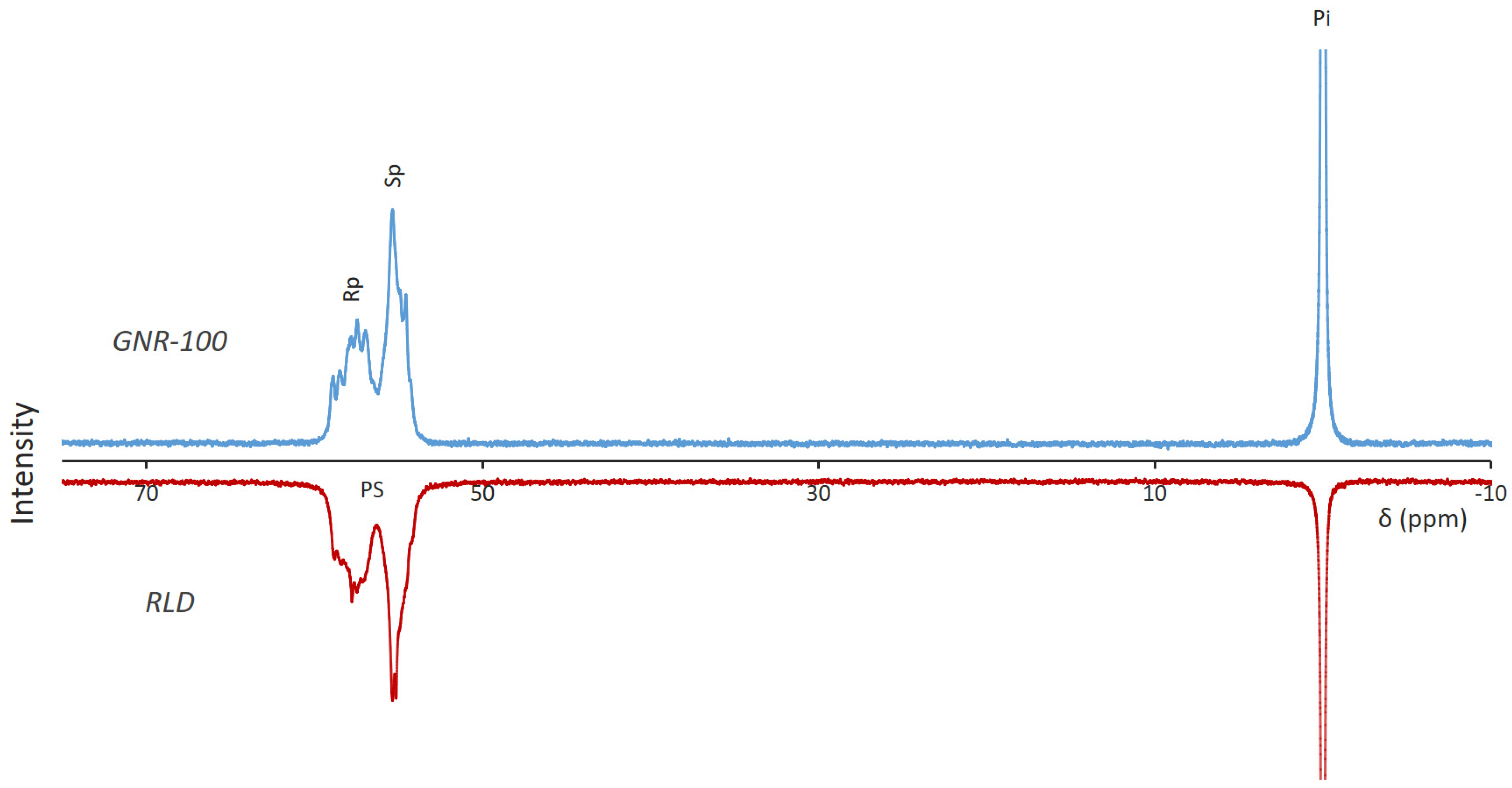

Figure 4 represents the 31P NMR spectra of GNR-100 and reference nusinersen, revealing nearly identical signal profiles in both samples. Two distinct, intense clusters, corresponding to diastereomeric phosphorothioate (PS) linkages, appear in the range of 53–60 ppm [18]. Chemical shift referencing was accomplished using the prominent resonance of free phosphate (Pi).

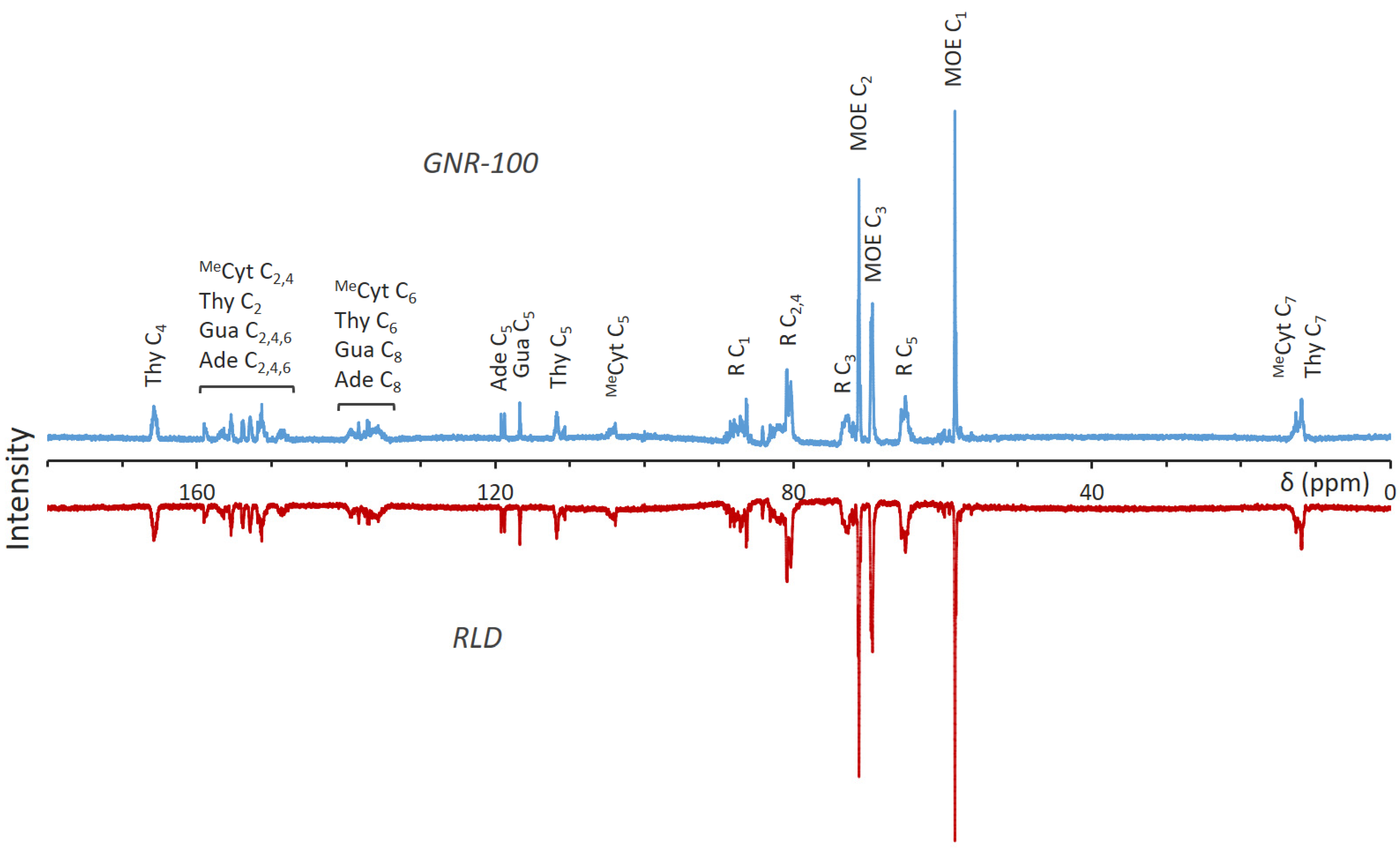

The 13C NMR spectra of all samples exhibit a highly similar signal profile (Figure 5). Methyl carbons of thymine (Thy C7) and 5-methylcytosine (MeCyt C7) resonate in the range of 11–14 ppm. A distinct signal from the methoxyethyl carbon (MOE C1) appears at 58 ppm, while the C2 and C3 carbons of the MOE-group are shifted downfield to 71 ppm and 69 ppm, respectively. The following signals of ribose residues are observed in the immediate vicinity at 62–67 ppm (R C5), 72–74 ppm (R C3), 79–85 ppm (R C2,4), and 85–90 ppm (R C1). The majority of nitrogenous base carbon signals are positioned in the downfield region. Four distinct resonances corresponding to the C5 atoms (MeCyt, Thy, Gua, and Ade) fall within the 104–119 ppm of δC range. Two prominent clusters appear at the extreme downfield: one at 130–140 ppm and the other at 148–160 ppm. The first cluster corresponds to C6 and C8 (MeCyt C6, Thy C6, Gua C8, Ade C8). The second cluster arises from the resonance of atoms in positions 2, 4, and 6 (MeCyt C2,4, Thy C2, Gua C2,4,6, Ade C2,4,6). The C4 carbon of the thymine (Thy C4) exhibits a unique, isolated peak at 165–167 ppm.
Figure S3 demonstrates the two-dimensional 1H-13C HSQC NMR spectra of GNR-100 and reference nusinersen. The region of aliphatic CH groups (δC/δH 55–90/2.5–6.5 ppm) was characterized by the highest signal density, where the resonances of the methoxyethyl (MOE) and ribose (R) groups appeared. The cross peaks corresponding to thymine (Thy C7) and/or 5-methylcytosine (MeCyt C7) methyl groups were distinct at δC/δH 12–13/1.7–2.1 ppm. The resonance of CH groups caused lower-intensity signals in the region of aromatic atoms (δC/δH 134–155/7.2–8.8 ppm) (MeCyt C6, Thy C6, Gua C8, and Ade C2,8). The two-dimensional spectra align well with the one-dimensional 1H and 13C NMR spectra and the theoretical structure of nusinersen. Figure S4 shows the TOCSY NMR spectrum of GNR-100. Notably, all spectra exhibited highly overlapping signals attributable to the molecule’s heterogeneous spatial structure, particularly the distribution of phosphorothioate stereoisomers.
To further confirm the structural identity of GNR-100 and the reference nusinersen, both were evaluated for their resistance to broad-spectrum phosphodiesterases: Snake Venom Phosphodiesterase (PDE I) and Bovine Spleen Phosphodiesterase (PDE II), which have corresponding human homologs [19]. An unmodified control (CTRL) oligonucleotide, containing exclusively phosphodiester nucleotide linkages, served as a positive control. Following incubation at 37 °C for one hour, both the reference listed drug (RLD) and GNR-100 demonstrated marked resistance to enzymatic degradation (Figure S5). The signal intensity of some reference nusinersen samples decreased by 10–15%, which corresponds to the error magnitude. However, treatment of GNR-100 samples did not change the intensity of the observed bands. In contrast, the control oligonucleotide underwent complete degradation within the same time frame.

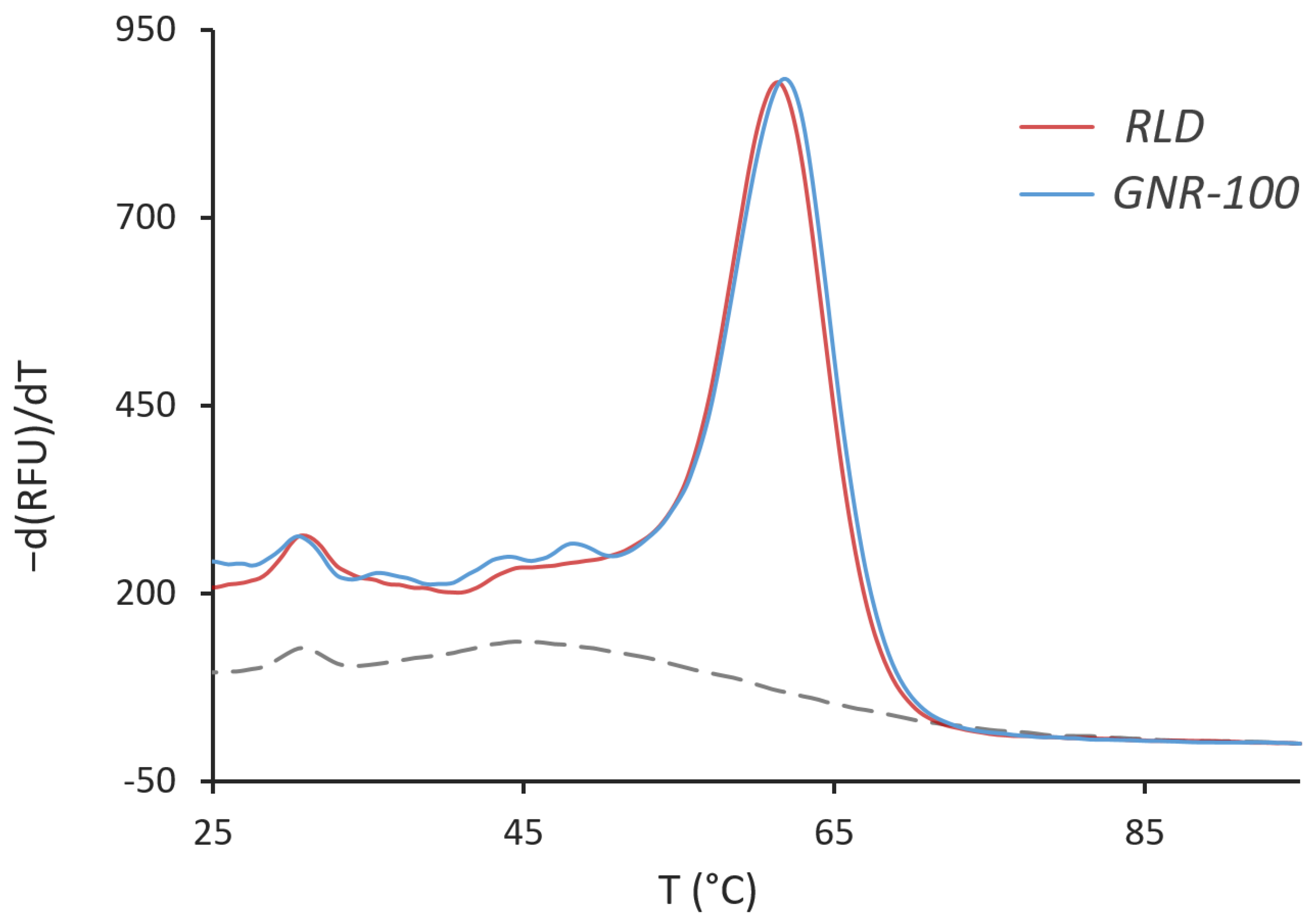

Comparative melting point temperature (Tm) measurements of nusinersen duplexes with the complementary oligonucleotide ANT revealed negligible variation within 0.5 °C. The thermal transition points of GNR-100 closely mirrored those of the reference nusinersen (Figure 6). In combination with NMR findings, this confirms the absence of meaningful differences in diastereomeric composition [20].

3.3. Spectral Characteristics

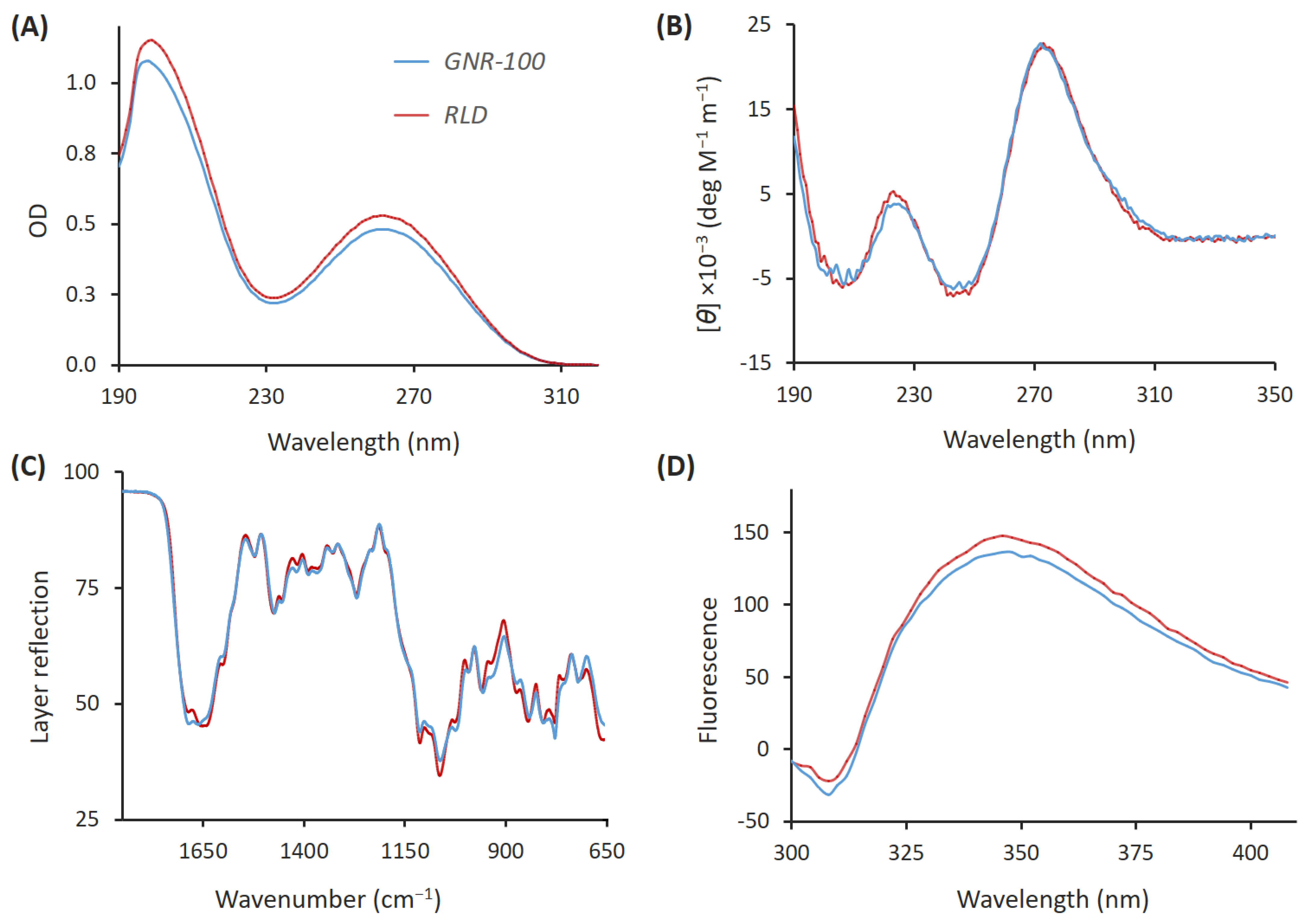

Four definite methods were employed for comprehensive characterization of nusinersen spectral properties: ultraviolet (UV) spectroscopy, Fourier-transform infrared (FTIR) spectroscopy, intrinsic fluorescence (IF) spectroscopy, and circular dichroism (CD) spectroscopy. The UV absorption spectra of both the generic and reference products exhibited a characteristic peak at 260 nm, indicative of nucleic acid content (Figure 7A). These spectra were utilized to determine precise concentrations via the molar extinction coefficient, which was considered important for subsequent evaluation of biological activity.
Figure 7B presents the circular dichroism (CD) spectra of nusinersen samples recorded at 20 °C. A visual comparison of GNR-100 data revealed that the molar ellipticities at the principal extrema (207, 222, 245, and 273 nm) were similar to those of the RLD. Such spectral congruence is indicative of a similar arrangement of phosphorothioate linkages within the nucleotide sequence and their corresponding stereochemical configuration [18,21].
The infrared spectra (IR) of GNR-100 and the RLD exhibited nearly superimposable absorption bands (Figure 7C); a detailed assignment of these features is provided in Table S2. Analysis of the positions of spectral minima also confirmed that the IR spectra were similar across the wavenumber range of 1800–650 cm−1. Minor variations in peak intensities may arise from differential hydration, attributable to the hygroscopic nature of the samples.
Although fluorescent quantum yields of nucleic acids at ambient temperature are extremely low, contributing to their reputation as nonfluorescent molecules, the monomeric chromophores of 5-methyl cytidine may exhibit appreciable intrinsic fluorescence [22]. Upon excitation at 280 nm, the intrinsic fluorescence spectra of both drug products displayed a single emission maximum at approximately 346 nm (Figure 7D). Statistical analysis of mean lognormal spectral parameters revealed no significant differences between GNR-100 and reference nusinersen (Table S3).

3.4. Biological Activity

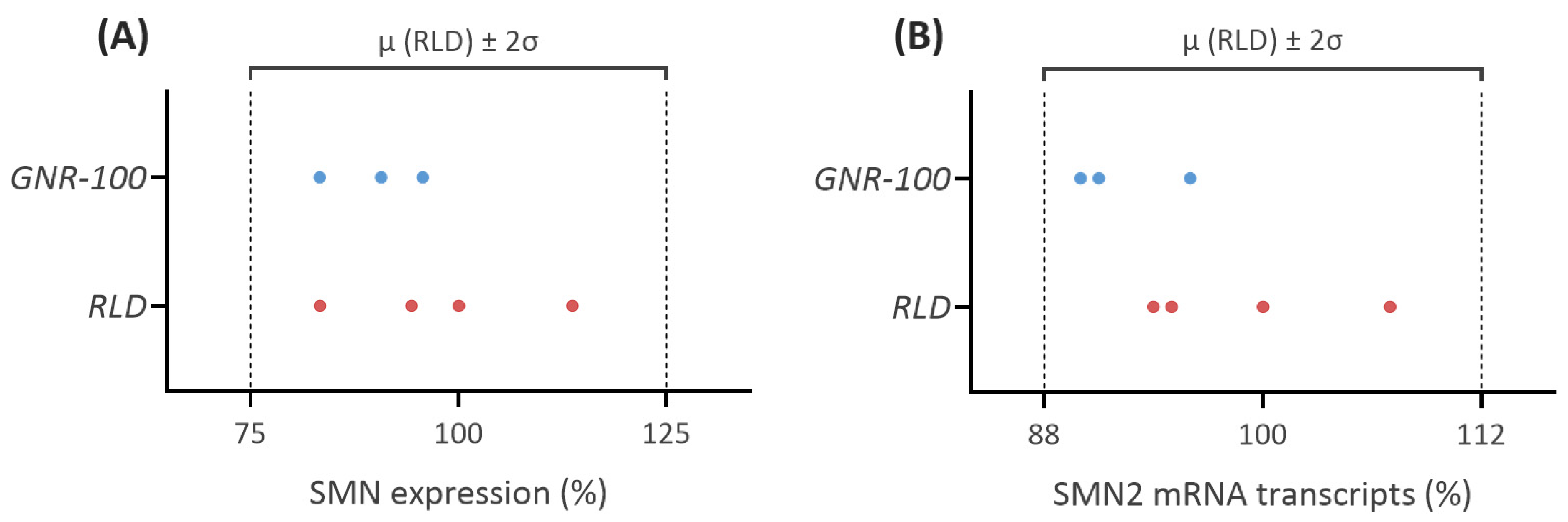

SMN protein expression in nusinersen-treated fibroblasts was quantified as a percentage relative to the RLD batch, defined as 100% activity. Fibroblast samples were derived from three donors with spinal muscular atrophy. The findings confirmed that the enhancement of functionally active SMN protein synthesis across all GNR-100 samples remained within the established quality range (QR) of reference nusinersen (Figure 8A). The ability of nusinersen to promote transcription of full-length SMN2 mRNA, including exon 7, was separately evaluated using the same fibroblasts derived from patients with SMA. Primary fibroblasts harboring three copies of the SMN2 gene exhibited reduced transcription of the truncated SMN2Δ7 isoform. In contrast, transcription of the full-length SMN2 increased approximately twofold, with a consistent enhancement observed across all donors (Figure S6). Equivalence testing confirmed that GNR-100 and RLD were comparable in their ability to modulate SMN2 mRNA transcription levels (Figure 8B).

3.5. Purity

Ion-pair HPLC-MS analysis provided the m/z ratios and relative abundances of related substances, enabling a direct comparison between generic and RLD products. This method confirmed the presence of impurities characteristic of chemically synthesized oligonucleotides, including raw materials as well as product- and process-related species (Table S4). The UV chromatograms as well as MS profiles of GNR-100 and RLD were similar, indicating comparable purity. For most impurities, levels in the generic nusinersen samples did not exceed those in the RLD (Figure S7, Table 1). Size exclusion chromatography was used to assess the molecular mass distribution of nusinersen and to estimate the content of aggregates, which are potential immunogenic agents. Both drug products demonstrated a prominent monomer peak at approximately 16 min, with monomer purity exceeding 99.9% (Figure S8). Owing to its lower overall impurity content, the target oligonucleotide concentration in GNR-100 batches was 95–97%, as summarized in Table 1.
The sodium content in synthetic oligonucleotide samples was determined using ICP-OES, whereas the content of other elemental impurities was determined using ICP-MS. The purity assessment findings are summarized in Table 1.

4. Discussion

Drug products that replicate the structural and functional properties of original innovative molecules play a special role in modern drug development and production. Unlike generic drug products containing chemically synthesized low-molecular-weight compounds, biosimilars typically have a considerably more complex structure, resulting in high sensitivity to modifications and variations in the production process. Synthetic oligonucleotides combine the characteristics of both of the mentioned groups. Their production typically employs classical organic synthesis techniques [23]. However, the resulting molecules are quite complex, making oligonucleotides more similar to classical biopolymers such as peptides or glycoproteins [24].
The nusinersen-based drug product manufactured under the internal name of GNR-100 using automated solid-phase phosphoramidite technology is a synthetic 18-mer oligoribonucleotide with modified phosphorothioate bonds and 2′-O-ester protected hydroxyl atoms to ensure the drug product’s resistance to cellular nucleases (Figure S1).
Comprehensive physicochemical, structural, and biological studies were carried out using modern analytical procedures during a head-to-head comparative investigation of industrial batches of the proposed generic drug product GNR-100 versus RLD. To better understand the characteristics and properties of the active ingredient of the drug product, a set of orthogonal methods was employed.
The findings of ion-pair HPLC-MS, including in tandem fragmentation mode, confirmed the identity of the primary structure as matching the expected theoretical sequence. The fine chemical structure of nusinersen was further characterized by nuclear magnetic resonance spectroscopy on 1H, 13C, and 31P nuclei. However, it was impossible to determine the complete chemical structure using 2D NMR. The comparable spectral and chromatographic profiles of both drug products, similar stability to phosphodiesterases, close melting points of the complementary duplexes, and comparable biological activity characteristics further confirm the identity of nusinersen properties in GNR-100 and the reference product.
According to recent knowledge, the stereochemical purity is able to affect the pharmacological properties of oligonucleotide-based drug products. Therefore, the synthesis and selection of the most active stereoisoforms are relevant [25,26,27,28]. The original nusinersen-based drug product represents a racemic mixture containing 217 (131,072) structural isoforms, with variations in the starting components or synthesis conditions obviously capable of modulating the final distribution. Randomized distribution itself can provide a positive therapeutic effect; however, the permissible limits of such variations must be assessed for their impact on the efficacy and safety of oligonucleotide molecules [29,30]. Regarding the generic product GNR-100, it is reasonable to rule out direct changes in the diastereomeric composition relative to the originator nusinersen. The technologies used for the synthesis of both products do not allow for full control over the stereochemical variations of phosphorothioate (SP) linkages. Therefore, the similarity of the diastereomeric composition was assessed using a combination of analytical and functional methods. This is supported by comparable molar ellipticity indices and melting points of the complementary duplexes. The 31P NMR spectra of all samples featured two distinct signal clusters: one for the RP diastereomers downfield at 56.7–60.0 ppm and another for the SP diastereomers at 53.0–56.7 ppm [31]. When comparing the relative signal intensities, a similar RP/SP diastereomeric ratio was observed across the studied drug products (Table 1).
Both nusinersen-based drug products equally increased the production of functional SMN protein in fibroblasts derived from patients with severe SMA. The products also exhibited similar resistance to nuclease degradation. Both were confirmed to effectively activate the transcription of full-length SMN2 mRNAs, including exon 7.
The related substance and target oligonucleotide impurity profile of the biosimilar candidate matches that of RLD. Furthermore, the levels of most identified GNR-100 impurities do not exceed those in the reference nusinersen, which may enhance its safety profile [32]. The generic drug product is generally free of heavy elements that could accumulate from industrial equipment or reagents. Traces of boron, iron, and silicon were detected, but their concentrations are within permissible limits [33].

5. Conclusions

A match or slight difference in CQA of the proposed drug product GNR-100 indicates its similarity to the original product. Based on the findings of the comparative study, the structure, diastereomeric composition, and chemical purity resulting in splice-switching activity of the active ingredient of generic nusinersen and the originator RLD are comparable in terms of quality, safety, and efficacy. Based on clinical trial data demonstrating favorable safety and efficacy profiles, the pharmaceutical product received regulatory approval for clinical use in the Russian Federation in 2024, followed by authorization in Kazakhstan in 2025, thus further confirming its bioequivalence.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics18020178/s1, Figure S1: Chemical formula of nusinersen sodium salt; Figure S2: Spectrum 1H NMR of GNR-100; Figure S3: Overlay of the 1H-13C HSQC NMR spectra for the drug product GNR-100 and the reference nusinersen; Figure S4: Spectrum 1H-1H TOCSY NMR of GNR-100; Figure S5: GNR-100, RLD, and oligonucleotide CTRL electropherograms before (A) and after PDE I (B) or PDE II (C) phosphodiesterase treatment; Figure S6: SMN2 FL and SMN2 Δ7 gene transcription in SMA patients’ fibroblasts under GNR-100 promotion; Figure S7: An example of nusinersen ion-pairing HPLC-RP profiles; Figure S8: An example of nusinersen SEC profiles; Table S1: Fragment ions used for nusinersen structure evaluation; Table S2: IR spectroscopy data; Table S3: Lognormal parameters of IF spectra. Table S4: A list of potential product-related impurities of nusinersen.

Author Contributions

Conceptualization, M.S. and S.T.; methodology, S.T.; validation, I.L., M.D. and S.T.; formal analysis, M.S. and S.T.; investigation, M.D., I.L. and S.T.; data curation, M.S. and S.T.; writing—original draft preparation, M.S.; writing—review and editing, M.S. and S.T.; visualization, M.S. and M.D.; supervision, R.S.; project administration, R.S.; funding acquisition, R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data are contained within the article and Supplementary Material.

Acknowledgments

We especially thank Olga Strizhakova, Polina Snitko, Roman Anisimov, Ekaterina Sofronova, and Vladimir Simonov for their helpful advice on characterization study details.

Conflicts of Interest

All authors are employees of Generium. For the present study, there are no other relationships or activities that could be perceived to influence the submitted work. The authors alone are responsible for the content of this text.

Abbreviations

The following abbreviations are used in this manuscript:
AUCAnalytical Ultracentrifugation
CDCircular Dichroism
CQACritical Quality Attribute
DMT4,4-Dimethoxytrityl
FDAU.S. Food and Drug Administration
FTIRFourier-Transform Infrared Spectroscopy
HFIP1,1,1,3,3,3-Hexafluoroisopropanol
HPLCHigh Performance Liquid Chromatography
HPLC-RPReversed-Phase High Performance Liquid Chromatography
ICPInductively Coupled Plasma
IFIntrinsic Fluorescence
JSCJoint Stock Company
LC-MSLiquid Chromatography–Mass Spectrometry
NMRNuclear Magnetic Resonance
ODOptical Density
PBSPhosphate-Buffered Saline
PDEPhosphodiesterase
QRQuality Range
RLDReference Listed Drug
RNARibonucleic Acid
RT PCRReal-Time Polymerase Chain Reaction
SDStandard Deviation
SMASpinal Muscular Atrophy
SMN2Survival Motor Neuron 2 Gene
TEATriethylamine

Appendix A

Appendix A.1. Detailed Experimental Procedures

Appendix A.1.1. Synthetic Oligonucleotides

Short 2′-oligodeoxyribonucleotide primers were synthesized by Evrogen using an automated phosphoramidite method (Table A1).
Table A1. Synthetic oligonucleotides used in the study.
Table A1. Synthetic oligonucleotides used in the study.
NameSequence (5′→3′)
ANTCCAGCATTATGAAAGTGA
NSPCAGCCACTGGTAACAGGATTAG
SMN2 FLGCTCACATTCCTTAAATTAAGGAGAAA
SMN2 PTCCAGATCTGTCTGATCGTTTCTT
SMN2 Δ7TGGCTATCATACTGGCTATTATATGGAA
GAPDH 1CAACGGATTTGGTCGTATTGG
GAPDH 2TGATGGCAACAATATCCACTTACC
HEX(HEX)-CTGGCATAGAGCAGCACTAAATGACACCAC-(BHQ-2)
ROX(ROX)-CGCCTGGTCACCAGGGCTGCT-(BHQ-2)

Appendix A.1.2. Scanning and Tandem Chromatography–Mass Spectrometry

Prior to analysis, nusinersen samples were purified from low-molecular-weight components by ultrafiltration on an Amicon Ultra-0.5 (3 kDa) device, using water as the eluent. Samples with a concentration of approximately 0.5 mg/mL were analyzed by ion-pair HPLC-RP using an ACQUITY Premier Oligonucleotide BEH C18 column, 2.1 × 150 mm, 1.7 μm (Waters, Milford, MA, USA), and an Infinity II Bio 1260 system (Agilent Technologies, Santa Clara, CA, USA) coupled with a UV/visible detector and an X500B QTOF mass spectrometer (Sciex, Framingham, MA, USA). Separation was performed at 85 °C at a flow rate of 0.2 mL/min using a methanol gradient in the mobile phase (15 mM TEA in water, 0.4 M HFIP). The gradient was as follows: 0 min, 73%; 12 min, 58%; 16 min, 10%; 17 min, 10%; 17.01 min, 73%; 32 min, 73%. The absorption signal was recorded at 260 nm; mass spectra were measured by negative ionization, with frontal and tandem data-dependent recording. The input capillary voltage was +4.5 kV; the drying, focusing, and curtain gas pressures were 70, 70, and 35 psi, respectively; the CAD gas pressure was 7 units; and the source temperature was 350 °C. In the frontal mode, the scanning range was 600–4000 m/z, with a declustering potential of 60 V and a fixed collision energy of 7 V. The nusinersen (M-7H)7− ion was fragmented in a tandem data-dependent mode with an m/z of 1017.03, collision energy of 28 V, ion accumulation time of 0.8 s, and QJet amplitude of 200 V; the scan range was 100–3000 m/z. Experimental data were processed using Sciex OS v.3.0 (Sciex) and Byos v.5.2.31 (Protein Metrics, Inc., Boston, MA, USA) software.

Appendix A.1.3. NMR Spectroscopy

Prior to analysis, lyophilized samples were dissolved in 0.5 mL of deionized water; 20 μL of D2O was then added, and the samples were transferred to 5 mm NMR tubes (Wilmad, Vineland, NJ, USA). The 1H and 13C spectra were obtained using an Avance-II 700 spectrometer (Bruker, Billerica, MA, USA) with a CryoProbe triple resonance probe with cooled coils and a preamplifier for the 1H and 13C channels. The spectra were recorded at 45 °C. Data were collected, processed, and analyzed using Bruker Topspin v.3.2 software. The 90-degree pulse duration was calibrated for each sample at the beginning of measurement, using stroboscopic nutation for water proton signals [34]. The chemical shifts of 1H signals were calibrated relative to the water protons, whose signal was set at 4.7 ppm. The chemical shifts of 13C heteronuclei were calibrated indirectly according to IUPAC guidelines [35].
31P NMR spectra were recorded using an Avance-III 400 UltraShield Plus spectrometer (Bruker, Billerica, MA, USA) with a resonance frequency of 163 MHz for 31P nuclei at 23 °C. A 0.1 g/mL solution of synthetic oligonucleotide in deuterated water was prepared and placed in an ampoule. The spectrum of 8% phosphoric acid solution in D2O (0.0 ppm chemical shift) was recorded as an external standard.
The main measurement parameters are summarized in Table A2.
Table A2. NMR spectra registration parameters.
Table A2. NMR spectra registration parameters.
ModeParameters
1D 1H1D 1H with solvent suppression, spectral width 25 ppm, resolution 1.1 Hz per point (32,768 FID real and imaginary data points), 10.9 or 1.9 sec relaxation delay (including AQ). Programmed impulse (zgesgp). The spectra were transformed with zero padding to 32,768 data points and 1 Hz exponential apodization.
1D 13C1D 13C proton-decoupled, spectral width 205 ppm, resolution 0.9 Hz per point (65,536 FID real and imaginary data points).
1D 31P1D 31P, spectral width 406 ppm, resolution 1.2 Hz per point (65,782 FID real and imaginary data points). Programmed impulse (zgpg30).
2D 13C-HSQC2D 13C-HSQC with improved sensitivity, phase-sensitive with selection of magnetization gradients. Spectral width 25 × 180 ppm (1H × 13C), 4096 × 1024 data points.
2D 1H-1H TOCSY2D 1H-1H TOCSY, 80 ms mixing time, MLEV mixing sequence, solvent suppression by excitation sculpting. Spectral width 25 × 10 ppm (1H × 13C), 16,384 × 1024 data points.
Chemical shifts were compared in accordance with the principles described in [36]. The integral ratio of diastereomers (RP/SP) in phosphorothioate oligonucleotides was determined based on the differentiation of signal clusters in characteristic spectral regions according to [18].

Appendix A.1.4. Ion-Pair HPLC-RP (UV)

Samples of the compared drug products were analyzed by HPLC-RP without dilution. Separation was performed on an XBridge BEH C18 column (4.6 × 250 mm, Waters, Milford, MA, USA) at 50 °C with a flow rate of 0.25 mL/min. A gradient elution was employed, increasing the acetonitrile content from 35 to 60% over 22 min within a mobile phase consisting of 5 mM aqueous tributylammonium acetate and 1 μM EDTA. The injection volume was 20 μL, and detection was carried out at 260 nm.

Appendix A.1.5. Size Exclusion Chromatography

Samples were diluted to a nusinersen concentration of approximately 1.0 mg/mL and analyzed by SEC. Separation was performed on an Acquity UPLC Protein BEH 200 column (4.6 × 150 mm, Waters, Milford, MA, USA) at 30 °C in isocratic mode, using a mobile phase of 20 mM Na-phosphate buffer (pH 7.0) containing 0.3 M NaCl at a flow rate of 0.15 mL/min. The injection volume was 2.5 μL, and detection was performed at 260 nm.

Appendix A.1.6. Nuclease Resistance

Samples of the compared drug products were tested for resistance to snake venom phosphodiesterase (PDE I, Sigma Aldrich, St. Louis, MO, USA, P3243) and bovine spleen phosphodiesterase (PDE II, Sigma Aldrich, St. Louis, MO, USA, P9041). Reactions contained approximately 1.8 μg of oligonucleotide in 10 μL of the appropriate buffer (PDE I, 50 mM Tris-HCl, pH 7.2, 10 mM MgCl2; or PDE II, 50 mM Na-acetate, pH 6.5, 10 mM MgCl2) with 0.5 mU of enzyme and were incubated at 37 °C for 1 h. Enzymes were heat-inactivated at 100 °C for 2 min, and the mixtures were subsequently analyzed.
Oligonucleotide samples (0.75–2.0 μg) were mixed with an equal volume of 2X RNA Gel Loading Dye (Thermo Scientific, Waltham, MA, USA, R0641), heated at 90 °C for 2 min, and chilled on ice. Samples were analyzed by electrophoresis in a 20% polyacrylamide gel (20 × 20 cm, 0.75 mm thick; AppliChem, A0385,0500) containing 7 M urea, using TBE running buffer (Thermo Fisher Scientific, Waltham, MA, USA, J62788.K3). The gel was pre-equilibrated at 1 V/cm for 30 min prior to sample loading. Electrophoresis was performed at 10 V/cm for 1 h. Following separation, the gel was fixed in a solution of 50% methanol and 10% acetic acid for 20 min and washed three times (3 min each) with deionized water. For detection, the gel was stained by incubation for 30 min under slow agitation in TBE buffer containing 0.01% SYBR™ Safe DNA Gel Stain (Thermo Fisher Scientific, Waltham, MA, USA, S33102) and 0.01% ethidium bromide (Thermo Fisher Scientific, Waltham, MA, USA, 15585011). Fluorescence imaging was performed using the ImageQuant™ 800 system (Cytiva, Marlborough, MA, USA) with excitation at 360 nm and emission recorded at 605 nm.

Appendix A.1.7. Melting Point of the Duplex with the Complementary Strand

The melting point (Tm) of the duplex was determined using an ANT oligonucleotide probe containing a complementary sequence. A 25 μL aliquot of the test sample was combined with 100 μM ANT oligonucleotide in reaction buffer (20 mM Tris-HCl, pH 8.4, 60 mM KCl, 1 mM MgCl2) in a 96-well microplate. A non-specific oligonucleotide (NSP) was used as a reference. Subsequently, 1 μL of a 0.5% SYBR Green I dye solution in DMSO (Evrogen, Moscow, Russia, PB025M) was added to each well. Temperature and fluorescence were monitored in real time using a CFX96 Touch™ Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). The mixtures were heated at 95 °C for 10 min. Next, the complementary chains were annealed by cooling to 20 °C for 10 min to allow duplex formation. A gradual temperature increase from 20 °C to 95 °C at a rate of 0.1 °C/s was monitored by the fluorescence signal at 521 nm with excitation at 497 nm throughout the melting phase to generate the melting curve.

Appendix A.1.8. UV Spectroscopy

UV absorption spectra were recorded using a dual-beam Cary 100 spectrophotometer (Varian Inc., Palo Alto, CA, USA). Scans were performed from 190 to 350 nm, with a 2 nm slit width and an averaging time of 0.1 s. The absorption spectrum of the placebo was subtracted from the spectra of the oligonucleotide-based drug products. Oligonucleotide concentration was calculated using the molar extinction coefficient at 260 nm (144,807 M−1cm−1). The weight concentration was subsequently determined using the relative molecular mass of nusinersen sodium salt (7501 g/mol).

Appendix A.1.9. Fourier-Transform Infrared Spectroscopy

Each sample was dissolved in 1 mL of water and dialyzed at 4 °C in a single container against 0.5 L of water using dialysis wells with a 3.5 kDa cutoff: once for 15 h, followed by three exchanges for 2 h each. Subsequently, 0.7 mL aliquots were frozen and lyophilized. FTIR spectra of the lyophilized samples were recorded at 29.5 °C using a Nicolet 6700 spectrometer (Thermo Scientific Waltham, MA, USA) equipped with a cooled MCT detector. Measurements were performed on a diamond crystal in attenuated total reflectance (ATR) mode with an optical path length of 2 μm. Spectra were acquired over the wavenumber range of 650–4000 cm−1 by averaging 256 scans.

Appendix A.1.10. CD Spectroscopy

Circular dichroism spectra were recorded on a J-810 spectropolarimeter (JASCO Inc., Easton, MD, USA) using a 10 × 1 mm quartz cuvette (Hellma, Mullheim, Germany). Measurements were performed at 20 °C over a wavelength range of 195–350 nm, with a slit width of 2 nm and a data averaging time of 2 s. The oligonucleotide concentration was approximately 15 μM for all measurements.

Appendix A.1.11. Intrinsic Fluorescence Spectroscopy

Fluorescence spectra were recorded on a Cary Eclipse spectrofluorimeter (Varian Inc., Palo Alto, CA, USA) at 20 °C using a 1 cm quartz cuvette. Measurements were performed in the emission wavelength range of 300–410 nm following excitation at 280 nm, with a data averaging time of 1 s. The excitation and emission slit widths were 10 and 5 nm, respectively. The oligonucleotide concentration was approximately 0.9–1.0 μM.

Appendix A.1.12. ICP-OES

To determine the sodium counterion content, a stock solution of the drug product containing 10–100 μg/mL nusinersen in 1 M nitric acid was prepared. Sodium analysis was performed by inductively coupled plasma emission spectrometry using an Optima 5300DV spectrometer (Perkin Elmer, Shelton, CT, USA). The instrument was operated with a generator frequency of 40 MHz, an output power of 1.3 kW, and an argon flow rate of 15 L/min for plasma formation. Auxiliary and cooling flow rates were each 0.5 L/min, and the sample introduction rate was 0.85 mL/min. The plasma was allowed to stabilize for 30 min prior to analysis.

Appendix A.1.13. ICP-MS

To determine heavy metals, a sample solution containing 10–60 μg/mL of the drug product in 1 M nitric acid was prepared for analysis. Measurements were performed using an Elan DRC-e inductively coupled plasma emission spectrometer (Perkin Elmer, Shelton, CT, USA), with the following operating parameters: generator frequency of 40 MHz, output RF power of 1.1 kW, plasma gas (Ar) flow of 15 L/min, and auxiliary gas (Ar) flow of 0.9 L/min. The sample introduction rate was 0.85 mL/min.

Appendix A.1.14. Sedimentation Analysis

Analytical ultracentrifugation of the drug products was performed using an Optima-AUC centrifuge (Beckman Coulter, Brea, CA, USA) equipped with an An-60 Ti rotor and 12 mm A1-Epon double-sector cells. Samples were prepared in aqueous solution at nusinersen concentrations of 30 μg/mL and 60 μg/mL. Following a 70-min equilibration at 20 °C, centrifugation was conducted at 260,000× g. Absorbance scans were recorded at 260 nm at 400 s intervals over 5 h, using water as the reference. Data were processed using the maximum entropy regularization method.

Appendix A.1.15. SMN Protein Biosynthesis

Primary fibroblasts from three SMA donors (250,000 cells per well) were seeded in 2 mL of DMEM/F12 medium (PanEco, Moscow, Russia) supplemented with 15% fetal bovine serum, 2 mM L-glutamine, 60 μg/mL penicillin, and 100 μg/mL streptomycin, and pre-cultured for 18 h at 37 °C. For transfection, a mixture of 3 μL of the drug product and 747 μL Opti-MEM™ I (Thermo Scientific, Waltham, MA, USA) was combined with a mixture of 18 μL of Lipofectamine™ 2000 (Thermo Scientific, Waltham, MA, USA) and 732 μL Opti-MEM™ I. This transfection complex was incubated at room temperature for 30 min. A 0.5 mL aliquot of the resulting mixture was then added to each well of pre-seeded fibroblast and incubated at 37 °C under 5% CO2 with gentle agitation for 48 h. After incubation, cells were washed three times with 5 mL of DMEM/F12 medium and twice with PBS. Cells were lysed by adding 0.5 mL of deionized water to each well and subjected to one freeze-thaw cycle. The resulting lysates were clarified by centrifugation at 1000 rpm for 5 min.
The total soluble protein content of the clarified lysates was quantified using a Pierce BCA Protein Assay Kit (Thermo Scientific, Waltham, MA, USA, 23227). SMN protein expression was measured with a specific ELISA kit (Enzo Life Sciences, Farmingdale, NY, USA, ADI-900-209). The specific SMN content was calculated as nanograms of SMN per mg of total protein, normalized to the BCA assay results.

Appendix A.1.16. SMN Gene Expression

Fibroblasts transfected with nusinersen were used to quantify full-length SMN mRNA transcripts (SMN1 + SMN2). Cells from three SMA donors harboring three or four copies of the SMN2 gene were treated with nusinersen at concentrations of 8, 40, and 80 nM. Total RNA was isolated using an AllPrep DNA/RNA/miRNA Universal Kit (QIAGEN, Hilden, Germany). RNA concentration was assessed by spectrophotometry on a NanoDrop 1000 system (Thermo Scientific, Waltham, MA, USA).
Relative mRNA expression was determined by real-time qPCR using a CFX96 Touch™ system (Bio-Rad, Hercules, CA, USA). Each 20 µL reaction contained 10 µL of isolated mRNA (diluted to 2.5 ng/µL in nuclease-free water), 4 µL of 5× Genta Single-tube RT-PCR master mix (SynGen, Sacramento, CA, USA), 4 µL of nuclease-free water, and 2 µL of the primer/probe mixture. For amplification of the reference housekeeping gene (GAPDH), a ROX probe (0.75 μM) and GAPDH 1 and GAPDH 2 oligonucleotides (1 μM each) were used. For amplification of the SMN2 region, a HEX probe (1.5 μM) and SMN2 P oligonucleotide (4 μM) were used. The SMN2 FL oligonucleotide (4 μM) was used as the second primer for the full-length protein, and the SMN2 Δ7 oligonucleotide (4 μM) was used for SMN2 with deletion in exon 7.
The thermal cycling protocol consisted of cDNA synthesis at 55 °C for 30 min, reverse transcriptase inactivation at 95 °C for 15 min, followed by multi-cycle PCR amplification with denaturation at 95 °C for 15 s and annealing/extension at 60 °C for 1 min.
The relative expression of each SMN2 transcript isoform was calculated using the 2−ΔCt method, where ΔCt represents the difference in threshold cycles between the target (SMN2) and reference (GAPDH) genes. Fold-change in expression was determined as the ratio of these values in nusinersen-treated versus untreated cells.

References

  1. Ottesen, E.W. ISS-N1 makes the first FDA-approved drug for spinal muscular atrophy. Transl. Neurosci. 2017, 8, 1–6. [Google Scholar] [CrossRef]
  2. Lefebvre, S.; Büirglen, L.; Reboullet, S.; Clermont, O.; Burlet, P.; Viollet, L.; Benichou, B.; Cruaud, C.; Millasseau, P.; Zeviani, M.; et al. Identification and characterization of a spinal muscular atrophy-determining gene. Cell 1995, 80, 155–165. [Google Scholar] [CrossRef] [PubMed]
  3. Hoy, S.M. Nusinersen: A review in 5q spinal muscular atrophy. CNS Drugs 2021, 35, 1317–1328. [Google Scholar] [CrossRef]
  4. Cho, S.; Dreyfuss, G. A degron created by SMN2 exon 7 skipping is a principal contributor to spinal muscular atrophy severity. Genes Dev. 2010, 24, 438–442. [Google Scholar] [CrossRef] [PubMed]
  5. Lorson, C.L.; Androphy, E.J. An exonic enhancer is required for inclusion of an essential exon in the SMA-determining gene SMN. Hum. Mol. Genet. 2000, 9, 259–265. [Google Scholar] [CrossRef]
  6. Hua, Y.; Vickers, T.A.; Okunola, H.L.; Bennett, C.F.; Krainer, A.R. Antisense masking of an hnRNP A1/A2 intronic splicing silencer corrects SMN2 splicing in transgenic mice. Am. J. Hum. Genet. 2008, 82, 834–848. [Google Scholar] [CrossRef]
  7. Hua, Y.; Sahashi, K.; Rigo, F.; Hung, G.; Horev, G.; Bennett, C.F.; Krainer, A.R. Peripheral SMN restoration is essential for long-term rescue of a severe spinal muscular atrophy mouse model. Nature 2011, 478, 123–126. [Google Scholar] [CrossRef]
  8. Hall, J. Future directions for medicinal chemistry in the field of oligonucleotide therapeutics. RNA 2023, 29, 423–433. [Google Scholar] [CrossRef]
  9. DailyMed. Spinraza—Nusinersen Injection, Solution. Available online: https://dailymed.nlm.nih.gov/dailymed/drugInfo.cfm?setid=dd70cd5f-b0fc-4ba4-a5ea-89a34778bd94 (accessed on 15 November 2025).
  10. Zanetta, C.; Nizzardo, M.; Simone, C.; Monguzzi, E.; Bresolin, N.; Comi, G.P.; Corti, S. Molecular therapeutic strategies for spinal muscular atrophies: Current and future clinical trials. Clin. Ther. 2014, 36, 128–140. [Google Scholar] [CrossRef] [PubMed]
  11. Food and Drug Administration. Savings From Generic Drugs Purchased at Retail Pharmacies. April 2004. Available online: https://web.archive.org/web/20080223131005/ (accessed on 15 November 2025).
  12. Food and Drug Administration. FAQ on Generic Drugs. Available online: https://www.fda.gov/drugs/frequently-asked-questions-popular-topics/generic-drugs-questions-answers (accessed on 15 November 2025).
  13. Food and Drug Administration. PSG_209531/Draft Guidance on Nusinersen Sodium. February 2022. Available online: https://www.accessdata.fda.gov/drugsatfda_docs/psg/PSG_209531.pdf (accessed on 15 November 2025).
  14. Roy, S.; Caruthers, M.H. Synthesis of DNA/RNA and their analogs via phosphoramidite and H-phosphonate chemistries. Molecules 2013, 18, 14268–14284. [Google Scholar] [CrossRef]
  15. Matteucci, M.D.; Caruthers, M.H. Synthesis of deoxyoligonucleotides on a polymer support. J. Am. Chem. Soc. 1981, 103, 3185–3191. [Google Scholar] [CrossRef]
  16. Tsong, Y.; Dong, X.; Shen, M. Development of statistical methods for analytical similarity assessment. J. Biopharm. Stat. 2017, 27, 197–205. [Google Scholar] [CrossRef]
  17. Chow, S.C. Challenging issues in assessing analytical similarity in biosimilar studies. Biosimilars 2015, 5, 33–39. [Google Scholar] [CrossRef]
  18. Larson, N.R.; Tong, F.; Li, Z.; Zhang, Y.; Xiao, L.; Zhou, X.; Immel-Brown, J.P.; Bou-Assaf, G.M. Assessment of stereochemical comparability in phosphorothioated oligonucleotides by CD, 31P NMR, and NP1 digestion coupled to LC-MS. Anal. Chem. 2025, 97, 6059–6066. [Google Scholar] [CrossRef] [PubMed]
  19. Bingham, J.; Sudarsanam, S.; Srinivasan, S. Profiling human phosphodiesterase genes and splice isoforms. Biochem. Biophys. Res. Commun. 2006, 350, 25–32. [Google Scholar] [CrossRef]
  20. Poredoš, T.; Trampuž, M.; Gornik, T.; Naveršnik, K.; Simreih Tisnikar, M.; Pirc, S.; Časar, Z. Why and how to control P-chirality in phosphorothioated therapeutic oligonucleotides: Analytical challenges associated with determination of stereochemical composition. Org. Process Res. Dev. 2024, 28, 4194–4214. [Google Scholar] [CrossRef]
  21. Zaitseva, M.; Kaluzhny, D.; Shchyolkina, A.; Borisova, O.; Smirnov, I.; Pozmogova, G. Conformation and thermostability of oligonucleotide d(GGTTGGTGTGGTTGG) containing thiophosphoryl internucleotide bonds at different positions. Biophys. Chem. 2010, 146, 1–6. [Google Scholar] [CrossRef]
  22. Sharonov, A.; Gustavsson, T.; Marguet, S.; Markovitsi, D. Photophysical properties of 5-methylcytidine. Photochem. Photobiol. Sci. 2003, 2, 362–364. [Google Scholar] [CrossRef]
  23. Caruthers, M.H.; Barone, A.D.; Beaucage, S.L.; Dodds, D.R.; Fisher, E.F.; McBride, L.J.; Matteucci, M.; Stabinsky, Z.; Tang, J.Y. Chemical synthesis of deoxyoligonucleotides by the phosphoramidite method. Methods Enzymol. 1987, 154, 287–313. [Google Scholar] [CrossRef]
  24. Draft Guideline on the Development and Manufacture of Oligonucleotides EMA/CHMP/CVMP/QWP/262313/202424. 17 July 2024. Available online: https://www.ema.europa.eu/en/documents/scientific-guideline/draft-guideline-development-manufacture-oligonucleotides_en.pdf (accessed on 15 November 2025).
  25. Sakamuri, S.; Eltepu, L.; Liu, D.; Lam, S.; Meade, B.R.; Liu, B.; Dello Iacono, G.; Kabakibi, A.; Luukkonen, L.; Leedom, T.; et al. Impact of phosphorothioate chirality on double-stranded siRNAs: A systematic evaluation of stereopure siRNA designs. ChemBioChem 2020, 21, 1304–1308. [Google Scholar] [CrossRef]
  26. Yu, D.; Kandimalla, E.R.; Roskey, A.; Zhao, Q.; Chen, L.; Chen, J.; Agrawal, S. Stereo-enriched phosphorothioate oligodeoxynucleotides: Synthesis, biophysical and biological properties. Bioorg. Med. Chem. 2000, 8, 275–284. [Google Scholar] [CrossRef] [PubMed]
  27. Iwamoto, N.; Butler, D.C.D.; Svrzikapa, N.; Mohapatra, S.; Zlatev, I.; Sah, D.W.Y.; Meena; Standley, S.M.; Lu, G.; Apponi, L.H.; et al. Control of phosphorothioate stereochemistry substantially increases the efficacy of antisense oligonucleotides. Nat. Biotechnol. 2017, 35, 845−851. [Google Scholar] [CrossRef]
  28. Knouse, K.W.; deGruyter, J.N.; Schmidt, M.A.; Zheng, B.; Vantourout, J.C.; Kingston, C.; Mercer, S.E.; Mcdonald, I.M.; Olson, R.E.; Zhu, Y.; et al. Unlocking P(V): Reagents for chiral phosphorothioate synthesis. Science 2018, 361, 1234–1238. [Google Scholar] [CrossRef]
  29. Wan, W.B.; Migawa, M.T.; Vasquez, G.; Murray, H.M.; Nichols, J.G.; Gaus, H.; Berdeja, A.; Lee, S.; Hart, C.E.; Lima, W.F.; et al. Synthesis, biophysical properties and biological activity of second generation antisense oligonucleotides containing chiral phosphorothioate linkages. Nucleic Acids Res. 2014, 42, 13456–13468. [Google Scholar] [CrossRef]
  30. Chen, T.; Tang, S.; Fu, Y.; Napolitano, J.G.; Zhang, K. Analytical techniques for characterizing diastereomers of phosphorothioated oligonucleotides. J. Chromatogr. A 2022, 1678, 463349. [Google Scholar] [CrossRef]
  31. Becette, O.B.; Tran, A.; Jones, J.W.; Marino, J.P.; Brinson, R.G. Structural fingerprinting of siRNA therapeutics by solution NMR spectroscopy. Nucleic Acid Ther. 2022, 32, 267–279. [Google Scholar] [CrossRef]
  32. Capaldi, D.; Teasdale, A.; Henry, S.; Akhtar, N.; den Besten, C.; Gao-Sheridan, S.; Kretschmer, M.; Sharpe, N.; Andrews, B.; Burm, B.; et al. Impurities in oligonucleotide drug substances and drug products. Nucleic Acid Ther. 2017, 27, 309–322. [Google Scholar] [CrossRef]
  33. International Council for Harmonisation. ICH Q3D (R2) Guideline for Elemental Impurities. 2019. Available online: https://database.ich.org/sites/default/files/Q3D-R2_Guideline_Step4_2022_0308.pdf (accessed on 15 November 2025).
  34. Wu, P.S.C.; Otting, G. Rapid Pulse Length Determination in High-Resolution NMR. J. Magn. Reson. 2005, 176, 115–119. [Google Scholar] [CrossRef]
  35. Harris, R.K.; Becker, E.D.; Cabral De Menezes, S.M.; Goodfellow, R.; Granger, P. NMR nomenclature: Nuclear spin properties and conventions for chemical shifts (IUPAC recommendations 2001). Concepts Magn. Reson. 2002, 14, 326–346. [Google Scholar] [CrossRef]
  36. Wijmenga, S.S.; van Buuren, B.N.M. The use of NMR methods for conformational studies of nucleic acids. Prog. Nucl. Magn. Reson. Spectrosc. 1998, 32, 287–387. [Google Scholar] [CrossRef]
Pharmaceutics 18 00178 g001
Figure 1. The mass spectrum of nusinersen. A detailed isotopic distribution is shown within an inset.
Figure 1. The mass spectrum of nusinersen. A detailed isotopic distribution is shown within an inset.
Pharmaceutics 18 00178 g001
Pharmaceutics 18 00178 g002
Figure 2. Tandem mass spectrum for (M-7H)7− ion. Basic fragment ions are marked with letters.
Figure 2. Tandem mass spectrum for (M-7H)7− ion. Basic fragment ions are marked with letters.
Pharmaceutics 18 00178 g002
Pharmaceutics 18 00178 g003
Figure 3. An example of nusinersen 1H NMR spectrum.
Figure 3. An example of nusinersen 1H NMR spectrum.
Pharmaceutics 18 00178 g003
Pharmaceutics 18 00178 g004
Figure 4. An example of nusinersen 31P NMR spectrum.
Figure 4. An example of nusinersen 31P NMR spectrum.
Pharmaceutics 18 00178 g004
Pharmaceutics 18 00178 g005
Figure 5. An example of nusinersen 13C NMR spectrum.
Figure 5. An example of nusinersen 13C NMR spectrum.
Pharmaceutics 18 00178 g005
Pharmaceutics 18 00178 g006
Figure 6. Differential melting curves of nusinersen duplexes. The blank profile of the noncomplementary oligonucleotide (NSP) is shown as a dotted line.
Figure 6. Differential melting curves of nusinersen duplexes. The blank profile of the noncomplementary oligonucleotide (NSP) is shown as a dotted line.
Pharmaceutics 18 00178 g006
Pharmaceutics 18 00178 g007
Figure 7. Spectral characterization of GNR-100 (blue) and the originator nusinersen (red): UV spectra (A); CD spectra (B); IR spectra (C); intrinsic fluorescence after 280 nm light excitation (D).
Figure 7. Spectral characterization of GNR-100 (blue) and the originator nusinersen (red): UV spectra (A); CD spectra (B); IR spectra (C); intrinsic fluorescence after 280 nm light excitation (D).
Pharmaceutics 18 00178 g007
Pharmaceutics 18 00178 g008
Figure 8. Biological activity after patient cell transfection with nusinersen. Fibroblast SMN expression (A) and levels of SMN2 mRNA transcripts (B).
Figure 8. Biological activity after patient cell transfection with nusinersen. Fibroblast SMN expression (A) and levels of SMN2 mRNA transcripts (B).
Pharmaceutics 18 00178 g008
Table 1. Comparative characterization of nusinersen drug products.
Table 1. Comparative characterization of nusinersen drug products.
ParameterAssayCQAQR (RLD)GNR-100
Primary structureLC-MSMonoisotopic ions, m/z6 ions
z(−3−8)		6 ions
z(−3−8)
LC-MS/MSNucleotide sequencematches with theoreticalmatches with theoretical
Chemical structure and diastereomeric stateNMR spectroscopy1H NMR spectrumspectrum profileconfirmed
31P NMR spectrumspectrum profileconfirmed
31P NMR (RP/SP)0.74 ± 0.030.82 ± 0.05
31P NMR (PO/PS)≤0.005<0.001
13C NMR spectrumspectrum profileconfirmed
2D NMR 1H-13C spectrumspectrum profileconfirmed
CD spectroscopy3D chemical structurespectrum profileconfirmed
FTIR spectroscopyspectrum profileconfirmed
IF spectroscopyspectrum profileconfirmed
Nuclease resistancePDE I treatment, %sustainedsustained
PDE II treatment, %sustainedsustained
Complementary duplex melting pointTm, °C61.5 ± 0.262.0 ± 0.2
Molecular massLC-MSMonoisotopic mass, Da7122.24 ± 0.017122.24 ± 0.01
AUCMolecular mass, kDa5.98 ± 0.096.01 ± 0.13
In vitro activityCell-based assaySMN production, %75.1–125.883.3–95.7
RT PCRSMN mRNA expression, %87.8–111.390.0–96.0
Impurities and related substancesSEC HPLCMonomer, %99.94–99.97100
Aggregates, %0.03–0.06n.d.
Ion-pairing RP HPLCMain substance, %97.2–99.698.8 ± 0.1
Related, %0.4–2.81.2 ± 0.1
Ion-pairing RP LC-MSNusinersen, %92.7–93.995.7–96.4
Oligonucleotides (PO), %1.59–1.860.73–1.52
Oligonucleotides (n − 1), %0.84–1.550.51–0.59
Oligonucleotides (n + 1), %0.37–0.630.48–0.52
Oligonucleotides (n − 2), %0.01–0.03n.d.
Abasic site, %0.22–0.270.10–0.17
CNET, %0.24–0.28n.d.
ADP, %0.02–0.03n.d.
IDP, %0.29–0.330.28–0.31
2′-OMe, %0.86–0.950.36–0.46
MAM, %n.d.n.d.
2′-O-(2-ethoxyethyl)/
dithioate, %		0.45–0.900.23–0.29
DMT, %n.d.n.d.
AMPA, %0.05–0.24n.d.
Dimer, %0.24–0.270.31–0.32
Unidentified, %0.38–0.520.3 ± 0.1
ICP-OESNa, mg/L–50 ± 20
ICP-MSBDoes not exceed the permitted daily exposure (PDE) for each element in accordance with ICH guideline Q3D (R2) on elemental impurities
Fe
P
S
Si
Table 2. Mass-to-charge ratio for the nusinersen deprotonated ions.
Table 2. Mass-to-charge ratio for the nusinersen deprotonated ions.
Ion(M-8H)8−(M-7H)7−(M-6H)6−(M-5H)5−(M-4H)4−(M-3H)3−(M)
m/z (theo.)889.281016.461186.041423.451779.562373.097122.28
GNR-100889.271016.461186.041423.451779.562373.087122.24
Δ, ppm3.73.62.21.91.10.35.6
RLD889.271016.461186.041423.451779.562373.097122.24
Δ, ppm4.94.32.81.40.90.45.6
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Taran, S.; Smolov, M.; Degterev, M.; Lyagoskin, I.; Shukurov, R. Comparative Characterization of a Proposed Generic Nusinersen: Identity of the Oligonucleotide Structure and Equivalence in SMN2 Splicing Activity. Pharmaceutics 2026, 18, 178. https://doi.org/10.3390/pharmaceutics18020178

AMA Style

Taran S, Smolov M, Degterev M, Lyagoskin I, Shukurov R. Comparative Characterization of a Proposed Generic Nusinersen: Identity of the Oligonucleotide Structure and Equivalence in SMN2 Splicing Activity. Pharmaceutics. 2026; 18(2):178. https://doi.org/10.3390/pharmaceutics18020178

Chicago/Turabian Style

Taran, Serge, Maksim Smolov, Maksim Degterev, Ivan Lyagoskin, and Rakhim Shukurov. 2026. "Comparative Characterization of a Proposed Generic Nusinersen: Identity of the Oligonucleotide Structure and Equivalence in SMN2 Splicing Activity" Pharmaceutics 18, no. 2: 178. https://doi.org/10.3390/pharmaceutics18020178

APA Style

Taran, S., Smolov, M., Degterev, M., Lyagoskin, I., & Shukurov, R. (2026). Comparative Characterization of a Proposed Generic Nusinersen: Identity of the Oligonucleotide Structure and Equivalence in SMN2 Splicing Activity. Pharmaceutics, 18(2), 178. https://doi.org/10.3390/pharmaceutics18020178

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
