Article

Adeno-Associated Virus Serotype 8-Mediated Genetic Labeling of Cholangiocytes in the Neonatal Murine Liver

by
Sanghoon Lee
1,2,
Ping Zhou
1,2,
Senyo Whyte
1,2,3,4 and
Soona Shin
1,2,*
1
Division of Pediatric General and Thoracic Surgery, Cincinnati Children’s Hospital Medical Center, Cincinnati, OH 45229, USA
2
Department of Surgery, University of Cincinnati College of Medicine, Cincinnati, OH 45229, USA
3
Medical Scientist Training Program, University of Cincinnati College of Medicine, Cincinnati, OH 45229, USA
4
Molecular and Developmental Biology Graduate Program, Cincinnati Children’s Hospital Medical Center, Cincinnati, OH 45229, USA
*
Author to whom correspondence should be addressed.
Pharmaceutics 2020, 12(4), 351; https://doi.org/10.3390/pharmaceutics12040351
Submission received: 24 March 2020 / Revised: 8 April 2020 / Accepted: 10 April 2020 / Published: 13 April 2020
(This article belongs to the Special Issue Gene Delivery Vectors and Physical Methods: Present and Future Trends)
Browse Figures
Versions Notes

Abstract

Determination of the cellular tropism of viral vectors is imperative for designing precise gene therapy. It has been widely accepted that transduction of hepatocytes using adeno-associated virus serotype 8 (AAV8) is a promising approach to correct inborn errors in neonates, but the type of neonatal hepatic cells transduced by AAV8 has not been thoroughly investigated. To address this question, we used a reporter mouse that carries Cre recombinase (Cre)-inducible yellow fluorescent protein (YFP). Our analysis primarily focused on cholangiocytes, given their pivotal roles in normal liver function and disease. We treated RosaYFP/+ mice at postnatal day 2 (P2) with AAV8-cytomegalovirus (CMV) promoter-Cre and analyzed livers at P10 and P56. The vast majority of HNF4α+ hepatocytes were labeled with YFP at both time points, and 11.6% and 24.4% of CK19+ cholangiocytes were marked at P10 and P56, respectively. We also detected YFP+ cells devoid of hepatocyte and cholangiocyte markers, and a subset of these cells expressed the endothelial and fibroblast marker CD34. Next, we used the hepatocyte-specific thyroxine-binding globulin (TBG) promoter. Surprisingly, AAV8-TBG-Cre marked 6.8% and 30.9% of cholangiocytes at P10 and P56, respectively. These results suggest that AAV8 can be a useful tool for targeting cholangiocytes in neonatal livers.

Graphical Abstract

1. Introduction

Adeno-associated virus vectors serotype 8 (AAV8) has been widely used to transduce hepatocytes [1,2,3,4,5,6], the main parenchymal cells in the liver. Due to its liver tropism, low immunogenicity, low toxicity, and high transduction efficiency of hepatocytes, AAV8 has been considered an ideal method to target hepatocytes [7,8]. Neonatal injections of AAV, associated with attenuated neutralizing antibody responses, have been proposed as a promising strategy to correct inborn diseases with early onset [9,10,11,12,13].
Previous studies have demonstrated that the transduction efficiency and tropism of AAV vectors depend on several variables [8,14,15]. These include capsid serotypes, promoters, vector dosage, routes of injection, and the timing of injection, suggesting the importance of characterizing responses to AAV in the neonatal liver. It is becoming increasingly clear that non-hepatocytes in the liver such as cholangiocytes, endothelial cells, and fibroblasts contribute to normal liver function as well as disease progression [16,17,18,19,20], implying that non-specific infections of non-parenchymal cells may lead to side effects. Conversely, if AAV8 transduces non-parenchymal cells, this may lead to a broader application of AAV8 vectors. Therefore, a precise understanding of the cellular tropism of AAV8 can allow for improved study design and gene therapy. However, whether AAV8 has the capability to target non-hepatocytes at neonatal ages remains unclear.
Therefore, we hypothesized that AAV8 can be used for transducing non-hepatocytes in the neonatal liver and aimed to characterize the cellular tropism of AAV8 using Cre recombinase driven by the cytomegalovirus (CMV) and thyroxine-binding globulin (TBG) promoters [21]. The CMV promoter leads to ubiquitous expression, while the latter has been used to target hepatocytes [6,21]. Given the critical role of biliary epithelia in liver disease and normal bile flow [17,20], this study aimed to determine hepatic cell types transduced by AAV8 following neonatal injections with a focus on cholangiocytes (biliary epithelial cells). Our study reveals a novel use of AAV8 (i.e., a tool for the genetic labeling of cholangiocytes in the neonatal murine liver).

2. Materials and Methods

2.1. Animal Experiment

RosaYFP/YFP mice (The Jackson Laboratory, Bar Harbor, ME) were crossed with C57BL/6J (The Jackson Laboratory, Bar Harbor, ME) mice to generate RosaYFP/+ mice [22]. AAV8-CMV-red fluorescent protein (RFP), AAV8-CMV-Cre, AAV8-TBG-LacZ (encodes β-galactosidase), and AAV8-TBG-Cre viral preps were produced by Addgene (Watertown, MA; Addgene viral prep numbers: 105548-AAV8, 105537-AAV8, 105534-AAV8, and 107787-AAV8, respectively) using plasmids gifted by Dr. James M. Wilson to Addgene. AAV8 vectors were diluted in saline to a total volume of 50uL. RosaYFP/+ mice were given intraperitoneal injections of 2.0 × 1011 genome copies at P2 with the day of birth defined as P0 [23,24]. Tissues were harvested 8 days and 54 days after injection, at P10 and P56, respectively. Both male and female neonates were included in the experiment: (a) AAV8-CMV-RFP: 6 males and 4 females were analyzed at P10; (b) AAV8-CMV-Cre: 3 males and 8 females were analyzed at P10, and 2 males and 3 females were analyzed at P56; (c) AAV8-TBG-LacZ: 3 males and 4 females were analyzed at P10; (d) AAV8-TBG-Cre: 2 males and 6 females were analyzed at P10, and 6 males and 1 female were analyzed at P56. The protocol was approved by the Institutional Animal Care and Use Committee of the Cincinnati Children’s Hospital Medical Center (IACUC2018-0074, approved 9 November 2018).

2.2. Immunofluorescence

Paraffin-embedded formalin-fixed sections were dewaxed and rehydrated sections were subjected to antigen retrieval followed by incubation in blocking solution (3% normal donkey serum and 0.25% triton X-100 in phosphate-buffered saline) for 1 hour at room temperature. Next, sections were treated with primary antibodies (Table 1) for overnight at 4 °C and secondary antibodies for 2 h at room temperature. 4′,6-diamidino-2-phenylindole (DAPI) was used for nuclei staining.

2.3. Quantification and Data Analysis

In P10 livers the average numbers of cells analyzed per animal were 4448 ± 443 hepatocyte nuclear factor 4 alpha (HNF4α)+ hepatocytes and 398 ± 105 cytokeratin 19 (CK19)+ cholangiocytes (mean ± SD). In P56 livers the average numbers of cells analyzed per animal were 14,859 ± 2421 HNF4α+ hepatocytes and 1076 ± 246 CK19+ cholangiocytes (mean ± SD). The percentage of YFP-marked cells within the HNF4α+ and CK19+ populations were calculated, and all data were expressed as mean ± SD. Image J (National Institutes of Health, Bethesda, Maryland) was used for cell counting [25]. Prism 8 (GraphPad Software, Inc., San Diego, CA, USA) was used for Student’s t-test and Mann-Whitney U test. A p-value of smaller than 0.5 was considered significant in this study.

3. Results

3.1. Neonatal Injection of AAV8-CMV-Cre Labels Cholangiocytes

To determine the transduction specificity of AAV8 in neonatal livers, we used RosaYFP/+ reporter mice [22]. Although the Rosa26 locus is ubiquitously expressed, transcriptional stop sequences block expression of yellow fluorescent protein (YFP). Removal of floxed stop sequences by Cre recombinase leads to permanent labeling of transduced cells with YFP. Therefore, we treated postnatal day 2 (P2) RosaYFP/+ mice with AAV8-CMV-Cre and livers were analyzed at P10 (Figure 1A). To determine the efficiency of transduction, we performed immunostaining for YFP, hepatocyte marker HNF4α, and cholangiocyte marker CK19. HNF4α and CK19 expressions were mutually exclusive, and the majority of hepatocytes were labeled as expected, while the control vector AAV8-CMV-RFP did not lead to YFP expression (Figure 1B,C). Surprisingly, we also detected Cre/YFP-marked cholangiocytes at P10 with 11.6% ± 7.8% (mean ± SD) labeling efficiency (Figure 1C and Figure 2).
To determine whether cholangiocytes remain labeled at a later time point, we treated RosaYFP/+ animals with AAV8-CMV-Cre at P2 and analyzed the liver at P56 (Figure 1A). While most hepatocytes were labeled at this time point, 24.4% ± 7.5% of CK19+ cells were also labeled (Figure 1D and Figure 2). Interestingly, there was a statistically significant increase in the percentage of labeled cholangiocytes from P10 to P56 (Figure 2). YFP-labeled cholangiocytes also expressed additional markers for cholangiocytes, epithelial cell adhesion molecule (EPCAM) and osteopontin (OPN) (Figure 3) [26,27,28]. Our results indicate that neonatal injection of AAV8 can be used to transduce a substantial fraction of cholangiocytes.

3.2. AAV8-CMV-Cre Labels CD34-Expressing Cells

We observed that a subset of YFP-marked cells expressed neither HNF4α nor CK19 (Figure 1C, white arrow). Therefore, we performed immunostaining of P10 livers for additional markers (Figure 4). Livers were stained for the fibroblast marker alpha smooth muscle actin (αSMA) and CD34 that is expressed by the endothelium of central and portal veins as well as portal fibroblasts [16,29]. Although rare, we confirmed the presence of CD34+αSMA- cells labeled with YFP. On the other hand, none of the CD34-αSMA+ cells were marked, suggesting that AAV8 transduces distinct subsets of cells. This result indicates that AAV8-CMV-Cre labels CD34-expressing cells in addition to cholangiocytes.

3.3. Neonatal Injection of AAV8-TBG-Cre Labels Cholangiocytes

We then hypothesized that a hepatocyte-specific promoter would suppress the labeling of cholangiocytes by AAV8. To test this hypothesis, we used the TBG promoter to drive the expression of Cre (Figure 5A). When RosaYFP/+ mice were treated with AAV8-TBG-Cre at P2, the vast majority of hepatocytes were labeled, while the control vector AAV8-TBG-LacZ did not lead to the expression of YFP (Figure 5B–D). Surprisingly, 6.8% ± 4.2% and 30.9% ± 5.2% of CK19+ cholangiocytes were labeled at P10 and P56, respectively (Figure 5C,D and Figure 6). The percentage of labeled cholangiocytes increased from P10 to P56 in line with the previous pattern observed with the CMV promoter (Figure 2). The percentage of AAV8-TBG-Cre-marked CK19+ cells at P56 was slightly higher than the percentage of CK19+ cells marked by AAV8-CMV-Cre although the difference was not statistically significant (TBG: 30.9% ± 5.2% and CMV: 24.4% ± 7.5%, p = 0.08). This phenomenon might be attributable to the silencing of the CMV promoter [9].
In conclusion, our data indicate AAV8-CMV-Cre and AAV8-TBG-Cre can be used for the genetic labeling of cholangiocytes in neonatal murine livers.

4. Discussion

This study investigated the cellular tropism of the AAV8 vector in the neonatal murine liver and revealed that (a) non-hepatocytes such as CK19+ cells and CD34+ cells can be transduced by AAV8 and (b) the TBG promoter can be used to label cholangiocytes. Both AAV8-CMV-Cre and AAV8-TBG-Cre marked CK19+ cholangiocytes with YFP when injected into RosaYFP/+ reporter mice at P2, with elevated labeling efficiency at P56 as compared to P10. One possible explanation of this increased percentage of labeled cholangiocytes is that AAV8-expressed Cre continues to mark CK19+ cholangiocytes after P10. Indeed, studies suggest that although AAV is primarily episomal, the expression of the transgene can last up to several months [15,30]. The association between the stability of transgenes and transduction efficiency requires further investigation.
To interpret outcomes of gene therapy and avoid adverse effects, it is critical to understand the cellular tropism of vectors in the neonatal liver. Our data not only provide insight into AAV-based therapy but also can be applied for fast genetic modulation of non-hepatocytes since the generation of genetically engineered mouse models can be time-consuming and expensive. However, our injection protocol has some limitations. First, neonatal injection of AAV is a suitable strategy for Cre-mediated permanent modification of the genome but not ideal for transient overexpression since the viral genome will be diluted as the liver expands [11]. Also, YFP-marked CD34+ cells were rare with a labeling efficiency of less than 1% (data not shown). Our protocol is not suitable for the modulation of the entire CD34+ population but may be useful for tracing the fate of individual CD34+ cells.
Nevertheless, this study has established a novel strategy for labeling non-hepatocytes in neonatal livers. Our data also revealed a need for reevaluating the specificity of hepatocyte promoters, especially when the vector is administered at young ages. For therapeutic application of our transduction strategy, future research should investigate the use of cholangiocyte-specific promoters and species dependence of cellular tropism.

5. Conclusions

This study demonstrates that the AAV8 vector is a valuable tool for transducing cholangiocytes in vivo, and that the CMV and TBG promoters can be used to drive Cre expression in cholangiocytes. Our findings potentially provide a basis for fast and simple genetic engineering of cholangiocytes.

Author Contributions

Conceptualization, S.L. and S.S.; formal analysis, S.L., S.W., and S.S.; funding acquisition, S.S.; investigation, S.L., P.Z., S.W., and S.S.; methodology, S.L., P.Z., and S.S.; writing—original draft preparation, S.L. and S.S.; supervision, S.L. and S.S.; writing—review and editing, S.L., S.W., S.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Institutes of Health (NIH) R37 CA225807, NIH T32 GM063483, NIH Public Health Service Grant P30 DK078392 (Integrative Morphology Core of the Digestive Diseases Research Core Center in Cincinnati), and the Cincinnati Children’s Research Foundation Trustee Award.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Y.; Fang, B.; Damle, M.; Guan, D.; Li, Z.; Kim, Y.H.; Gannon, M.; Lazar, M.A. HNF6 and Rev-erbalpha integrate hepatic lipid metabolism by overlapping and distinct transcriptional mechanisms. Genes Dev. 2016, 30, 1636–1644. [Google Scholar] [CrossRef] [PubMed]
  2. Zhu, C.; Kim, K.; Wang, X.; Bartolome, A.; Salomao, M.; Dongiovanni, P.; Meroni, M.; Graham, M.J.; Yates, K.P.; Diehl, A.M.; et al. Hepatocyte Notch activation induces liver fibrosis in nonalcoholic steatohepatitis. Sci. Transl. Med. 2018, 10, eaat0344. [Google Scholar] [CrossRef] [PubMed]
  3. Morell, C.M.; Fiorotto, R.; Meroni, M.; Raizner, A.; Torsello, B.; Cadamuro, M.; Spagnuolo, G.; Kaffe, E.; Sutti, S.; Albano, E.; et al. Notch signaling and progenitor/ductular reaction in steatohepatitis. PLoS ONE 2017, 12, e0187384. [Google Scholar] [CrossRef] [PubMed]
  4. Zou, A.; Magee, N.; Deng, F.; Lehn, S.; Zhong, C.; Zhang, Y. Hepatocyte nuclear receptor SHP suppresses inflammation and fibrosis in a mouse model of nonalcoholic steatohepatitis. J. Biol. Chem. 2018, 293, 8656–8671. [Google Scholar] [CrossRef] [PubMed]
  5. Walesky, C.; Gunewardena, S.; Terwilliger, E.F.; Edwards, G.; Borude, P.; Apte, U. Hepatocyte-specific deletion of hepatocyte nuclear factor-4alpha in adult mice results in increased hepatocyte proliferation. Am. J. Physiol. Gastrointest. Liver Physiol. 2013, 304, G26–G37. [Google Scholar] [CrossRef] [PubMed]
  6. Mu, X.; Espanol-Suner, R.; Mederacke, I.; Affo, S.; Manco, R.; Sempoux, C.; Lemaigre, F.P.; Adili, A.; Yuan, D.; Weber, A.; et al. Hepatocellular carcinoma originates from hepatocytes and not from the progenitor/biliary compartment. J. Clin. Investig. 2015, 125, 3891–3903. [Google Scholar] [CrossRef] [PubMed]
  7. Sherman, A.; Biswas, M.; Herzog, R.W. Innovative Approaches for Immune Tolerance to Factor VIII in the Treatment of Hemophilia A. Front. Immunol. 2017, 8, 1604. [Google Scholar] [CrossRef]
  8. Zaiss, A.K.; Muruve, D.A. Immune responses to adeno-associated virus vectors. Curr. Gene Ther. 2005, 5, 323–331. [Google Scholar] [CrossRef]
  9. Bortolussi, G.; Zentillin, L.; Vanikova, J.; Bockor, L.; Bellarosa, C.; Mancarella, A.; Vianello, E.; Tiribelli, C.; Giacca, M.; Vitek, L.; et al. Life-long correction of hyperbilirubinemia with a neonatal liver-specific AAV-mediated gene transfer in a lethal mouse model of Crigler-Najjar Syndrome. Hum. Gene Ther. 2014, 25, 844–855. [Google Scholar] [CrossRef]
  10. Sabatino, D.E.; Mackenzie, T.C.; Peranteau, W.; Edmonson, S.; Campagnoli, C.; Liu, Y.L.; Flake, A.W.; High, K.A. Persistent expression of hF.IX After tolerance induction by in utero or neonatal administration of AAV-1-F.IX in hemophilia B mice. Mol. Ther. 2007, 15, 1677–1685. [Google Scholar] [CrossRef]
  11. Wang, L.; Wang, H.; Bell, P.; McMenamin, D.; Wilson, J.M. Hepatic gene transfer in neonatal mice by adeno-associated virus serotype 8 vector. Hum. Gene Ther. 2012, 23, 533–539. [Google Scholar] [CrossRef] [PubMed]
  12. Calcedo, R.; Morizono, H.; Wang, L.; McCarter, R.; He, J.; Jones, D.; Batshaw, M.L.; Wilson, J.M. Adeno-associated virus antibody profiles in newborns, children, and adolescents. Clin. Vaccine Immunol. 2011, 18, 1586–1588. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, Y.; Wang, L.; Bell, P.; McMenamin, D.; He, Z.; White, J.; Yu, H.; Xu, C.; Morizono, H.; Musunuru, K.; et al. A dual AAV system enables the Cas9-mediated correction of a metabolic liver disease in newborn mice. Nat. Biotechnol. 2016, 34, 334–338. [Google Scholar] [CrossRef] [PubMed]
  14. Chakrabarty, P.; Rosario, A.; Cruz, P.; Siemienski, Z.; Ceballos-Diaz, C.; Crosby, K.; Jansen, K.; Borchelt, D.R.; Kim, J.Y.; Jankowsky, J.L.; et al. Capsid serotype and timing of injection determines AAV transduction in the neonatal mice brain. PLoS ONE 2013, 8, e67680. [Google Scholar] [CrossRef]
  15. Colella, P.; Ronzitti, G.; Mingozzi, F. Emerging Issues in AAV-Mediated In Vivo Gene Therapy. Mol. Ther. Methods Clin. Dev. 2018, 8, 87–104. [Google Scholar] [CrossRef]
  16. Nishio, T.; Hu, R.; Koyama, Y.; Liang, S.; Rosenthal, S.B.; Yamamoto, G.; Karin, D.; Baglieri, J.; Ma, H.Y.; Xu, J.; et al. Activated hepatic stellate cells and portal fibroblasts contribute to cholestatic liver fibrosis in MDR2 knockout mice. J. Hepatol. 2019, 71, 573–585. [Google Scholar] [CrossRef]
  17. Park, S.M. The crucial role of cholangiocytes in cholangiopathies. Gut Liver 2012, 6, 295–304. [Google Scholar] [CrossRef]
  18. Peters, K.M.; Wilson, R.B.; Borradaile, N.M. Non-parenchymal hepatic cell lipotoxicity and the coordinated progression of non-alcoholic fatty liver disease and atherosclerosis. Curr. Opin. Lipidol. 2018, 29, 417–422. [Google Scholar] [CrossRef]
  19. Seo, W.; Jeong, W.I. Hepatic non-parenchymal cells: Master regulators of alcoholic liver disease? World J. Gastroenterol. 2016, 22, 1348–1356. [Google Scholar] [CrossRef]
  20. Wang, P.; Koyama, Y.; Liu, X.; Xu, J.; Ma, H.Y.; Liang, S.; Kim, I.H.; Brenner, D.A.; Kisseleva, T. Promising Therapy Candidates for Liver Fibrosis. Front Physiol. 2016, 7, 47. [Google Scholar] [CrossRef]
  21. Powell, S.K.; Rivera-Soto, R.; Gray, S.J. Viral expression cassette elements to enhance transgene target specificity and expression in gene therapy. Discov. Med. 2015, 19, 49–57. [Google Scholar] [PubMed]
  22. Srinivas, S.; Watanabe, T.; Lin, C.S.; William, C.M.; Tanabe, Y.; Jessell, T.M.; Costantini, F. Cre reporter strains produced by targeted insertion of EYFP and ECFP into the ROSA26 locus. BMC Dev. Biol. 2001, 1, 4. [Google Scholar] [CrossRef] [PubMed]
  23. Iwai, H.; Hoberman, A.M. Oral (Gavage) Combined Developmental and Perinatal/Postnatal Reproduction Toxicity Study of Ammonium Salt of Perfluorinated Hexanoic Acid in Mice. Int. J. Toxicol. 2014, 33, 219–237. [Google Scholar] [CrossRef] [PubMed]
  24. Higashi, S.; Hioki, K.; Kurotani, T.; Kasim, N.; Molnar, Z. Functional thalamocortical synapse reorganization from subplate to layer IV during postnatal development in the reeler-like mutant rat (shaking rat Kawasaki). J. Neurosci. 2005, 25, 1395–1406. [Google Scholar] [CrossRef]
  25. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  26. Tanimizu, N.; Nakamura, Y.; Ichinohe, N.; Mizuguchi, T.; Hirata, K.; Mitaka, T. Hepatic biliary epithelial cells acquire epithelial integrity but lose plasticity to differentiate into hepatocytes in vitro during development. J. Cell Sci. 2013, 126, 5239–5246. [Google Scholar] [CrossRef]
  27. Poncy, A.; Antoniou, A.; Cordi, S.; Pierreux, C.E.; Jacquemin, P.; Lemaigre, F.P. Transcription factors SOX4 and SOX9 cooperatively control development of bile ducts. Dev. Biol. 2015, 404, 136–148. [Google Scholar] [CrossRef]
  28. Lesaffer, B.; Verboven, E.; Van Huffel, L.; Moya, I.M.; van Grunsven, L.A.; Leclercq, I.A.; Lemaigre, F.P.; Halder, G. Comparison of the Opn-CreER and Ck19-CreER Drivers in Bile Ducts of Normal and Injured Mouse Livers. Cells 2019, 8, 380. [Google Scholar] [CrossRef]
  29. Nikolic, I.; Todorovic, V.; Petrovic, A.; Petrovic, V.; Jovic, M.; Vladicic, J.; Puskas, N. Immunohistochemical Heterogeneity of the Endothelium of Blood and Lymphatic Vessels in the Developing Human Liver and in Adulthood. Cells Tissues Organs 2017, 203, 243–257. [Google Scholar] [CrossRef]
  30. Wang, L.; Wang, H.; Bell, P.; McCarter, R.J.; He, J.; Calcedo, R.; Vandenberghe, L.H.; Morizono, H.; Batshaw, M.L.; Wilson, J.M. Systematic evaluation of AAV vectors for liver directed gene transfer in murine models. Mol. Ther. 2010, 18, 118–125. [Google Scholar] [CrossRef]
Pharmaceutics 12 00351 g001

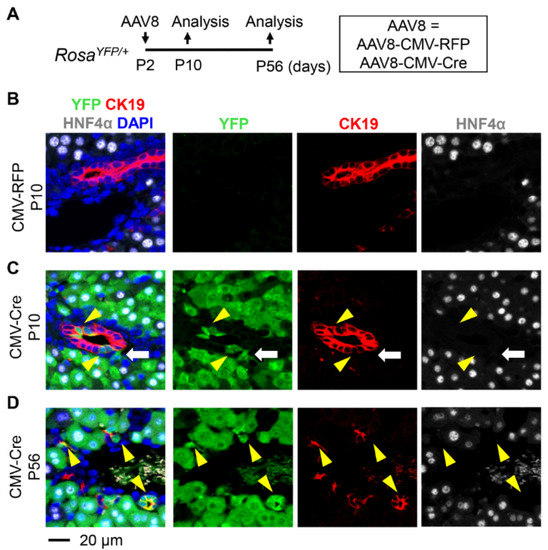

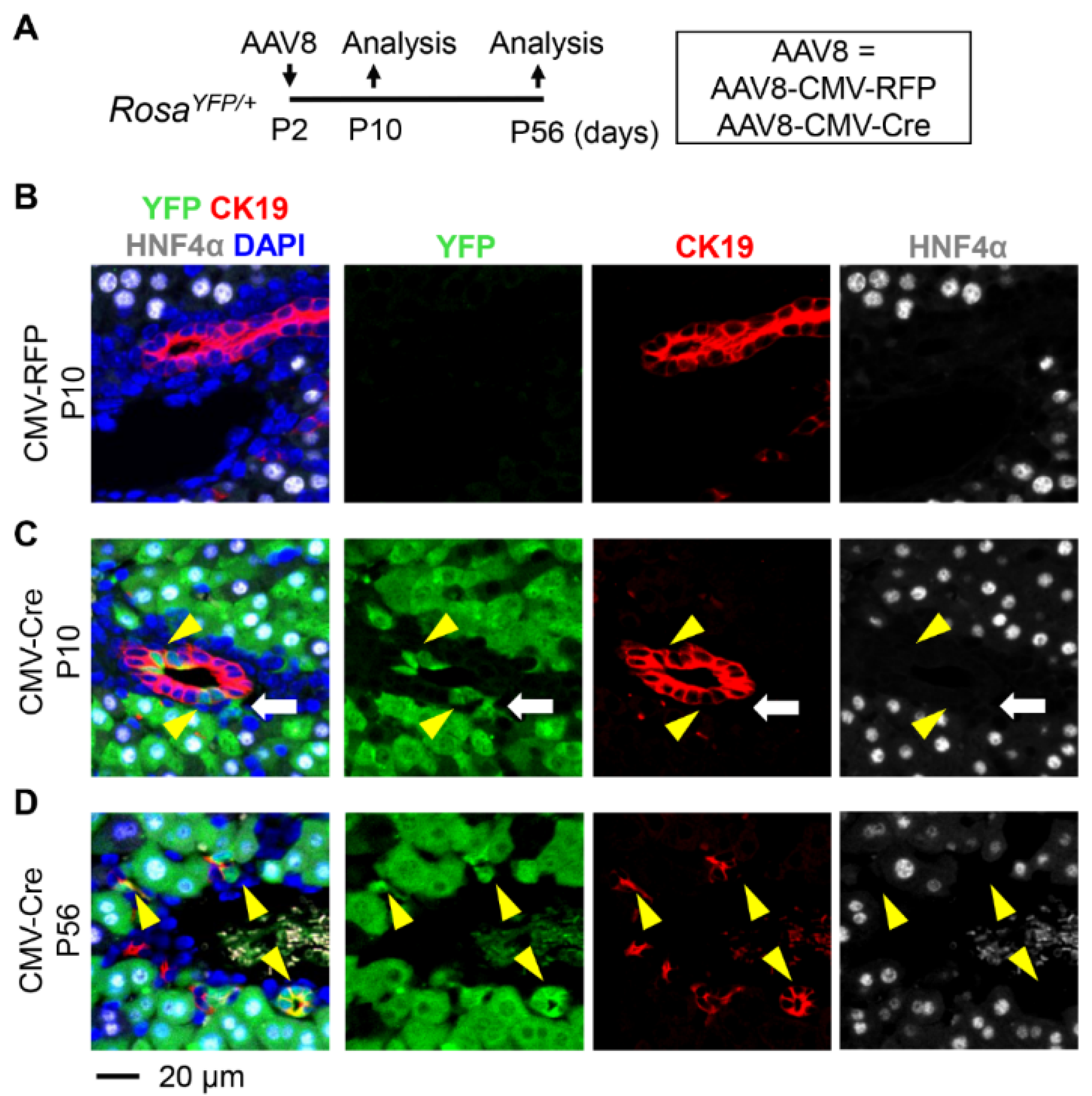

Figure 1. Labeling of cholangiocytes by injection of AAV8-CMV-Cre at P2. (A) Schematic representation of the treatment and analysis protocol. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at postnatal day 2 (P2) and tissues were analyzed at P10 and P56, respectively. (B–D) Immunostaining analysis. No YFP-labeled cells were detected in the liver of RosaYFP/+ mice treated with the control vector AAV8-CMV-RFP (B). AAV8-CMV-Cre labeled CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes (C,D). Yellow arrowheads: YFP+CK19+ cholangiocytes. White arrow: YFP+ cells that do not express CK19 and HNF4α. 4′,6-diamidino-2-phenylindole (DAPI) was used for nuclei staining.
Figure 1. Labeling of cholangiocytes by injection of AAV8-CMV-Cre at P2. (A) Schematic representation of the treatment and analysis protocol. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at postnatal day 2 (P2) and tissues were analyzed at P10 and P56, respectively. (B–D) Immunostaining analysis. No YFP-labeled cells were detected in the liver of RosaYFP/+ mice treated with the control vector AAV8-CMV-RFP (B). AAV8-CMV-Cre labeled CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes (C,D). Yellow arrowheads: YFP+CK19+ cholangiocytes. White arrow: YFP+ cells that do not express CK19 and HNF4α. 4′,6-diamidino-2-phenylindole (DAPI) was used for nuclei staining.
Pharmaceutics 12 00351 g001
Pharmaceutics 12 00351 g002

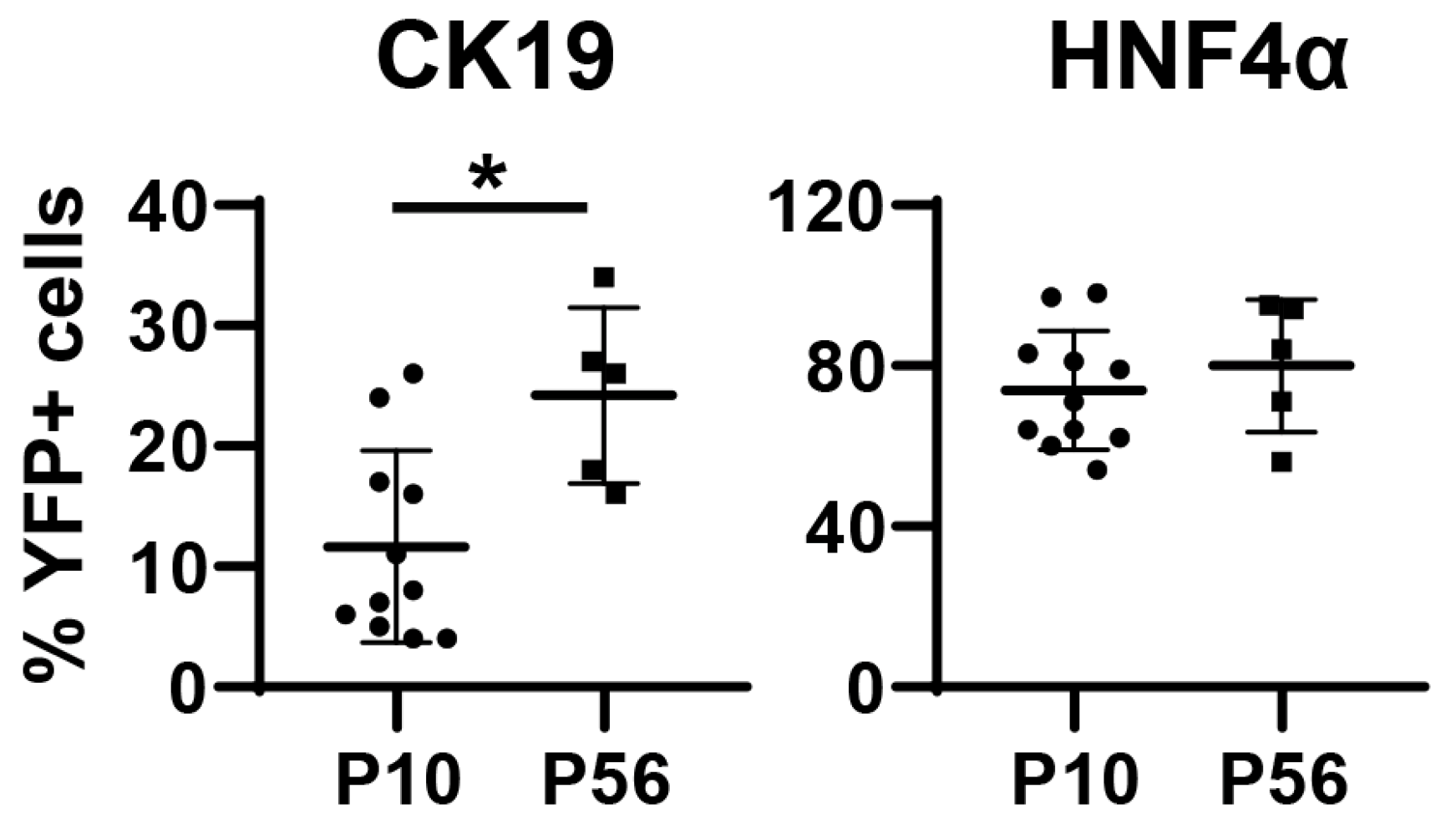

Figure 2. Quantification of the percentage of AAV8-CMV-Cre/YFP-labeled cells within CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes. Error bars represent the standard deviation of the mean (n = 5–11 mice per group). * p < 0.05.
Figure 2. Quantification of the percentage of AAV8-CMV-Cre/YFP-labeled cells within CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes. Error bars represent the standard deviation of the mean (n = 5–11 mice per group). * p < 0.05.
Pharmaceutics 12 00351 g002
Pharmaceutics 12 00351 g003

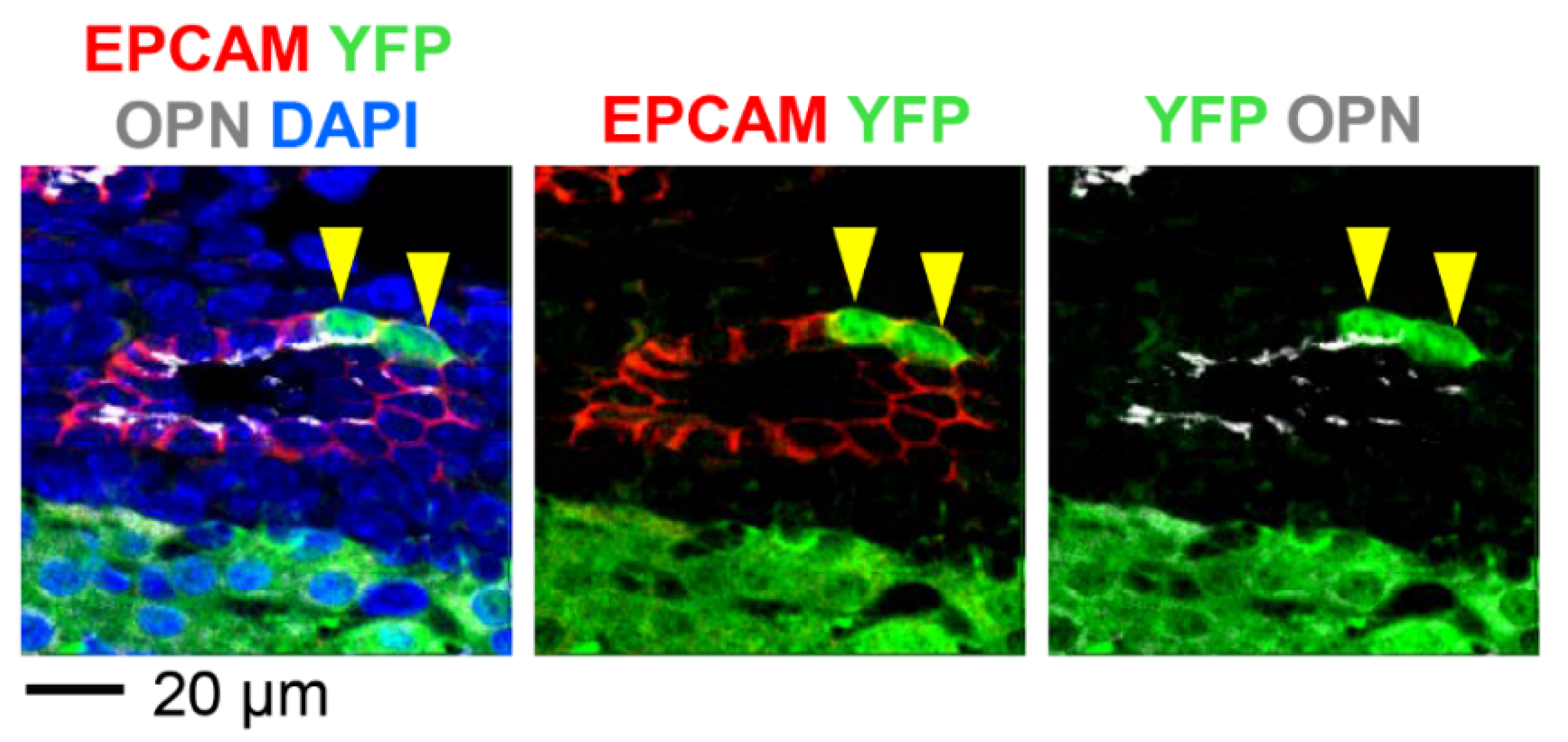

Figure 3. AAV8-CMV-Cre labels cholangiocytes expressing EPCAM and OPN. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at P2 and livers were analyzed at P10. OPN marks the apical surface of cholangiocytes. Yellow arrowheads: YFP+EPCAM+OPN+ cells.
Figure 3. AAV8-CMV-Cre labels cholangiocytes expressing EPCAM and OPN. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at P2 and livers were analyzed at P10. OPN marks the apical surface of cholangiocytes. Yellow arrowheads: YFP+EPCAM+OPN+ cells.
Pharmaceutics 12 00351 g003
Pharmaceutics 12 00351 g004

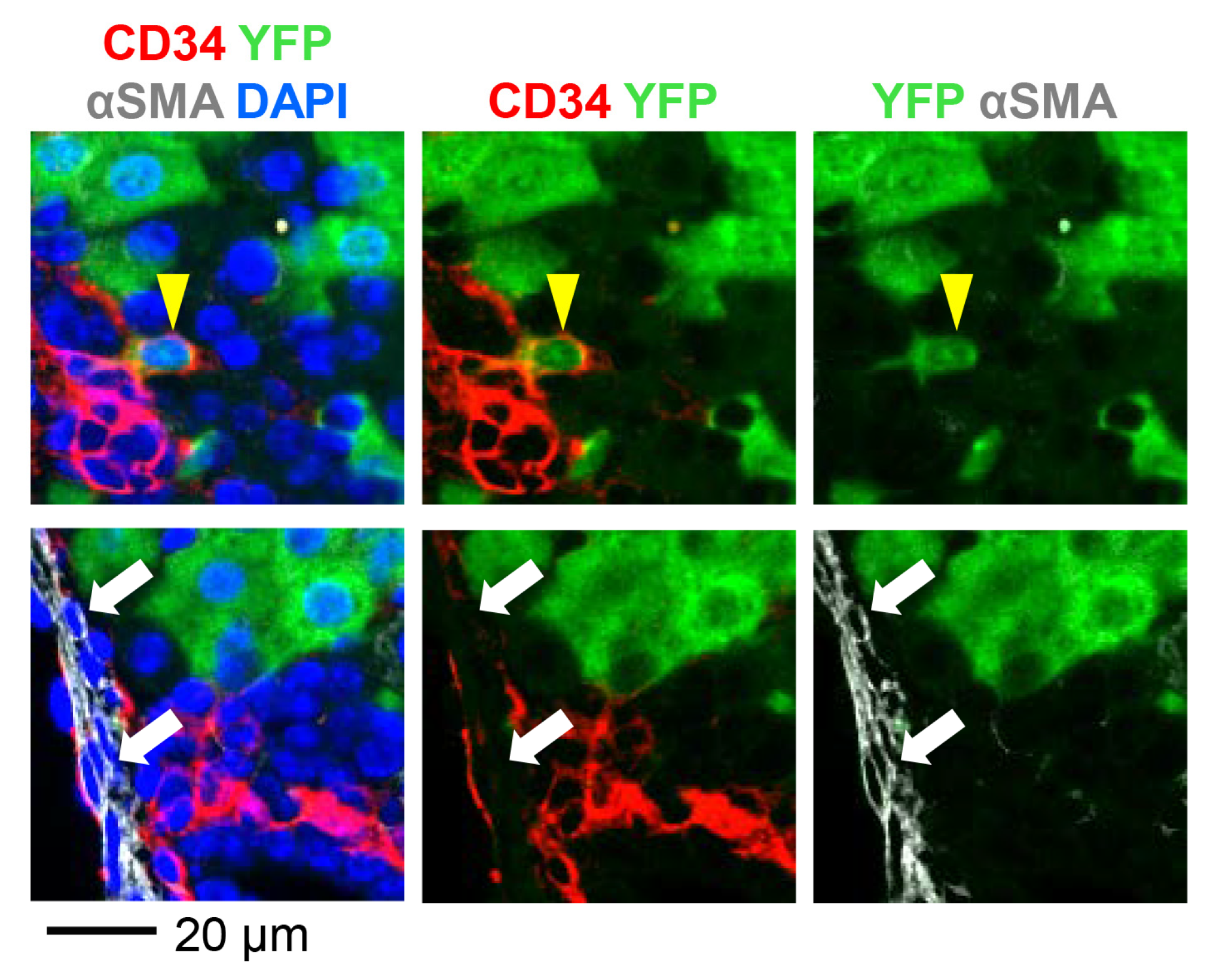

Figure 4. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at P2 and livers were analyzed at P10. Yellow arrowhead: YFP+CD34+αSMA- cell (upper panel). White arrows: YFP-CD34-αSMA+ cells (lower panel).
Figure 4. RosaYFP/+ reporter mice were injected with AAV8-CMV-Cre at P2 and livers were analyzed at P10. Yellow arrowhead: YFP+CD34+αSMA- cell (upper panel). White arrows: YFP-CD34-αSMA+ cells (lower panel).
Pharmaceutics 12 00351 g004
Pharmaceutics 12 00351 g005

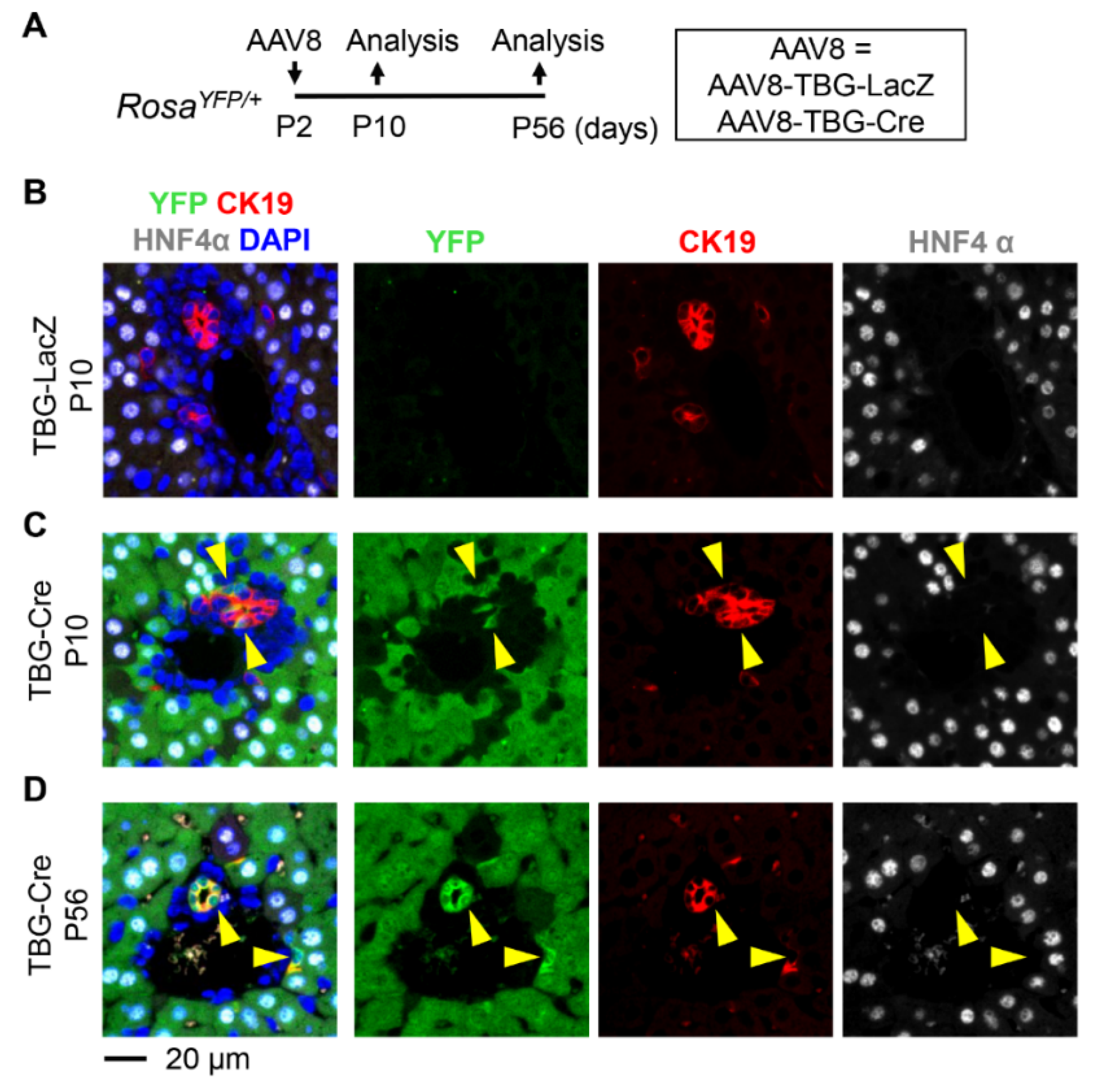

Figure 5. (A) Schematic representation of the treatment and analysis protocol. RosaYFP/+ reporter mice were injected with AAV8-TBG-Cre at P2 and tissues were analyzed at P10 and P56, respectively. (B–D) Immunostaining analysis. No YFP-labeled cells were detected in the liver of RosaYFP/+ mice treated with the control vector AAV8-TBG-LacZ (B). AAV8-TBG-Cre labeled CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes (C,D). Yellow arrowheads: YFP+CK19+ cholangiocytes.
Figure 5. (A) Schematic representation of the treatment and analysis protocol. RosaYFP/+ reporter mice were injected with AAV8-TBG-Cre at P2 and tissues were analyzed at P10 and P56, respectively. (B–D) Immunostaining analysis. No YFP-labeled cells were detected in the liver of RosaYFP/+ mice treated with the control vector AAV8-TBG-LacZ (B). AAV8-TBG-Cre labeled CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes (C,D). Yellow arrowheads: YFP+CK19+ cholangiocytes.
Pharmaceutics 12 00351 g005
Pharmaceutics 12 00351 g006

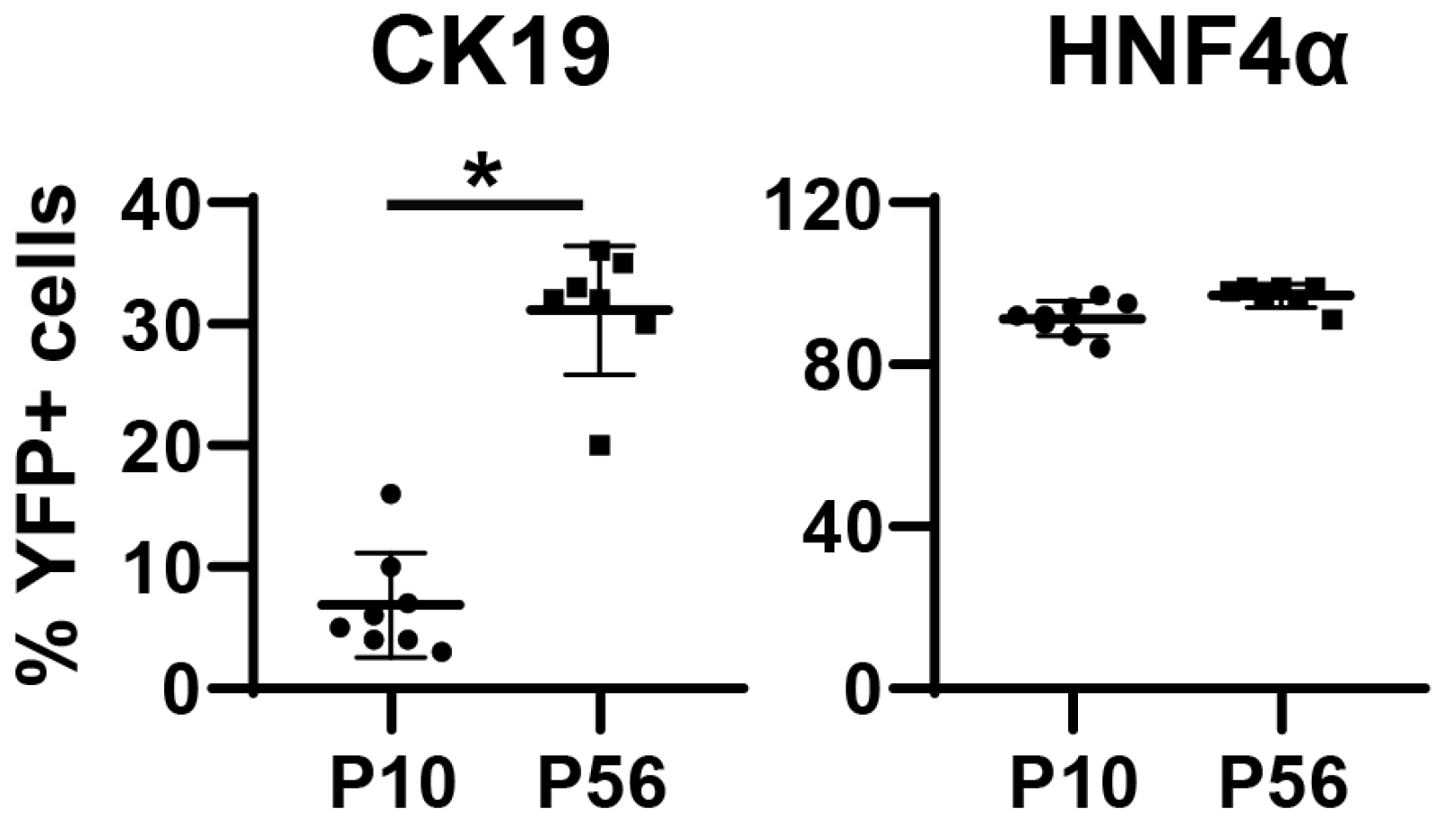

Figure 6. Quantification of the percentage of AAV8-TBG-Cre/YFP-labeled cells within CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes. Error bars represent the standard deviation of the mean (n = 7–8 mice per group). * p < 0.05.
Figure 6. Quantification of the percentage of AAV8-TBG-Cre/YFP-labeled cells within CK19-expressing cholangiocytes and HNF4α-expressing hepatocytes. Error bars represent the standard deviation of the mean (n = 7–8 mice per group). * p < 0.05.
Pharmaceutics 12 00351 g006
Table 1. Antibodies used for immunofluorescence.
Table 1. Antibodies used for immunofluorescence.
TargetHost SpeciesSource (Catalog Number)Dilution
YFPGoatAbcam (ab6673)250
YFPChickenAves Labs (GFP-1020)500
CK19RabbitAbcam (ab52625)200
EPCAMRabbitAbcam (ab71916)100
OPNGoatR&D Systems (AF808)200
HNF4αMouseR&D Systems (PP-H1415-00)400
CD34RabbitAbcam (ab81289)100
αSMAMouseAbcam (ab7817)200

Share and Cite

MDPI and ACS Style

Lee, S.; Zhou, P.; Whyte, S.; Shin, S. Adeno-Associated Virus Serotype 8-Mediated Genetic Labeling of Cholangiocytes in the Neonatal Murine Liver. Pharmaceutics 2020, 12, 351. https://doi.org/10.3390/pharmaceutics12040351

AMA Style

Lee S, Zhou P, Whyte S, Shin S. Adeno-Associated Virus Serotype 8-Mediated Genetic Labeling of Cholangiocytes in the Neonatal Murine Liver. Pharmaceutics. 2020; 12(4):351. https://doi.org/10.3390/pharmaceutics12040351

Chicago/Turabian Style

Lee, Sanghoon, Ping Zhou, Senyo Whyte, and Soona Shin. 2020. "Adeno-Associated Virus Serotype 8-Mediated Genetic Labeling of Cholangiocytes in the Neonatal Murine Liver" Pharmaceutics 12, no. 4: 351. https://doi.org/10.3390/pharmaceutics12040351

APA Style

Lee, S., Zhou, P., Whyte, S., & Shin, S. (2020). Adeno-Associated Virus Serotype 8-Mediated Genetic Labeling of Cholangiocytes in the Neonatal Murine Liver. Pharmaceutics, 12(4), 351. https://doi.org/10.3390/pharmaceutics12040351
