Viruses 2019, 11(11), 1003; https://doi.org/10.3390/v11111003

Review
Molecular Piracy: Redirection of Bacteriophage Capsid Assembly by Mobile Genetic Elements
Department of Microbiology, University of Alabama at Birmingham, Birmingham, AL 35242, USA
Received: 16 October 2019 / Accepted: 30 October 2019 / Published: 31 October 2019

Abstract

:
Horizontal transfer of mobile genetic elements (MGEs) is a key aspect of the evolution of bacterial pathogens. Transduction by bacteriophages is especially important in this process. Bacteriophages—which assemble a machinery for efficient encapsidation and transfer of genetic material—often transfer MGEs and other chromosomal DNA in a more-or-less nonspecific low-frequency process known as generalized transduction. However, some MGEs have evolved highly specific mechanisms to take advantage of bacteriophages for their own propagation and high-frequency transfer while strongly interfering with phage production—“molecular piracy”. These mechanisms include the ability to sense the presence of a phage entering lytic growth, specific recognition and packaging of MGE genomes into phage capsids, and the redirection of the phage assembly pathway to form capsids with a size more appropriate for the size of the MGE. This review focuses on the process of assembly redirection, which has evolved convergently in many different MGEs from across the bacterial universe. The diverse mechanisms that exist suggest that size redirection is an evolutionarily advantageous strategy for many MGEs.
Keywords:
capsid assembly; Staphylococcus aureus pathogenicity island; phage-inducible chromosomal islands; transduction

1. Introduction

Horizontal evolution through the dispersal of mobile genetic elements (MGEs) such as plasmids, bacteriophages and chromosomal islands is a key element in bacterial evolution and the development of bacterial pathogenicity [1,2]. MGEs may be transferred between bacteria by transformation, transduction or conjugation. However, for many bacteria, such as Staphylococcus aureus, that are not naturally competent for transformation and do not commonly undergo conjugation, transduction by bacteriophages is the main mechanism of horizontal gene transfer (HGT) [3,4].
The bacteriophages involved in HGT are the tailed bacteriophages with double-stranded DNA genomes that belong to the order Caudovirales, which is divided into three families based on their tail structure: Myoviridae (contractile tails), Siphoviridae (long, flexuous tails) and Podoviridae (short tails) [5]. These viruses are considered to be ancient entities that are all deeply related, as evidenced by the similarities in their genomic organization and in the presence of many conserved structural elements that are unique to bacteriophages (Figure 1A); that is to say, the Caudovirales represent a monophyletic group [6].
During the lytic cycle, many bacteriophages are capable of generalized transduction, during which they pick up and package chromosomal or plasmid DNA from the host at a low frequency [7]. Many members of the Caudovirales—the temperate phages—are capable of undergoing lysogeny, during which their genomes are integrated as prophages into their host genomes. If these prophages carry genes that are advantageous to their hosts, e.g., encoding virulence or resistance factors, they may become established in the bacterial population. Prophages may excise and re-enter the lytic cycle in response to environmental cues, such as UV or DNA-damaging chemicals. Temperate phages sometimes pick up adjacent genetic material during the process of excision (usually referred to as specialized transduction). A related process termed lateral transduction involves in situ replication and packaging and is capable of packaging DNA several thousands of base pairs downstream of the prophage [7]. In many cases, prophages lose their ability to excise and become cryptic or defective phages, permanently entombed within their host genomes [8].
However, some MGEs have developed a more intimate relationship to specific bacteriophages, known as “helpers”. In this case, the MGE is packaged by the phage at a much higher frequency than that expected by generalized transduction. “Helper” is maybe not the best word, since the phage is an unwilling victim in this process, whose own propagation is severely suppressed. We have coined the term “molecular piracy” to describe the process by which these MGEs usurp the phage life cycle [9]. These molecular pirates have evolved several mechanisms to interfere with phage production, including the exploitation of the phages’ early lytic proteins to initiate their own excision and replication, transcriptional trans-activation and suppression, selective packaging of their own genomes, and re-direction of the phage assembly pathway to form capsids that are appropriate for their own smaller genomes [9]. There is a strong selective pressure on the phage to evolve resistance to this piracy, and helpers and pirates are therefore engaged in a constant co-evolutionary battle. This review will focus on one particular aspect of this piracy, namely the redirection of the phage assembly process to form capsids that are too small to package complete phage genomes. Different MGEs have evolved a variety of mechanisms to accomplish this task, indicating that capsid size redirection offers evolutionary advantages to the pirate elements.

2. Review of Capsid Assembly and DNA Packaging in the Caudovirales

Since the molecular pirates are intimately dependent on structural proteins provided by their helpers and on their helpers’ assembly process, it is necessary to review the general assembly pathway of bacteriophages. All Caudovirales members assemble their virions by a similar process (Figure 1B): Empty precursor capsids (procapsids) are made from a major capsid protein (CP), a scaffolding protein (SP) that acts as a chaperone for the assembly process, and a portal protein (PP, in some systems called the “connector”) that will form the entry and exit portal for the DNA. The portal also serves as an attachment point for the tail and related structures. Cleavage of structural proteins by a phage- or host-encoded protease is common, but not universal. In some cases, the SP is part of the CP (as an N-terminal δ domain in HK97 and related phages) or the protease (as in phage P2). Many phages package additional minor capsid proteins that serve various roles but are not typically required for capsid assembly per se. DNA is packaged into these procapsids through the portal by the terminase complex, which consists of a small subunit (TerS) that is responsible for recognizing the DNA, and a large subunit (TerL) that carries out the DNA packaging in an ATP-driven process [10]. In most cases, the substrate for DNA packaging is linear, concatemeric DNA generated by rolling-circle replication, but in some cases, closed circular or linear monomeric DNA is preferred. Packaging starts with the recognition of a pac or cos sequence in the genome. When the capsid is full—and, in the case of cos site packaging phages, when a second cos site is recognized—the DNA is cleaved by the TerL nuclease domain, and packaging continues on another capsid. Tails are assembled via a separate pathway and attached to the capsids after packaging.
All members of the Caudovirales studied to date share a similar capsid protein (CP) structure, known as the “phage capsid fold” or “HK97 fold”, after the first high-resolution phage capsid structure that was determined [11]. Some phages, such as T4 and P22, have additional domains inserted into the basic HK97 fold [12,13]. The capsid fold is remarkably adaptable and exists in both isometric and prolate capsids of a wide range of sizes and architectures (T-numbers) [14,15]. (Icosahedral capsid structure is described by its T-number, which represents how the 20 triangular faces of the icosahedron are divided into T smaller sub-triangles. It generally also reflects the number of CP subunits that comprises the capsids (60T). According to the rules of quasi-equivalence, certain numbers are preferred, following the formula T = h2 + hk + k2, leading to numbers 1, 3, 4, 7, 9, 12, 13 … However, other numbers are possible, most notably 2. Prolate capsids are described by two numbers, Tend and Tmid (or Q), referring to the end caps and the cylindrical midsection, respectively.) In various systems, mutants are known in CP, SP and PP that lead to formation of capsids of a different size, both smaller [12,16,17,18] and larger (e.g., T4 “giant” heads [19]) than normal. Control. mechanisms are required to curtail this flexibility to produce only capsids of the right size [20], in the absence of which capsid proteins often self-assemble into aberrant structures, called “monsters” or “crapsids”. The main protein involved in such control. is the SP (or the equivalent δ domain) [21], but the PP and other internal capsid proteins may also be involved [22]. In T4, for example, correct capsid size is dependent on the non-essential Alt protein [22]. Phage P1 naturally forms closed, viable capsids of several sizes [23], but this is also affected by mutations in the Dar antirestriction proteins [24]. Host factors, such as GroEL for T4 and lambda [25] and the Prp protease for S. aureus phage 80α [26,27] also play important roles.
Since the SPs are generally removed during capsid maturation and tend to be disordered and flexible, few SP structures are still known. The most complete structure of an SP is gp7 from the prolate Bacillus podovirus Φ29, which is a dimer made from an all-helical protein that forms a hairpin [28]. Partial structures are available for the SPs of Salmonella phage P22 [29] and S. aureus phage 80α (gp46) [30]. It appears to be a common feature among these proteins that they are almost entirely α-helical with a propensity for coiled-coil formation.
Pirate MGEs take advantage of this malleability of capsid proteins to redirect the helper phages’ assembly pathways to produce capsids with a size more suitable for their own, generally smaller genomes, to the detriment of their helpers, which are thereby unable to complete their own packaging.

3. The P2/P4 Paradigm

The P2/P4 system represents the classic example of molecular piracy. P2 was first described by Joe Bertani in the early 1950s [31]. It is a myovirus with a somewhat smaller-than-typical genome size of 33 kbp packaged in a 60 nm, T = 7 isometric capsid [32]. P2-like phages are common in Escherichia coli and related bacteria [33].
“Satellite bacteriophage” P4 was discovered by Erich Six as an MGE that depended on P2 for its mobilization [34]. Upon closer inspection, P4 is not really a phage at all, but an integrative plasmid (phasmid or phagemid), an MGE that can replicate as a plasmid or integrate into the host genome [35,36] (Figure 2). However, P4 lacks genes encoding major structural proteins and is unable to form infectious particles on its own. When a cell harboring P4 is infected with P2 (or a related helper phage), P4 becomes packaged into phage particles made mostly from P2-encoded structural proteins [37]. However, the resulting P4 capsids are smaller (T = 4) than those normally made by P2 (T = 7) [38,39]. This size redirection function was found to reside in the sid (size determination) gene of P4 [40,41].
Cryo-EM studies showed that Sid forms a dodecahedral cage around the P4 procapsid (Figure 3A) that makes trimeric connections at the threefold axes and connects with hexamers formed by the gpN capsid protein at the twofold axes [39,42]. Sid itself is entirely α-helical and elongated, with a high propensity for coiled-coil formation, but its exact fold has not yet been determined. The Sid cage restricts the number of gpN hexamers that can be fitted onto the procapsid, resulting in a T = 4 lattice, although occasionally, a few capsids of aberrant shapes and sizes may be formed. Small capsids can form from gpN and Sid alone, but the gpO scaffolding protein is required for viability, presumably because it serves other essential functions, including portal incorporation and maturation cleavage of structural proteins [43].

4. The Staphylococcus aureus Pathogenicity Islands (SaPIs)

Staphylococcus aureus pathogenicity islands (SaPIs) are a large family of chromosomal islands, typically around 14 kb in size, that share a common structure: an integrase at one end of the genome, followed by a repressor gene expressed in one direction and a set of genes that includes a replication module expressed in the opposite direction (SaPIbov1, Figure 2) [44,45,46,47]. The repressor and replication genes are under control. of a pair of opposing promoters that resemble a phage lytic/lysogenic switch. Towards the right end of the genome is a “helper exploitation” module encoding genes involved in phage interactions. SaPIs were first identified as the carrier of the tst gene that encodes the superantigen toxic shock syndrome toxin (TSST-1) [48]. Other SaPIs often encode a variety of superantigen toxins, but other virulence factors, such as adhesins and coagulases, and antibiotic resistance factors (in which case it is most correctly termed a SaRI) are also found. Closely related islands are found in other staphylococci, in streptococci and listeriae, and collectively referred to as “phage-related chromosomal islands” or PRCIs [45,49].
Type 1 SaPIs encode a helper exploitation cluster that includes two genes called cpmA and cpmB [50,51] (Figure 2). cpmB was found to encode a dimeric α-helical protein with a remarkable similarity to the SP of phage Φ29 [28,51] (Figure 3C). The C-terminal part of CpmB is highly conserved between SaPIs and related elements in other species and includes an RIIK motif that is also present at the C-terminus of the SP of 80α and related phages [51]. Cryo-EM analysis revealed that CpmB binds to the 80α CP in the same site as the cognate SP using the conserved C-terminal sequence and that the binding alters the angle between capsomers that thereby changes the curvature of the shell and consequently the size from T = 7 to T = 4 [30] (Figure 3B). The similarity in capsid binding between SP and CpmB suggests that the two proteins compete for the binding site on CP. By using the same binding site as the cognate SP, the phages are thus unable to escape the size redirection.
The role of CpmA in this process is still mysterious. CpmA is required for size redirection, and if only CpmB is present, normal large capsids are formed. However, if only CpmA is present, assembly tends to be aberrant [50,52]. The current thinking is that CpmA binds to SP and removes it from the CP and is required to allow CpmB access to CP [30]. This would explain why CpmA alone is detrimental to assembly. However, this model has yet to be tested experimentally.
The cpmA and cpmB genes are highly conserved and always come together. However, the proteins are not required for SaPI mobilization. In the absence of size redirection, SaPIs are packaged equally well into large capsids as concatemers and phage propagation is repressed through other mechanisms [9,46,47]. Type 1 SaPIs encode a TerS subunit that recognizes their own unique pac site [53] and a protein, Ppi, that blocks phage DNA packaging [54]. Nevertheless, the conservation of the cpmAB genes indicates that size redirection is evolutionarily advantageous to the SaPIs in their natural environment.

5. A Different Type of SaPI

The original identification of SaPIs included a divergent group (type 2) that shared the integration, repressor and replication modules of SaPI1 and its relatives but lacked the typical helper exploitation module found in SaPI1 [55,56]. Instead, a different kind of cluster was observed [57] (SaPIbov5, Figure 2). These type 2 SaPIs can be packaged by 80α and similar phages but do not change the size of the capsid as they lack CpmA and CpmB. However, at least one member of this group, SaPIbov5, can also be mobilized by prolate, cos-packaging phages such as Φ12 and ΦSLT. Strikingly, in this case, the shape and size of the helper is changed from its usual prolate form to an isometric capsid [57] (Figure 4).
This size redirection was found to be dependent on a gene present in the distinct helper exploitation cluster of SaPIbov5 that was named ccm, for cos-phage capsid morphogenesis [57]. The Ccm protein has a phage capsid-like fold with 23% sequence identity to that of its Φ12 helper, suggesting that it evolved from it by duplication. It is still unknown how Ccm changes the size of its capsid, although it is known that it gets incorporated into (small) capsids and is thought to replace CP at some positions. However, the Φ12 CP is also required for SaPIbov5 capsid formation. Mutants in CP (sir mutations) render Φ12 resistant to the SaPIbov5-indced size redirection.
We recently determined that the prolate Φ12 capsid has Tend = 4 and Tmid = 14 architecture, while the isometric SaPIbov5 capsids are T = 4, suggesting that size redirection consists of removal of the cylindrical midsection of the prolate helper (Hawkins, Kizziah and Dokland, in preparation). How does Ccm accomplish this? At least three possible models can be outlined (Figure 4): (Model 1) Ccm forms pentamers. An isometric capsid has a higher pentamer-to-hexamer ratio than a prolate one, so it would be reasonable to imagine that the assembly process can be biased toward small (isometric) capsids by introducing more pentamers into the system. This model is consistent with the observation of small oligomers upon Ccm expression in E. coli (unpublished data). However, if this model were correct, one might also expect to observe prolate capsids of intermediate size, which are not typically seen. (Model 2) CP forms an assembly nucleus around the portal, with Ccm completing the shell. In this model, the assumption is that Ccm is unable to nucleate on its own, but once initiated, will assemble isometric shells. (Model 3) Ccm forms a size-determining nucleus with the portal protein, onto which the Φ12 CP is required to complete the shell. While this model is also consistent with observations, it is unclear what kind of mechanism the portal-Ccm nucleus would employ to induce a specific size on CP. Clearly, more structural and functional data is still needed to distinguish these different models.

6. The Families of Phage-Induced Chromosomal Islands (PICIs)

After the discovery of SaPIs, the Penadés lab initiated a bioinformatics search for elements in other hosts that share the same kinds of characteristics as SaPIs, viz. an integrase, repressor and replication modules, and the presence of att sites. Several such elements were identified in Firmicutes, including Enterococcus, Lactococcus and Streptococcus [58]. As a group, all these elements were designated “Phage-Inducible Chromosomal Islands” or PICIs (equivalent to PRCIs, mentioned earlier). At least one of these islands, EfCIV583 (Figure 2), could be mobilized by mitomycin C induction of a prophage present in the same strain (Enterococcus faecalis V583), resulting in packaging of small size DNA, indicating formation of small capsids [58]. EfCIV583 does not contain any recognizable capsid- or scaffolding-related genes (Figure 2), so how this size redirection is accomplished is still unknown.
A functionally similar, but genetically distinct group of PICIs was subsequently identified in Gram-negative organisms, including Escherichia coli and Pasteurella multocida [59]. For one of these PICIs, PmCI172 (Figure 2), small, isometric capsids were observed by EM after induction with mitomycin C. The resident prophage in P. multocida strain 172 is a Mu-like myovirus with an isometric capsid of a size expected of T = 7 architecture, while the PmCI172 capsid size is consistent with T = 4, commensurate with the sizes of their respective genomes. This may suggest that capsid redirection proceeds by the same mechanism as that of P2/P4 or 80α/SaPI1. However, no genes corresponding to either a P4-like Sid protein or SaPI1-like CpmAB proteins were identified in PmCI172. This PICI does encode a capsid-like protein (Figure 2) and it is tempting to speculate that this protein is involved in the size redirection mechanism, similarly to Ccm of SaPIbov5. However, the fact that the change is from a large to a small isometric capsid—rather than prolate to isometric—suggests that the size redirection proceeds by yet another still undetermined mechanism. A similar PICI present in E. coli (EcCICFT073) also encodes a capsid protein homolog but appears to be packaged into capsids of normal (large) size, at least when induced by phage lambda [60].

7. Evolution of Molecular Piracy

As the preceding examples illustrate, capsid size redirection is a common theme among the molecular pirates. However, although the capsids of all tailed dsDNA phages are structurally related, the mechanisms for altering the natural assembly pathway of these capsids are diverse, presumably reflecting convergent evolution by several different types of MGEs.
The phages of the Caudovirales are assumed have arisen from a common ancestor. Similarities between phages and PICIs, specifically the similar integrase, repressor and replication modules, suggest that these too arose from the same proto-phage-like ancestor (Figure 5). Apparently, the PICIs either never acquired the structural gene modules of phages and thus the ability to form virions or lost them early in their evolutionary history. Either way, the lack of structural genes left them dependent on helper phages for their own mobilization.
The variety of capsid re-direction mechanisms suggests that these arose at different times by horizontal acquisition of phage-like structural genes, in particular those encoding capsid and scaffolding proteins (Figure 5). Once established, the PICIs harboring specific size redirection apparatuses would have formed distinct branches on the evolutionary tree. P4-like elements, on the other hand, appear to have arisen independently from phages and PICIs (Figure 5), most likely being more closely related to plasmids [35]. These elements have also acquired the ability to redirect helper capsid assembly but appear to have done so by an independent mechanism, since there are no obviously Sid-like proteins found in phages.
Why did size redirection mechanisms evolve? The small capsid size is obviously more appropriate for the typically smaller pirate genomes. (Larger elements, like SaPIbov2, are by necessity packaged into large capsids.) However, in the type 1 SaPIs, transducing titers are no different whether the SaPI genomes are packaged into large or small capsids [50]. In headful packagers, DNA packaging proceeds from the concatemeric DNA substrate until the capsid is full, and as long as the capsid has at least one full-length genome, it will be fully infectious. In the case of cos site packagers, the situation is somewhat more complicated, since in order to complete packaging successfully, there has to be a cos site in the proximity of the terminase complex when the capsid is full. Three P4 genomes can be packaged into P2-sized capsids, but the efficiency is low, presumably because the resulting genome size is not optimal for the capsid [40]. For SaPIbov5, transducing titers were reduced when the genome size was made 10% larger or 18% smaller, and packaging into small capsids was defective [57]. Presumably, concatemers of two or three of these constructs were more efficiently packaged into large capsids. It is likely that the size requirements of cos site packaging provides an additional constraint on the available genome sizes for cos packaging MGEs, which could favor the evolution of size redirection mechanisms.
By making small capsids, phage production is strongly curtailed. This suppression is evolutionarily advantageous, presumably by limiting the amount of circulating phage that—if allowed to grow unrestrained—could wipe out the entire bacterial population harboring the pirate elements. On the other hand, it would not be advantageous to eliminate the phages completely, since they provide the means for pirate elements to spread. Thus, an evolutionary balance is reached. For P4, size redirection is the only way to suppress phage production, and much more phage is produced in a sid mutant that does nost make small capsids [40]. Similarly, Φ12 titers were 106–107 higher in the presence of a ccm mutant than with wildtype SaPIbov5 [57]. For the type 1 SaPIs, however, phage production is strongly suppressed even when the size redirection genes are deleted [50]. This is because SaPIs interfere with phage production via other mechanisms, including direct suppression of phage DNA packaging and transcriptional trans-regulation of phage late gene expression [9,46]. However, the fact that these mechanisms are almost universal and highly conserved within groups of MGEs suggests that size redirection offers an evolutionary advantage in the natural environment of the hosts, where one must assume that multiple strain variants and numerous MGEs co-exist, leading to a complex evolutionary inter-relationship.

Funding

This research was funded by The National Institutes of Health, grant numbers R01 AI083255 and R21 AI132977 to T.D.

Acknowledgments

I am grateful to N’Toia Hawkins, James Kizziah, Keith Manning, Dominik Herrmann and Altaira Dearborn for sharing their observations and insights into the size redirection mechanisms.

Conflicts of Interest

The author declares no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bobay, L.M.; Ochman, H. The Evolution of Bacterial Genome Architecture. Front. Genet. 2017, 8, 72. [Google Scholar] [CrossRef] [PubMed]
  2. Partridge, S.R.; Kwong, S.M.; Firth, N.; Jensen, S.O. Mobile Genetic Elements Associated with Antimicrobial Resistance. Clin. Microbiol. Rev. 2018, 31, e00088-17. [Google Scholar] [CrossRef] [PubMed]
  3. Lindsay, J.A. Staphylococcus aureus genomics and the impact of horizontal gene transfer. Int. J. Med. Microbiol. 2014, 304, 103–109. [Google Scholar] [CrossRef] [PubMed]
  4. Xia, G.; Wolz, C. Phages of Staphylococcus aureus and their impact on host evolution. Infect. Genet. Evol. 2014, 21, 593–601. [Google Scholar] [CrossRef]
  5. Tolstoy, I.; Kropinski, A.M.; Brister, J.R. Bacteriophage Taxonomy: An Evolving Discipline. Methods Mol. Biol. 2018, 1693, 57–71. [Google Scholar]
  6. Hatfull, G.F.; Hendrix, R.W. Bacteriophages and their genomes. Curr. Opin. Virol. 2011, 1, 298–303. [Google Scholar] [CrossRef]
  7. Chiang, Y.N.; Penades, J.R.; Chen, J. Genetic transduction by phages and chromosomal islands: The new and noncanonical. PLoS Pathog. 2019, 15, e1007878. [Google Scholar] [CrossRef]
  8. Bobay, L.M.; Touchon, M.; Rocha, E.P. Pervasive domestication of defective prophages by bacteria. Proc. Natl. Acad. Sci. USA 2014, 111, 12127–12132. [Google Scholar] [CrossRef]
  9. Christie, G.E.; Dokland, T. Pirates of the Caudovirales. Virology 2012, 434, 210–221. [Google Scholar] [CrossRef]
  10. Rao, V.B.; Feiss, M. Mechanisms of DNA Packaging by Large Double-Stranded DNA Viruses. Annu. Rev. Virol. 2015, 2, 351–378. [Google Scholar] [CrossRef]
  11. Wikoff, W.R.; Liljas, L.; Duda, R.L.; Tsuruta, H.; Hendrix, R.W.; Johnson, J.E. Topologically linked protein rings in the bacteriophage HK97 capsid. Science 2000, 289, 2129–2133. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, Z.; Sun, L.; Zhang, Z.; Fokine, A.; Padilla-Sanchez, V.; Hanein, D.; Jiang, W.; Rossmann, M.G.; Rao, V.B. Cryo-EM structure of the bacteriophage T4 isometric head at 3.3-Å resolution and its relevance to the assembly of icosahedral viruses. Proc. Natl. Acad. Sci. USA 2017, 114, E8184–E8193. [Google Scholar] [CrossRef]
  13. Chen, D.H.; Baker, M.L.; Hryc, C.F.; Dimaio, F.; Jakana, J.; Wu, W.; Dougherty, M.; Haase-Pettingell, C.; Schmid, M.F.; Jiang, W.; et al. Structural basis for scaffolding-mediated assembly and maturation of a dsDNA virus. Proc. Natl. Acad. Sci. USA 2011, 108, 1355–1360. [Google Scholar] [CrossRef] [PubMed]
  14. Hua, J.; Huet, A.; Lopez, C.A.; Toropova, K.; Pope, W.H.; Duda, R.L.; Hendrix, R.W.; Conway, J.F. Capsids and Genomes of Jumbo-Sized Bacteriophages Reveal the Evolutionary Reach of the HK97 Fold. MBio 2017, 8, e015791-7. [Google Scholar] [CrossRef] [PubMed]
  15. Duda, R.L.; Teschke, C.M. The amazing HK97 fold: Versatile results of modest differences. Curr. Opin. Virol. 2019, 36, 9–16. [Google Scholar] [CrossRef]
  16. Tao, Y.; Olson, N.H.; Xu, W.; Anderson, D.L.; Rossmann, M.G.; Baker, T.S. Assembly of a tailed bacterial virus and its genome release studied in three dimensions. Cell 1998, 95, 431–437. [Google Scholar] [CrossRef]
  17. Guo, P.; Erickson, S.; Xu, W.; Olson, N.; Baker, T.S.; Anderson, D. Regulation of phage phi29 prohead shape and size by the portal vertex. Virology 1991, 183, 366–373. [Google Scholar] [CrossRef]
  18. Katsura, I. Structure and inherent properties of the bacteriophage lambda head shell. IV. Small-head mutants. J. Mol. Biol. 1983, 171, 297–317. [Google Scholar] [CrossRef]
  19. Doermann, A.H.; Eiserling, F.A.; Boehner, L. Genetic control. of capsid length in bacteriophage T4. I. Isolation and preliminary description of four new mutants. J. Virol. 1973, 12, 374–385. [Google Scholar]
  20. Dokland, T. Freedom and restraint: Themes in virus capsid assembly. Structure 2000, 8, R157–R167. [Google Scholar] [CrossRef]
  21. Dokland, T. Scaffolding proteins and their role in viral assembly. Cell. Mol. Life Sci. 1999, 56, 580–603. [Google Scholar] [CrossRef]
  22. Black, L.W.; Thomas, J.A. Dealing with the whole head: Diversity and function of ejection proteins in tailed phages. In Encyclopedia of Virology, 4th ed.; Academic Press: San Diego, CA, USA, 2019; in press. [Google Scholar]
  23. Walker, D.H., Jr.; Anderson, T.F. Morphological variants of coliphage P1. J. Virol. 1970, 5, 765–782. [Google Scholar] [PubMed]
  24. Piya, D.; Vara, L.; Russell, W.K.; Young, R.; Gill, J.J. The multicomponent antirestriction system of phage P1 is linked to capsid morphogenesis. Mol. Microbiol. 2017, 105, 399–412. [Google Scholar] [CrossRef] [PubMed]
  25. Ang, D.; Keppel, F.; Klein, G.; Richardson, A.; Georgopoulos, C. Genetic analysis of bacteriophage-encoded cochaperonins. Annu. Rev. Genet. 2000, 34, 439–456. [Google Scholar] [CrossRef] [PubMed]
  26. Kizziah, J.L.; Manning, K.A.; Dearborn, A.D.; Wall, E.A.; Klenow, L.; Hill, R.L.L.; Spilman, M.S.; Stagg, S.M.; Christie, G.E.; Dokland, T. Cleavage and Structural Transitions during Maturation of Staphylococcus aureus Bacteriophage 80α and SaPI1 Capsids. Viruses 2017, 9, 384. [Google Scholar] [CrossRef]
  27. Wall, E.A.; Caufield, J.H.; Lyons, C.E.; Manning, K.A.; Dokland, T.; Christie, G.E. Specific N-terminal cleavage of ribosomal protein L27 in Staphylococcus aureus and related bacteria. Mol. Microbiol. 2015, 95, 258–269. [Google Scholar] [CrossRef]
  28. Morais, M.C.; Kanamaru, S.; Badasso, M.O.; Koti, J.S.; Owen, B.A.L.; McMurray, C.T.; Anderson, D.L.; Rossmann, M.G. Bacteriophage phi29 scaffolding protein gp7 before and after prohead assembly. Nat. Struct. Biol. 2003, 10, 572–576. [Google Scholar] [CrossRef]
  29. Sun, Y.; Parker, M.H.; Weigele, P.; Casjens, S.; Prevelige, P.E.; Krishna, N.R. Structure of the coat protein-binding domain of the scaffolding protein from a double-stranded DNA virus. J. Mol. Biol. 2000, 297, 1195–1202. [Google Scholar] [CrossRef]
  30. Dearborn, A.D.; Wall, E.A.; Kizziah, J.L.; Klenow, L.; Parker, L.K.; Manning, K.A.; Spilman, M.S.; Spear, J.M.; Christie, G.E.; Dokland, T. Competing scaffolding proteins determine capsid size during mobilization of Staphylococcus aureus pathogenicity islands. eLife 2017, 6, e30822. [Google Scholar] [CrossRef]
  31. Bertani, G. Studies on lysogenesis. I. The mode of phage liberation by lysogenic Escherichia coli. J. Bacteriol. 1951, 62, 293–300. [Google Scholar]
  32. Bertani, L.E.; Six, E. The P2-like phages and their parasite, P4. In The Bacteriophages, 2nd ed.; Calendar, R., Ed.; Plenum Press: New York, NY, USA, 1988; pp. 731–743. [Google Scholar]
  33. Nilsson, A.S.; Karlsson, J.L.; Haggård-Ljungquist, E. Site-specific recombination links the evolution of P2-like coliphages and pathogenic enterobacteria. Mol. Biol. Evol. 2004, 21, 1–13. [Google Scholar] [CrossRef] [PubMed]
  34. Six, E.W.; Klug, C.A. Bacteriophage P4: A satellite virus depending on a helper such as prophage P2. Virology 1973, 51, 327–344. [Google Scholar] [CrossRef]
  35. Briani, F.; Dehò, G.; Forti, F.; Ghisotti, D. The plasmid status of satellite bacteriophage P4. Plasmid 2001, 45, 1–17. [Google Scholar] [CrossRef] [PubMed]
  36. Dehò, G.; Ghisotti, D. The satellite phage P4. In The Bacteriophages; Calendar, R., Ed.; Oxford University Press: New York, NY, USA, 2006; pp. 391–408. [Google Scholar]
  37. Six, E.W. The helper dependence of satellite bacteriophage P4: Which gene functions of bacteriophage P2 are needed by P4? Virology 1975, 67, 249–263. [Google Scholar] [CrossRef]
  38. Dokland, T.; Lindqvist, B.H.; Fuller, S.D. Image reconstruction from cryo-electron micrographs reveals the morphopoietic mechanism in the P2-P4 bacteriophage system. EMBO J. 1992, 11, 839–846. [Google Scholar] [CrossRef]
  39. Dearborn, A.D.; Laurinmäki, P.; Chandramouli, P.; Rodenburg, C.M.; Wang, S.; Butcher, S.J.; Dokland, T. Structure and size determination of bacteriophage P2 and P4 procapsids: Function of size responsiveness mutations. J. Struct Biol. 2012, 178, 215–224. [Google Scholar] [CrossRef]
  40. Shore, D.; Dehò, G.; Tsipis, J.; Goldstein, R. Determination of capsid size by satellite bacteriophage P4. Proc. Natl. Acad. Sci. USA 1978, 75, 400–404. [Google Scholar] [CrossRef]
  41. Marvik, O.J.; Sharma, P.; Dokland, T.; Lindqvist, B.H. Bacteriophage P2 and P4 assembly: Alternative scaffolding proteins regulate capsid size. Virology 1994, 200, 702–714. [Google Scholar] [CrossRef]
  42. Marvik, O.J.; Dokland, T.; Nøkling, R.H.; Jacobsen, E.; Larsen, T.; Lindqvist, B.H. The capsid size-determining protein Sid forms an external scaffold on phage P4 procapsids. J. Mol. Biol. 1995, 251, 59–75. [Google Scholar] [CrossRef]
  43. Chang, J.R.; Spilman, M.S.; Rodenburg, C.M.; Dokland, T. Functional domains of the bacteriophage P2 scaffolding protein: Identification of residues involved in assembly and protease activity. Virology 2009, 384, 144–150. [Google Scholar] [CrossRef]
  44. Novick, R.P. Mobile genetic elements and bacterial toxinoses: The superantigen-encoding pathogenicity islands of Staphylococcus aureus. Plasmid 2003, 49, 93–105. [Google Scholar] [CrossRef]
  45. Novick, R.P.; Christie, G.E.; Penadés, J.R. The phage-related chromosomal islands of Gram-positive bacteria. Nat. Rev. Microbiol. 2010, 8, 541–551. [Google Scholar] [CrossRef] [PubMed]
  46. Penadés, J.R.; Christie, G.E. The Phage-Inducible Chromosomal Islands: A Family of Highly Evolved Molecular Parasites. Annu. Rev. Virol. 2015, 2, 181–201. [Google Scholar] [CrossRef] [PubMed]
  47. Novick, R.P.; Ram, G. Staphylococcal pathogenicity islands-movers and shakers in the genomic firmament. Curr. Opin. Microbiol. 2017, 38, 197–204. [Google Scholar] [CrossRef] [PubMed]
  48. Lindsay, J.A.; Ruzin, A.; Ross, H.F.; Kurepina, N.; Novick, R.P. The gene for toxic shock toxin is carried by a family of mobile pathogenicity islands in Staphylococcus aureus. Mol. Microbiol. 1998, 29, 527–543. [Google Scholar] [CrossRef] [PubMed]
  49. Novick, R.P.; Ram, G. The Floating (Pathogenicity) Island: A Genomic Dessert. Trends Genet. 2016, 32, 114–126. [Google Scholar] [CrossRef]
  50. Damle, P.K.; Wall, E.A.; Spilman, M.S.; Dearborn, A.D.; Ram, G.; Novick, R.P.; Dokland, T.; Christie, G.E. The roles of SaPI1 proteins gp7 (CpmA) and gp6 (CpmB) in capsid size determination and helper phage interference. Virology 2012, 432, 277–282. [Google Scholar] [CrossRef]
  51. Dearborn, A.D.; Spilman, M.S.; Damle, P.K.; Chang, J.R.; Monroe, E.B.; Saad, J.S.; Christie, G.E.; Dokland, T. The Staphylococcus aureus pathogenicity island protein gp6 functions as an internal scaffold during capsid size determination. J. Mol. Biol. 2011, 412, 710–722. [Google Scholar] [CrossRef]
  52. Spilman, M.S.; Damle, P.K.; Dearborn, A.D.; Rodenburg, C.M.; Chang, J.R.; Wall, E.A.; Christie, G.E.; Dokland, T. Assembly of bacteriophage 80α capsids in a Staphylococcus aureus expression system. Virology 2012, 434, 242–250. [Google Scholar] [CrossRef]
  53. Ubeda, C.; Olivarez, N.P.; Barry, P.; Wang, H.; Kong, X.; Matthews, A.; Tallent, S.M.; Christie, G.E.; Novick, R.P. Specificity of staphylococcal phage and SaPI DNA packaging as revealed by integrase and terminase mutations. Mol. Microbiol. 2009, 72, 98–108. [Google Scholar] [CrossRef]
  54. Ram, G.; Chen, J.; Kumar, K.; Ross, H.F.; Ubeda, C.; Damle, P.K.; Lane, K.D.; Penadés, J.R.; Christie, G.E.; Novick, R.P. Staphylococcal pathogenicity island interference with helper phage reproduction is a paradigm of molecular parasitism. Proc. Natl. Acad. Sci. USA 2012, 109, 16300–16305. [Google Scholar] [CrossRef] [PubMed]
  55. Viana, D.; Blanco, J.; Tormo-Mas, M.A.; Selva, L.; Guinane, C.M.; Baselga, R.; Corpa, J.M.; Lasa, I.; Novick, R.P.; Fitzgerald, J.R.; et al. Adaptation of Staphylococcus aureus to ruminant and equine hosts involves SaPI-carried variants of von Willebrand factor-binding protein. Mol. Microbiol. 2010, 77, 1583–1594. [Google Scholar] [CrossRef] [PubMed]
  56. Quiles-Puchalt, N.; Carpena, N.; Alonso, J.C.; Novick, R.P.; Marina, A.; Penadés, J.R. Staphylococcal pathogenicity island DNA packaging system involving cos-site packaging and phage-encoded HNH endonucleases. Proc. Natl. Acad. Sci. USA 2014, 111, 6016–6021. [Google Scholar] [CrossRef] [PubMed]
  57. Carpena, N.; Manning, K.A.; Dokland, T.; Marina, A.; Penadés, J.R. Convergent evolution of pathogenicity islands in helper cos phage interference. Phil. Trans. Roy. Soc. B 2016, 371, 20150505. [Google Scholar] [CrossRef] [PubMed]
  58. Martínez-Rubio, R.; Quiles-Puchalt, N.; Martí, M.; Humphrey, S.; Ram, G.; Smyth, D.; Chen, J.; Novick, R.P.; Penadés, J.R. Phage-inducible islands in the Gram-positive cocci. ISME J. 2017, 11, 1029–1042. [Google Scholar] [CrossRef]
  59. Fillol-Salom, A.; Martínez-Rubio, R.; Abdulrahman, R.F.; Chen, J.; Davies, R.; Penadés, J.R. Phage-inducible chromosomal islands are ubiquitous within the bacterial universe. ISME J. 2018, 12, 2114–2128. [Google Scholar] [CrossRef] [PubMed]
  60. Fillol-Salom, A.; Bacarizo, J.; Alqasmi, M.; Ciges-Tomas, J.R.; Martínez-Rubio, R.; Roszak, A.W.; Cogdell, R.J.; Chen, J.; Marina, A.; Penadés, J.R. Hijacking the Hijackers: Escherichia coli Pathogenicity Islands Redirect Helper Phage Packaging for Their Own Benefit. Mol. Cell 2019, 75, 1020–1030.e4. [Google Scholar] [CrossRef]
Figure 1. The bacteriophages of the Caudovirales. (A) Typical modules found in Caudovirales genomes, including integration, replication and capsid assembly/DNA packaging modules. (B) General assembly pathway for bacteriophages. Precursor procapsids are formed from capsid protein (CP), scaffolding protein (SP) and portal protein (PP) through poorly characterized CP-SP and/or PP-SP intermediates (curly brackets). In some systems, the SP functionality is fused to CP. Procapsids are packaged with DNA by the terminase complex (TerL and TerS), leading to capsid expansion and removal of SP. (C) Size redirection factors encoded by “pirate” MGEs shunt the capsid assembly pathway to small capsid formation.
Figure 1. The bacteriophages of the Caudovirales. (A) Typical modules found in Caudovirales genomes, including integration, replication and capsid assembly/DNA packaging modules. (B) General assembly pathway for bacteriophages. Precursor procapsids are formed from capsid protein (CP), scaffolding protein (SP) and portal protein (PP) through poorly characterized CP-SP and/or PP-SP intermediates (curly brackets). In some systems, the SP functionality is fused to CP. Procapsids are packaged with DNA by the terminase complex (TerL and TerS), leading to capsid expansion and removal of SP. (C) Size redirection factors encoded by “pirate” MGEs shunt the capsid assembly pathway to small capsid formation.
Viruses 11 01003 g001

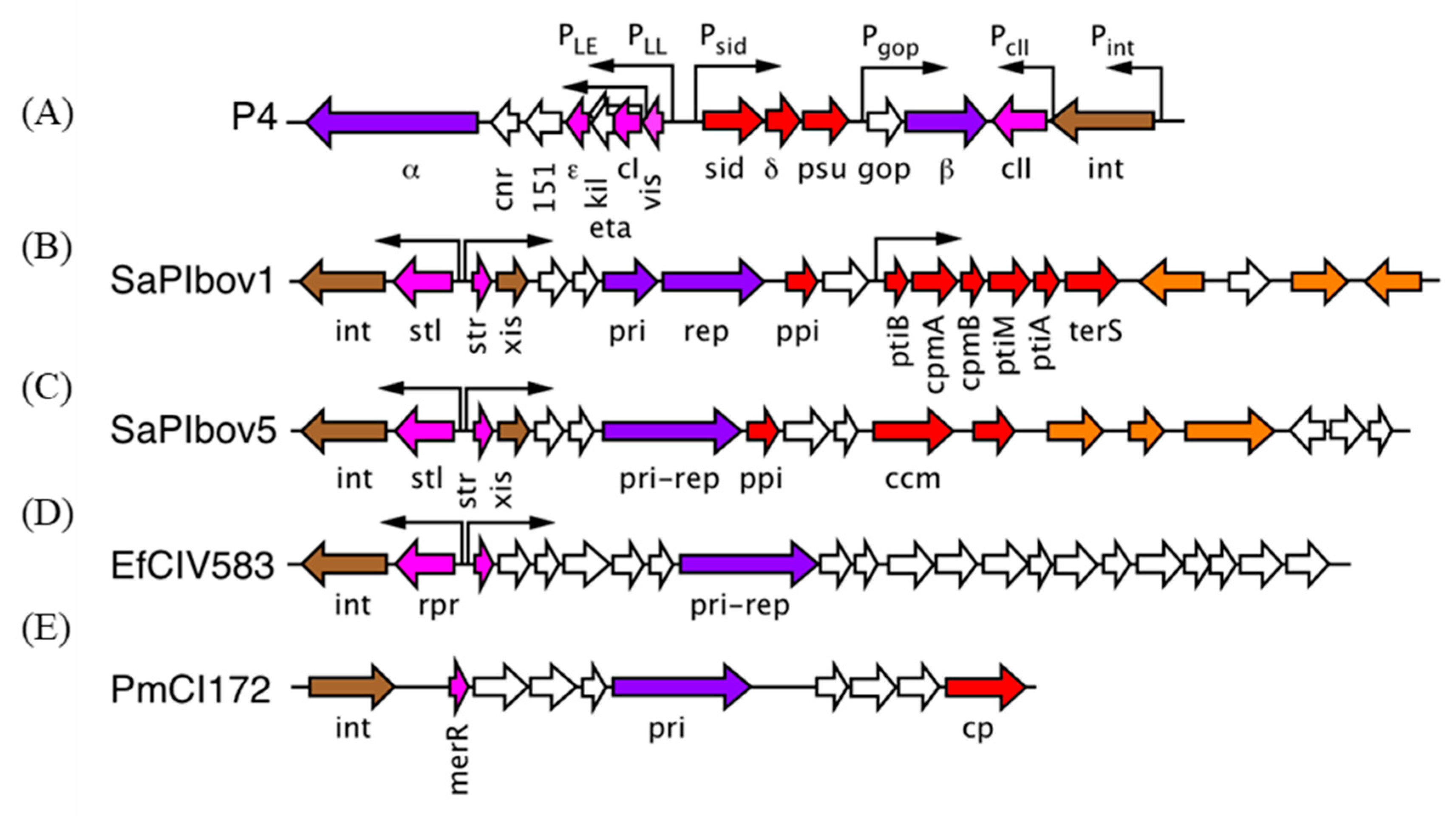

Figure 2. Genomes of pirate elements. (A) P4, (B) SaPIbov1, (C) SaPIbov5, (D) EfCIV583, (E) PmCI172. Color coding: genes involved in integration (int) and excision (xis), brown; replication-related genes (primase, replicase), purple; transcriptional regulators (repressors, activators), pink; genes demonstrated or presumed to be involved in helper exploitation (including capsid size redirection), red; virulence factor genes, orange. Other genes, white.
Figure 2. Genomes of pirate elements. (A) P4, (B) SaPIbov1, (C) SaPIbov5, (D) EfCIV583, (E) PmCI172. Color coding: genes involved in integration (int) and excision (xis), brown; replication-related genes (primase, replicase), purple; transcriptional regulators (repressors, activators), pink; genes demonstrated or presumed to be involved in helper exploitation (including capsid size redirection), red; virulence factor genes, orange. Other genes, white.
Viruses 11 01003 g002
Figure 3. Size redirection by P4 and type 1 SaPIs. (A) Isosurface representation of the P4 procapsid reconstruction (top) showing the dodecahedral cage made by Sid (magenta). The bottom image shows the Sid density (red) as it interacts with the CP hexamer underneath (yellow surface; three copies of CP are modeled into the density). (B) Slice through the three-dimensional reconstructions of 80α (top) and SaPI1 (bottom) procapsids, scaled radially according to the color bar (radius in Å). The internal protrusions corresponding to CpmB (purple) are indicated by arrows. (C) Ribbon representation of the SaPI1 CpmB dimer, made as a composite between the CpmB NMR structure (PDB ID: 2L8T) and the SaPI1 cryo-EM structure (PDB ID: 6B23). N- and C-termini are labeled.
Figure 3. Size redirection by P4 and type 1 SaPIs. (A) Isosurface representation of the P4 procapsid reconstruction (top) showing the dodecahedral cage made by Sid (magenta). The bottom image shows the Sid density (red) as it interacts with the CP hexamer underneath (yellow surface; three copies of CP are modeled into the density). (B) Slice through the three-dimensional reconstructions of 80α (top) and SaPI1 (bottom) procapsids, scaled radially according to the color bar (radius in Å). The internal protrusions corresponding to CpmB (purple) are indicated by arrows. (C) Ribbon representation of the SaPI1 CpmB dimer, made as a composite between the CpmB NMR structure (PDB ID: 2L8T) and the SaPI1 cryo-EM structure (PDB ID: 6B23). N- and C-termini are labeled.
Viruses 11 01003 g003

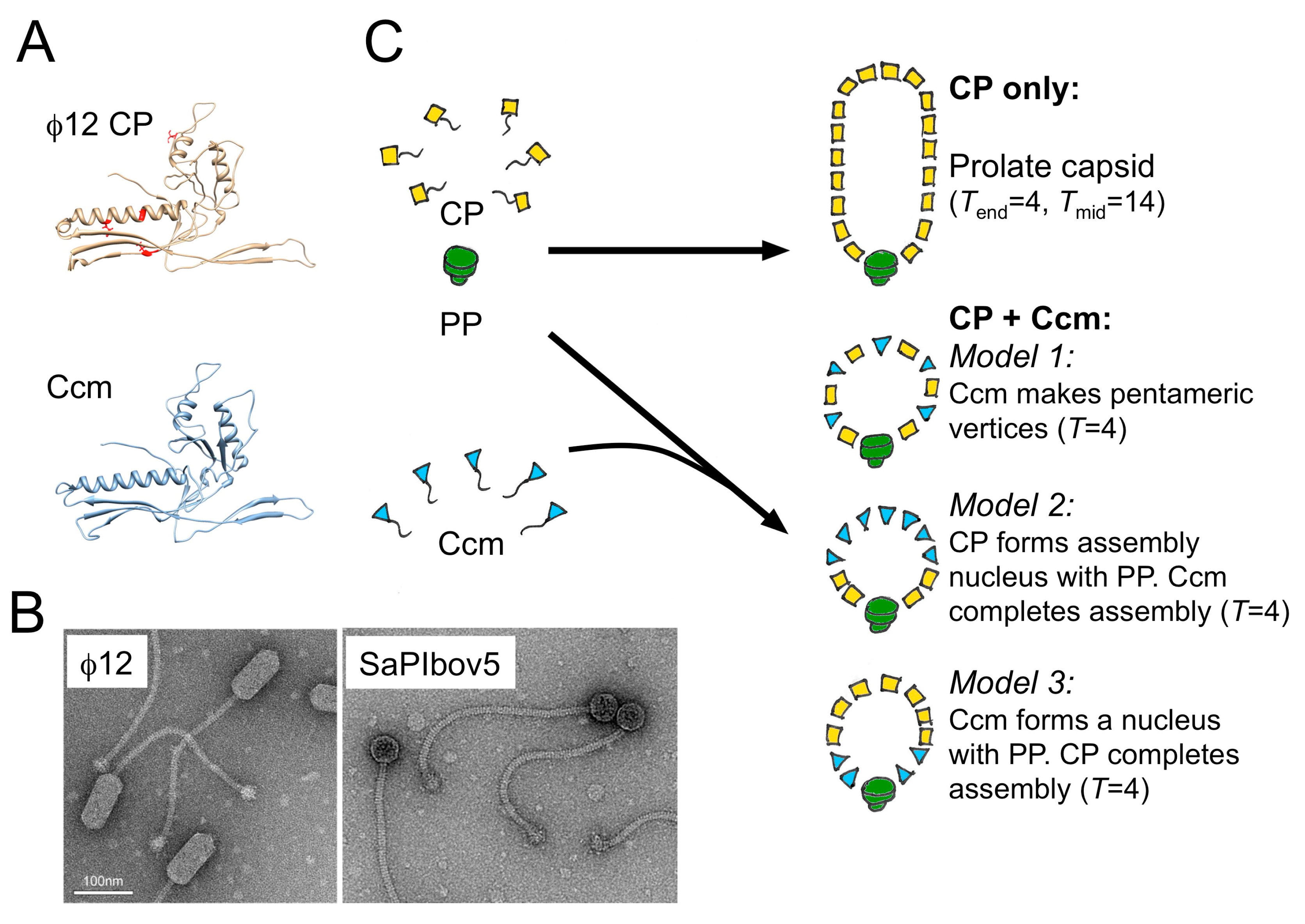

Figure 4. Size redirection by SaPIbov5. (A) Ribbon diagram of the I-TASSER models of the Φ12 CP (yellow) and SaPIbov5 Ccm (blue). The sir mutations in CP are indicated in red. (B) Negative stain electron micrographs of Φ12 virions and the transducing particles formed in the presence of SaPIbov5. (C) Three models for size redirection by Ccm: In model 1, Ccm forms pentamers at capsid vertices. In model 2, PP and CP form a nucleus, while Ccm completes the shell. In model 3, PP and Ccm form the nucleus and CP completes the shell.
Figure 4. Size redirection by SaPIbov5. (A) Ribbon diagram of the I-TASSER models of the Φ12 CP (yellow) and SaPIbov5 Ccm (blue). The sir mutations in CP are indicated in red. (B) Negative stain electron micrographs of Φ12 virions and the transducing particles formed in the presence of SaPIbov5. (C) Three models for size redirection by Ccm: In model 1, Ccm forms pentamers at capsid vertices. In model 2, PP and CP form a nucleus, while Ccm completes the shell. In model 3, PP and Ccm form the nucleus and CP completes the shell.
Viruses 11 01003 g004

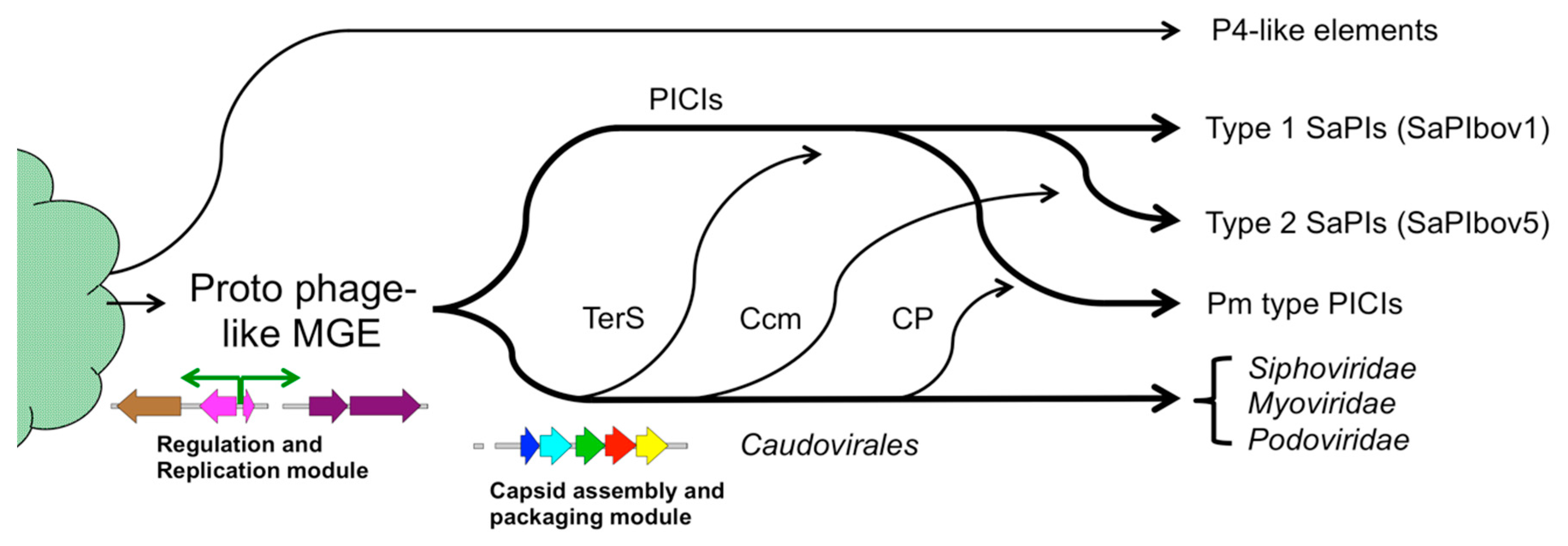

Figure 5. Model for the evolution of molecular piracy by size redirection. The phages and PICIs are ancient elements that originated from a proto-phage and diverged early, separated by the ability of phages to form capsids. The various families of PICIs form separate branches on the evolutionary tree that acquired phage-like functions by horizontal evolution at different times. P4-like elements evolved separately from PICIs from a distinct origin.
Figure 5. Model for the evolution of molecular piracy by size redirection. The phages and PICIs are ancient elements that originated from a proto-phage and diverged early, separated by the ability of phages to form capsids. The various families of PICIs form separate branches on the evolutionary tree that acquired phage-like functions by horizontal evolution at different times. P4-like elements evolved separately from PICIs from a distinct origin.
Viruses 11 01003 g005
