Ultimate Bearing Capacity of Engineered Bamboo Columns of Varying Lengths Under Eccentric Compression: Data-Driven Modeling

Abstract

This study investigates the ultimate bearing capacity of engineered bamboo columns of varying lengths under eccentric loading using a data-driven machine learning (ML) approach. Although previous studies have investigated engineered bamboo columns under axial or eccentric compression, few have systematically examined the combined effects of load eccentricity and column length. A database containing 432 records was established, with eccentricity, column length, cross-sectional area, compressive strength, and elastic modulus used as input features. Six tree-based ML algorithms were used to develop predictive models, all of which achieved satisfactory predictive accuracy. Shapley additive explanations analysis indicated that the trained random forest (RF) and extreme gradient boosting (XGBoost) models relied most strongly on eccentricity, followed by compressive strength, cross-sectional area, and column length, whereas elastic modulus made the smallest contribution within the range covered by the database. A new functional form was proposed for predicting the ultimate bearing capacity based on the eccentricity ratio, slenderness ratio, stability factor, compressive strength, and cross-sectional area. Two ML-assisted explicit models were developed using predictions generated by the trained RF and XGBoost models. Validation against both the developed database and an independent dataset showed that the explicit model derived from the XGBoost predictions achieved higher predictive accuracy than the RF-based model.

1. Introduction

In the context of global sustainable development, renewable materials with low environmental impact have attracted increasing attention in the construction industry [1,2,3]. Engineered bamboo has emerged as a promising construction material because of its excellent mechanical properties, environmental benefits, and the short growth cycle of bamboo [4,5,6,7]. Common types of engineered bamboo include laminated bamboo and bamboo scrimber [8,9,10], which are generally manufactured by laminating bamboo strips and densifying resin-impregnated bamboo fiber bundles, respectively [10,11]. Engineered bamboo combines high strength with a lower density than conventional construction materials such as concrete and steel and has therefore been increasingly used to manufacture structural members such as beams and columns [12,13].

In engineering applications, engineered bamboo columns are often subjected to eccentric compression [14,15]. Eccentric compression occurs when the line of action of the applied load does not coincide with the centroidal axis of the structural member, resulting in combined axial compression and bending. Under this loading condition, the stress state of the column depends not only on the applied load but also on its geometric characteristics and material properties. Compared with axial compression, eccentric compression produces a non-uniform stress distribution and an additional bending moment, which may increase lateral deformation and lead to material failure or structural instability [16]. Specifically, the side of an engineered bamboo column closer to the line of action of the eccentric load generally experiences higher compressive stress, whereas the opposite side experiences reduced compressive stress and may be subjected to tension when the eccentricity is sufficiently large. This non-uniform stress distribution influences the deformation response and may reduce the overall stability of the column.

When investigating the eccentric compression behavior of engineered bamboo columns, column length is also a crucial parameter. Variations in column length can significantly affect the ultimate bearing capacity and deformation characteristics [17]. For a given cross-sectional geometry, material properties, and load eccentricity, increasing the column length generally increases the slenderness ratio and susceptibility to lateral deformation [18,19]. The increased slenderness makes the column more susceptible to flexural instability, ultimately reducing its bearing capacity. However, many existing studies on eccentrically compressed engineered bamboo columns have not adequately considered the effect of column length, thereby limiting the generalizability of prediction models developed from the available experimental results. In particular, the combined effects of load eccentricity and slenderness ratio have not been systematically addressed.

Accurately predicting the eccentric compression behavior of engineered bamboo columns of different lengths is important for their structural design. Data-driven machine learning (ML) methods provide a useful approach for addressing this problem [20,21,22,23]. By learning from existing experimental data, ML models can capture complex nonlinear relationships among the input variables and support accurate prediction of the bearing capacity [24,25].

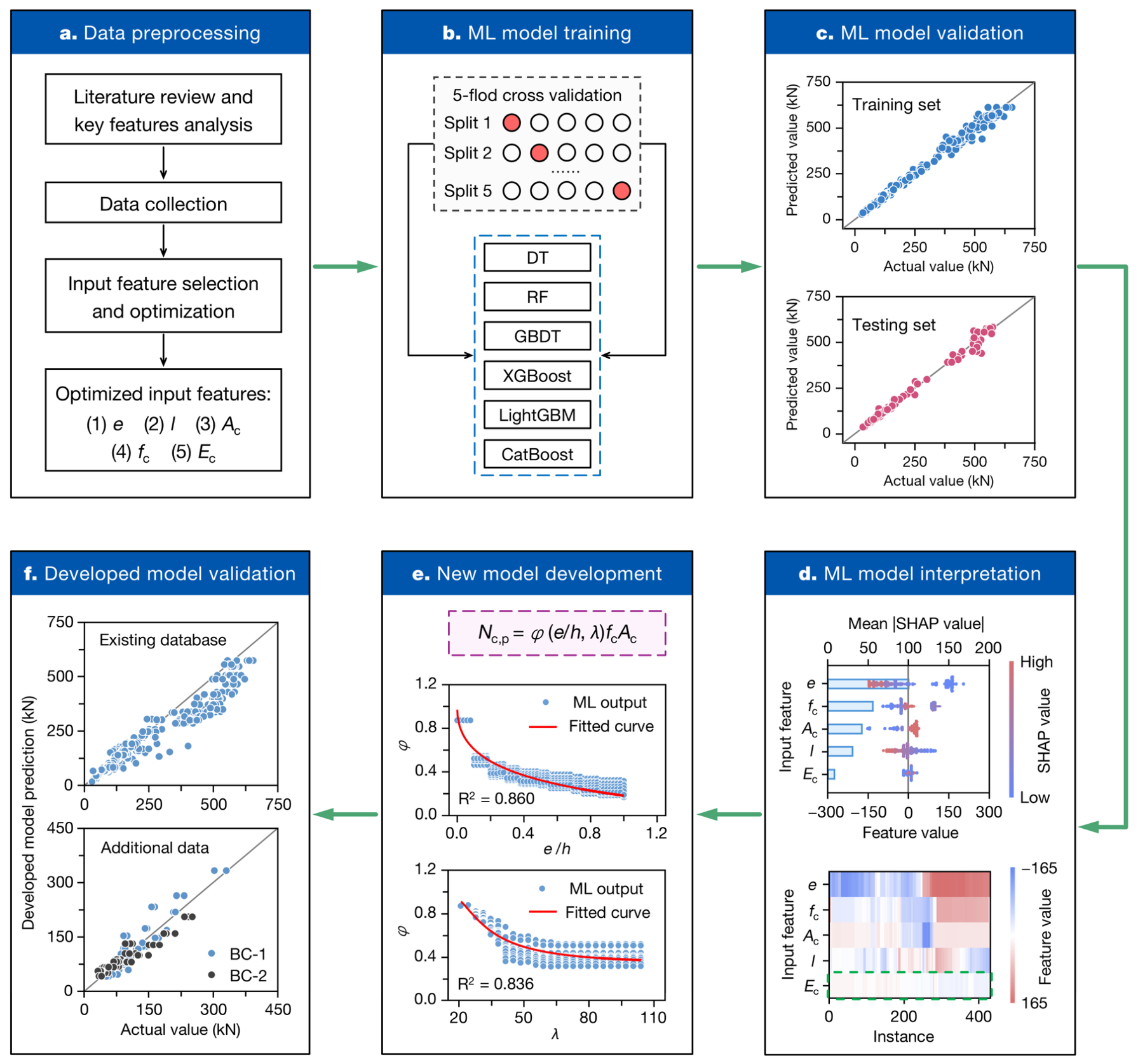

To address these research gaps, this study developed a data-driven framework for predicting the ultimate bearing capacity of engineered bamboo columns under eccentric loading, as illustrated in Figure 1. Unlike previous ML studies that focused primarily on predicting individual material or structural properties of engineered bamboo, the present study investigates the combined effects of load eccentricity and column length and further converts the ML-derived response trends into interpretable explicit formulations. A database comprising 432 reported and reconstructed records covering different eccentricities and column lengths was developed. Six tree-based algorithms, namely decision tree (DT), random forest (RF), gradient boosting decision tree (GBDT), extreme gradient boosting (XGBoost), light gradient boosting machine (LightGBM), and categorical boosting (CatBoost), were used to develop predictive models. Shapley additive explanations (SHAP) were employed to quantify the contribution of each input feature. Furthermore, a new functional form was developed based on the eccentricity ratio, slenderness ratio, stability factor, compressive strength, and cross-sectional area, while the effects of other material properties were represented by the fitted regression coefficients within the calibration range. Predictions from the trained RF and XGBoost models were used to develop two corresponding ML-assisted explicit models. Validation against the developed database and an independent dataset showed that the explicit model derived from the XGBoost predictions achieved higher predictive accuracy than the RF-based model.

2. Analysis of Input-Feature Relationships

2.1. Eccentric Compression Testing

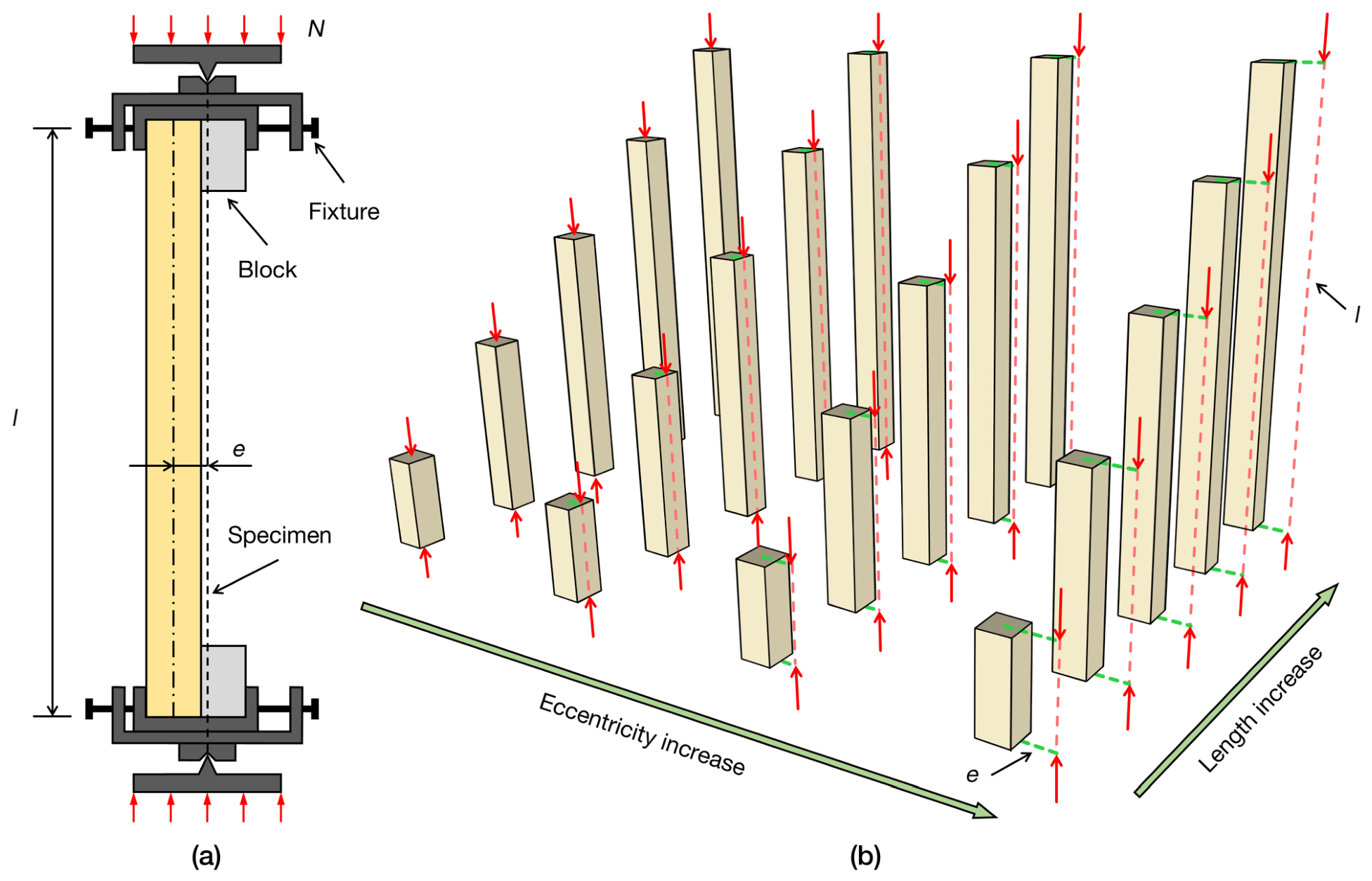

Figure 2a presents a typical test setup for eccentric compression [26,27]. The loading fixtures at both ends of the specimen incorporate hinged supports to transfer the eccentric compressive load (N) while allowing end rotation and lateral deflection in the plane of eccentricity. This setup approximates the mechanical behavior of pin-ended structural members under eccentric compression. Eccentric loading is achieved by adjusting the eccentricity (e), defined as the perpendicular distance between the load line of action, which passes through the center of the ball hinge, and the centroidal axis of the column specimen. For tests without an additional adjustment fixture for fine-tuning the eccentricity, Wei et al. [26] suggested that reliable eccentric loading could be achieved by aligning the center of the ball hinge with the centroid of the combined cross-section formed by the specimen and the bearing block (i.e., corbel). Moreover, specimens subjected to axial or eccentric compression are characterized by their length (l) and typically have square cross-sections, with the cross-sectional height (h) equal to the width (b). Figure 2b presents engineered bamboo column specimens of different lengths subjected to eccentric compression. Conducting a comprehensive experimental program covering different combinations of eccentricity and column length is costly and time-consuming. Consequently, existing experimental studies often focus on either eccentricity or column length. As a result, the combined effects of eccentricity and column length on the ultimate bearing capacity of engineered bamboo columns remain insufficiently understood.

2.2. Analysis of Parameter Relationships

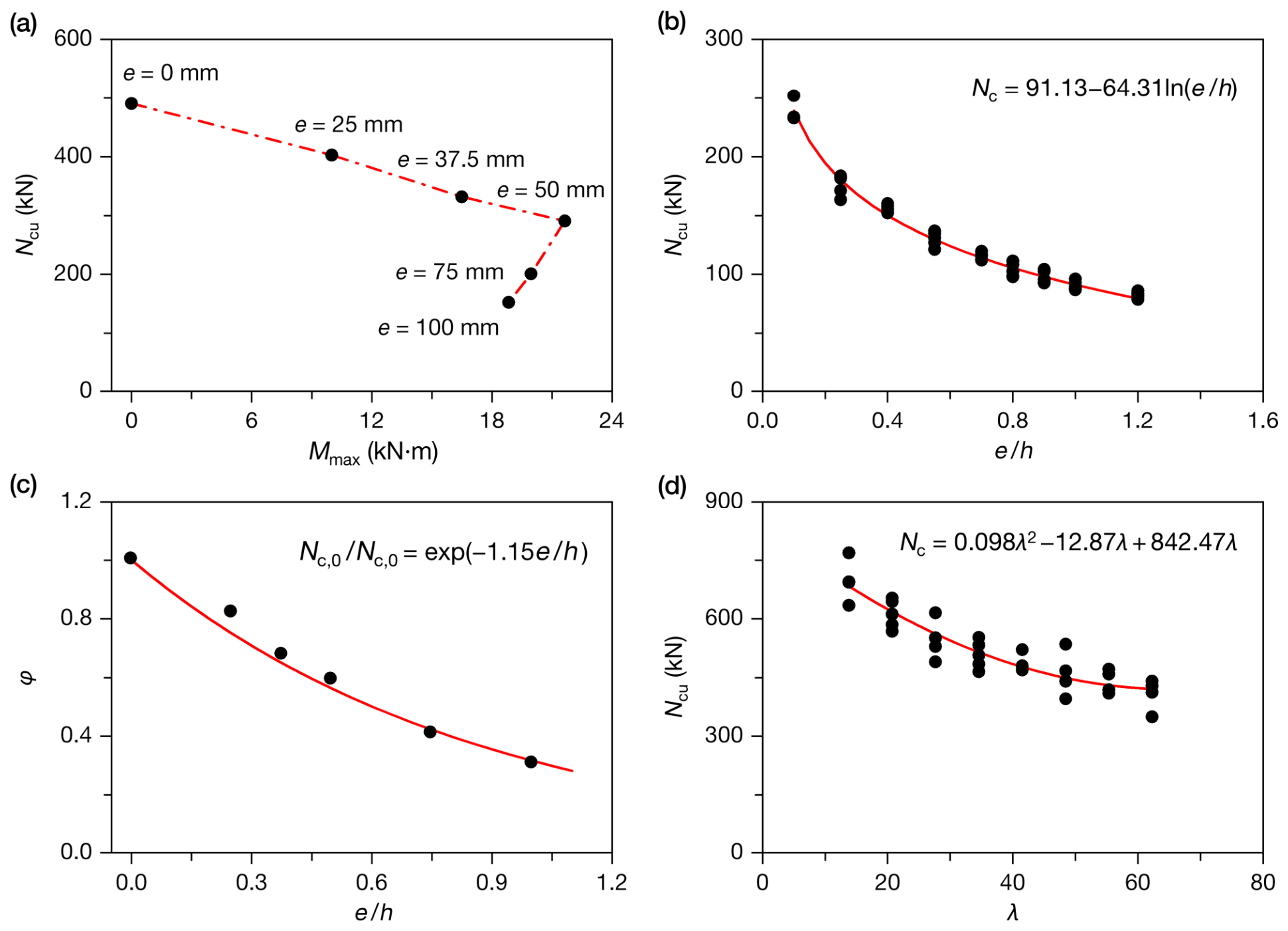

Although bamboo scrimber and laminated bamboo differ in their manufacturing processes and material structures, their differences are represented in the present analysis primarily through mechanical properties such as strength and modulus of elasticity. The effects of e and l on the compressive response were found to follow similar trends for both types of engineered bamboo. Taking bamboo scrimber as an example, the relationships among the key parameters were analyzed. Figure 3a presents the relationship between the maximum bending moment (M_max) and ultimate bearing capacity (N_cu) of eccentrically loaded bamboo scrimber columns. As e increases, N_cu decreases continuously, whereas M_max initially increases and then decreases. Specifically, M_max increases as e increases from 0 mm to 50 mm but decreases as e increases from 50 mm to 100 mm, indicating different response characteristics in the lower and higher eccentricity ranges. Figure 3b,c show the influence of the eccentricity ratio (e/h) on N_cu and the stability factor (φ), respectively. φ is defined as the ratio of the ultimate bearing capacity to the nominal axial compressive capacity. Both N_cu and φ decrease gradually as e/h increases. However, N_cu decreases more rapidly at low e/h values. In addition, under axial compression, the N_cu of bamboo scrimber columns decreases gradually as the slenderness ratio (λ) increases. In summary, geometric parameters such as e, h, and l, together with the mechanical properties of the material, are key factors influencing the ultimate bearing capacity of engineered bamboo columns. These observed relationships provided a basis for selecting the input variables of the ML models and formulating the explicit models.

3. ML Modeling for Ultimate Bearing Capacity

3.1. Data Overview

A database containing 432 records was compiled from Refs. [26,27,28,29,30,31,32,33,34,35,36]. The database was randomly divided at the sample level into a training set containing 80% of the records and a test set containing the remaining 20%, using a random seed of 42. The compressive strength (f_c) and modulus of elasticity (E_c) were selected as input features because of their physical relevance to N_cu of engineered bamboo columns, consistent with the governing parameters used in the Ylinen model [37], the Rankine–Gordon model [38], and the Euler critical load model [39]. To maintain consistency in specimen geometry, reinforcement conditions, and end restraints, specimens with chamfers, bonded fiber-reinforced polymer reinforcement, or end conditions other than hinged supports at both ends were excluded from the database.

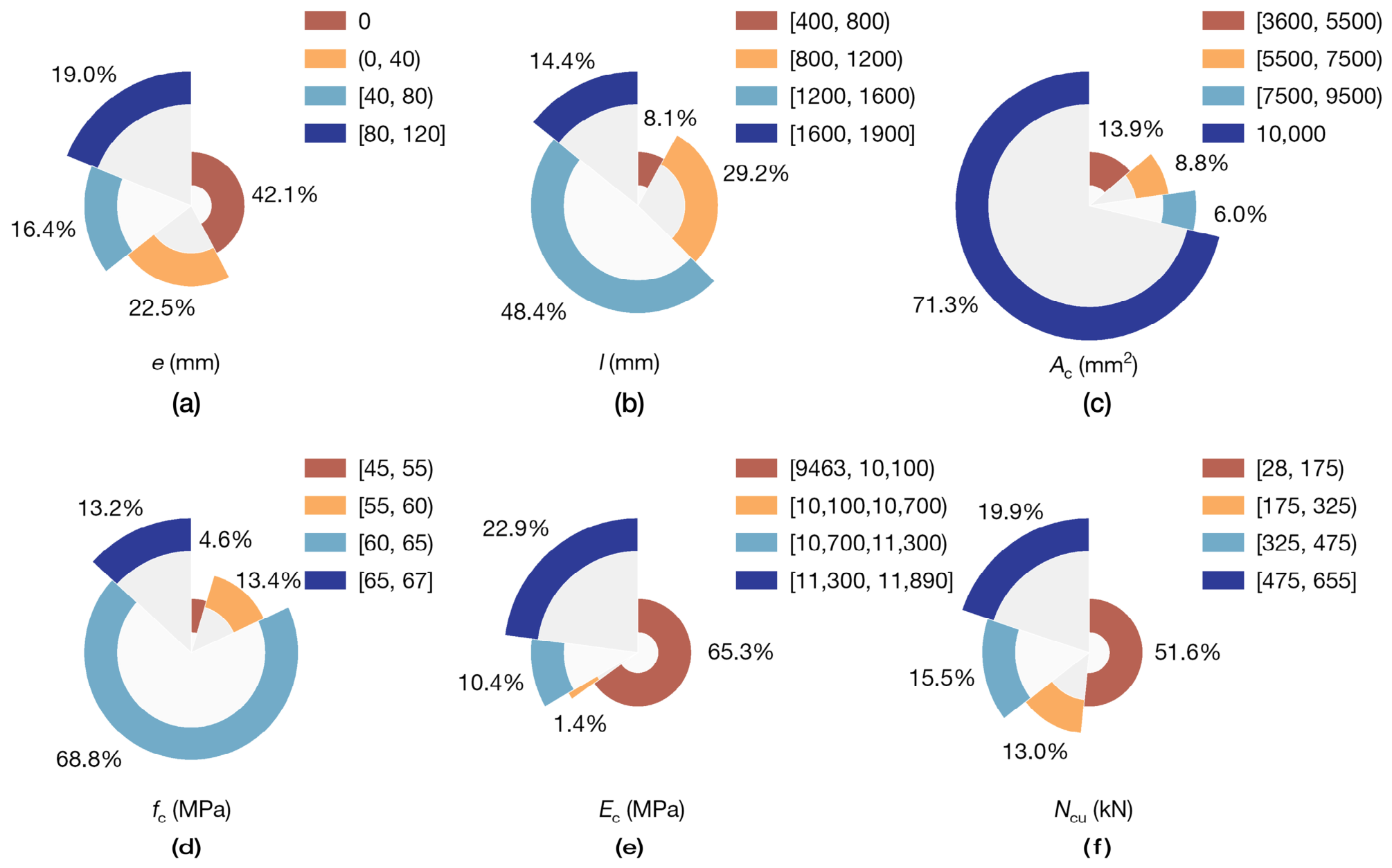

The distributions of the preliminarily selected variables in the developed database, including e, l, A_c, f_c, E_c, and N_cu, are presented in Figure 4. Other potential input features, such as density, moisture content, and additional mechanical properties, were excluded to limit model complexity and potential redundancy among the input variables. The final feature set was also selected to facilitate the development of explicit models based on the ML predictions.

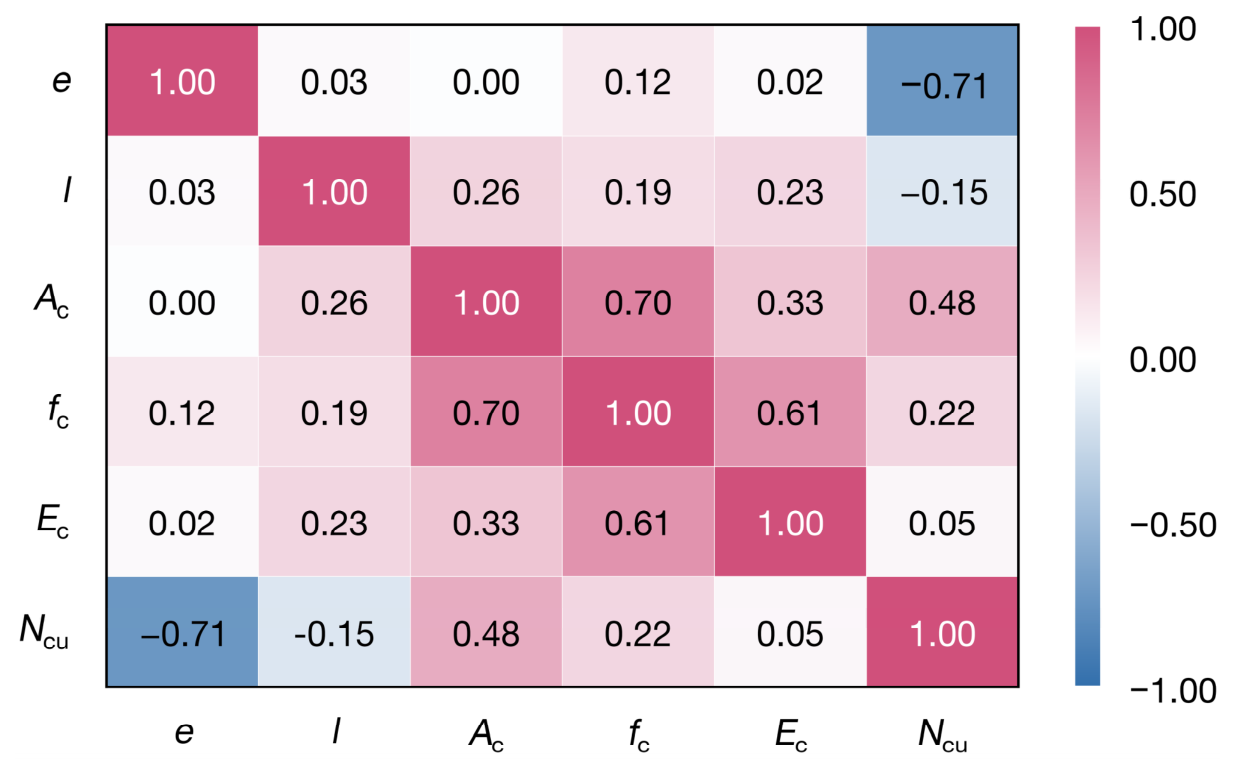

Figure 5 presents a heatmap of the correlations among the input and output variables, in which the Pearson correlation coefficients between some input features exceed 0.5. To examine multicollinearity among the input features, the variance inflation factor (VIF) method was employed. The VIF values for the input features e, l, A_c, f_c, and E_c were 1.04, 1.11, 2.17, 3.04, and 1.72, respectively, all of which were below 5. Therefore, no substantial multicollinearity was detected among the selected input features.

3.2. ML Algorithms Used

Decision tree (DT), random forest (RF), gradient boosting decision tree (GBDT), extreme gradient boosting (XGBoost), light gradient boosting machine (LightGBM), and categorical boosting (CatBoost) algorithms were employed to develop ML models for N_cu prediction. The DT model splits the data based on feature thresholds, forming a tree-like structure in which each terminal leaf provides a predicted value. It is simple, easy to interpret, and suitable for both classification and regression tasks [40]. The RF model builds an ensemble of decision trees using random subsets of data and features to improve predictive performance [41]. By averaging the predictions of multiple trees, RF can improve generalization and reduce overfitting compared with a single decision tree. GBDT is an ensemble method that builds decision trees sequentially, with each new tree fitted to the residual errors of the preceding ensemble. It is effective for capturing complex patterns but can be computationally intensive [42]. XGBoost enhances GBDT by introducing regularization, parallel processing, and system optimization techniques to improve both speed and accuracy [43]. LightGBM uses histogram-based algorithms and a leaf-wise growth strategy to accelerate training and reduce memory usage [44]. It is highly efficient for large-scale datasets and supports the native handling of categorical features. CatBoost employs ordered boosting to reduce prediction bias and the risk of overfitting [45]. Although CatBoost supports categorical features, this capability was not used because all input features in the present study were numerical. Because all six algorithms were tree-based, feature scaling was not required. The parameter settings of the six ML models are summarized in

Table 1. Parameter settings of ML models.

ML Model	Specific Parameters
DT	Maximum tree depth = 5, Minimum samples per leaf = 3, Minimum samples required for splitting = 3
RF	Number of trees = 300, Maximum tree depth = 5, Maximum features = square root, Minimum samples per leaf = 1, Minimum samples required for splitting = 2
GBDT	Number of trees = 300, Maximum tree depth = 4, Minimum samples per leaf = 2, Minimum samples required for splitting = 2
XGBoost	Number of trees = 300, Maximum tree depth = 4, Sample subsampling ratio = 0.7, Feature subsampling ratio = 0.7, L2 regularization coefficient = 3
LightGBM	Number of trees = 300, Maximum tree depth = 4, Number of leaves = 5, L2 regularization coefficient = 3
CatBoost	Number of trees = 300, Maximum tree depth = 4, L2 leaf regularization coefficient = 3

.

3.3. Evaluation Metrics

The coefficient of determination (R²), root mean square error (RMSE), and mean absolute error (MAE) were used to quantitatively assess the performance of the prediction models:

$${\mathrm{R}}^2=1-{\displaystyle \frac{{\displaystyle \sum _{i=1}^n{\left(y_i-\stackrel{\wedge }{y_i}\right)}^2}}{{\displaystyle \sum _{i=1}^n{\left(y_i-\stackrel{-}{y}\right)}^2}}}$$

(1)

$$\mathrm{RMSE}=\sqrt{{\displaystyle \frac{1}{n}}{\displaystyle \sum _{i=1}^n{\left(y_i-\stackrel{\wedge }{y_i}\right)}^2}}$$

(2)

$$\mathrm{MAE}={\displaystyle \frac{1}{n}}{\displaystyle \sum _{i=1}^n\left|y_i-\stackrel{\wedge }{y_i}\right|}$$

(3)

where $y_i$ is the actual value; ${\widehat{y}}_i$ is the predicted value; $\overline{y}$ is the average of all actual observed values; and $n$ is the number of observations. RMSE and MAE are reported in kN throughout the following sections.

4. Evaluation of ML Predictions

4.1. ML Models

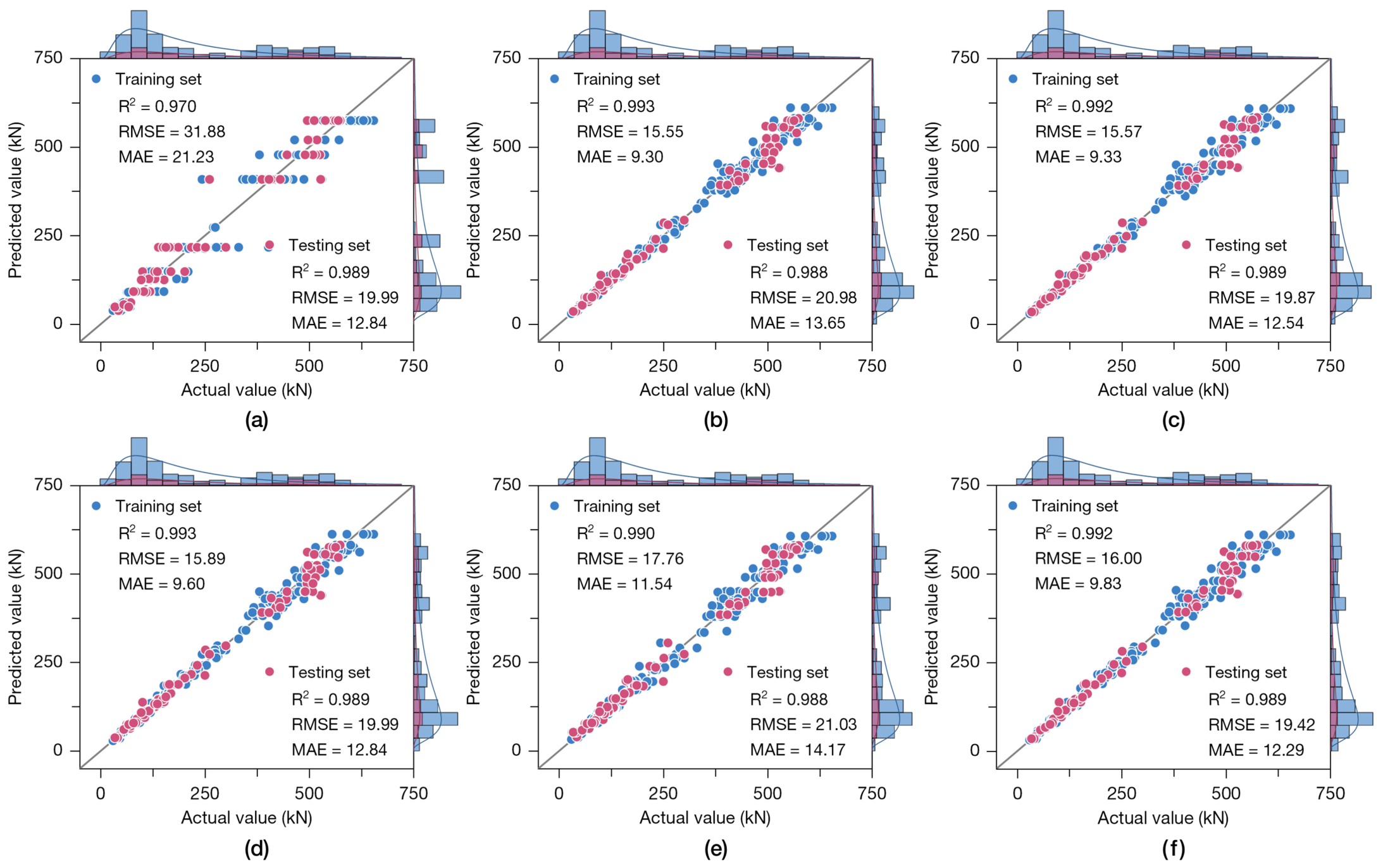

Figure 6 presents the prediction results of the DT, RF, GBDT, XGBoost, LightGBM, and CatBoost models on both the training and testing sets. In terms of the evaluation metrics, all six models demonstrated satisfactory predictive performance. Moreover, the comparable performance on the training and testing sets indicates that the models generalized consistently under the adopted random sample-level split within the developed database. However, this result does not demonstrate study-wise generalization to unseen experimental sources.

4.2. Model Interpretations

This section interprets the ultimate bearing capacity predictions of the RF and XGBoost models using TreeSHAP [46]. TreeSHAP leverages the structure of tree-based models to efficiently calculate the contribution of each input feature to individual predictions.

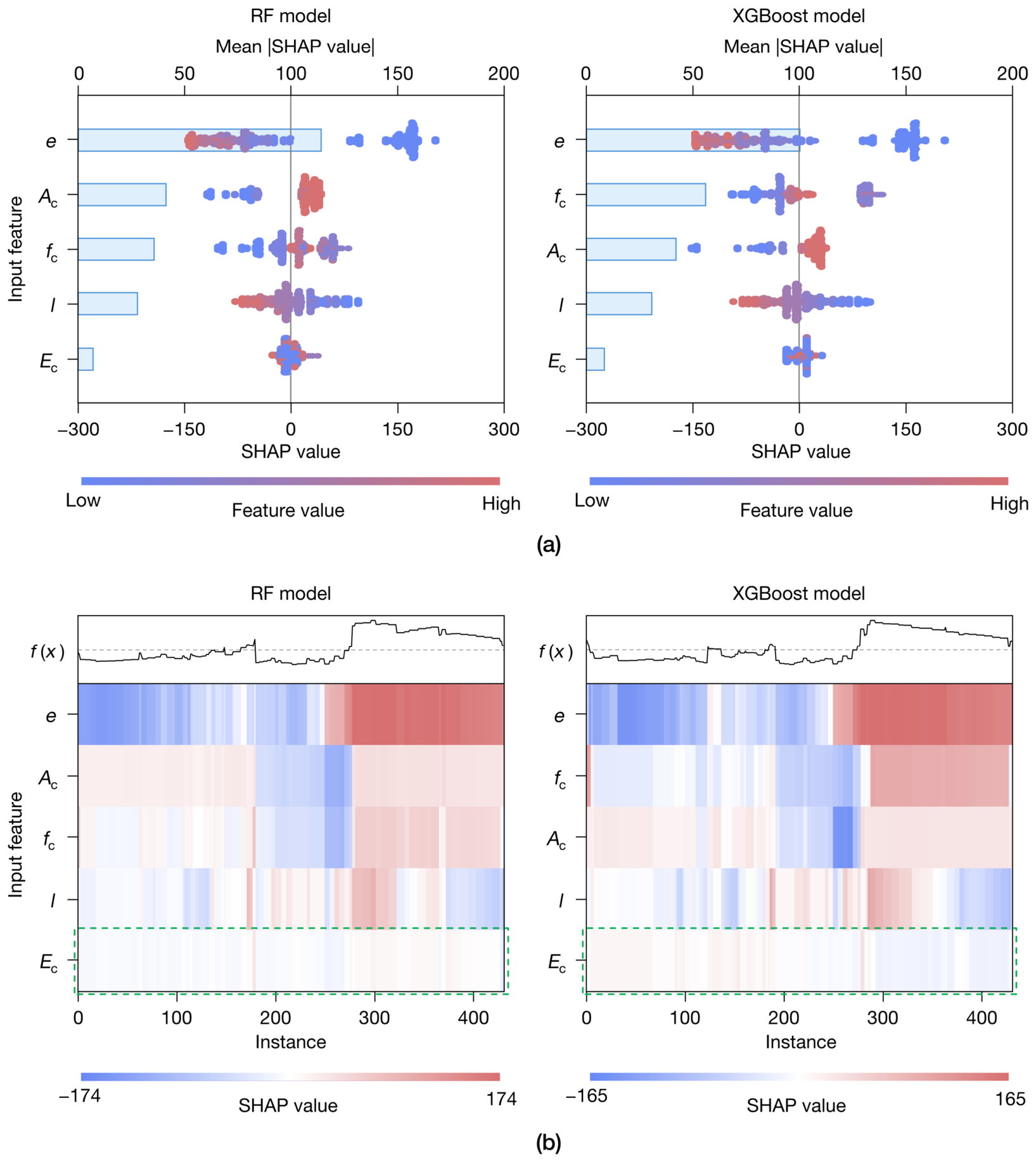

Figure 7a presents the mean absolute SHAP values and individual SHAP values for each input feature based on the RF and XGBoost models. In both models, the mean absolute SHAP value for e was the highest. The values for f_c and A_c were lower than that for e but relatively close to each other. l ranked next, while E_c had the lowest mean absolute SHAP value. The individual SHAP value plots further illustrate the direction and distribution of the effects of the input features. Each dot represents one sample and is colored according to the value of the corresponding input feature, ranging from low (blue) to high (red). The horizontal position represents the SHAP value, while the vertical stacking reflects the density of samples with similar SHAP values. For both models, the SHAP values generally increased as e and l decreased. In contrast, the SHAP values generally increased with increasing f_c and A_c. For E_c, the SHAP values were concentrated within a relatively narrow range, with no clear color gradient observed in either model. Therefore, the low SHAP importance of elastic modulus should be interpreted only within the range and distribution represented in the current database and should not be regarded as evidence of its generally negligible mechanical effect.

As shown in Figure 7b, the row corresponding to E_c in the heatmap displayed very light shading (indicated by the green box), further indicating its limited contribution to the model predictions across the entire dataset. A potential explanation is the relatively narrow range of E_c in the database, which varied from approximately 9500 MPa to 12,000 MPa for bamboo scrimber and laminated bamboo. Although the modulus of elasticity is theoretically important for column stability, its limited variation in the present database may have restricted the contribution captured by the models, resulting in a lower mean absolute SHAP value.

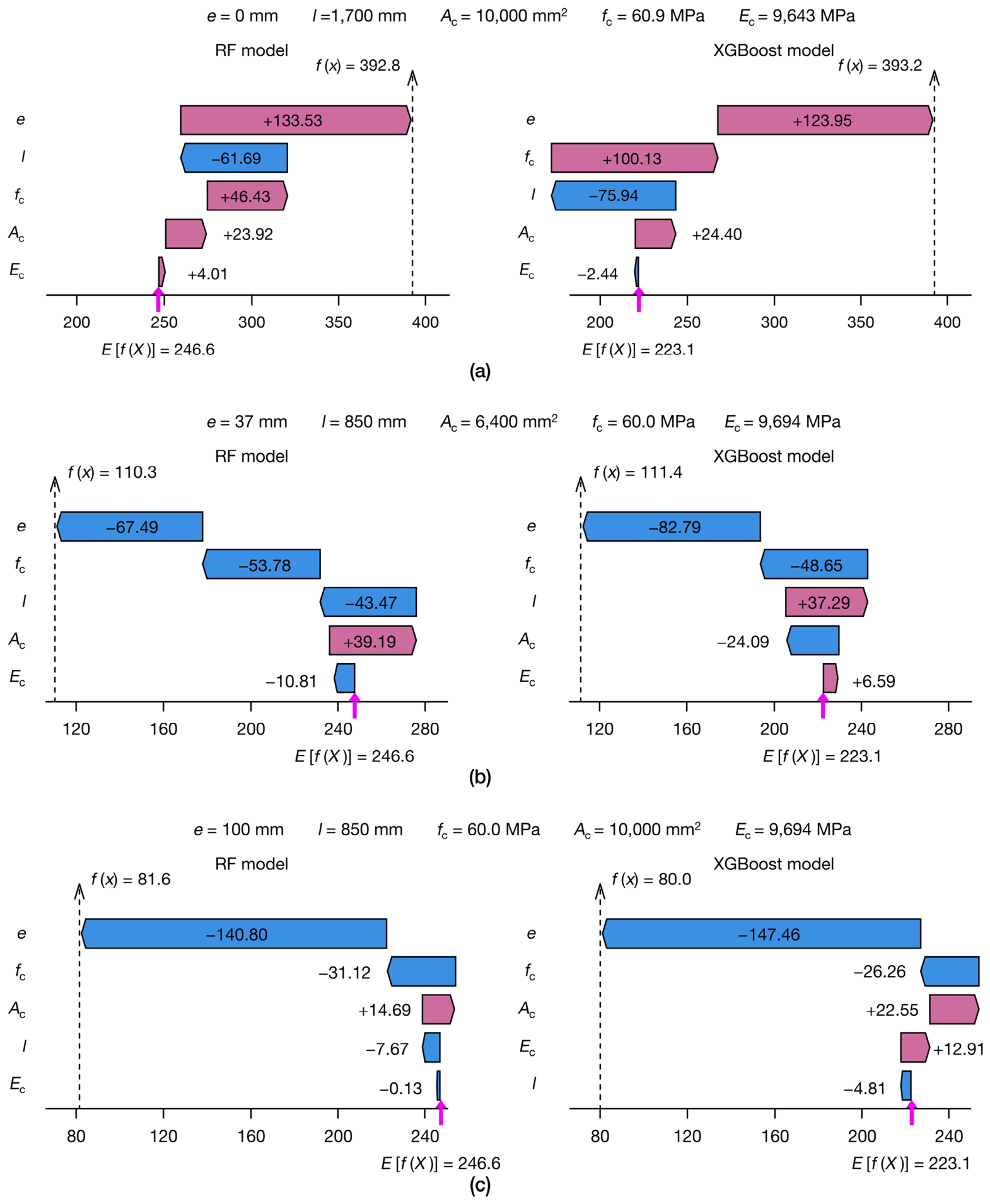

Three specimens were randomly selected from the test set to illustrate the prediction processes of the RF and XGBoost models, as shown in Figure 8. E[f(X)] and f(x) represent the expected model output over the background data and the prediction for a specific input x, respectively.

In different specimens and ML models, the influence of input features varied, but e generally made the largest contribution to the predicted N_cu. Specifically, taking the SHAP output of the XGBoost model as an example, the e values of specimens 1–3 were 0 mm, 37 mm, and 100 mm, respectively, with corresponding SHAP contributions of +123.95 kN, −82.79 kN, and −147.46 kN. The contributions of the remaining input features differed among the specimens. For instance, in the SHAP output of the XGBoost model, the l values of selected specimens 1–3 were 1700 mm, 850 mm, and 850 mm, respectively, with corresponding SHAP contributions of −75.94 kN, +37.29 kN, and −4.81 kN. A negative SHAP value indicated that the corresponding feature lowered the predicted ultimate bearing capacity relative to the model baseline for the specific specimen. In mechanical terms, a larger eccentricity increased the additional bending moment and aggravated the non-uniform stress distribution in the section, whereas a larger length increased the slenderness ratio and the tendency toward instability. Therefore, negative SHAP values for eccentricity and length were consistent with their adverse effects on the compressive resistance of engineered bamboo columns under eccentric loading.

Furthermore, even for the same specimen, the SHAP contribution of a given input feature differed between the two ML models. These differences can be largely attributed to the different learning mechanisms of the two algorithms. For instance, RF constructs multiple decision trees using random subsets of features, whereas XGBoost sequentially builds trees to correct the prediction errors of the preceding ensemble.

5. Analysis and Modeling of Key Combined Features

5.1. Case Study

For engineered bamboo columns with cross-sectional dimensions of 100 mm × 100 mm (A_c = 10,000 mm²), l varied from 0.6 m to 3.4 m, and e ranged from 0 mm to 100 mm. f_c was 65 MPa, and E_c was 9600 MPa. The column lengths in the training database ranged from 400 to 1900 mm. Therefore, predictions for values greater than 1900 mm were used only to examine the boundary behavior of the models and were not considered validated predictions. By inputting these parameters into the trained RF and XGBoost models, the predicted N_cu values were obtained.

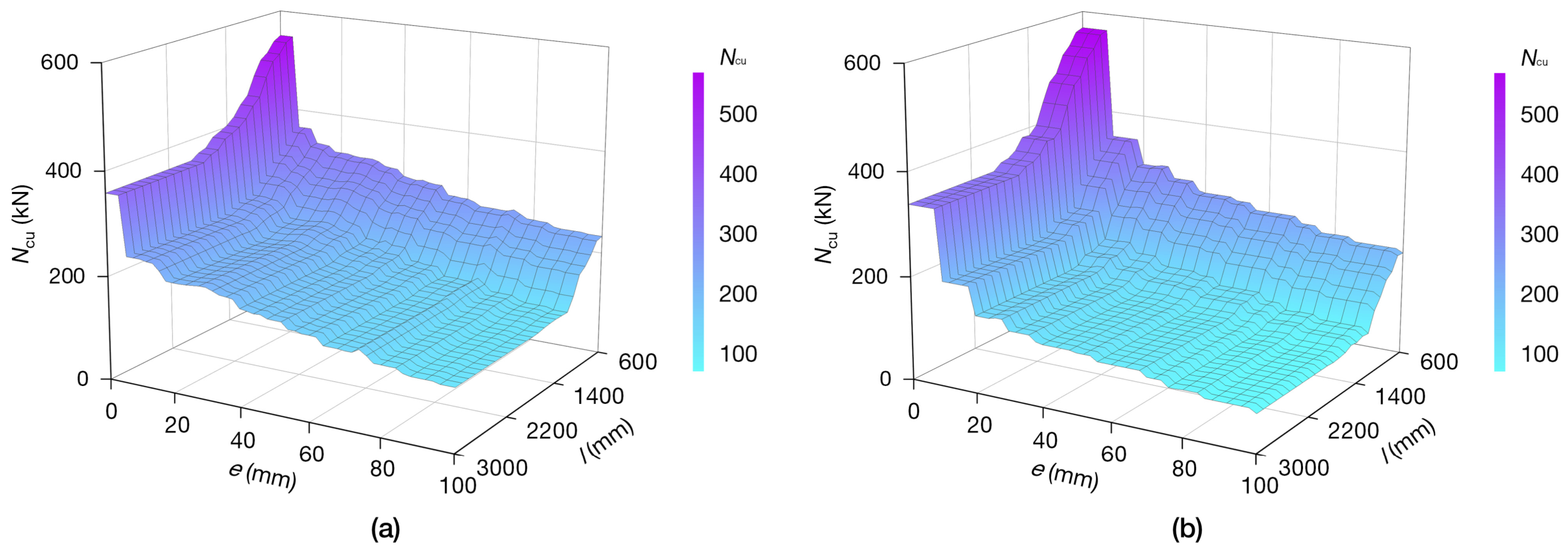

Figure 9 presents the response of N_cu to variations in e and l. Although there were some differences in detail between the RF and XGBoost models, the overall trend was consistent. When l remained constant, N_cu changed only slightly over the lower range of e, corresponding to the plateau on the left side of the curve. As e increased further, N_cu exhibited a decreasing trend.

This decline occurred in two stages: after the plateau, a small increase in e led to a sharp drop in N_cu, a result that was also observed in the experiments by Huang et al. [27] and Li et al. [32]. Following a sharp decrease, N_cu entered a second stage of gradual reduction. When e remained constant, N_cu generally decreased as l increased within the range covered by the training database. For l values greater than 1900 mm, the predictions represent extrapolation beyond the training domain. Based on the identified effects of e and l on N_cu, an explicit prediction model was subsequently developed.

5.2. Modeling Based on Key Combined Features

Existing theoretical models, such as the Ylinen and Perry–Robertson models, provide useful references for column stability analysis. However, these models were not specifically developed for engineered bamboo columns, which restricts their applicability in predicting the bearing performance of such columns. A new functional form is proposed herein to describe the effects of eccentricity and length on N_cu. By fitting the proposed formulation to the outputs of the trained ML models, the corresponding explicit empirical models can be obtained. The advantage of this method lies in its combination of the predictive capability of ML with the simplicity of an explicit model.

Due to the sharp local variations in N_cu under the combined influence of e and l, direct multivariable fitting is particularly challenging. Although higher-order functions can provide good fitting results, their increased complexity reduces practical applicability and is inconsistent with established mechanics-based formulations. Based on existing knowledge of bamboo and wood columns under eccentric and axial compression, the effects of e and l on N_cu were represented by e/h and λ, respectively. Here, the slenderness ratio was derived from the column length and cross-sectional area rather than used as an independent ML input. It was calculated by dividing the effective column length by the radius of gyration. For the pinned–pinned boundary condition, the effective length was equal to the actual column length. For the square cross-section, the radius of gyration was calculated as the side length divided by the square root of 12, and the side length was taken as the square root of the cross-sectional area.

To isolate the effect of λ, each λ–φ curve at a given e/h was multiplied by the ratio of the peak φ value of the reference curve at the minimum e/h to that of the current curve. Similarly, to isolate the effect of e/h, each e/h–φ curve at a given λ was multiplied by the ratio of the peak φ value of the reference curve at the minimum λ to that of the current curve. Each scaling factor was applied uniformly to all points on the corresponding curve. The two rescaling procedures were applied independently to the original ML-generated response surface rather than sequentially. The resulting datasets were then used to fit φ(λ) and φ(e/h), respectively.

The relationship between e/h and φ can be fitted using the three-parameter decay function given in Equation (4):

$$\phi \left(e/h\right)=a_1+{\displaystyle \frac{a_2}{{\left(e/h\right)}^{a_3}+1}}$$

(4)

where a_i (i = 1, 2, and 3) are the coefficients determined by fitting.

The relationship between λ and φ can be fitted using Equation (5), which adopts a form based on the Ylinen and Perry–Robertson models:

$$\phi \left(\lambda \right)=b_1+{\displaystyle \frac{b_2}{{\lambda }^2}}+b_3\sqrt{{\left(b_4+{\displaystyle \frac{b_5}{{\lambda }^2}}\right)}^2+{\displaystyle \frac{b_6}{{\lambda }^2}}}$$

(5)

where b_i (i = 1, 2, …, 6) are the coefficients determined by fitting.

The φ response surface can be expressed as

$$\phi \left(e/h,\lambda \right)={\left[\phi \left(e/h\right)\phi \left(\lambda \right)\right]}^{\alpha }$$

(6)

where α is a prescribed empirical correction exponent. In the present study, α = 0.9 is adopted to reduce potential systematic discrepancies between the simplified explicit model and the ML-based prediction trend.

The predicted ultimate bearing capacity (N_cu,p) can be expressed as

$$N_{\mathrm{cu},\mathrm{p}}={\displaystyle \frac{\phi \left(e/h,\lambda \right)f_{\mathrm{c}}{A}_{\mathrm{c}}}{1000}}$$

(7)

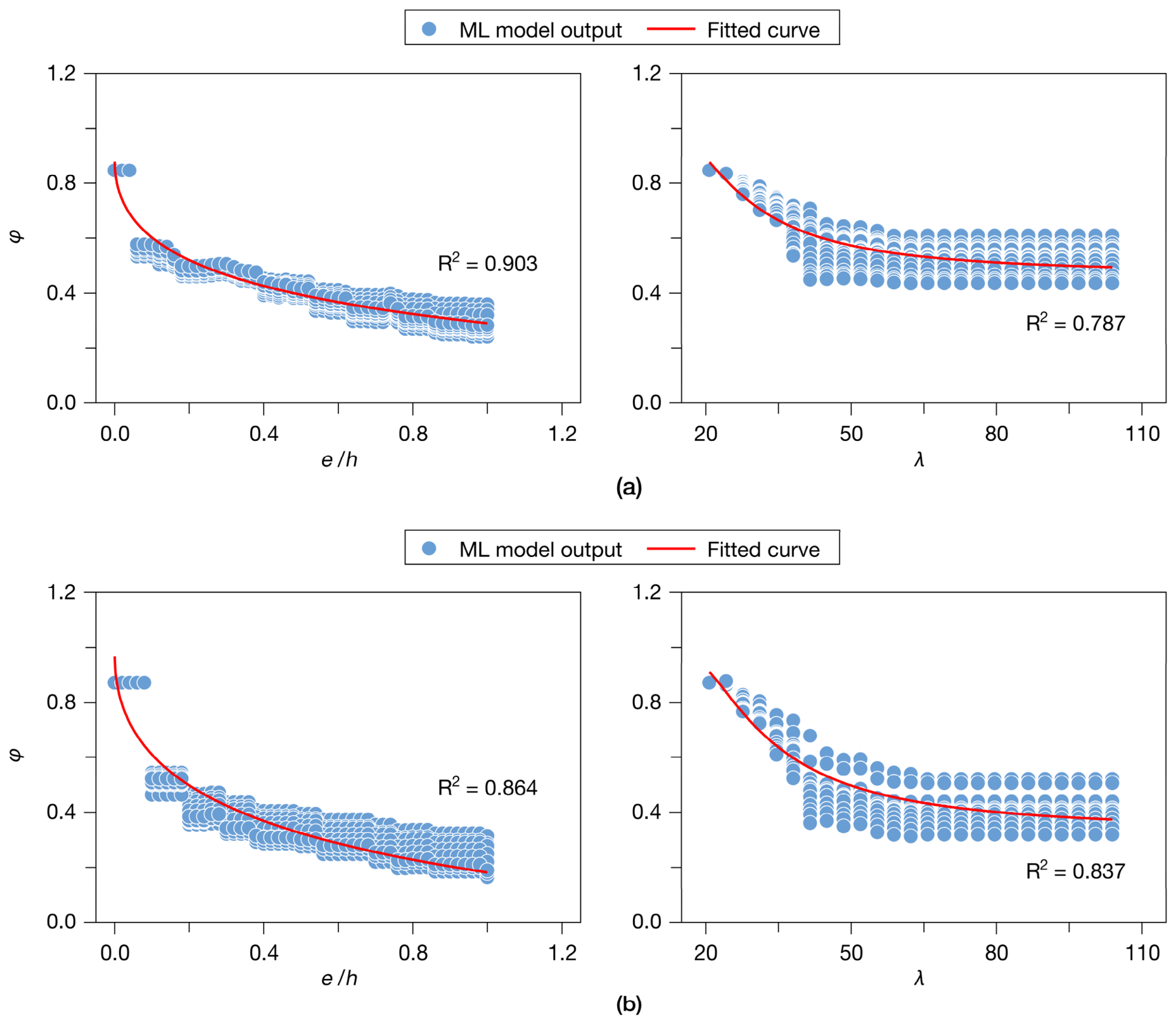

Figure 10a presents the curve-fitting results based on the trained RF model output data, with the specific fitting models provided in Equations (8) and (9).

$$\phi \left(e/h\right)=-0.297+{\displaystyle \frac{1.177}{{\left(e/h\right)}^{0.511}+1}}$$

(8)

$$\phi \left(\lambda \right)=-8.59-{\displaystyle \frac{740.00}{{\lambda }^2}}+1.86\sqrt{{\left(4.87+{\displaystyle \frac{8.83}{{\lambda }^2}}\right)}^2+{\displaystyle \frac{5260.41}{{\lambda }^2}}}$$

(9)

Figure 10b presents the curve-fitting results based on the trained XGBoost model output data, with the specific fitting models provided in Equations (10) and (11).

$$\phi \left(e/h\right)=-0.605+{\displaystyle \frac{1.573}{{\left(e/h\right)}^{0.529}+1}}$$

(10)

$$\phi \left(\lambda \right)=-29.18-{\displaystyle \frac{2007.55}{{\lambda }^2}}+3.24\sqrt{{\left(9.11-{\displaystyle \frac{3.56}{{\lambda }^2}}\right)}^2+{\displaystyle \frac{13889.76}{{\lambda }^2}}}$$

(11)

At e/h = 0, Equations (8) and (10) give values of 0.880 and 0.968, respectively. These values should not be interpreted as independent eccentricity reduction factors because the eccentricity- and slenderness-dependent functions were jointly used in Equation (6) and were not separately normalized. Therefore, the predicted axial capacity at e = 0 remains dependent on the slenderness ratio and may be lower than the nominal compressive capacity because of column instability and unavoidable imperfections. The axial-compression data in Figure 3d show the same decreasing trend in bearing capacity with increasing slenderness ratio, providing an internal check of this boundary behavior. These data were included in the developed database and therefore do not constitute an independent validation dataset.

5.3. Model Calibration Based on the Developed Database

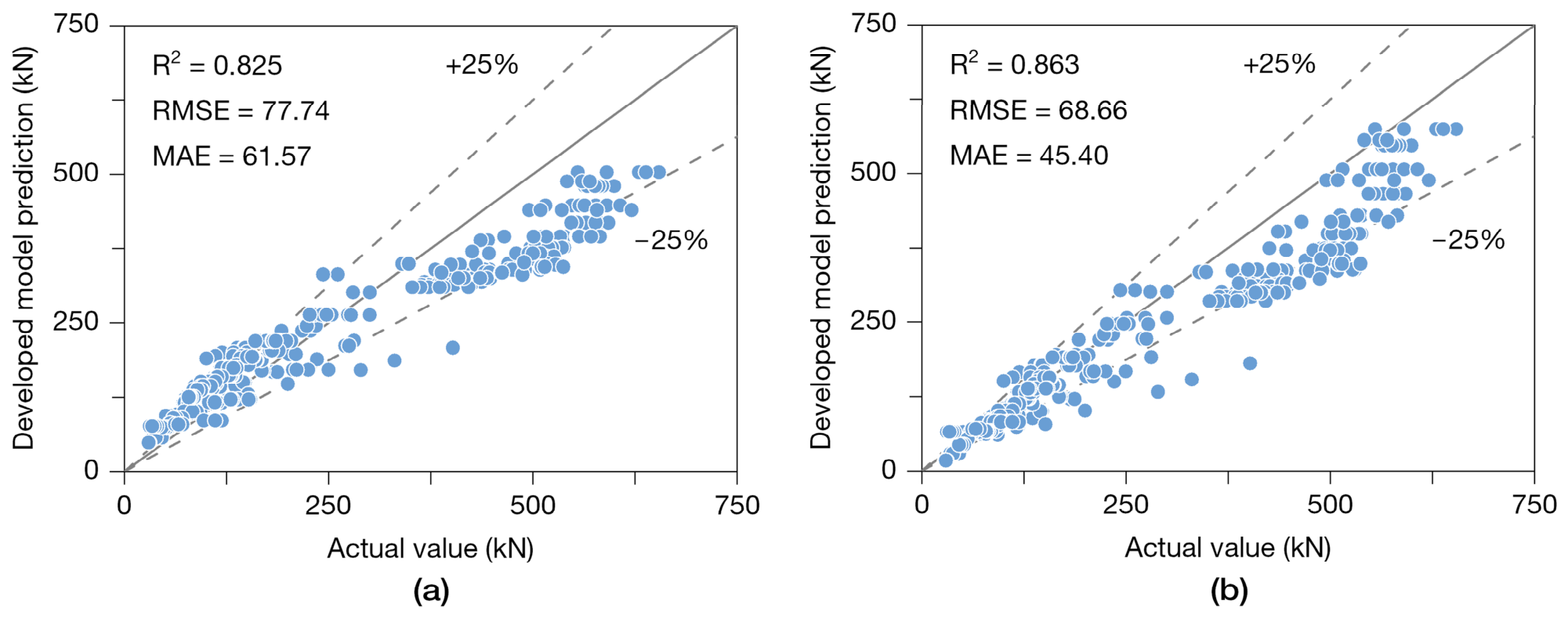

Figure 11 presents the prediction results of the developed explicit models based on the trained RF and XGBoost models. When evaluated against the developed database, the developed model based on XGBoost demonstrated better predictive performance than that based on RF. The developed explicit models had larger prediction errors than the direct ML outputs because they were simplified empirical expressions fitted to the ML-predicted trends. Although these formulations improved transparency and practical applicability, they could not fully capture the complex nonlinear interactions between eccentricity and slenderness ratio.

5.4. Model Validation Based on Additional Data Sources

Eccentric compression test data for engineered bamboo columns of varying lengths from Refs. [47,48] were reserved for independent validation of the developed models. Detailed specimen information from these sources is summarized in

Table 2. Ranges of the key parameters in the additional data sources.

Data Source	Group Label	Range of e (mm)	Range of l (mm)	Cross-Section Size (mm × mm)	fc (MPa)	Number
Ref. [47]	BC-1	0–50	800–2000	80 × 80	49.3	45
Ref. [48]	BC-2	0–120	1000–1900	100 × 100	51.4	43

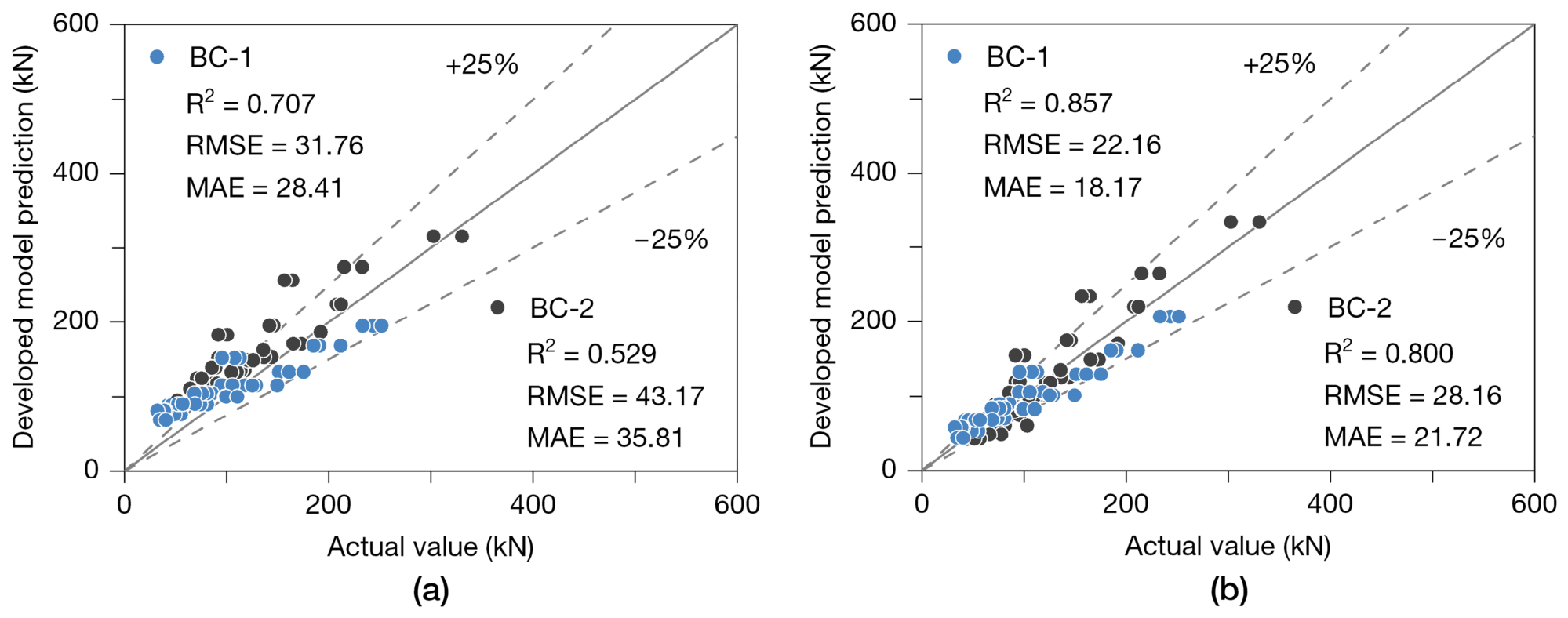

. In addition, an f_c value of 49.3 MPa was adopted for Ref. [47] based on the material properties reported in Ref. [49]. Figure 12 summarizes the predictions obtained using the developed models. Of the two explicit models, the XGBoost-based model demonstrated higher predictive accuracy than the RF-based model, with most prediction errors falling within ±25%.

6. Conclusions

This study developed a dataset comprising 432 records based on a review and analysis of existing research. The ultimate bearing capacity of engineered bamboo columns with different lengths under eccentric loading was analyzed using data-driven ML methods, and ML-assisted explicit models were developed for ultimate bearing capacity prediction.

ML models with good predictive performance for the ultimate bearing capacity of engineered bamboo columns were developed based on DT, RF, GBDT, XGBoost, LightGBM, and CatBoost algorithms. SHAP analysis of the trained RF and XGBoost models indicated that eccentricity made the largest contribution to their predictions, while the contributions of the other input features varied with the selected specimen and ML model. The relatively low contribution of elastic modulus reflects its narrow range in the database rather than its mechanical unimportance for column stability.

A functional form was proposed to express the stability factor in terms of the eccentricity ratio and slenderness ratio and thereby predict the ultimate bearing capacity. The compressive strength and cross-sectional area were explicitly incorporated through f_c and A_c, respectively, while the effects of other material properties were represented by the fitted regression parameters within the calibration range. Validation using the developed database and an independently prepared dataset demonstrated that the explicit model derived from the XGBoost output achieved higher prediction accuracy than that derived from the RF output. The proposed framework should be considered an aid for preliminary estimation rather than a replacement for experimental validation.
