Article

Growth Assessment of Native Tree Species from the Southwestern Brazilian Amazonia by Post-AD 1950 14C Analysis: Implications for Tropical Dendroclimatology Studies and Atmospheric 14C Reconstructions

by
Guaciara M. Santos
1,*,
Daigard Ricardo Ortega Rodriguez
2,*,
Nathan de Oliveira Barreto
2,
Gabriel Assis-Pereira
2,
Ana Carolina Barbosa
3,
Fidel A. Roig
4,5 and
Mário Tomazello-Filho
2
1
Earth System Science Department, University of California, B321 Croul Hall, Irvine, CA 92697-3100, USA
2
Departamento de Ciências Florestais, Escola Superior de Agricultura “Luiz de Queiroz”, Universidade de São Paulo, Piracicaba 13418-900, Brazil
3
Departamento de Ciências Florestais, Universidade Federal de Lavras, CP 3037, Lavras 37200-900, Brazil
4
Argentine Institute of Nivology, Glaciology and Environmental Sciences (IANIGLA), CONICET-Universidad Nacional de Cuyo, Mendoza 5500, Argentina
5
Hémera Centro de Observación de la Tierra, Escuela de Ingeniería Forestal, Facultad de Ciencias, Universidad Mayor, Santiago 8580745, Chile
*
Authors to whom correspondence should be addressed.
Forests 2021, 12(9), 1177; https://doi.org/10.3390/f12091177
Submission received: 6 August 2021 / Revised: 21 August 2021 / Accepted: 27 August 2021 / Published: 31 August 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
Tree-ring width chronologies of cedro (Cedrela fissilis Vell.) (1875 to 2018), jatobá (Hymenaea courbaril L.) (1840 to 2018) and roxinho Peltogyne paniculata Benth.) (1910 to 2018) were developed by dendrochronological techniques in the southern Amazon Basin. Acceptable statistics for the tree-ring chronologies were obtained, and annual calendar dates were assigned. Due to the lack of long-term chronologies for use in paleoclimate reconstructions in degraded forest areas, dendrochronological dating was validated by 14C analysis. Tree-rings selected for analysis corresponded to 1957, 1958, 1962, 1963, 1965, 1971, and 1972. Those are critical calendar years in which atmospheric 14C changes were the highest, and therefore their tree-ring cellulose extracts 14C signatures when in alignment with existing post-AD 1950 atmospheric 14C atmospheric curves would indicate annual periodicity. Throughout our correlated calendar years and post-AD 1950 14C signatures, we indicate that H. courbaril shows an erratic sequence of wood ages. The other two tree species, C. fissilis and P. paniculata, are annual in nature and can be used successfully as paleoclimate proxies. Moreover, due to the sampling site’s strategic location in relation to the Tropical Low-Pressure Belt over South America, these trees can be used to enhance the limited amount of observational data in Southern Hemisphere atmospheric 14C calibration curves.

1. Introduction

Tree rings are an important source of high-resolution data for the long-term assessment of events occurring prior to instrumental data that characterize climate variability [1,2], and can be applied to calibrating and simulating climate, ecological, and physiological forecasting of forest ecosystems [3,4,5,6]. Hence, it is paramount that tree growth increments be continuous and their pattern well known so that climate indicators can be properly derived [7,8,9]. Moreover, tree ring research is relevant to atmospheric radiocarbon (14C) reconstructions [10,11]. Calibration curves are needed for converting 14C dates to calendar ages [12,13], and for studying the global carbon cycle [14,15] and the effects of anthropogenic activities on the environment and the climate system [16].
The majority of tree-ring chronologies (see [17]) with reliable cross-dating control of radial growth have been from ecoregions with well-defined seasons: e.g., the extra-tropics [18]. In the tropics, recent efforts and important methodological advances [19] have made it possible to increase the number of chronologies [5,6]. However, challenges in finding native species that can be dated to their formative calendar year still persist. Tropical wood anatomical features are highly diverse, and it is often problematic to identify the distinctness and boundaries of tree rings [20,21,22,23]. Besides their complex macroscopic wood anatomy, tropical species frequently present so-called tree-ring anomalies, such as wedging rings or partially missing rings, as well as false, discontinuous, and double-growth rings [6,9], which can lead to dating errors. Moreover, strong precipitation seasonality can lead to intra-annual phenology responses in deciduous or semi-deciduous tree species, triggering biannual ring formation [24]. Thus, it is desirable to match tree-ring chronologies obtained from traditional dendrochronological techniques (regardless whether they are complete or ongoing) with post-AD 1950 14C ages [25]. This enables independent validation of tree-ring width chronologies, and ensures data quality and consistency, even before broad comparisons of various paleo proxies are conducted.
Post-AD 1950 14C analysis of selected single tree rings works as a corroboration method thanks to the multiple aboveground thermonuclear detonations that occurred during the 1950s and 1960s [26], which caused atmospheric 14C levels to nearly double in the troposphere [14]. This anthropogenic 14C spike, and its subsequent decline once the Limited Test Ban Treaty was signed, allowed researchers to use the bomb 14C as an independent marker. Worldwide atmospheric 14C observations at sites in both the Northern and Southern Hemispheres have been used to establish atmospheric 14C calibration curves across the globe [27]. In the Neotropical realm, direct comparisons of 14C content in cellulose fibers extracted from a tree-ring wood sample of known age have helped confirm tree species growth patterns as annual [10,11,28,29,30,31], problematic [21], or occurring twice a year [24]. This method has also helped scientists to identify consistent wood layers corresponding to seasonal or annual growing periods in tree species at several other major ecological regions, such as Mediterranean climatic areas [20,31], subtropical rainforest [22], and tropical savanna [32], for example.
Tree-ring width chronologies were developed for the first time for tree species of cedro (Cedrela fissilis Vell.) (1875 to 2018), jatoba (Hymenaea courbaril L.) (1840 to 2018), and roxinho (Peltogyne paniculata Benth.) (1910 to 2018) from the Jamari National Forest (JNF), state of Rondônia, located in the southwestern Brazilian Amazon (Figure 1). The synchronism of ring width patterns among radii and individuals was determined by visual and statistical comparisons, applying standard dendrochronological methods. Two of the three species studied here, C. fissilis [33,34,35] and H. courbaril [28,36,37], have been studied previously elsewhere, via methods of cambial wounding, cross-dating, and/or 14C dating, and were characterized as annual in nature. On the other hand, the genus Peltogyne has barely been studied (i.e., [25,38]) and P. paniculata chronology has not yet been reported. Therefore, this work represents the first ring-width chronology assessment and 14C validation for this single tree species.
The southwestern Brazilian Amazon, and especially the state of Rondônia, has been facing substantial forest losses since the late 1980s due to intense human activities across its territory’s land surface [39]. Our studied site is located at the heart of this accelerated land cover change area, which, after three decades of increased deforestation, fires, and forest fragmentation, has been experiencing dramatic changes in seasonal precipitation chemistry [40] and regional hydroclimate shifts [41,42], which can potentially impact the livelihoods of people in the state [43].
Therefore, the development of new reliable tree-ring chronologies can situate modern and future climate change in a long-term pre-industrial perspective. Moreover, the JNF’s strategic location (9.3° S, 62.9° W) can provide key data related to the Tropical Low-Pressure Belt (TLPB, conventionally termed Inter-Tropical Convergence Zone) [44] and the South American Monsoon System [45], and enable exploration of the stability of ocean-atmospheric forcing of climate over Amazonia. Thus, given the urgent need to build reliable climate-sensitive century-long tree-ring chronologies across the Amazon basin [46,47] and the site’s strategic location, these dendrochronologically dated tree species were independently evaluated by high-precision (<0.3%) post-AD 1950 14C accelerator mass spectrometer (AMS) analysis. Seven calendar years for each tree species were selected to undergo α-cellulose extractions and subsequent sample processing for 14C-AMS measurements at the Keck Carbon Cycle Accelerator Mass Spectrometer (KCCAMS) at the University of California, Irvine (UCI). Dendrochronologically dated tree rings and their 14C values were then compared to the Southern Hemisphere (SH) atmospheric post-AD 1950 14C bomb curves (SH zone 1–2 & SH zone 3), using the current spatial distribution of bomb-pulse 14C as defined in [27] and the independent dataset of Minas Gerais, Brazil (22° S; e.g., [10]).

2. Materials and Methods

2.1. Study Area

The study was conducted in the JNF (Figure 1), which comprises an area of 220,000 hectares located in the southern Amazon Basin between the geographic coordinates 09°00′00″–09°30′00″ S and 62°44′05″–63°16′54″ W [48]. The closest city is Itapuã do Oeste, with a population density of just 2.10 people per km2 [49]. Based on monthly/seasonal maps and composite modeling [44], our studied data is believed to be located primarily within the “U-shape” of the TLPB that encompasses the Amazon Basin. As already mentioned, this region also is characterized by strong seasonal variability due to the South American Monsoon System, which represents one of the most prominent summertime climate patterns in South America [45].
This region’s native vegetation corresponds to the Open Ombrophilous Forest type, with a canopy height of around 20–25 m and emerging trees reaching 30–35 m, dominated by valuable timber species [40,41,42,43,44,45,46,47,48,49,50,51,52]. The annual average temperature in this region is 26 °C, and the average annual rainfall is 2438 mm, with well-defined dry and moderate water deficit conditions during the winter months of June and August (Figure 1C). The soil is classified as Yellow Dystrophic Latosol according to the Brazilian Soil Classification System [53].

2.2. Species Selection, Sample Collection, and Preparation

Three species were selected that had better characteristics for performing dendrochronological studies, as indicated in preliminary works: Cedrela fissilis Vell. (Meliaceae) [33,34], Hymenaea courbaril L. (Fabaceae) [36], and Peltogyne paniculata Benth (Fabaceae) [38].
All three species are deciduous [38,54,55,56], indicating that rainfall is probably the limiting factor promoting annual tree ring formation [57]. According to the literature, the growth period of C. fissilis [54], H. courbaril [58], and Peltogyne cf. heterophylla [25], a congeneric species of P. paniculata, should coincide with the rainy season, which generally falls between September (previous year) and the end of May (current year) (Figure 1C).
Samples were collected inside the Annual Production Unit (UPA in Portuguese, meaning the delimited area designated for forest management during the current year) in 2019 from the logging firms AMATA and MADEFLONA, both legal private companies operating the 96,000 ha of the JNF under sustainable management practices [48]. One disc from each of the 29 C. fissilis, 53 H. courbaril, and 40 P. paniculata trees was cut at the top level of the first log (6 m) of the felled trees (Figure 2A), following the methodology described in [47]. The samples were collected at log yards where recently cut logs (April to May of 2019) were stored. Three or four radial wood sections from each disc were cut and transported to the Wood Anatomy and Dendrochronology Laboratory from the ESALQ, University of São Paulo.

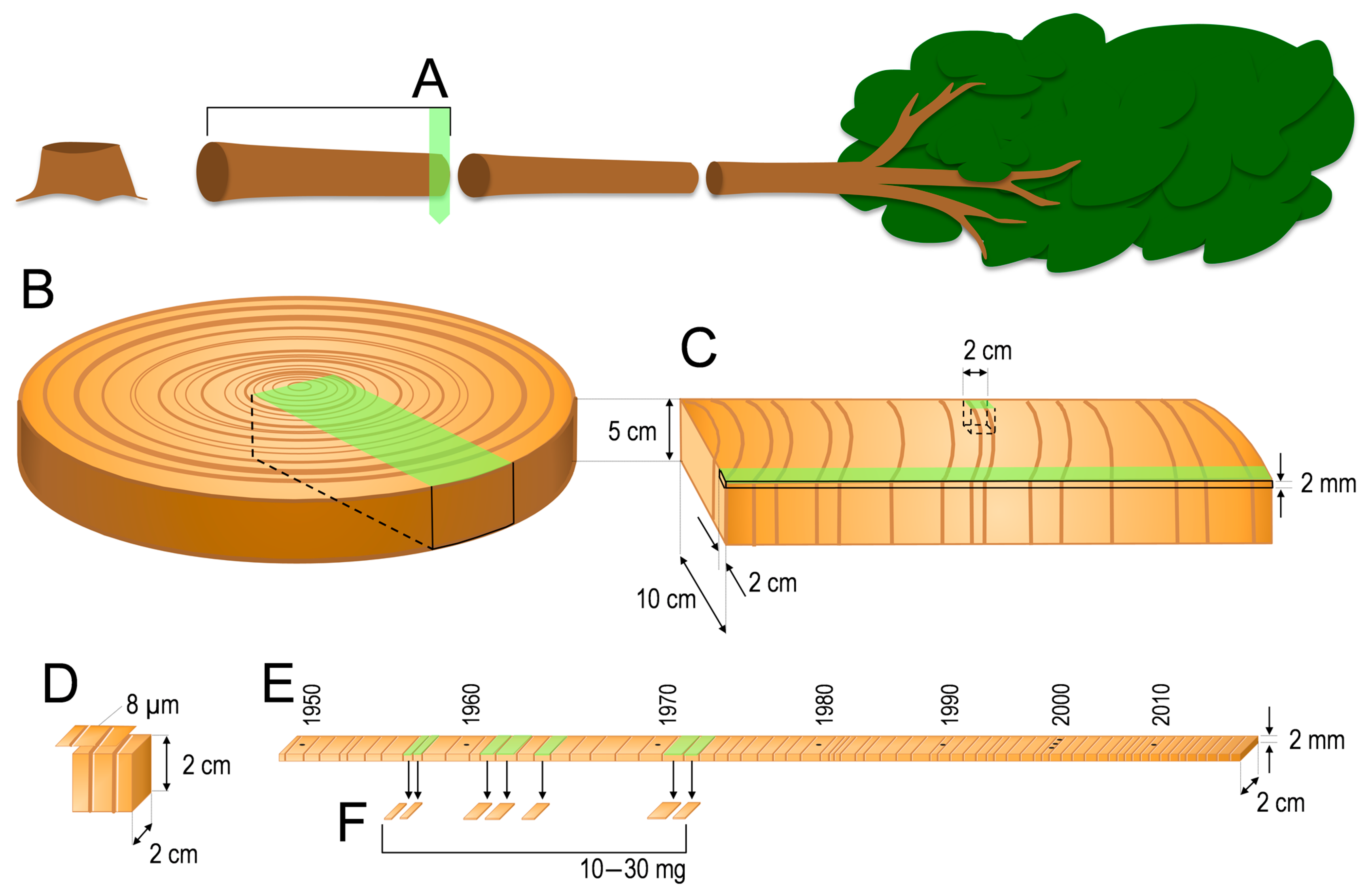

The transverse surfaces of the radial sections (10 cm width and 5 cm thickness) were polished with sandpaper (80–600 grit) to reveal the growth rings at the macroscopic level and scanned (1200 dpi resolution) to allow image analysis of the growth rings. To evaluate the microscopic anatomical tree-ring structure, a wooden cube specimen (2 × 2 × 2 cm) was cut from each sample to obtain histological slides of the transverse plane (Figure 2D). A thin radial specimen (2 cm width and 2 mm thickness) was cut transversely, conditioned to 12% moisture [59], scanned in an X-ray densitometry chamber (Faxitron MX20-DC12, Faxitron X-ray, Lincolnshire, IL, USA), and the grayscale images analyzed to aid the tree-ring boundary delimitations (Figure 2E).

2.3. Tree-Ring Demarcation Strategies and Analysis

After transverse surface, histological, and X-ray grayscale images were collected, tree-ring structures were evaluated both macroscopically and microscopically to identify the wood anatomical markers for ring boundaries and measure ring widths (Figure 3). Tree-ring boundary delimitation was performed by combining wood anatomy techniques and X-ray densitometry analysis [59].
Growth ring structures appear to be well-formed in the three studied species. Tree rings were cross-dated within (3–4 radii per tree) and among trees using skeleton plots, then dated and measured in CDendro and CooRecorder® software [60]. The dating accuracy was then checked with the computer program COFECHA [61]. Ring-width series were detrended and standardized using an age-dependent spline, and the robust mean index “standard” chronology was computed using the ARSTAN computer program [62,63]. Each species’ standardized chronology was selected and characterized using the following statistical parameters: first-order autocorrelation, mean inter-correlation among all series (RBAR; e.g., [64]), and the expressed population signal (EPS; e.g., [65]).

2.4. Radiocarbon Dating

Seven single rings from C. fissilis, H. courbaril and P. paniculata trees that were associated with the calendar years of 1957, 1958, 1962, 1963, 1965, 1971, and 1972 (Figure 3) were sampled for 14C analysis at the Wood Anatomy and Tree-ring Laboratory, ESALQ, University of São Paulo (LAIM/ESALQ/USP). These calendar years are from a period where the differences in atmospheric 14C between consecutive calendar years are the highest. Moreover, four of the individual tree rings selected represent calendar years from the ascending portion of the atmospheric 14C bomb peak: one from the peak itself, and the remaining from the descending side of it. Wood material between 10 and 30 mg was collected from each selected ring (the whole growing season) by separating them at the marginal parenchyma, being careful not to include any material from neighboring rings (Figure 2E). Samples were then labeled by their core identifiers and calendar dates, packed, and shipped to KCCAMS/UCI for chemical extraction to α-cellulose, graphite target processing, and 14C analysis. At KCCAMS/UCI, α-cellulose was isolated following a method adapted from [66], with pre-baked 13 mm culture tubes used as chemical treatment vials. Wood aliquots were initially reduced to chips and re-weighed to check wood losses during cutting (<3%). Next, they were subjected to lignification and chlorification by means of an acid-base-acid pretreatment (1N HCl and NaOH at 70 °C for 30 min each, until supernatant was clear) [67], followed by a bleaching step (1N HCl and 1M NaClO2 at 70 °C in a fume hood for approximately 6 h) to isolate holocellulose. Hemicellulose was then removed in a 17.5% NaOH solution at room temperature for approximately 1–2 hrs maximum, followed by one rinsed with 1N HCl to remove any labile atmospheric CO2 uptake during the NaOH treatment [68]. The final insoluble organic portion is referred to as α-cellulose, and it was subsequently rinsed with warm ultrapure water (~18 MΩ.cm) until pH 6 was reached, then homogenized, dried, and stored for later processing.
To produce solid graphite for 14C-AMS measurements, about 2 mg of α-cellulose from each selected calendar year from the chronologies of JNF were loaded in pre-baked quartz tubes and evacuated-sealed to undergo combustion at 900 °C. We also chose to produce duplicates from either 1962 or 1963 α-cellulose extracts, depending on the amount of extracted material available from these calendar years in each chronology series. The measurement of wood material from these calendar years, which falls into the rising slope of the bomb-peak, potentially can be biased by small differences during the sampling of the rings (separation from cross-section and neighboring rings), reduction to chips before chemical treatment is applied (losses of wood during cutting), and/or poor homogenization of the final α-cellulose fibers. Therefore, a high degree of agreement between duplicates would prove that our procedures are meaningful for this type of 14C investigation.
The CO2 produced during combustion was cryogenically separated from other gasses and then reduced to filamentous graphite by Zn processing, following established protocols (e.g., [68], and references therein). Two wood reference materials, AVR wood-blank (14C-free) and barley mash FIRI-J (post-AD 1950 14C), were processed alongside samples to facilitate background corrections and quality control of the chemical extractions. Filamentous graphite was pressed into Al target holders and measured using an in-house modified 500 kV compact AMS unit (NEC 0.5 MV 1.5SDH-21 spectrometer from National Electrostatics Corporation, Middleton, WI ) [69]. The samples’ 14C/12C ratios were normalized to six known standards of oxalic Acid I (OX-I; SRM4990B) from the National Institute of Standards and Technology (NIST, Gaithersburg, MD, USA). The emerging result was then corrected for isotopic fractionation by online-δ13C measured directly loop-by-loop at the spectrometer, and background corrected by the 14C/12C ratio of the α-cellulose extracted wood blank [70]. A final value for the fraction of modern carbon (F14C, defined as the ratio of the sample’s radioactivity to the modern standard’s radioactivity [71]) was reached using calculations from [72]. Graphite targets produced from combustible organics, such as POC coal from USGS, oxalic Acid II (OX-II) from NIST, and sucrose from ANU, were also analyzed for further quality assessment of the instrument. Overall, the measurements’ precision and accuracy were better than 0.2%.

3. Results and Discussion

3.1. Tree-Ring Demarcation

The conventional procedure used to determine the presence or absence of growth rings is to distinguish macroscopic anatomical patterns in the cross-section of the xylem [8,73]. In our study, these morphological changes were also verified by X-ray densitometry (Figure 3C,F,I). The potential of X-ray densitometry techniques to characterize and delimit tree rings has been increasingly validated for tropical species (e.g., [74,75,76,77,78]).
Similar to other tropical regions, in JNF the genera Cedrela [79], Hymenaea [80], and Peltogyne [81] presented well-defined growth rings useful for dendrochronological studies. The three genera present growth rings marked by marginal parenchyma. They were also characterized by a progressive increment of wood density values between the transition of early- and latewood, related to thick-walled fibre formation. Density values fall sharply at the end of the latewood. This density decrease observed in C. fissilis was related to the increase in the diameter and frequency of vessels and the initial-marginal parenchyma at the beginning of the earlywood (Figure 3B,C). In H. courbaril, it was related to the marginal parenchyma (Figure 3E,F), and in P. paniculata, it was related to the thin parenchyma band associated with the intercellular canals (Figure 3H,I). Both species showed a slight or no variation in vessel diameter and frequency between the early- and latewood transition.

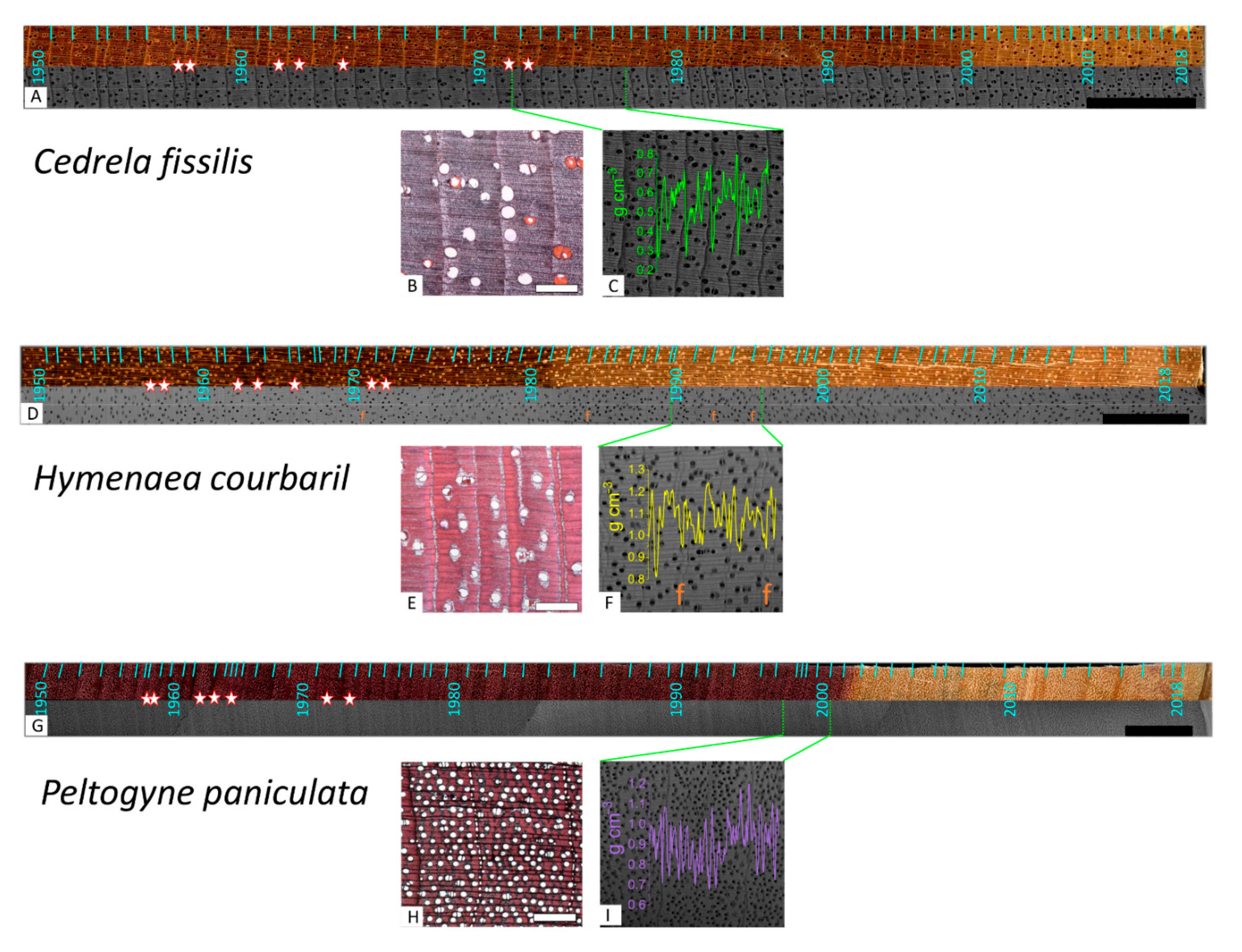

The combined use of anatomical and X-ray densitometry techniques helped the observation and detection of the thin layer of marginal parenchyma cells in P. paniculata and H. courbaril by improving the observation of the marginal parenchyma bands, which, having few cells (Figure 3E,H), are difficult to observe in the dark purple heartwood of P. paniculata (Figure 3G) and in the clear cream sapwood of H. courbaril (Figure 3D). The intra- and interannual wood density profiles, as physical parameters of the wood provided by X-ray densitometry, are related to variations in the wood anatomy and can contribute to the definition of the ring boundaries [77,78].

3.2. Tree-Ring Chronologies

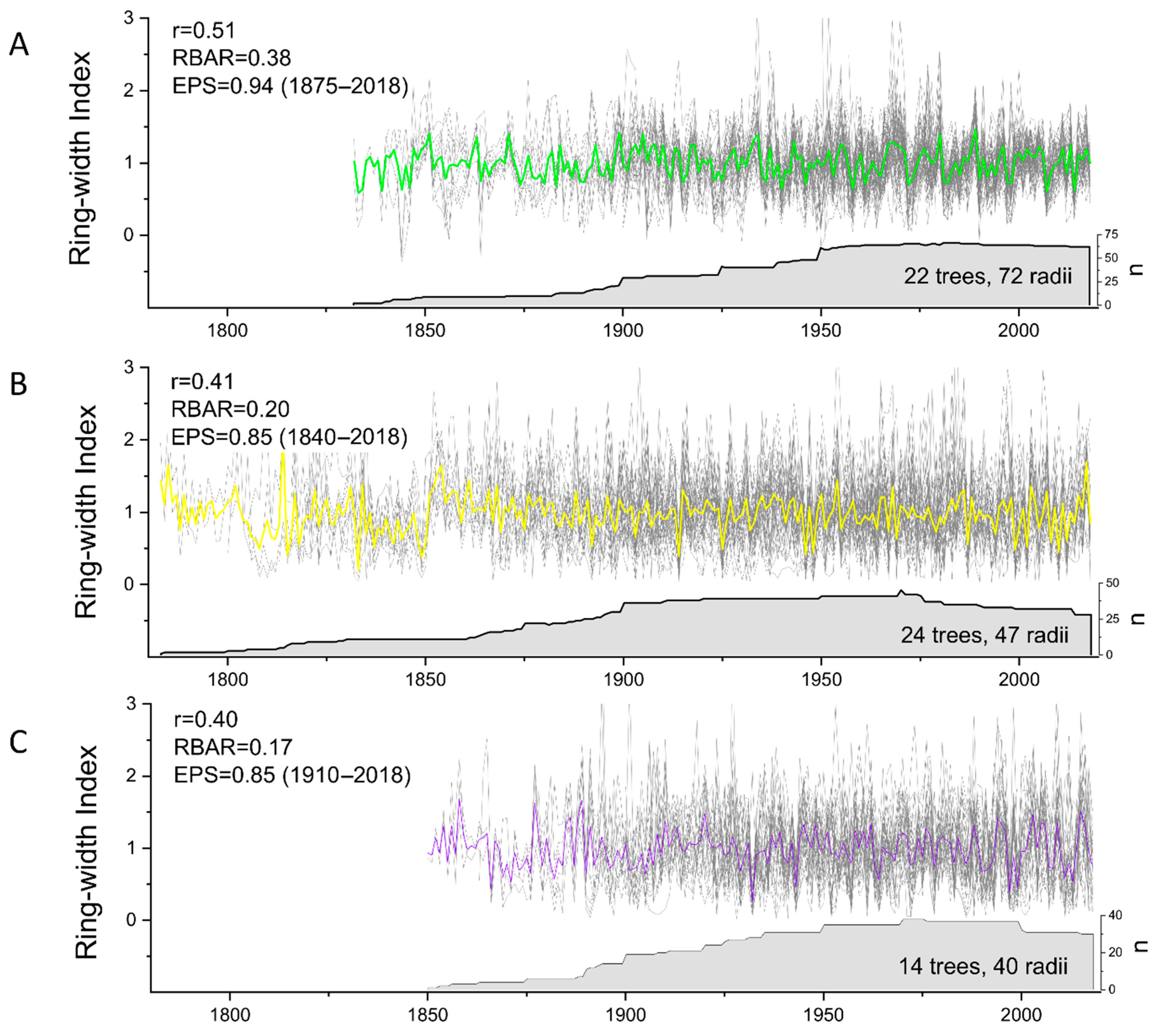

After identifying growth ring boundaries, the verification of the annual ring periodicity is a key point for the construction of chronologies [7,8,9]. The main strategy for performing this verification is the cross-dating between trees due to synchronized growth triggered by the annual climate cycle [57]. In the present study, the tree-ring width chronology of C. fissilis (1832 to 2018) based on 72 radii from 22 trees (76% of all sampled trees) presented a significant mean correlation among the series (r = 0.51, p < 0.01; RBAR = 0.38; Figure 4A). The chronology is statistically reliable from 1875 to 2018 based on the expressed population signal (EPS), which exceeded 0.85. The chronology of H. courbaril (1783 to 2018), based on 47 radii from 24 trees (45% of all the sampled trees), and P. paniculata (1850 to 2018), based on 40 radii from 14 trees (35% of all the sampled trees), presented a significant mean correlation among the series (r = 0.41, p < 0.01, Figure 4B; and r = 0.40, p < 0.01, Figure 4C, respectively). The RBAR of the chronologies was 0.2 and 0.17 for H. courbaril and P. paniculata, respectively, which verifies the high variability in growth between individuals of the same species, as is common in tropical studies [82,83]. The EPS values (≥0.85) indicated a good population representation of the chronology from 1840 to 2018 for H. courbaril and from 1910 and 2018 for P. paniculata. EPS values close to 0.85 are generally accepted as a good level of common signal fidelity among trees [65].
EPS values for H. courbaril should be taken with caution. Figure 3D and Figure S1 show that H. courbaril at JNF shows a small number of wedging rings, where the marginal parenchyma of two to four rings converged on one. The issue was initially detected in one of the radii of the four samples analyzed. The problem was more apparent in rings closer to the pith and in those formed after 1980. Furthermore, the growth rings in these segments of the cross-section showed a low degree of synchronized variation (complacent rings, cf. [84]), hampering the cross-dating between trees and even between radii of the same tree. This may have increased the probability of ring misidentification for this species (see Section 3.3 below), despite showing apparently acceptable dating statistics, as have been observed in other tropical tree species [21,25].

3.3. Radiocarbon Analysis

α-Cellulose chemical processing to produce homogenized fibre extracts from wood series and wood reference materials to undergo 14C analysis were straightforward and did not take more than 5 days in total, including wood cutting to chips and drying processes. Removal of wood extractives was observed visually during the first acid treatment at 70 °C/30 min of P. paniculata selected tree rings: the sample supernatant turned light pink at the first acid bath. Treatment was repeated to ensure effective removal of unwanted compounds that were clearly soluble in acid. For the duration of the chemical extraction, no further unusual coloring was observed, from supernatants or solids. The resulting fibrous material appeared white and seemed sufficiently pure for isotopic measurements upon analysis, even though organic solvents (typically used when applying the Jayme-Wise method with a Soxhlet system [66]) were not added to the existing chemical protocol.
Table 1 shows the measured F14C results associated with the seven calendar years selected for all tree species of JNF as well as results from reference materials. Data reliability was evaluated by checking post-AD 1950 reference materials targets, such as OX-II, ANU, and the chemically processed FIRI-J, against their consensus value limits (Table 1). A subfossil FIRI-H wood, subjected to α-cellulose extraction, was also in excellent agreement with expected 14C value. The average AVR wood blank processed to α-cellulose and used to correct tree-ring 14C results was statistically indistinguishable from the combustible POC coal target, and yielded a radiocarbon age equivalent to 53.7 kyrs BP on average.
Reproducibility was evaluated based on duplicated measurements of reference materials (combustibles or extracts) as well as JNF duplicates of selected calendar years. Although we produced just three pairs in total from JNF α-cellulose extracts, their error-weighted mean among duplicates was equal or lower than 0.13%, and better than the individual error (Table 1). As already stated, individual target error includes all systematic propagated errors—i.e., counting statistics, primary and secondary standard measurement accuracy/precision, isotopic fractionation, as well as background corrections (details in [70]). Essentially, reproducibility was at a 0.2% level for all duplicates, except for OX2, which was 0.27%.
Radiocarbon results pertaining to the same calendar years but from coexisting tree species from sites separated by less than 10 km—e.g., C. fissilis (JAC09C) and P. paniculata (JAR26C)—also yielded similar 14C signatures (within ±2σ), except for the results concerning the calendar year 1965 (at the highest and greatest noise portion of the bomb-shaped curve). Still, reproducibility was within the 1.4% level—i.e., good to excellent—taking into account that these are two different tree species with lifecycles that are most likely slightly misaligned.
To validate whether the JNF tree species are annual in nature, and to verify whether the tree species/site chronologies attained for them are robust, we plotted the F14C associated value of each calendar year’s individual tree rings alongside the current atmospheric post-AD 1950 14C calibration curves (see Figure 5). Since air masses transporting 14C and influencing the JNF site are presently undefined—i.e., JNF falls within the U-shaped boundary of the TLPB and the western side of the actual boundary itself [44]—we used both SH datasets from the designated atmospheric 14C zones (SH zone 1–2 and 3), defined in [27], to produce Figure 5. Calendar dates were also adjusted to a small decimal date (i.e., 0.08 ± 0.15 was added to each calendar year) to better represent the middle of the expected maximum growing season. The annual decimal date was inferred based on the length and amount of the region’s precipitation (Figure 1C), and best fitting of calendar dendrochronology dates to bomb curve. The data cover a length of approximately 4 months in total, which started at the preceding calendar year and spilled over to the next year, placing the maximum growth where precipitation was already well established. This type of anchoring and adjustment by calendar dates has been proven to work well for tree species and settings across the Pantropical region (e.g., [11,24]).

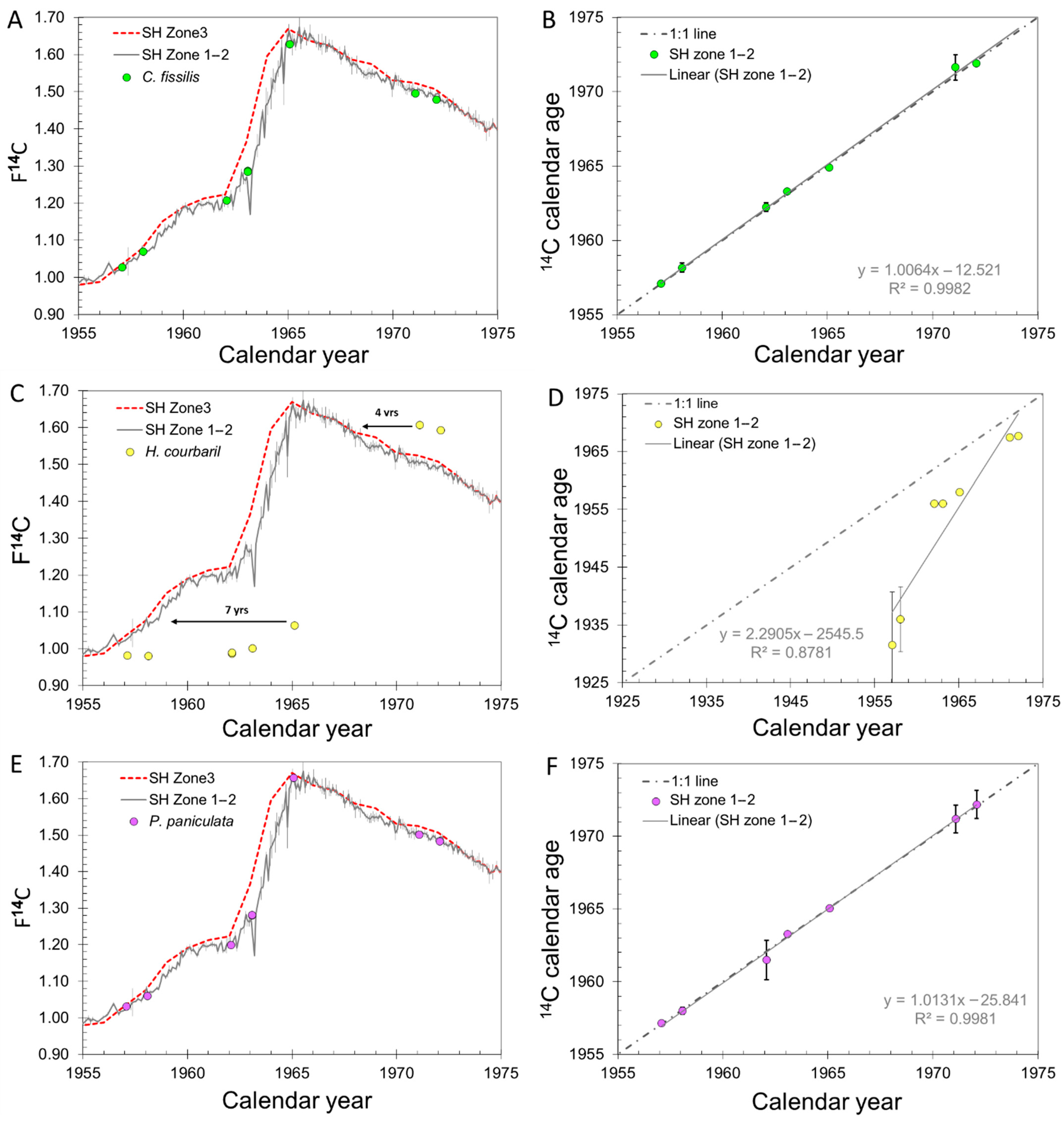

In Figure 5 we also plot 14C ages calibrated using CaliBomb (http://calib.org/CALIBomb/, accessed 6 April 2021) based on the F14C values attained from tree ring data versus dendrochronology calendar dates. This is a precise way to visualize the same data, which clearly predicts whether the annual calendar dates were assigned correctly. It also establishes what SH 14C zonal region these tree species/site belong to: i.e., whether or not air masses reaching sites originate mostly from outside the TLPB boundary U-shaped area (e.g., SH zone 1–2). Note that here we already eliminated all calibrated 14C ages’ ambiguities produced by CaliBomb, as the sequence of calendar ages expected was already known at a decimal level (according to rainfall season across the region; Figure 1C). The comparative analysis outlined above attested to each chronology’s robustness with respect to tree species’ annual growth patterns.
Optimal matches between slightly adjusted dendrochronological dates (Table 1) and atmospheric post-AD 1950 14C calibration curves were found for C. fissilis (JAC09C) and P. paniculata (JAR26C) (Figure 5A,E, respectively). Moreover, the remarkable agreement of discrete calibrated 14C ages versus dendrochronology ages indicated that these tree species were exposed to 14C air-masses mostly from SH zones 1–2 (Figure 5B,F; dashed line = 1:1 match, solid line = best-fit linear regression, R2 ≈ 1). The present finding is significant. At first glance, the current compiled data of global atmospheric 14C, based mostly on latitudinal differences, place JNF within SH zone 3 [27]. Yet, the boundaries between SH zones 1–2 and zone 3 that are associated with the TLPB over South America are still poorly defined [11], and bear a huge uncertainty [44]. While highly speculative, as just 7 tree-ring calendar years from these tree species have been measured so far, it is possible that we have found the right region across the Amazon Basin for studying TLPB space-time variability where the positive atmospheric 14C gradient is disrupted, forming two distinct zones. A full sequence of tree ring 14C measurements of one or both of these tree species would be required to better elucidate the atmospheric circulation pattern and the carbon reservoir provenances affecting this region [44,85].
With regard to the 14C results of the H. courbaril (JAJ30A), which have been shown to be annual at Panama [28], we found an erratic sequence of wood ages at JNF (Table 1, Figure 5C,D). According to the yielded F14C results attained from the dendrochronology dates provided, at least seven calendar years were not detected during ring counting due to the presence of extra wedged rings undetected during ring demarcation. This is the most acceptable explanation for the offset detected in the 14C measurements. A second explanation would be random absence of rings. But this would imply that cambial dormancy for this tree species at this location (about 20 km south of the other two tree species in this study) is linked to something other than precipitation, resulting in an interesting challenge to be elucidated. Nonetheless, this outcome makes this chronology unfit for further long-term studies, as some ring boundaries remained indistinct (Figure S1) even though a couple of techniques were used to determine the cambial markings (Figure 3). Another worrisome aspect of our 14C findings here is related to the significant mean correlation values associated with H. courbaril chronology (Figure 4B). Alone they would probably be accepted as sufficient proof for chronology robustness. But after our independent evaluation—i.e., post-AD 1950 14C validation—an EPS value of 0.85 and associated parameters did not provide a clear-cut test for verifying annual ring formation in tropical trees (at least not for this tropical tree species/site).

4. Implications for Tropical Dendrochronology and Atmospheric 14C New Records

Cross-dating provides absolute correspondence dates of specific rings within different specimens and, ultimately, an absolute date for each ring by matching the ring width patterns among specimens at a given site [86]. This is the backbone of the dendrochronology technique. These techniques were applied to C. fissilis, H. courbaril, and P. paniculata at the JNF (Figure 1), a small protected area surrounded by a degraded forest due to decades of land cover change, in order to produce tree-ring width chronologies. Accuracy and reliability of dating were controlled by observation (e.g., Skeleton plot) and statistical correlation assessments (e.g., COFECHA) and were found to be satisfactory for all chronologies produced in this study. However, once tree ring chronologies were carefully evaluated by post-AD 1950 14C measurements of selected tree rings (Table 1, Figure 5), an offset was detected on H. courbaril chronology, implying that several rings were missed due to their indistinguishable anatomical features (Figure S1). This has important implications for tropical dendrochronology, as it illustrates again how identifying the growth-ring boundaries in some tropical tree species/sites is very problematic and can be somewhat unpredictable. In contrast to temperate climates (with well-demarcated wet and dry seasons), the subtle changes of tropical climates, and consequently the poor demarcation of ring boundaries, call for validation of the annual periodicity of the tree rings using independent methods differing from those found in the extra-tropics. Therefore, we postulate that high-precision validation by 14C should be adopted when studying tree-ring chronologies in the tropics (see [11,20,22,24], for example).
As already mentioned, the calendar years selected for corroborating the dendrochronology dates are from a period where the differences in atmospheric 14C between consecutive calendar years are the highest. A perfect agreement between dendrochronological dates’ assigned and expected 14C values would imply that in addition to successfully achieving the primary goal of annual validation, tree species candidates can be used as paleo proxies, and material (tree rings) also can be selected to extend observational atmospheric 14C records [11]. We also postulate that either C. fissilis (JAC09C) and/or P. paniculata (JAR26C) are excellent candidates to represent the southwestern side of the U shape associated with the TLPB [44], and should be considered in further studies for the long-term atmospheric 14C global map [11].

5. Conclusions

In this study, tree ring width chronologies of C. fissilis (1875 to 2018), H. courbaril (1840 to 2018), and P. paniculata (1910 to 2018) were developed by standard dendrochronological techniques in the southwestern Brazilian Amazonia Basin. This also was the first attempt to build a tree-ring width chronology using P. paniculata tree species. Although chronology statistical parameters are generally commonly acceptable to determine chronology fitness among dendrochronologists, these parameters can still miss the mark when dealing with new tree species in the tropics.
Here, we used post-AD 1950 14C measurements of selected tree rings and determined that while the H. courbaril tree species from JNF is unsuited to moving forward within dendrochronology applications due to indistinguishable features (missed during cross-dating), C. fissilis and P. paniculata tree species are annual in nature, and their chronologies align perfectly with expected values. This independent validation was performed by high-precision determinations at KCCAMS/UCI on α-cellulose fibres, using a substantial number of duplicates of reference materials and tree rings, giving absolute confidence in the final results and assigned dendrochronological dates. In this sense, C. fissilis and P. paniculata growth rings can be used as a powerful proxy indicator of climate variability. Moreover, due to the sampling site’s strategic location in relation to the TLPB, the dendrochronologically-dated tree rings of C. fissilis and/or P. paniculata also can be used to enhance the limited amount of observational data for the Southern Hemisphere atmospheric 14C at lower latitudes.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/f12091177/s1. Figure S1. Examples of doubtful growth rings (GR) in Hymenaea courbaril; marginal parenchyma of two to four rings converge into one.

Author Contributions

Conceptualization, Radiocarbon Methodology, Supervision, Investigation, Formal analysis and interpretation, Funding acquisition, Writing—original draft, visualization, data curation, validation, literature synthesis and discussion, G.M.S.; Tree-ring Methodology, Investigation, Writing—original draft, visualization, literature synthesis and discussion, D.R.O.R., N.d.O.B. and G.A.-P.; Tree-ring Methodology, Supervision, Writing—original draft, visualization, and discussion, A.C.B.; Tree ring Methodology, Supervision, Resources, Funding acquisition, Writing—review & editing, F.A.R. and M.T.-F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a U.S. National Science Foundation grant to GMS (NSF AGS-1903690). This contribution is part of the PhD thesis of DROR at the ESALQ-USP, which was supported by a fellowship from the Fundação de Amparo à Pesquisa do Estado do São Paulo (FAPESP; grant # 2018/22914-8). NOB was supported from FAPESP (grant # 2019/26350-4). GAP was supported by CAPES (grant # 88887.199858/2018-00) through the National Academic Cooperation Program in the Amazon. This study was also partially funded by Wood Anatomy and Tree-Ring Laboratory (LAIM) (FAPESP; grant # 2009/53951-7), Laboratory of Dedrochronology at UFLA (FAPEMIG), and PIRE-project (FAPESP; grant # 2017/50085-3).

Data Availability Statement

Data pertaining to this research work appears in Table 1. Supporting 14C records used in comparisons are properly cited in text and reference list, and appear in Supplementary Materials of these works.

Acknowledgments

GMS appreciated the help of Xiaomei Xu and Claudia Czimczik during data analysis and KCCAMS/UCI facility support. The authors thank (SISBIO) ICMBio for the collection license #66094. Additional thanks to the logging firms AMATA and MADEFLONA for their assistance in the field.

Conflicts of Interest

The authors declare no conflict of interest. Also, the funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
