1. Introduction
There is a substantial demand for bioenergy in the United States (US) for its potential to displace fossil fuels, enhance energy security, promote environmental benefits, and provide opportunities for economic development. Bioenergy has been promoted by federal policies, including the most recent Energy Independence and Security Act (EISA) of 2007 that set a mandatory Renewable Fuel Standard (RFS) requiring energy producers to use at least 36 billion gallons of biofuels in 2022 [
1]. Similarly, the Food Conservation and Energy Act of 2008 (the 2008 Farm Bill) has provided various provisions and incentives to promote biomass and bioenergy. The Bioenergy Crop Assistance Program (BCAP) established under the 2008 Farm Bill and reauthorized in the 2014 Farm Bill and the 2018 Farm bill provides financial assistance to farmers to establish, cultivate, and harvest biomass to energy generation [
2]. Recently, policies have promoted improvements in crop productivity as well as farmland, forest, and land management to support the bioenergy industry. As a result, establishing bioenergy crops has been identified as a significant source of bioenergy with the potential to supply adequate feedstock to sustain the bioenergy industry [
3].
Interest in bioenergy has increased in the southern US as well, mainly because of a warm and wet climate that is conducive to highly productive bioenergy crops [
4]. However, establishing bioenergy crops in this region will require participation from private landowners as they own most of the land [
5]. It is crucial, therefore, to estimate the availability of biomass feedstocks from private land by understanding to what extent and under which conditions landowners intend to harvest bioenergy feedstocks from their property. Even though bioenergy crops can potentially provide a sustainable feedstock to support the bioenergy industry, commercial scale production of bioenergy crops (especially short rotation woody crops) has not been established yet [
6]. Further complicating the issue, introducing bioenergy crops to conventional farming practices will require major changes in land use and management practices, and it is currently restricted by several factors such as uncertain economic returns for landowners, inadequate knowledge/awareness about bioenergy and their willingness to promote bioenergy crops, and low-cost fossil fuels such as natural gas and coal [
5,
7,
8]. Finally, insufficient economic and policy incentives along with uncertainty in the biomass market, make bioenergy crops less attractive to landowners. Since there is not a well-defined market for biomass, determining landowner willingness to produce bioenergy crops is a challenge.
Basic decision-making models suggest that landowners make land use decisions in relation to available human, natural, and capital resources, potential opportunities against constraints, and careful examination of uncertainty and risk [
9]. Several studies have been conducted in the past to understand factors that affect landowners’ decisions for adopting a bioenergy crop production system. Caldas et al. [
9] assessed farmers’ willingness to produce biomass feedstocks from crop residues, dedicated annual crops, and perennial crops for three regions in Kansas. Their study found that farmers’ lack of familiarity with producing bioenergy crops and their perception play a key role in their willingness to plant bioenergy crops. Leitch et al. [
5] studied private landowners’ intent to supply forest biomass for energy in Kentucky based on the theory of planned behavior. Their study highlighted that respondent attitudes, perceived subjective norms, and perceived control are significantly related to their intent to harvest woody biomass for bioenergy production. In another study in the southeastern US, farmers were asked to indicate their willingness to plant switchgrass [
10]. The results showed that many nonfinancial factors such as perceived environmental benefits, reduced crop inputs, contribution to national energy security, and diversification of farm incomes significantly increase landowner willingness to produce energy crops.
The aforementioned studies mainly focused on how landowner knowledge and attitudes toward bioenergy influence their willingness to promote bioenergy production overall. There is limited research on potential biomass crop production focusing specifically on marginal lands—lands with poor quality soil and lower productivity, including grasslands, shrubland, fallow cropland, and hay/pasture. Marginal lands are attractive options for growing energy crops because they do not compete with food production or promote forest conversion and are less likely to intervene with existing management practices. Further, growing energy crops on marginal lands can provide positive ecological benefits such as improved soil and water quality, carbon sequestration, and biodiversity. Finally, previous research also suggests that bioenergy crops grown on marginal lands require less fertilizer and are more flood and drought tolerant than conventional crops [
11,
12]. Recently, there has been a focus on suitability analyses of marginal lands for bioenergy crop production [
6,
13], but only a very few have assessed social availability of such lands for a sustainable future of bioenergy cropping systems [
14,
15]. Even though a substantial amount of marginal lands may be suitable for growing energy crops, it is important to understand if landowners are willing to change their land-use behavior to make those lands available for bioenergy crop production.
This study aimed at (a) identifying landowners’ perception of bioenergy, (b) assessing how their perception translates into their willingness to utilize marginal lands for bioenergy crop production, and (c) estimating acreage of lands available to supply biomass feedstock at different market conditions in northern Kentucky. In addition, we also attempted to identify key drivers and challenges to landowners with respect to their participation in the bioenergy crop production process. We collected information on landowners existing land management practices, knowledge and understanding of bioenergy crops, key price variables (biomass prices and rental rates), landowner perceptions of bioenergy, and key socio-demographic information (such as age, sex, education, income) to examine if and under what conditions landowners would make their land available for growing bioenergy crops. The study may contribute to the existing literature in several ways. First and foremost, it is one of the first studies to investigate the social availability of marginal lands for bioenergy production. Second, even though the study is limited to northern Kentucky, landowner intent to harvest energy crops or rent their land for bioenergy crop production in this region may also apply to private landowners in similar geographic locations where bioenergy crop production has been recommended. The results of this study should be useful for policy makers trying to promote effective biomass supply chain strategies and future renewable energy production.
This paper is organized into different sections.
Section 1 provides a general background and impetus of this study with clearly defined objectives.
Section 2 explains materials and methods applied in the study. Results are shown in
Section 3. Discussion based on the findings of the study is presented in
Section 4.
Section 5 explains some of the limitations of the study. Lastly,
Section 6 is devoted to concluding remarks and direction for future research.
2. Materials and Methods
2.1. Methodological Approach
Since there is no existing market for biomass, landowner decisions cannot be observed directly. However, it is possible to estimate landowners’ preferences for different bioenergy crops based on contingent valuation method (CVM). CVM is a survey-based stated preference technique that is often used to estimate willingness to pay for environmental goods and services for which a market does not exist. Contingent valuation surveys (see
Supplement Materials) can also be used to estimate willingness to accept payments to supply goods and services that are not currently sold in the market [
16].
In a contingent valuation survey, all attributes of the environmental resource are first described and then survey respondents are asked whether they would pay (or accept) a specific amount to access (or provide) the resource. In general, CVM generates a scenario like that encountered in typical market transactions [
17]. Respondents are given a hypothetical price (payment) for a resource and they decide to accept the price (payment) or not. Generally, they are not required to suggest a specific price—that they are willing to accept if they deny the offer [
17]. If the attributes of environmental resources are described precisely, CVM techniques can provide valuable information about the demand and supply of non-marketed resources. CVM is flexible and is based on the respondents’ expressed thoughts and conditions and it can evaluate the degree of consensus for willingness to pay for environmental goods [
18]. In addition, CVM is a relatively simple method when compared to other methods such as the choice experiment. CVM evaluates respondents’ overall willingness to pay/accept value with individual preference for the environmental good, whereas choice experiment evaluates the values for many attributes that make up the environmental good [
19]. In other words, respondents view the evaluated good as a whole in CVM and as separable individual attributes in the choice experiment [
20].
Surveys have long been a useful tool to gather information about people’s attitudes and opinions regarding certain phenomena [
21,
22]. For this study, we used a contingent valuation survey to assess landowners’ willingness to accept a payment for biomass production. Specifically, we assessed their willingness to accept a direct payment for producing bioenergy crops on their land, as well as their willingness to accept a payment for renting their land to someone for bioenergy crop production. The main reason for assessing the rental payment option was that many rural landowners might not be currently engaged in farming activities and they may not have the capabilities and interest in growing energy crops on their land. In addition, a rental payment is an easy, certain, and secure income source for the landowner. The survey also collected data on landowners’ perceptions of bioenergy.
2.2. Study Area and Data Collection
The study focused on four counties (Trimble, Gallatin, Carroll, and Boone) in northern Kentucky. This area is unique for its geographical location bordering northern and southern regions of the US. It is also representative of the Ohio River basin. There is a diverse land use with small, privately-owned, parcels of land. Further, there are three coal plants within the four-county area that provide opportunities to co-fire biomass with coal for energy generation without the need of significant capital investment for establishing new bioenergy facilities (
Figure 1).
As addressed previously this study examined only marginal lands. However, identifying the subset of landowners who have marginal lands and obtaining their information is challenging. Many previous studies focused on all or most existing forests or croplands, making identifying respondents relatively easier by using existing publicly available information such as county tax records or landowner association membership lists [
23,
24]. To overcome this difficulty, we used listGIANT, a private company based in the US, to identify landowners who have at least 10 acres of marginal land. Previous studies have also proposed 10 acres as a minimum viable area for bioenergy production due to production logistics such as storage, transportation etc. [
25]. listGIANT defined 10 acres of marginal lands by aggregated land use identified as fallow cropland, shrubland, grassland, hay/pasture, and barren land. Other researchers have used listGIANT in similar studies [
26,
27]. Based on available tax records and other information, listGIANT provided information on 1544 landowners who satisfy the requirement for the survey within our study area. Of the 1544 landowners, 522 had valid email addresses.
Prior to contacting respondents, we conducted a pilot study with local landowners in collaboration with the University of Tennessee Extension to check the effectiveness of the question wording, the flow of questions, and survey length. Based on the input from the pilot survey, minor changes were made to the survey to improve clarity. After finalizing the questionnaire, surveys were sent to 1544 landowners, 522 via email and the rest through traditional mail.
The survey was administered between August 2017 and December 2017. Three mailings were sent: (1) a first questionnaire mailing accompanied by a cover letter explaining the purpose of the survey and a business reply envelop, (2) a reminder/thank you post-card was sent one week after the first questionnaire mailing to express appreciation for responding as well as a request that if not completed, to do so, and (3) a final questionnaire mailing along with an updated cover letter and a business reply envelope after four weeks to non-respondents from the first round.
2.3. Survey Design
The survey had several sections. Before asking questions in each section, a brief overview and introduction of the section was provided. The first section queried respondents on their current land management practices. In the second section, a series of questions asked landowners about their knowledge and understanding of bioenergy crops. In the following section, the contingent valuation part of the survey, we assessed landowners’ willingness to grow bioenergy crops on their land and their willingness to rent their land to others for bioenergy crop production. This section also asked landowners about their opinions and attitudes towards bioenergy. Finally, the last section of the questionnaire asked general socio-demographic questions such as age, income, and education.
The questions for the contingent valuation section were separated into two sub-sections. The first sub-section assessed landowners’ willingness to supply biomass from their land by growing short rotation woody bioenergy crops such as sweetgum (Liquidambar styraciflua L.), sycamore (Platanus occidentalis L.), and cottonwood (Populus deltoides W. Bartram ex Marshall). Since landowners with marginal lands may have limited information on specific bioenergy crops, survey respondents were provided a hypothetical scenario for a bioenergy crop with attributes similar to the three bioenergy crops. Information about this hypothetical scenario included detailed descriptions of production costs, potential yield, fertilization and irrigation requirements, and soil erosion potential, to help the survey respondent make an informed decision. Respondents were then asked if they would be willing to grow that crop on their marginal land. If they indicated yes, they were asked how much of their existing marginal land were they willing to grow this crop and at what price would they be willing to sell its biomass.
As mentioned earlier, rural landowners might not be currently engaged in farming activities and therefore, they may not have the capabilities and interest in growing energy crops on their land. However, they might be willing to accept a rental payment for their land as a secured income source without actually engaging in any of the costs or risks associated with bioenergy crop production. Therefore, in the second sub-section, landowners were queried about their willingness to rent their land for biomass production. Detailed information about renting their land was provided to help them make an informed decision. They were then asked if they were willing to rent their land for bioenergy production. If they responded yes, they were asked how much of their existing marginal land they were willing to rent and at what rate. Finally, landowners were also asked about concerns they may have about renting their land for bioenergy production.
Once the questionnaire was developed, it was important to evaluate its validity and internal consistency. A questionnaire is valid if it measures what is intended/desired to be measured [
28]. In other words, validity explains whether results obtained from the questionnaire survey would agree with the real world. On the other hand, internal consistency measures how different items within the questionnaire measure the same characteristics [
28]. To evaluate validity, we used known-group validity, a form of construct validity to test differences between two groups with expected differences [
29]. Group differences were determined using a chi-squared test similar to the approach used by Rodrigues et al. [
30]. Previous studies have shown that younger landowners are relatively more willing to promote bioenergy crops [
27,
31]. Thus, our pre-specified hypothesis to determine known group validity was that younger landowners (<65 years) were more willing to promote bioenergy crop production. For internal consistency, we used Cronbach’s alpha, a commonly used measure of reliability [
32]. For example, our questionnaire evaluated landowners’ perception on bioenergy using 14 statements. We examined whether those statements measured the same characteristics i.e., perception.
2.4. Boosted Regression Tree Analysis
Landowner willingness to supply bioenergy was modeled as a two-step decision process. The first decision was whether they would be willing to grow bioenergy crops on their marginal land (or rent out their land to grow bioenergy crops) and if yes, the second decision was how much of their land they would be willing to put into bioenergy production (or how much to rent out for production). Boosted regression tree (BRT) analysis was used to model the two decisions separately.
Boosted regression trees (BRT) incorporate techniques from both statistics and machine learning [
33]. It uses two algorithms: decision tree algorithms (classification and regression trees) and boosting methods for combining several simple models. Decision trees are non-parametric supervised learning methods aimed at creating a model that predicts the value of a target variable based on the values of several input variables [
34]. In classification trees, the target variable is categorical, and the tree is used to identify the “class” within which the target variable would likely fall (e.g., Yes/No, 0/1 etc.). In regression trees, the target variable is continuous, and the tree is used to predict its value [
35]. The boosting method is used to increase model accuracy based on the idea that final predictions are made by combining predictions from several individual models. In other words, boosting is a sequential method where one model is fitted after the other with the later model trying to reduce residuals weighted by the previous model’s error [
36]. This technique optimizes predictive performance to provide better predictions than traditional regression methods that give one single best model [
33]. In addition, BRT identifies relevant variables and interactions without the need to explicitly specify them. Further, since boosting uses trees as a base learner, it is a better fit for this study which has ordered variables [
37]. BRT deals well with ordinal data (e.g., Likert scale values to understand what factors were more important in landowners’ decision to promote bioenergy crops and their opinion about bioenergy crops), while such variables are often difficult to deal with in regular parametric regression. Lastly, this study has many predictor variables with relatively few observations, thus regular regression methods are more difficult to use.
For the first decision, two BRT models were developed to analyze whether landowners were willing to participate in bioenergy crop production. The first model (BRTM 1) analyzed whether landowners would participate by growing bioenergy crops on their land. The second model (BRTM2) analyzed whether landowners would be willing to rent out their lands to others. For the second decision, two additional models were developed to analyze the amount of land that landowners were willing to commit to bioenergy crop production. BRTM3 was used to estimate the number of acres landowners were willing to commit to growing and producing bioenergy crops themselves and BRTM4 was used to estimate the number of acres they were willing to rent out to others. Since some landowners did not specify how much they were willing to commit for bioenergy production, though they were willing to enter into the biomass production system, some of the observations were omitted. Thus, only observations with potential acreage commitment greater than zero were used.
The dependent variable for the first decision indicated whether a landowner was willing to grow or rent out their land. If they were, the variable was set to 1, if not 0. The dependent variable in the second part was a continuous variable equal to the number of acres that the landowner was willing to grow or rent out.
The explanatory variables for the models included current land management practices, knowledge and understanding of bioenergy crops, perceptions of bioenergy, and various demographic metrics. In addition, concerns about renting out land for bioenergy production were included.
All the models were fitted using the software R Project for Statistical Computing with the gbm boosting package version developed by Ridgeway [
38]. Since there was not a large amount of data, the cross-validation (CV) method was used for model development and identification of optimal settings for the models. CV tests the performance of the model using a subset of data, while using all the data at some point for fitting the model [
33]. For fitting the gbm model, we used a 5-fold cross validation method where the gbm fitted five gbm models to compute cross validation error and provide an optimal number of trees. The optimal number of trees was then used to fit a final gbm model using all the data.
3. Results
Of the 522 email requests, only 17 people responded (3.25% response rate); and of the 1022 mailed surveys, 148 were returned (14.48%), 18 were returned as undeliverable. We assumed that no significant variation was present in either of the two modes of survey administrations [
39,
40,
41], implying the absence of bias across responses. Thus, we combined the responses for data analysis. After eliminating incomplete surveys and those where the respondents did not meet the criteria for participation or were simply not interested, 103 observations were used for data analysis. It is important to highlight that the response rate for this study was lower than expected, which is usually 20–30% for landowners’ survey [
42,
43]. However, similar response rates have been reported in some other studies [
44,
45]. A lower response rate can affect the reliability and validity of the survey findings. However, results from the known-group validity and Cronbach alpha tests showed that our questionnaire was valid and reliable. Chi-squared test was performed to examine the relation between landowners’ age and their willingness to participate in bioenergy crop production. The relation between these variables was statistically significant at
p < 0.05. Thus, there were differences among landowners’ bioenergy production decisions based on their age. Younger landowners were more willing to promote bioenergy crop production. Similarly, when we examined landowners’ perception on bioenergy using 14 statements, we got an alpha = 0.84 that suggests the items within the questionnaire had internal consistency. As the background information of the entire landowner population of the four counties is not available from any source, we could not draw a definite conclusion on the representativeness of the sample in this study with respect to that population. On the other hand, the socioeconomic characteristics of our sample is quite similar to those of a sample from a landowners’ survey that was conducted in the entire state of Kentucky that studied landowners’ intent to supply woody feedstock for bioenergy production [
5]. For example, both our sample and those in Leitch et al.’s study showed a higher proportion of landowners at least 65 years age and a high percentage with at least a bachelor’s degree as well. Thus, it is an indication that the characteristics of our sample is relatively typical of the landowners in the four-county study area, in particular, and in the State on Kentucky, in general. Further, it is important to highlight that some of the survey questions related to current land management practices and bioenergy production systems might not have addressed the complexities of landownership and management operations to convert existing land use to bioenergy crop production, which could have affected the survey response rate. To overcome the issue of low response rates which may weaken the findings, we used boosted regression tree (BRT) in this study [
33]. In BRT, we split the data into training and test datasets, fit the model to the training dataset, make predictions based on it, and evaluate the predictions on the test dataset. To avoid overfitting of the model, we used cross-validation approach that splits the data into various subsets of training and test data [
37]. The model is then repetitively trained and validated on these different subsets. Therefore, the survey responses and our interpretation provide valuable insights on the potential of bioenergy crop production in the study area.
3.1. Descriptive Statistics
A majority of respondents (79.01%) were male with an average age of 68 years. Most had a median annual income between $60,000 to $89,000. Approximately, 75.30% had at least some college education. Out of all respondents, 43.37% indicated they were retired.
Respondents on average owned 82.74 acres of marginal land, with the majority of the land in one county. Only 11% landowners were currently renting their land, with an average rental rate of $40.83 acre−1. Only 7% indicated that they were currently growing commercial crops. The majority of marginal lands in the study area was currently used for hay or pasture (59.10 acres on average). However, a substantial number of landowners indicated other land cover types such as woody and agricultural crops, lake, residential area, yard were present.
Concerning existing knowledge, 65.43% indicated they had heard about bioenergy, 50% indicated they had knowledge of crops for energy production, and about the same proportion of landowners (47.56%) indicated that they were aware that bioenergy crops can be grown on marginal lands. Even though about 23.75% landowners indicated that they were familiar with existing technologies relevant to growing bioenergy crops, only 4.93% of them indicated that they were currently growing them.
With regards to willingness to grow bioenergy crops, 45.23% were willing to produce and harvest bioenergy crops on their property if markets existed for biomass. These landowners were willing to devote an average of 25.49 acres of land to bioenergy crops. Landowners indicated that a steady biomass market and low investment costs were the most important factors for their decision to produce and harvest bioenergy crops (
Table 1).
On the other hand, lack of interest in bioenergy, time, and lack of knowledge of how to effectively harvest bioenergy crops were the major reasons expressed by landowners for their reluctance to produce and harvest them (53.08%) (
Table 2).
For landowners who were willing to produce and harvest biomass, we asked them to indicate what price they were willing to accept and the number of acres of land they were willing to commit.

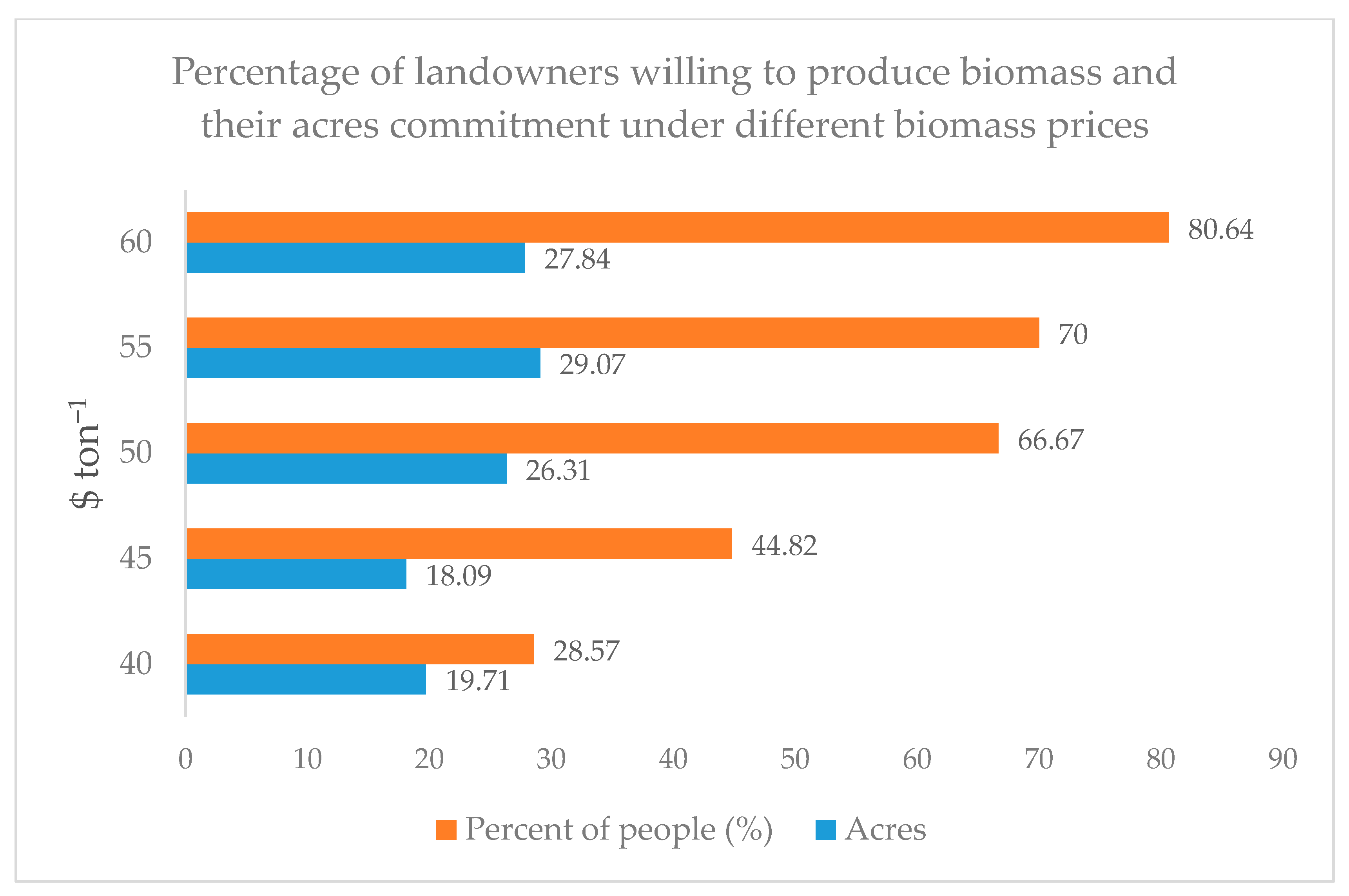

Figure 2 shows the percentage of landowners willing to accept five different prices and their average acreage commitment. For a biomass price of
$40 ton
−1, 28.57% indicated that they were willing to produce and the average amount of land available at this price was 19.71 acres. When the price was
$60 ton
−1, 80.64% were willing to produce/harvest and the average land available increased to 27.84 acres.
Regarding landowners’ willingness to rent, only 28.21% were willing to rent (71.79% preferred not to rent). Landowners indicated that the possible need for insurance, length of contract, and legal cost of contracting were major impediments to renting (
Table 3).
Of the respondents who indicated no interest in renting, 91% said they would never rent their land for bioenergy production regardless of the rental rate. These respondents indicated that privacy, old age, and self-control were the major factors for their decision.
Landowners who were willing to rent their land for bioenergy production were asked to indicate the rental rate they were willing to accept.

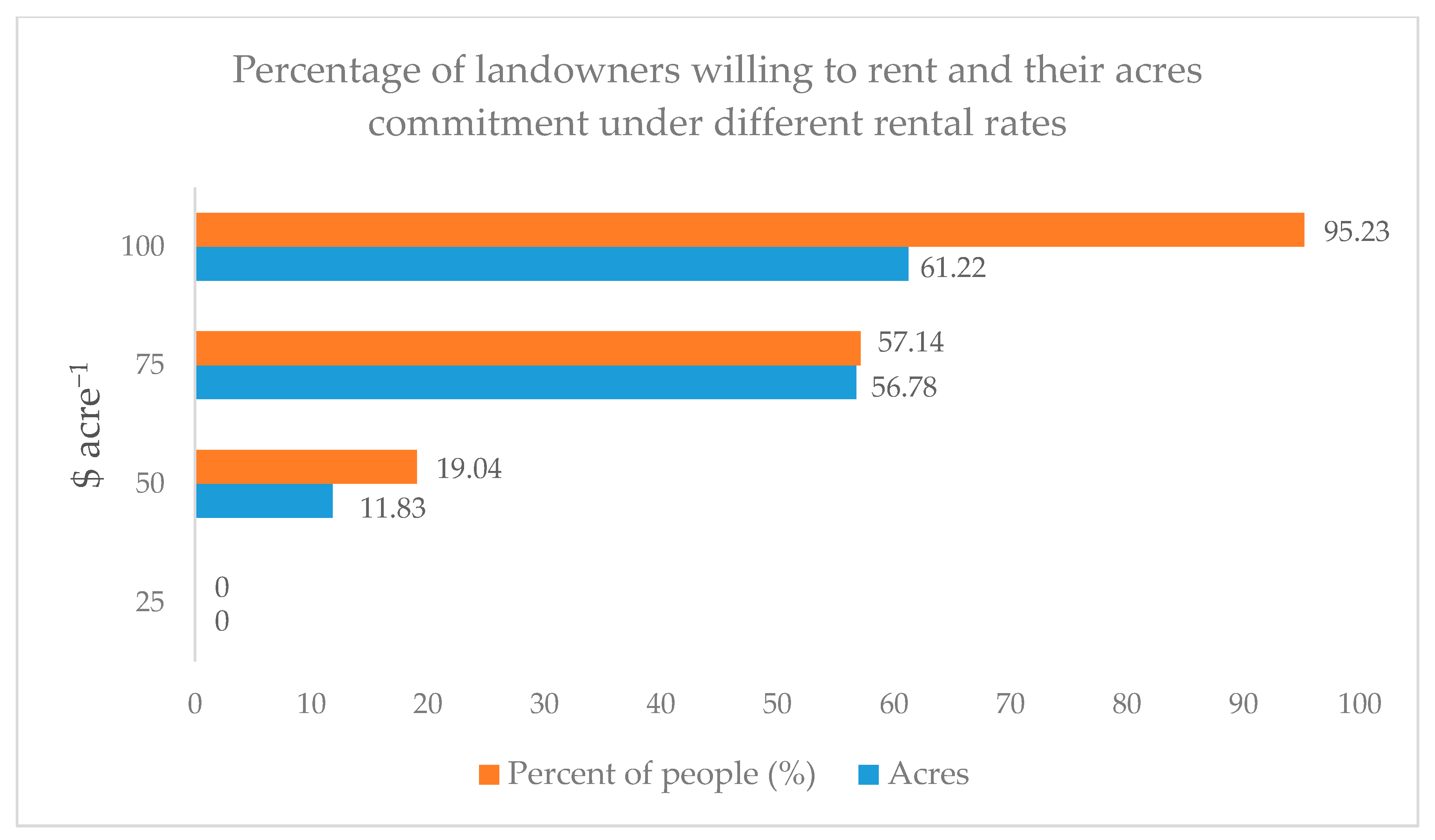

Figure 3 shows the percentage of landowners willing to rent and the acres they were willing to commit under four different rental rates. None of the respondents indicated that
$25 acre
−1 was an acceptable rental rate. However, when the rental rate increased to
$100 acre
−1, 95.23% indicated they were willing to rent an average of 62.22 acres.
With regard to landowners’ opinions on bioenergy (
Table 4), about 55% agreed that using domestic energy sources such as wood will reduce dependence on foreign energy sources. Similarly, more than 50% agreed that producing bioenergy crops can provide economic opportunities and improve the rural economy. Even though they expressed a concern that bioenergy markets are not sufficiently developed, they said that the government should not be involved in bioenergy development.
3.2. Influence of Measured Variables on Landowners’ Willingness to Participate in Bioenergy Crop Production
3.2.1. Optimal Settings

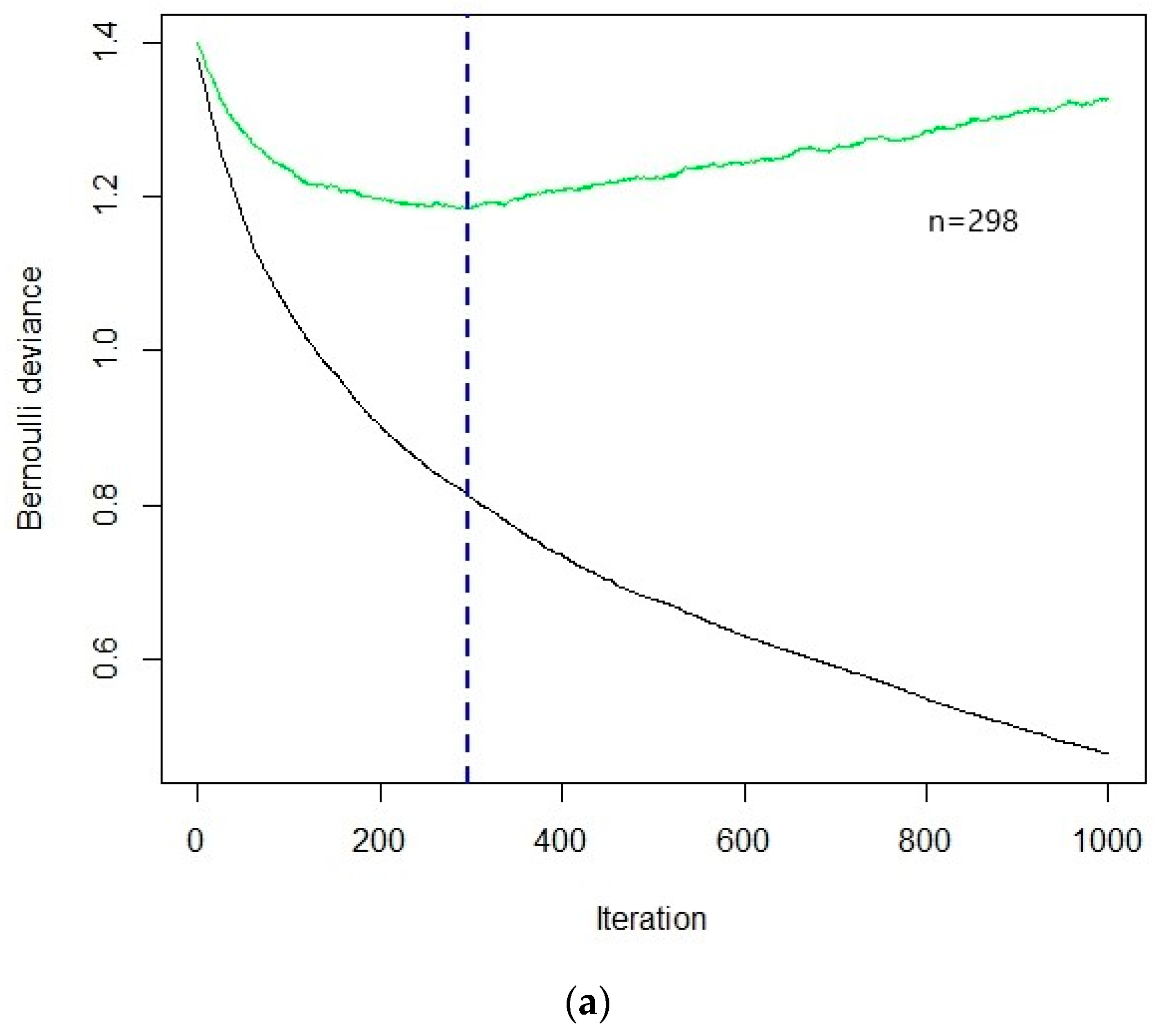

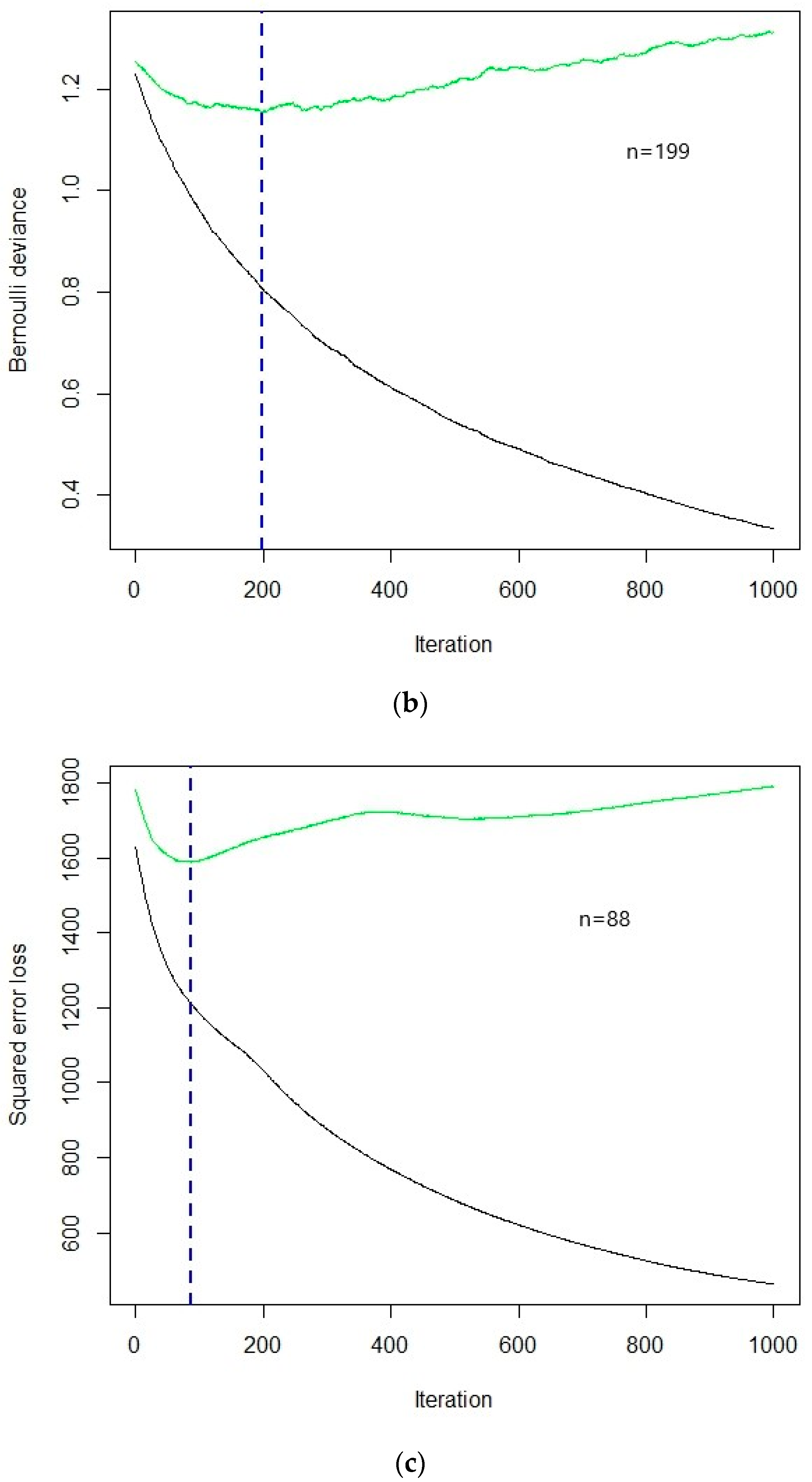

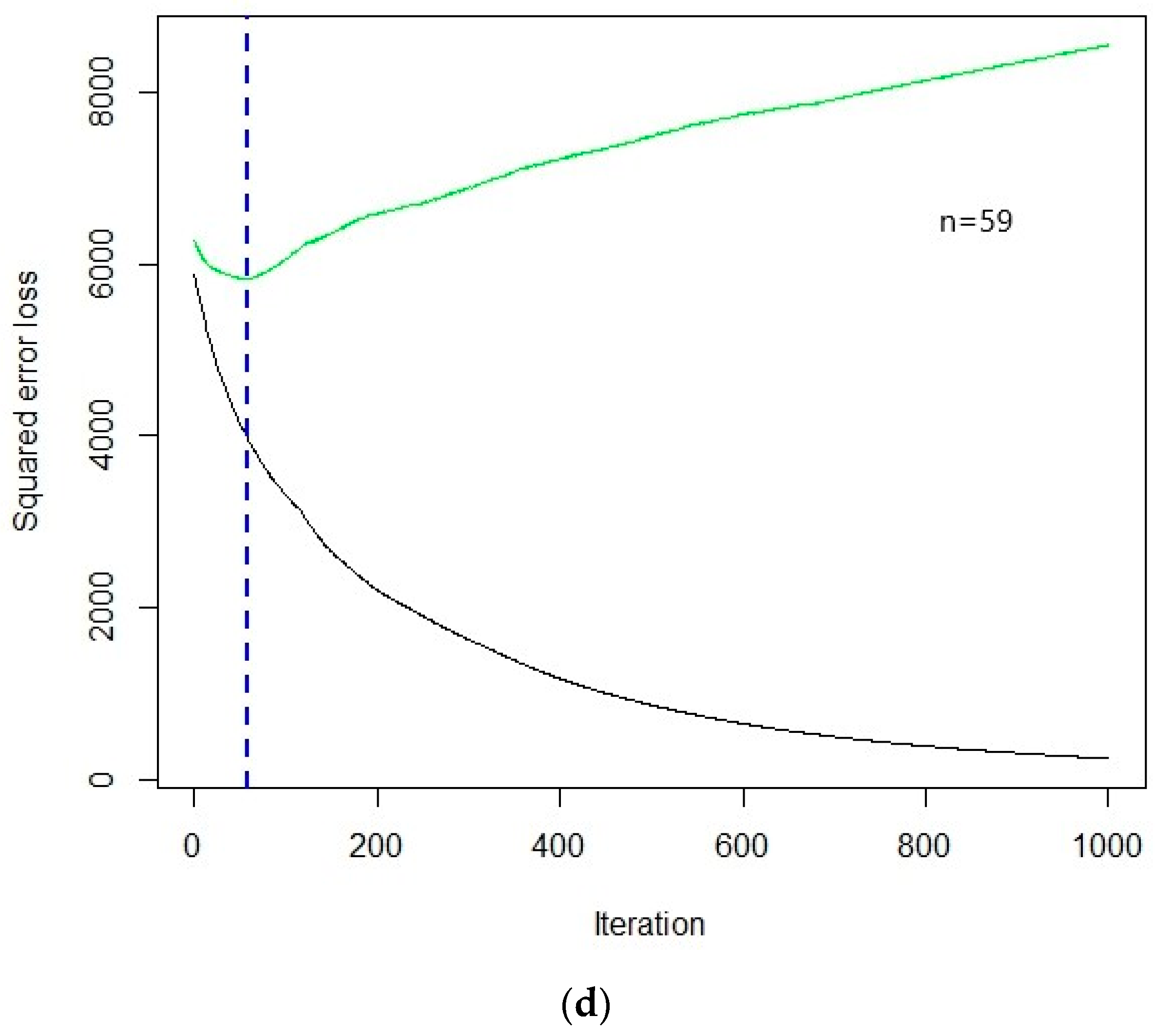

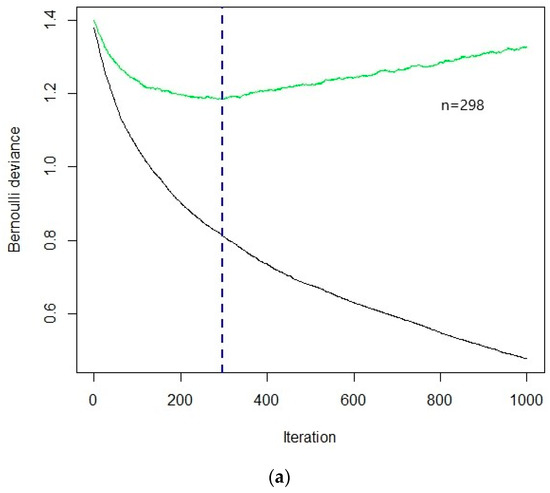

Using the cross-validation method optimal settings were generated for all the decision models. The optimal number of trees for the four decision models are shown in
Figure 4.
3.2.2. Willingness to Participate in Bioenergy Crop Production
Results of the boosted regression models (BRTM1 and BRTM2) are presented in
Table 5 and
Table 6. Landowner age had the highest influence on both land use decisions. Younger landowners were more willing to participate in bioenergy crop production. In addition, landowners’ positive perceptions about the idea of creating energy from trees on their property had a positive influence on their decision to promote bioenergy crop production. Further, the amount of existing land acreage also had a substantial influence on landowner willingness to rent their land: the more land they had, the less willing they were to rent their land for bioenergy production. Additionally, results showed that landowners’ concern of having other people on their land had some influence on their willingness to rent out their land.

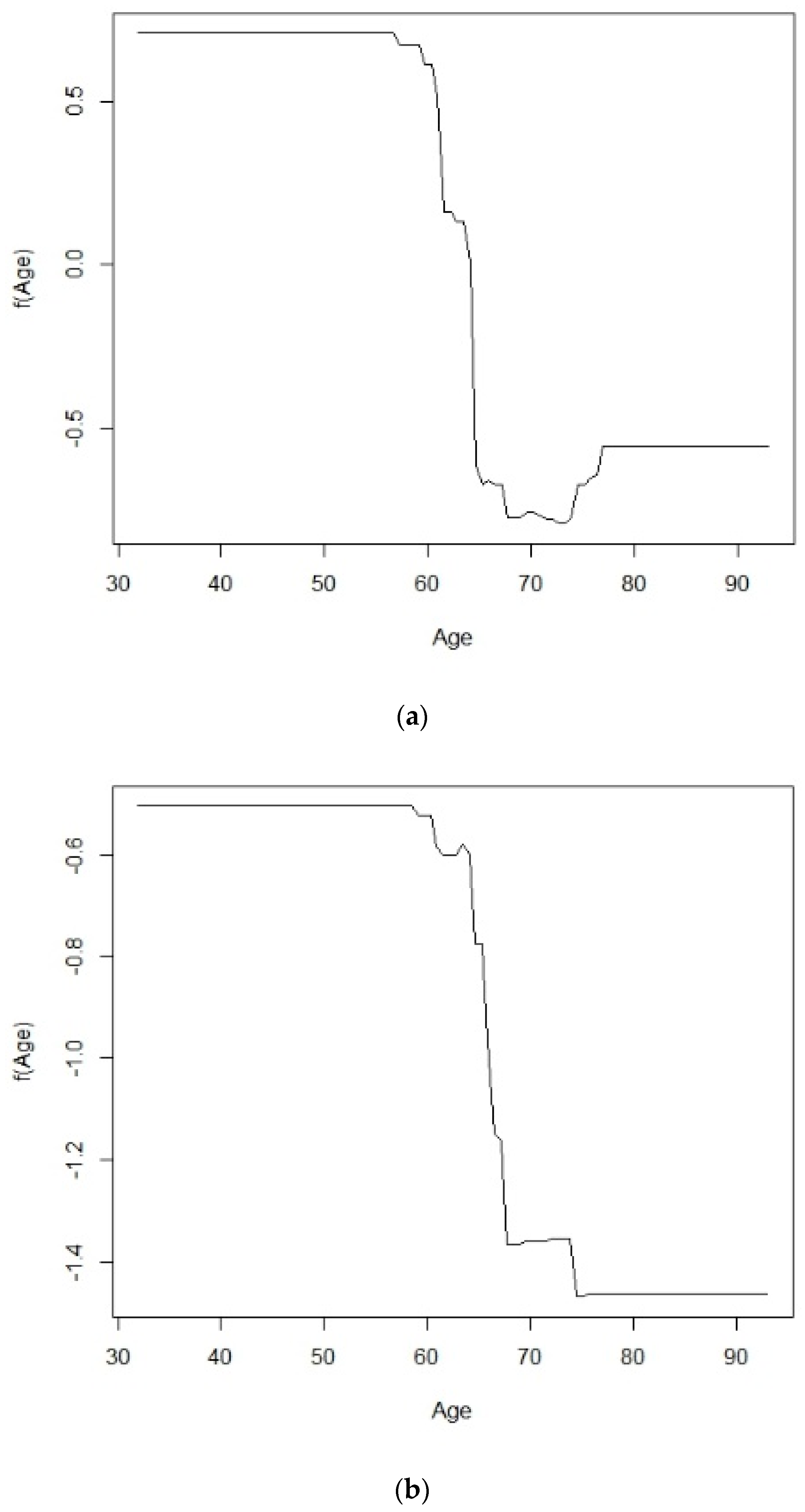

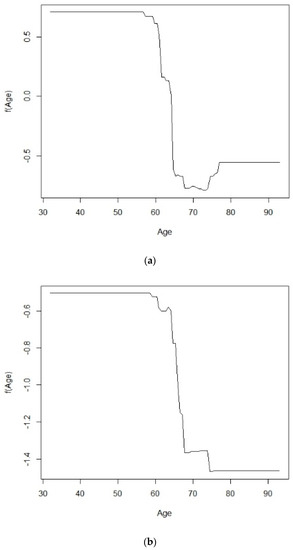

Partial dependence plots of the most influential variable are presented in
Figure 5. These plots show the effect of a variable on the response after accounting for the average effects of all other variables in the model. In both the willingness models, landowners’ production/renting decisions changed with their age, with distinct observation after age 60 when an increasing age showed low willingness to produce/rent.

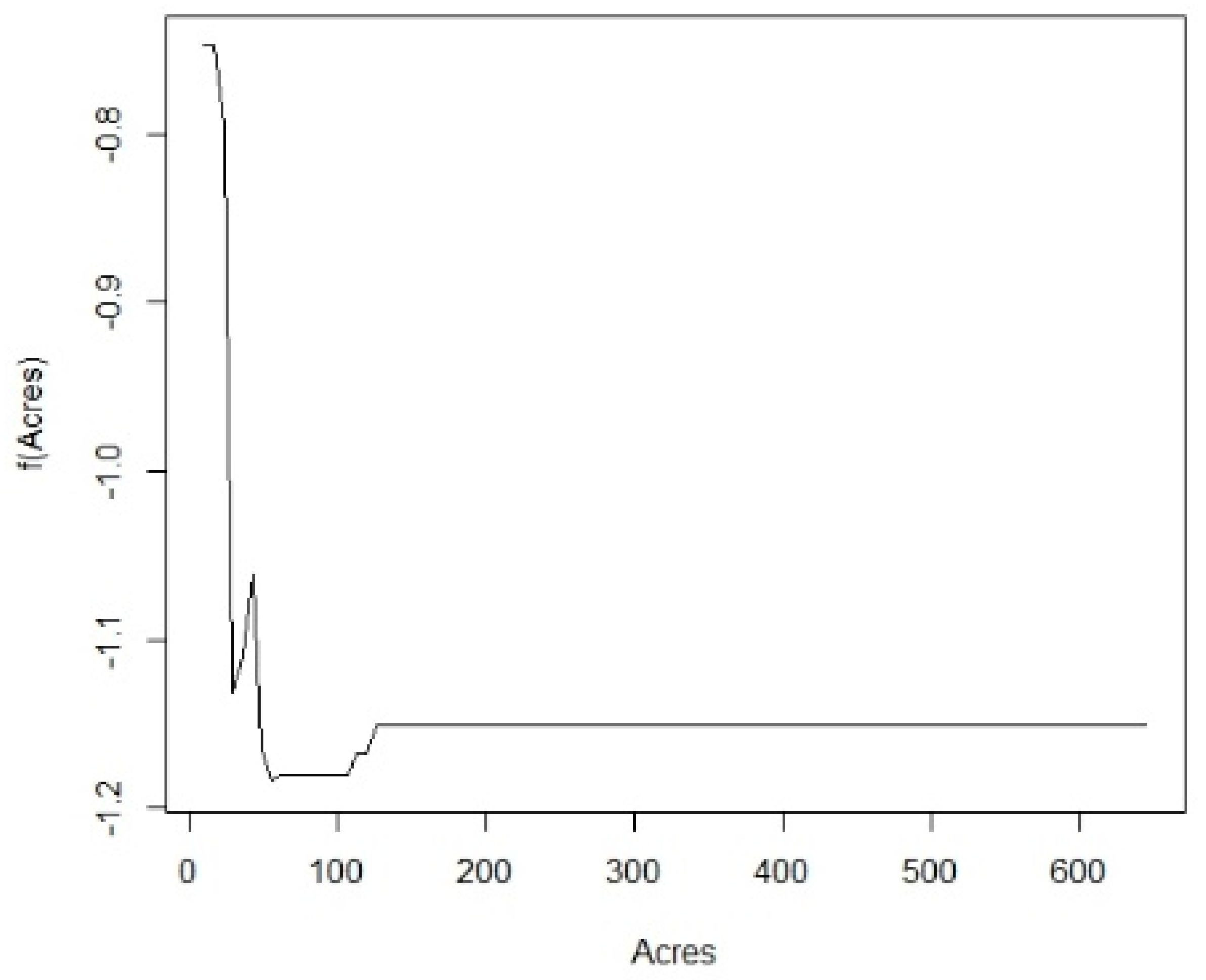

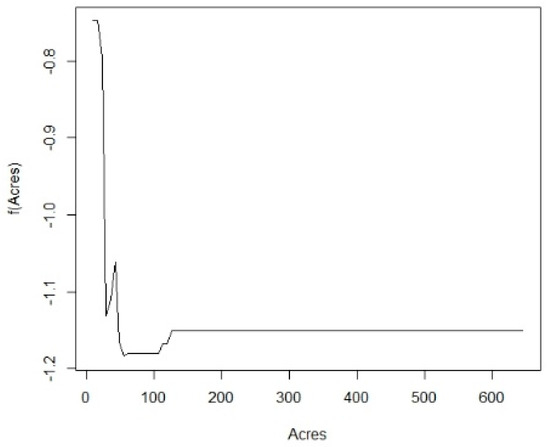

Similarly, landowners’ renting decisions changed with the acres of lands they possessed with distinct observation before 100 acres of lands (
Figure 6). Landowners with small landholdings (smaller than 100 acres) were more willing to rent when compared to landowners who had large acres of existing land ownership.

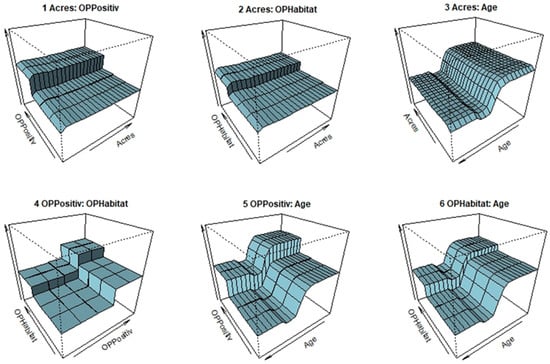

In addition to the effect of a single variable on the response, the partial dependence plots show important interactions between variables. For both the willingness to produce/harvest and willingness to rent models, three of the six most important pairwise interactions included the most influential predictors, age, and a positive perception about the idea of creating energy from trees (

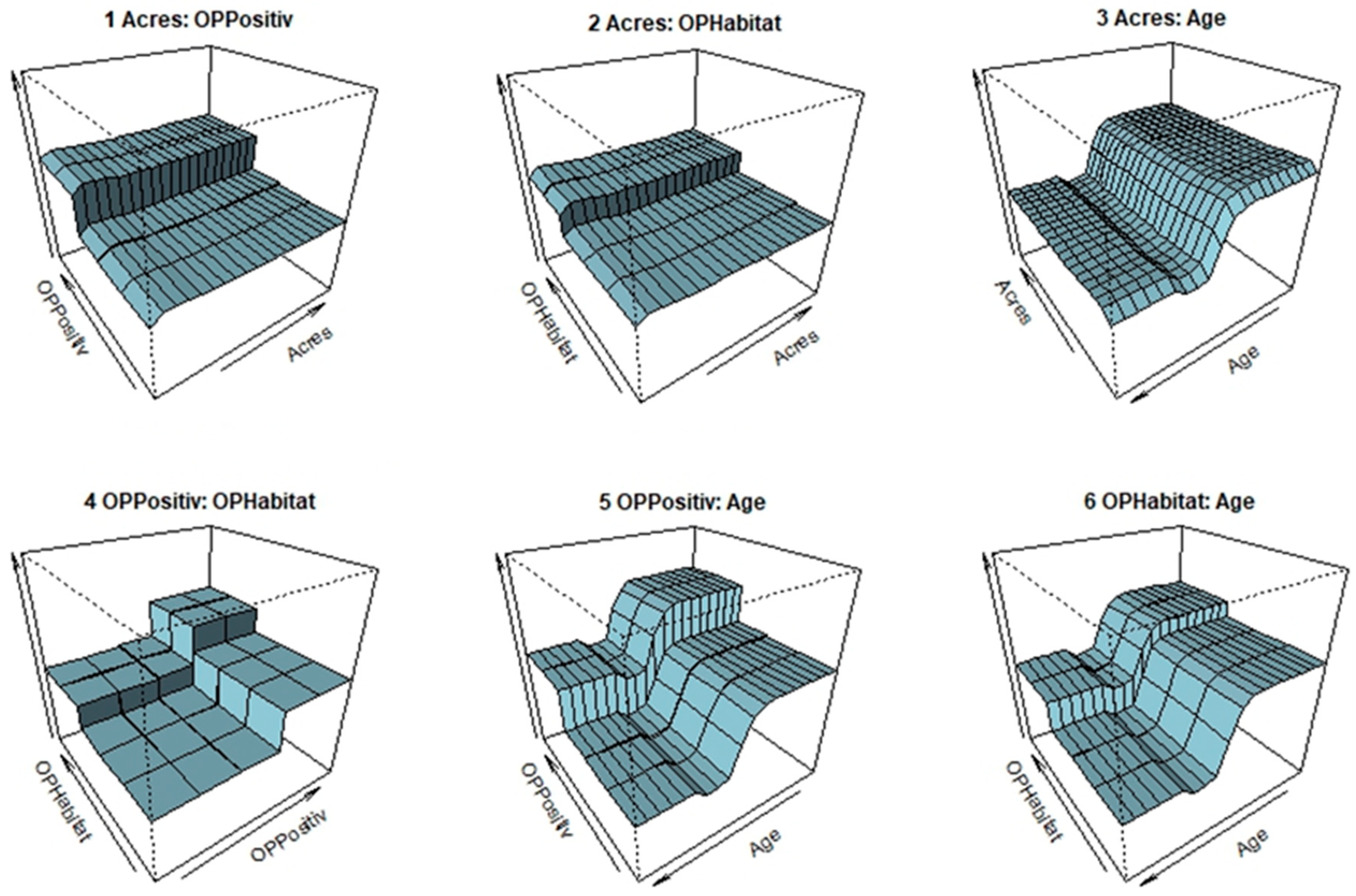

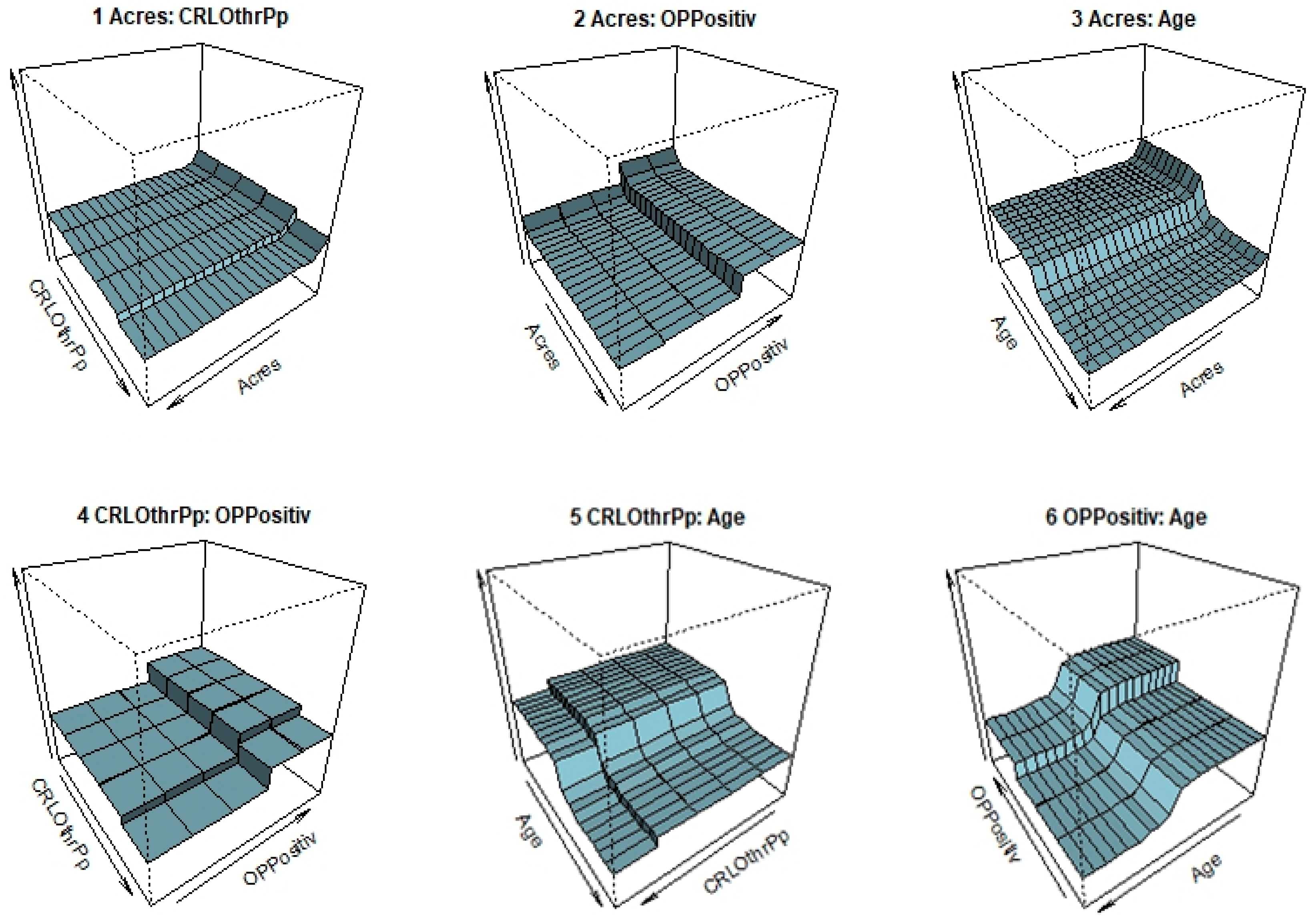

Figure 7 and
Figure 8). Allowing interactions reinforced the effect that younger landowners (landowners in general) with large acres of land ownership and who had a positive perception about generating bioenergy and an understanding that establishing bioenergy crops can improve wildlife habitat were more willing to participate in bioenergy crop production. In the willingness to rent model, younger landowners who had small acres of existing land ownership showed interest in renting out their lands and those landowners were positive about creating energy from trees and were not concerned about having other people in their land.
3.2.3. Acreage Commitment
Results of the boosted regression models developed to analyze landowner acreage commitment for producing/harvesting bioenergy crops (BRTM3) and renting their lands (BRTM4) are presented in
Table 7 and
Table 8. Results from both models show that total acres of current land ownership had the biggest influence on the amount of land landowners were willing to commit for bioenergy production. Age was also influential in landowner rental decisions. Many variables were omitted from the acreage commitment models because they had no detectable influence on the response variable.

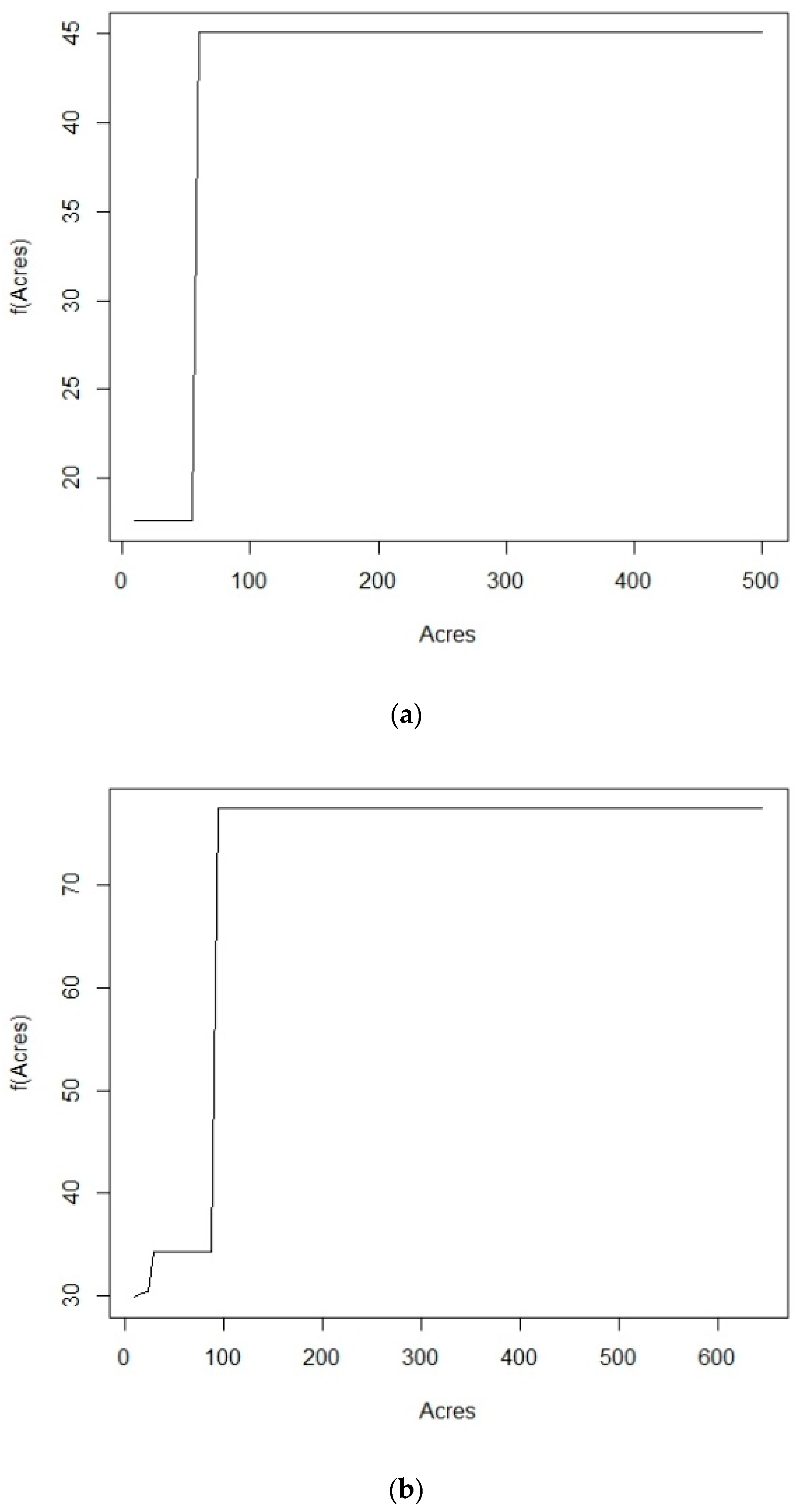

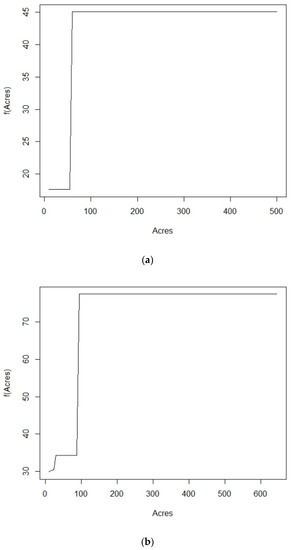

Partial dependence plots for the acreage commitment models show size of land ownership (total acres) as the most influential variable (
Figure 9). Even though landowners’ current land ownership increase, their acreage commitment is not relatively higher. In general, landowners are willing to commit less land for bioenergy production. Again, in addition to the effect of a single variable on the response, the partial dependence plots show important interactions between the variables. For both acreage commitment models, the variable acres and age were prominently visible in the pairwise interactions reinforcing the acreage decisions that landowners specially, younger landowners are willing to commit smaller amount of lands where as older landowners are more willing to commit large acres of lands to bioenergy production (

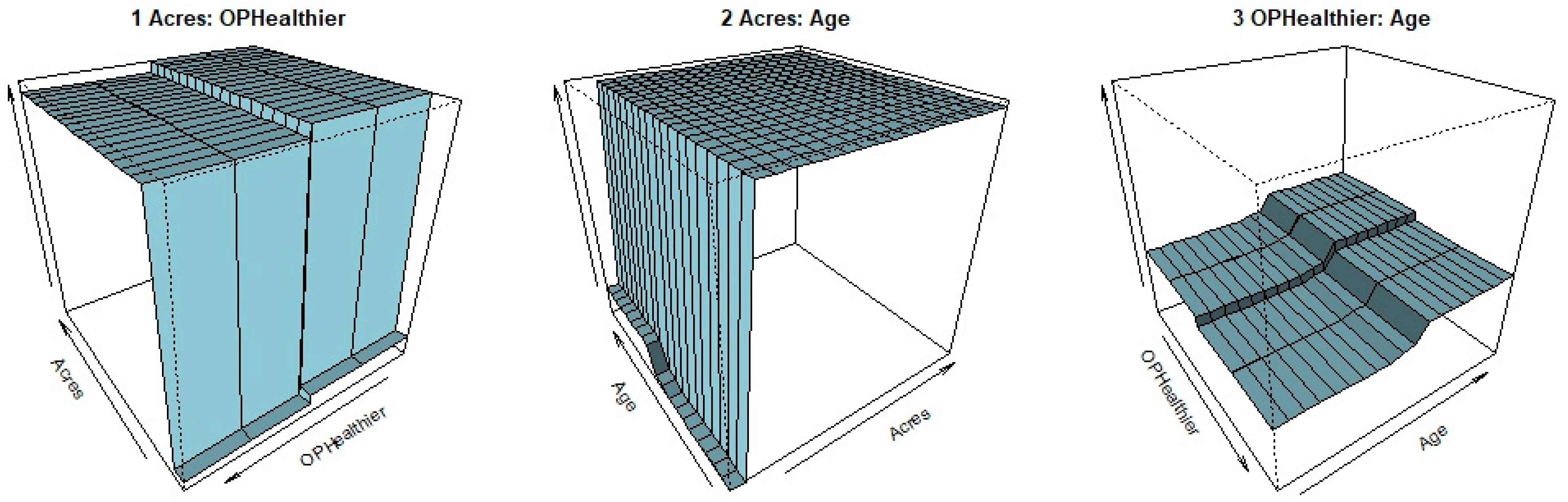

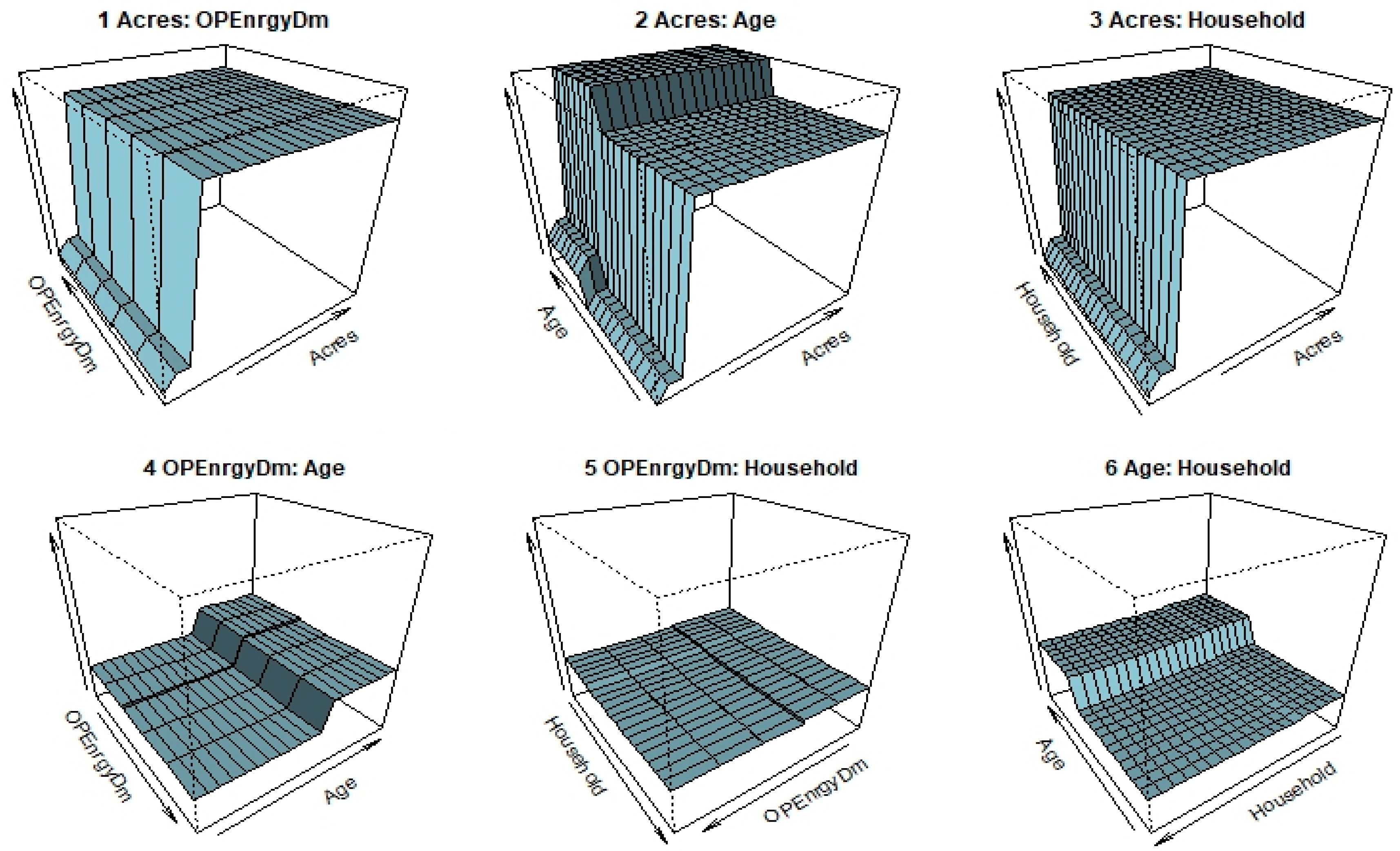

Figure 10 and
Figure 11).
