Open AccessArticle
Algorithms 2012, 5(4), 654-667;

Extracting Co-Occurrence Relations from ZDDs

ERATO, MINATO Discrete Structure Manipulation System Project, JST, Sapporo-Shi 060-0814, Japan
Received: 27 September 2012 / Revised: 4 December 2012 / Accepted: 6 December 2012 / Published: 13 December 2012
(This article belongs to the Special Issue Graph Algorithms)
Full-Text   |   PDF [154 KB, uploaded 13 December 2012]   |


A zero-suppressed binary decision diagram (ZDD) is a graph representation suitable for handling sparse set families. Given a ZDD representing a set family, we present an efficient algorithm to discover a hidden structure, called a co-occurrence relation, on the ground set. This computation can be done in time complexity that is related not to the number of sets, but to some feature values of the ZDD. We furthermore introduce a conditional co-occurrence relation and present an extraction algorithm, which enables us to discover further structural information. View Full-Text
Keywords: BDD; ZDD; partition; co-occurrence; data mining BDD; ZDD; partition; co-occurrence; data mining

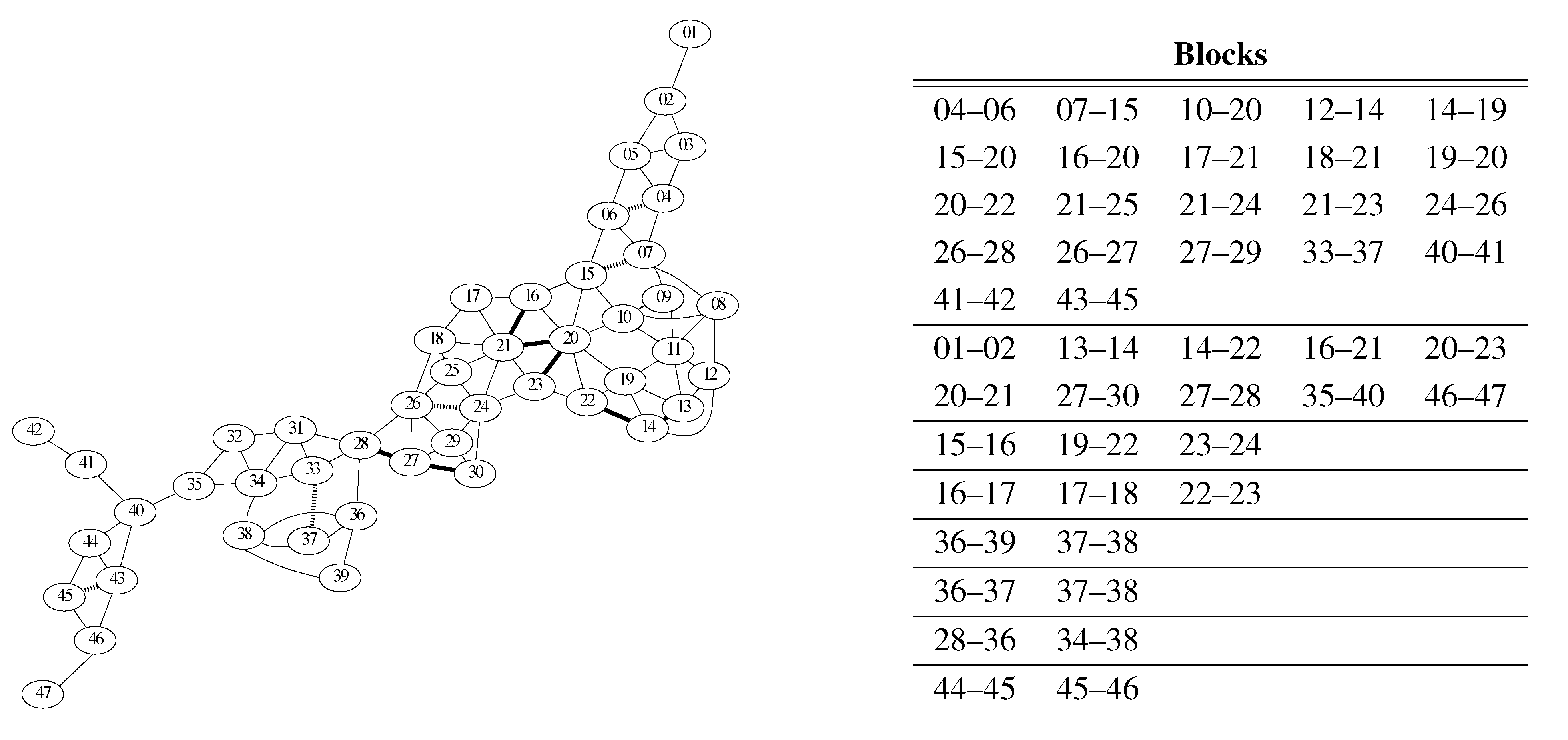

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
