# Approximate String Matching with Compressed Indexes

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction and Related Work

## 2. Basics and Contribution Overview

#### 2.1. Basic Concepts

**text**string, by P the

**pattern**string, and by O an occurrence of P in T; by Σ the strings’

**alphabet**, of size σ; by $T\left[i\right]$ the symbol (or character) at position $(i\phantom{\rule{0.277778em}{0ex}}mod\phantom{\rule{0.277778em}{0ex}}u)$ of T; by $S.{S}^{\prime}$ the

**concatenation**of strings; by $S=S[..i-1].S[i..j].S[j+1..]$ respectively a

**prefix**, a

**substring**, and a

**suffix**of a string S; by $S\u2291{S}^{\prime}$ that S is a substring of ${S}^{\prime}$; and by ε the empty string.

**trie**is a character-labeled tree where no two children of a node have the same label. The concatenation of the labels from the root to a node v is called the

**path-label**of v, and also denoted v. A

**compact trie**is obtained by collapsing the unary paths in a trie into single edges, labeled with the concatenation of the collapsed symbols. The

**suffix tree**[10, 42] of T is a compact trie such that each suffix of $T\$$ is the path-label of a leaf and vice versa, where $\$\notin \Sigma $ is a terminator symbol. String labels in a suffix tree are substrings of T, thus they can be represented by a starting position in T plus a length. We will assume that u is the length of $T\$$. The

**suffix array**[11] $SA[0,u-1]$ stores the suffix indexes of the leaves in lexicographical order. The suffix tree nodes can be identified with suffix array intervals: each node v corresponds to the range of leaves that descend from v. For a detailed explanation see, e.g., Gusfield’s book [43]. Figure 1 shows an example of a suffix tree and a suffix array.

**Ziv-Lempel**compression [23, 44,45,46] is based on cutting a text T into

**phrases**of varying length, so that, essentially, each phrase already appears somewhere earlier in the text. Each phrase is encoded usually with a fixed number of bits, so more compressible texts generate longer phrases. There are many variants of this family, which basically differ in the rules to form the phrases from the previous text.

#### 2.2. Approximate String Matching

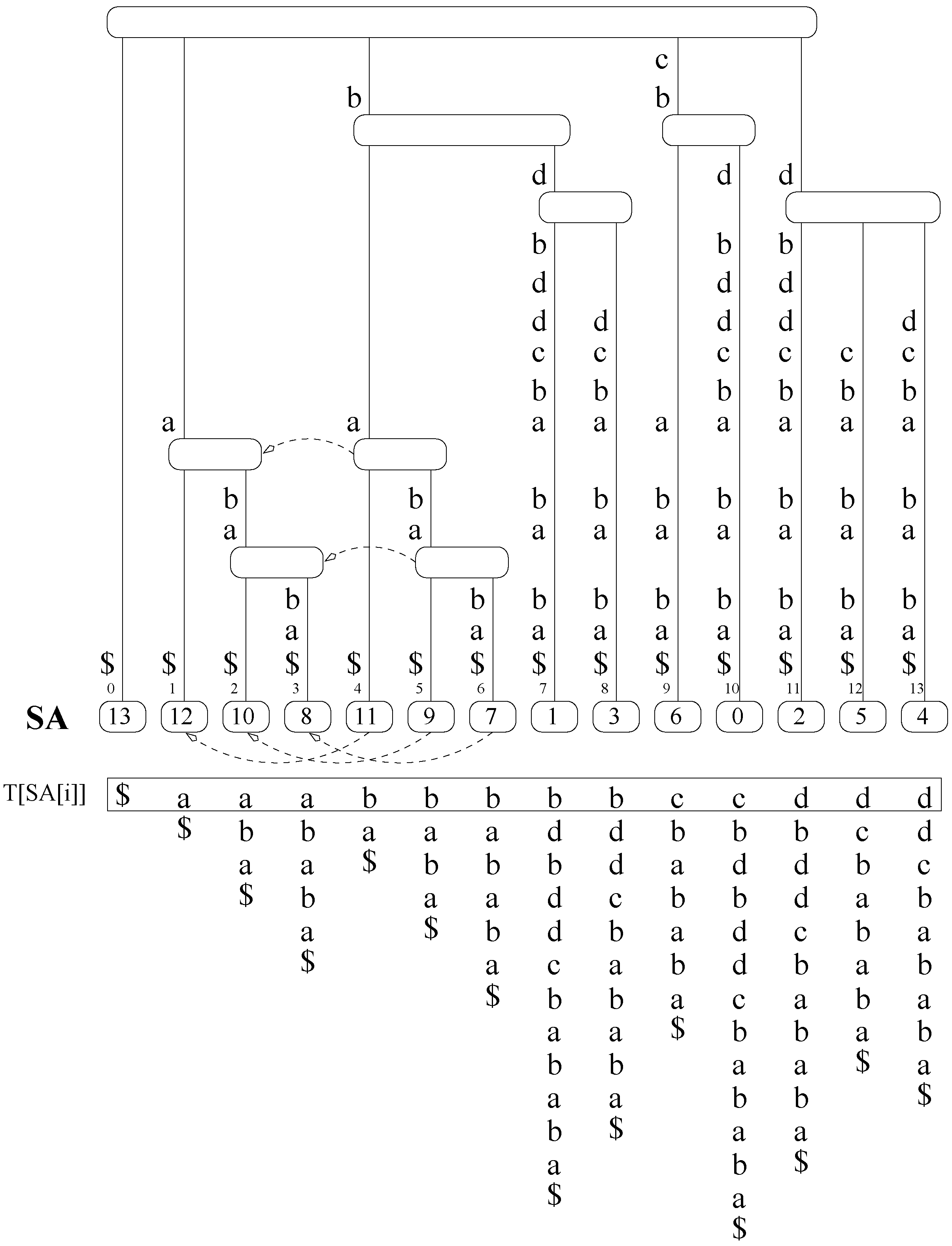

**Figure 1.**On top, suffix tree for $cbdbddcbababa\$$. Some suffix links are shown (dashed arrows). On the bottom, suffix array of T.

**Dynamic programming.**

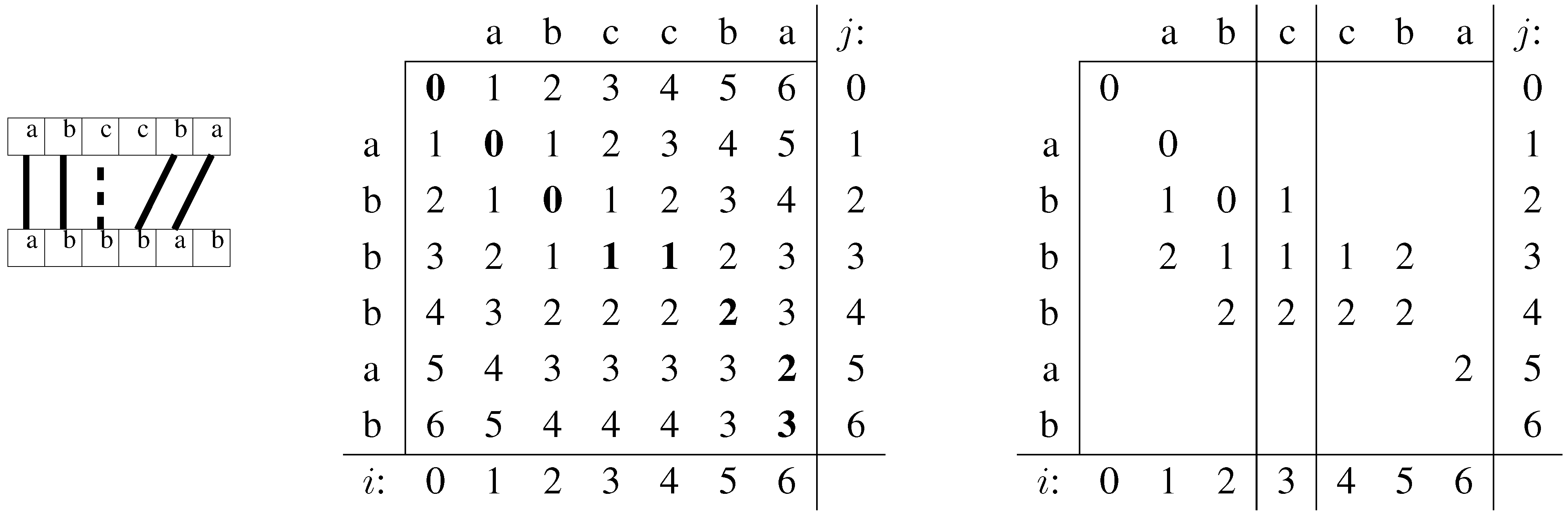

**Figure 2.**D table computation for strings $abccba$ and $abbbab$. Left: schematic representation of the alignment. Middle: computation of D. The numbers in bold correspond to the alignment shown on the left, and to the shortest path. Right: computation with increasing error bound.

**edit graph**: Each matrix position $(i,j)$ is a node, which is the source of three arrows towards $(i,j+1)$ (of weight 1), $(i+1,j)$ (of weight 1), and $(i+1,j+1)$ (of weight ${\delta}_{A\left[i\right]=B\left[j\right]}$). Hence $ed(A,B)$ is the weight of the shortest path from $(0,0)$ to $(m,{m}^{\prime})$.

**Backtracking.**

**Filtration and sampling.**

**Lemma 1**

#### 2.3. Our Contributions

**Reducing to exact matching of pattern pieces.**

**Hybrid indexing on Ziv-Lempel indexes.**

**Hybrid indexing on compressed suffix trees.**

## 3. A Simple Self-Indexing Method

#### 3.1. Using the LZ-index

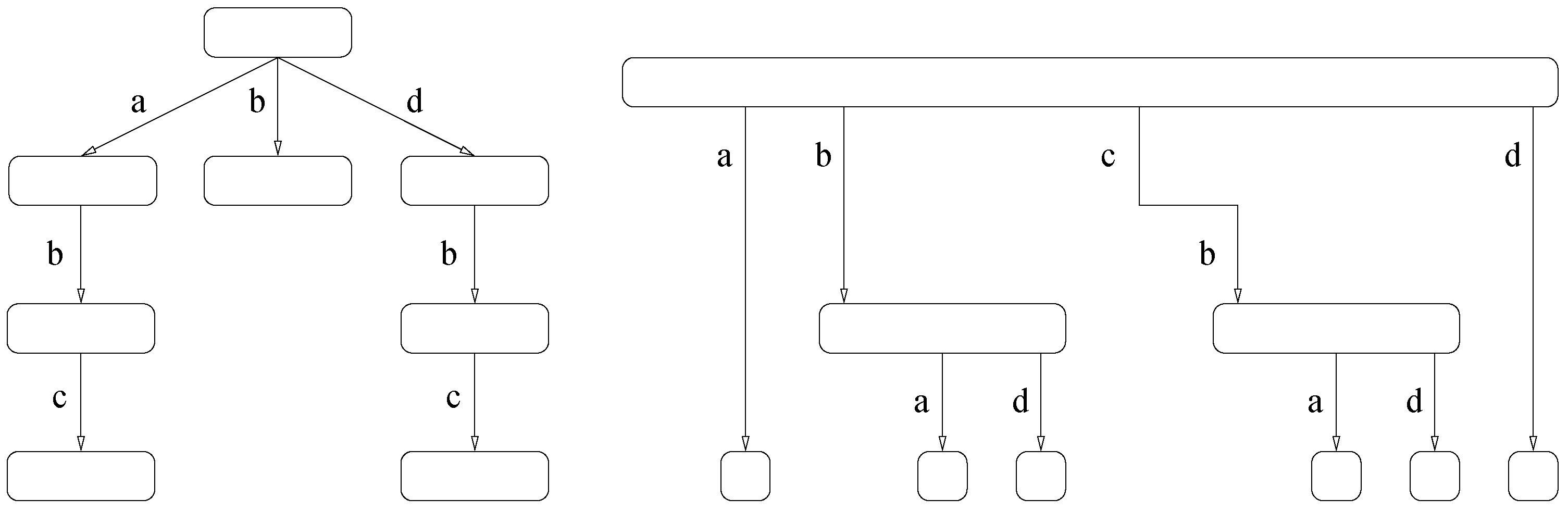

**Figure 3.**(left) LZ-trie for strings $\{a,b,ab,abc,d,db,dbc\}$. (right) Reverse tree of the LZ78 trie.

#### 3.2. Improving the Basic Solution

#### 3.3. Using the FM-index

## 4. An Improved q-samples Index

#### 4.1. Varying the Error Distribution

**Lemma 2**

**Proof**

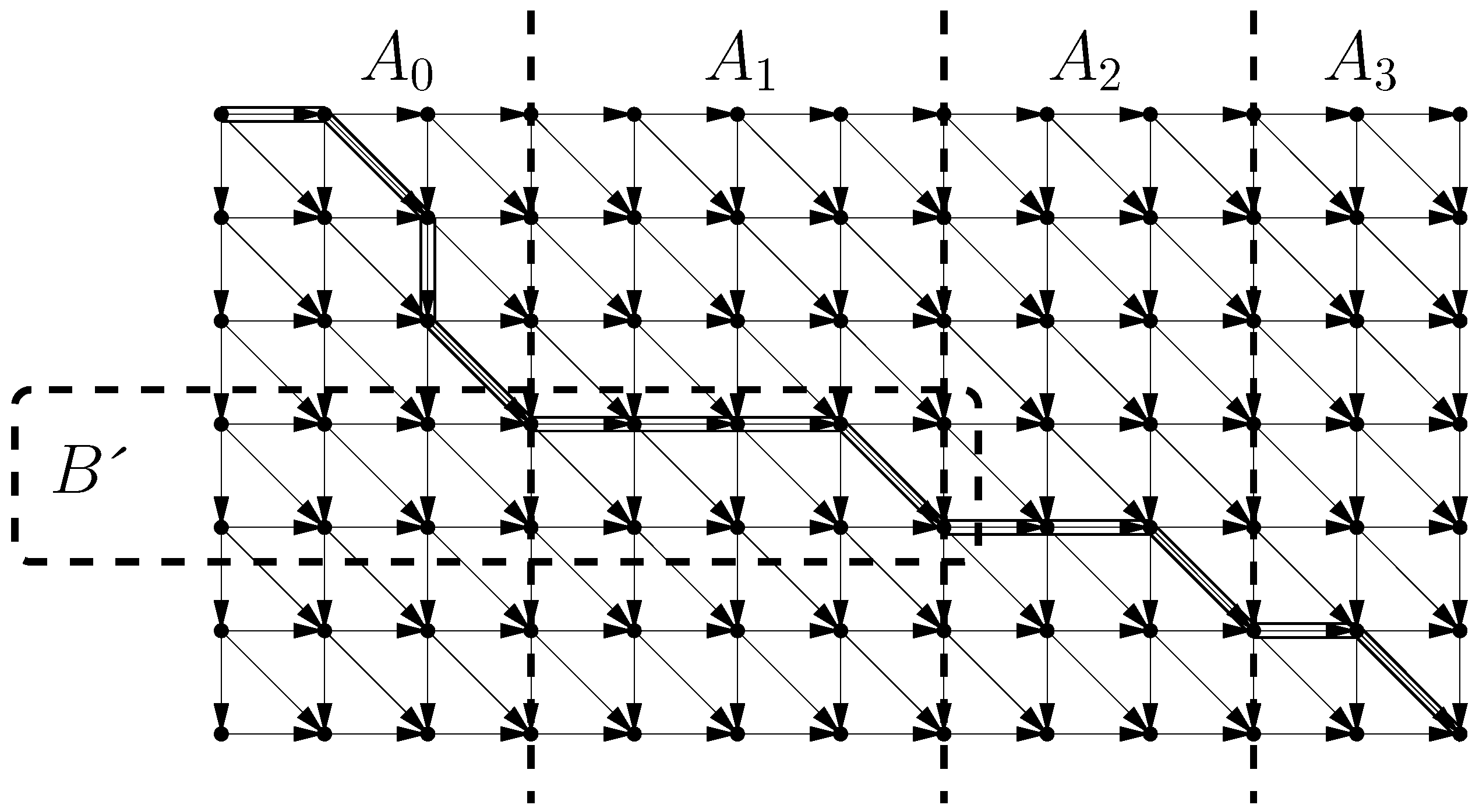

**Figure 4.**A schematic edit distance graph between A and B. The dashed lines show the division of A and B into the ${A}_{i}$’s and delimit ${B}^{\prime}$. The shortest path in the graph is enclosed between two parallel lines.

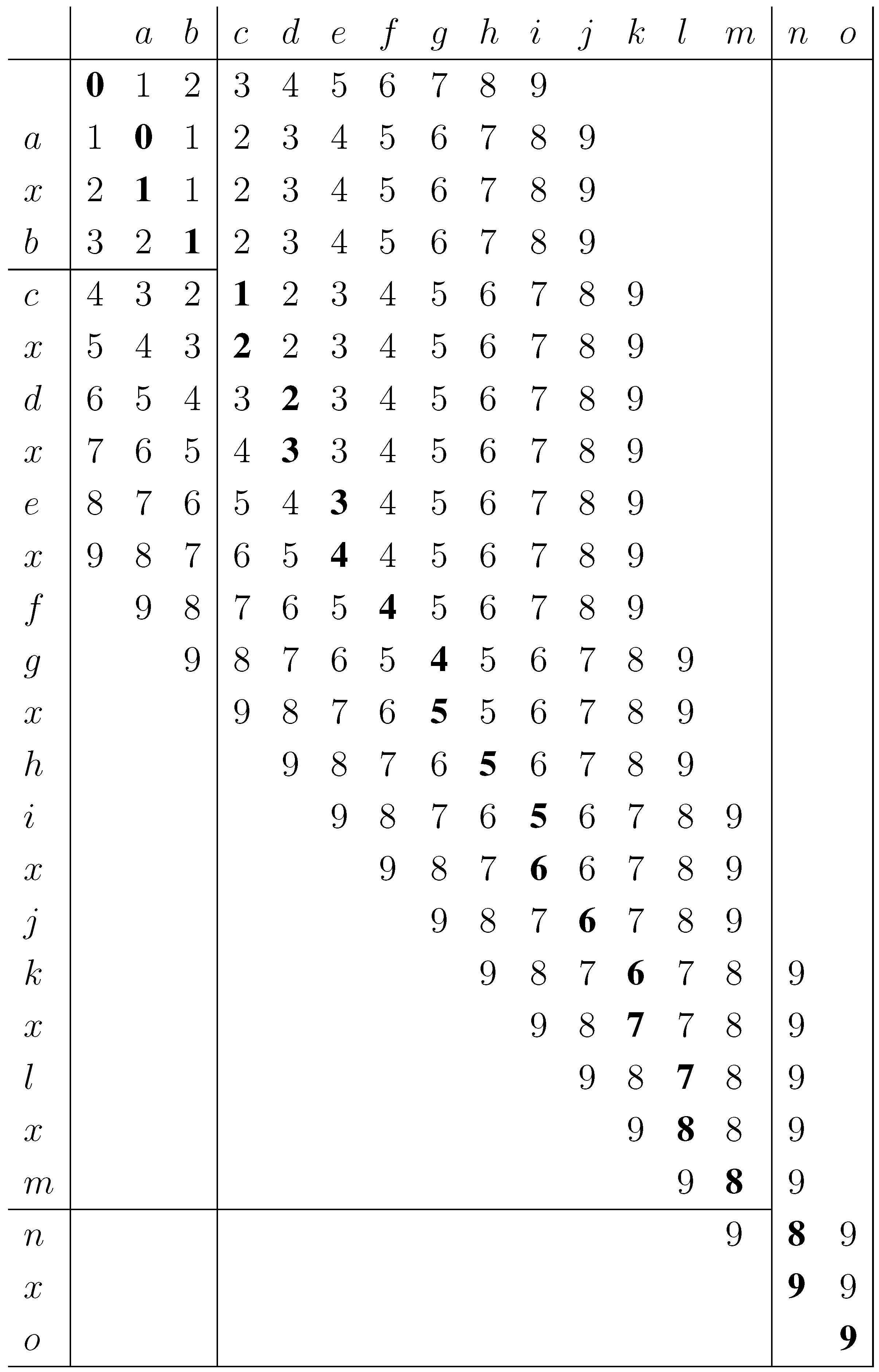

**Figure 5.**Dynamic programming table D for strings, $B=P=axbcxdxexfgxhixjkxlxmnxo$ (vertical) and $A=O=abcdefghijklmno$ (horizontal) with $k=9$. The shortest path in the edit graph is shown in bold, we do not show inactive cells.

**Lemma 3**

**Proof**

#### 4.2. Partial q-sample Matching

#### 4.3. A Hybrid q-samples Index

## 5. Using a Lempel-Ziv Self-Index

#### 5.1. Handling Different Lengths

**Lemma 4**

**Proof**

#### 5.2. A Hybrid Lempel-Ziv Index

**Lemma 5**

- 1.
- there is a substring ${A}^{\prime}$ of ${A}_{i}$ with $|{A}^{\prime}|=q$ and $ed({A}^{\prime},{B}^{\prime})<s$, or
- 2.
- $ed({A}_{i},{B}^{\prime})<k\xb7{\left|{A}_{i}\right|}_{v}$ in which case for any prefix ${A}^{\prime}$ of ${A}_{i}$ there exists a substring ${B}^{\u2033}$ of ${B}^{\prime}$ such that $ed({A}^{\prime},{B}^{\u2033})<k\xb7|{A}_{i}{|}_{v}-s\lfloor \left(\right|{A}_{i}|-|{A}^{\prime}\left|\right)/q\rfloor $.

**Proof**

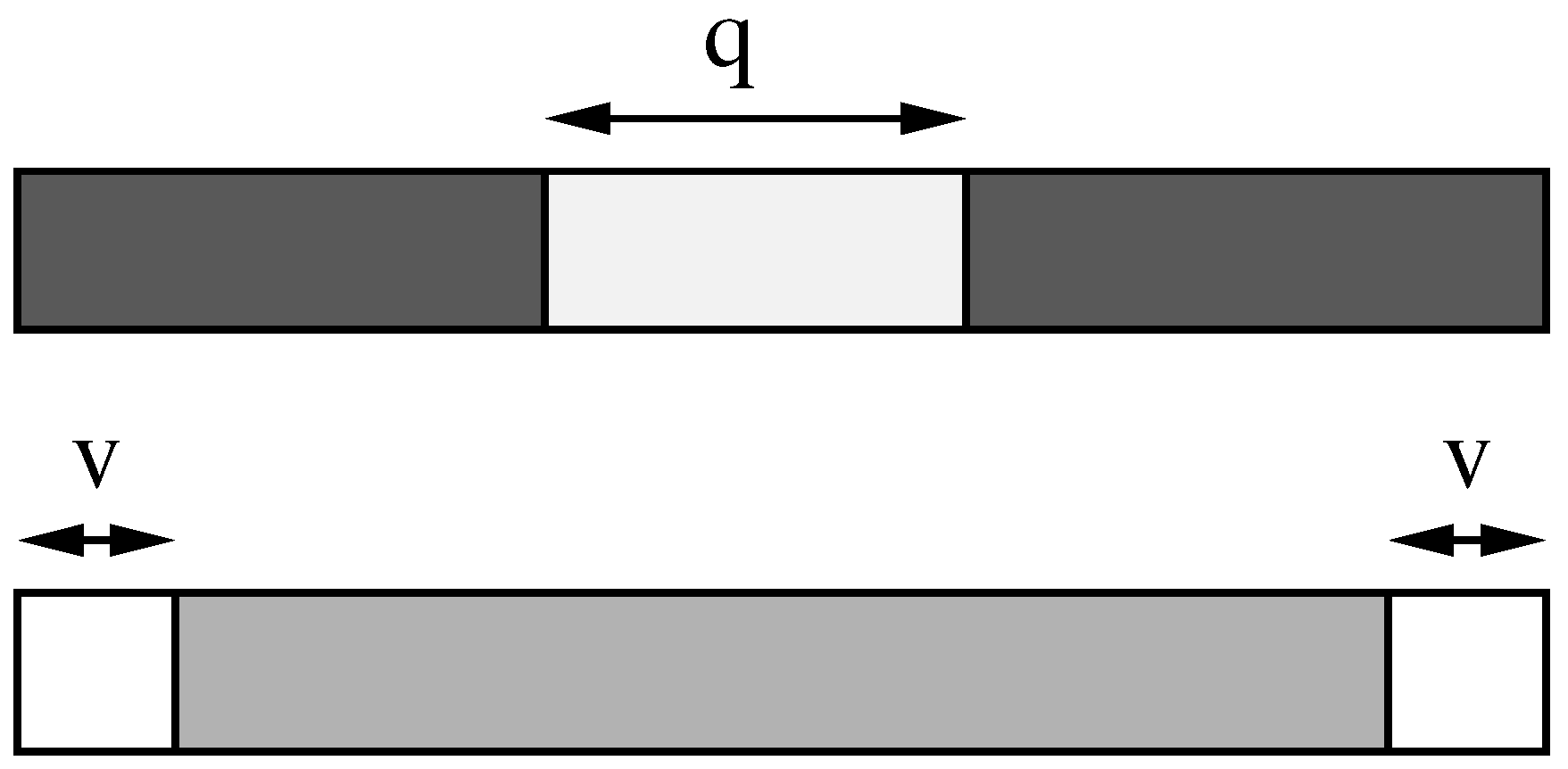

**Figure 6.**A schematic representation of the two possible cases mentioned in Lemma 5. The boxes represent the A string and the density of the filling represents the density of errors with B.

**(1)**We look for any q-gram contained in a phrase which matches within P with less than s errors. We backtrack in the trie of phrases for every $P[{y}_{1}..]$, descending in the trie and advancing ${y}_{2}$ in $P[{y}_{1},{y}_{2}]$ while computing the DP matrix between the current trie node and $P[{y}_{1},{y}_{2}]$. We look for all trie nodes at depth q that match some $P[{y}_{1},{y}_{2}]$ with less than s errors. Since every suffix of a phrase is a phrase in the ILZI, every q-gram within any phrase can be found starting from the root of the trie of phrases. All the phrases Z that descend from each q-gram trie node found must be verified (those are the phrases that start with that q-gram). We must also spot the phrases suffixed by each such Z. Hence we map each phrase Z to the trie of reverse phrases and also verify all the descent of the reverse trie nodes. This covers case 1 of Lemma 5.

**(2)**We look for any phrase ${A}_{i}$ matching a portion of P with less than $k\xb7|{A}_{i}{|}_{v}$ errors. This is done over the trie of phrases. Yet, as we go down in the trie (thus considering longer phrases), we can enforce that the number of errors found up to depth d must be less than $k\xb7|{A}_{i}{|}_{v}-s\lfloor \left(\right|{A}_{i}|-d)/q\rfloor $. This covers case 2 in Lemma 5, where the equations vary according to the roles described in Section 4.3. (i.e. depending on i):

**(2.1)**$1<i<j$, in which case we are considering a phrase contained inside O that is not a prefix nor a suffix. The formula $k\xb7|{A}_{i}{|}_{v}$ (both for the matching condition and the backtracking limit) can be bounded by $(1+\u03f5)\xb7k\xb7min\left(\right|{A}_{i}|/(m-k-2v),1)$, which depends on $|{A}_{i}|$. Since ${A}_{i}$ may correspond to any trie node that descends from the current one, we determine a priori which $|{A}_{i}|\le m-k$ maximizes the backtracking limit. We apply the backtracking for each $P[{y}_{1}..]$.

**(2.2)**$i=j$, in which case we are considering a phrase that starts by a suffix of O. Now $k\xb7|{A}_{i}{|}_{v}$ can be bounded by $(1+\u03f5)\xb7k\xb7min\left(\right(d-v)/(m-k-2v),1)$, yet still the limit depends on $|{A}_{i}|$ and must be maximized a priori. This time we are only interested in suffixes of P, that is, we can perform m searches with ${y}_{2}=m$ and different ${y}_{1}$. If a node verifies the condition we must consider also those that descend from it, to get all the phrases that start with the same suffix.

**(2.3)**$i=1$, in which case we are considering a phrase that ends in a prefix of O. This search is as the case $i=j$, with similar formulas. We are only interested in prefixes of P, that is ${y}_{1}=0$. As the phrases are suffix-closed, we can conduct a single search for $P[0..]$ from the trie root, finding all phrase suffixes that match each prefix of P. Each such suffix node must be mapped to the reverse trie and the descent there must be included. The case $i=j=1$ is different, as it includes the case where O is contained inside a phrase. In this case we do not require the matching trie nodes to be suffixes, but also prefixes of suffixes. That is, we include the descent of the trie nodes and map each node in that descent to the reverse trie, just as in case 1.

#### 5.3. Homogeneous Lempel-Ziv Phrases

**(2)**of Section 5.2..

**Lemma 6**

**Proof**

**Lemma 7**

**Proof**

**Lemma 8**

**Proof**

## 6. Hierarchical Approximate String Matching

#### 6.1. Bidirectional Compressed Indexes

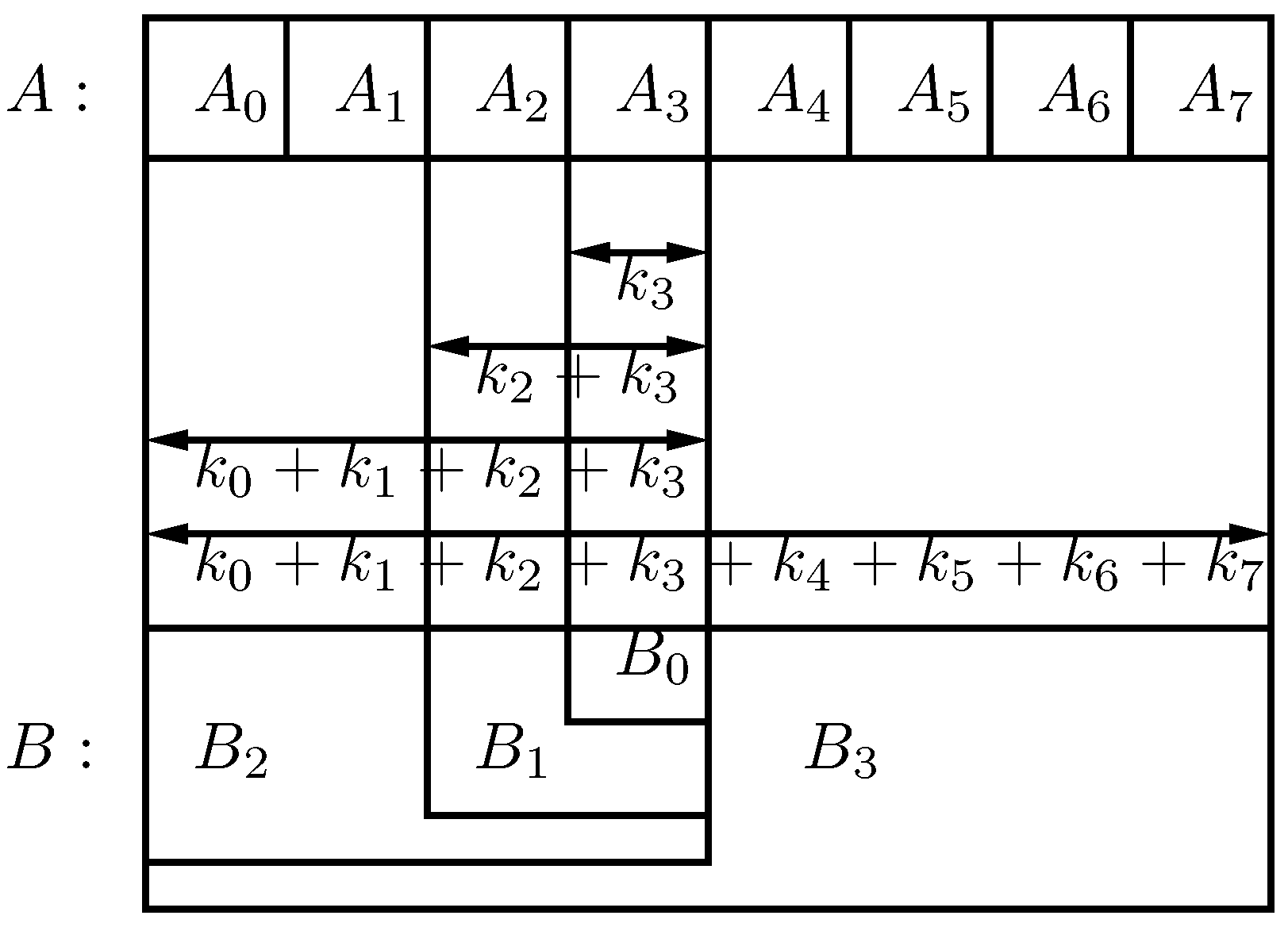

#### 6.2. Indexed Hierarchical Verification

**Lemma 9**

**Proof**

## 7. Practical Issues and Testing

`http://pizzachili.dcc.uchile.cl`), with 50 MB of English and DNA and 64 MB of proteins. The machine was a Pentium 4, 3.2 GHz, 1 MB L2 cache, 1 GB RAM, running Fedora Core 3, and compiling with

`gcc-3.4 -O9`. The pattern strings were sampled randomly from the text and each character was distorted with $10\%$ of probability. All the patterns had length $m=30$. Every configuration was tested during at least 60 seconds using at least 5 repetitions. Hence the numbers of repetitions varied between 5 and 130,000. To parametrize the hybrid index we tested all the j values from 1 to $k+1$ and reported the best time. To parametrize we choose $q=\lfloor m/h\rfloor $ and $s=\lfloor k/h\rfloor +1$ for some convenient h, since we can prove that this is the best approach and it was corroborated by our experiments. To determine the value of h and v we also tested the viable configurations and reported the best results. In our examples choosing v and h such that $2v$ is slightly smaller than q yielded the best configuration. Figure 9 shows the sensitivity of the ILZI to this parameter. The LZI and DLZI are not parametrized.

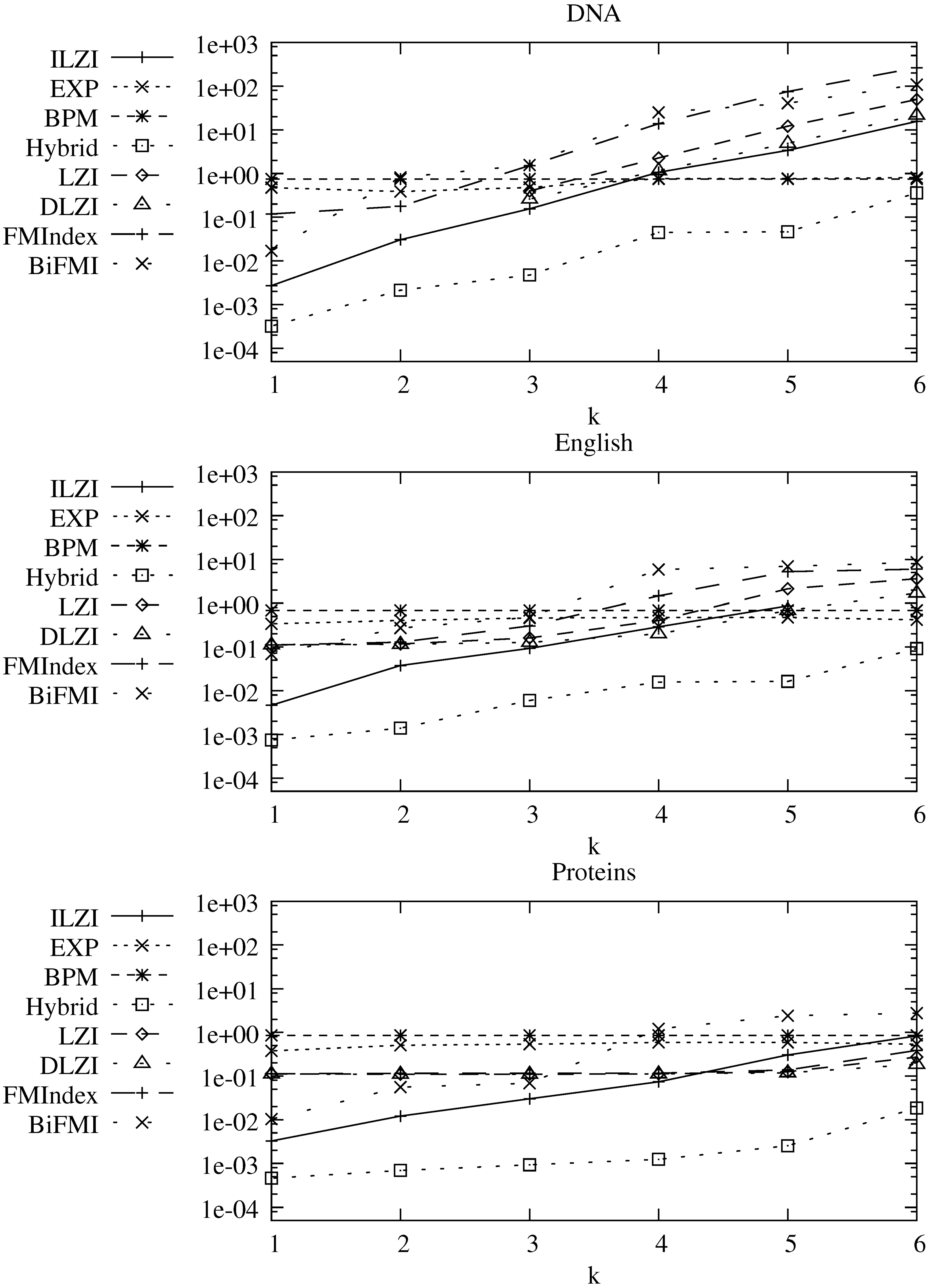

**Figure 8.**Average user time for finding the occurrences of patterns of size 30 with k errors in DNA, English, and Proteins. The y axis units are in seconds.

**Figure 9.**Average user time, in seconds, that the ILZI takes to find occurrences of patterns of size 30 with k errors, using different v’s.

55 |

45 |

## 8. Conclusions and Future Work

## Acknowledgements
