Improvements to the Modified Anderson–Björck (modAB) Root-Finding Algorithm

Abstract

The Modified Anderson–Björck method is a new, robust, and efficient bracketing root-finding algorithm. It combines bisection with the Anderson–Björk method to achieve both fast performance and worst-case optimality. It relies on linearity check criteria for switching methods and uses Anderson–Björk corrections to overcome the fixed endpoint issue of false-position. Initial benchmarks of this method have shown certain performance advantages compared to other methods, such as Ridders, Brent and ITP. In this paper, we propose further improvements to this method and perform some additional analysis and benchmarks of its behavior and performance.

1. Introduction

Iterative algorithms are generally fast but can easily diverge if an improper starting point is selected. Bracketing algorithms are more reliable in this respect. If the function is continuous in the interval [a, b] and has opposite signs at both ends, according to Bolzano’s theorem, at least one root exists inside [a, b], and the bracketing method is guaranteed to find it within a certain precision. Bisection is the simplest method, and it is also worst-case optimal. The required number of iterations is constant for a certain precision and does not depend on the function properties. It can be precomputed using the following equation:

$$n={\log }_2{\displaystyle \frac{\left|x_2-x_1\right|}{2ϵ}}$$

(1)

However, for well-behaved functions, other algorithms like false-position, Illinois [1], and Ridder’s [2] can provide significantly better performance, but for poorly behaved functions, they can perform significantly worse than bisection. Therefore, stability and performance are contradictory goals and achieving both is a challenging task. Some authors have noted that this can be done by combining bisection with a faster algorithm like false-position [3], secant or inverse-quadratic interpolation. Examples of these combinations include Brent’s method [4] and the ITP [5] method. Also, initial bisection steps can boost the performance of false-position and similar methods by bringing the starting point to more favorable conditions [6,7]. Although it is obtained through a combination of linear algorithms, the resulting algorithm shows nonlinear (bilinear) behavior and better convergence than using both algorithms separately. In all cases, the selection of proper switching criteria is of key importance for applying each method at the most appropriate place and thus maximizing the overall performance.

2. The Original Modified Anderson–Björck (modAB) Algorithm

On that basis, a new hybrid algorithm was proposed in 2023 [6] that combined bisection with Anderson–Björck’s (AB) method. The switching criteria is based on measuring the linearity of the function. In this way, linear interpolation is applied when the deviation of the curve from a straight line becomes small enough according to the following equation:

$$\left|y_3-y_m\right|<k\left(\left|y_3\right|+\left|y_m\right|\right),$$

(2)

where y₃ is the function value at the midpoint, y_m is the chord ordinate at the same point and k is the limit deviation factor. After switching, the iterations continue as ordinary AB steps as follows:

• An intermediate point is calculated by linear interpolation:

  $$x_3={\displaystyle \frac{x_{1}f\left(x_2\right)-x_{2}f\left(x_1\right)}{f\left(x_2\right)-f\left(x_1\right)}}$$

  (3)
• The ordinate of the end that remained fixed at the previous iteration is reduced by a factor m. For the left end, it is calculated by the expression y₁ = f(x₁) · m, where m = 1 − f(x₃)/f(x₂) if m > 0; otherwise, m = 0.5. For the right end, the equation is obtained by swapping indices 1 and 2, as follows: y₂ = f(x₂) · m, where m = 1 − f(x₃)/f(x₁) if m > 0; otherwise, m = 0.5.

An option to fall back to bisection is provided if AB fails to converge within a certain number of iterations. The original algorithm has been included in the Calcpad [8] and Root-Fortan [9] libraries. Although the algorithm has shown superior performance compared to others in tests, and later in practice, we have identified some drawbacks and opportunities for further improvements.

3. Drawbacks of the Original Algorithm

The original algorithm has several shortcomings that can be addressed:

• The deviation factor k in Equation (2) has a fixed value of k = 0.25 as a good average estimate, experimentally tuned on a larger set of functions. However, this is not optimal because it does not account for the properties of the function in the selected interval.
• Although the possibility of a redundant switch to AB was discussed in [6], not much research has been done on the subject. Only a simple bisection fallback is included as a safety mechanism if the algorithm fails to converge within the expected number of iterations. It is proposed empirically to be half of the required bisection steps. This is a simple and conservative approach, but in certain cases, it may result in unnecessary AB steps before the algorithm recognizes that it is not converging as intended.
• The original algorithm uses the termination criteria of the false-position method: |x_n – x_n−1| < ε. Further tests have shown that it fails for certain functions that are flat near the root, but with large ordinates at endpoints (>1/ε). This can cause the interpolation point to crawl very slowly along the abscissa, so the step may become lower than ε, even if we are still too far from the root.
• The benchmarks in the original paper [6] were based on the number of iterations with a factor of two for Ridder’s method. However, the number of function evaluations is more closely related to the actual performance, especially when the function is computationally expensive.
• In the original paper, we used 21 functions to benchmark the method performance. This set is very limited, which can lead to some distortion in the results. Therefore, the set may be considered insufficient to derive reliable conclusions. It may turn out that some algorithms are particularly suitable for a larger part of the functions in the set, showing a false advantage. That is why additional tests were performed in [7] with a set of 50 functions.

4. Improvements to the modAB Algorithm

In this paper, we propose a new version of the modAB algorithm, aiming for it to be more robust, reliable and efficient than the first one. This is achieved by fixing the above issues and making it more adaptive to the properties of the function.

4.1. Adaptive Value of Deviation Factor k

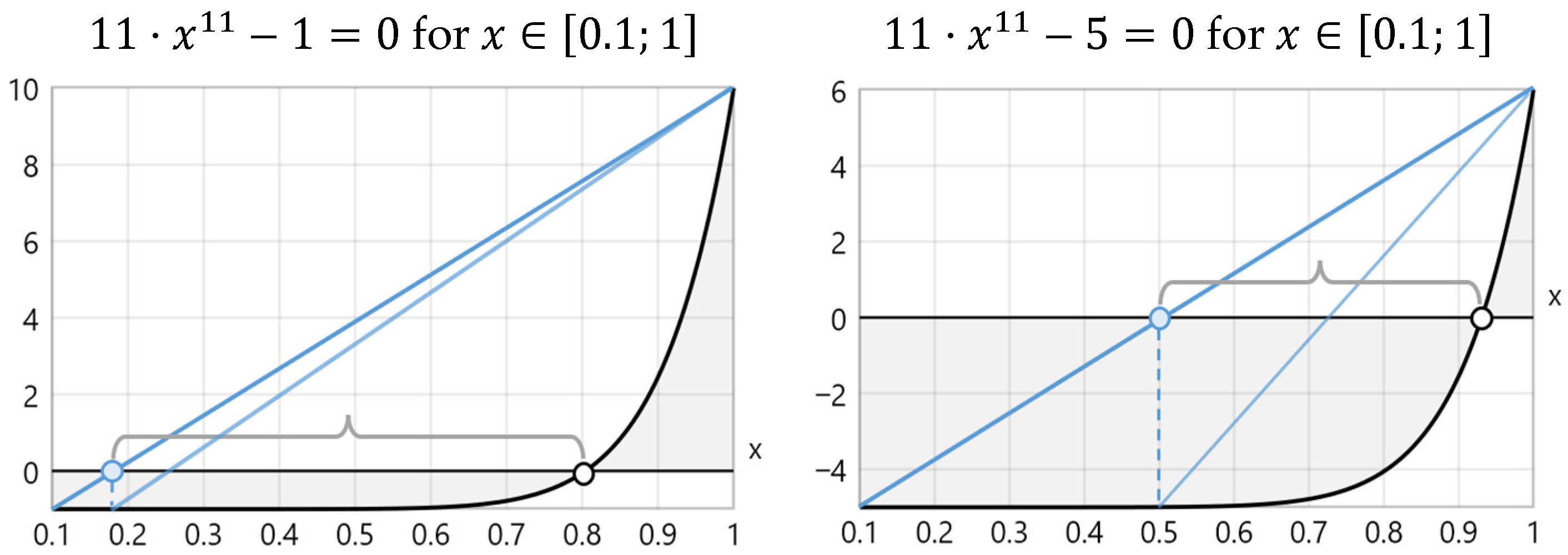

For highly curved functions like the one in Figure 1, symmetry plays a key role in the behavior of linear interpolation algorithms. If the endpoint ordinates are highly asymmetric, as shown in the left plot, it is possible for the root to occur at a greater distance. This will slow down performance, since there is not only a longer path to travel, but the step size also becomes smaller. If the endpoint values are nearly symmetric, the behavior improves significantly, even when both functions have the same deviation from the straight line.

For that reason, it is reasonable to include symmetry in the method’s switching criterion, and the factor k seems to be the right place to do so. For unsymmetric endpoints, we can keep k lower, forcing the algorithm to take more bisection steps. For symmetric endpoints, we can make k larger and allow the algorithm to switch faster to AB, since we expect it to be more favorable here. However, this is highly dependent on the shape of the function. Therefore, tuning it too much for specific types of functions is not justified. Instead, we can map the value of k against the endpoint ordinates by using a simple relationship that is fast to evaluate and does not bring significant overhead on each iteration.

For that purpose, we will introduce a new factor of symmetry r by using the following equation:

$$r=1-\left|{\displaystyle \frac{y_m}{y_2-y_1}}\right|,$$

(4)

where y₁ = f(x₁), y₂ = f(x₂) and y_m = 0.5 (y₁ + y₂) is the average value. Thus, we have r = 1 for symmetric and r = 0.5 for unsymmetric endpoint ordinates. Symmetry also ensures that the distance from the interpolation point to the root cannot exceed 0.5 (x₂ − x₁). Otherwise, it can approach the whole interval length of x₂ − x₁. But how do we take this into account in the deviation factor k? If we look closely at the above functions, we can see that the relationship between symmetry and convergence is not linear. Higher symmetry leads to both a shorter path and longer step size, which is a quadratic relationship. The simplest quadratic expression we can use is k = r². Thus, we map k to the interval [0.25, 1], where 0.25 is our old value for k, but with an allowance to grow up to 1 for fully symmetric endpoints.

4.2. Adaptive Bisection Fallback Criterion

Instead of using a fixed number of expected iterations, we can apply a more precise criterion by measuring the actual performance of the AB algorithm after switching. A possible simple and direct approach is to check whether AB has shrunk the interval more than bisection would do. Assume that the algorithm switches from bisection to AB at the interval [a₀, b₀] with initial length

$$W_0=b_0-a_0$$

(5)

After performing t more steps, a pure bisection method would reduce the length to $W_0/2^t$. Therefore, we will define a fallback threshold as follows:

$$T\left(t\right)=C{\displaystyle \frac{W_0}{2^t}}$$

(6)

where C is a safety factor. Let $W\left(t\right)=b_t-a_t$ denote the actual interval width after t AB steps. Then, the adaptive bisection fallback criterion becomes

$$W\left(t\right)>T\left(t\right)$$

(7)

Taking C = 2ⁿ will allow for a delay of n AB steps before switching back to bisection. Numerical experiments have shown that switching without a safety factor causes the algorithm to oscillate rapidly between methods, significantly degrading the performance. Therefore, the question is how to select a suitable value for C. One or two iterations proved to be insufficient to prevent oscillations. A reasonable value of n appeared to be between three and four. Larger values caused the algorithm to waste too many iterations on AB. Therefore, we can safely pick n = 4, and thence C = 2⁴ = 16. For efficiency, we will not apply Equation (6) directly, but instead will initialize the threshold at switching to AB as $T_0 =C{W}_0$. Then, we will update it on each AB iteration t using the equation $T_t=T_{t-1}/2$.

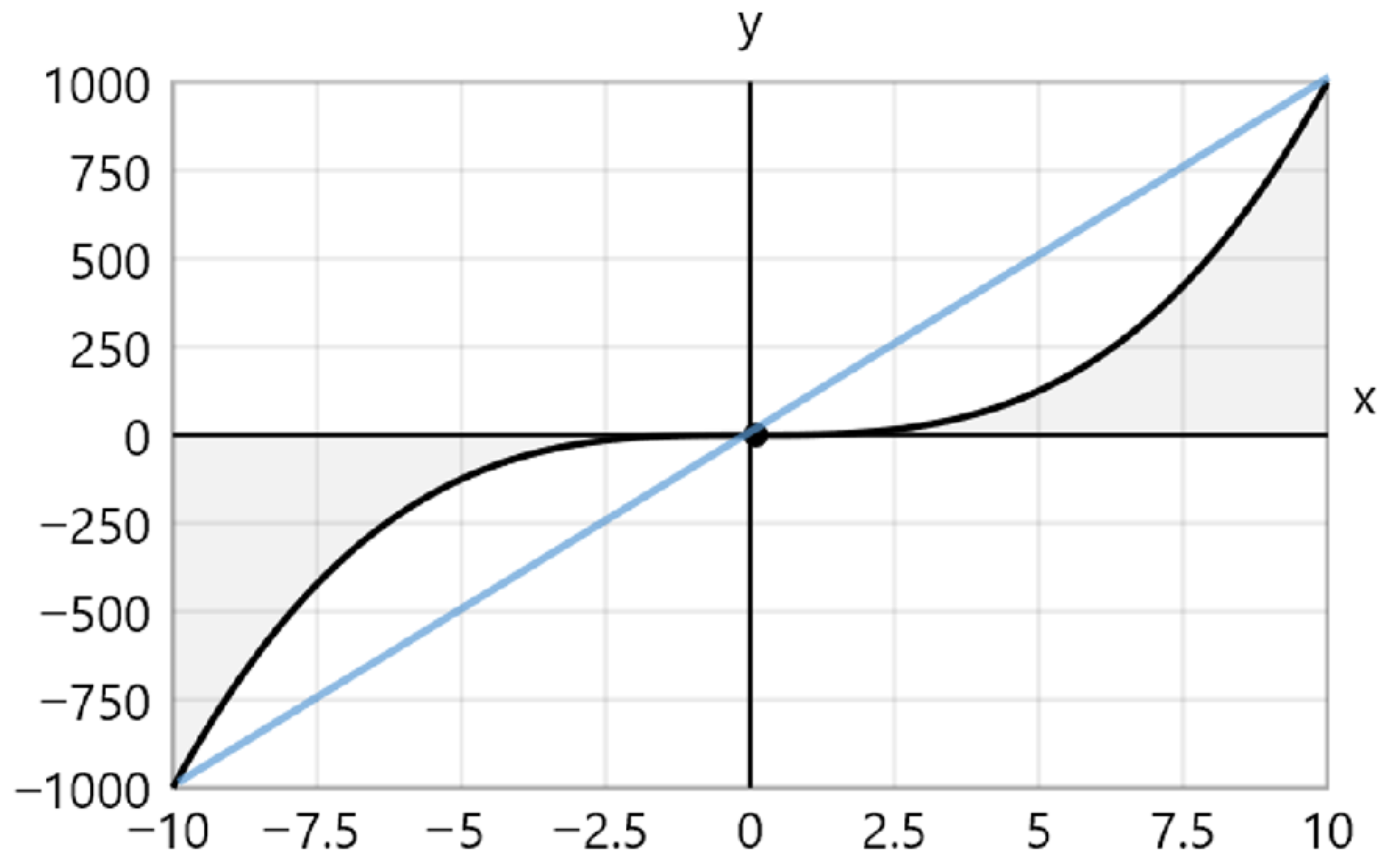

To demonstrate how the new switching criteria works, we will take a nearly symmetrical function f(x) = x³ − 0.001 and solve the equation f(x) = 0 in the interval [−10, 10]. The plot is displayed in Figure 2.

Both the original and proposed algorithms switch to AB at the first iteration, finding themselves in a position to deal with a highly nonlinear and unsymmetric problem. After that, they show very different behavior, as summarized in

Table 1. Comparison of switching criteria in the original and the proposed methods.

Algorithm	Iteration Number
	Switch to AB	Fallback to Bisection	Switch to AB	Converge and Quit
The original modAB 2023 [6] fixed criteria	1	24	34	40
The proposed new adaptive criteria	1	7	15	24

below. This demonstrates that using fixed switching criteria is not optimal and can possibly slow down the algorithm.

4.3. New Termination Check

Instead of the false-position convergence check |x_n − x_n−1| < ε, we will use a more robust and reliable bisection-style check b_n − a_n < ε_abs + ε_rel · |x_n|, where a_n and b_n are the endpoints of the interval at iteration n, and ε_abs and ε_rel are the absolute and relative tolerances, respectively. This criterion is not applicable for the pure false-position method because of the fixed endpoint issue, but the AB corrections always cause the interval to shrink from both sides. However, for some functions, shrinking from the other side may require one or two extra steps, after the solution has converged from one side. Nevertheless, this trade-off is justified by the improved robustness and reliability of the method.

Additionally, we can separate the convergence checks along x and y. Since the x-check does not depend on the y-value, we can move it to the top and thus save one function evaluation.

4.4. The Improved Algorithm

After implementing the above improvements and refactoring the structure, we arrive at the following improved version of the modAB algorithm (Algorithm 1):

Algorithm 1: The improved modAB algorithm.

1. Calculate points p1: x1, y1 = f(x1) and p2: x2, y2 = f(x2) 2. initialize “method” to “bisection” and “side” to “none” 3. for iter = 1 to maxIterations 4.   if “method” is “bisection” then: 5.      calculate x3 as the midpoint: x3 = (x1 + x2)/2 6.   else if method is “Anderson-Björck” then: 7.      calculate x3 as the secant point: x3 = (x1*y2 − y1*x2)/(y2 − y1) 8.   end 9.   if the x-convergence check x2 − x1 ≤ εabs + εrel*|x3| is satisfied then: 10.      stop and return x3 as a result (avoids redundant evaluation of y3 = f(x3)) 11.   end 12.   if “method” is “bisection” then: 13.      calculate p3: x3, y3 = f(x3) 14.      calculate the average ordinate by the equation: ym = (y1 + y2)/2 15.      calculate r to Equation (4) and k = r2 16.      if the function is close enough to linear, satisfying that _        |ym − y3| < k (|y3| + |ym|) then: 17.          change the method to “Anderson-Björck” 18.      end 19.   else if method is “Anderson-Björck” then: 20.      calculate p3: x3, y3 = f(x3) and clamp it between p1 and p2 _          (in case floating point round-off errors shoot it outside the interval) 21.   end 22.   if the y-convergence check y3 = 0 is satisfied then: 23.      stop and return x3 as a result 24.   end 25.   if y1 and y3 have equal signs then: 26.      if “method” is “Anderson-Björck” then: (apply AB correction) 27.         if “side” is “right” then 28.               calculate m = 1 − y3/y1 29.               if m ≤ 0 then: divide y2 by 2 else: multiply y2 by m 30.         else: 31.            change “side” to “right” 32.         end 33.      end 34.      for both methods, shrink the interval from left by setting p1 = p3 35.   else 36.      if “method” is “Anderson-Björck” then: 37.         if “side” is “left” then: 38.            calculate m = 1 − y3/y2 39.            if m ≤ 0 then: divide y1 by 2 else: multiply y1 by m 40.         else: 41.            change “side” to “left” 42.         end 43.      end 44.      for both methods, shrink the interval from right by setting p2 = p3 45.   end 46.   if AB fails to shrink the interval more than bisection would, then: 47.      reset the method back to “bisection” 48.   end 49. end 50. return error, if failed to converge for the expected number of iterations

4.5. Convergence

Since the modAB algorithm represents a modification of Anderson–Björck’s method [10], guarded by bisection, it should naturally inherit its superlinear convergence, estimated to be between 1.7 and 1.8. This assumption corresponds well to the results from the numerical experiments presented below. The proposed changes are aimed mostly at improving the worst-case scenarios where the original AB algorithm struggles to converge. However, more rigorous convergence analysis will be performed in future and published in a separate paper.

4.6. Practical Use and Implementation in Software

The source code of the algorithm is listed in Appendix A. It has also been translated into Julia, Python, Cython, C, C++ and Zig languages. The modAB algorithm is included in Calcpad v7.6.2 [8], SciML/NonlinearSolve.jl v4.17.1 [11], JuliaMath/Roots.jl v2.2.11 [12], and ROOT.CERN v6-40-00-rc1 [13] libraries for scientific computations. It can be used in Python v3.x via the PyModAB v1.0.3 [14] package. For all implementations, modAB demonstrated superior performance compared to the existing algorithms, according to the benchmarks.

5. Numerical Experiments

The improved modAB algorithm is benchmarked against the original version and seven classical algorithms: bisection, false-position, Illinois [1], Anderson–Björck [9], ITP [5], Ridders [2] and Brent [4,15]. For this purpose, they are also implemented in C# programming language.

An extended set of 92 functions is used for the benchmarks. To avoid bias, they are collected from papers by authors of other algorithms and independent comparative studies as follows:

• Sérgio Galdino [16]: f₀₁ − f₃₀
• Custom functions [7]: f₃₁ − f₃₂
• Steven A. Stage [17]: f₃₃ − f₄₀
• Swift & Lindfield [18]: f₄₁ − f₅₀
• Alojz Suhadolnik [19]: f₅₁ − f₆₂
• Oliveira & Takahashi [5]: f₆₃ − f₈₃
• SciML Benchmarks suite [11]: f₈₄ − f₉₂

Plots of all functions with equations and root values are presented in the Supplementary File: Test Functions.pdf. The benchmarks are based on the number of function evaluations, which are more indicative of the actual performance than the number of iterations, especially for computationally expensive functions. The results are presented in

Table 2. Benchmark results for solving f_nn(x) = 0 in the interval [a; b].

Function	Interval		Method
	a	b	bs	fp	ill	AB	ITP	Rid	Bre	modAB 1	modAB 2
f01(x) = x3 − 1	0.5	1.5	3	34	10	9	10	4	10	3	3
f02(x) = x2 (x2/3 + sqrt(2) · sin(x)) − sqrt(x)/18	0.1	1	48	87	12	12	39	16	13	12	12
f03(x) = 11x11 − 1	0.1	1	48	108	16	23	50	14	12	13	15
f04(x) = x3 + 1	−1.8	0	49	50	13	11	12	12	10	10	10
f05(x) = x3 − 2x − 5	2	3	47	32	9	8	51	14	8	10	12
f06(x) = 2x · exp(−5) + 1 − 2 · exp(−5x)	0	1	49	30	10	10	13	14	10	12	10
f07(x) = 2x · exp(−10) + 1 − 2 · exp(−10x)	0	1	49	31	13	11	15	14	12	13	11
f08(x) = 2x · exp(−20) + 1 − 2 · exp(−20x)	0	1	49	31	13	13	17	12	12	13	12
f09(x) = (1 + (1 − 5)2) · x2 − (1 − 5x)2	0	1	49	17	12	9	48	16	10	12	11
f10(x) = (1 + (1 − 10)2) · x2 − (1 − 10x)2	0	1	49	14	10	9	12	16	10	9	9
f11(x) = (1 + (1 − 20)2) · x2 − (1 − 20x)2	0	1	49	12	10	8	10	16	9	9	9
f12(x) = x2 − (1 − x)5	0	1	49	41	10	9	11	14	9	12	11
f13(x) = x2 − (1 − x)10	0	1	49	83	12	10	49	16	10	12	12
f14(x) = x2 − (1 − x)20	0	1	49	171	12	12	50	16	13	13	12
f15(x) = (1 + (1 − 5)4) · x − (1 − 5x)4	0	1	49	9	9	7	10	12	8	9	9
f16(x) = (1 + (1 − 10)4) · x − (1 − 10x)4	0	1	49	6	7	6	9	12	7	8	8
f17(x) = (1 + (1 − 20)4) · x − (1 − 20x)4	0	1	49	6	7	6	9	12	7	8	8
f18(x) = exp(−5x) · (x − 1) + x5	0	1	48	81	10	8	37	14	9	11	11
f19(x) = exp(−10x) · (x − 1) + x10	0	1	48	202	14	9	11	16	9	13	12
f20(x) = exp(−20x) · (x − 1) + x20	0	1	48	202	22	10	12	16	13	13	14
f21(x) = x2 + sin(x/5) − 1/4	0	1	49	34	10	9	10	12	11	12	9
f22(x) = x2 + sin(x/10) − 1/4	0	1	48	33	11	9	10	12	10	9	9
f23(x) = x2 + sin(x/20) − 1/4	0	1	48	32	12	9	10	12	10	9	9
f24(x) = (x + 2) · (x + 1) · (x − 3)3	2.6	4.6	48	202	91	108	51	80	137	49	48
f25(x) = (x − 4)5 · log(x)	3.6	5.6	48	202	174	188	51	62	118	49	48
f26(x) = (sin(x) − x/4)3	2	4	48	202	91	108	51	78	137	49	48
f27(x) = (81 − p(x) · (108 − p(x) · (54 − p(x) · (12 − p(x))))) · sign (p(x) − 3), where p(x) = x + 1.11111	1	3	14	202	35	38	22	24	31	14	14
f28(x) = sin(x − 7.143)3)	7	8	46	202	87	102	50	70	131	47	46
f29(x) = exp((x − 3)5) − 1	2.6	4.6	12	202	59	46	3	18	30	12	12
f30(x) = exp((x − 3)5) − exp(x − 1)	4	5	47	202	52	57	50	16	14	14	13
f31(x) = π − 1/x	0.05	5	51	192	15	7	53	16	12	13	12
f32(x) = 4 − tan(x)	0	1.5	48	92	14	11	51	16	13	13	14
f33(x) = cos(x) − x3	0	4	50	200	15	15	11	18	15	13	12
f34(x) = cos(x) − x	−11	9	53	11	10	9	11	16	10	10	11
f35(x) = sqrt(abs(x − 2/3)) · if(x ≤ 2/3; 1; −1) − 0.1	−11	9	53	15	16	13	54	24	11	18	17
f36 (x) = abs(x − 2/3)0.2 · if(x ≤ 2/3; 1; −1)	−11	9	53	44	47	54	46	54	44	54	55
f37(x) = (x − 7/9)3 + (x − 7/9) · 10−3	−11	9	52	202	25	27	13	24	31	18	16
f38(x) = if(x ≤ 1/3; −0.5; 0.5)	−11	9	53	53	61	61	53	56	53	54	53
f39(x) = if(x ≤ 1/3; −10−3; 1 − 10−3)	−11	9	53	202	172	172	55	84	83	54	53
f40(x) = if(x = 0; 0.0; 1/(x − 2/3))	−11	9	53	8	100	100	55	60	55	54	53
f41(x) = 2x · exp(−5) − 2 · exp(−5x) + 1	0	10	52	33	14	13	17	14	13	15	13
f42(x) = (x2 − x − 6) · (x2 − 3x + 2)	0	π	50	23	12	9	16	18	10	13	12
f43(x) = x3	−1	1.5	50	202	94	113	52	84	124	51	50
f44(x) = x5	−1	1.5	50	202	183	202	52	56	127	51	50
f45(x) = x7	−1	1.5	50	202	202	202	52	52	135	51	50
f46(x) = (exp(−5x) − x − 0.5)/x5	0.09	0.7	48	202	25	23	50	14	15	14	14
f47(x) = 1/sqrt(x) − 2 · log (5 · 103 · sqrt(x)) + 0.8	0.0005	0.5	48	155	16	13	49	18	16	16	16
f48(x) = 1/sqrt(x) − 2 · log(5 · 107 · sqrt(x)) + 0.8	0.0005	0.5	48	44	15	13	20	18	16	19	14
f49(x) = if (x ≤ 0; −x3 − x − 1; x1/3 − x − 1)	−1	1	49	26	12	9	12	12	11	12	12
f50(x) = x3 − 2x − x + 3	−3	2	50	41	15	13	16	14	12	12	11
f51(x) = log(x)	0.5	5	50	28	12	9	12	12	10	11	10
f52(x) = (10 − x) · exp(−10x) − x10 + 1	0.5	8	51	202	38	20	54	18	17	15	15
f53(x) = exp(sin(x)) − x − 1	1.0	4	49	32	11	11	12	18	14	13	13
f54(x) = 2 · sin(x) − 1	0.1	π/3	48	16	9	8	12	12	8	10	11
f55(x) = (x − 1) · exp(−x)	0.0	1.5	49	70	13	10	12	4	11	10	10
f56(x) = (x − 1)3 − 1	1.5	3	48	57	13	10	11	14	11	11	11
f57(x) = exp(x2 + 7x − 30) − 1	2.6	3.5	47	202	21	31	50	14	12	12	11
f58(x) = atan(x) − 1	1.0	8	50	26	12	9	13	12	10	12	10
f59(x) = exp(x) − 2x − 1	0.2	3	49	147	16	14	12	14	13	12	12
f60(x) = exp(−x) − x − sin(x)	0.0	2	50	15	9	8	11	16	8	9	9
f61(x) = x2 − sin(x)2 − 1	−1	2	49	33	13	13	13	18	11	12	13
f62(x) = sin(x) − x/2	π/2	π	48	32	10	8	10	14	9	10	10
f63(x) = x · exp(x) − 1	−1	1	49	30	12	10	12	10	10	11	11
f64(x) = tan(x − 1/10)	−1	1	50	40	8	8	11	12	9	9	8
f65(x) = sin(x) + 0.5	−1	1	49	11	9	8	11	16	8	9	9
f66(x) = 4x5 + x2 + 1	−1	1	49	33	13	11	15	16	10	13	13
f67(x) = x + x10 − 1	−1	1	49	50	13	11	51	12	12	14	12
f68(x) = πx − e	−1	1	49	15	10	8	11	10	8	9	9
f69(x) = log(abs(x − 10/9))	−1	1	50	64	13	9	10	12	10	10	10
f70(x) = 1/3 + sign(x) · abs(x)1/3 + x3	−1	1	50	13	13	11	16	16	11	12	17
f71(x) = (x + 2/3)/(x + 101/100)	−1	1	49	202	16	7	51	16	13	10	8
f72(x) = (x · 106 − 1)3	−1	1	50	3	3	3	51	6	139	51	50
f73(x) = exp(x) · (x · 106 − 1)3	−1	1	50	202	95	114	51	6	141	51	50
f74(x) = (x − 1/3)2 · atan(x − 1/3)	−1	1	50	202	93	112	51	82	142	51	50
f75(x) = sign(3x − 1) · (1 − sqrt(1 − (3x − 1)2/81))	−1	1	27	202	28	37	23	38	66	27	27
f76(x) = if(x > (1 − 106)/106; (1 + 106)/106; −1)	−1	1	49	49	37	37	50	52	49	50	39
f77(x) = if (x ≠ 1/21; 1/(21 x − 1); 0)	−1	1	50	14	95	95	51	66	53	51	50
f78(x) = x2/4 + ceiling(x/2) − 0.5	−1	1	50	50	56	55	50	40	51	51	9
f79(x) = ceiling(10x − 1) + 0.5	−1	1	50	48	52	52	47	38	47	15	14
f80(x) = x + sin(x · 106)/10 + 10−3	−1	1	50	24	22	22	25	26	21	25	25
f81(x) = if (x > −1; 1 + sin(1/(x + 1)); −1)	−1	1	49	52	15	14	51	40	51	20	14
f82(x) = 202x − 2 · floor((2x + 10−2)/(2 · 10−2)) − 0.1	−1	1	50	3	3	3	13	6	4	5	5
f83(x) = (202x − 2 · floor((2x + 10−2)/(2 · 10−2)) − 0.1)3	−1	1	50	202	73	70	51	70	125	51	50
f84(x) = (x − 1) · (x − 2) · (x − 3) · (x − 4) · (x − 5) − 0.05	0.5	5.5	49	66	9	7	53	20	8	8	8
f85(x) = sin(x) − 0.5x − 0.3	−10.0	10.0	52	14	13	11	47	20	12	12	11
f86(x) = exp(x) − 1 − x − x2/2 − 0.005	−2.0	2.0	51	202	19	19	22	20	16	15	15
f87(x) = 1/(x − 0.5) − 2 − 0.05	0.6	2.0	48	136	14	5	51	16	12	8	9
f88(x) = log(x) − x + 2 − 0.05	0.1	3.0	50	29	13	11	17	16	13	14	14
f89(x) = sin(20x) + 0.1 x − 0.1	−4.0	5.0	51	17	17	15	17	20	17	16	13
f90(x) = x3 − 2x2 + x − 0.025	−1.0	2.0	51	175	13	13	52	18	15	13	13
f91(x) = x · sin(1/x) − 0.1 − 0.01	0.01	1.0	49	13	13	11	39	14	13	13	13
f92(x) = x3 − 0.001	−10	10	53	202	24	202	55	28	24	42	25
Total number of evaluations			4410	8132	2907	3095	2798	2256	2880	1857	1741
Average number of evaluations			47.9	88.4	31.6	33.6	30.4	24.5	31.3	20.2	18.9
Relative to modAB 2			2.53	4.67	1.67	1.78	1.61	1.30	1.65	1.07	1.00
Maximal number of evaluations			53	202	202	202	55	84	142	54	55
Geometric mean			46.3	52.0	19.2	17.5	23.9	19.1	18.3	15.9	15.0
Best at (number of functions)			13	8	10	52	6	5	22	12	38
Worst at (number of functions)			38	43	6	7	3	1	1	0	1
Median			49.0	48.5	13.0	11.0	22.0	16.0	12.0	13.0	12.0
Standard deviation			7.6	79.0	41.0	48.2	19.0	20.5	40.2	16.0	15.1
Standard error			0.80	8.23	4.27	5.03	1.98	2.13	4.19	1.67	1.58
			bs	fp	ill	AB	ITP	Rid	Bre	modAB 1	modAB 2

Legend: bs—bisection; Bre—Brent; fp—false-position; Rid—Ridders; ill—Illinois; AB—Anderson–Björck; ITP—Interpolate, Truncate, Project; modAB ¹—Modified Anderson–Björck—the original 2022 version; modAB ²—Modified Anderson–Björck (the proposed version). Note: The best algorithm for each function is highlighted.

.

Additionally, we have benchmarked the time performance of the above algorithms for the same set of functions using the BenchmarkDotNet tool [20]. The results are presented in

Table 3. Total execution times * for all functions in us (microseconds).

Algorithm	Mean	Error	StdDev	Relative
Bisection	86.57 us	0.832 us	0.738 us	1.75
FalsePosition	321.77 us	3.561 us	2.974 us	6.51
Illinois	104.75 us	1.353 us	1.265 us	2.12
Anderson–Björck	122.19 us	1.205 us	1.127 us	2.47
ITP	193.37 us	1.604 us	1.339 us	3.92
Ridders	66.61 us	1.275 us	1.309 us	1.35
Brent	119.56 us	1.213 us	1.134 us	2.42
modAB 1	51.58 us	1.013 us	1.352 us	1.04
modAB 2	49.39 us	0.323 us	0.269 us	1.00

* BenchmarkDotNet v0.15.8, .NET 10.0.5 x64 RyuJIT x86-64-v4; Windows 11 (10.0.26200.8037/25H2/2025Update/HudsonValley2); Intel Core i7-1065G7 CPU 1.30 GHz eight logical and four physical cores + 16 GB RAM; ¹ the original version; ² the proposed version.

.

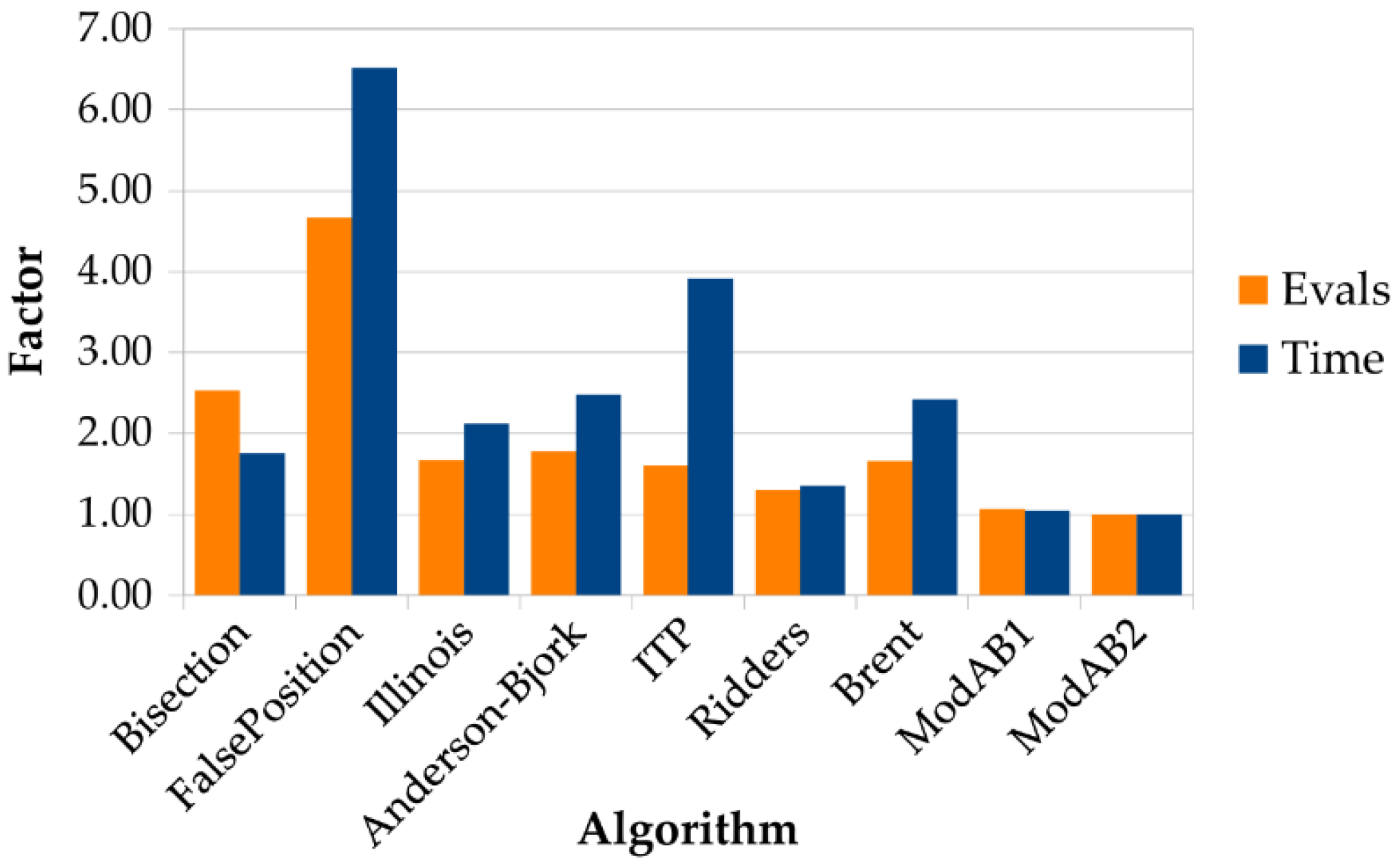

If we plot both the number of evaluations and benchmark times side by side, we can see that the time differences are greater for all algorithms, except for bisection, as displayed in Figure 3.

For computationally expensive functions, the number of evaluations governs because most of the time is spent on the function itself. For lightweight functions, the computational overhead of the algorithm can be important. Bisection is the simplest method, so it shows better results in time than in number of evaluations. ITP is on the opposite side. It is very efficient in terms of evaluation count, but computationally intensive. Its larger overhead per iteration downgrades its performance in the time domain. ModAB uses simple linear interpolation (with endpoint corrections) and bisection. This makes it very lightweight, and introduces very little overhead per iteration, especially when bisection is dominant. This is an advantage when multiple simple equations must be solved in a tight loop.

6. Discussion

The results show an improvement of about 7% in the proposed modAB algorithm compared to the original one, requiring 1741 total evaluations vs. 1857, respectively. If we keep the same convergence check, the effect of improving the method switching and fallback criteria is about 10% (1672 total evaluations). Therefore, the new convergence check slows down the algorithm by 3%; however, providing robustness is always more important than speed. Compared to the original Anderson–Björck algorithm, there is an improvement of about 1.78 times. The new modAB algorithm also outperforms Ridder’s by 1.3 times, ITP by 1.61 times and Brent by 1.65 times.

Compared to the original 2023 version, the proposed changes save 116 evaluations. Also, 45 functions are improved, and 10 functions are made worse, mostly by between one and two evaluations, except for f70, for which five evaluations are added. The greatest improvement is observed for f78, where the updated linearity check allows AB to take over in time, and save 42 evaluations. The new adaptive bisection fallback provides the most help to f92, saving 17 evaluations.

For well-behaved functions, the new algorithm often shows the best performance (38 functions) or remains between one and two evaluations behind the winner. For poorly behaved functions, the guarding role of bisection appears to work, providing no more than 55 evaluations in the worst case. This is probably due to spurious switching from bisection to AB and the fallback. It can also be noted that after extending the number of test functions, the relationships between the efficiencies of the separate algorithms are preserved. This indicates that the conclusions previously derived in [6] were not distorted by the chosen set of functions.

By analyzing the standard deviation and error in Table 2 and Table 3, we can observe that the modAB algorithm provides more uniform and consistent behavior for various types of functions.

7. Conclusions

The proposed method is suitable for use as a general-purpose algorithm for solving nonlinear equations in numerical libraries and software where guaranteed convergence, robustness and high performance are required but no preliminary information about the specific properties of the function and its derivatives is available.
