How to Identify Varying Lead–Lag Effects in Time Series Data: Implementation, Validation, and Application of the Generalized Causality Algorithm
Abstract
:1. Introduction
2. Theoretical Concept

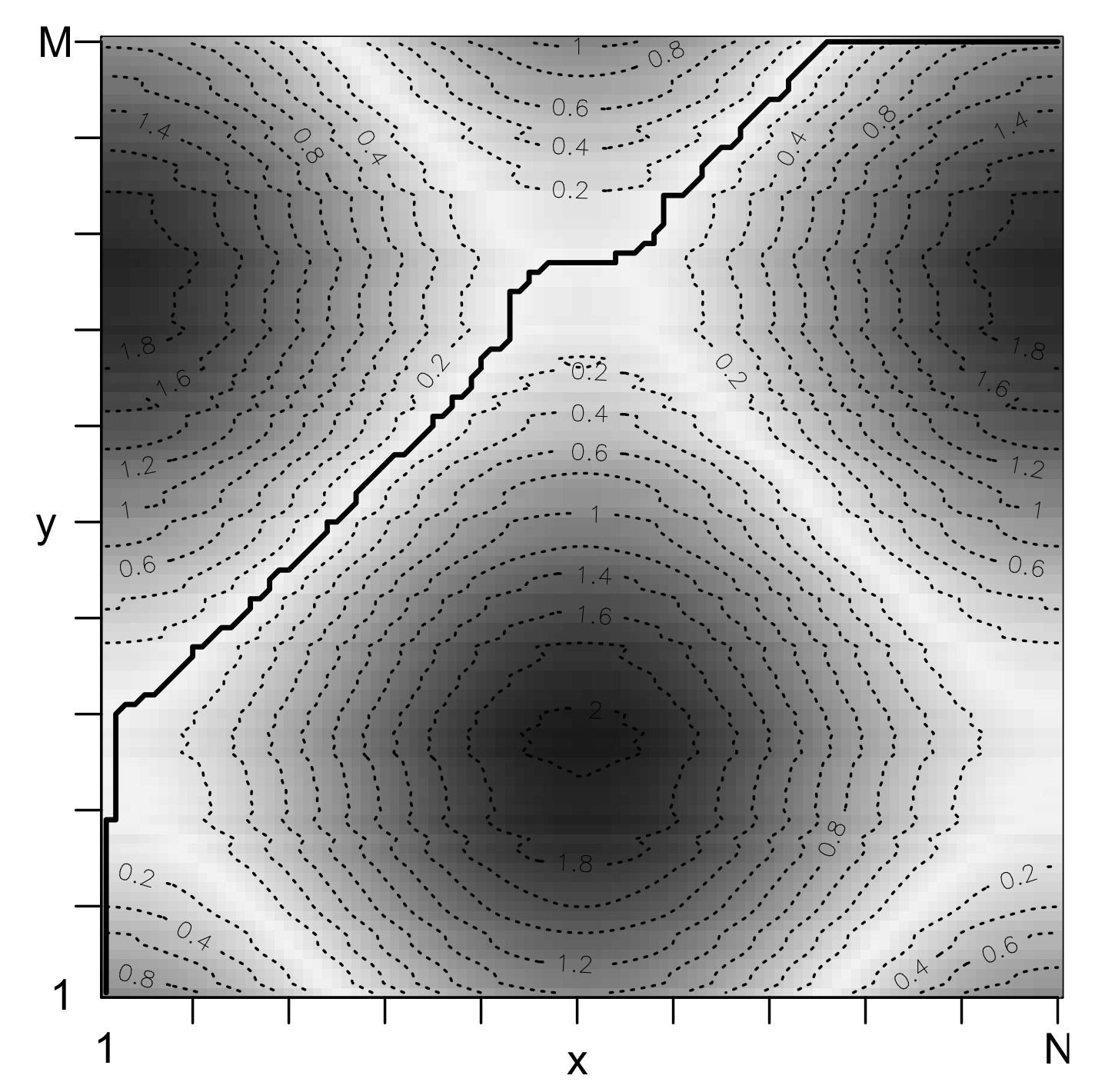

 ${p}_{1}=(1,1)$ and ${p}_{I}=(N,M)$ (Boundary condition).
 ${n}_{1}\le {n}_{2}\le \dots \le {n}_{I}$ and ${m}_{1}\le {m}_{2}\le \dots \le {m}_{I}$ (Monotonicity condition).

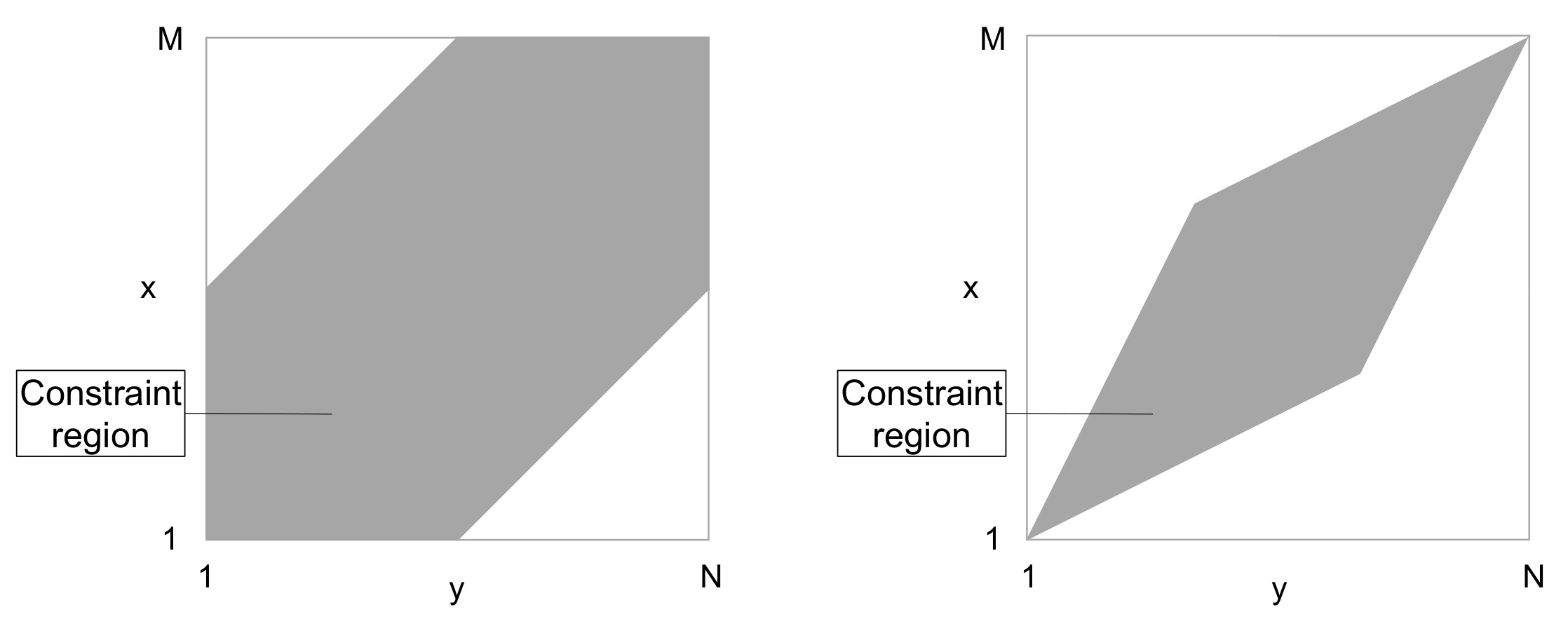

 ${p}_{i+1}{p}_{i}\in \{(1,0),(0,1),(1,1)\},\phantom{\rule{1.em}{0ex}}\forall i\in \{1,\dots ,I1\}$ (Step size condition).
3. Generalized Causality Algorithm
3.1. Methodology
Algorithm 1 Generalized causality algorithm

3.2. Simulation Study

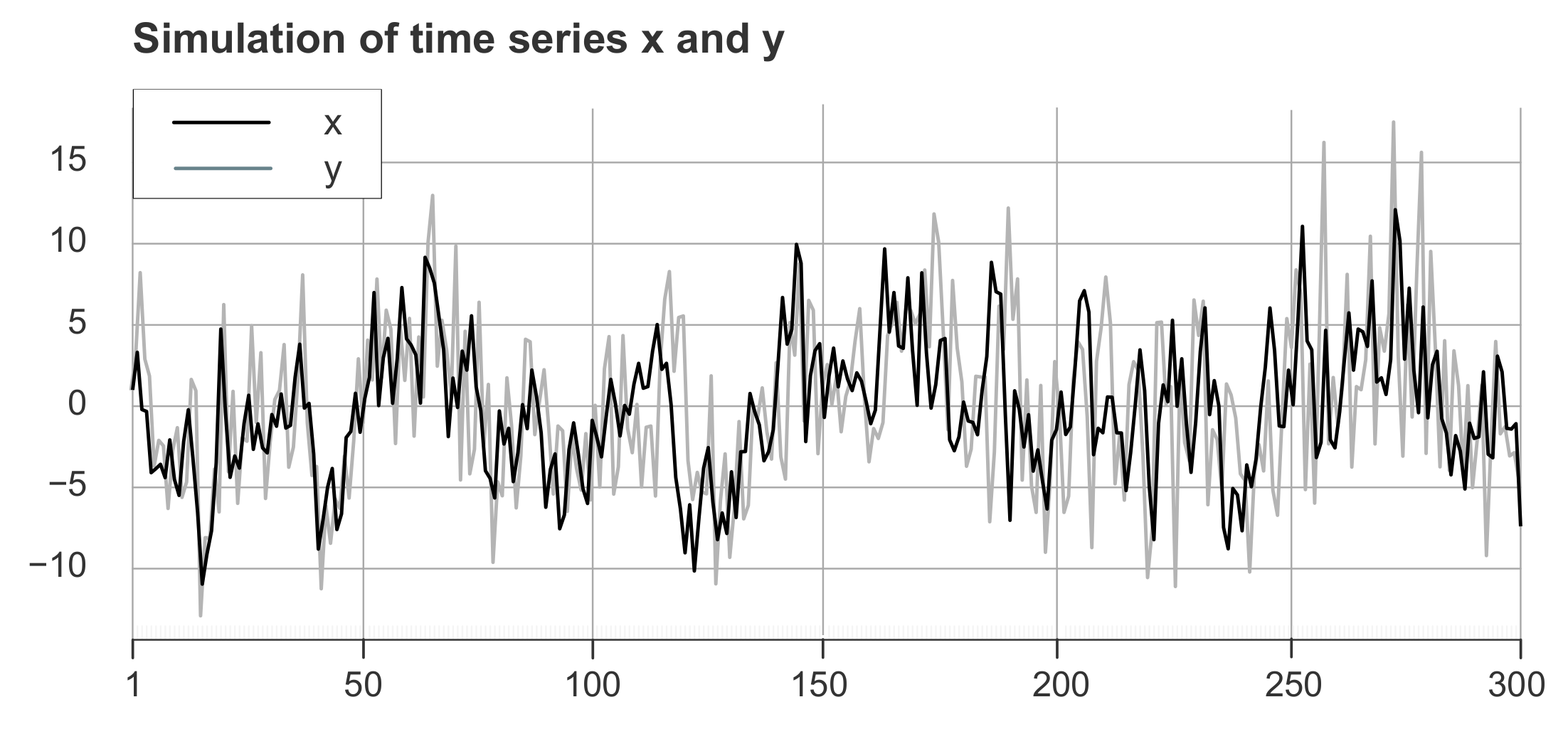

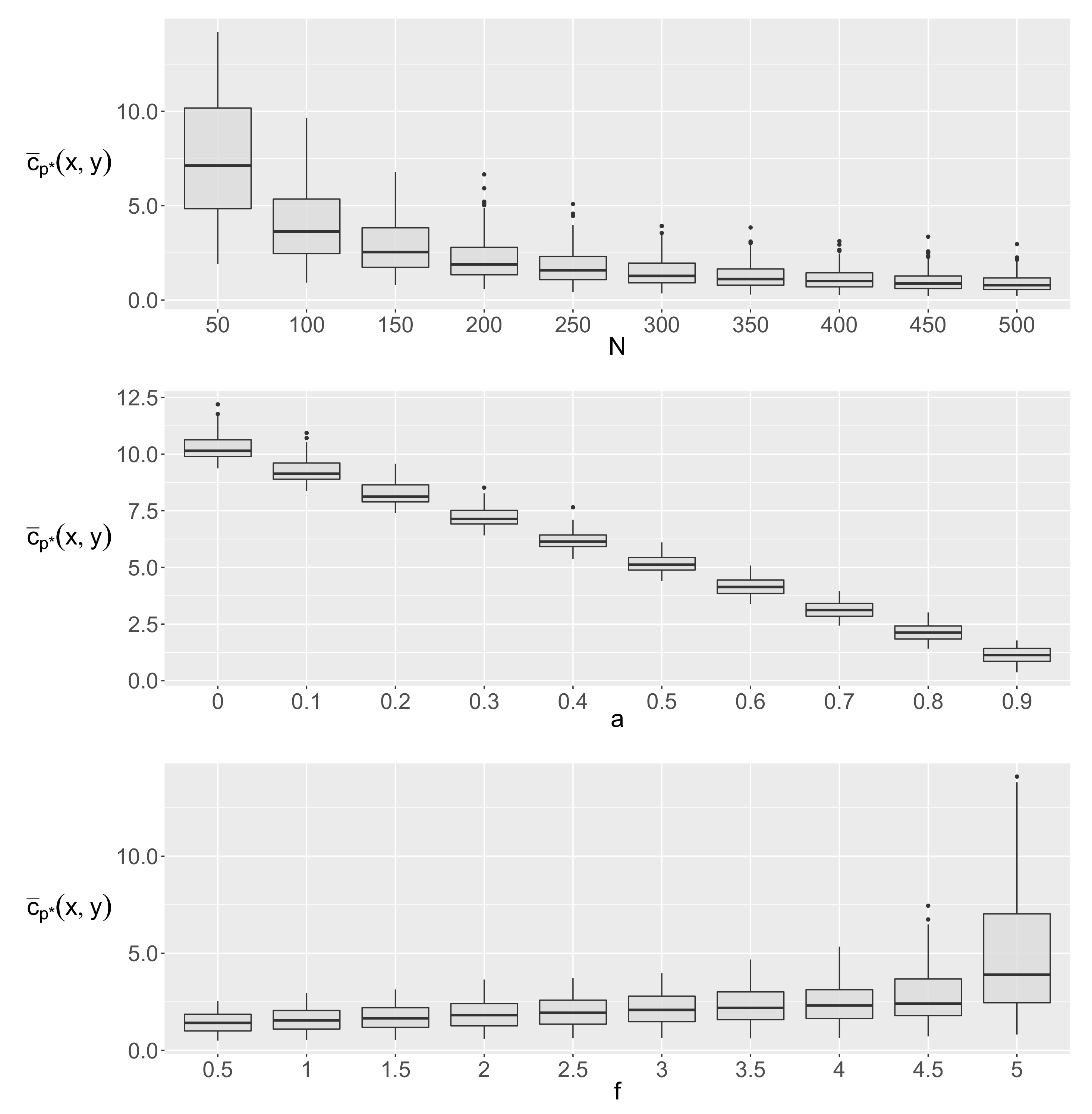

 The first phase (${Z}_{t}=1$) contains 100 data points (${N}_{1}=100$) where X leads Y by 1 lag (${l}_{1}=1$) with a “strength” of ${a}_{1}=0.8$.
 The second phase (${Z}_{t}=2$) contains 100 data points (${N}_{2}=100$) where X leads Y by 3 lags (${l}_{2}=3$) with a “strength” of ${a}_{2}=0.8$.
 The third phase (${Z}_{t}=3$) contains 100 data points (${N}_{3}=100$) where X leads Y by 5 lags (${l}_{3}=5$) with a “strength” of ${a}_{3}=0.8$.

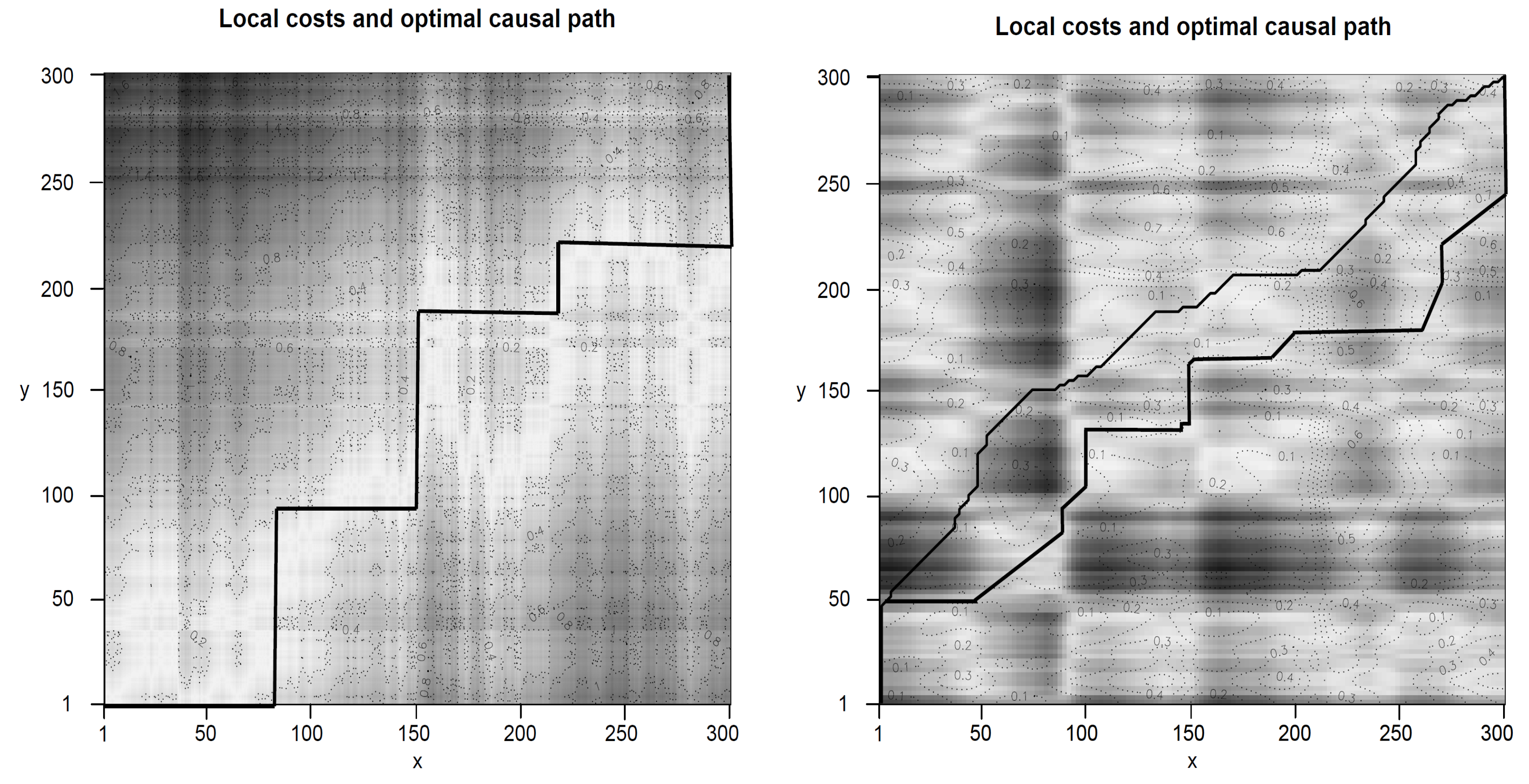

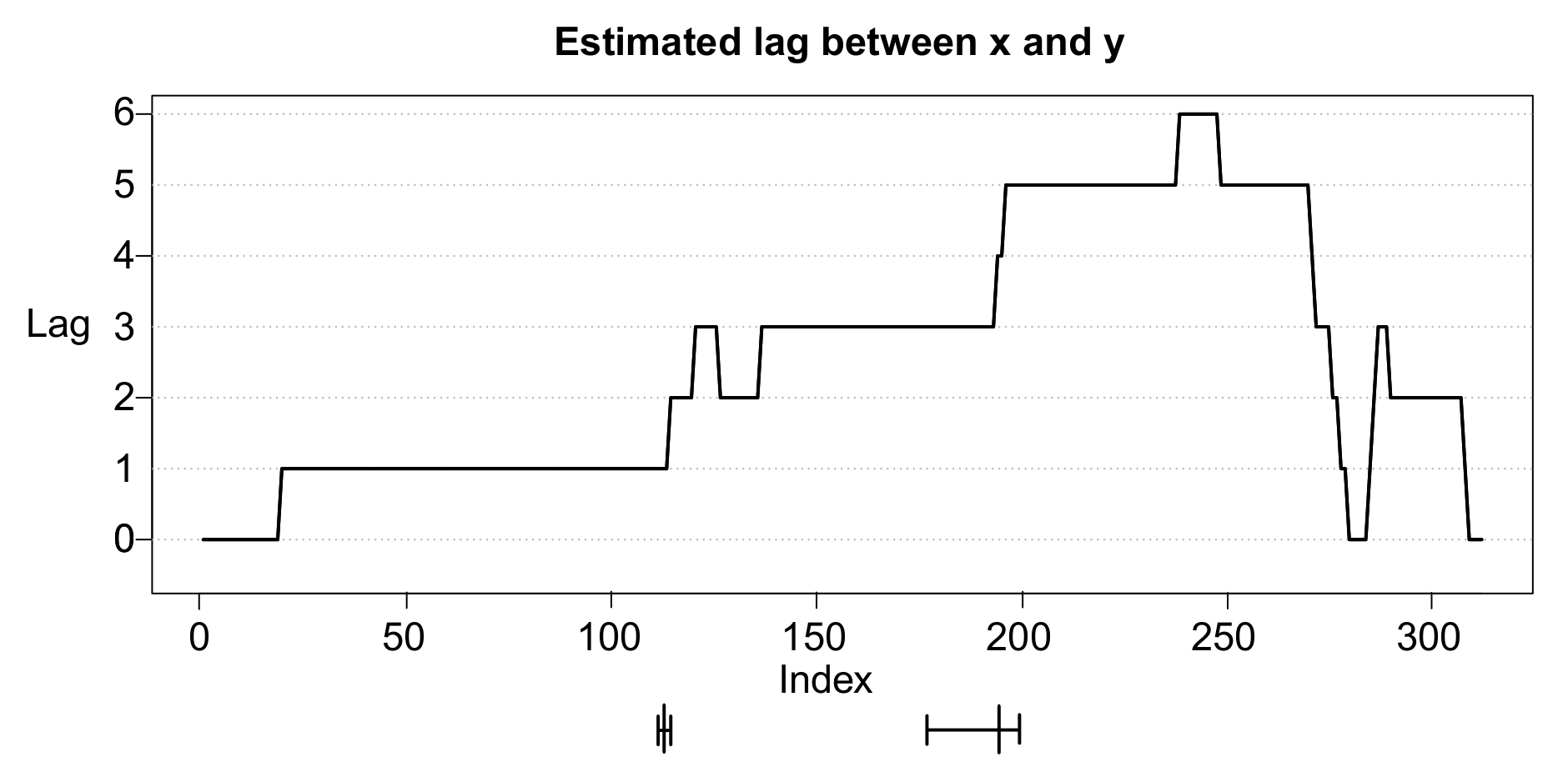

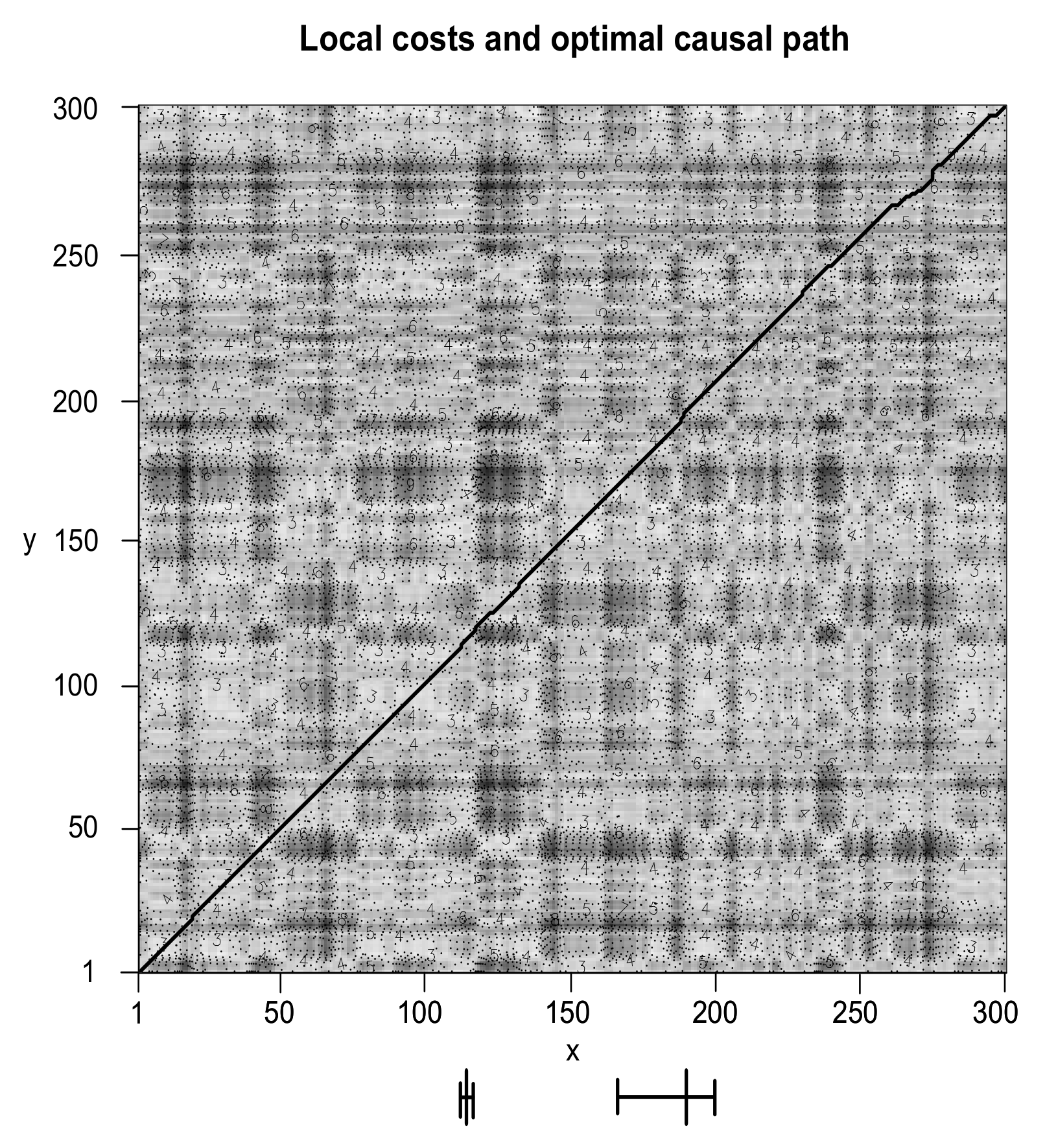

4. Applications to Real Data
4.1. Data set

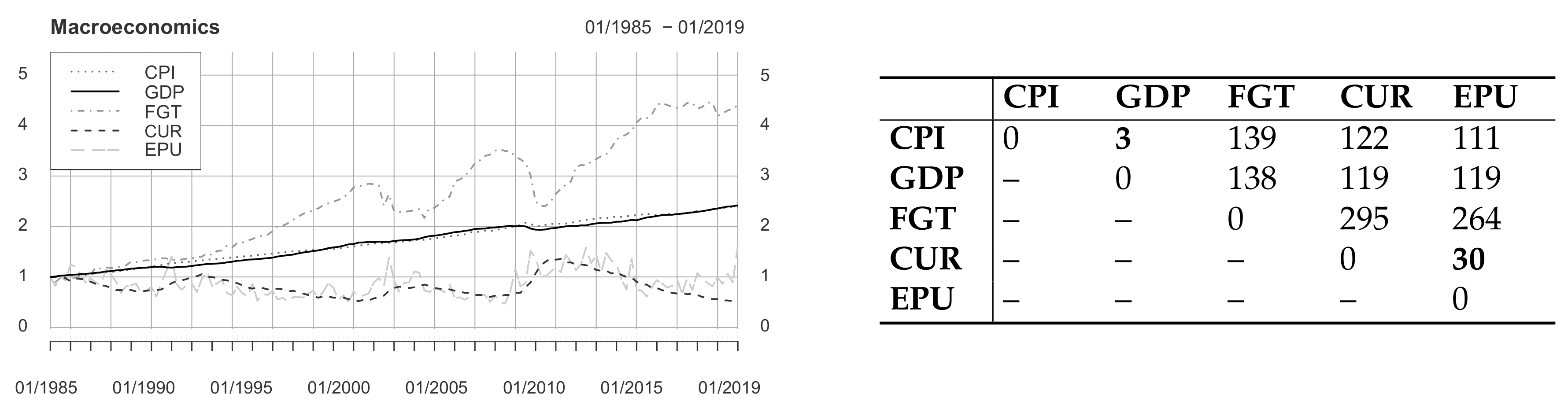

4.2. Macroeconomics

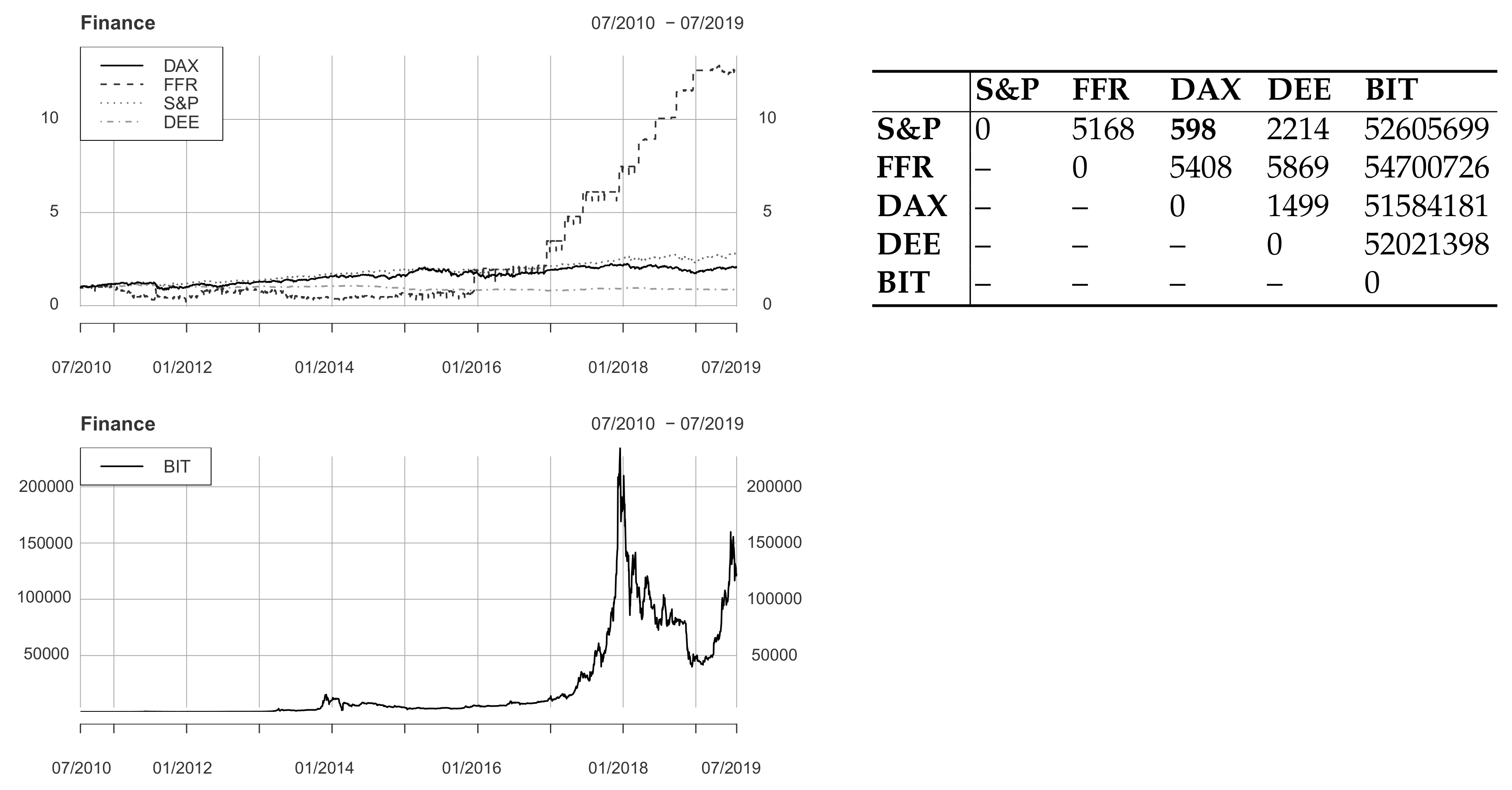

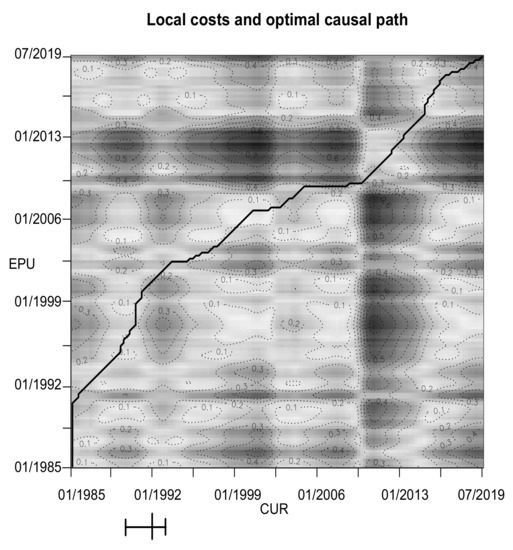

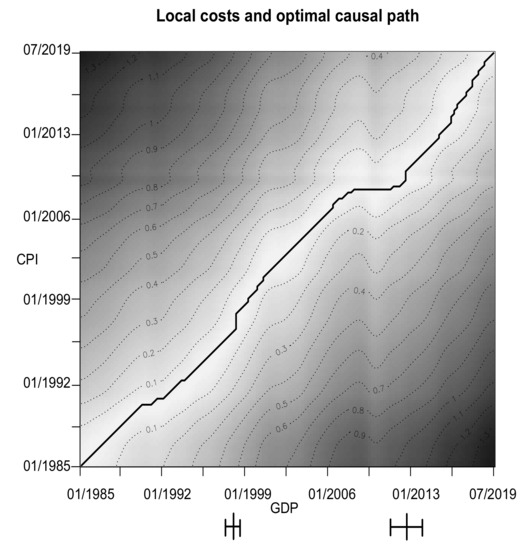

4.3. Finance

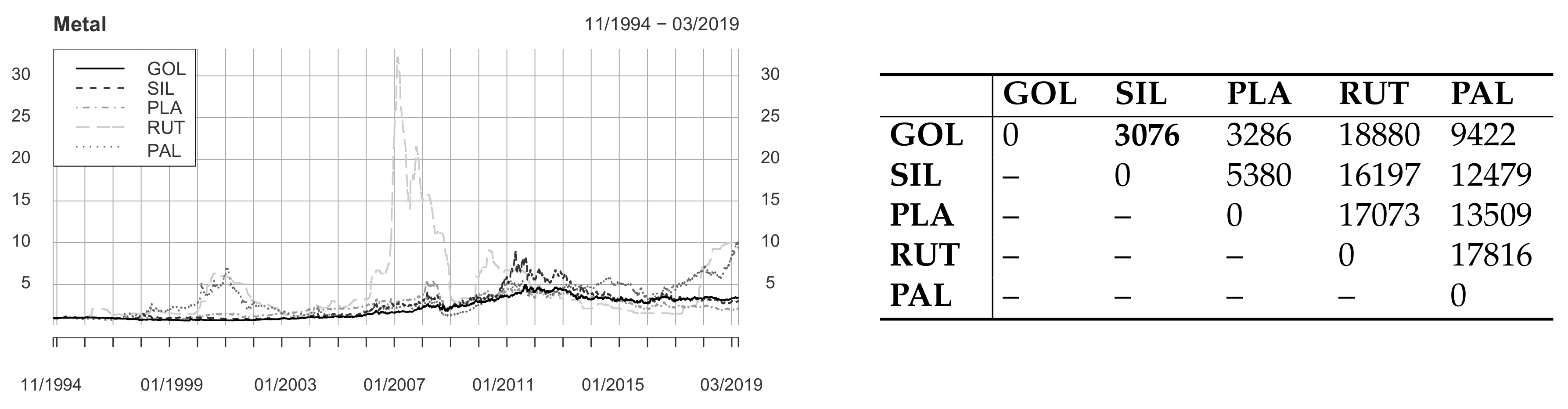

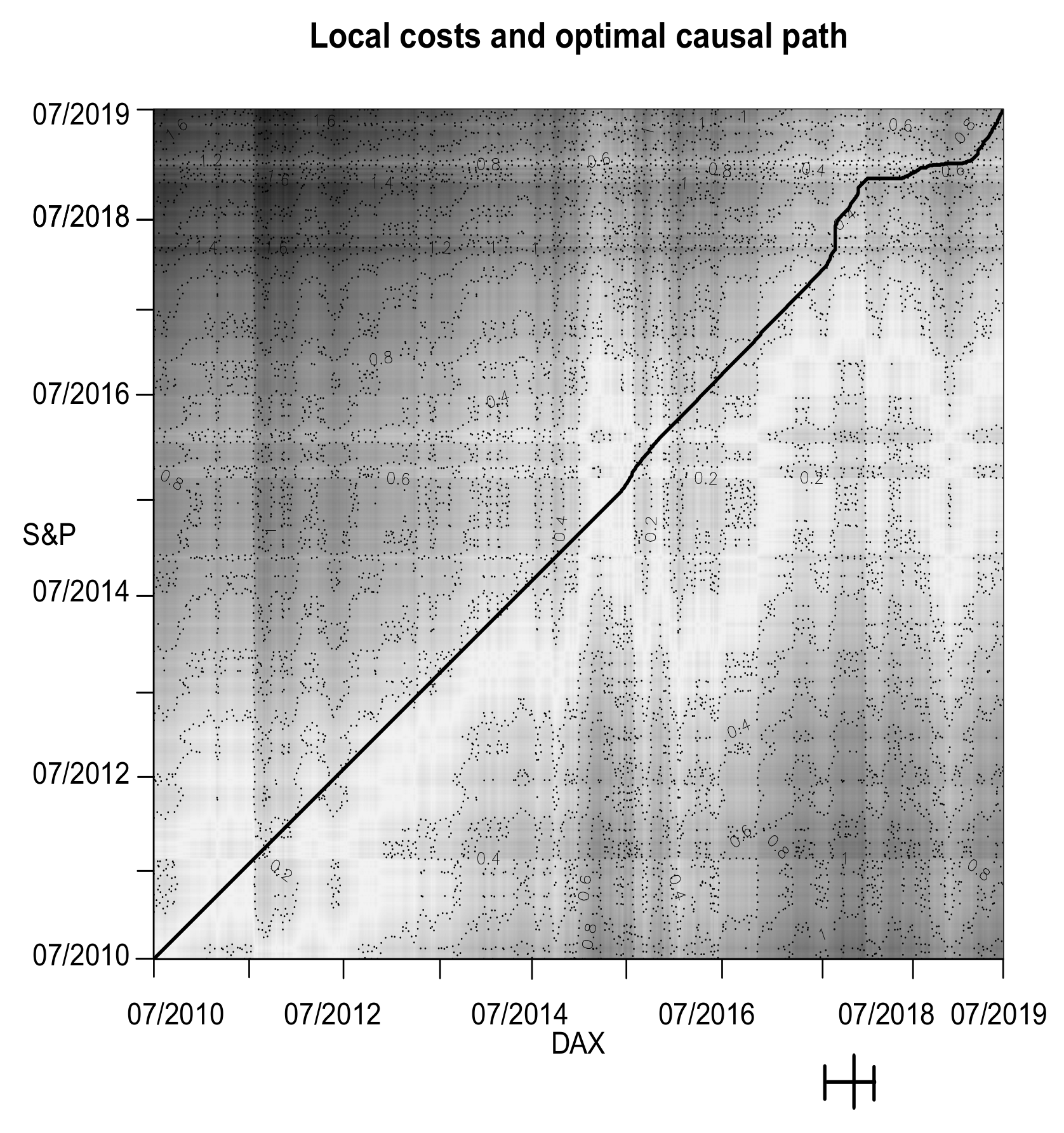

4.4. Metal

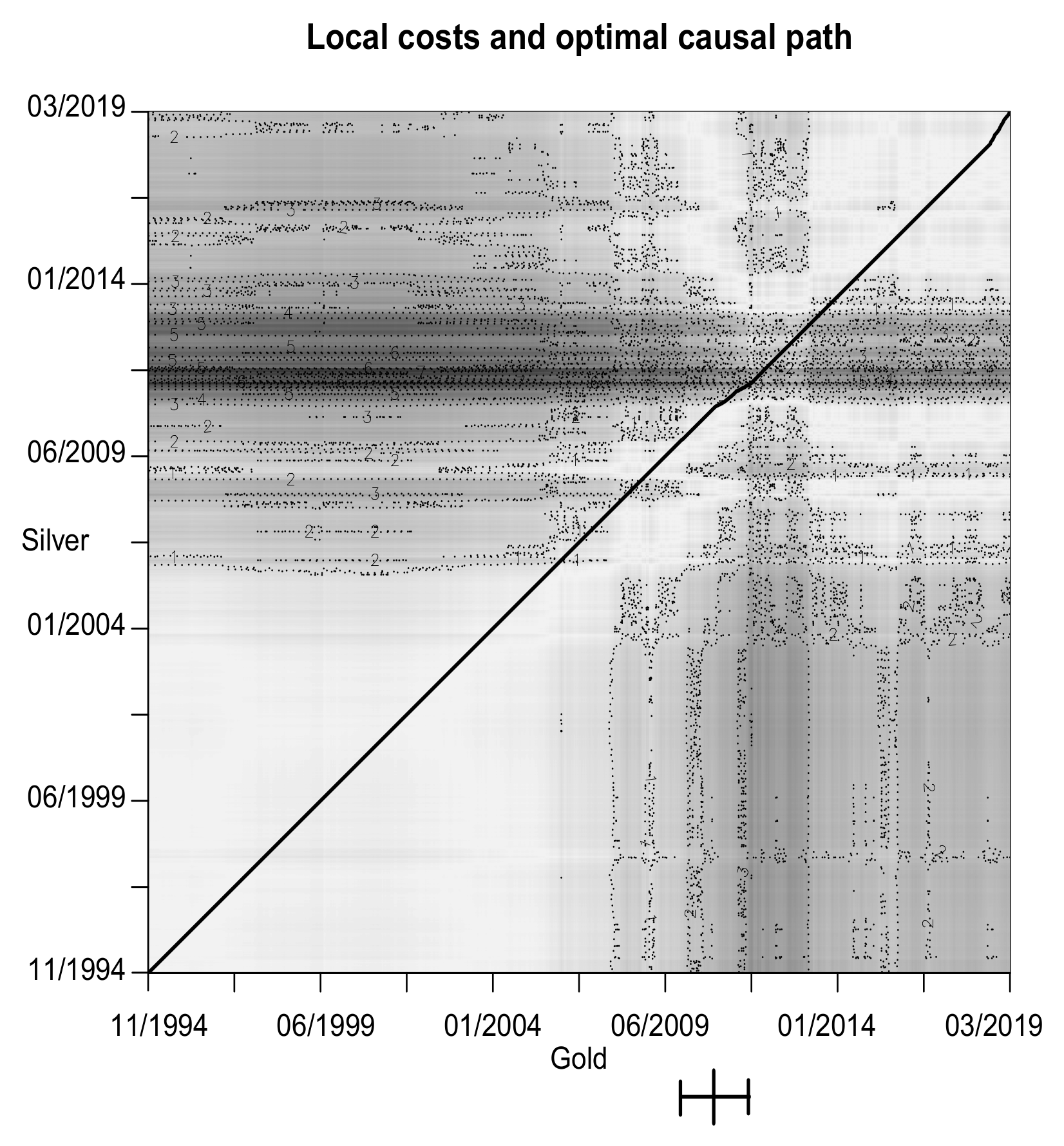

5. Conclusions
