Next Article in Journal
Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2
Next Article in Special Issue
Bioactive Glass Nanoparticles: From Synthesis to Materials Design for Biomedical Applications
Previous Article in Journal / Special Issue
Synthesis of Monodispersed Ag-Doped Bioactive Glass Nanoparticles via Surface Modification
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessFeature PaperArticle
Materials 2016, 9(4), 226;

Bioactive Glasses with Low Ca/P Ratio and Enhanced Bioactivity

Colorobbia España S.A, Carretera CV-160, Vilafamés 12192, Spain
Ce.Ri.Col, Centro Richerche Colorobbia, Via Pietramarina 123, Sovigliana (FI) 50053, Italy
Politecnico di Torino, Applied Science and Technology Department, Corso Duca degli Abruzzi 24, Torino 10129, Italy
Present affiliation: Università del Piemonte Orientale, Department of Health Sciences, Via Solaroli 17, Novara 28100, Italy
Author to whom correspondence should be addressed.
Academic Editor: Gigliola Lusvardi
Received: 8 February 2016 / Revised: 11 March 2016 / Accepted: 16 March 2016 / Published: 24 March 2016
(This article belongs to the Special Issue Bioactive Glasses)
Full-Text   |   PDF [4765 KB, uploaded 24 March 2016]   |

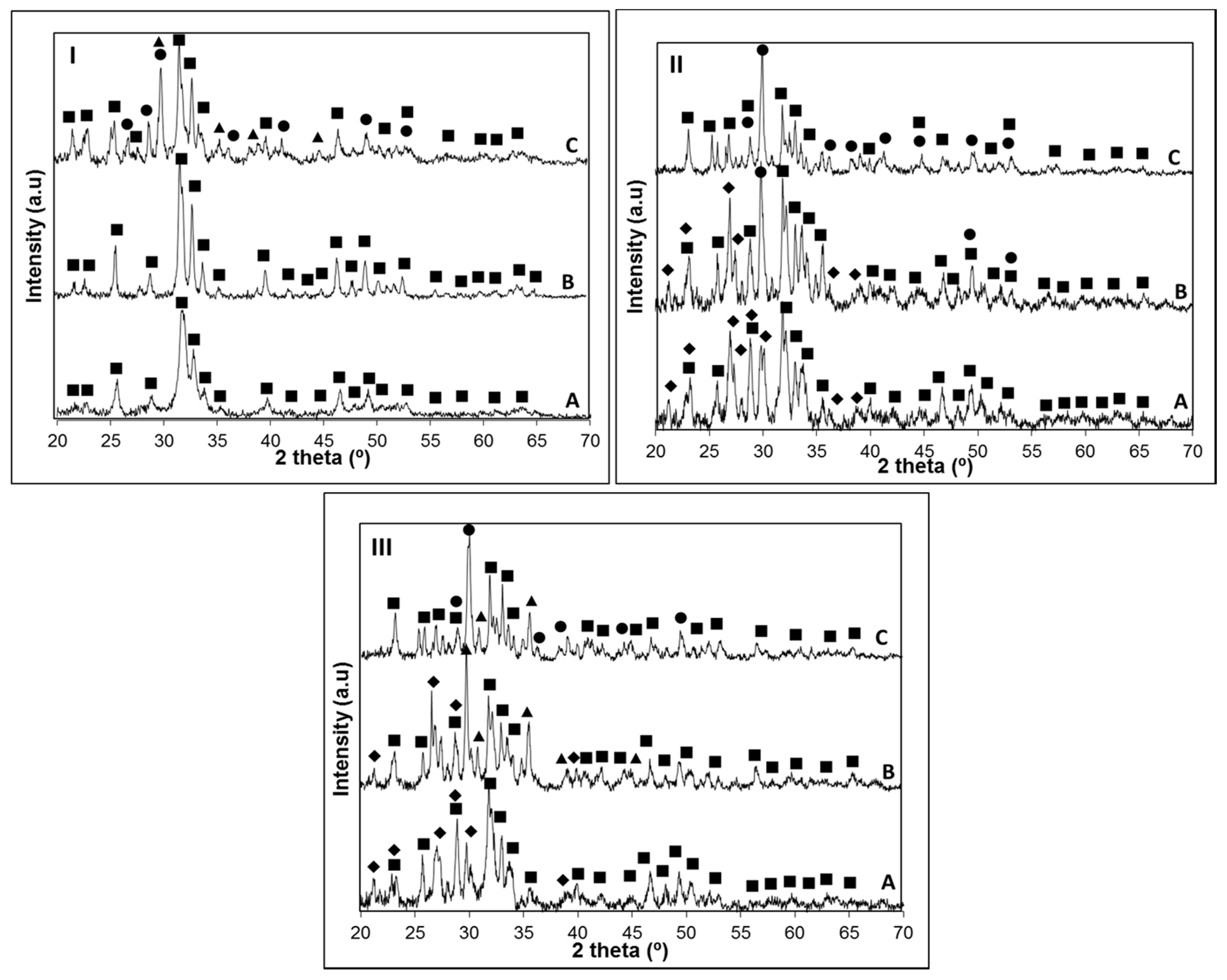

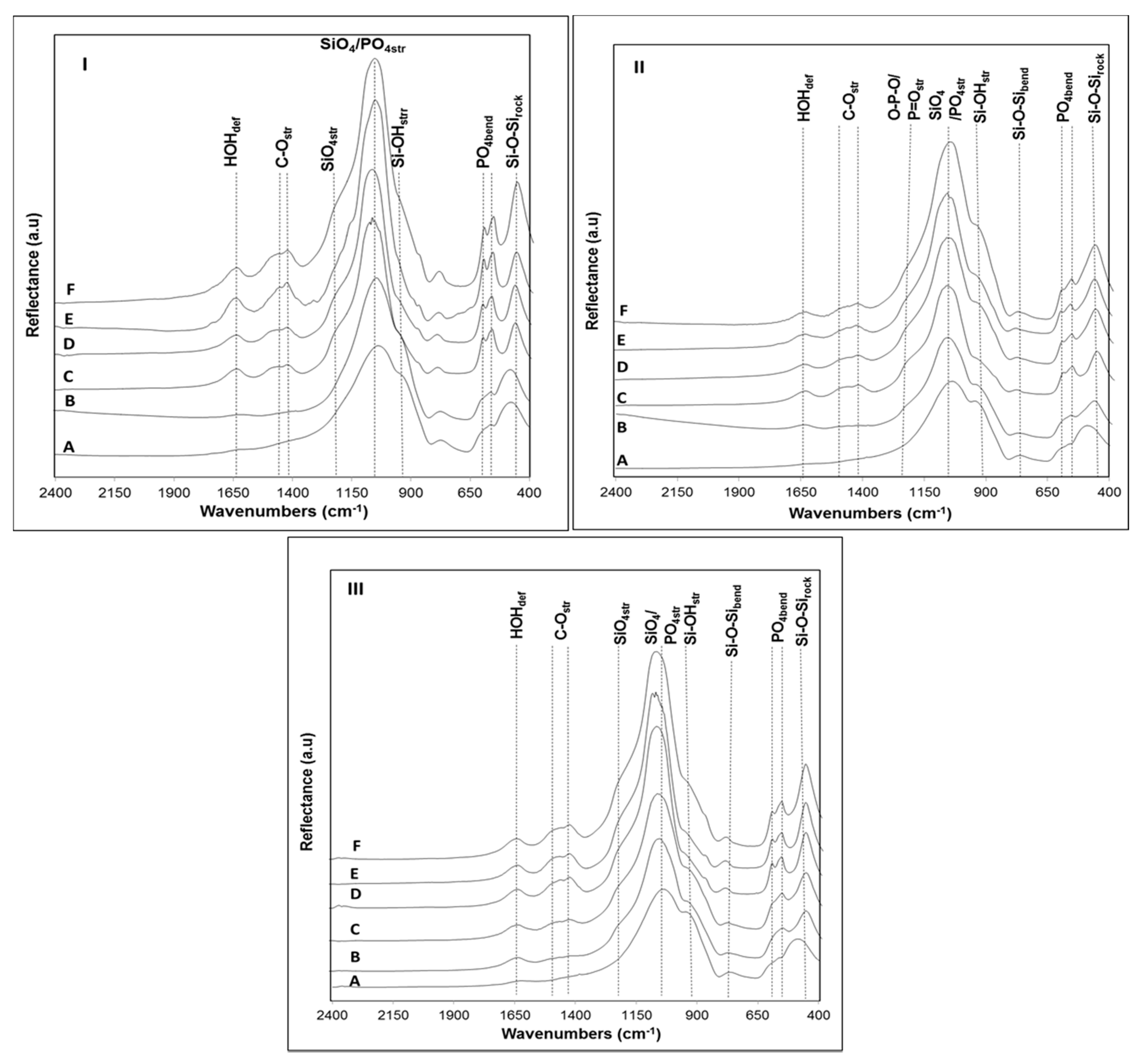

Three new silica-based glass formulations with low molar Ca/P ratio (2–3) have been synthesized. The thermal properties, the crystalline phases induced by thermal treatments and the sintering ability of each glass formulation have been investigated by simultaneous differential scanning calorimetry-thermogravimetric analysis (DSC-TG), X-ray diffraction (XRD) and hot stage microscopy (HSM). The glasses exhibited a good sintering behavior, with two samples achieving shrinkage of 85%–95% prior to crystallization. The bioactivity of the glasses in simulated body fluid (SBF) has been investigated by performing XRD and Fourier transform infrared spectroscopy (FTIR) on the samples prior and after immersion. The glasses with lower MgO contents were able to form a fully crystallized apatite layer after three days of immersion in simulated body fluid (SBF), while for the glass exhibiting a higher MgO content in its composition, the crystallization of the Ca–P layer was achieved after seven days. The conjugation of these properties opens new insights on the synthesis of highly bioactive and mechanically strong prosthetic materials. View Full-Text
Keywords: bioactive glasses; bioactivity; Ca/P ratio; densification; sintering bioactive glasses; bioactivity; Ca/P ratio; densification; sintering

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Araújo, M.; Miola, M.; Baldi, G.; Perez, J.; Verné, E. Bioactive Glasses with Low Ca/P Ratio and Enhanced Bioactivity. Materials 2016, 9, 226.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
