Comparison of Cyclic Hysteresis Behavior between Cross-Ply C/SiC and SiC/SiC Ceramic-Matrix Composites

College of Civil Aviation, Nanjing University of Aeronautics and Astronautics, No. 29 Yudao St., Nanjing 210016, China

Academic Editor:
Dinesh Agrawal

Received: 3 December 2015 / Accepted: 13 January 2016 / Published: 19 January 2016

## Abstract

**:**

In this paper, the comparison of cyclic hysteresis behavior between cross-ply C/SiC and SiC/SiC ceramic-matrix composites (CMCs) has been investigated. The interface slip between fibers and the matrix existed in the matrix cracking mode 3 and mode 5, in which matrix cracking and interface debonding occurred in the 0° plies are considered as the major reason for hysteresis loops of cross-ply CMCs. The hysteresis loops of cross-ply C/SiC and SiC/SiC composites corresponding to different peak stresses have been predicted using present analysis. The damage parameter, i.e., the proportion of matrix cracking mode 3 in the entire matrix cracking modes of the composite, and the hysteresis dissipated energy increase with increasing peak stress. The damage parameter and hysteresis dissipated energy of C/SiC composite under low peak stress are higher than that of SiC/SiC composite; However, at high peak stress, the damage extent inside of cross-ply SiC/SiC composite is higher than that of C/SiC composite as more transverse cracks and matrix cracks connect together.

Keywords:

ceramic-matrix composites (CMCs); cross-ply; hysteresis loops; matrix cracking; interface debonding## 1. Introduction

Nickel-based superalloys with thermal and environmental ceramic coatings are the current load bearing material system that can operate above the metal substrate’s melting temperature, i.e., about 1100 °C, at which a combined-cycle gas turbine will operate at 60% fuel efficiency. However, due to demands for reduced fuel consumption, lighter and hotter engines are required, especially in aviation. Ceramic materials can operate at high temperature with creep resistance, at which metals cannot. However, their use as structural components is severely limited because of their brittleness. Continuous fiber-reinforced ceramic-matrix composites (CMCs), by incorporating fibers in ceramic matrices, however, can be made as strong as metal, yet are much lighter and can withstand much higher temperatures exceeding the capability of current nickel alloys typically used in high-pressure turbines, which can increase the efficiency of aero engines [1]. CMC durability has been validated through ground testing or commercial flight testing in demonstrator or customer gas turbine engines accumulating almost 30,000 h of operation. The CMC combustion chamber and high-pressure turbine components were designed and tested in the ground testing of the GEnx aero engine [2]. The CMC rotating low-pressure turbine blades in a F414 turbofan demonstrator engine were successfully tested for 500 grueling cycles to validate the unprecedented temperature and durability capabilities by GE Aviation (Fairfield, CT, USA). The CMC tail nozzles were designed and fabricated by SNECMA (SAFRAN, Paris, France) and completed the first commercial flight on CFM56-5B aero engine (CFM International, Cincinnati, OH, USA) on 2015. CMCs will play a key role in the performance of CFM’s LEAP (Leading Edge Aviation Propulsion) turbofan engine, which would enter into service in 2016 for Airbus A320 and in 2017 for the Boeing 737 max.

Under cyclic loading and unloading, matrix cracking and fiber/matrix interface debonding occur inside of CMCs [3]. The hysteresis loops appear as the fiber slips relative to matrix in the interface debonded region [4]. The shape, location, and area of hysteresis loops can reveal the internal damage evolution of CMCs subjected to cyclic loading [5]. Many researchers investigated characteristics of hysteresis loops. Kotil et al. [6] investigated the effect of interface shear stress on the shape and area of hysteresis loops in unidirectional CMCs. Pryce and Smith [7] investigated the effect of interface partially debonding on hysteresis loops of unidirectional CMCs by assuming purely frictional load transfer between fibers and the matrix. Ahn and Curtin [8] investigated the effect of matrix stochastic cracking on hysteresis loops of unidirectional CMCs and compared with the Pryce-Smith model [7]. Solti et al. [9] investigated the effect of interface partially and completely debonding on hysteresis loops in unidirectional CMCs using the maximum interface shear strength criterion to determine interface slip lengths. Vagaggini et al. [10] investigated the effect of interface debonded energy on hysteresis loops of unidirectional CMCs based on the Hutchinson-Jensen fiber pull-out model [11]. Cho et al. [12] investigated the evolution of interface shear stress under cyclic-fatigue loading from frictional heating measurements. Li et al. investigated the effect of interface debonding [13], fibers Poisson contraction [14], fiber fracture [15], and interface wear [16] on hysteresis loops of unidirectional CMCs, and developed an approach to estimate interface shear stress in unidirectional CMCs through hysteresis loop area [17]. Kuo and Chou [18] investigated matrix multicracking in cross-ply CMCs and classified the multiple cracking states into five modes, in which cracking mode 3 and mode 5 involve matrix cracking and interface debonding in the 0° plies.

The objective of this paper is to compare the cyclic hysteresis behavior between cross-ply C/SiC and C/SiC CMCs. The interface slip between fibers and the matrix existed in matrix cracking mode 3 and mode 5, in which matrix cracking and interface debonding occurred in the 0° plies, are considered as the major reason for hysteresis loops of cross-ply CMCs. The hysteresis loops of cross-ply C/SiC and SiC/SiC composites corresponding to different peak stresses have been predicted using present analysis. The differences between C/SiC and SiC/SiC composite on damage parameters and hysteresis dissipated energy have been investigated.

## 2. Materials and Experimental Procedures

#### 2.1. Cross-Ply C/SiC Composite

The T-700™ carbon (Toray Institute Inc., Tokyo, Japan) fiber-reinforced silicon carbide matrix composites (C/SiC CMCs) were provided by Shanghai Institute of Ceramics, People’s Republic of China. The fibers have an average diameter of 7 μm and come on a spool as a tow of 12 k fibers. The cross-ply C/SiC composite was manufactured by hot-pressing method, which offered the ability to fabricate dense composite via a liquid phase sintering method at a low temperature. The lay-ups supplied were in the form of (0/90/0/90/0/90/0/90/0). The volume fraction of fibers was about 40%. The void content in the manufactured plates is below 5%. Low pressure chemical vapor infiltration was employed to deposit approximately 5~20 layer PyC/SiC with mean thickness of 0.2 μm in order to enhance the desired non-linear/non-catastrophic tensile behavior.

The dog bone-shaped specimens, with dimensions of 123 mm length, 3.8 mm thickness according to ASTM (American Society for Testing and Materials) standard C 1360-10 [19], and 10 mm width in the gage section of cross-ply C/SiC composite, were cut from 150 mm × 150 mm panels by water cutting. The specimens were further coated with SiC of ~20 μm thick by chemical vapor deposition to prevent oxidation at elevated temperature.

The loading/unloading tensile experiments at room temperature were conducted on an MTS Model 809 servo hydraulic load-frame (MTS System Crop., Minneapolis, MN, USA) equipped with edge-loaded grips, operated at the loading rate of 2.0 MPa/s. The gage-section strains were measured using a clip-on extensometer (Model No. 634.12F-24, MTS Systems Corp.; modified for a 25 mm gage-length). The direct observations of matrix cracking were made using a HiROX optical microscope (Tokyo, Japan). The matrix crack density was determined by counting the number of the cracks in a length of about 15 mm.

#### 2.2. Cross-Ply SiC/SiC Composite

The Hi-Nicalon Type S™ fiber reinforced pre-impregnated melt-infiltrated silicon-carbide matrix composites (SiC/SiC CMC) were provided by GE Aviation (Cincinnati, OH, USA) [20]. The specimens were machined to a dogbone shape with dimensions of 203 mm length, 10.16 mm width, and 1.88 mm thickness. The lay-ups supplied were in the form of [0/90]

_{2s}. During the final phase of manufacturing the laminates, molten silicon is infiltrated into the pre-impregnated lamina tapes to form a SiC and silicon mixed matrix.The loading/unloading tensile experiments at room temperature were conducted on an MTS servo hydraulic load-frame (MTS System Crop., Minneapolis, MN, USA) equipped with edge-loaded grips, operated under displacement control with the loading rate of 0.1–0.5 mm/min. The gage-section strains were measured using a 25.4 mm clip-on MTS extensometer with a maximum displacement of 2% strain. The direct observations of matrix cracking were made using Mitutoyo binocular optical microscope (Tokyo, Japan). The matrix crack density was determined by counting the number of the cracks in a length of 5–10 mm.

## 3. Hysteresis Loops Models Considering Multiple Matrix Cracking Modes

Under cyclic loading, the matrix cracking modes in cross-ply CMCs can be divided into five different modes, i.e., mode 1: transverse cracking in the 90° plies; mode 2: transverse cracking and matrix cracking occurred in the 90° and 0° plies, respectively, with perfect fiber/matrix interface bonding in the 0° plies; mode 3: transverse cracking and matrix cracking occurred in the 90° and 0° plies, respectively, with fiber/matrix interface debonding in the 0° plies; mode 4: matrix cracking in the 0° plies with fiber/matrix interface bonding; and mode 5: matrix cracking in the 0° plies with fiber/matrix interface debonding, as shown in Figure 1. Upon unloading and subsequent tensile reloading, matrix cracking mode 3 and mode 5 both exist within cross-ply C/SiC composite, as shown in Figure 2.

**Figure 1.**The undamaged state and five damaged modes of cross-ply ceramic composites: (

**a**) undamaged composite; (

**b**) mode 1: transverse crack; (

**c**) mode 2: transverse crack and matrix crack with perfect fiber/matrix bonding; (

**d**) mode 3: transverse crack and matrix crack with fiber/matrix interface debonding; (

**e**) mode 4: matrix crack with perfect fiber/matrix bonding; and (

**f**) mode 5: matrix cracking with fiber/matrix debonding.

**Figure 2.**The matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite under cyclic loading/unloading tensile.

Upon unloading and reloading, the frictional slip occurred between fibers and the matrix in the 0° plies is the major reason for the hysteresis loops of cross-ply CMCs [5]. In cross-ply laminates, besides the fiber debonding and relative fiber/matrix sliding, other events, i.e., delamination, relative ply sliding, near-tip matrix micro-cracking, and crack surface bridging followed by frictional fiber pull-out may also contribute to the hysteresis behavior. However, in the present analysis, the hysteresis loops models consider only the major factor of interface frictional slip in the matrix cracking mode 3 and mode 5. For matrix cracking mode 3, the hysteresis loops can be divided into four different cases, i.e., case 1: interface partially debonds and fiber slips completely relative to matrix; case 2: interface partially debonds and fiber slips partially relative to matrix; case 3: interface completely debonds and fiber slips partially relative to matrix; and case 4: interface completely debonds and fiber slips completely relative to matrix. The unloading and reloading strains when interface partially debonds are [21]:
in which V

$${\epsilon}_{\text{cu}}=\frac{\sigma}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{y}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{\left(2y-{l}_{\mathrm{d}}\right)\left(2y-{l}_{\mathrm{c}}+{l}_{\mathrm{d}}\right)}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}$$

$$\begin{array}{l}{\epsilon}_{\text{cr}}=\frac{\sigma}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}-4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{z}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}+\frac{4{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(y-2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}\\ +2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{\left({l}_{\mathrm{d}}-2y+2z\right)\left({l}_{\mathrm{d}}+2y-2z-{l}_{\mathrm{c}}\right)}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}\end{array}$$

_{f_axial}denotes the fiber volume content in the 0° plies; E_{f}denotes the fiber elastic modulus; r_{f}denotes the fiber radius; τ_{i}denotes the fiber/matrix interface shear stress in the 0° plies; l_{c}denotes the matrix crack spacing; l_{d}denotes the interface debonded length; α_{f}and α_{c}denote the fiber and composite thermal expansion coefficient, respectively; ΔT denotes the temperature difference between fabricated temperature T_{0}and room temperature T_{1}(ΔT = T_{1}− T_{0}); and y and z denote the interface counter-slip length and interface new-slip length, respectively.When interface completely debonds, the unloading and reloading strains are [21]:

$${\epsilon}_{\text{cu}}=\frac{\sigma}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{y}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(2y-{l}_{\mathrm{c}}/2\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}$$

$${\epsilon}_{\text{cr}}=\frac{\sigma}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}-4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{z}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(y-2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left({l}_{\mathrm{c}}/2-2y+2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}$$

For matrix cracking mode 5, the hysteresis loops can also be divided into four different cases. The unloading and reloading strains when interface partially debonds are [21]:
in which k denotes the proportion of transverse plies in the entire composite.

$${\epsilon}_{\text{cu}}=\frac{1}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}\left(\sigma -k{\sigma}_{\text{to}}\right)+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{y}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{\left(2y-{l}_{\mathrm{d}}\right)\left(2y+{l}_{\mathrm{d}}-{l}_{\mathrm{c}}\right)}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}$$

$$\begin{array}{l}{\epsilon}_{\text{cr}}=\frac{1}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}\left(\sigma -k{\sigma}_{\text{to}}\right)-4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{z}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}+\frac{4{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(y-2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}\\ +2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{\left({l}_{\mathrm{d}}-2y+2z\right)\left({l}_{\mathrm{d}}+2y-2z-{l}_{\mathrm{c}}\right)}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{c}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}\end{array}$$

When interface completely debonds, the unloading and reloading strains are [21]:

$${\epsilon}_{\text{cu}}=\frac{1}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}\left(\sigma -k{\sigma}_{\text{to}}\right)+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{y}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(2y-{l}_{\mathrm{c}}/2\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}$$

$$\begin{array}{l}{\epsilon}_{\text{cu}}=\frac{1}{{V}_{\text{f\_axial}}{E}_{\mathrm{f}}}\left(\sigma -k{\sigma}_{\text{to}}\right)-4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{z}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}+4\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left(y-2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}\\ -2\frac{{\tau}_{\mathrm{i}}}{{E}_{\mathrm{f}}}\frac{{\left({l}_{\mathrm{c}}/2-2y+2z\right)}^{2}}{{r}_{\mathrm{f}}{l}_{\mathrm{c}}}-\left({\alpha}_{\mathrm{c}}-{\alpha}_{\mathrm{f}}\right)\Delta \text{T}\end{array}$$

Considering the effect of multiple matrix cracking modes on hysteresis loops of cross-ply CMCs, the unloading and reloading strains of the composite are [21]:
in which (ε

$${\left({\epsilon}_{\mathrm{u}}\right)}_{\mathrm{c}}=\eta {\left({\epsilon}_{\text{cu}}\right)}_{3}+\left(1-\eta \right){\left({\epsilon}_{\text{cu}}\right)}_{5}$$

$${\left({\epsilon}_{\mathrm{r}}\right)}_{\mathrm{c}}=\eta {\left({\epsilon}_{\text{cr}}\right)}_{3}+\left(1-\eta \right){\left({\epsilon}_{\text{cr}}\right)}_{5}$$

_{u})_{c}and (ε_{r})_{c}denote the unloading and reloading strain of the composite, respectively; (ε_{cu})_{3}and (ε_{cr})_{3}denote the unloading and reloading strain of the matrix cracking mode 3, respectively; (ε_{cu})_{5}and (ε_{cr})_{5}denote the unloading and reloading strain of the matrix cracking mode 5, respectively; η is the damage parameter determined by the composite’s damage condition, i.e., the proportion of matrix cracking mode 3 in the entire of matrix cracking modes of the composite, η ∊ [0,1].## 4. Experimental Comparisons

#### 4.1. Cross-Ply C/SiC Composite

The cyclic loading/unloading tensile behavior of cross-ply C/SiC composite at room temperature has been investigated. The specimen was unloading and subsequent reloading at the peak stress of 20, 40, 60, 80, 100, and 120 MPa, respectively. The peak stress represents the macroscopic stress, i.e., applied loading divided by the specimen cross section. The basic material properties of cross-ply C/SiC composite are given by: V

_{f}= 40%, E_{f}= 230 GPa, E_{m}= 350 GPa, r_{f}= 3.5 μm, τ_{i}= 6 MPa, ζ_{d}= 0.1 J/m^{2}, α_{f}= −0.38 × 10^{−6}/°C, α_{m}= 2.8 × 10^{−6}/°C, ΔT = −1000 °C.For σ

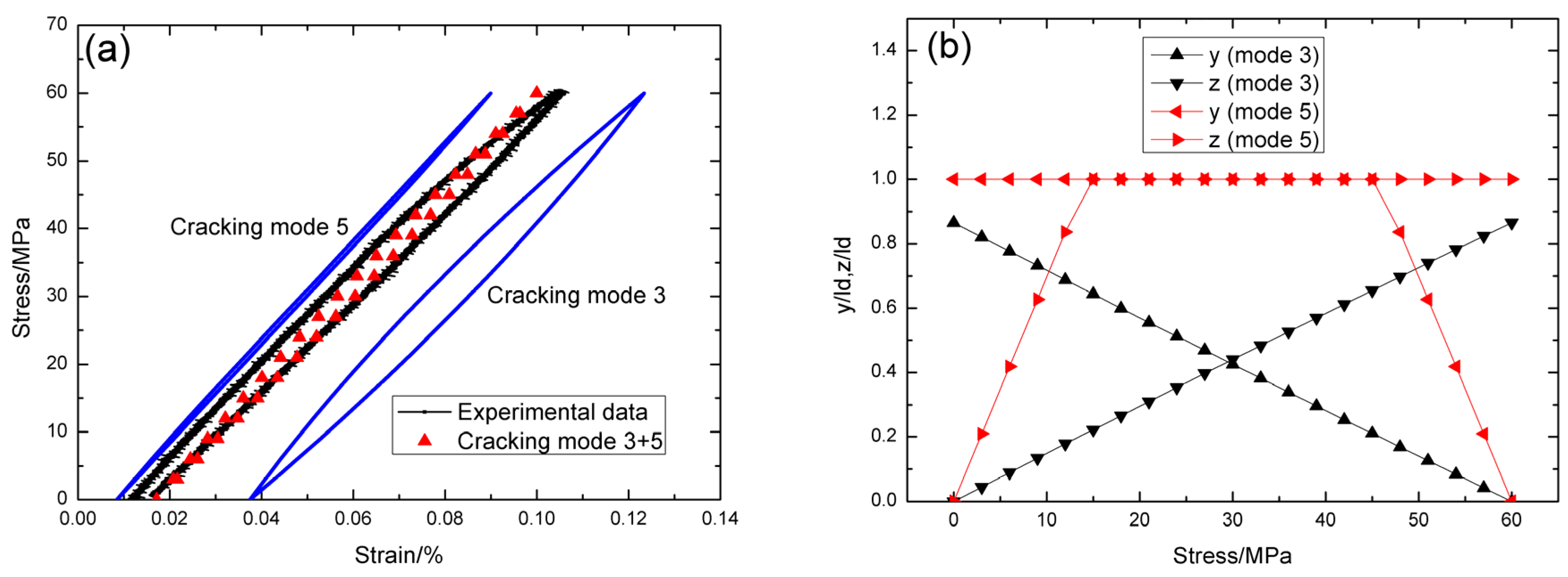

_{max}= 60 MPa, the experimental and theoretical hysteresis loops are shown in Figure 3a, in which the proportion of matrix cracking mode 3 is η = 0.3. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 2, as shown in Figure 3b. Upon completely unloading, the interface counter-slip length approaches to 83.8% of interface debonded length, i.e., y(σ_{min})/l_{d}= 86.5%, as shown in Figure 3b; upon reloading to peak stress, the interface new-slip length approaches to 86.5% of interface debonded length, i.e., z(σ_{max})/l_{d}= 86.5%, as shown in Figure 3b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 3b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 45 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 3b; upon reloading to σ_{tr_pr}= 15 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 3b.**Figure 3.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite when σ

_{max}= 60 MPa.

For σ

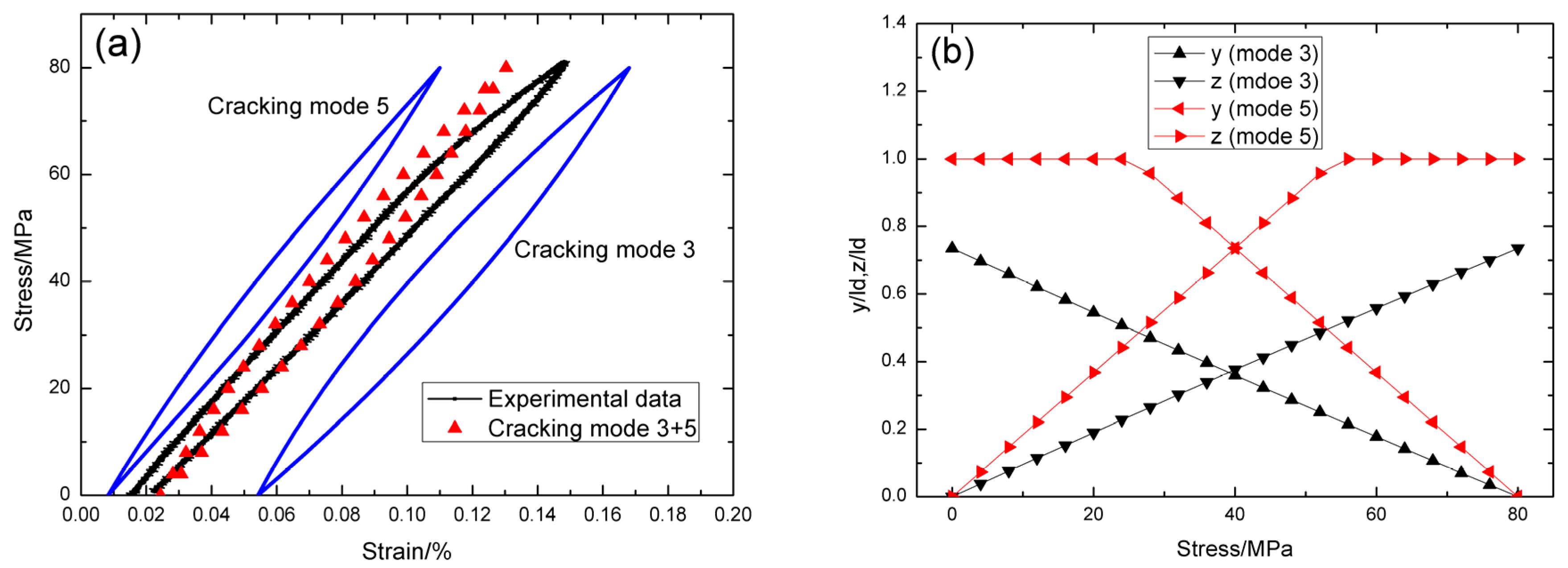

_{max}= 80 MPa, the experimental and theoretical hysteresis loops are shown in Figure 4a, in which the proportion of matrix cracking mode 3 is η = 0.35. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 2, as shown in Figure 4b. Upon completely unloading, the interface counter-slip length approaches to 73.5% of interface debonded length, i.e., y(σ_{min})/l_{d}= 73.5%, as shown in Figure 4b; upon reloading to peak stress, the interface new-slip length approaches to 73.5% of interface debonded length, i.e., z(σ_{max})/l_{d}= 73.5%, as shown in Figure 4b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 4b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 24 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 4b; upon reloading to σ_{tr_pr}= 56 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 4b.**Figure 4.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite when σ

_{max}= 80 MPa.

For σ

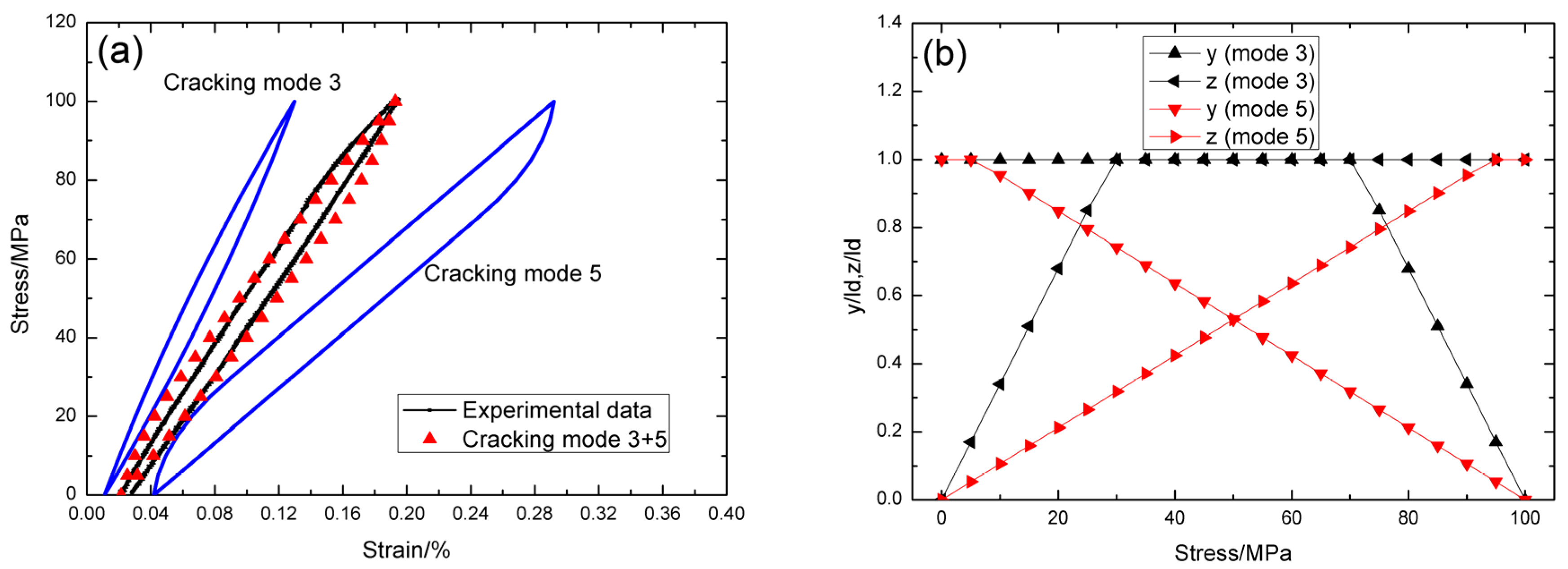

_{max}= 100 MPa, the experimental and theoretical hysteresis loops are shown in Figure 5a, in which the proportion of matrix cracking mode 3 is η = 0.4. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 4, as shown in Figure 5b. Upon completely unloading, the interface counter-slip length approaches to matrix crack spacing at σ_{tr_fu}= 70 MPa, i.e., 2y(σ_{tr_fu})/l_{c}= 1, as shown in Figure 5b; upon reloading to σ_{tr_fr}= 30 MPa, the interface new-slip length approaches to matrix crack spacing, i.e., 2z(σ_{tr_fr})/l_{c}= 1, as shown in Figure 5b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 5b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 95 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 5b; upon reloading to σ_{tr_pr}= 5 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 5b.**Figure 5.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite when σ

_{max}= 100 MPa.

For σ

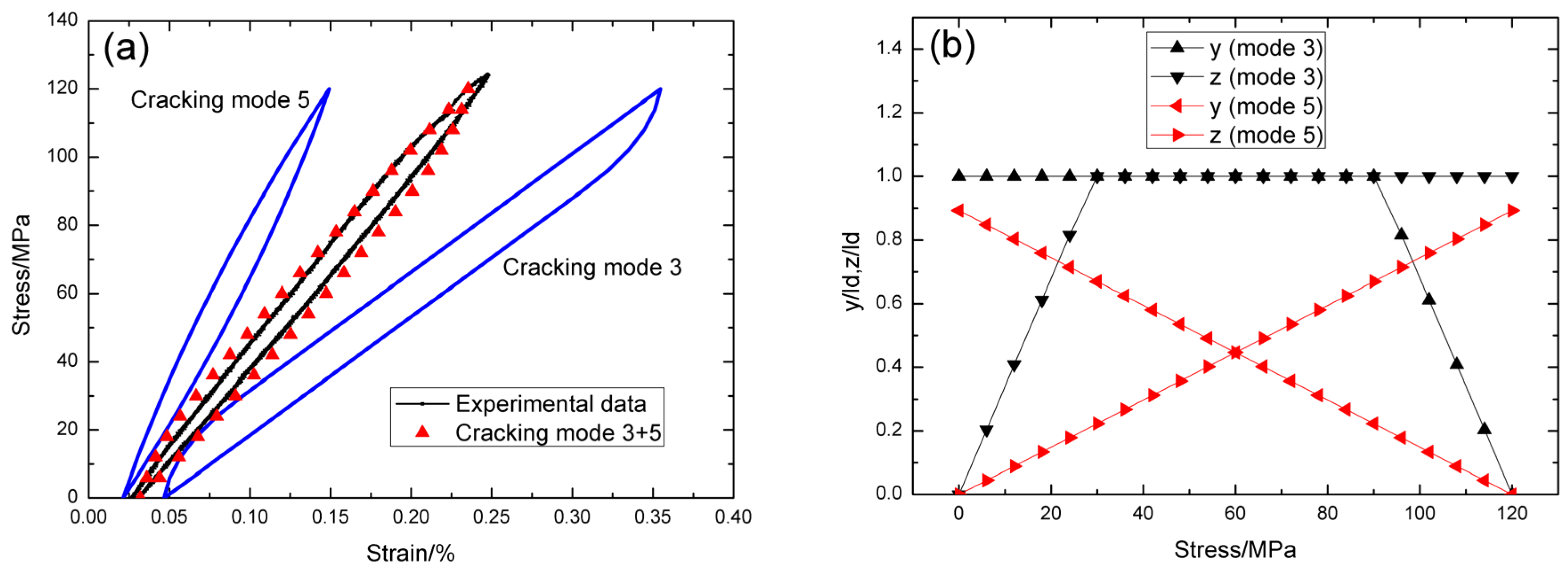

_{max}= 120 MPa, the experimental and theoretical hysteresis loops are shown in Figure 6a, in which the proportion of matrix cracking mode 3 is η = 0.42. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 4, as shown in Figure 6b. Upon unloading, the interface counter-slip length approaches to matrix crack spacing at σ_{tr_fu}= 90 MPa, i.e., 2y(σ_{tr_fu})/l_{c}= 1, as shown in Figure 6b; upon reloading to σ_{tr_fr}= 30 MPa, the interface new-slip length approaches to matrix crack spacing, i.e., 2z(σ_{tr_fr})/l_{c}= 1, as shown in Figure 6b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 2, as shown in Figure 6b. Upon completely unloading, the interface counter-slip length approaches to 89.3% of interface debonded length, i.e., y(σ_{min})/l_{d}= 89.3%, as shown in Figure 6b; upon reloading to σ_{max}= 120 MPa, the interface new-slip length approaches to 89.3% of interface debonded length, i.e., z(σ_{max})/l_{d}= 89.3%, as shown in Figure 6b.**Figure 6.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite when σ

_{max}= 120 MPa.

#### 4.2. Cross-Ply SiC/SiC Composite

Gordon [20] investigated the cyclic loading/unloading hysteresis behavior of cross-ply SiC/SiC composite. The loading/unloading peak stresses are 190, 200 and 210 MPa, respectively. The basic material properties of cross-ply SiC/SiC composite are given by reference [20]: V

_{f}= 30%, E_{f}= 420 GPa, E_{m}= 364 GPa, r_{f}= 7.5 μm, τ_{i}= 15 MPa, ζ_{d}= 1.5 J/m^{2}, α_{f}= 4.6 × 10^{−6}/°C, α_{m}= 4.38 × 10^{−6}/°C, and ΔT = −1400 °C.For σ

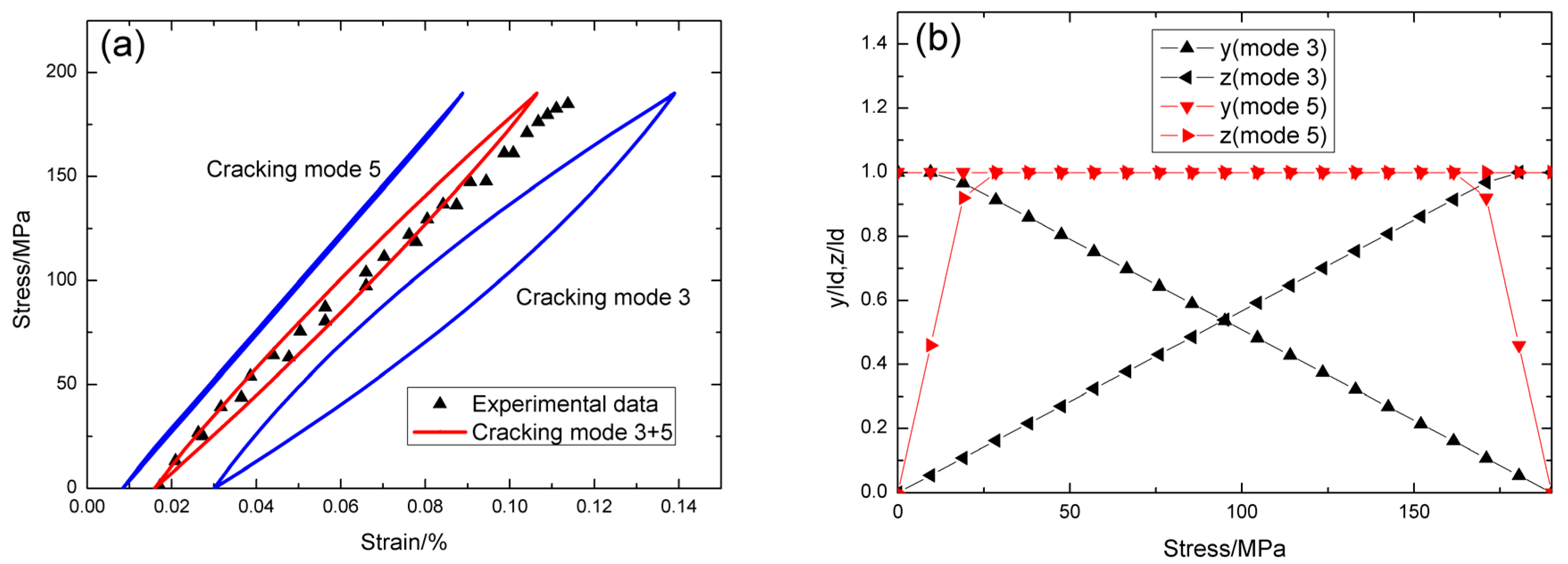

_{max}= 190 MPa, the experimental and theoretical hysteresis loops are shown in Figure 7a, in which the proportion of matrix cracking mode 3 is η = 0.35. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 1, as shown in Figure 7b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 9.5 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 7b; upon reloading to σ_{tr_pr}= 180.5 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 7b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 7b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 161.5 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 7b; upon reloading to σ_{tr_pr}= 28.5 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 7b.**Figure 7.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply SiC/SiC composite when σ

_{max}= 190 MPa.

For σ

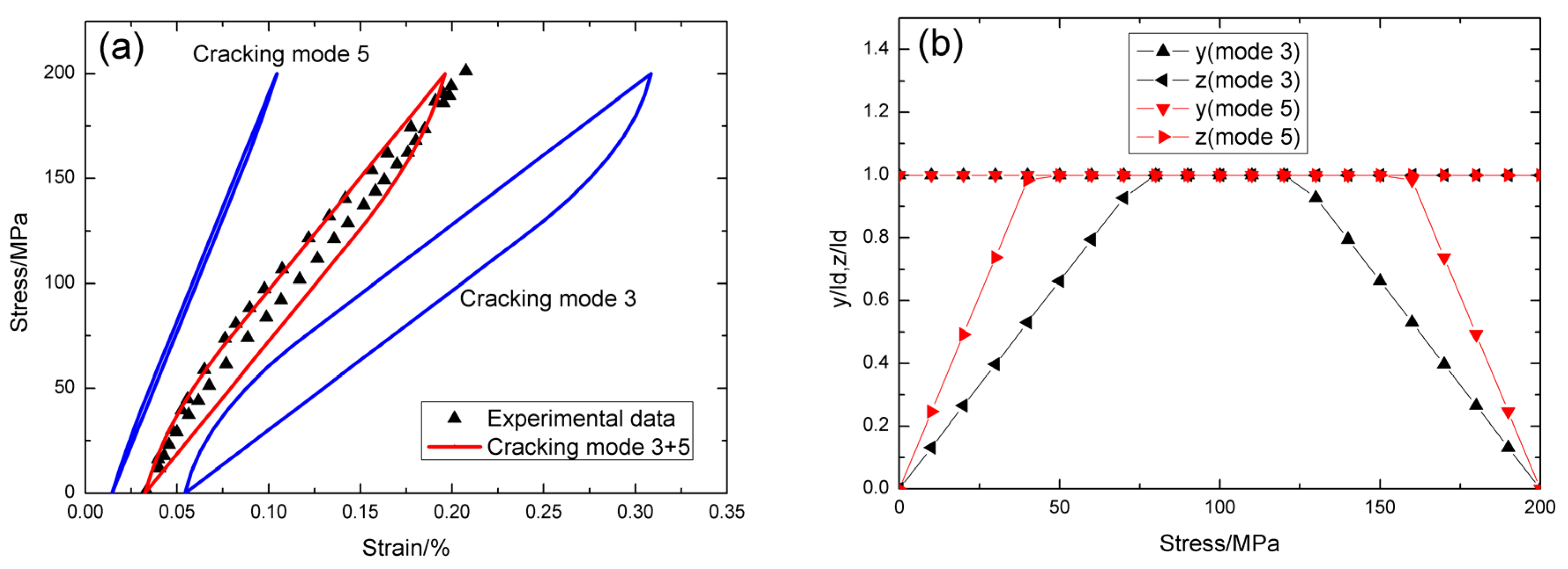

_{max}= 200 MPa, the experimental and theoretical hysteresis loops are shown in Figure 8a, in which the proportion of matrix cracking mode 3 is η = 0.45. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 4, as shown in Figure 8b. Upon unloading, the interface counter-slip length approaches to matrix crack spacing at σ_{tr_fu}= 120 MPa, i.e., 2y(σ_{tr_fu})/l_{c}= 1, as shown in Figure 8b; upon reloading to σ_{tr_fr}= 80 MPa, the interface new-slip length approaches to matrix crack spacing, i.e., 2z(σ_{tr_fr})/l_{c}= 1, as shown in Figure 8b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 8b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 150 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 8b; upon reloading to σ_{tr_pr}= 50 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 8b.**Figure 8.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply C/SiC composite when σ

_{max}= 200 MPa.

For σ

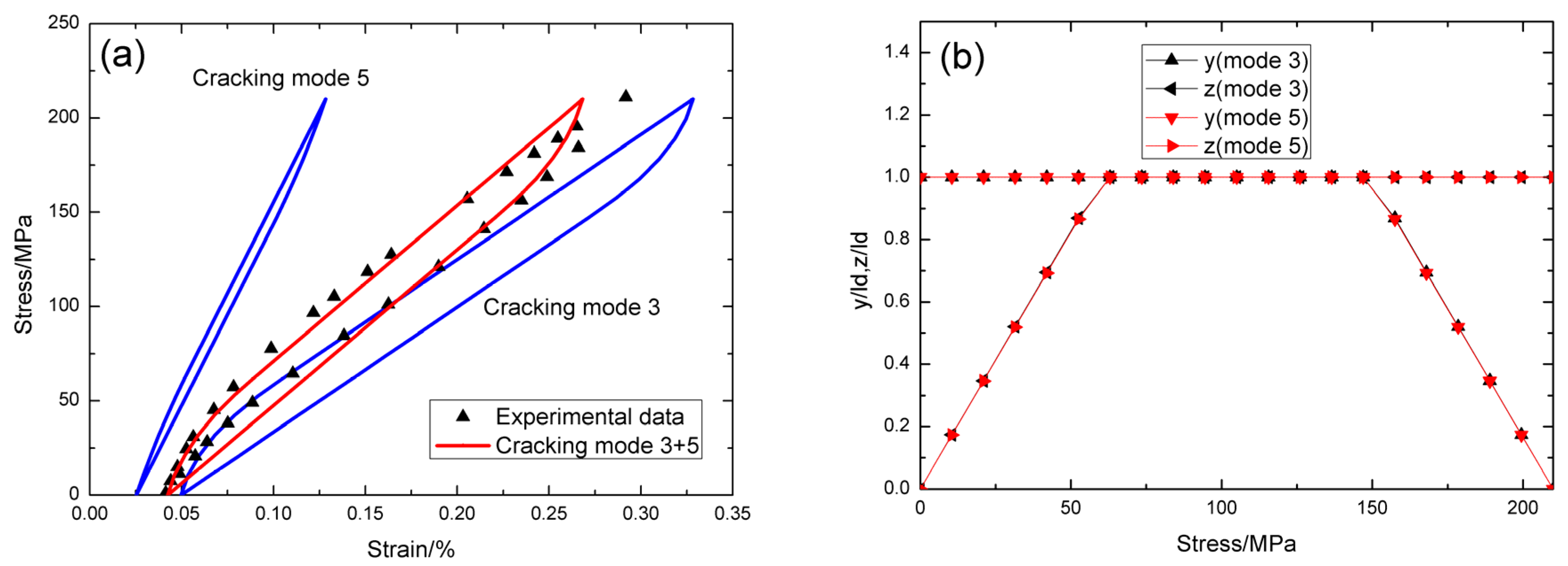

_{max}= 210 MPa, the experimental and theoretical hysteresis loops are shown in Figure 9a, in which the proportion of matrix cracking mode 3 is η = 0.7. For matrix cracking mode 3, the hysteresis loops correspond to interface slip case 4, as shown in Figure 9b. Upon unloading, the interface counter-slip length approaches to matrix crack spacing at σ_{tr_fu}= 147 MPa, i.e., 2y(σ_{tr_fu})/l_{c}= 1, as shown in Figure 9b; upon reloading to σ_{tr_fr}= 63 MPa, the interface new-slip length approaches to matrix crack spacing, i.e., 2z(σ_{tr_fr})/l_{c}= 1, as shown in Figure 9b. For matrix cracking mode 5, the hysteresis loops correspond to interface slip case 1, as shown in Figure 9b. Upon unloading, the interface counter-slip length approaches to interface debonded length at σ_{tr_pu}= 147 MPa, i.e., y(σ_{tr_pu})/l_{d}= 1, as shown in Figure 9b; upon reloading to σ_{tr_pr}= 63 MPa, the interface new-slip length approaches to interface debonded length, i.e., z(σ_{tr_pr})/l_{d}= 1, as shown in Figure 9b.**Figure 9.**(

**a**) The theoretical and experimental hysteresis loops; and (

**b**) the interface slip lengths, i.e., y/l

_{d}and z/l

_{d}, of matrix cracking mode 3 and mode 5 of cross-ply SiC/SiC composite when σ

_{max}= 210 MPa.

## 5. Comparison between C/SiC and SiC/SiC Composite

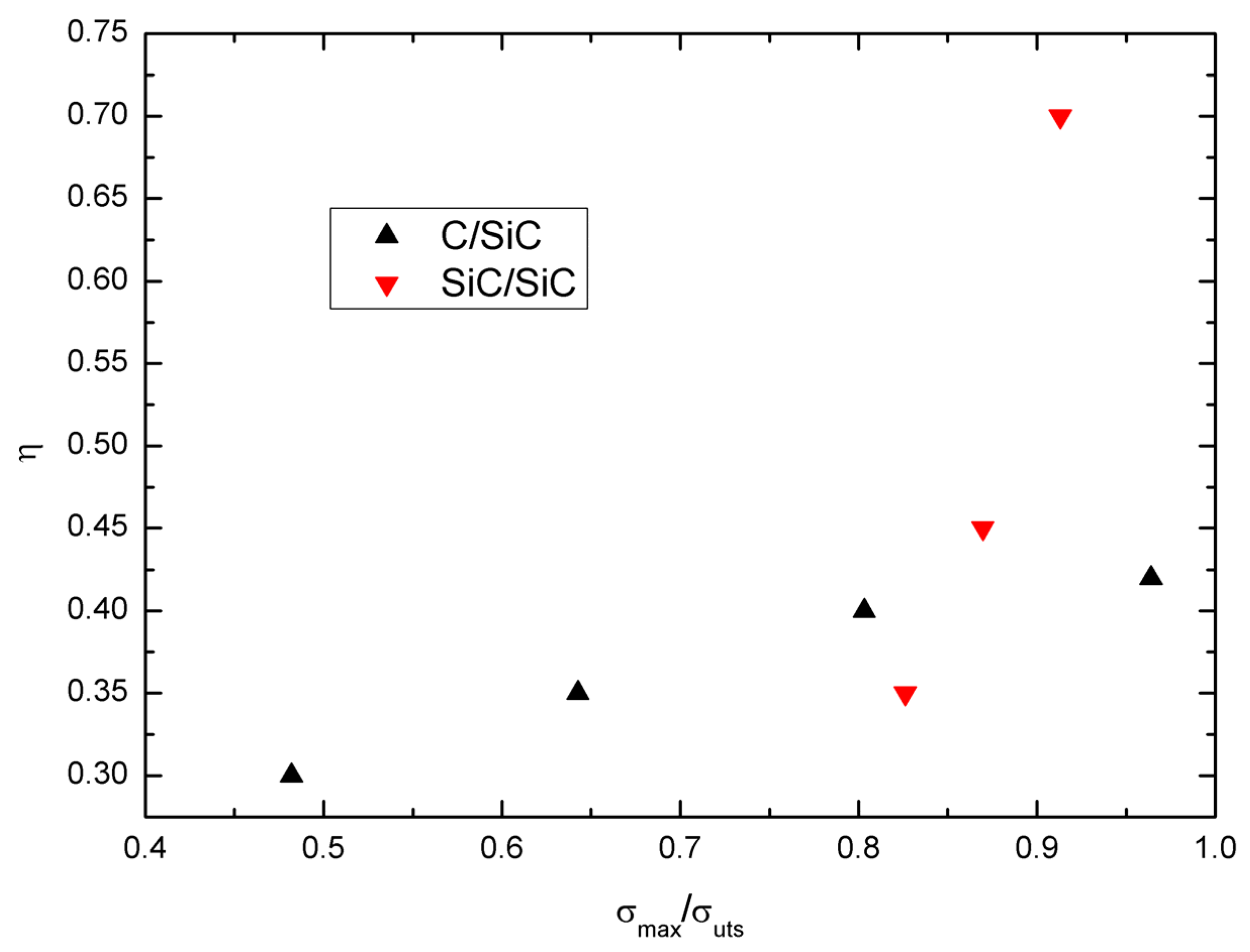

The damage parameter η vs. normalized stress σ

_{max}/σ_{uts}curves of cross-ply C/SiC and SiC/SiC composites are illustrated in Figure 10. With increasing peak stress, the damage parameter η increases. At low peak stress, the damage parameter η of cross-ply C/SiC is higher than that of cross-ply SiC/SiC composite, i.e., η = 0.3 at σ_{max}= 60 MPa or 48.2% σ_{uts}of C/SiC composite, and η = 0.35 at σ_{max}= 190 MPa or 82.6% σ_{uts}of SiC/SiC composite. However, at high peak stress, the damage parameter η of cross-ply SiC/SiC is higher than that of cross-ply C/SiC composite, i.e., η = 0.7 at σ_{max}= 210 MPa or 91.3% σ_{uts}of SiC/SiC composite, and η = 0.42 at σ_{max}= 120 MPa or 96.3% σ_{uts}of C/SiC composite. The matrix crack density of cracking mode 3 in the 0° plies vs. normalized stress σ/σ_{max}curves of cross-ply C/SiC and SiC/SiC composites can be used to show the damage extent inside of composites, as shown in Figure 11. It can be found that the matrix crack density of cracking mode 3 in the C/SiC composite is higher than that of SiC/SiC composite under lower peak stress, i.e., σ/σ_{max}< 0.8, and lower for C/SiC composite than that of SiC/SiC composite under higher peak stress, i.e., σ/σ_{max}> 0.8.**Figure 10.**The damage parameter η vs. normalized stress σ

_{max}/σ

_{uts}curves of cross-ply C/SiC and SiC/SiC composites.

**Figure 11.**The matrix crack density of matrix cracking mode 3 in the 0° plies vs. normalized stress σ/σ

_{max}of cross-ply C/SiC and SiC/SiC composites.

As the axial thermal residual tensile stress existed in SiC matrix due to the large mismatch of the axial thermal expansion coefficient between carbon fibers and silicon carbide matrix, i.e., −0.38 × 10

^{−6}/°C vs. 2.8 × 10^{−6}/°C, and the radial thermal residual tensile stress existed in the fiber/matrix interface due to the large mismatch of the radial thermal expansion coefficient between carbon fibers and silicon carbide matrix, i.e., 7 × 10^{−6}/°C vs. 2.8 × 10^{−6}/°C, there are unavoidable microcracks existing within the SiC matrix in the 90° and 0° plies when the composite was cooled down from high fabricated temperature to ambient temperature. These processing-induced microcracks propagated and, in conjunction with new microcracks during the loading process, formed mode 5 matrix cracks in the 90° plies. With increasing applied stress, some matrix cracks in the 90° plies connected with matrix cracks in the 0° plies forming mode 3 matrix cracks, which propagate through the 90° and 0° plies. For cross-ply SiC/SiC composite, the axial thermal residual compressive stress existed in SiC matrix due to the large mismatch of the axial thermal expansion coefficient between silicon carbide fibers and silicon carbide matrix, i.e., 5.1 × 10^{−6}/°C vs. 3.5 × 10^{−6}/°C, and the radial thermal residual compressive stress existed in the fiber/matrix interface due to the large mismatch of the radial thermal expansion coefficient between silicon carbide fibers and silicon carbide matrix, i.e., 2.9 × 10^{−6}/°C vs. 3.5 × 10^{−6}/°C, which decreases matrix cracking evolution rate and also the damage parameter η at low peak stress. However, with increasing peak stress, the damage extent inside of cross-ply SiC/SiC composite, i.e., the damage parameter η, is much higher than that of C/SiC composite as more transverse cracks and matrix cracks connecting together.The hysteresis dissipated energy vs. normalized stress σ

_{max}/σ_{uts}curves of cross-ply C/SiC and SiC/SiC composites are illustrated in Figure 12. With increasing peak stress, the hysteresis dissipated energy of C/SiC and SiC/SiC composites increase, i.e., from 3.7 kPa at σ_{max}= 60 MPa or 48.2% σ_{uts}, to 15.2 kPa at σ_{max}= 120 MPa or 96.3% σ_{uts}; and from 5.2 kPa at σ_{max}= 190 MPa or 82.6% σ_{uts}, to 46.6 kPa at σ_{max}= 210 MPa or 91.3% σ_{uts}. The hysteresis dissipated energy of C/SiC composite under low peak stress is higher than that of SiC/SiC composite due to a higher damage parameter η at low peak stress of C/SiC composite compared with that of SiC/SiC composite. However, at high peak stress, the damage parameter η of SiC/SiC composite is higher than that of C/SiC composite, leading to higher hysteresis dissipated energy compared with that of C/SiC composite.**Figure 12.**The hysteresis dissipated energy vs. normalized stress σ

_{max}/σ

_{uts}curves of cross-ply C/SiC and SiC/SiC composites.

For C/SiC composite, the hysteresis loops of matrix cracking mode 3 and mode 5 correspond to interface slip case 2 and case 1, respectively, under low peak stresses of 60 and 80 MPa; when the peak stress is 100 MPa, the hysteresis loops of matrix cracking mode 3 transfers from case 2 to case 4; and when the peak stresses are 120 MPa, the hysteresis loops of matrix cracking mode 5 transfers from case 1 to case 2, as shown in Table 1. For SiC/SiC composite, the hysteresis loops of matrix cracking mode 3 and mode 5 both correspond to interface slip case 1 under low peak stresses of 190 MPa; and when the peak stress increases to 200 MPa, the hysteresis loops of matrix cracking mode 3 transfers from case 1 to case 4, and the hysteresis loops of matrix cracking mode 5 remains to be interface slip case 1, as shown in Table 2.

**Table 1.**The interface slip type of matrix cracking mode 3 and mode 5 corresponding to different peak stresses of cross-ply C/SiC composite.

Cracking Modes | 60 MPa | 80 MPa | 100 MPa | 120 MPa |
---|---|---|---|---|

Matrix cracking mode 3 | case 2 | case 2 | case 4 | case 4 |

Matrix cracking mode 5 | case 1 | case 1 | case 1 | case 2 |

**Table 2.**The interface slip type of matrix cracking mode 3 and mode 5 corresponding to different peak stresses of cross-ply SiC/SiC composite.

Cracking Modes | 190 MPa | 200 MPa | 210 MPa |
---|---|---|---|

Matrix cracking mode 3 | case 1 | case 4 | case 4 |

Matrix cracking mode 5 | case 1 | case 1 | case 1 |

## 6. Conclusions

The comparison of cyclic hysteresis behavior between cross-ply C/SiC and SiC/SiC CMCs has been investigated. The interface slip between fibers and the matrix existed in matrix cracking mode 3 and mode 5 are considered as the major reason for hysteresis loops of cross-ply CMCs. The hysteresis loops of cross-ply C/SiC and SiC/SiC composites corresponding to different peak stresses have been predicted using present analysis. The differences between C/SiC and SiC/SiC composite on damage parameters and hysteresis dissipated energy have been investigated.

- (1)
- The damage parameter, i.e., the proportion of matrix cracking mode 3 in the entire matrix cracking modes of the composite, and the hysteresis dissipated energy both increase with increasing peak stress;
- (2)
- The damage parameter and hysteresis dissipated energy of C/SiC composite under low peak stress are higher than those of SiC/SiC composite; However, with increasing peak stress, the damage extent inside of cross-ply SiC/SiC composite, i.e., the damage paramter η and hysteresis dissipated energy, is much higher than that of C/SiC composite as more transverse cracks and matrix cracks connecting together.
