Next Article in Journal
Acoustic Behavior of Subfloor Lightweight Mortars Containing Micronized Poly (Ethylene Vinyl Acetate) (EVA)
Next Article in Special Issue
Evaluation of Castor Oil Cake Starch and Recovered Glycerol and Development of “Green” Composites Based on Those with Plant Fibers
Previous Article in Journal
Preparation of Extracellular Matrix Developed Using Porcine Articular Cartilage and In Vitro Feasibility Study of Porcine Articular Cartilage as an Anti-Adhesive Film
Previous Article in Special Issue
Processing and Characterization of Cellulose Nanocrystals/Polylactic Acid Nanocomposite Films
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessFeature PaperArticle
Materials 2016, 9(1), 50;

Biodegradable Nanocomposite Films Based on Sodium Alginate and Cellulose Nanofibrils

Department of Chemistry, Bishop Moore College, Mavelikara-690101, Kerala, India
Department of Chemistry, Church Missionary Society(C.M.S) College, Kottayam-686001, Kerala, India
Robert H. Smith Faculty of Agriculture, Food and Environment, Hebrew University, Jerusalem, POB 12, Rehovot 76100, Israel
Faculty of Exact Science and Engineering, University of Madeira, 9000-390 Funchal, Portugal
School of Chemical Sciences, Mahatma Gandhi University, Kottayam-686560, Kerala, India
Author to whom correspondence should be addressed.
Academic Editor: Marco Morreale
Received: 30 September 2015 / Revised: 30 December 2015 / Accepted: 11 January 2016 / Published: 14 January 2016
(This article belongs to the Special Issue Green Composites)
Full-Text   |   PDF [3600 KB, uploaded 14 January 2016]   |

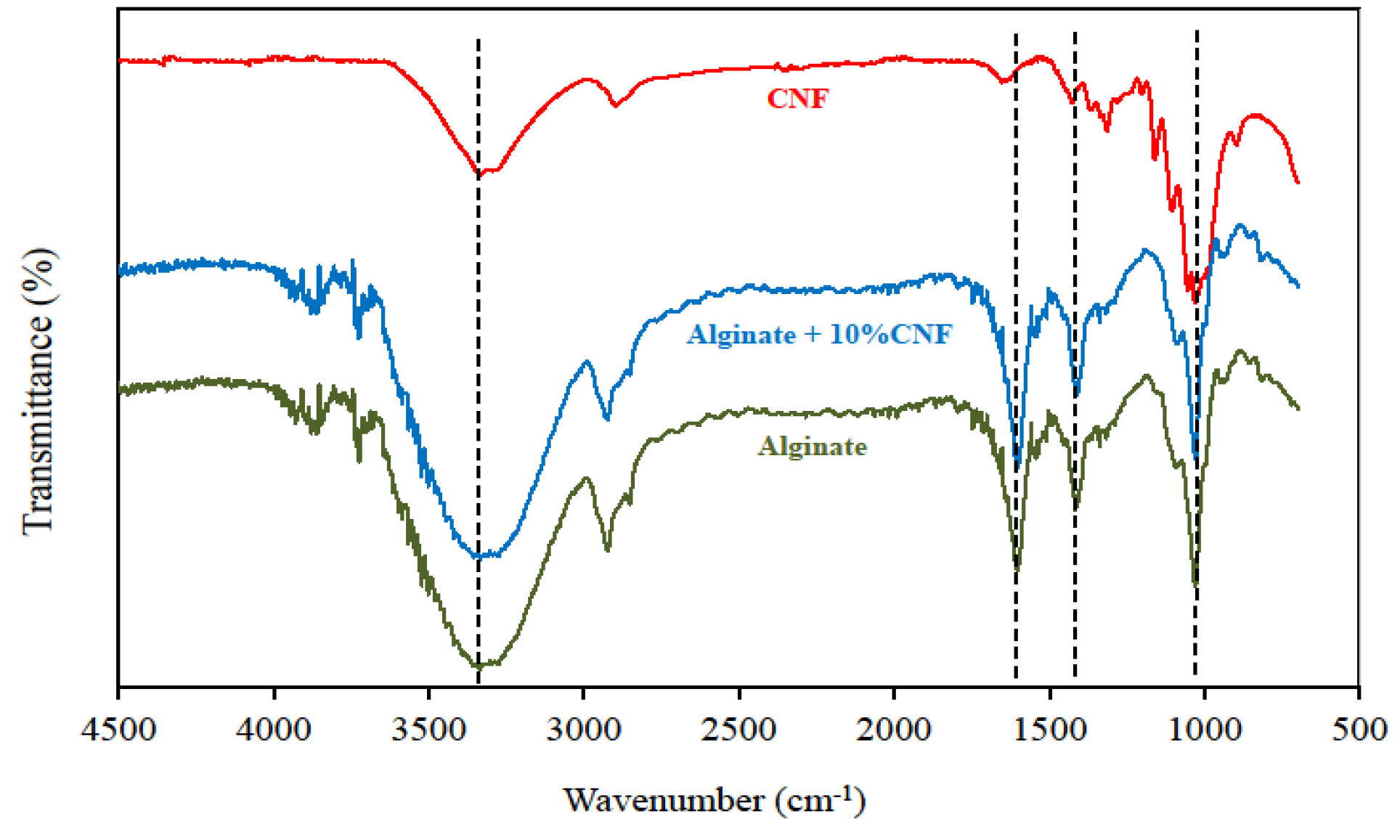

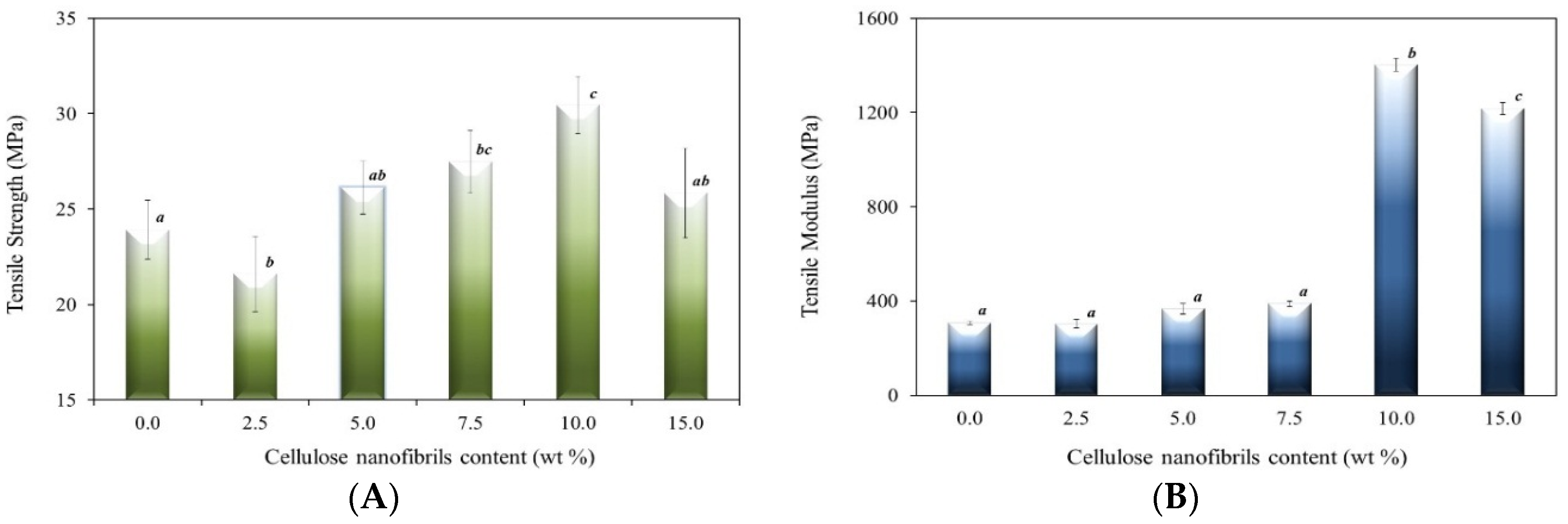

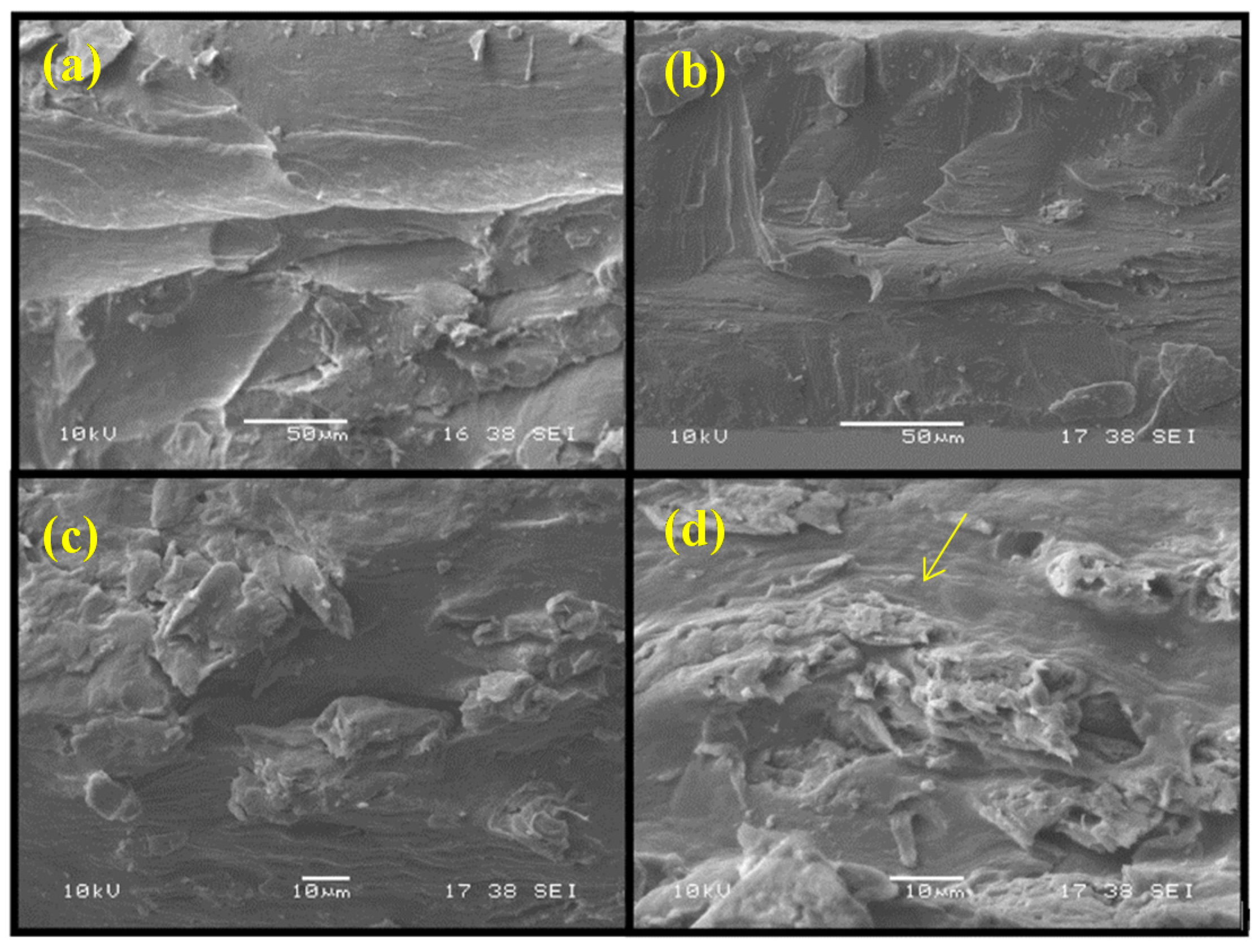

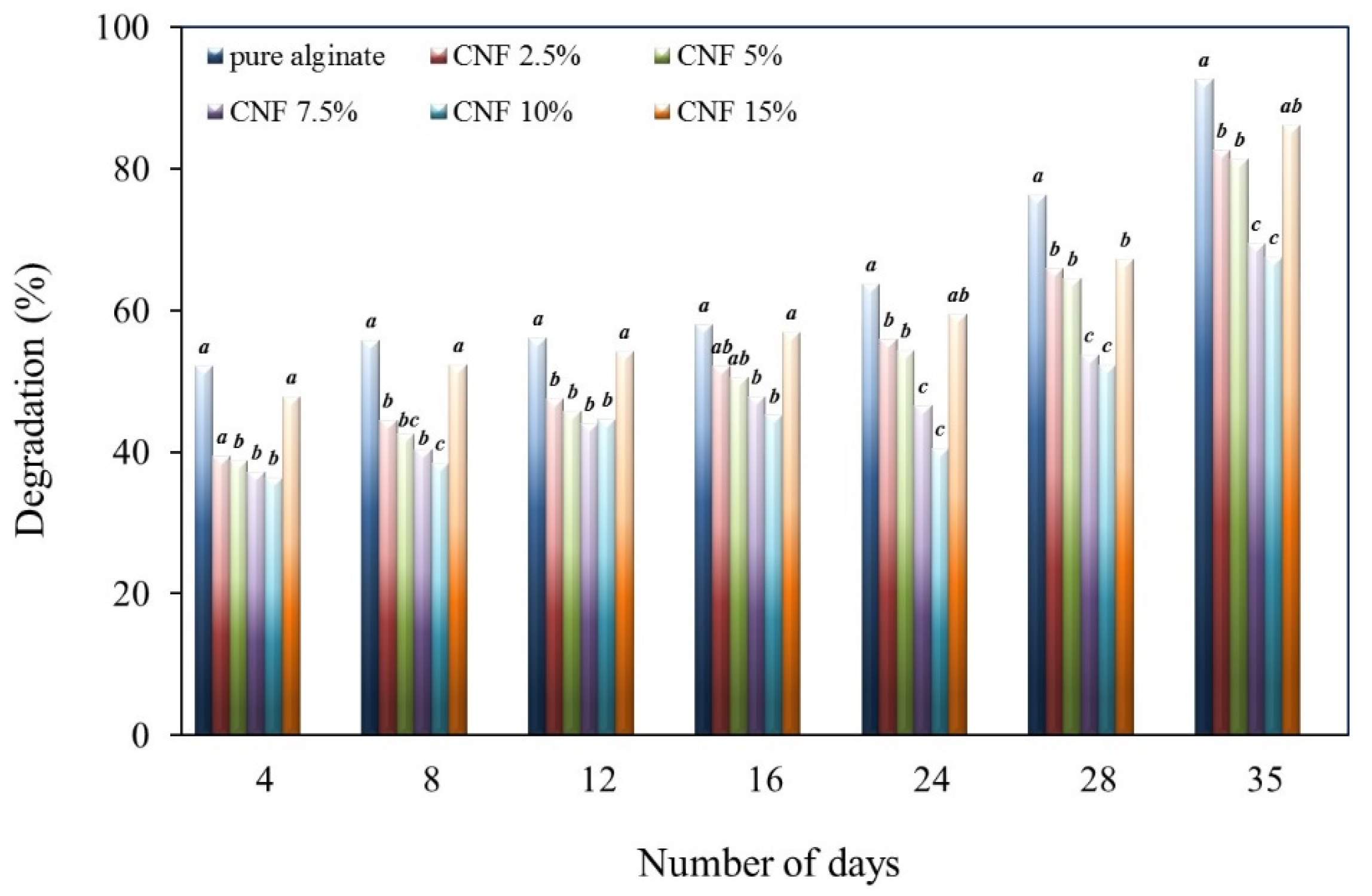

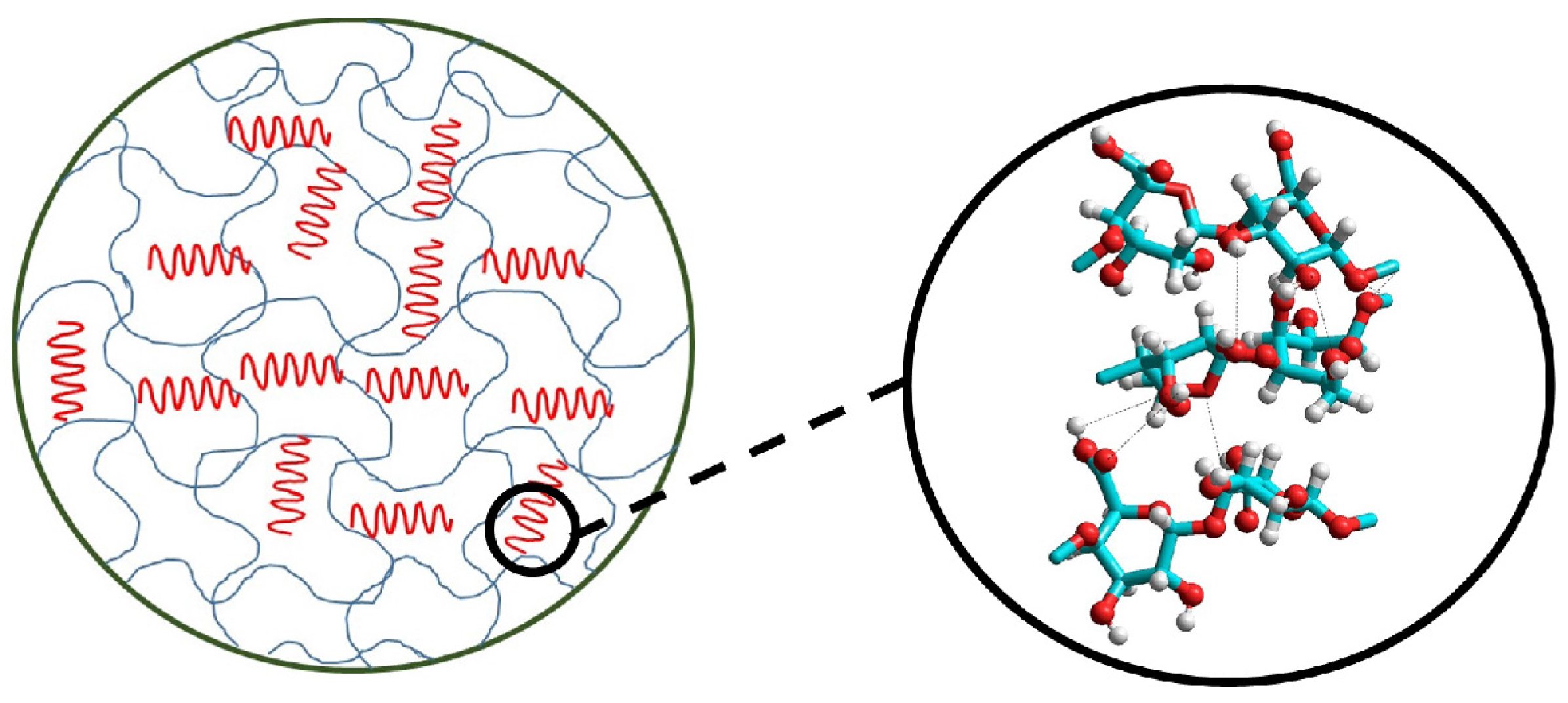

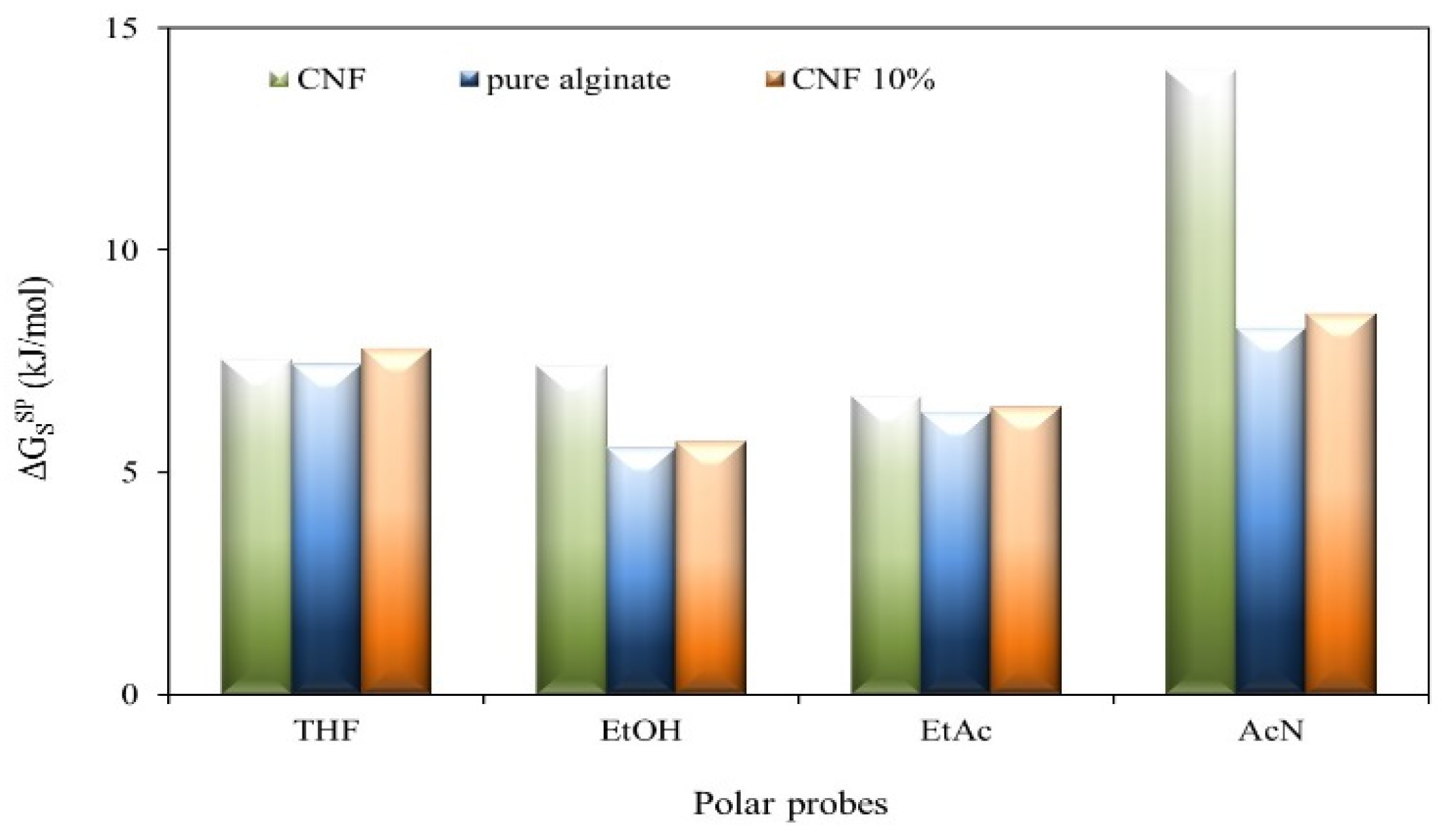

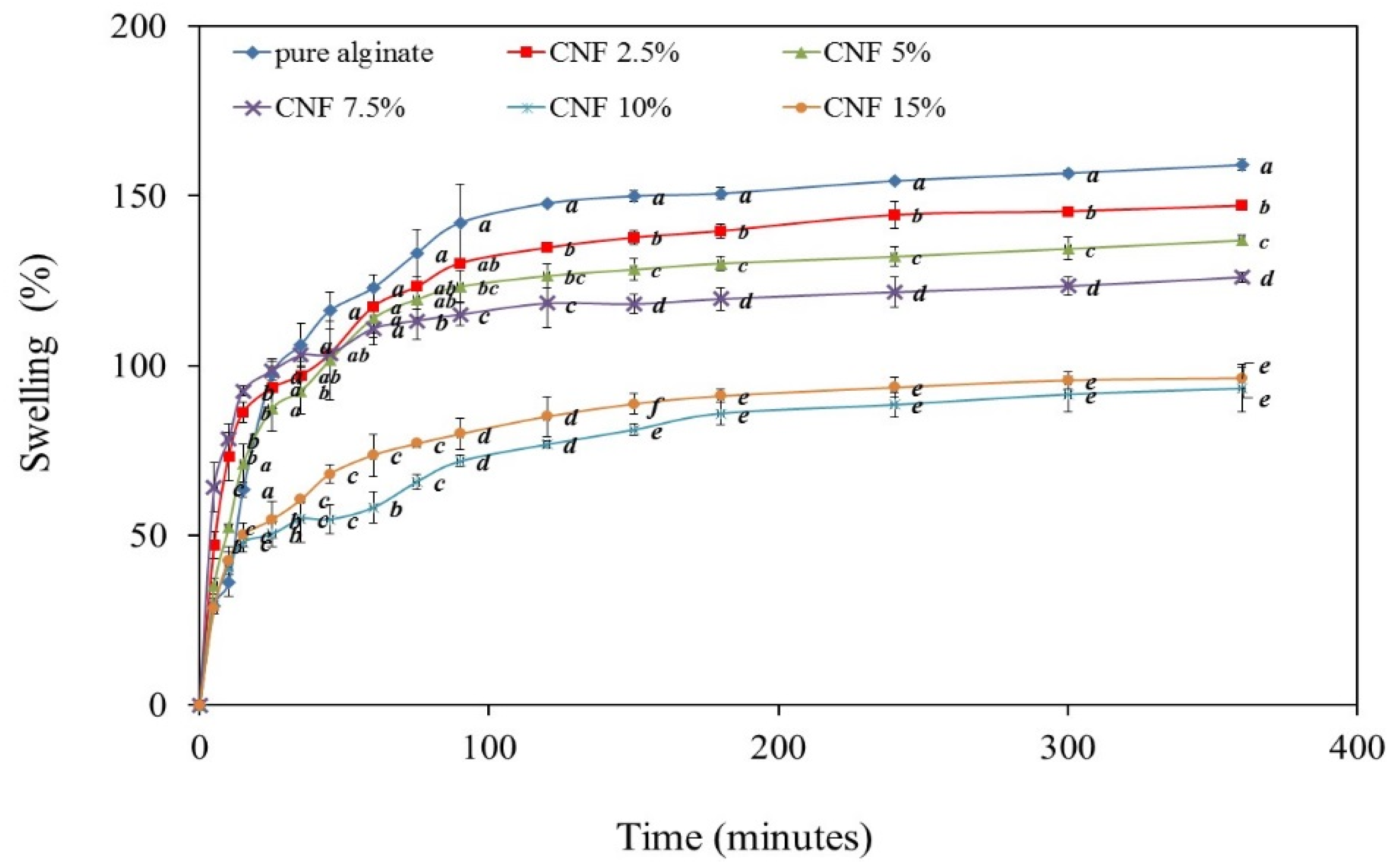

Biodegradable nanocomposite films were prepared by incorporation of cellulose nanofibrils (CNF) into alginate biopolymer using the solution casting method. The effects of CNF content (2.5, 5, 7.5, 10 and 15 wt %) on mechanical, biodegradability and swelling behavior of the nanocomposite films were determined. The results showed that the tensile modulus value of the nanocomposite films increased from 308 to 1403 MPa with increasing CNF content from 0% to 10%; however, it decreased with further increase of the filler content. Incorporation of CNF also significantly reduced the swelling percentage and water solubility of alginate-based films, with the lower values found for 10 wt % in CNF. Biodegradation studies of the films in soil confirmed that the biodegradation time of alginate/CNF films greatly depends on the CNF content. The results evidence that the stronger intermolecular interaction and molecular compatibility between alginate and CNF components was at 10 wt % in CNF alginate films. View Full-Text
Keywords: cellulose nanofibrils; sodium alginate; nanocomposite films; solvent casting; mechanical properties cellulose nanofibrils; sodium alginate; nanocomposite films; solvent casting; mechanical properties

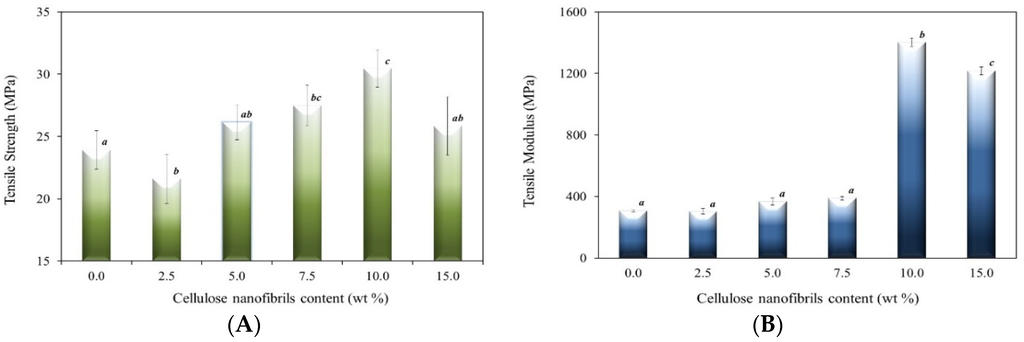

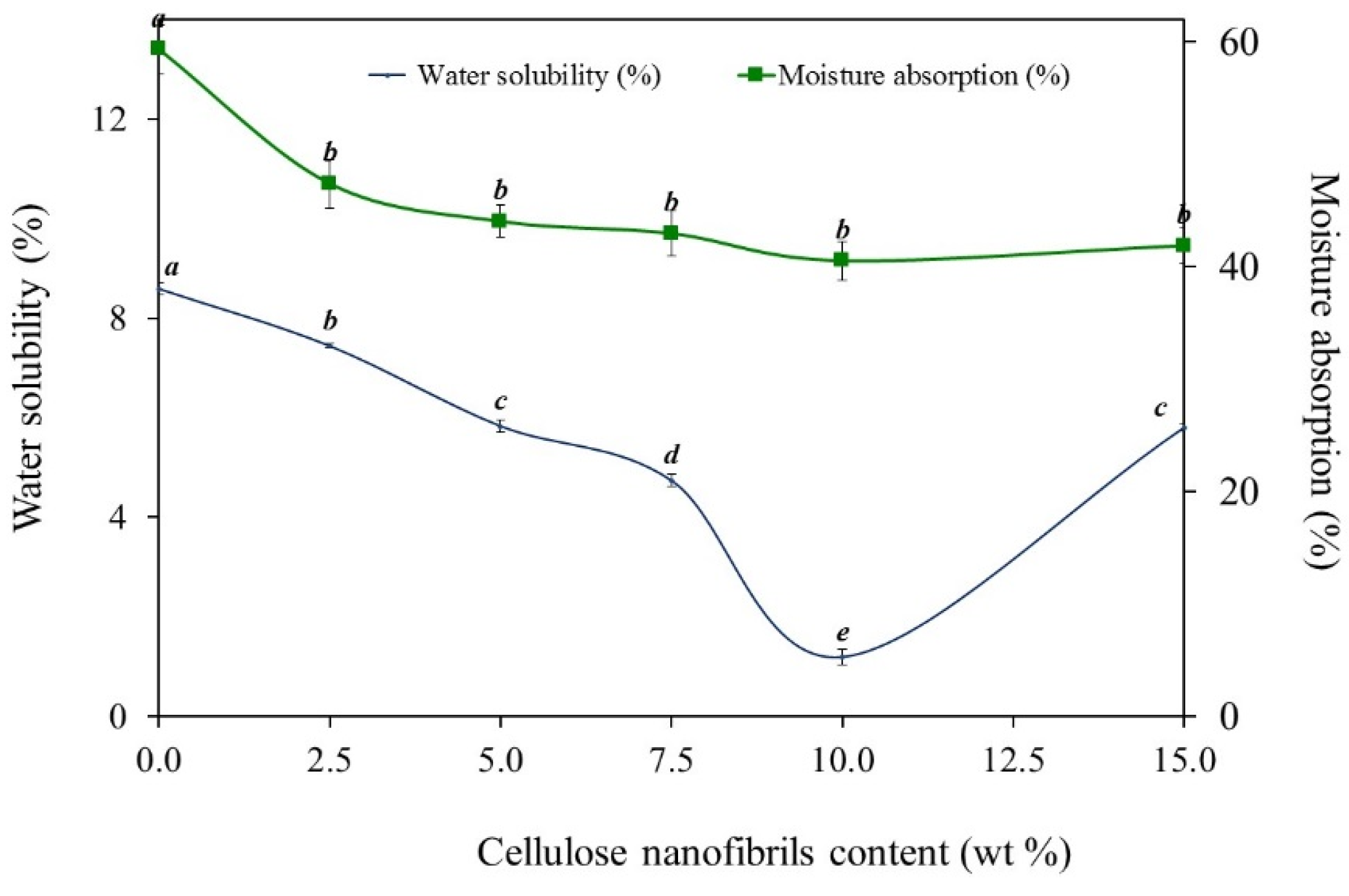

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Deepa, B.; Abraham, E.; Pothan, L.A.; Cordeiro, N.; Faria, M.; Thomas, S. Biodegradable Nanocomposite Films Based on Sodium Alginate and Cellulose Nanofibrils. Materials 2016, 9, 50.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
