Effect of Nb Microalloying on the Dynamic Recrystallization, Bainitic Microstructure, and Mechanical Properties of Hot-Rolled Bainitic Steels

by
Rui Cao
1,
Shangqing Chen
1,
Junheng Gao
1,2,*,
Haitao Zhao
1,2,
Qingxiao Feng
3,
Honghui Wu
1,2,
Chaolei Zhang
1,2,
Yuhe Huang
1,2,
Jun Lu
1,2,
Shuize Wang
1,2 and
Xinping Mao
1,2
1
Institute for Carbon Neutrality, University of Science and Technology Beijing, Beijing 100083, China
2
Institute for Steel Sustainable Technology, Liaoning Academy of Materials, Shenyang 110004, China
3
Jiangsu (ShaGang) Iron and Steel Research Institute, Zhangjiagang 215625, China
*
Author to whom correspondence should be addressed.
Materials 2026, 19(18), 3982; https://doi.org/10.3390/ma19183982 (registering DOI)
Submission received: 14 August 2026 / Revised: 16 September 2026 / Accepted: 17 September 2026 / Published: 19 September 2026
(This article belongs to the Special Issue Advanced Stainless Steel—from Making, Shaping, Treating to Products (2nd Edition))
Browse Figures
Versions Notes

Abstract

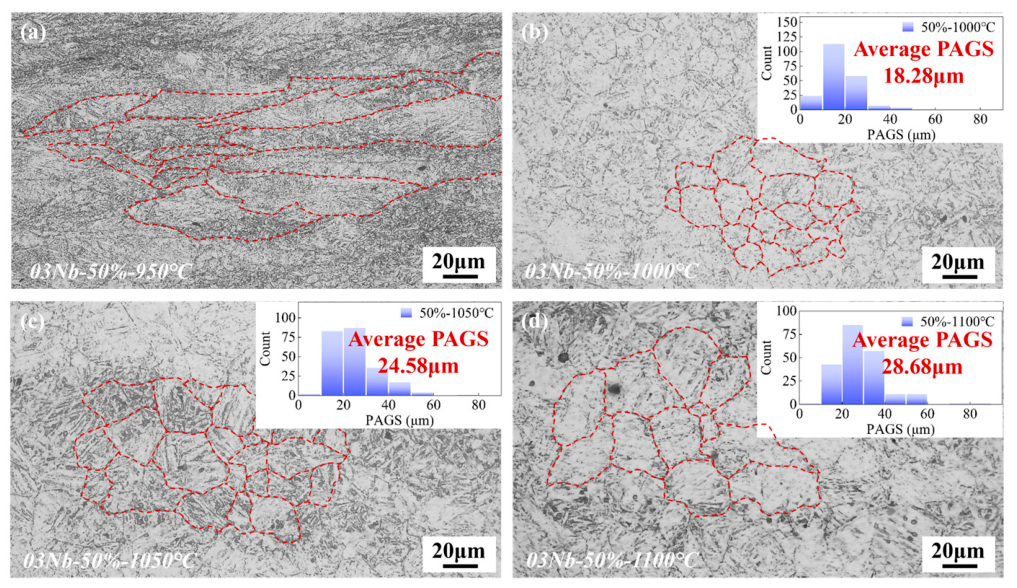

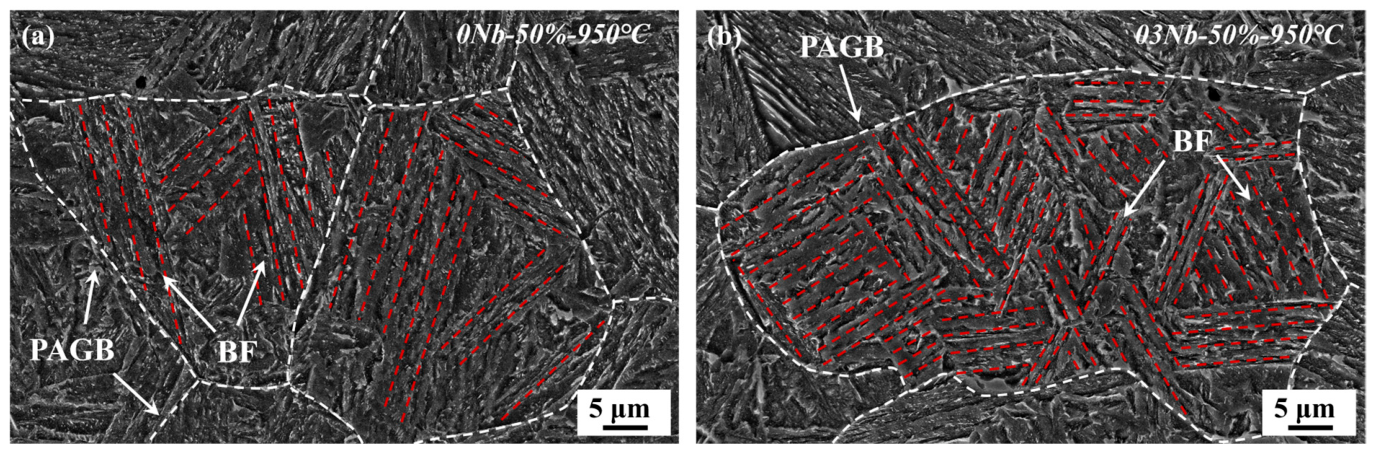

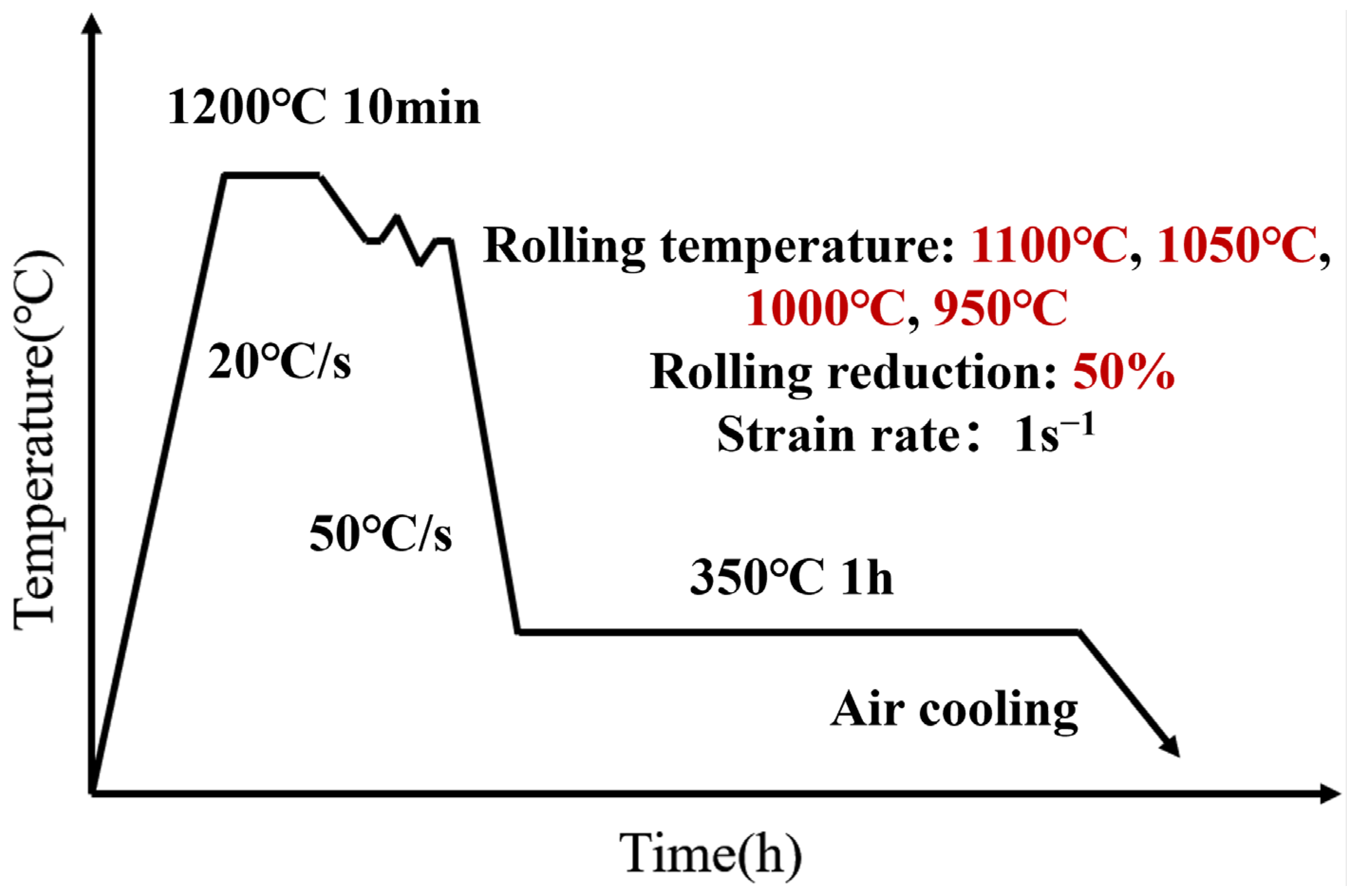

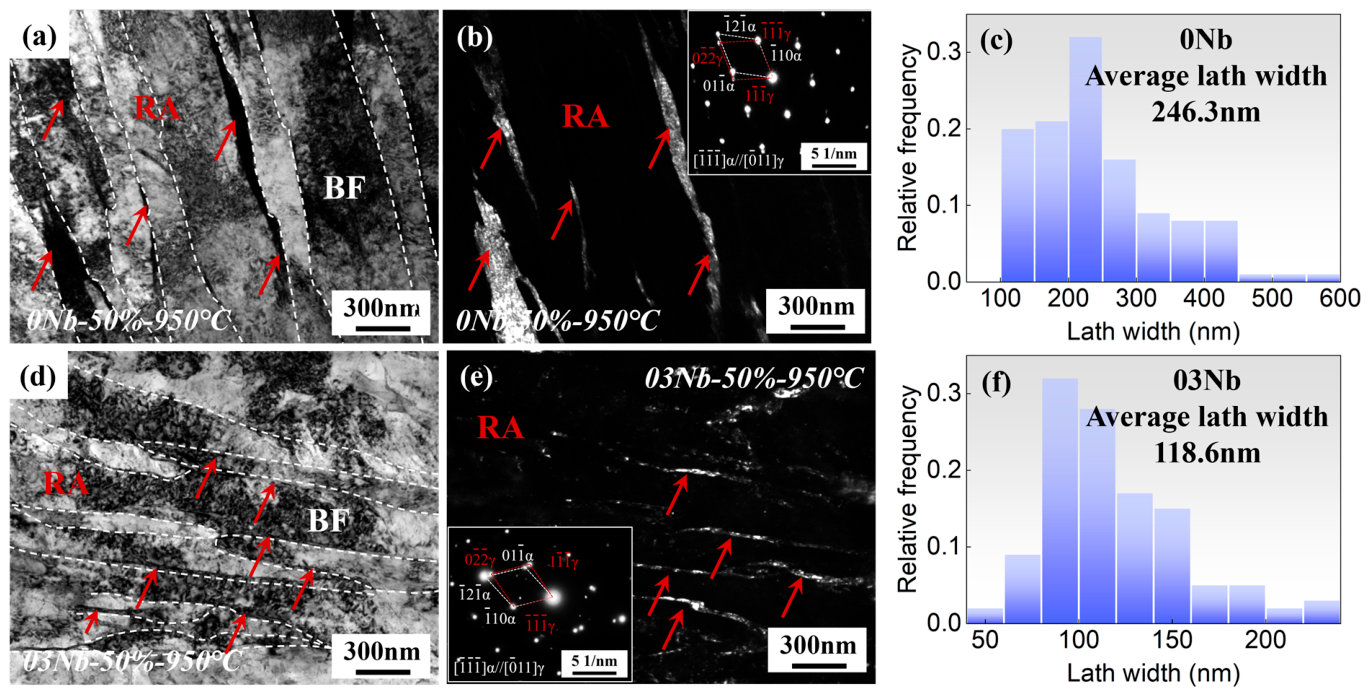

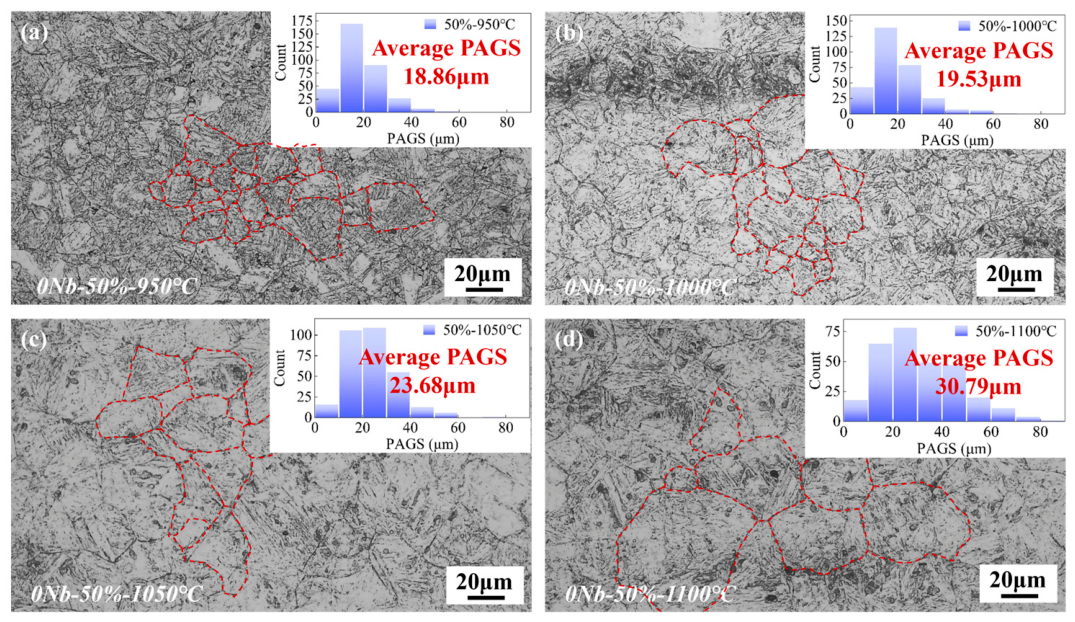

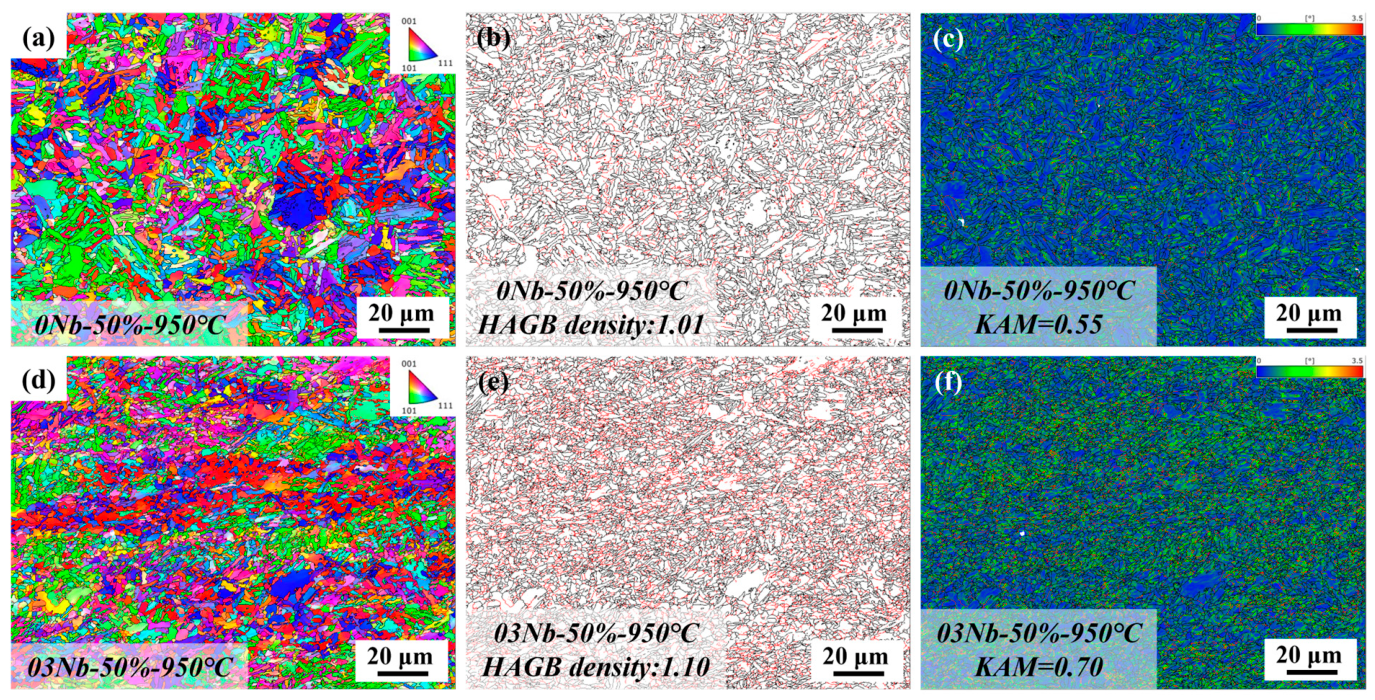

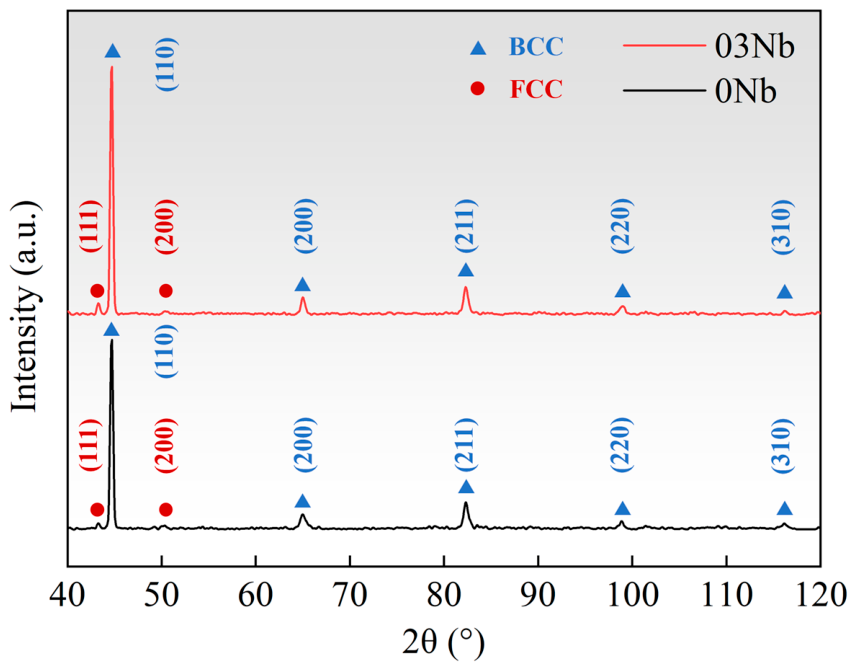

Controlling prior austenite morphology during single-pass hot rolling is essential for improving the strength–ductility balance of strip casting high-strength steels. In this study, Fe–0.24C–1.5Si–1.8Mn steels with and without 0.03 wt.% Nb were deformed by 50% at 950–1100 °C and subsequently held at 350 °C for 60 min for bainitic transformation. The effects of deformation temperature and Nb addition on austenite dynamic recrystallization, bainitic microstructure, and mechanical properties were investigated. For the Nb-free steel, recrystallization occurred at all these investigated deformation temperatures. The addition of 0.03 wt.% Nb markedly suppressed austenite recrystallization during hot deformation, resulting in the retention of elongated deformed austenite after deformation at 950 °C. Compared with the bainitic microstructure formed from fine recrystallized austenite in the 0Nb steel (without Nb addition), that formed from elongated austenite in the 03Nb steel (with 0.03 wt.% Nb) deformed at 950 °C exhibited a smaller lath width and higher HAGB and dislocation densities. In addition, the volume fraction of retained austenite increased from 4.5% to 9.8%, while its average thickness decreased from 105.6 nm to 49.1 nm. Consequently, under identical deformation conditions (50% reduction at 950 °C), Nb addition increased the yield and tensile strengths from 1064 MPa and 1261 MPa to 1088 MPa and 1323 MPa, respectively, while the total elongation remained nearly unchanged (24.8% vs 24.6%). These findings provide new insights into the optimization of thermomechanical processing for strip casting bainitic steels.
Keywords: strip casting; niobium microalloying; high-strength steel; hot rolling process; austenite recrystallization; bainitic transformation strip casting; niobium microalloying; high-strength steel; hot rolling process; austenite recrystallization; bainitic transformation
