Insights into HKUST-1 Metal-Organic Framework’s Morphology and Physicochemical Properties Induced by Changing the Copper(II) Salt Precursors

by
Joanna Klęba
1,
Kun Zheng
1,
Dorota Duraczyńska
2,
Mateusz Marzec
3,
Monika Fedyna
4 and
Jakub Mokrzycki
1,*
1
Faculty of Energy and Fuels, AGH University of Krakow, Mickiewicza 30 Av., 30-059 Krakow, Poland
2
Jerzy Haber Institute of Catalysis and Surface Chemistry, Polish Academy of Sciences, Niezapominajek 8, 30-239 Krakow, Poland
3
Academic Centre for Materials and Nanotechnology, AGH University of Krakow, Mickiewicza 30 Av., 30-059 Krakow, Poland
4
Faculty of Chemistry, Jagiellonian University, Gronostajowa 2, 30-387 Krakow, Poland
*
Author to whom correspondence should be addressed.
Materials 2025, 18(3), 676; https://doi.org/10.3390/ma18030676
Submission received: 11 December 2024 / Revised: 23 January 2025 / Accepted: 31 January 2025 / Published: 3 February 2025
(This article belongs to the Special Issue Advanced Nanoporous and Mesoporous Materials)
Browse Figures
Versions Notes

Abstract

:
The HKUST-1 metal-organic framework was synthesized using four different copper(II) salt precursors, namely copper nitrate, copper sulphate, copper acetate, and copper chloride, via the solvothermal method with no mixing. Syntheses were conducted without using the N,N-dimethylformamide to allow for a greener synthesis of MOFs. The selected physicochemical properties of the obtained metal-organic frameworks were determined. The yield of the obtained products changed in the order acetate>nitrate>sulfate, while no product was obtained in the synthesis with copper(II) chloride. The obtained materials were characterized by means of XRD, nitrogen adsorption–desorption at −196 °C, FTIR, XPS, TGA, SEM, and DLS. The morphology of crystallites and their physicochemical properties were significantly affected when different copper(II) salt precursors were used. The comparison of the obtained results with already published works allows for the correlation of the synthesis parameters like synthesis temperature, time, mixing, and copper(II) salt precursor used on selected properties of the final product.

1. Introduction

In recent years, design and research on novel materials has gained major attention. A widely known group of crystalline materials known as MOFs—metal-organic frameworks—which were developed in the late 1990s, have brought a new insight into the synthesis of designable materials [1]. MOFs are a combination of two opposite components: inorganic metal clusters and organic linkers. Owing to the broad diversity of their selection—especially organic liners—there are at present over 123,000 reported MOF structures obtained at laboratory scale and over 500,000 structures that are possible to be obtained according to mathematical simulations.
Owing to unique surface properties, e.g., high specific surface area (>1000 m2 g−1), regular and designable porous structure, and adjustable surface active groups introduced at the synthesis stage or during post-synthesis procedures, MOFs have become important materials in chemical engineering. Impressively, the highest reported specific surface area for crystalline porous materials, 7800 m2 g−1, was obtained for MOF DUT-60 in 2018 [2]. MOFs’ most recent applications include gas separation and storage [3,4,5], heterogeneous catalysis [6,7,8], the adsorption of both organic and inorganic pollutants from aqueous media [9,10], photocatalysis [11,12,13], and drug delivery platforms [14,15,16]. However, their relatively low thermal stability limits their application in processes where elevated temperatures >250 °C are required [17].
Among numerous MOF structures, HKUST-1 (Hong Kong University of Science and Technology-1), also known as MOF-199, has gained much attention due to the ease of its synthesis [18]. HKUST-1 possesses a 3-dimensional porous structure composed of copper ion clusters coordinated with 1,3,5-tribenzenecarboxylic acid (trimesic acid). The specific surface area is usually >1000 m2 g−1, while the size of the HKUST-1 pore window is about 0.9 nm [19].
The major factor impeding the properties of the final product is the synthesis procedure, which can be conducted in various modes: solvothermal synthesis (with or without mixing or with an additional energy source, either microwaves or ultrasounds) [18,20], mechanochemical synthesis [21,22], and electrochemical synthesis [23,24]. Among the abovementioned methods, solvothermal synthesis is the most widely applied [25]. However, it requires the removal of the solvent from the pores to allow for surface activation and improvement in the specific surface area.
In the work by Zhang et al. [26], the authors claimed that, with the synthesis of HKUST-1 using copper(II) nitrate and ethanol as solvent, phase purity was not obtained and additional phases occurred in the PXRD diffractogram, despite the fact that the crystals exhibited HKUST-1-like morphology (octahedral crystallites). The effect of various salt precursors on the physicochemical properties of obtained HKUST-1 MOFs was investigated by Liu et al. [27]. The yield of the final product varied when different salt precursors were used; however, the syntheses were conducted in the presence of DMF (N,N-dimethylformamide) and ethanol as organic solvents (with or without the addition of triethylamine—TEA). Regardless of the salt precursor used, the phase composition was maintained; however, the specific surface area, pore size, and product yield were significantly changed. Moreover, recent studies imply that DMF, which is a widely applied volatile organic compound, may contribute to liver, lung, and testicular cancers [28]. DMF is metabolized in the liver by the microsomal cytochrome P4502E1 (CYP2E1); however, its negative impact on human health is gaining attention. For this reason, a trend towards removing its application in organic syntheses (including MOFs) is in line with the principles of green chemistry [29].
The aim of the present study was to demonstrate the physicochemical properties of the HKUST-1 MOFs obtained using four different copper(II) salt precursors in a DMF-free solvothermal synthesis procedure. The main outcome of this work was to show how the phase composition, specific surface area, pore volume, thermal stability, and surface morphology of the final product can be affected by changing the copper(II) salt precursors. The study is a continuation of our former research [9], in which a similar synthesis procedure was employed, although no mixing was then involved. The results obtained were correlated with already published works, where various synthesis parameters were also evaluated. The knowledge gap in the broad comparison of various copper(II) salt precursors’ effects on the properties of HKUST-1 MOFs was filled.

2. Materials and Methods

2.1. HKUST-1 Syntheses

HKUST-1 was synthesized using a conventional solvothermal method described in the work of Chen et al. [30]. According to this method, two separate solutions were prepared containing 9 mmol of copper(II) salt precursor in 30 mL of deionized water and 5 mmol of trimesic acid (Sigma Aldrich, Burlington, MA, USA) in 30 mL of ethanol (96 % purity, Stanlab, Lublin, Poland), respectively. The selected copper(II) salt precursors were Cu(NO3)2·3H2O (Aktyn, Suchy Las, Poland), (CH3COOH)2Cu·H2O (Fluka, Buchs, Switzerland), CuCl2·2H2O (Sigma Aldrich, Burlington, MA, USA), and CuSO4·5H2O (Sigma Aldrich, Burlington, MA, USA). Solutions were mixed together in a 100 mL bottle and placed in an ultrasound bath (ULTRA-080S, Sonicco, Warsaw, Poland) for 15 min at 25 °C to initiate the nucleation. Next, samples were placed in an oven for 24 h at 110 °C to finalize the synthesis. Samples were then filtrated using a nylon membrane filter of 0.45 μm pore size, washed several times with water, and dried in oven for 4 h at 110 °C followed by drying for 20 h at 80 °C under vacuum. Samples were denoted a-HKUST-1, c-HKUST-1, n-HKUST-1, and s-HKUST-1, where the letter corresponds to the copper(II) salt precursor used: acetate, chloride, nitrate, and sulfate, respectively. A schematic illustration of the synthesis procedure is presented in Figure 1.

2.2. Materials Characterization

2.2.1. X-Ray Diffraction (XRD)

The phase composition of the investigated MOFs was determined using a PANalytical Empyrean diffractometer (Malvern Panalytical, Malvern, UK). The source of radiation was CuKα λ = 1.5406 Å, and the 2θ range was 5–45° with a 0.013° step.

2.2.2. Nitrogen Adsorption-Desorption at −196 °C

The adsorption–desorption isotherms of nitrogen were collected at −196 °C using an ASAP 2020 instrument (Micromeritics, Norcross, GA, USA). Prior to the measurement, samples were degassed at 150 °C for 12 h. From the isotherms obtained, the specific surface area (SBET), total pore volume (Vt)at p/p0 of approx. 0.90, and micropore volume (Vmic), using the H-K method, of the investigated MOFs were calculated using the MicroActive V 4.06 software (Micromeritics, Norcross, GA, USA).

2.2.3. Fourier-Transform Infrared Spectroscopy (FTIR)

IR spectra were collected at 1 cm−1 resolution using a spectrometer (Nicolet 6700, Thermoscientific, Madison, WI, USA) operating in Attenuated Total Reflection mode (ATR-FTIR).

2.2.4. X-Ray Photoelectron Spectroscopy (XPS)

The analyses were carried out in a PHI VersaProbeII Scanning XPS system using monochromatic Al Kα (1486.6 eV) X-rays. The photoelectron take-off angle was 45°, and the pass energy in the analyzer was set to 117.50 eV for survey scans and 46.95 eV to obtain high-energy resolution spectra for the C 1s, O 1s, and Cu 2p regions. A dual beam charge compensation with 7 eV Ar+ ions and 1 eV electrons was used to maintain a constant sample surface potential regardless of the sample conductivity. All XPS spectra were charge-referenced to the unfunctionalized, saturated carbon (C-C) C 1s peak at 285.0 eV. The operating pressure in the analytical chamber was <3 · 10−9 mbar. The deconvolution of spectra was carried out using the PHI MultiPak software (v.9.9.3). Spectrum background was subtracted using the Shirley method.

2.2.5. Thermogravimetric Analysis (TGA)

The samples’ mass loss at increasing temperature in an inert medium was measured using the Q5000IR apparatus (TA Instruments, New Castle, DE, USA). 30 mg of sample was weighed and heated from room temperature to 700 °C with a heating rate of 5 °C min−1 and a 100 mL min−1 flow of argon.

2.2.6. Dynamic Light Scattering (DLS)

The particle size was measured by means of the dynamic light scattering method using a Mastersizer 3000 laser-diffraction analyzer (Malvern Panalytical, Malvern, UK).

2.2.7. Scanning Electron Microscopy (SEM)

The imaging of the samples’ morphology was conducted using JEOL JSM 7500 F (JEOL, Tokyo, Japan). Samples were first coated with a thin (30 nm) layer of chromium using the K575X Turbo Sputter Coater (Quorum Emitech, South Stour Avenue, Ashford, UK).

3. Results and Discussion

The obtained product yields and pH of the synthesis are summarized in Table 1. It was evidenced that the precursors of the used copper(II) salts have a major impact on the yield of the final product. The yield of the HKUST-1 products changed in the following order (depending on the used copper(II) salt precursor): acetate > nitrate (1.8 times less) > sulfate (4.6 times less); in contrast, synthesis with copper(II) chloride yielded no product. A similar observation was confirmed in our latest work [9], where such a phenomenon was also observed. What is noteworthy is that the yield of a-HKUST-1, which was roughly 96.3%, might be a result of competition of the AcO− ions with the organic linker BTC3− ions during the crystallization process. It may also suggest the partial incorporation of these ions into the structure of the formed MOF [31,32]. The solution pH after synthesis had a rather negligible effect on the final product yield and was maintained in the acidic pH range in all cases (see Table 1).
The results of the crystallographic plane composition of the obtained HKUST-1 MOFs are presented in Figure 2. Regardless of the used copper(II) salt precursor, the HKUST-1 structure was obtained using the investigated procedure. According to the PDF-4+ powder diffraction database (JCPDS 00-064-0936) [33], the peak position was 2θ, and the corresponding identified planes were 5.80° (111), 6.70° (200), 9.48° (220), 11.66° (222), 13.41° (400), 14.62° (331), 16.46° (422), 17.46° (511), 19.02° (440), 20.21° (600), 21.32° (620), 24.12° (551), 25.98° (731), 29.32° (751), 35.25° (773), and 39.15° (882). However, in the case of a-HKUST-1 (Figure 2, green line), some additional planes were identified and were a result of the formation of a Cu2OH(BTC)(H2O)n·2n H2O phase, caused by the presence of acetate ions in the reaction medium and already reported by Crawford et al. [34] and in our recent work [9]. The peaks located at 2θ=8.10, 9.96, 18.74, 22.84, 28.49, and 32.70°, indicated by yellow dots in Figure 2, correlate well with the reports of Loera-Serna et al. [35] and Rodríguez-Esteban et al. [36] and confirm the presence of the Cu2OH(BTC)(H2O)n·2n H2O phase in the a-HKUST-1 sample.
Nitrogen adsorption–desorption at −196 °C was employed to investigate the specific surface area (SBET) and characteristics of the pores. The results are summarized in Figure 3 and Table 2. The SBET of the obtained MOFs changed in the order n-HKUST-1 (1153 m2 g−1) > s-HKUST-1 (937 m2 g−1) > a-HKUST-1 (553 m2 g−1). For all the investigated samples, the isotherm shape exhibited a hybrid type IA/II behavior according to the IUPAC classification, implying a microporous material with strong adsorbate–adsorbent interactions. At the same time, they possessed a type H3 or H4 hysteresis loop, which might be a result of aggregated crystals and/or occurring mesoporosity [37].
The sample n-HKUST-1 displayed a 43.3% share of micropores in total pore distribution (see Table 2). The highest number of micropores was found in s-HKUST-1 (59.5%), for which the hysteresis loop was less visible than for n-HKUST-1. In the case of a-HKUST-1, there was no hysteresis loop observed under relatively high pressure (p/p0), which indicates the least developed porous structure of the material among the investigated series, with a SBET of 553 m2 g−1 and only 22.0% of micropores (see Table 2). The significant reduction in SBET and Vmicro (compared to the other materials) for the a-HKUST-1 sample can be a result of the formation of the Cu2OH(BTC)(H2O)n·2n H2O phase in the pores and/or on the surface of the HKUST-1 crystals.
FTIR analysis was conducted to investigate the surface functional groups. The results are summarized in Figure 4. It can be clearly seen that the all the samples displayed a similar shape of characteristic bands in the examined wavenumber regions. Stretching bands originating from Cu-O were centered at ~725 cm−1. The presence of the FTIR peak at ∼725 cm−1 confirms the formation of a metal-linker bond between Cu and BTC [38]. At about 1090 cm−1, a band from Cu-O-C can be seen for a-HKUST-1, while for s-HKUST-1 and n-HKUST-1 it is slightly shifted to about 1110 cm−1. Bands at around 1620, 1440, 1360, and 1270 cm−1 were assigned to symmetric and asymmetric stretching vibrations of C=O and C-O vibrations from 1,3,5-benzenetricarboxylic acid units [39,40]. Moreover, the peak at about 1550 cm−1 was identified as C=C asymmetric vibrations of the aromatic ring. The peak originating from the BTC acid at 1710 cm−1 was also reported by Farzaneh et al. [41]. Peaks assigned to OH- groups were identified in the region >3000 cm−1 and confirm the presence of accompanying water within the material pores or loosely bonded to the structure of MOF, as seen for a-HKUST-1 (3550 cm−1) [42].
X-ray photoelectron spectroscopy (XPS) was used to characterize the HKUST-1 samples and determine the chemical bond concentration on their surface. The fitted Cu 2p, C 1s and O 1s spectra are presented in Figure 5 and summarized in Table 3. The spectra collected at the Cu 2p3/2 region (see Figure 5a1–c1) were fitted with two components, the first line centered at 933.0 eV and the second at 935.0 eV. However, in the case of materials containing copper incorporated into their structure, it is difficult to assign a particular line to one Cu species in a univocal way, due to the reducibility of Cu2+ in the vacuum chamber during the XPS measurement [43,44]. This can make it difficult to delineate properly the Cu2+ and Cu+ species in the examined samples. However, the presence of shake-up structures (Cu satellites) found within the binding energy range of 940–945 eV confirms a high share of Cu2+ in the investigated HKUST-1 samples [43,44]. The share of Cu according to the XPS measurement was comparable for all the samples and varied from 10.4 to 10.6 at.% (Table 3). As Figure 5a2–c2 shows, the C 1s spectrum has four peaks, which are respectively matched to C–C (285.0 eV), C-O (286.0 eV), O-C=O (288.8 eV), and O-(C=O)-O (291.0 eV) [45]. The sum of the C atomic content was 54.6, 55.6, and 55.6% for a-HKUST-1, n-HKUST-1, and s-HKUST-1, respectively. The O 1s spectra were fitted with two components: a first line centered at 532.0 eV which mainly comes from metal oxides (O-Cu) and/or O=C type bonds and a second line found at 533.5 eV indicating O-C type bonds from organic material (see Figure 5a3–c3) [5,6]. The share of oxygen atomic content was the highest for a-HKUST-1 at 34.9%, implying the formation of a Cu2OH(BTC)(H2O)n·2n H2O phase. For n-HKUST-1 and s-HKUST-1 the share was comparable and as high as 33.9%.
The thermal stability of the obtained materials was investigated by means of TG. The results are presented in Figure 6. From the DTG curve it can be clearly seen that there were two main weight loss occurrences during sample heating. For n-HKUST-1 and s-HKUST-1 the first weight loss maximum occurred at about 50 °C and was related to the removal of ethanol from the pores of the material, while for a-HKUST-1 the first weight loss maximum occurred at about 106 °C and was related to loss of water probably from the Cu2OH(BTC)(H2O)n·2nH2O phase [34].
The second maximum (about 20% weight loss) observed for the s-HKUST-1 and n-HKUST-1 samples at about 100 °C was related to the release of physically adsorbed water molecules located in the pores of HKUST-1. The 20% weight loss in this temperature range is consistent with the observations of Ennis at al. [46]. On the other hand, a small loss in mass associated with water release from s-HKUST-1 and n-HKUST-1 was observed at about 160 °C; it may have been caused by the removal of water which remained in micropores until this temperature and might have been desorbed from the Cu paddle-wheel sites (chemisorbed water). The main weight loss was observed for all the materials at 300 °C and was related to the decomposition of the BTC organic linker [47]. Hence, the used salt precursor has no effect on the improvement of the thermal stability of the HKUST-1 structure, and the decomposition profile was comparable for all the samples in the temperature range from 300 to 600 °C.
The DLS particle size analysis results are presented in Figure 7. For all MOFs investigated, two particle size maxima were obtained: 12 and 550 μm for s-HKUST-1 and 48 and 550 μm for n-HKUST-1; for a-HKUST-1, meanwhile, a broad size distribution was obtained in the region from 1 to 100 μm (maximum at 10 μm and 40 μm), and a second one at about 1500 μm. Copper(II) sulfate favors the formation of smaller particles when compared to the acetate derived HKUST-1.
SEM images were collected to investigate the surface morphology of the obtained MOFs. The results are summarized in Figure 8. The surface morphology significantly changed when various copper(II) salt precursors were used. In Figure 8a1–a3, it can be seen that the surface of HKUST-1 obtained from copper(II) acetate displays a board-like morphology of various sizes. The morphology is similar to the samples obtained in a procedure with mixing [9]. In the case of samples obtained from copper(II) sulfate (Figure 8b1–b3) and copper(II) nitrate (Figure 8c1–c3), the morphology was more uniform and bipyramid-like, and significantly bigger crystals are formed in the no-mixing procedure in comparison with the mixing procedure. The sizes of the obtained crystals correlate well with the DLS results, and the average crystal diameters were about 16 μm (s-HKUST-1) and 55 μm (n-HKUST-1).

4. Summary

The above described HKUST-1 MOFs DMF-free synthesis allowed us to compare the effect of four different copper(II) salt precursors on the surface properties and morphology of obtained crystals. In Table 4, a comparison of various synthesis parameters of HKUST-1 MOFs on their physicochemical properties with those seen in already published works are summarized. It can be seen that the most commonly used copper(II) salt precursor is copper(II) nitrate, whereas other salt precursors are seldom used. The temperature of the synthesis, its time, and the synthesis procedure selected appear to significantly impact the properties of the final product. A trend observed among the summarized works brings the conclusion that a synthesis time >3 h and a temperature ranging from about 80 to 110 °C allows one to obtain HKUST-1 crystals characterized by a relatively high specific surface area >1000 m2 g−1. The addition of DMF or small concentrations of acetic ions to the synthesis medium favors more regular crystal formation. However, the necessity of its removal from the pores of the formed MOF increases the costs of the final product. Moreover, the presence of acetic ions can lead to the occurrence of additional phases. The presence of water during the synthesis also plays a crucial role in the properties of the crystals, and a water:ethanol ratio of 1:1 was reported to be the optimal. The application of an extra source of energy like ultrasounds or microwaves leads to the faster nucleation of crystals. Furthermore, by the simple involvement of a mixing procedure, the specific surface area appears to be increased, while the formed crystals are relatively smaller (up to 5-fold) and more uniform, although the effect of mixing can vary depending on the used temperature and time.
Taking into account the changes in surface properties and morphology induced by synthesis parameters, the potential applications of HKUST-1 MOFs can be adapted. Greater specific surface area and bigger pore size distribution can contribute to an enhanced adsorption of organic dyes [48] or inorganic ions like Pb(II) [49], Ce(III) [50], and Cr(III) [9] from aqueous solutions. It should be noted, however, that the structure of HKUST-1 is reported to posses relatively low stability in water, which limits its adsorption applications.
A relatively low thermal stability <300 °C and the presence of organic linker make application in thermal processes impossible. HKUST-1 was, however, evaluated in a 4-nitrophenol to 4-aminophenol catalytic reduction [6] or CO oxidation [51]. It was clearly indicated that the occurrence of surface defects like missing ligands can accelerate CO oxidation by changing the reaction pathways and lowering the activation energy. Defects formed by changing the ligand can also favor the formation of hierarchical porosity, which can promote the application of HKUST-1 as membranes for CO2 and SO2 adsorption [52]. Hence, the study on various HKUST-1 geometries may provide a valuable background in the catalytic and adsorption application of MOFs.
Table 4. Comparison of HKUST-1 synthesis methods and selected physicochemical properties of obtained products.
Table 4. Comparison of HKUST-1 synthesis methods and selected physicochemical properties of obtained products.
Synthesis ConditionsSelected PropertiesRef.
Synthesis MethodSolventCopper(II) PrecursorConditionsSurface PropertiesCrystal Properties
SBET,
m2 g−1		Vt,
cm3 g−1		MorphologyAverage Size
SolvothermalDMFCu(NO3)2 3H2OT = 140 °C
t = 5–30 min
mixing involved		2.60–12.02-Spheric nanoparticles200 nm[18]
Ultrasound assisted solvothermalDMFCu(NO3)2 3H2OT = 80 °C
t = 24 h
no mixing		977.000.387Bipyramid-[53]
SolvothermalDMF, ethanolCu(NO3)2 3H2OT = 25 °C
t = 1 min
mixing involved, ZnO as synthesis modifier		1489.000.660Bipyramid605 nm[49]
SolvothermalWater, ethanolCu(NO3)2 2.5H2OT = 25 °C
t = 14–34 h
mixing involved, acetic acid as modifier		--Bipyramid—low acetic acid concentration
Rod-like shape—elevated acetic acid concentration		~300 nm
~600 nm		[48]
SolvothermalDMFCu(NO3)2 3H2OT = 125 °C
t = 24 h		1617.000.767Bipyramid25,000–40,000 nm[25]
Water, ethanolT = 125 °C
t = 24 h
no mixing		1648.000.8165000–15,000 nm
DMFT = 104 °C
t = 30 min
no mixing		--5000–20,000 nm
SolvothermalWaterCu2CO3(OH)2 H2OT = 25 °C
t = 0.3–24 h
no mixing		10.00–130.00 (lower for longer time)-Rod-like shape-[54]
Water:Ethanol (1:1)900.00–1600.00 (the highest for 3 h)Bipyramid-
Ethanol25.00–160.00 (lower for shorter time)Undefined agglomerates-
SolvothermalWater:Ethanol (1:1)Cu(NO3)2 3H2OT = 110 °C
t = 24 h
Mixing involved		1453.000.671Irregular~10,000 nm[9]
CuCl2 2H2ONo product
CuSO4 5H2O1790.000.688Irregular~10,000 nm
Cu(CH3COO)2 H2O961.000.418Rod-like shape1000–100,000 nm
Ultrasound assisted solvothermalWater:Ethanol (1:1)Cu(NO3)2 3H2OT = 110 °C
t = 24 h
Ultrasounds for 15 min at 25 °C, than no mixing		11530.469Bipyramid~50,000 nmThis study
CuCl2 2H2ONo product
CuSO4 5H2O937.000.341Irregular~10,000 nm
Cu(CH3COO)2 H2O553.000.209Rod-like shape1000–100,000 nm

5. Conclusions

From the experiments conducted it was clearly evidenced that the use of various copper(II) salt precursors significantly affects HKUST-1 properties. Not only the product yield, but also specific surface area, surface morphology and crystals sizes are sensitive to the synthesis environment conditions. Synthesis without the addition of DMF allows one to obtain an HKUST-1 phase sufficiently comparable to already published materials’ physicochemical properties. The occurrence of chloride ions blocs synthesis, and no product can be obtained in a modulator-free synthesis with copper(II) chloride used as salt precursor. When acetate ions are present in the synthesis environment, the nucleation is rapid and begins immediately at room temperature, yielding the highest amount of the final product. However, acetate ions can compete with BTC3− ions and can be partially introduced into the MOF structure, which has a significant impact on the properties of the product and its phase purity. In fact, the presence of an additional phase of Cu2OH(BTC)(H2O)n·2n H2O was confirmed in the obtained product. Depending on the desired properties of the final product, copper(II) nitrate, copper(II) sulfate, and copper(II) acetate can be successfully used in the preparation of HKUST-1 MOF. By removing mixing from the synthesis procedure, the obtained crystals are more uniform and even fivefold bigger in comparison to their counterparts obtained with the mixing procedure. Their porosity and, consequently, their specific surface area are consequently lower.

Author Contributions

J.K.: validation, formal analysis, investigation, data curation, writing—review and editing, visualization; K.Z.: methodology, software, validation, formal analysis, investigation, data curation; D.D.: methodology, software, validation, formal analysis, investigation, data curation, visualization; M.M.: methodology, software, validation, formal analysis, investigation, data curation, visualization; M.F.: methodology, software, validation, formal analysis, investigation, data curation, writing—review and editing, writing—original draft, visualization; J.M.: conceptualization, methodology, software, validation, formal analysis, investigation, data curation, resources, writing—original draft, writing—review and editing, visualization, project administration, funding acquisition, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded for subvention of AGH University of Krakow, Faculty Energy and Fuels (project No. 16.16.210.476).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Saeed, T.; Naeem, A.; Ud Din, I.; Alotaibi, M.A.; Alharthi, A.I.; Wali Khan, I.; Huma Khan, N.; Malik, T. Structure, Nomenclature and Viable Synthesis of Micro/Nanoscale Metal Organic Frameworks and Their Remarkable Applications in Adsorption of Organic Pollutants. Microchem. J. 2020, 159, 105579. [Google Scholar] [CrossRef]
  2. Hönicke, I.M.; Senkovska, I.; Bon, V.; Baburin, I.A.; Bönisch, N.; Raschke, S.; Evans, J.D.; Kaskel, S. Balancing Mechanical Stability and Ultrahigh Porosity in Crystalline Framework Materials. Angew. Chem. Int. Ed. 2018, 57, 13780–13783. [Google Scholar] [CrossRef] [PubMed]
  3. Baig, U.; Waheed, A.; Jillani, S.M.S. Recent Advancements in Metal-Organic Framework-Based Membranes for Hydrogen Separation: A Review. Chem Asian J 2024, 19, e202300619. [Google Scholar] [CrossRef]
  4. Felix Sahayaraj, A.; Joy Prabu, H.; Maniraj, J.; Kannan, M.; Bharathi, M.; Diwahar, P.; Salamon, J. Metal–Organic Frameworks (MOFs): The Next Generation of Materials for Catalysis, Gas Storage, and Separation. J. Inorg. Organomet. Polym. Mater. 2023, 33, 1757–1781. [Google Scholar] [CrossRef]
  5. Bonneau, M.; Lavenn, C.; Ginet, P.; Otake, K.I.; Kitagawa, S. Upscale Synthesis of a Binary Pillared Layered MOF for Hydrocarbon Gas Storage and Separation. Green Chem. 2020, 22, 718–724. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Qian, C.; Duan, J.; Liang, Y.; Luo, J.; Han, Y.; Hu, J.; Shi, F. Synthesis of HKUST-1 Embedded in SBA-15 Functionalized with Carboxyl Groups as a Catalyst for 4-Nitrophenol to 4-Aminophenol. Appl. Surf. Sci. 2022, 573, 151558. [Google Scholar] [CrossRef]
  7. Ullah, R.; Rafiq, M.; Alamgir; Ahmed, A.; Liu, X.; Haider, W.; Fayaz, M.; Cao, Q.; Yu, B.; Shen, Y.; et al. Mn-MOF Derived N-Doped MnOx@carbon Heterogeneous Catalysts for Vis-Light, S2O82, HSO5, Vis/S2O82, and Vis/HSO5-Induced Degradation of Metronidazole: Kinetics and Mechanistic Study. J. Environ. Chem. Eng. 2024, 12, 113331. [Google Scholar] [CrossRef]
  8. Samanta, P.; Canivet, J. MOF-Supported Heterogeneous Catalysts for Hydroformylation Reactions: A Minireview. ChemCatChem 2024, 16, e202301435. [Google Scholar] [CrossRef]
  9. Mokrzycki, J.; Wolak, E.; Orzechowska-Zieba, A.; Zheng, K.; Duraczyńska, D.; Marzec, M.; Fedyna, M. The Effect of Copper(II) Salt Precursor on Physicochemical Properties of HKUST-1 MOFs and Their Application as Adsorbents of Cr(III) Ions from Aqueous Solutions. J. Water Process Eng. 2024, 64, 105761. [Google Scholar] [CrossRef]
  10. Nimbalkar, M.N.; Bhat, B.R. Simultaneous Adsorption of Methylene Blue and Heavy Metals from Water Using Zr-MOF Having Free Carboxylic Group. J. Environ. Chem. Eng. 2021, 9, 106216. [Google Scholar] [CrossRef]
  11. Pancielejko, A.; Głowienke, H.; Miodyńska, M.; Gołąbiewska, A.; Klimczuk, T.; Krawczyk, M.; Matus, K.; Zaleska-Medynska, A. CuGaS2@NH2-MIL-125(Ti) Nanocomposite: Unveiling a Promising Catalyst for Photocatalytic Hydrogen Generation. Int. J. Hydrogen Energy 2024, 79, 186–198. [Google Scholar] [CrossRef]
  12. Bhuyan, A.; Ahmaruzzaman, M. Recent Advances in MOF-5-Based Photocatalysts for Efficient Degradation of Toxic Organic Dyes in Aqueous Medium. Next Sustain. 2024, 3, 100016. [Google Scholar] [CrossRef]
  13. Tamuly, P.; Moorthy, J.N. De Novo Synthesis of Acridone-Based Zn-Metal-Organic Framework (Zn-MOF) as a Photocatalyst: Application for Visible Light-Mediated Oxidation of Sulfides and Enaminones. ACS Appl. Mater. Interfaces 2024, 16, 3348–3358. [Google Scholar] [CrossRef]
  14. Ma, D.; Wang, G.; Lu, J.; Zeng, X.; Cheng, Y.; Zhang, Z.; Lin, N.; Chen, Q. Multifunctional Nano MOF Drug Delivery Platform in Combination Therapy. Eur. J. Med. Chem. 2023, 261, 115884. [Google Scholar] [CrossRef]
  15. Ahangarkolaee, A.R.; Binaeian, A.; Kasgari, A.H.; Valipour, P.; Binaeian, E. MOF-Based Prodrug Entrapped in Carboxymethyl Cellulose and Alginate Hydrogel: A Drug Delivery Platform. J. Porous Mater. 2024, 31, 2193–2203. [Google Scholar] [CrossRef]
  16. Nguyen, N.T.T.; Nguyen, T.T.T.; Ge, S.; Liew, R.K.; Nguyen, D.T.C.; Tran, T. Van Recent Progress and Challenges of MOF-Based Nanocomposites in Bioimaging, Biosensing and Biocarriers for Drug Delivery. Nanoscale Adv. 2024, 6, 1800–1821. [Google Scholar] [CrossRef] [PubMed]
  17. Zamaro, J.M.; Pérez, N.C.; Miró, E.E.; Casado, C.; Seoane, B.; Téllez, C.; Coronas, J. HKUST-1 MOF: A Matrix to Synthesize CuO and CuO–CeO2 Nanoparticle Catalysts for CO Oxidation. Chem. Eng. J. 2012, 195–196, 180–187. [Google Scholar] [CrossRef]
  18. Morales, E.M.C.; Méndez-Rojas, M.A.; Torres-Martínez, L.M.; Garay-Rodríguez, L.F.; López, I.; Uflyand, I.E.; Kharisov, B.I. Ultrafast Synthesis of HKUST-1 Nanoparticles by Solvothermal Method: Properties and Possible Applications. Polyhedron 2021, 210, 115517. [Google Scholar] [CrossRef]
  19. Zelenka, T.; Baláž, M.; Férová, M.; Diko, P.; Bednarčík, J.; Királyová, A.; Zauška, Ľ.; Bureš, R.; Sharda, P.; Király, N.; et al. The Influence of HKUST-1 and MOF-76 Hand Grinding/Mechanical Activation on Stability, Particle Size, Textural Properties and Carbon Dioxide Sorption. Sci. Rep. 2024, 14, 15386. [Google Scholar] [CrossRef] [PubMed]
  20. Yang, L.; Wang, K.; Guo, L.; Hu, X.; Zhou, M. Unveiling the Potential of HKUST-1: Synthesis, Activation, Advantages and Biomedical Applications. J. Mater. Chem. B 2024, 12, 2670–2690. [Google Scholar] [CrossRef]
  21. Nath, B. Mechanochemical Synthesis of Metal–Organic Frameworks. In Synthesis of Metal-Organic Frameworks via Water-Based Routes: A Green and Sustainable Approach; Elsevier: Amsterdam, The Netherlands, 2024; pp. 93–120. [Google Scholar] [CrossRef]
  22. Sondermann, L.; Smith, Q.; Strothmann, T.; Vollrath, A.; Beglau, T.H.Y.; Janiak, C. Mechanochemical Synthesis and Application of Mixed-Metal Copper–Ruthenium HKUST-1 Metal–Organic Frameworks in the Electrocatalytic Oxygen Evolution Reaction. RSC Mechanochem. 2024, 1, 296–307. [Google Scholar] [CrossRef]
  23. Zhang, Q.; Yan, S.; Yan, X.; Lv, Y. Recent Advances in Metal-Organic Frameworks: Synthesis, Application and Toxicity. Sci. Total Environ. 2023, 902, 165944. [Google Scholar] [CrossRef] [PubMed]
  24. Varsha, V.M.; Nageswaran, G. Review—Direct Electrochemical Synthesis of Metal Organic Frameworks. J. Electrochem. Soc. 2020, 167, 155527. [Google Scholar] [CrossRef]
  25. Isaeva, V.I.; Isaeva, V.I.; Saifutdinov, B.R.; Chernyshev, V.V.; Chernyshev, V.V.; Vergun, V.V.; Kapustin, G.I.; Kapustin, G.I.; Kurnysheva, Y.P.; Ilyin, M.M.; et al. Impact of the Preparation Procedure on the Performance of the Microporous HKUST-1 Metal-Organic Framework in the Liquid-Phase Separation of Aromatic Compounds. Molecules 2020, 25, 2648. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, W.; Kauer, M.; Guo, P.; Kunze, S.; Cwik, S.; Muhler, M.; Wang, Y.; Epp, K.; Kieslich, G.; Fischer, R.A. Impact of Synthesis Parameters on the Formation of Defects in HKUST-1. Eur. J. Inorg. Chem. 2017, 2017, 925–931. [Google Scholar] [CrossRef]
  27. Liu, Y.; Liu, B.; Zhou, Q.; Zhang, T.; Wu, W. Morphology Effect of Metal-Organic Framework HKUST-1 as a Catalyst on Benzene Oxidation. Chem. Res. Chin. Univ. 2017, 33, 971–978. [Google Scholar] [CrossRef]
  28. Hong, S.J.; Zhang, X.N.; Sun, Z.; Zeng, T. The Potential Health Risks of N,N-Dimethylformamide: An Updated Review. J. Appl. Toxicol. 2024, 44, 1637–1646. [Google Scholar] [CrossRef]
  29. Becker, J.; Manske, C.; Randl, S. Green Chemistry and Sustainability Metrics in the Pharmaceutical Manufacturing Sector. Curr Opin. Green Sustain. Chem. 2022, 33, 100562. [Google Scholar] [CrossRef]
  30. Chen, C.; Li, B.; Zhou, L.; Xia, Z.; Feng, N.; Ding, J.; Wang, L.; Wan, H.; Guan, G. Synthesis of Hierarchically Structured Hybrid Materials by Controlled Self-Assembly of Metal-Organic Framework with Mesoporous Silica for CO2 Adsorption. ACS Appl. Mater. Interfaces 2017, 9, 23060–23071. [Google Scholar] [CrossRef]
  31. Stavila, V.; Volponi, J.; Katzenmeyer, A.M.; Dixon, M.C.; Allendorf, M.D. Kinetics and Mechanism of Metal–Organic Framework Thin Film Growth: Systematic Investigation of HKUST-1 Deposition on QCM Electrodes. Chem. Sci. 2012, 3, 1531–1540. [Google Scholar] [CrossRef]
  32. Amirjalayer, S.; Tafipolsky, M.; Schmid, R. Surface Termination of the Metal-Organic Framework HKUST-1: A Theoretical Investigation. J. Phys. Chem. Lett. 2014, 5, 3206–3210. [Google Scholar] [CrossRef] [PubMed]
  33. Li, F.; Ao, M.; Pham, G.H.; Sunarso, J.; Chen, Y.; Liu, J.; Wang, K.; Liu, S. Cu/ZnO Catalysts Derived from Bimetallic Metal–Organic Framework for Dimethyl Ether Synthesis from Syngas with Enhanced Selectivity and Stability. Small 2020, 16, 1906276. [Google Scholar] [CrossRef]
  34. Crawford, S.E.; Kim, K.J.; Yu, Y.; Ohodnicki, P.R. Rapid, Selective, Ambient Growth and Optimization of Copper Benzene-1,3,5-Tricarboxylate (Cu-BTC) Metal-Organic Framework Thin Films on a Conductive Metal Oxide. Cryst. Growth Des. 2018, 18, 2924–2931. [Google Scholar] [CrossRef]
  35. Loera-Serna, S.; Beltrán, H.I.; Mendoza-Sánchez, M.; Álvarez-Zeferino, J.C.; Almanza, F.; Fernández-Luqueño, F. Effect of HKUST-1 Metal–Organic Framework in Root and Shoot Systems, as Well as Seed Germination. Environ. Sci. Pollut. Res. 2024, 31, 13270–13283. [Google Scholar] [CrossRef] [PubMed]
  36. Rodríguez-Esteban, C.; Ayala, R.; López-Cartes, C. Stability and Performance of BTC-Based MOFs for Environmental Applications. J. Solid State Chem. 2024, 339, 124956. [Google Scholar] [CrossRef]
  37. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of Gases, with Special Reference to the Evaluation of Surface Area and Pore Size Distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  38. Rezvani Jalal, N.; Madrakian, T.; Afkhami, A.; Ghoorchian, A. In Situ Growth of Metal-Organic Framework HKUST-1 on Graphene Oxide Nanoribbons with High Electrochemical Sensing Performance in Imatinib Determination. ACS Appl. Mater. Interfaces 2020, 12, 4859–4869. [Google Scholar] [CrossRef] [PubMed]
  39. Martak, F.; Al Hafiz, M.R.; Sulistiono, D.O.; Rosyidah, A.; Kusumawati, Y.; Ediati, R. Direct Synthesis of Al-HKUST-1 and Its Application as Adsorbent for Removal of Congo Red in Water. Nano-Struct. Nano-Objects 2021, 27, 100773. [Google Scholar] [CrossRef]
  40. Xie, W.; Wan, F. Basic Ionic Liquid Functionalized Magnetically Responsive Fe3O4@HKUST-1 Composites Used for Biodiesel Production. Fuel 2018, 220, 248–256. [Google Scholar] [CrossRef]
  41. Farzaneh, N.; Radinekiyan, F.; Naimi-Jamal, M.R.; Dekamin, M.G. Development of New Magnetic Nanocomposite Designed by Reduced Graphene Oxide Aerogel and HKUST-1, and Its Catalytic Application in the Synthesis of Polyhydroquinoline and 1,8-Dioxo-Decahydroacridine Derivatives. Sci. Rep. 2023, 13, 22913. [Google Scholar] [CrossRef]
  42. Garg, D.; Rekhi, H.; Kaur, H.; Singh, K.; Malik, A.K. A Novel Method for the Synthesis of MOF-199 for Sensing and Photocatalytic Applications. J. Fluoresc. 2022, 32, 1171–1188. [Google Scholar] [CrossRef] [PubMed]
  43. Meda, L.; Ranghino, G.; Moretti, G.; Cerofolini, G.F. XPS Detection of Some Redox Phenomena in Cu-Zeolites. Surf. Interface Anal. 2002, 33, 516–521. [Google Scholar] [CrossRef]
  44. Fedyna, M.; Legutko, P.; Marzec, M.; Sojka, Z. Influence of Zeolite Framework, Copper Speciation, and Water on NO2 and N2O Formation during NH3-SCR. Appl. Catal. B Environ. Energy 2025, 361, 124632. [Google Scholar] [CrossRef]
  45. Wang, Y.; Chen, Y.; Zhou, Y.; Wang, Y.; Wu, Y.; Xie, Y.; Zhao, P.; Hu, X.; Fei, J. Ultra-Sensitive Electrochemical Sensor Based on In Situ Grown Ultrafine HKUST-1 Nanoparticles @ Graphite Nanosheets and Core–Shell Structured MoO3-Polypyrrole Nanowires for the Detection of Rutin in Orange Juice. Microchim. Acta 2024, 191, 393. [Google Scholar] [CrossRef] [PubMed]
  46. Ennis, C.; Tay, A.C.Y.; Falconer, J.L.; Lee, S.J.; Meledandri, C.J. Nanoscale Cu(II) MOFs Formed via Microemulsion: Vibrational Mode Characterization Performed Using a Combined FTIR, Synchrotron Far-IR, and Periodic DFT Approach. J. Phys. Chem. C 2021, 125, 20426–20438. [Google Scholar] [CrossRef]
  47. Ho, P.S.; Chong, K.C.; Lai, S.O.; Lee, S.S.; Lau, W.J.; Lu, S.Y.; Ooi, B.S. Synthesis of Cu-BTC Metal-Organic Framework for CO2 Capture via Solvent-Free Method: Effect of Metal Precursor and Molar Ratio. Aerosol Air. Qual. Res. 2022, 22, 220235. [Google Scholar] [CrossRef]
  48. Wijaya, C.J.; Ismadji, S.; Aparamarta, H.W.; Gunawan, S. Statistically Optimum HKUST-1 Synthesized by Room Temperature Coordination Modulation Method for the Adsorption of Crystal Violet Dye. Molecules 2021, 26, 6430. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, Y.; Li, M.; Hu, J.; Feng, W.; Li, J.; You, Z. Highly Efficient and Selective Removal of Pb2+ by Ultrafast Synthesis of HKUST-1: Kinetic, Isotherms and Mechanism Analysis. Colloids Surf. A Physicochem. Eng. Asp. 2022, 633, 127852. [Google Scholar] [CrossRef]
  50. Zhao, L.; Azhar, M.R.; Li, X.; Duan, X.; Sun, H.; Wang, S.; Fang, X. Adsorption of Cerium (III) by HKUST-1 Metal-Organic Framework from Aqueous Solution. J. Colloid Interface Sci. 2019, 542, 421–428. [Google Scholar] [CrossRef] [PubMed]
  51. Xue, W.; Wang, J.; Huang, H.; Cui, Y.; Mei, D. CO Oxidation over HKUST-1 Catalysts: The Role of Defective Sites. J. Phys. Chem. C 2022, 126, 9652–9664. [Google Scholar] [CrossRef]
  52. Yañez-Aulestia, A.; Trejos, V.M.; Esparza-Schulz, J.M.; Ibarra, I.A.; Sánchez-González, E. Chemically Modified HKUST-1(Cu) for Gas Adsorption and Separation: Mixed-Metal and Hierarchical Porosity. ACS Appl. Mater. Interfaces 2024, 16, 65581–65591. [Google Scholar] [CrossRef] [PubMed]
  53. Ma, Z.; Liu, C.; Srinivasakannan, C.; Li, L.; Wang, Y. Synthesis of Magnetic Fe3O4-HKUST-1 Nanocomposites for Azo Dye Adsorption. Arab. J. Chem. 2023, 16, 104767. [Google Scholar] [CrossRef]
  54. Riccò, R.; Linder-Patton, O.; Sumida, K.; Styles, M.J.; Liang, K.; Amenitsch, H.; Doonan, C.J.; Falcaro, P. Conversion of Copper Carbonate into a Metal-Organic Framework. Chem. Mater. 2018, 30, 5630–5638. [Google Scholar] [CrossRef]
Materials 18 00676 g001

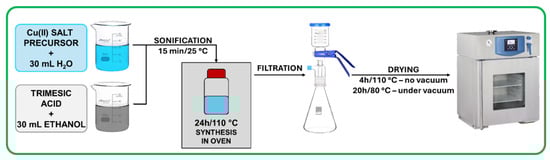

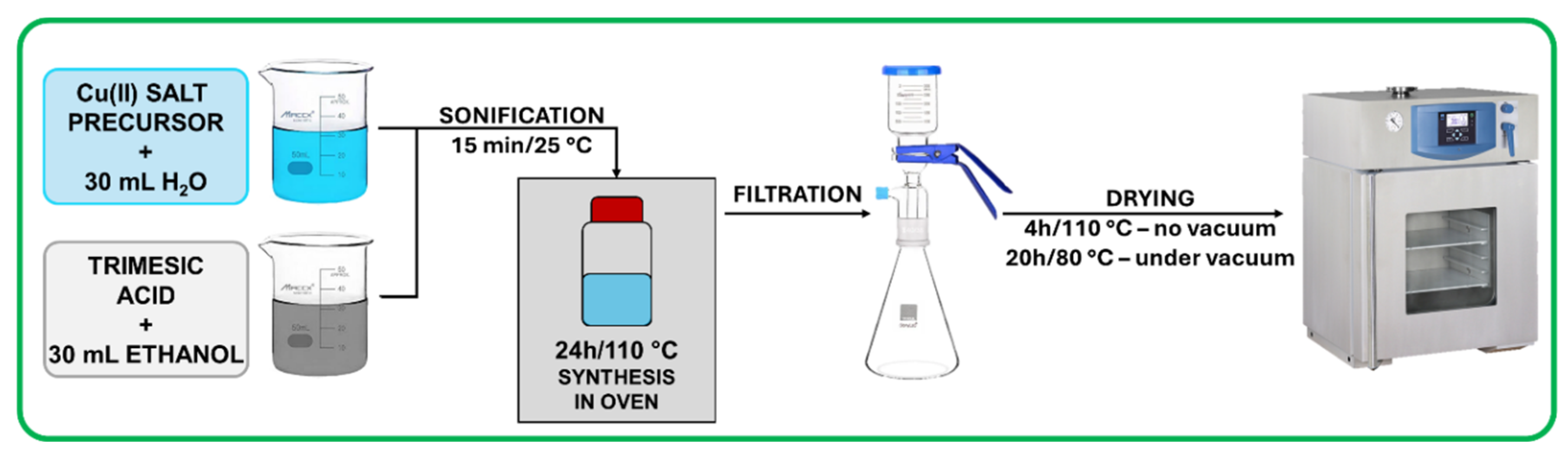

Figure 1. HKUST-1 synthesis scheme.
Figure 1. HKUST-1 synthesis scheme.
Materials 18 00676 g001
Materials 18 00676 g002

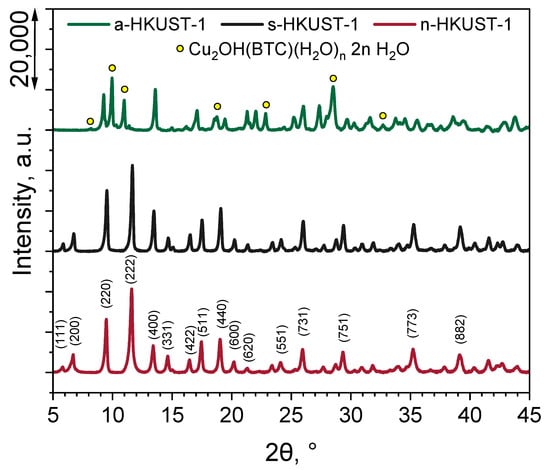

Figure 2. XRD pattern of the obtained MOFs.
Figure 2. XRD pattern of the obtained MOFs.
Materials 18 00676 g002
Materials 18 00676 g003

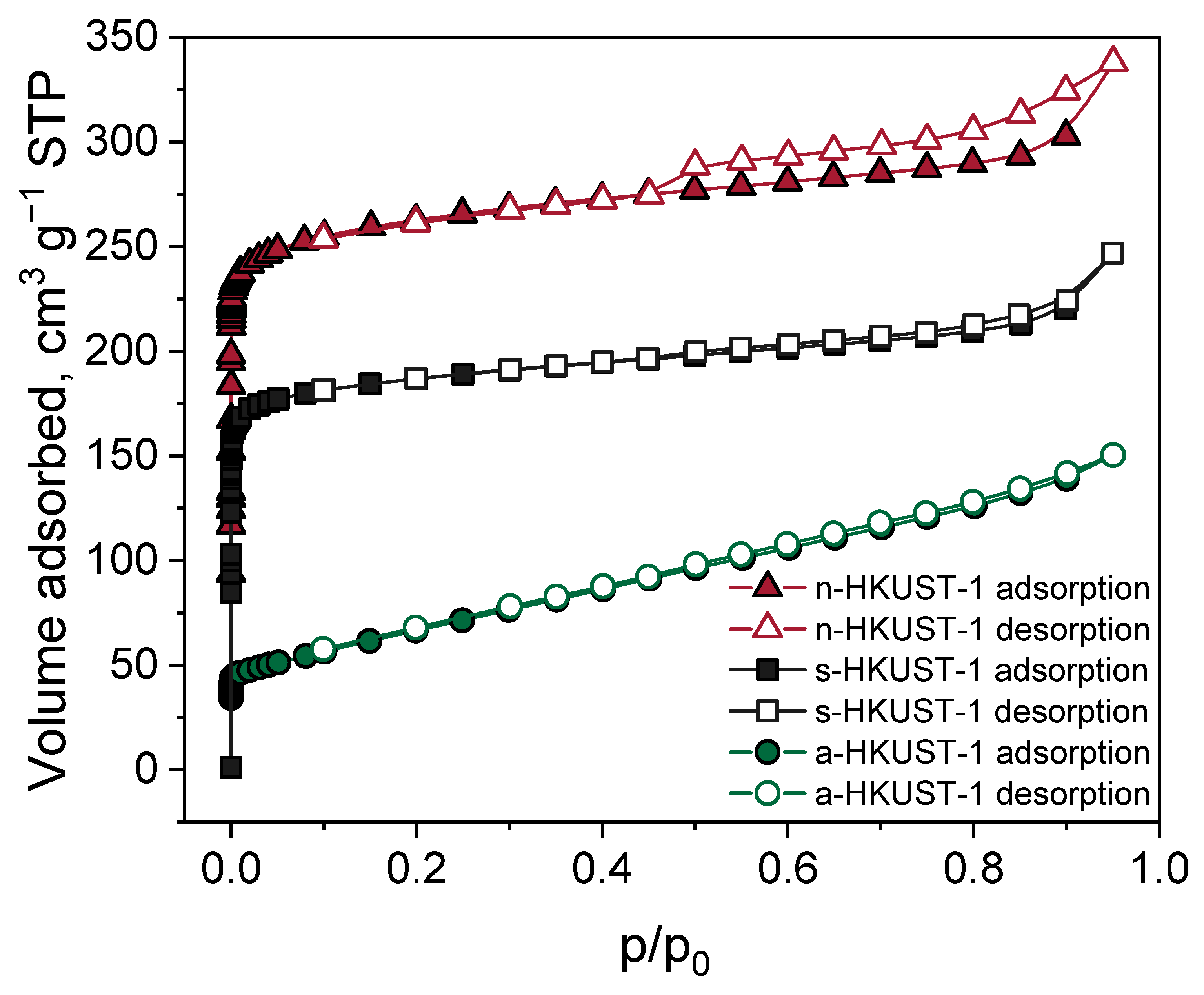

Figure 3. Nitrogen adsorption–desorption isotherms of investigated MOFs at −196 °C.
Figure 3. Nitrogen adsorption–desorption isotherms of investigated MOFs at −196 °C.
Materials 18 00676 g003
Materials 18 00676 g004

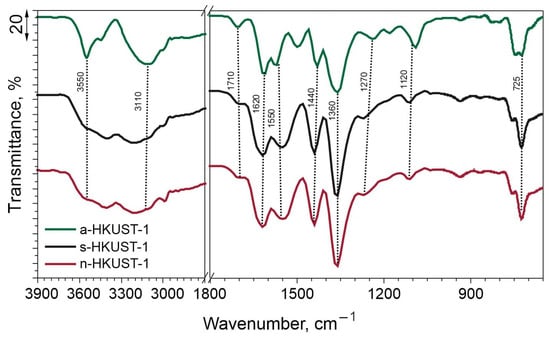

Figure 4. FTIR spectra of the obtained MOFs.
Figure 4. FTIR spectra of the obtained MOFs.
Materials 18 00676 g004
Materials 18 00676 g005

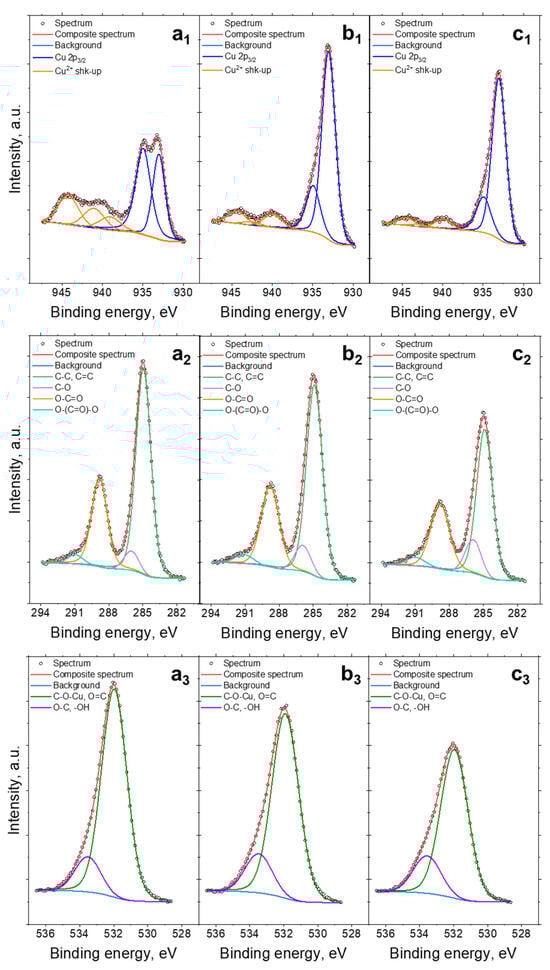

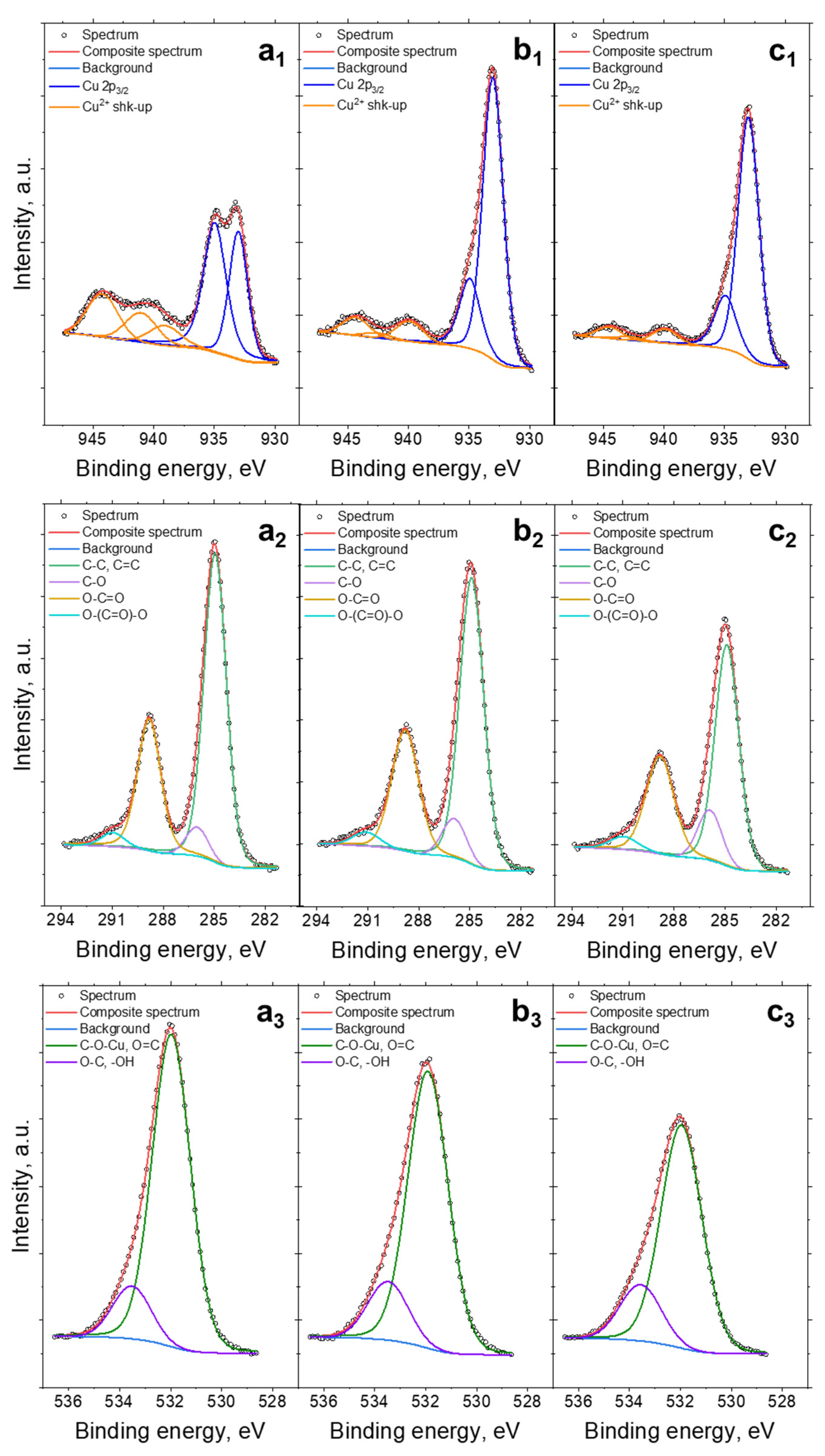

Figure 5. XPS spectra of Cu 2p (a1–c1), C 1s (a2–c2), and O 1s (a3–c3) for a-HKUST-1 (a), s-HKUST-1 (b), and n-HKUST-1 (c) samples.
Figure 5. XPS spectra of Cu 2p (a1–c1), C 1s (a2–c2), and O 1s (a3–c3) for a-HKUST-1 (a), s-HKUST-1 (b), and n-HKUST-1 (c) samples.
Materials 18 00676 g005
Materials 18 00676 g006

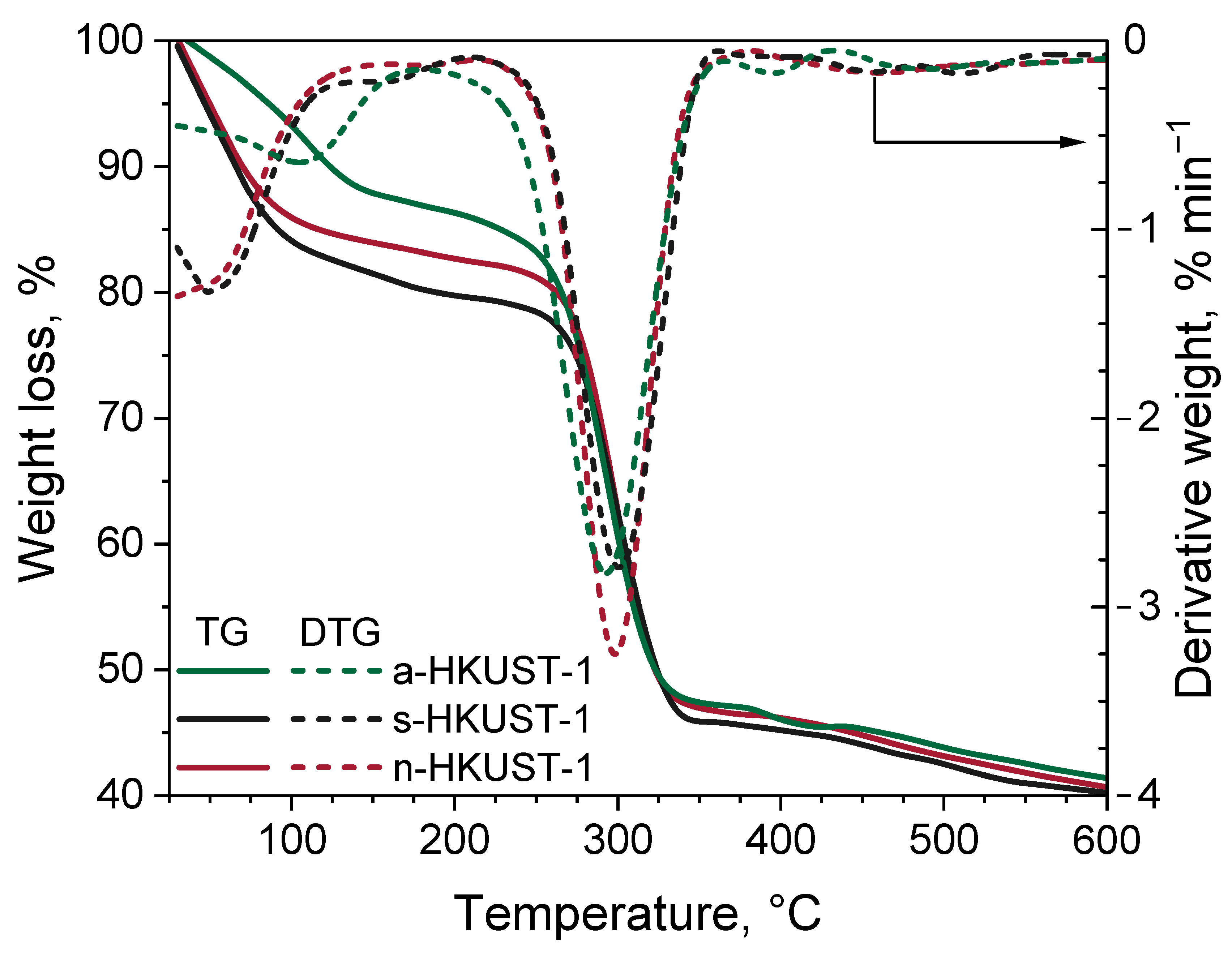

Figure 6. TG (solid lines, left y-axis) and DTG (dash lines, right y-axis) analysis of investigated MOFs.
Figure 6. TG (solid lines, left y-axis) and DTG (dash lines, right y-axis) analysis of investigated MOFs.
Materials 18 00676 g006
Materials 18 00676 g007
Figure 7. DLS analysis of the particle size of investigated MOFs.
Figure 7. DLS analysis of the particle size of investigated MOFs.
Materials 18 00676 g007
Materials 18 00676 g008
Figure 8. SEM images of investigated MOFs: a-HKUST-1 (a1–a3), s-HKUST-1 (b1–b3), and n-HKUST-1 (c1–c3), at magnifications of 1500 (1), 5000 (2), and 25000 (3).
Figure 8. SEM images of investigated MOFs: a-HKUST-1 (a1–a3), s-HKUST-1 (b1–b3), and n-HKUST-1 (c1–c3), at magnifications of 1500 (1), 5000 (2), and 25000 (3).
Materials 18 00676 g008
Table 1. Product yield and pH of the synthesis of HKUST-1 using various salt precursors.
Table 1. Product yield and pH of the synthesis of HKUST-1 using various salt precursors.
Parametersa-HKUST-1c-HKUST-1n-HKUST-1s-HKUST-1
Product yield, %96.3 ± 0.1052.3 ± 0.221.2 ± 0.1
Synthesis pH, -3.92 ± 0.122.31 ± 0.022.96 ± 0.082.06 ± 0.03
Table 2. Surface properties of investigated MOFs.
Table 2. Surface properties of investigated MOFs.
Parametersa-HKUST-1n-HKUST-1s-HKUST-1
SBET, m2 g−15531153937
Vt, cm3 g−10.2090.4690.341
Vmicro, cm3 g−10.0460.2030.244
Vmicro/Vt, %22.043.359.5
Table 3. Surface composition (atomic %) determined by fitting XPS spectra.
Table 3. Surface composition (atomic %) determined by fitting XPS spectra.
ElementCOCu
Binding energy, eV285.0286.0288.8291.0532.0533.5932.5–933.5
Groups/Oxidation stateC-CC-OO-C=OO-(C=O)-OC-O-Cu
O=C		O-CCu+/2+
a-HKUST-134.13.015.91.630.14.810.6
n-HKUST-130.86.516.22.127.36.610.4
s-HKUST-133.74.315.91.728.25.710.5
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Klęba, J.; Zheng, K.; Duraczyńska, D.; Marzec, M.; Fedyna, M.; Mokrzycki, J. Insights into HKUST-1 Metal-Organic Framework’s Morphology and Physicochemical Properties Induced by Changing the Copper(II) Salt Precursors. Materials 2025, 18, 676. https://doi.org/10.3390/ma18030676

AMA Style

Klęba J, Zheng K, Duraczyńska D, Marzec M, Fedyna M, Mokrzycki J. Insights into HKUST-1 Metal-Organic Framework’s Morphology and Physicochemical Properties Induced by Changing the Copper(II) Salt Precursors. Materials. 2025; 18(3):676. https://doi.org/10.3390/ma18030676

Chicago/Turabian Style

Klęba, Joanna, Kun Zheng, Dorota Duraczyńska, Mateusz Marzec, Monika Fedyna, and Jakub Mokrzycki. 2025. "Insights into HKUST-1 Metal-Organic Framework’s Morphology and Physicochemical Properties Induced by Changing the Copper(II) Salt Precursors" Materials 18, no. 3: 676. https://doi.org/10.3390/ma18030676

APA Style

Klęba, J., Zheng, K., Duraczyńska, D., Marzec, M., Fedyna, M., & Mokrzycki, J. (2025). Insights into HKUST-1 Metal-Organic Framework’s Morphology and Physicochemical Properties Induced by Changing the Copper(II) Salt Precursors. Materials, 18(3), 676. https://doi.org/10.3390/ma18030676

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
