Next Article in Journal
Tailoring Magnetic Properties and Power Loss in Low-Temperature Sintered NiCuZn Ferrites with BMLS-CaTiO3/BaTiO3 Composite Additives
Previous Article in Journal
Evaluation of the Self-Healing Capacity of Asphalt Concrete with Polymer Capsules Containing Rejuvenator Under Various Cyclic Load Conditions
Previous Article in Special Issue
A Review of Mechanical Performance Studies on Composite Concrete Beams and Slabs


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 18
Issue 22
10.3390/ma18225200
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Valorization of Olive Stone in Cement Mortars for Harmonized Applications

by
Maria Martin-Morales
1,
Gloria Maria Cuenca-Moyano
1,
Maria Jose Martinez-Echevarria
2,
Montserrat Zamorano
3 and
Monica Lopez-Alonso
2,*
1
Department of Building Construction, ETS de Ingenieria de Edificacion, University of Granada, Campus de Fuentenueva s/n, 18071 Granada, Spain
2
Department of Construction Engineering and Engineering Civil Projects, ETS Ingeniería de Caminos, Canales y Puertos, University of Granada, Campus de Fuentenueva s/n, 18071 Granada, Spain
3
Department of Civil Engineering, ETS Ingeniería de Caminos, Canales y Puertos, University of Granada, Campus de Fuentenueva s/n, 18071 Granada, Spain
*
Author to whom correspondence should be addressed.
Materials 2025, 18(22), 5200; https://doi.org/10.3390/ma18225200 (registering DOI)
Submission received: 22 September 2025 / Revised: 19 October 2025 / Accepted: 28 October 2025 / Published: 17 November 2025
(This article belongs to the Special Issue Advances in Concrete and Binders for Sustainable Engineering)
Browse Figures
Versions Notes

Abstract

Nowadays construction sector continues to face major environmental challenges, largely due to the consumption of natural resources, energy, and water, as well as the generation of waste and emissions into the environment. In Andalusia (Spain), the olive oil industry plays a central role in the economy, generating large volumes of waste and by-products, including olive stones. Due to their physical characteristics, olive stones represent a potential substitute for conventional aggregates in cement mortars, which are not subjected to restrictive technical standards as concrete. This study evaluates the technical feasibility of cement mortars prepared by replacing 10% and 20% of conventional sand (by volume) with four different types of olive stones. Tests were carried out on setting times, consistency, density, and air content, in fresh state, as well as on capillarity, density, and flexural and compressive strengths, in hardened state, using a conventional mortar as reference, with favorable results. Mortars could be classified according to the harmonized standards for masonry, rendering and plastering, and flooring and screed mortars, and for the applications described in the Spanish Building Code (CTE). This progress in knowledge would further support the integration of the construction sector into the fields of sustainability and circular economy.

1. Introduction

The construction industry has a significant impact on both the economy and the environment [1]. Its economic contribution is considerable, accounting for approximately 5.5% of the European Union’s GDP, employing around 25 million people across more than 5 million companies [2]. At the same time, it is a major consumer of resources, using nearly 50% of raw materials and 36% of the total global final energy consumption [3,4]. Furthermore, it is responsible for a high share of harmful emissions into the atmosphere (23%), mainly CO2 [5], and for generating about 10 billion tons of waste annually [6].
Traditionally, the sector has prioritized productivity while largely neglecting the available strategies to reduce its environmental footprint [7]. In fact, it was not until the late 20th century that the first studies addressing the sustainability issues derived from construction activities began to emerge [8]. In this regard, the United Nations, through the Sustainable Development Goals (SDGs) established in 2015, emphasized the crucial role of the construction industry in achieving several of these objectives [7].
Within the framework of the circular economy strategy, the construction sector must adapt its production systems to incorporate resources derived from waste or by-products, using them as secondary raw materials. The aim is to minimize the consumption of natural resources, water, and energy, as well as to reduce waste generation and emissions into the environment [9,10,11,12,13].
The use of secondary raw materials in the production of cement mortars represents a promising opportunity for the sector. Mortars are among the most widely used materials in construction, and unlike concrete, they are not subject to the same high performance requirements or restrictive regulations. In this context, it is well known that sand is required in large quantities, accounting for 75–85% of the total weight of mortar in mixes with binder/sand ratios of 1:3 and 1:6, respectively. This has significant implications for the material’s environmental viability. Sand is the second most demanded natural resource worldwide, after water and ahead of fossil fuels, with approximately 85% of it destined for construction [14]. Consequently, its partial replacement with alternative granular materials has been identified as a strategic recommendation, helping improve the sector’s position in terms of sustainability.
The scientific literature reports numerous studies demonstrating the technical and environmental feasibility of partially or fully substituting natural aggregates in mortars with various by-products or secondary raw materials. The replacement of natural aggregates with inorganic recycled materials such as recycled aggregates [15,16], ceramic bricks [17,18], or glass [19,20] has been widely investigated, generally yielding positive results. However, studies on the use of unconventional organic aggregates are less common, although particularly relevant when aiming to enhance mortar properties such as lightness and thermal insulation. This potential has been observed in research involving granular biomass materials such as sawdust [21], cork [22], nutshells (walnut, pistachio, hazelnut, and peanut) [23], mussel shells [24], or palm kernel shells [25].
From this perspective, olive stones stand out as a potential substitute for conventional sand due to their physical properties, including low density, rough surface texture, and good mechanical resistance. Olive stones are a by-product of the olive oil industry, which has a strong presence in Mediterranean countries, particularly in Andalusia, Spain. Owing to their high calorific value, olive stones are widely used as biofuel in thermal and thermoelectric energy production in boilers and power plants. However, this application poses a severe environmental risk, as small-diameter particles may fail to combust fully, being released into the atmosphere as suspended particulate matter [26].
According to data from the Spanish Ministry of Agriculture and the Environment [27], Spain is the world leader in olive production, with 2.75 million hectares under cultivation. Of this production, 93% is destined for olive oil and 7% for table olives, amounting to a total of 8138 million tons of olives. Considering that the stone represents approximately 20% of the total fruit weight [28], olive stone production in Spain is estimated at around 628 million tons per year.
The scientific literature on the use of olive stones as sand replacement in mortars remains scarce. In 2013, Barreca and Fichera [29] pioneered the use of olive stones in lime–cement mortars, achieving reductions in thermal conductivity of 76% and in density of 30% with a 70% replacement (by weight), compared to conventional mortars. In 2017, Del Río Merino [30] experimented with entire, crushed, and calcined olive stones in lightweight cement mortars as substitutes for traditional expanded clay, although crushed olive stones were eventually discarded due to low mechanical strength. Cheboub et al. (2020) [31] later studied lightweight self-compacting mortars incorporating up to 100% olive kernel shells as sand replacement, reporting significant improvements on physic properties despite substantial reductions in mechanical strength. Specifically, they achieved a weight reduction in the mortars by more than 40%, reaching a density of 1410 kg/m3 and a thermal conductivity of 0.326 W/m·K, which represents an improvement of 77%. More recently, Los Santos Ortega and colleagues investigated the potential of ground olive stones in construction, applying mortars in the production of sustainable façade bricks to improve thermal insulation. Substitution levels of up to 30% by volume achieved energy demand savings (heating and cooling) of 0.938 kWh/m2·year compared to reference bricks, equivalent to a 2.23% reduction per square meter of façade [32]. Their studies also indicated significant economic returns when used olive stone in cement mortar bricks as a partial replacement of natural sand between 5% and 15%, due to reduced conventional energy consumption for heating and cooling, as well as decreased environmental impacts in the medium (10–20 years) [33]. In the long term, for a simulation period of 35 years [34], the LCA conducted on mortars with 20% olive stone-doped cement reported a reduction in CO2 emissions of 137.9%, preventing the release of 319.43 kg CO2 eq/m3 of mortar into the atmosphere and avoiding the consumption of 3221.1 MJ/m3 of fossil fuels. In 2022, Ferreiro-Cabello [35] investigated cement mortars produced with nine different dosages of ground olive stones and three types of cement. Tests on consistency, density, and mechanical strength indicated that a maximum of 30% olive stone (by volume) could be incorporated without compromising mortar performance. Although lightweight mortars were not achieved, the dry density was reduced by 85%, while the compressive strength dropped drastically by up to 70%. Finally, Boubakour et al. (2023) [36] also reported that substitutions above 30% compromised consistency, density, and mechanical properties. In this case, using olive stone replacement ratios between 5% and 30%, it was found that the mortar consistency remained within the plastic range, while the density decreased significantly from a 20% replacement onwards, although without reaching the lightweight mortar category. However, the flexural and compressive strengths were severely affected even at the lowest replacement levels, showing reductions of approximately 40% to 70%. Nevertheless, the mortars displayed improved durability and long-term performance, particularly a marked reduction in chloride penetration depth across all ages, ranged between 44% and 55%.
Although reductions in mechanical strength have been consistently observed, all previous studies confirm that olive stones decrease mortar density and thermal conductivity [29,31,32], providing added value for potential industrial applications. However, there is still a lack of in-depth research addressing relevant regulatory aspects for the practical use of such mortars—such as workability and durability—as well as the influence of olive stone particle size.
Therefore, the aim of this study is to advance the technical evaluation of olive stone valorization as a partial substitute for conventional sand in cement mortars, assessing compliance with regulatory requirements specified in the harmonized European standards for masonry mortars (UNE-EN 998-1 [37], rendering and plastering mortars (UNE-EN 998-1) [38], and flooring and screed mortars (UNE-EN 13813) [39] and the Spanish Technical Building Code (CTE) [40]. This contribution would yield dual sustainability benefits: for the construction sector, by reducing reliance on natural aggregates, and for the olive oil sector, by mitigating waste generation and airborne particulate emissions.

2. Materials and Methods

2.1. Materials

The masonry mortars studied were prepared with the following materials:
  • Natural sand: Conventional limestone–dolomitic sand sourced from an aggregate plant in the south of Spain, province of Granada, meeting the requirements of UNE EN 13139 for aggregates for mortars [41]. The sand had a particle size of 0/4 mm and a density of 2.77 g/cm3. Its particle size distribution is shown in Figure 1;
  • Filler: Limestone–dolomitic filler from an aggregate plant in Granada, also complying with UNE EN 13139 [41], with a density of 2.71 g/cm3;
  • Cement: Portland cement CEM I 42.5 R supplied by Cementos Portland Valderrivas Group (Madrid, Spain), conforming to the requirements of the Spanish cement reception regulation RC-16 [42], with a density of 3.01 g/cm3;
  • Admixture: High-performance superplasticizer and water-reducer MASTEREASE 3530 (Master Builders Solutions, Madrid, Spain), with a density of 1.06 g/cm3;
  • Water: Potable water;
Olive stones: Four different types of olive stone supplied by Peláez Renovables S.L., located in Bailén, Jaén (Spain) (Figure 1). The stones were obtained through a process of drying, cleaning, and particle size separation of residues from olive oil extraction in mills, aimed at producing materials with different energy yields. The physical characteristics of the commercial products Mix, Fine, Premium, and Piropel are summarized in Table 1, and their particle size distributions are shown in Figure 2. As can be observed, although all four types of olive stones are classified as fine aggregates, they exhibit considerably different particle sizes, particle size distributions, and water absorption capacities.

2.2. Sample Designation

One reference mortar (C) and eigth mortars incorporating olive stone as aggregate replacement were produced. The mortars were designated following the pattern X–Y, where X indicates the type of olive stone (M = Mix, Pr = Premium, F = Fine, and Pi = Piropel) and Y indicates the percentage of natural aggregate replaced by olive stone (10% or 20% by volume).

2.3. Mortar Mix Proportions

The mortars were prepared using a conventional dosage: cement-to-sand ratio of 1:8, water-to-cement ratio of 1.2, filler content of 13% by weight of natural aggregate, and 1% of admixture.
Table 2 summarizes the quantities of components per batch, considering that olive stone replaced natural aggregate by volume. Due to the high water absorption capacity of olive stone (see Table 1), and to avoid consistency variations, the olive stone was incorporated into the solid mix after being pre-saturated to 80% of its 24 h absorption capacity 10 min before mixing with the other components. This pre-wetting water also favored subsequent self-curing of the mortar. The pre-wetting water was subtracted from the amount of water added for kneading, so the effective amount of water remains constant.

2.4. Mortar Testing

The mortars were prepared using a conventional dosage: cement-to-sand ratio of 1:8, water-to-cement ratio of 1.2, filler content of 13% by weight of natural aggregate, and 1% of admixture.
The mortars were manufactured in accordance with UNE-EN 998-2 [38], and the following properties, shown in Table 3 with the corresponding standards, were assessed:
  • In fresh state: setting times, consistency, bulk density, and entrained air content;
  • In hardened state: capillary water absorption, bulk density, and flexural and compressive strengths.
To evaluate the potential effect of olive stone on cement setting, setting time tests were performed according to UNE-EN 196-3 [43], using not only distilled water but also eluates obtained by leaching olive stones. Specifically, two types of eluates were prepared with Fine (F) and Premium (Pr) olive stones, which together cover the full sand particle size range. A liquid-to-solid ratio of 2 L/kg was applied. The eluates were prepared in deionized water (DW) and in deionized water saturated with lime (DCW, 7.34 g Ca(OH)2 per 2 L of water), in order to simulate extreme conditions. The eluates were filtered after 24 h and subsequently used in the test.

3. Results and Discussions

The experimental results of setting times (Table 4), consistency (Figure 3), density and entrained air content (Table 5) of mortars prepared in the fresh state, as well as water absorption by capillarity (Figure 4), apparent density (Figure 4), and mechanical strengths in flexion (Figure 5) and compression (Figure 6) in the cured state, are presented and discussed below. In the following subsections, the test results are discussed, considering for each of them the arithmetic mean of 3 samples.

3.1. Results of Settings Times

Table 4 summarizes the results of the setting time test carried out on normal consistency pastes [43] prepared for each type of eluate, as well as on a normal consistency paste prepared with deionized water as a reference, which define the initial and final setting times as well as the duration of the plastic state.
Contrary to expectations, all the setting scenarios show shorter initial setting times than the reference (195 min), reduced by between 15% and 45%, with the eluate saturated in calcium hydroxide (DCW) producing the greatest setting accelerations for both bone types. On the other hand, the duration of the plastic state is extended by between 10 and 60 min compared to the reference (105 min). However, each bone type behaved differently. For Premium bone, practically no difference is observed in the duration of the plastic state depending on the eluate type, while for Fine bone, when prepared with distilled water, the plastic state increases to 190 min, and when prepared with lime-saturated water, both the initial and final setting times are drastically shortened, resulting in a plastic state very similar to that of the reference mortar, extended by only 10 min. Therefore, it can be concluded that mortar made with olive stone contributes to improving the workability for the operator since it can be applied earlier than conventional mortar, with an extended applicability time.

3.2. Consistency

This property can be considered a priority in this type of material since, beyond other physical aspects, mortars need to be workable to facilitate their application as well as to promote physical adhesion with porous substrates.
Figure 3 shows the consistency results of the studied mortars measured using a flow table [44]. As can be observed, except for mortar M-20 (138 mm) and mortar Pr-10 (206.25 mm), all the mortars studied fall within the range of plastic consistency (140–200 mm) [50], meaning these mortars are perfectly suitable for use as masonry mortars. The rough nature of vegetal particles and their considerable water absorption capacity make it difficult to obtain workable pastes, hence the pre-soaking technique described earlier was proposed to enhance plasticity without compromising cement setting. Even so, replacements above 20% could not be achieved.
Except for mortar Pr-10, which shows a slight improvement in consistency of 3.5% compared to the reference mortar (199.25 mm), the incorporation of vegetal granular material reduces workability, ranging from 8.8% for mortar Pi-10 to 30.7% for mortar M-20. From the perspective of bone type, it can be seen that water absorption capacity is directly related to mortar consistency. Mix (20.22%) and Fine (26.79%) stones most compromise this property, while Piropel (21.23%) and Premium (19.74%) stones show consistencies closest to the reference mortar.
Similar reductions in consistency were found in the work of Boubakour [36]. These authors, starting from a fluid consistency reference mortar (maintained up to 10% substitution, without pre-soaking), could not achieve workable pastes with more than 30% substitution.

3.3. Fresh State Apparent Density

The apparent density of mortars in the fresh state is related to the component materials and entrained air content, such that lighter mortars are more workable [50]. As expected, Table 5 shows a proportional decrease in apparent density as the amount of vegetal granular material increases. This decrease ranges from 3.2% for mortar M-10 to 8.4% for mortar F-20, compared to the reference mortar (2294 g/dm3). Moreover, Mix, Premium, and Piropel stones yield very similar densities for both substitution levels, due to their maximum particle size of 4 mm and similar gradation.

3.4. Entrained Air Content

Table 5 shows the entrained air results, which increase proportionally with substitution percentage. No significant differences appear when Mix, Premium, and Piropel stones are used, with variations ranging from a 5.7% decrease for mortar Pi-10 to a 4.6% increase for mortar M-20, compared to the reference (4.35%). However, Fine bone considerably increases this parameter by 23.0% and 37.9% for 10% and 20% substitution, respectively.
Nevertheless, the entrained air contents found are generally low. The Spanish cement standard RC-16 [42] recommends values between 8% and 22% for fresh masonry cement mortars. These results could be attributed to factors such as the plasticizer additive, the good packing achieved by continuous granulometry, the high fines content (<0.063 mm), and adequate compaction. Entrained air will also increase porosity in the hardened mortar. Cheboub et al. (2020) [31], via SEM analysis, observed higher water absorption capacities in substituted mortars due to this effect.

3.5. Water Absorption by Capillarity

This parameter indirectly measures mortar durability in the hardened state, since water uptake by surface contact may cause undesirable particle/salt transport affecting durability. Thus, higher compactness reduces capillary absorption [50].
As seen in Figure 4, and contrary to expectations, substituted mortars show lower water absorption than the reference (0.70 kg/m2·min0.5), decreasing proportionally with substitution (31.4% for M-10 and Pi-10 mortars, and 50% for M-20). The Mix bone mortars exhibit the most extreme absorption values, while Premium bone mortars show practically no difference compared to the reference.
These results may be due to pore structures that, due to larger size and/or lower connectivity, prevent water capillary rise, making them suitable for humid climates. According to the Spanish Building Code (CTE) [40] in the Basic Document on Health (DB HS1), only mortars M-20, Pr-10, and Pr-20 can be classified as medium water-resistance masonry mortars (c ≤ 0.4 kg/m2·min0.5). Furthermore, the reduced water absorption would not compromise thermal insulation [29,31,33], nor durability against freeze–thaw and salt crystallization cycles.
While some authors [36] have found similar results (attributed to greater compactness), others [31] reported higher absorption with substitution, attributed to the hydrophilic nature of vegetal particles and porosity in the ITZ between olive stone and cement paste. It is important to emphasize that none of the studies applied the pre-wetting technique to minimize the absorption of mixing water by the vegetal material, which would otherwise lead to the formation of a more porous interfacial transition zone (ITZ). Thus, these results are inconclusive, requiring further study of the pore structure in such mortars.

3.6. Hardened State Apparent Density

Figure 4 also shows the bulk density of hardened mortars, which clearly decreases proportionally as sand is replaced by olive stone, due to their lower density and the air voids created in the matrix [31]. Compared to the reference mortar (2188 g/dm3), the decrease is modest: from 5.6% (Pr-10) to 13.1% (Pi-20). The stones reducing density most are, in order, Fine and Piropel, followed by Mix and Premium. This reduction aligns with particle size distributions: Fine and Piropel stones have finer particles, while Mix and Premium have coarser ones.
Despite the reduced densities, none of the mortars can be classified as lightweight since they remain above 1300 g/dm3, the UNE-EN 998-2 [38] threshold. These results agree with other studies [31,33,35], which report only moderate weight reduction. Achieving true lightweight mortar requires higher substitution levels: Ferreiro-Cabello [35] achieved 1226 g/dm3 at 50% substitution, though with reduced stability and workability.
Although it was not possible to produce lightweight mortars, these results should be understood positively since, as has been confirmed, the mortars studied can contribute to the thermal insulation of buildings [29,31,33], while also reducing the load applied to the structure.

3.7. Flexural Strength

The mechanical strength of the mortars, determined on prismatic specimens of 4 × 4 × 16 cm first tested under flexure and subsequently with both halves subjected to compression, showed the expected gradual and proportional reduction as the substitution percentages increased (Figure 5 and Figure 6).
As observed in Figure 5, which presents flexural strength at 7, 14, and 28 days, there was no significant loss of strength at 28 days compared to the reference mortar (4.64 MPa) for all 10% substitutions, with values ranging between 23.7% (Pi-10) and 7.8% (M-10). However, strength decreased considerably at 20% substitution, with reductions from 18.1% (Pr-20) to a dramatic 84.1% (F-20). The delay in setting caused by the incorporation of vegetal granular material was also confirmed, manifested in the low strength development at early ages. While the reference mortar reached 86.4% of its final strength at 7 days and 96.6% at 14 days, the substituted mortars did not exceed 69% at 7 days or 93% at 14 days. In general, these delays were more pronounced at 20% substitution due to the greater presence of vegetal particles.
These decreases in flexural strength have also been reported by other authors [31,35], attributed to the poor adhesion of these aggregates to the cement matrix, as observed in SEM analysis [31]. Considering the influence of aggregate type, the 10% substitutions showed moderate reductions for Mix mortars (7.8%), followed by Premium (9.9%) and Fine (12.7%), with higher losses for Piropel (23.7%). At 20% substitution, reductions became much more significant, ranging from 18.1% (Pr-20) to 84.9% (F-20). Overall, the best performance was achieved with Premium aggregates, followed by Mix, while Piropel and Fine aggregates proved unsuitable for 20% replacement.

3.8. Compressive Strength

Figure 6 presents compressive strength at 7, 14, and 28 days. At 28 days, a wider range of strength loss was observed relative to the reference mortar (17.75 MPa), varying between 7.7% (Pr-10) and 93.9% (Pi-20), with significantly higher losses at 20% substitution. Mortars with Fine and Piropel aggregates proved practically unfeasible due to their very low strength. These results again confirm the setting delay caused by the replacement of conventional sand with olive stone aggregates, especially at 20% substitution. Although the relative strength development compared to the reference mortar followed similar trends as in flexural tests (45–72.6% at 7 days, and 53.7–88.2% at 14 days for Pi-20 and Pr-20, respectively), the final 28-day losses were more severe. Except for the 10% Premium mortar, which showed a relatively low compressive strength loss (7.7%), reductions were substantial, ranging from 19.1% (M-10) to 94.5% (F-20).
These reductions were similar to those reported by other authors [31,33,36], attributed to the physical and geometrical properties of olive stone particles, which create local weaknesses in the cement matrix [31], thus confirming previous findings that mortars with more than 30% replacement are technically unfeasible [35,36]. As with flexural tests, aggregate type strongly influenced performance, with Premium and Mix mortars performing best for both substitution levels, followed by F-10 and Pi-10, while 20% substitutions of these latter proved completely unviable. These outcomes can be explained by the particle size distribution of the different olive stones, with Premium and Mix (4 mm maximum size and no fines) producing the highest strength.
From a regulatory standpoint, except for mortars produced with 20% Fine bones, all mortars studied can be classified according to their compressive strength under the harmonized standards UNE-EN 998-1 [37], UNE-EN 998-2 [38], and UNE-EN 13813 [39], and for the applications described in the Spanish Building Technical Code (CTE) [40].

3.9. Mortar Classification and Applications

Cement mortars can be classified according to their properties as masonry mortars for general use, thin-joint mortars, or mortars for bonding masonry units in walls, pillars, and partitions, as described in UNE-EN 998-2 [38]. According to this standard, and based on 28-day compressive strength, the mortars studied can be classified in the strength classes shown in Table 6, where M denotes the strength class (MPa).
In line with this classification, the Spanish Building Technical Code (CTE) [40], through its Basic Document on Structural Safety in Masonry (DB SE-F), specifies the requirements for façade elements to ensure structural stability. It allows the studied mortars to be used in ordinary walls (OW) when classified as at least M1, and in reinforced walls (RW), pre-stressed walls (PW) and thin-joint applications (TJ) when classified at least as M4. Furthermore, to ensure resistance to water penetration in joints of masonry units in external façade panels (EFP), the Basic Document on Health (DB HS1) requires mortars to be classified as M5 or M7.5, with capillary water absorption ≤ 0.40 kg/m2·min0.5. Table 6 summarizes these applications.
Likewise, the mortars studied can be used in the applications described in the harmonized standard UNE-EN 998-1 [37], which refers to rendering mortars (for external use) and plastering mortars (for internal use) applied to walls, ceilings, columns, and partitions. For this purpose, they must be classified according to their 28-day compressive strength into the categories CS I (0.4–2.5 N/mm2), CS II (1.5–5.0 N/mm2), CS III (3.5–7.5 N/mm2), or CS IV (>6 N/mm2), and according to capillary water absorption into categories W0 (unspecified), W1 (<0.4 kg/m2·min0.5), or W2 (<0.2 kg/m2·min0.5, using water-repellent admixture).
The Spanish Building Technical Code (CTE) [40], in its Basic Document on Health (DB HS1), specifies—based on these parameters—the requirements that mortars used as continuous exterior and intermediate renders of the façade external layer (MFR: mortar façade render) must meet to ensure adequate resistance to water penetration, depending on rainfall and wind exposure. Table 7 presents the classification of the mortars studied according to these requirements and their applications in line with such demands.
It is interesting to note that, despite the loss in mechanical performance of the mortars studied, they can still be employed in specific applications where mechanical properties are not of primary importance. In this regard, as established by the Spanish Building Technical Code (CTE) [40], within its Basic Document on Structural Safety in Masonry (DB SE-F), and with the exception of mortars F-20 and Pi-10, the mortars tested can be used for the manufacture of mortar blocks and bricks (MBB) for masonry, as they meet the minimum required strength of 5 MPa.
Finally, according to the harmonized standard UNE-EN 13813 [39], these mortars can also be used as flooring and screed cement mortars, classified according to their compressive strength. Table 8 summarizes these other uses.

4. Conclusions

Based on the tests carried out in this study, and despite the influence of the amount and type of olive stone used, it can be confirmed that its incorporation as a secondary raw material in the manufacture of cement mortars, partially replacing conventional aggregate, is technically feasible, thus contributing to construction sustainability and the circular economy.
The four types of olive stones used in the study show grain sizes and water absorption capacities that condition the behavior of mortars in both fresh and hardened states. The results obtained from the study have led to the following specific conclusions:
Olive stone produces significant modifications in cement setting times, with an advance in the initial setting of up to 45% compared to the reference mortar and an extension of the plastic state of up to 60 min. These alterations are more pronounced when Fine-type bones are used, as they are smaller in size and therefore have a larger specific surface area to react.
In the fresh state, the influence of both the content and type of olive stone was confirmed, with appreciable and expected modifications in consistency, density, and air content. However, it is noteworthy that the nature of the vegetal granular material strongly affects the consistency of fresh mortar, as pre-wetting is required before mixing with the other solid components to achieve the required plastic consistency. With substitution levels above 20%, mortars fall into the dry consistency range. Nevertheless, the entrained air content of the mortars, although below the range established in the Spanish cement instruction RC-16, was very similar to that of the reference mortar, except when Fine-type stones were used, which caused an increase of up to 37.9%.
In the hardened state, capillary water absorption, contrary to expectations, decreased considerably in the substituted mortars—up to 50% compared to the reference mortar—and proportionally with higher substitution levels, except for the Premium type, which showed no difference at either substitution level. This suggests a considerable improvement in the durability of mortars against phenomena associated with water flow within the material, such as freeze–thaw damage and salt crystallization. These results allowed the mortars made with Premium and Mix stones at 20% substitution to be classified as reduced-capillarity mortars (<0.4 kg/m2·min0.5), according to UNE-EN 998-1 and for the applications described in the Spanish Technical Building Code (CTE). Although further study of the pore structure of the hardened material is needed, this behavior could probably be attributed to the generation of a coarser and/or less interconnected capillary network.
Mortar density in the hardened state, as in the fresh state, followed the expected trend with small reductions of up to 13.1%, which did not allow mortars to be classified as lightweight (>1300 g/cm3). However, these reductions would significantly improve thermal insulation, as reported in the few existing studies referenced. The vegetal aggregates that most improved this behavior were Piropel and Fine stones, which have smaller grain sizes.
Finally, mechanical strengths were proportionally affected by the amount of vegetal granular material replaced, highlighting, on the one hand, the delay in strength development at early ages (7 and 14 days) for both compression and flexural strength, which corroborates the setting-time results. On the other hand, 10% substitutions produced moderate decreases in 28-day strengths across all mortars (up to 23.7% in flexural and 43.5% in compressive strength), while 20% substitutions produced greater reductions (up to 42.0% in flexural and 52.2% in compressive strength), resulting in Fine and Piropel mortars being invalid at this percentage. Consequently, based on 28-day compressive strength, the mortars studied could be classified as masonry mortars (UNE-EN 998-2), rendering and plastering mortars (UNE-EN 998-1), and flooring and screed mortars (UNE-EN 13813), for the applications described in the Spanish Technical Building Code (CTE).
In conclusion, the study results show that 10% substitution hardly compromises most of the tested parameters, while the olive stone providing the best mortar performance is the Premium type, followed by the Mix type, whereas Piropel and, lastly, Fine produced the worst results.

Author Contributions

Conceptualization, M.M.-M., G.M.C.-M. and M.Z.; methodology, M.M.-M., G.M.C.-M., M.J.M.-E., M.Z. and M.L.-A.; investigation, M.M.-M., G.M.C.-M., M.L.-A., M.J.M.-E., M.Z. and M.L.-A.; writing—original draft preparation, M.M.-M. and G.M.C.-M.; writing—review and editing, M.M.-M., G.M.C.-M., M.J.M.-E., M.Z. and M.L.-A.; visualization, M.M.-M.; supervision, M.M.-M.; project administration, M.M.-M. and M.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zuo, J.; Zhen, Y.Z. Green Building Research-Current Status and Future Agenda: A Review. Renew. Sustain. Energy Rev. 2014, 30, 271–281. [Google Scholar] [CrossRef]
  2. Consejo de la Unión Europea. Comunicado de Prensa de 5 de Noviembre de 2024, Sobre Materiales de Construcción. Available online: https://www.consilium.europa.eu/es/press/press-releases/2024/11/05/building-materials-council-adopts-law-for-clean-and-smart-construction-products/ (accessed on 15 September 2025).
  3. Agoudjil, B.; Adel, B.; Abderrahim, B.; Laurent, I.; Magali, F. Renewable materials to reduce building heat loss: Characterization of date palm wood. Energy Build. 2011, 43, 491–497. [Google Scholar] [CrossRef]
  4. Renewables Global Status Report, 15 January 2019. IEA. Global Status Report for Buildings and Construction. Available online: https://www.iea.org/reports/global-energy-co2-status-report-2019/renewables (accessed on 15 September 2025).
  5. Athira, G.; Bahurudeen, A.; Appari, S.; Nanthagopalan, P. A circular framework for the valorisation of sugar industry wastes: Review on the industrial symbiosis between sugar, construction and energy industries. J. Clean. Prod. 2018, 203, 89–108. [Google Scholar] [CrossRef]
  6. Huanyu, W.; Zuo, J.; Zillante, G.; Wang, J.; Yuan, H. Status quo and future directions of construction and demolition waste research: A critical review. J. Clean. Prod. 2019, 240, 118163. [Google Scholar] [CrossRef]
  7. Sezer, A.A.; Fredriksson, A. Environmental impact of construction transport and the effects of building certification schemes. Resour. Conserv. Recycl. 2021, 172, 105688. [Google Scholar] [CrossRef]
  8. Josephson, P.-E.; Saukkoriipi, L. Waste in Construction Projects Call for a New Approach; The Centre for Management of the Built Environment (CMB), Chalmers University of Technology: Gothenburg, Sweden, 2007. [Google Scholar]
  9. Çimen, O. Construction and built environment in circular economy: A comprehensive literature review. J. Clean. Prod. 2021, 305, 127180. [Google Scholar] [CrossRef]
  10. Jacobsen, N.B. Industrial Symbiosis in Kalundborg, Denmark: A quantitative assessment of economic and environmental aspects. J. Ind. Ecol. 2006, 10, 239–255. [Google Scholar] [CrossRef]
  11. Akanbi, L.A.; Oyedele, L.O.; Omoteso, K.; Bilal, M.; Akinade, O.O.; Ajayi, A.O.; Davila-Delgado, J.M.; Owolabi, H.A. Disassembly and Deconstruction Analytics System (D-DAS) for construction in a circular economy. J. Clean. Prod. 2019, 223, 386–396. [Google Scholar] [CrossRef]
  12. Ekin, E.; Sanchez, B.; Haas, C. Usage of interface management system in adaptive reuse of buildings. Buildings 2019, 9, 105. [Google Scholar] [CrossRef]
  13. Ghisellini, P.; Ripa, M.; Ulgiati, S. Exploring environmental and economic costs and benefits of a circular economy approach to the construction and demolition sector. A Literature Review. J. Clean. Prod. 2018, 178, 618–643. [Google Scholar] [CrossRef]
  14. ONU. Sand and Sustainability: 10 Strategic Recommendations to Avert a Crisis; University of Geneve: Geneve, Switzerland, 2022. [Google Scholar]
  15. Cuenca-Moyano, G.M.; Martín-Pascual, J.; Martín-Morales, M.; Valverde-Palacios, I.; Zamorano, M. Effects of water to cement ratio, recycled fine aggregate and air entraining/plasticizer admixture on masonry mortar properties. Constr. Build. Mater. 2020, 230, 116929. [Google Scholar] [CrossRef]
  16. Ferreira, R.L.S.; Anjos, M.A.S.; Ledesma, E.F. The role of powder content of the recycled aggregates of CDW in the behaviour of rendering mortars. Constr. Build. Mater. 2019, 208, 601–612. [Google Scholar] [CrossRef]
  17. Huang, Q.; Zhu, X.; Xiong, G.; Wang, C.; Liu, D.; Zhao, L. Recycling of crushed waste clay brick as aggregates in cement mortars: An approach from macro- and micro-scale investigation. Constr. Build. Mater. 2021, 274, 122068. [Google Scholar] [CrossRef]
  18. Lam, M.N.-T.; Nguyen, D.-T.; Nguyen, D.-L. Potential use of clay brick waste powder and ceramic waste aggregate in mortar. Constr. Build. Mater. 2021, 313, 125516. [Google Scholar] [CrossRef]
  19. Alducin-Ochoa, J.M.; Martín-del-Río, J.J.; Torres-González, M.; Flores-Alés, V.; Hernández-Cruz, D. Performance of mortars based on recycled glass as aggregate by accelerated decay tests (ADT). Constr. Build. Mater. 2021, 300, 124057. [Google Scholar] [CrossRef]
  20. Flores-Alés, V.; Martín-del-Río, J.J.; Alducin-Ochoa, J.M.; Torres-González, M. Rehydration on high temperature-mortars based on recycled glass as aggregate. J. Clean. Prod. 2020, 275, 124139. [Google Scholar] [CrossRef]
  21. Corinaldesi, V.; Mazzoli, A.; Siddique, R. Characterization of lightweight mortars containing wood processing by-products Waste. Constr. Build. Mater. 2020, 123, 281–289. [Google Scholar] [CrossRef]
  22. Panesar, D.K.; Shindman, B. The mechanical, transport and thermal properties of mortar and concrete containing waste Cork. Cem. Concr. Compos. 2012, 34, 982–992. [Google Scholar] [CrossRef]
  23. Jannat, N.; Al-Mufti, R.L.; Hussien, A.; Abdullah, B.; Cotgrave, A. Utilisation of nut shell wastes in brick, mortar and concrete: A review. Constr. Build. Mater. 2021, 293, 123546. [Google Scholar] [CrossRef]
  24. Martínez-García, C.; González-Fonteboa, B.; Carro-López, D.; Martínez-Abella, F. Effects of mussel shell aggregates on hygric behaviour of air lime mortar at different ages. Constr. Build. Mater. 2020, 252, 119113. [Google Scholar] [CrossRef]
  25. Asadi, I.; Shafigh, P.; Hashemi, M.; Akhiani, A.R.; Maghfouri, M.; Sajadi, B.; Mahyuddin, N.; Esfandiari, M.; Talebi, H.R.; Metselaar, H.S.C. Thermophysical properties of sustainable cement mortar containing oil palm boiler clinker (OPBC) as a fine aggregate. Constr. Build. Mater. 2021, 268, 121091. [Google Scholar] [CrossRef]
  26. Garcia-Maraver, A.; Perez-Jimenez, J.A.; Serrano-Bernardo, F.; Zamorano, M. Determination and comparison of combustion kinetics parameters of agricultural biomass from olive trees. Renew. Energy 2015, 83, 897–904. [Google Scholar] [CrossRef]
  27. Ministerio de Agricultura, Pesca y Alimentación; Spanish Ministry of Agriculture, Fisheries and Food. Anuario de Estadística 2021. Chapter 07: Crop Surfaces and Crop Production. Available online: https://www.mapa.gob.es/estadistica/pags/anuario/2021/CAPITULOS%20PDF/AE21-C07.pdf (accessed on 15 July 2025).
  28. Estevez, R.; Aguado-Deblas, L.; Montes, V.; Caballero, A.; Bautista, F. Sulfonated carbons from olive stones as catalysts in the microwave-assisted etherification of glycerol with tert-butyl alcohol. Mol. Catal. 2020, 488, 110921. [Google Scholar] [CrossRef]
  29. Barreca, F.; Fichera, C.R. Use of olive stone as an additive in cement lime mortar to improve thermal insulation. Energy Build. 2013, 62, 507–513. [Google Scholar] [CrossRef]
  30. Merino, M.R.; Rodríguez, J.G.; Martínez, F.F.; Astorqui, J.S.C. Viability of using olive stones as lightweight aggregate in construction mortars. Rev. Constr. 2017, 16, 431–438. [Google Scholar] [CrossRef]
  31. Cheboub, T.; Senhadji, Y.; Khelafi, H.; Escadeillas, G. Investigation of the engineering properties of environmentally-friendly self-compacting lightweight mortar containing olive kernel shells as aggregate. J. Clean. Prod. 2020, 249, 119406. [Google Scholar] [CrossRef]
  32. San Vicente-Navarro, A.; Mendívil-Giro, M.; Los Santos-Ortega, J.; Fraile-García, E.; Ferreiro-Cabello, J. Alternative use of the waste from ground olive stones in doping mortar bricks for sustainable façades. Buildings 2023, 13, 2992. [Google Scholar] [CrossRef]
  33. San Vicente-Navarro, A.; Los Santos-Ortega, J.; Fraile-García, E.; Ferreiro-Cabello, J. Methodology for sustainability assessment for the use of ground olive stones in mortar bricks for facades. Appl. Sci. 2024, 14, 3388. [Google Scholar] [CrossRef]
  34. Los Santos-Ortega, J.; Fraile-García, E.; Ferreiro-Cabello, J. Environmental assessment of the use of ground olive stones in mortars. Reduction of CO2 emissions and production of sustainable mortars for buildings. Environ. Impact Assess. Rev. 2025, 110, 107709. [Google Scholar] [CrossRef]
  35. Ferreiro-Cabello, J.; Fraile-Garcia, E.; Pernia-Espinoza, A.; Martinez-de-Pison, F.J. Strength performance of different mortars doped using olive stones as lightweight aggregate. Buildings 2022, 12, 1668. [Google Scholar] [CrossRef]
  36. Boubakour, S.; Kherraf, L.; Hebhoub, H.; Messaoudi, K.; Boukhatem, G. Characterization of lightweight mortars with cork and olive stone waste for old building rehabilitation. Ann. Chim.-Sci. Matériaux 2023, 47, 179–185. [Google Scholar] [CrossRef]
  37. UNE-EN 998-1; Specification for Mortar for Masonry. Part 1: Rendering and Plastering Mortar. AENOR: Madrid, Spain, 2018.
  38. UNE-EN 998-2; Specification for Mortar for Masonry. Part 2: Masonry Mortar. AENOR: Madrid, Spain, 2018.
  39. UNE-EN 13813; Screed Material and Floor Screed. Screed Material. Properties and Requirements. AENOR: Madrid, Spain, 2014.
  40. Ministerio de Vivienda. Real Decreto 314/2006, de 17 de Marzo, por el que se Aprueba el Código Técnico de la Edificación. «BOE» Núm. 74, de 28 de Marzo de 2006. Referencia: BOE-A-2006-5515. Available online: https://www.boe.es/eli/es/rd/2006/03/17/314 (accessed on 4 September 2025).
  41. UNE-EN 13139; Aggregates for Mortar. AENOR: Madrid, Spain, 2003.
  42. Ministerio de la Presidencia. Real Decreto 256/2016, de 10 de Junio, por el que se Aprueba la Instrucción Para la Recepción de Cementos (RC-16). «BOE» Núm. 153, de 25 de Junio de 2016. Referencia: BOE-A-2016-6167. Available online: https://www.boe.es/eli/es/rd/2016/06/10/256 (accessed on 4 September 2025).
  43. UNE EN 196-3; Methods of Testing Cement. Part 3: Determination of Setting Times and Soundness. AENOR: Madrid, Spain, 2017.
  44. UNE-EN 1015-3; Methods of Test for Mortar for Masonry. Part 3: Determination of Consistence of Fresh Mortar. AENOR: Madrid, Spain, 2007.
  45. UNE-EN 1015-6; Methods of Test for Mortar for Masonry. Part 6: Determination of Bulk Density of Fresh Mortar. AENOR: Madrid, Spain, 1999.
  46. UNE-EN 1015-7; Methods of Test for Mortar for Masonry. Part 7: Determination of Air Content of Fresh Mortar. AENOR: Madrid, Spain, 1999.
  47. UNE-EN 1015-18; Methods of Test for Mortar for Masonry. Part 18: Determination of Water Absorption Coefficient Due to Capillary Action of Hardened Mortar. AENOR: Madrid, Spain, 2003.
  48. UNE-EN 1015-10; Methods of Test for Mortar for Masonry. Part 10: Determination of Dry Bulk Density of Hardened Mortar. AENOR: Madrid, Spain, 2007.
  49. UNE-EN 1015-11; Methods of Test for Mortar for Masonry. Part 11: Determination of Flexural and Compressive Strength of Hardened Mortar. AENOR: Madrid, Spain, 2020.
  50. Rodríguez-Mora, O.; AFAM, Asociación Nacional de Fabricantes de Mortero. Morteros Guía General; AFAM: Madrid, Spain, 2003. [Google Scholar]
Materials 18 05200 g001

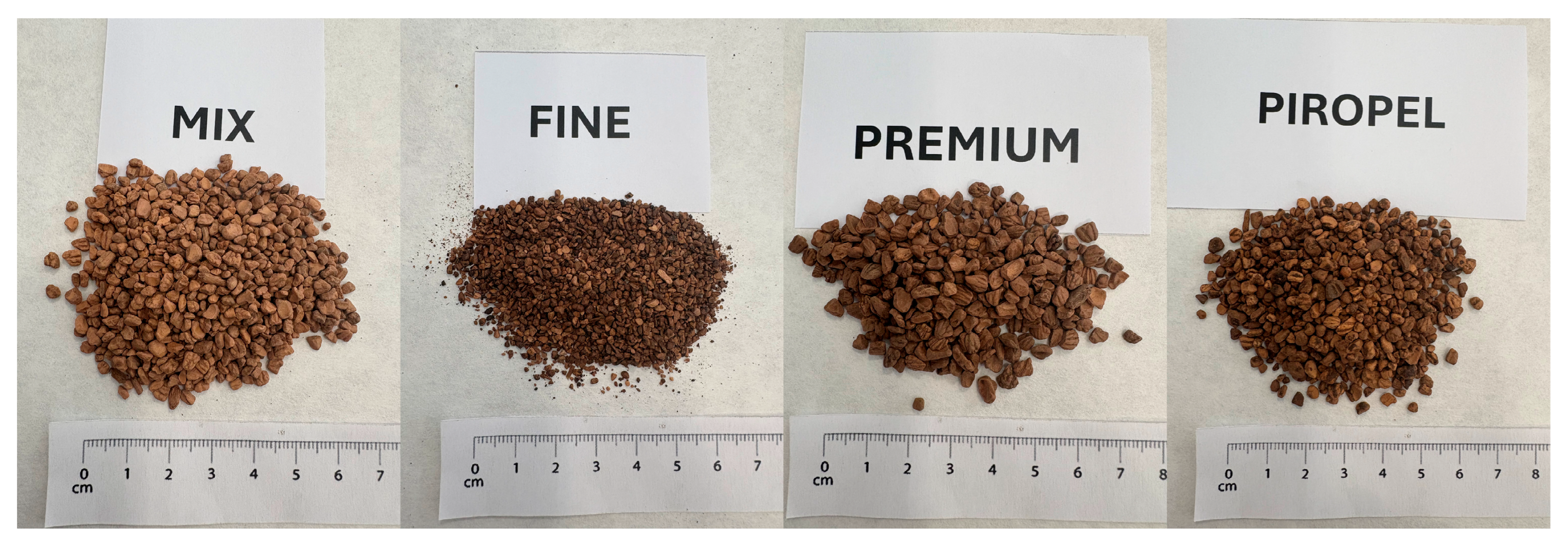

Figure 1. Olive stones.
Figure 1. Olive stones.
Materials 18 05200 g001
Materials 18 05200 g002

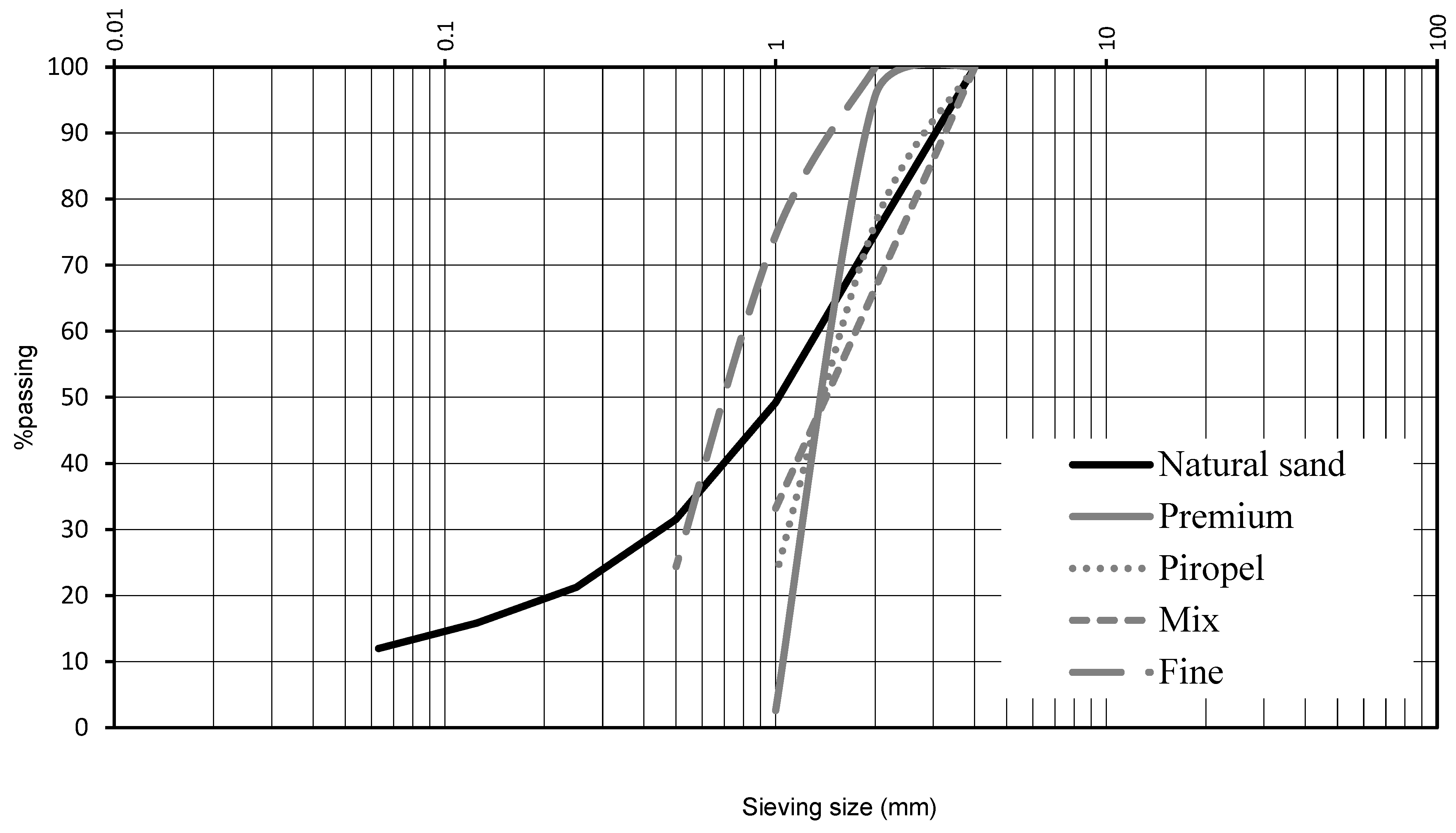

Figure 2. Particle size distribution of the aggregates.
Figure 2. Particle size distribution of the aggregates.
Materials 18 05200 g002
Materials 18 05200 g003

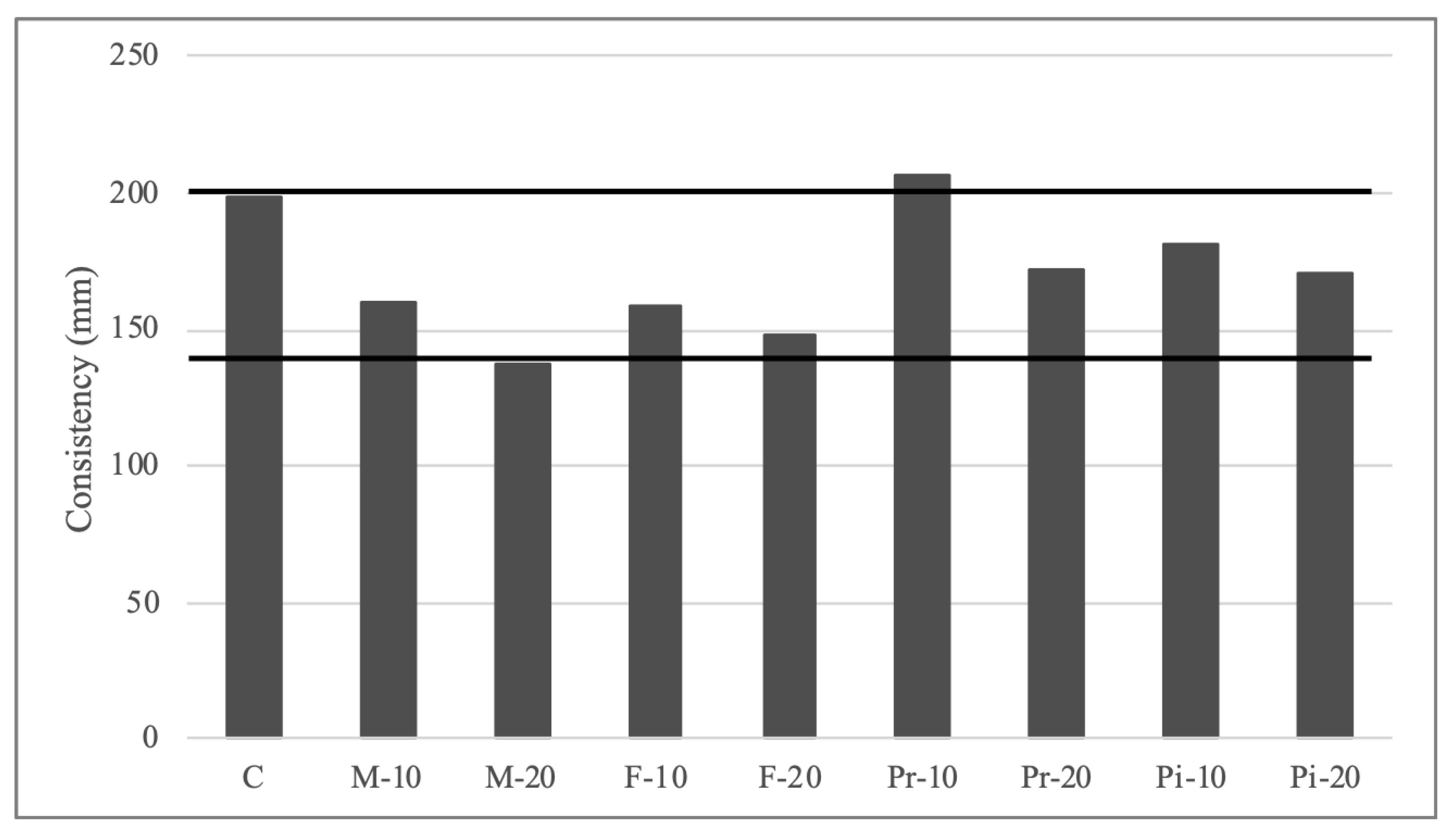

Figure 3. Results of consistency on mortars.
Figure 3. Results of consistency on mortars.
Materials 18 05200 g003
Materials 18 05200 g004

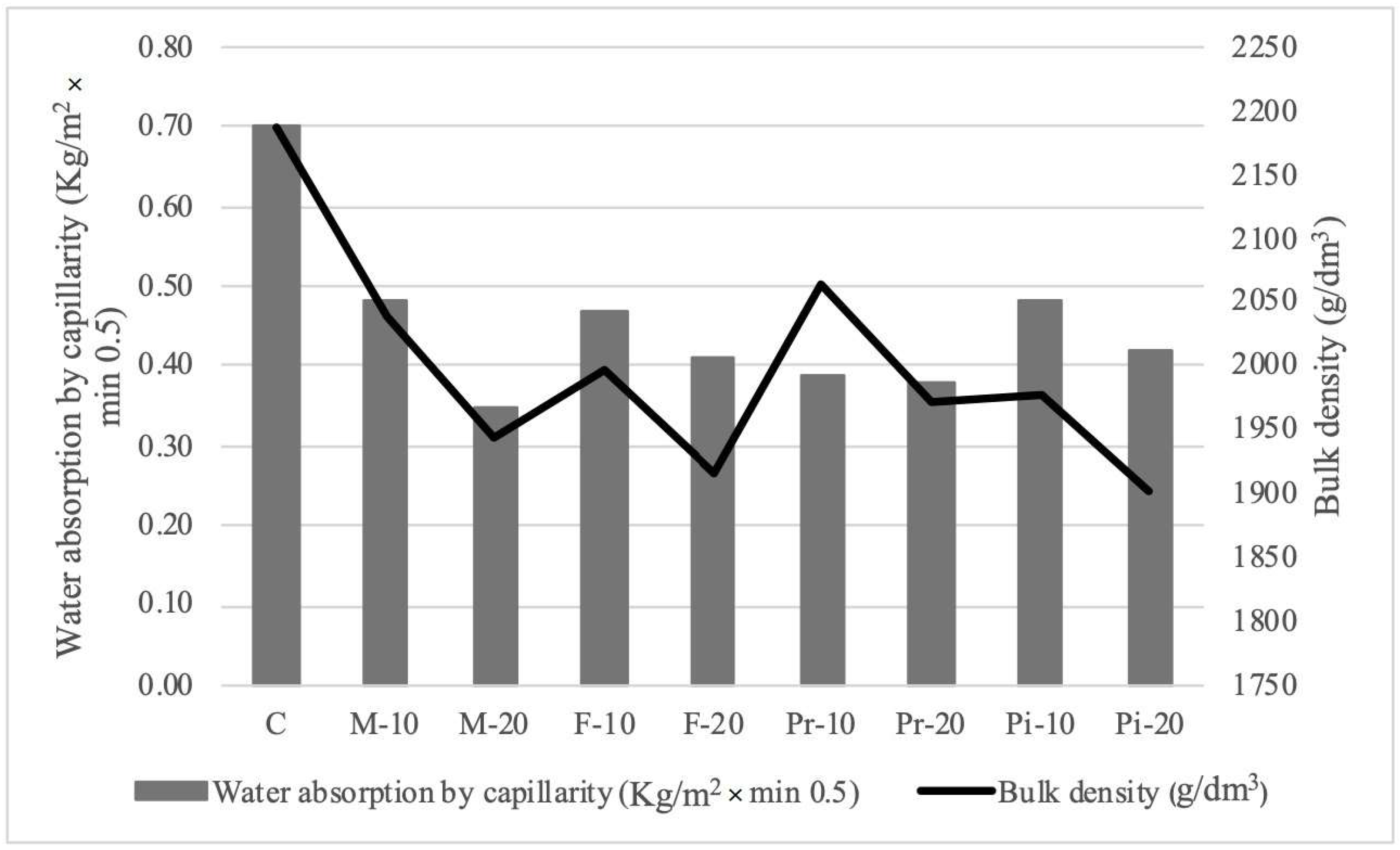

Figure 4. Results of water absorption by capillarity and dry bulk density on mortars.
Figure 4. Results of water absorption by capillarity and dry bulk density on mortars.
Materials 18 05200 g004
Materials 18 05200 g005

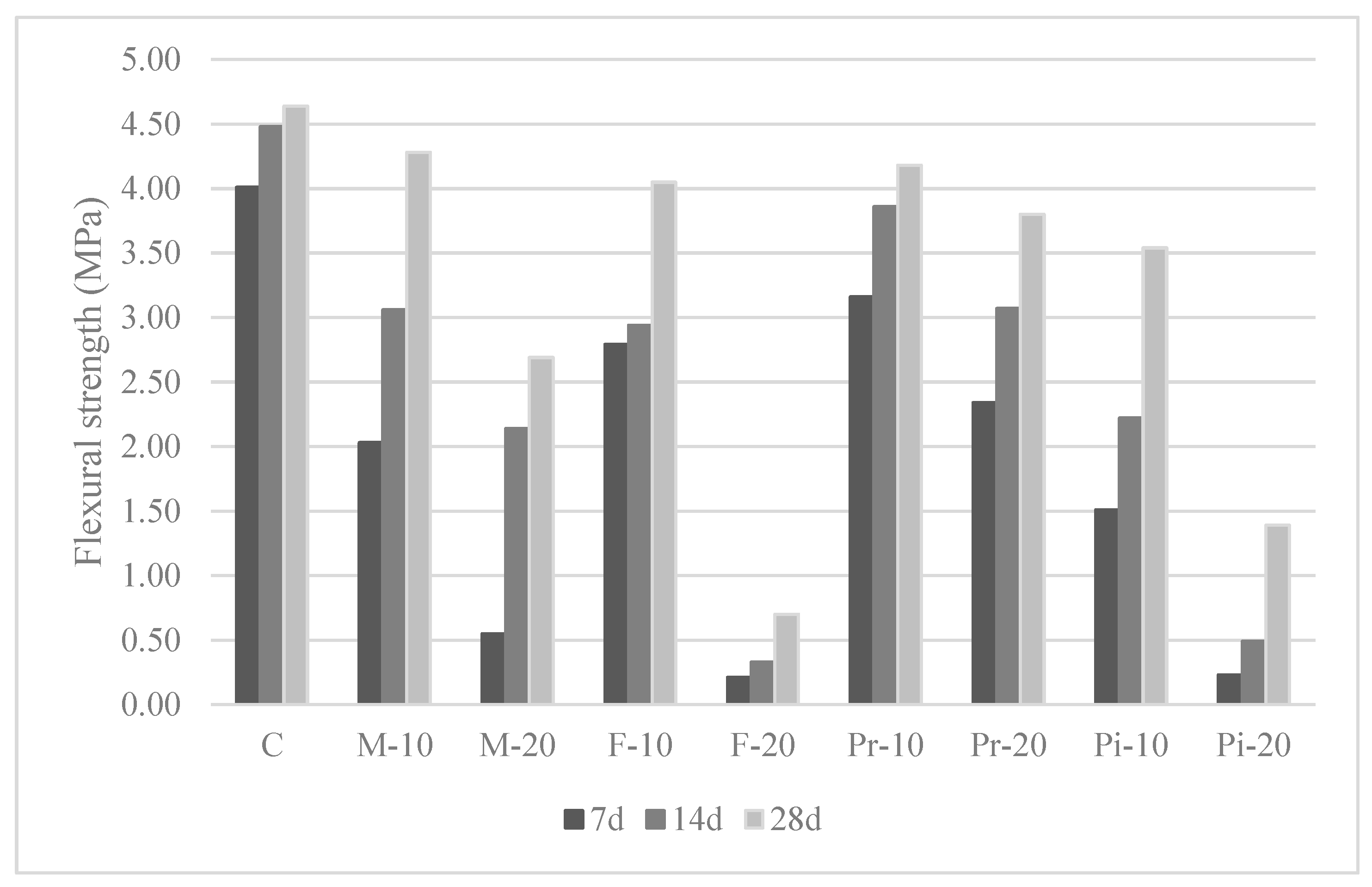

Figure 5. Results of flexural strength on mortars.
Figure 5. Results of flexural strength on mortars.
Materials 18 05200 g005
Materials 18 05200 g006

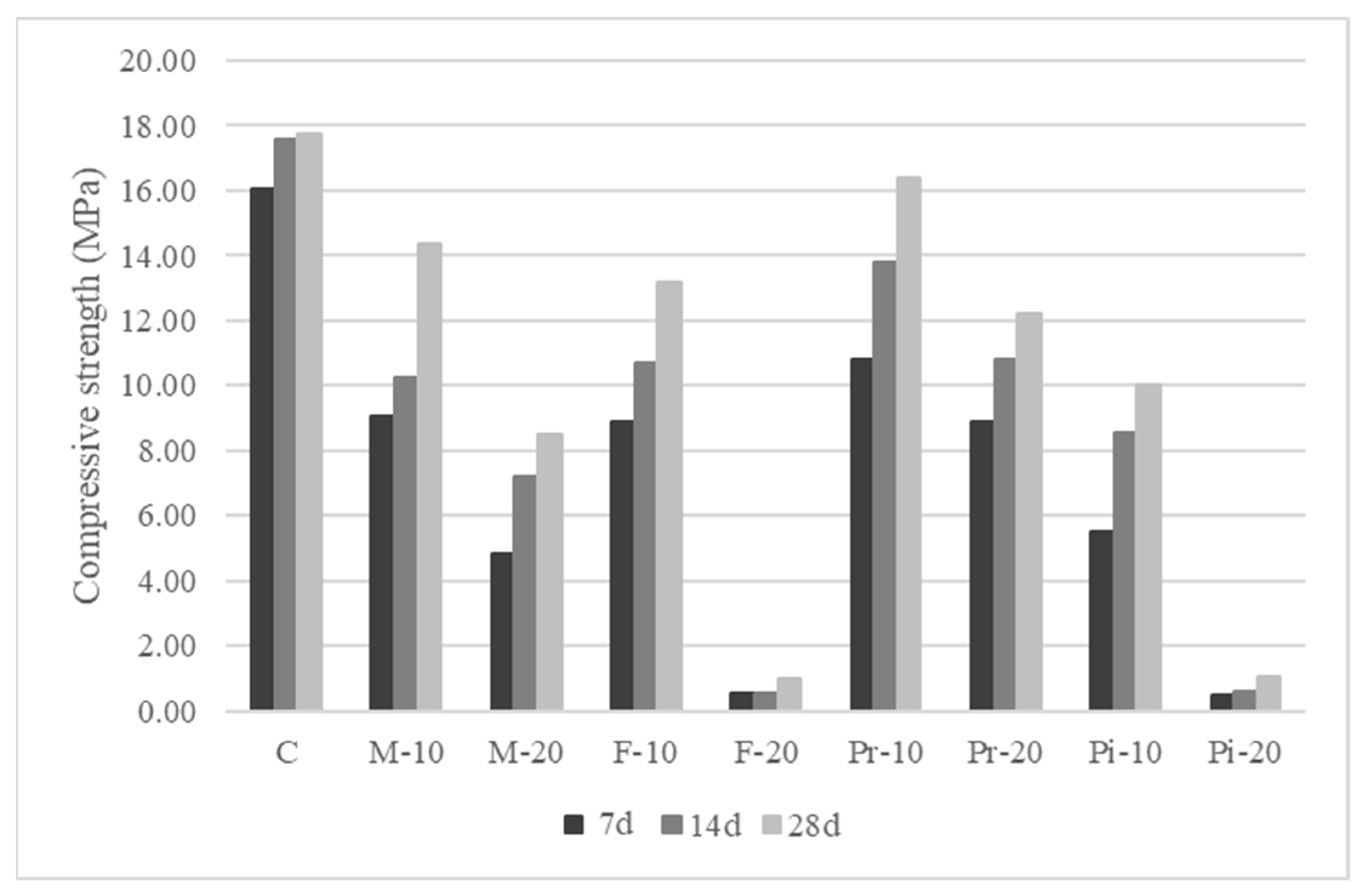

Figure 6. Results of compressive strength on mortars.
Figure 6. Results of compressive strength on mortars.
Materials 18 05200 g006
Table 1. Physical characteristics of olive stones.
Table 1. Physical characteristics of olive stones.
Olive Stone TypeParticle Size (mm)Water Absorption at 24 h (%)Density (g/cm3)
Mix1–420.221.33
Fine0–226.791.33
Premium2–419.741.28
Piropel0.5–421.231.34
Table 2. Mortar mix proportions per batch.
Table 2. Mortar mix proportions per batch.
Sand (g)Filler (g)Olive Stone (g)Cement (g)Water (g)Admixture (g)
C2657.50345.500.00328.00393.603.28
M-102391.72345.50156.89328.00393.603.28
M-202125.97345.50314.10328.00393.603.28
F-102391.72345.50164.73328.00393.603.28
F-202125.97345.50329.79328.00393.603.28
Pr-102391.72345.50148.51328.00393.603.28
Pr-202125.97345.50297.32328.00393.603.28
Pi-102391.72345.50157.74328.00393.603.28
Pi-202125.97345.50315.49328.00393.603.28
Table 3. Tests performed on mortars and corresponding standards.
Table 3. Tests performed on mortars and corresponding standards.
Fresh State
Setting timeUNE-EN 196-3 [43]
ConsistencyUNE-EN 1015-3 [44]
Bulk density in fresh stateUNE-EN 1015-6 [45]
Air contentUNE-EN 1015-7 [46]
Hardened state
Capillary water absorptionUNE-EN 1015-18 [47]
Bulk density in hardened stateUNE-EN 1015-10 [48]
Mechanical strengthsUNE-EN 1015-11 [49]
Table 4. Setting times.
Table 4. Setting times.
PasteInitial Setting Time (min)Final Setting Time (min)Plastic State Duration (min)
Reference195300105
DW + Pr165325160
DCW + Pr155320165
DW + F140330190
Table 5. Results of tests carried out on mortars in the fresh state.
Table 5. Results of tests carried out on mortars in the fresh state.
Apparent Density in Fresh State (Kg/m3)Entrained Air Content (%)
C22944.35
M-1022214.40
M-2021304.55
F-1021725.35
F-2021016.00
Pr-1022004.25
Pr-2021334.35
Pi-1022014.10
Pi-2021024.40
Table 6. Classification of mortars according to UNE-EN 998-2 [38] and applications according to the Spanish Building Technical Code (CTE) [40].
Table 6. Classification of mortars according to UNE-EN 998-2 [38] and applications according to the Spanish Building Technical Code (CTE) [40].
Compressive Strength at 28 Days (MPa)ClassificationApplication According to CTE DB SE-FCapillary Water Absorption (kg/m2·min0.5)Application According to CTE DB HS1
C17.75M 15OW, RW, PW, TJ0.70Without classification
M-1014.36M 10OW, RW, PW, TJ0.48Without classification
M-208.49M 7.5OW, RW, PW, TJ0.35EFP
F-1013.17M 10OW, RW, PW, TJ0.47Without classification
F-200.98Without classificationWithout classification0.41Without classification
Pr-1016.39M 15OW, RW, PW, TJ0.39EFP
Pr-2012.24M 10OW, RW, PW, TJ0.38EFP
Pi-1010.03M 10OW, RW, PW, TJ0.48Without classification
Pi-201.08M 1OW0.42Without classification
Table 7. Classification of mortars according to UNE-EN 998-1 [37] and applications according to the Spanish Building Technical Code (CTE) [40].
Table 7. Classification of mortars according to UNE-EN 998-1 [37] and applications according to the Spanish Building Technical Code (CTE) [40].
Compressive Strength at 28 Days (MPa)ClassificationCapillary Water Absorption (kg/m2·min0.5)Application According to CTE DB HS1
C17.75CS IV0.70Without classification
M-1014.36CS IV0.48Without classification
M-208.49CS IV0.35MFR
F-1013.17CS IV0.47Without classification
F-200.98CS I0.41Without classification
Pr-1016.39CS IV0.39MFR
Pr-2012.24CS IV0.38MFR
Pi-1010.03CS IV0.48Without classification
Pi-201.08CS I0.42Without classification
Table 8. Other uses and classification of mortars.
Table 8. Other uses and classification of mortars.
Compressive Strength at 28 Days (MPa)Application According to CTE DB FCompressive Strength Classification of Flooring and Screed Cement Mortar (UNE EN 13813)
C17.75MBBC16
M-1014.36MBBC12
M-208.49MBBC7
F-1013.17MBBC12
F-200.98Without classificationWithout classification
Pr-1016.39MBBC16
Pr-2012.24MBBC12
Pi-1010.03MBBC7
Pi-201.08Without classificationWithout classification
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Martin-Morales, M.; Cuenca-Moyano, G.M.; Martinez-Echevarria, M.J.; Zamorano, M.; Lopez-Alonso, M. Valorization of Olive Stone in Cement Mortars for Harmonized Applications. Materials 2025, 18, 5200. https://doi.org/10.3390/ma18225200

AMA Style

Martin-Morales M, Cuenca-Moyano GM, Martinez-Echevarria MJ, Zamorano M, Lopez-Alonso M. Valorization of Olive Stone in Cement Mortars for Harmonized Applications. Materials. 2025; 18(22):5200. https://doi.org/10.3390/ma18225200

Chicago/Turabian Style

Martin-Morales, Maria, Gloria Maria Cuenca-Moyano, Maria Jose Martinez-Echevarria, Montserrat Zamorano, and Monica Lopez-Alonso. 2025. "Valorization of Olive Stone in Cement Mortars for Harmonized Applications" Materials 18, no. 22: 5200. https://doi.org/10.3390/ma18225200

APA Style

Martin-Morales, M., Cuenca-Moyano, G. M., Martinez-Echevarria, M. J., Zamorano, M., & Lopez-Alonso, M. (2025). Valorization of Olive Stone in Cement Mortars for Harmonized Applications. Materials, 18(22), 5200. https://doi.org/10.3390/ma18225200

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
