Article

Robocasting as an Additive Manufacturing Method for Oxide Ceramics: A Study of Mechanical Properties and Microstructure

by
Szymon Przybyła
1,2,
Maciej Kwiatkowski
2,
Michał Kwiatkowski
2 and
Marek Hebda
1,*
1
Faculty of Materials Engineering and Physics, Cracow University of Technology, Warszawska 24, 31-155 Kraków, Poland
2
Createc Sp. z o.o., E. Kwiatkowskiego 9, 37-450 Stalowa Wola, Poland
*
Author to whom correspondence should be addressed.
Materials 2025, 18(20), 4775; https://doi.org/10.3390/ma18204775 (registering DOI)
Submission received: 17 September 2025 / Revised: 13 October 2025 / Accepted: 15 October 2025 / Published: 18 October 2025
(This article belongs to the Special Issue Advances in Materials Processing (4th Edition))
Browse Figures
Versions Notes

Abstract

Additive manufacturing methods can constitute a valuable alternative to conventional production techniques for components used in the heavy industry, particularly in foundry applications. This innovative manufacturing approach enables an expanded product portfolio as well as higher precision and geometrical complexity of ceramic components. One additive technology applicable to ceramic processing is robocasting, classified within the direct ink writing (DIW) family. In this method, a semi-fluid ceramic paste is extruded to build the part layer by layer; the shaped green body is subsequently fired (sintered) to attain its final functional properties. This study presents the results of materials characterization of printed ceramic filters, encompassing phase composition analysis, density measurements, three-point bending strength testing, hardness, and microstructural examination. The investigations demonstrated that the oxide ceramic Al2O3 processed by the modern robocasting method exhibits mechanical performance at a comparably high level relative to classical manufacturing routes (slip casting, ceramic injection molding, dry pressing). Moreover, the porosity results indicate that 3D printing technology enables lower post-sintering porosity.

1. Introduction

Technical ceramics constitute an important area of research in materials engineering. Their unique physical and mechanical properties—such as high resistance to elevated temperatures [1,2,3], wear resistance [4,5,6], insulating performance [7,8,9], and high mechanical strength [10,11,12]—predispose them to use under particularly demanding service conditions. A broad range of industries, including the electrotechnical sector [13,14,15], power generation [16,17,18], machinery and tooling [19,20,21], chemical processing [22,23,24], medical applications [25,26,27], as well as the aerospace [2,28,29] and automotive sectors [30,31,32], exploit the potential of technical ceramics to improve the efficiency and reliability of technological processes. The literature provides numerous studies on the physicochemical properties of oxide ceramics [33,34,35,36]. Of particular significance within this group is alumina (Al2O3), which—owing to its low manufacturing cost and favorable service characteristics—is among the most widely used ceramic materials [37]. Other ceramic materials include zirconia (ZrO2, often stabilized with Y2O3), silica (SiO2), and titania (TiO2). Due to their higher cost, these materials are applied mainly as dopants (especially ZrO2) or in specialized production.
In response to the dynamic development of technology and the corresponding demand for increasingly complex components, both academia and industry are actively seeking new methods for processing oxide ceramics. Conventional, widely adopted manufacturing techniques—such as uniaxial pressing [38], dip casting [39], or extrusion [40]—do not always permit the fabrication of parts with intricate geometries. One modern direction is additive manufacturing (AM), which has gained prominence in recent years by offering unprecedented capabilities for the design and fabrication of complex ceramic architectures. The most advanced AM methods for ceramics include direct ink writing (DIW) [41,42,43], binder jetting (BJ) [41,44], and stereolithography (SLA) [45]. The diversity of 3D-printing technologies arises primarily from the need to tailor the printed part to its intended application, because these methods are not equivalent in terms of achievable accuracy and mechanical performance. DIW methods are characterized by the ease and speed of paste formulation (both chemically and structurally—e.g., controlled porosity), relatively high green packing leading to >95% of theoretical density after sintering, and low equipment cost [46,47,48]. The drawbacks of DIW include limited printing resolution (typically 100–300 µm), rheology-related challenges, a high risk of cracking during drying, and significant sintering shrinkage [41,49,50]. In turn, BJ is a low-energy process (reduced thermal stresses) and enables the fabrication of geometrically complex structures [51,52,53]. However, it precludes achieving high green density; printed surfaces are comparatively rough—limiting their use in mechanically loaded components—and the resolution is constrained by the particle size of the ceramic powder [51,54,55]. SLA-based 3D printing provides very high precision (25–50 µm), high density (up to 99.9% TD), and allows the creation of complex internal architectures [56,57]. It does, however, require high-quality, chemically stable suspensions that are difficult to formulate, extensive support structures that are challenging to remove, and the process exhibits considerable linear shrinkage that must be compensated for already at the CAD design stage [58,59,60].
Robocasting [61], a DIW-class technique applied to oxide-ceramic processing, requires appropriately formulated ceramic pastes. These materials must combine suitable rheological parameters with the desired physicochemical properties after sintering [62]. Inadequate rheology will hinder proper extrusion through the printing nozzle, leading to structural discontinuities in overly viscous systems with excessive green density or, conversely, uncontrolled material oozing and dimensional inaccuracy when the paste is too fluid. Consequently, the proper selection of the paste composition is crucial to ensure process repeatability in 3D printing and to achieve the required mechanical performance of the final parts.
Comparative analyses of oxide ceramics processed by conventional and additive routes show that direct ink writing/robocasting (DIW) affords high green packing and tunable porosity but is constrained by feature resolution (100–300 µm) and sensitivity to rheology, drying-induced cracking, and sintering shrinkage [63,64,65,66]. Operationally, DIW functions within a narrow rheological window (yield stress, shear-thinning, thixotropy). Even small deviations promote nozzle clogging, die swell, and material spreading/collapse, degrading dimensional accuracy and surface finish [42,50,65]. The layer-wise filament deposition creates inter-filament and inter-layer interfaces where incomplete fusion and voids can arise, leading to microstructural anisotropy (build-direction-dependent properties) and visible surface terracing (“stair-stepping”) [42,63,64]. Drying of aqueous/solvent-based inks generates capillary stresses that drive warpage and cracking, while subsequent binder burnout and densification can amplify defect populations and cause substantial linear shrinkage requiring compensation at the design stage [42,63,64]. Additional practical constraints include limited self-supporting overhangs, a minimum printable wall thickness governed by nozzle/particle size [48,63]. Ink stability issues (sedimentation/agglomeration) further contribute to clogging and variability if formulation and processing are not tightly controlled [46,50]. Binder jetting reliably reproduces complex geometries under low thermal loads. However, it typically yields low green density, rough surfaces, and a resolution limited by powder size [67,68,69]. Ceramic stereolithography achieves the highest precision and near-full density, yet demands highly loaded, rheologically and photochemically stable slurries and necessitates support removal and shrinkage compensation at the design stage [70,71]. Material-specific limitations further govern performance: Y2O3-stabilized ZrO2 provides transformation toughening but is vulnerable to destabilization and deleterious tetragonal to monoclinic transformation if sintering/stabilization are not rigorously controlled [72,73], SiO2 may crystallize cristobalite during heat treatment, increasing shrinkage and embrittlement [74], TiO2 is prone to the anatase–rutile transformation and oxygen-defect sensitivity, requiring tight control of atmosphere and dwell time [75]. In this context, Al2O3 remains a chemically stable and cost-effective reference for benchmarking AM processes against conventional forming methods [63,64,65,66].
The present study investigates the competitiveness of 3D printing, specifically robocasting, as a manufacturing technology for oxide-ceramic components in comparison with conventional processing methods. The research focuses on evaluating the mechanical performance, microstructural characteristics, and material purity of oxide ceramics produced via robocasting. The primary objective is to establish quantitative relationships between processing parameters, resulting microstructure, and mechanical properties. A reproducible workflow encompassing paste formulation, printing, and sintering procedures was developed. The mechanical properties of the fabricated components were characterized through three-point bending, uniaxial compression, and hardness testing. The scanning electron microscopy (SEM) and X-ray diffraction (XRD) analyses were used for evaluating porosity and phase composition, with the measured values of strength, hardness, density, and Young’s modulus. Additionally, the study examines the spatial homogeneity of material properties across the printed components by integrating density measurements with spatially resolved hardness mapping. This approach enables the identification of potential anisotropies arising from the robocasting deposition path or layer-wise build sequence.

2. Materials and Methods

2.1. Sample Preparation

Foundry filters and rectangular prismatic specimens were fabricated by 3D printing robocasting, using a ceramic paste with the following composition: alumina powder (Al2O3; CT3000 SG, Almatis, Ludwigshafen, Germany), methylcellulose (E460, ITC, Piastów, Poland), dispersant (Darvan 7Ns, Vanderbilt Minerals LLC, Norwalk, CT, USA), and deionized water. The percentage composition of the ceramic mixture is listed in Table 1 [62].
The ceramic paste was prepared in a high-speed planetary centrifugal mixer (Thinky ARV-310, Thinky Corporation, Tokyo, Japan). The mixing protocol comprised three stages. In the first stage, all paste constituents were premixed at 750 rpm for 10 s. The rotational speed was then increased to 1100 rpm and mixing continued for 30 s. To ensure complete homogenization, a final stage at 2000 rpm was applied for 60 s.
The prepared ceramic paste was subsequently used to fabricate ceramic filters (Figure 1) and rectangular prismatic specimens with a cross-section of 10 × 10 mm. The prismatic specimens were printed with solid infill (100%). During 3D printing, a 2 mm nozzle was employed.
The next stage of the process comprised drying and removal of organic constituents (debinding). Drying was carried out under ambient conditions at 21 °C for 48 h. The dried filters and rectangular prismatic specimens were then subjected to a burnout step at 200 °C for 2 h, with a heating rate of 10 °C/h. A representative view of the filter after the organic-removal (debinding) stage is shown in Figure 2.

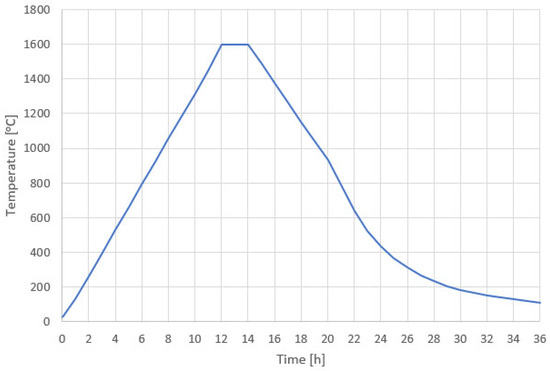

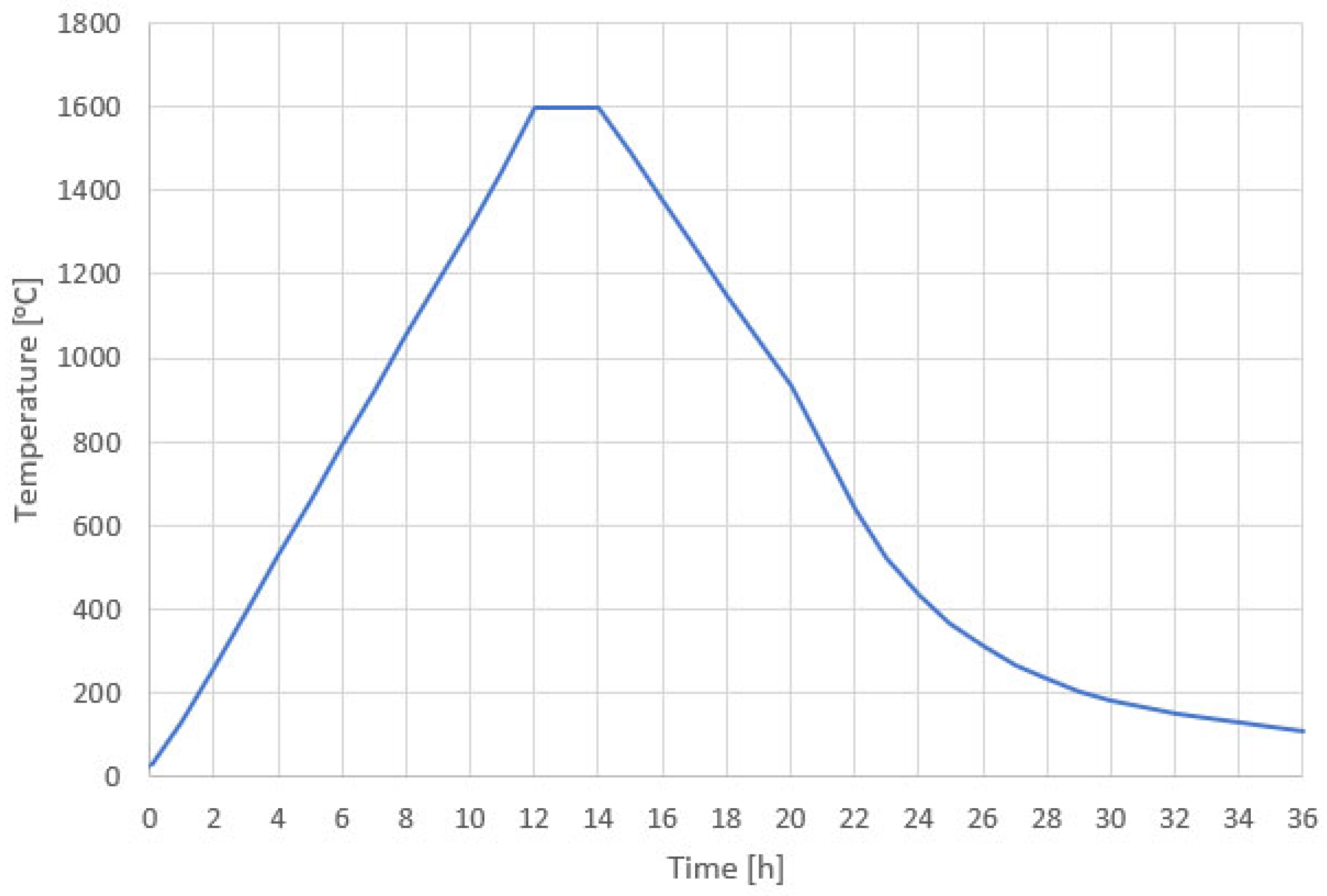

The final stage of the process was ceramic sintering. Samples were sintered in ambient air (no controlled atmosphere was employed). The furnace was heated at an average rate of ~133 °C/h to 1600 °C, soaked at 1600 °C for 2 h, and then furnace-cooled (cooled with the furnace) with an average cooling rate of ~68 °C/h between 1600 and 100 °C, followed by passive cooling to room temperature. The total thermal cycle time was ~36 h. The sintering temperature profile is shown in Figure 3.

2.2. Three-Point Bending Strength Testing

Flexural strength tests were performed using a testing machine with a maximum load capacity of 400 kN and a speed was set to 1 mm/min. The tests were conducted in accordance with PN-EN 843-1:2007 [76].
Tests were carried out on solid rectangular prismatic specimens (10 × 10 × 60 mm), considering two loading directions with respect to the layer orientation resulting from the printing process. Specimens were designated SB (solid bar), with an additional suffix specifying the loading orientation: SBL for loading perpendicular to the layers, and SBII for loading parallel to the layers. The test was conducted at a speed of 1 mm/min. A schematic of the load orientation relative to the layers and an example of a mounted specimen during three-point bending are shown in Figure 4.

2.3. Compressive Strength Testing

Compressive strength tests were performed using a testing machine with a maximum load capacity of 400 kN, equipped with a mechanism for controlling the crosshead speed and fitted with compression platens of diameters D = 22 mm and D = 40 mm and a speed was set to 1 mm/min. The tests employed robocast solid cylindrical specimens with dimensions D = 11 mm, h = 11 mm and D = 15 mm, h = 15 mm, designated SC (solid cylinder) ceramic filters designated as FP22 for a platen diameter of 22 mm and FP40 for a platen diameter of 40 mm were used for the tests. Representative images of the filters prepared for bending tests are shown in Figure 5.

2.4. Microstructural Analysis

Selected areas of metallographic cross-sections were subjected to microstructural analysis using scanning electron microscopy (SEM; JSM-6460LV, JEOL, Tokyo, Japan). Observations were carried out for:
  • two solid specimens formed by robocasting and pressureless sintered, designated SC (solid cylinder);
  • five ceramic filters, examined at different locations across the transverse cross-section—top (FT), middle (FM), bottom (FB), and side (FS); see Figure 6—in backscattered electron (BSE) and secondary electron (SEI) modes, at an accelerating voltage of 10 kV and magnifications in the range of 50–1000×. In addition, macrographs of selected filter regions were acquired at 50× in SEI mode.
A compilation of all micrographs at 100×, 500×, and 1000× is provided in Appendix A. The compilations are grouped by the respective filter regions: FT (Figure A1), FM (Figure A2), FB (Figure A3), and FS (Figure A4).

2.5. Hardness Testing

Hardness testing of specimens cut from the ceramic filter structure was performed by the Vickers method in accordance with PN-EN 843-4:2006 [77]. Measurements were carried out using a digital Vickers hardness tester FLC-50VX (FUTURE-TECH, Kawasaki, Japan) with applied loads of 9.81 N (HV1) and 98.1 N (HV10).
The analysis was conducted on metallographic cross-sections prepared from transverse sections of specimens cut from the ceramic filters and, for comparison, on solid specimens (SC) after pressureless sintering. Following the adopted methodology, measurements were taken in four characteristic regions of the filters: the top lamella (FT), middle lamella (FM), bottom lamella (FB), and the side wall (FS), as schematically shown in Figure 6.
Fracture toughness was determined by the indentation method, i.e., by evaluating the critical stress intensity factor KIC(HV). The procedure involves applying a load to produce a Vickers indentation from whose corners cracks initiate, followed by measuring the indentation diagonals and the lengths of the resulting cracks. The Niihara method was used for the calculations.
An attempt was made to determine fracture toughness at a load of 30 kgf (HV30); however, the generated cracks reached the edges of the lamella cross-sections (Figure 7), which precluded a reliable determination of KIC(HV). Consequently, a load of 10 kgf (98.1 N; HV10) was employed, which yielded indentations with proper geometry and single cracks emanating from the indentation corners. Based on the measured indentation diagonals and crack lengths, the values of KIC(HV) were calculated.

2.6. Phase Composition Analysis

The surfaces of the sintered solid cylindrical (SC) specimens were examined by X-ray diffraction (XRD) using an Empyrean diffractometer (PANalytical, Worcestershire, UK) equipped with a copper-anode X-ray tube (Cu Kα1 = 1.5419 Å), a nickel filter, and a PIXcel3D detector. Data acquisition and analysis were performed with PANalytical HighScore Plus software version 4.8 integrated with the ICDD PDF-4+ 2023 crystallographic database. Phase analysis was conducted on diffractograms recorded in Bragg–Brentano geometry.

2.7. Density Determination

The materials were subjected to apparent-density measurements in accordance with PN-EN 623-2:2001 [78]. The measurement was performed on a PS 1000.R2 precision scale (Radwag, Radom, Poland) with a RADWAG KIT 128 accessory. The apparent density ρo was calculated using Equation (1):
ρ o = m 1 m 3 − m 2 · ρ l
where
  • ρo—apparent density of the material [g/cm3],
  • m1—dry mass of the specimen [g],
  • m2—apparent (buoyant) mass of the immersed specimen in the liquid [g],
  • m3—mass of the specimen saturated with the liquid, [g],
  • ρl—density of the liquid used for weighing [g/cm3].

2.8. Young’s Modulus Determination

Young’s modulus was determined by the ultrasonic method. Transit times of longitudinal and transverse ultrasonic waves through the specimens were measured using a digital flaw detector EPOCH 3 (Olympus, Tokyo, Japan) equipped with broadband transducers. The elastic constants were calculated from the ultrasonic wave velocities in the material and the specimen density using the Modulus 1.0 software. Young’s modulus was then computed using the following Equation (2):
E = p · C T 2 3 C L 2 − 4 C T 2 C L 2 − C T 2
where
  • E—Young’s modulus [GPa],
  • CL—longitudinal wave velocity [km/s],
  • CT—transverse (shear) wave velocity [km/s],
  • p—material density [g/cm3].

3. Results

3.1. Phase Composition Analysis

The results of the phase composition analysis of the sintered materials shaped as solid cylinders (SC) are presented in Figure 8.

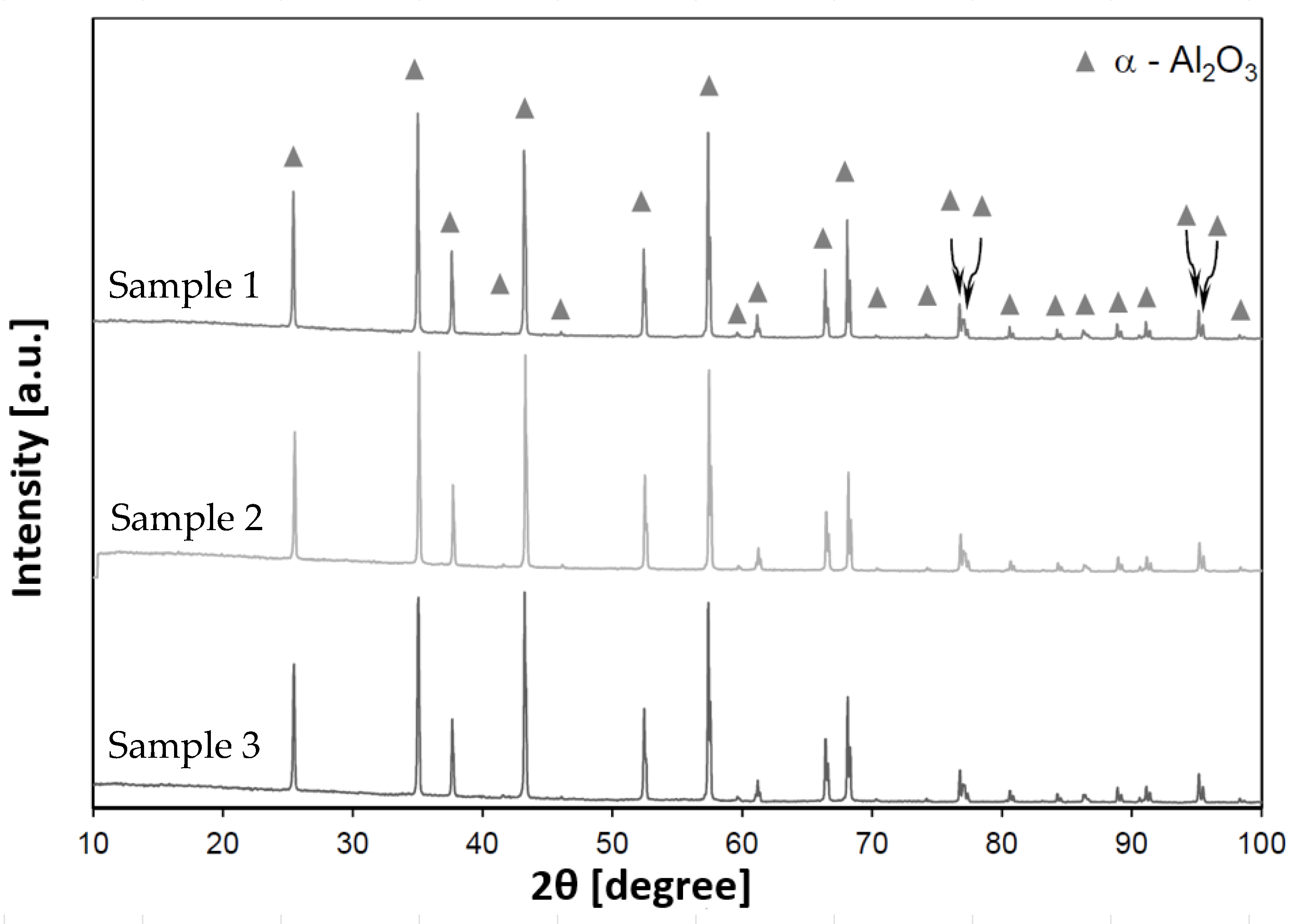

Phase composition analysis confirmed the presence of α-phase alumina (Al2O3, card no. 00-046-1212), with no other crystalline phases detected.

3.2. Young’s Modulus and Density Determination

Apparent density, bulk density, porosity, and Young’s modulus were measured on SC (solid cylinder) samples. The results indicate that cylinders formed from the ceramic paste—comprising predominantly alumina (Al2O3) with organic additives removed in subsequent firing steps—exhibit physical properties comparable to technical ceramics produced by conventional routes [79,80,81]. The measured mean apparent density for specimens SC1–SC5 was 3.91 g/cm3, with an average open porosity of 0.34% and an average Young’s modulus of 384.4 GPa. Detailed results of apparent and bulk density measurements and Young’s modulus, together with a benchmark for conventional manufacturing technologies, are summarized in Table 2.

3.3. Microstructural Analysis

Microstructural observations performed by scanning electron microscopy (SEM) showed that, irrespective of specimen geometry—both solid cylinder samples (SC) and ceramic filters (FT, FM, FB, FS)—the material exhibits a high degree of densification. In the microstructures of the solid specimens (Figure 9), no cracks, unbonded material, or significant porosity were observed; the size of individual closed pores did not exceed 10 µm.
For the ceramic filters (Figure 10), analysis conducted in all four inspection regions (Figure 6) revealed the presence of minor structural discontinuities in the form of closed pores, which may arise from incomplete degassing of the ceramic paste prior to printing. Furthermore, the interface between successive transverse layers is continuous. This is important because, in this zone, adjacent material layers meet at 90°, and the interface width corresponds to the diameter of the nozzle used in the 3D-printing process. Such regions may serve as sites for the accumulation of residual stresses generated by material shrinkage during drying and sintering. It should also be noted that the cross-section of an individual printed layer is approximately circular, which can lead to local notch formation at layer junctions (Figure 10d). These discontinuities may constitute potential sites for crack initiation and propagation under mechanical and thermal loading.

3.4. Hardness Testing

Hardness and fracture toughness measurements were performed both on pressureless-sintered solid materials and on ceramic filters in the top, middle, and bottom lamella regions, as well as within the side walls. Microstructures showing Vickers indents (HV10) with the associated cracks are presented in Figure 11.
Vickers hardness measurements (HV10) showed that both solid materials and the printed filters in all analyzed regions (FT, FM, FB, FS) exhibit hardness values in the range 16.9–17.6 GPa, confirming the absence of significant differences between the specimen preparation routes and among the respective zones. An analogous trend was observed under the higher load (98.1 N, HV10), for which the hardness values were 15.3–15.6 GPa. For comparison, classical manufacturing methods—slip casting, ceramic injection molding (CIM), and dry pressing—are reported to yield hardness values of 14.7, 19.61, and 14.8 GPa, respectively [79,80,83].

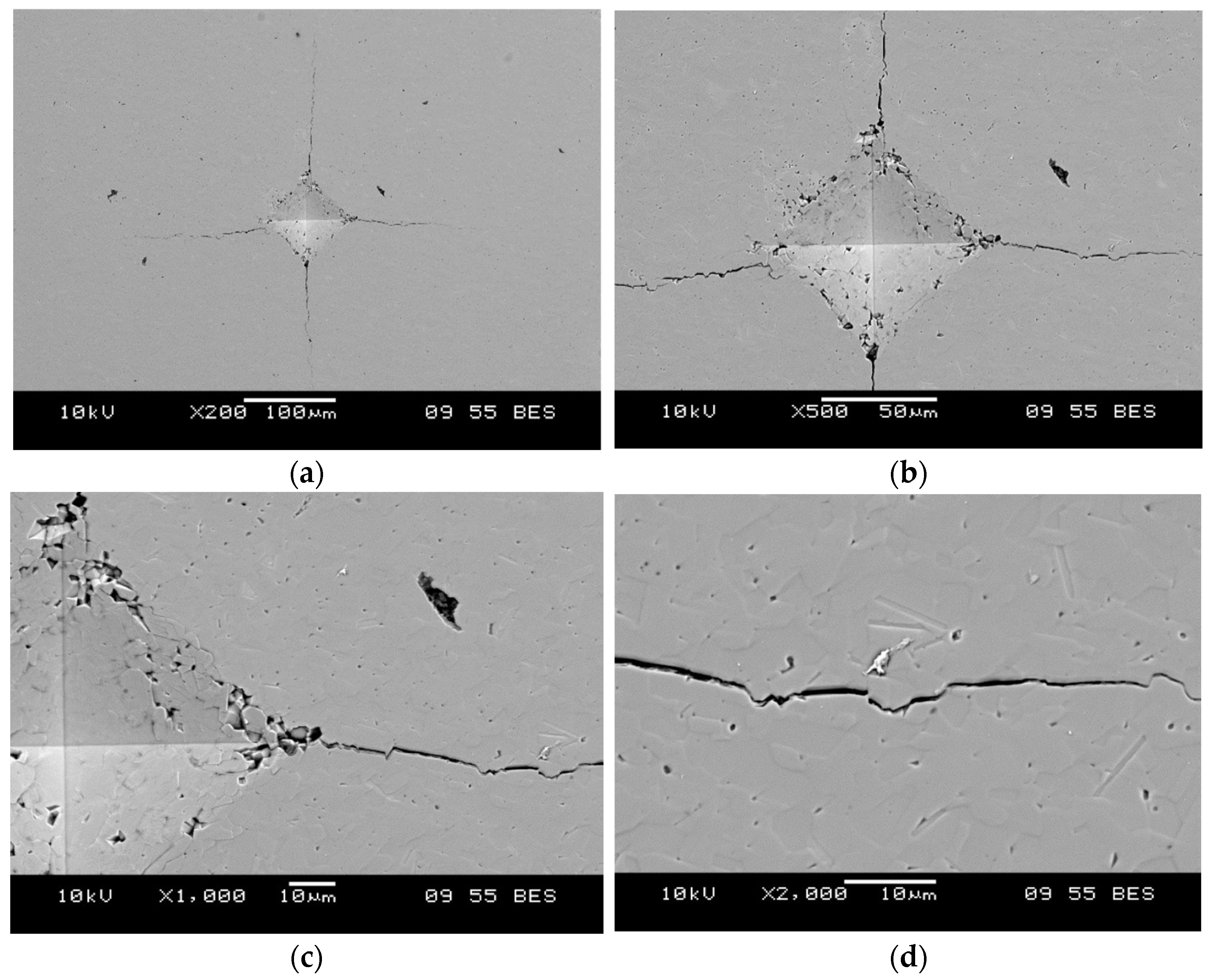

The critical stress intensity factor KIC was determined for both the solid materials and the printed filters, with measurements conducted in the four regions (FT, FM, FB, FS). Regardless of specimen preparation route and measurement location, the obtained values lay within 3.46–3.64 MPa·m1/2. Comparing the mechanical properties of the filters with those of the pressureless-sintered solid printed specimens, it is evident that the mean HV1, HV10, and KIC (HV) values for the filters are similar, showing only slightly lower values than those of the solid materials. Detailed results of the hardness and critical stress intensity factor measurements are summarized in Table 3.

3.5. Three-Point Bending Strength Testing

Table 4 presents the results of three-point flexural strength tests for rectangular specimens fabricated by robocasting. Specimens loaded perpendicular to the printed-layer direction (SBL) attained bending forces in the range 4.2–6.4 kN, corresponding to stresses of 378–576 MPa. In contrast, specimens loaded parallel to the layer-deposition direction (SBII) exhibited maximum forces of 5.6–5.8 kN, translating into stresses of 504–522 MPa. Moreover, greater result repeatability was observed for SBII specimens than for SBL sample.
For comparison, the literature and industrial practice commonly report that for technical-grade alumina (95–97% Al2O3) the flexural strength lies in the range 200–350 MPa, whereas for high-purity ceramics (99.5–99.9% Al2O3) the values are 300–450 MPa. The present results therefore indicate that the robocast samples exhibit higher flexural strength than ceramics produced by standard manufacturing routes, which are 418 MPa for slip casting, 250–350 MPa for CIM, and 300–500 MPa for dry pressing [81,84,85].

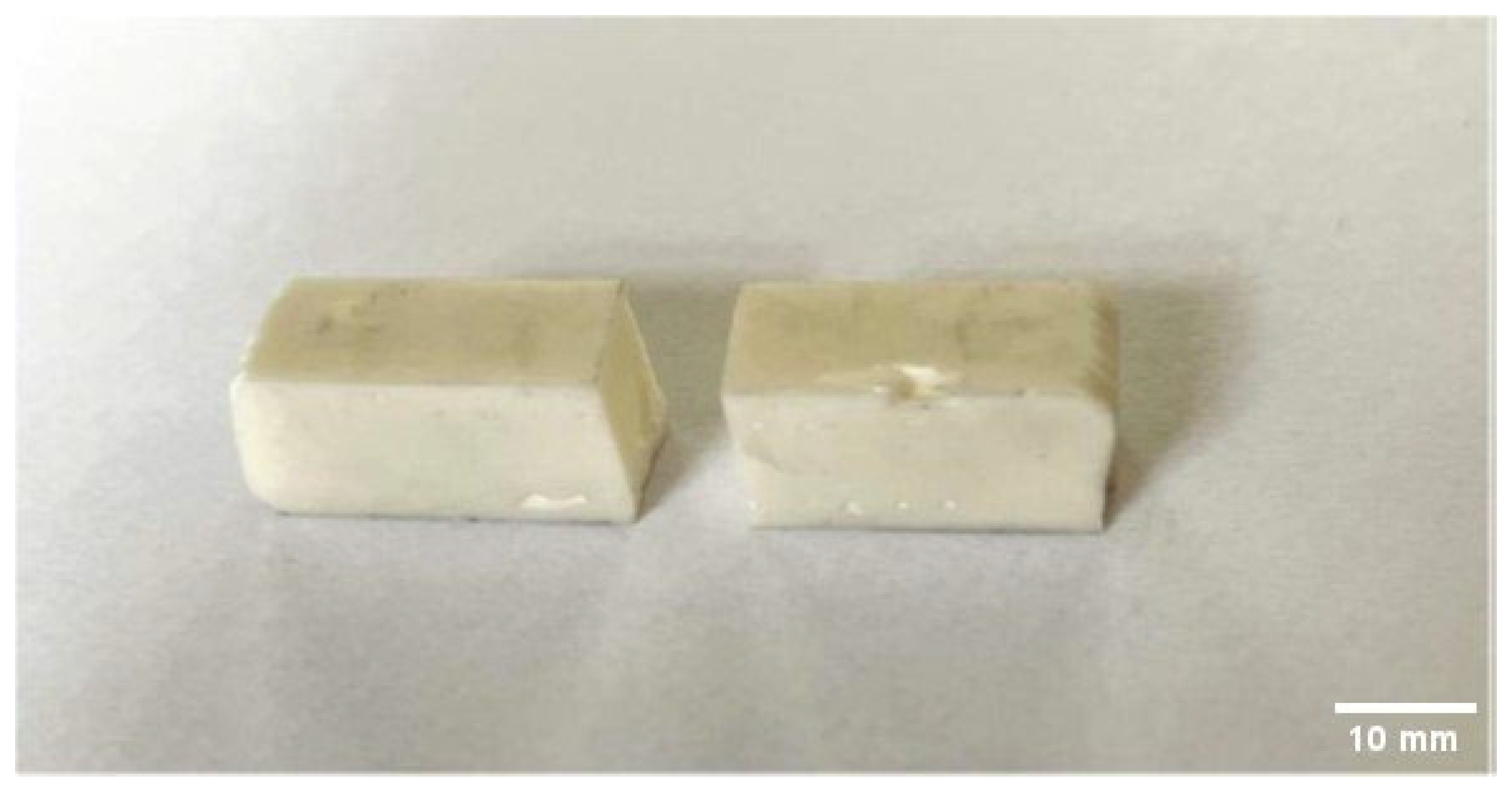

Figure 12 shows the fracture edge of a rectangular specimen subjected to a bending load applied perpendicular to the printed-layer direction. The fracture plane is straight and exhibits no ragged edges, indicating a dominant brittle fracture mechanism—typical of ceramics—in which the absence of plastic deformation prevents energy dissipation in the fracture process zone. Consequently, crack initiation occurs at local microstructural defects (e.g., micropores or discontinuities), and subsequent propagation proceeds rapidly along the plane of lowest resistance to crack growth.

3.6. Compressive Strength Testing

During compressive strength analyses of solid specimens fabricated by robocasting, it was observed that the applied load increases linearly up to the compressive strength limit. Once this limit is exceeded, catastrophic failure occurs, resulting in an abrupt drop in the recorded load. A representative load–displacement curve is shown in Figure 13. Such a response is characteristic of brittle ceramic materials.

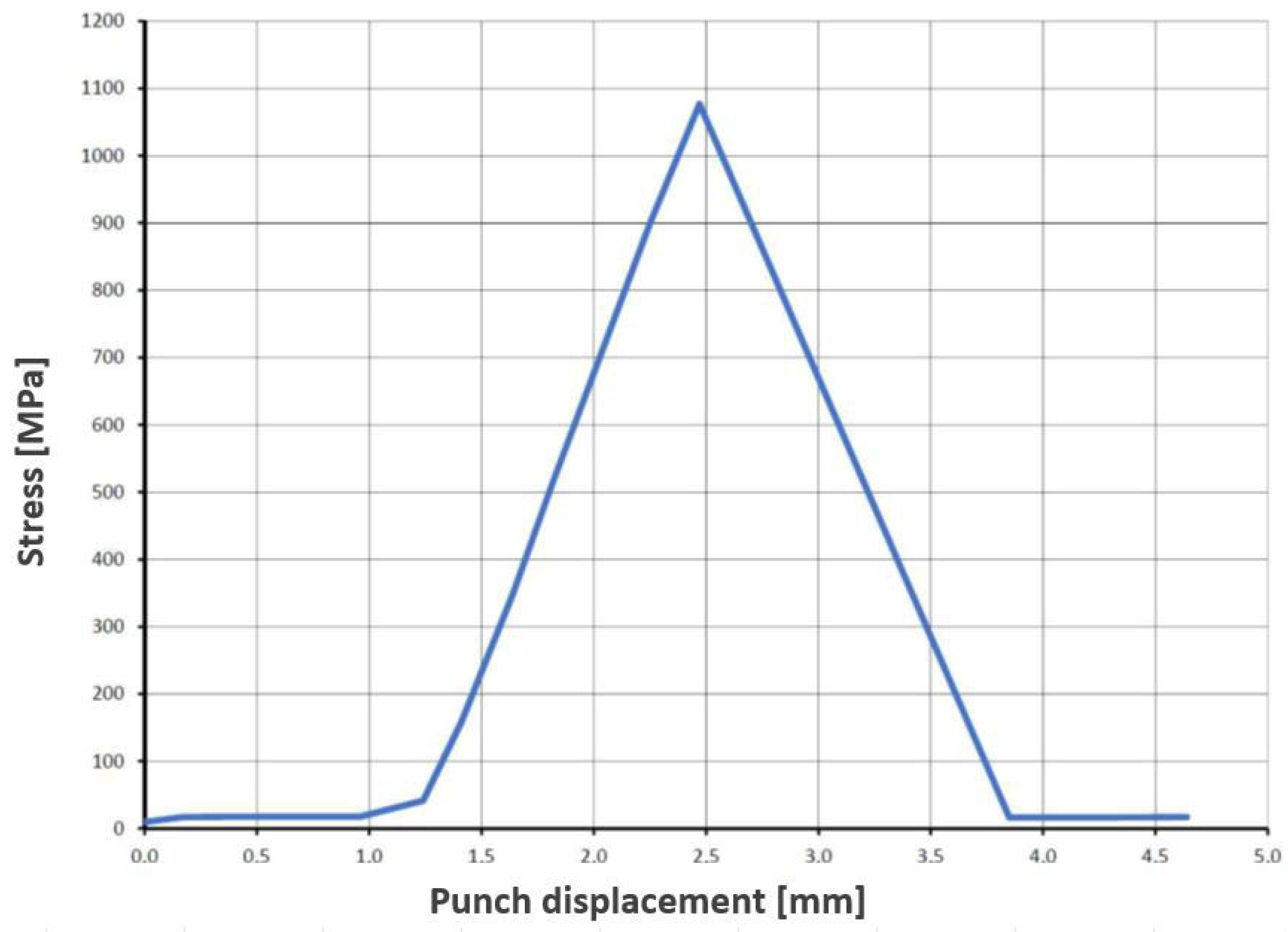

The results of compressive strength tests for solid cylinder (SC) samples are summarized in Table 5. For cylinders with a diameter of 11 mm and a height of 11 mm (SC1–SC6), the maximum compressive load ranged from 55.6 to 163.3 kN, corresponding to compressive strengths from 585.1 MPa (SC4) to 1718.3 MPa (SC5). A pronounced scatter in the results is evident, which may indicate the presence of internal defects—structural discontinuities (voids)—in specimens with lower maximum load values (<120 kN, i.e., SC1 and SC4). For cylinders with a diameter of 15 mm and a height of 15 mm (SC7–SC12), the maximum compressive load was in the range 190.3–320.0 kN, with corresponding compressive strengths from 1076.9 MPa (SC7) to 1810.8 MPa (SC9).
Compared with the solid specimens, the curves illustrating the compressive load measurement for the ceramic filters (Figure 14) exhibit a more stepwise (staircase-like) evolution of the recorded load, particularly when using the 40 mm-diameter platen.

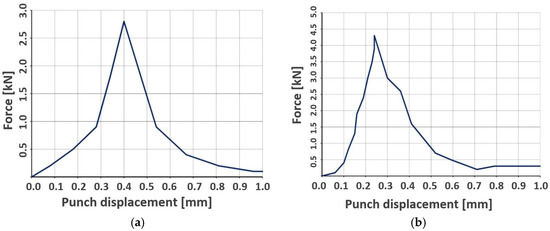

The compressive force required to fracture the ceramic filters when loaded with the 40 mm-diameter platen ranged from 2.6 to 4.3 kN. For the 22 mm-diameter platen, the maximum values were 2.2 to 4.0 kN. These ranges are similar, which follows from the lattice architecture of the ceramic filters: this structure yields only a slight increase in the effective cross-sectional area beneath the larger platen, thereby limiting differences in the transmitted force. It should be emphasized that, due to the regular, porous geometry of the filters, the stress distribution under load is non-uniform, and failure initiates in local stress-concentration zones—most often at lattice rib junctions. The fracture mechanism thus differs from that observed in solid materials, where failure proceeds more uniformly and globally. A summary of the filter bending test results is presented in Table 6.

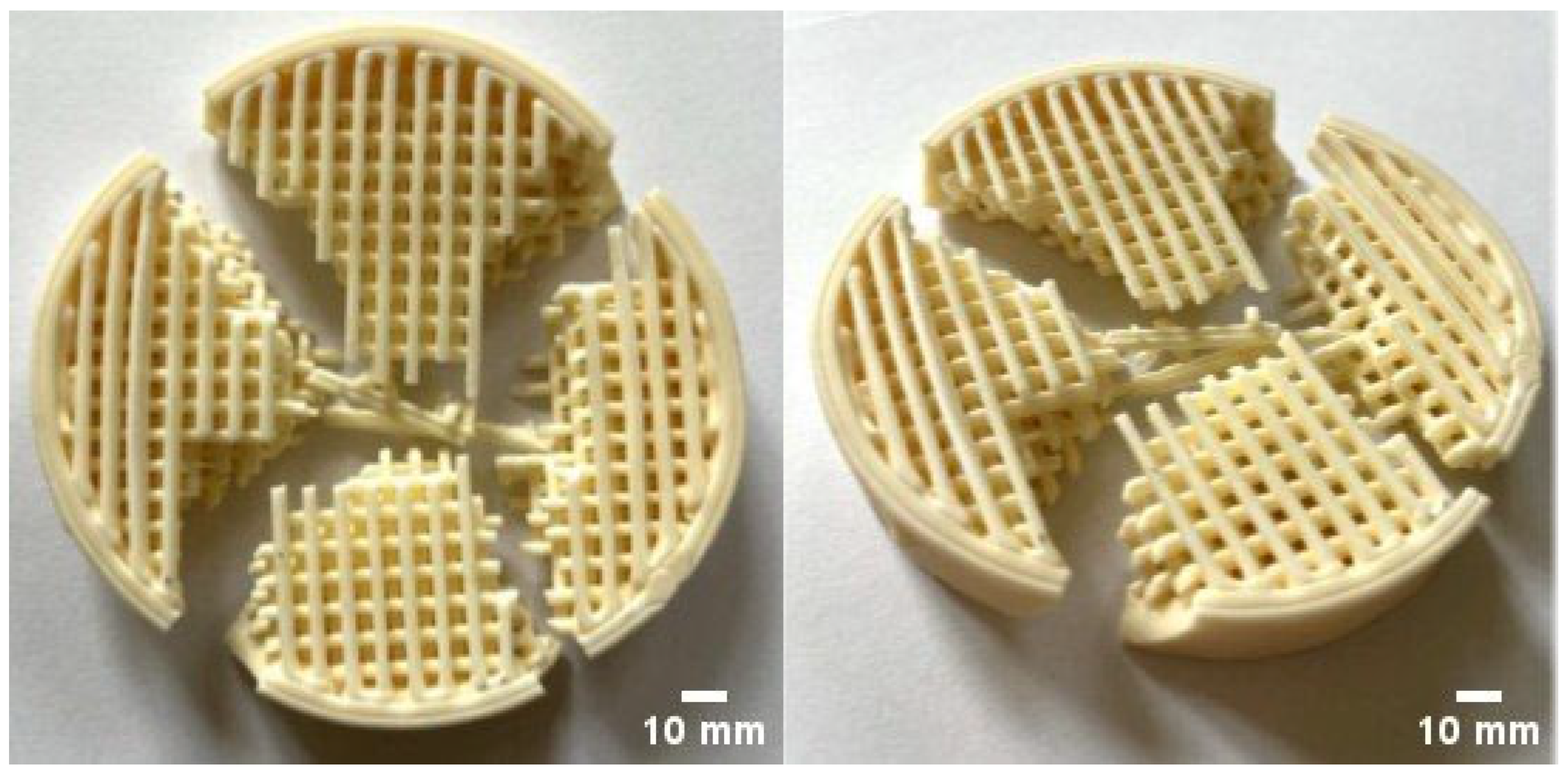

Figure 15 shows the ceramic filter after the compression test. It was observed that the crack traversed the entire volume of the specimen, propagating from the central region toward the lateral edge. As a result, the filter fractured into four relatively equal fragments. The crack-propagation pattern is associated with the lattice architecture of the filter, in which successive material layers are arranged at 90° to one another.

4. Discussion

Microstructural, phase-composition, and mechanical tests were carried out on ceramic materials fabricated by robocasting. Phase analysis confirmed the presence of alumina (Al2O3) in the α modification, with no other phases detected.
Microstructural examination of the specimens and filters produced by robocasting revealed grain sizes below 10 μm. The material exhibited a continuous structure, with pores not exceeding 10 μm. Particular attention should be paid to the interlayer interfaces. Additive technologies, by virtue of their layer-wise build strategy, are prone to issues of structural continuity in these regions. This is especially critical for ceramic materials, which require subsequent thermal treatments. Interfacial discontinuities can serve as potential sites for crack nucleation and propagation during later processing steps such as drying, burnout, or sintering. Moreover, if the printed component is intended to operate at elevated temperatures, any structural imperfections will adversely affect fracture toughness and thermal-shock resistance. It is also worth noting that a circular nozzle cross-section may not be optimal, as notches can form at both transverse and longitudinal layer junctions—features that can act as easy crack-initiation sites. In particular, for perpendicular layer interfaces, the notch exhibits a sharp transition from one layer to the next.
The density of materials manufactured by this method ranged from 3.88 to 3.93 g/cm3. These materials showed low open porosity—below 0.6%—and a Young’s modulus of approximately 380 GPa. The solid ceramic specimens exhibited high hardness, HV1 ≈ 18 GPa (HV10 ≈ 16 GPa), and a fracture toughness of 3.80 MPa·m1/2. Hardness and fracture-toughness measurements were also performed for the ceramic filters (on the side surface and on the top, middle, and bottom lamellae) printed by robocasting. The hardness and fracture toughness of the respective filter regions were comparable to those measured for the solid specimens. The filters’ HV1 hardness lay in the range 16.7–18.0 GPa (HV10 = 14.8–16.1 GPa), while their fracture toughness ranged from 3.40 to 3.66 MPa·m1/2.
A substantial scatter in the mechanical properties of robocast materials was observed, which may be influenced by local structural discontinuities. The flexural strength of specimens produced by this method ranged from 200 to 580 MPa, and the compressive strength from 1000 to 1800 MPa. Bending tests of the ceramic filters were also performed using punches of D = 22 mm and D = 40 mm diameter. Regardless of the punch used, the filters withstood applied forces in the range 2.2–4.6 kN. This follows from the specific lattice architecture of the filters, in which increasing the nominal contact area under a larger punch does not produce a commensurate increase in the effective load-bearing cross-section.

5. Conclusions

Based on the conducted investigations, technical ceramics manufactured by the modern additive process of robocasting exhibit mechanical performance comparable to oxide ceramics produced by more conventional routes such as slip casting, ceramic injection molding (CIM), and dry pressing. Moreover, the quantified pore content is markedly lower than in the case of conventional methods.
From the chemical composition analysis of the sintered ceramic components, it can be inferred that the necessary additives used to formulate the ceramic paste—the carrier for the ceramic phase in the 3D-printing process—do not introduce deleterious contamination into the final product.
Microstructural analysis confirmed that the successive layers deposited during robocasting exhibit structural continuity at the interlayer interfaces, which supports further development of oxide–ceramic processing by this technology.
In addition, the mechanical and materials evaluations of the printed ceramic filters indicate that 3D printing robocasting in particular can serve as a viable alternative manufacturing route, enabling the fabrication of components with more complex architectures than those attainable by currently employed production methods, while maintaining the required mechanical and material-property targets.

Author Contributions

Conceptualization, S.P., M.K. (Michał Kwiatkowski) and M.H.; methodology, S.P., M.K. (Maciej Kwiatkowski), M.K. (Michał Kwiatkowski), and M.H.; software, S.P., and M.K. (Maciej Kwiatkowski); validation, S.P. and M.H.; formal analysis, S.P., M.K. (Maciej Kwiatkowski), M.K. (Michał Kwiatkowski), and M.H.; investigation, S.P., and M.K. (Michał Kwiatkowski); resources, M.K. (Michał Kwiatkowski), and M.H.; data curation, S.P.; writing—original draft preparation, S.P. and M.H.; writing—review and editing, S.P. and M.H.; visualization, S.P.; supervision, M.H.; project administration, M.H.; funding acquisition, M.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been supported by the Ministry of Science and Higher Education within the program “Implementation Doctorate”, DWD/6/0527/2022.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

Authors Szymon Przybyła, Maciej Kwiatkowski and Michał Kwiatkowski were employed by the company Createc Sp. z o.o. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

DIWdirect ink writing
Al2O3aluminum oxide
ZrO2zirconium oxide
Y2O3yttrium oxide
SiO2silicon dioxide
TiO2titanium dioxide
AMadditive manufacturing
BJbinder jetting
SLAstereolithography
SEMscanning electron microscopy
XRDX-ray diffraction
SBsolid bar
SBLsolid par perpendicular force
SBIIsolid bar parallel force
FTfilter top
FMfilter middle
FBfilter bottom
FSfilter side
BSEbackscattered-electron imaging
SEIsecondary-electron imaging
CIMceramic injection molding
FP40filter platen (40 mm)
FP22filter platen (22 mm)

Appendix A

Materials 18 04775 g0a1

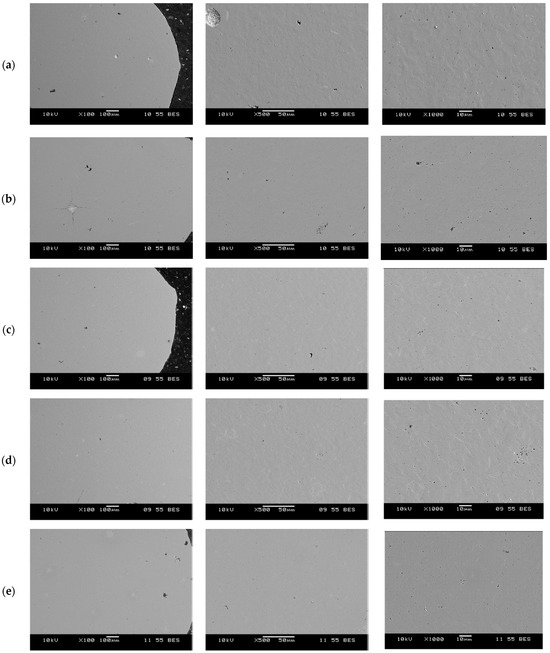

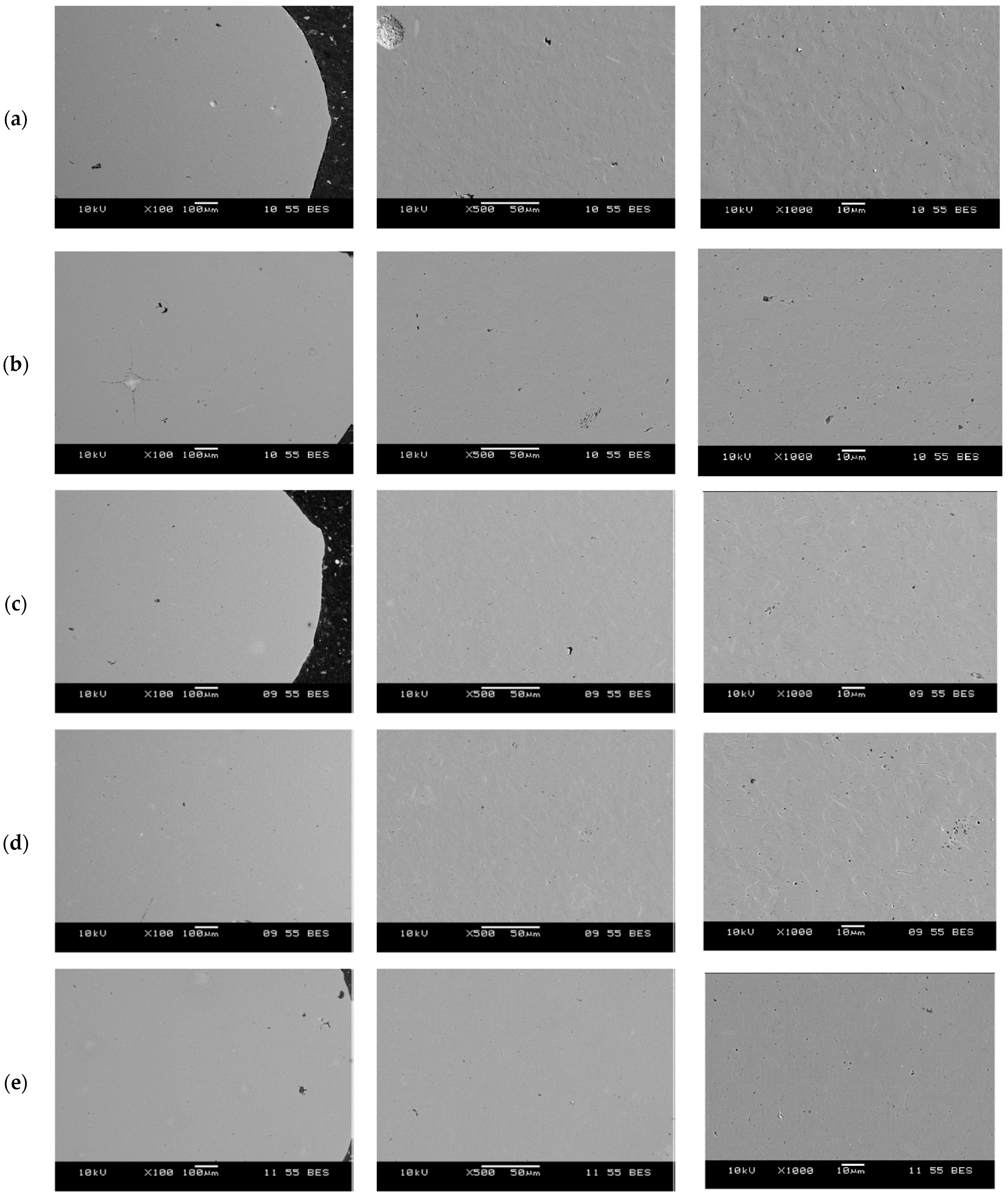

Figure A1. Microstructures of the five samples of filters in the top lamella regions (FT) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Figure A1. Microstructures of the five samples of filters in the top lamella regions (FT) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Materials 18 04775 g0a1
Materials 18 04775 g0a2

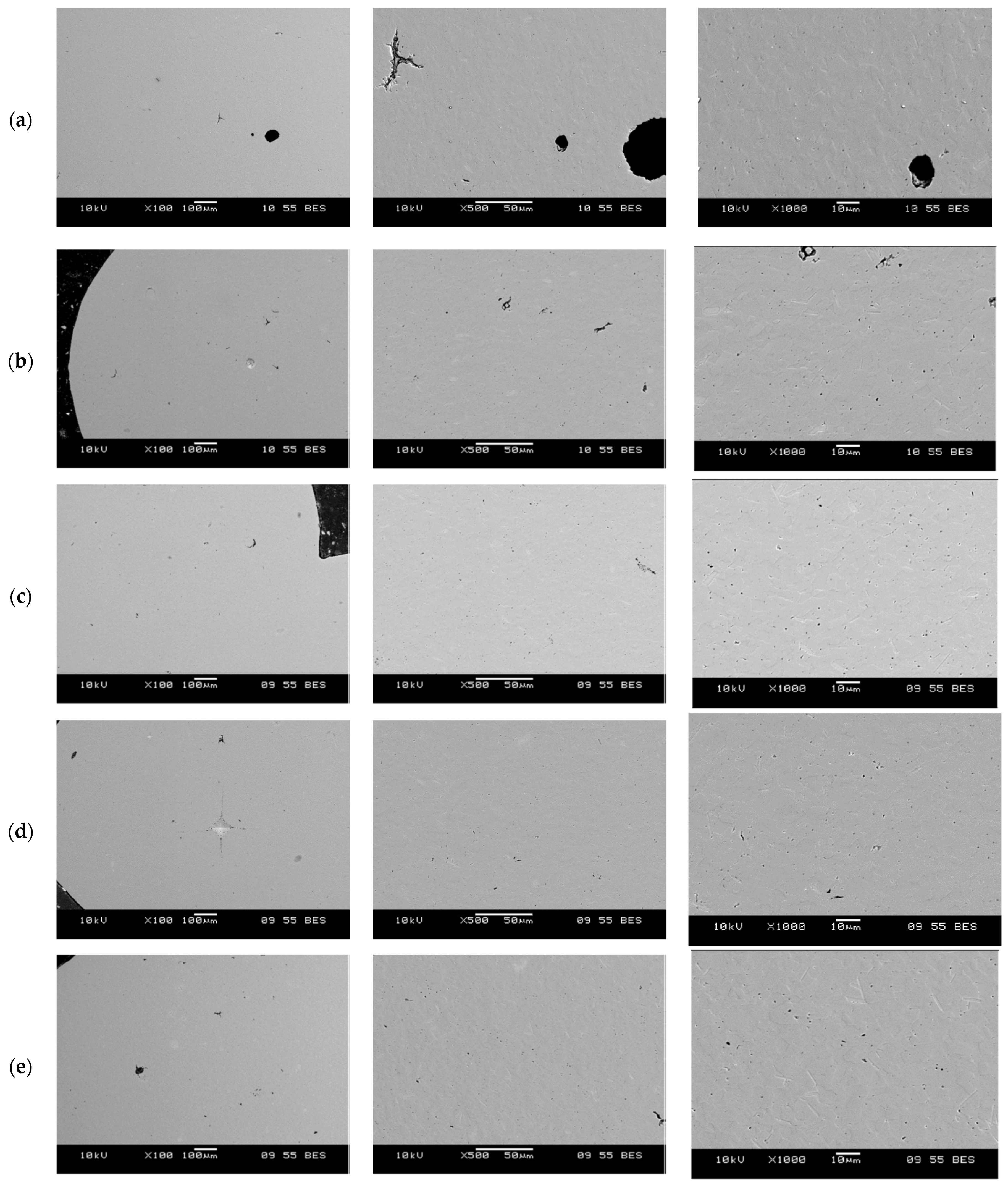

Figure A2. Microstructures of the five samples of filters in the middle lamella regions (FM) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Figure A2. Microstructures of the five samples of filters in the middle lamella regions (FM) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Materials 18 04775 g0a2
Materials 18 04775 g0a3

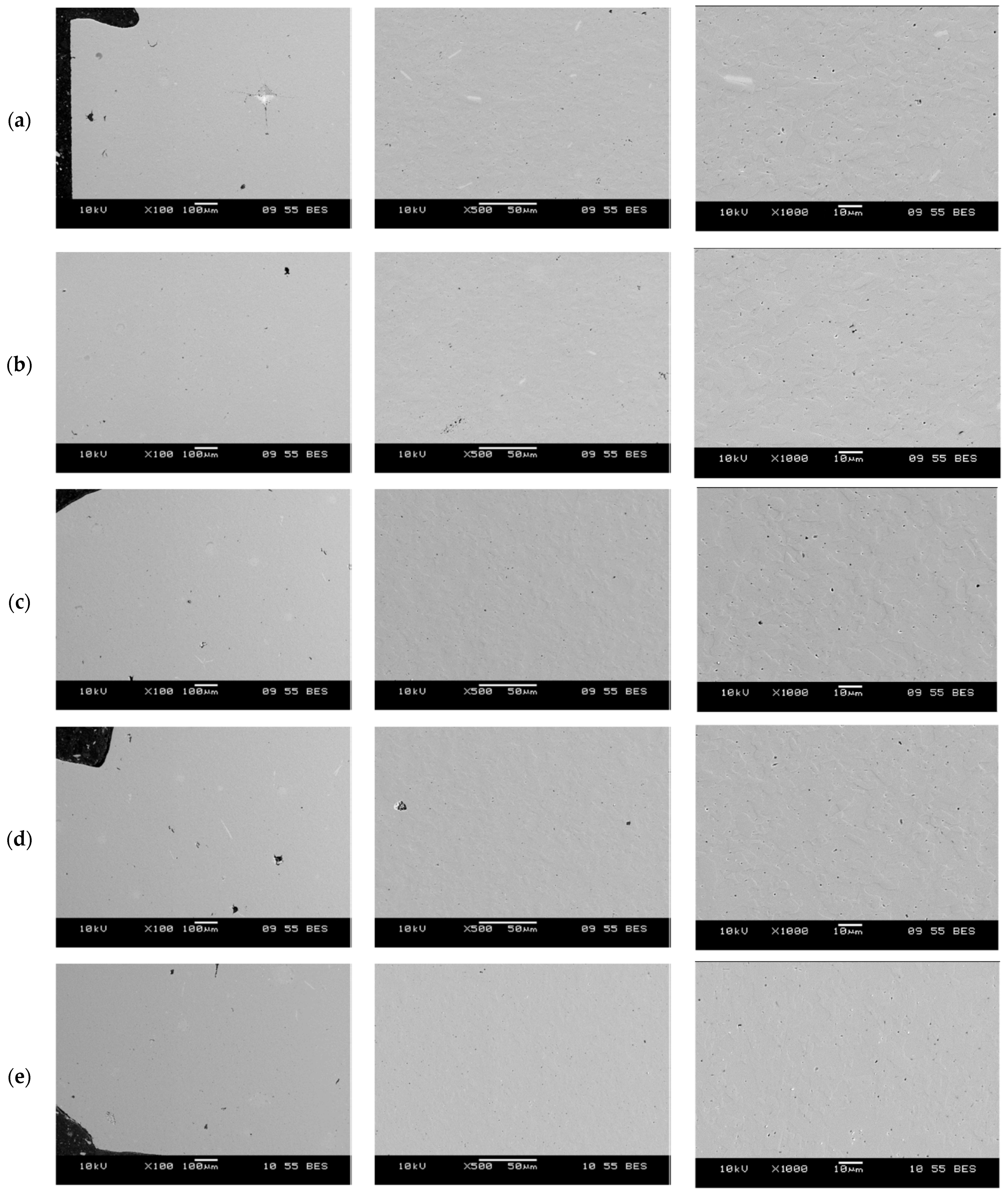

Figure A3. Microstructures of the five samples of filters in the bottom lamella regions (FB) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Figure A3. Microstructures of the five samples of filters in the bottom lamella regions (FB) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5.
Materials 18 04775 g0a3
Materials 18 04775 g0a4

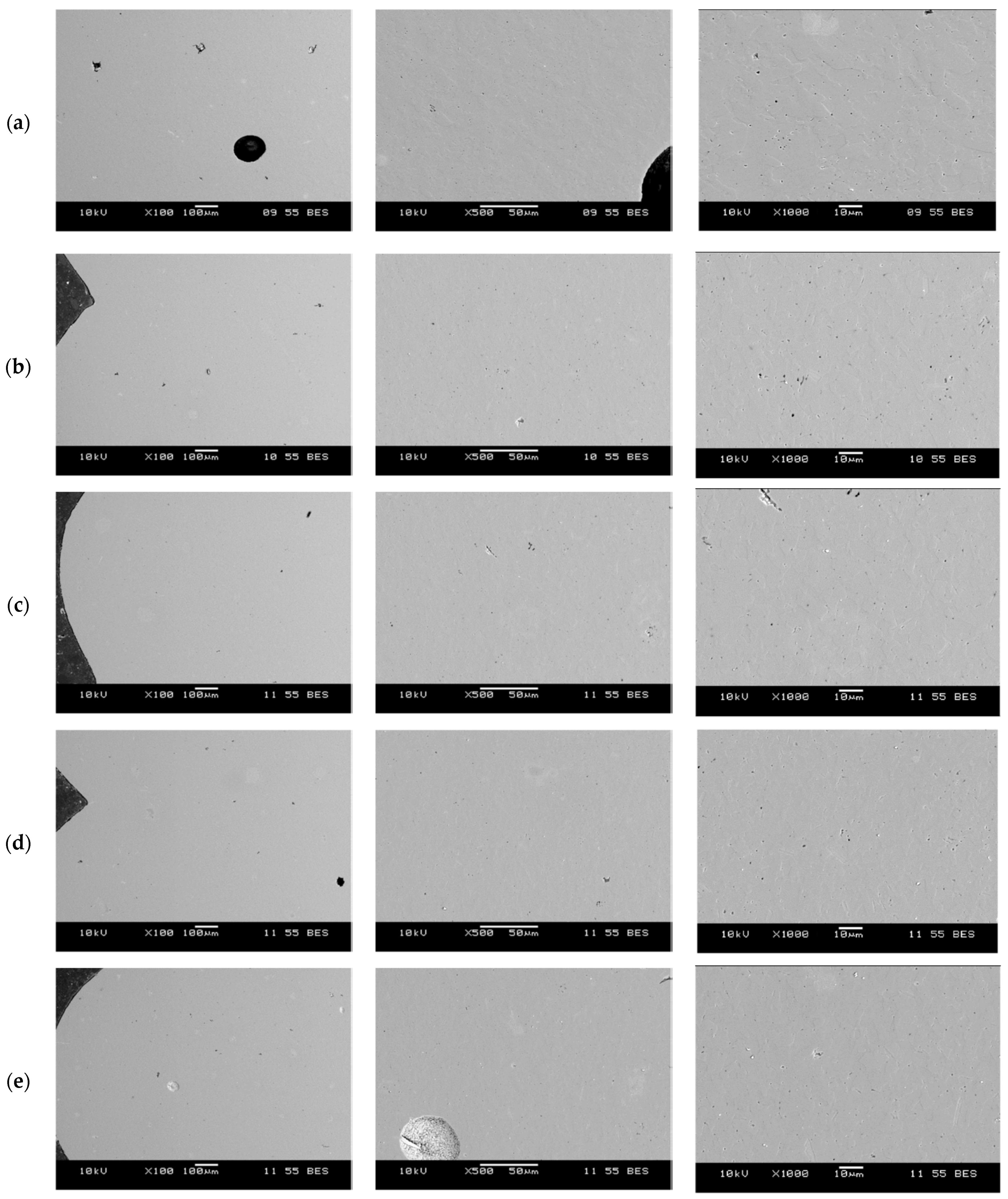

Figure A4. Microstructures of the five samples of filters in the external wall regions (FS) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5..
Figure A4. Microstructures of the five samples of filters in the external wall regions (FS) at magnifications of 100×, 500×, and 1000× (BSE mode): (a) Sample 1, (b) Sample 2, (c) Sample 3, (d) Sample 4, (e) Sample 5..
Materials 18 04775 g0a4

References

  1. Zhu, Z.; Liu, Y.; Qin, Y.; Gu, F.; Zhuang, L.; Yu, H.; Chu, Y. Tough and strong bioinspired high-entropy all-ceramics with a contiguous network structure. Nat. Commun. 2025, 16, 4587. [Google Scholar]
  2. Ramachandran, K.; Bear, C.J.; Jayaseelan, D.D. Oxide-Based Ceramic Matrix Composites for High-Temperature Environments: A Review. Adv. Eng. Mater. 2025, 27, 2402000. [Google Scholar] [CrossRef]
  3. Sheinerman, A.G. Model of enhanced flexural strength of ceramics at elevated temperatures. Mech. Mater. 2025, 208, 105398. [Google Scholar] [CrossRef]
  4. Volosova, M.A.; Okunkova, A.A.; Kropotkina, E.Y.; Mustafaev, E.S.; Gkhashim, K.I. Wear Resistance of Ceramic Cutting Inserts Using Nitride Coatings and Microtexturing by Electrical Discharge Machining. Eng 2025, 6, 11. [Google Scholar] [CrossRef]
  5. Varga, M.; Grundtner, R.; Maj, M.; Tatzgern, F.; Alessio, K.O. Impact-abrasive wear resistance of high alumina ceramics and ZTA. Wear 2023, 522, 204700. [Google Scholar] [CrossRef]
  6. Wu, T.; Li, Y.; Liu, G.; Zhao, H.; Wu, B. Effect of Yb2O3 and Tm2O3 on the wear resistance of high-alumina ceramics. Wear 2020, 452–453, 203281. [Google Scholar]
  7. Jeon, J.Y.; Ha, S.J.; Cha, H.A.; Kim, J.H.; Ahn, C.W.; Choi, J.J.; Hahn, B.-D.; Bae, S.-H.; Moon, Y.K. Engineering oxide ceramic fillers for thermal interface materials: Enhanced thermal conductivity and thixotropy through hydrophobated MgO/PDMS composite materials. Adv. Compos. Hybrid Mater. 2025, 8, 248. [Google Scholar] [CrossRef]
  8. Sun, Y.; Li, S.; Zhao, Q.; Cong, Z.; Xia, Y.; Jiao, X.; Chen, D. Recent Advancements in Alumina-Based High-Temperature Insulating Materials: Properties, Applications, and Future Perspectives. High-Temp. Mater. 2025, 2, 10001. [Google Scholar] [CrossRef]
  9. Kamutzki, F.; Schneider, S.; Barowski, J.; Gurlo, A.; Hanaor, D.A.H. Silicate dielectric ceramics for millimetre wave applications. J. Eur. Ceram. Soc. 2021, 41, 3879–3894. [Google Scholar] [CrossRef]
  10. Guo, P.; Su, L.; Jia, S.; Dai, Z.; Ni, Z.; Guo, J.; Wang, X.; Peng, K.; Wang, H. High-strength and damage-resistant ceramic nanowire Bouligand Architectures. Chem. Eng. J. 2025, 514, 162817. [Google Scholar] [CrossRef]
  11. Ćurković, L.; Žmak, I. Mechanical Properties and Applications of Advanced Ceramics. Materials 2024, 17, 3143. [Google Scholar] [CrossRef]
  12. Chen, Z.; Huang, Y.; Koutná, N.; Gao, Z.; Sangiovanni, D.G.; Fellner, S.; Haberfehlner, G.; Jin, S.; Mayrhofer, P.H.; Kothleitner, G.; et al. Large mechanical properties enhancement in ceramics through vacancy-mediated unit cell disturbance. Nat. Commun. 2023, 14, 8387. [Google Scholar] [CrossRef]
  13. Lei, Z.; Ding, Y.; Ju, X.; Wang, Q.; Peng, Y.; Chen, M. Integrated cold sintering of ceramic circuit substrate for power device packaging. Ceram. Int. 2025, 51, 17870–17878. [Google Scholar] [CrossRef]
  14. Cho, H.S.; Kim, S.H.; Kim, H.N.; Kim, M.-J.; Ko, J.-W.; Lee, J.-W.; Park, Y.-J.; Kim, J.-H.; Lee, H.-C.; Yoon, S.-Y.; et al. Microstructural evolution and plasma etching resistance of Y2O3-YAM composite layers sinter-bonded on Al2O3 substrate for semiconductor processing equipment. Ceram. Int. 2025, 51, 39476–39485. [Google Scholar] [CrossRef]
  15. Tang, B.; Shi, Y.; Li, J.; Tang, J.; Feng, Q. Design, Simulation, and Fabrication of Multilayer Al2O3 Ceramic Micro-Hotplates for High Temperature Gas Sensors. Sensors 2022, 22, 6778. [Google Scholar] [CrossRef]
  16. Yatoo, M.A.; Habib, F.; Malik, A.H.; Qazi, M.J.; Ahmad, S.; Ganayee, M.A.; Ahmad, Z. Solid-oxide fuel cells: A critical review of materials for cell components. MRS Commun. 2023, 13, 378–384. [Google Scholar] [CrossRef]
  17. Li, J.; Xu, Q.; Dou, A.; Shah, M.Y.; Rauf, S.; Mushtaq, N.; Khalid, M.; Akbar, N.; Yousaf, M.; Lu, Y. Advanced composite electrolyte membranes for enhanced ionic conduction in ceramic fuel cells. Renew. Energy 2025, 243, 122550. [Google Scholar] [CrossRef]
  18. Stefan, A.; Manoliu, V.; Cristea, G.C. Zirconia-Based Thermal Barrier Coatings Systems for Aero-Industry. In Ceramic Coatings for High-Temperature Environments. Engineering Materials; Pakseresht, A., Amirtharaj Mosas, K.K., Eds.; Springer: Cham, Switzerland, 2024; Volume 1, pp. 151–177. [Google Scholar]
  19. Phokobye, S.N.; Desai, D.A.; Tlhabadira, I.; Sadiku, R.E.; Daniyan, I.A. Comparative analysis of the cutting performances of SiAlON ceramic, cubic boron nitride and carbide cutting tools for titanium machining. Int. J. Adv. Manuf. Technol. 2023, 128, 3775–3786. [Google Scholar] [CrossRef]
  20. Guo, S.; Zhu, F.; Xiu, Z.; Zhang, M.; Sun, X. Enhanced Performance in Si3N4 Ceramics Cutting Tool Materials by Tailoring of Phase Composition and Hot-Pressing Temperature. Coatings 2023, 13, 475. [Google Scholar] [CrossRef]
  21. Su, B.; Lu, C.; Li, C. Current Status of Research on Hybrid Ceramic Ball Bearings. Machines 2024, 12, 510. [Google Scholar] [CrossRef]
  22. Almasri, D.; Manawi, Y.; Makki, S.; Tasneem, N.; Simson, S.; Abdel-Hadi, I.; Agcaoili, J.; Lawler, J.; Kochkodan, V. A novel, low-cost clay ceramic membrane for the separation of oil-water emulsions. Sci. Rep. 2025, 15, 14457. [Google Scholar] [CrossRef]
  23. Islam, A.; Raghupathy, B.P.C.; Sivakumaran, M.V.; Keshri, A.K. Ceramic membrane for water filtration: Addressing the various concerns at once. Chem. Eng. J. 2022, 446, 137386. [Google Scholar] [CrossRef]
  24. Hang, F.; Xu, H.; Xie, C.; Li, K.; Wen, T.; Meng, L. Pretreatment of Glucose–Fructose Syrup with Ceramic Membrane Ultrafiltration Coupled with Activated Carbon. Membranes 2024, 14, 57. [Google Scholar] [CrossRef] [PubMed]
  25. Eschweiler, J.; Greven, J.; Rath, B.; Kobbe, P.; Modabber, A.; Hildebrand, F.; Migliorini, F.; Hofmann, U.K. High-Performance Ceramics in Musculoskeletal Surgery: Current Use and Future Perspectives. Ceramics 2024, 7, 310–328. [Google Scholar] [CrossRef]
  26. Vaiani, L.; Boccaccio, A.; Uva, A.E.; Palumbo, G.; Piccininni, A.; Guglielmi, P.; Cantore, S.; Santacroce, L.; Charitos, I.A.; Ballini, A. Ceramic Materials for Biomedical Applications: An Overview on Properties and Fabrication Processes. J. Funct. Biomater. 2023, 14, 146. [Google Scholar] [CrossRef]
  27. Su, G.; Zhang, Y.; Jin, C.; Zhang, Q.; Lu, J.; Liu, Z.; Wang, Q.; Zhang, X.; Ma, J. 3D printed zirconia used as dental materials: A critical review. J. Biol. Eng. 2023, 17, 78. [Google Scholar] [CrossRef]
  28. Shvydyuk, K.O.; Nunes-Pereira, J.; Rodrigues, F.F.; Silva, A.P. Review of Ceramic Composites in Aeronautics and Aerospace: A Multifunctional Approach for TPS, TBC and DBD Applications. Ceramics 2023, 6, 195–230. [Google Scholar] [CrossRef]
  29. Baier, L.; Frieß, M.; Hensch, N.; Leisner, V. Development of ultra-high temperature ceramic matrix composites for hypersonic applications via reactive melt infiltration and mechanical testing under high temperature. CEAS Space J. 2025, 17, 635–644. [Google Scholar] [CrossRef]
  30. Gautam, S.S.; Singh, R.; Vibhuti, A.S.; Sangwan, G.; Mahanta, T.K.; Gobinath, N.; Feroskhan, M. Thermal barrier coatings for internal combustion engines: A review. Mater. Today Proc. 2022, 51, 1554–1560. [Google Scholar] [CrossRef]
  31. Moustafa, E.B.; Hussein, H. Enhancing Automotive Performance: A Comparative Study of Spark Plug Electrode Configurations on Engine Behaviour and Emission Characteristics. Vehicles 2025, 7, 55. [Google Scholar] [CrossRef]
  32. Sezavar, A.; Sajjadi, S.A. A review on the performance and lifetime improvement of thermal barrier coatings. J. Eur. Ceram. Soc. 2025, 45, 117274. [Google Scholar] [CrossRef]
  33. Verma, P.C.; Tiwari, S.K.; Saurabh, A.; Manoj, A. Recent Advances in High-Entropy Ceramics: Synthesis Methods, Properties, and Emerging Applications. Ceramics 2024, 7, 1365–1389. [Google Scholar] [CrossRef]
  34. Tang, K.; Long, F.; Zhang, F.; Yin, H.; Zhao, J.; Xie, M.; An, Y.; Yang, W.; Chi, B. Research Progress on High-Temperature-Resistant Electromagnetic Wave Absorbers Based on Ceramic Materials: A Review. Nanomaterials 2025, 15, 268. [Google Scholar] [CrossRef]
  35. Wang, W.; Fu, Q.; Ge, J.; Xu, S.; Liu, Q.; Zhang, J.; Shan, H. Advancements in Thermal Insulation through Ceramic Micro-Nanofiber Materials. Molecules 2024, 29, 2279. [Google Scholar] [CrossRef]
  36. Xu, Z.; Lyu, Y.; Hou, C.; Han, Y.; Bai, Y.; Huang, Y.; Li, K. Advancements in Flexible Ceramic Fibers for High-Temperature Applications: A Comprehensive Review. High-Temp. Mater. 2025, 2, 10007. [Google Scholar] [CrossRef]
  37. Kaushal, S.; Saloni; Zeeshan, M.D.; Ansari, M.D.I.; Sharma, D. Progress in tribological research of Al2O3 ceramics: A review. Mater. Today Proc. 2023, 82, 163–167. [Google Scholar] [CrossRef]
  38. Costakis, W.; Schlup, A.; Youngblood, J.; Trice, R. Aligning α-alumina platelets via uniaxial pressing of ceramic-filled polymer blends for improved sintered transparency. J. Am. Ceram. Soc. 2020, 103, 3500–3512. [Google Scholar] [CrossRef]
  39. Raju, P.; Khanra, A.; Buchi Suresh, M.; Rao, Y.; Johnson, R. Pressure slip cast processing of alumina (Al2O3) products and comparative evaluation of mechanical properties. Adv. Appl. Ceram. 2022, 121, 211–221. [Google Scholar] [CrossRef]
  40. Bhargav Chandan, P.; Ravi Sankar, M. Extrusion-based additive manufacturing of alumina ceramics through controlled extrusion pressure. Int. J. Appl. Ceram. Technol. 2024, 22, 14935. [Google Scholar] [CrossRef]
  41. Kwiatkowski, M.; Przybyła, S.; Kwiatkowski, M.; Hebda, M. The Concept of Using 3D Printing Technology in Ceramic Foundry Filter Manufacturing. J. Mater. Eng. Perform. 2024, 33, 14426–14432. [Google Scholar] [CrossRef]
  42. Hossain, S.S.; Lu, K. Recent progress of alumina ceramics by direct ink writing: Ink design, printing and post-processing. Ceram. Int. 2023, 49, 10199–10212. [Google Scholar] [CrossRef]
  43. Mahboubizadeh, S.; Kazemi, A.; Khodaei, M. Optimizing the Printability of 3D Printed Alumina Parts Fabricated by Direct Ink Writing. Adv. J. Chem. Sect. A 2025, 8, 1776–1788. [Google Scholar]
  44. Marczyk, J.; Hebda, M. Effect of the Particle Size Distribution of Irregular Al Powder on Properties of Parts for Electronics Fabricated by Binder Jetting. Electronics 2023, 12, 2733. [Google Scholar] [CrossRef]
  45. Zhao, J.-J.; Zhang, Y.-Z.; Li, J.-H.; Wang, Z.-H.; Miao, W.-J.; Wu, F.-B.; Wang, S.-Q.; Ouyang, J.-H. Additive Manufacturing of Alumina-Based Ceramic Structures by Vat Photopolymerization: A Review of Strategies for Improving Shaping Accuracy and Properties. Materials 2025, 18, 2445. [Google Scholar] [CrossRef]
  46. Lamnini, S.; Elsayed, H.; Lakhdar, Y.; Baino, F.; Smeacetto, F.; Bernardo, E. Robocasting of advanced ceramics: Ink optimization and protocol to predict the printing parameters—A review. Heliyon 2022, 8, 10651. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, Q.; Li, H.; Han, W.; Yang, J.; Xu, W.; Zhou, Y. Three-Dimensional Printing of Yttrium Oxide Transparent Ceramics via Direct Ink Writing. Materials 2024, 17, 3366. [Google Scholar] [CrossRef] [PubMed]
  48. Saadi, M.A.S.R.; Maguire, A.; Pottackal, N.T.; Thakur, S.H.; Ikram, M.M.; Hart, A.J.; Ajayan, P.M.; Rahman, M.M. Direct Ink Writing: A 3D Printing Technology for Diverse Materials. Adv. Mater. 2022, 34, 2108855. [Google Scholar] [CrossRef] [PubMed]
  49. McCauley, P.J.; Bayles, A.V. Nozzle Innovations That Improve Capacity and Capabilities of Multimaterial Additive Manufacturing. ACS Eng. Au 2024, 4, 368–380. [Google Scholar] [CrossRef] [PubMed]
  50. del-Mazo-Barbara, L.; Ginebra, M.P. Rheological characterisation of ceramic inks for 3D direct ink writing: A review. J. Eur. Ceram. Soc. 2021, 41, 18–33. [Google Scholar] [CrossRef]
  51. Zocca, A.; Günster, J. Towards a debinding-free additive manufacturing of ceramics: A development perspective of water-based LSD and LIS technologies. Open Ceram. 2024, 19, 100632. [Google Scholar] [CrossRef]
  52. Fabuel, C.; Gómez-Tena, M.P.; Moreno, A.; González-Juárez, F.; Rico-Pérez, V.; Balcells, J. Binder Jetting for Functional Testing of Ceramic Sanitaryware. Ceramics 2025, 8, 58. [Google Scholar] [CrossRef]
  53. Du, W.; Li, M.; Pei, Z.; Ma, C. Roller-compaction-assisted binder jetting with different granulated zirconia powders. Manuf. Lett. 2023, 35, 576–582. [Google Scholar] [CrossRef]
  54. Mariani, M.; Beltrami, R.; Brusa, P.; Galassi, C.; Ardito, R.; Lecis, N. 3D printing of fine alumina powders by binder jetting. J. Eur. Ceram. Soc. 2021, 41, 5307–5315. [Google Scholar] [CrossRef]
  55. Vogt, J.; Friedrich, H.; Stepanyan, M.; Eckardt, C.; Lam, M.; Lau, D.; Chen, B.; Shan, R.; Chan, J. Improved green and sintered density of alumina parts fabricated by binder jetting and subsequent slurry infiltration. Prog. Addit. Manuf. 2022, 7, 161–171. [Google Scholar] [CrossRef]
  56. Stampfl, J.; Schwentenwein, M.; Homa, J.; Prinz, F.B. Lithography-based additive manufacturing of ceramics: Materials, applications and perspectives. MRS Commun. 2023, 13, 786–794. [Google Scholar] [CrossRef]
  57. Patil, A.; D, D.J.; Bomze, D.; Gopal, V. Wear behaviour of lithography ceramic manufactured dental zirconia. BMC Oral Health 2023, 23, 276. [Google Scholar] [CrossRef] [PubMed]
  58. Lube, T.; Staudacher, M.; Hofer, A.-K.; Schlacher, J.; Bermejo, R. Stereolithographic 3D Printing of Ceramics: Challenges and Opportunities for Structural Integrity. Adv. Eng. Mater. 2022, 25, 2200520. [Google Scholar] [CrossRef]
  59. Sänger, J.C.; Schwentenwein, M.; Bermejo, R.; Günster, J. Hybridizing Lithography-Based Ceramic Additive Manufacturing with Two-Photon-Polymerization. Appl. Sci. 2023, 13, 3974. [Google Scholar] [CrossRef]
  60. Arora, P.; Mostafa, K.G.; Russell, E.; Dehgahi, S.; Butt, S.U.; Talamona, D.; Qureshi, A.J. Shrinkage Compensation and Effect of Building Orientation on Mechanical Properties of Ceramic Stereolithography Parts. Polymers 2023, 15, 3877. [Google Scholar] [CrossRef]
  61. Álvarez-Chimal, R.; Vázquez-Vázquez, F.C.; Serrano-Bello, J.; López-Barrios, K.; Marichi-Rodríguez, F.J.; Álvarez-Pérez, M.A. A Review of 3D Printing by Robocasting and Stereolithography for Cartilage and Ocular Tissue Regeneration. Biomed. Mater. Devices 2025, 3, 1087–1103. [Google Scholar] [CrossRef]
  62. Przybyła, S.; Kwiatkowski, M.; Kwiatkowski, M.; Hebda, M. Optimization of Ceramic Paste Composition for 3D Printing via Robocasting. Materials 2024, 17, 4560. [Google Scholar] [CrossRef] [PubMed]
  63. Zocca, A.; Colombo, P.; Gomes, C.M.; Günster, J. Additive Manufacturing of Ceramics: Issues, Potentialities, and Opportunities. J. Am. Ceram. Soc. 2015, 98, 1983–2001. [Google Scholar] [CrossRef]
  64. Chen, Z.; Li, Z.; Li, J.; Liu, C.; Lao, C.; Fu, Y.; Liu, C.; Li, Y.; Wang, P.; He, Y. 3D Printing of Ceramics: A Review. J. Eur. Ceram. Soc. 2019, 39, 661–687. [Google Scholar] [CrossRef]
  65. Lewis, J.A. Direct Ink Writing of Three-Dimensional Ceramic Structures. J. Am. Ceram. Soc. 2006, 89, 3599–3609. [Google Scholar] [CrossRef]
  66. Rueschhoff, L.M.; Duty, C.E.; Krug, J.A.; Love, L.; Kunc, V.; Elliott, A.M. Additive Manufacturing of Dense Ceramic Parts via Direct Ink Writing. Int. J. Appl. Ceram. Technol. 2016, 13, 821–830. [Google Scholar] [CrossRef]
  67. Ziaee, M.; Crane, N.B. Binder Jetting: A Review of Process, Materials, and Methods. Addit. Manuf. 2019, 28, 781–801. [Google Scholar] [CrossRef]
  68. Du, W.; Ren, X.; Liang, X.; Zhao, C.; Zhang, D.Z. Ceramic Binder Jetting Additive Manufacturing: A Literature Review. J. Manuf. Sci. Eng. 2020, 142, 090804. [Google Scholar] [CrossRef]
  69. Miyanaji, H.; Orth, M.; Akbar, J.M.; Yang, L. Process Development for Green Part Printing Using Binder Jetting Additive Manufacturing. Front. Mech. Eng. 2018, 13, 504–512. [Google Scholar] [CrossRef]
  70. Halloran, J.W. Ceramic Stereolithography: Additive Manufacturing by Photopolymerization. Annu. Rev. Mater. Res. 2016, 46, 19–40. [Google Scholar] [CrossRef]
  71. Zakeri, S.; Nonahal, M.; Garmabi, H.; Fotouhi, M.; Fard, M.; Heidari, B.S.; Hosseini, S.R. A Comprehensive Review of the Photopolymerization of Ceramic Resins Used in Stereolithography. Addit. Manuf. 2020, 35, 101278. [Google Scholar] [CrossRef]
  72. Hannink, R.H.J.; Kelly, P.M.; Muddle, B.C. Transformation Toughening in Zirconia-Containing Ceramics. J. Am. Ceram. Soc. 2000, 83, 461–487. [Google Scholar] [CrossRef]
  73. Cesar, P.F.; Miranda, R.B.P.; Santos, K.F.; Scherrer, S.S.; Zhang, Y. Recent advances in dental zirconia: 15 years of material and processing evolution. Dent. Mater. 2024, 40, 824–836. [Google Scholar] [CrossRef] [PubMed]
  74. Kazemi, A.; McLaren, I.; Mitchell, D.R.G.; Williams, B.; Davis, J. Cristobalite Crystallization in Silica-Based Ceramic Cores: Implications for Investment Casting. J. Eur. Ceram. Soc. 2013, 33, 3245–3254. [Google Scholar] [CrossRef]
  75. Hanaor, D.A.H.; Sorrell, C.C. Review of the Anatase-to-Rutile Phase Transformation. J. Mater. Sci. 2011, 46, 855–874. [Google Scholar] [CrossRef]
  76. PN-EN 843-1:2007; Advanced Technical Ceramics—Mechanical Properties of Monolithic Ceramics at Room Temperature—Part 1: Determination of Flexural Strength. Polish Committee for Standardization (PKN): Warsaw, Poland, 2007.
  77. PN-EN 843-4:2007; Advanced Technical Ceramics—Mechanical Properties of Monolithic Ceramics at Room Temperature—Part 4: Vickers, Knoop and Rockwell Superficial Hardness. Polish Committee for Standardization (PKN): Warsaw, Poland, 2007.
  78. PN-EN 623-2:2001; Advanced Technical Ceramics—Monolithic Ceramics—General and Textural Properties—Part 2: Determination of Density and Porosity. Polish Committee for Standardization (PKN): Warsaw, Poland, 2001.
  79. Polychronis, G.; Papageorgiou, S.N.; Riollo, C.S.; Panayi, N.; Zinelis, S.; Eliades, T. Fracture toughness and hardness of in-office, 3D-printed ceramic brackets. Orthod. Craniofacial Res. 2023, 26, 476–480. [Google Scholar] [CrossRef] [PubMed]
  80. Gnanasagaran, C.L.; Ramachandran, K.; Ramesh, S.; Ubenthiran, S.; Jamadon, N.H. Effect of co-doping manganese oxide and titania on sintering behaviour and mechanical properties of alumina. Ceram. Int. 2023, 49, 5110–5118. [Google Scholar] [CrossRef]
  81. Sivamaran, V.; Kavimani, V.; Bakkiyaraj, M.; Rajendran, C.; Sonar, T. An Optimization of Particle Size and Additives of Slip Cast Alumina Samples to Reduce Warpage and Porosity. Adv. Mater. Sci. Eng. 2022, 1, 5222633. [Google Scholar] [CrossRef]
  82. Šimonová, P.; Pabst, W. Porosity dependence of sound velocities in partially sintered alumina, zirconia, ATZ, and mullite ceramics. J. Am. Ceram. Soc. 2023, 107, 1262–1273. [Google Scholar] [CrossRef]
  83. Vukšić, M.; Žmak, I.; Ćurković, L.; Kocjan, A. Effect of Two-Step Sintering on Properties of Alumina Ceramics Containing Waste Alumina Powder. Materials 2022, 15, 7840. [Google Scholar] [CrossRef]
  84. Osada, T.; Nagai, Y.; Kobayashi, S. Fabrication and mechanical characterization of biocompatible oxide ceramic parts by injection molding. Open Ceram. 2023, 13, 100328. [Google Scholar] [CrossRef]
  85. Kanno, T.; Sakatani, A.; Kurita, H.; Narita, F. Prediction of internal stress in alumina laminates induced by shrinkage mismatch based on elastic model modification. J. Am. Ceram. Soc. 2024, 108, 7201–7211. [Google Scholar] [CrossRef]
Materials 18 04775 g001

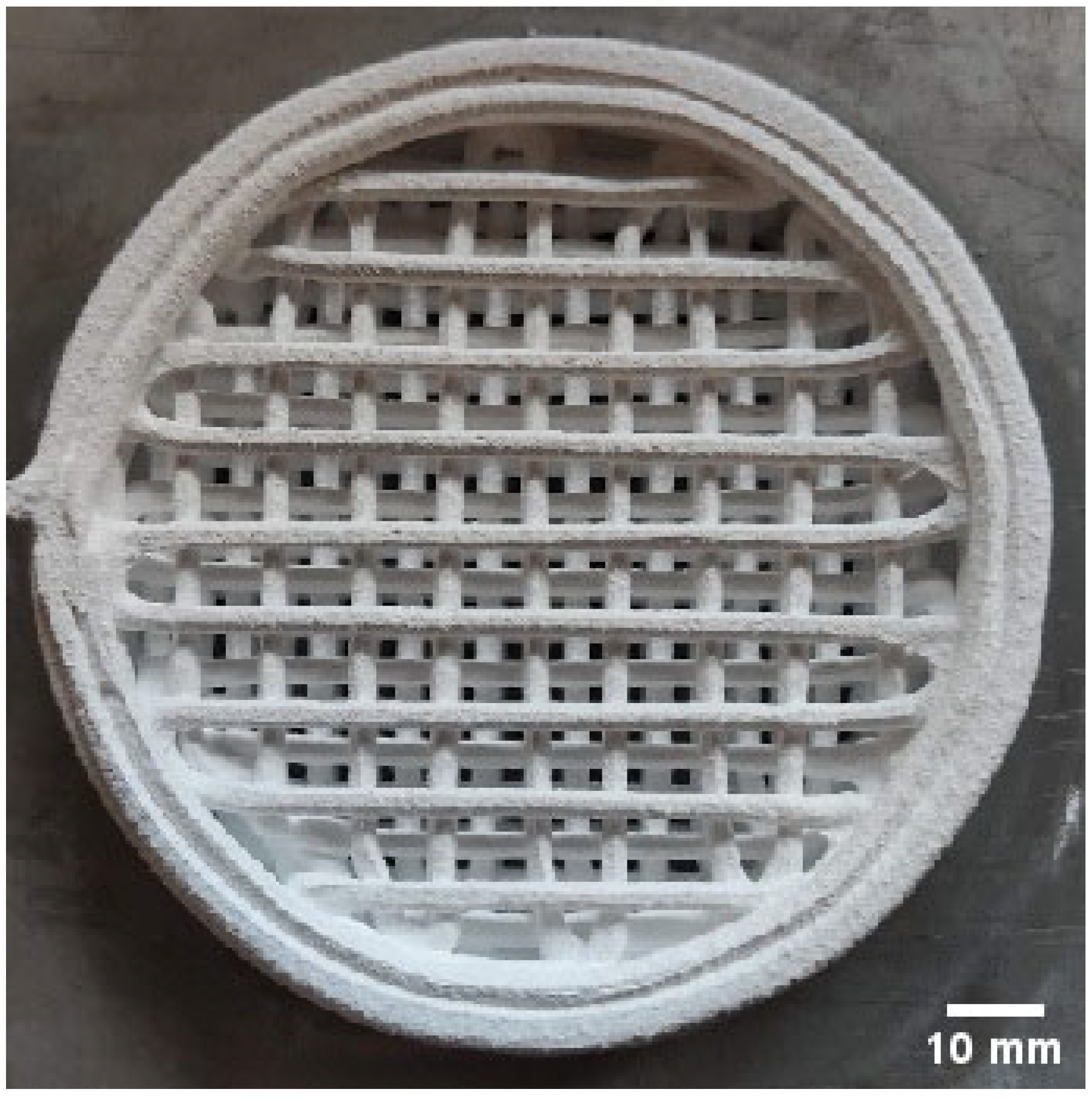

Figure 1. Representative view of the printed ceramic filter.
Figure 1. Representative view of the printed ceramic filter.
Materials 18 04775 g001
Materials 18 04775 g002

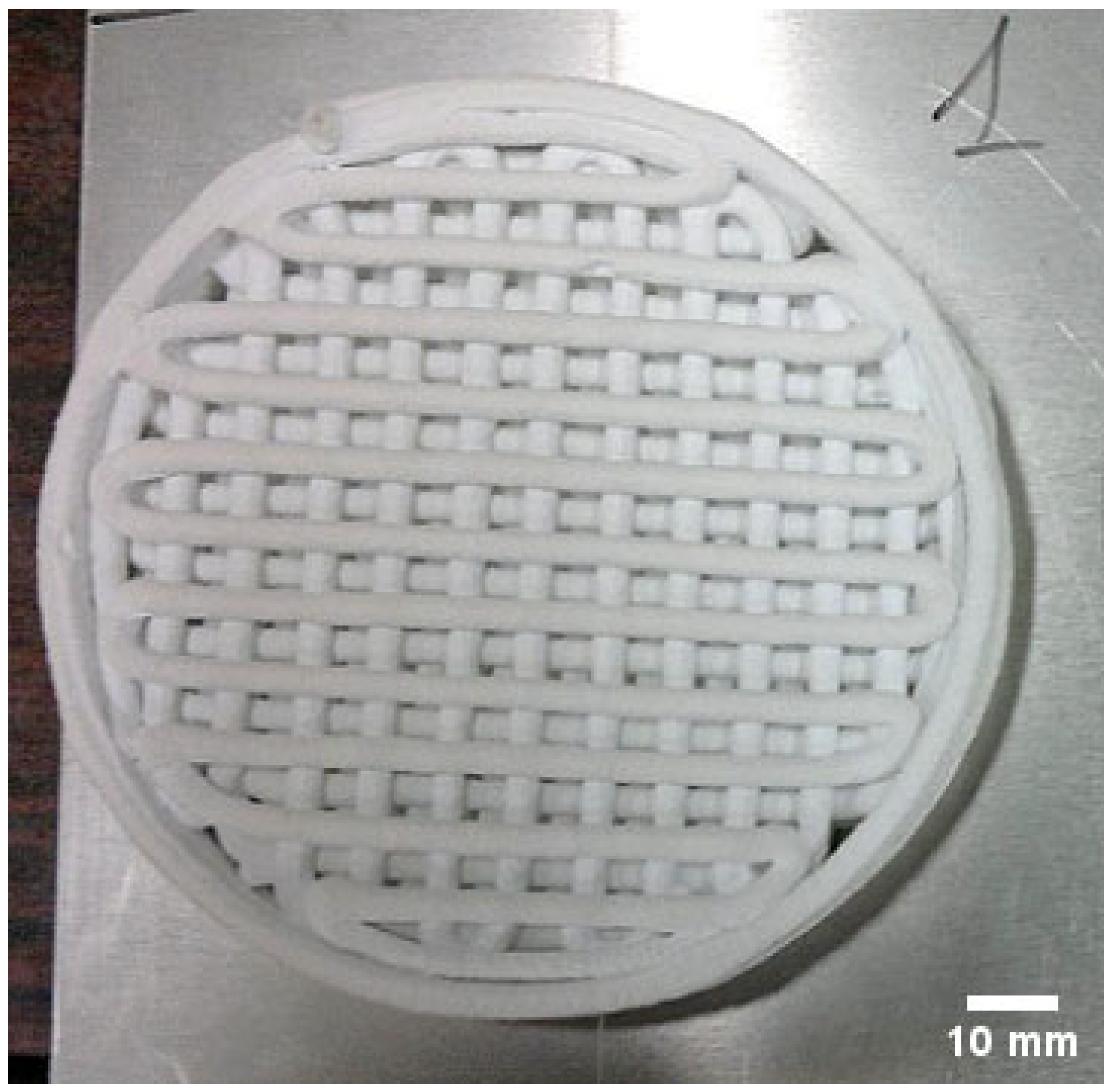

Figure 2. Representative view of the ceramic filter after thermal debinding—removal of organic constituents.
Figure 2. Representative view of the ceramic filter after thermal debinding—removal of organic constituents.
Materials 18 04775 g002
Materials 18 04775 g003
Figure 3. Sintering temperature profile for Al2O3 technical ceramics.
Figure 3. Sintering temperature profile for Al2O3 technical ceramics.
Materials 18 04775 g003
Materials 18 04775 g004
Figure 4. Three-point bending of solid specimens: (a) schematic of the loading direction relative to the printed layers (FL for SBL samples and FII for SBII samples); (b) representative view of a mounted specimen in the testing machine during the test.
Figure 4. Three-point bending of solid specimens: (a) schematic of the loading direction relative to the printed layers (FL for SBL samples and FII for SBII samples); (b) representative view of a mounted specimen in the testing machine during the test.
Materials 18 04775 g004
Materials 18 04775 g005

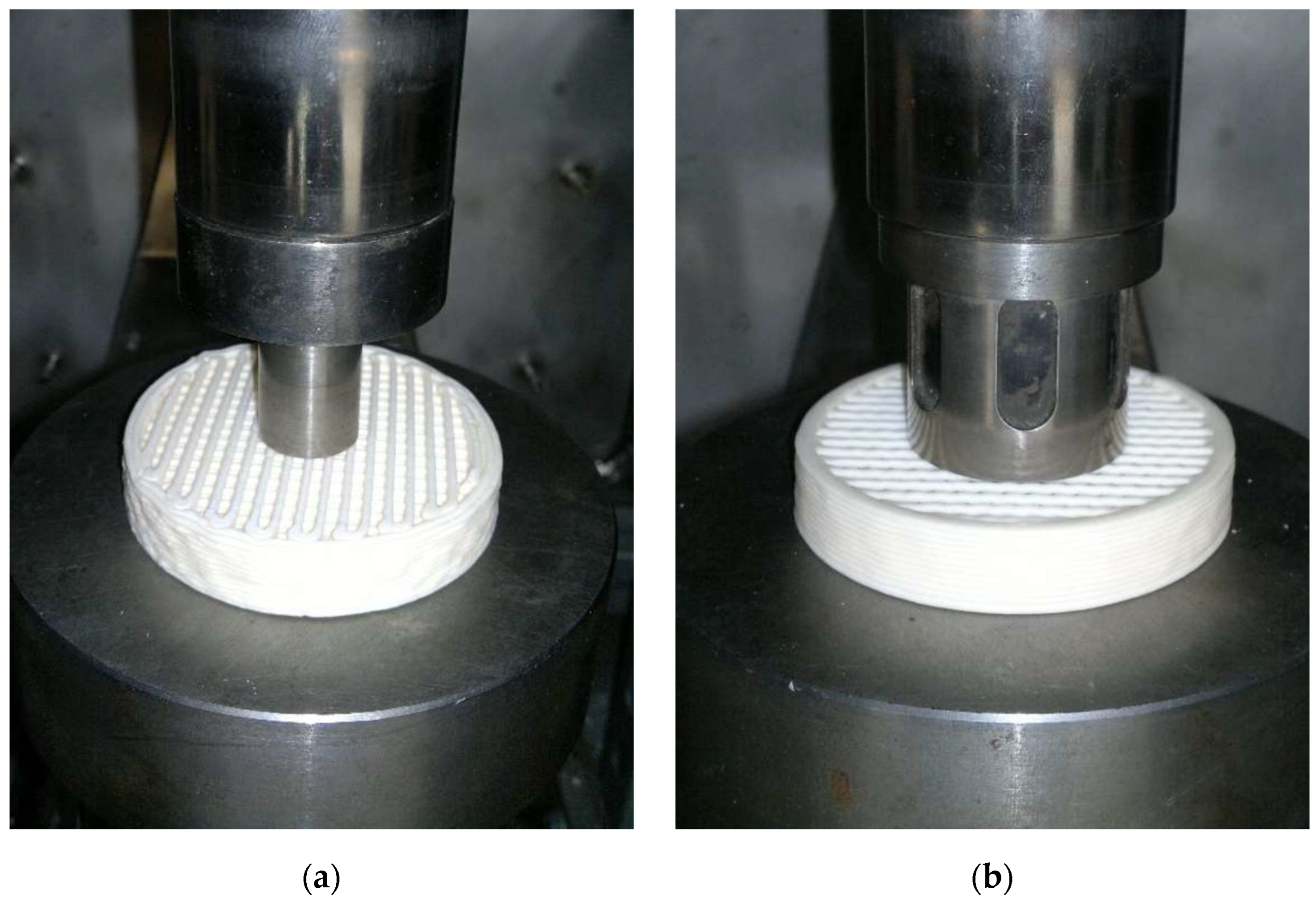

Figure 5. Representative view of ceramic filters during compressive strength testing: (a) 22 mm-diameter platen (FP22); (b) 40 mm-diameter platen (FP40).
Figure 5. Representative view of ceramic filters during compressive strength testing: (a) 22 mm-diameter platen (FP22); (b) 40 mm-diameter platen (FP40).
Materials 18 04775 g005
Materials 18 04775 g006

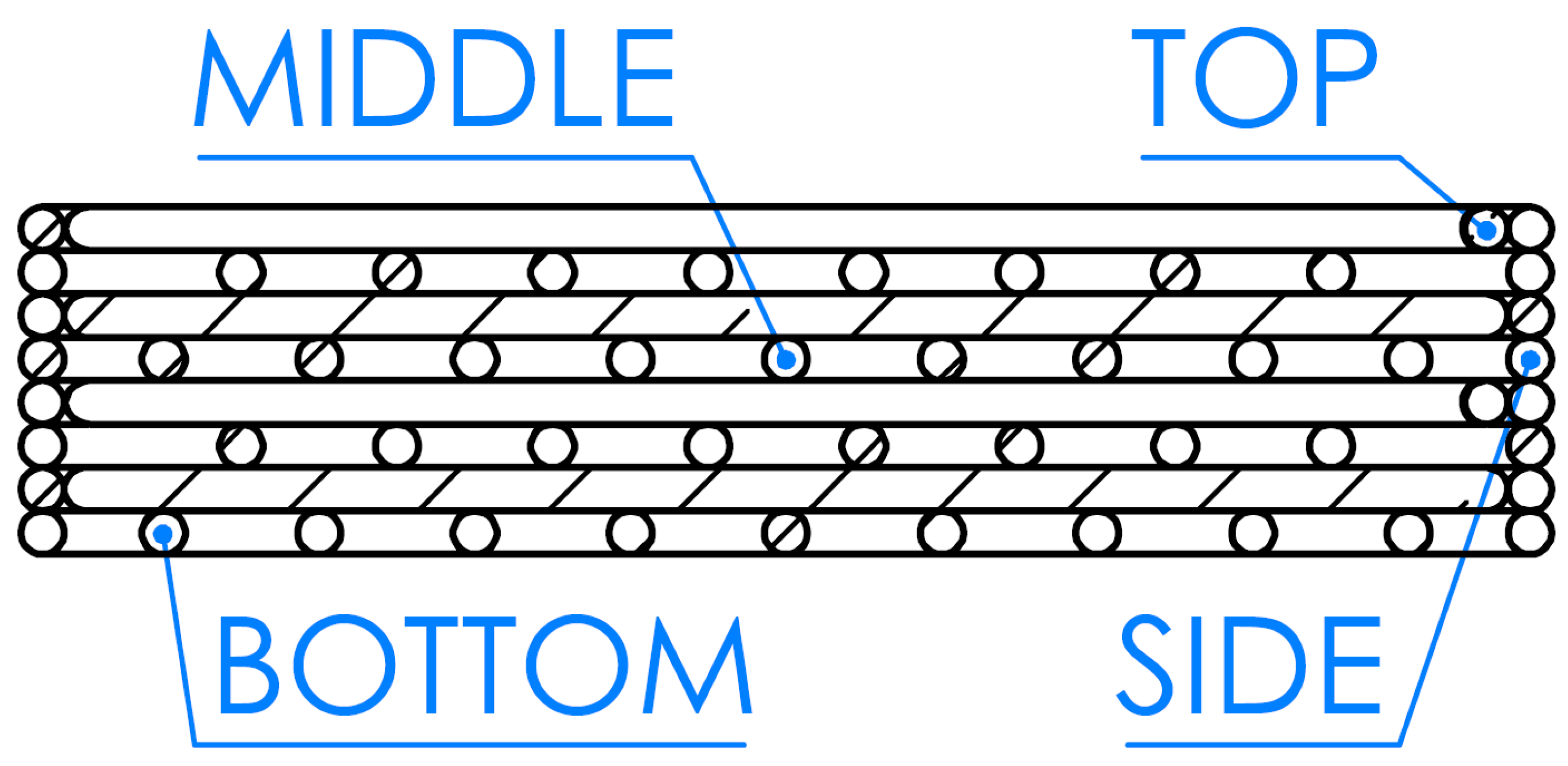

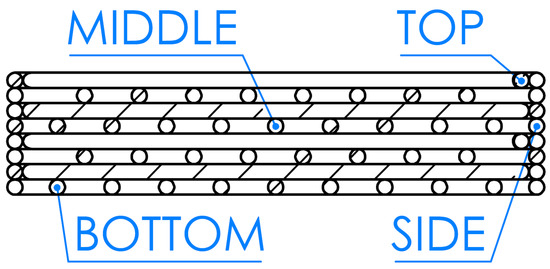

Figure 6. Schematic of the locations for microscopic observations and hardness measurement points on the metallographic cross-sections of specimens sampled from the ceramic filters.
Figure 6. Schematic of the locations for microscopic observations and hardness measurement points on the metallographic cross-sections of specimens sampled from the ceramic filters.
Materials 18 04775 g006
Materials 18 04775 g007

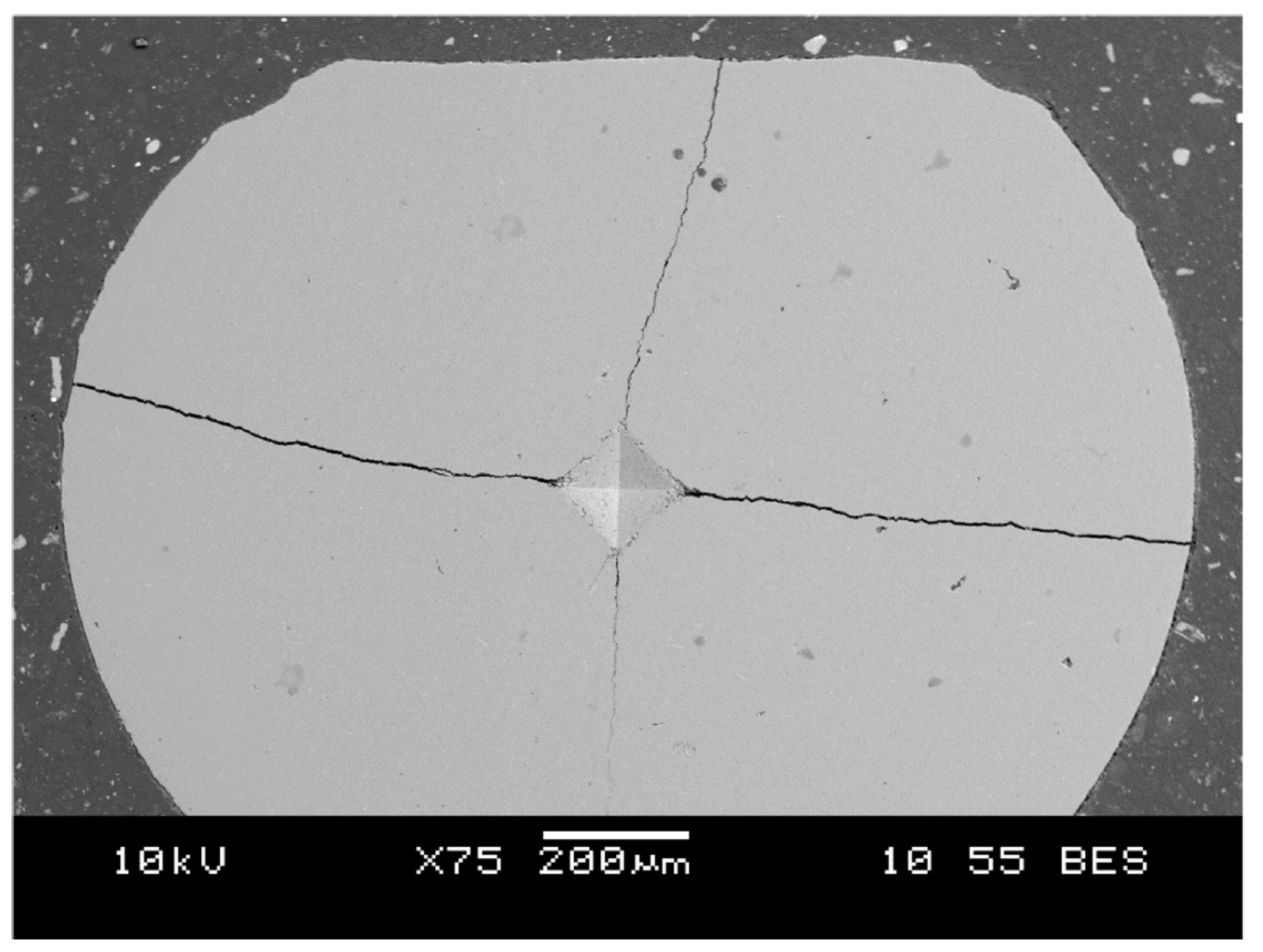

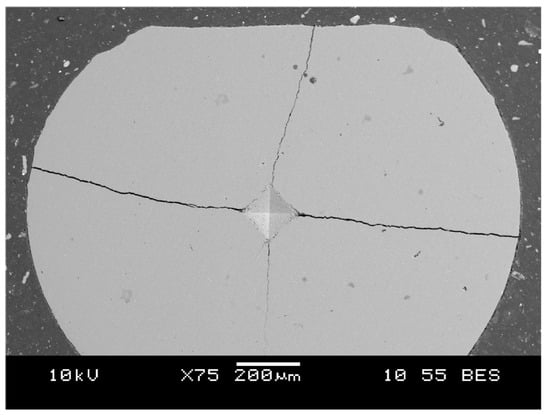

Figure 7. Representative view of the Vickers indentation after applying a 294.2 N load (HV30) on the filter cross-section in the top lamella region (FT).
Figure 7. Representative view of the Vickers indentation after applying a 294.2 N load (HV30) on the filter cross-section in the top lamella region (FT).
Materials 18 04775 g007
Materials 18 04775 g008
Figure 8. Representative X-ray diffractogram of the SC sample after sintering.
Figure 8. Representative X-ray diffractogram of the SC sample after sintering.
Materials 18 04775 g008
Materials 18 04775 g009

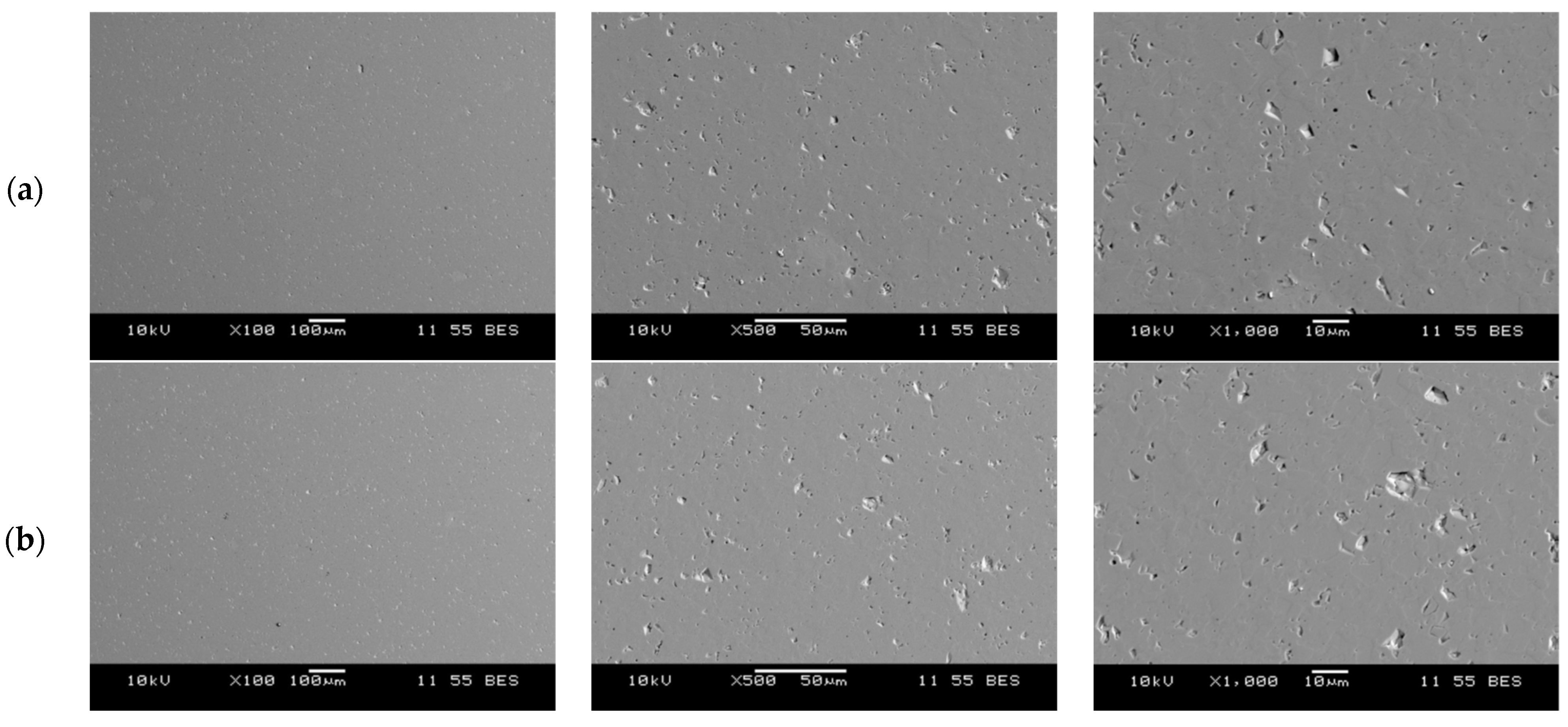

Figure 9. Microstructure of solid specimens formed by robocasting and pressureless-sintered: (a) SC1; (b) SC2.
Figure 9. Microstructure of solid specimens formed by robocasting and pressureless-sintered: (a) SC1; (b) SC2.
Materials 18 04775 g009
Materials 18 04775 g010

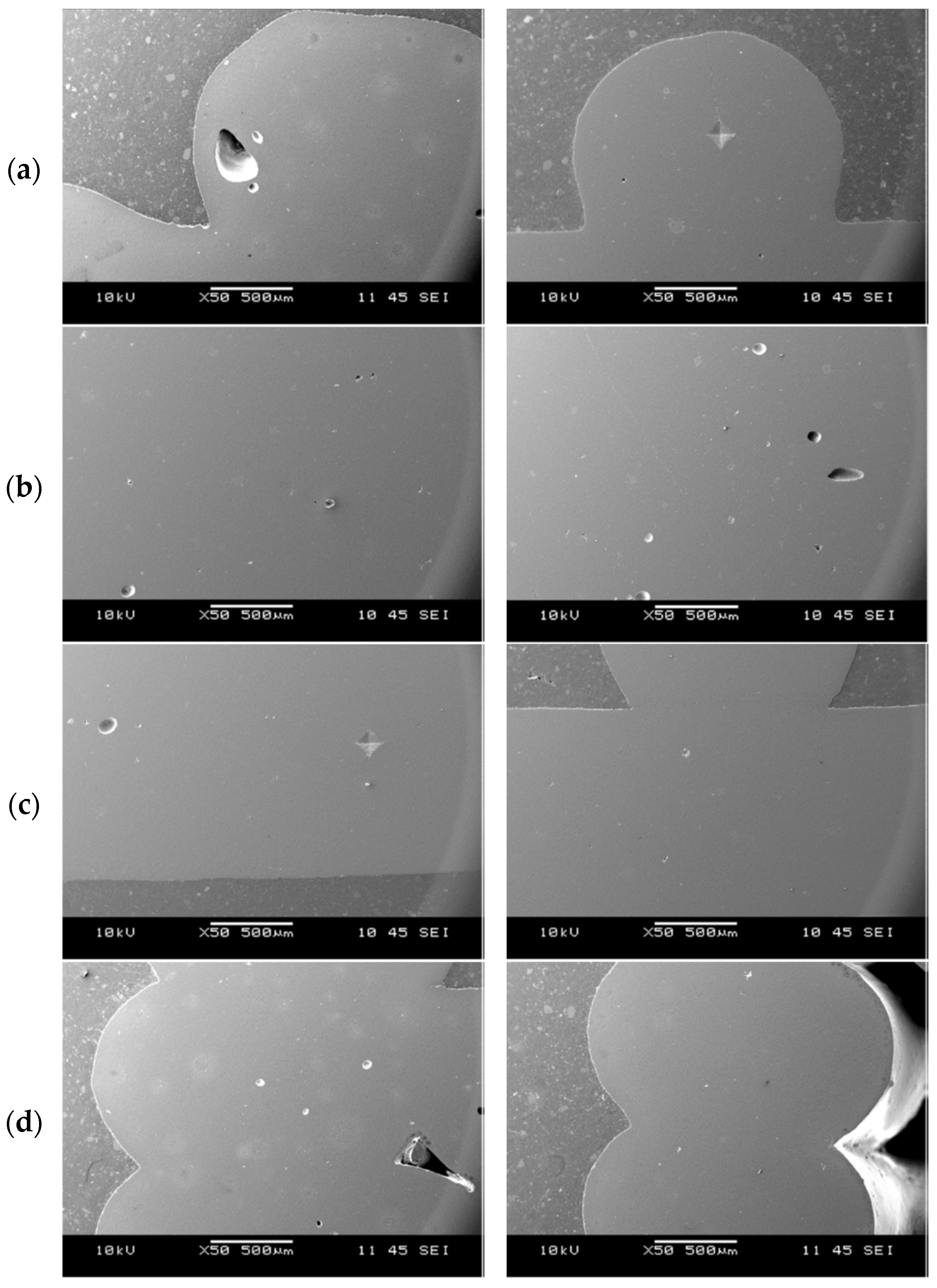

Figure 10. Representative microstructures of the filters from the regions: (a) FT, (b) FM, (c) FB, (d) FS.
Figure 10. Representative microstructures of the filters from the regions: (a) FT, (b) FM, (c) FB, (d) FS.
Materials 18 04775 g010
Materials 18 04775 g011

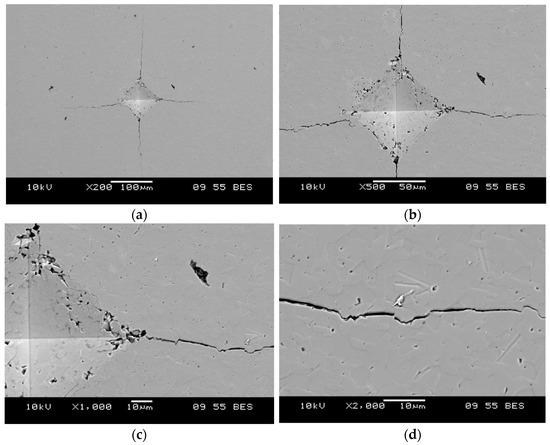

Figure 11. Representative microstructures with a Vickers indentation and associated cracks after applying a 98.1 N load (HV10) at magnifications: (a) 200×, (b) 500×, (c) 1000×, (d) 2000×.
Figure 11. Representative microstructures with a Vickers indentation and associated cracks after applying a 98.1 N load (HV10) at magnifications: (a) 200×, (b) 500×, (c) 1000×, (d) 2000×.
Materials 18 04775 g011
Materials 18 04775 g012
Figure 12. Representative view of the solid bar sample fracture surface after the three-point bending test, with the load applied parallel to the direction of successive layer deposition in the robocasting printing process.
Figure 12. Representative view of the solid bar sample fracture surface after the three-point bending test, with the load applied parallel to the direction of successive layer deposition in the robocasting printing process.
Materials 18 04775 g012
Materials 18 04775 g013
Figure 13. Representative load–displacement curve recorded during compression testing of a solid cylinder sample, fabricated by robocasting.
Figure 13. Representative load–displacement curve recorded during compression testing of a solid cylinder sample, fabricated by robocasting.
Materials 18 04775 g013
Materials 18 04775 g014

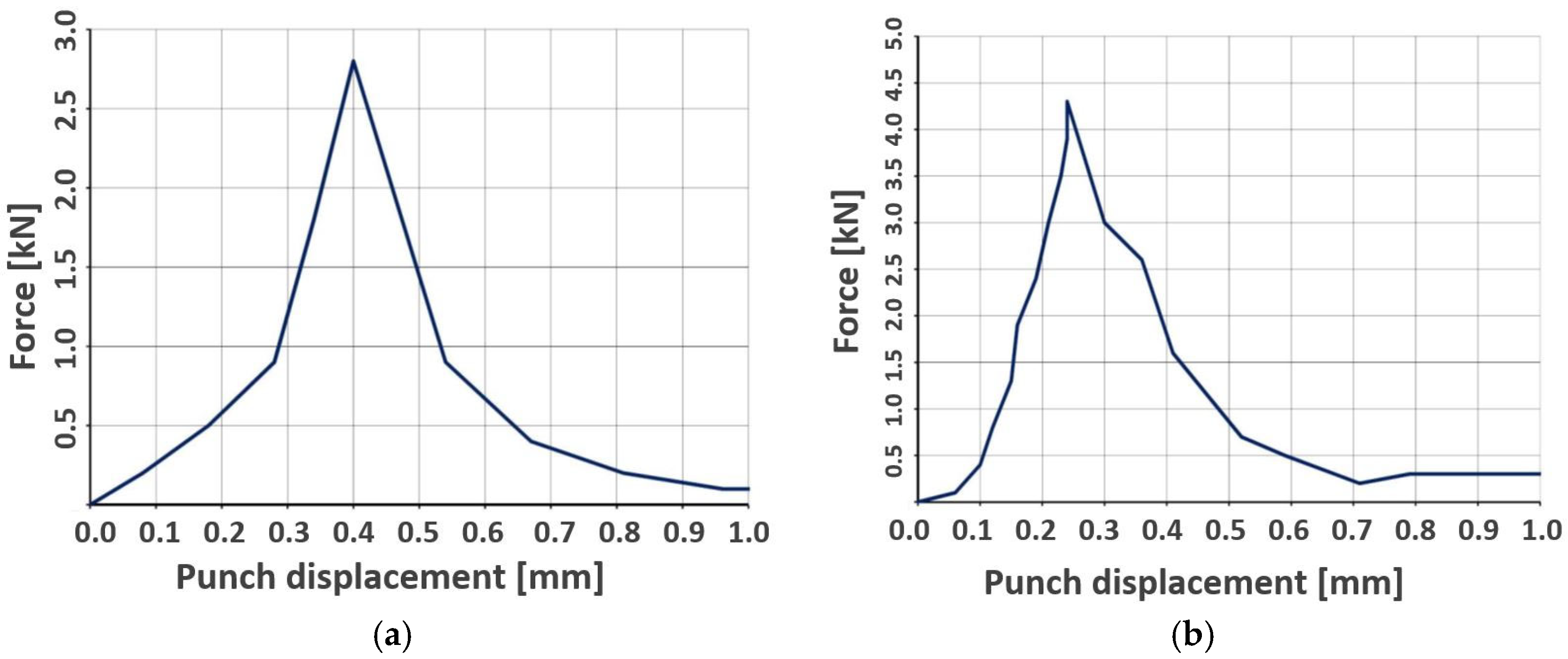

Figure 14. Force–punch displacement curve recorded during filter bending: (a) 22 mm-diameter loading platen; (b) 40 mm-diameter loading platen.
Figure 14. Force–punch displacement curve recorded during filter bending: (a) 22 mm-diameter loading platen; (b) 40 mm-diameter loading platen.
Materials 18 04775 g014
Materials 18 04775 g015
Figure 15. Representative view of the ceramic filter after compression with the 40 mm-diameter platen.
Figure 15. Representative view of the ceramic filter after compression with the 40 mm-diameter platen.
Materials 18 04775 g015
Table 1. Chemical composition of ceramic paste adapted for 3D printing using robocasting technology.
Table 1. Chemical composition of ceramic paste adapted for 3D printing using robocasting technology.
MaterialChemical Composition
[wt.%]
Al2O378.5
H2O21.15
Dispersant0.1
Methylcellulose0.25
Table 2. Compilation of apparent and bulk density measurements and Young’s modulus for ceramic sinters fabricated by robocasting.
Table 2. Compilation of apparent and bulk density measurements and Young’s modulus for ceramic sinters fabricated by robocasting.
SampleApparent
Density
ρo
[g/cm3]		Mean Apparent Density
ρo
[g/cm3]		Open Porosity
[%]		Mean Open
Porosity
[%]		Young’s
Modulus
E
[GPa]		Mean Young’s Modulus
E
[GPa]
SC13.883.91 ± 0.020.60.34 ± 0.23380384.4 ± 2.7
SC23.910.5386
SC33.910.4384
SC43.930.1385
SC53.930.1387
Slip Casting [82,83]3.863370–385
Ceramic Injection Molding (CIM) [82,84]3.58–3.962–8360–385
Dry Pressing [82]3.85–3.901–3370–400
Table 3. Results of hardness and fracture toughness measurements for solid cylinder samples (SC) and filters as a function of the measurement location (FT, FM, FB, FS).
Table 3. Results of hardness and fracture toughness measurements for solid cylinder samples (SC) and filters as a function of the measurement location (FT, FM, FB, FS).
SampleHV1
[GPa]		Mean HV1
[GPa]		HV10
[GPa]		Mean HV10
[GPa]		KIC(HV)
[MPa∙m1/2]		Mean KIC(HV)
[MPa∙m1/2]
SC118.217.8 ± 0.4416.516.2 ± 0.383.823.80 ± 0.03
SC217.215.53.78
SC317.417.03.77
SC417.916.13.84
SC518.115.73.81
FT117.217.0 ± 0.1815.815.7 ± 0.143.513.47 ± 0.04
FT217.015.83.47
FT317.015.23.44
FT416.916.13.51
FT516.715.63.40
FM117.517.6 ± 0.2815.615.4 ± 0.183.423.46 ± 0.05
FM217.415.53.52
FM318.015.43.40
FM417.315.23.46
FM517.615.43.50
FB117.416.9 ± 0.2715.315.6 ± 0.163.563.60 ± 0.03
FB217.015.63.63
FB316.815.63.59
FB416.815.73.62
FB516.715.73.60
FS117.517.1 ± 0.3014.815.3 ± 0.253.693.64 ± 0.04
FS216.715.53.58
FS317.315.83.66
FS417.115.23.60
FS517.215.23.68
Table 4. Three-point flexural strength of rectangular specimens as a function of the loading direction relative to the direction of successive layer deposition in the printing process.
Table 4. Three-point flexural strength of rectangular specimens as a function of the loading direction relative to the direction of successive layer deposition in the printing process.
SampleDimensionsForce
F
[kN]		Three-Point Flexural Strength
G
[MPa]		Mean Three-Point Flexural Strength
G
[MPa]
b
[mm]		h
[mm]
SBL110106.4576480 ± 99
SBL24.2378
SBL35.4486
SBII15.6504516 ± 10
SBII25.8522
SBII35.8522
Table 5. Compressive strength of solid cylinder (SC) samples fabricated by robocasting.
Table 5. Compressive strength of solid cylinder (SC) samples fabricated by robocasting.
SampleDimensionsCompressive Force
F
[kN]		Compressive Strength
G
[MPa]		Mean Compressive Strength
G
[MPa]
D
[mm]		h
[mm]
SC1111163.5668.21205.53 ± 475.33
SC2152.21601.5
SC3131.31381.6
SC455.6585.1
SC5163.31718.3
SC6121.51278.5
SC71515190.31076.91379.15 ± 280.71
SC8269.01522.2
SC9320.01810.8
SC10233.01318.5
SC11192.01086.5
SC12258.01460.0
Table 6. Compressive force recorded during testing of ceramic filters fabricated by robocasting.
Table 6. Compressive force recorded during testing of ceramic filters fabricated by robocasting.
SamplePlaten Diameter
D
[mm]		Compressive Force
F
[kN]		Mean Compressive Force
F
[kN]
F1P40404.33.40 ± 0.78
F2P402.6
F3P404.1
F4P402.7
F5P403.3
F6P22222.82.94 ± 0.70
F7P223.2
F8P224.0
F9P222.5
F10P222.2
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Przybyła, S.; Kwiatkowski, M.; Kwiatkowski, M.; Hebda, M. Robocasting as an Additive Manufacturing Method for Oxide Ceramics: A Study of Mechanical Properties and Microstructure. Materials 2025, 18, 4775. https://doi.org/10.3390/ma18204775

AMA Style

Przybyła S, Kwiatkowski M, Kwiatkowski M, Hebda M. Robocasting as an Additive Manufacturing Method for Oxide Ceramics: A Study of Mechanical Properties and Microstructure. Materials. 2025; 18(20):4775. https://doi.org/10.3390/ma18204775

Chicago/Turabian Style

Przybyła, Szymon, Maciej Kwiatkowski, Michał Kwiatkowski, and Marek Hebda. 2025. "Robocasting as an Additive Manufacturing Method for Oxide Ceramics: A Study of Mechanical Properties and Microstructure" Materials 18, no. 20: 4775. https://doi.org/10.3390/ma18204775

APA Style

Przybyła, S., Kwiatkowski, M., Kwiatkowski, M., & Hebda, M. (2025). Robocasting as an Additive Manufacturing Method for Oxide Ceramics: A Study of Mechanical Properties and Microstructure. Materials, 18(20), 4775. https://doi.org/10.3390/ma18204775

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
