New Discovery of Natural Zeolite-Rich Tuff on the Northern Margin of the Los Frailes Caldera: A Study to Determine Its Performance as a Supplementary Cementitious Material

by
Jorge L. Costafreda
1,*,
Domingo A. Martín
1,2,
Miguel A. Sanjuán
3 and
Jorge L. Costafreda-Velázquez
4
1
Escuela Técnica Superior de Ingenieros de Minas y Energía, Universidad Politécnica de Madrid, C/Ríos Rosas, 21, 28003 Madrid, Spain
2
Laboratorio Oficial Para Ensayos de Materiales de Construcción (LOEMCO), C/Eric Kandell, 1, 28906 Getafe, Spain
3
Department of Science and Technology of Building Materials, Civil Engineering School, Technical University of Madrid, 28040 Madrid, Spain
4
Department of Constructions, University of Holguín, Avenida XX Aniversario, Vía Guardalavaca, Piedra Blanca, Holguín 80100, Cuba
*
Author to whom correspondence should be addressed.
Materials 2024, 17(17), 4430; https://doi.org/10.3390/ma17174430
Submission received: 30 April 2024 / Revised: 19 August 2024 / Accepted: 6 September 2024 / Published: 9 September 2024
(This article belongs to the Special Issue Functional Cement-Based Composites for Civil Engineering (Volume II))
Browse Figures
Versions Notes

Abstract

:
The release of Neogene volcanism in the southeastern part of the Iberian Peninsula produced a series of volcanic structures in the form of stratovolcanoes and calderas; however, other materials also accumulated such as large amounts of pyroclastic materials such as cinerites, ashes, and lapilli, which were later altered to form deposits of zeolites and bentonites. This work has focused on an area located on the northern flank of the San José-Los Escullos zeolite deposit, the only one of its kind with industrial capacity in Spain. The main objective of this research is to characterize the zeolite (SZ) of this new area from the mineral, chemical, and technical points of view and establish its possible use as a natural pozzolan. In the first stage, a study of the mineralogical and chemical composition of the selected samples was carried out using X-ray diffraction (XRD), scanning electron microscopy (SEM), X-ray fluorescence (XRF), and thermogravimetric analysis (TGA); in the second stage, chemical-qualitative and pozzolanicity technical tests were carried out at 8 and 15 days. In addition, a chemical analysis was performed using XRF on the specimens of mortars made with a standardized mixture of Portland cement (PC: 75%) and natural zeolite (SZ: 25%) at the ages of 7, 28, and 90 days. The results of the mineralogical analyses indicated that the samples are made up mainly of mordenite and subordinately by smectite, plagioclase, quartz, halloysite, illite, and muscovite. Qualitative chemical assays indicated a high percentage of reactive silica and reactive CaO and also negligible contents of insoluble residues. The results of the pozzolanicity test indicate that all the samples analyzed behave like natural pozzolans of good quality, increasing their pozzolanic reactivity from 8 to 15 days of testing. Chemical analyses of PC/SZ composite mortar specimens showed how a significant part of SiO2 and Al2O3 are released by zeolite while it absorbs a large part of the SO3 contained in the cement. The results presented in this research could be of great practical and scientific importance as they indicate the continuation of zeolitic mineralization beyond the limits of the San José-Los Escullos deposit, which would result in an increase in geological reserves and the extension of the useful life of the deposit, which is of vital importance to the local mining industry.

1. Introduction

There are many studies in Spain where natural zeolites are mentioned in relation to genetic and spatial bentonite formations of volcanic origin [1,2,3,4,5]. Authors such as Mattei et al. [6], De la Fuente and Linares [7], and López-Ruiz and Cebriá [8] explain in detail the formation processes of bentonites and highlight the affinity between clay minerals, such as smectites and mordenite, assuring that their origin is typically hydrothermal and related to the volcanism of southeastern Spain. Other researchers [9,10] mention the association of zeolite with bentonite formations located in known deposits in southeastern Spain, such as Morrón de Mateo, Los Trancos, and the proximal surroundings of San José and Los Escullos. De La Villa et al. [11] state that these zeolites may have been formed during the alkaline reaction processes of bentonite. Deon et al. [12] detected zeolite associated with layers of illite and smectite in their investigations in the Rodalquilar caldera in the southeast of the Iberian Peninsula. In the report of the Geological Map of Spain [13], zeolite is referred to as a residual material of the bentonitization process, along with other minerals such as smectite (montmorillonite variety), quartz, plagioclase, calcite, amphibole, mica, and tridymite. Despite the above, the most detailed and specific work on the study of zeolite began in 2005 [14,15,16], with important contributions not only in mineralogical characterization but also in heat treatment to improve its technological properties, which was also stated by Suárez et al. [17]. However, despite the fact that zeolitic mineralization is practically ubiquitous in the volcanic environment of the Neogene, some authors have confirmed that the highest concentration of zeolite of the mordenite variety occurs in Los Frailes caldera [18], where the only industrial zeolite deposit in Spain is found. In fact, Martín et al. [19] have proven by electrical resistivity tomography (ERT) that the thickness of the mineralized horizon of this deposit exceeds 40 m. The most recent applications of zeolite from this region have been aimed at the chemical stabilization of wastewater from mining and metallurgical processes where there is an abundant presence of heavy metals [20]. Uses in the manufacture of waste-based compost for soil improvement are also reported due to its effectiveness in retaining metals and ammonium [21]. Domene et al. [22] have effectively restored vegetation in semi-desert areas of Almeria (Spain) through the standardized use of organic compost prepared with a mixture of zeolite and greenhouse waste from that region. Possibly the most widespread application of this zeolite in recent times is as a highly reactive pozzolan for the improvement of cements, mortars, and concretes [23,24]. This is due to the need to control and reduce CO2 emissions into the atmosphere. In this sense, Byung-Wan et al. [25] designed zeolite mortars using an alkaline activator (NaOH), obtaining a mechanical strength of 43.5 MPa at 7 days. This is essentially due to the mineralogical composition, texture, structure, physical, and mechanical properties of the zeolites [26]. Iswarya and Beulah M [27] carried out an extensive review on the specific use of zeolite in the manufacture of high-strength concretes. The use of zeolite in the manufacture of high-strength concrete is a common practice today, resulting in lighter structures that are resistant to sulphate attack, seawater, and frost [28,29,30]. Finally, Boháč et al. [31] and Vejmelková et al. [32] have shown that in zeolite-containing cementitious pastes, an acceleration of hydration occurs much faster than the time at which the peak of the exothermic flow occurs.
The main objective of this work is the mineral, chemical, and technical characterization of the natural zeolite-rich tuff from new evidence discovered in an unexplored area within the Los Frailes caldera and to prove that it is sufficiently pozzolanic in capacity to be used effectively as a reactive aggregate in mortars and concretes. The second objective is to demonstrate that these materials have properties similar to those of the main deposit known as San José-Los Escullos, located 655 m to the south (Figure 1), which would have a positive impact on the expansion of the mining area and an increase in geological reserves.

2. Materials and Methods

2.1. Materials

In this research, 6 natural zeolite-rich tuff samples weighing 20 kg each were used. The specimens are made of a zeolite tuff of pale green, light gray, and white. It is usually compact, although in parts it is friable and has a low density. It forms extensive outcrops embedded in andesitic and dacitic rocks. All the samples were carefully crushed and sifted to the particle size fraction of 63 μm. In addition, a Type I Portland cement was used, the chemical composition of which is shown in Table 1.
In the dosage of the mortar, normalized sand (NS) was used; this sand is made of quartz of rounded grains, where the SiO2 content is 98%. The granulometric distribution of normalized sand (NS) is listed in Table 2.
Table 3 shows details of the proportions of materials used in both the mixed mortar specimens (PC/SZ) and the reference specimen (PCSR).

2.2. Methods

A study of the mineralogical phases in the samples was carried out by X-ray diffraction (XRD) with the help of the Rigaku Miniflex-600 diffractometer of the Escuela Técnica Superior de Ingenieros de Minas y Energía (Universidad Politécnica de Madrid, Madrid, Spain). The study of the phases was performed in an interval of 4° to 60°, with a step of 0.01° and at every 5° intervals. A voltage of 40 kV and a current of 15 mA were applied.
A scanning electron microscopy (SEM) study was carried out to determine the morphological properties of the minerals in the samples, such as the crystalline texture, species, and size as well as surface characteristics and the presence of pores, cavities, and channels. A Hitachi S–570 electron microscope was used from the Centralized Laboratory of the Escuela Técnica Superior de Ingenieros de Minas y Energía (Universidad Politécnica de Madrid, Madrid, Spain). The microscope is equipped with a Kevex-1728 analyzer, a BIORAD Polaron, a power supply for evaporation, and a Polaron SEM coating system. It has a resolution of 3.5 nm and an amplification of 200 × 103.
The chemical composition of the samples in their natural state was determined by X-ray fluorescence (XRF). Compounds such as SiO2, Al2O3, CaO, Na2O, K2O, MgO, Fe2O3, TiO2, and MnO were found. In addition, loss on ignition (LOI), Si/Al ratio, and Si/(Al + Fe) ratio were determined. This test was also carried out on mixed mortar specimens (cement/natural zeolite-rich tuff) hardened at different ages (7, 28 and 90 days) to determine the behavior of compounds over time. A Philips WDXRF spectrometer (PW1404) was used. The intensity of the radiation ranged from 10 to 100 kV. This equipment belongs to the Universidad Politécnica de Madrid (Madrid, Spain).
Thermogravimetric analysis was carried out to study the thermal behavior of the samples and establish the main thermal events that take place until their definitive collapse. The samples were analyzed by (TGA) with air atmosphere and at 20 °C/min. The heating range was 25 °C to 950 °C. This analysis was carried out in the Laboratorio de Tamices Moleculares of the Instituto de Catálisis y Petroleoquímica of the Centro de Investigaciones Científicas (CSIC) of Madrid (Madrid, Spain).
The pozzolan quality of the zeolite samples was determined by a qualitative-technological chemical analysis, following the specifications of the Standard UNE–EN 196-2-2014 [33]. The main objective of this test is to determine the percentages of reactive SiO2 in relation to the total SiO2 present in the sample capable of reacting with Portland cement in the hydraulic reaction process. Other compounds such as total-reactive CaO, MgO, Al2O3, Fe2O3, and SO3 were determined. The proportion of insoluble residue (IR) and loss on ignition (LOI) of each sample were calculated. This study was carried out at the Laboratorio Oficial de Ensayos de Materiales de Construcción (LOEMCO), Getafe (Spain).
The pozzolanic reactivity of the samples was calculated by chemical analysis of pozzolanicity. This test takes into account the reaction capacity of zeolite with the Ca(OH)2 present in a solution together with a certain amount of Portland cement. In total, 75% Portland cement and 25% zeolite were mixed. The assay considers the variation in the concentration of hydroxyl ions and calcium ions in solution over a period of 8 and 15 days [34].
A mechanical compressive strength test was carried out on specimens made with a mixed mixture of Portland cement and natural zeolite-rich tuff. A type 1 Portland cement, class 52.5 R, was chosen, whose characteristics are detailed in the Standard UNE–EN 197-1:2011 [35]. Standardized sand was used as a fine aggregate to produce the mixed mortar specimens hardened to 7, 28, and 90 days in a cement to natural zeolite-rich tuff ratio of 75:25% [36]. Distilled water was used in the dosing of the paste. The proportion of materials in the cement/natural zeolite-rich tuff mortars was as follows: cement 375 g, zeolite: 125 g, fine aggregate (standard sand Type CEN EN 196-1 [36]): 1350 g, and distilled water: 225 g. In the reference mortars (Portland cement only), the formulation was PC: 450 g, fine aggregate: 1350 g, and distilled water: 225 g. The mortar specimens were placed in a container with water in a humid chamber at a temperature of 20 °C ± 1 °C.

3. Results and Discussion

3.1. X-ray Diffraction (XRD)

The results of XRD analyses revealed a major presence of a crystalline phase consisting of mordenite. The secondary phases were smectite (montmorillonite), illite, halloysite, quartz, plagioclase, and muscovite (Figure 2).
The morphology and distribution of the various peaks of mordenite indicate a highly developed degree of crystallinity in relation to the other phases.
The mentioned mineral phases have also been found in the main deposit (San José-Los Escullos) by other researchers [18], who have established that the content of mordenite in the natural zeolite-rich tuff formations of the deposit ranges from 47 to 95%. However, they describe a wider variety of mineralogical phases not found in the study area, such as orthoclase, sanidine, calcite, hematite, illite, chlorite, and pyrite. These same phases have been located at 40 m depth in the Los Frailes caldera through the study of drill cores and geophysical work by Martín et al. [19]. On the other hand, Stamatakis et al. [1] have found opal and cristobalite, which they attribute to the action of residual fluids enriched in silica.
The newly discovered area could be considered an extension of the zeolitic mineralization towards the northern flank of the deposit.

3.2. Scanning Electron Microscopy

The results obtained by SEM showed a major presence of mordenite crystals in relation to smectite and halloysite (Figure 3a–f). From a morphological and textural point of view, mordenite exhibits markedly idiomorphic textures. Its habits are preferably acicular, fibrous, rhombohedral-hexagonal, and sometimes bacillary. The crystals crisscross each other to form very compact radial aggregates. The spatial arrangement of aggregates often forms cavities and intergranular voids.
The crystals of mordenite are frequently intergrown with smectite; both species are formed from the alteration of amorphous materials [18,19]. According to Stamatakis et al. [1] the mordenite that appears in the main deposit in the form of fibrous crystals has formed at the expense of glassy matter of volcanic origin.

3.3. X-ray Fluorescence (XRF)

The data obtained from the XRF analysis showed high SiO2 and Al2O3 contents (Table 4). In addition, the contents of the alkaline compounds (Na2O and K2O) were significantly higher than those of the alkaline–earth compounds (CaO and MgO). The contents of SO3 were practically negligible. The calculation of the Si/Al ratio showed values in the range of 4.0 to 5.2, which indicates that the samples studied have pozzolanic properties [37,38]. The Si/(Al + Fe) ratio ranged from 3.6 to 3.9. Loss on ignition varied from 10.7% to 11.9%. The ratio between SiO2 and the alkaline and alkaline–earth compounds was high.
It is inferred that the low CaO and MgO contents in the samples are due to the fact that Ca2+ and Mg2+ cations are removed during hydrothermal processes [39], which confirms the hydrothermal genesis of zeolite deposits in southeastern Spain [40]. However, for the same reason, the contents of SiO2, Na2O, and K2O tend to increase [18].

3.4. Thermogravimetric Analysis

The behavior of the TGA curves showed a simple decomposition process of the samples, with three well-defined thermogravimetric events (Figure 4). The first event occurred from relatively low temperatures (0–39 °C) to 250 °C, with a mass loss equivalent to 8.5% and 7.6%. In this interval, all the samples experienced rapid moisture loss and surface dehydration with the expulsion of the gases contained in the pores. The second event was recorded in the thermal range of 250 °C to 750 °C, with a mass loss of 2.3% to 1.2%. In this interval, the process of dehydration of the samples continued, possibly due to the loss of intrareticular or zeolitic water from mordenite and smectite; however, there were still no signs of structural collapse. In this thermal range, the dehydroxylation of the smectites occurred by the disintegration of the group (OH)−. The third and last thermal event occurred between 750 °C and 1200 °C, the fundamental feature being the stabilization of the TG curve. At this stage, the structural rearrangement of the samples occurred without processes of mass loss or gain.
Research carried out at the San José-Los Escullos deposit established that the zeolite from that deposit behaves similarly to those in this work when subjected to thermal analysis, the most notable feature being the simple decomposition in three consecutive stages [41]. However, the percentage of mass loss of zeolite from the main deposit in the first thermal event was much lower, which can be interpreted as the zeolites being of a higher purity in this research.

3.5. Chemical Analysis of Technical Quality

The results obtained through the chemical-technological test showed that the samples behave like natural pozzolans capable of reacting hydraulically with Portland cement (Table 5). As far as could be seen, virtually all the SiO2 was reactive in all the cases. For example, in sample SZ-01, the total SiO2 calculated was 69.25%, of which 68.22% was the part that reacted to the cement; that is, more than 98% of the original SiO2 in this sample was reactive. This was also proven in the remaining samples. A similar fact has been verified with reactive CaO in relation to total CaO. According to established standards, a sample is chemically suitable from a qualitative-technological point of view if its SiO2 content > 25%, Al2O3 < 16%, MgO < 5%, SO3 < 4%, and insoluble residue (I.R.) < 3% [35]. The values calculated and shown in Table 5 reflect this approach.
Presa et al. [41] have calculated reactive SiO2 contents for zeolite from the San José-Los Escullos deposit in the range of 58.68% to 63.16%, which are comparatively lower than those of the samples analyzed in this work. These authors also calculated between 14.08% and 19.87% of insoluble residue present in their samples, percentages that are significantly higher than those calculated in this work. These arguments seem to confirm that the zeolite found in the new study area is much purer than that lying in the main deposit.

3.6. Chemical Analysis of Pozzolanicity

Figure 5 shows that all the samples occupied a deep position in the area below the isotherm of CaO solubility at 40 °C. This fact emphasises that all the samples analyzed were pozzolanic [34]. According to this, it appears that samples SZ–01, SZ–02, and SZ–04 were the most pozzolanic. If this fact is compared with the data shown in Table 5, the highest SiO2 contents corresponded precisely to these samples.
It could then be established that the SiO2 content is a decisive factor in the pozzolanic behavior of a material [42] (Table 5 and Figure 6). Authors such as Caputo et al. [43], Saraya and Thabet [44], and Mertens et al. [45] also state that more siliceous zeolites are more pozzolanic and contribute to the gain in mechanical strength. However, other factors must be considered, such as the amount of reactive CaO present, Al2O3, and the relationship between the compounds SiO2, CaO, and MgO [46]. It should be noted that the pozzolanic reactivity of the samples experienced notable increases from 8 to 15 days, according to the graph in Figure 5.
Figure 6 shows the variation in the SiO2 content for each sample analyzed. Note that those samples with higher silica contents are the same ones that in Figure 5 have higher pozzolanic reactivity, both at 8 and 15 days.

3.7. Chemical Analysis of Mortar Specimens

In this research, mortar specimens hardened at 7, 28, and 90 days were studied to monitor and compare the behavior of chemical compounds in both types of specimens over time. These specimens were made from a mixture of 75% Portland cement and 25% natural zeolite-rich tuff. In this case, the SZ-01 sample was used as a representative. In addition, reference mortars with exclusive Portland cement content were manufactured.
Table 6 shows the behavior of the different chemical compounds of anhydrous Portland cement and their mixtures in mortars set at 7, 28, and 90 days. The first detail to highlight is the variation in the SiO2 content (47.31%) of the Portland cement specimen at 7 days of setting in relation to the initial composition (17.47%). This increase was due to the presence of normalized sand [47], which contributed silica to the paste; however, a gradual decrease was observed at 28 and 90 days, respectively. A similar but less notable case occurred with Al2O3. The CaO experienced a noticeable decrease after 7 days of setting, practically half of the original content. The other compounds, with the exception of MgO, which experienced a small increase, tended to decrease between 7 and 90 days of setting. As shown in Table 6, this is the normal behavior of a Portland cement mortar without pozzolanic additions [18,36].
Table 7 shows the behavior of the chemical compounds of Portland cement and natural zeolite-rich tuff when both were mixed in a 75:25% ratio. After 7 days of setting, a decrease in SiO2 was observed in the specimens. This decrease still occurred at 28 and 90 days. Al2O3 also decreased in relation to its original values; its presence could prevent the C3A of the cement from reacting completely, thus preventing the progressive formation of ettringite, which would favor the hydration of bicalcium and tricalcium silicates [48].
If the original CaO contents are compared with those observed at 7, 28, and 90 days, a notable increase is observed (Table 7). It seems then that in the hydraulic reaction process, 48.63% of SiO2 was consumed after 7 days, 47.30% at 28 days, and 42.71% at 90 days. The sum of these percentages far exceeds 65.65% of the natural zeolite-rich tuff sample, so it follows that the system takes SiO2 from both zeolite and normalized sand. It is evident that this excess of SiO2 in the paste would imply a greater hydraulic reaction over time with the associated increase in the mechanical strengths of the mortar specimens. Previous studies at the main deposit have shown that PC/zeolite composite mortar specimens achieve mechanical strengths in excess of 51 and 72 MPa at 28 and 90 days, respectively [18].
The SiO2/CaO ratio is then inversely proportional, from which it follows that to fix more lime, it is necessary to consume more silica, giving tobermorite as a reaction product [18,48]. The Na2O/K2O ratio in the samples was lower than that in the reference cement.
It follows that more silica was available at the cement to natural zeolite-rich tuff interface than at the interface where there was only cement. This availability of SiO2 could favor an increase in mechanical strengths in the long term, as discussed above. Some researchers mention that the presence of pozzolans of zeolitic origin leads to an increase in the compressive strength of mortars and concretes after 28 days of setting, even exceeding the resistance of ordinary cement at older ages [49]. The SO3 content in specimens made with natural cement to natural zeolite-rich tuff mixtures decreased significantly over time. As can be seen in Table 7, the amount of SO3 from 7 to 90 days was comparatively lower than that recorded in specimens made of cement alone (Table 6). In the research of some authors, this fact is confirmed in a wide variety of natural pozzolans [50,51,52].

3.8. Mechanical Compressive Strength Tests at 2, 7 and 28 Days

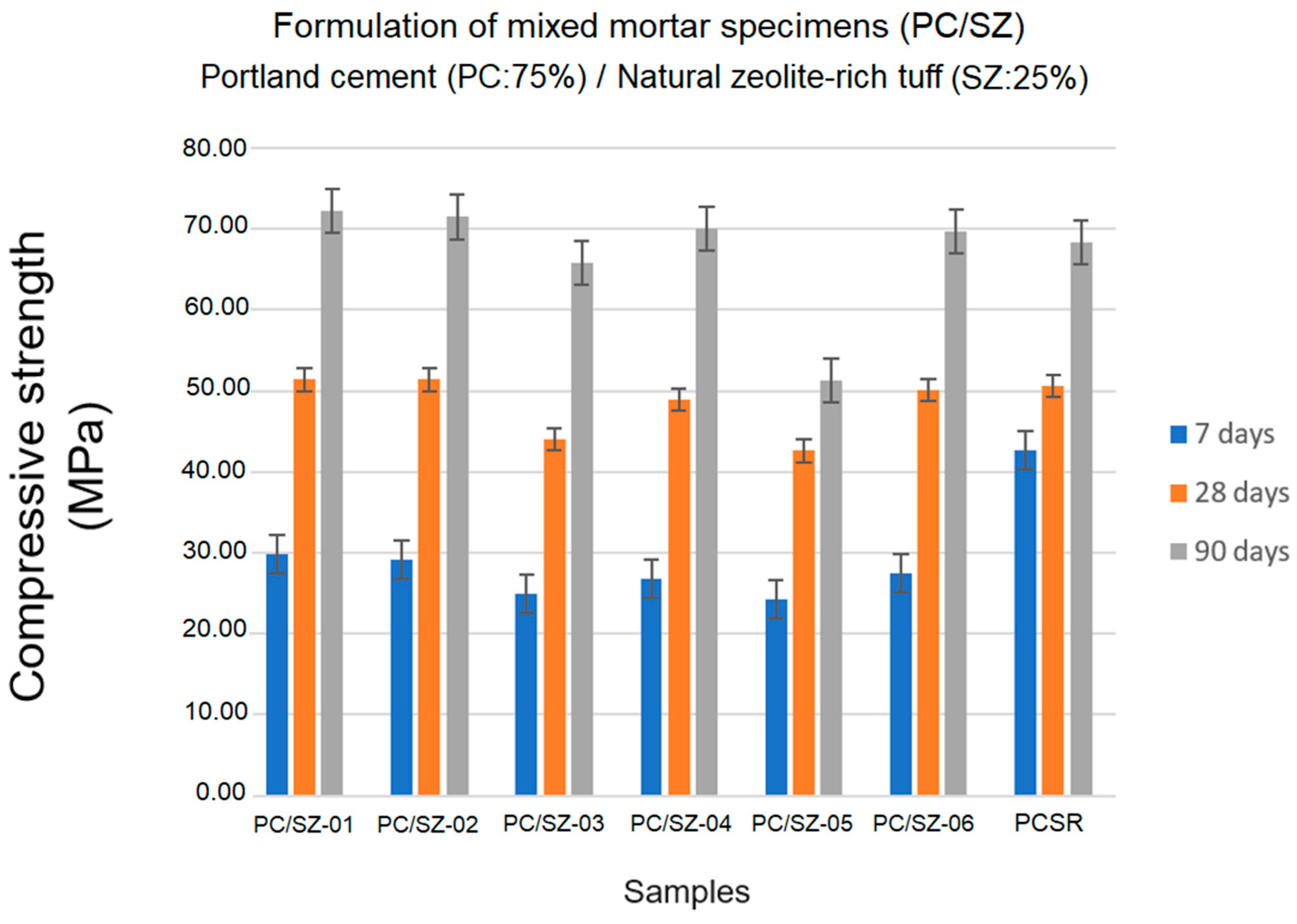

Figure 7 shows the results of the mechanical compressive strengths calculated at 7, 28, and 90 days. An increasing rise in strength was observed for all the specimens made with a mixture of Portland cement and natural zeolite-rich tuff. Accordingly, it is once again confirmed that the presence of zeolite as a pozzolan favors the hydraulic reaction in the paste [45,53,54,55]. Furthermore, the capacity of zeolite to substitute Portland cement (PC/SZ: 75–25%) effectively without negatively altering the rheological properties of the mortars was tested.
As shown in Figure 7, after 7 days of curing, all the specimens had lower mechanical strengths than the standard specimen (PCSR: 42.7 MPa). However, their values were relatively close (PC/SZ-01: 29.8 MPa; PC/SZ-02: 29.1 MPa; PC/SZ-03: 24.9 MPa; PC/SZ-04: 26.8 MPa; PC/SZ-05: 24.2 MPa and PC/SZ-06: 27.4 MPa).
After 28 days of curing, the mechanical strength value of the reference specimen was reached. However, some mixed specimens significantly approached (PC/SZ-06: 50.1 MPa and PC/SZ-04: 48.9 MPa) or even surpassed it (PC/SZ-01: 51.4 MPa and PC/SZ-02: 51.3 MPa).
After 90 days of curing, the mechanical strength of the mixed specimens increased significantly (PC/SZ-01: 72.2 MPa; PC/SZ-02: 71.5 MPa; PC/SZ-04: 70.1 MPa; PC/SZ-06: 69.7 MPa), surpassing the value of the reference mortar (PCSR: 68.4 MPa). The values calculated for the remaining samples (PC/SZ-03: 65.8 MPa; PC/SZ-05: 51.3 MPa) also showed an exponential increase in compressive strength.
The analysis of the mechanical behavior of the tested specimens indicated full agreement with the pozzolanicity test results given in Section 3.6. It seems to be demonstrated that the pozzolanic reactivity of the natural zeolite-rich tuff studied has a significant influence on the process of gaining mechanical strength. This fact is confirmed by several authors in their studies on mortars and concretes made with zeolites of different species [55,56,57,58].

4. Conclusions

The following conclusions have been drawn from the study of the zeolite samples found in the study area:
  • The results presented prove that the zeolite found in the study area is composed mostly of highly crystalline mordenite and subordinately of smectite (montmorillonite), illite, halloysite, quartz, plagioclase, and muscovite.
  • The samples analyzed have high contents of SiO2 and Al2O3, while the contents of alkaline compounds (Na2O and K2O) are significantly higher than those of alkaline–earth compounds (CaO and MgO).
  • The thermal behavior of the samples indicates that the mordenite is stable up to approximately 750 °C, after which it tends to collapse and restructure.
  • All the samples have shown a marked pozzolanic behavior both at 8 and 15 days, so their status as high-quality pozzolans is established.
  • It is concluded that more silica is available in cement to natural zeolite-rich tuff mortars than in those made exclusively with cement. This availability of SiO2 could lead to an increase in mechanical strengths in the long term.
  • The SiO2/(CaO + MgO) ratio is high, which favors the pozzolanic reaction since the silica phase will tend to react with the alkaline phase.
  • Natural zeolite-rich tuff influences the balance of the SO3 content in mortar samples, causing this compound to always remain in solution and prevent ettringite from forming in abnormal quantities.
  • The presence of zeolite in mixed mortar mixes (PC/ZS) favors the increase of mechanical strength from 7 to 90 days. During this period, the strength values equaled or even exceeded the reference mortar. In this study, Portland cement was replaced by 25% natural zeolite-rich tuff. However, it is possible that with formulations of PC/ZS: 70–30%, relevant results can also be obtained.
  • According to the points argued above, it is established that the natural zeolite-rich tuff studied is qualitatively suitable for the improvement of cements, mortars, and concretes.
  • Finally, the investigation of this new finding corroborates that this natural zeolite-rich tuff has similar mineral, chemical, and technical properties that are even qualitatively better than the one found in the main deposit (San José-Los Escullos). This could be advantageous when considering the expansion of geological and mining reserves from the perspective of local industry interests.

Author Contributions

Conceptualization, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; methodology, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; software, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; validation, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; formal analysis, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; investigation, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; resources, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; data curation, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; writing—original draft preparation, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; writing—review and editing, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; visualization, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; supervision, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; project administration, J.L.C., D.A.M., M.A.S., and J.L.C.-V.; funding acquisition, J.L.C., D.A.M., M.A.S., and J.L.C.-V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are contained within the article.

Acknowledgments

The authors would like to thank the Laboratorio Oficial para Ensayos de Materiales de Construcción (LOEMCO), Spain, and the Fundación Gómez Pardo (Madrid, Spain) for the preparation of the samples, the performance of the tests and the interpretation of the results. The authors would also like to thank the laboratories of the Escuela Técnica Superior de Ingenieros de Minas y Energía of the Universidad Politécnica de Madrid (Spain), as well as the Instituto Español del Cemento y sus Aplicaciones (IECA) for their support with some analysis. Finally, the authors are very appreciative of the kindness of the Laboratorio de Tamices Moleculares of the Instituto de Catálisis y Petroleoquímica of the Centro de Investigaciones Científicas (CSIC) of Madrid (Spain).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stamatakis, M.G.; Regueiro, M.; Calvo, J.P.; Fragoulis, D.; Stamatakis, G. A study of zeolitic tuffs associated with bentonite deposits from Almeria, Spain and Kimolos Island, Greece and their industrial potential as pozzolanas in the cement industry. Hell. J. Geosci. 2010, 45, 283–292. [Google Scholar]
  2. Regueiro, M.; García-Romero, E.; Suárez, M.; Lopez-Acevedo, V.; López-García, J.A. Geología y Geoquímica del Yacimiento de Zeolita “Los Murcianos” (Cabo de Gata, Almería). In Proceedings of the XII International Congress on Energy and Mineral Resources, Oviedo, Spain, 7–11 October 2007. [Google Scholar]
  3. Benito, R.; Garcia-Guinea, J.; Valle-Fuentes, F.J.; Recio, P. Mineralogy, geochemistry and uses of the mordenite–bentonite ash-tuff beds of Los Escullos, Almería, Spain. J. Geochem. Explor. 1998, 62, 229–240. [Google Scholar] [CrossRef]
  4. Jiménez, R.; Cortel, A.; González, J.; Hernández, M.P.; Segura, J.M.; Soldevilla, J.A. Les zeolites d’Agua Amarga, Níjar, Almeria, Andalusia. Mineral. Catalunya 2022, 14, 24. [Google Scholar]
  5. Martin Vivaldi, J.L.; López Aguayo, F. Presence de mordenite dans un gisement de bentonite de la region de Cabo de Gata, Almería. Pascal Francis. Bol. Geol. Min. 1975, 86, 187–192. [Google Scholar]
  6. Mattei, M.; Riggs, N.R.; Giordano, G.; Guarnieri, L.; Cifelli, F.; Soriano, C.C.; Jicha, B.; Jasim, A.; Marchionni, S.; Franciosi, L.; et al. Geochronology, Geochemistry and Geodynamics of the Cabo de Gata volcanic zone, Southeastern Spain. Ital. J. Geosci. 2014, 133, 341–361. [Google Scholar] [CrossRef]
  7. de la Fuente, S.; Cuadros, J.; Linares, J. Early Stages of Volcanic Tuff Alteration in Hydrothermal Experiments: Formation of Mixed-Layer Illite-Smectite. Clays Clay Miner. 2002, 50, 578–590. [Google Scholar] [CrossRef]
  8. López-Ruiz, J.; Cebriá, J.M.; Doblas, M. Cenozoic Volcanism I: The Iberian Peninsula; The Geology of Spain; Geological Society: London, UK, 2002; p. 27. [Google Scholar]
  9. Pelayo, M.; Marco, J.F.; Fernández, A.M.; Vergara, L.; Melón, A.M.; Pérez del Villar, L. Infrared and Mössbauer spectroscopy of Fe-rich smectites from Morrón de Mateo bentonite deposit (Spain). Clay Miner. 2018, 53, 17–28. [Google Scholar] [CrossRef]
  10. Suárez, M.; Lorenzo, A.; García-Vicente, A.; Morales, J.; García-Rivas, J.; García-Romero, E. New data on the microporosity of bentonites. Eng. Geol. 2022, 296, 106439. [Google Scholar] [CrossRef]
  11. De La Villa, R.V.; Cuevas, J.; Ramírez, S.; Leguey, S. Zeolite formation during the alkaline reaction of bentonite. Eur. J. Miner. 2001, 13, 635–644. [Google Scholar] [CrossRef]
  12. Deon, F.; van Ruitenbeek, F.; van der Werff, H.; van der Meijde, M.; Marcatelli, C. Detection of Interlayered Illite/Smectite Clay Minerals with XRD, SEM Analyses and Reflectance Spectroscopy. Sensors 2022, 22, 3602. [Google Scholar] [CrossRef]
  13. Mapa Geológico de España a escala 1:50.000. “El Pozo de los Frailes”; Segunda Serie-Primera Edición; Instituto Geológico y Minero de España: Madrid, Spain, 1983; pp. 1–35.
  14. Calvo Pérez, B.; Costafreda Mustelier, J.L.; Estévez, E. Caracterización Preliminar de las Zeolitas del Yacimiento Los Murcianos, Al-Mería. V Iberian Congress of Geochemistry. IX Spanish Geochemistry Congress, Soria, Spain, 2005. Legal Deposit: SO-69/2005. ISBN: 84-95099-88. p. 10. Available online: https://oa.upm.es/1417/1/CALVO_PON_2005_01.pdf (accessed on 10 April 2024).
  15. Calvo Pérez, B.; Estévez Fernández, E.; Costafreda Mustelier, J. Estudio de las Propiedades Puzolánicas de Materiales de Origen Volcánico Ubicados en la Zona Sureste de España. V Iberian Congress of Geochemistry. IX Spanish Geochemistry Congress, Soria, Spain, 2015. p. 10. Legal Deposit: SO-69/2005. ISBN: 84-95099-88-8. Available online: https://oa.upm.es/1418/1/CALVO_PON_2005_02.pdf (accessed on 10 April 2024).
  16. García-Romero, E.; Suárez, M.; López-Acevedo, V.; Lozano, R.; Oyarzun, R.; López-García, J.A.; Regueiro, M. Caracterización Mineralógica y Textural del Yacimiento de Zeolitas de «Los Murcianos» (Cabo de Gata, Almería); Resultados Preliminaries; Spanish Mineralogical Society: Madrid, Spain, 2006; MACLA 6; p. 4. [Google Scholar]
  17. Suárez, M.; García-Romero, E.; Manchado, E.M. Thermal Activation of the Mordenite from Los Murcianos Deposist (Almería); Geo-Temas 10; Geological Society of Spain: Madrid, Spain, 2008; p. 4. ISSN 1567-5172. [Google Scholar]
  18. Costafreda, J.L. Geología, Caracterización y Aplicaciones de las Rocas Zeolíticas del Complejo Volcánico de Cabo de Gata (Almería). Ph.D. Thesis, Universidad Politécnica de Madrid, Madrid, Spain, 2008; 515p. [Google Scholar]
  19. Martín, D.A.; Costafreda, J.L.; Presa, L.; Zambrano, J.; Costafreda, J.L., Jr. A New Study of the Lower Levels of the Los Frailes Caldera (Spain) for the Location and Characterisation of Pozzolans as Construction Materials. Constr. Mater. 2022, 2, 40–52. [Google Scholar] [CrossRef]
  20. Tarazona, O.A. Estabilización Química de Aguas Afectadas por Metales Pesados en Áreas con Actividad Minerometalúrgica Mediante el Uso de Zeolitas. Universidad Complutense de Madrid. Facultad. De Ciencias Geológicas: Madrid, Spain, 2019; p. 46. Available online: https://purl.org/pe-repo/ocde/ford#2.07.01/ (accessed on 11 April 2024).
  21. Villaseñor, J.; Rodríguez, L.; Fernández, F. Composting domestic sewage sludge with natural zeolites in a rotary drum reactor. Bioresour. Technol. 2011, 102, 1447–1454. [Google Scholar] [CrossRef]
  22. Domene, M.A.; Agüera, J.M.; Uceda, M.; Buendía, D.; Racero, J.L.; Sevilla, A. Nuevas Soluciones para la Restauración am-Biental en Zonas Áridas; Dialnet. Cuaderno interdisciplinar de desarrollo sostenible (CUIDES): Madrid, Spain, 2011; pp. 11–89. ISSN 1889-0660. [Google Scholar]
  23. Martín, D.A.; Costafreda, J.L.; Costafreda, J.L., Jr.; Presa, L. Improving the Performance of Mortars Made from Recycled Aggregates by the Addition of Zeolitised Cineritic Tuff. Crystals 2022, 12, 77. [Google Scholar] [CrossRef]
  24. Costafreda, J.L.; Martín, D.A.; Presa, L.; Parra, J.L. Effects of a Natural Mordenite as Pozzolan Material in the Evolution of Mortar Settings. Materials 2021, 14, 5343. [Google Scholar] [CrossRef]
  25. Jo, B.-W.; Choi, J.-S.; Yoon, K.-W.; Park, J.-H. Material characteristics of zeolite cement mortar. Constr. Build. Mater. 2012, 36, 1059–1065. [Google Scholar] [CrossRef]
  26. Cobîrzan, N.; Balog, A.-A.; Aciu, C.; Iluţiu–Varvara, D.A. Sustainable Uses of Zeolitic Tuff as Building Materials. Procedia Technol. 2014, 12, 542–547. [Google Scholar] [CrossRef]
  27. Iswarya, G.; Beulah, M. Use of zeolite and industrial waste materials in high strength concrete—A review. Mater. Proceeding 2021, 46, 116–123. [Google Scholar] [CrossRef]
  28. Tran, Y.T.; Lee, J.; Kumar, P.; Kim, K.-H.; Lee, S.S. Natural zeolite and its application in concrete composite production. Compos. Part B Eng. 2019, 165, 354–364. [Google Scholar] [CrossRef]
  29. Karakurt, C.; Kurama, H.; Topçu, I.B. Utilization of natural zeolite in aerated concrete production. Cem. Concr. Compos. 2010, 32, 1–8. [Google Scholar] [CrossRef]
  30. Ghourchian, S.; Wyrzykowski, M.; Lura, P.; Shekarchi, M.; Ahmadi, B. An investigation on the use of zeolite aggregates for internal curing of concrete. Constr. Build. Mater. 2013, 40, 135–144. [Google Scholar] [CrossRef]
  31. Boháč, M.; Kubátová, D.; Nečas, R.; Zezulová, A.; Masárová, A.; Novotný, R. Properties of Cement Pastes with Zeolite During Early Stage of Hydration. Procedia Eng. 2016, 151, 2–9. [Google Scholar] [CrossRef]
  32. Vejmelková, E.; Koňáková, D.; Kulovaná, T.; Keppert, M.; Žumár, J.; Rovnaníková, P.; Keršner, Z.; Sedlmajer, M.; Černý, R. Engineering properties of concrete containing natural zeolite as supplementary cementitious material: Strength, toughness, durability, and hygrothermal performance. Cem. Concr. Compos. 2015, 55, 259–267. [Google Scholar] [CrossRef]
  33. UNE-EN 196-2:2014; Métodos de Ensayo de Cementos—Parte 2: Análisis Químico de Cementos. AENOR: Madrid, Spain, 2014.
  34. UNE-EN 196-5:2006; Métodos de Ensayo de Cementos—Parte 5: Ensayo de Puzolanicidad para Cementos Puzolánicos. AENOR: Madrid, Spain, 2006.
  35. UNE-EN 197-1:2011; Composición, Especificaciones y Criterios de Conformidad de los Cementos Comunes. AENOR: Madrid, Spain, 2011.
  36. UNE-EN 196-1:2016; Métodos de Ensayo de Cementos—Parte 1: Determinación de Resistencias Mecánicas. AENOR: Madrid, Spain, 2016.
  37. Giannetto, G.; Montes, A.; Rodríguez-Fuentes, G. Zeolitas. Características, Propiedades y Aplicaciones Industriales; Edit. In-novación Tecnológica; Facultad de Ingeniería, Universidad Central de Venezuela: Caracas, Venezuela, 2000; p. 351. ISBN 980-00-1648-1. [Google Scholar]
  38. Auerbach, S.M.; Carrado, K.A.; Dutta, P.K. Handbook of Zeolite Science and Technology; Library of Congress Catalogu-ing-in-Publication Data; CRC Press: New York, NY, USA, 2003; pp. 1–19. ISBN 0-8247-4020-3. [Google Scholar]
  39. Hajash, A. Hydrothermal processes along mid-ocean ridges: An experimental investigation. Contrib. Miner. Pet. 1975, 53, 205–226. [Google Scholar] [CrossRef]
  40. Fernández Soler, J.M. El Volcanismo Calco-Alcalino de Cabo de Gata (Almería). Estudio Volcanológico y Petrológico. Ph.D. Thesis, Universidad de Granada, Granada, Spain, 1992; 243p. [Google Scholar]
  41. Presa, L.; Costafreda, J.L.; Martín, D.A.; Díaz, I. Natural Mordenite from Spain as Pozzolana. Molecules 2020, 25, 1220. [Google Scholar] [CrossRef]
  42. Hamada, H.M.; Abdulhaleem, K.N.; Majdi, A.; Al Jawahery, M.S.; Thomas, B.S.; Yousif, S.T. The durability of concrete produced from pozzolan materials as a partially cement replacement: A comprehensive review. Mater. Today Proc. 2023, in press. [CrossRef]
  43. Caputo, D.; Liguori, B.; Colella, C. Some advances in understanding the pozzolanic activity of zeolites: The effect of zeolite structure. Cem. Concr. Compos. 2008, 30, 455–462. [Google Scholar] [CrossRef]
  44. Saraya, M.E.; Thabet, M.S. CHARACTERIZATION AND EVALUATION OF NATURAL ZEOLITE AS A POZZOLANIC MATERIAL. Al-Azhar Bull. Sci. 2018, 29, 17–34. [Google Scholar] [CrossRef]
  45. Mertens, G.; Snellings, R.; Van Balen, K.; Bicer-Simsir, B.; Verlooy, P.; Elsen, J. Pozzolanic reactions of common natural zeolites with lime and parameters affecting their reactivity. Cem. Concr. Res. 2009, 39, 233–240. [Google Scholar] [CrossRef]
  46. Costafreda, J.L.; Martín, D.A.; Presa, L.; Parra, J.L. Altered Volcanic Tuffs from Los Frailes Caldera. A Study of Their Pozzolanic Properties. Molecules 2021, 26, 5348. [Google Scholar] [CrossRef]
  47. Stefanidou, M.; Papayianni, I. The role of aggregates on the structure and properties of lime mortars. Cem. Concr. Compos. 2005, 27, 914–919. [Google Scholar] [CrossRef]
  48. Rosell, M.; Galloso, R.; Calvo, B. Zeolite as an active mineral additive in hight yield concrete. Boletín Geol. Min. 2006, 117, 783–792, ISSN: 0366-0176. [Google Scholar]
  49. Kocak, Y.; Tascı, E.; Kaya, U. The effect of using natural zeolite on the properties and hydration characteristics of blended cements. Constr. Build. Mater. 2013, 47, 720–727. [Google Scholar] [CrossRef]
  50. Małolepszy, J.; Grabowska, E. Sulphate Attack Resistance of Cement with Zeolite Additive. Procedia Eng. 2015, 108, 170–176. [Google Scholar] [CrossRef]
  51. Irassar, E.; González, M.; Rahhal, V. Sulphate resistance of type V cements with limestone filler and natural pozzolana. Cem. Concr. Compos. 2000, 22, 361–368. [Google Scholar] [CrossRef]
  52. Merida, A.; Kharchi, F. Pozzolan Concrete Durability on Sulphate Attack. Procedia Eng. 2015, 114, 832–837. [Google Scholar] [CrossRef]
  53. Liguori, B.; Aprea, P.; de Gennaro, B.; Iucolano, F.; Colella, A.; Caputo, D. Pozzolanic Activity of Zeolites: The Role of Si/Al Ratio. Materials 2019, 12, 4231. [Google Scholar] [CrossRef]
  54. Uzal, B.; Turanlı, L.; Yücel, H.; Göncüoğlu, M.; Çulfaz, A. Pozzolanic activity of clinoptilolite: A comparative study with silica fume, fly ash and a non-zeolitic natural pozzolan. Cem. Concr. Res. 2010, 40, 398–404. [Google Scholar] [CrossRef]
  55. Najimi, M.; Sobhani, J.; Ahmadi, B.; Shekarchi, M. An experimental study on durability properties of concrete containing zeolite as a highly reactive natural pozzolan. Constr. Build. Mater. 2012, 35, 1023–1033. [Google Scholar] [CrossRef]
  56. Markiv, T.; Sobol, K.; Franus, M.; Franus, W. Mechanical and durability properties of concretes incorporating natural zeolite. Arch. Civ. Mech. Eng. 2016, 16, 554–562. [Google Scholar] [CrossRef]
  57. Raggiotti, B.B.; Positieri, M.J.; Oshiro, Á. Natural zeolite, a pozzolan for structural concrete. Procedia Struct. Integr. 2018, 11, 36–43. [Google Scholar] [CrossRef]
  58. Nagrockiene, D.; Girskas, G. Research into the properties of concrete modified with natural zeolite addition. Constr. Build. Mater. 2016, 113, 964–969. [Google Scholar] [CrossRef]
Materials 17 04430 g001

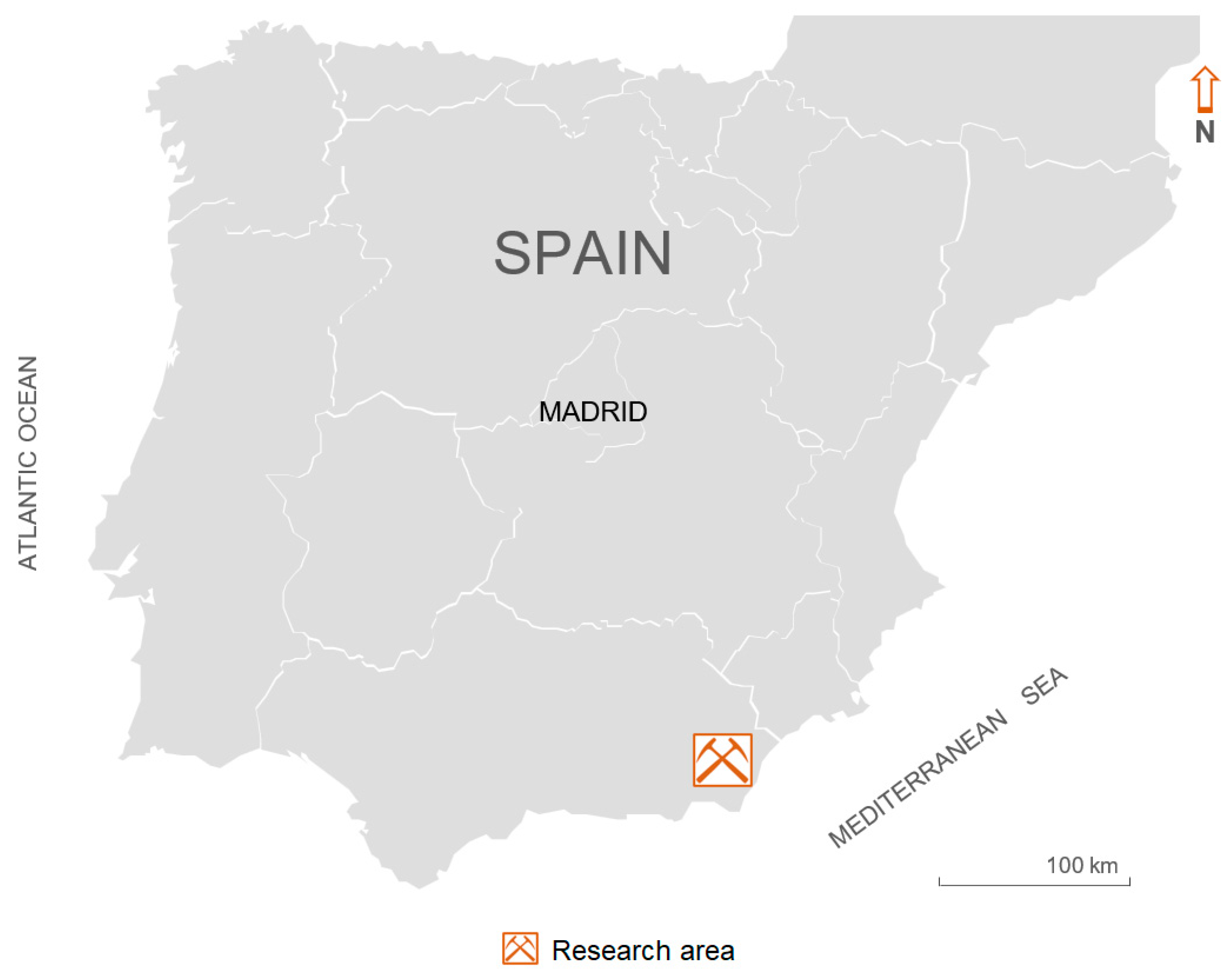

Figure 1. Location of the research area.
Figure 1. Location of the research area.
Materials 17 04430 g001
Materials 17 04430 g002

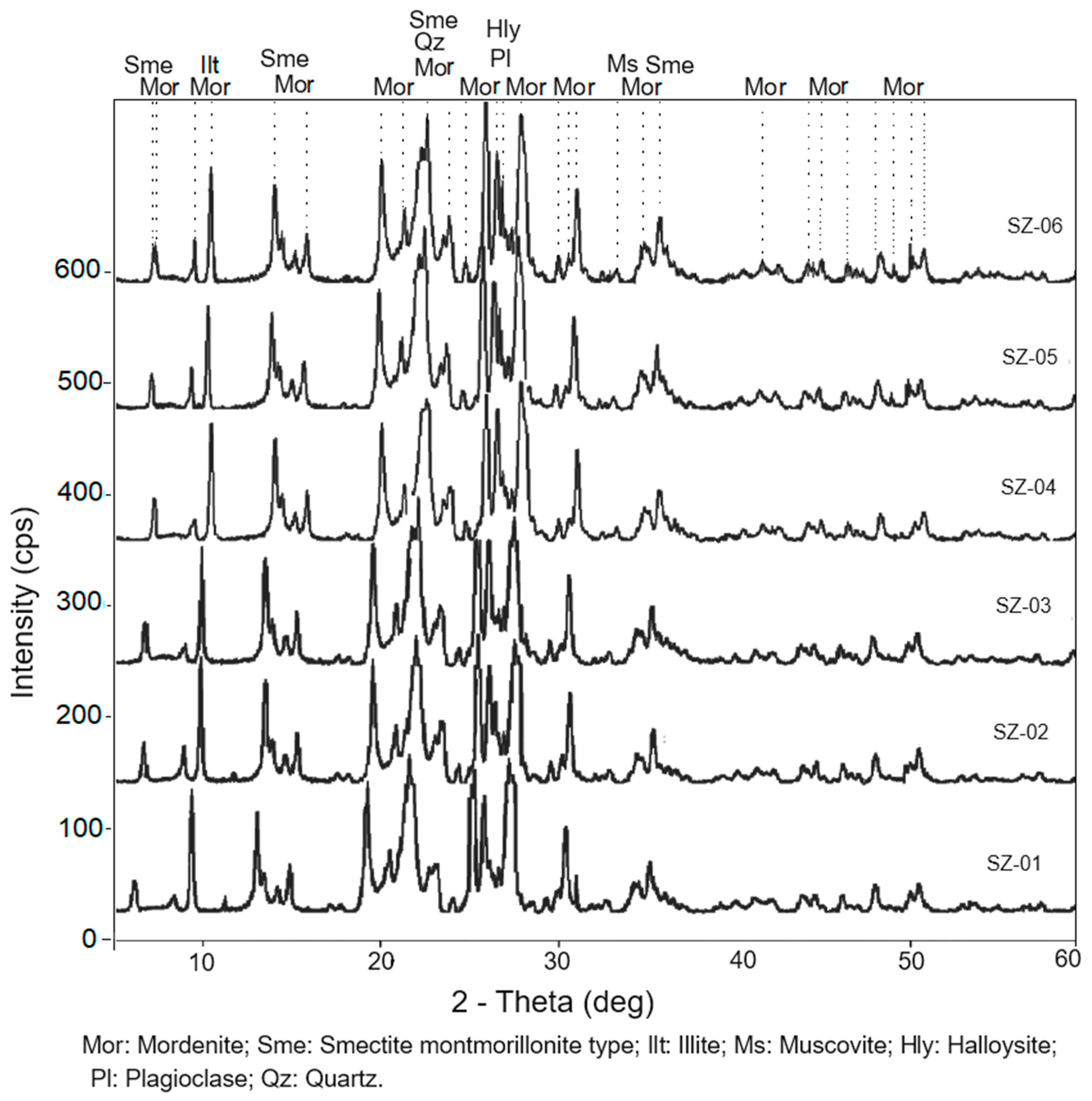

Figure 2. X-ray diffraction patterns of the samples of natural zeolite-rich tuff.
Figure 2. X-ray diffraction patterns of the samples of natural zeolite-rich tuff.
Materials 17 04430 g002
Materials 17 04430 g003
Figure 3. SEM micrographs (a–f) of the analyzed samples.
Figure 3. SEM micrographs (a–f) of the analyzed samples.
Materials 17 04430 g003
Materials 17 04430 g004

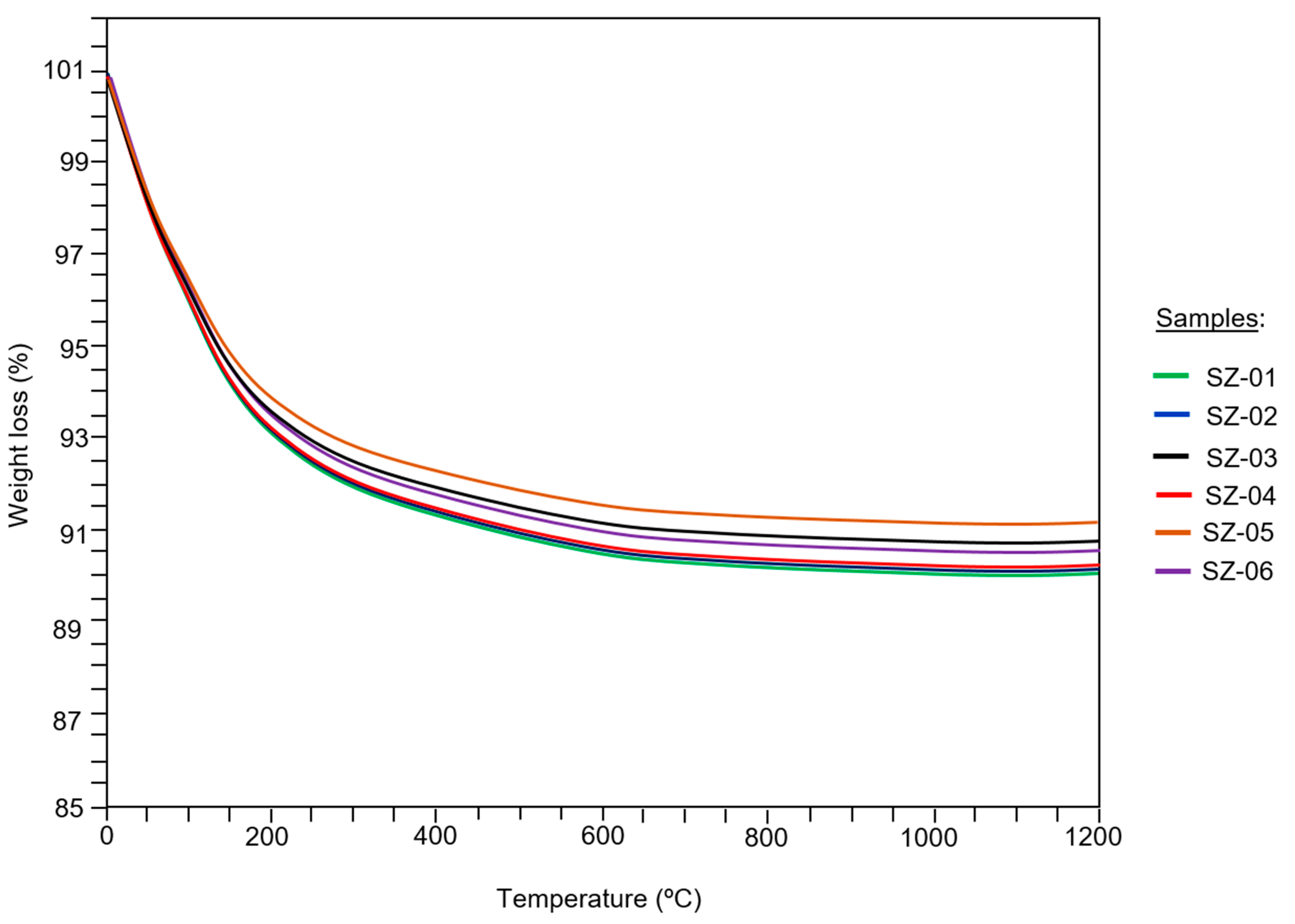

Figure 4. Behavior of the TGA curves in the samples studied.
Figure 4. Behavior of the TGA curves in the samples studied.
Materials 17 04430 g004
Materials 17 04430 g005

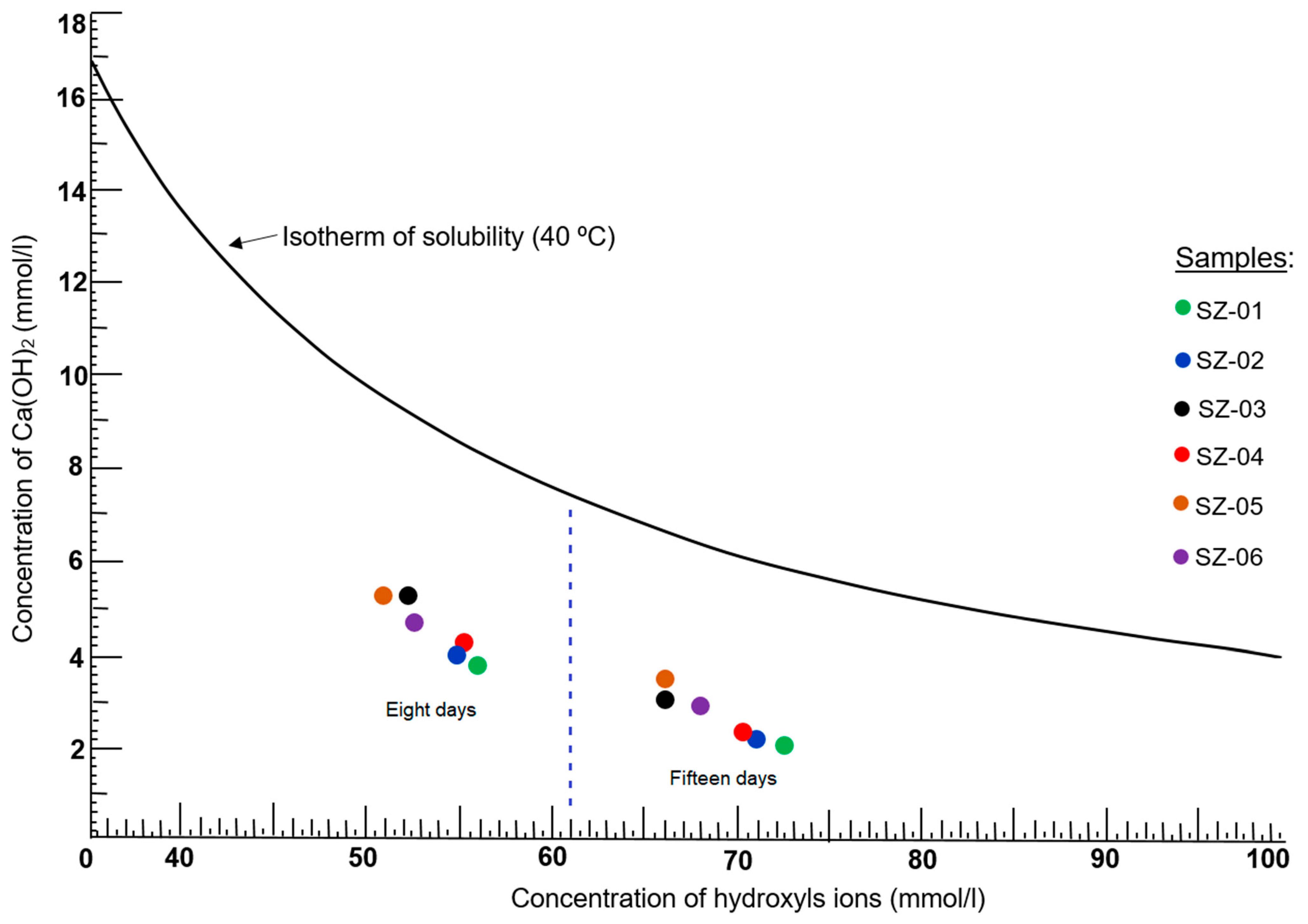

Figure 5. Evolution of the pozzolanic behavior of each sample analyzed at 8 and 15 days.
Figure 5. Evolution of the pozzolanic behavior of each sample analyzed at 8 and 15 days.
Materials 17 04430 g005
Materials 17 04430 g006

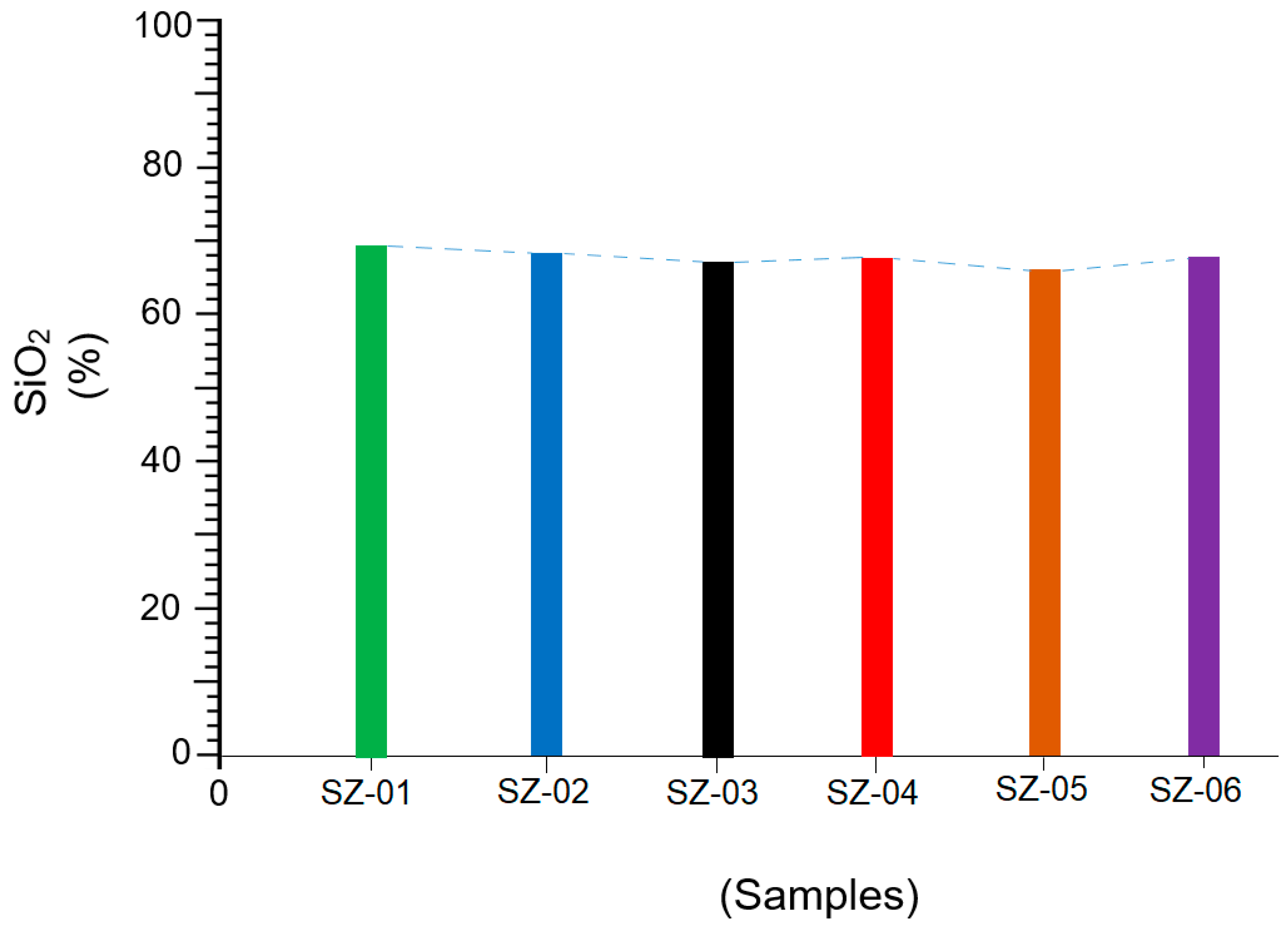

Figure 6. Behavior of SiO2 in the analyzed samples.
Figure 6. Behavior of SiO2 in the analyzed samples.
Materials 17 04430 g006
Materials 17 04430 g007
Figure 7. Behavior of the mechanical resistance in the period of 7, 28, and 90 days of curing.
Figure 7. Behavior of the mechanical resistance in the period of 7, 28, and 90 days of curing.
Materials 17 04430 g007
Table 1. Chemical composition of Portland cement as determined by XRF.
Table 1. Chemical composition of Portland cement as determined by XRF.
% Oxides Weight
MaterialsSiO2CaOFe2O3Al2O3Na2OSO3MgOK2OTiO2P2O5MnOPPCTotal
PC 117.4564.043.355.590.09140.6411.370.3260.0720.0942.4399.454
1 Portland cement.
Table 2. Granulometric distribution of the normalized sand (NS) used in this research.
Table 2. Granulometric distribution of the normalized sand (NS) used in this research.
Square Mesh Dimensions (mm)2.01.601.000.50.160.08
Residue Retained on Sieves (%)0.007 ± 533 ± 567 ± 587 ± 599 ± 1
Table 3. Formulation of Portland cement (PC:75%)/natural zeolite-rich tuff (SZ:25%) mix ratios in mortar specimens.
Table 3. Formulation of Portland cement (PC:75%)/natural zeolite-rich tuff (SZ:25%) mix ratios in mortar specimens.
SampleMortar ComponentsFormulation
(g)		Test Age
(Days)
PC/SZ-01 1Portland cement
Natural zeolite-rich tuff
Normalized sand
Distilled water		Portland cement: 375 g
Natural zeolite-rich tuff: 125 g
Distilled water: 225 g
Normalized sand: 1350 g		7/28/90
PC/SZ-02
PC/SZ-03
PC/SZ-04
PC/SZ-05
PC/SZ-06
PCSR 2Portland cement
Normalized sand
Distilled water		Portland cement: 450 g
Distilled water: 225 g
Normalized sand: 1350 g		7/28/90
1 PC/SZ-01 to 06: mortar specimens prepared with Portland cement and natural zeolite-rich tuff; 2 PCSR: mortar specimens manufactured with Portland cement only as a reference element.
Table 4. Chemical composition of XRF samples.
Table 4. Chemical composition of XRF samples.
Samples% Oxides Weight
SiO2Al2O3CaONa2OK2OMgOFe2O3TiO2MnOSO3LOISi/AlSi/
(Al + Fe)
SZ-0165.6515.631.022.614.332.041.770.120.0910.1411.54.23.8
SZ-0264.4815.221.473.133.612.011.810.110.1150.0810.75.23.8
SZ-0364.9116.431.302.813.142.241.790.100.1120.1010.94.03.6
SZ-0465.1415.131.082.523.312.191.750.130.0830.0611.94.33.9
SZ-0564.4716.211.353.033.182.111.800.100.0720.1111.14.03.6
SZ-0664.9316.301.312.553.222.141.730.140.0510.1011.34.03.6
Table 5. Qualitative-technological chemical composition of the samples.
Table 5. Qualitative-technological chemical composition of the samples.
Compounds
(%)		Samples
SZ-01SZ-02SZ-03SZ-04SZ-05SZ-06
Total SiO269.2568.8068.5168.7468.0768.53
Reactive SiO268.2267.7767.4867.7167.0467.50
Total CaO1.221.311.291.121.331.28
Reactive CaO0.620.710.690.520.730.68
Al2O315.3314.9216.1314.5315.6115.70
MgO1.541.511.741.691.611.64
Fe2O31.361.401.381.341.391.32
SO30.090.110.080.100.130.09
I.R. 11.031.132.011.901.781.83
SiO2/(CaO + MgO)25.024.422.624.523.123.5
1 I.R.: insoluble residue.
Table 6. Chemical composition of specimens made only with Portland cement at different curing ages.
Table 6. Chemical composition of specimens made only with Portland cement at different curing ages.
Sample % Oxides Weight
SiO2Al2O3CaOMgOK2ONa2OSO3Fe2O3TiO2P2O5MnO
PC 117.475.6064.050.631.350.094.003.310.330.070.09
PCS-7 247.313.5434.800.490.810.101.404.230.150.110.14
PCS-28 345.153.3137.150.530.760.211.424.690.180.100.14
PCS-90 438.273.1142.120.580.550.231.495.070.190.090.13
130.739.96114.071.602.120.544.31----
1 Anhydrous Portland cement sample; 2–4 specimens of Portland cement mortar and standardized sand set at 7, 28, and 90 days.
Table 7. Chemical composition of specimens made with mixed mixtures of cement (75%) and natural zeolite-rich tuff (25%) at different curing ages.
Table 7. Chemical composition of specimens made with mixed mixtures of cement (75%) and natural zeolite-rich tuff (25%) at different curing ages.
Sample% Oxides Weight
SiO2Al2O3CaOMgOK2ONa2OSO3Fe2O3TiO2P2O5MnO
SZ-01 165.6515.631.021.294.332.610.141.770.120.030.09
PC/SZ-01-7 248.635.2431.140.531.170.171.253.930.180.110.11
PC/SZ-01-28 347.304.8932.510.551.230.161.214.170.190.100.13
PC/SZ-01-90 442.714.5937.170.621.210.141.104.710.230.090.15
138.6414.72100.821.703.610.473.56----
1 Sample of natural zeolite-rich tuff (SZ-01) in its natural state; 2–4 specimens of mixed mortars composed of cement (75%) and natural zeolite-rich tuff (25%) and set at 7, 28, and 90 days.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Costafreda, J.L.; Martín, D.A.; Sanjuán, M.A.; Costafreda-Velázquez, J.L. New Discovery of Natural Zeolite-Rich Tuff on the Northern Margin of the Los Frailes Caldera: A Study to Determine Its Performance as a Supplementary Cementitious Material. Materials 2024, 17, 4430. https://doi.org/10.3390/ma17174430

AMA Style

Costafreda JL, Martín DA, Sanjuán MA, Costafreda-Velázquez JL. New Discovery of Natural Zeolite-Rich Tuff on the Northern Margin of the Los Frailes Caldera: A Study to Determine Its Performance as a Supplementary Cementitious Material. Materials. 2024; 17(17):4430. https://doi.org/10.3390/ma17174430

Chicago/Turabian Style

Costafreda, Jorge L., Domingo A. Martín, Miguel A. Sanjuán, and Jorge L. Costafreda-Velázquez. 2024. "New Discovery of Natural Zeolite-Rich Tuff on the Northern Margin of the Los Frailes Caldera: A Study to Determine Its Performance as a Supplementary Cementitious Material" Materials 17, no. 17: 4430. https://doi.org/10.3390/ma17174430

APA Style

Costafreda, J. L., Martín, D. A., Sanjuán, M. A., & Costafreda-Velázquez, J. L. (2024). New Discovery of Natural Zeolite-Rich Tuff on the Northern Margin of the Los Frailes Caldera: A Study to Determine Its Performance as a Supplementary Cementitious Material. Materials, 17(17), 4430. https://doi.org/10.3390/ma17174430

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
