Copper-Based Diamond-like Thermoelectric Compounds: Looking Back and Stepping Forward

Abstract

The research on thermoelectric (TE) materials has a long history. Holding the advantages of high elemental abundance, lead-free and easily tunable transport properties, copper-based diamond-like (CBDL) thermoelectric compounds have attracted extensive attention from the thermoelectric community. The CBDL compounds contain a large number of representative candidates for thermoelectric applications, such as CuInGa₂, Cu₂GeSe₃, Cu₃SbSe₄, Cu₁₂SbSe₁₃, etc. In this study, the structure characteristics and TE performances of typical CBDLs were briefly summarized. Several common synthesis technologies and effective strategies to improve the thermoelectric performances of CBDL compounds were introduced. In addition, the latest developments in thermoelectric devices based on CBDL compounds were discussed. Further developments and prospects for exploring high-performance copper-based diamond-like thermoelectric materials and devices were also presented at the end.

1. Introduction

The attractive capability of thermoelectric (TE) materials in actualizing the conversion between temperature gradient and electrical power makes them strong candidates for waste-heat recovery as well as solid-state refrigeration [1,2,3]. The practical and widespread application of TE technology strongly relies on the development of high-performance TE materials, where the TE performance of materials is evaluated by a dimensionless figure of merit, zT = α²σT/κ. The TE parameters α and σ are the Seebeck coefficient and electrical conductivity which, respectively, constitute the power factor, PF = α²σ, used to evaluate electrical conductivity characteristics. Parameter T is the Kelvin thermodynamic temperature, while κ refers to the total thermal conductivity, which is composed of two major contributions from the charge carriers (κ_E) and the lattice (κ_L), respectively. From a computational perspective, the most ideal high-performance TE material should have a large α, high σ as well as a low κ value. What cannot be avoided is the strong coupling between thermoelectric parameters regarding carrier concentration, such as when a high σ means low α and a high κ_E, limiting the improvement of zT [4,5,6]. In order to achieve high zT in traditional or emerging TE materials, various methods and approaches have been adopted to reduce the correlation between thermal and electrical properties [7,8,9], including defect engineering, size effects, alloying effect and high-entropy engineering, etc. In addition to achieving high performance, the exploration of alternative materials consists of earth-abundant and eco-friendly components to meet the sake of clean and environmental protection is also considered as one of the most popular approaches in TE field [10,11,12,13]. In recent years, diverse bulk TE materials have been widely researched, including liquid-like Cu₂(S, Se, Te), silver-based chalcogenides, Sn(Te, S, Se), half-heuslers, etc. [14,15,16].

As an environmentally friendly and promising TE material without precious elements, the performance advantages of copper-based diamond-like TE compounds lie in their high Seebeck coefficient and low thermal conductivity [17,18,19,20,21]. Typical compounds include: Cu₃SbSe₄, with a high zT of 0.89 at 650 K [19]; Cu₂SnSe₃, with α of ~250 μV·K⁻¹ in the temperature range of 300–700 K [22]; and CuInTe₂, with a κ_L value as low as 0.3 W·m⁻¹·K⁻¹ [23], etc. Copper-based diamond-like TE compounds are a type of material that conforms to the concept of “phonon-glass electron-crystal” (PGEC) [17] materials, and their crystal structures are usually composed of two sublattices [23,24,25], in which one sublattice constitutes a conductive network, while the other acts as a thermal barrier and is sometimes also known as a charge reservoir. In 2011, Skoug et al. [24] summarized the significance of lone-pair electrons in the Cu-Sb-Se diamond-like system and demonstrated that the low intrinsic κ_L in compounds came from the interaction of lone-pair electrons with neighboring atoms. Moreover, Skoug et al. [25] also confirmed that the dominant Cu-Se network controlled the electric transport while the Sn orbitals only compensated the system for electrons. Several diamond-like crystal structures evolved from thecubic zincblende structure are shown in Figure 1a. Simultaneously, a series of advanced CBDL compounds have been discovered since 2009, most of which have presented outstanding TE properties. The timeline of maximum zTs and the temperature dependence of zTs for selected CBDL compounds are shown in Figure 1b,c. Taking the typical diamond-like compounds of Cu(In, Ga)Te₂, Cu₃SbSe₄, and Cu₂SnSe₃ as examples, long-term efforts have shown that they all apparently have superior TE transport properties with high zTs that exceed one. For instance, Liu et al. [23] devised a pseudocubic crystal structure in CuInTe₂ compounds; thus the highest zT of 1.24 was obtained in Ag-doped CuInTe₂ compounds. A peak zT of 1.14 was attained in a Cu₂Sn_0.90In_0.10Se₃ compound at 850 K by replacing Sn sites with In. It is also worth noting that a high average zT (zT_ave) value is desirable for overall TE conversion efficiency. For instance, a high zT_max of 1.67 at 873 K, and a zT_ave of 0.73, were realized in Cu_0.7Ag_0.3Ga_0.4In_0.6Te₂ [26]. In the latest research of Zhou’s group [27,28], record-high zT_ave values of 0.73 and 0.77 were achieved in Cu₃SbSe₄–based and Cu₃SbS₄–based materials, respectively, which were also comparable to other state-of-the-art TE compounds. Hence one can see that CBDL compounds are expected to become environmentally friendly candidates for TE applications and to achieve excellent performances.

In this review, the structural origins, and the decoupled transport properties of CBDL thermoelectric compounds, were summarized. The latest advances in different types of CBDL compounds were discussed. Then, several common synthetic methods of CBDL compounds were briefly introduce, typical strategies for optimizing the TE properties of CBDL compounds were described in detail, as well as recent updates on CBDL-based TE devices. Finally, the future development of CBDL thermoelectric compounds was evaluated.

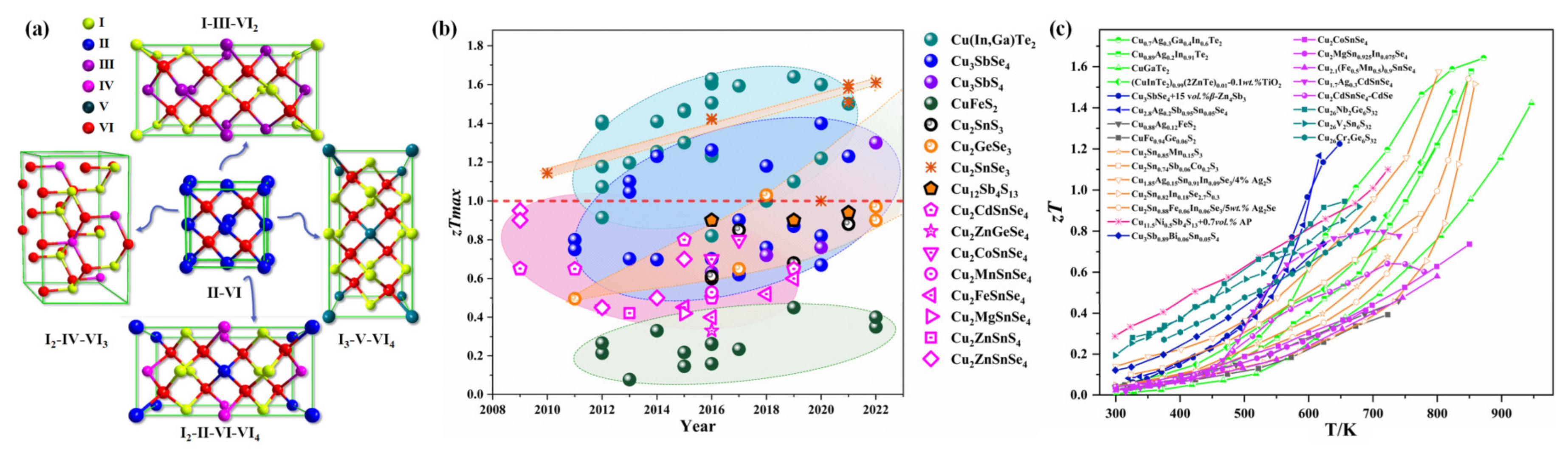

Figure 1. (a) Various crystal structures of CBDL thermoelectric compounds; timeline of zTs (b) and the temperature dependence of zTs (c) for selected copper-based diamond-like thermoelectric compounds, data culled from Cu(In, Ga)Te₂ [23,26,29,30,31,32,33,34,35,36,37,38,39,40,41], Cu₃SbSe₄ [27,42,43,44,45,46,47,48,49], Cu₃SbS₄ [28,50,51], CuFeS₂ [52,53,54,55], Cu₂SnS₃ [56,57,58], Cu₂GeSe₃ [59,60,61], Cu₂SnSe₃ [62,63,64,65,66,67], Cu₁₂SbSe₁₃ [68,69], Cu₂CdSnSe₄ [70,71,72,73,74], Cu₂ZnGeSe₄ [75], Cu₂CoSnSe₄ [76], Cu₂MnSnSe₄ [76], Cu₂FeSnSe₄ [76,77,78], Cu₂MgSnSe₄ [79], Cu₂ZnSnS₄ [33], Cu₂ZnSnSe₄ [33].

Figure 1. (a) Various crystal structures of CBDL thermoelectric compounds; timeline of zTs (b) and the temperature dependence of zTs (c) for selected copper-based diamond-like thermoelectric compounds, data culled from Cu(In, Ga)Te₂ [23,26,29,30,31,32,33,34,35,36,37,38,39,40,41], Cu₃SbSe₄ [27,42,43,44,45,46,47,48,49], Cu₃SbS₄ [28,50,51], CuFeS₂ [52,53,54,55], Cu₂SnS₃ [56,57,58], Cu₂GeSe₃ [59,60,61], Cu₂SnSe₃ [62,63,64,65,66,67], Cu₁₂SbSe₁₃ [68,69], Cu₂CdSnSe₄ [70,71,72,73,74], Cu₂ZnGeSe₄ [75], Cu₂CoSnSe₄ [76], Cu₂MnSnSe₄ [76], Cu₂FeSnSe₄ [76,77,78], Cu₂MgSnSe₄ [79], Cu₂ZnSnS₄ [33], Cu₂ZnSnSe₄ [33].

2. Copper-Based Diamond-like Thermoelectric Compounds

CBDL compounds contain a large number of family members, which include ternary I–III–VI₂ chalcopyrites, I₃–V–VI₄ stannites, I₂–IV–VI₃ stannites, quaternary I₂–II–IV–VI₄ compounds, and even large-cell Cu₁₀B₂C₄D₁₃ tetrahedrites and Cu₂₆P₂Q₆S₃₂ colusites. The TE properties of selected typical CBDL compounds including zT_ave, zT_max, α²σ, κ_L, and carrier concentration (n) at room temperature are displayed in Table 1.

Among CBDL compounds, CuGaTe₂ and CuInTe₂ are typical Cu–III–VI₂ (III = In, Ga; VI = Se, S, Te) chalcopyrites structural compounds which have exhibited excellent thermoelectric properties at higher temperatures. In 2012, Plirdpring et al. [29] achieved a record zT of 1.4 in CuGaTe₂ compound at 950 K, which indicated that it was a potential material in the field of TE applications. Comparatively, it was found that CuInTe₂ possessed a high zT of 1.18 at 850 K [20]. A large number of studies were conducted to optimize the TE transport behaviors of chalcopyrite-based materials in the following years. Through defect engineering, Pei’s team obtained a maximum zT of 1.0 at 750 K in the Ag-doped CuGaTe₂ compound [40] and identified that vacancy scattering was an active approach to improve TE transport behaviors [80]. Zhang et al. [26] synthesized a quinary alloy compound Cu_0.7Ag_0.3Ga_0.4In_0.6Te₂ with a complex nanosized strain domain structure, which presented excellent TE properties with a peak zT of 1.64 at 873 K and an average zT (zT_ave) of 0.73. Through compositing TiO₂ nanofibers, Yang et al. [36] achieved a maximum zT of 1.47 at 823 K in a CuInTe₂–based TE compound. Moreover, Chen et al. [23] obtained a maximum zT of 1.24 in the Cu_0.75Ag_0.2InTe₂ compound. The above shows that Cu(In, Ga)Te₂ diamond-like TE materials have a higher zTs, comparable to other advanced thermoelectric materials such as PbTe [81,82,83,84] and SnTe [85,86,87]. In addition, a natural chalcopyrite mineral, CuFeS₂ [52,53,54,55], was also recognized as an advanced CBDL thermoelectric material. It is noteworthy that the CuFeS₂ compound is a rare typical n-type TE compound among CBDL thermoelectric materials [88,89].

Cu₃–V–VI₄ (V = Sb, P, As; VI = Se, S, Te) compounds with a tetragonal diamond-like crystal structure can be approximately regarded as the superposition of four equivalent zincblendes, wherein Cu₃SbSe₄ is considered as a promising TE candidate owing to its narrow band gap of ~0.3 eV [19,27,47,90]. For improving the TE performance of Cu₃SbSe₄–based materials, Li et al. [45] coordinately regulated electrical and thermal transport behaviors through the incorporation of Sn-doping and AgSb_0.98Ge_0.02Se₂ inclusion, and the highest zT of 1.23 was eventually achieved at 675 K. Bo et al. [90] successfully applied the concept of configuration entropy to optimize the TE performance of Cu₃SbSe₄, and the zT increased by about four times, compared to the initial phase, with the increase of entropy. In their latest report, Zhou’s group [27] attained a superior average power factor (PF_ave) of 19 µW·cm⁻¹·K⁻² in 300–723 K by using a small amount of foreign Al atoms as “stabilizers” to supply the high hole concentration, with almost no effect on carrier mobility. Consequently, combined with the reduced κ, a record-high zT of 1.4 and a zT_ave of 0.72 were obtained within the Cu₃SbSe₄–based compounds. A new unconventional doping process that can coordinate the TE properties of materials was also presented. Apart from Cu₃SbSe₄, Cu₃SbS₄ is also a promising Cu₃–V–VI₄–type of TE material [28,50,51], and it has been demonstrated that its PF_ave can reach up to 16.1 µW·cm⁻¹·K⁻² and the zT_ave up to 0.77 between 400 and 773 K via its optimization [28].

Different from Cu–III–VI₂ and Cu₃–V–VI₄ compounds, ternary Cu₂–IV–VI₃ (IV = Sn, Ge, Pb; VI = Se, Te, S) compounds crystallize in more distorted structures that are far from tetragonal, as shown in Figure 1a. Cu₂SnSe₃ is a kind of CBDL compound with diverse structural phases, which has been found and synthesized successfully, including in cubic, tetragonal, orthogonal, and monoclinic phases involving three variants [22]. Hu et al. [62] improved the TE transport behaviors of Cu₂SnSe₃ by enhancing the crystal symmetry of it via Mg-doping and intensifying the phonon scattering through the introduction of dislocations and nanoprecipitates. Similarly, Ming et al. [65] obtained a peak zT of 1.51 at 858 K in the Cu₂Sn_0.82In_0.18Se_2.7S_0.3 compound through regulating the band structure and introducing multi-scale defects. In addition, a record-high zT of 1.61 was obtained at 848 K by Qin et al. [66] by constructing the intrinsic point defects, including high-dense stacking faults and endo-grown nanoneedles, to obstruct mid- as well as low-frequency phonons in Cu₂SnSe₃ compounds. Except for Cu₂SnSe₃, Cu₅A₂B₇ (A = Si, Ge, Sn; B = S, Se, Te), with a centrosymmetric space group C2/m, is also a kind of distorted CBDL compound which has been considered to possess a non-centrosymmetric cubic structure, with the phase crystallized as C-centered, as shown in Figure 2a [91,92,93]. An undesirable characteristic of Cu₅A₂B₇ compounds is that they represent metal-like behaviors, such as the carrier concentration and κ of Cu₅Sn₂Te₇ at 300 K are 1.39 × 10²¹ cm⁻³ and 15.1 W·m⁻¹·K⁻¹, respectively [92]. Simultaneously, zinc atoms have been proven to be effective dopants for strengthening the semiconductor properties of Cu₅Sn₂Te₇ compounds; Sturm et al. [93] introduced a zinc dopant into Cu₅Sn₂Se₇ and Cu₅Sn₂Te₇ compounds, which also supports this conclusion. Especially noteworthy is that the effect of zinc doping is not optimal, and the TE performance of the compound still needs further improvement.

Quaternary Cu₂–II–IV–VI₄ (II = Co, Mn, Hg, Mg, Zn, Cd, Fe; IV = Sn, Ge; VI = Se, S, Te) compounds with more complex tetragonal structures have also been widely studied. The distinguishing features of quaternary CBDL compounds are they possess a wider bandgap and a relatively lower carrier mobility compared with the ternary CBDL compounds [68,70,76,94,95,96,97,98,99]. Taking the orthorhombic enargite-type Cu₂MnGeS₄ as an example [95], the bandgap of it is ~1.0 eV in the initial phase while it only converts to 0.9 eV in the Cu_2.5Mn_0.5GeS₄ by adjusting the ratio of Mn and Cu atoms. The large-cell Cu₁₀B₂C₄D₁₃ [100,101,102,103] (B = Ag, Cu; C = Co, Ni, Zn, Cu, Mn, Fe, Hg, Cd; Q = Sb, Bi, As; Q = Se, S) tetrahedrites have even more complex crystal structures, as shown in Figure 2b,c, respectively. The featured “PGEC” framework is also displayed in the Cu₁₂Sb₄S₁₃ tetrahedrite, where the electric transmission is controlled by a CuS₄ network and the thermal transmission is governed by a cavity polyhedral consisting of CuS₃ and SbS₃ groups [100]. In 2013, Lu et al. [102] achieved an enhanced zT of 0.95 at 720 K in Cu₁₂Sb₄S₁₃ utilizing Zn-doping. Moreover, Li et al. [103] attained a high zT of 1.15 at 723 K in a porous Cu₁₂Sb₄S₁₃–based material; a segmented single-leg device based on the material was successfully fabricated which realized a high conversion efficiency of 6% when the ΔT reached up to 419 K. Cu₂₆P₂Q₆S₃₂ [104,105,106,107,108] (P = V, Ta, Nb, W, Mo; Q = Ge, Sn, As, Sb) colusites are other large-cell examples, which possess 66 atoms in a crystal cell while the tetrahedrites possess 58 atoms. Therefore, the common characteristic of both is their inherent low κ derived from high structural inhomogeneity [108,109]. For instance, Guilmeau’s group [105] obtained the lowest κ of 0.4 W·m⁻¹·K⁻¹ at 300 K in the Cu₂₆V₂Sn₆S₃₂ colusite, which was attributed to the structural complexity of colusite and mass fluctuations among the Cu, V and Sn atoms. In 2018, they further elucidated the potential mechanism related to the fountainhead of intrinsically low κ for a colusite along with the influence of antisite defects and S-vacancies on carrier concentration [105,106].

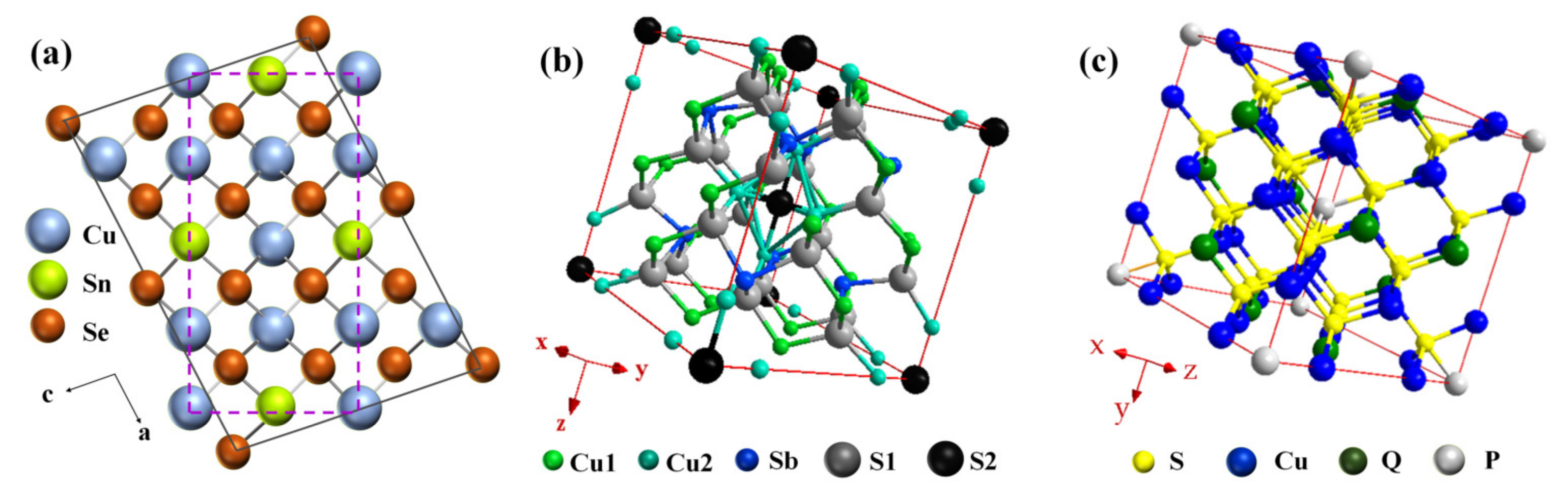

Figure 2. Crystal structure of: (a) Cu₅Sn₂Se₇ (reprinted with permission from ref. [91], Copyright 2014 American Chemical Society); (b) Cu₁₂SbS₁₃ (reprinted with permission from ref. [110], copyright 2015 American Chemical Society); and (c) Cu₂₆P₂Q₆S₃₂ (reprinted with permission from ref. [106], copyright 2018 American Chemical Society).

Figure 2. Crystal structure of: (a) Cu₅Sn₂Se₇ (reprinted with permission from ref. [91], Copyright 2014 American Chemical Society); (b) Cu₁₂SbS₁₃ (reprinted with permission from ref. [110], copyright 2015 American Chemical Society); and (c) Cu₂₆P₂Q₆S₃₂ (reprinted with permission from ref. [106], copyright 2018 American Chemical Society).

Table 1. Thermoelectric transport properties of selected CBDL compounds.

Composition	zTmax	zTave	α2σ (μW·cm−1·K−2)	κL (W·m−1·K−1)	n@RT (1019cm−3)	Synthesis Method *	Ref.
Cu0.75Ag0.2InTe2	1.24@850 K	0.47	7.26	0.3	1.11	M + HP	[23]
Polycrystalline CuGaTe2	1.40@950 K	0.43	8.9	0.45	0.11	M	[29]
Cu0.7Ag0.3Ga0.4In0.6Te2	1.64@873 K	0.73	5.22	0.24	0.007	M + HP	[26]
(CuInTe2)0.99(2ZnTe)0.01–0.1 wt% TiO2	1.47@823 K	0.50	12.93	0.45	6.01	M	[36]
Cu0.89Ag0.2In0.91Te2	1.60@850 K	0.49	8.81	0.36	0.07	M + SPS	[38]
Cu7.9In8.1Ga0.3Te16	1.22@850 K	0.51	11.92	0.55	7.03	M + SPS	[39]
Cu0.7Ag0.3GaTe2	1.00@750 K	0.57	12.26	0.68	4.8	M + HP	[40]
Cu0.8Ag0.2In0.2Ga0.8Te2	1.50@ 850 K	0.78	14	0.49	0.043	M + SPS	[41]
Cu3SbSe4+15 vol% β–Zn4Sb3	1.23@648 K	0.43	12.7	0.14	5.5	ST	[45]
Cu3Sb0.96Sn0.04Se4–5 wt% AgSb0.98Ge0.02Se2	1.23@675 K	0.50	13.8	0.54	8.72	M + SPS	[47]
Cu2.8Ag0.2Sb0.95Sn0.05Se4	1.18@623 K	0.36	9.54	0.27	12.0	MAH + SPS	[48]
Cu2.85Ag0.15SbSe4	0.90@623 K	0.52	10.98	0.66	0.57	M + SPS	[49]
Cu3SbSe4–4 wt% CuAlSe2	1.40@723 K	0.72	16	0.35	10	M + HP	[27]
Cu0.92Zn0.08FeS2	0.26@623 K	0.14	5.4	2.24	39.6	M	[52]
Cu0.92In0.08FeS2	0.35@723 K	0.19	4.7	0.79	41.2	M + SPS	[53]
Cu0.88Ag0.12FeS2	0.45@723 K	0.22	7.6	1.15	3.6	M + PAS	[54]
CuFe0.94Ge0.06S2	0.40@723 K	0.17	6	1.04	4.7	M + HP	[55]
Cu2Sn0.9In0.1S3	0.60@773 K	0.32	6.23	1.01	126	MA + SPS	[56]
Cu2Sn0.85Mn0.15S3	0.68@723 K	0.28	9.2	0.4	462	M + SPS	[57]
Cu2Sn0.74Sb0.06Co0.2S3	0.88@773 K	0.43	10.4	0.41	237	M + SPS	[58]
Cu1.85Ag0.15(Sn0.88Ga0.1Na0.02)Se3	1.60@823 K	0.50	12.75	0.28	91.8	M	[62]
Cu1.85Ag0.15Sn 0.9In0.1Se3	1.42@823 K	0.38	9.70	-	73.4	SHS	[63]
Cu1.85Ag0.15Sn0.91In0.09Se3/4% Ag2S	1.58@800 K	0.59	12.6	0.12	133.4	SHS + PAS	[64]
Cu2Sn0.82In0.18Se2.7S0.3	1.51@858 K	0.33	9.3	0.35	151	M	[65]
Cu2Sn0.88Fe0.06In0.06Se3–5 wt% Ag2Se	1.61@848 K	0.40	7.6	0.2	163	M + MA + HP	[66]
Cu1.9Ag0.1Ge0.997Ga0.003Se3	1.03@768 K	0.58	7.3	0.46	3.5	M + SPS	[60]
Cu1.8Ag0.2Ge0.95In0.05Se3	0.97@723 K	0.44	6.4	0.38	4.6	M + HP	[61]
Cu11.7Gd0.3Sb4S13	0.94@749 K	0.46	16	-	60.3	M + HP	[68]
Cu11.25Cd0.75Sb4S13	0.90@623 K	0.72	12.1	0.33	42	M + HP	[98]
Cu11.5Ni0.5Sb4S13+0.7 vol% AP	1.15@723 K	0.66	12.8	0.17	-	MA + SPS +	[103]
Cu3SbS4–9 wt% CuAlS2–1.5 wt% AgAlS2	1.30@773 K	0.77	16.1	0.72	42.2	M + HP	[28]
Cu3Sb0.95Sn0.05S4	0.72@623 K	0.37	11.3	0.85	41.4	MA + SPS	[50]
Cu3Sb0.89Bi0.06Sn0.05S4	0.76@623 K	0.38	13.98	0.78	74	MA + SPS	[51]
Cu2.10Cd0.90SnSe4	0.65@700 K	0.27	5.1	0.23	-	M + SPS	[70]
Cu2CoSnSe4	0.70@850 K	0.31	6.83	0.45	19	M + SPS	[76]
Cu2MgSn0.925In0.075Se4	0.42@700 K	0.17	5.8	-	14	M + SPS	[79]
Cu2.1(Fe0.5Mn0.5)0.9SnSe4	0.60@800 K	0.22	6.1	-	30	M + SPS	[77]
Cu2.1Fe0.9SnSe4	0.52@800 K	0.23	5.9	0.60	23	M + SPS	[78]
Cu2CdSnSe4	0.50@760 K	0.17	3.1	0.42	1.15	CS + M + SPS	[71]
Cu2.1Cd0.8SnSe3.4	0.65@723 K	0.27	6.96	0.42	-	ST + HP	[72]
Cu1.7Ag0.3CdSnSe4	0.80@688 K	0.43	6.5	0.37	-	MAH + SPS	[73]
Cu2CdSnSe4–CdSe	0.65@725 K	0.34	5.1	0.56	60	M + HP	[74]
Cu26Nb2Ge6.0S32	1.00@670 K	0.50	8	0.51	-	M + HP	[104]
Cu26V2Sn6S32	0.93@675 K	0.55	7.73	0.4	380	MA + SPS	[106]
Cu26Cr2Ge6S32	1.00@700 K	0.48	19.4	0.48	-	MA + SPS	[108]

* Herein, melting abbreviated to M, hot-pressing abbreviated to HP, spark plasma sintering abbreviated to SPS, microwave-assisted hydrothermal abbreviated to MAH, mechanical alloying abbreviated to MA, plasma-activated sintering abbreviated to PAS, solvothermal abbreviated to ST, self-propagating high-temperature synthesis abbreviated to SHS and colloidal synthesis abbreviated to CS.

Table 1. Thermoelectric transport properties of selected CBDL compounds.

Composition	zTmax	zTave	α2σ (μW·cm−1·K−2)	κL (W·m−1·K−1)	n@RT (1019cm−3)	Synthesis Method *	Ref.
Cu0.75Ag0.2InTe2	1.24@850 K	0.47	7.26	0.3	1.11	M + HP	[23]
Polycrystalline CuGaTe2	1.40@950 K	0.43	8.9	0.45	0.11	M	[29]
Cu0.7Ag0.3Ga0.4In0.6Te2	1.64@873 K	0.73	5.22	0.24	0.007	M + HP	[26]
(CuInTe2)0.99(2ZnTe)0.01–0.1 wt% TiO2	1.47@823 K	0.50	12.93	0.45	6.01	M	[36]
Cu0.89Ag0.2In0.91Te2	1.60@850 K	0.49	8.81	0.36	0.07	M + SPS	[38]
Cu7.9In8.1Ga0.3Te16	1.22@850 K	0.51	11.92	0.55	7.03	M + SPS	[39]
Cu0.7Ag0.3GaTe2	1.00@750 K	0.57	12.26	0.68	4.8	M + HP	[40]
Cu0.8Ag0.2In0.2Ga0.8Te2	1.50@ 850 K	0.78	14	0.49	0.043	M + SPS	[41]
Cu3SbSe4+15 vol% β–Zn4Sb3	1.23@648 K	0.43	12.7	0.14	5.5	ST	[45]
Cu3Sb0.96Sn0.04Se4–5 wt% AgSb0.98Ge0.02Se2	1.23@675 K	0.50	13.8	0.54	8.72	M + SPS	[47]
Cu2.8Ag0.2Sb0.95Sn0.05Se4	1.18@623 K	0.36	9.54	0.27	12.0	MAH + SPS	[48]
Cu2.85Ag0.15SbSe4	0.90@623 K	0.52	10.98	0.66	0.57	M + SPS	[49]
Cu3SbSe4–4 wt% CuAlSe2	1.40@723 K	0.72	16	0.35	10	M + HP	[27]
Cu0.92Zn0.08FeS2	0.26@623 K	0.14	5.4	2.24	39.6	M	[52]
Cu0.92In0.08FeS2	0.35@723 K	0.19	4.7	0.79	41.2	M + SPS	[53]
Cu0.88Ag0.12FeS2	0.45@723 K	0.22	7.6	1.15	3.6	M + PAS	[54]
CuFe0.94Ge0.06S2	0.40@723 K	0.17	6	1.04	4.7	M + HP	[55]
Cu2Sn0.9In0.1S3	0.60@773 K	0.32	6.23	1.01	126	MA + SPS	[56]
Cu2Sn0.85Mn0.15S3	0.68@723 K	0.28	9.2	0.4	462	M + SPS	[57]
Cu2Sn0.74Sb0.06Co0.2S3	0.88@773 K	0.43	10.4	0.41	237	M + SPS	[58]
Cu1.85Ag0.15(Sn0.88Ga0.1Na0.02)Se3	1.60@823 K	0.50	12.75	0.28	91.8	M	[62]
Cu1.85Ag0.15Sn 0.9In0.1Se3	1.42@823 K	0.38	9.70	-	73.4	SHS	[63]
Cu1.85Ag0.15Sn0.91In0.09Se3/4% Ag2S	1.58@800 K	0.59	12.6	0.12	133.4	SHS + PAS	[64]
Cu2Sn0.82In0.18Se2.7S0.3	1.51@858 K	0.33	9.3	0.35	151	M	[65]
Cu2Sn0.88Fe0.06In0.06Se3–5 wt% Ag2Se	1.61@848 K	0.40	7.6	0.2	163	M + MA + HP	[66]
Cu1.9Ag0.1Ge0.997Ga0.003Se3	1.03@768 K	0.58	7.3	0.46	3.5	M + SPS	[60]
Cu1.8Ag0.2Ge0.95In0.05Se3	0.97@723 K	0.44	6.4	0.38	4.6	M + HP	[61]
Cu11.7Gd0.3Sb4S13	0.94@749 K	0.46	16	-	60.3	M + HP	[68]
Cu11.25Cd0.75Sb4S13	0.90@623 K	0.72	12.1	0.33	42	M + HP	[98]
Cu11.5Ni0.5Sb4S13+0.7 vol% AP	1.15@723 K	0.66	12.8	0.17	-	MA + SPS +	[103]
Cu3SbS4–9 wt% CuAlS2–1.5 wt% AgAlS2	1.30@773 K	0.77	16.1	0.72	42.2	M + HP	[28]
Cu3Sb0.95Sn0.05S4	0.72@623 K	0.37	11.3	0.85	41.4	MA + SPS	[50]
Cu3Sb0.89Bi0.06Sn0.05S4	0.76@623 K	0.38	13.98	0.78	74	MA + SPS	[51]
Cu2.10Cd0.90SnSe4	0.65@700 K	0.27	5.1	0.23	-	M + SPS	[70]
Cu2CoSnSe4	0.70@850 K	0.31	6.83	0.45	19	M + SPS	[76]
Cu2MgSn0.925In0.075Se4	0.42@700 K	0.17	5.8	-	14	M + SPS	[79]
Cu2.1(Fe0.5Mn0.5)0.9SnSe4	0.60@800 K	0.22	6.1	-	30	M + SPS	[77]
Cu2.1Fe0.9SnSe4	0.52@800 K	0.23	5.9	0.60	23	M + SPS	[78]
Cu2CdSnSe4	0.50@760 K	0.17	3.1	0.42	1.15	CS + M + SPS	[71]
Cu2.1Cd0.8SnSe3.4	0.65@723 K	0.27	6.96	0.42	-	ST + HP	[72]
Cu1.7Ag0.3CdSnSe4	0.80@688 K	0.43	6.5	0.37	-	MAH + SPS	[73]
Cu2CdSnSe4–CdSe	0.65@725 K	0.34	5.1	0.56	60	M + HP	[74]
Cu26Nb2Ge6.0S32	1.00@670 K	0.50	8	0.51	-	M + HP	[104]
Cu26V2Sn6S32	0.93@675 K	0.55	7.73	0.4	380	MA + SPS	[106]
Cu26Cr2Ge6S32	1.00@700 K	0.48	19.4	0.48	-	MA + SPS	[108]

* Herein, melting abbreviated to M, hot-pressing abbreviated to HP, spark plasma sintering abbreviated to SPS, microwave-assisted hydrothermal abbreviated to MAH, mechanical alloying abbreviated to MA, plasma-activated sintering abbreviated to PAS, solvothermal abbreviated to ST, self-propagating high-temperature synthesis abbreviated to SHS and colloidal synthesis abbreviated to CS.

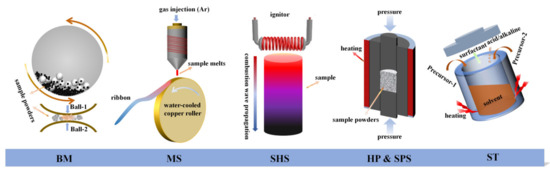

3. Material Synthesis Recipes

The synthesis process accompanied by the research and development of the material is a crucial link in obtaining superior TE materials. Therefore, while the performance of TE materials have been improved by leaps and bounds, diverse techniques for synthesizing various TE compounds are also developing vigorously. As shown in Table 1, traditional technologies such as melting, the so-called solid-state reaction, are still widely used in the preparation of high-performance TE materials. Letting nature take its course, the successful application of non-equilibrium formulations, including high-energy ball milling (BM), melt spinning (MS), self-propagating high-temperature synthesis (SHS) and solvothermal (ST) technologies in the TE field provide more options for developing the new generation of TE materials with fine multi-scale microstructures. Simple schematic diagrams of several common synthesis and preparation technologies are shown in Figure 3.

High-energy ball milling, also known as mechanical alloying, has been widely adopted to assist in, or directly, synthesize TE compounds with multi-dimensional structures [111,112,113,114,115,116,117,118]. For instance, Nautiyal et al. [117] synthesized a series of polycrystalline Cu₂SnS₃, Cu₂ZnSe₄ and Cu₂ZnSnS₄ TE compounds through MA, which proved that the introduction of nanostructures into the material stabilized the disordered phase structure at low temperatures was conducive to optimizing the TE transport performance of the material. The mechanism of high-energy reaction is achieved by using the inertia between the grinding balls to cause a high-energy impact on the material particles, resulting in cold welding, fracture and re-welding between the particles, leading to further crushing [114]. In addition, most of the BM process involves dry grinding in protective gas to ensure that the collision energy among balls can be effectively applied to the ground powders, and sometimes ethanol and other solvents are used as grinding media. After BM, the fine structure and even nano-powders existing in the material can effectively enhance the phonon scattering and significantly reduce the κ. BM has the advantages of high synthesis efficiency, easy operation, high cost-efficiency and the ability to synthesize thermoelectric materials in large quantities. It is usually used to produce multi-dimensional structure [115], synthetic compound [111,116,117] and mix composites [118] in the TE industry.

Melt-spinning technology is an effective approach to achieve rapid solidification by injecting a molten alloy flow into a rotating and internally cooled roller [119], as shown in Figure 3. When the melt contacts the roller, the melt will undergo rapid solidification or even amorphous transformation accompanying the rapid transfer of heat and will be produced in the form of thin strips or ribbons [119,120,121]. The microstructure, that depends on local temperature and cooling rate, can be easily controlled by adjusting the machining parameters in the process of MS [119,122]. Previous studies have shown that a large number of refined microstructures and nano-grains can be introduced in TE compounds by MS, such as SnTe, BiSbTe, PbTe and skutterudite, etc., [120,123,124,125]. In 2019, Zhao’s group [121] successfully prepared Cu-Te alloy ribbons with nanocrystalline structures using MS, and achieved the lowest κ of 0.22 W·m⁻¹·K⁻¹ in the Cu₂SnSe₃–based composite.

The self-propagating high-temperature synthesis starts with the heating of a small part of the sample at a point, and then the combustion wave spreads along the material to gradually realize the synthesis of the material in an extremely short amount of time [64,126], as shown in Figure 3. In 2014, Su et al. [126] successfully applied SHS to the preparation of various TE compounds for the first time, including Cu₂SnSe₃, CoSb₃, Bi₂(Te, Se)₃, SnTe, Mg₂(Sn, Si), etc. As the combustion wave spreads across the whole sample, it plays a role in purifying the material and maintaining its stoichiometry [126,127]. The most attractive aspect of SHS is its rapid one-step process, which can be expanded and completed with minimal energy. This feature makes it popular in the synthesis of a variety of CBDL compounds [63,64,127,128]. The main shortcoming of the self-propagating high-temperature synthesis process is that the reaction is so rapid that the sintering size of the sample is difficult to control, requiring secondary processing to ensure the quality of the materials [64,126]. For subsequent measurements and characterizations, dense block TE materials are generally manufactured using sintering technology, including HP and SPS (also known as plasma-activated sintering (PAS)). In most cases, the procedure of sintering is the last step of fabrication, as shown in Table 1, which can strengthen the densification of products and further purify the phases.

In addition, hydrothermal as well as solvothermal reactions are very efficient approaches to preparing refined materials with controllable dimensions and morphologies through the chemical synthesis process [42,45,48,129,130,131,132,133]. In the process of ST, the stoichiometric precursor material required for the synthetic material is first dissolved in the aqueous solution, and then the internal reaction conditions, such as the pressure, pH value and additive concentration, are strictly controlled to make it react in a sealed autoclave [130,131,134,135,136]. Although the operation is more complex compared to the physical methods mentioned above, controllable thermoelectric compound nanostructures can be synthesized through a wet process, which has the advantages of a low synthesis temperature and fine grain size. It is also worth noting that some the morphologies and sizes of the products can be greatly modified by external conditions, such as the ultrasonic mixture pretreatment time, and the reaction temperature and time [131]. For instance, Wang et al. [136] synthesized the monodispersed Cu₂SnTe₃ nanocrystals (~25 nm) using hot-injection synthesis for the first time, in which the Te precursor was selected by dissolving TeO₂ in 1–dodecanethiol and the reaction solvent was a Cu–Sn complex solution. Moreover, Wei et al. [135] synthesized Cu₃SbSe₄ hollow microspheres dispersed with TiO₂ by a procedure of microwave-assisted hydrothermal synthesis. One advantage of chemical synthesis is that it can control the doping of foreign ions and optimize the grain orientations of nanostructures, which has an important impact on adjusting the carrier concentration and improving phonon scattering [43,129,132,135,136].

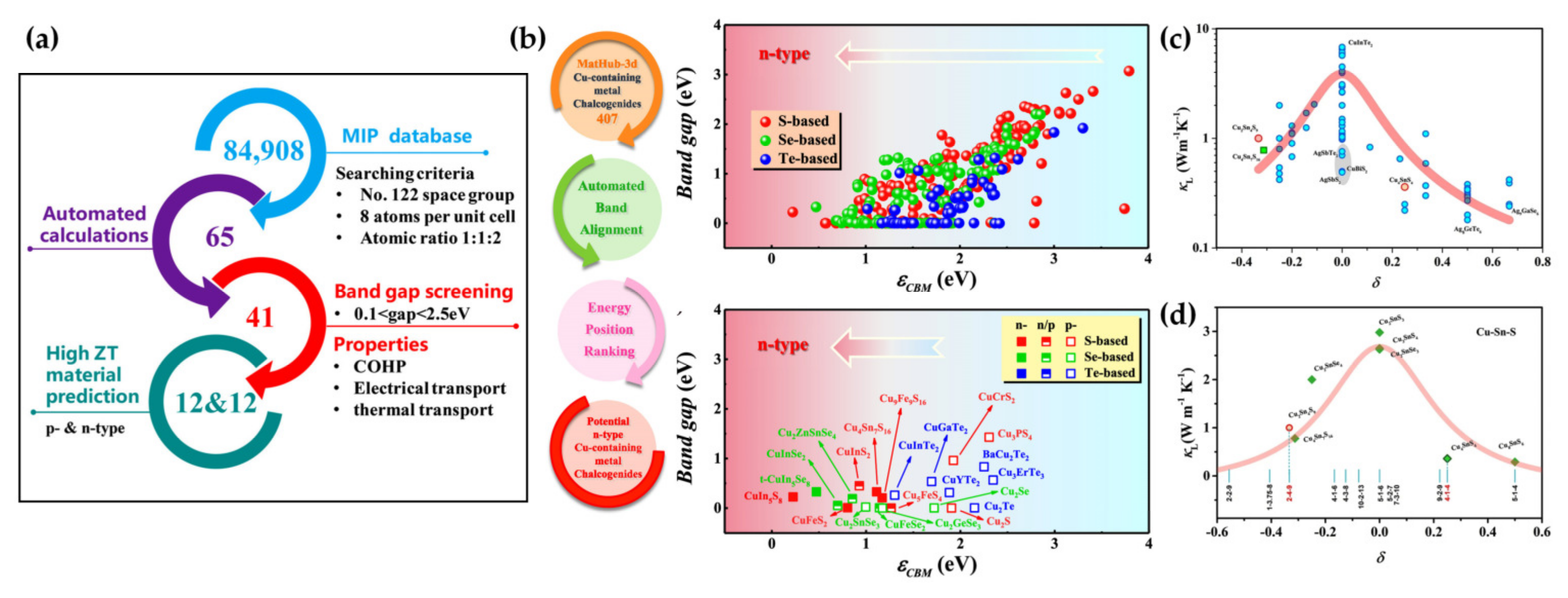

In recent years, additive manufacturing [137,138] and machine learning [14,139,140,141,142,143,144], as emerging intelligent industries, have gradually entered the thermoelectric field, which opens a novel and convenient means to exploring multi-phase space. Referring to diverse indicators closely related to material properties, a series of high-performance CBDL compounds have been discovered. For instance, Zhang’s group [139] investigated and predicted the electronic structures and the TE transport behaviors of ABX₂ materials using a high-throughput (HTP) framework, as shown in Figure 4a. Taking the energy position of the band edge as an indicator, Chen’s team [140] verified the HTP strategy with the bandgap as an indicator by screening out the potential high-performance n-type TE compounds from Cu-containing chalcogenides, as shown in Figure 4b. In addition, Shi et al. [145] proposed a new performance indicator, shown in Figure 4c,d, for guiding the discovery of TE compounds with low κ. The new indicator referred to the number mismatch (δ) between anions and cations. It should also be noted that since the difference of atomic mass was not considered, the indicator was applicable to compound families with the same elements but different compositions. It was well demonstrated in the Cu-Sn-S systems shown in Figure 4d.

4. Strategies for Optimizing the TE Performances of CBDL Compounds

There are two main basic principles for achieving high-performance TE materials, one of which is to maximize the PF while the other is to minimize the κ_L. One of the typical characteristics of CBDL compounds is that the highly degenerated valence band results in the compound possessing a high Seebeck coefficient. The common defect for most CBDL compounds is that they generally have low carrier concentrations at low temperatures and high κ_L in their initial form. Therefore, trying to promote or maintain PF is the critical issue in the development of high-performance CBDL compounds while reducing the κ_L.

4.1. Several Representative Strategies for Enhancing Power Factor

4.1.1. Optimization in Carrier Concentration

As most TE materials have an optimal carrier concentration in the range of 10¹⁹ to 10²¹ cm⁻³, one of the most common approaches to maximizing the PFs of TE materials is tuning the carrier concentration [4,5]. For optimizing the carrier concentration in CBDL compounds, a quantity of impurities with different functions has been introduced into pristine compounds. Successful cases among Cu(In, Ga)_1−xN_xTe₂ (M = Ag, Zn, Ni, Mn, Cd, Hg, Gd) [23,34,146,147,148,149,150,151], Cu_1−xFe_1+xS₂ [152], Cu₃Sb_1−xN_xSe₄ (N = As, Zr, Hf, Al, In, Sn, Ge, Bi, La) [42,43,113,115,132,153,154] and Cu₂Cd_1−xIn_xSnSe₄ [155] have demonstrated that doping towards a higher charge-carrier density can effectively improve the electrical performances of the compounds. In addition, introducing vacancies is also another available approach to optimizing the electrical transport properties as well as minimizing the κ_L. On the one hand, as the most common form of p-type doping, Cu vacancy has been widely created in CBDL compounds owing to the small formation energy of defects, as seen in Cu_12−xN_xSb₄S₁₃ (N = Cd, Mn, Ge, Fe, Co, Sn, Ni, Bi, Zn) [98,156], Cu_1−x(In, Ga)Te₂ [40,157,158] and Cu_3−xSbSe₄ [159]. On the other hand, it is feasible to use anion vacancies for donor doping, as displayed in Cu₂ZnGeSe_4−xS_x [160], CuFeS_2−x [161], Cu₁₂Sb₄S_13−xSe_x [100] and Cu₂FeSnS_4−x [162].

4.1.2. Modulation Doping

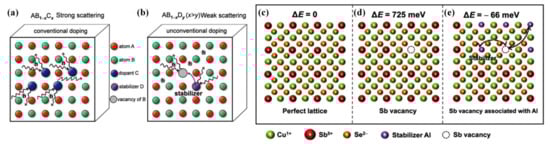

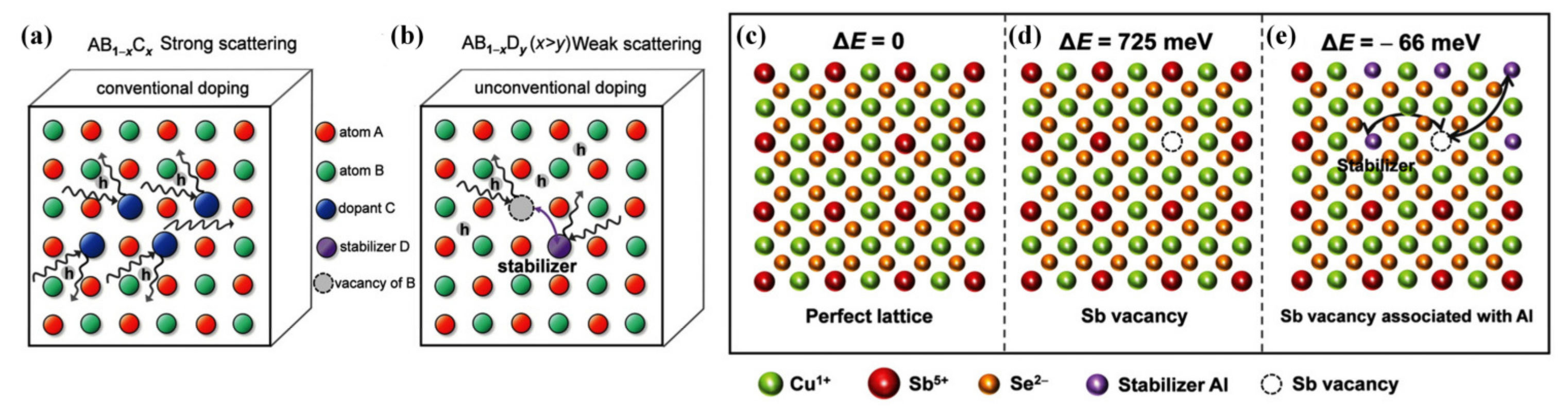

It should be pointed out that the effect of traditional doping by substituting host atoms by alien ones is fettered by the solubility limit, and worse still, it is easy to cause intense charge-carrier scattering at room temperature, resulting in a loss of electrical transport performance [7]. Compared with traditional doping, modulation doping can effectively avoid the above problems. It is usually designed as a composite composed of two kinds of nanoparticles, and only one of them contains a doping agent [86]. Recently, an unconventional doping (UDOP) strategy was proposed by Zhou et al. [27,28,163] supported this view, where the increase in the vacancies concentration was obtained from an Sb vacancy stabilized by Al rather than alien atoms. Combined with an optimized hole concentration (3.1 × 10²⁰·cm⁻³) and a maintained carrier mobility, a considerably high average PF of 19 µW·cm⁻¹·K⁻² was obtained in the temperature range of 300–723 K [27]. In contrast to the conventional doping method (Figure 5a), the carrier concentration and carrier mobility decouple by vacancies in the route of UDOP (Figure 5b). In other words, it can be considered that in the purposeful doping process, the doping additive itself does not provide carriers, but acts as a “stabilizer” of the cationic vacancy (Figure 5c–e), which actually offers additional holes for p-type conductive semiconductors. It has been proved that the modulation-doping strategy can be used to not only improve the PF of CBDL compounds, but also to maintain the carrier mobility of various compounds requiring a high carrier concentration.

4.1.3. Pseudocubic Structure

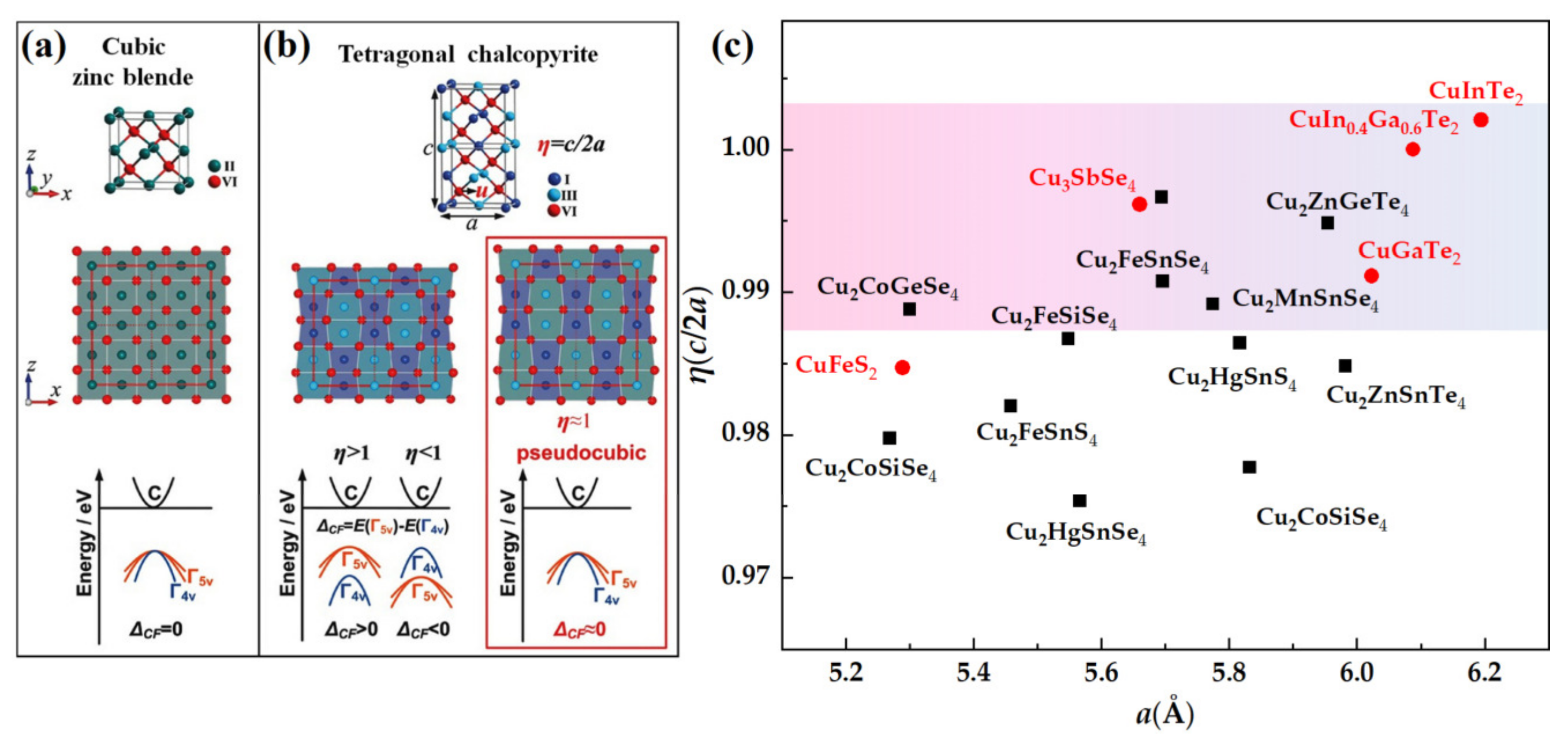

Apart from obtaining an optimal carrier concentration, the regulation of PF is also linked with the electronic band structure [5,7,8]. The high band convergence (N_v) originating from high symmetric crystal structures is beneficial for obtaining large α and high σ. Similarly, the CBDL compounds derived from the high-symmetry cubic phase, ensures that they possess highly degenerate valence bands [18,32,33]. In particular, Zhang et al. [31] proposed a pseudocubic strategy were the PF could be optimized to the greatest extent by pruning the band split-off, which was also considered as an efficient approach to exploring and screening high-performance non-cubic TE compounds. As shown in Figure 6a,b, when the valence band-splitting energy Δ_CF approximates to zero, this means that the distortion parameter η = c/2a approaches one; in other words, the bands are in a degenerate state at this time, which can trigger the maximum PF. The pseudocubic approach, also known as the unity-η rule (η = c/2a), has been successfully applied to screen out high-performance tetragonal CBDL compounds [23,35,76,97]. For instance, Li et al. [97] found that the Δ_CF of Cu₂ZnSnSe₄ could be appropriately tuned by applying the proper strain, which provides an alternative way to improve the thermoelectric properties of the compound. As a systematic strategy, the unity-η rule is used to qualitatively guide the evaluation and manipulation of TE diamond-like lattices. For instance, the distortion parameter η, as a function of the cell parameter a, for tetragonal diamond-like chalcogenides [32] is shown in Figure 6c. It should be noted that the pseudocubic approach is limited to low-symmetry material with an ideal bandgap and a low κ_L [7].

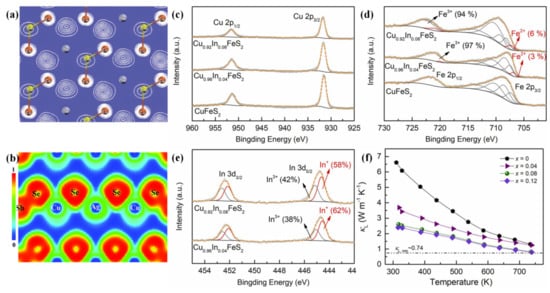

4.1.4. Softening p-d Hybridization

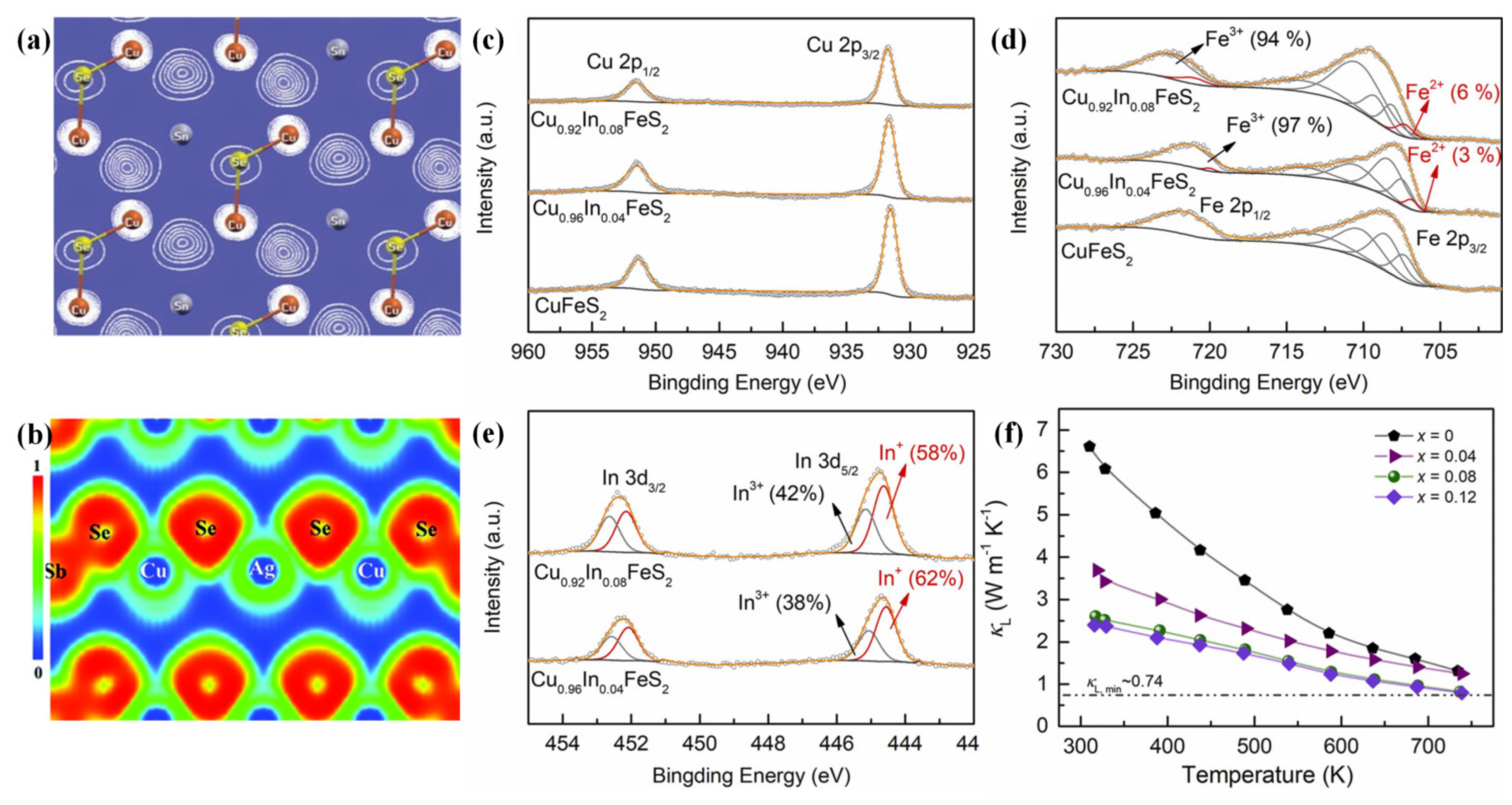

It is well known that the p-d hybridization in CBDL compounds is very strongly attributable to the quite small separation energy among the atomic levels of chalcogen p-orbitals and Cu-3d states [91,99,164]. For most CBDL compounds, the electric transport channel (mostly the valence band maxima, VBM) is regarded as being constructed by Cu-X bonds [18,22]. The chemical bonding and the electronic structure in TE materials are closely linked to their internal charge carriers and phonon transport behaviors. Therefore, the regulation of p-d hybrid strength potentially serves as an adjustable critical parameter in adjusting the properties of CBDL compounds. Taking Cu₂SnSe₃ [25] as an example in Figure 7a, the VBM is mostly occupied by the p-d hybridization from Cu-Se bonds, which acts as the charge-conduction pathway as well as a structural retainer. In contrast, the p-orbitals of Sn atoms contribute little to the occupied states while the conductive band is primarily dominant. Similarly, the Cu-X conduction channel has also been demonstrated in some other CBDL compounds, such as CuGaS₂ [164], Cu₃SbSe₄ [24], Cu₂CdZnSe₄ [70], etc. The Cu₃SbSe₄ diamond-like compound with a small bandgap is also an example influenced by the strong relativistic orbital-contraction effect [164,165]. Softening p-d hybridization, as an active strategy, has been adopted to synergistically improve the electronic and thermal transport performance of Cu₃SbSe₄ via Ag-doping [49,166], as shown in Figure 7b. Zhang et al. [49] discovered that the PF of Cu₃SbSe₄ was significantly enhanced by changes in the bandgap and the density of states caused by the softening of p-d hybridization, which, accompanied by Ag-doping, induced large strain fluctuations in some local structural distortions and resulted in greatly reduced κ_L. In addition, Ge et al. [53] introduced an abnormally high concentration of indium in CuFeS₂ compound, as shown in Figure 7c–e; the indium was not fully ionized to In³⁺ cation when on the Cu sublattice and existed mainly in the In⁺ oxidation state. The latter, with 5s² lone-pair electrons, could cause strong local bond distortions, thereby softening the In-S and Cu-S bonds and introducing localized low-frequency vibrations [89]. Therefore, a low κ_L value of 0.79 W·m⁻¹·K⁻¹ (Figure 7f) and a high zT value of 0.36 were recorded at 723 K in Cu_1−xIn_xFeS₂ samples.

4.2. Strategies for Reducing Lattice Thermal Conductivity

4.2.1. Point-Defect Scattering

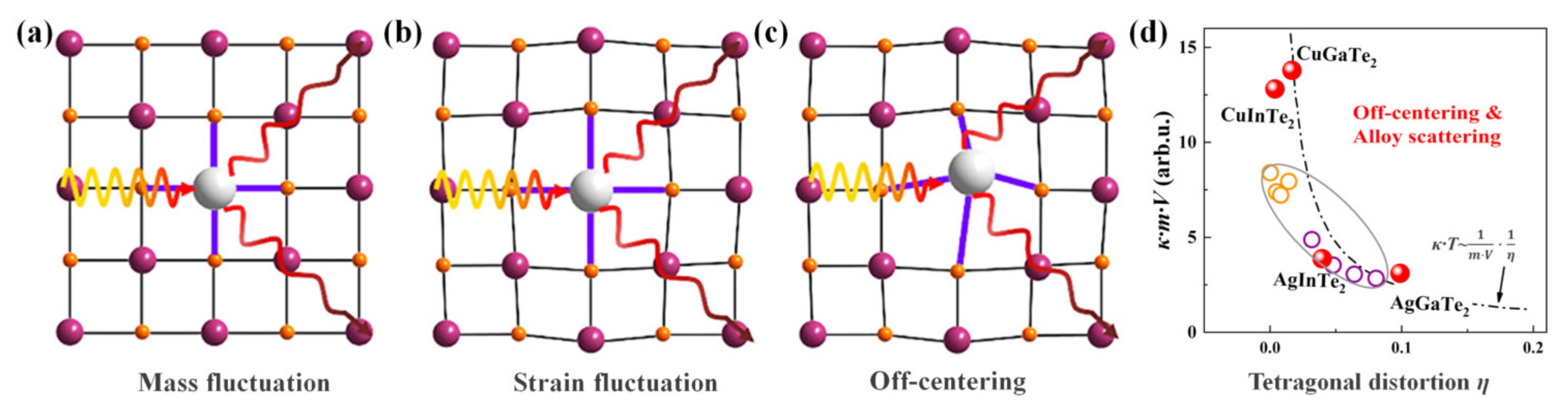

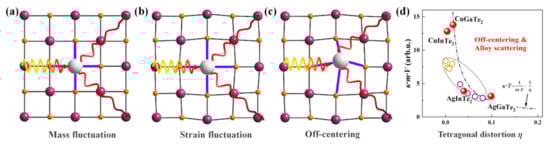

In the thermoelectric field, defect and nanostructuring engineering have been widely adopted to optimize the thermoelectric performance enhancement of TE materials, especially the dislocations and nanostructured interfaces which involve the scattering of low- and mid-frequency phonons, have received more attention [6]. In the process of improving the TE performance for CBDL compounds, the existence of point defects plays a more important and beneficial role in phonon scattering than in affecting the electrical behavior. There are two main types of influence on κ_L originating from point defects in TE materials: the mass fluctuation (Figure 8a) and strain field fluctuation (Figure 8b) among the host and guest atoms. Shen et al. [40] testified that substitutional defects of Ag_Cu in CuGaTe₂ could reduce the κ_L more efficiently than substitutional defects of Zn_Ga or In_Ga at the equivalent concentration, which was attributable to the larger mass fluctuation. When the dominant point defects are vacancies, the types of scattering inflected by the strain and mass fluctuations can be maximized [5]. Thus, the compounds with an intrinsic high concentration of cation vacancies, such as In₂Te₃ and Ga₂Te₃, were introduced in CuGaTe₂ to depress the κ_L of the matrix phase by constituting solid solutions [80]. Additionally, an elaborate investigation about the room temperature κ for cation-substituted Cu₂ZnGeSe_4−xS_x compounds displayed a reduction of 42% for κ_L, where the reduction caused by mass contrast accounted for 34% and the remaining 8% was caused by strain fluctuations [160]. In their latest study, Xie et al. [151] observed the off-centering effect (Figure 8c) of an Ag atom by investigating the thermal transmission behaviors in Cu₁–_xAg_xGaTe₂ as well as in CuGa₁–_xIn_xTe₂. It is obvious that the off-centering behavior of the Ag atom means a new phonon scattering mechanism is brought about by point defects, where the Ag-alloyed solid solutions resulted in an extremely low κ_L, which was attributed to crystallographic distortion and extra-strong acoustic-optical phonon scattering, as shown in Figure 8d. Moreover, it can also be seen that a modified Klemens model was developed by integrating the off-centering effect and alloy-scattering with the crystallographic distortion parameter (η), which can be used as an indicator to predict the κ of diamondoid solid solutions.

4.2.2. Nanostructure Engineering

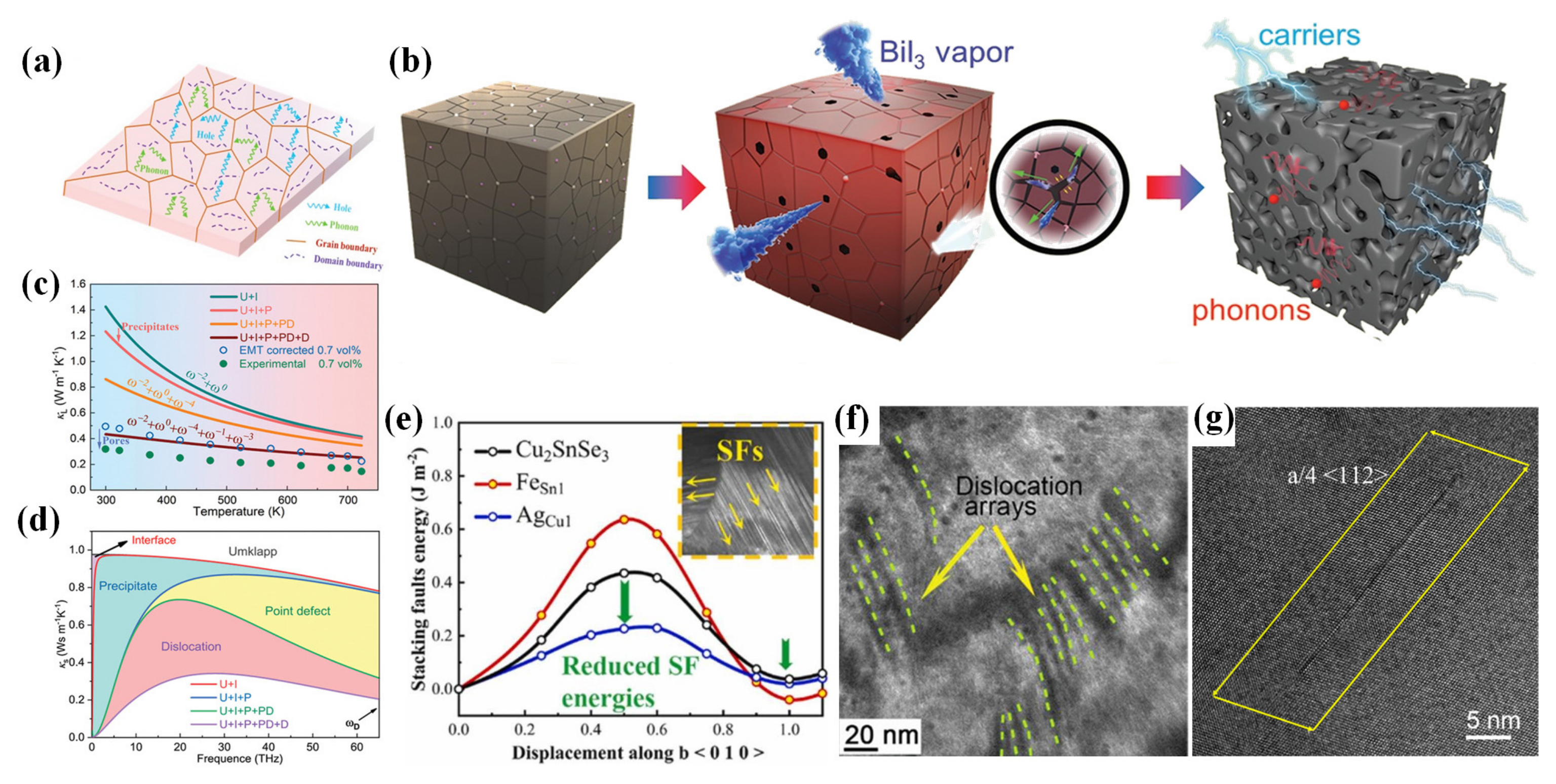

Controlling the nanostructures of TE materials is also an effective approach to enhancing phonon scattering through realizing an all-scale hierarchical architecture in TE materials. Zhang et al. [26] adopted a quinary alloy compound system with a complex nanosized strain-domain structure in CuGaTe₂ (Figure 9a), which made the room-temperature κ decline from 6.1 W·m⁻¹·K⁻¹ for the initial compound to 1.5 W·m⁻¹·K⁻¹ for the Ag and In co-doped sample. Wang et al. [167] achieved low κ values of 0.491 W·m⁻¹·K⁻¹ and 0.481 W·m⁻¹·K⁻¹ in Cu₃Sb_0.92Sc_0.08Se₄ and Cu₃Sb_0.92Y_0.08Se₄ at 623 K, respectively, with a constructed multiscale heterostructure. In 2021, Hu et al. [103] designed pore networks for tetrahedrite Cu₁₂Sb₄S₁₃–based TE materials using a BiI₃ sublimation technique, as shown in Figure 9b, which led to a hierarchical structure which contained pores, pore interfaces, point defects, and granular precipitates. The effect of various scattering mechanisms on phonon-transport behaviors for Cu₁₂Sb₄S₁₃–based samples are shown in Figure 9c,d. First, the existence of specially designed pores and pore interfaces reduced the κ_L of samples with 0.7 vol% annealed pores (AP) by about 36%. Furthermore, Cu_1.8S precipitates, point defects involved Ni-alloying and Bi-doping, dislocations, the solid solution of impurity Cu₃SbS₄ phase as well as volume expansion also contributed to the reduction of κ_L because they realized full-scale phonon scattering in the TE sample. Consequently, a ~72% reduction in the κ_L was obtained for samples with 0.7 vol% AP with the addition of a small amount of BiI₃. Moreover, previous works demonstrated that high-density stacking faults (SFs) could be realized in doped Cu₂SnSe₃ [62,66,168], as shown in Figure 9e–g, which also caused strong scattering of phonons as a phonon-scattering center. In addition, solvothermal synthesis [43,134,135,153] and ball milling [113,115] are effective and convenient approaches to constructing nanostructures for TE materials.

4.2.3. Nanocomposite

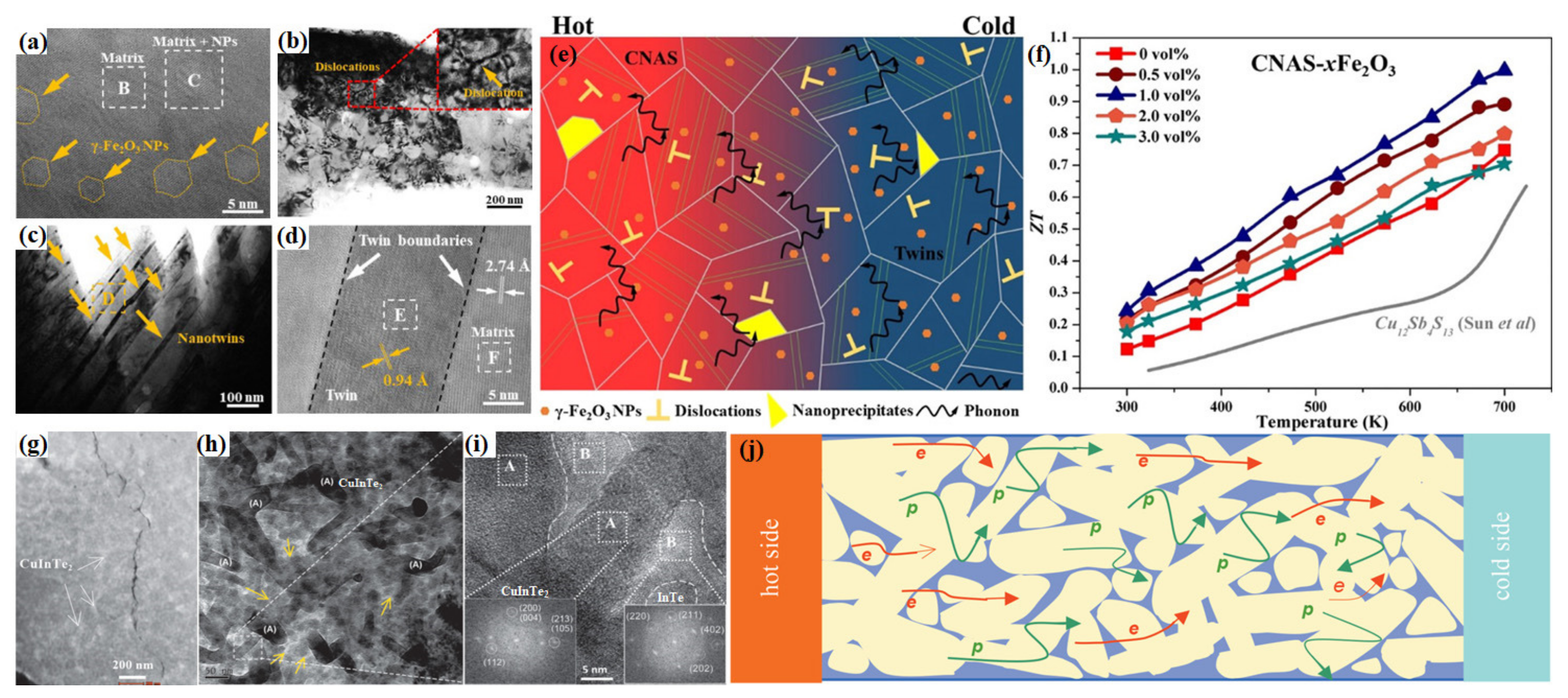

Compositing with uniformly dispersed nanoinclusions, secondary phases or nanoparticles has been widely considered as a predominant and effective strategy to optimize TE performance in CBDL compounds [27,47,67,118,128,169,170,171,172]. Nanoparticles (NPs) introduced in composites can be effectively used as intermediate frequency phonons scatter centers and diminish κ_L [5]. Sun et al. successfully incorporated ZnO [173] and Nb₂O₅ [174] NPs into the grain boundaries of Cu_11.5Ni_0.5Sb₄S₁₃ compounds via mechanical alloying and spark plasma sintering, respectively, and the both composites achieved a reduced κ and high zTs. In our previous work, we also introduced graphene nanosheets or SnTe NPs into Cu₃SbSe₄ through ball milling and realized the optimization of thermoelectric properties. Hu et al. [175] obtained a relatively low κ of 0.9 W·m⁻¹·K⁻¹ at all temperatures in Fe₂O₃–dispersed Cu₁₂Sb₄S₁₃ tetrahedrite via the combination of nanostructuring and defect engineering (Figure 10a–e). As shown in Figure 10a–d, dislocations along with diverse nanostructures, such as NPs, nanotwins and nanoprecipitates, were introduced into Cu_11.5Ni_0.5Sb₄S₁₃ by compositing magnetic γ-Fe₂O₃ NPs, which realized all-scale hierarchical phonon scattering in the samples, making the zT reached up to ~1.0 (Figure 10f). For reducing κ_L, Li et al. [39] synthesized CuInTe₂–based compounds with in-situ formed InTe nanostrips, which wrapped the nanodomains (Figure 10g–j) and resulted in the reduction of κ_L by a factor of ~2 compared to parent compound. It is notably anticipated that the content, dimensions and especially distribution of nano-additives in composites have an important impact the effective regulation of TE performances.

4.2.4. Lattice Softening Effects

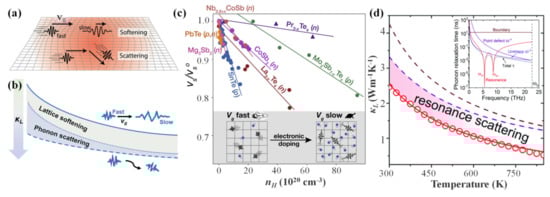

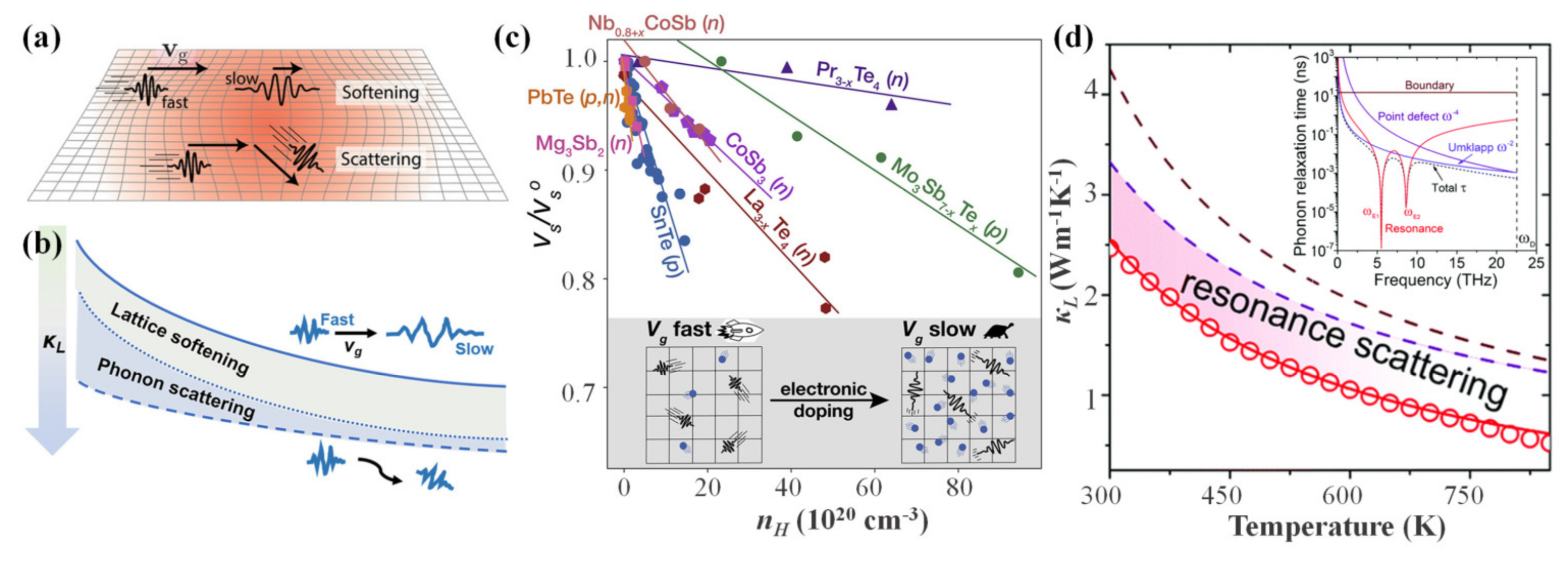

The internal strain fluctuation induced by lattice defects, such as nanoprecipitates and dislocations, can locally shift the phonon frequencies in the TE material, which in principle can bring about lattice-softening accompanied by phonon scattering owing to changes in phonon speed, as shown in Figure 11a. In several cases, improvements in TE performance ascribed to lattice-softening through the introduction of vacancies or alloying have been presented [176,177,178], such as SnTe with AgSbTe₂ alloying, and the lattice-softening effect in Cu₂Se, as shown in Figure 11b. In 2019, Hanus et al. [179] authenticated that the changes of thermal transport behavior in the PbTe system were attributable to the lattice-softening through alloying or lattice defects, and pointed out that the modulation of lattice stiffness had a significant impact on the phonon transport in some states. In addition, Muchtar et al. [176] introduced lattice-softening into SnTe by inserting Ti and Zr atoms, which effectively suppressed the phonon group velocities and reduced the κ. Moreover, Snyder et al. [180] found the lattice-softening effect induced by charge-carrier-mediated in several high-performing (zT > 1) TE materials (such as SnTe, PbTe, Nb0_.8+xCoSb, etc.) contributed more than 20% to zT. Simultaneously, the results shown in Figure 11c indicate that a strong dependence of sound velocities v_s on Hall charge-carrier concentration n_H was observed in each compound in which the measured v_s significantly decreased with increasing n_H. Lattice-softening effects also have been successfully used to improve the TE performances of CBDL compounds. Pöhls et al. [181] demonstrated that the Li-induced phonon-softening effect was feasible to enhance the TE performance of chalcopyrite CuGaTe₂. Xie et al. [38] obtained an extremely low κ_L of 0.47 W·m⁻¹·K⁻¹ at 850 K in Ag-doped CuInTe₂ compound that was attributed to strong interactions among low-frequency optical phonons derived from the weakened Ag-Te bonds, as shown in Figure 11d.

4.3. Synergistic Regulation

4.3.1. Entropy Engineering

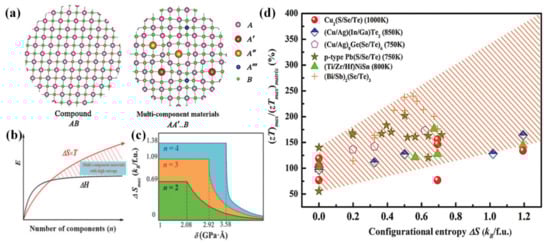

In the process of optimizing the electrical and thermal transport properties of TE materials, it is never just to adjust one of them individually. To some extent, the above optimization process can realize the decoupling of electron and phonon transmission. Entropy engineering provides a new pathway to synergistically optimize the electrical, thermal, and mechanical properties for promoting the development of CBDL compounds [15,41,90,182,183]. Through synergistic regulation, Xie et al. [41] achieved a maximum zT of 1.5 at 850 K in the quinary (Cu_0.8Ag_0.2)(In_0.2Ga_0.8)Te₂ compound, in which Ga-substituted In and Ag-substituted Cu effectively optimized the electrical and thermal transport properties, respectively. In addition, Cai et al. [183] obtained a high zT of 1.02 in CuInTe₂ compound, which was attributed to the reduction of κ by devising a high-entropy structure as well as by improving the carrier mobility by one order of magnitude. In many cases long before that, Liu et al. [15] utilized the entropy attribute as the comprehensive gene-like performance indicator to screen and devise TE materials with high zT. As can be seen in Figure 12a,b, a special example can be noted that when multi-component alloy elements are adopted in compounds, the configurational entropy can especially be changed. For a given multi-component material, the maximum entropy lies on the solubility parameter δ of the whole material, which is linked to the mismatch of the atomic radius, shear modulus and lattice constant in the material, as shown in Figure 12c. Instructing with δ-criterion (Figure 12d), representative multi-component (Cu/Ag)(In/Ga)Te₂–based CBDL compounds with zTs approaches to 1.6 were screened out owing to the optimization of entropy.

4.3.2. Progressive Regulation Strategy

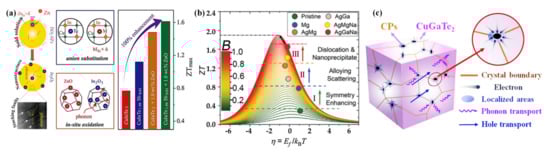

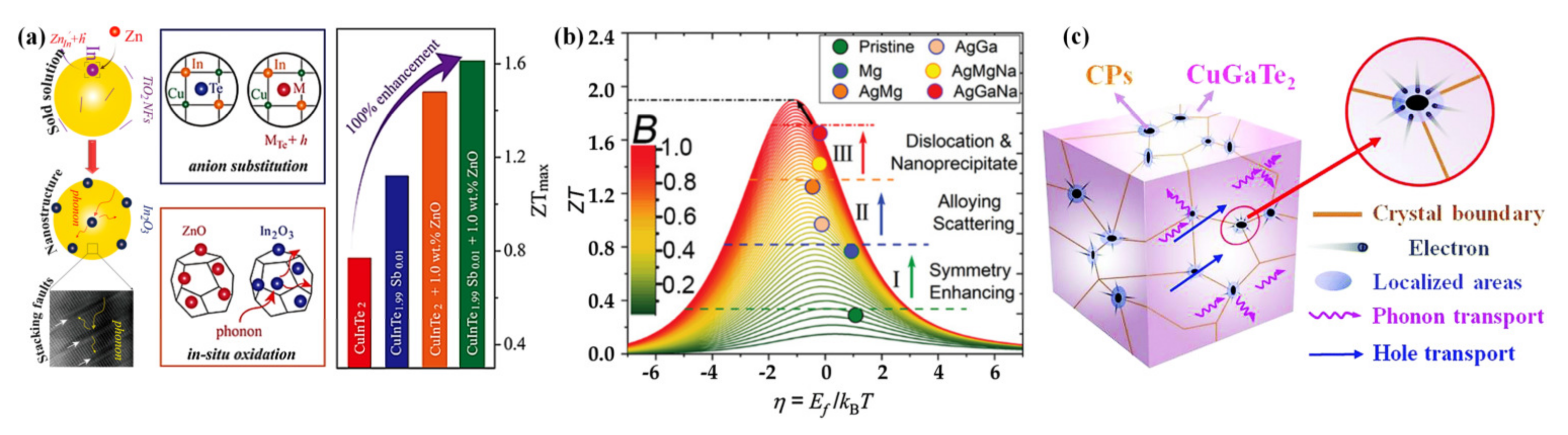

The progressive regulation strategy can be realized via integrating point defects and microstructure engineering. Luo et al. [30,36] successfully acquired high-performance CuInTe₂ compounds by integrating the cation/anion substitution and in-situ oxidation, as shown in Figure 13a. Taking the in-situ substitution reaction between CuInTe₂ and ZnO additive as a case [36], the priority generation of acceptor defects $Z{n}_{In}^{-}$ significantly optimized the PF while the In₂O₃ nanoinclusions incurred by the in-situ reaction led to a low κ of CuInTe₂. Through triple doping in Cu₂SnSe₃, Hu et al. [62] obtained an excellent zT of 1.6 at 823 K in cubic Cu_1.85Ag_0.15(Sn_0.88Ga_0.1Na_0.02)Se₃ and a decent zT_ave of 0.7 from 475 to 823 K in Cu_1.85Ag_0.15(Sn_0.93Mg_0.06Na_0.01)Se₃ via synergistic effects. As shown in Figure 13b, during the management process from the initial phase to (Ag, Ga, Na)-doped Cu₂SnSe₃, the gradually improved zT originated from symmetry enhancing, alloying scattering and dislocation/nanoprecipitate construction, respectively. Similarly, synergistically optimized CuGaTe₂ [135] (Figure 13c), Cu₃SbSe₄ nanocrystals with Cu_2−xSe in-situ inclusions [48], CuIn_1−xGa_xTe₂:yInTe with in situ formed nanoscale phase InTe [39], Cu₂SnSe₃ with CuInSe₂ alloying [184], etc, demonstrated that the progressive and collaborative optimization strategies have been widely applied in CBDL materials.

5. CBDL-Based TE Devices

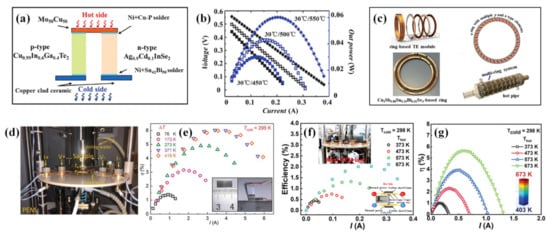

For practical TE applications, moving from high-performance materials to high-efficiency devices is of great significance. CBDL compounds conform to the concept of green environmental protection and have great practical application value while the absence of n-type conductive compounds greatly hinders the manufacture and application of CBDL-based TE devices. During the journey of device development, researchers have made a lot of efforts. In 2017, Qiu et al. [185] manufactured a CBDL-based TE module via integrating high-performance n-type Ag_0.9Cd_0.1InSe₂ and p-type Cu_0.99In_0.6Ga_0.4Te₂ leg, respectively, as shown in Figure 14a. The output power of module reached 0.06 W under a temperature difference of 520 K (Figure 14b), demonstrating that diamond-like compounds are also potential candidates for TE applications. On the foundation of obtaining high-performance in (Sn, Bi)-codoped nanocrystalline Cu₃SbSe₄ materials, Liu et al. [153] fabricated a hot pipe integrated by a series of ring-shaped Cu₃Sb_0.88Sn_0.10Bi_0.02Se₄–based TE modules (Figure 14c), which can be used for the purpose of retrieving the waste heat from exhaust gas pipes in vehicles. Moreover, Li et al. [103] synthetized a segmented Cu₁₂Sb₄S₁₃–based single-leg module, which had a superior conversion efficiency η of 6% at ΔT = 419 K, as shown in Figure 14d,e. Recently, the Cu₃SbS₄–based single-leg module synthetized by Zhang et al. [28] approached a conversion efficiency η of 2% with ΔT = 375 K, which reached to 5.5% predicted by the COMSOL simulation analysis (Figure 14f,g). Apart from realizing excellent TE efficiency, good thermal stability is also crucial for the manufacturing of TE devices. In practice, the volatilization induced softening and decomposition is the core issue for thermoelectric selenides and sulfides working at elevated temperatures. In the latest research from Zhou’s group [163] demonstrated that the compositing of CuAlS₂ significantly optimized the thermal stability of Cu₃SbSe₄–based compounds by pushing the decomposition temperature to a higher value, while also greatly improving the mechanical properties of the material. Eventually, a maximum η over 3% was achieved at a ΔT = of 367 K and an I = 0.8 A. Based on the above research, it seems that CBDL has considerable TE performance and has gradually attracted researchers’ attention in the field of practical TE applications.

6. Conclusions and Perspectives

By reviewing the research on copper-based diamond-like thermoelectric materials, it has been found that diverse compounds appear to have excellent TE performances as well as possessing zT higher than unity and an even approach to two. Advanced approaches to guide the development of new high-performance CBDL materials have been found, such as machine learning, high-throughput and union-η rules. There are also various approaches to improving the TE properties of CBDL compounds. It is worth considering that, during the process of optimizing electrical and thermal transport behaviors of TE materials, the regulation is never carried out separately, but that coordination and unification of the two are sought. Based on the efforts of researchers, the CBDL compounds have been greatly developed. There is no escaping the fact that the softening and decomposition of Cu-based compounds occurs when the compounds are exposed to high temperatures. Therefore, compared with practical materials, the CBDL compounds still have great room for improvement.

Considering practical applications, it is of great significance to shift our focus from high-performance TE materials to highly efficient devices. The integration for TE equipment requires both high-performance n-type and p-type legs. Currently, CBDL compounds are mostly p-type materials, while the further development of n-type CBDL compounds is beneficial for its TE application. In addition, in the research and development process of TE devices, it is also necessary to consider the comprehensive properties such as thermal stability, processability and self-compatibility. Therefore, the feasibility of manufacturing efficient TE devices based on CBDL materials remains a highly challenging issue.

The exploration of material properties is still ongoing, and the practical application of devices also needs to be developed. There has been a deep understanding of the transport mechanism of TE materials with the iteration and update of characterization methods, accompanied by the assistance of more advanced manufacturing technologies, and that the development of high-performance TE materials and devices based on CBDL compounds has a bright future.
