1. Introduction
The growing demand for transport, including air transport, forces manufacturers to increase the number of aircraft structures and to use structures with greater reliability and reduced costs. It is, therefore, necessary to improve and find new solutions for designing and manufacturing aircraft structures [
1]. Changes in the aerospace industry are occurring rapidly, so the materials used and the processing technologies for these materials are changing rapidly. The reliability and durability of components used in the aerospace industry largely depend on the type of material used [
2]. Developments in this sector of the industry have resulted in the use of mainly titanium alloys and nickel alloys for stressed components of aerospace structures [
3,
4]. Despite using titanium and nickel alloys, other alternative aerospace materials are constantly being pursued in order to achieve increasingly favorable parameters of finished products while meeting strict requirements and ensuring appropriate mechanical properties [
5]. One way to reduce costs is to use increasingly lighter materials with good properties, which will have a beneficial effect on weight reduction. Currently, there is a trend to use metal nanocomposites as a lightweight material that provides good properties, so that the weight of the finished product can be reduced [
6]. In the aerospace industry, there is a strong development of hybrid or composite-metal materials in aerospace structures. The data show that composite materials continue to compete with metal materials in this industry [
7].
The most commonly used types of non-ferrous metals in the aerospace industry are aluminum and aluminum alloys, magnesium and magnesium alloys, titanium and titanium alloys, copper and copper alloys, and nickel and nickel alloys [
1,
4,
7]. Based on the use of titanium and nickel alloys, another way of reducing production costs is by reducing the weight of the structure while ensuring sufficient rigidity during the loads that can occur [
8,
9]. It is a reason that thin-walled structures are increasingly being used in the aerospace industry.
In the case of plates, is assumed the relationship between the length of the shorter side (p) and the wall thickness (h), is defined by the following relations [
10]:
Thin-walled structures are used in the aerospace industry in elements such as stringers, ribs, frames, spars, hubs, blisks, turbine blades, shells, bulkheads or skin panels. Thin-walled components are manufactured from materials used in the aerospace industry such as aluminum alloys, titanium alloys, and nickel alloys. Their mechanical properties ensure sufficient requirements while reducing weight. Another advantage of integrated thin-walled components is the reduction in fuel consumption, the reduction in the number of connections, the minimization of labor, and the reduction in assembly costs [
11,
12]. The interest in thin-walled machining is the subject of analysis by researchers. The data provide important information for the industry [
13,
14].
One of the problems encountered during the processing of thin-walled elements is vibrations and forces, which as a result affect the quality of the finished product, including its surface roughness and dimensions [
15,
16,
17,
18]. Another problem that exists during the milling of thin-walled elements is the dimensional error resulting from the deflection of the object due to low rigidity. This problem does not occur when machining rigid parts and is related to the flexibility of the cutting system [
11,
19]. Shape deformations are a serious problem, as aerospace manufacturers strive to improve the quality of their products to remain competitive. This implies the use of increasingly narrow dimensional tolerances [
16,
20,
21]. A diagram of a vertical thin-wall deformation during milling is shown in
Figure 1.
The authors of the paper [
22] analyzed the deformation of thin-walled elements with vertical walls of aluminum alloy EN AW7075 T651 using conventional milling and high-speed machining for finishing. The result of their studies was the measurement of deformation carried out using a coordinate measuring machine. Based on the presented data, the effect of the method on the obtained dimensional and shape accuracy is observed. It is also important to observe the variable value of deformations on the cross-section of the sample.
Authors in the work [
23] tested the possibility of using a high-speed camera to control deformation during machining. Fixed cutting parameters were adopted and time displacements were tested for a fixed sample point. Tests were carried out for vertical thin-walled samples from aluminum alloy 7075 according to the parameters recommended by the tool manufacturer. The authors observed the effectiveness of using the camera in controlling the deformation of thin-walled elements, thanks to which they showed the possibility of using alternative measuring instruments in the diagnostics of product parameters. The paper also presents the appearance deviations of the thin wall occurring as a result of the machining of the element.
The authors of the paper [
24] presented the possibility of using an optical method to measure the deformation of thin-walled elements. In their development, they made an aircraft element from aluminum alloy 7075 and measured the deformation using a GOM machine.
The machining of titanium alloy components is much more difficult than aluminum alloys due to the high cutting resistance, which is the result of high strength, high chemical reactivity, and low thermal conductivity [
25,
26].
The work by Gang [
19] presented a deformation of thin-walled elements from titanium alloy on the vertical cross-section, for only one side of the machining surface. It was shown that a maximum part deflection equaled circa 0.1 mm in the middle of the wall.
In a study [
27], thin-walled titanium alloy Ti6Al4V samples were milled using various support methods. During the experiment, cylindrical face milling was used during one-sided milling. The unsupported thin-wall machined sample was made with the following cutting parameters V
c = 40 m/min, a
p = 16 mm, a
e = 0.2 mm, f
z = 0.06 mm/rev for a tool of D = 12 mm. Based on the measurement, a maximum deviation of the thin wall of about 0.1 mm at a maximum height of 30 mm was noticeable.
Yusop et al. [
28] presented samples of a curved vertical thin-walled element made using a trochoidal milling strategy. The workpiece material was titanium alloy Ti6Al4V. When machining with a 10 mm diameter cutter, they assumed a cutting speed of 47 m/min and 50 m/min (depending on the case), a feed per tooth of 0.03 mm/rev, and a trochoidal milling stepover of 1.6 mm. The result of their study was the presentation of the dimensional deviation of the sample at half-height at the selected point on both sides. The maximum deviation presented was 0.18 mm.
When machining parts, it is extremely important to choose the right cutting conditions. One way is to use information systems that provide access to information on machining conditions. High-quality companies use such systems that give the necessary information [
29,
30]. The term “information system” can be defined as a system of formalized procedures that enable the management of internal and external information, which is used for planning, management, and control purposes [
19,
22,
23,
24,
25,
26,
27,
28,
29,
30,
31,
32,
33,
34,
35].
In the article [
36], it was shown that the lack of an information system is the result of time losses in the aspect of cutting tool flow management. The lack of an information system resulted in frequent consultations with the rest of the team, which could have been eliminated by creating an appropriate database. Such time losses also increase costs. In the aspect of machining aerospace components, saving time is very important, since, as mentioned, cost reduction is emphasized in this industry [
11,
12].
The main goal of the current work was to test the applicability of the optical method GOM (Global Optical Measurement) measurement to determine the deformation of thin-walled samples. So far, this method has been used to measure the frame of an aluminum alloy aircraft, and the results were presented in the article [
24]. The deflections will be determined over the entire height of the specimen in three selected sections (parallel and perpendicular to the bottom) on both sides of the machined area. The GOM method is an optical method, and therefore its application depends on the material and its dimensions being tested. Due to the use of thin-walled structures, care must be taken during the measurement to make an accurate measurement of the entire surface. An additional objective was to check the selected parameters of a thin-walled sample during machining with an increased section of the cut layer for possible use in finishing operations. During the experiment, two values of cutting depth and radial depth were used, using a constant material removal rate, cutting speed and feed rate. In the research, the titanium alloy Ti6Al4V was used, which is a popular material in the aircraft industry. The work benefited from the information system and knowledge of Seco Tools.
2. Materials and Methods
The sample series was prepared using a Mikron VCE 600 Pro milling center with iTNC 530 software. The experiment was carried out with two monolith milling tools with a diameter of ⌀10 supplied by Seco Tools. The first tool, JSE514100D2C.0Z4-SIRA, is dedicated to general application for machining all materials, while the second tool, JHP770100E2R040.0Z4A-SIRA, is dedicated to high-performance machining of titanium and nickel alloys.
Table 1 presents the basic indicators of the used tools.
The JSE514100D2C.0Z4-SIRA monolithic face mill is a tool from the JS514 series with four cutting blades for which the lead angle is 0°. The geometry is characterized by two center cutting capability blades with uniform pitch, for which the chamfer at the corner is 0.1 × 45°. The flute helix angle for this tool is 35°. The cutter is mounted in the tool holder using a cylindrical shank type with a diameter of 10 mm using tolerance class h5. The tool does not contain an internal cooling channel, but for machining titanium alloys it is recommended to use coolant (emulsion), which was supplied by the machine. The geometry of the JSE514, based on the universal coating of the working part with SIRON-A, allows the machining of most materials for specialized applications, including titanium alloy [
37]. JHP770100E2R040.0Z4A-SIRA is a four-blade monolithic tool from the JHP770 series designed for high-material-removal-rate machining. The tool features a defined groove shape and an uneven pitch with no center cutting capability blades. The blades contain a lead of 0° and a corner radius of 0.4 mm. The flute helix angle is 42°. The tool is mounted using a cylindrical shank type with a diameter of 10 mm. The tool is designed with a neck angle equal to 0° between the shank and the item for cutting, with a neck diameter of 9.4 mm and a neck length of 30 mm. In this geometry, it is possible to use an internal cooling channel, but during the experiment, coolant was supplied from the outside. Based on its geometry and coating with SIRON-A, the JHP770 series cutter is transparent for machining only titanium alloys [
38]. The tools used had similar geometries, and the differences due to the design of the tool affected the type of materials used and the type of machining carried out [
37,
38]. Tool 1, which is the lower price, is designed for universal machining, while tool 2, which is almost three times the price, is intended only for special applications for machining titanium alloys. With this comparison, it can be decided which tool to choose for the presented machining to achieve the desired parameters.
The experiment was conducted under controlled cutting conditions with constant parameters: feed f = 255 mm/min and cutting speed V
c = 100 m/min. The cutting parameters adopted during the experiment were selected following the recommendations of the manufacturer of the tools [
37,
38]. During sample processing, the tool was mounted in the precision collet ⌀10 and placed in the tool holder ER32.
The samples were milled using water–oil emulsion SILUB MAX, which is a two-component coolant product that meets the requirements of TRGS 611. During the experiment, a mixture of 15% oil emulsion and 85% water was used, according to the manufacturer’s recommendations. The coolant is designed for universal applications, including the processing of special materials under extreme conditions [

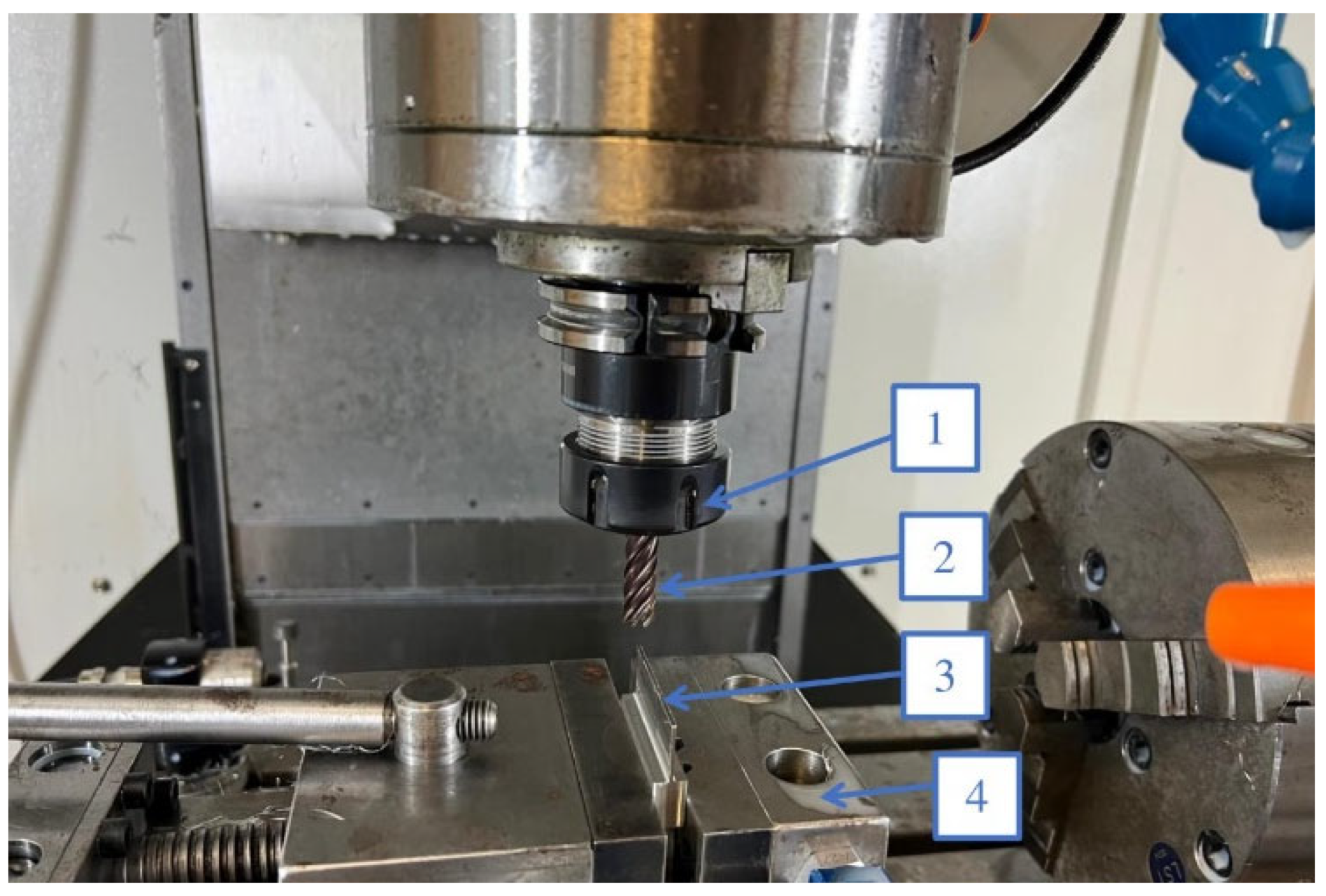

39]. The experimental setup for milling the vertical thin-walled samples is shown in
Figure 1.
The object of the studies was thin-walled elements with vertical walls made of titanium alloy Ti6Al4V. This material is widely used in various industries. One of the most popular applications is use in aircraft structure [
40]. The chemical composition and the mechanical properties of Ti6Al4V are shown in
Table 2 and
Table 3.

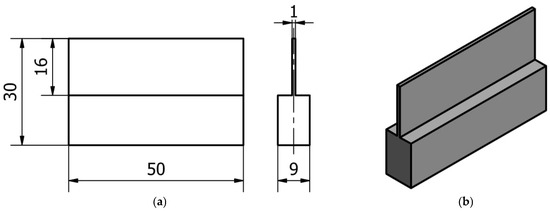

The blank for the sample preparation was a sheet of dimensions 9 mm × 30 mm × 50 mm. The thin wall with a dimension of 1 mm was made with a length of 50 mm and a height of 16 mm, according to the documentation shown in
Figure 2. For consistent MMR during processing, the sample was pre-ground to a dimension of 9 mm. The sample was mounted in a vice at a height of 10 mm and supported from underneath by ground metal sheets.
Two different side milling approaches were used for the preparation of the samples: with more involvement of face milling, and with more involvement of cylindrical milling. In the first approach, a larger radial depth (a
e = 4 mm) was used for greater engagement of the tool face and cutting depth a
p = 2 mm. In the second approach, a larger cutting depth (a
p = 16 mm) was used for greater engagement of the cylindrical tool part and a radial depth a
e = 0.5 mm. For both cases, a constant material removal rate was adopted and equaled MRR = 2.03 cm
3⁄min. To determine the material removal rate, the following relationship was used (1), which included depth of cut a
p (mm), radial depth a
e (mm), and feed rate V
f (mm/rev) [
41]. The tools and depths of each case are shown in
Table 4.
In the first step, the basic parameters of the geometric structure of the surface were measured for the prepared samples. Surface parameters were determined by the contact method using the contact profilometer Topo 01P v3D. The method of measuring surface topography vertical thin-wall samples is presented in
Figure 3.

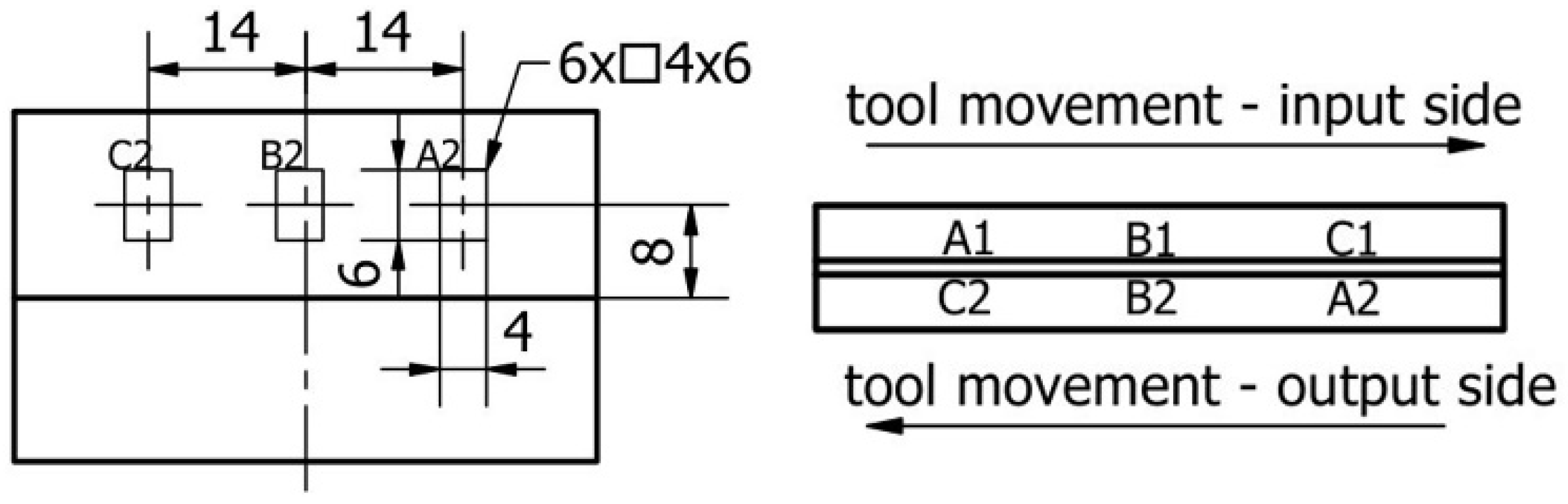

Measurements were carried out in 6 areas—3 areas each on both surfaces. Surfaces were marked A1, B1, C1 on the input side and A2, B2, C2 on the output side. The marking of the measuring areas is shown in
Figure 4. For each selected area, 9 profiles 500 μm apart were measured. Surface topography measurements were carried out using PN-EN ISO 4287. Filtration was selected based on ISO 11562; the measurement used a Gaussian filter with a phase correction equal to 0.8 mm.
In the second step, dimensional and shape accuracy were measured using the GOM method on the optical measuring machine Atos ScanBox 6130. The GOM method (Global Optical Measurement) is modern technology that allows precise measurements of product geometry and uses advanced cameras and image analysis software to record and analyze results related to the shape of an object. An optical 3D measuring machine operates on the principle of triple scanning, in which precise stripe patterns are projected onto the surface of an object. Measurement is preceded by camera calibration, during which the measurement system, using a pattern panel, is adjusted to ensure the dimensional consistency of that system. During calibration, the software determines geometric parameters to find the position and orientation of each camera based on the images it records. The beams are recorded by two cameras operating on the stereo camera principle. The paths of the beams from the cameras and the projector are calibrated. It is possible to determine the points of the 3D surface from three different intersections of the beams based on the reflected wave: the camera and the cameras with the visual beam, the camera with the visual beam on the left side and the projector with the projection beam, and the camera with the visual beam on the right side and the projector with the projection beam. Based on the points collected in this way, the software calculates the polygon mesh of the feature surface, as well as the actual values of the control feature plan. These data are compared with the nominal data and presented in a report. The results of the measurements are automatically saved and presented in the form of a color-coded presentation of the deviations according to the assumed scale [
42].

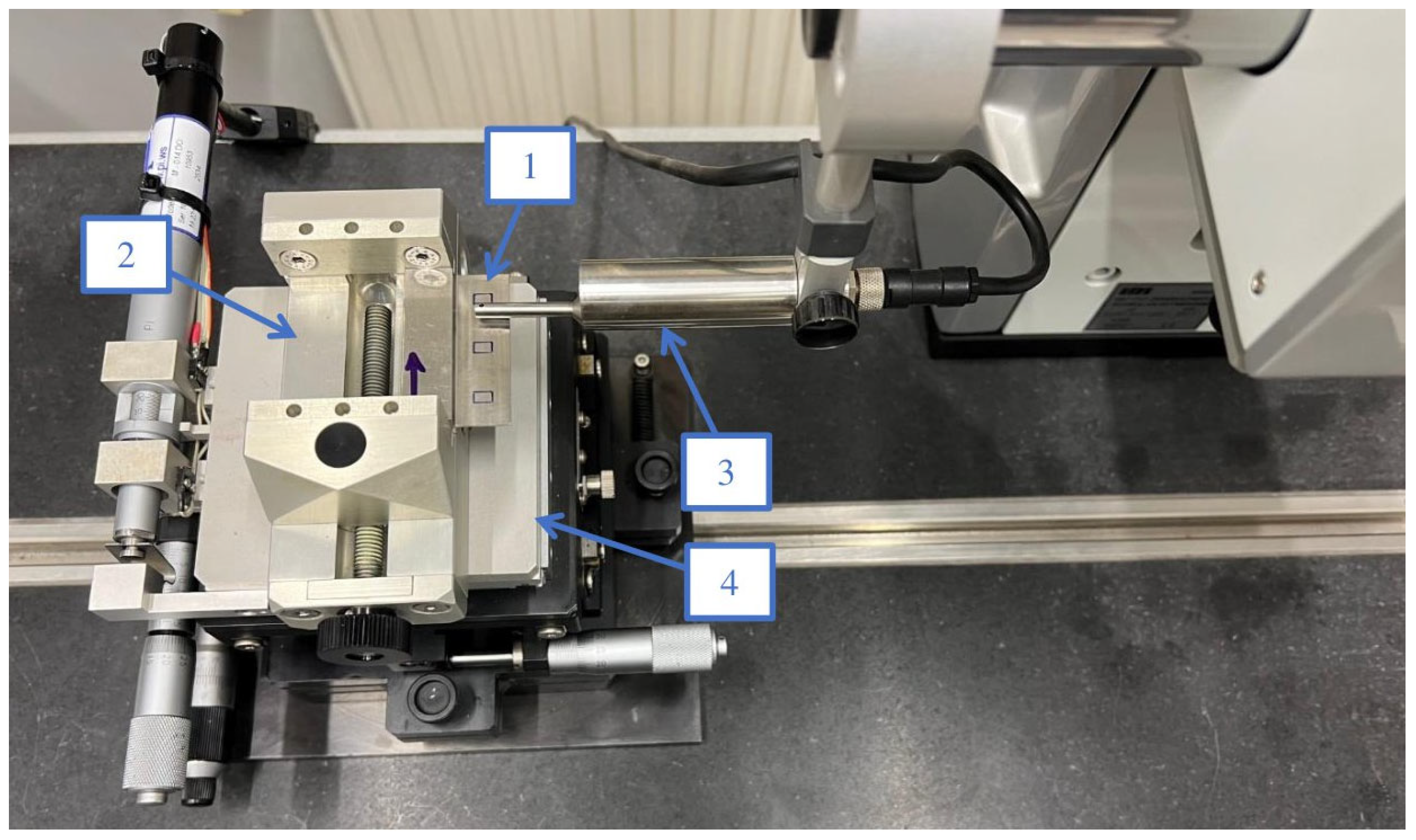

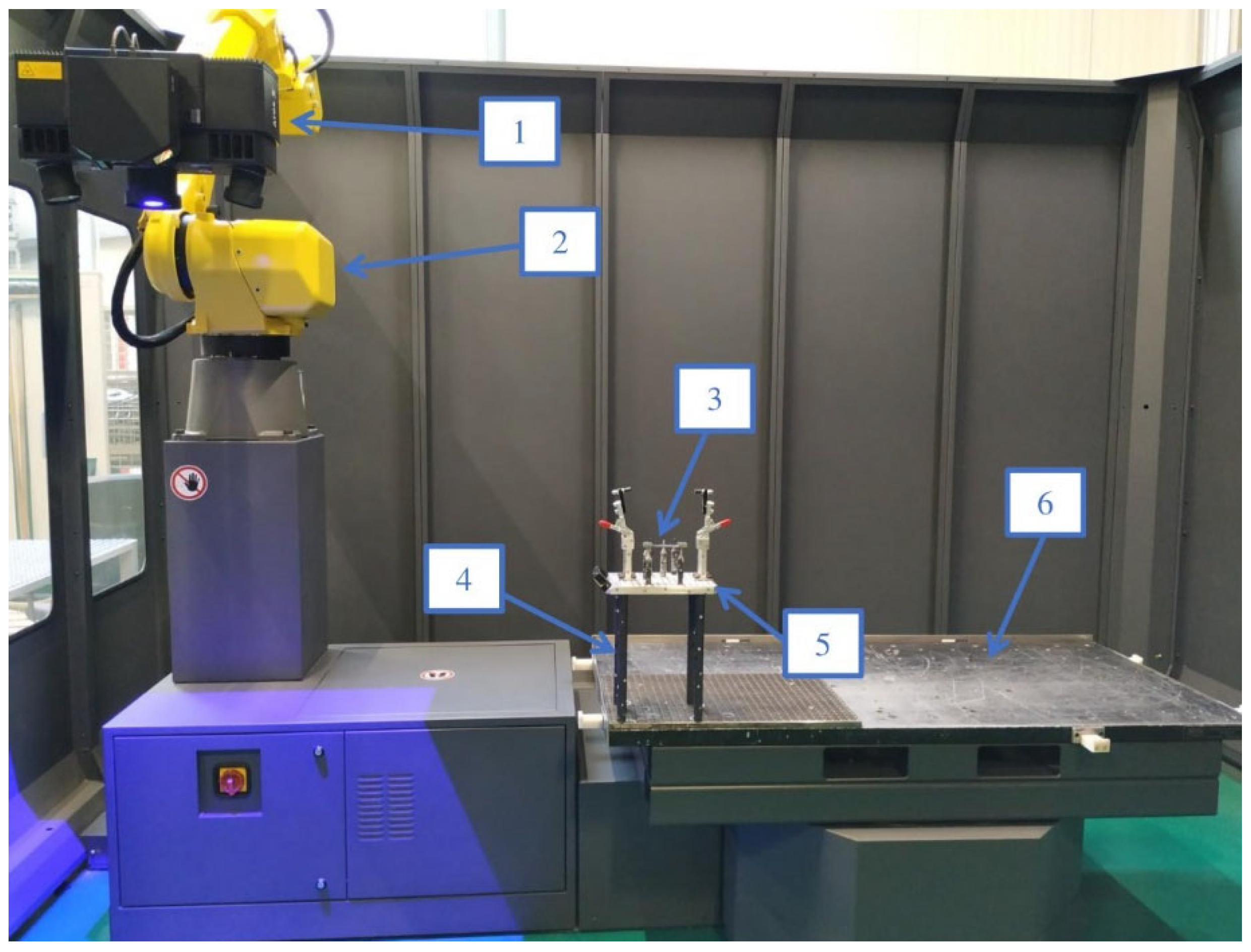

The program and series of measurements were carried out using GOM Inspect 2019 software. The samples were mounted on a universal base placed on the posts fixed on the rotary table of the machine. The posts were used to allow easier and free access of the arm with the projector to the measuring point in the space from all points of the sample. The scheme of the described test using the GOM machine is shown in
Figure 5. The measurement was carried out in a free state, i.e., none of the samples was fixed. The reference points of the GOM measurement are presented in

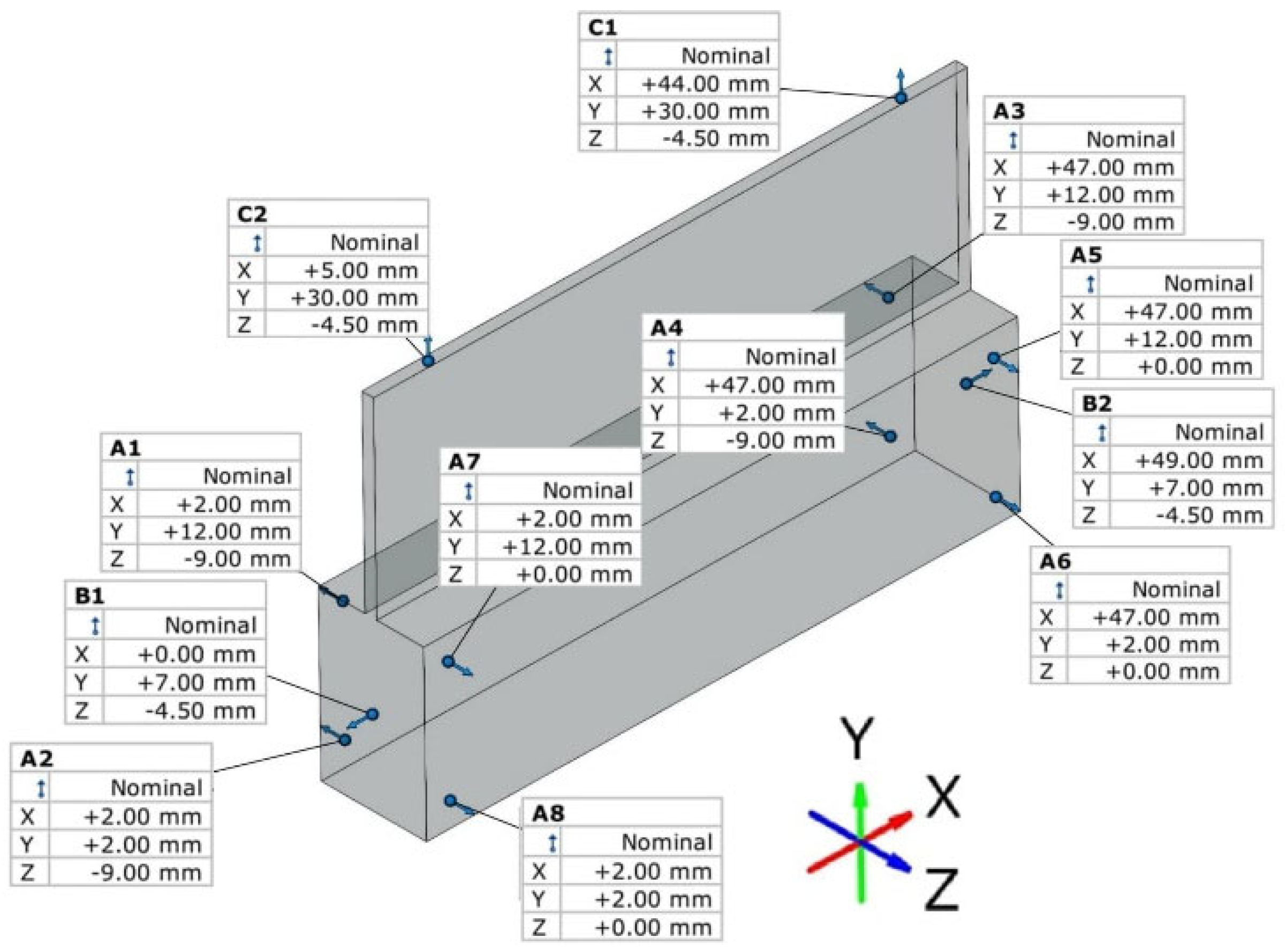

Figure 6. Fixed points specified B1–B2 were selected to determine basing on the x-axis, points C1–C2 were selected for the y-axis, and points A1–A8 were selected for the z-axis.

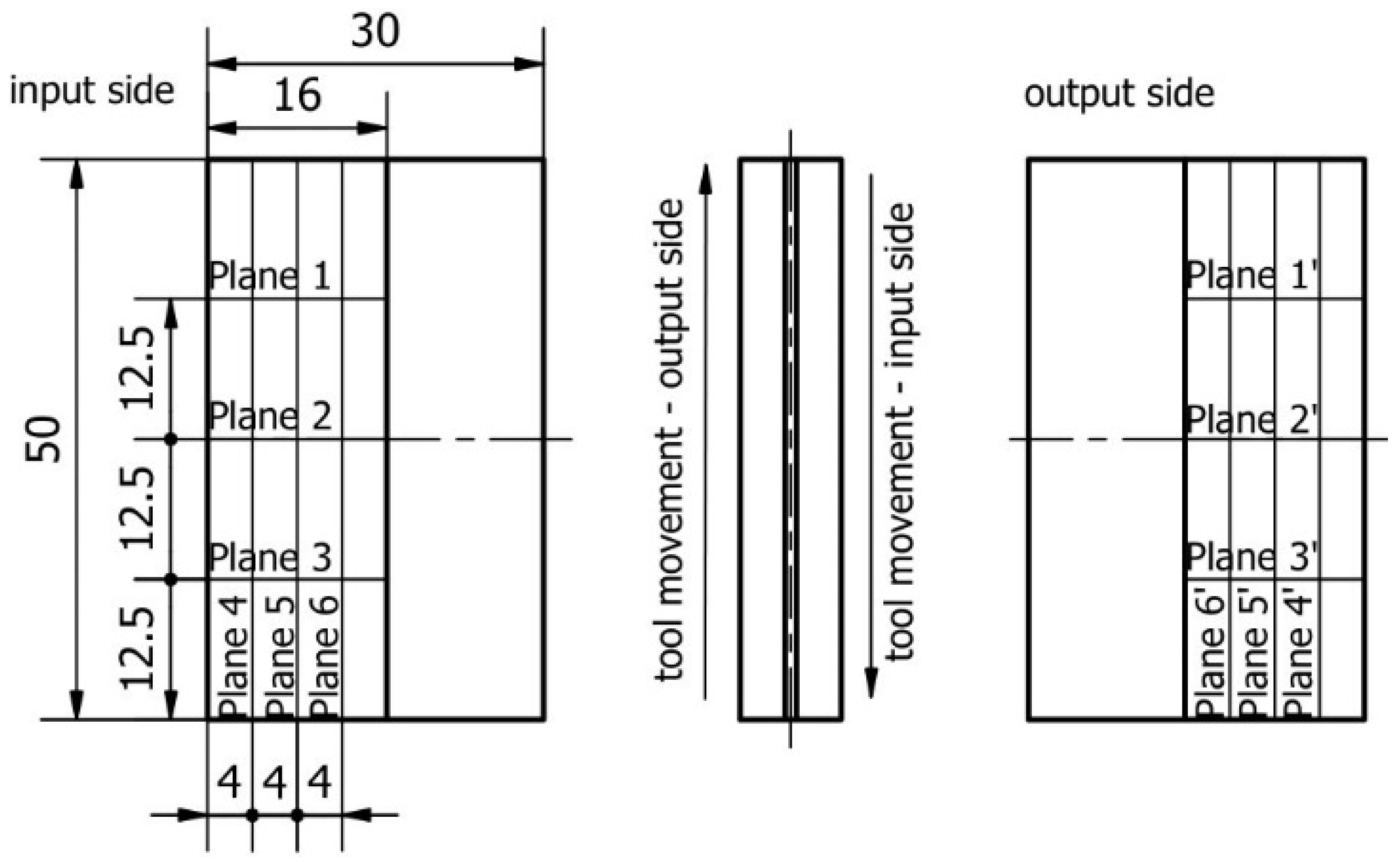

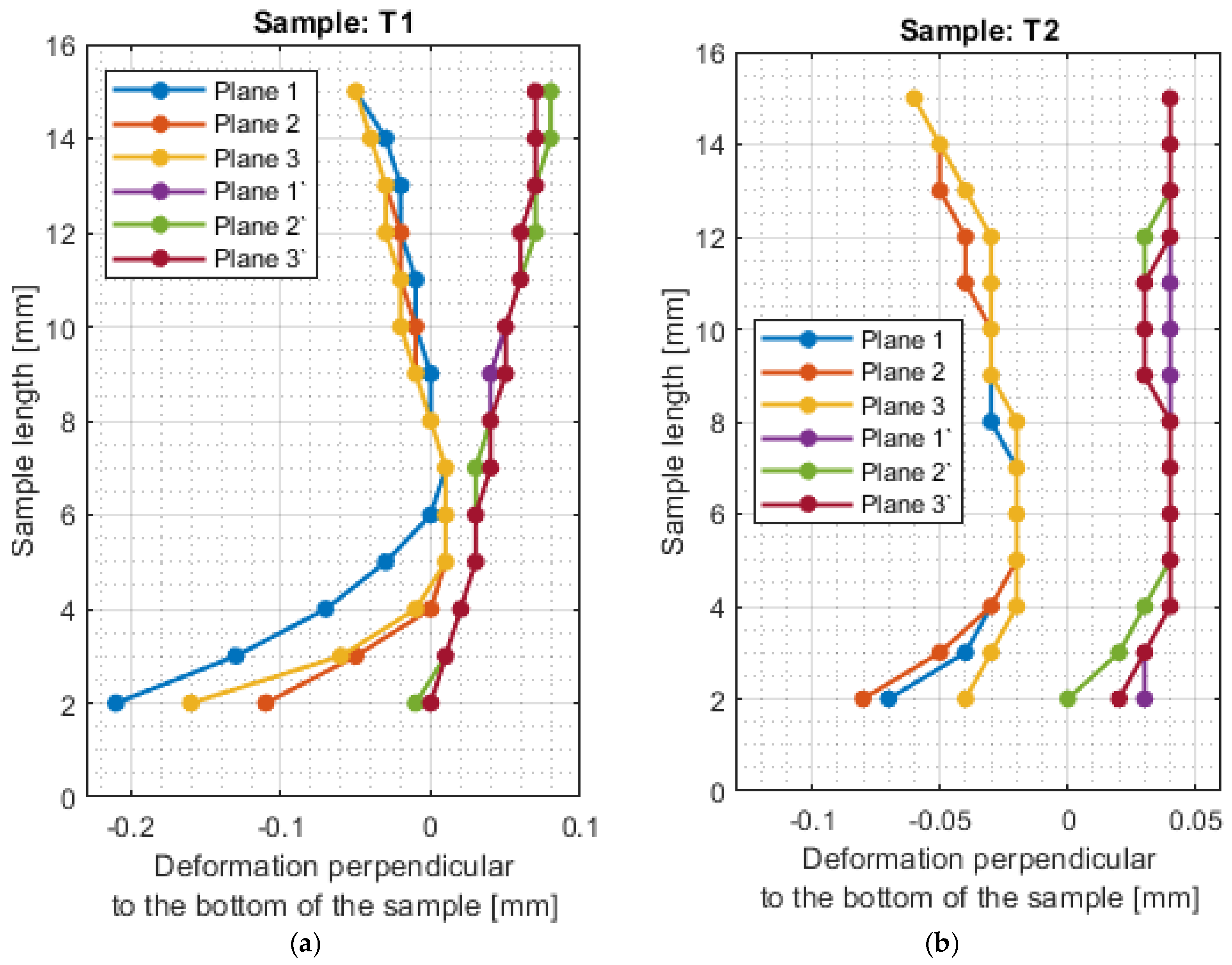

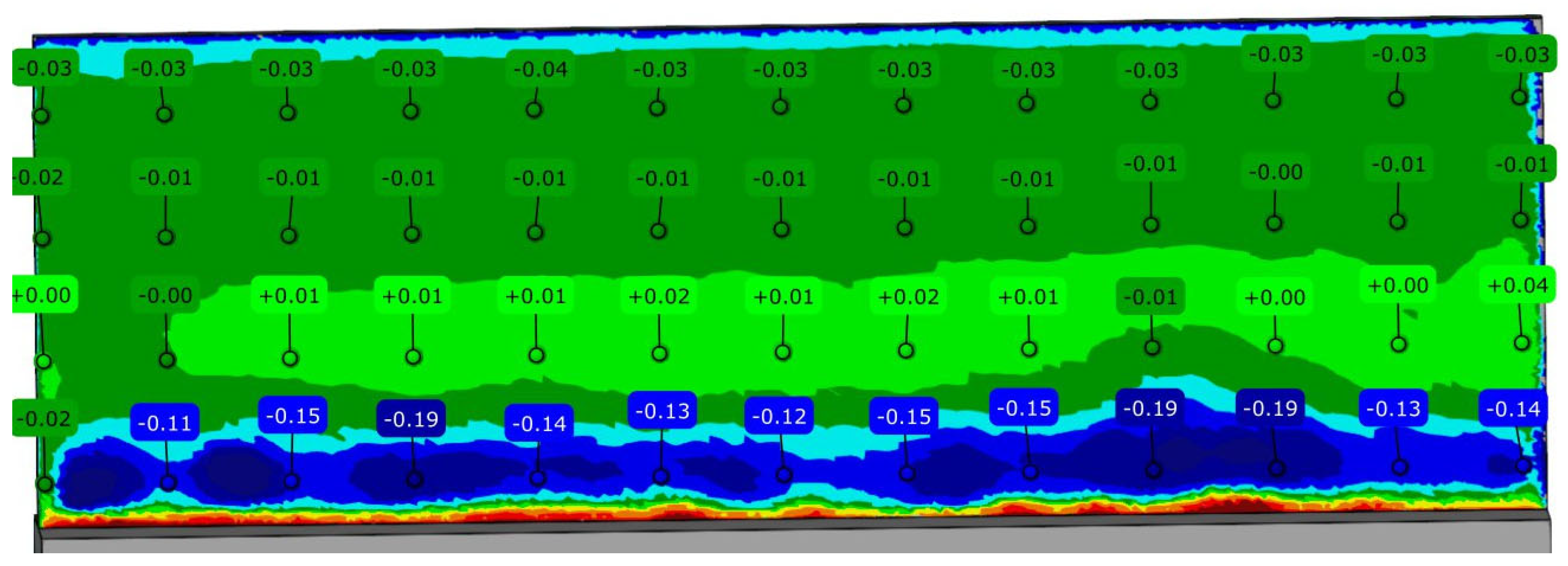

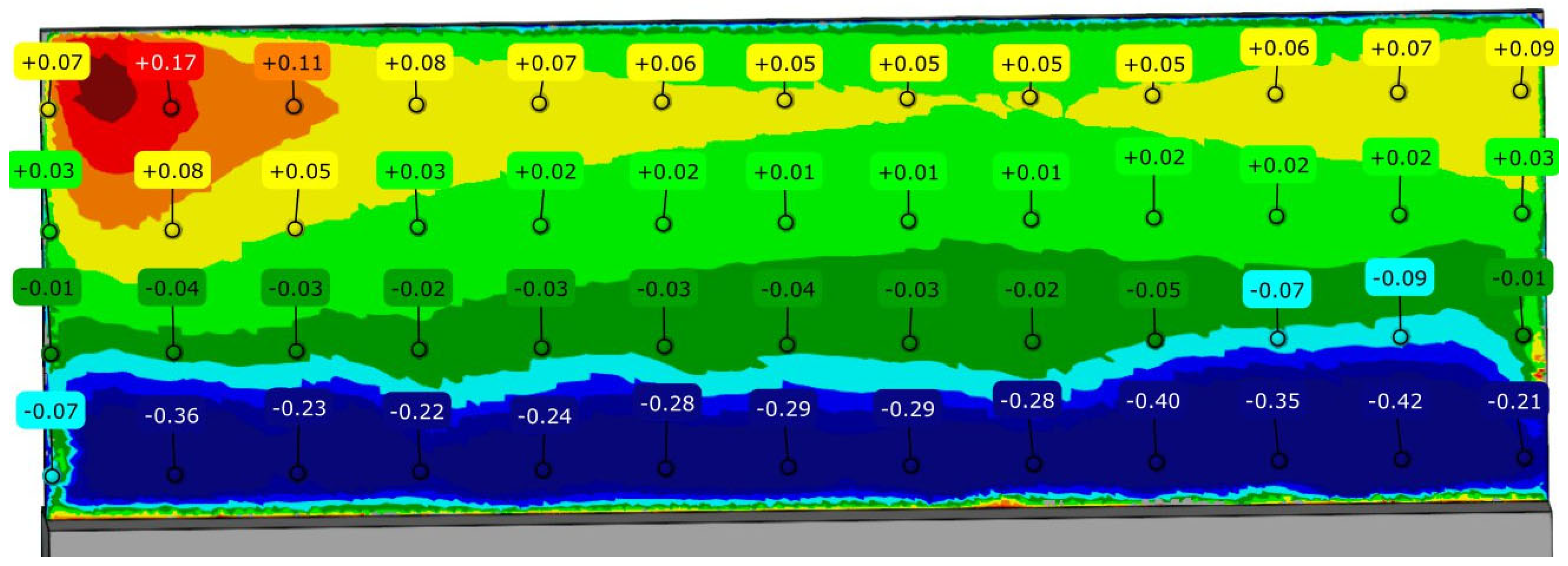

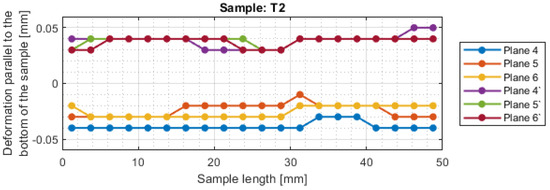

For the samples, cross-sections were defined in 6 parallel and 6 perpendicular directions to the bottom of the sample (3 on each side), determining the deformations on both sides of the machined surface. On the input side the areas are marked from 1 to 6 and on the output side the areas are numbered 1′ to 6′. The method of the base during the measurement and description of the planes are presented in
Figure 7.
4. Conclusions

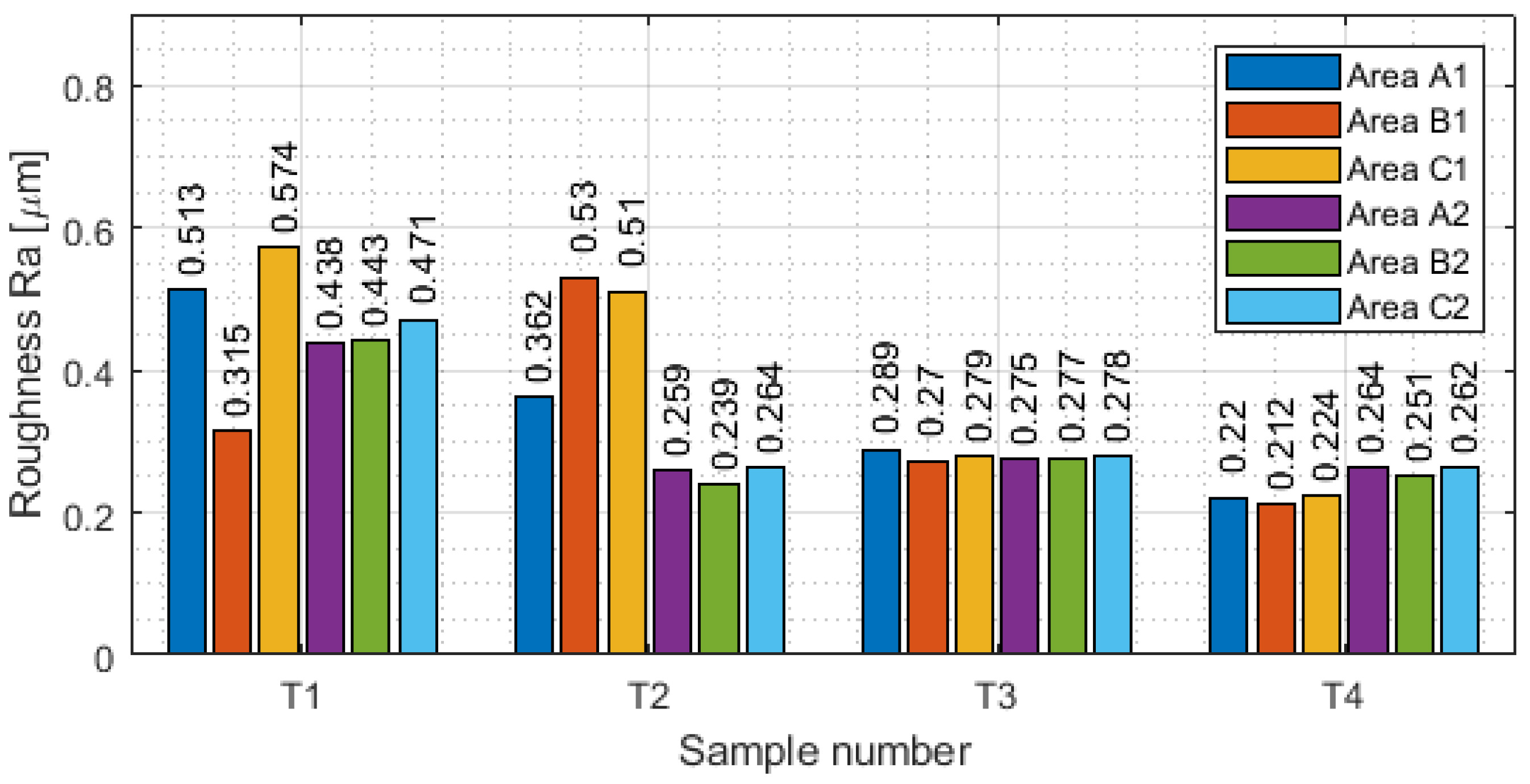

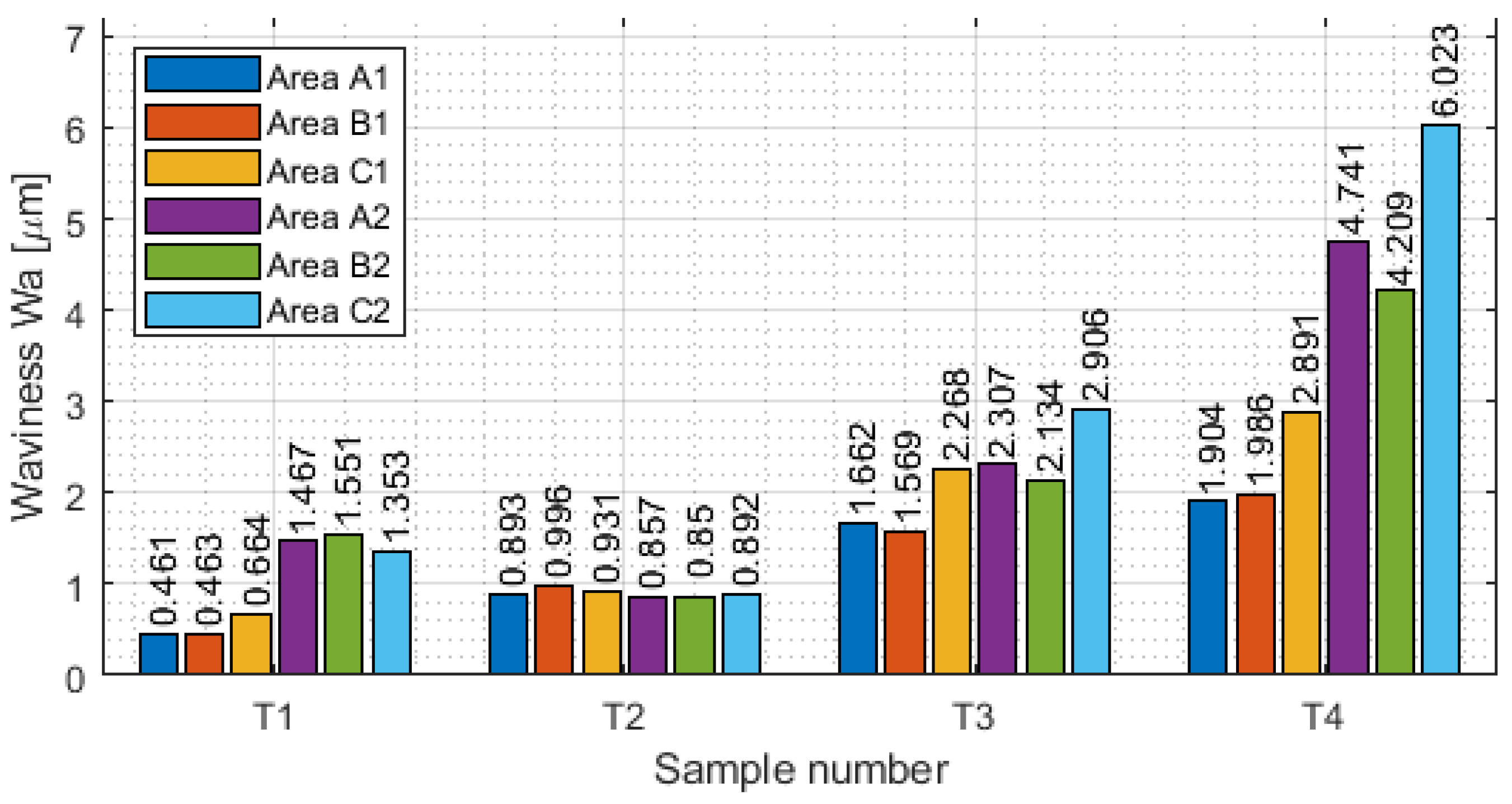

In this study, a series of vertical thin-wall samples under controlled process parameters were prepared. Parameters of surface topography (waviness and roughness) and deformations of thin walls were measured using the contact profilometer and optical method (GOM measurement).
It was shown that the optical method could be used for controlling deformations and the general shape of manufactured parts, as well as determining the deflection arrow of a thin-walled sample. When measuring thin-walled samples, it was necessary to perform an accurate scan of the sample to obtain a full point cloud. Based on the obtained point cloud, the results were generated, so if it was not complete then there were errors when making the measurement report.
The experiment also showed that it was possible to use the assumed cutting parameters to make specimens with thin-walled components.
Based on the tests performed, it can be stated that the selection of suitable cutting conditions requires a prior definition of the requirements for the finished product, since the adopted conditions affect the effect differently.

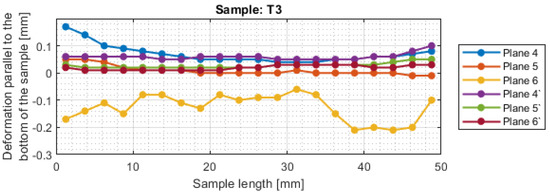

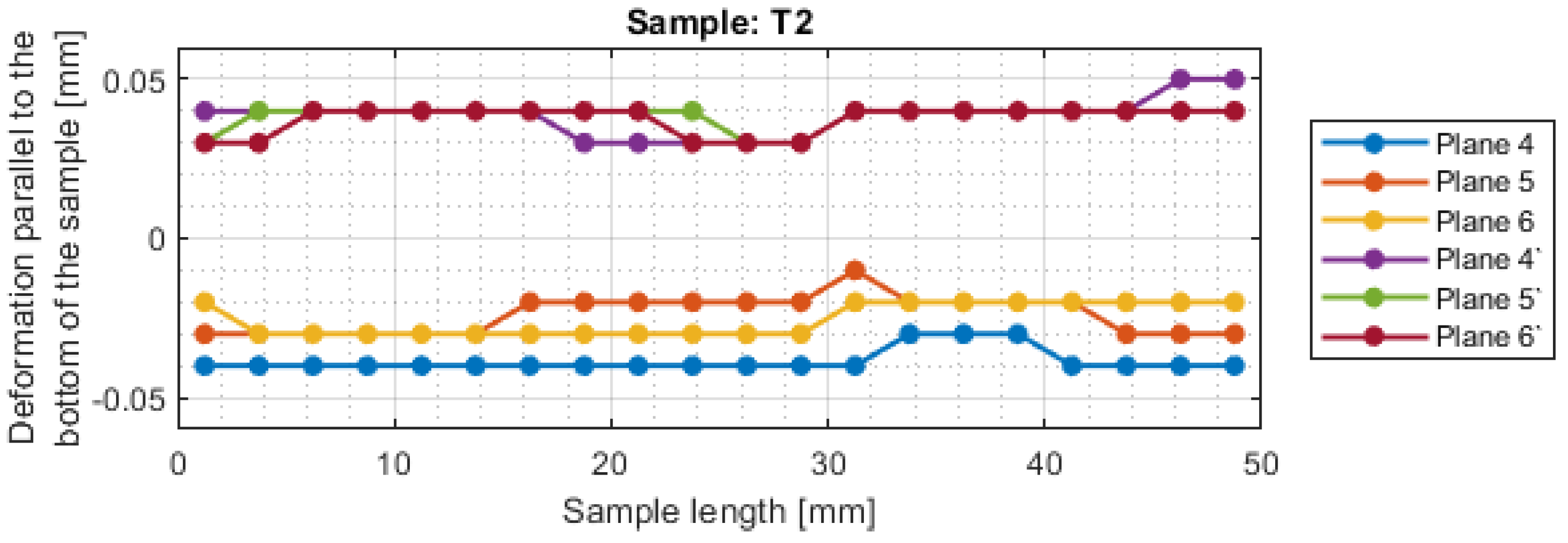

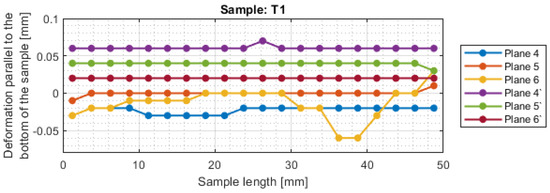

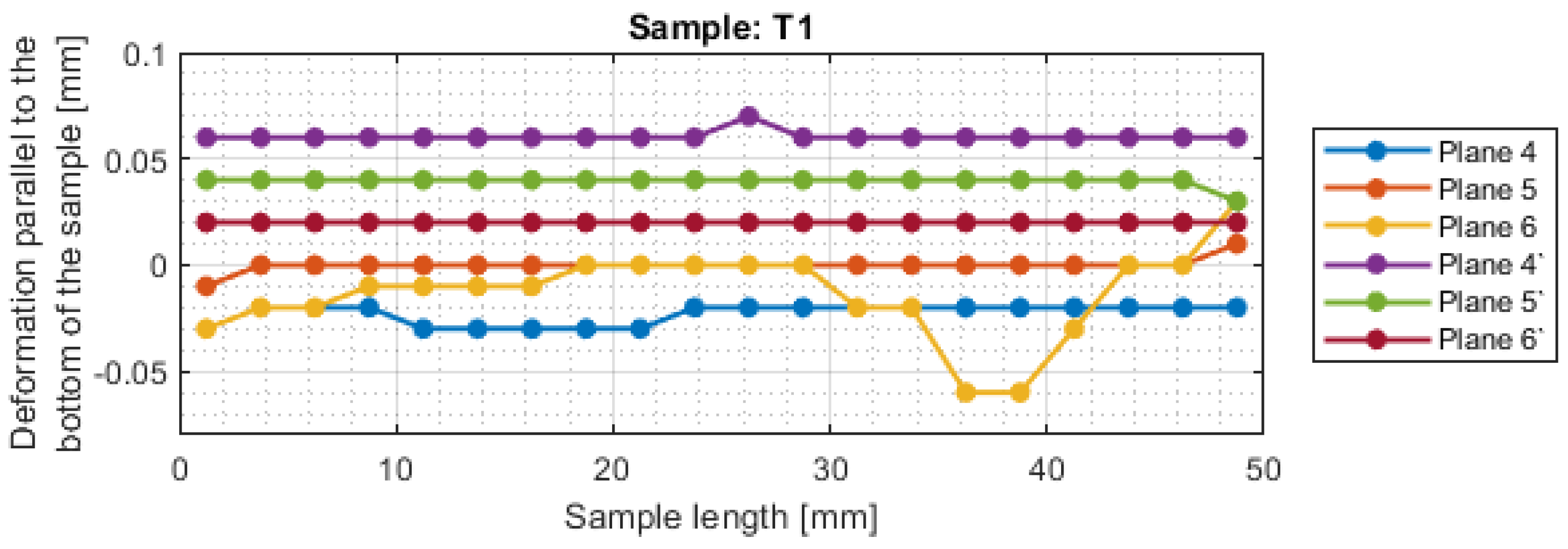

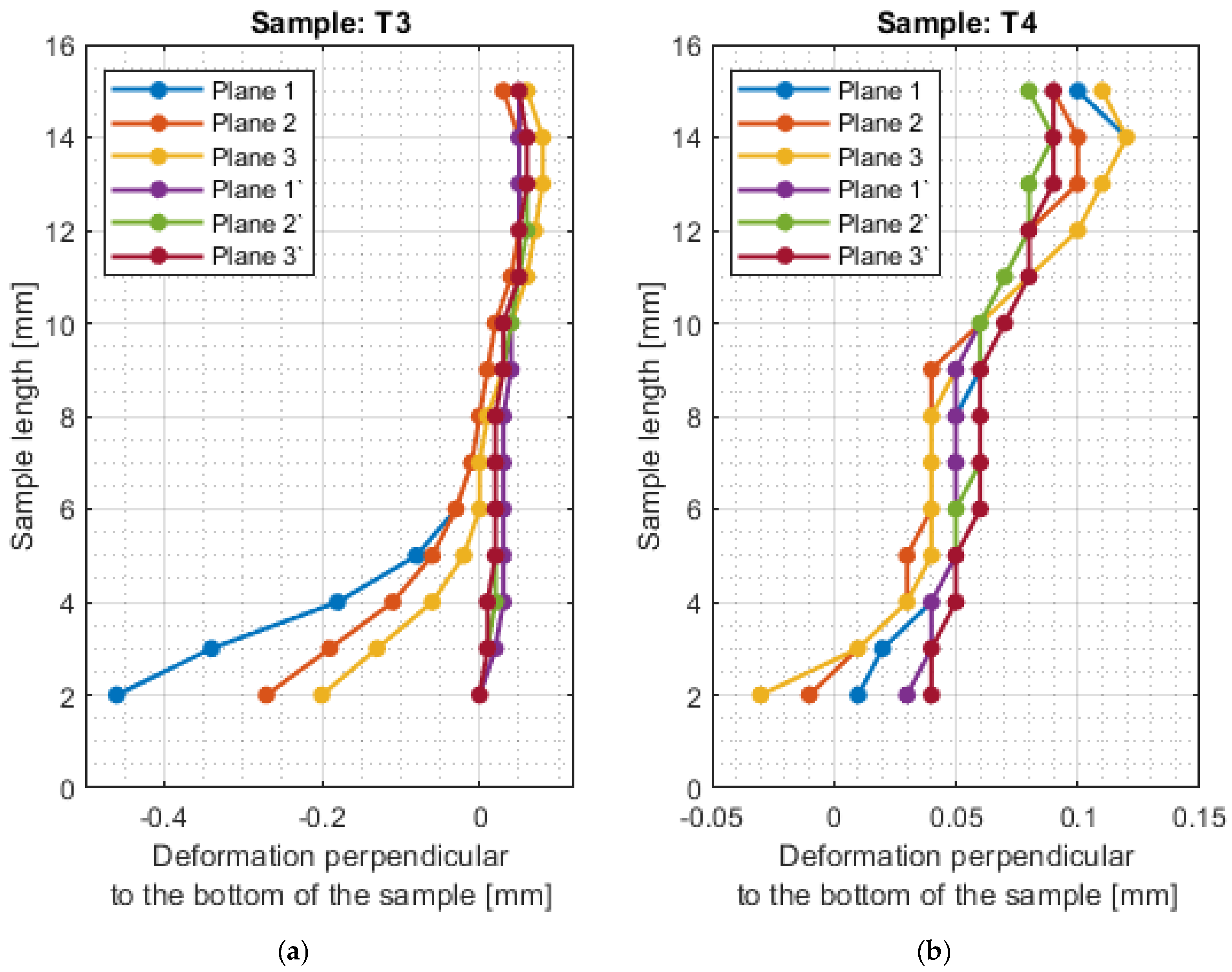

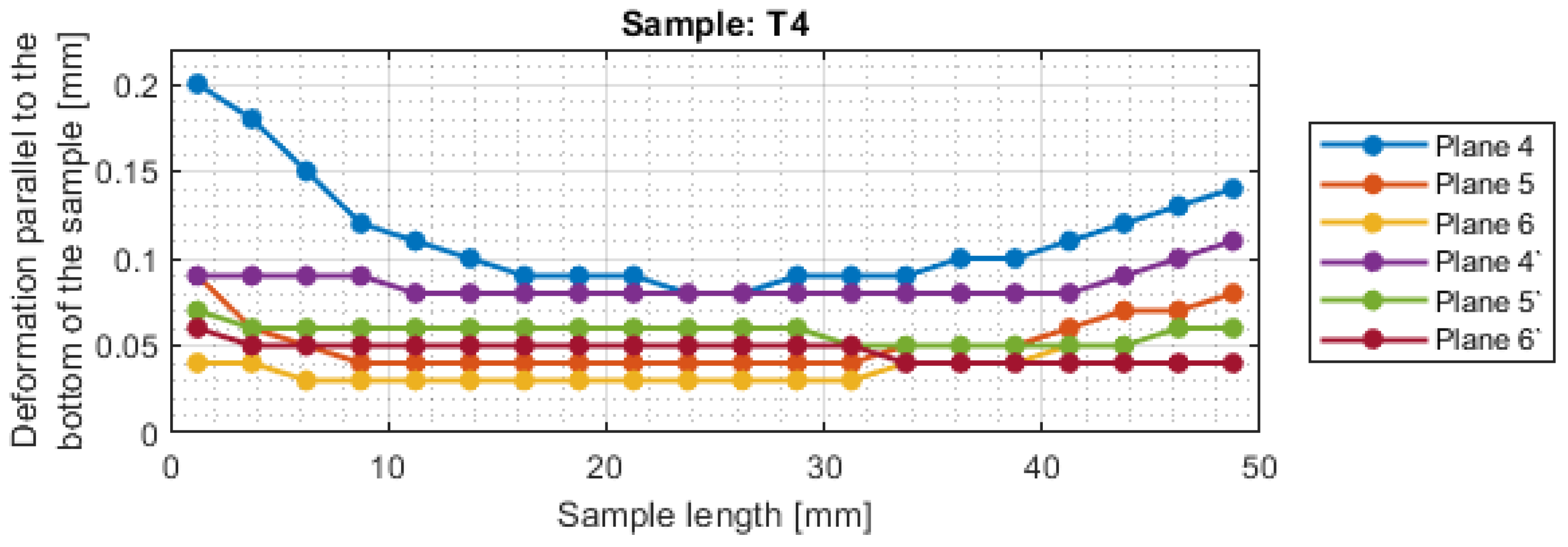

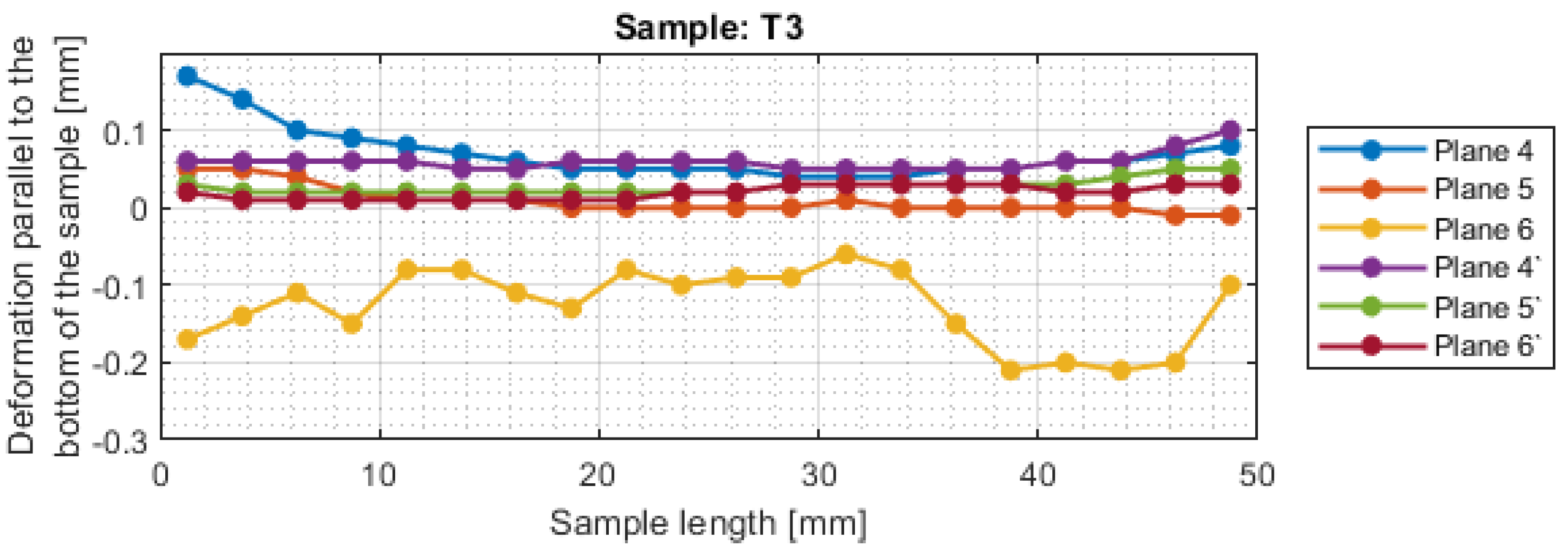

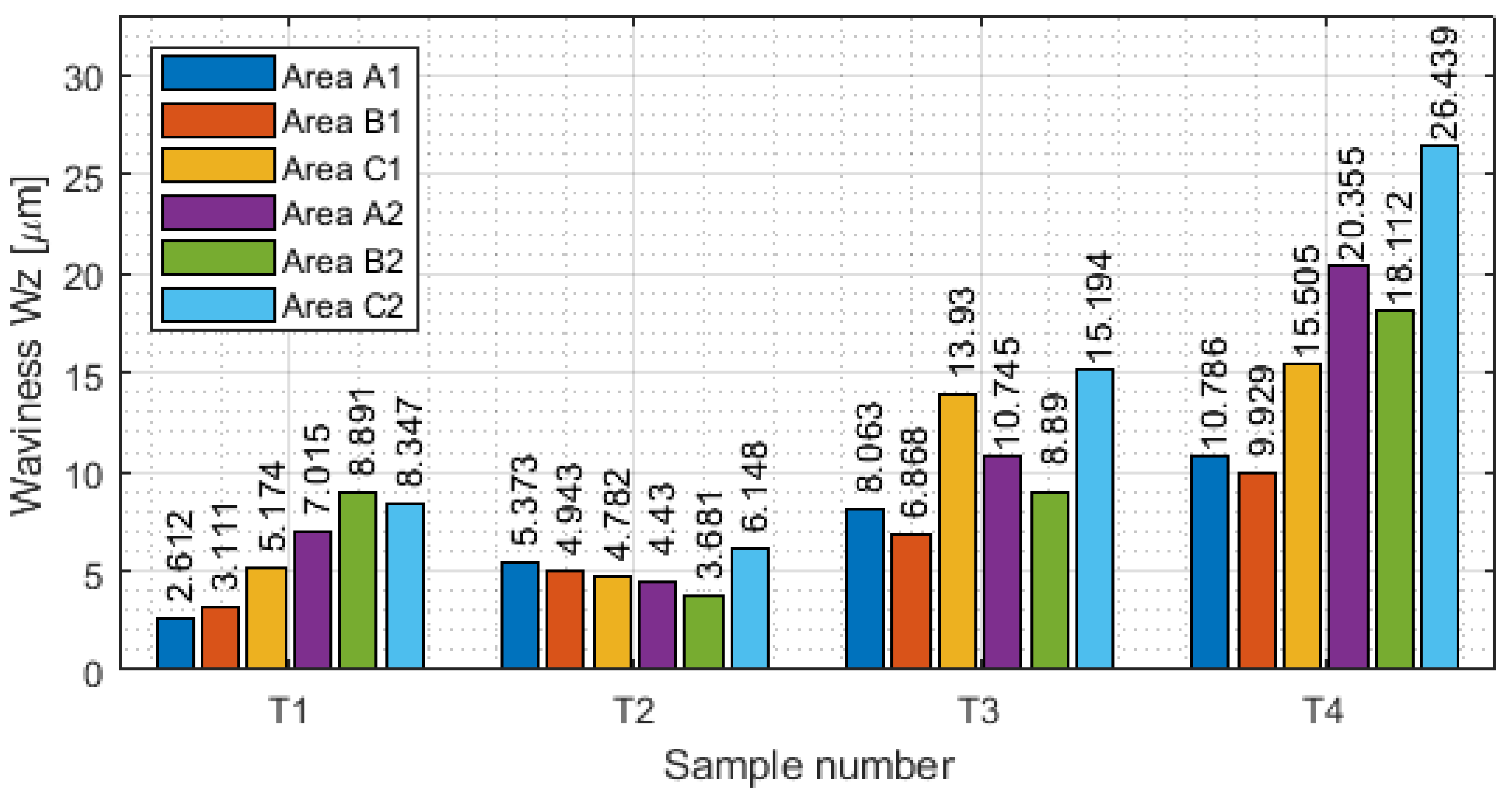

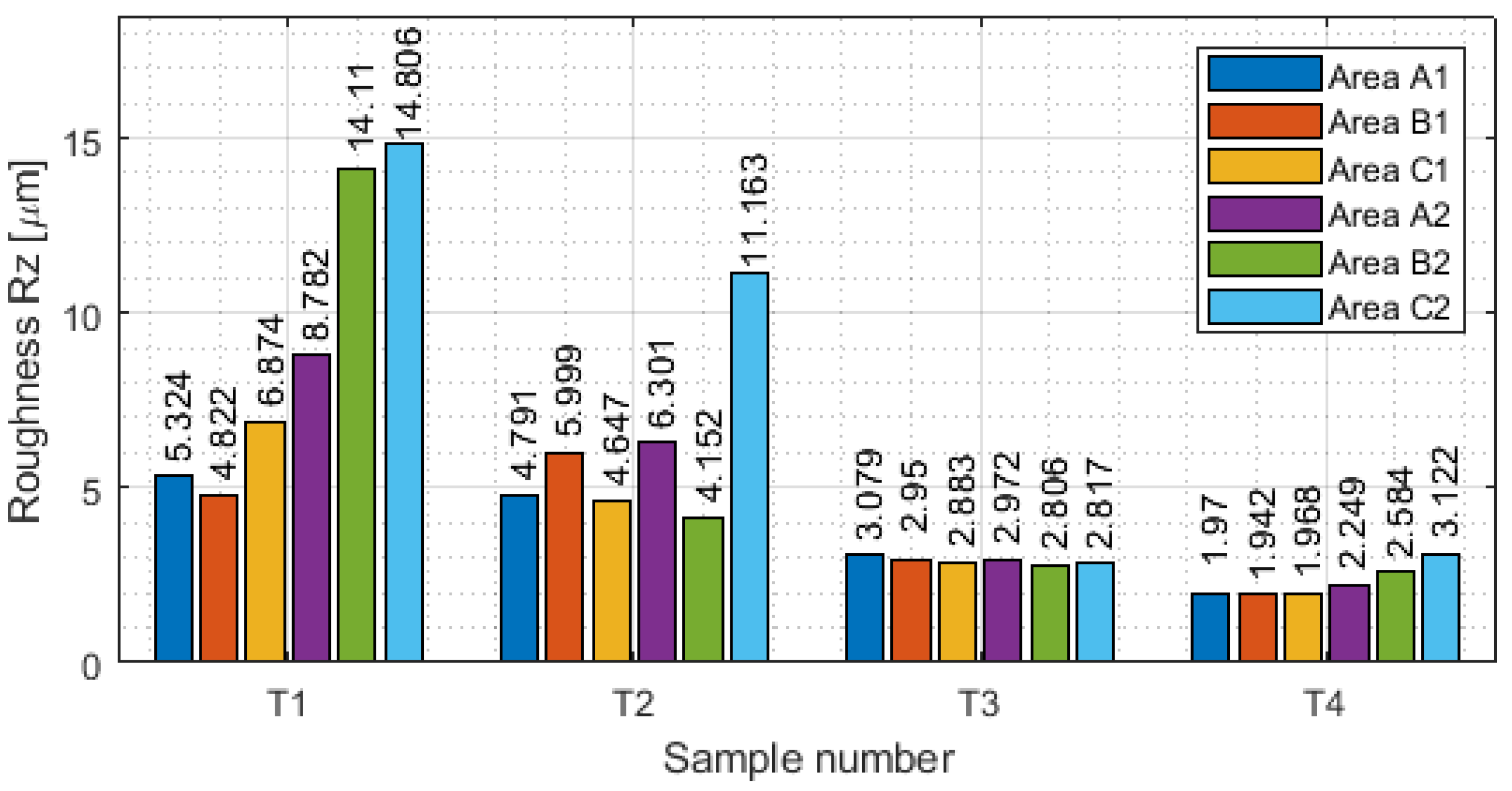

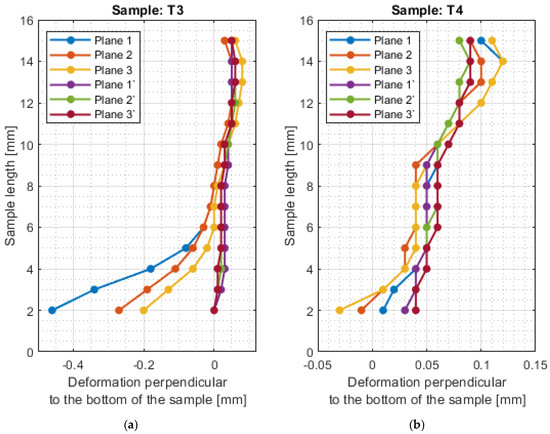

Based on the presented graphs, the following conclusions could be given:

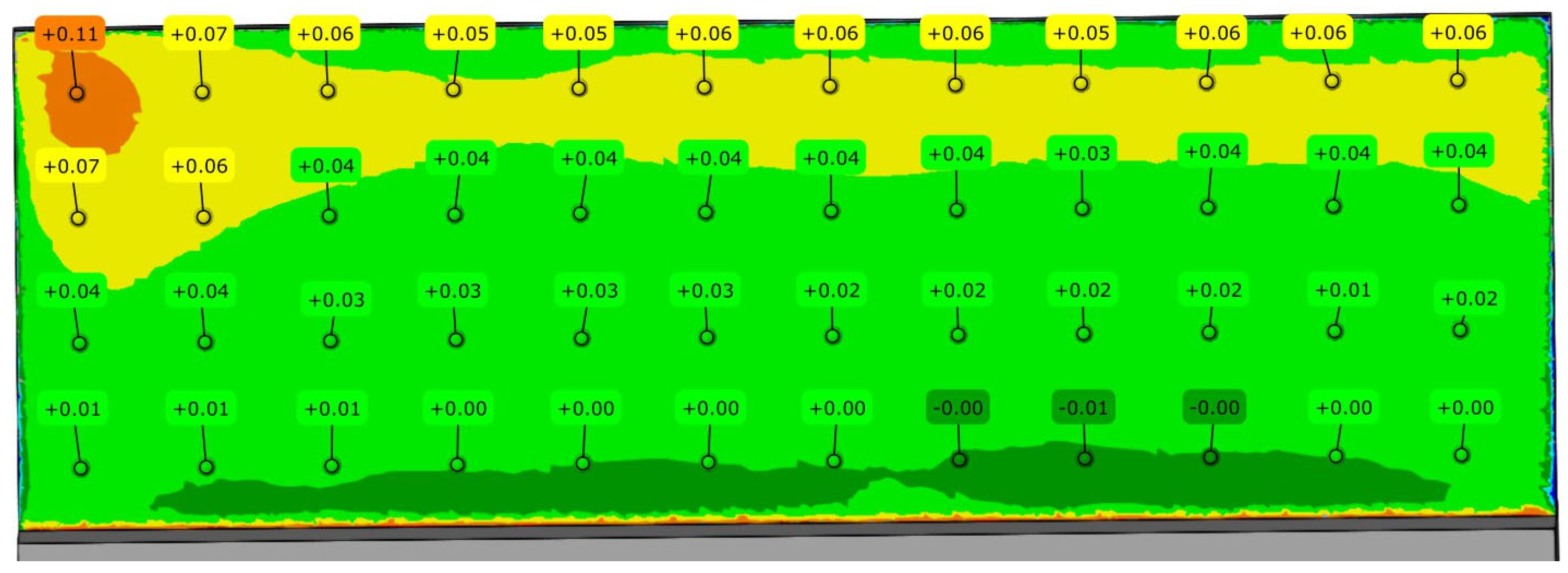

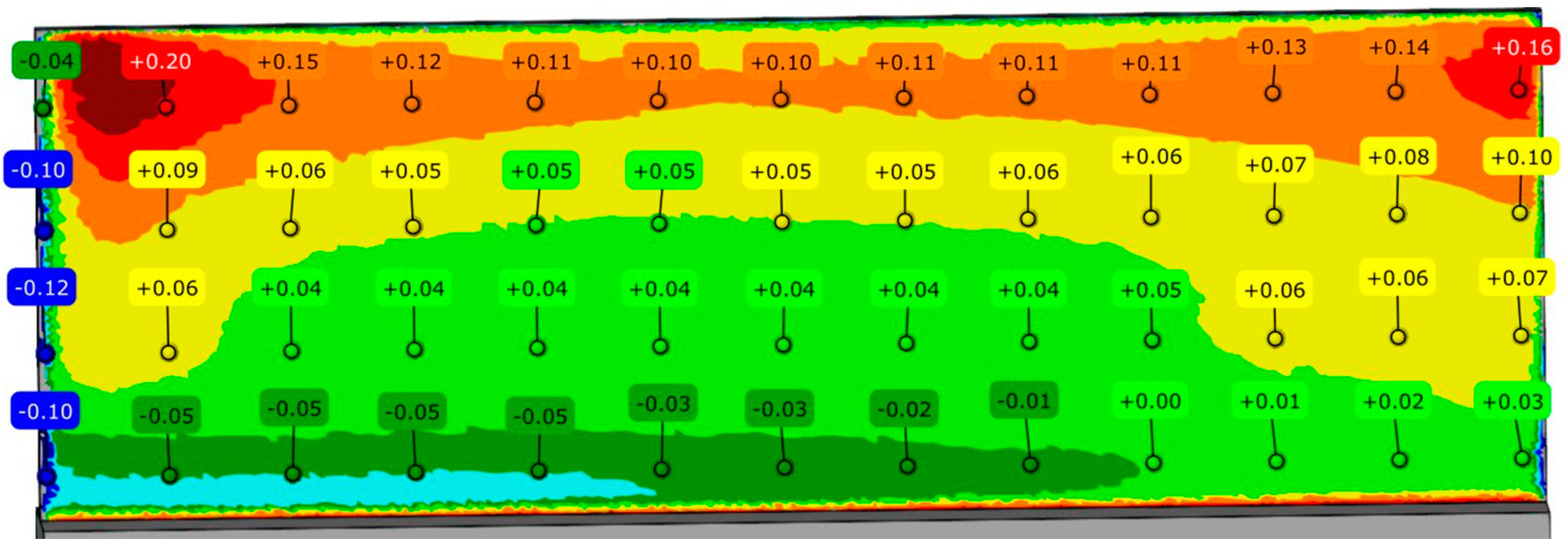

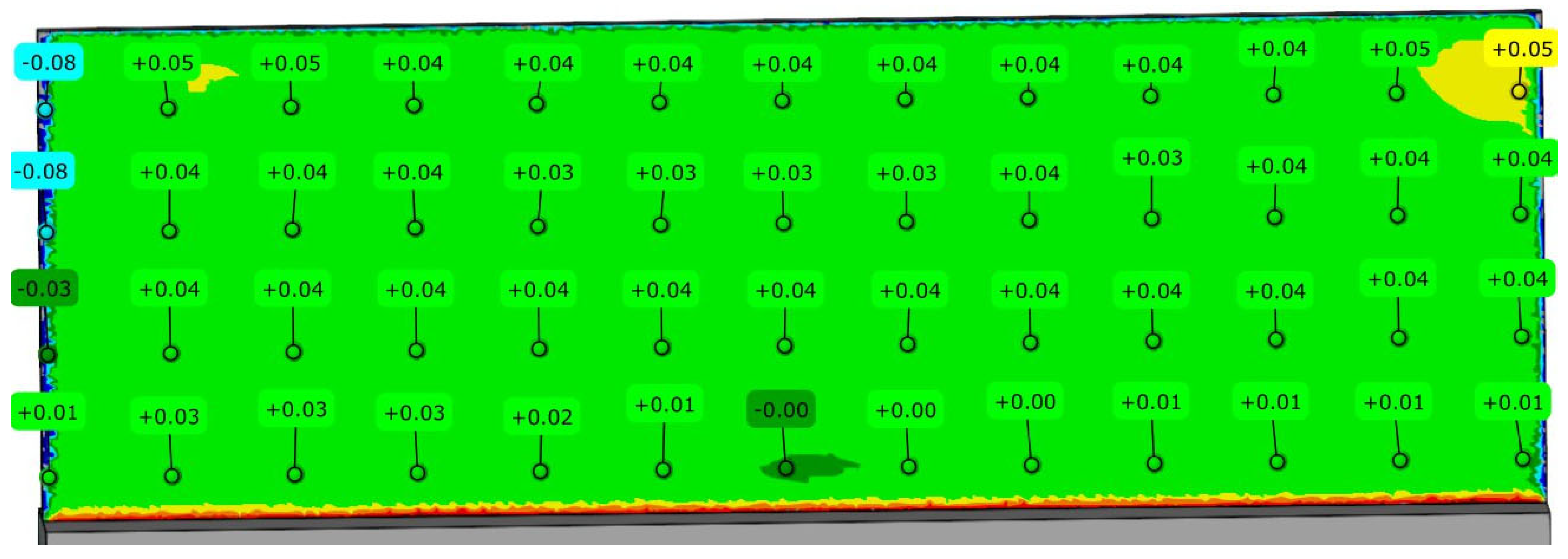

The experiment showed that waviness, roughness, and deformations take various values in different areas. For detailed quality control, measurement in more zones is required.
The measurement showed the differences between the input and output sides of the tool into the material. For dimensional and shape accuracy, higher deviations were obtained for the input side. For the waviness and roughness, this could not be determined unequivocally, as it was dependent on the analyzed case.
GOM measurement is an interesting alternative to current deformation measurement instruments. The resulting point cloud allows inspection of the entire product.
During the experiment, the following relationship was confirmed:
The milling strategy had an influence on the selected parameters of surface topography and deformations of the vertical thin-walled parts. On the one hand, the lowest values of waviness and deformations were obtained for cylindrical milling using the tool for HPM, but on the other hand, the smallest roughness was achieved for the same tool using face milling.
The cutting tool also has an impact on the selected parameters of the thin-walled finished product, but for those selected for the experiment it did not have as much impact as other test conditions. Tests should be carried out for a wider group of tools to determine the appropriate relationships.
To better understand a process related to thin-walled elements, the authors plan to focus on determining the influence of various materials and plan to measure forces and vibrations during the process to specify a correlation between cutting parameters. Subsequent studies will be carried out on a larger number of samples to provide interrelationships.
