Synthesis and Characterization of the Properties of (1−x)Si3N4-xAl2O3 Ceramics with Variation of the Components

by
Daryn B. Borgekov
1,
Artem L. Kozlovskiy
1,2,*,
Maxim V. Zdorovets
1,3,
Rafael I. Shakirzyanov
1,
Inesh E. Kenzhina
2,4 and
Dmitriy I. Shlimas
1
1
Engineering Profile Laboratory, L.N. Gumilyov Eurasian National University, Nur-Sultan 010008, Kazakhstan
2
Department of General Physics, Satbayev University, Almaty 050032, Kazakhstan
3
Department of Intelligent Information Technologies, Ural Federal University, 620075 Yekaterinburg, Russia
4
Advanced Electronics Development Laboratory, Kazakh-British Technical University, 59 Tole bi St., Almaty 050000, Kazakhstan
*
Author to whom correspondence should be addressed.
Materials 2023, 16(5), 1961; https://doi.org/10.3390/ma16051961
Submission received: 30 December 2022 / Revised: 24 February 2023 / Accepted: 26 February 2023 / Published: 27 February 2023
Browse Figures
Versions Notes

Abstract

:
The aim of this paper is to study the effect of variation in the component ratio of (1−x)Si3N4-xAl2O3 ceramics on the phase composition, strength and thermal properties of ceramics. To obtain ceramics and their further study, the solid-phase synthesis method combined with thermal annealing of samples at a temperature of 1500 °C typical for the initialization of phase transformation processes was used. The relevance and novelty of this study lies in obtaining new data on the processes of phase transformations with a variation in the composition of ceramics, as well as determining the effect of the phase composition on the resistance of ceramics to external influences. According to X-ray phase analysis data, it was found that an increase in the Si3N4 concentration in the composition of ceramics leads to a partial displacement of the tetragonal phase of SiO2 and Al2(SiO4)O and an increase in the contribution of Si3N4. Evaluation of the optical properties of the synthesized ceramics depending on the ratio of the components showed that the formation of the Si3N4 phase leads to an increase in the band gap and the absorbing ability of the ceramics due to the formation of additional absorption bands from 3.7–3.8 eV. Analysis of the strength dependences showed that an increase in the contribution of the Si3N4 phase with subsequent displacement of the oxide phases leads to a strengthening of the ceramic by more than 15–20%. At the same time, it was found that a change in the phase ratio leads to the hardening of ceramics, as well as an increase in crack resistance.

1. Introduction

One of the most promising solutions in the field of energy, in particular, nuclear energy, is the creation of new types of nuclear reactors capable of operating at high temperatures, as well as having an increased resource of nuclear fuel burnup [1,2,3]. The most effective way to increase the service life is to use new types of nuclear fuel based on technologies for reprocessing weapons-grade plutonium or increasing the fissile material burnup degree. To achieve these goals, the concept of using dispersed nuclear fuel was previously proposed [4,5]. This fuel consists of fissile nuclear material based on plutonium or uranium dioxide, placed in an inert matrix, which serves not only to absorb and remove heat, but also to protect the fissile material from radiation swelling [6,7,8].
As a rule, to create inert matrices of dispersed nuclear fuel, it is proposed to use oxide or nitride ceramics based on refractory compounds, as well as various composites based on them [9,10,11]. Among all compounds, silicon nitride (Si3N4) and aluminum oxide (Al2O3) can be especially distinguished, which have high resistance to mechanical stress, crack resistance and corrosion resistance to aggressive media, good thermal conductivity and insulating properties [12,13,14,15]. At the same time, as shown by a number of experimental studies, ceramics based on aluminum oxide [16] and silicon nitride [17,18] have good resistance to radiation damage and their accumulation, as well as maintaining the stability of properties during long-term irradiation with heavy ions, comparable to fission fragments of nuclear fuel. This is an important factor for candidate materials for inert matrices of dispersed nuclear fuel. It should also be noted that in recent years more and more attention has been paid to research aimed at finding ways to obtain two- or three-component ceramics that combine the properties of each component, which contributes to the creation of unique materials with improved properties [19,20,21,22]. For example, it was shown in [23] that Al2O3-ZrO2 ceramics have an increased resistance to helium swelling under high-dose irradiation, and also that the formation of two phases leads to a decrease in the amount of swelling under high-temperature irradiation. The paper [24] shows the results of a study of thermoluminescence of Al2O3-BeO ceramics subjected to high-dose irradiation. In [25], the authors studied in detail the properties of MgO-Al2O3 ceramics under irradiation with fast neutrons. In [26], the results of studies of Y2O3-Al2O3-SiO2 composites are presented, according to which the proposed compositions have an increased resistance to external influences. Interest in this area of research does not decrease despite the sufficient number of various works, as well as the results obtained, which indicates a high level of prospects for these materials not only in the energy sector, but also in mechanical engineering, engine building, etc.
The choice of a composite based on Al2O3 and Si3N4 compounds for consideration as candidate materials for creating inert matrices of dispersed nuclear fuel is due to the following factors. Firstly, both Al2O3 and Si3N4 compounds have very high melting points of 2072 °C for Al2O3 and 1900 °C for Si3N4, which makes them very promising materials for use in operating conditions at elevated temperatures [27,28,29,30]. Secondly, these compounds are characterized by high wear resistance and hardness, which is actively used in the creation of refractory materials with high heat resistance, resistance to cracking and aggressive media, acids, melts, etc. [31,32,33,34,35]. Thirdly, both Al2O3 and Si3N4 compounds have a good reputation for use as structural materials for nuclear power engineering due to their high radiation resistance as well as resistance to external influences. However, in a number of works [36,37], it was shown that under certain types of radiation exposure in ceramics based on silicon nitride, extended defects can form in the form of latent tracks, at a high concentration of which partial amorphization of the damaged near-surface layer can occur [38]. A number of authors attribute the appearance of such effects to the energy losses of interacting particles, as well as the possibility of initializing the polymorphic transformation processes in silicon nitride, due to its phase composition and the presence of several structural modifications [38,39,40]. In turn, ceramics and aluminum oxide powders are in some cases used as protectors to increase resistance to external influences, including radiation damage [41,42,43]. Also, ceramics based on aluminum oxide are good insulators and also have antifriction properties [44]. In this regard, the use of a combination of these Al2O3 and Si3N4 compounds opens up opportunities for creating ceramics that have the positive properties of both compound types, which can later be considered as promising candidates for creating dispersed nuclear fuel.
The relevance and novelty of this study consists in a detailed study of the effect of component variation in (1−x)Si3N4-xAl2O3 ceramics on their structural, strength, and dielectric properties, as well as the choice of the most optimal compositions for further research related to determining the resistance to radiation damage during irradiation with heavy ions. The choice of (1−x)Si3N4-xAl2O3 ceramics with different variations of components as objects of study is due to their prospects for use as a basis for materials of inert matrices of dispersed nuclear fuel, which consist in increased resistance to radiation damage, as well as to destruction processes under external mechanical influences.

2. Experimental Part

The synthesis of (1−x)Si3N4-xAl2O3 ceramics was carried out using the method of solid-phase grinding of initial powders in specified molar ratios with variation of the components, followed by thermal annealing. Al2O3 and Si3N4 powders with a grain size of 1–3 µm and a chemical purity of 99.95% were used as initial components. These powders were purchased from Sigma Aldrich (Sigma Aldrich, Burlington, MA, USA). Solid state grinding was carried out using a PULVERISETTE 6 classic line planetary mill (Fritsch, Berlin, Germany). Grinding conditions: grinding speed—400 rpm, grinding time—30 min, tungsten carbide balls with a diameter of 8 mm were used as grinding media. After grinding, the obtained samples were subjected to thermal annealing in a SNOL muffle furnace (SNOL-term, Tver, Russia) at a temperature of 1500 °C for 5 h, the heating rate was 20 °C/min, and the samples were cooled for 24 h after annealing. Thermal annealing of the samples was carried out on uncompressed powders placed in alundum crucibles. Before and after thermal annealing, the powders were weighed using an analytical balance to determine the change in mass of the samples as a result of thermal sintering. According to the data obtained, after thermal annealing, a decrease in the mass of powders in crucibles by 5–10% was observed, depending on the ratio of the components. Such a change indicates the initialization of phase transformation processes as a result of thermal annealing. The annealing itself was carried out in an air atmosphere. The choice of annealing temperature (1500 °C) is due to the possibility of changing the phase composition of ceramics not only due to the variation of the components used for synthesis, but also the phase transformation processes, which are initiated when a barrier of 0.3–0.5 Tmelting is reached.
The analysis of the phase composition of composite ceramics was carried out using the method of X-ray phase analysis implemented on a D8 Advance ECO powder diffractometer (Bruker, Berlin, Germany). Registration of diffraction patterns was carried out in the Bragg-Brentano geometry in the angular range of 2θ = 20°–90°, with a step of 0.05° and a spectrum acquisition time of 1 s at a point. X-ray diffraction was taken on annealed loose powders, which were not subjected to additional polishing or grinding to avoid introducing mechanical deformations into the annealed ceramic samples. To identify the phase composition, the PDF-2 database (2016) was used, the phases were refined by the method of comparative analysis of the positions of experimentally obtained diffraction reflections and the positions of lines from the database. Determination of the phase composition and their ratio was carried out using the Rietveld method. To analyze the obtained X-ray diffraction patterns using the Rietveld method, the program code TOPAS v.4.0 (Bruker, Berlin, Germany) was used. Verification of phase determination was more than 95%. The refinement of the crystal lattice parameters was carried out taking into account deformation distortions and substitution effects.
The morphological features and elemental composition of ceramics depending on composition variation were studied using scanning electron microscopy and energy dispersive analysis, implemented on a Hitachi TM3030 microscope (Hitachi, Tokyo, Japan). SEM images and mapping data were taken on loose powders preliminarily dispersed on target holders to obtain a uniform powder layer on the holder surface.
The study of the optical properties of the synthesized ceramics depending on the component variation was carried out using the UV-Vis spectroscopy method implemented using a Specord-250 UV spectrophotometer (Jena Analytic, Berlin, Germany). Recording of UV-Vis spectra was carried out on free-flowing powders using an integrated sphere for collecting spectra. In order to use a small volume of synthesized powders for measurements, we used BaSO4, which is an optically transparent powder over the entire measured range. Before measurements, a small volume (less than 0.01 g) of the powder under study was mixed with BaSO4 and placed in a special chamber in an integrated measurement sphere. In this case, the reference measurement was performed with placed BaSO4 without a sample to avoid the influence of the environment on the measurements. The spectra were recorded in the range from 300 to 1000 nm with a step of 1 nm. The determination of the band gap (Eg) for the corresponding edge of fundamental absorption was performed by constructing Tauc’ plots with subsequent interpretation using Expression (1):
α = A ( h ν − E g ) 1 / 2
where A is a constant and hν is the photon energy. The calculation of the linear refractive index (noptical) was carried out using Formula (2):
[ ( n o p t i c a l ) 2 − 1 ] [ ( n o p t i c a l ) 2 + 2 ] = 1 − E g 20
The calculation of optical transmission (Toptical) and refraction loss (Rloss) was performed using Formulas (3) and (4):
T o p t i c a l = 2 ( n o p t i c a l ) ( n o p t i c a l ) 2 + 1
R l o s s = ( ( n o p t i c a l ) − 1 ( n o p t i c a l ) + 1 ) 2
To calculate the value of molar refraction (Rmolar), Expression (5) was applied:
R m o l a r = ( ( n o p t i c a l ) 2 − 1 ( n o p t i c a l ) 2 + 2 ) V m o l a r
The metallization criterion was determined using Equation (6):
M = 1 − R m o l a r V m o l a r
The metallization criterion characterizes the degree of ordering of ceramic or glassy ceramics, which, when increased, indicates that the optical properties of the material are characteristic of ordered structures, and in the case of a decrease in the criterion value, the properties are characteristic of amorphous glassy structures.
The determination of the static permittivity value was carried out using Formula (7):
ε s t a t i c = ( n o p t i c a l ) 2
The dielectric properties of the resulting ceramics were studied by impedance spectroscopy. The synthesized powders were mixed with a binder, which was obtained from an aqueous solution of polyvinyl alcohol. The residual concentration of polyvinyl alcohol was about 5%. The resulting mixtures (press powders) were pressed into tablets with a diameter of 11 mm and a thickness of 1 mm. Silver paste was applied to both sides, then the tablets were dried for ~2 h at 60 °C. The frequency spectra were measured on a HIOKI IM3533-01 RLC meter (Hioki, Tokyo, Japan) in the frequency range of 100–200,000 Hz.
The hardness of the samples, which reflects the strength properties of ceramics with varying composition, was studied using a LECO LM700 microhardness tester (LECO, Tokyo, Japan). To determine the resistance to single compression, an LFM-L test machine (Walter + bai AG, Lohningen, Switzerland) was used. Measurement of hardness, as well as resistance to single compression, was carried out on pressed samples in the form of tablets, 1 mm thick and 11 mm in diameter. The samples were pressed using a steel mold, the maximum pressure at which the samples were pressed into tablets was 300–400 MPa. The samples were pressed using a cylindrical steel mold. The pressed samples were held in a mold under pressure for 1 h; the pressing process itself was carried out at room temperature in an air atmosphere without heating. After pressing, the specimens were polished to eliminate surface roughness that could affect indentation. The hardness measurement was carried out with a load on the indenter of 500 N, the number of points for measurements was chosen from 25 to 30, in order to collect statistics. A Vickers pyramid was used as an indenter.

3. Results and Discussion

Interest in ceramic materials based on oxide and nitride compounds applicable as inert matrices of dispersed nuclear fuel is due to their high strength and thermal parameters. However, despite the large number of different studies, the search for new types of composites for this area is still relevant in view of the large number of different variations in ceramic compositions. One of the important criteria for evaluating the applicability of various composite ceramics is a detailed study of their phase composition, as well as its changes with varying ceramic components. The most accurate answer to the question concerning the variation of the phase composition with a change in the composition of the initial mixtures subjected to thermal annealing at high temperatures can be the use of the X-ray phase analysis method.
Figure 1 shows the data of X-ray phase analysis of the studied (1−x)Si3N4-xAl2O3 composite ceramics depending on the component variation. The general view of the presented X-ray diffraction patterns indicates the polycrystalline nature of the ceramics. At the same time, the analysis of the change in the shape of the diffraction lines, as well as the positions of the maxima of the reflections, depending on the ratio of the components, showed the absence of the appearance of any new reflections characteristic of new phases. This indicates that the main processes of phase transformations with variation in the ratio of the components consist in changing the ratio of the established phases. According to the phase analysis of the obtained diffraction patterns, in the structure of ceramics, regardless of the ratio of the components, the presence of three phases is observed: the tetragonal SiO2 phase close to the Cristobalite structure, the hexagonal Si3N4 phase similar to the Nierite structure, and the orthorhombic Al2(SiO4)O or (Al2O3)(SiO2) phase with the Sillimanite structural motif. At the same time, no reflections characteristic of the Al2O3 phases were found, which indicates that during thermal annealing, the Al2O3 phase is transformed into the Al2(SiO4)O phase by partial replacement of Al ions by Si ions. The appearance of the SiO2 phase is characteristic of the decomposition of the main Si3N4 phase with subsequent transformation into the SiO2 phase when Si ions combine with oxygen. At the same time, the analysis of the weight contributions of various phases showed that in all cases of variation in the ratio of components, the dominant phase is SiO2 in the composition of ceramics.
Figure 2a shows the results of estimating the weight contributions in (1−x)Si3N4-xAl2O3 ceramics depending on the variation of the components obtained from the analysis of X-ray diffraction patterns. According to the obtained data, a decrease in the content of Al2O3 in the composition of ceramics first leads to an insignificant increase in the contribution of the Al2(SiO4)O phase, which can be explained by the fact that during phase formation a decrease in the SiO2 phase is observed with an increase in the contribution of the Si3N4 phase. In turn, the increase in the contribution of the Si3N4 phase can be explained by the fact that in the phase formation process, with an increase in the silicon nitride concentration in the annealed mixture, incomplete decomposition of Si3N4 occurs, followed by its transformation into SiO2. These processes of the Si3N4→SiO2 type are possible in the case of thermal annealing in an oxygen-containing environment or in an air atmosphere at temperatures above 1000–1300 °C. With an increase in the Si3N4 concentration to 0.7 mol and higher, there is a sharp increase in the contribution of the Nierite phase and a gradual displacement of the Cristobalite phase, the content of which decreases to less than 50%. Also, the dominance of the Si3N4 phase is accompanied by the displacement of the Al2(SiO4)O phase, the content of which, in the case of an Al2O3 concentration of 0.2–0.1 mol, is less than 20%.
Figure 2b presents data on the change in the crystallinity degree, reflecting the ratio of contributions from the ordered structure and structurally disordered or amorphous-like regions. The crystallinity degree was calculated by comparative analysis of the areas of diffraction reflections and background radiation characteristic of X-ray diffraction in amorphous or highly disordered inclusions.
An analysis of the data obtained showed that in the case when the SiO2 phase dominates in the ceramic structure, the crystallinity degree is no more than 75–76%, which indicates the presence of a sufficiently large number of structurally disordered regions that are formed during the synthesis as a result of phase formation. At the same time, an increase in the Si3N4 phase contribution leads to an increase in the crystallinity degree above 80%, which indicates that the ceramic structure becomes more perfect and ordered. Such an increase in the crystallinity degree indicates an increase in structural ordering in the synthesized samples due to recrystallization processes, as well as a decrease in the contributions of deformation distortions and stresses arising in the process of mechanochemical synthesis. Also, a change in the crystallinity degree can be associated with a change in the phase ratio, which is characteristic of the displacement of the Cristobalite phase at concentrations of the Si3N4 component above 0.7 mol. According to the data on the change in the phase ratio, it was found that the displacement of the SiO2 phase leads to an increase in the density of ceramics from 2.69 g/cm3 at an Al2O3 concentration of 0.5 mol to 2.81–2.82 g/cm3 at an Al2O3 concentration of 0.2–0.1 mol. At the same time, an increase in the Si3N4 phase from 12% to 14% at a concentration of 0.4 mol Al2O3 leads to an increase in the density of 1.7% with is 2.74 g/cm3.
Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7 show the results of the morphological features of the studied ceramics depending on the variation of the components, as well as the data on the uniformity of the distribution of elements in the composition of samples, performed using the energy dispersive analysis method. According to the data of energy dispersive analysis, the main elements in the samples under study are oxygen, silicon, aluminum, and nitrogen is contained to a lesser extent, and the distribution of nitrogen and aluminum has a pronounced grain structure. The data in Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7 are presented in order to reflect changes in the distribution of elements in the structure of the obtained samples and to indicate that when the ratio of the components changes, the formation of particles of two types containing different elements is observed. In turn, this may indicate that different phases can be present in the structure of the synthesized ceramics.
In the case of a variation of the Al2O3 component equal to 0.5–0.4 mol, the presence of a large number of grains (approximately 20–25% of the total amount) containing aluminum, silicon, and oxygen in their composition is observed in the ceramic structure, which is typical for the Al2(SiO4)O phase. Also, in the composition of ceramics, a small content of grains containing only nitrogen and silicon is observed, which is typical for the Si3N4 phase. Thus, analyzing the morphological features of the obtained structures, we can conclude that the obtained ceramics are the main matrix of SiO2 with inclusions in the form of Al2(SiO4)O and Si3N4 grains. At the same time, the structure and shape of grains containing a high content of aluminum, silicon and oxygen corresponds to the shape of grains characteristic of Cristobalite.
An increase in the content of Si3N4 in ceramics leads to an increase in the concentration of grains characteristic of this phase, as well as a slight change in their shape and size, due to the formation of dendrite-like inclusions in the structure of ceramics.
Summarizing the obtained data of morphological studies of synthesized ceramics, we can draw the following conclusions. Firstly, a change in the ratio of the Al2O3 and Si3N4 components leads to minor changes in the shape of the grains, as well as their sizes. Secondly, the data obtained from the mapping results indicate that the studied ceramics are a mixture of grains of different phases, including formations in the form of agglomerates or dendrites containing grains of different phases interconnected. At the same time, the dendritic form of inclusions becomes more pronounced with a decrease in the content of the Al2O3 component.
Figure 8 shows the results of the evaluation of the optical properties of the synthesized (1−x)Si3N4-xAl2O3 ceramics obtained using UV-Vis spectroscopy methods. The data are presented as dependences of changes in the transmission spectra and absorption spectra of the samples under study, reflecting the effect of the phase ratio on the optical properties of ceramics. The general view of the presented transmission spectra (see Figure 8a) is characterized by a fundamental absorption edge in the region of 320–350 nm, as well as an almost constant transmission value within 35–50% in the visible (400–700 nm) and near-IR range (700–1000 nm). In this case, a change in the concentration of the components leads to a shift in the fundamental absorption edge, a change in which indicates a change in the electron density, band gap, and linear refractive index.
An analysis of the absorption spectra showed that a change in the phase ratio in the composition of ceramics leads to the appearance of an additional absorption band in the region of 3.7–3.8 eV, the intensity of which increases with an increase in the contribution of the Si3N4 phase in the composition of ceramics. The formation of additional absorption bands is due to the formation of absorbing centers in the structure, the appearance of which is associated with a change in the electron density due to a change in the phase composition. The change in the fundamental absorption edge, which also characterizes the change in the band gap, also indicates a change in the electron density. The shift of the fundamental absorption edge to the long-wavelength side indicates a change in interband transitions, which is also reflected in the formation of additional absorption bands.
Based on the obtained UV-Vis spectra using the Tauc plotting technique, the values of the band gap, as well as the linear refractive indices, were determined. The results are presented in Table 1, also using the calculation Formulas (1)–(7), the main optical characteristics were calculated, the values of which reflect the change in the optical properties of ceramics.
As can be seen from the analysis of the data obtained, the formation of the stable Si3N4 phase in the structure and the subsequent increase in its contribution leads to an increase in the band gap and a decrease in the refractive index, which indicates a change in the optical density and electronic structure of the ceramics. Reducing the refractive index leads to an increase in throughput in the entire visible and IR range, as well as a decrease in reflection losses.
Figure 9 and Figure 10 show the SEM images of the synthesized ceramics after pressing them into tablets for examination in the Secondary electron image (SE) and Backscattered electron image (BSE) modes, which reflect the change in the morphology of the ceramic topography.
As can be seen from the presented data on the morphological features of the samples after pressing to measure the mechanical strength and resistance to cracking, with a change in the concentration of the components, a significant change in the relief of the grains, as well as their sizes, is observed, with the formation of large agglomerates.
Figure 11 shows the data on changes in the density of ceramics calculated using the X-ray phase analysis method, as well as the standard method of Archimedes, which was applied to ceramics pressed into tablets.
According to the obtained data on the change in density values obtained using two methods, a significant difference is seen in the values at high concentrations of Al2O3 (more than 8–10%). This difference in absolute density (XRD data) and relative density (data obtained using the Archimedes method) is due to the presence of pores and a large number of grain boundaries associated with fine grains. In this case, the change in the phase composition, as well as, as can be seen from these morphological features, leads to a decrease in the difference in the values of the density values obtained using various methods.

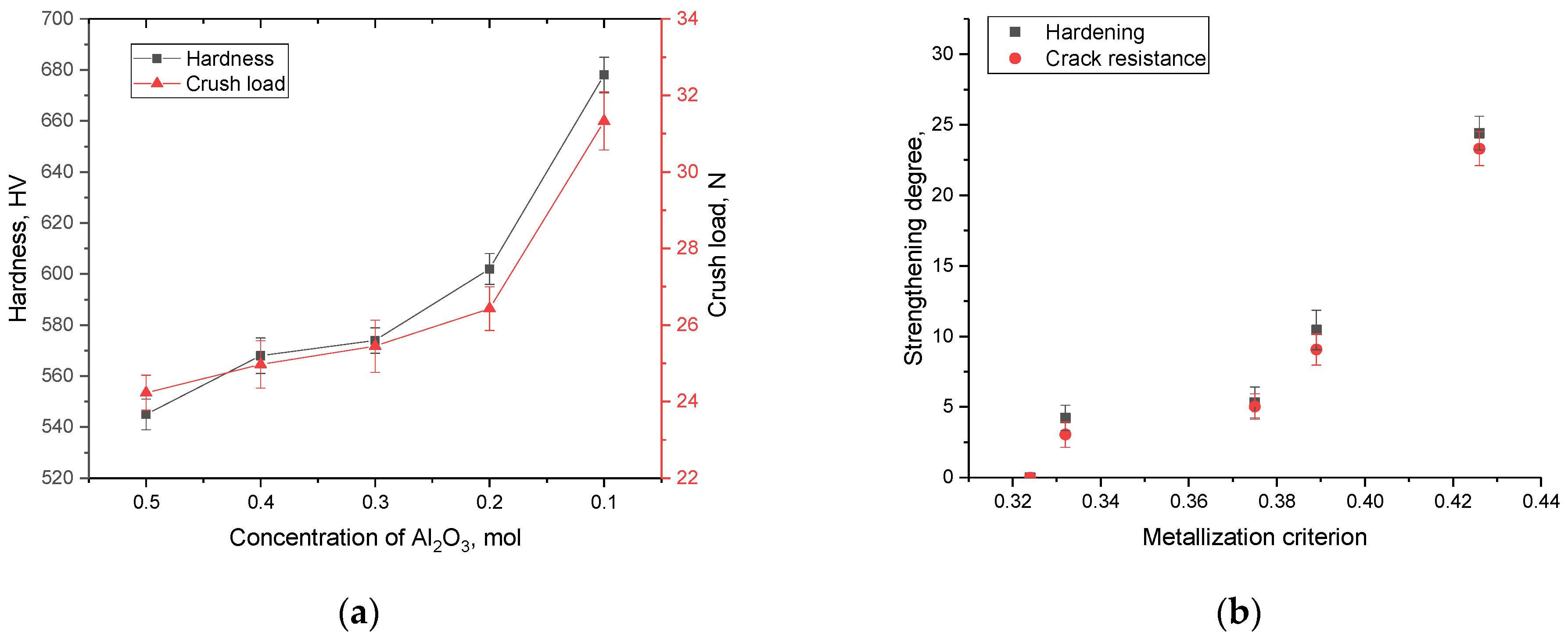

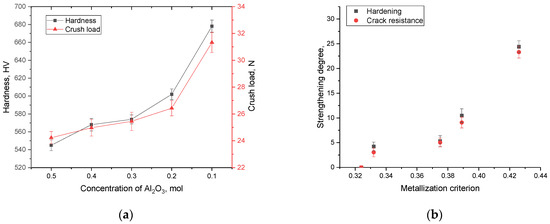

Figure 12 shows the results of changes in strength characteristics, reflecting the resistance of ceramics to external influences and cracking during indentation and single compression, depending on the variation of the components in the composition. The general trend in the change in the strength properties of ceramics shows that a change in the ratio of components, followed by displacement of the SiO2 and Al2(SiO4)O phases, leads to an increase in the hardness of ceramics and crack resistance. At the same time, the highest indicators of the strength properties of ceramics are typical for samples in which the content of the Al2(SiO4)O phase is less than 20%, which gives an increase in hardness and strength by more than 20%. At the same time, these changes are most pronounced when determining the resistance to cracking of ceramics under a single compression.
Figure 12b shows the change in hardening characteristics, expressed as a percentage, depending on the criterion for metallization of ceramics, calculated based on the change in optical characteristics. According to the dependences obtained, it can be seen that the greatest hardening is observed in the case of an increase in the metallization criterion by more than 0.37, which leads to an increase in crack resistance by more than 10–25%. In the case of the value of the metallization criterion, which is less than 0.37, the strengthening of ceramics is no more than 3–5%. Such hardening of samples, depending on the metallization criterion, can be explained by the fact that a change in the phase ratio in ceramics leads to the displacement of disordered regions in the composition of ceramics, which is also evidenced by data on the crystallinity degree of the samples. At the same time, these changes are most pronounced in the case when the displacement of the Al2(SiO4)O phase is observed in the composition of ceramics and its content is less than 20%.
Based on changes in hardness values and evaluation of indenter prints, the parameters of ceramic crack resistance were determined depending on the variation in the composition of the components, the results of which are presented in Figure 13a. As can be seen from the presented data, the displacement of the SiO2 phase and a decrease in the content of the Al2(SiO4)O phase leads to an increase in resistance to cracking and an increase in the strength properties of ceramics. At the same time, these changes are non-linear, and the maximum increase is observed for samples in which the content of the SiO2 and Si3N4 phases is close to the equilibrium value, with a low content of the Al2(SiO4)O phase.

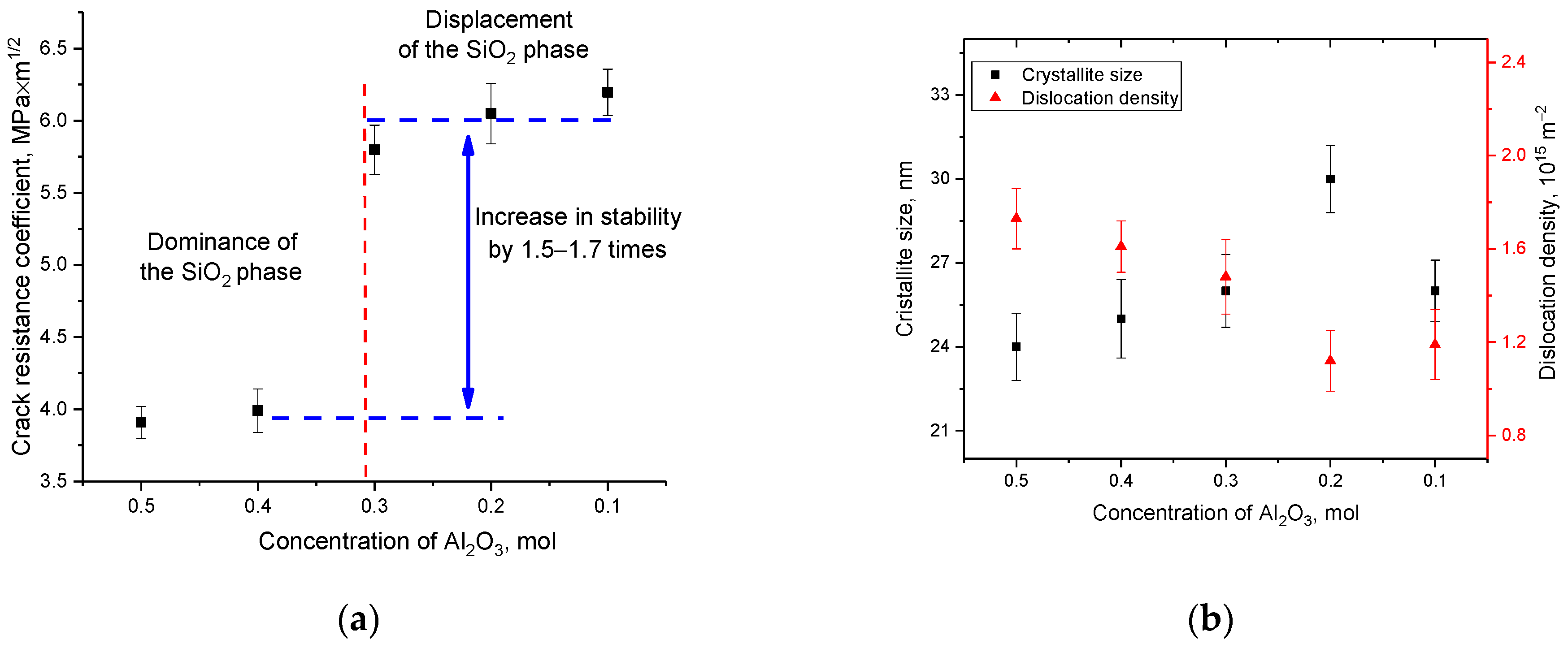

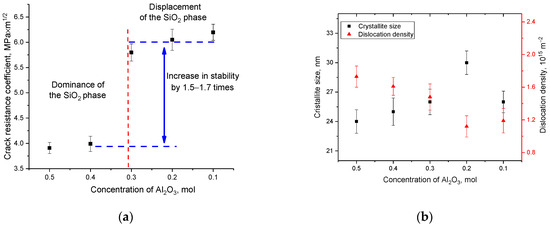

As is known, one of the most common hardening criteria is a change in the dislocation density in samples, an increase in which at small crystallite sizes leads to a significant increase in the resistance of ceramics or alloys to external influences. At the same time, the variation of the phase composition can also affect the change in the strength and stability of ceramics. Figure 13b shows the results of the change in the dislocation density of the samples under study, obtained on the basis of data on changes in the grain size of ceramics. The dislocation density (δ) was calculated using the expression: δ = 1 D 2 , where D is the grain size of the samples under study. The use of this formula is primarily due to the fact that the crystallite size obtained from the analysis of X-ray diffraction patterns is used to calculate the dislocation density. This makes it possible to determine the dislocation density in the entire volume of the structure, and not only in the near surface, as is done when using optical methods for estimating the dislocation density. As can be seen from the data presented, the variation in the composition of ceramics leads to insignificant changes in the crystallite size, which in turn affects the dislocation density. However, these changes in the dislocation density do not have a significant effect on the hardening of ceramics. Thus, we can conclude that in the case of (1−x)Si3N4-xAl2O3 ceramics, the main effect in hardening is exerted by a change in the phase ratio, as well as the metallization factor and the crystallinity degree, while a change in the dislocation density does not affect hardening.

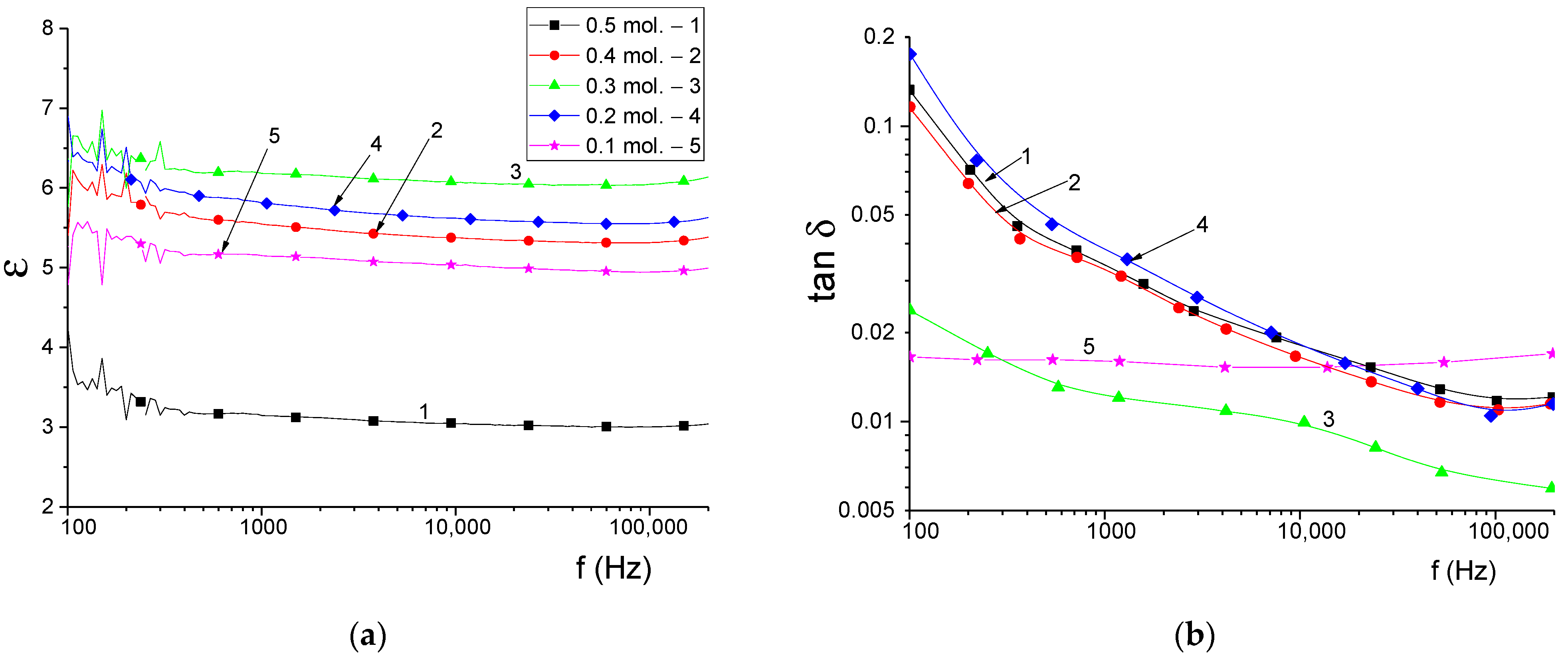

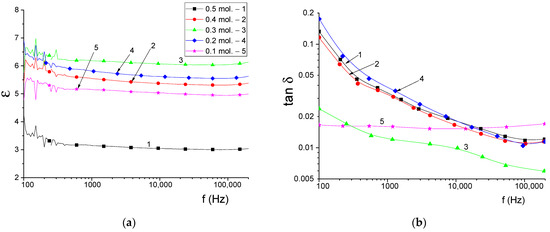

An important parameter for polycrystalline ceramics is the permittivity ε, the value of which largely determines the interaction of ceramics with radiation. Usually, materials are characterized by dielectric permittivity ε and dielectric loss tangent tan δ, which shows what part of the energy of the electric alternating field is converted into thermal [45]. The dielectric permittivity of ceramics depends on many factors: microstructure (grain size, morphology and porosity), phase composition, defects, substitutions. Since X-ray studies and optical measurements have shown that the obtained polycrystalline powders have a high crystallinity degree, the dielectric properties of the synthesized powders will be mainly determined by the microstructural characteristics and phase composition. During the synthesis of ceramics, as mentioned earlier, phase transformations occur, as a result of which silicon oxide SiO2 is the dominant phase. The results of changing the dielectric characteristics are shown in Figure 14. It is reported that SiO2 with a tetragonal lattice (Crystobalite) has excellent dielectric parameters with a rather low value of ε ≈ 3.70–4.43 depending on the crystalline state (single crystal, amorphous substance) [46,47,48]. Polycrystalline ceramics based on Si3N4 are characterized by a higher dielectric constant, the value of which for nonporous samples is in the range of 7.0–8.5 [49,50,51]. The data of dielectric parameters measured for Al2(SiO4)O with rhombic crystal lattice show that the dielectric constant has a value of 4.71–4.80. For all the above compositions, the value of the dielectric loss tangent is 2 × 10−3–15 × 10−3, which causes the use of SiO2, Si3N4 ceramics as radio-transparent ceramics. As can be seen from the figure, the curves do not show pronounced frequency dependence, which is typical for Si3N4 and SiO2 ceramics. Figure 14b shows the frequency dependences of the dielectric loss tangent of the samples under study.
In contrast to the frequency dependences of ε, the frequency spectra of tan δ exhibit pronounced frequency dispersion except for the 0.1 mol Al2O3 sample. Table 2 shows the measurement results of the dielectric parameters of the samples.
It can be seen that the values of ε do not coincide with the calculated static permittivity. Moreover, since the dielectric properties of multiphase ceramics depend on the dielectric properties of individual phases and their concentration, samples with a lower initial concentration of Al2O3 should have higher values of ε. This is expected because the dielectric constant of silicon nitride, the content of which increases, is almost 2 times higher than that of silicon oxide and Al2(SiO4)O. This dependence of properties is associated with the features of the microstructure of ceramics (the presence of pores), which can be seen from the results of scanning electron microscopy. For example, the minimum value of the permittivity for a sample of 0.5 is explained by high porosity and a large scatter in grain sizes. Higher values of ε are observed for a more uniform ceramic microstructure for samples of 0.4, 0.3 mol Al2O3. The increased values of tan δ at low frequencies are associated with a slight influence of the polymer binder. The values of tan δ at the limiting frequency of measurements correspond in order to the measured values in the microwave region in other works cited above, since at high frequencies the molecular chains of the polymer do not contribute to the polarization processes. For samples of 0.1 and 0.2 mol Al2O3, it can also be noted that the increased value of dielectric losses with the morphology of the samples, in particular, the heterogeneity of the grain size distribution. The sample with 0.3 mol Al2O3 is characterized by the lowest dielectric loss and the highest value of dielectric permittivity. Thus, the value of the permittivity and dielectric losses in the frequency range 2–100 Hz is largely determined by the microstructure of the samples and, to a lesser extent, by the composition of the ceramics.
The obtained results of the study related to the development of the technology for obtaining (1−x)Si3N4-xAl2O3 depending on the variation of the ceramic components have very great prospects in practical terms, not only as materials for inert nuclear fuel matrices, but also as materials for stereolithography or high-strength compounds. Thus, the compositions of ceramic powders obtained can be used as a basis for expanding 3D printing and manufacturing ceramic parts [52]. In turn, the results of the strength properties of the synthesized ceramics are in good agreement with the data of [53], which shows the prospect of using such ceramics as high-strength cutting tools with high wear resistance. At the same time, the proposed method for obtaining ceramics, with the possibility of a controlled phase composition, makes it possible to expand the range of practical application of these ceramics, and the obtained dependences of the effect of the phase composition on the strength and dielectric properties will expand the understanding of the properties of these composite ceramics.

4. Conclusions

The article is devoted to the study of structural, morphological, optical, strength and dielectric properties of (1−x)Si3N4-xAl2O3 ceramics obtained by solid-phase synthesis with varying the ratio of components. According to the data of X-ray phase and energy-dispersive analysis, it was found that the studied samples are a matrix consisting of SiO2 (Crystobalite) with inclusions in the form of Al2(SiO4)O and Si3N4 grains. During the studies, it was found that a decrease in the content of Al2O3 in the composition of ceramics leads to the displacement of Al2(SiO4)O grains from the structure, with the formation of samples close to the equilibrium composition, which are a matrix of SiO2 with inclusions of Si3N4 grains. During evaluation of the strength properties of the studied ceramics, it was found that the increase in crack resistance and hardness is due to a change in the phase composition, as well as an increase in the contribution of the Si3N4 phase. According to the results of impedance spectroscopy in the frequency range 100–100,000 Hz, the values of the dielectric constant of the obtained ceramics were measured. The value of ε was in the range of 3.03–6.07, while the dielectric loss tangent was in the range of 0.006–0.038. The value of the permittivity and dielectric losses in the above frequency range is largely determined by the microstructure of the samples and, to a lesser extent, by the composition of the ceramics.
Results obtained make it possible to predict the area of practical application of the synthesized ceramics under conditions of increased mechanical loads, as well as external influences, including ionizing radiation.

Author Contributions

Conceptualization, D.B.B., D.I.S. and A.L.K.; methodology, D.B.B., M.V.Z., I.E.K. and A.L.K.; formal analysis, D.B.B., M.V.Z., I.E.K., R.I.S., D.I.S. and A.L.K.; investigation, D.B.B., R.I.S., M.V.Z., I.E.K., D.I.S. and A.L.K.; resources, D.B.B.; writing—original draft preparation, review, and editing, D.I.S. and A.L.K.; visualization, A.L.K.; supervision, A.L.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Ministry of Education and Science of the Republic of Kazakhstan (grant AP14871176).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boccaccini, L.V.; Aiello, G.; Aubert, J.; Bachmann, C.; Barrett, T.; Del Nevo, A.; Vala, L. Objectives and status of EUROfusion DEMO blanket studies. Fusion Eng. Des. 2016, 109, 1199–1206. [Google Scholar] [CrossRef]
  2. Federici, G.; Boccaccini, L.; Cismondi, F.; Gasparotto, M.; Poitevin, Y.; Ricapito, I. An overview of the EU breeding blanket design strategy as an integral part of the DEMO design effort. Fusion Eng. Des. 2019, 141, 30–42. [Google Scholar] [CrossRef]
  3. Hernández, F.A.; Pereslavtsev, P.; Zhou, G.; Kiss, B.; Kang, Q.; Neuberger, H.; Moscato, I. Advancements in the helium-cooled pebble bed breeding blanket for the EU DEMO: Holistic design approach and lessons learned. Fusion Sci. Technol. 2019, 75, 352–364. [Google Scholar] [CrossRef]
  4. Capps, N.; Schappel, D.; Nelson, A. Initial development of an RIA envelope for dispersed nuclear fuel. Ann. Nucl. Energy 2020, 148, 107719. [Google Scholar] [CrossRef]
  5. Gong, X.; Zhao, Y.; Ding, S. A new method to simulate the micro-thermo-mechanical behaviors evolution in dispersion nuclear fuel elements. Mech. Mater. 2014, 77, 14–27. [Google Scholar] [CrossRef]
  6. Chen, J.; Liu, H.; Zhang, R.; Li, G.; Yi, D.; Lin, G.; Liu, S. High-temperature deformation and processing maps of Zr-4 metal matrix with dispersed coated surrogate nuclear fuel particles. Results Phys. 2018, 9, 1057–1066. [Google Scholar] [CrossRef]
  7. Shurong, D.; Wang, Q.; Huo, Y. Mechanical behaviors of the dispersion nuclear fuel plates induced by fuel particle swelling and thermal effect II: Effects of variations of the fuel particle diameters. J. Nucl. Mater. 2010, 397, 80–91. [Google Scholar]
  8. Wang, Q.; Yan, X.; Ding, S.; Huo, Y. Research on the interfacial behaviors of plate-type dispersion nuclear fuel elements. J. Nucl. Mater. 2010, 399, 41–54. [Google Scholar] [CrossRef]
  9. Hurley, D.H.; El-Azab, A.; Bryan, M.S.; Cooper, M.W.; Dennett, C.A.; Gofryk, K.; Wharry, J.P. Thermal energy transport in oxide nuclear fuel. Chem. Rev. 2021, 122, 3711–3762. [Google Scholar] [CrossRef] [PubMed]
  10. Choi, E.-Y.; Jeong, S.M. Electrochemical processing of spent nuclear fuels: An overview of oxide reduction in pyroprocessing technology. Prog. Nat. Sci. Mater. Int. 2015, 25, 572–582. [Google Scholar] [CrossRef] [Green Version]
  11. Ekberg, C.; Ribeiro Costa, D.; Hedberg, M.; Jolkkonen, M. Nitride fuel for Gen IV nuclear power systems. J. Radioanal. Nucl. Chem. 2018, 318, 1713–1725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Yano, T.; Yamane, J.; Yoshida, K.; Miwa, S.; Ohsaka, M. Low temperature liquid-phase-assisted sintering of Si3N4 ceramics as an inert matrix for confinement of minor actinides. In IOP Conference Series: Materials Science and Engineering; No. 1; IOP Publishing: Bristol, UK, 2010; Volume 9, p. 012024. [Google Scholar]
  13. Nikitina, E.V.; Karfidov, E.A.; Kazakovtseva, N.A. Degradation of the Ceramics Based on MgO, Al2O3, or Si3N4 in the LiCl–KCl Melt with (Ce, Nd, U) Cl3 Additives. Russ. Metall. Met. 2021, 2021, 224–228. [Google Scholar] [CrossRef]
  14. Takeuchi, M.; Kato, T.; Koizumi, T. Corrosion resistance of ceramic materials in pyrochemical reprocessing condition by using molten salt for spent nuclear oxide fuel. Zairyo-to-Kankyo 2003, 52, 299–307. [Google Scholar] [CrossRef] [Green Version]
  15. Feng, B.; Wang, R.L.; Wu, G.N.; Bu, J.L. Effects of MoSi2 and Si3N4 on Performance of Sintering and Antioxidation of AlN-ZrO2 System Composites. In Advanced Materials Research; Trans Tech Publications Ltd.: Baech, Switzerland, 2013; Volume 602, pp. 107–110. [Google Scholar]
  16. García Ferré, F.; Mairov, A.; Ceseracciu, L.; Serruys, Y.; Trocellier, P.; Baumier, C.; Di Fonzo, F. Radiation endurance in Al2O3 nanoceramics. Sci. Rep. 2016, 6, 1–9. [Google Scholar]
  17. Terricabras, A.J.; Ferrigno, J.; Wang, L.; Khafizov, M.; Nelson, A.T.; Zinkle, S.J. Thermal conductivity evaluation of ion irradiated Si3N4 and ZrN ceramics using spatial domain thermoreflectance. J. Appl. Phys. 2022, 132, 075105. [Google Scholar] [CrossRef]
  18. Korneeva, E.A.; Ibrayeva, A.; van Vuuren, A.J.; Kurpaska, L.; Clozel, M.; Mulewska, K.; Zdorovets, M. Nanoindentation testing of Si3N4 irradiated with swift heavy ions. J. Nucl. Mater. 2021, 555, 153120. [Google Scholar] [CrossRef]
  19. Lee, W.E.; Gilbert, M.; Murphy, S.T.; Grimes, R.W. Opportunities for advanced ceramics and composites in the nuclear sector. J. Am. Ceram. Soc. 2013, 96, 2005–2030. [Google Scholar] [CrossRef]
  20. Latta, R.; Revankar, S.T.; Solomon, A.A. Modeling and measurement of thermal properties of ceramic composite fuel for light water reactors. Heat Transf. Eng. 2008, 29, 357–365. [Google Scholar] [CrossRef]
  21. Wang, H.; Huang, H.; Liu, J. Preparation of UO2/TiO2 composite ceramic fuel by sol gel-press forming method. Ceram. Int. 2014, 40, 5671–5674. [Google Scholar] [CrossRef]
  22. Lee, W.E.; Giorgi, E.; Harrison, R.; Maître, A.; Rapaud, O. Nuclear applications for ultra-high temperature ceramics and MAX phases. In Ultra-High Temperature Ceramics: Materials for Extreme Environment Applications; American Ceramic Society: Columbus, OH, USA, 2014; pp. 391–415. [Google Scholar]
  23. Liu, Y.; Zhu, Y.; Shen, T.; Chai, J.; Niu, L.; Li, S.; Jin, P.; Zheng, H.; Wang, Z. Irradiation response of Al2O3-ZrO2 ceramic composite under He ion irradiation. J. Eur. Ceram. Soc. 2021, 41, 2883–2891. [Google Scholar] [CrossRef]
  24. Nikiforov, S.V.; Avdyushin, I.G.; Ananchenko, D.V.; Kiryakov, A.N.; Nikiforov, A.F. Thermoluminescence of new Al2O3-BeO ceramics after exposure to high radiation doses. Appl. Radiat. Isot. 2018, 141, 15–20. [Google Scholar] [CrossRef] [PubMed]
  25. Nakai, K.; Fukumoto, K.-i.; Kinoshita, C. Characteristics of the loop formation process in the MgO-Al2O3 system irradiated with fission neutrons. J. Nucl. Mater. 1992, 191, 630–634. [Google Scholar] [CrossRef]
  26. Wang, L.; Fan, S.; Sun, H.; Ji, B.; Zheng, B.; Deng, J.; Cheng, L. Pressure-less joining of SiCf/SiC composites by Y2O3–Al2O3–SiO2 glass: Microstructure and properties. Ceram. Int. 2020, 46, 27046–27056. [Google Scholar] [CrossRef]
  27. Gonzalez, M.; Hodgson, E.R. Radiation resistant bolometers with Al2O3 and AlN substrates, anodized aluminium support frames, and improved electrical contacts. Fusion Eng. Des. 2009, 84, 829–831. [Google Scholar] [CrossRef]
  28. Kondo, M.; Tada, M.; Ohtsuka, Y.; Hishinuma, Y.; Muroga, T. Corrosion resistance of Al-rich steel and Al2O3 ceramic bulk in liquid Sn. Fusion Eng. Des. 2019, 146, 2450–2456. [Google Scholar] [CrossRef]
  29. Xia, Y.; Zeng, Y.-P.; Jiang, D. Dielectric and mechanical properties of porous Si3N4 ceramics prepared via low temperature sintering. Ceram. Int. 2009, 35, 1699–1703. [Google Scholar] [CrossRef]
  30. Li, X.; Zhang, L.; Yin, X. Effect of chemical vapor infiltration of Si3N4 on the mechanical and dielectric properties of porous Si3N4 ceramic fabricated by a technique combining 3-D printing and pressureless sintering. Scr. Mater. 2012, 67, 380–383. [Google Scholar] [CrossRef]
  31. Gogotsi, Y.G.; Lavrenko, V.A. Corrosion of High-Performance Ceramics; Springer Science & Business Media: Berlin, Germany, 2012; pp. 1–30. [Google Scholar]
  32. Gao, Y.L.; Wang, C.S.; Yao, M.; Liu, H.B. The resistance to wear and corrosion of laser-cladding Al2O3 ceramic coating on Mg alloy. Appl. Surf. Sci. 2007, 253, 5306–5311. [Google Scholar] [CrossRef]
  33. Zhu, X.; Hayashi, H.; Zhou, Y.; Hirao, K. Influence of additive composition on thermal and mechanical properties of β–Si3N4 ceramics. J. Mater. Res. 2004, 19, 3270–3278. [Google Scholar] [CrossRef]
  34. Rangarajan, S.; Qi, G.; Venkataraman, N.; Safari, A.; Danforth, S.C. Powder processing, rheology, and mechanical properties of feedstock for fused deposition of Si3N4 ceramics. J. Am. Ceram. Soc. 2000, 83, 1663–1669. [Google Scholar] [CrossRef]
  35. Wang, K.; Jia, J.; Chen, W.; He, N. Investigation of corrosion and wear properties of Si3N4-hBN ceramic composites in artificial seawater. Tribol. Int. 2021, 164, 107235. [Google Scholar] [CrossRef]
  36. Van Vuuren, A.J.; Ibrayeva, A.; Rymzhanov, R.A.; Zhalmagambetova, A.; O’Connell, J.H.; Skuratov, V.A.; Zdorovets, M. Latent tracks of swift Bi ions in Si3N4. Mater. Res. Express 2020, 7, 025512. [Google Scholar] [CrossRef]
  37. Van Vuuren, A.J.; Skuratov, V.; Ibrayeva, A.; Zdorovets, M. Microstructural effects of Al doping on Si3N4 irradiated with swift heavy ions. Acta Phys. Pol. A 2019, 136, 241–244. [Google Scholar] [CrossRef]
  38. Zhumazhanova, A.; Mutali, A.; Ibrayeva, A.; Skuratov, V.; Dauletbekova, A.; Korneeva, E.; Zdorovets, M. Raman Study of Polycrystalline Si3N4 Irradiated with Swift Heavy Ions. Crystals 2021, 11, 1313. [Google Scholar] [CrossRef]
  39. Roorda, S.; Codsi, S.; Lacroix, A.; Long, G.G.; Zhang, F.; Weigand, S.J.; Trautmann, C. Density changes in amorphous silicon induced by swift heavy ions. Phys. Rev. B 2022, 106, 144101. [Google Scholar] [CrossRef]
  40. Berguzinov, A.; Kozlovskiy, A.; Kenzhina, I.; Shlimas, D.I. Study of Degradation Mechanisms of Strength and Thermal-Physical Properties of Nitride and Carbide Ceramics—Promising Materials for Nuclear Energy. Nanomaterials 2022, 12, 1789. [Google Scholar] [CrossRef] [PubMed]
  41. Lushchik, A.; Kuzovkov, V.N.; Kotomin, E.A.; Prieditis, G.; Seeman, V.; Shablonin, E.; Popov, A.I. Evidence for the formation of two types of oxygen interstitials in neutron-irradiated α-Al2O3 single crystals. Sci. Rep. 2021, 11, 1–10. [Google Scholar] [CrossRef] [PubMed]
  42. Chai, J.; Zhu, Y.; Jin, P.; Shen, T.; Niu, L.; Li, S.; Wang, Z. Structure and fracture behavior of ion-beam-modified SiC-Al2O3-ZrO2 ceramic composites. Mater. Charact. 2022, 193, 112328. [Google Scholar] [CrossRef]
  43. Maslyaev, S.A.; Morozov, E.V.; Romakhin, P.A.; Pimenov, V.N.; Gribkov, V.A.; Tikhonov, A.N.; Sinitsyna, O.V. Damage of Al2O3 ceramics under the action of pulsed ion and plasma fluxes and laser irradiation. Inorg. Mater. Appl. Res. 2016, 7, 330–339. [Google Scholar] [CrossRef]
  44. Dong, X.Y.; Qiao, Y.L.; Zang, Y.; Cui, Q.S. Effect of ultrasonic vibration on the behavior of antifriction and wear resistance of Al2O3/Al2O3 ceramic friction pairs under oil lubrication. Phys. Procedia 2013, 50, 449–452. [Google Scholar] [CrossRef] [Green Version]
  45. Gurevich, V.L.; Tagantsev, A.K. Intrinsic dielectric loss in crystals. Adv. Phys. 1991, 40, 719–767. [Google Scholar] [CrossRef]
  46. Krupka, J.; Derzakowski, K.; Tobar, M.; Hartnett, J.; Geyer, R.G. Complex permittivity of some ultralow loss dielectric crystals at cryogenic temperatures. Meas. Sci. Technol. 1999, 10, 387–392. [Google Scholar] [CrossRef]
  47. Li, L.; Fang, Y.; Xiao, Q.; Wu, Y.J.; Wang, N.; Chen, X.M. Microwave dielectric properties of fused silica prepared by different approaches. Int. J. Appl. Ceram. Technol. 2014, 11, 193–199. [Google Scholar] [CrossRef]
  48. Fang, Y.; Li, L.; Xiao, Q.; Chen, X.M. Preparation and microwave dielectric properties of cristobalite ceramics. Ceram. Int. 2012, 38, 4511–4515. [Google Scholar] [CrossRef]
  49. Lukianova, O.A.; Sirota, V.V. Dielectric properties of silicon nitride ceramics produced by free sintering. Ceram. Int. 2017, 43, 8284–8288. [Google Scholar] [CrossRef]
  50. Barta, J.; Manela, M.; Fischer, R. Si3N4 and Si2N2O for high performance radomes. Mater. Sci. Eng. 1985, 71, 265–272. [Google Scholar] [CrossRef]
  51. Miyazaki, H.; Yoshizawa, Y.-I.; Hirao, K. Fabrication of high thermal-conductive silicon nitride ceramics with low dielectric loss. Mater. Sci. Eng. B 2009, 161, 198–201. [Google Scholar] [CrossRef]
  52. Xing, H.; Zou, B.; Liu, X.; Wang, X.; Huang, C.; Hu, Y. Fabrication strategy of complicated Al2O3-Si3N4 functionally graded materials by stereolithography 3D printing. J. Eur. Ceram. Soc. 2020, 40, 5797–5809. [Google Scholar] [CrossRef]
  53. Dang, J.; Zhang, H.; Ming, W.; An, Q.; Chen, M. New observations on wear characteristics of solid Al2O3/Si3N4 ceramic tool in high speed milling of additive manufactured Ti6Al4V. Ceram. Int. 2020, 46, 5876–5886. [Google Scholar] [CrossRef]
Materials 16 01961 g001 550

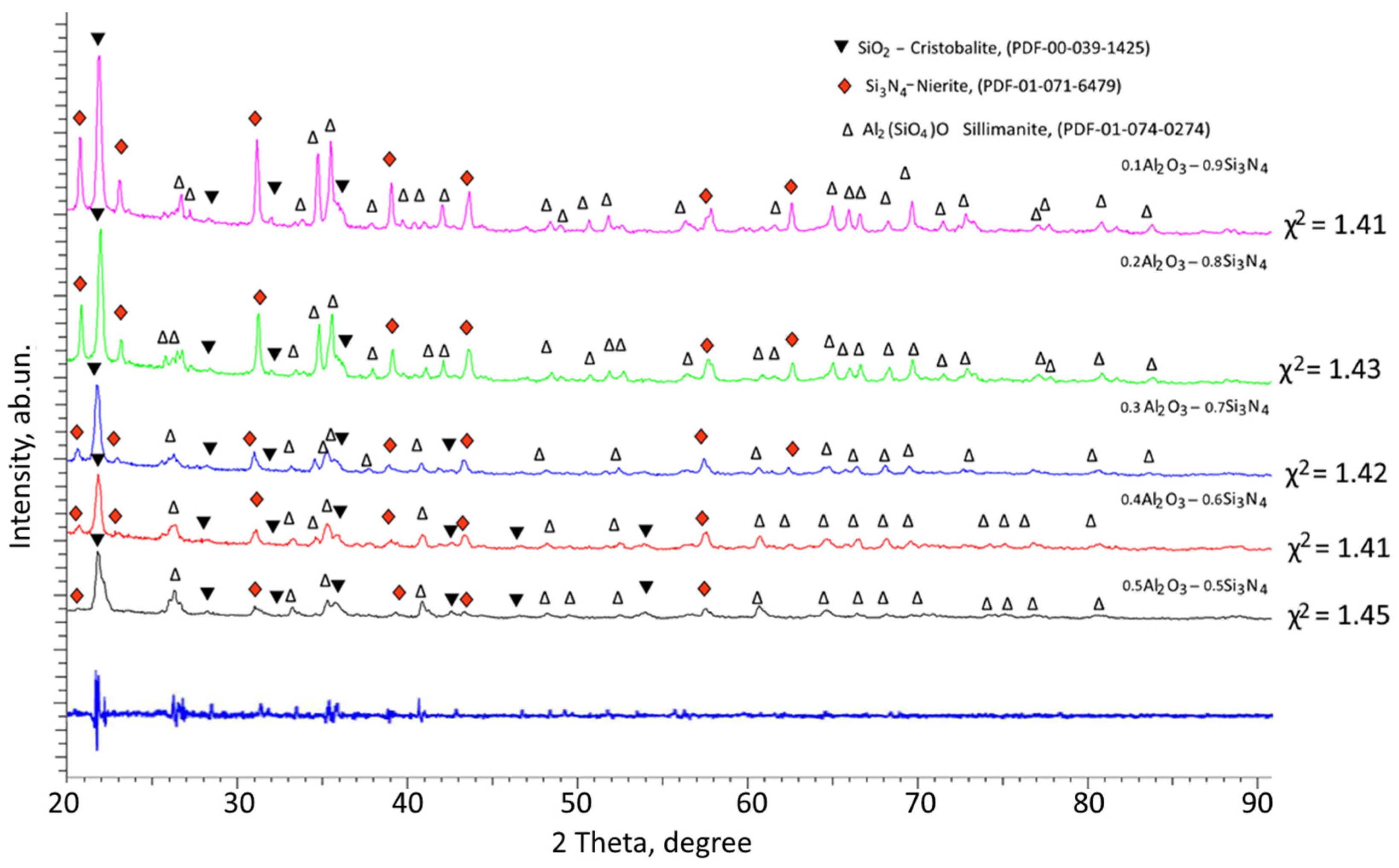

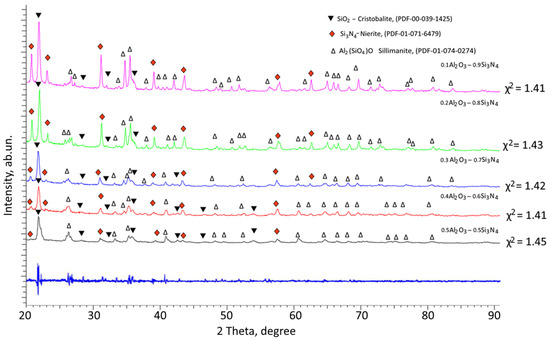

Figure 1. Results of X-ray phase analysis presented as X-ray diffraction patterns of the studied (1−x)Si3N4-xAl2O3 ceramics depending on the variation of the components.
Figure 1. Results of X-ray phase analysis presented as X-ray diffraction patterns of the studied (1−x)Si3N4-xAl2O3 ceramics depending on the variation of the components.
Materials 16 01961 g001
Materials 16 01961 g002 550

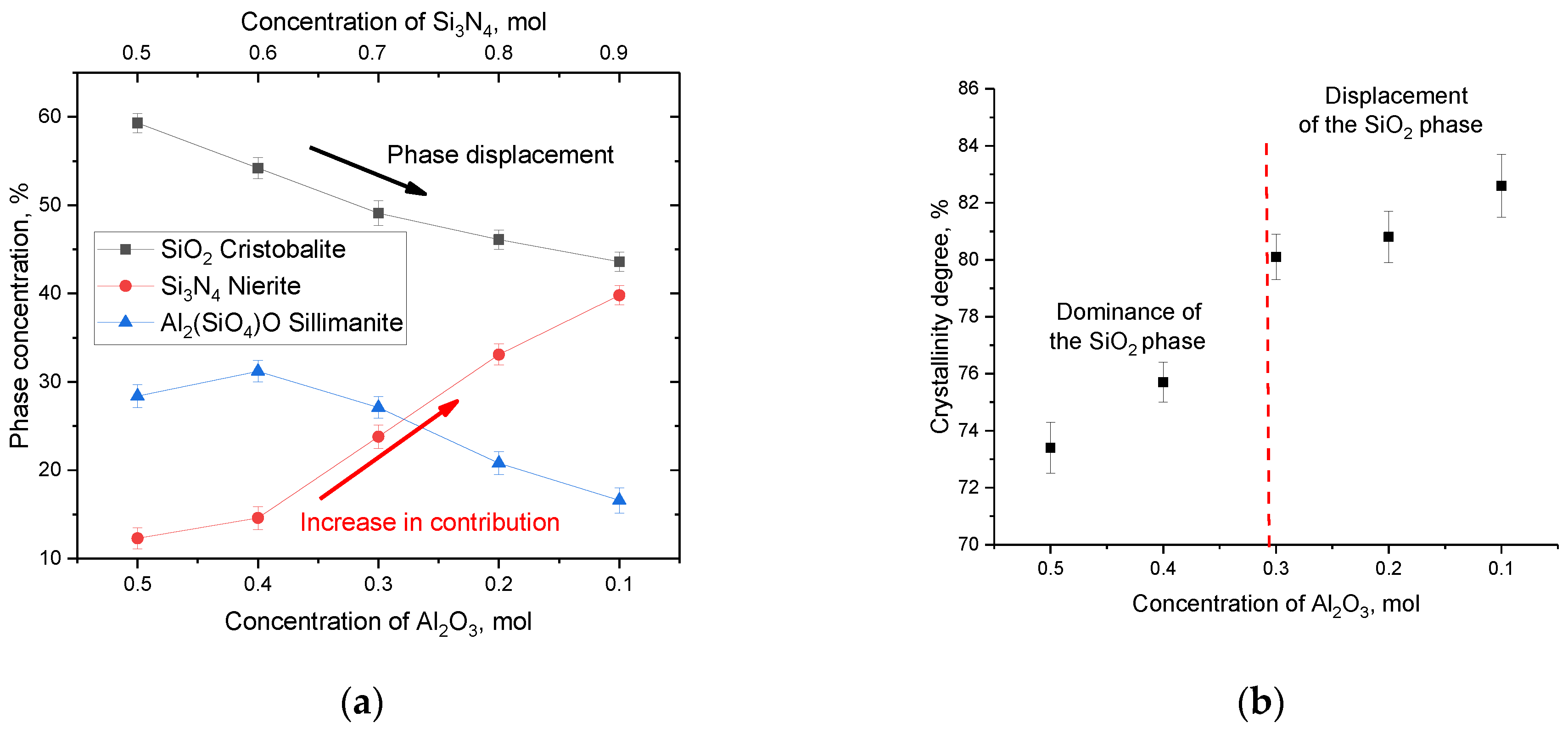

Figure 2. (a) Diagram of the phase composition of (1−x)Si3N4-xAl2O3 ceramics depending on the variation of the components; (b) Graph of the change in the crystallinity degree of xAl2O3-(1−x)Si3N4 ceramics depending on the variation of the components (the values of the degree of crystallinity were refined using the Rietveld method).
Figure 2. (a) Diagram of the phase composition of (1−x)Si3N4-xAl2O3 ceramics depending on the variation of the components; (b) Graph of the change in the crystallinity degree of xAl2O3-(1−x)Si3N4 ceramics depending on the variation of the components (the values of the degree of crystallinity were refined using the Rietveld method).
Materials 16 01961 g002
Materials 16 01961 g003 550
Figure 3. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.5 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Figure 3. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.5 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Materials 16 01961 g003
Materials 16 01961 g004 550
Figure 4. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.4 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Figure 4. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.4 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Materials 16 01961 g004
Materials 16 01961 g005 550
Figure 5. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.3 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Figure 5. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.3 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Materials 16 01961 g005
Materials 16 01961 g006 550
Figure 6. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.2 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Figure 6. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.2 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Materials 16 01961 g006
Materials 16 01961 g007 550

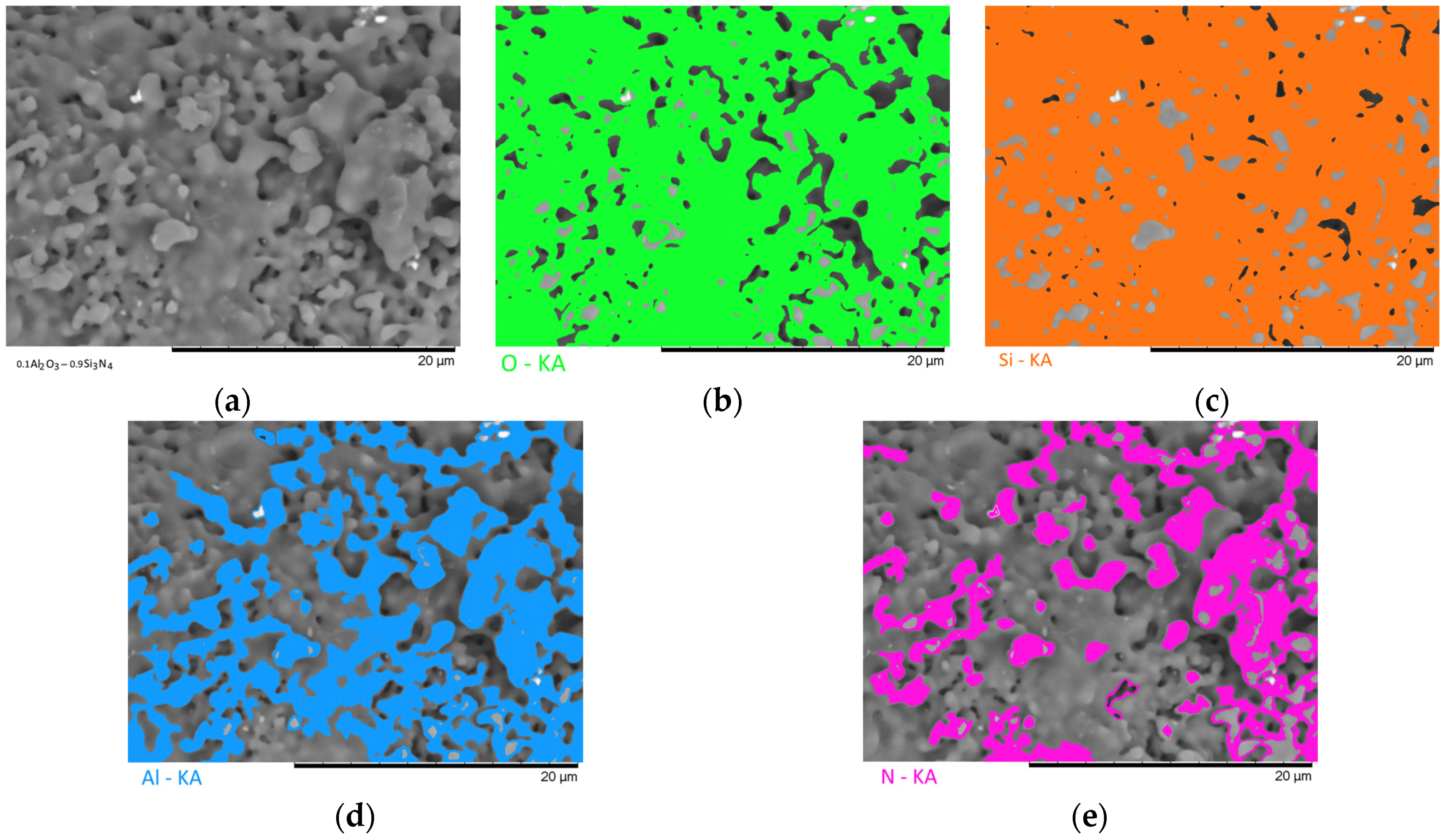

Figure 7. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.1 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Figure 7. Results of morphological studies and mapping of a ceramic sample with an Al2O3 content of 0.1 mol: (a) SEM image; (b) oxygen distribution results; (c) silicon distribution results; (d) aluminum distribution results; (e) nitrogen distribution results.
Materials 16 01961 g007
Materials 16 01961 g008 550

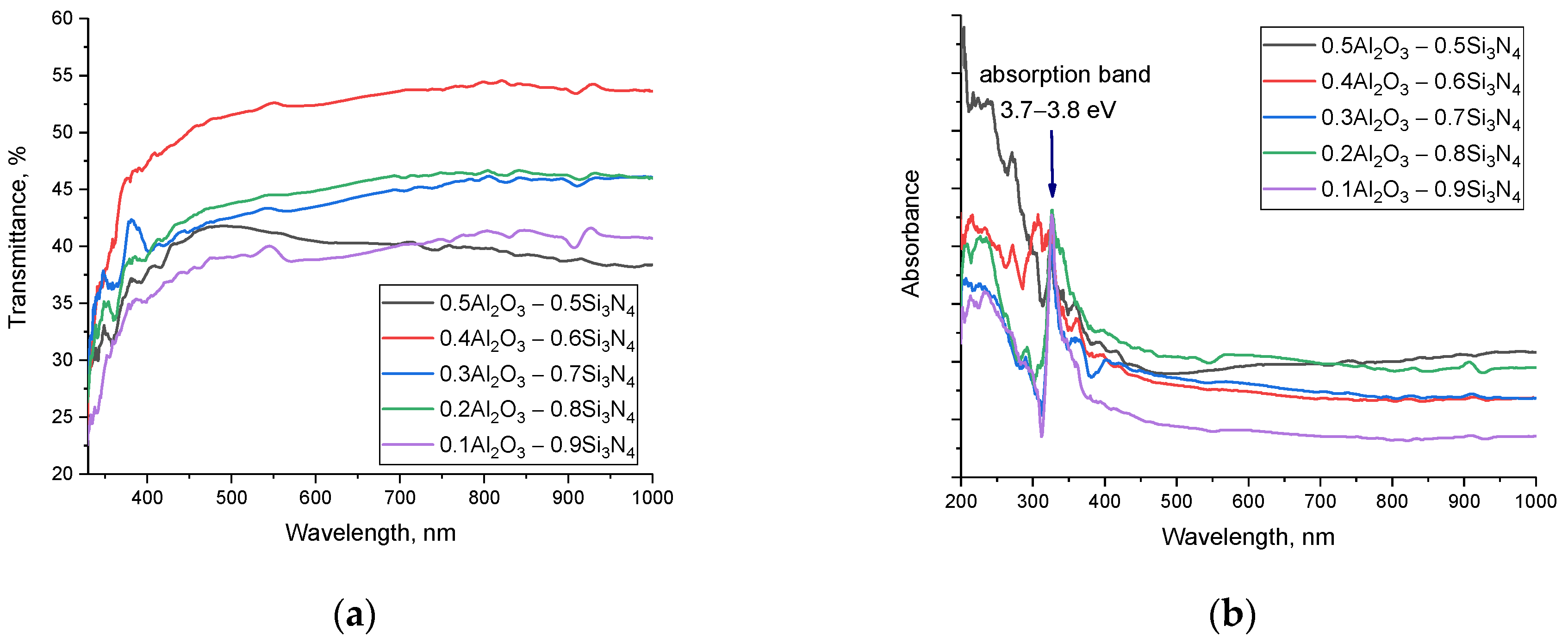

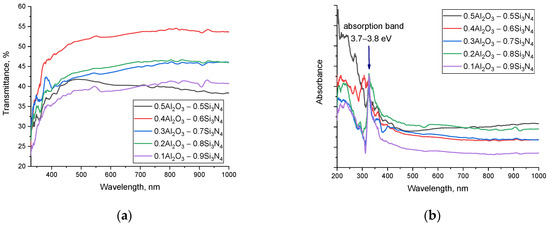

Figure 8. (a) Results of UV-Vis transmission spectra of (1−x)Si3N4-xAl2O3 ceramics versus component variation; (b) Results of UV-Vis absorption spectra of (1−x)Si3N4-xAl2O3 ceramics depending on component variation.
Figure 8. (a) Results of UV-Vis transmission spectra of (1−x)Si3N4-xAl2O3 ceramics versus component variation; (b) Results of UV-Vis absorption spectra of (1−x)Si3N4-xAl2O3 ceramics depending on component variation.
Materials 16 01961 g008
Materials 16 01961 g009 550
Figure 9. SEM images of synthesized ceramics in Secondary electron image mode: (a) 0.5Al2O3–0.5Si3N4; (b) 0.4Al2O3–0.6Si3N4; (c) 0.3Al2O3–0.7Si3N4; (d) 0.2Al2O3–0.8Si3N4; (e) 0.1Al2O3–0.9Si3N4.
Figure 9. SEM images of synthesized ceramics in Secondary electron image mode: (a) 0.5Al2O3–0.5Si3N4; (b) 0.4Al2O3–0.6Si3N4; (c) 0.3Al2O3–0.7Si3N4; (d) 0.2Al2O3–0.8Si3N4; (e) 0.1Al2O3–0.9Si3N4.
Materials 16 01961 g009
Materials 16 01961 g010 550

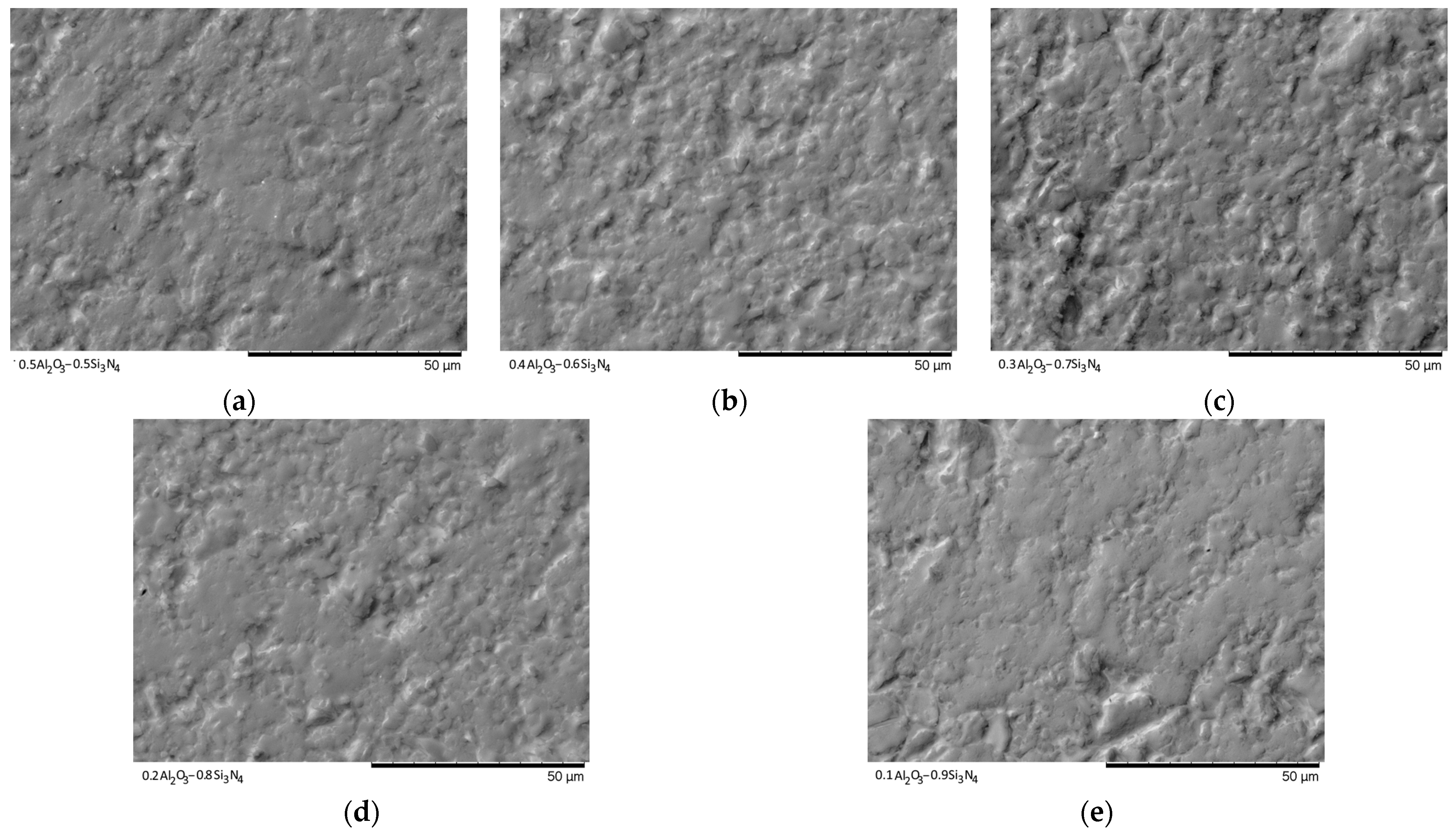

Figure 10. SEM images of synthesized ceramics in the Backscattered electron image mode: (a) 0.5Al2O3–0.5Si3N4; (b) 0.4Al2O3–0.6Si3N4; (c) 0.3Al2O3–0.7Si3N4; (d) 0.2Al2O3–0.8Si3N4; (e) 0.1Al2O3–0.9Si3N4.
Figure 10. SEM images of synthesized ceramics in the Backscattered electron image mode: (a) 0.5Al2O3–0.5Si3N4; (b) 0.4Al2O3–0.6Si3N4; (c) 0.3Al2O3–0.7Si3N4; (d) 0.2Al2O3–0.8Si3N4; (e) 0.1Al2O3–0.9Si3N4.
Materials 16 01961 g010
Materials 16 01961 g011 550

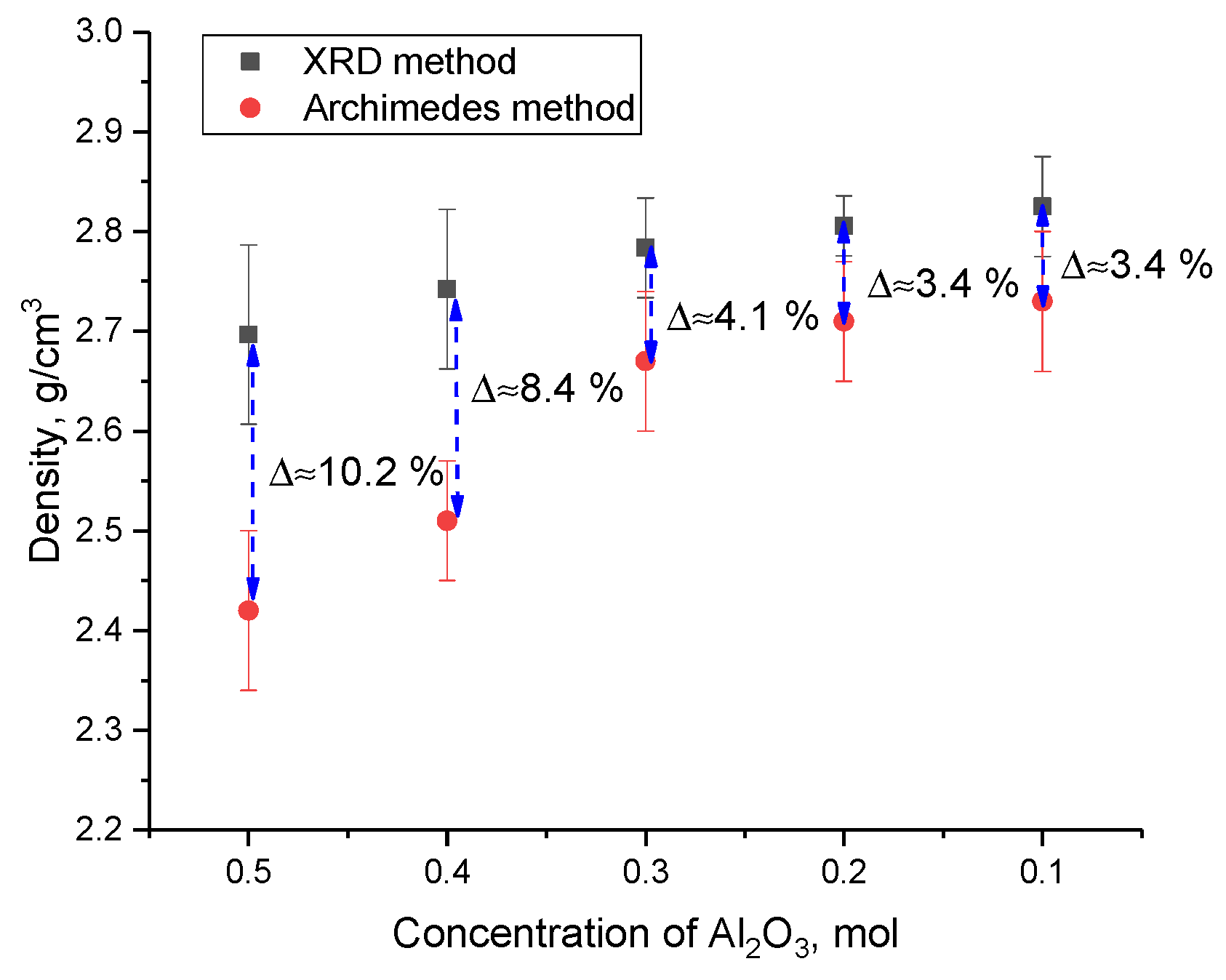

Figure 11. These changes in the density of ceramics, depending on the variation of the components.
Figure 11. These changes in the density of ceramics, depending on the variation of the components.
Materials 16 01961 g011
Materials 16 01961 g012 550
Figure 12. (a) Dependence of the change in the strength characteristics of (1−x)Si3N4-xAl2O3 ceramics with variation of the components; (b) Dependence of the change in hardening characteristics on the criterion of metallization of ceramics.
Figure 12. (a) Dependence of the change in the strength characteristics of (1−x)Si3N4-xAl2O3 ceramics with variation of the components; (b) Dependence of the change in hardening characteristics on the criterion of metallization of ceramics.
Materials 16 01961 g012
Materials 16 01961 g013 550
Figure 13. (a) Results of evaluation of the change in crack resistance depending on the variation of components in the composition of ceramics; (b) Results of the change in crystallite sizes and dislocation density depending on the variation of the components in the composition of ceramics.
Figure 13. (a) Results of evaluation of the change in crack resistance depending on the variation of components in the composition of ceramics; (b) Results of the change in crystallite sizes and dislocation density depending on the variation of the components in the composition of ceramics.
Materials 16 01961 g013
Materials 16 01961 g014 550
Figure 14. (a) Frequency spectra of the permittivity of the obtained samples; (b) Frequency spectra of the dielectric loss tangent of the obtained samples.
Figure 14. (a) Frequency spectra of the permittivity of the obtained samples; (b) Frequency spectra of the dielectric loss tangent of the obtained samples.
Materials 16 01961 g014
Table
Table 1. Data on changes in optical characteristics.
Table 1. Data on changes in optical characteristics.
ParameterConcentration of Al2O3, mol
0.50.40.30.20.1
Band gap, eV2.1092.2112.8143.0343.637
Linear refractive index2.6912.6502.4492.3872.243
Rloss0.2090.2040.1840.1680.147
Toptical transmission0.6530.6610.6890.7120.743
Static dielectric constants7.2417.0226.2455.6985.031
Rmolar69.7969.1566.7465.8162.41
Metallization criterion0.3240.3320.3750.3890.426
Table
Table 2. Results of measurements of dielectric parameters ε, tan δ of the obtained samples.
Table 2. Results of measurements of dielectric parameters ε, tan δ of the obtained samples.
Concentration of Al2O3, molεtan δ
1 kHz10 kHz100 kHz
0.53.030.0340.0180.012
0.45.380.0320.0160.011
0.36.070.0120.0100.006
0.25.620.0380.0180.011
0.15.050.0160.0150.016
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Borgekov, D.B.; Kozlovskiy, A.L.; Zdorovets, M.V.; Shakirzyanov, R.I.; Kenzhina, I.E.; Shlimas, D.I. Synthesis and Characterization of the Properties of (1−x)Si3N4-xAl2O3 Ceramics with Variation of the Components. Materials 2023, 16, 1961. https://doi.org/10.3390/ma16051961

AMA Style

Borgekov DB, Kozlovskiy AL, Zdorovets MV, Shakirzyanov RI, Kenzhina IE, Shlimas DI. Synthesis and Characterization of the Properties of (1−x)Si3N4-xAl2O3 Ceramics with Variation of the Components. Materials. 2023; 16(5):1961. https://doi.org/10.3390/ma16051961

Chicago/Turabian Style

Borgekov, Daryn B., Artem L. Kozlovskiy, Maxim V. Zdorovets, Rafael I. Shakirzyanov, Inesh E. Kenzhina, and Dmitriy I. Shlimas. 2023. "Synthesis and Characterization of the Properties of (1−x)Si3N4-xAl2O3 Ceramics with Variation of the Components" Materials 16, no. 5: 1961. https://doi.org/10.3390/ma16051961

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
