A Rational Design of a CoS2-CoSe2 Heterostructure for the Catalytic Conversion of Polysulfides in Lithium-Sulfur Batteries

by
Bin Zhang
†,
Jiping Ma
†,
Manman Cui
,
Yang Zhao
* and
Shizhong Wei
*
School of Materials Science and Engineering, Henan University of Science and Technology, Luoyang 471003, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2023, 16(11), 3992; https://doi.org/10.3390/ma16113992
Submission received: 8 April 2023 / Revised: 23 May 2023 / Accepted: 23 May 2023 / Published: 26 May 2023
(This article belongs to the Special Issue Advanced Energy Storage Materials: Preparation, Characterization and Applications)
Browse Figures
Versions Notes

Abstract

:
Lithium-sulfur batteries are anticipated to be the next generation of energy storage devices because of their high theoretical specific capacity. However, the polysulfide shuttle effect of lithium-sulfur batteries restricts their commercial application. The fundamental reason for this is the sluggish reaction kinetics between polysulfide and lithium sulfide, which causes soluble polysulfide to dissolve into the electrolyte, leading to a shuttle effect and a difficult conversion reaction. Catalytic conversion is considered to be a promising strategy to alleviate the shuttle effect. In this paper, a CoS2-CoSe2 heterostructure with high conductivity and catalytic performance was prepared by in situ sulfurization of CoSe2 nanoribbon. By optimizing the coordination environment and electronic structure of Co, a highly efficient CoS2-CoSe2 catalyst was obtained, to promote the conversion of lithium polysulfides to lithium sulfide. By using the modified separator with CoS2-CoSe2 and graphene, the battery exhibited excellent rate and cycle performance. The capacity remained at 721 mAh g−1 after 350 cycles, at a current density of 0.5 C. This work provides an effective strategy to enhance the catalytic performance of two-dimensional transition-metal selenides by heterostructure engineering.

1. Introduction

Lithium-sulfur (Li-S) batteries are expected to be the next generation of storage devices, due to their ultra-high theoretical specific capacity (1673 mAh g−1) [1,2,3]. However, liquid intermediate product lithium polysulfides (Li2Sx, 4 ≤ x ≤ 8) are easily dissolved in the electrolyte, leading to a serious shuttle effect, thereby leading to low sulfur utilization, poor cycling stability, and potential safety problems in Li-S batteries [4,5,6]. The insulting nature of sulfur and lithium sulfide (Li2S2/Li2S) results in the sluggish reaction kinetics between Li2Sx and Li2S2/Li2S, which further accelerate the shuttle effect. In recent years, in order to inhibit the shuttle effect of Li2Sx, researchers have made many improvements to sulfur anodes and separators, mainly through physical confinement [7,8,9,10], chemical adsorption of Li2Sx [11,12,13,14,15,16] and catalytic conversion of Li2Sx to Li2S2/Li2S [17,18,19,20,21,22,23]. Although porous carbon materials, such as carbon nanotubes [24,25], porous carbon spheres [26,27,28], graphene [9,11,27,29], and so on, play a certain role in limiting the shuttle effect of Li2Sx, non-polar carbon materials cannot effectively adsorb polar Li2Sx.
Duan’s group analyzed the activation energy for sulfur reduction reactions (SRRs) and revealed the difficulty of different reaction steps [30]. The results show that the activation energy in the initial stage of a SRR is relatively low, indicating that the conversion reaction between solid S8 and liquid Li2Sx is easier. However, the activation energy for the reduction reaction of Li2Sx to Li2S2/Li2S is large, which means the transformation of liquid Li2Sx to solid Li2S2/Li2S is difficult. Therefore, the conversion of liquid Li2Sx to solid Li2S is the critical step of a SRR. They demonstrated that an electrocatalyst can effectively the decrease the energy barrier of liquid-solid conversion reactions, and accelerate reduction reactions, thereby reducing accumulation and dissolution of Li2Sx [30]. Studies have shown that catalytic materials (i.e., metal oxide, metal sulfide, metal nitride, and their heterostructure, etc) increase the reaction kinetics and alleviate the shuttle effect [9,10,11,12,13,14,15,16,17].
Compared with other transition-metal compounds, Co-based catalysts, such as CoS2 [17], Co9S8 [31], CoSe2 [32,33], Co3Se4 [34], and CoP [35], can effectively increase the reaction kinetics of an SRR, because of the substantial catalytic ability of Co sites. Moreover, Co-based transition metal compounds are able to bind Li2Sx via both polar–polar (e.g., Li-S, Li-Se) interaction and Lewis acid-base bonding (Co-S) [17,32], which further increases the catalytic performance; therefore, a Co-based catalyst is one of most promising candidates for Li-S batteries. Generally speaking, the electronic structure and coordination environment of Co sites are widely regarded as the important factors in determining catalytic performance [36]. Compared with single component, two-component heterostructures play an important role in optimizing the electronic structure of the catalyst. Until now, various two-component heterostructures, including VO2-VN [37], TiO2-MXene [38], and WO3-WS2 [18], have been developed to enhance the electrochemical performance of Li-S batteries. CoS2-CoSe2 has been researched in electrocatalytic hydrogen evolution and dye-sensitized solar cells [39,40], however, its catalytic performance in Li-S batteries is not clearly understood. Moreover, the rational design and preparation of the CoS2-CoSe2 heterostructure, with an optimized electronic structure and coordination environment of Co sites, are still challenging to perform. Herein, we prepared a highly conductive and catalytic CoS2-CoSe2 heterostructure nanoribbon (NB), via the solvothermal method and in situ sulfurization. During the in situ sulfurization process, some of the Se atoms in CoSe2 are replaced by S atoms. The strong binding between CoS2 and CoSe2 promotes the rapid electron transfer and optimizes the electronic structure of Co sites. Moreover, CoSe2 converts from a stable cubic phase to a metastable orthorhombic phase after in situ sulfurization, which changes the coordination environment of Co sites, thereby increasing the catalytic performance. By using added CoS2-CoSe2 and graphenes to modify separator, the battery exhibits excellent rate and cycle performance. The Li-S battery delivers a good capacity of 612 mAh g−1 after 400 cycles at 1 °C.

2. Materials and Methods

Synthesis of CoSe2 NBs. CoSe2 NBs were prepared by the solvothermal method [41]. The specific steps are as follows. (1) First, 1 mmol of cobalt acetate (Co(AC)2H2O, 0.249 g) was added to 5 mL of deionized water and stirred until Co(AC)2H2O was completely dissolved, followed by adding 8 mL of graphene oxide dispersion (0.3 mg mL−1). A small amount of graphene oxide was added to prevent agglomeration of CoSe2 NBs. The dispersion solution was treated by strong ultrasonic for 2 h. (2) Then, 26 mL diethylenetriamine and 1 mmol sodium selenite (Na2SeO3, 0.173 g) were added to the dispersion solution and stirred for 3 h until Na2SeO3 was completely dissolved. (3) The completely dissolved solution was transferred to a 50 mL reactor and reacted at 180 °C for 16 h, after which the product was cleaned with deionized water. Finally, black powder was obtained by freeze drying. The as-prepared sample was labeled as CoSe2.
Synthesis of CoS2-CoSe2 heterostructure. The detailed steps are as follows. (1) 30 mg CoSe2 and 150 mg thiourea (CH4N2S) were placed in two separate boats of tubular furnace. CoSe2 was placed in central zone and CH4N2S was placed in the upstream of flow. (2) The heat treatment was performed at 350 °C for 0.5 h under an argon atmosphere. The as-prepared sample was labeled as CoS2-CoSe2. Other CoS2-CoSe2 heterostructures were synthesized using different contents of thiourea, and they were labeled as CoS2-CoSe2-1 (thiourea: 50 mg), CoS2-CoSe2-2 (thiourea: 100 mg), and CoS2-CoSe2-3 (thiourea: 200 mg).
Synthesis of cathode and modified separators. Synthesis of CNT/S cathode: The sulfur/carbon composite was prepared by heat treatment at 155 °C for 12 h after mixing the nano-sulfur powder and carbon nanotubes at a mass ratio of 7.5:2.5. Then, the sulfur/carbon composite, Super P, and PVDF were mixed at a mass ratio of 8:1:1, and NMP solvent was added and stirred for 6 h. The stirred slurry was coated on aluminum foil, dried at 60 °C for 12 h and cut into a disk with a diameter of 12 mm. The loading mass of sulfur was 1 mg cm−2. Synthesis of modified separators: Firstly, a dispersion liquid containing 3 mg of CoS2-CoSe2 powder, 14 mg graphene (GN), and 100 mL of ethanol was obtained via strong ultrasonic for 2 h. The dispersion was vacuum filtered on the blank separator and dried naturally for 12 h. Then, the separator loaded with CoS2-CoSe2/GN and was cut into discs with a diameter of 19 mm, and the mass loading of CoS2-CoSe2/GN on the disc was about 0.17 mg cm−2. The CoSe2/GN composite separator was prepared by the same method.
Battery assembly and electrochemical measurements. This was performed using CNT/S as the cathode, a catalyst/GN modified separator, lithium foil as the anode, and 1 M LiTFSI dissolved in a DME/DOL (volume ratio is 1:1) with 2% LiNO3 (mass ratio) as the electrolyte to assemble Li-S coin cells. The electrolyte/sufur (E/S) ratio is was 15 µL mg−2. Galvanostatic charge–discharge curves were measured with battery test system (Land CT2001A). CV profiles were performed on VMP3 electrochemical workstation.
Materials Characterization. The morphologies of the samples were examined by scanning electron microscopy (SEM SU8010) and transmission electron microscopy (FEI Tecnai G2 F30). X-ray diffraction (XRD) patterns of the samples were carried out on a Bruker D8 Advance diffractometer using Cu Ka radiation. The N2 adsorption–desorption isotherm of the samples was measured using a Belsorp Max II analyzer. X-ray photoelectron spectroscopy (XPS) analyses were carried on a PHI 5000 VersaProbe II spectrometer using monochromatic Al K(alpha) X-ray source.

3. Results and Discussion

The CoSe2 NBs were prepared by solvothermal method; some protonated ammonia molecules were intercalated within the CoSe2 NB [41]. The in situ sulfurization of CoSe2 into CoS2-CoSe2 heterostructure can be easily realized by heat treatment. In a typical preparation, thiourea and CoSe2 NBs were first placed in two separate crucibles with different mass ratios, followed by heat treatment. Then, the H2S vapor was formed to react with CoSe2 to realize the in situ sulfurization (Figure 1a). Note that the content of the CoS2 was related to the thiourea content and gradually increased with higher thiourea contents (Figure S1). More synthesis details can be found in the Experimental section. The morphologies of CoSe2 and CoS2-CoSe2 were observed by scanning electron microscopy (SEM) and transmission electron microscopy (TEM), as shown in Figure 1b,e, The two-dimensional nanoribbon is flexible and transparent, indicating that ultra-thin nanoribbons exhibit good electrical conductivity. The nanoribbon was then sulfurized in situ through heat treatment using thiourea as sulfur source. As shown in Figure 1c,d, the smooth nanoribbon surface becomes rough after sulfurization, and a large number of nanoparticles were grown in situ on the nanoribbon of CoSe2. The nanoparticles were uniformly dispersed on the surface of the nanoribbon and were less than 20 nm in size (Figure 1f). The uniform dispersion of nanoparticles may be ascribed to the following two reasons. Firstly, uniform selenium vacancies were formed on the surface of CoSe2 during heat treatment, and the selenium vacancies were rapidly replaced by sulfur to generate CoS2 nanoparticles. Secondly, the surface of CoSe2, prepared by the solvothermal method, contained a large number of amino functional groups, which could act as nucleation site, to promote the uniform growth of CoS2 on the surface of CoSe2. The nanoparticles were still firmly anchored on the CoSe2 nanoribbon after strong ultrasonic dispersion during the preparation process of the TEM sample, indicating that the strong bonding force existed between the CoS2 and CoSe2, which was due to the fact that CoS2 nanoparticles were attached in situ on selenium vacancies or amino functional groups. As shown in Figure 1g, high-resolution TEM confirms that the nanoparticles on the nanoribbon were CoS2, and a lattice spacing of 0.25 nm corresponded to the (210) plane of CoS2.
X-ray diffraction (XRD) was used to study the phases of CoSe2 and CoS2-CoSe2. As shown in Figure 2a, the CoSe2 nanoribbons prepared by solvothermal reaction are cubic phase (JCPDS No.09-0234). The characteristic peak of CoS2 appears at 32.3° (JCPDS No.65-3322), after in situ sulfurization, which further confirms the formation of CoS2-CoSe2 [39]. Meanwhile, the stable cubic CoSe2 was transformed into the metastable orthorhombic CoSe2 (JCPDS No.53-0449). The formation of orthorhombic CoSe2 was accompanied by the rotation of the Se-Se bond, which alters the coordination environment of Co sites. This metastable orthorhombic CoSe2 showed higher electrocatalytic activity than the stable cubic phase [42]. Nitrogen adsorption desorption tests were conducted on CoSe2 and CoS2-CoSe2, and the results are shown in Figure 2b,c. There was no difference in adsorption–desorption curve types between CoSe2 and CoS2-CoSe2, and both of them had a small number of mesoporous pores. According to a Brunauer–Emmett–Teller theoretical calculation, the specific surface areas of CoSe2 and CoS2-CoSe2 are 74 and 45 m2 g−1, respectively. The formation of the CoS2-CoSe2 heterostructure was accompanied by the decrease of a specific surface area, which was caused by the growth of granular CoS2 on the surface of ultra-thin nanoribbons.
The surface chemistries of CoS2-CoSe2 and CoSe2 were tested and compared by X-ray photoelectron spectroscopy. Figure 2d shows the Co 2p spectra of CoS2-CoSe2 and CoSe2, in which two peaks at 778.46 and 793.36 eV are attributed to Co 2p3/2 and Co 2p1/2 of CoSe2, after the sulfurization process, and the two Co-Se bonds move to higher binding energy positions, which are 779.19 and 794.09 eV, respectively. During the in situ sulfurization process, some Se atoms in CoSe2 are replaced with S atoms, which is accompanied by the formation of a CoS2-CoSe2 heterostructure. The Co 2p3/2 spectrum moves to the higher binding energy position with 0.73 eV, indicating a Co element under oxidized change. Moreover, electron transfer occurs between the heterostructure, and a strong interaction exists between CoS2 and CoSe2. The analysis of the Se 3d fine spectra of the two materials shows that 54.7 and 59.6 eV correspond to Se22− and SeOx, respectively; after the conversion of CoSe2 to CoS2-CoSe2, Se 3d moves to higher binding energy position (Figure 2e). The fine spectrum of S 2p confirms the existence of CoS2 and thiosulfate/sulfate (Figure 2f). Above all, the electronic structure and coordination environment of Co were changed after the in situ sulfurization.
To investigate the polysulfide adsorption capability of CoS2-CoSe2, and CoSe2 toward Li2Sx, visual static Li2S6 adsorption tests were performed on CoS2-CoSe2 and CoSe2. As shown in Figure 3a–c, the yellow Li2S6 solution of CoS2-CoSe2 begins to fade after 0.5 h and becomes clear after 3 h; however, the color of CoSe2 began to fade after 5 h, proving that the CoS2-CoSe2 heterostructure has a strong adsorption ability with Li2S6. The UV–vis technique was used to investigate the polysulfide adsorption capability of different materials. The peak of the UV–vis spectrum in the solution with CoS2-CoSe2 exhibited the weakest intensity, indicating Li2S6 immobilization of CoS2-CoSe2 (Figure 3d). This was because the electronic structure of Co in the CoS2-CoSe2 heterostructure was optimized and the Co coordination environment of metal was changed, increasing the adsorption capability of Li2S6. Furthermore, the formation of CoS2 also increased the adsorption ability.
The catalytic activity of the materials was evaluated through cyclic voltammogram (CV) curves of symmetrical cells, using an Li2S6 electrode. As shown in Figure 3e, compared with CoSe2, the CoS2-CoSe2 symmetrical cell has a higher current density, which indicates that CoS2-CoSe2 accelerates the catalytic conversion of Li2Sx and improves the utilization of sulfur. Moreover, the Li2S deposition experiment was conducted for CoS2-CoSe2 and CoSe2, to illustrate the catalytic activity. Catalysts were loaded on carbon fiber paper, and an Li2S8 solution was added on the catalysts. The coin cell was assembled using carbon fiber paper loaded with a catalyst, Li2S8 as the cathode, and lithium foil as the anode. The coin cell was galvanostatically discharged to 2.07 V and then potentiostatically discharged at 2.06 V. The potentiostatic discharge curves of cells with CoSe2 and CoS2-CoSe2 are shown in Figure 3f. The peak currents of CoSe2 and CoS2-CoSe2 were 0.21 and 0.3 mA, respectively. Moreover, compared with CoSe2, the deposition time of Li2Sx for CoS2-CoSe2 was shorter, demonstrating that the CoS2-CoSe2 delivered better catalytic performance toward Li2Sx. The morphology of the electrode was observed at the same deposition time point, as shown in Figure 3g,h. No obvious Li2S was present on the surface of CoSe2; in comparation, a large area of Li2S had already emerged on the surface of CoS2-CoSe2, confirming that the CoS2-CoSe2 heterostructure improved the conversion efficiency of Li2Sx to Li2S2/Li2S. The morphologies of the CoSe2 and CoS2-CoSe2 electrodes after Li2S deposition were also investigated. As shown in Figure S2, a large amount of Li2S could be observed on the surface of the CoS2-CoSe2 electrode, while only a few deposits were detected on the on the surface of the CoSe2 electrode, further confirming that CoS2-CoSe2 was beneficial for the deposition of Li2S.
Above all, compared with CoSe2, the adsorption and catalytic conversion ability of CoS2-CoSe2 have been largely improved, due to the presence of CoS2, which may be attributed to two reasons. Firstly, the heterostructure activated the Co catalytic activity on the surface of the CoSe2, and the formed hetero-interface ensured the rapid electron transfer of and Li-ion diffusion between CoS2 and CoSe2. Secondly, the orthorhombic CoSe2 changed the coordination environment of the Co, increasing the adsorption sites and catalytic activity.
To investigate the electrochemical performance of Li-S batteries with CoSe2 and CoS2-CoSe2, the CoS2-CoSe2/GN or CoSe2/GN modified separator was applied to the Li-S batteries. The modified separator had a loading of 0.17 mg cm−2 and a thickness of ~11 μm (Figure S3). The rate performance of Li-S batteries with CoS2-CoSe2 and CoSe2 were tested under different current densities. As shown in Figure 4a, the battery with CoS2-CoSe2 had discharge capacities of 1133, 905, 765, and 658 mAh g−1 at 0.2, 0.5, 1, and 2 C current densities, respectively. The discharge capacities of the battery with the CoSe2 cell are 1031, 757, 639, and 524 mAh g−1, indicating that the CoS2-CoSe2 improved the sulfur utilization. Figure 4b displays the charge–discharge curves of the two batteries. When the current density was 0.5 °C, the battery with CoS2-CoSe2 had a longer discharge platform, which proves that CoS2-CoSe2 promotes the conversion of Li2Sx and improves the utilization of sulfur. By analyzing the charging curves of the two batteries, it can be seen that the battery with CoS2-CoSe2 can reduce the energy barrier of conversion from Li2S2/Li2S to Li2Sx, indicating that CoS2-CoSe2 can promote its conversion reaction. Figure 4c shows the charge–discharge curves of the battery using CoS2-CoSe2 at different current densities. The discharge curves at different current densities contained two discharge platforms, corresponding to the reduction reaction from solid S8 to liquid Li2Sx, and Li2Sx to Li2S2/Li2S. CV tests were conducted at different scanning speeds for the battery with CoS2-CoSe2. It can be seen that, even at the scanning speed of 0.5 mV s−1, there were still two obvious reduction peaks and oxidation peaks, indicating that the battery had excellent rate performance (Figure 4d).
Figure 4e shows the long cycle performance of the two batteries at a current density of 0.5 C. The battery using the CoS2-CoSe2 had an initial capacity of 921 mAh g−1 and a capacity of 722 mAh g−1 after 350 cycles, corresponding to a capacity decay rate of 0.062% per cycle. The cell using the CoSe2 had an initial capacity of 740 mAh g−1 and a capacity of 352 mAh g−1 after 350 cycles, corresponding to a capacity decay rate of 0.15% per cycle. Although CoSe2 has a high specific surface area, its poor Li2Sx adsorption and catalytic ability resulted in poor cycling stability. CoS2-CoSe2 has good adsorption and catalytic conversion ability toward Li2Sx, which improved the capacity and cycle stability of the battery. Figure 4f shows the long cycle performance of the two batteries at 1 C. After 400 cycles, the battery with CoS2-CoSe2 had a capacity of 612 mAh g−1, while the cell with CoSe2 only had a capacity of 353 mAh g−1, which demonstrates that CoS2-CoSe2 can improve the utilization of sulfur and alleviate the shuttle effect of Li2Sx. We also compared the cycle performance of batteries with other Co-based composite electrodes, measured at 0.5/1 C (Table S1), indicating that the battery with CoS2-CoSe2 had a longer cycling life.

4. Conclusions

In conclusion, we prepared CoSe2 nanoribbons with a high specific surface area and high conductivity, by the solvothermal method, and then prepared a CoS2-CoSe2 heterostructure by in situ sulfurization. The strong interaction between the two components ensures rapid electron transfer and Li-ion diffusion. The formation of a CoS2-CoSe2 heterostructure optimizes the electronic structure of Co, and simultaneously converts its phase from a stable cubic phase into the metastable orthorhombic phase, which accompanies the change of the coordination environment of Co. As a result, CoS2-CoSe2 significantly increases adsorption and catalytic ability, thereby improving the electrochemical performance of the Li-S battery. This work provides an easy way to construct highly efficient heterostructure catalysts for Li-S batteries by the in situ sulfurization of a metal sulfide heterostructure.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16113992/s1. References [43,44,45] are cited in the supplementary materials.

Author Contributions

Conceptualization, B.Z.; Methodology, J.M. and M.C.; Investigation, B.Z.; Writing—original draft, B.Z.; Writing—review & editing, Y.Z.; Supervision and project administration, S.W.; Project administration, B.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the China Postdoctoral Science Foundation (2022M721029 and 2022M721030), Postdoctoral Research Grant in Henan Province (202102074).

Data Availability Statement

All relevant data are within the manuscript and its Additional files.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Seh, Z.W.; Sun, Y.; Zhang, Q.; Cui, Y. Designing High-Energy Lithium-Sulfur Batteries. Chem. Soc. Rev. 2016, 45, 5605–5634. [Google Scholar] [CrossRef]
  2. Al-Thabaiti, S.A.; Mostafa, M.M.M.; Ahmed, A.I.; Salama, R.S. Synthesis of Copper/Chromium Metal Organic Frameworks-Derivatives as an Advanced Electrode Material for High-Performance Supercapacitors. Ceram. Int. 2023, 49, 5119–5129. [Google Scholar] [CrossRef]
  3. Mostafa, M.M.M.; Alshehri, A.A.; Salama, R.S. High Performance of Supercapacitor Based on Alumina Nanoparticles Derived from Coca-Cola Cans. J. Energy Storage 2023, 64, 107168. [Google Scholar] [CrossRef]
  4. Li, G.; Wang, S.; Zhang, Y.; Li, M.; Chen, Z.; Lu, J. Revisiting the Role of Polysulfides in Lithium-Sulfur Batteries. Adv. Mater. 2018, 30, 1705590. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, B.; Qin, X.; Li, G.R.; Gao, X.P. Enhancement of Long Stability of Sulfur Cathode by Encapsulating Sulfur into Micropores of Carbon Spheres. Energy Environ. 2010, 3, 1531–1537. [Google Scholar] [CrossRef]
  6. Huang, S.; Wang, Z.; Von Lim, Y.; Wang, Y.; Li, Y.; Zhang, D.; Yang, H.Y. Recent Advances in Heterostructure Engineering for Lithium-Sulfur Batteries. Adv. Energy Mater. 2021, 11, 2003689. [Google Scholar] [CrossRef]
  7. Ji, X.; Lee, K.T.; Nazar, L.F. A Highly Ordered Nanostructured Carbon-Sulphur Cathode for Lithium-Sulphur Batteries. Nat. Mater. 2009, 8, 500–506. [Google Scholar] [CrossRef]
  8. Jung, D.S.; Hwang, T.H.; Lee, J.H.; Koo, H.Y.; Shakoor, R.A.; Kahraman, R.; Jo, Y.N.; Park, M.-S.; Choi, J.W. Hierarchical Porous Carbon by Ultrasonic Spray Pyrolysis Yields Stable Cycling in Lithium-Sulfur Battery. Nano Lett. 2014, 14, 4418–4425. [Google Scholar] [CrossRef]
  9. Peng, Z.; Fang, W.; Zhao, H.; Fang, J.; Cheng, H.; The Nam Long, D.; Xu, J.; Chen, P. Graphene-Based Ultrathin Microporous Carbon with Smaller Sulfur Molecules for Excellent Rate Performance of Lithium-Sulfur Cathode. J. Power Sources 2015, 282, 70–78. [Google Scholar] [CrossRef]
  10. Hai, C.; Peng, G.; Zhou, Y.; Shen, Y.; Li, X.; Sun, Y.; Zhang, G.; Zeng, J.; Dong, S. Gradually Anchoring Sulfur into in-Situ Doped Carbon Substrate as Cathode for Li-S Batteries with Excellent Wide-Temperature Performance. Ceram. Int. 2022, 48, 1622–1632. [Google Scholar] [CrossRef]
  11. Song, J.; Yu, Z.; Gordin, M.L.; Wang, D. Advanced Sulfur Cathode Enabled by Highly Crumpled Nitrogen-Doped Graphene Sheets for High-Energy-Density Lithium-Sulfur Batteries. Nano Lett. 2016, 16, 864–870. [Google Scholar] [CrossRef] [PubMed]
  12. Cheng, D.; Fan, T. Synergetic Pore Structure Optimization and Nitrogen Doping of 3d Porous Graphene for High Performance Lithium Sulfur Battery. J. Am. Chem. Soc. 2018, 256, 869–877. [Google Scholar] [CrossRef]
  13. Zhen, M.; Jiang, K.; Guo, S.-Q.; Shen, B.; Liu, H. Suitable Lithium Polysulfides Diffusion and Adsorption on Cnts@TiO2-Bronze Nanosheets Surface for High-Performance Lithium-Sulfur Batteries. Nano Res. 2022, 15, 933–941. [Google Scholar] [CrossRef]
  14. Zhao, G.; Liu, S.; Zhang, X.; Zhang, Y.; Shi, H.; Liu, Y.; Hou, L.; Yuan, C. Construction of Co@N-Cnts Grown on N-MOxC Nanosheets for Separator Modification to Enhance Adsorption and Catalytic Conversion of Polysulfides in Li-S Batteries. J. Mater. Chem. A 2023, 11, 1856–1865. [Google Scholar] [CrossRef]
  15. Jiang, H.; Guo, J.; Tao, J.; Li, X.; Zheng, W.; He, G.; Dai, Y. Low-Cost Biomass-Gel-Induced Conductive Polymer Networks for High-Efficiency Polysulfide Immobilization and Catalytic Conversion in Li-S Batteries. ACS Appl. Energy Mater. 2022, 5, 2308–2317. [Google Scholar] [CrossRef]
  16. Wei, J.; Jiang, C.; Chen, B.; Li, X.; Zhang, H. Hollow C/Co9S8 Hybrid Polyhedra-Modified Carbon Nanofibers as Sulfur Hosts for Promising Li-S Batteries. Ceram. Int. 2021, 47, 25387–25397. [Google Scholar] [CrossRef]
  17. Yuan, Z.; Peng, H.-J.; Hou, T.-Z.; Huang, J.-Q.; Chen, C.-M.; Wang, D.-W.; Cheng, X.-B.; Wei, F.; Zhang, Q. Powering Lithium-Sulfur Battery Performance by Propelling Polysulfide Redox at Sulfiphilic Hosts. Nano Lett. 2016, 16, 519–527. [Google Scholar] [CrossRef]
  18. Zhang, B.; Luo, C.; Deng, Y.; Huang, Z.; Zhou, G.; Lv, W.; He, Y.-B.; Wan, Y.; Kang, F.; Yang, Q.-H. Optimized Catalytic WS2-WO3 Heterostructure Design for Accelerated Polysulfide Conversion in Lithium-Sulfur Batteries. Adv. Energy Mater. 2020, 10, 2000091. [Google Scholar] [CrossRef]
  19. Zhao, C.; Xu, G.-L.; Yu, Z.; Zhang, L.; Hwang, I.; Mo, Y.-X.; Ren, Y.; Cheng, L.; Sun, C.-J.; Ren, Y.; et al. A High-Energy and Long-Cycling Lithium-Sulfur Pouch Cell Via a Macroporous Catalytic Cathode with Double-End Binding Sites . Nat. Nanotechnol. 2021, 16, 224. [Google Scholar] [CrossRef]
  20. Liu, D.; Zhang, C.; Zhou, G.; Lv, W.; Ling, G.; Zhi, L.; Yang, Q.-H. Catalytic Effects in Lithium-Sulfur Batteries: Promoted Sulfur Transformation and Reduced Shuttle Effect. Adv. Sci. 2018, 5, 1700270. [Google Scholar] [CrossRef]
  21. Wang, R.; Luo, C.; Wang, T.; Zhou, G.; Deng, Y.; He, Y.; Zhang, Q.; Kang, F.; Lv, W.; Yang, Q.-H. Bidirectional Catalysts for Liquid-Solid Redox Conversion in Lithium-Sulfur Batteries. Adv. Mater. 2020, 32, 2000315. [Google Scholar] [CrossRef] [PubMed]
  22. Feng, Y.; Zu, L.; Yang, S.; Chen, L.; Liao, K.; Meng, S.; Zhang, C.; Yang, J. Ultrahigh-Content Co-P Cluster as a Dual-Atom-Site Electrocatalyst for Accelerating Polysulfides Conversion in Li-S Batteries. Adv. Funct. Mater. 2022, 32, 2207579. [Google Scholar] [CrossRef]
  23. Theibault, M.J.; Chandler, C.; Dabo, I.; Abruna, H.D. Transition Metal Dichalcogenides as Effective Catalysts for High-Rate Lithium-Sulfur Batteries. ACS Catal. 2023, 13, 3684–3691. [Google Scholar] [CrossRef]
  24. Zhou, J.; Liu, X.; Zhou, J.; Zhao, H.; Lin, N.; Zhu, L.; Zhu, Y.; Wang, G.; Qian, Y. Fully Integrated Hierarchical Double-Shelled Co9S8@CNT Nanostructures with Unprecedented Performance for Li-S Batteries. Nanoscale Horiz. 2019, 4, 182–189. [Google Scholar] [CrossRef] [PubMed]
  25. Yu, X.-F.; Tian, D.-X.; Li, W.-C.; He, B.; Zhang, Y.; Chen, Z.-Y.; Lu, A.-H. One-Pot Synthesis of Highly Conductive Nickel-Rich Phosphide/CNTs Hybrid as a Polar Sulfur Host for High-Rate and Long-Cycle Li-S Battery. Nano Res. 2019, 12, 1193–1197. [Google Scholar] [CrossRef]
  26. Gueon, D.; Ju, M.Y.; Moon, J.H. Complete Encapsulation of Sulfur through Interfacial Energy Control of Sulfur Solutions for High-Performance Li-S Batteries. Proc. Natl. Acad. Sci. USA 2020, 117, 12686–12692. [Google Scholar] [CrossRef]
  27. Ai, W.; Li, J.; Du, Z.; Zou, C.; Du, H.; Xu, X.; Chen, Y.; Zhang, H.; Zhao, J.; Li, C.; et al. Dual Confinement of Polysulfides in Boron-Doped Porous Carbon Sphere/Graphene Hybrid for Advanced Li-S Batteries. Nano Res. 2018, 11, 4562–4573. [Google Scholar] [CrossRef]
  28. Rehman, S.; Guo, S.; Hou, Y. Rational Design of Si/SiO2@Hierarchical Porous Carbon Spheres as Efficient Polysulfide Reservoirs for High-Performance Li-S Battery. Adv. Mater. 2016, 28, 3167–3172. [Google Scholar] [CrossRef]
  29. Li, H.; Tao, Y.; Zhang, C.; Liu, D.; Luo, J.; Fan, W.; Xu, Y.; Li, Y.; You, C.; Pan, Z.-Z.; et al. Dense Graphene Monolith for High Volumetric Energy Density Li-S Batteries. Adv. Energy Mater. 2018, 8, 1703438. [Google Scholar] [CrossRef]
  30. Peng, L.; Wei, Z.; Wan, C.; Li, J.; Chen, Z.; Zhu, D.; Baumann, D.; Liu, H.; Allen, C.S.; Xu, X.; et al. A Fundamental Look at Electrocatalytic Sulfur Reduction Reaction. Nat. Catal. 2020, 3, 762–770. [Google Scholar] [CrossRef]
  31. Liu, Y.; Ma, S.; Liu, L.; Koch, J.; Rosebrock, M.; Li, T.; Bettels, F.; He, T.; Pfnuer, H.; Bigall, N.C.; et al. Nitrogen Doping Improves the Immobilization and Catalytic Effects of Co9S8 in Li-S Batteries. Adv. Funct. Mater. 2020, 30, 2002462. [Google Scholar] [CrossRef]
  32. Wang, M.; Fan, L.; Sun, X.; Guan, B.; Jiang, B.; Wu, X.; Tian, D.; Sun, K.; Qiu, Y.; Yin, X.; et al. Nitrogen-Doped CoSe2 as a Bifunctional Catalyst for High Areal Capacity and Lean Electrolyte of Li-S Battery. ACS Energy Lett. 2020, 5, 3041–3050. [Google Scholar] [CrossRef]
  33. Chen, L.; Xu, Y.; Cao, G.; Sari, H.M.K.; Duan, R.; Wang, J.; Xie, C.; Li, W.; Li, X. Bifunctional Catalytic Effect of CoSe2 for Lithium-Sulfur Batteries: Single Doping Versus Dual Doping. Adv. Funct. Mater. 2022, 32, 2107838. [Google Scholar] [CrossRef]
  34. Cai, D.; Liu, B.; Zhu, D.; Chen, D.; Lu, M.; Cao, J.; Wang, Y.; Huang, W.; Shao, Y.; Tu, H.; et al. Ultrafine Co3se4 Nanoparticles in Nitrogen-Doped 3D Carbon Matrix for High-Stable and Long-Cycle-Life Lithium Sulfur Batteries. Adv. Energy Mater. 2020, 10, 1904273. [Google Scholar] [CrossRef]
  35. Zhong, Y.; Yin, L.; He, P.; Liu, W.; Wu, Z.; Wang, H. Surface Chemistry in Cobalt Phosphide-Stabilized Lithium-Sulfur Batteries. J. Am. Chem. Soc. 2018, 256, 1455–1459. [Google Scholar] [CrossRef]
  36. Gouda, M.S.; Shehab, M.; Helmy, S.; Soliman, M.; Salama, R.S. Nickel and Cobalt Oxides Supported on Activated Carbon Derived from Willow Catkin for Efficient Supercapacitor Electrode. J. Energy Storage 2023, 61, 106806. [Google Scholar] [CrossRef]
  37. Song, Y.; Zhao, W.; Kong, L.; Zhang, L.; Zhu, X.; Shao, Y.; Ding, F.; Zhang, Q.; Sun, J.; Liu, Z. Synchronous Immobilization and Conversion of Polysulfides on a VO2-VN Binary Host Targeting High Sulfur Load Li-S Batteries. Energy Environ. Sci. 2018, 11, 2620–2630. [Google Scholar] [CrossRef]
  38. Jiao, L.; Zhang, C.; Geng, C.; Wu, S.; Li, H.; Lv, W.; Tao, Y.; Chen, Z.; Zhou, G.; Li, J.; et al. Capture and Catalytic Conversion of Polysulfides by in Situ Built TiO2-MXene Heterostructures for Lithium-Sulfur Batteries. Adv. Energy Mater. 2019, 9, 1900219. [Google Scholar] [CrossRef]
  39. Guo, Y.; Shang, C.; Wang, E. An Efficient Cos2/CoSe2 Hybrid Catalyst for Electrocatalytic Hydrogen Evolution. J. Mater. Chem. A 2017, 5, 2504–2507. [Google Scholar] [CrossRef]
  40. Huang, S.; Wang, H.; Wang, S.; Hu, Z.; Zhou, L.; Chen, Z.; Jiang, Y.; Qian, X. Encapsulating CoS2-CoSe2 Heterostructured Nanocrystals in N-Doped Carbon Nanocubes as Highly Efficient Counter Electrodes for Dye-Sensitized Solar Cells. Dalton Trans. 2018, 47, 5236–5244. [Google Scholar] [CrossRef]
  41. Gao, M.-R.; Yao, W.-T.; Yao, H.-B.; Yu, S.-H. Synthesis of Unique Ultrathin Lamellar Mesostructured CoSe2-Amine (Protonated) Nanobelts in a Binary Solution. J. Am. Chem. Soc. 2009, 131, 7486. [Google Scholar] [CrossRef] [PubMed]
  42. Zheng, Y.-R.; Wu, P.; Gao, M.-R.; Zhang, X.-L.; Gao, F.-Y.; Ju, H.-X.; Wu, R.; Gao, Q.; You, R.; Huang, W.-X.; et al. Doping-Induced Structural Phase Transition in Cobalt Diselenide Enables Enhanced Hydrogen Evolution Catalysis. Nat. Commun. 2018, 9, 2533. [Google Scholar] [CrossRef] [PubMed]
  43. Yuan, H.; Peng, H.-J.; Li, B.-Q.; Xie, J.; Kong, L.; Zhao, M.; Chen, X.; Huang, J.-Q.; Zhang, Q. Conductive and Catalytic Triple-Phase Interfaces Enabling Uniform Nucleation in High-Rate Lithium-Sulfur Batteries. Adv. Energy Mater. 2019, 9, 1802768. [Google Scholar] [CrossRef]
  44. Ye, Z.; Jiang, Y.; Li, L.; Wu, F.; Chen, R. A High-Efficiency Cose Electrocatalyst with Hierarchical Porous Polyhedron Nanoarchitecture for Accelerating Polysulfides Conversion in Li-S Batteries. Adv. Mater. 2020, 32, 2002168. [Google Scholar] [CrossRef] [PubMed]
  45. Lei, J.; Fan, X.-X.; Liu, T.; Xu, P.; Hou, Q.; Li, K.; Yuan, R.-M.; Zheng, M.-S.; Dong, Q.-F.; Chen, J.-J. Single-Dispersed Polyoxometalate Clusters Embedded on Multilayer Graphene as a Bifunctional Electrocatalyst for Efficient Li-S Batteries. Nat. Commun. 2022, 13, 202. [Google Scholar] [CrossRef] [PubMed]
Materials 16 03992 g001 550

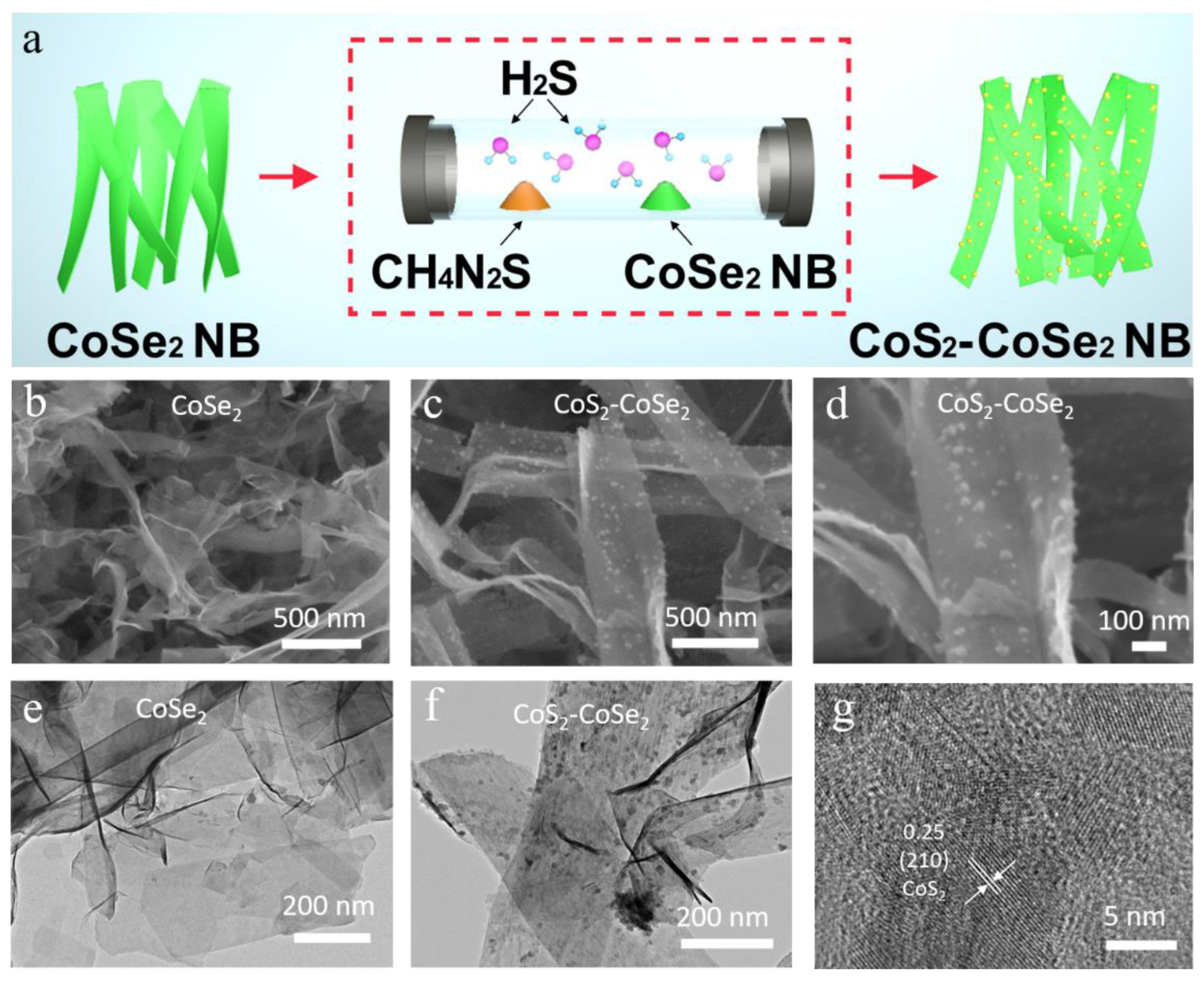

Figure 1. (a) Schematic diagram of the synthesis process of CoS2-CoSe2; SEM images of (b) CoSe2 and (c) CoS2-CoSe2; (d) SEM image of CoS2-CoSe2; TEM images of (e) CoSe2 and (f) CoS2-CoSe2; (g) HR-TEM image of CoS2-CoSe2.
Figure 1. (a) Schematic diagram of the synthesis process of CoS2-CoSe2; SEM images of (b) CoSe2 and (c) CoS2-CoSe2; (d) SEM image of CoS2-CoSe2; TEM images of (e) CoSe2 and (f) CoS2-CoSe2; (g) HR-TEM image of CoS2-CoSe2.
Materials 16 03992 g001
Materials 16 03992 g002 550

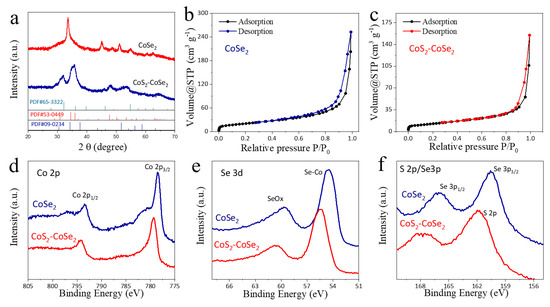

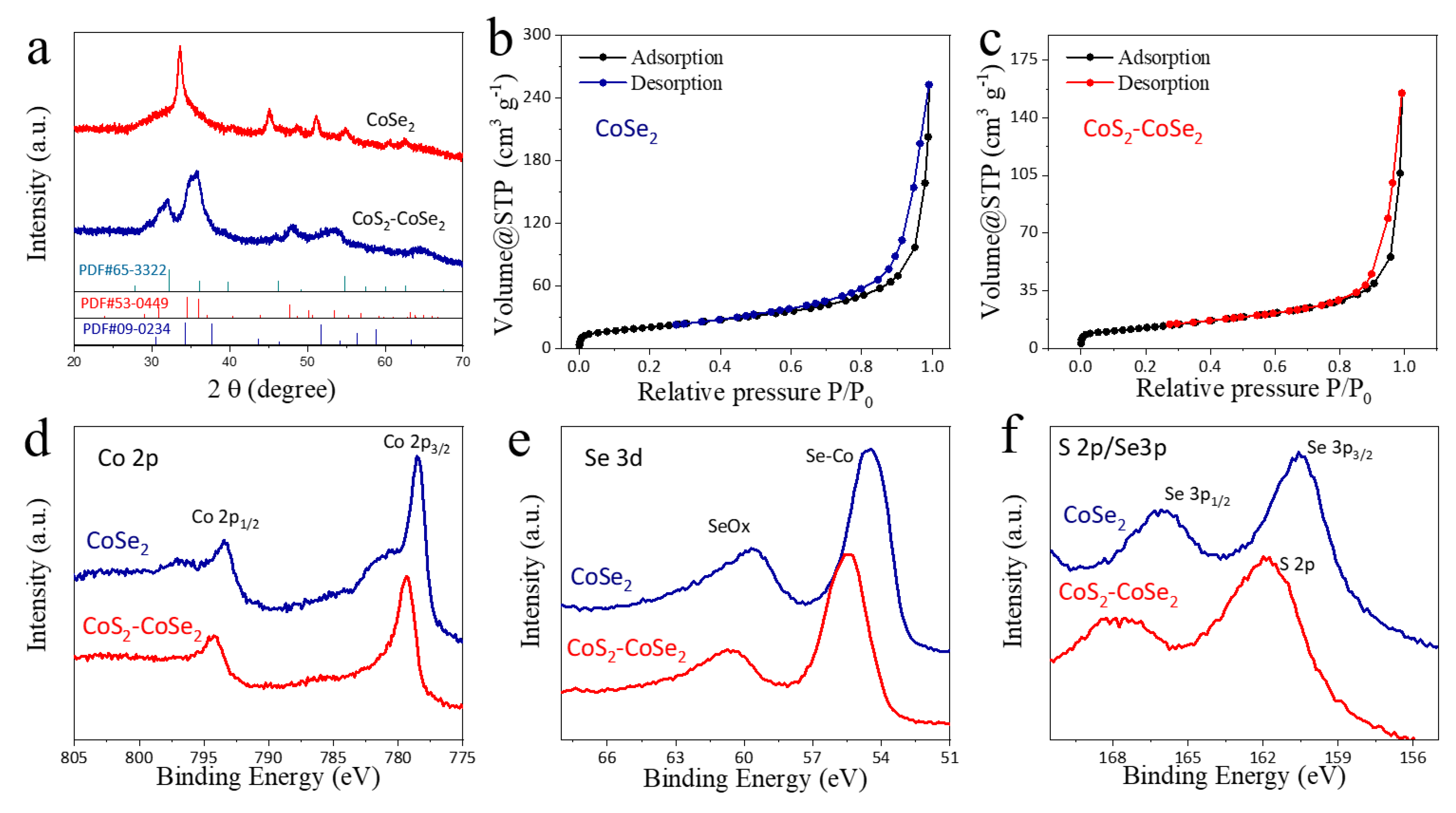

Figure 2. XRD patterns of (a) CoSe2 and CoS2-CoSe2; nitrogen adsorption and desorption curves of (b) CoSe2 and (c) CoS2-CoSe2; XPS spectra of (d) Co 2p; (e) Se 3d; and (f) S 2p of CoSe2 and CoS2-CoSe2.
Figure 2. XRD patterns of (a) CoSe2 and CoS2-CoSe2; nitrogen adsorption and desorption curves of (b) CoSe2 and (c) CoS2-CoSe2; XPS spectra of (d) Co 2p; (e) Se 3d; and (f) S 2p of CoSe2 and CoS2-CoSe2.
Materials 16 03992 g002
Materials 16 03992 g003 550

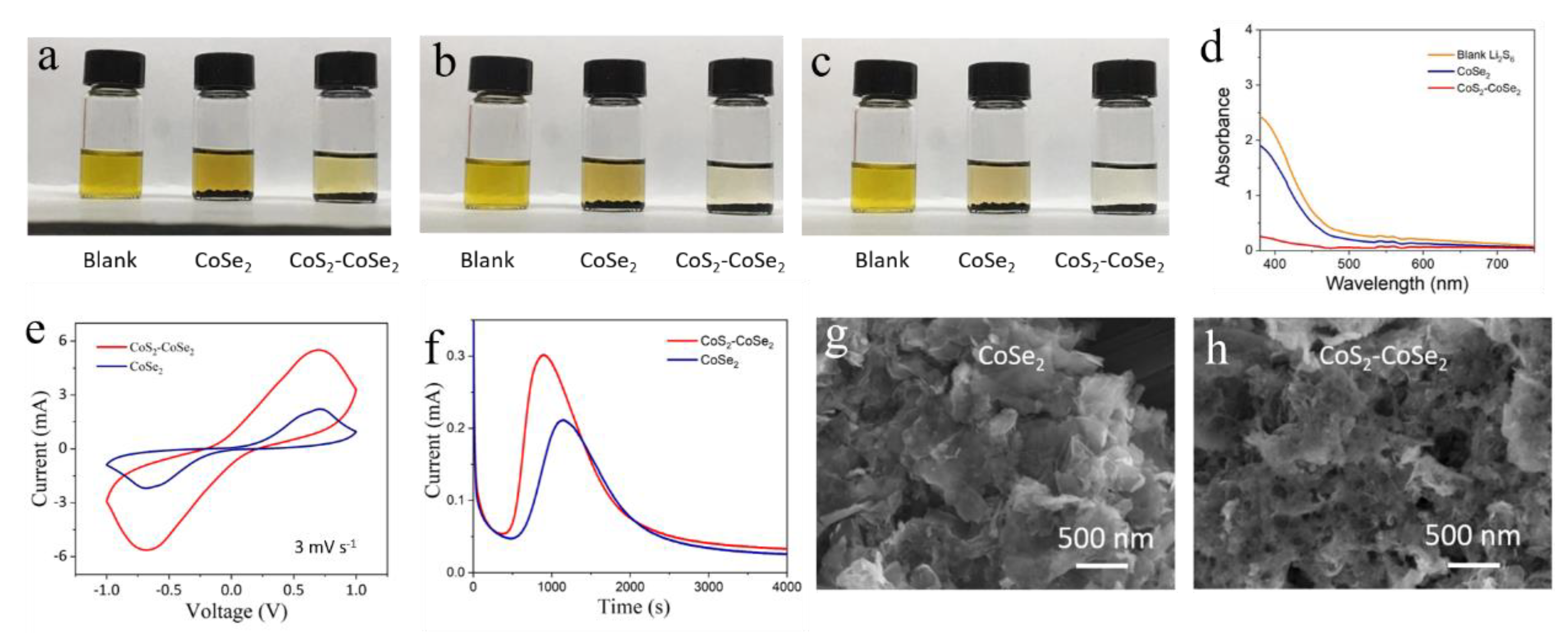

Figure 3. Digital photographs of Li2S6 adsorption test of CoSe2 and CoS2-CoSe2 at different times: (a) 0.5 h; (b) 3 h; (c) 5 h; (d) UV−vis spectra of the Li2S6 solution after 5 h of adsorption; (e) CV curves of CoSe2 and CoS2-CoSe2 symmetrical cells; (f) potentiostatic discharge profiles of the cells with CoSe2 and CoS2-CoSe2. Electrode morphology of (g) CoSe2 and (h) at the beginning of deposition.
Figure 3. Digital photographs of Li2S6 adsorption test of CoSe2 and CoS2-CoSe2 at different times: (a) 0.5 h; (b) 3 h; (c) 5 h; (d) UV−vis spectra of the Li2S6 solution after 5 h of adsorption; (e) CV curves of CoSe2 and CoS2-CoSe2 symmetrical cells; (f) potentiostatic discharge profiles of the cells with CoSe2 and CoS2-CoSe2. Electrode morphology of (g) CoSe2 and (h) at the beginning of deposition.
Materials 16 03992 g003
Materials 16 03992 g004 550

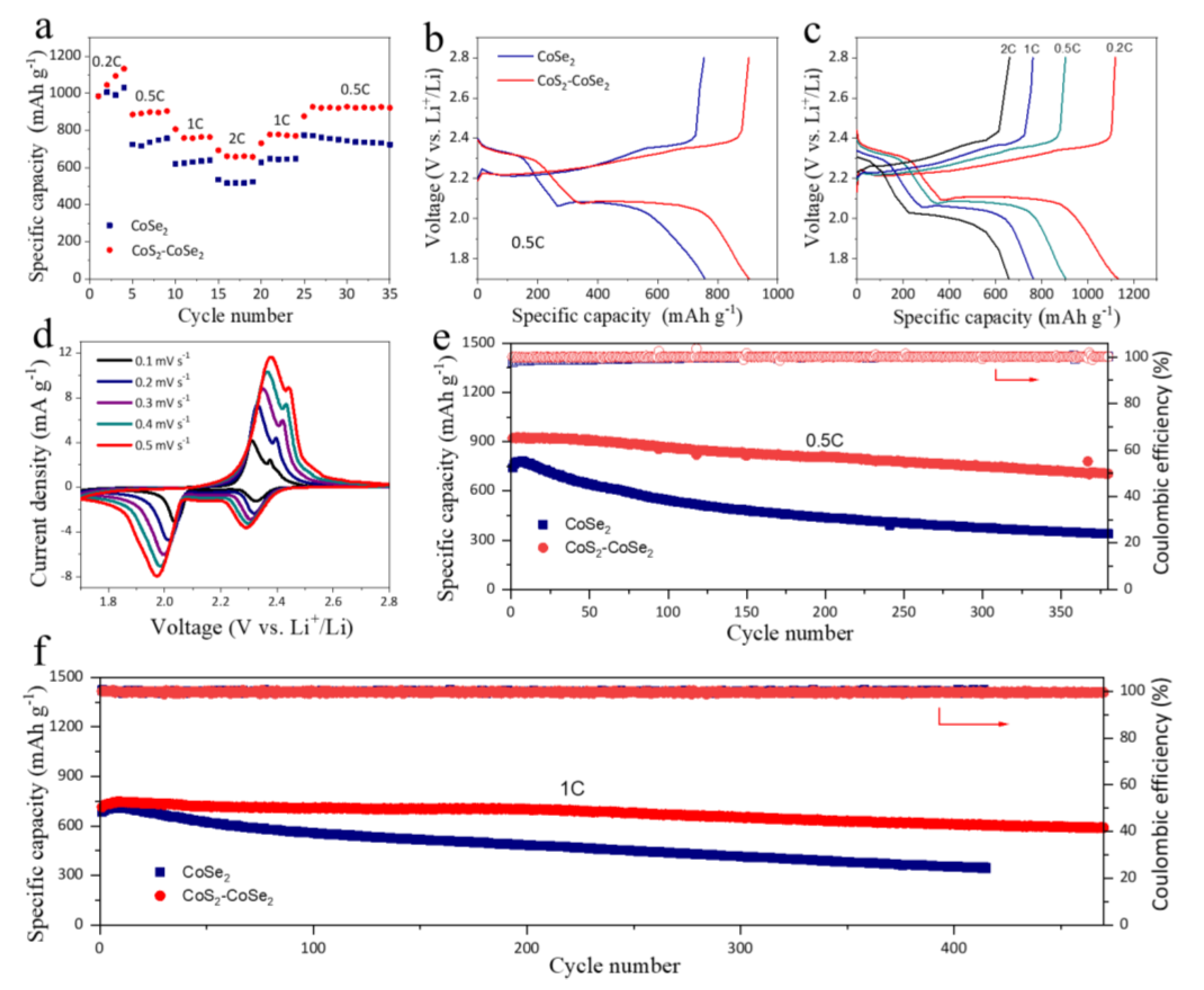

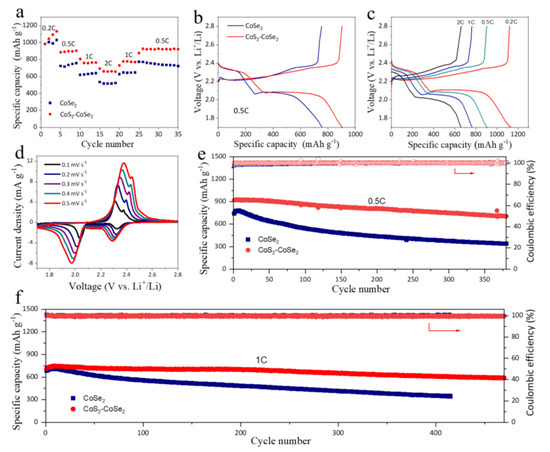

Figure 4. (a) Rate performance of different batteries at different current densities from 0.2 to 2 C. (b) Comparison of charge–discharge curves of batteries using different separators at a current density of 0.5 C. (c) Charge–discharge curves of battery using CoS2-CoSe2/GN separator at different current densities. (d) CV curves of cell using CoS2-CoSe2/GN separator at different scan speeds. The cycling performance of batteries using CoS2-CoSe2/GN and CoSe2/GN separators at (e) 0.5 C and (f) 1 C, the arrows represent the coulombic efficiency.
