Article

Forced Gradient Copolymer for Rational Design of Mussel-Inspired Adhesives and Dispersants

by
Takehiro Fujita
1,2,
Masami Shuta
1,
Mika Mano
1,
Shinnosuke Matsumoto
3,
Atsushi Nagasawa
3,
Akihiro Yamada
3 and
Masanobu Naito
1,2,*
1
Data-Driven Polymer Design Group, Research and Services Division of Materials Data and Integrated System (MaDIS), National Institute for Materials Science (NIMS), Ibaraki 305-0047, Japan
2
Program in Materials Science and Engineering, Graduate School of Pure and Applied Sciences, University of Tsukuba, Ibaraki 305-8577, Japan
3
Oleo & Speciality Chemicals Research Lab., NOF Corporation, Hyogo 660-0095, Japan
*
Author to whom correspondence should be addressed.
Materials 2023, 16(1), 266; https://doi.org/10.3390/ma16010266
Submission received: 18 November 2022 / Revised: 21 December 2022 / Accepted: 22 December 2022 / Published: 27 December 2022
(This article belongs to the Special Issue Advanced Polymeric Materials: Synthesis, Properties, and Applications)
Browse Figures
Versions Notes

Abstract

:
In recent years, there has been considerable research into functional materials inspired by living things. Much attention has been paid to the development of adhesive materials that mimic the adhesive proteins secreted by a mussel’s foot. These mussel-inspired materials have superior adhesiveness to various adherents owing to the non-covalent interactions of their polyphenolic moieties, e.g., hydrogen bonding, electrostatic interactions, and even hydrophobic interactions. Various factors significantly affect the adhesiveness of mussel-inspired polymers, such as the molecular weight, cross-linking density, and composition ratio of the components, as well as the chemical structure of the polyphenolic adhesive moieties, such as l-3,4-dihydroxyphenylalanine (l-Dopa). However, the contributions of the position and distribution of the adhesive moiety in mussel-inspired polymers are often underestimated. In the present study, we prepared a series of mussel-inspired alkyl methacrylate copolymers by controlling the position and distribution of the adhesive moiety, which are known as “forced gradient copolymers”. We used a newly designed gallic-acid-bearing methacrylate (GMA) as the polyphenolic adhesive moiety and copolymerized it with 2-ethylhexyl methacrylate (EHMA). The resulting forced gradient adhesive copolymer of GMA and EHMA (poly(GMA-co-EHMA), Poly1) was subjected to adhesion and dispersion tests with an aluminum substrate and a BaTiO3 nanoparticle in organic solvents, respectively. In particular, this study aims to clarify how the monomer position and distribution of the adhesive moiety in the mussel-inspired polymer affect its adhesion and dispersion behavior on a flat metal oxide surface and spherical inorganic oxide surfaces of several tens of nanometers in diameter, respectively. Here, forced gradient copolymer Poly1 consisted of a homopolymer moiety of EHMA (Poly3) and a random copolymer moiety of EHMA and GMA (Poly4). The composition ratio of GMA and the molecular weight were kept constant among the Poly1 series. Simultaneous control of the molecular lengths of Poly3 and Poly4 allowed us to discuss the effects on the distribution of GMA in Poly1. Poly1 exhibited apparent distribution dependency with regard to the adhesiveness and the dispersibility of BaTiO3. Poly1 showed the highest adhesion strength when the composition ratio of GMA was approximately 9 mol% in the portion of the Poly4 segment. In contrast, the block copolymer consisting of the Poly3 segment and Poly4 segment with only adhesive moiety 1 showed the lowest viscosity for dispersion of BaTiO3 nanoparticles. These results indicate that copolymers with mussel-inspired adhesive motifs require the proper design of the monomer position and distribution in Poly1 according to the shape and characteristics of the adherend to maximize their functionality. This research will facilitate the rational design of bio-inspired adhesive materials derived from plants that outperform natural materials, and it will eventually contribute to a sustainable circular economy.

1. Introduction

Non-human living things have a variety of capabilities that surpass those of humans and enable them to remain active even in the harshest of environments. Such superior capabilities have inspired the creation of biomimetic materials [1,2]. For example, the adhesive capability of a mussel’s foot has been studied extensively. It is well known that catechol, which is a polyphenol, is expressed in the proteins secreted by a mussel’s foot. The byssus, which is a bundle of filaments secreted by many species of bivalve mollusk, plays an important role in underwater adhesion to target surfaces. It achieves this via non-covalent interactions, such as hydrogen bonding, electrostatic interactions, chelation, hydrophobic interactions, and oxidative cross-linking [3,4,5]. A variety of mussel-inspired adhesives that mimic a mussel’s adhesion mechanism have been developed by introducing a catechol moiety into various types of polymers, such as polypeptides [6,7], polyethylene glycol [8], polyacrylates [9,10,11,12,13,14], and polystyrene [15,16,17,18,19]. These studies have revealed that the adhesive capabilities of mussel-inspired polymers are significantly affected by their primary structures. For example, Wilker and co-workers [20] prepared poly((3,4-dihydroxystyrene)-co-styrene) copolymers with various molecular weights by living anionic polymerization. They found that the adhesive strength of the copolymer increases linearly as a function of its molecular weight in the range of 20,000–100,000 kDa. Similarly, Kohri and co-workers [21] reported that branched poly(N-(2-(2,2-dimethylbenzo-1,3-dioxol-5-yl)ethyl)-acrylamide) prepared by controlled polymerization has superior adhesion properties to similar polymers with linear structures. Ejima and co-workers [22,23,24,25] investigated the effect of the number of aromatic hydroxyl groups on the benzene rings of the adhesive moieties in such copolymers. They found that the adhesion capability increases as the number of OH groups on the polyphenol groups increases. However, it is still unclear how the position and distribution of the adhesive moieties in such polymers affect their adhesiveness, despite the fact that mussel-foot proteins have been shown to contribute profoundly to the l-3,4-dihydroxyphenylalanine (l-Dopa) sequence, not only in regulating the binding strength of l-Dopa residues but also in achieving adaptability to various surfaces [26,27].
Within this context, we have attempted to demonstrate the effects of the monomer position and distribution of the adhesive moieties in mussel-inspired adhesive polymers on their adhesion and dispersion capabilities. To realize this, we designed a gallic-acid-bearing methacrylate monomer (1) that has the potential as an adhesive moiety (Scheme 1A) [12,14]. To demonstrate how the monomer position and distribution of 1 affect the adhesion and dispersion capabilities of a mussel-inspired adhesive polymer, we focused on a forced gradient copolymer (FGCP) [28,29]. An FGCP is prepared by controlling the timing of the addition of the second monomer during the polymerization of the first monomer (Scheme S1). It allows the compatibility of immiscible polymer blends or the stability of emulsions/dispersions to be systematically investigated.
In this study, to clearly characterize the position and distribution of 1 in poly(1-co-EHMA) (Poly1, EHMA = 2-ethylhexyl methacrylate, 1 = gallic-acid-bearing methacrylate), a series of Poly1 copolymers with different molecular lengths of the homo- and random polymer segments was prepared (Scheme S1). The resulting forced gradient Poly1 copolymers were subjected to adhesive tests on aluminum substrates and dispersion tests with nanoparticles of barium titanate (BaTiO3) perovskite oxides (50 nm in average diameter) in organic solvents (Scheme 1A). Here, the aluminum substrate and BaTiO3 nanoparticle were used as a flat metal oxide surface and a spherical inorganic oxide surface, respectively. The adhesion and dispersion capabilities were significantly affected by the position and distribution of 1 in Poly1 in different ways.

2. Materials and Methods

2.1. General

All of the reactions involving the oxygen- and moisture-sensitive compounds were carried out in a dry reaction vessel under nitrogen or argon. The reaction mixtures were degassed using the freeze–pump–thaw method before the radical polymerization reactions commenced. Flash column chromatography was performed with a silica gel (60N, spherical neutral; Kanto Chemical Co., Inc., Tokyo, Japan). Analytical thin-layer chromatography was performed with a silica gel coated with fluorescent indicator F254 (silica gel 60 F254, Art 5715, 0.25 mm, Merck, Darmstadt, Germany).

2.2. Materials

Triethyl silyl chloride, N,N-dimethylformamide (super-dehydrated), NaHCO3, tetrabutylammonium fluoride, tetrahydrofuran solution (~1 mol/L), acetic acid, and BaTiO3 were purchased from FUJIFILM Wako Pure Chemical Co.(Osaka, Japan)., and they were used as received. Imidazole was purchased from Tokyo Chemical Industry Co., Ltd (Tokyo, Japan)., and it was used as received. 1,2-Dichloroethane (super-dehydrated) was purchased from Kanto Chemical Co., Inc., and it was used as received. 2-Ethylhexyl methacrylate was purchased from FUJIFILM Wako Pure Chemical Co., and it was passed through an A2O3 column before use to remove the radical inhibitor. 2-Cyano-2-propyl dodecyl trithiocarbonate was purchased from Sigma-Aldrich Co., and it was used as received. 2,2′-Azobisisobutyronitrile was purchased from FUJIFILM Wako Pure Chemical Co., and it was recrystallized from methanol before use. 1 was provided by NOF CORPORATION (Hyogo, Japan).

2.3. Preparation of the Mussel-Inspired Forced Gradient Copolymers

To investigate the forced gradient adhesive moiety in adhesive polymers, we designed gallic-acid-bearing methacrylate monomer 1 that has the potential as an adhesive moiety (Scheme 1A). A galloyl group with three phenolic hydroxyl groups is expected to show greater adhesiveness than a catechol group with two hydroxyl groups (such as in l-Dopa), owing to the greater number of vicinal hydroxyl groups in the benzene ring [22,23,24,25]. From the viewpoint of practical application, gallic acid is more affordable than l-Dopa and its derivatives.
In a previous study, we reported the rational design of a mussel-inspired adhesive comprising a dopamine-functionalized copolymer (Poly2). We varied the alkyl-chain lengths/structural isomers of the alkyl methacrylate comonomers and their ratio with dopamine-functionalized methacrylamide 2 (Scheme 1B) [14]. The resulting EHMA-based adhesive copolymer with 8 mol% dopamine exhibited tough, strong, and ductile adhesive properties. The relatively long and branched alkyl chain of EHMA is also expected to prevent oxidation of the catechol unit through hydrophobic interactions [30]. Here, we designed a gallic-acid-functionalized adhesive polymer (Poly1) based on Poly2 because gallic acid, which has three hydroxyl groups, confers greater adhesiveness than l-Dopa, which has two hydroxyl groups [22,23,24,25]. Poly1 copolymers were synthesized from EHMA and 1 by varying the position and distribution of 1 (Figure 1).
We prepared a series of gallic-acid-bearing Poly1 copolymers by reversible addition–fragmentation chain-transfer polymerization. The resulting Poly1 copolymers were characterized by proton nuclear magnetic resonance (1H NMR) spectroscopy and gel permeation chromatography (GPC). The detailed procedures used in the present study are described in the Supporting Information, and the characteristics of the copolymers are summarized in Table 1. In the Poly1a–1e copolymers, the ratio of 1 to EHMA and the degree of polymerization (Dp) were standardized to 7:93 and 200, respectively. Here, Poly1a and Poly1e correspond to random and diblock copolymers of EHMA and 1, respectively. The Poly1b–1d FGCPs comprised two domains: a homopolymer domain of EHMA (Poly3) and a random copolymer domain of EHMA and 1 (Poly4). Here, Dp of the Poly3 segment in Poly1b–1d was varied (49, 98, and 147). It is noteworthy that, in this system, the composition ratio of 1 in the Poly4 domain can be manipulated by tuning Dp of the Poly3 domain. This allows a systematic evaluation of the adhesive capability of 1 regarding the monomer position and distribution of adhesive moiety 1 in the Poly1 series.

2.4. Adhesion Test

We evaluated the adhesive strengths of the Poly1 copolymers by butt tensile tests using a centrifugal adhesion test analyzer (Supplementary Materials, Figure S2A) (LUMiFrac; LUM GmbH, Germany). Each Poly1 copolymer was coated on an aluminum butt at a coverage rate of 9.4 mg·mm−2, and the coated area was pre-cured at 60 °C to prevent unexpected void formation. The resulting Poly1-coated aluminum butt was placed on an aluminum plate, and the specimen was then cured at 80 or 120 °C for 1 h (Figure S1). From five to eight samples were loaded simultaneously into the measuring chamber (Figure S2B). A centrifugal force was applied to each test specimen at 5 N·s−1 and ambient temperature. The adhesive strength (MPa) was determined from the adhesive force (N) when bonding failure occurred divided by the area (mm2) of Poly1 applied to the aluminum butt specimen (Table 1).

2.5. Dispersion Test

2.5.1. Dispersion Test Evaluated by the Naked Eye

A mixture comprising BaTiO3 nanoparticles (50 mg, 0.21 mmol), Poly1 (25 mg, ~5.0 × 10−4 mmol), and chloroform (5 mL) was sonicated for 60 min, and the resulting mixture was stirred at room temperature. The ability of the Poly1 copolymers to act as dispersants was evaluated by the naked eye.

2.5.2. Dispersion Test Evaluated Using a Rheometer

A mixture comprising BaTiO3 nanoparticles (10 g, 43 mmol), Poly1 (10 mg, ~2.0 × 10−4 mmol), and 1,1,2,2-tetrachloroethane (7.5 mL) was stirred at a shear rate of 1000 s−1, and the viscosity of the resulting mixture was monitored at a shear rate of 10–100 s−1 at room temperature by a rheometer (MCR302; Anton-Paar, Austria).

3. Results

3.1. Effect of the Monomer Position on the Adhesiveness

First, to confirm the ability of gallic-acid-functionalized methacrylate monomer 1 to act as an adhesive moiety, we carried out butt tensile tests on Poly1a, Poly2, and Poly3 using a centrifugal adhesion test analyzer. Poly2 was prepared by free-radical copolymerization of 2 and EHMA according to our previous report so that molar ratio of 2 in the copolymer was 8 mol% (see the Supporting Information) [15]. Poly3, which did not contain 1, was used as a model polymer. Consequently, Poly1a exhibited similar adhesive strength to Poly2 (7.9 and 8.8 MPa, respectively). In contrast, Poly3 showed relatively low adhesive strength (2.8 MPa), suggesting that 1 acted as an adhesive moiety in a similar manner to 2. Furthermore, Poly1a and Poly2, which both contained polyphenolic adhesive moieties, exhibited cohesive failure resulting from strong interactions with the oxidized aluminum surface (Figure S3). However, Poly3 exhibited surface failure, probably owing to the lower adhesiveness than the adherend. Next, we subjected Poly1 copolymers comprising 1 at various positions and with different distributions (Poly1b–1e) to butt adhesive tests. Note that Poly1b–1d consisted of two domains: Poly3 comprising a homopolymer of EHMA and Poly4 comprising a random copolymer of EHMA and 1. The Dp values and composition ratios (mol%) of 1 were almost identical among the Poly1 copolymers, whereas the ratios of Dp between Poly3 and Poly4 varied. The tensile strength values of the copolymers in megapascals are listed in Table 2.
To further clarify the effects of the position and distribution of 1 on the adhesiveness of Poly1, we plotted the adhesive strength versus Dp of the Poly3 domain (Figure 2A) and the adhesive strength versus the ratio of 1 in the Poly4 domain (mol%, Figure 2B). The curve shown in Figure 2A is rather gradual and monomodal, whereas that in Figure 2B is steep, with a maximum of 9 mol%. These results provide important insights into the effects of the monomer position and distribution on adhesion. The fact that the adhesive strength changed by only 8–10 MPa, even when the Dp value varied from 0 to 50, indicates that a non-adhesive Poly3 domain at one end of the Poly1 copolymer did not have a marked effect on its adhesive performance, even if that domain occupied half of its total length. In contrast, the adhesive strength clearly indicated the dependency on the composition ratio of 1 in the Poly4 domain of Poly1. The adhesive strength of Poly1 reached a maximum when it contained 9 mol% 1, but it decreased sharply when the ratio of 1 exceeded that level. In a previous study, we found that the adhesive strength of Poly2 depends on the composition ratio of 2, and it reaches a maximum when the ratio is approximately 8 mol%. This arises from the balance between the polymer chain mobility and the adhesiveness conferred by the polyphenolic adhesive moiety dopamine. Considering that the same comonomer, EHMA, was used in Poly1, we believe that a similar phenomenon occurred in Poly1. Overall, the results of the adhesion tests on the forced gradient Poly1 copolymers indicated that in Poly4, the maximum adhesiveness was more dependent on the ratio of 1 than the domain length of non-adhesive Poly3.

3.2. Effect of the Monomer Position on the Dispersity

With the miniaturization of commercial electronic products and devices, the size of electronic components has become smaller than ever. BaTiO3 is widely used in electronic components, such as multilayer ceramic capacitors (MLCCs), owing to its high dielectric constant [30,31]. MLCCs with even higher capacitance, smaller size, and higher reliability are required. Reducing the thickness and grain size of the dielectric layer leads to an increase in the capacitance-to-volume ratio, but such measures lead to an increase in the electric-field strength applied to the dielectric layer. Therefore, it is important to improve the dispersibility of the dielectric ceramic nanoparticles and make a low-viscosity slurry of the ceramic nanoparticles to fabricate defect-free ceramic dielectric layers. In general, MLCCs are manufactured as follows. Powdered dielectric ceramics, mainly BaTiO3, are dispersed in aqueous/organic solvents to obtain a slurry, which is coated on a carrier film to prepare a green sheet (raw sheet). Here, the choice of the dispersant is crucial to obtain a low-viscosity slurry of ceramic nanoparticles because a multilayer structure is formed by screen printing the inner electrode patterns on the green sheet. Eventually, the stack is sintered at 1000–1400 °C. Various types of polymer dispersants are used for the dispersion of functional inorganic/organic nanoparticles [32]. Polymeric dispersants consist of a functional group that serves as an anchor and a soluble polymer chain. For a polymeric dispersant to adsorb on inorganic oxide (nano)particles, the anchor groups must be able to strongly adsorb to the (nano)particles. Much effort has been made to find suitable polymers for this purpose. Examples of typical functional groups for this purpose are amine, ammonium, and quaternary ammonium, carboxylic acid, sulfonic acid, and phosphoric acid groups [33,34,35,36]. l-Dopa has also been introduced at the terminus of polymer chains as the anchoring moiety, leading to a highly stable iron-oxide-nanoparticle colloidal suspension [37]. However, the position of the anchoring moiety in such polymer dispersants to create l-Dopa-functionalized polymers that are suitable as dispersants remains unclear. In the present study, we demonstrated the effects of the monomer position and distribution of 1 in Poly1 on the dispersibility of BaTiO3 nanoparticles in organic solvents. In brief, inorganic BaTiO3 nanoparticles (averaged diameter 50 nm) were added to chloroform to produce a dispersion with a BaTiO3 concentration of 8.4 × 10−2 mol·L−1. This dispersion was then sonicated for 60 min. The resulting suspension of BaTiO3 particles immediately produced a precipitate (Figure 3A). However, when 2.5 mL of a chloroform solution of Poly1a–1e (~2 × 10−4 mol·L−1) was added to the BaTiO3 suspension (2.5 mL) and the resulting mixture was successively sonicated for 60 min, the sediment-prone suspension of BaTiO3 particles turned into a stable dispersion, which could be stored for more than 24 h. Unlike Poly1a–1e, Poly3 did not exhibit any dispensability with regard to BaTiO3 nanoparticles using the same procedure. To quantitatively evaluate the dispersibility of Poly1 with regard to BaTiO3 nanoparticles, the viscosity of the dispersion of BaTiO3 was evaluated using a rheometer. First, the BaTiO3 nanoparticles were dispersed in 1,1,2,2-tetrachloroethane (5.7 mol·L−1) at a shear rate of 1000 s−1, and the viscosity of the resulting dispersion was monitored at shear rates of 10–100 s−1 (Figure 3B). The viscosity of the dispersion decreased exponentially from 589 to 165 Pa·s−1 as the shear rate increased from 10 to 100 s−1. However, a stable dispersion of BaTiO3 nanoparticles with a significantly lower viscosity was produced following the addition of ~2.0 × 10−4 mmol of Poly1a–1e. Moreover, it was obvious that the degree by which the viscosity decreased depended on the monomer sequence of the Poly1 copolymer used.
To further clarify the effect of the monomer position of Poly1 on the dispersibility of BaTiO3 at a shear rate of 100 s−1, we plotted the viscosity versus Dp of the domain of Poly3 (n) and the viscosity versus the composition ratio (mol%) of 1 in the domain of Poly4 in Poly1 (Figure 4). To our surprise, the viscosity behavior was completely different from that of the adhesive: the viscosity decreased linearly with Dp, whereas it decreased exponentially with the composition ratio of 1 in the Poly4 domain of Poly1. These results suggest that the adhesive moiety 1 should preferably be concentrated at one end of Poly1, and a longer Poly3 domain contributes to better dispersion.

3.3. Discussion

It is worth considering why the monomer position and distribution of Poly1 affected adhesion and dispersion in different ways. In the foot proteins secreted by mussels, the sequence of l-Dopa is known to be important for the adhesion ability [38]. However, despite the numerous reports of adhesive polymers inspired by mussel proteins, the relationship between the positions of the adhesive moieties, such as l-Dopa, and the adhesive properties has rarely been explored. We used the Poly2 series to identify an appropriate polymer design that maximizes the adhesive strength by systematically varying the alkyl-chain length of the methyl alkylate and the composition ratio of the l-Dopa monomer [14]. The maximum adhesive strength of Poly2 was achieved when the composition ratio of the l-Dopa monomer was approximately 8 mol% in EHMA as methyl alkylate. In addition, we found that the ductility of Poly2 was maximized in this combination, resulting in high adhesive strength. Given the chemical structure of Poly1, the Poly4 domain can be regarded as an analog of Poly2. Therefore, it is reasonable that the adhesive strength was maximized when the composition ratio of 1 in Poly4 was approximately 9 mol%, probably because of an appropriate combination of adhesive strength and ductility of the Poly4 domain (Figure 2B). In addition, when 1 is evenly located in Poly1, the adhesive monomer 1 not only contributes to adhesion to the adherend, but it also acts as a non-covalent cross-linkage among the gallic acid moieties (1), which may also contribute to the cohesion force. Indeed, the Poly3 domain without adhesive moiety 1 was found to have a negligible effect on the adhesive ability up to Dp of approximately 100 (Figure 2A). However, when the length of the Poly3 domain exceeds Dp = 100, adhesive monomer 1 is unevenly distributed at the end of poly1, making it difficult to cross-link the polymer chains by non-covalent bonds between adhesive monomers. Consequently, the cohesive force does not act on the entire adhesive layer, which is thought to lower the adhesive strength (Figure 5B).
When Poly1 was used as a dispersant for inorganic oxide nanoparticles, the adhesive Poly4 segment as an anchor moiety should strongly adsorb to the nanoparticle surface, while the soluble polymer moiety should be positioned to maximize the entropy. Considering that the viscosity of the dispersion of BaTiO3 nanoparticles linearly decreased as a function of Dp of Poly3, in the dispersion mechanism of the Poly1 series, adhesive moiety 1 in the Poly4 segment adsorbed to BaTiO3, and the remaining Poly3 at one end is thought to determine the dispersibility (Figure 4A). Figure 5C suggests a more detailed dispersion mechanism. The conformation of the adsorbed polymer is a major controlling factor in determining the stability and dispersibility of inorganic (nano)particles. In general, adsorbed polymers have three possible segments: (a) an interfacial segment (train), (b) a segment attached to the train at both ends (loop), and (c) a segment attached to the train at one end (tail) [32]. Effective stabilization requires high coverage, effective anchoring, elongated tails (and possibly loops), and a favorable solvent environment for the segments to tail and/or loop. Our polymer design of FGCP Poly1 allows systematic variation of the lengths of the trains, loops, and tails, and the adsorption conformation and thickness of the adsorption layer can be controlled. Thus, adhesive moiety 1 acts as the train parts, and the length of the loop parts can be manipulated by the composition ratio of adhesive moiety 1 in Poly4. The length of the tail parts can be controlled by Dp of Poly3. That is, when the composition ratio of adhesive moiety 1 in the Poly4 segment is low, Poly1 has a dominant loop conformation. Conversely, when the composition ratio of adhesive moiety 1 in the Poly4 segment is high, one end adsorbs to adhesive moiety 1, and the remaining portion behaves as a tail in a diblock polymer conformation. As a result, the viscosity decreases exponentially as the composition ratio of adhesive moiety 1 increases, in other words, as the Poly1 copolymer becomes more diblock in nature, as shown in Figure 4B. This result suggests that diblock polymers with 1 at one end are most suitable for the molecular design of BaTiO3 dispersants. Furthermore, the present method is also an effective way to efficiently search for the most suitable molecular design of a dispersant consisting of an anchor moiety and a soluble polymer moiety.

4. Conclusions

In the present study, we investigated how the monomer position and distribution of the adhesive component of a polymer affect its adhesive strength and dispersion capability to develop an adhesive material that mimics the behavior of a mussel’s foot. We synthesized various FGCPs comprising EHMA by carefully controlling the position and distribution of the gallic-acid-based adhesive component. A copolymer consisting of an EHMA homopolymer as the first domain and a random copolymer of EHMA/1 as the second domain showed the highest adhesion strength. A block copolymer consisting of Poly3 and Poly4 showed the greatest dispersion ability with regard to BaTiO3 nanoparticles. The results of the present research demonstrate the importance of the position and distribution of the monomers in the development of functional polymer materials. Because the adhesion and dispersion properties of Poly1 are comparable with those obtained in previous studies, we are considering potential applications of Poly1 as an adhesive and a dispersant. Furthermore, because the search for optimal sequences proposed in this paper is not limited to biomimetic materials, such as l-Dopa, FGCPs could facilitate the development of various functional polymer materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16010266/s1, Synthesis procedures of Poly1–3, preparation procedure of a test specimen for the adhesion test, Scheme S1:General synthesis method of a forced gradient copolymer; Figure S1: Preparation of a test specimen; Figure S2: (A) Photograph of LUMiFrac® (LUM GmbH, Germany). (B) Photograph of the measuring chamber; Figure S3: Photograph of the fracture surfaces of adhesion tests of (a) Poly1a, (b)Poly1b, (c)Poly1c, (d)Poly1d, (e)Poly1e and (f)Poly3; Figure S4: GPC profiles of (a) poly1b, (b) poly1c, (c) poly1d, and (d) poly1e; Figure S5: 1H NMR spectrum of 1’ in CDCl3; Figure S6: 13C NMR spectrum of 1’ in CDCl3; Figure S7: 1H NMR spectrum of poly1a in acetone; Figure S8: 1H NMR spectrum of poly1b in acetone; Figure S9: 1H NMR spectrum of poly1c in acetone; Figure S10: 1H NMR spectrum of poly1d in acetone; Figure S11: 1H NMR spectrum of poly1e in acetone; Figure S12: 1H NMR spectrum of poly3 in CDCl3.

Author Contributions

Conceptualization, T.F. and M.N.; data curation; T.F., M.S., M.M., S.M., A.N., and A.Y.; investigation, T.F., M.S., M.M., S.M., A.N., and A.Y.; resources, S.M., A.N., and A.Y.; writing—original draft preparation, T.F.; writing—review and editing T.F. and M.N.; supervision, M.N.; project administration, M.N.; funding acquisition, M.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Core Research for Evolutional Science and Technology (CREST) program “Revolution material development by fusion of strong experiments with theory/data science” of the Japan Science and Technology Agency (JST), Japan (grant number JPMJCR19J3).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Naoko Akimoto, Mariko Saito, and Kayoko Yamaguchi from the National Institute for Materials Science (NIMS) for synthesizing the monomers and copolymers.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lazarus, B.S.; Velasco-Hogan, A.; Río, T.G.-D.; Meyers, M.A.; Jasiuk, I. A review of impact resistant biological and bioinspired materials and structures. J. Mater. Res. Technol. 2020, 9, 15705–15738. [Google Scholar] [CrossRef]
  2. Wang, Y.; Naleway, S.E.; Wang, B. Biological and bioinspired materials: Structure leading to functional and mechanical performance. Bioact. Mater. 2020, 5, 745–757. [Google Scholar] [CrossRef] [PubMed]
  3. Almeida, M.; Reis, R.L.; Silva, T.H. Marine invertebrates are a source of bioadhesives with biomimetic interest. Mater. Sci. Eng. C 2019, 108, 110467. [Google Scholar] [CrossRef] [PubMed]
  4. Ryu, J.H.; Hong, S.; Lee, H. Bio-inspired adhesive catechol-conjugated chitosan for biomedical applications: A mini review. Acta Biomater. 2015, 27, 101–115. [Google Scholar] [CrossRef]
  5. Balkenende, D.W.; Winkler, S.; Messersmith, P.B. Marine-inspired polymers in medical adhesion. Eur. Polym. J. 2019, 116, 134–143. [Google Scholar] [CrossRef]
  6. Yu, M.; Deming, T.J. Synthetic Polypeptide Mimics of Marine Adhesives. Macromolecules 1998, 31, 4739–4745. [Google Scholar] [CrossRef]
  7. Saxer, S.; Portmann, C.P.; Tosatti, S.; Gademann, K.; Züreher, S.; Textor, M. Surface Assembly of Catechol-Functionalized Poly(L-lysine)-graftpoly(ethylene glycol) Copolymer on Titanium Exploiting Combined Electrostatically Driven Self-Organization and Biomimetic Strong Adhesion. Macromolecules 2010, 43, 1050–1060. [Google Scholar] [CrossRef]
  8. Murphy, J.L.; Vollenweider, L.; Xu, F.; Lee, B.P. Adhesive Performance of Biomimetic Adhesive-Coated Biologic Scaffolds. Biomacromolecules 2010, 11, 2976–2984. [Google Scholar] [CrossRef] [Green Version]
  9. Shao, H.; Bachus, K.N.; Stewart, R.J. A Water-Borne Adhesive Modeled after the Sandcastle Glue of P. californica. Macromol. Biosci. 2009, 9, 464–471. [Google Scholar] [CrossRef] [Green Version]
  10. Glass, P.; Chung, H.; Washburn, N.R.; Sittti, M. Enhanced Reversible Adhesion of Dopamine Methacrylamide-Coated Elas-tomer Microfibrillar Structures under Wet Conditions. Langmuir 2009, 25, 6607–6612. [Google Scholar] [CrossRef]
  11. Stepuk, A.; Halter, J.G.; Schaetz, A.; Grass, R.N.; Stark, W.J. Mussel-inspired load bearing metal–polymer glues. Chem. Commun. 2012, 48, 6238–6240. [Google Scholar] [CrossRef] [PubMed]
  12. Payra, D.; Naito, M.; Fujii, Y.; Yamada, N.L.; Hiromoto, S.; Singh, A. Bioinspired adhesive polymer coatings for efficient and versatile corrosion resistance. RSC Adv. 2015, 5, 15977–15984. [Google Scholar] [CrossRef]
  13. Lee, S.-B.; González-Cabezas, C.; Kim, K.-M.; Kim, K.-N.; Kuroda, K. Catechol-Functionalized Synthetic Polymer as a Dental Adhesive to Contaminated Dentin Surface for a Composite Restoration. Biomacromolecules 2015, 16, 2265–2275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Payra, D.; Fujii, Y.; Das, S.; Takaishi, J.; Naito, M. Rational design of a biomimetic glue with tunable strength and ductility. Polym. Chem. 2017, 8, 1654–1663. [Google Scholar] [CrossRef]
  15. Westwood, G.; Horton, T.N.; Wilker, J.J. Simplified Polymer Mimics of Cross-Linking Adhesive Proteins. Macromolecules 2007, 40, 3960–3964. [Google Scholar] [CrossRef]
  16. White, J.D.; Wilker, J.J. Underwater Bonding with Charged Polymer Mimics of Marine Mussel Adhesive Proteins. Macromolecules 2011, 44, 5085–5088. [Google Scholar] [CrossRef]
  17. Matos-Pérez, C.R.; Wilker, J.J. Ambivalent Adhesives: Combining Biomimetic Cross-Linking with Antiadhesive Oligo(ethylene glycol). Macromolecules 2012, 45, 6634–6639. [Google Scholar] [CrossRef] [Green Version]
  18. Matos-Pérez, C.R.; White, J.D.; Wilker, J.J. Polymer Composition and Substrate Influences on the Adhesive Bonding of a Biomimetic, Cross-Linking Polymer. J. Am. Chem. Soc. 2012, 134, 9498–9505. [Google Scholar] [CrossRef] [Green Version]
  19. Grewal, M.S.; Yabu, H. Biomimetic catechol-based adhesive polymers for dispersion of polytetrafluoroethylene (PTFE) na-noparticles in an aqueous medium. RSC Adv. 2020, 10, 4058–4063. [Google Scholar] [CrossRef]
  20. Jenkins, C.L.; Meredith, H.J.; Wilker, J.J. Molecular Weight Effects upon the Adhesive Bonding of a Mussel Mimetic Polymer. ACS Appl. Mater. Interfaces 2013, 5, 5091–5096. [Google Scholar] [CrossRef]
  21. Kohri, M.; Yamazaki, S.; Irie, S.; Teramoto, N.; Taniguchi, T.; Kishikawa, K. Adhesion Control of Branched Catecholic Polymers by Acid Stimulation. ACS Omega 2018, 3, 16626–16632. [Google Scholar] [CrossRef] [PubMed]
  22. Zhan, K.; Kim, C.; Sung, K.; Ejima, H.; Yoshie, N. Tunicate-Inspired Gallol Polymers for Underwater Adhesive: A Comparative Study of Catechol and Gallol. Biomacromolecules 2017, 18, 2959–2966. [Google Scholar] [CrossRef] [PubMed]
  23. Yu, J.; Cheng, B.; Ejima, H. Effect of molecular weight and polymer composition on gallol-functionalized underwater adhesive. J. Mater. Chem. B 2020, 8, 6798–6801. [Google Scholar] [CrossRef]
  24. Hino, Y.; Ejima, H. Tissue Adhesive Properties of Functionalized Chitosan: A Comparative Study of Phenol, Catechol and Gallol. J. Photopolym. Sci. Technol. 2020, 33, 123–127. [Google Scholar] [CrossRef]
  25. Cheng, B.; Yu, J.; Arisawa, T.; Hayashi, K.; Richardson, J.J.; Shibuta, Y.; Ejima, H. Ultrastrong underwater adhesion on diverse substrates using non-canonical phenolic groups. Nat. Commun. 2022, 13, 1–9. [Google Scholar] [CrossRef] [PubMed]
  26. Li, Y.; Liang, C.; Gao, L.; Li, S.; Zhang, Y.; Zhang, J.; Cao, Y. Hidden complexity of synergistic roles of Dopa and lysine for strong wet adhesion. Mater. Chem. Front. 2017, 1, 2664–2668. [Google Scholar] [CrossRef]
  27. Lu, Q.; Danner, E.; Waite, J.H.; Israelachvili, J.N.; Zeng, H.; Hwang, D.S. Adhesion of mussel foot proteins to different substrate surfaces. J. R. Soc. Interface 2013, 10, 20120759. [Google Scholar] [CrossRef]
  28. Beginn, U. Gradient copolymers. Colloid Polym. Sci. 2008, 286, 1465–1474. [Google Scholar] [CrossRef]
  29. Jellema, E.; Jongerius, A.L.; van Ekenstein, G.A.; Mookhoek, S.D.; Dingemans, T.J.; Reingruber, E.M.; Chojnacka, A.; Schoenmakers, P.J.; Sprenkels, R.; van Eck, E.R.H.; et al. Rhodium-Mediated Stereospecific Carbene Polymerization: From Homopolymers to Random and Block Copolymers. Macromolecules 2010, 43, 8892–8903. [Google Scholar] [CrossRef]
  30. Chu, L.W.; Prakash, K.N.; Tsai, M.-T.; Lin, I.-N. Dispersion of nano-sized BaTiO3 powders in nonaqueous suspension with phosphate ester and their applications for MLCC. J. Eur. Ceram. Soc. 2008, 28, 1205–1212. [Google Scholar] [CrossRef]
  31. Chen, K.-Y.; Huang, C.-W.; Wu, M.; Wei, W.-C.J.; Hsueh, C.-H. Advanced characterization of mechanical properties of mul-tilayer ceramic capacitors. J. Mater. Sci.: Mater. Electron. 2014, 25, 627–634. [Google Scholar]
  32. Farrokhpay, S. A review of polymeric dispersant stabilization of titania pigment. Adv. Colloid Interface Sci. 2009, 151, 24–32. [Google Scholar] [CrossRef] [PubMed]
  33. Farrokhpay, S.; Morris, G.E.; Fornasiero, D.; Self, P. Effects of chemical functional groups on the polymer adsorption behavior onto titania pigment particles. J. Colloid Interface Sci. 2004, 274, 33–40. [Google Scholar] [CrossRef] [PubMed]
  34. Pattanaik, M.; Rout, T.; Sengupta, D. Electrokinetics of TiO2 in the interpretation of its dispersion characteristics. Surf. Coatings Int. 2000, 83, 592–596. [Google Scholar] [CrossRef]
  35. Chen, H.T.; Ravishankar, S.A.; Farinato, R.S. Rational polymer design for solid-liquid separations in mineral processing ap-plication. Int. J. Miner. Process 2003, 72, 75–86. [Google Scholar] [CrossRef]
  36. Creutz, S.; Jerome, R.; Kaptijn, G.M.P.; Werf, A.W.; Akkerman, J.M. Design of polymeric dispersants for waterborne coatings. J. Coatings Technol. 1998, 70, 41–46. [Google Scholar] [CrossRef]
  37. Amstad, E.; Gillich, T.; Bilecka, I.; Textor, M.; Reimhult, E. Ultastable Iron Oxide Nanoparticle Colloidal Suspensions Using Dispersants with Catechol-Derived Anchor Groups. Nano Lett. 2009, 9, 4042–4048. [Google Scholar] [CrossRef]
  38. Ou, X.; Xue, B.; Lao, Y.; Wutthinitikornkit, Y.; Tian, R.; Zou, A.; Yang, L.; Wang, W.; Cao, Y.; Li, J. Structure and sequence features of mussel adhesive protein lead to its salt-tolerant adhesion ability. Sci. Adv. 2020, 6, eabb7620. [Google Scholar] [CrossRef]
Materials 16 00266 sch001 550

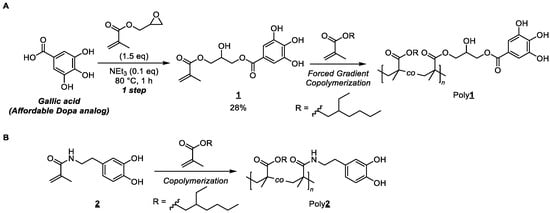

Scheme 1. (A) One-pot synthesis of methacrylate-bearing gallic acid monomer 1 and preparation of poly(1-co-(EHMA) (Poly1, EHMA = 2-ethylhexyl methacrylate, 1 = gallic-acid-bearing methacrylate). (B) Structure and chemical synthesis of Poly2.
Scheme 1. (A) One-pot synthesis of methacrylate-bearing gallic acid monomer 1 and preparation of poly(1-co-(EHMA) (Poly1, EHMA = 2-ethylhexyl methacrylate, 1 = gallic-acid-bearing methacrylate). (B) Structure and chemical synthesis of Poly2.
Materials 16 00266 sch001
Materials 16 00266 g001 550

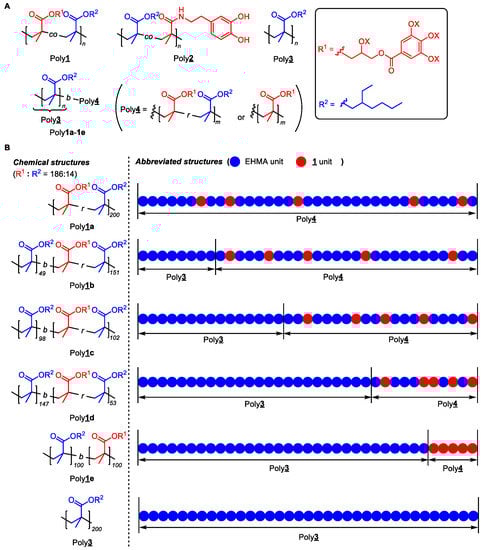

Figure 1. (A) Summary of the chemical structures of the polymers in this work. Poly3 is a homopolymer domain of EHMA. Poly4 is a random copolymer domain of EHMA and 1 in Poly1a–1e. (B) Chemical and abbreviated structures of synthesized copolymers Poly1a–1e.
Figure 1. (A) Summary of the chemical structures of the polymers in this work. Poly3 is a homopolymer domain of EHMA. Poly4 is a random copolymer domain of EHMA and 1 in Poly1a–1e. (B) Chemical and abbreviated structures of synthesized copolymers Poly1a–1e.
Materials 16 00266 g001
Materials 16 00266 g002 550
Figure 2. Relationships between the adhesive strength (MPa) and the (A) degree of polymerization (Dp) of Poly3 (n) and (B) ratio of 1 in Poly4 (mol%).
Figure 2. Relationships between the adhesive strength (MPa) and the (A) degree of polymerization (Dp) of Poly3 (n) and (B) ratio of 1 in Poly4 (mol%).
Materials 16 00266 g002
Materials 16 00266 g003 550

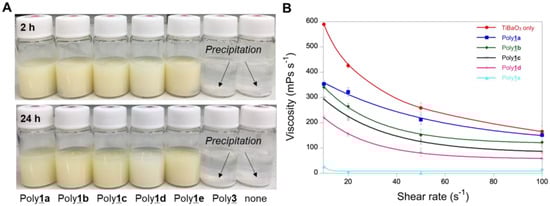

Figure 3. (A) Photographs of BaTiO3 dispersed in a chloroform solution in the presence of Poly1a–1e. (B) Relationships between the shear rate and the viscosity in dispersions comprising the copolymers, BaTiO3, and 1,1,2,2-tetrachloroethane.
Figure 3. (A) Photographs of BaTiO3 dispersed in a chloroform solution in the presence of Poly1a–1e. (B) Relationships between the shear rate and the viscosity in dispersions comprising the copolymers, BaTiO3, and 1,1,2,2-tetrachloroethane.
Materials 16 00266 g003
Materials 16 00266 g004 550

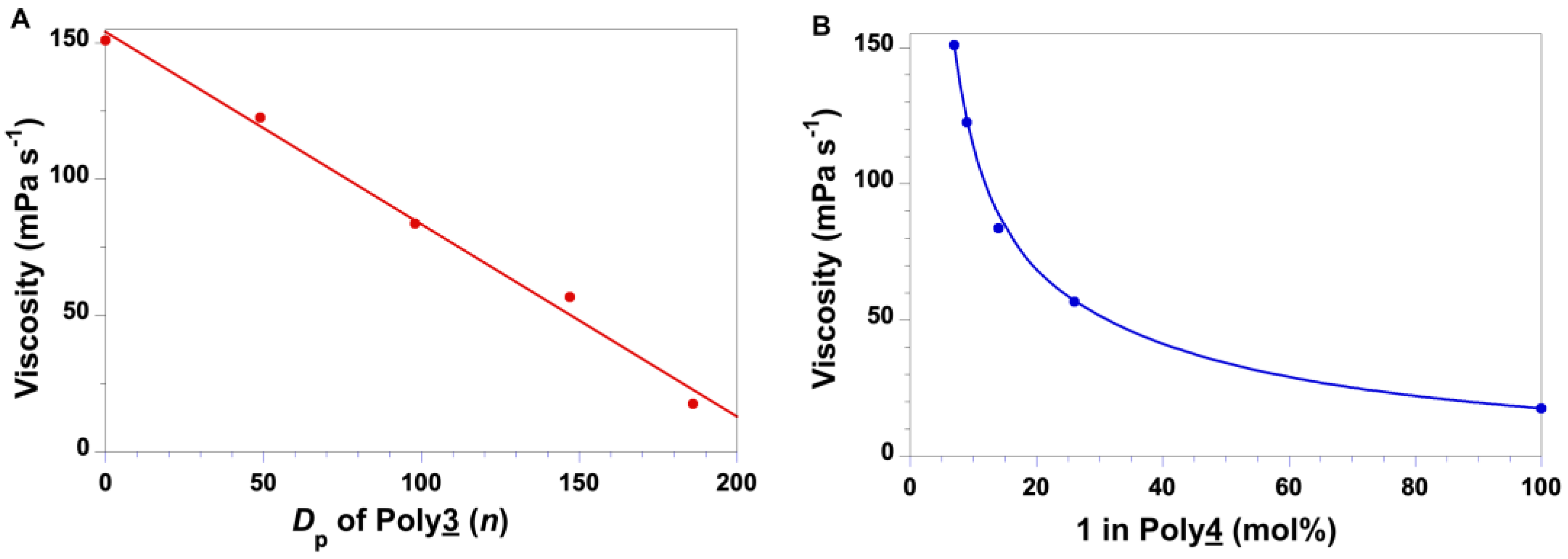

Figure 4. Relationships between the viscosity (mPa s−1) and (A) Dp of Poly3 (n) and (B) the composition ratio of 1 in the Poly4 domain of Poly1 (mol%) at a shear rate of 100 s−1.
Figure 4. Relationships between the viscosity (mPa s−1) and (A) Dp of Poly3 (n) and (B) the composition ratio of 1 in the Poly4 domain of Poly1 (mol%) at a shear rate of 100 s−1.
Materials 16 00266 g004
Materials 16 00266 g005 550

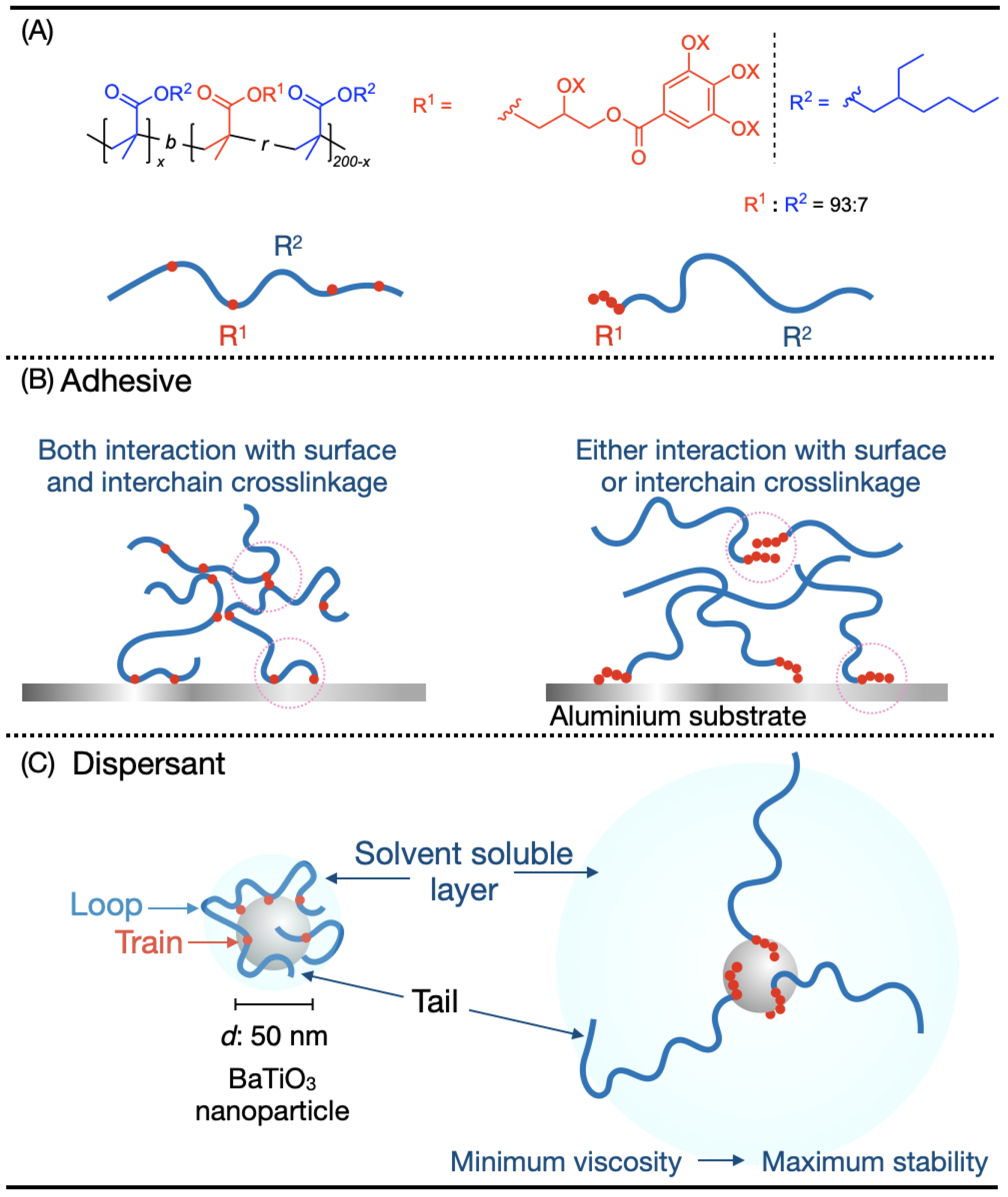

Figure 5. (A) Abbreviated structures of the copolymers. (B) Model structure showing copolymers bonding to aluminum plates. (C) Model structure showing copolymers adsorbing on a BaTiO3 nanoparticle.
Figure 5. (A) Abbreviated structures of the copolymers. (B) Model structure showing copolymers bonding to aluminum plates. (C) Model structure showing copolymers adsorbing on a BaTiO3 nanoparticle.
Materials 16 00266 g005
Table
Table 1. Physical Properties of the Gallic-Acid-Bearing Polymers.
Table 1. Physical Properties of the Gallic-Acid-Bearing Polymers.
PolymerEHMA:1aMn (×104) b, cĐ b, c
Poly1a93.5:6.55.11.1
Poly1b94.4:5.64.31.2
Poly1c93.8:6.24.31.1
Poly1d93.7:6.351.1
Poly1e95.6:4.44.11.1
Poly3100:03.11.2
a Ratio of EHMA to 1 in the copolymer, as determined by 1H NMR. b Results for triethylsilyl-protected polymers. c Determined by gel permeation chromatography against poly(methyl methacrylate) standards at 40 °C.
Table
Table 2. Adhesive Strength of the Gallic-Acid-Bearing Polymers.
Table 2. Adhesive Strength of the Gallic-Acid-Bearing Polymers.
PolymerDp of Poly31 in Poly4
(mol%)		Adhesive Strength
(MPa)
Poly1a077.9
Poly1b4999.8
Poly1c98148.6
Poly1d147264.1
Poly1e1861002.9
Poly320002.8
