# A Constitutive Model of Time-Dependent Deformation Behavior for Sandstone

^{1}

^{2}

^{3}

## Abstract

**:**

## 1. Introduction

_{1}–σ

_{3}) over extended periods of time, a phenomenon known as brittle creep (or time-dependent deformation, abbreviated to TDD in the following) [1], especially for sandstone (a rock often seen in the roofs and floors of coal seams) [2,3]. Sandstone taken from deep coal mines and deformed in creep experiments generally exhibits three regimes of strain vs. time: (1) primary creep, or decreasing strain rate stage; (2) secondary creep, or constant strain rate stage; (3) tertiary creep, or increasing strain rate stage ending in failure [4,5]. However, some researchers have divided the creep behavior of rock into three sections: elastic instantaneous deformation, viscoelastic TDD, and viscoplastic TDD [6,7,8,9,10,11]. This categorization—identifying three kinds of deformation—is convenient for building a constitutive model that can be used to reproduce the creep deformation of rock and further understand the failure evolution of rock.

## 2. Numerical Model

#### 2.1. Instantaneous Elastic-Plastic Model

#### 2.1.1. Heterogeneous Damage Model

#### 2.1.2. Instantaneous Elastic-Plastic Model

#### 2.1.3. Model Validation

- (1)
- Analytical solution model

_{h}, and the vertical stress is σ

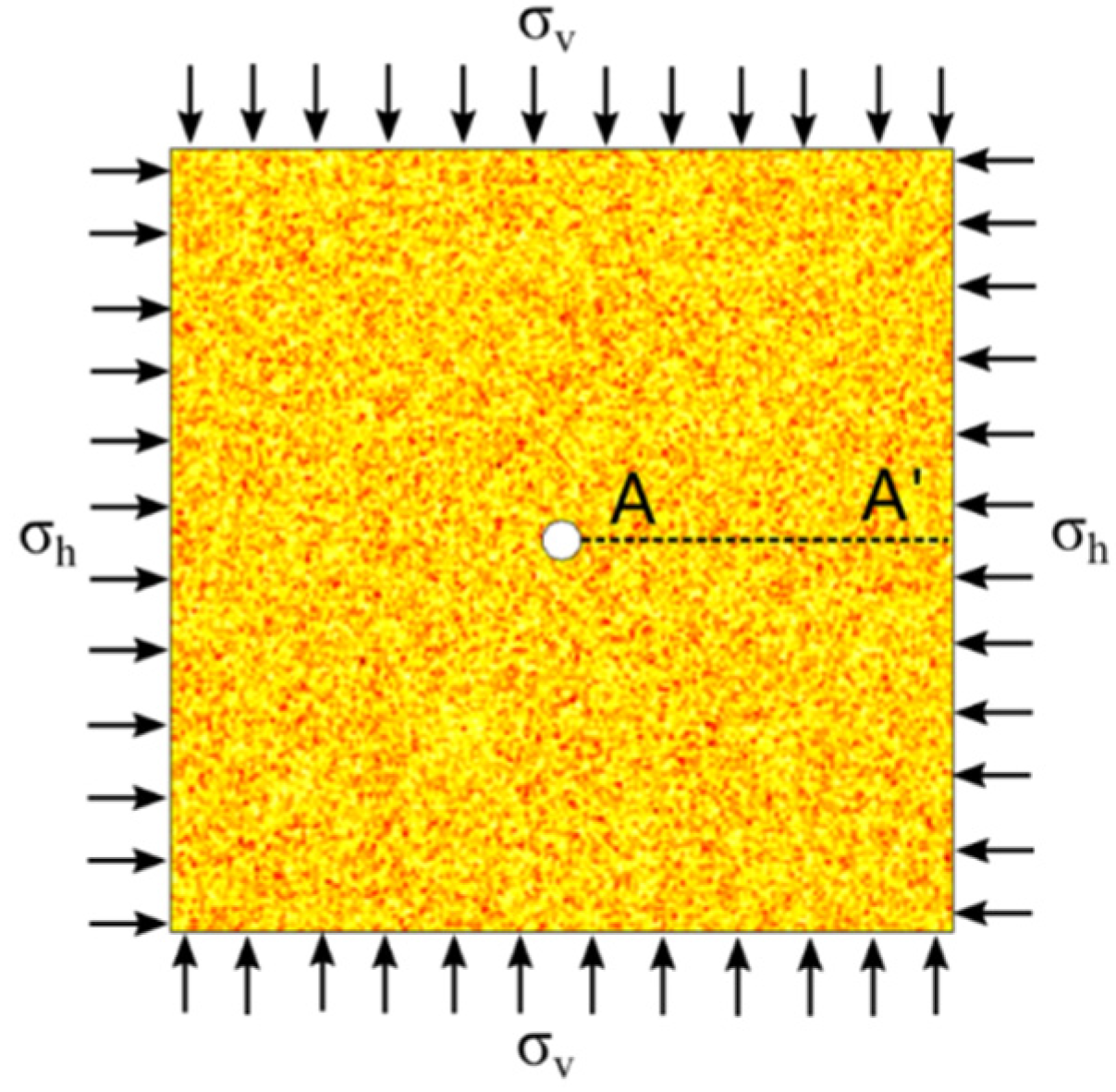

_{v}. The dashed line A-A′ in Figure 3 extends from the right side of the central circular hole to the right boundary of the stress field. In addition, the tangential (vertical) and radial (horizontal) stress data of the elements on the dashed line are extracted from the numerically calculated result and from the analytical solution for further comparison.

- (2)
- Numerical result validation

#### 2.2. Time-Dependent Viscoelastic Plastic Model

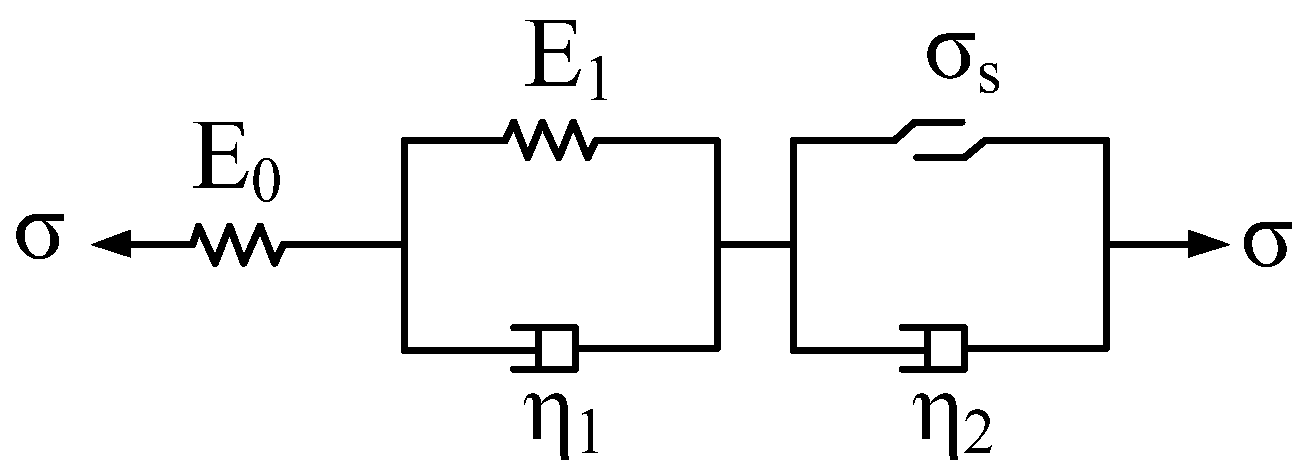

#### 2.2.1. Nishihara Model

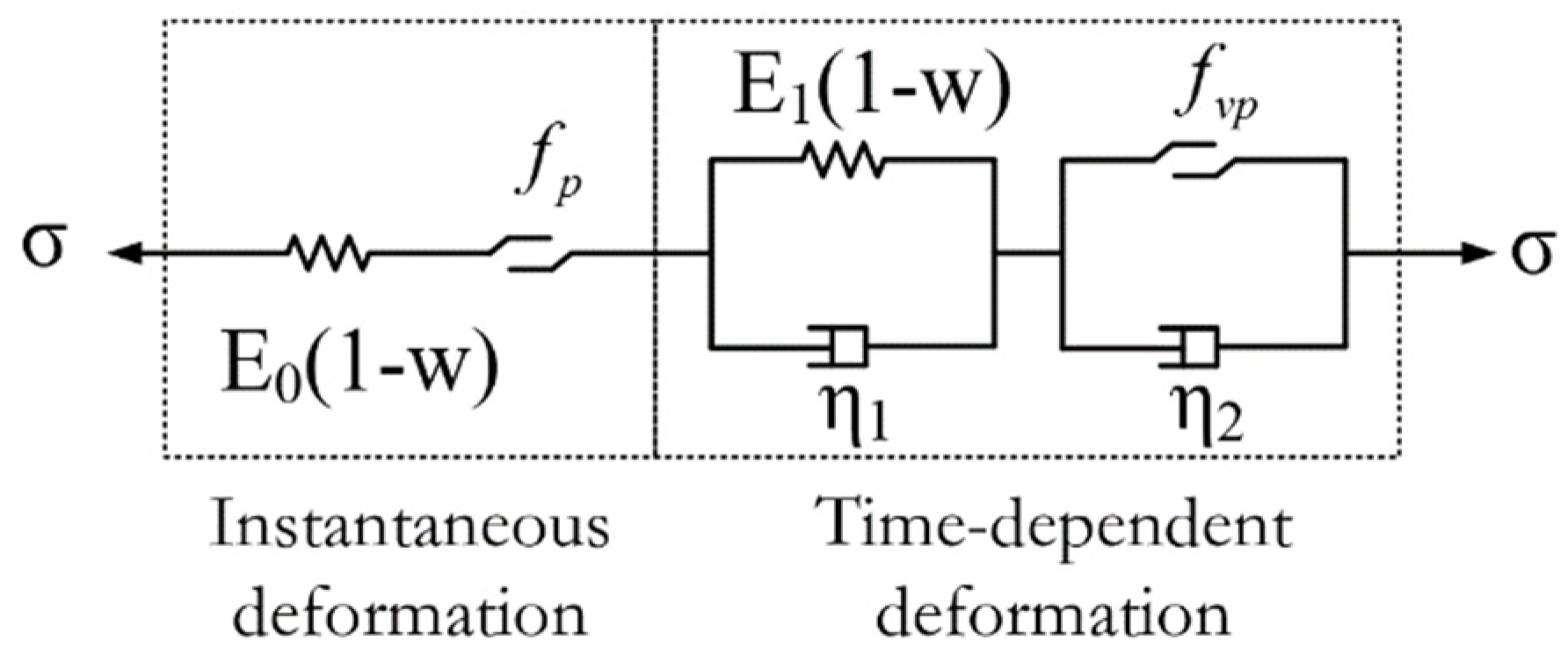

#### 2.2.2. Improved Nishihara Model

#### 2.2.3. Analytical Solution Verification

- (1)
- Analytical solution of Nishihara model based on D–P criterion

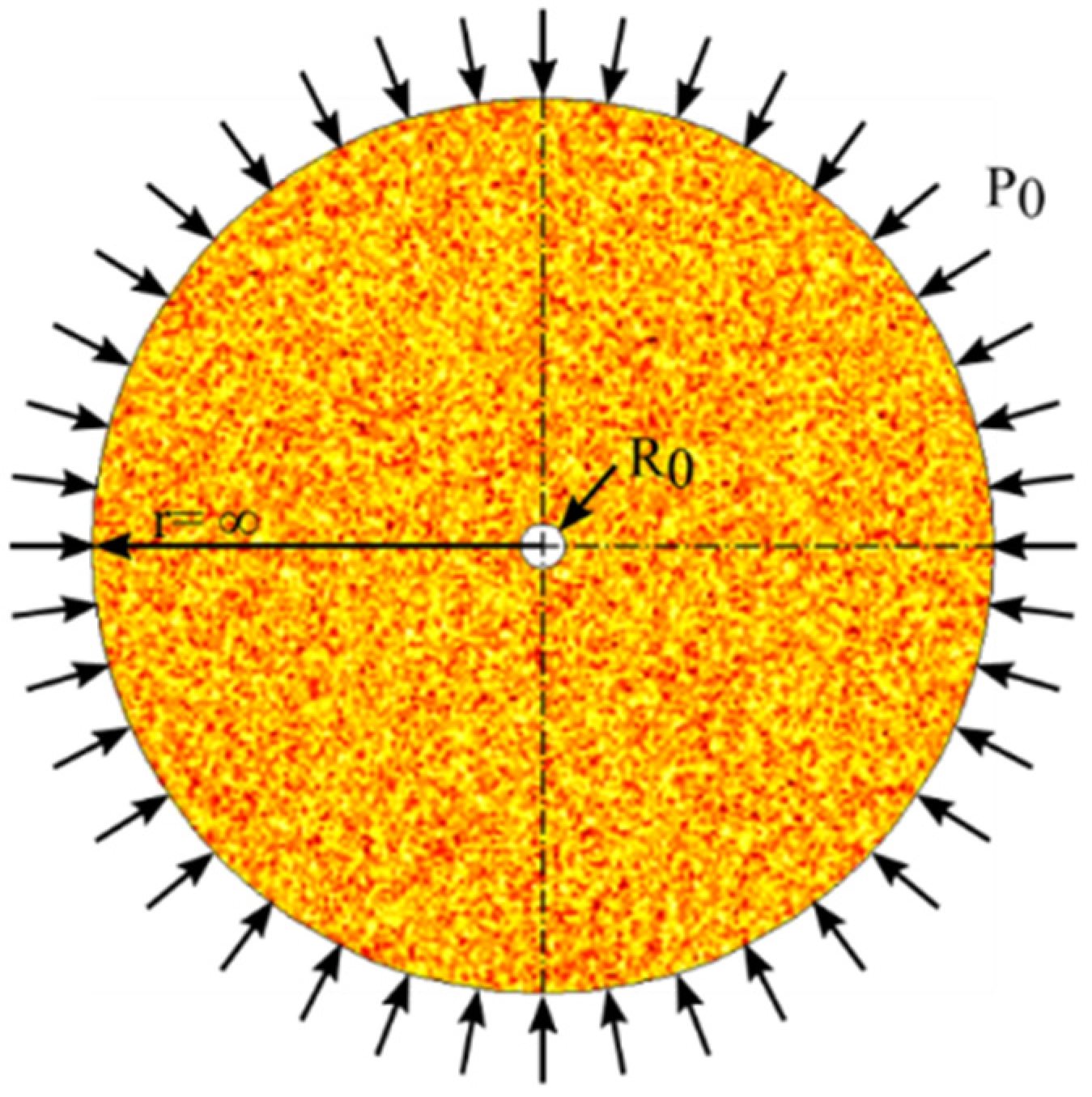

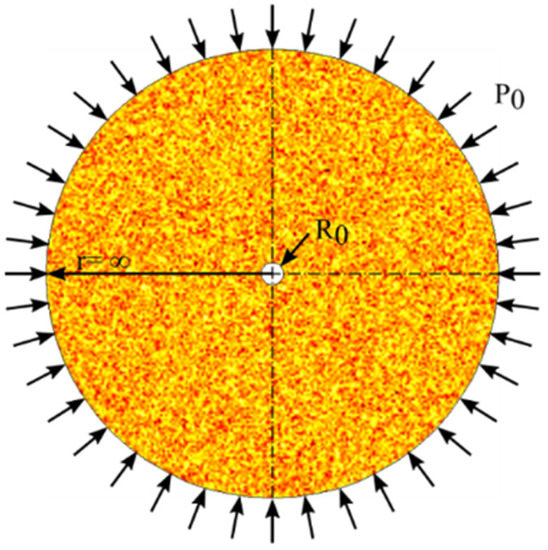

_{0}is P

_{0}, and the distance from a point in the stress field to the center of the circular hole is r. According to the work of Hou and Niu [53], the plastic stress distribution around the circular hole, as derived using the D–P criterion, is as follows:

_{0}are, respectively, the following:

- (2)
- Verification results

_{0}to the boundary of the borehole is displayed in Figure 10A. Similarly, the stress distribution around the circular hole plotted against the distance to the boundary of the borehole is shown in Figure 10B.

## 3. Comparisons with Laboratory Tests

#### 3.1. Consistent Strain Rate Tests

^{−5}s

^{−1}until macroscopic failure. The stress–strain curves obtained from the numerical simulation and the laboratory tests are compared in Figure 11. From the comparison of the stress–strain curves, it can be found that the numerical damage model can exhibit the full stress–strain process of the sandstone, and can also show compression and dilation behavior of volumetric deformation. This feature is basically consistent with that illustrated by the Vosges sandstone in ref. [13]. Additionally, the compression and dilation behavior of the volumetric strain in the numerical simulation can verify the validity of the non-associated flow rule adopted in the damage model.

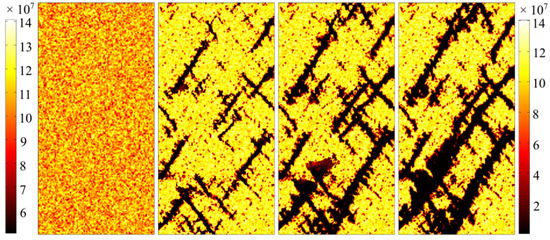

#### 3.2. Multi-Step Creep Tests

#### 3.3. Discussion

## 4. Conclusions

- (1)
- The instantaneous elastic-plastic damage model can display the process of volumetric strain for sandstone from compression to dilation. Many small fractures are formed within a very short period of time in the specimen before the main fracture emerges. The damage model captures the phenomenon that small damage of the specimen can lead to the generation of micro-cracks, the accumulation of which causes the specimen to fracture. The final failure mode provided by the numerical simulation is consistent with that extracted from laboratory test results.
- (2)
- The viscoelastic plastic damage model can reproduce the viscoelastic plastic deformation behavior. However, unlike the result of the conventional constant-strain-rate test, cracks of the rock appear through all of the stress loading stages in the multi-step creep tests. The final macroscopic fracture is the result of gradual accumulation of the cracks, a conclusion that is similar to that of the UCS tests.

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Dusseault, M.B.; Fordham, C.J. Time-dependent behavior of rocks. In Rock Testing and Site Characterization; Elsevier Ltd.: Amsterdam, The Netherlands, 1993; pp. 119–149. [Google Scholar] [CrossRef]
- Baud, P.; Meredith, P.G. Damage accumulation during triaxial creep of darley dale sandstone from pore volumometry and acoustic emission. Int. J. Rock Mech. Min. Sci.
**1997**, 34, 24.e1–24.e10. [Google Scholar] [CrossRef] - Heap, M.J.; Baud, P.; Meredith, P.G.; Vinciguerra, S.; Bell, A.F.; Main, I.G. Brittle creep in basalt and its application to time-dependent volcano deformation. Earth Planet. Sci. Lett.
**2011**, 307, 71–82. [Google Scholar] [CrossRef] - David, A.; Agnès, H. Brittle creep, damage and time to failure in rocks. J. Geophys. Res. Solid Earth
**2006**, 111, B11201. [Google Scholar] [CrossRef] [Green Version] - Liu, G.; Cai, M. Modeling time-dependent deformation behavior of brittle rock using grain-based stress corrosion method. Comput. Geotech.
**2020**, 118, 103323. [Google Scholar] [CrossRef] - Kang, J.H.; Zhou, F.B.; Liu, C.; Liu, Y.K. A fractional non-linear creep model for coal considering damage effect and experimental validation. Int. J. Non-Linear Mech.
**2015**, 76, 20–28. [Google Scholar] [CrossRef] - Mainardi, F.; Spada, G. Creep, relaxation and viscosity properties for basic fractional models in rheology. Eur. Phys. J. Spec. Top.
**2011**, 193, 133–160. [Google Scholar] [CrossRef] [Green Version] - Yuan, H.P.; Zhu, L.G.; Zhai, Y.J.; Chen, S.M. Numerical Test Study on the Mechanical Behavior of Rock Creep Fracture. Appl. Mech. Mater.
**2012**, 204–208, 526–533. [Google Scholar] [CrossRef] - Zhang, C.Y.; Cao, P.; Pu, C.Z.; Liu, J.; Wen, P.H. Integrated identification method of rheological model of sandstone in Sanmenxia bauxite. Trans. Nonferrous Met. Soc. China
**2014**, 24, 1859–1865. [Google Scholar] [CrossRef] - Yang, W.D.; Zhang, Q.Y.; Li, S.C.; Wang, S.G. Time-Dependent Behavior of Diabase and a Nonlinear Creep Model. Rock Mech. Rock Eng.
**2014**, 47, 1211–1224. [Google Scholar] [CrossRef] - Zhao, Y.L.; Zhang, L.Y.; Wang, W.J.; Wan, W.; Li, S.Q.; Ma, W.H.; Wang, Y.X. Creep behavior of intact and cracked limestone under multi-level loading and unloading cycles. Rock Mech. Rock Eng.
**2017**, 50, 1409–1424. [Google Scholar] [CrossRef] - Shao, J.F.; Jia, Y.; Kondo, D.; Chiarelli, A.S. A coupled elastoplastic damage model for semi-brittle materials and extension to unsaturated conditions. Mech. Mater.
**2006**, 38, 218–232. [Google Scholar] [CrossRef] - Zhou, H.; Jia, Y.; Shao, J.F. A unified elastic-plastic and viscoplastic damage model for quasi-brittle rocks. Int. J. Rock Mech. Min. Sci.
**2008**, 45, 1237–1251. [Google Scholar] [CrossRef] - Zhao, Y.L.; Zhang, L.Y.; Wang, W.J.; Wan, W.; Ma, W.H. Separation of Elastoviscoplastic Strains of Rock and a Nonlinear Creep Model. Int. J. Geomech.
**2018**, 18, 04017129. [Google Scholar] [CrossRef] - Jiang, Q.H.; Qi, Y.J.; Wang, Z.J.; Zhou, C.B. An extended Nishihara model for the description of three stages of sandstone creep. Geophys. J. Int.
**2013**, 193, 841–854. [Google Scholar] [CrossRef] - Zhang, Y.; Zhang, X.D.; Shao, J.F.; Jia, Y.; Wang, Y.L. Elastoplastic modelling the creep behaviour of cataclastic rock under multi-stage deviatoric stress. Eur. J. Environ. Civ. Eng.
**2018**, 22, 650–665. [Google Scholar] [CrossRef] - Yang, W.; Gamage, R.P.; Huang, C.; Luo, G.; Guo, J.; Wang, S. Loading history effect on creep deformation of rock. Energies
**2018**, 11, 1462. [Google Scholar] [CrossRef] [Green Version] - Hu, B.; Yang, S.Q.; Xu, P. A nonlinear rheological damage model of hard rock. J. Cent. South Univ.
**2018**, 25, 1665–1677. [Google Scholar] [CrossRef] - Wang, X.K.; Song, L.B.; Xia, C.C.; Han, G.S.; Zhu, Z.M. Nonlinear Elasto-Visco-Plastic Creep Behavior and New Creep Damage Model of Dolomitic Limestone Subjected to Cyclic Incremental Loading and Unloading. Sustainability
**2021**, 13, 12376. [Google Scholar] [CrossRef] - Zhang, B.W.; Hu, H.; Yu, W.; Liang, S.S.; Li, J.J.; Lu, L.F. Timeliness of creep deformation in the whole visco-elasto-plastic process of surrounding rocks of the tunnel. Geotech. Geol. Eng.
**2019**, 37, 1007–1014. [Google Scholar] [CrossRef] - Zou, J.F.; Xia, M.; Xu, Y. Nonlinear visco-elasto-plastic model for surrounding rock incorporating the effect of intermediate principal stress. Geotech. Geol. Eng.
**2017**, 35, 403–423. [Google Scholar] [CrossRef] - Minkley, W.; Mühlbauer, J. Constitutive models to describe the mechanical behavior of salt rocks and the imbedded weakness planes. In The Mechanical Behavior of Salt–Understanding of THMC Processes in Salt; CRC Press: Boca Raton, FL, USA, 2017; pp. 119–127. [Google Scholar]
- Behbahani, H.; Ziari, H.; Kamboozia, N. Evaluation of the visco-elasto-plastic behavior of glasphalt mixtures through generalized and classic burger’s models modification. Constr. Build. Mater.
**2016**, 118, 36–42. [Google Scholar] [CrossRef] - Yu, J.; Liu, G.Y.; Cai, Y.Y.; Zhou, J.F.; Liu, S.Y.; Tu, B.X. Time-dependent deformation mechanism for swelling soft-rock tunnels in coal mines and its mathematical deduction. Int. J. Geomech.
**2020**, 20, 04019186. [Google Scholar] [CrossRef] - Wang, M.Z.; Cai, M. A simplified model for time-dependent deformation of rock joints. Rock Mech. Rock Eng.
**2021**, 54, 1779–1797. [Google Scholar] [CrossRef] - Xu, T.; Zhou, G.L.; Heap, M.J.; Yang, S.Q.; Konietzky, H.; Baud, P. The modeling of time-dependent deformation and fracturing of brittle rocks under varying confining and pore pressures. Rock Mech. Rock Eng.
**2018**, 51, 3241–3263. [Google Scholar] [CrossRef] - Yuan, Y.; Xu, T.; Heap, M.J.; Meredith, P.G.; Zhou, G.L. A three-dimensional mesoscale model for progressive time-dependent deformation and fracturing of brittle rock with application to slope stability. Comput. Geotech.
**2021**, 135, 104160. [Google Scholar] [CrossRef] - Fu, T.F.; Xu, T.; Wasantha, P.; Yang, T.H.; Nara, Y.; Heng, Z. Time-dependent deformation and fracture evolution around underground excavations. Geomat. Nat. Hazards Risk
**2020**, 11, 2615–2633. [Google Scholar] [CrossRef] - Wang, M.Z.; Cai, M. A grain-based time-to-failure creep model for brittle rocks. Comput. Geotech.
**2020**, 119, 103344. [Google Scholar] [CrossRef] - Sun, Y.T.; Li, G.C.; Zhang, J.F.; Yao, B.C.; Qian, D.Y.; Huang, J.D. Numerical investigation on time-dependent deformation in roadway. Adv. Civ. Eng.
**2021**, 2021, 4280139. [Google Scholar] [CrossRef] - Paraskevopoulou, C.; Diederichs, M. Analysis of time-dependent deformation in tunnels using the Convergence-Confinement Method. Tunnel. Undergr. Space Technol.
**2018**, 71, 62–80. [Google Scholar] [CrossRef] - Li, D.Y.; Du, S.H.; Zhang, C.S.; Mao, D.W.; Ruan, B. Time-dependent deformation behavior of completely weathered granite subjected to wetting immersion. Rock Mech. Rock Eng.
**2021**, 54, 6373–6391. [Google Scholar] [CrossRef] - Tang, C.A.; Chen, Z.H.; Xu, X.H.; Li, C. A Theoretical Model for Kaiser Effect in Rock. PApGe
**1997**, 150, 203–215. [Google Scholar] [CrossRef] - Yang, T.H.; Jia, P.; Shi, W.H.; Wang, P.T.; Liu, H.L.; Yu, Q.L. Seepage–stress coupled analysis on anisotropic characteristics of the fractured rock mass around roadway. Tunnel. Underground Space Technol.
**2014**, 43, 11–19. [Google Scholar] [CrossRef] - Tang, C.A.; Liu, H.; Lee, P.K.K.; Tsui, Y.; Tham, L.G. Numerical studies of the influence of microstructure on rock failure in uniaxial compression—Part I: Effect of heterogeneity. Int. J. Rock Mech. Min. Sci.
**2000**, 37, 555–569. [Google Scholar] [CrossRef] - Xu, T.; Fu, T.F.; Heap, M.J.; Meredith, P.G.; Mitchell, T.M.; Baud, P. Mesoscopic Damage and Fracturing of Heterogeneous Brittle Rocks Based on Three-dimensional Polycrystalline Discrete Element Method. Rock Mech. Rock Eng.
**2020**, 53, 5389–5409. [Google Scholar] [CrossRef] - Xu, T.; Tang, C.A.; Zhao, J.; Li, L.C.; Heap, M.J. Modelling the time-dependent rheological behaviour of heterogeneous brittle rocks. Geophys. J. Int.
**2012**, 189, 1781–1796. [Google Scholar] [CrossRef] [Green Version] - Xu, T.; Zhou, G.L.; Heap, M.J.; Zhu, W.C.; Chen, C.F.; Baud, P. The Influence of Temperature on Time-Dependent Deformation and Failure in Granite: A Mesoscale Modeling Approach. Rock Mech. Rock Eng.
**2017**, 50, 2345–2364. [Google Scholar] [CrossRef] - Griffiths, L.; Heap, M.J.; Xu, T.; Chen, C.F.; Baud, P. The influence of pore geometry and orientation on the strength and stiffness of porous rock. J. Struct. Geol.
**2017**, 96, 149–160. [Google Scholar] [CrossRef] - Ghazvinian, E.; Diederichs, M.S.; Quey, R. 3D random Voronoi grain-based models for simulation of brittle rock damage and fabric-guided micro-fracturing. J. Rock Mech. Geotech. Eng.
**2014**, 6, 506–521. [Google Scholar] [CrossRef] [Green Version] - Wang, X.; Cai, M. Modeling of brittle rock failure considering inter- and intra-grain contact failures. Comput. Geotech.
**2018**, 101, 224–244. [Google Scholar] [CrossRef] - Chen, C.F.; Xu, T.; Zhou, G.L.; Qin, T. Experimental investigation of influence of alternating cyclic loadings on creep behaviors of sandstone. Mech. Time-Depend. Mater.
**2021**, 25, 1–19. [Google Scholar] [CrossRef] - Fu, T.F.; Xu, T.; Meredith, G.P.; Mitchell, M.T.; Heap, J.M.; Narae, Y. A meso-mechanical approach to time-dependent deformation and fracturing of partially saturated sandstone. Int. J. Rock Mech. Min. Sci.
**2021**, 145, 104840. [Google Scholar] [CrossRef] - Zhou, G.L.; Xu, T.; Konietzky, H.; Zhu, W.; Zhen, H.; Yu, X.Y.; Zhao, Y. An improved grain-based numerical manifold method to simulate deformation, damage and fracturing of rocks at the grain size level. Eng. Anal. Bound. Elem.
**2022**, 134, 107–116. [Google Scholar] [CrossRef] - Weibull, W. A Statistical Distribution Function of Wide Applicability. J. Appl. Mech.
**1951**, 18, 293–297. [Google Scholar] [CrossRef] - Zhou, H.; Bian, H.B.; Jia, Y.; Shao, J.F. Elastoplastic damage modeling the mechanical behavior of rock-like materials considering confining pressure dependency. Mech. Res. Commun.
**2013**, 53, 1–8. [Google Scholar] [CrossRef] - Jia, Y.; Song, X.C.; Duveau, G.; Su, K.; Shao, J.F. Elastoplastic damage modelling of argillite in partially saturated condition and application. Phys. Chem. Earth
**2007**, 32, 656–666. [Google Scholar] [CrossRef] - Pietruszczak, S.; Jiang, J.; Mirza, F.A. An elastoplastic constitutive model for concrete. Int. J. Solids Struct.
**1988**, 24, 705–722. [Google Scholar] [CrossRef] - Jia, Y.; Bian, H.B.; Su, K.; Kondo, D.; Shao, J.F. Elastoplastic damage modeling of desaturation and resaturation in argillites. Int. J. Numer. Anal. Meth. Geomech.
**2010**, 34, 187–220. [Google Scholar] [CrossRef] - Masoumi, H.; Douglas, K.J.; Russell, A.R. A Bounding Surface Plasticity Model for Intact Rock Exhibiting Size-Dependent Behaviour. Rock Mech. Rock Eng.
**2016**, 49, 47–62. [Google Scholar] [CrossRef] - Pourhosseini, O.; Shabanimashcool, M. Development of an elasto-plastic constitutive model for intact rocks. Int. J. Rock Mech. Min. Sci.
**2014**, 66, 1–12. [Google Scholar] [CrossRef] - Qi, Y.J.; Jiang, Q.H.; Wang, Z.J.; Zhou, C.B. 3D creep constitutive equation of modified Nishihara model and its parameters identification. Yanshilixue Yu Gongcheng Xuebao/Chin. J. Rock Mech. Eng.
**2012**, 31, 347–355. [Google Scholar] - Hou, G.Y.; Niu, X.S. Perfect elastoplastic solution of axisymmetric circular openings in rock mass based on Levy-Mises constitutive relation and D-P yield criterion. Yantu Lixue/Rock Soil Mech.
**2009**, 30, 1555–1562. [Google Scholar] - Hou, G.Y.; Li, J.J.; Qiu, B.; Zhang, H.D.; Liu, H.W. Solving equation of rheological deformation in axisymmetric round well under dead load. Yantu Lixue/Rock Soil Mech.
**2011**, 32, 341–346. [Google Scholar]

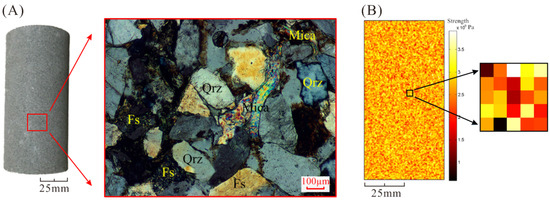

**Figure 1.**Heterogeneous model of sandstone in the mesoscale. (

**A**) Optical microscope image at a 100 μm scale [45]. (

**B**) Heterogeneous distribution of strength elements in the model.

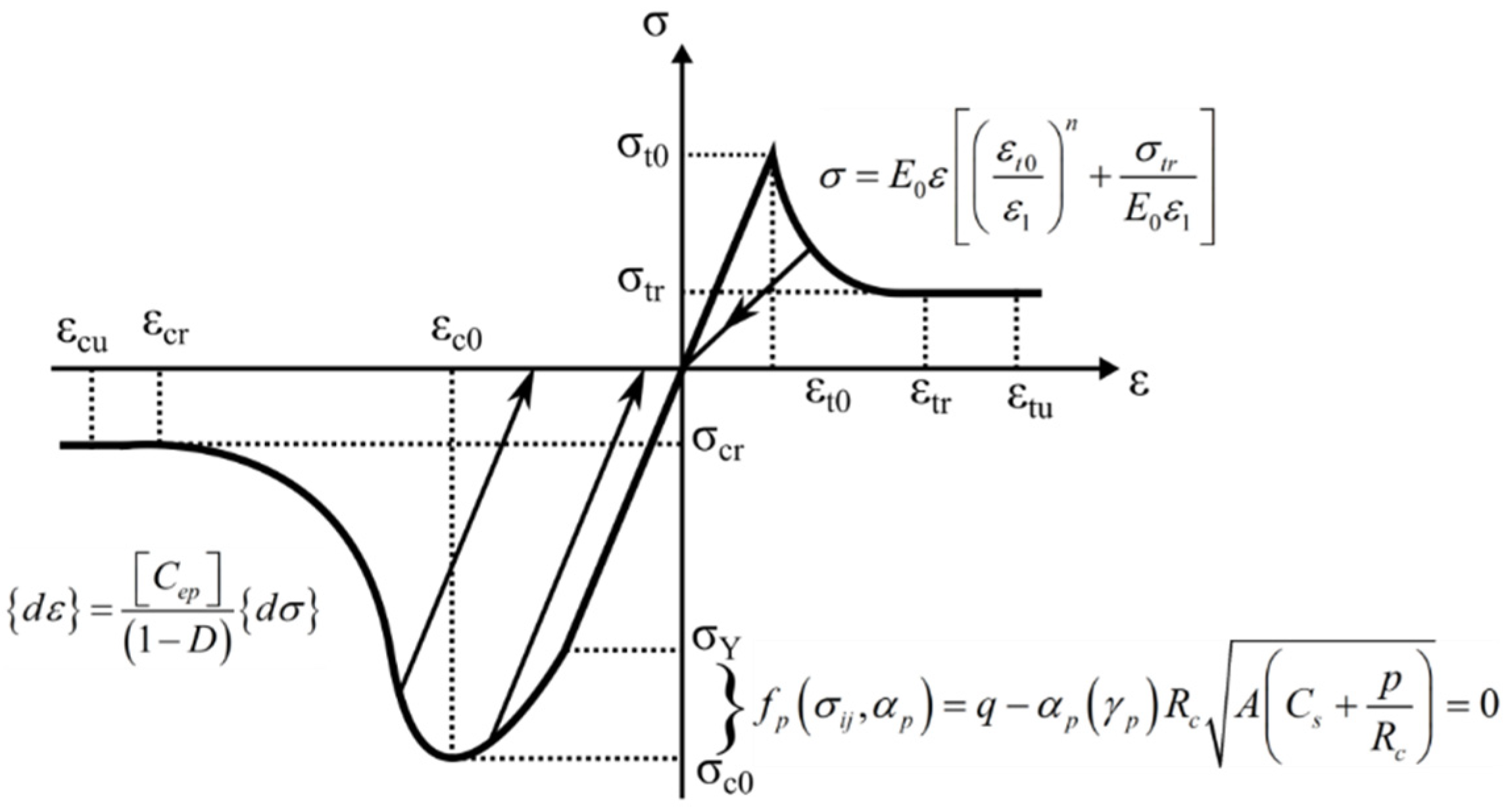

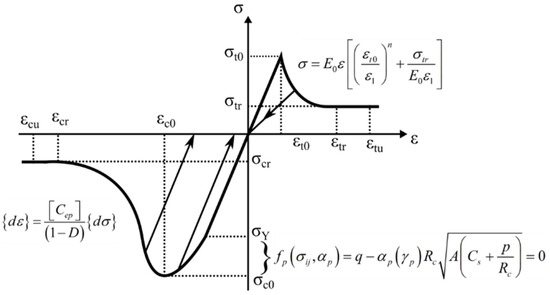

**Figure 2.**Elastic-plastic damage constitutive rule for an element under uniaxial compression and tension.

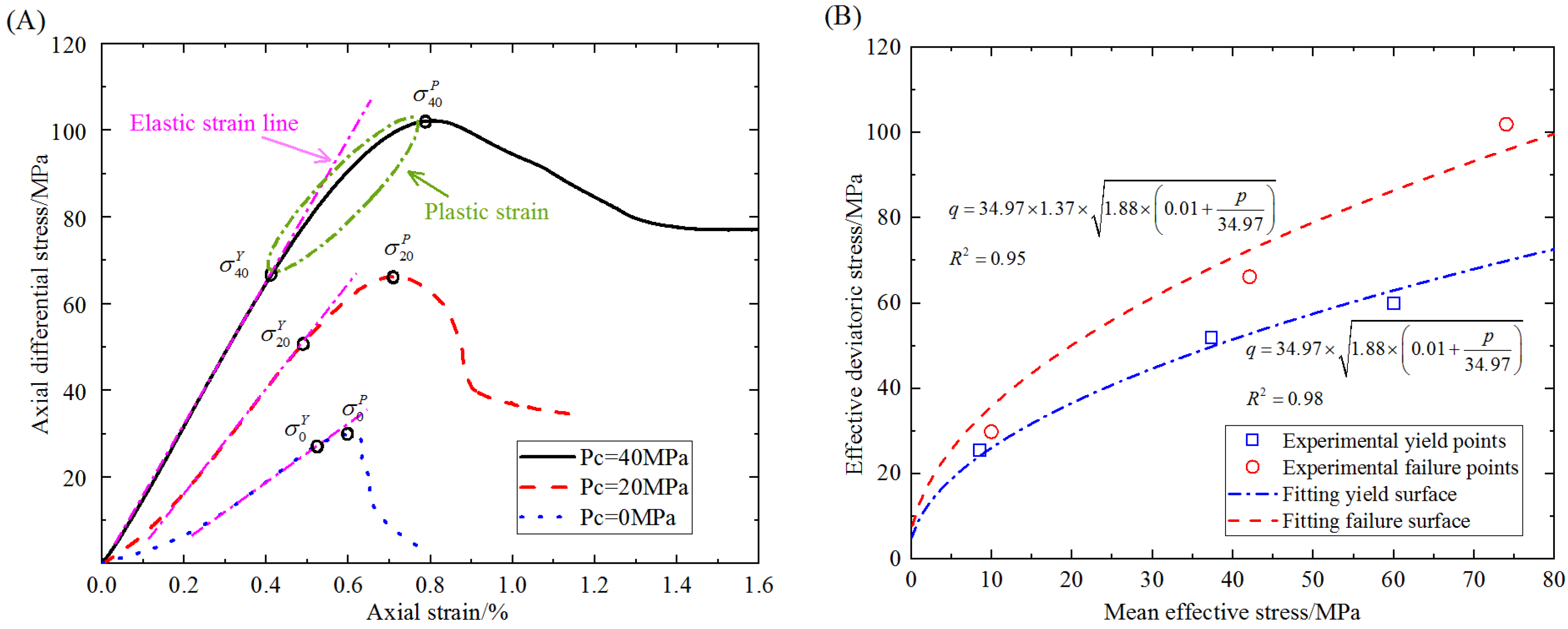

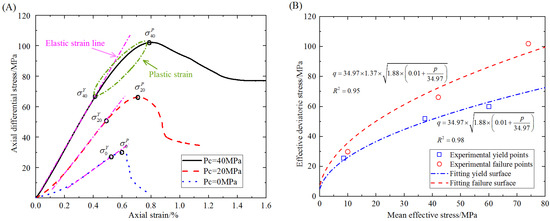

**Figure 4.**Fitted yield and fracture surfaces from experimental data. (

**A**) Axial differential stress vs. axial strain curves under different confining pressures. (

**B**) Effective deviatoric stress vs. mean effective stress for the yield surface and the failure surface.

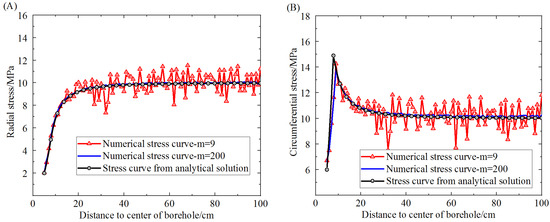

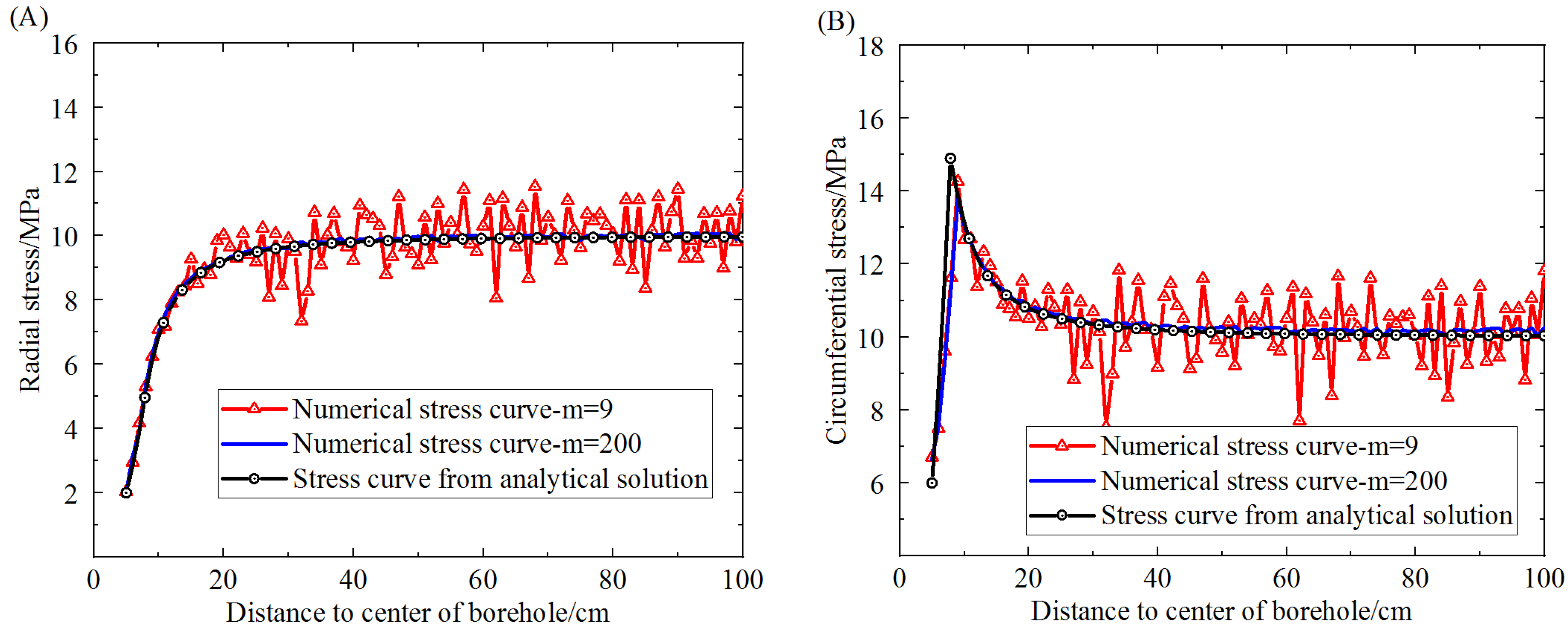

**Figure 5.**Comparison between numerical simulation results at different degrees of homogeneity and the analytical solutions. (

**A**) Stress curves of radial stress vs. distance to the center of the borehole. (

**B**) Stress curves of circumferential stress vs. distance to the center of the borehole.

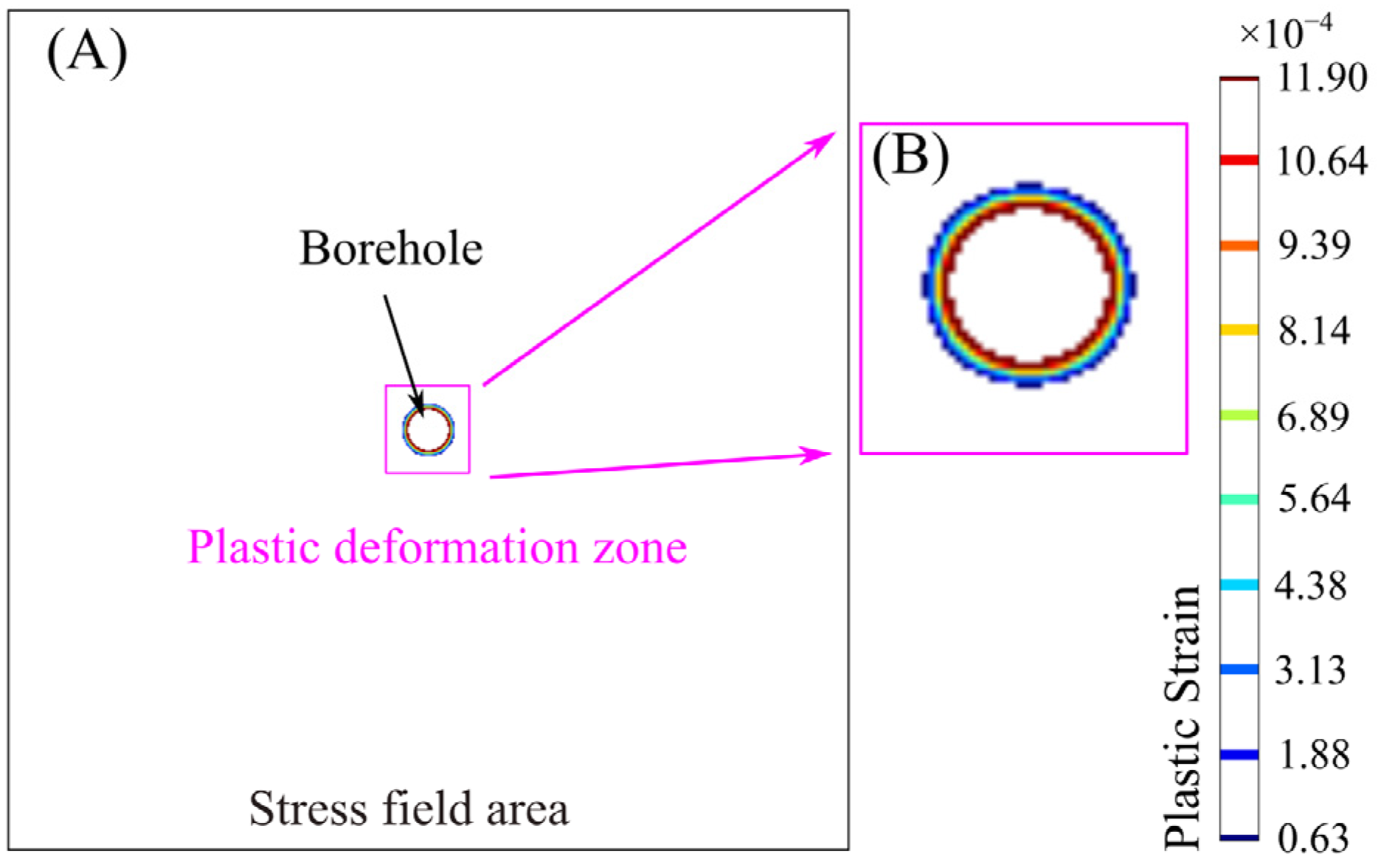

**Figure 6.**Cloud map of plastic strain around the borehole calculated from the damage model. (

**A**) Plastic deformation zone around the borehole. (

**B**) Enlarged view.

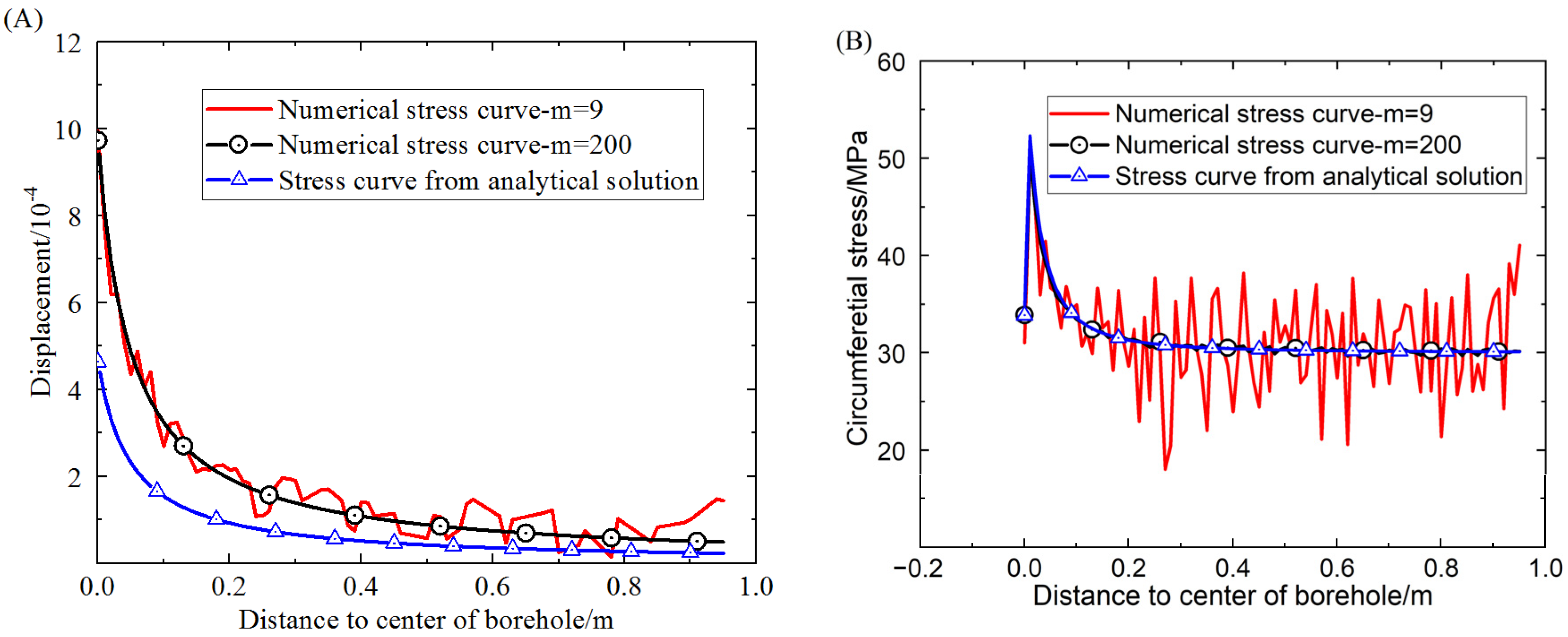

**Figure 10.**Comparison of displacement and circumferential stress distribution between the analytical solution and the proposed damage model at different homogeneities.

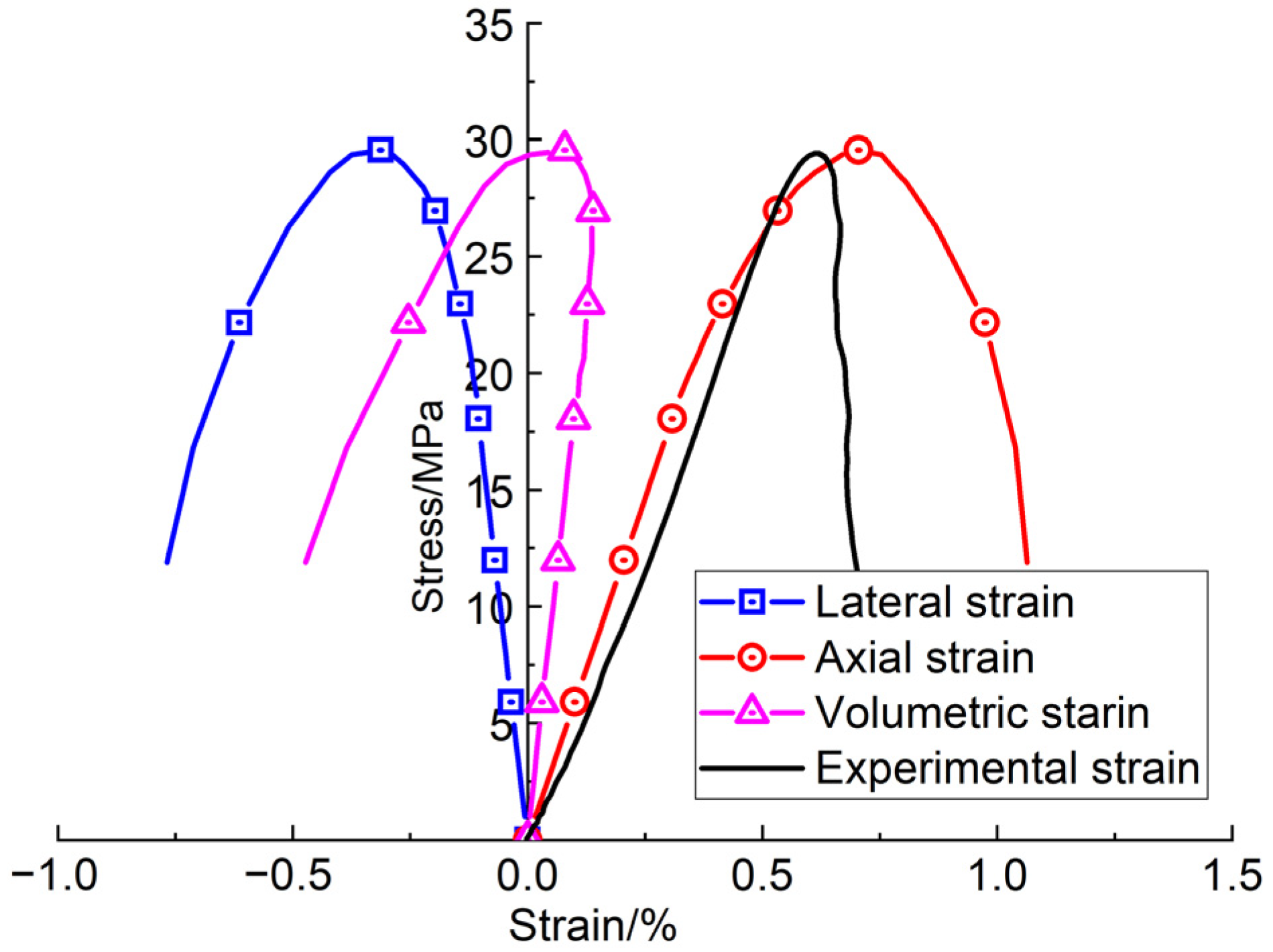

**Figure 11.**Stress–strain curves of Neijiang sandstone obtained from numerical simulation and laboratory tests. Lateral strain, axial strain and volumetric strain are obtained from the numerical simulation.

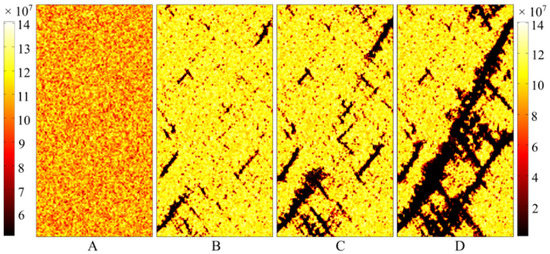

**Figure 12.**Strength failure snapshots extracted from the simulation result of the damage model. (

**A**) An undamaged model. (

**B**) Some cracks appear in the specimen. (

**C**) Some cracks appear to accumulate and coalesce. (

**D**) Main fracture surface is generated and some new cracks appear around the main fracture.

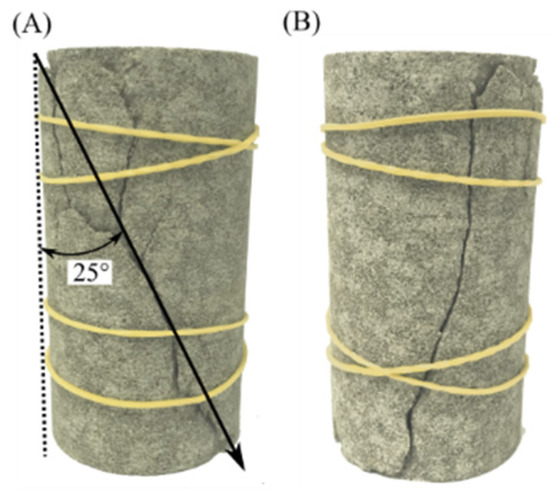

**Figure 13.**Failure mode of Neijiang sandstone in uniaxial compression strength tests. (

**A**) The shear failure angle is about 25 degrees. There are some small cracks around the main fracture. (

**B**) A main shear fracture on another side opposite to (

**A**).

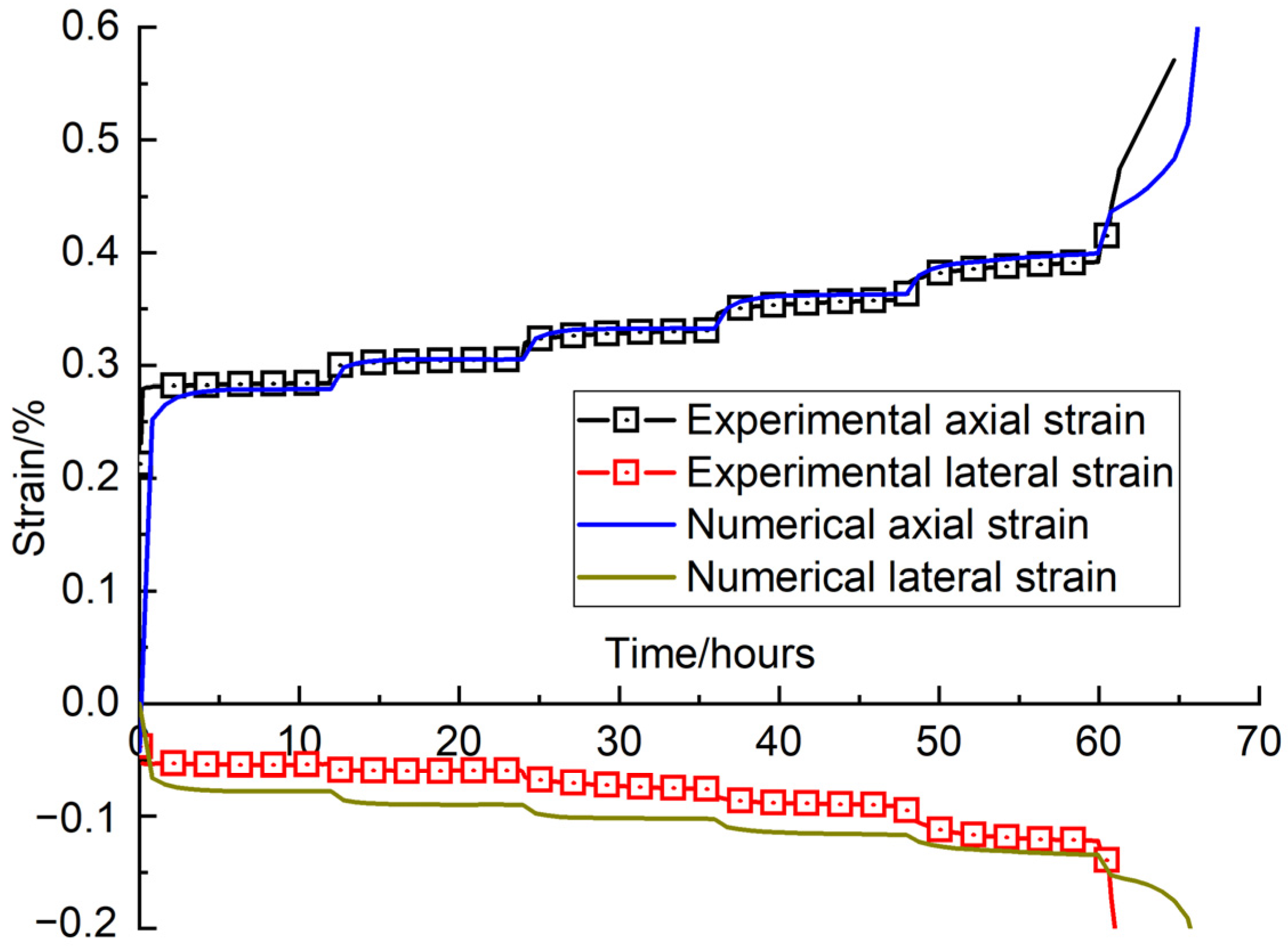

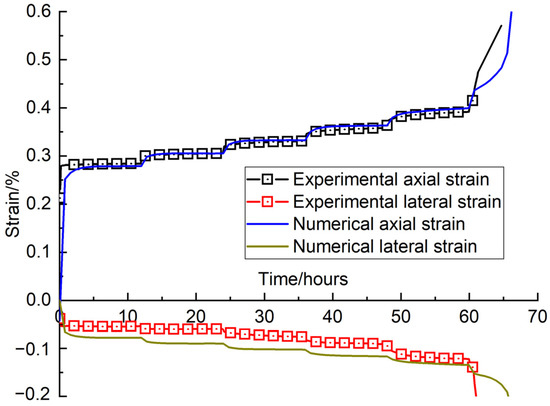

**Figure 14.**Comparison of axial and transverse strain vs. time curves in numerical simulation and in laboratory tests.

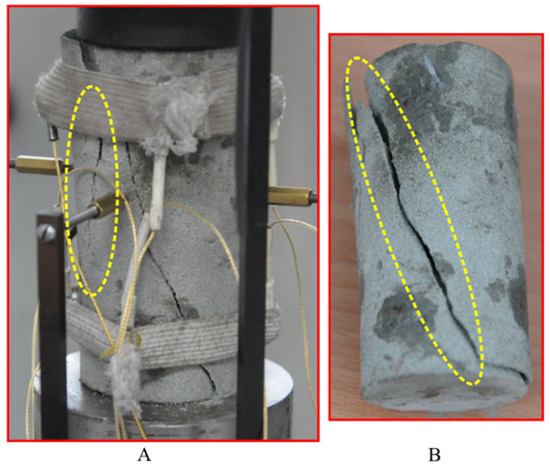

**Figure 16.**Failure mode of Neijiang sandstone in multi-step creep test. (

**A**) The failure mode focuses on the shear failure, and a small crack (highlighted by the yellow circle) occurs near the main fracture similar to that in the failure mode in the UCS tests. (

**B**) A main shear fracture on another side opposite to (

**A**).

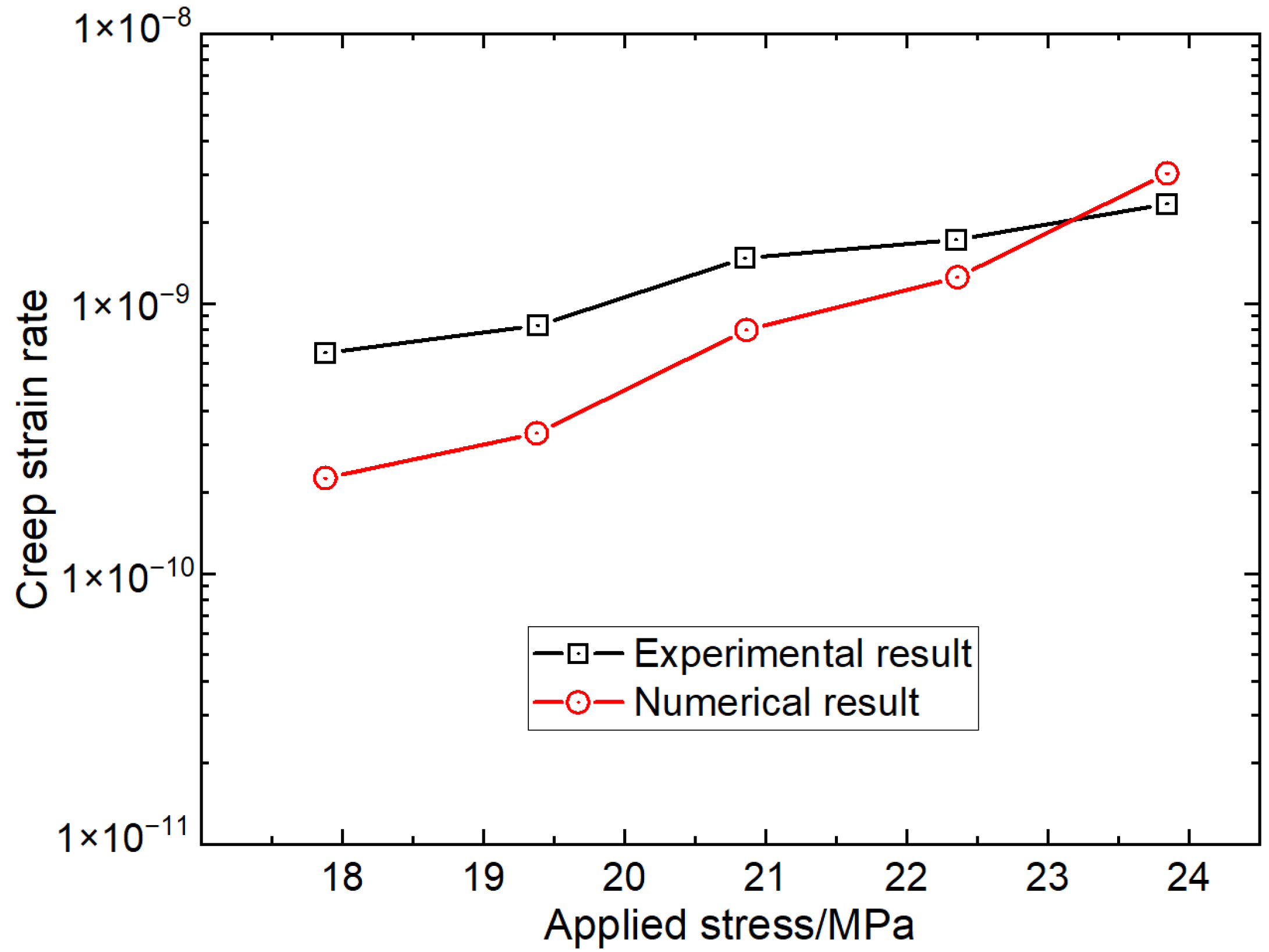

**Figure 17.**Relationships between creep strain rate and applied stress in the multi-step creep tests in the laboratory and in numerical simulation.

Mechanical Parameters | Value |
---|---|

Specimen size | 50 mm × 100 mm |

Element size | 0.5 mm |

Uniaxial compressive strength (UCS), σ/MPa | 110 |

Young’s modulus, E/GPa | 10.0 |

Poisson’s ratio, μ | 0.3 |

Homogeneity index, m | 9.0 |

Increment per step, dy/mm | 10^{−5} |

Parameter related to internal friction, A | 1.88 |

Plastic hardening function in the strength criterion, ${\alpha}_{f}$ | 1.37 |

Plastic hardening function in the field criterion, ${\alpha}_{0}$ | 1.0 |

Cohesive coefficient, C_{s} | 0.01 |

Coefficient controlling plastic hardening rate, B | 4 × 10^{−5} |

Physical and Mechanical Parameters | Value |
---|---|

Hole radius R_{0}/m | 0.05 |

In situ stress P_{0}/MPa | 30 |

UCS of surrounding rock σ_{0}/MPa | 20 |

Internal friction angle φ/° | 25 |

Cohesion C/MPa | 6.0 |

Elastic modulus E_{0}/MPa | 6.0 |

Elastic modulus E_{1}/MPa | 11.76 |

Viscosity coefficient η_{0}/GPa∙d | 3.57 |

Viscosity coefficient η_{1}/GPa∙d | 32.0 |
