Novel Detection Method for Circulating EGFR Tumor DNA Using Gravitationally Condensed Gold Nanoparticles and Catalytic Walker DNA

by
Juneseok You
1,
Chanho Park
2,
Kuewhan Jang
3,
Jinsung Park
4,* and
Sungsoo Na
1,*
1
Department of Mechanical Engineering, Korea University, Seoul 02841, Korea
2
Division of Foundry, Samsung Electronics, Hwaseong-si 18448, Korea
3
School of Mechanical Engineering, Hoseo University, Asan 31499, Korea
4
Department of Biomechatronics Engineering, Sungkyunkwan University (SKKU), 2066 Seobu-ro, Suwon 16419, Korea
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(9), 3301; https://doi.org/10.3390/ma15093301
Submission received: 28 February 2022 / Revised: 25 April 2022 / Accepted: 29 April 2022 / Published: 5 May 2022
(This article belongs to the Special Issue Polymers and Biomaterials Based Sensors)
Browse Figures
Versions Notes

Abstract

:
The detection of circulating tumor DNA is a major challenge in liquid biopsies for cancer. Conventionally, quantitative polymerase chain reactions or next-generation sequencing are used to detect circulating tumor DNA; however, these techniques require significant expertise, and are expensive. Owing to the increasing demand for a simple diagnostic method and constant monitoring of cancer, a cost-effective detection technique that can be conducted by non-experts is required. The aim of this study was to detect the circulating tumor DNA containing the epidermal growth factor receptor (EGFR) exon 19 deletion, which frequently occurs in lung cancer. By applying walker DNA to a catalytic hairpin assembly and using the differential dispersibility of gold nanoparticles, we detected EGFR exon 19 deletion mutant #2 DNA associated with lung cancer. Our sensing platform exhibited a limit of detection of 38.5 aM and a selectivity of 0.1% for EGFR exon 19 wild-type DNA. Moreover, we tested and compared EGFR exon 19 deletion mutants #1 and #3 to evaluate the effect of base pair mismatches on the performance of the said technique.

1. Introduction

Liquid biopsy is a next-generation cancer diagnostic technique [1]. Previously, tissue biopsies were conducted to detect cancer [2] and were followed by invasive surgical procedures [3]. Epidermal tissue could be extracted using a needle; however, deep-tissue extraction requires abdominal surgical procedures [4]. This made the process expensive and time-consuming. However, with liquid biopsies, any bodily fluid from the patient, including blood, urine, cerebrospinal fluid, and saliva, can be used to diagnose cancer. Therefore, liquid biopsy is noninvasive as well as cost and time effective [5], making it a useful technique for the early detection of cancer and monitoring cancer transfer [6].
Cell-free DNA (cfDNA) was discovered by Mandel and Metais in 1948 [7]. cfDNA is present in the blood of patients with cancer, and healthy individuals [8]. Although a high concentration of cfDNA can be a sign of cancer, cfDNA alone does not provide conclusive evidence. However, circulating tumor DNA (ctDNA) is conclusive evidence of cancer metastasis [9]. ctDNA is a mutated form of the wild-type cfDNA. Nucleic acid mutations can occur in various ways, such as deletion, exchange, and addition [10,11]. In this study, the epidermal growth factor receptor (EGFR) exon number 19 was selected as the target for cancer detection.
The EGFR ctDNA was mutated by the deletion of 15 nucleic acids at exon 19 [12]. This mutated ctDNA, which is strongly associated with cancer metastasis, was discovered in a patient with lung cancer [13]. The EGFR mutation manipulates the cell growth factor reporter to signal constant cell growth, thereby causing the normal cell to become cancerous [14]. Although the EGFR ctDNA and normal cfDNA are distinguishable via DNA hybridization, the detection of an extremely low level of ctDNA requires an ultrasensitive and highly selective technique [15]. On average, the concentration of cfDNA in blood is 50 fM, which is <1% compared with that of normal cfDNA [16,17]. The target DNA sequence was selected as following deletion types from wild type DNA. The detailed sequence selection is described in Supplementary (Figure S1) [18] Literature studies of EGFR detection was shown in Table S1 [19,20,21,22,23,24,25,26,27].
Catalytic DNA hybridization is a useful tool to detect a low level of target DNA. Commonly used DNA hybridization methods are nucleic acid sequence-based amplification (NASBA) [28,29], rolling circle amplification (RCA) [30,31,32,33,34], strand displacement amplification (SDA) [35,36,37], catalytic hairpin assembly (CHA) [38,39,40], and loop-mediated isothermal amplification (LAMP) [41,42,43,44]. Additionally, colorimetry is a useful method to detect phenomena such as G-quadruplex formation [45,46], Au nanoparticle aggregation [47,48], and chemical color changes [49,50,51,52]. In this study, a combination of catalytic walker DNA and condensed gold nanoparticles (AuNPs) was used to detect EGFR ctDNA. Catalytic walker DNA has several advantages [53]: First, via strand displacement, the catalytic DNA reaction occurs continuously. The walker DNA has two identical functional nucleic acid sites. While one side of the walker DNA is undergoing a reaction, the other side moves to the next DNA. These two reactions are cyclically repeated. Second, to enable walking to the neighboring DNA, this reaction is conducted on a DNA-immobilized surface. Lastly, once the reaction begins, it is unstoppable until it covers the entire surface of the AuNP.
The detailed procedure is illustrated in Figure 1. Before detecting ctDNA, the attaching hairpin is immobilized on the AuNP. The walker DNA is bound to two locker DNAs. The detaching hairpin, locked walker DNA, and the attaching hairpin functionalized AuNP do not bind to each other. After the addition of the target DNA, the solution is centrifuged to condense the AuNPs. The target DNA takes the locker DNA from the walker DNA. The locker-free walker DNA then opens the attaching hairpin on the AuNP. Subsequently, the detaching hairpin detaches one side of the walker DNA, and the detached site binds to and opens the neighboring attaching hairpin. These steps are cyclically repeated, and the walker DNA travels all over the attaching hairpins on the AuNPs.
In this study, we utilized walker DNA and hairpin DNA-functionalized AuNPs to detect the EGFR ctDNA using the naked eye and ultraviolet and visible ray (UV-vis) absorbance. Our method achieved a limit of detection (LOD) of 38.5 aM and a selectivity of 0.1% with other types of mutants and normal cfDNA.

2. Materials and Method

2.1. Materials

The following materials were purchased from Sigma-Aldrich (St. Louis, MO, USA): sodium chloride (NaCl), tris (2-carboxyethyl) phosphine (TCEP), Tris-ethylene diamine tetra acetic acid (EDTA) buffer solution, ultrapure 10× TBE buffer, ultrapure agarose gel powder, streptavidin, and citrate AuNPs with a diameter of 20 nm. DNAs were purchased from Integrated DNA Technology (Coralville, IA, USA), and all DNAs were purified via HPLC. We used a multi-plate reader (Spectra MAX I 3×, Molecular Devices Corp., Sunnyvale, CA, USA) for measuring UV-vis absorbance of the AuNP solutions. We used a 96-well plate coaster for measuring UV-vis spectra (Corning, NY, USA).

2.2. Preparation of Hairpin DNA and Other DNAs

Attaching hairpin, detaching hairpin, and marker DNAs were designed to have a hairpin structure. The DNA sequences are presented in Table 1. The DNAs were resuspended in a Tris-EDTA solution and 200 mM sodium chloride and heated at 95 °C for 5 min; the DNA solutions were then annealed at room temperature (~25 °C). Locker DNA, walker DNA, and target DNAs were designed to be single-stranded DNA. These DNAs were resuspended in Tris-EDTA, and the locker DNA was conjugated with walker DNA to deactivate walker DNA.

2.3. Fabrication of Attaching Hairpin DNA-Functionalized Gold Nanoparticles and Streptavidin Immobilization

To immobilize the attaching hairpin DNA on an AuNP, a gold-thiol bond was used. The citrate coating on the AuNPs was replaced with thiol DNA by stirring with a magnetic bar for 16 h. The gold solution was centrifuged at 16,000× g for 10 min. Except for the sediment of the AuNPs, the transparent solution was replaced with a Tris-EDTA buffer solution. To confirm the stability of the DNA immobilized AuNPs, 800 mM of NaCl was added, and observed change the color of solution. Additional stability and feasibility test results are shown in Supplementary Figure S2.
The streptavidin solution was prepared by mixing with the AuNP solution at a ratio of 1:5. The solution was stirred with a magnetic bar for 16 h at 10 °C. The solution was centrifuged at 16,000× g for 10 min; the free streptavidin was removed, and a Tris-EDTA buffer solution was added.

2.4. Preparation of the Control Solution and the Detection Assay

The assay solution consisted of an attaching hairpin-immobilized AuNP solution (60 μL), a detaching hairpin solution (12 μL), a marker DNA solution (3 μL), and a deactivated walker DNA (walker DNA + locker DNA) solution (6 μL), which had two locker DNAs on both sides. The total sodium concentration was fixed at 800 mM. Various assay solutions were prepared with different concentrations of deactivated walker DNA to estimate the LOD and evaluate the sensitivity. For the detection group, target DNA (EGFR exon 19 deletion mutant) was added to the assay solution at various concentrations. For control group, target DNA was not added.
The target DNA was detected by adding it to the prepared assay solution. After incubating the target DNA with the assay solution for 20 min, the attaching hairpin-immobilized AuNP solution (60 μL) was added and centrifuged at 6000× g for 10 min. The solution was maintained at 37 °C for 3 h to allow activated walker DNA reaction. Afterwards, the streptavidin-immobilized AuNP solution was added, and the solution was centrifuged at 2000× g for 5 min. After 6 h, 100 μL of the supernatant was extracted and its UV-vis spectrum was measured.

2.5. Design of the Detection Experiment

The UV-visible spectra of the samples were measured from 400 to 700 nm in a 96-well plate (Figures S3 and S4). Based on the concentration of template, we prepared corresponding control solutions and detection solutions at various concentrations. We compared the UV-vis absorbance spectra of assay solution, which did not contain the target DNA, and the detection solution, which contained it. We analyzed the area of the UV absorbance spectrum of each sample using the Peakfit software. From the area value, we calculated the detection signal from Equation (1). All the area parameters were obtained from the Peakfit software [54,55]. The area value was calculated by Gaussian curve fit and area integration.
[ { ( C . S . ) − ( D . S . ) } × 100 ] ⁄ ( C . S . )   ( % )
where C.S. and D.S. represent the UV-vis absorbance intensity of the control solution and detection solution, respectively.

2.6. Gel Electrophoresis Proof

The electrophoresis of the walker DNA was performed using 2% agarose gels in 1× TBE buffer. Each DNA solution was dissolved in Tris-EDTA buffer, and the final concentration of the sodium ion was set at 200 mM. One DNA solution was added to each lane, and ladder DNA (50 bp) was added to the far-left lane as a reference. In each sample, the total concentration of DNA was 10 μM, and the volume of the solution was 10 μL. The fluorescent detection solution and DNA solution were mixed at a ratio of 1:3. The voltage was set to 100 mV, and running time was 20 min. After separation, the gel was photographed by a CCD camera (Samsung Electronics Co., Ltd., Suwon, Korea) in a UV-vis light box.

3. Results and Discussion

3.1. Detection of EGFR Mutant DNA

To quickly detect the target DNA, the solution was centrifuged at 2000× g for 5 min. In case of a positive reaction, the AuNPs were coupled, and therefore, settled at the bottom. In case of a negative reaction, the AuNPs were not coupled, and therefore, remained suspended in the solution. This difference in dispersibility, was reflected in a difference in UV absorbance at 520 nm. The control solution had a high absorbance, while the positive solution had a low absorbance. The aggregated nanoparticles were precipitated; however, the color of the solution remained red since the distance between the AuNPs was sufficiently large. The distance between the AuNPs was 70 base pairs of DNA [19,20]. Therefore, we compared the upper part of the solution after extraction and measured the absorbance spectrum instead of the peak shift [55]. The area of the peak at 524 nm indicated the purity of single AuNPs and the existence of a number of AuNPs. A sharp and large area was indicative of a single AuNP spectrum. The presence of the EGFR ctDNA was determined based on the difference in the UV spectrum area between the control solution and positive solution.

3.2. Mechanism of the Walker DNA

We evaluated the DNA chain reaction through gel electrophoresis. As shown in Figure 2 and Figure S5, we loaded the solution in the order of the steps of the detection process. The locked walker DNA is visible at the top in the 1st lane and the target DNA is visible in the 2nd lane. On detachment of the locker DNA from the walker DNA, a lower intensity band corresponding to the walker DNA appeared on the gel. Locker DNA bound to the target DNA is upper band. The 3rd lane shows the bands corresponding to attaching hairpin, detaching hairpin, and marker DNA from the top. The attaching hairpin, detaching hairpin, and marker DNA were mixed; however, there was no hybridization reaction between the hairpins and the marker DNA. The 4th lane shows a mixture of the unlocked walker DNA (2nd lane) and all the DNA of the 3rd lane. This lane has a considerably higher molecular weight band, which indicates that an assembled DNA structure (green star: attaching hairpin + detaching hairpin + marker DNA) was formed because of the activation of the walker DNA. Above 150 bp, it does not show a single band but two bands. The upper band is the walker DNA binding to the two attaching hairpins. The lower band is the fully assembled DNA of the attaching hairpin, detaching hairpin, and marker DNA, which was the end product.

3.3. Redispersion Time of the AuNPs

We measured the UV-vis absorbance to evaluate the redispersion time of the condensed AuNPs. We prepared the same control and detection solutions for each concentration every 2 h and extracted the supernatant solution (Orange box, Figure 3D) based on the time interval. As shown in Figure 3, there was a difference between the spectrum of the control solution and that of the detection solution after 6 h. Figure 3C shows the area of each UV-vis spectrum. The difference in area was evident after 6 h. In the solution, the dispersed AuNPs were free nanoparticles, and the non-dispersed AuNPs were aggregated nanoparticles. Despite the electrostatic repulsive forces of the DNA on the AuNPs, the streptavidin–biotin bonding was strong enough to aggregate the AuNPs.
Since there was no target DNA in the control solution, the AuNPs were dispersed. However, in the detection solution, the target DNA released the walker DNA to produce the DNA complex with biotin at one end, forming streptavidin-biotin-bound AuNP aggregates. Since the target DNA was not present in the control solution, the free marker DNA could bind to the streptavidin AuNPs, thereby resulting in stable streptavidin AuNPs.

3.4. Limit of Detection of EGFR Exon 19 Mutant #2

As mentioned above, we tested various concentrations of the target ctDNA, from 3.85 × 10−1 nM to 3.85 × 10−8 nM. Therefore, we constructed a two-dimensional set for the detection experiment (Figures S3 and S4). The red boxes in Figures S3 and S4 form a diagonal line. It included four samples: the lower control (upper left), lower detection (upper right), higher control (lower left), and higher detection solutions (lower right). Using Equation (1), we determined values of the areas for all the concentrations of the control and detection solutions. The diagonal line represents the dynamic concentration, and shows notable results compared to those obtained in the other experimental sets. Using this platform, any concentration of target DNA can be detected by preparing all the concentrations of the template. We identified the concentration of the target ctDNA by determining the critical dynamic line.
To determine the exact LOD for this platform, we compared the solutions containing mutant DNA with those containing the EGFR wild-type DNA. The blood of a cancer patient contains both mutant ctDNA and wild-type cfDNA. Therefore, the control experiment was set for the detection of wild-type DNA. In Figure 4, the green bars represent the absorbance of wild-type DNA, and the blue bars represent the absorbance of EGFR exon 19 deletion mutant #2 DNA. Each experiment was performed at least three times, over a target DNA concentration range of 3.85 × 10−1 nM to 3.85 × 10−8 nM. At high concentrations of mutant DNA, a large difference between the wild-type DNA and mutant DNA detection signals was observed. Therefore, following the principle of LOD, we adopted a three-standard deviation (3SD) criterion. The control signal should be the lower template of 3.85 × 10−8 nM, which was 3.1% ± 0.3%. The LOD was set to 4.2%. Therefore, using this platform, we could detect 3.85 × 10−7 nM (38.5 aM) of the target DNA, which is a remarkably low LOD compared to those of other detection platforms [55,56,57,58,59].
The LOD, as shown in Figure 4, also indicated a higher selectivity for wild-type DNA. For mutant DNA detection, 3.85 × 10−7 nM and 3.85 × 10−6 nM of the target DNA had selectivity values of 10.1% ± 0.42% and 7.6% ± 0.7 %, respectively, and for wild-type DNA detection, 3.85 × 10−1 nM and 3.85 × 10−3 nM of the target DNA had selectivity values of 10.3% ± 0.4% and 7.9% ± 0.3%, respectively. The magnitude of the order difference between mutant and wild-type DNA was ×100,000 and ×10,000, respectively, but with similar signals. Therefore, a 1000× concentration of wild-type DNA was distinguishable from that of mutant DNA, which corresponded to a selectivity of 0.1%.

3.5. Detection of Other Types of ctDNA

We evaluated the unlocking of the walker DNA with wild-type DNA and EGFR exon 19 mutants #1 and #3. The activation of walker DNA is the first step in the working of this platform. Therefore, the results of the unlocking of walker DNA were compared with the results of detection. In Figure S6, wild-type DNA and mutant #3 DNA exhibited a lower band line. However, mutant #1 and mutant #2 DNA exhibited considerably higher and similar band lines. The mutant #2 DNA and mutant #1 DNA differed by a single base pair in their sequences; however, the wild-type DNA and mutant #3 DNA differed by 15 base pairs and 6 base pairs, respectively. All the mutant DNA had potential binding sites in their sequences.
The detection experiment was conducted on the wild-type, mutant #3, mutant #1, and mutant #2 DNA, as shown in Figure 5. The target DNA concentration was fixed at 3.85 × 10−5 nM, and the measured values were 5.4% ± 0.3% for the wild-type, 3.3% ± 0.7% for mutant #3, 9.8% ± 0.8% for mutant #1, and 14.8% ± 1.7% for mutant #2. As mutant #1 DNA had a single base pair mismatch with the templates, it exhibited a high intensity signal similar to that of mutant #2 DNA. Conversely, the wild-type and mutant #3 DNA exhibited low intensity signals.

4. Conclusions

The detection of EGFR ctDNA in the blood is crucial for the early detection of cancer. In this study, we used catalytic walker DNA and streptavidin–biotin coupled AuNPs for detecting EGFR ctDNA. We detected ctDNA through walker DNA-based gravitational condensation and dispersion of AuNPs. Through this process, this sensing platform achieved a LOD of 38.5 aM and a selectivity of 0.1% for mutant DNA, compared with those achieved for EGFR wild-type DNA. However, the limitation of this platform is the inefficient detection of a single base pair mismatched DNA sequence, as observed in case of mutant #1. In the future, we will attempt to address this limitation.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma15093301/s1, Figure S1: Schematic image of EGFR exon 19 deletion types with codon name and number, Figure S2: Detailed electrophoresis band line explanation, Figure S3: 800 mM of NaCl precipitation test, Figure S4: 96-well plate picture of detection of EGFR exon 19 mutation #2 DNA, Figure S5: UV absorbance spectrum plot of detection of EGFR exon 19 mutation #2, Figure S6: Agarose gel electrophoresis test of selective activation of walker DNA, Table S1: Literature studies of detection of EGFR DNA.

Author Contributions

J.Y. and C.P. conceived and designed the experiments and wrote the manuscript; J.Y. performed all experiments and wrote the manuscript; J.Y. and K.J. analyzed the UV-vis absorbance data. J.Y. carried out electrophoresis analysis. J.P. and S.N. supervised all the experiments, analysis, and writing the manuscripts. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) under Grant No. NRF-2016R1A5A1010148, NRF-2020R1F1A1075581, and which is funded by the Ministry of Science, ICT and Future Planning.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request due to restrictions eg privacy or ethical.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Shanmugasundaram, K.B.; Li, J.; Sina, A.A.I.; Wuethrich, A.; Trau, M.J.M.A. Toward precision oncology: SERS microfluidic systems for multiplex biomarker analysis in liquid biopsy. Mater. Adv. 2022, 3, 1459–1471. [Google Scholar] [CrossRef]
  2. Shen, H.; Su, R.; Peng, J.; Zhu, L.; Deng, K.; Niu, Q.; Song, Y.; Yang, L.; Wu, L.; Zhu, Z.J.B.m. Antibody-engineered red blood cell interface for high-performance capture and release of circulating tumor cells. Bioact. Mater. 2022, 11, 32–40. [Google Scholar] [CrossRef]
  3. Amri, C.; Shukla, A.K.; Lee, J.-H.J.M. Recent Advancements in Nanoparticle-Based Optical Biosensors for Circulating Cancer Biomarkers. Materials 2021, 14, 1339. [Google Scholar] [CrossRef] [PubMed]
  4. Pouedras, M.; Briand, S.; Crenn, V.; Cassagnau, E.; Gouin, F.J.S.O. Non image-guided core needle biopsies can be used safely to improve diagnostic efficiency for soft tissue tumors. Surg. Oncol. 2021, 37, 101518. [Google Scholar] [CrossRef] [PubMed]
  5. Ignatiadis, M.; Sledge, G.W.; Jeffrey, S.S.J.N.r.C.o. Liquid biopsy enters the clinic—Implementation issues and future challenges. Nat. Rev. Clin. Oncol. 2021, 18, 297–312. [Google Scholar] [CrossRef]
  6. Alix-Panabières, C.; Pantel, K.J.C.d. Liquid biopsy: From discovery to clinical application. Cancer Discov. 2021, 11, 858–873. [Google Scholar] [CrossRef]
  7. Mandel, P. Les acides nucleiques du plasma sanguin chez 1 homme. Cancer Discov. 1948, 142, 241–243. [Google Scholar]
  8. Giacona, M.B.; Ruben, G.C.; Iczkowski, K.A.; Roos, T.B.; Porter, D.M.; Sorenson, G.D.J.P. Cell-free DNA in human blood plasma: Length measurements in patients with pancreatic cancer and healthy controls. Pancreas 1998, 17, 89–97. [Google Scholar] [CrossRef]
  9. Sozzi, G.; Conte, D.; Mariani, L.; Vullo, S.L.; Roz, L.; Lombardo, C.; Pierotti, M.A.; Tavecchio, L.J.C.r. Analysis of circulating tumor DNA in plasma at diagnosis and during follow-up of lung cancer patients. Cancer Res. 2001, 61, 4675–4678. [Google Scholar] [PubMed]
  10. Punnoose, E.A.; Atwal, S.; Liu, W.; Raja, R.; Fine, B.M.; Hughes, B.G.; Hicks, R.J.; Hampton, G.M.; Amler, L.C.; Pirzkall, A.J.C.C.R. Evaluation of circulating tumor cells and circulating tumor DNA in non–small cell lung cancer: Association with clinical endpoints in a phase II clinical trial of pertuzumab and erlotinib. Clin. Cancer Res. 2012, 18, 2391–2401. [Google Scholar] [CrossRef] [Green Version]
  11. Husain, H.; Melnikova, V.O.; Kosco, K.; Woodward, B.; More, S.; Pingle, S.C.; Weihe, E.; Park, B.H.; Tewari, M.; Erlander, M.G.J.C.c.r. Monitoring daily dynamics of early tumor response to targeted therapy by detecting circulating tumor DNA in urine. Clin. Cancer Res. 2017, 23, 4716–4723. [Google Scholar] [CrossRef] [Green Version]
  12. Xu, T.; Kang, X.; You, X.; Dai, L.; Tian, D.; Yan, W.; Yang, Y.; Xiong, H.; Liang, Z.; Zhao, G.Q.J.T. Cross-platform comparison of four leading technologies for detecting EGFR mutations in circulating tumor DNA from non-small cell lung carcinoma patient plasma. Theranostics 2017, 7, 1437. [Google Scholar] [CrossRef]
  13. Pisapia, P.; Rocco, D.; Pepe, F.; De Luca, C.; Battiloro, C.; Smeraglio, R.; Cieri, M.; Bellevicine, C.; Troncone, G.; Malapelle, U.J.T.C.R. EGFR exon 19 deletion switch and development of p.L792Q mutation as a new resistance mechanism to osimertinib: A case report and literature review. Transl. Cancer Res. 2018, 2018, S64–S69. [Google Scholar] [CrossRef] [PubMed]
  14. Croyle, M.; Akeno, N.; Knauf, J.A.; Fabbro, D.; Chen, X.; Baumgartner, J.E.; Lane, H.A.; Fagin, J.A.J.C.R. RET/PTC-induced cell growth is mediated in part by epidermal growth factor receptor (EGFR) activation: Evidence for molecular and functional interactions between RET and EGFR. Cancer Res. 2008, 68, 4183–4191. [Google Scholar] [CrossRef] [Green Version]
  15. Bettegowda, C.; Sausen, M.; Leary, R.J.; Kinde, I.; Wang, Y.; Agrawal, N.; Bartlett, B.R.; Wang, H.; Luber, B.; Alani, R.M.J.S.t.m. Detection of circulating tumor DNA in early-and late-stage human malignancies. Sci. Transl. Med. 2014, 6, 224. [Google Scholar] [CrossRef] [Green Version]
  16. Heitzer, E.; Speicher, M.R.J.S.T.M. One size does not fit all: Size-based plasma DNA diagnostics. Sci. Transl. Med. 2018, 10, eaav3873. [Google Scholar] [CrossRef]
  17. Park, J.-L.; Kim, H.J.; Choi, B.Y.; Lee, H.-C.; Jang, H.-R.; Song, K.S.; Noh, S.-M.; Kim, S.-Y.; Han, D.S.; Kim, Y.S.J.O.l. Quantitative analysis of cell-free DNA in the plasma of gastric cancer patients. Oncol. Lett. 2012, 3, 921–926. [Google Scholar] [PubMed]
  18. Rossi, S.; Toschi, L.; Finocchiaro, G.; Di Noia, V.; Bonomi, M.; Cerchiaro, E.; Ceresoli, G.L.; Beretta, G.D.; D’Argento, E.; Santoro, A. Impact of Exon 19 Deletion Subtypes in EGFR-Mutant Metastatic Non–Small-Cell Lung Cancer Treated with First-Line Tyrosine Kinase Inhibitors. Clin. Lung Cancer 2019, 20, 82–87. [Google Scholar] [CrossRef]
  19. Park, C.; Song, Y.; Jang, K.; Choi, C.-H.; Na, S.J.S.; Chemical, A.B. Target switching catalytic hairpin assembly and gold nanoparticle colorimetric for EGFR mutant detection. Sens. Actuators B Chem. 2018, 261, 497–504. [Google Scholar] [CrossRef]
  20. Park, C.; Park, H.; Lee, H.J.; Lee, H.S.; Park, K.H.; Choi, C.-H.; Na, S.J.M.A. Double amplified colorimetric detection of DNA using gold nanoparticles, enzymes and a catalytic hairpin assembly. Microchim. Acta 2019, 186, 34. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, X.; Wu, J.; Mao, W.; He, X.; Ruan, L.; Zhu, J.; Shu, P.; Zhang, Z.; Jiang, B.; Zhang, X.J.A. A tetrahedral DNA nanostructure-decorated electrochemical platform for simple and ultrasensitive EGFR genotyping of plasma ctDNA. Analyst 2020, 145, 4671–4679. [Google Scholar] [CrossRef]
  22. Lee Yu, H.; Cao, Y.; Lu, X.; Hsing, I.M. Detection of rare variant alleles using the AsCas12a double-stranded DNA trans-cleavage activity. Biosens. Bioelectron. 2021, 189, 113382. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, M.; Wu, D.; Tu, S.; Yang, C.; Chen, D.; Xu, Y. CRISPR/Cas9 cleavage triggered ESDR for circulating tumor DNA detection based on a 3D graphene/AuPtPd nanoflower biosensor. Biosens. Bioelectron. 2021, 173, 112821. [Google Scholar] [CrossRef]
  24. Mao, X.; Pan, S.; Zhou, D.; He, X.; Zhang, Y. Fabrication of DNAzyme-functionalized hydrogel and its application for visible detection of circulating tumor DNA. Sens. Actuators B Chem. 2019, 285, 385–390. [Google Scholar] [CrossRef]
  25. Hu, Y.; Guo, X.; Gu, P.; Luo, Q.; Song, Y.; Song, E. Mn2+-mediated magnetic relaxation switching for direct assay of ctDNA in whole blood via exonuclease III assisted amplification. Sens. Actuators B Chem. 2021, 330, 129340. [Google Scholar] [CrossRef]
  26. Guselnikova, O.; Postnikov, P.; Pershina, A.; Svorcik, V.; Lyutakov, O. Express and portable label-free DNA detection and recognition with SERS platform based on functional Au grating. Appl. Surf. Sci. 2019, 470, 219–227. [Google Scholar] [CrossRef]
  27. Yang, X.; Liao, M.; Zhang, H.; Gong, J.; Yang, F.; Xu, M.; Tremblay, P.-L.; Zhang, T. An electrochemiluminescence resonance energy transfer biosensor for the detection of circulating tumor DNA from blood plasma. iScience 2021, 24, 103019. [Google Scholar] [CrossRef]
  28. Ju, Y.; Kim, H.Y.; Ahn, J.K.; Park, H.G.J.N. Ultrasensitive version of nucleic acid sequence-based amplification (NASBA) utilizing a nicking and extension chain reaction system. Nanoscale 2021, 13, 10785–10791. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, J.; Kreutz, J.E.; Thompson, A.M.; Qin, Y.; Sheen, A.M.; Wang, J.; Wu, L.; Xu, S.; Chang, M.; Raugi, D.N.J.L.o.a.C. SD-chip enabled quantitative detection of HIV RNA using digital nucleic acid sequence-based amplification (dNASBA). Lab Chip 2018, 18, 3501–3506. [Google Scholar] [CrossRef]
  30. Xu, W.; Xie, X.; Li, D.; Yang, Z.; Li, T.; Liu, X. Ultrasensitive Colorimetric DNA Detection using a Combination of Rolling Circle Amplification and Nicking Endonuclease-Assisted Nanoparticle Amplification (NEANA). Small 2012, 8, 1846–1850. [Google Scholar] [CrossRef]
  31. Zhou, Y.; Huang, Q.; Gao, J.; Lu, J.; Shen, X.; Fan, C. A dumbbell probe-mediated rolling circle amplification strategy for highly sensitive microRNA detection. Nucleic Acids Res. 2010, 38, e156. [Google Scholar] [CrossRef] [Green Version]
  32. Xu, L.; Duan, J.; Chen, J.; Ding, S.; Cheng, W.J.A.C.A. Recent advances in rolling circle amplification-based biosensing strategies-A review. Anal. Chim. Acta 2021, 1148, 238187. [Google Scholar] [CrossRef]
  33. Shen, C.; Liu, S.; Li, X.; Yang, M.J.A.C. Electrochemical detection of circulating tumor cells based on DNA generated electrochemical current and rolling circle amplification. Anal. Chem. 2019, 91, 11614–11619. [Google Scholar] [CrossRef] [PubMed]
  34. Yao, C.; Zhang, R.; Tang, J.; Yang, D.J.N.p. Rolling circle amplification (RCA)-based DNA hydrogel. Nat. Protoc. 2021, 16, 5460–5483. [Google Scholar] [CrossRef]
  35. Deng, X.; Wang, C.; Gao, Y.; Li, J.; Wen, W.; Zhang, X.; Wang, S.J.B. Applying strand displacement amplification to quantum dots-based fluorescent lateral flow assay strips for HIV-DNA detection. Biosens. Bioelectron. 2018, 105, 211–217. [Google Scholar] [CrossRef] [PubMed]
  36. Zhou, W.; Hu, L.; Ying, L.; Zhao, Z.; Chu, P.K.; Yu, X.-F.J.N.c. A CRISPR–Cas9-triggered strand displacement amplification method for ultrasensitive DNA detection. Nat. Commun. 2018, 9, 5012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zhou, H.; Zhang, J.; Li, B.; Liu, J.; Xu, J.-J.; Chen, H.-Y.J.A.c. Dual-mode SERS and electrochemical detection of miRNA based on popcorn-like gold nanofilms and toehold-mediated strand displacement amplification reaction. Anal. Chem. 2021, 93, 6120–6127. [Google Scholar] [CrossRef]
  38. Liu, J.; Zhang, Y.; Xie, H.; Zhao, L.; Zheng, L.; Ye, H.J.S. Applications of catalytic hairpin assembly reaction in biosensing. Small 2019, 15, 1902989. [Google Scholar] [CrossRef] [PubMed]
  39. Karunanayake Mudiyanselage, A.P.; Yu, Q.; Leon-Duque, M.A.; Zhao, B.; Wu, R.; You, M.J.J.o.t.A.C.S. Genetically encoded catalytic hairpin assembly for sensitive RNA imaging in live cells. J. Am. Chem. Soc. 2018, 140, 8739–8745. [Google Scholar] [CrossRef] [PubMed]
  40. Qing, Z.; Hu, J.; Xu, J.; Zou, Z.; Lei, Y.; Qing, T.; Yang, R.J.C.s. An intramolecular catalytic hairpin assembly on a DNA tetrahedron for mRNA imaging in living cells: Improving reaction kinetics and signal stability. Chem. Sci. 2020, 11, 1985–1990. [Google Scholar] [CrossRef] [Green Version]
  41. Yu, L.; Wu, S.; Hao, X.; Dong, X.; Mao, L.; Pelechano, V.; Chen, W.-H.; Yin, X.J.C.c. Rapid detection of COVID-19 coronavirus using a reverse transcriptional loop-mediated isothermal amplification (RT-LAMP) diagnostic platform. Clin. Chem. 2020, 66, 975–977. [Google Scholar] [CrossRef]
  42. Becherer, L.; Borst, N.; Bakheit, M.; Frischmann, S.; Zengerle, R.; von Stetten, F.J.A.M. Loop-mediated isothermal amplification (LAMP)–review and classification of methods for sequence-specific detection. Anal. Methods 2020, 12, 717–746. [Google Scholar] [CrossRef] [Green Version]
  43. Baek, Y.H.; Um, J.; Antigua, K.J.C.; Park, J.-H.; Kim, Y.; Oh, S.; Kim, Y.-i.; Choi, W.-S.; Kim, S.G.; Jeong, J.H.J.E.m.; et al. Development of a reverse transcription-loop-mediated isothermal amplification as a rapid early-detection method for novel SARS-CoV-2. Emerg. Microbes Infect. 2020, 9, 998–1007. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Puig Lombardi, E.; Londoño-Vallejo, A. A guide to computational methods for G-quadruplex prediction. Nucleic Acids Res. 2019, 48, 1–15. [Google Scholar] [CrossRef] [PubMed]
  45. Xi, H.; Juhas, M.; Zhang, Y. G-quadruplex based biosensor: A potential tool for SARS-CoV-2 detection. Biosens. Bioelectron. 2020, 167, 112494. [Google Scholar] [CrossRef]
  46. Dayanidhi, K.; Vadivel, P.; Jothi, S.; Sheik Eusuff, N.J.A.A.M. White eggshells: A potential biowaste material for synergetic adsorption and naked-eye colorimetric detection of heavy metal ions from aqueous solution. ACS Appl. Mater. Interfaces 2019, 12, 1746–1756. [Google Scholar] [CrossRef]
  47. Ma, X.; He, S.; Qiu, B.; Luo, F.; Guo, L.; Lin, Z.J.A.s. Noble metal nanoparticle-based multicolor immunoassays: An approach toward visual quantification of the analytes with the naked eye. ACS Sens. 2019, 4, 782–791. [Google Scholar] [CrossRef]
  48. Li, X.; Zhang, S.; Dang, Y.; Liu, Z.; Zhang, Z.; Shan, D.; Zhang, X.; Wang, T.; Lu, X.J.A.c. Ultratrace naked-eye colorimetric ratio assay of chromium (III) ion in aqueous solution via stimuli-responsive morphological transformation of silver nanoflakes. Anal. Chem. 2019, 91, 4031–4038. [Google Scholar] [CrossRef]
  49. Mahato, K.; Chandra, P.J.B. Paper-based miniaturized immunosensor for naked eye ALP detection based on digital image colorimetry integrated with smartphone. Biosens. Bioelectron. 2019, 128, 9–16. [Google Scholar] [CrossRef]
  50. Miao, P.; Tang, Y. Gold Nanoparticles-Based Multipedal DNA Walker for Ratiometric Detection of Circulating Tumor Cell. Anal. Chem. 2019, 91, 15187–15192. [Google Scholar] [CrossRef]
  51. Liu, H.; Nishide, D.; Tanaka, T.; Kataura, H. Large-scale single-chirality separation of single-wall carbon nanotubes by simple gel chromatography. Nat. Commun. 2011, 2, 309. [Google Scholar] [CrossRef] [PubMed]
  52. Zou, B.; Cao, X.; Wu, H.; Song, Q.; Wang, J.; Kajiyama, T.; Kambara, H.; Zhou, G. Sensitive and specific colorimetric DNA detection by invasive reaction coupled with nicking endonuclease-assisted nanoparticles amplification. Biosens. Bioelectron. 2015, 66, 50–54. [Google Scholar] [CrossRef]
  53. Storhoff, J.J.; Lazarides, A.A.; Mucic, R.C.; Mirkin, C.A.; Letsinger, R.L.; Schatz, G.C. What Controls the Optical Properties of DNA-Linked Gold Nanoparticle Assemblies? J. Am. Chem. Soc. 2000, 122, 4640–4650. [Google Scholar] [CrossRef]
  54. Reinhard, B.M.; Siu, M.; Agarwal, H.; Alivisatos, A.P.; Liphardt, J. Calibration of Dynamic Molecular Rulers Based on Plasmon Coupling between Gold Nanoparticles. Nano Lett. 2005, 5, 2246–2252. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, Q.; Yang, C.; Xiang, Y.; Yuan, R.; Chai, Y. Dual amplified and ultrasensitive electrochemical detection of mutant DNA Biomarkers based on nuclease-assisted target recycling and rolling circle amplifications. Biosens. Bioelectron. 2014, 55, 266–271. [Google Scholar] [CrossRef]
  56. Cheng, W.; Zhang, W.; Yan, Y.; Shen, B.; Zhu, D.; Lei, P.; Ding, S. A novel electrochemical biosensor for ultrasensitive and specific detection of DNA based on molecular beacon mediated circular strand displacement and rolling circle amplification. Biosens. Bioelectron. 2014, 62, 274–279. [Google Scholar] [CrossRef]
  57. Roy, S.; Wei, S.X.; Ying, J.L.Z.; Safavieh, M.; Ahmed, M.U. A novel, sensitive and label-free loop-mediated isothermal amplification detection method for nucleic acids using luminophore dyes. Biosens. Bioelectron. 2016, 86, 346–352. [Google Scholar] [CrossRef]
  58. Li, D.; Cheng, W.; Li, Y.; Xu, Y.; Li, X.; Yin, Y.; Ju, H.; Ding, S. Catalytic Hairpin Assembly Actuated DNA Nanotweezer for Logic Gate Building and Sensitive Enzyme-Free Biosensing of MicroRNAs. Anal. Chem. 2016, 88, 7500–7506. [Google Scholar] [CrossRef]
  59. Zhang, Y.; Yan, Y.; Chen, W.; Cheng, W.; Li, S.; Ding, X.; Li, D.; Wang, H.; Ju, H.; Ding, S. A simple electrochemical biosensor for highly sensitive and specific detection of microRNA based on mismatched catalytic hairpin assembly. Biosens. Bioelectron. 2015, 68, 343–349. [Google Scholar] [CrossRef]
Materials 15 03301 g001 550

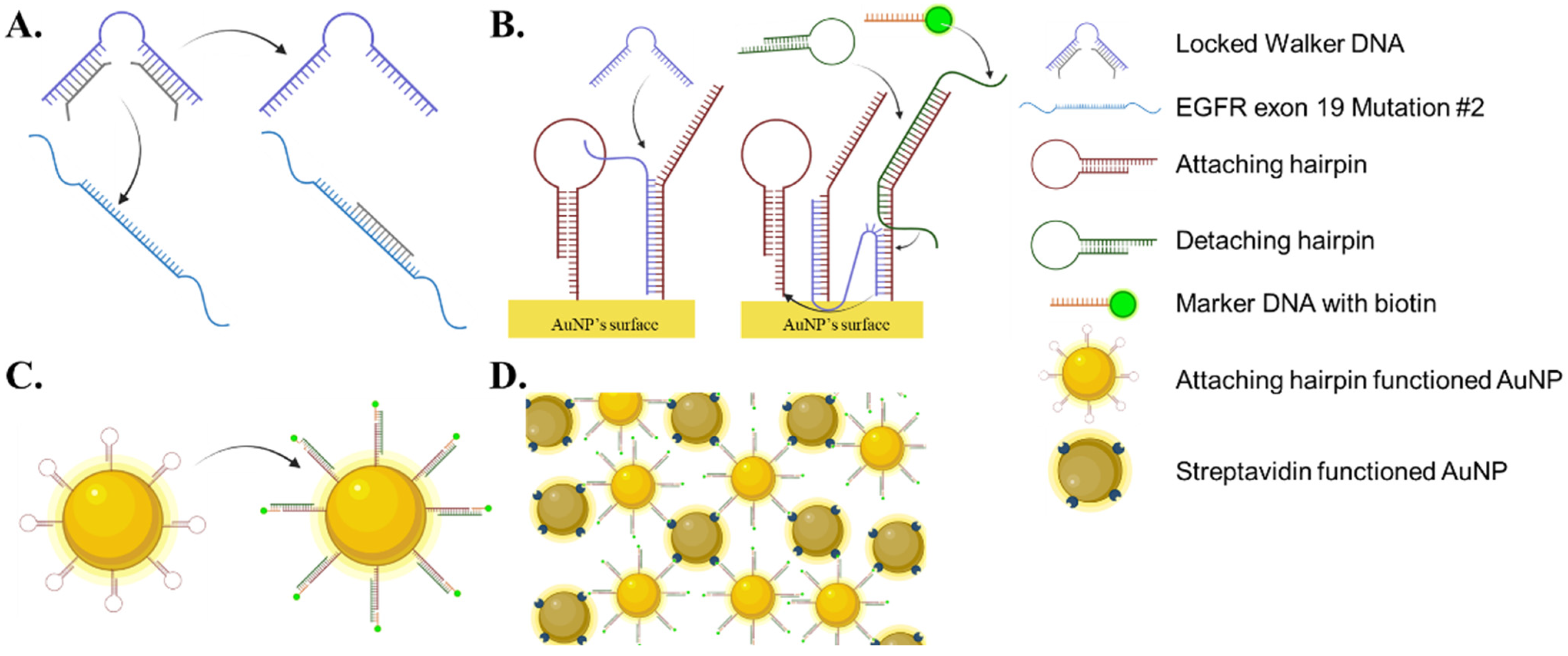

Figure 1. Scheme of working of walker DNA and coupling with the Au NP. (A) Locker DNA is bound to walker DNA, until the target DNA (EGFR exon 19 mutant #2) frees the walker DNA by binding to the locker DNA. (B) The activated walker DNA opens the attaching hairpin on the AuNP through strand displacement. Following this, the detaching hairpin and marker DNA bind to the attaching hairpin. (C) Consequently, biotin molecules are immobilized on the surface of the AuNP. The walker DNA chain reaction continues to the neighboring AuNPs. (D) The biotin-immobilized AuNPs bind to the streptavidin AuNPs to produce aggregates.
Figure 1. Scheme of working of walker DNA and coupling with the Au NP. (A) Locker DNA is bound to walker DNA, until the target DNA (EGFR exon 19 mutant #2) frees the walker DNA by binding to the locker DNA. (B) The activated walker DNA opens the attaching hairpin on the AuNP through strand displacement. Following this, the detaching hairpin and marker DNA bind to the attaching hairpin. (C) Consequently, biotin molecules are immobilized on the surface of the AuNP. The walker DNA chain reaction continues to the neighboring AuNPs. (D) The biotin-immobilized AuNPs bind to the streptavidin AuNPs to produce aggregates.
Materials 15 03301 g001
Materials 15 03301 g002 550
Figure 2. Results of gel electrophoresis of Walker DNA. Gel electrophoresis of DNA structures. Lane 1. locked Walker DNA; Lane 2. unlocked Walker DNA and target DNA; Lane 3. separated attaching hairpin, detaching hairpin, and marker DNA; Lane 4. target DNA + locker DNA; walker DNA fully assembled DNA and target DNA. The green star denotes the position of Assembled DNA (attaching hairpin + detaching hairpin + marker DNA).
Figure 2. Results of gel electrophoresis of Walker DNA. Gel electrophoresis of DNA structures. Lane 1. locked Walker DNA; Lane 2. unlocked Walker DNA and target DNA; Lane 3. separated attaching hairpin, detaching hairpin, and marker DNA; Lane 4. target DNA + locker DNA; walker DNA fully assembled DNA and target DNA. The green star denotes the position of Assembled DNA (attaching hairpin + detaching hairpin + marker DNA).
Materials 15 03301 g002
Materials 15 03301 g003 550

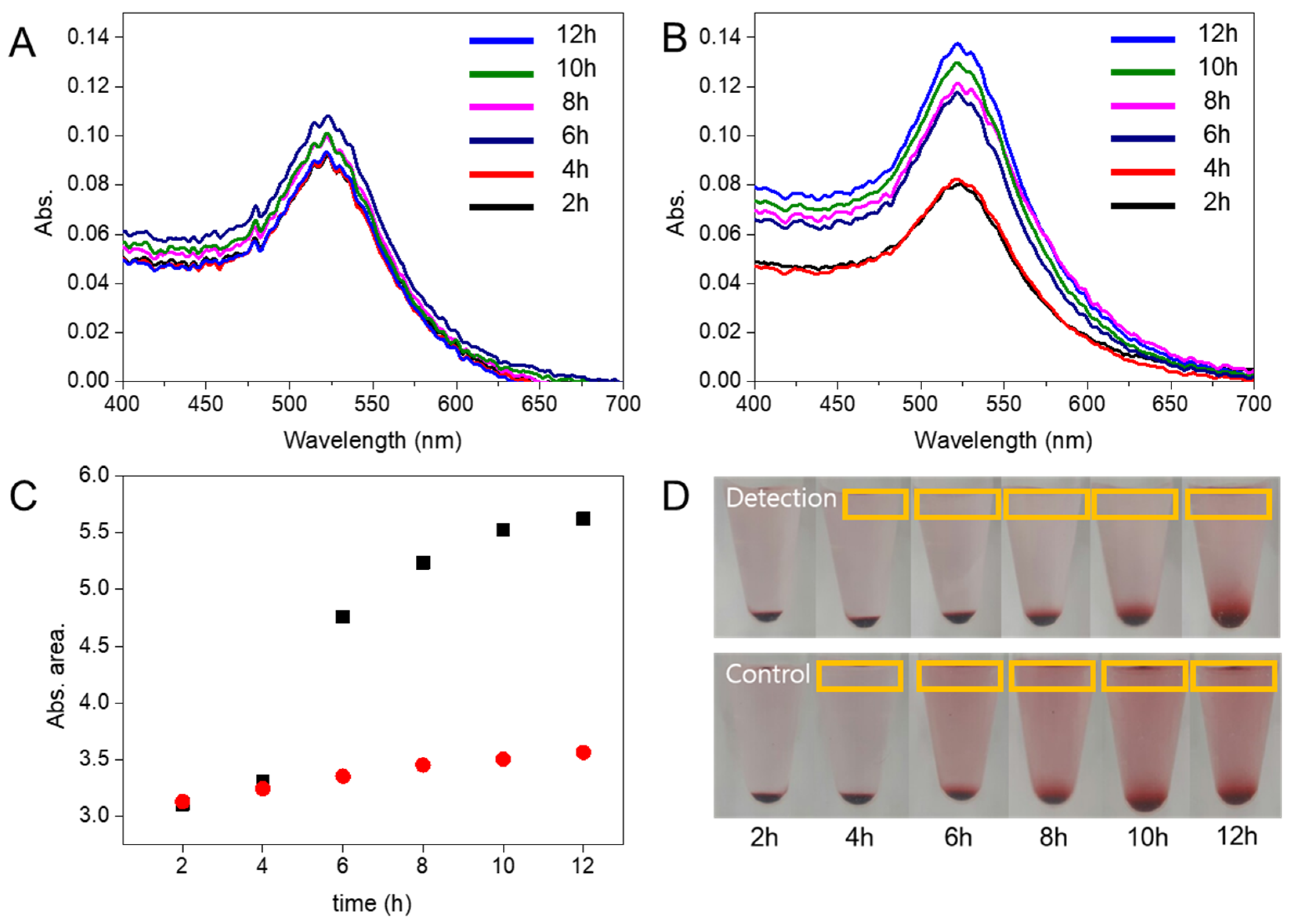

Figure 3. Real-time detection of EGFR exon 19 deletion mutant #2. UV-vis absorbance spectrum (A) detection experiment, (B) control experiment and relatively. (C) area of UV-vis absorbance spectrum (black square: control experiment; red dot: detection experiment), and (D) centrifuge cell picture, according to re-dispersion time. The concentration of EGFR mutant DNA was 3.85 × 10−1 M.
Figure 3. Real-time detection of EGFR exon 19 deletion mutant #2. UV-vis absorbance spectrum (A) detection experiment, (B) control experiment and relatively. (C) area of UV-vis absorbance spectrum (black square: control experiment; red dot: detection experiment), and (D) centrifuge cell picture, according to re-dispersion time. The concentration of EGFR mutant DNA was 3.85 × 10−1 M.
Materials 15 03301 g003
Materials 15 03301 g004 550
Figure 4. Detection of EGFR exon 19 deletion mutant #2. Detection of EGFR exon 19 wild type DNA (green) and EGFR exon 19 deletion mutant #2 DNA (blue). The exact value of detection of EGFR exon 19 wild type DNA (green) is 10.3% ± 0.4%, 8.5% ± 0.3%, 7.9% ± 0.3%, 6.8% ± 0.4%, 5.4% ± 0.3%, 4.2% ± 0.3%, 3.1% ± 0.3%, and 3.1% ± 0.3%, and the exact value of detection of EGFR exon 19 deletion mutant #2 DNA (blue) is 54.5% ± 3.5%, 46.8% ± 4.0%, 32.4% ± 3.6%, 22.9% ± 1.4%, 14.8% ± 1.7%, 10.1% ± 0.4%, 7.6% ± 0.7%, and 4.1% ± 0.2% in order of the concentrations of template and target DNA. Each concentration has been tested at least three times.
Figure 4. Detection of EGFR exon 19 deletion mutant #2. Detection of EGFR exon 19 wild type DNA (green) and EGFR exon 19 deletion mutant #2 DNA (blue). The exact value of detection of EGFR exon 19 wild type DNA (green) is 10.3% ± 0.4%, 8.5% ± 0.3%, 7.9% ± 0.3%, 6.8% ± 0.4%, 5.4% ± 0.3%, 4.2% ± 0.3%, 3.1% ± 0.3%, and 3.1% ± 0.3%, and the exact value of detection of EGFR exon 19 deletion mutant #2 DNA (blue) is 54.5% ± 3.5%, 46.8% ± 4.0%, 32.4% ± 3.6%, 22.9% ± 1.4%, 14.8% ± 1.7%, 10.1% ± 0.4%, 7.6% ± 0.7%, and 4.1% ± 0.2% in order of the concentrations of template and target DNA. Each concentration has been tested at least three times.
Materials 15 03301 g004
Materials 15 03301 g005 550

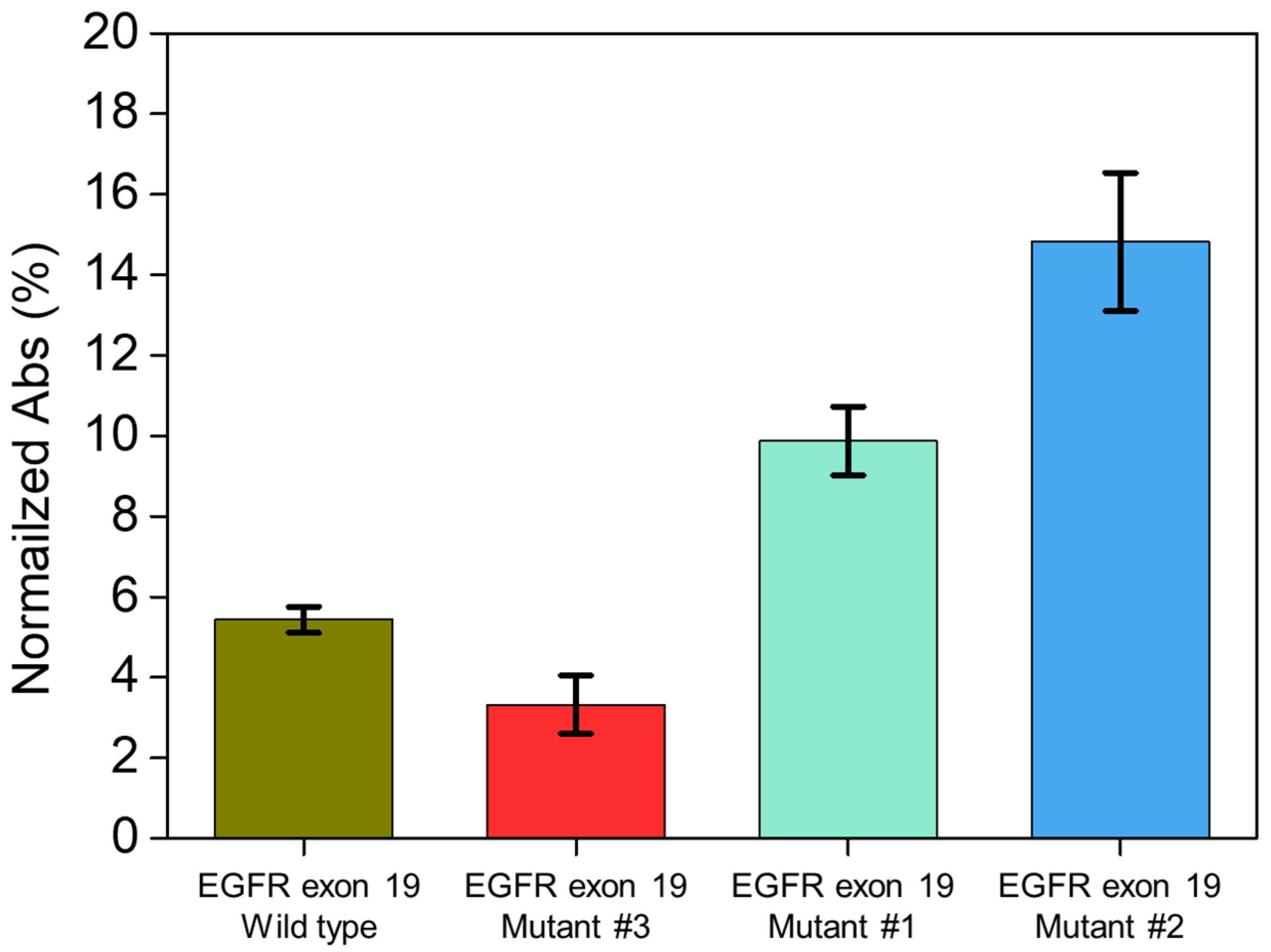

Figure 5. Selectivity experiment of EGFR exon 19 mutants and wild type DNA. The exact value is 5.4% ± 0.3%, 3.3% ± 0.7%, 9.8% ± 0.8%, and 14.8% ± 1.7% for wild-type, mutant #3, mutant #1 and mutant #2, respectively. The concentration of the DNA was 3.85 × 10−5 nM. Each bar data has been tested at least three times.
