Study on the Effect of Ultraviolet Absorber UV-531 on the Performance of SBS-Modified Asphalt
Abstract
:1. Introduction
2. Materials and Methods
2.1. Testing Raw Materials

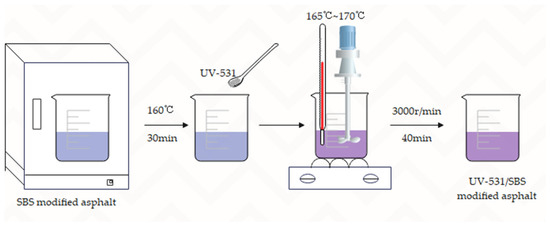

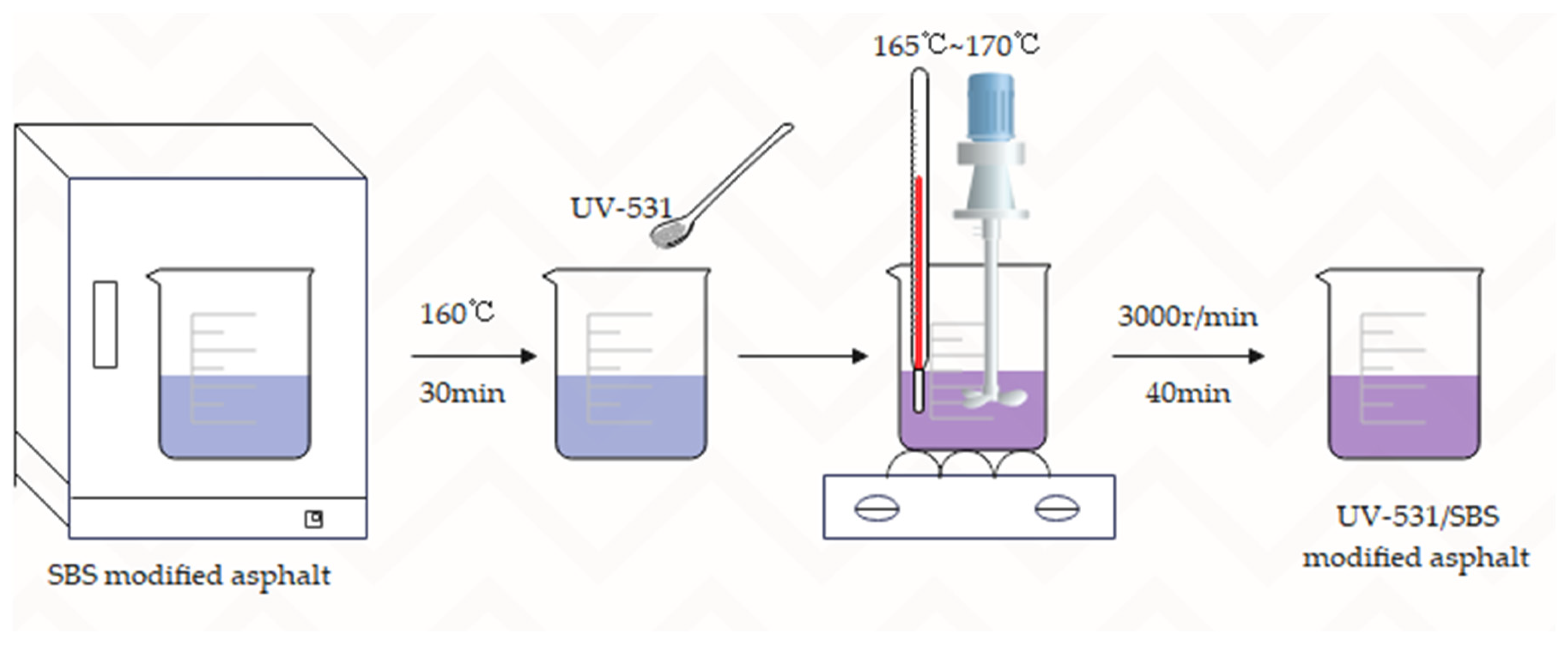

2.2. UV-531/SBS-Modified Asphalt Preparation
- (1)
- Put the SBS-modified asphalt into 160 °C ovens for 30 min and then take it out.
- (2)
- 0%, 0.4%, 0.7%, and 1.0% of UV-531 (external admixture) were added to SBS-modified asphalt and sheared using a high-speed shear rate of 3000 r/min and a shear temperature controlled at 165 °C to 170 °C.
- (3)
- UV-531- and SBS-modified asphalt was mixed and sheared at high speed for 40 min to prepare UV-531/SBS-modified asphalt, blended into the amount of 0% of UV-531 produced that is SBS-modified asphalt (not involving UV absorber).

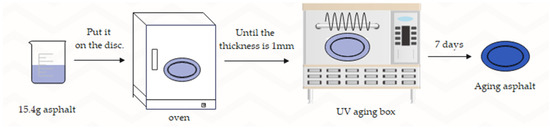

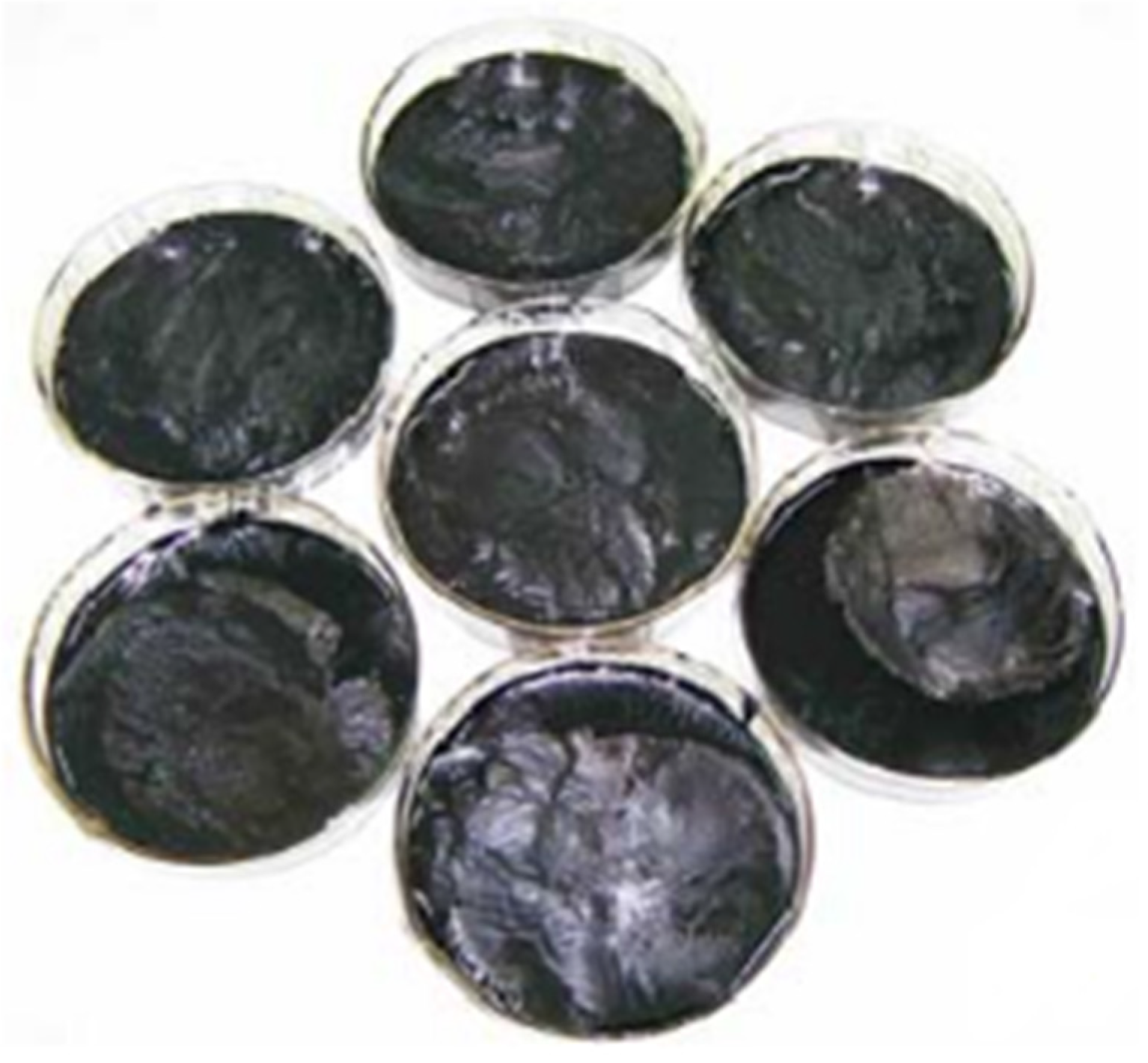

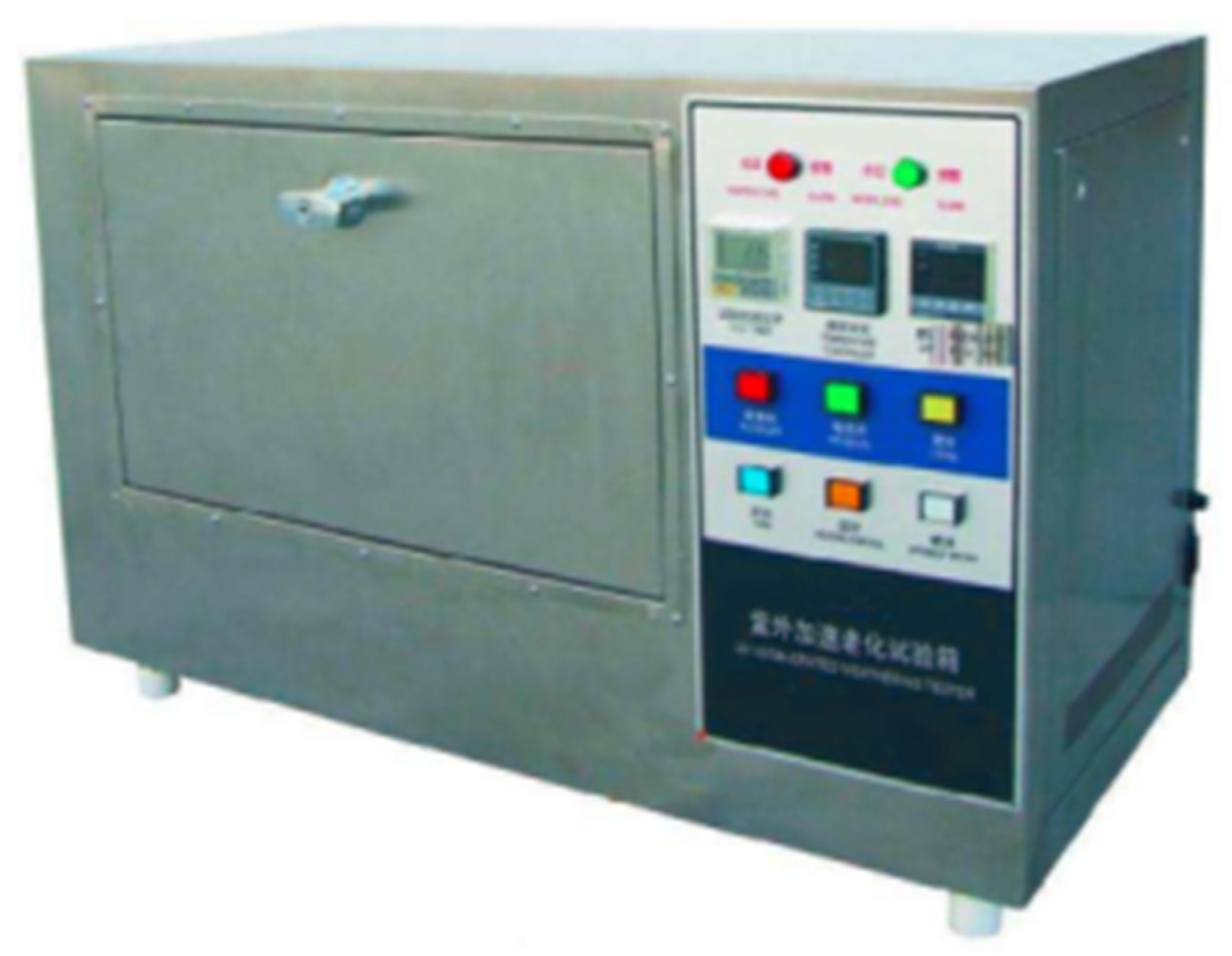

2.3. Asphalt UV Aging Test Process
2.4. Tests and Methods
2.4.1. Needle Penetration
2.4.2. Softening Point
2.4.3. 5 °C Ductility

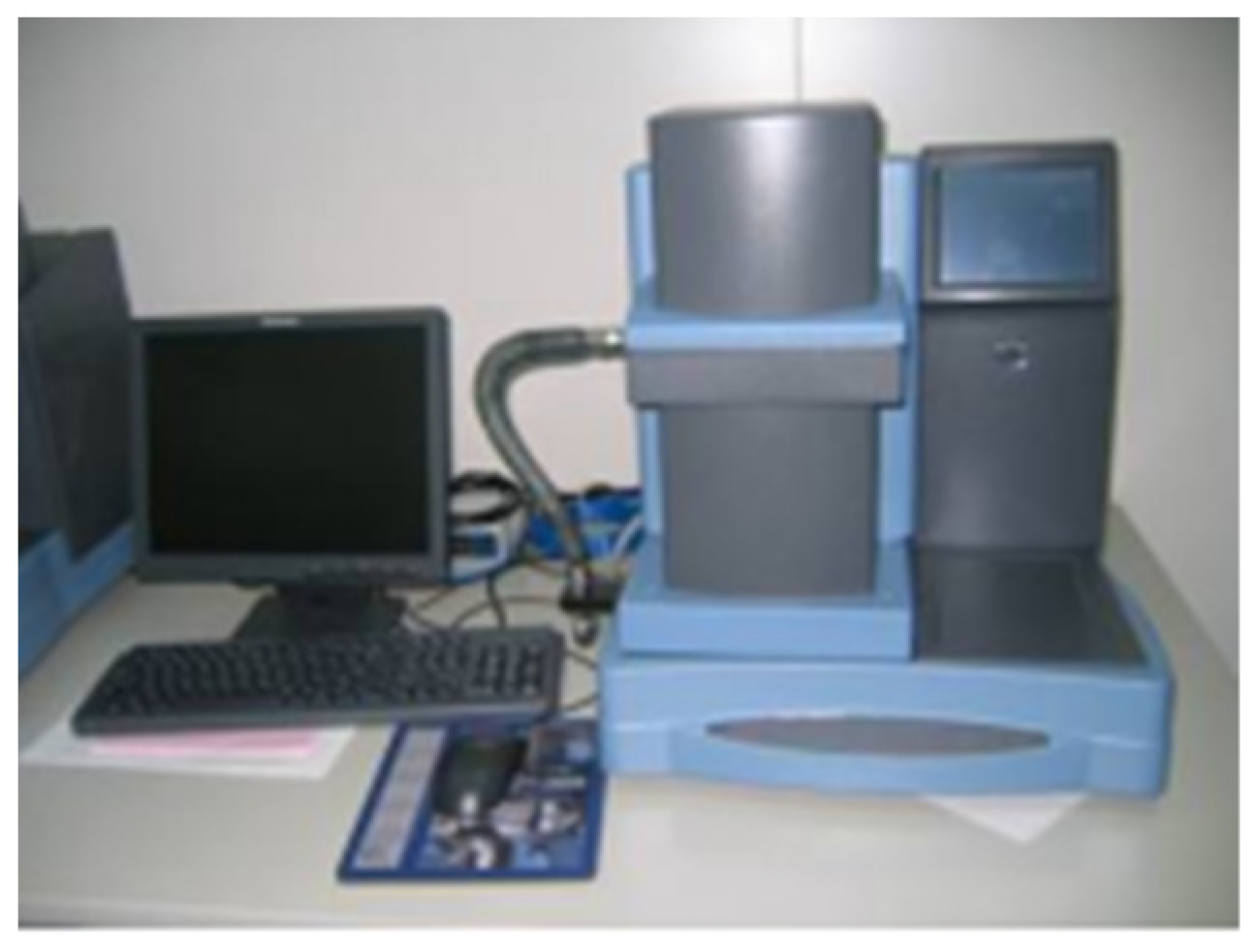

2.4.4. High-Temperature Dynamic Shear Rheology Test

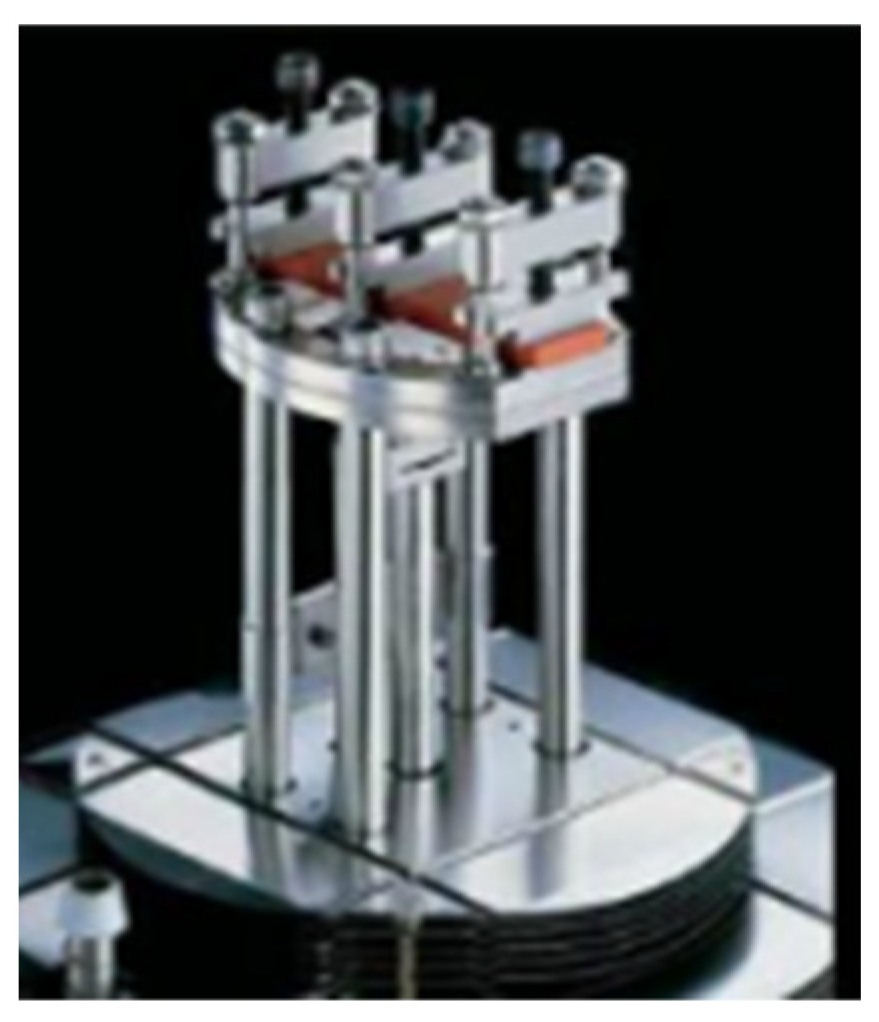

2.4.5. Low-Temperature Glass Transition Temperature Test
2.4.6. Rutting Factor Ratio
2.4.7. Viscosity Aging Index
2.4.8. Infrared Spectroscopy
3. Results
3.1. Effect of UV-531 on the Conventional Performance of SBS-Modified Asphalt

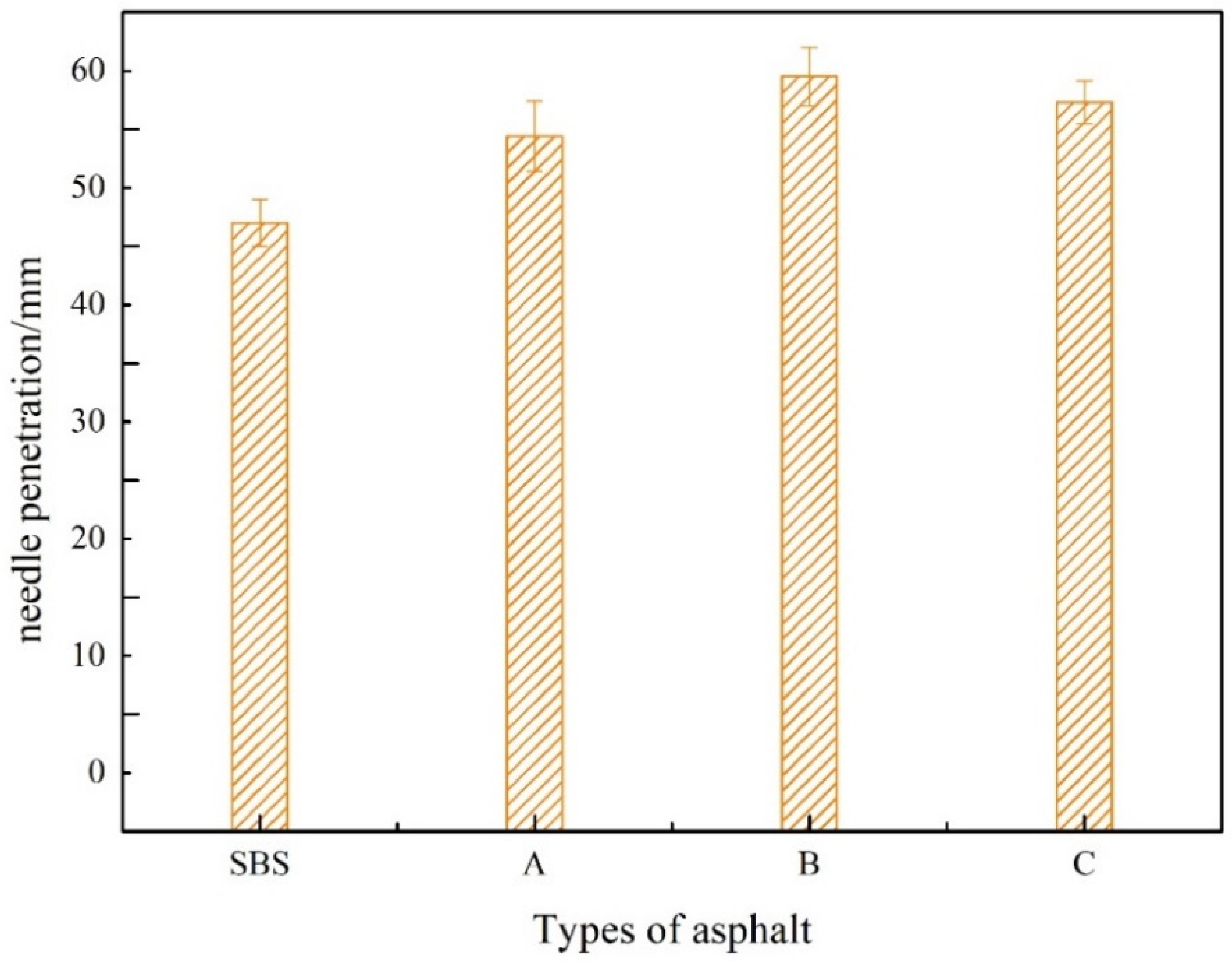

3.1.1. Needle Penetration Results

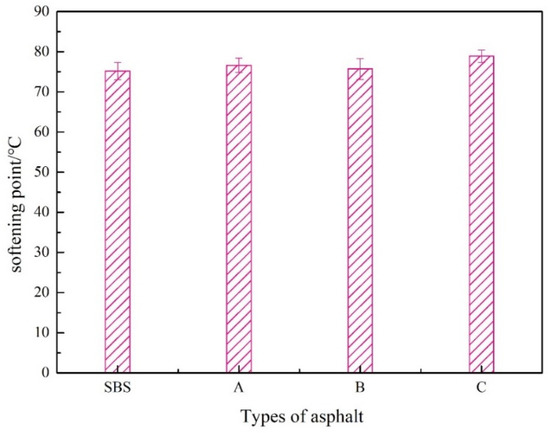

3.1.2. Softening Point Results

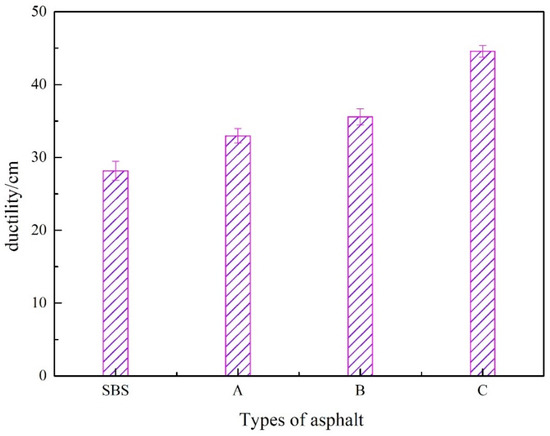

3.1.3. 5 °C Ductility Results
3.2. Effect of UV-531 on the High and Low-Temperature Performance of SBS-Modified Asphalt before and after UV Aging

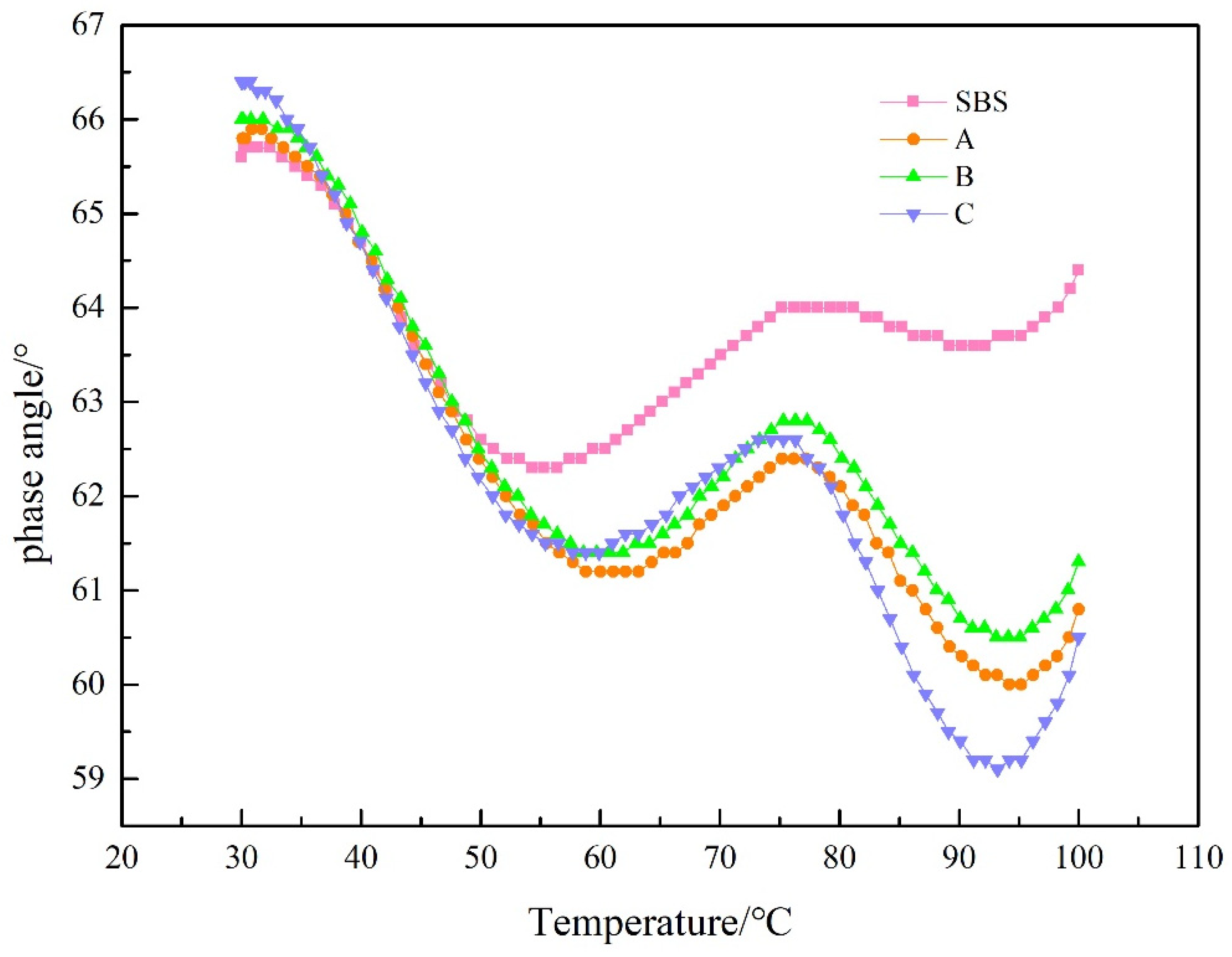

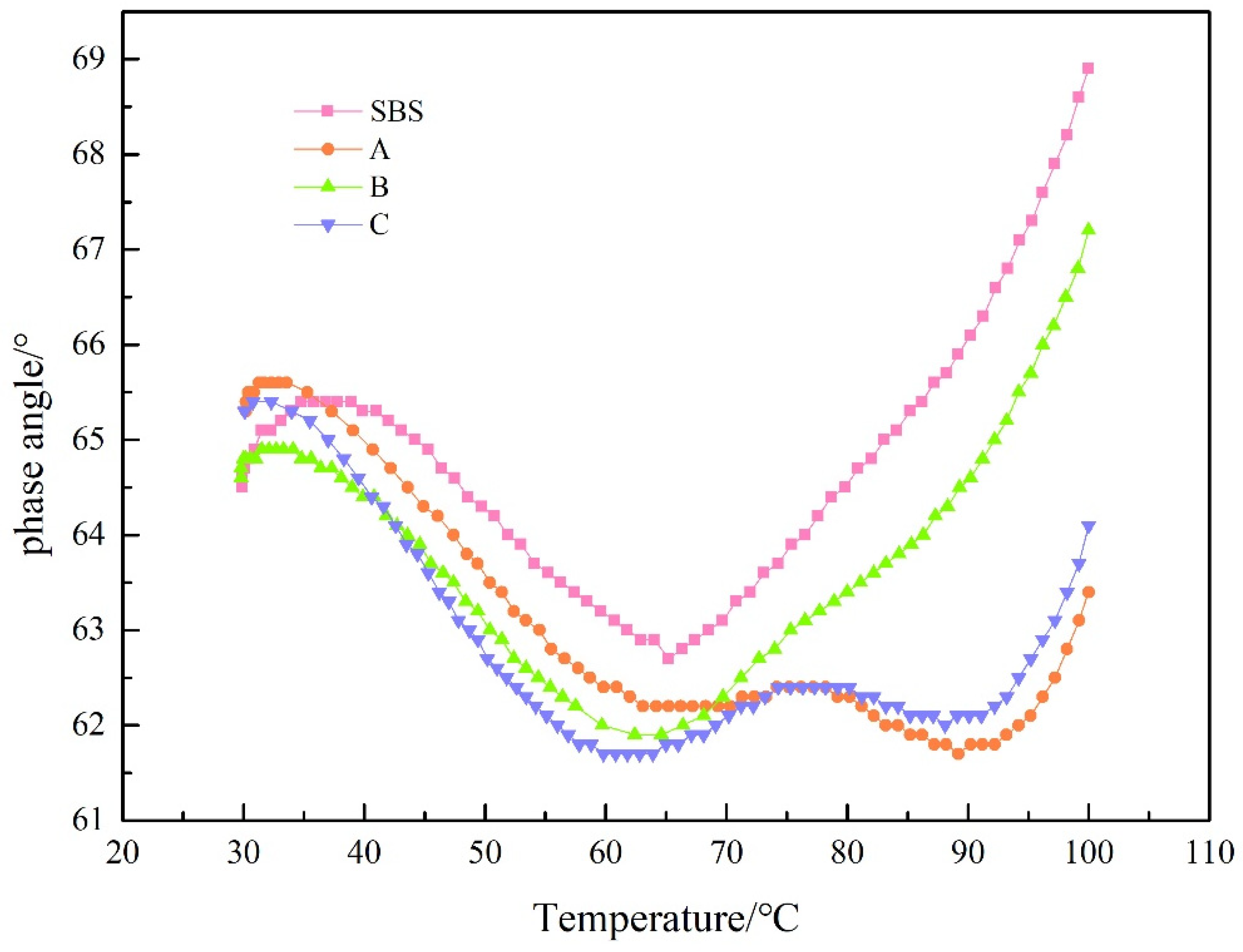

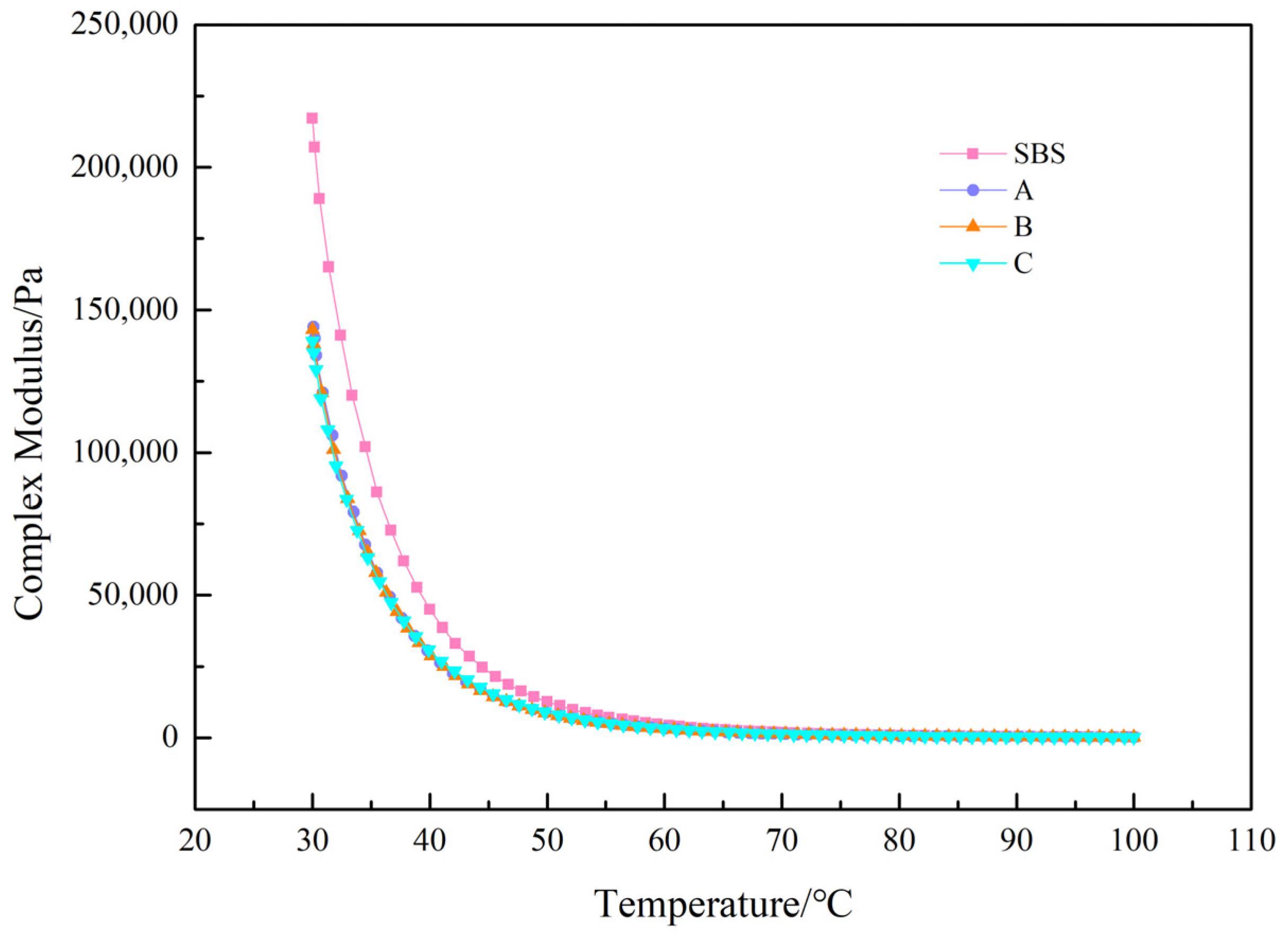

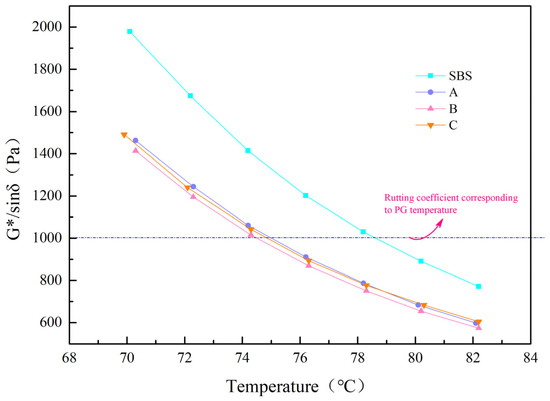

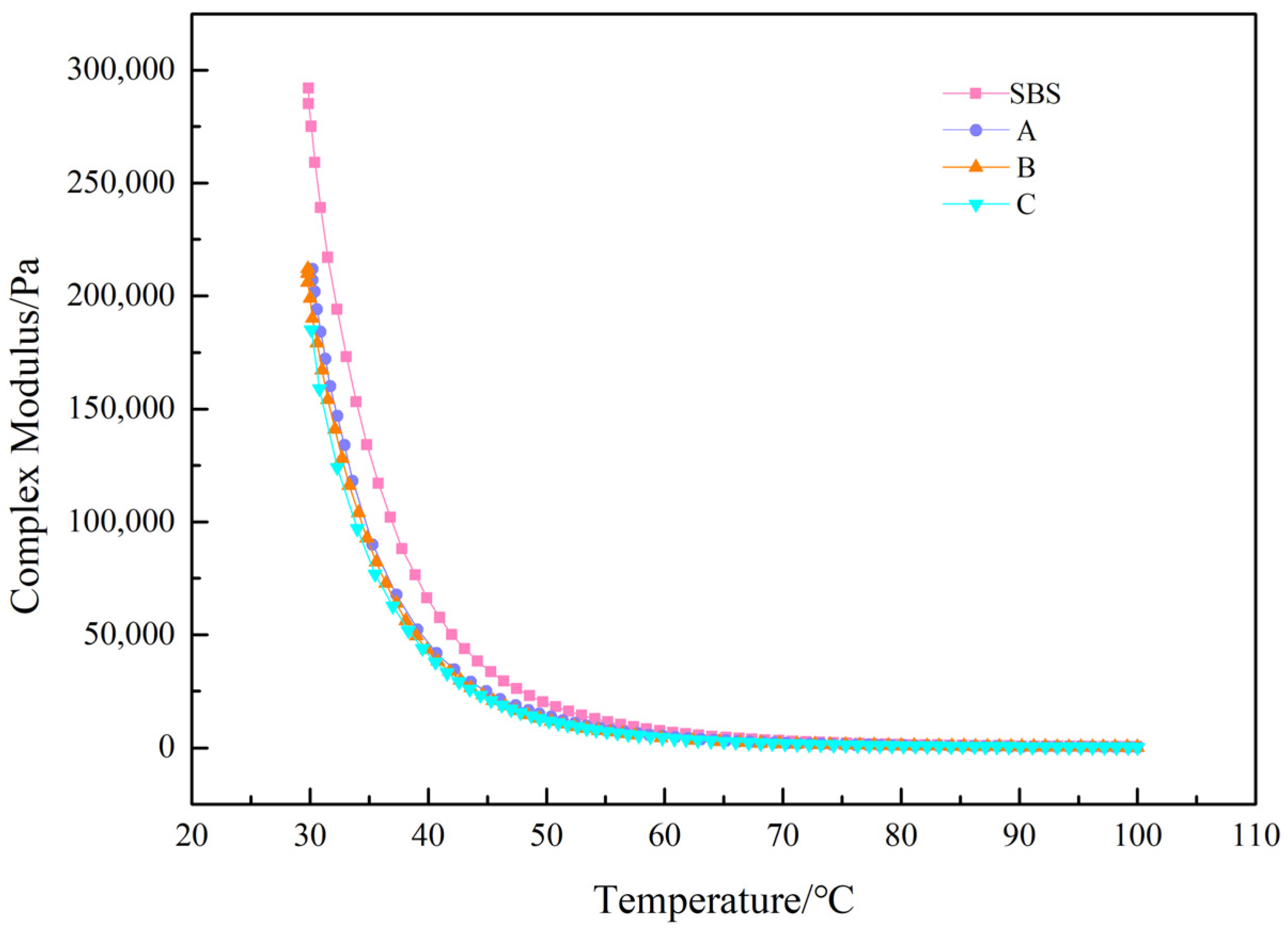

3.2.1. High-Temperature Dynamic Shear Rheology Test Results

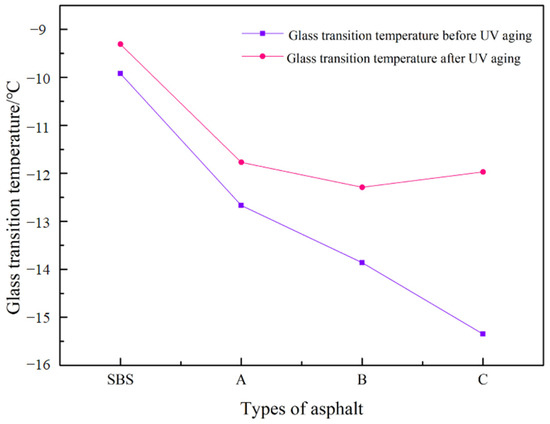

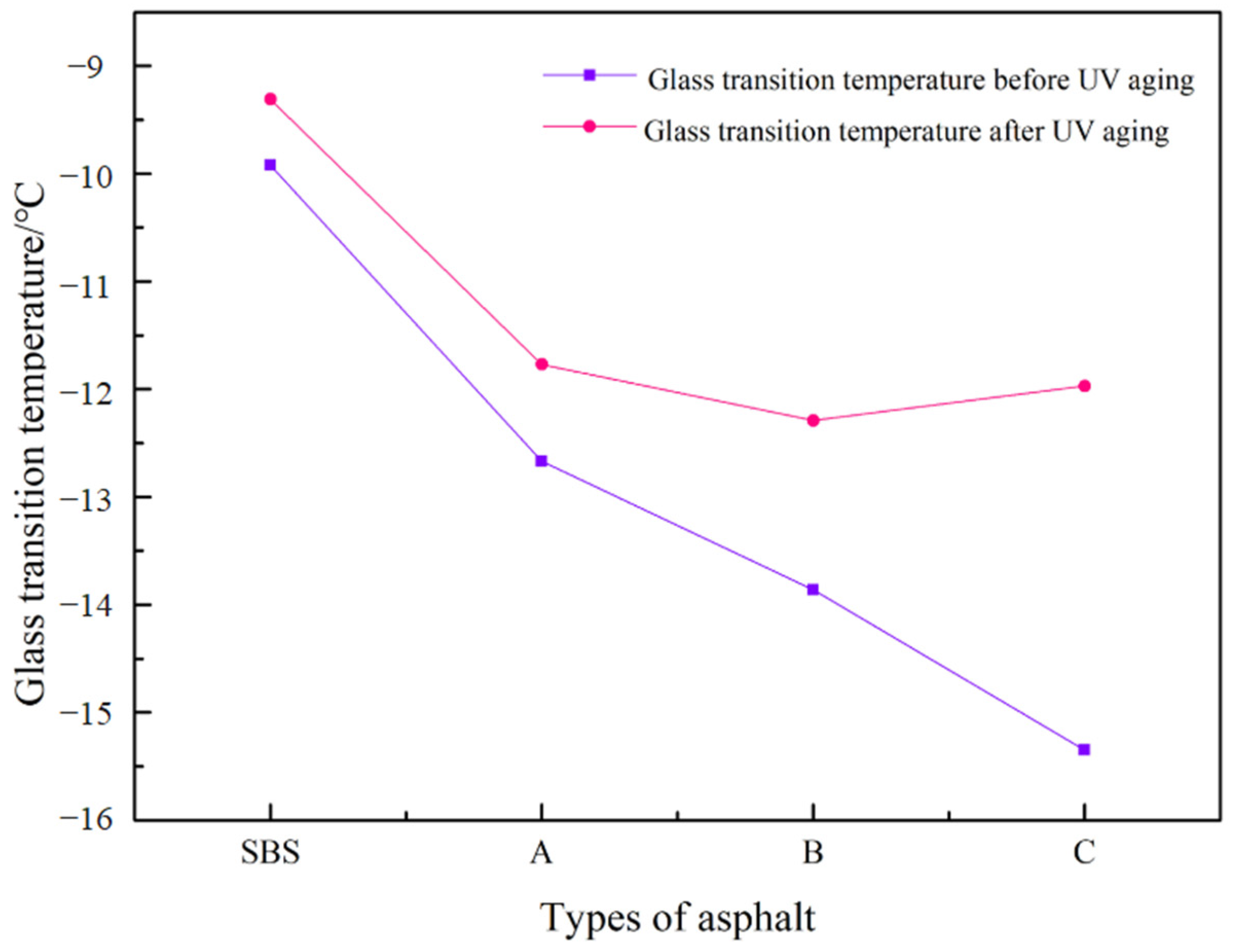

3.2.2. Low-Temperature Glass Transition Temperature Test Results
4. Evaluation of UV-531 on the Anti-UV Aging Performance of SBS-Modified Asphalt

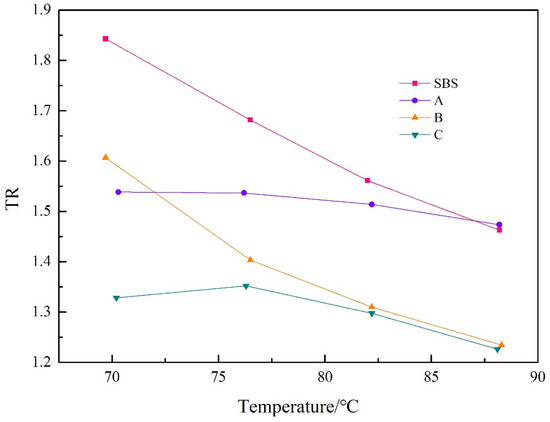

4.1. Evaluation of the Aging Behavior of Modified Asphalt Based on Rutting Factor Ratio
4.2. Evaluation of Asphalt Aging by Viscosity Aging Index

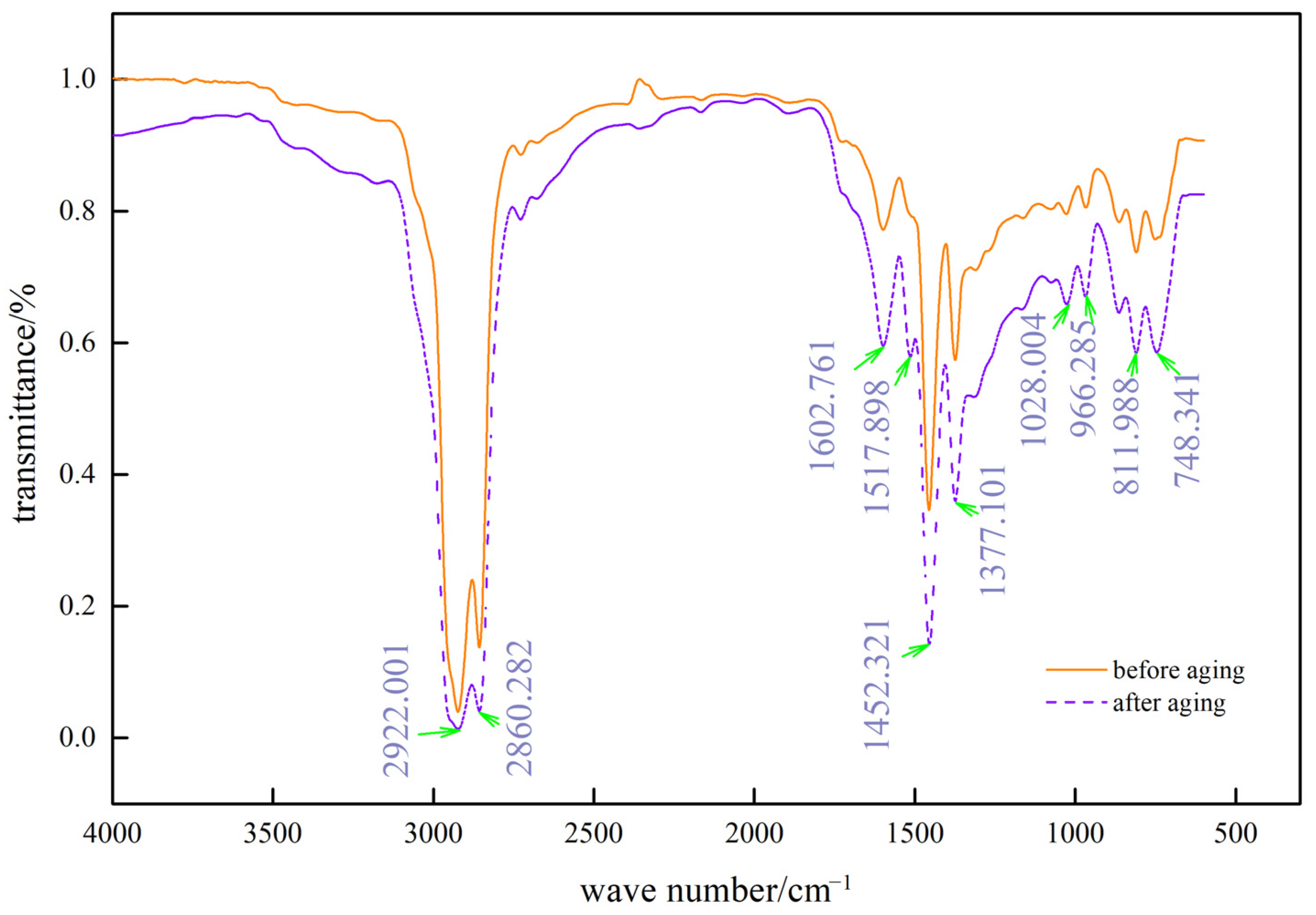

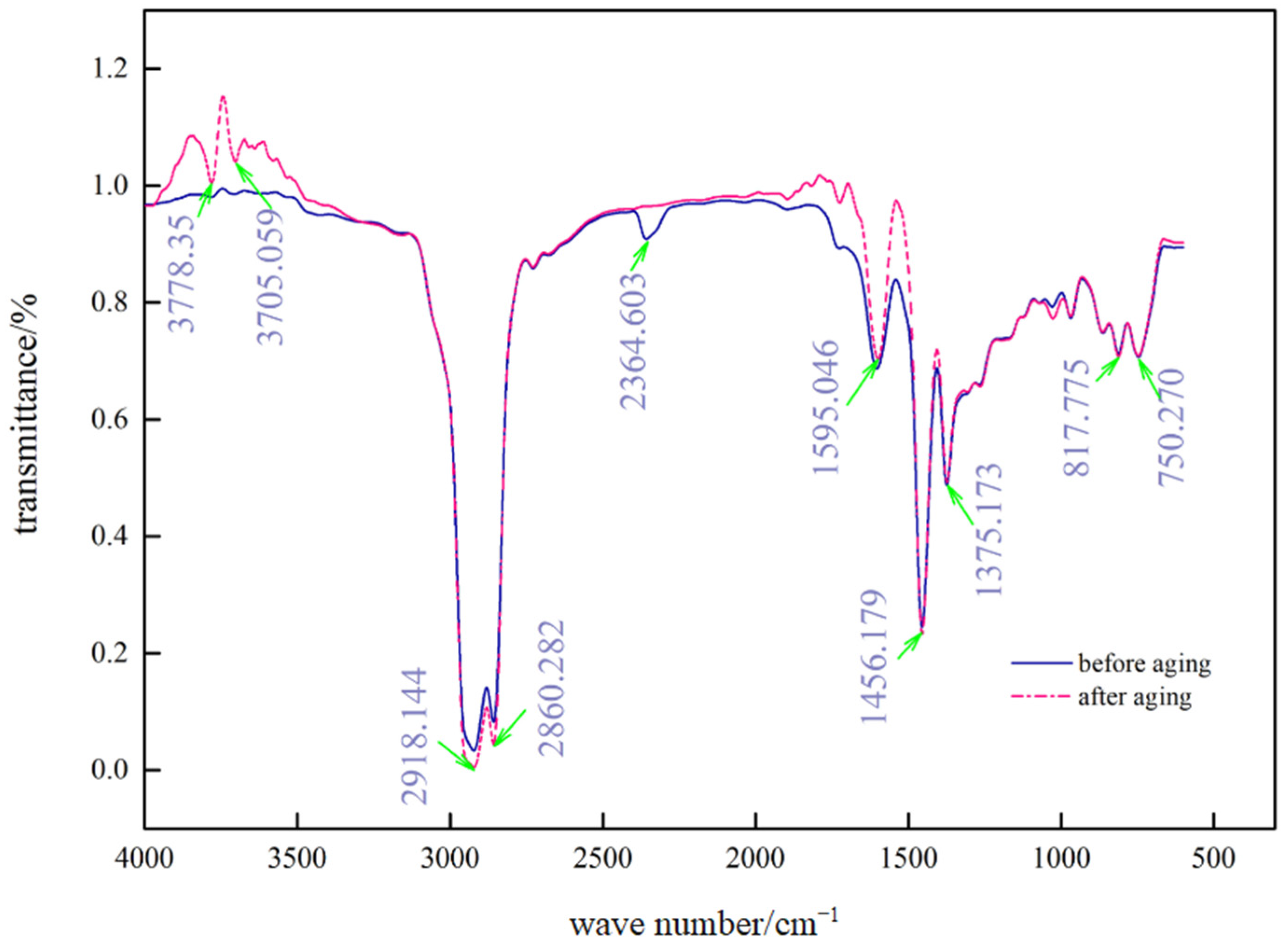

4.3. Analysis of the Degree of Aging Using Infrared Spectroscopy
5. Conclusions
- (1)
- The ductility at 5 °C and needle penetration of SBS-modified asphalt were improved with the increase of UV-531 addition, while the softening point was less affected. This means that the addition of UV-531 improved the low temperature properties and viscosity of SBS-modified asphalt, while the high temperature properties were less affected.
- (2)
- The DSR test revealed that UV-531 enhanced the high temperature rheological properties of SBS-modified asphalt to some degree. It was shown in the DMA test that the increase of UV-531 could reduce the glass transition temperature by a maximum of 54.74%, which led to a significant improvement in the low temperature anti-cracking properties of asphalt after ultraviolet light aging.
- (3)
- Three evaluation methods were selected to evaluate the aging. In the evaluation method based on the rutting coefficient ratio, the rutting coefficient ratio reduced as the amount of UV-531 doping increased, demonstrating that UV-531 inhibits UV aging. In the evaluation, a method based on viscosity aging index was used. As the viscosity before aging decreased with increasing dosing, the viscosity aging index also decreased, reaching a minimum at a dosing of 0.7%, indicating that UV-531 can increase the aromatic structure of asphalt. According to the analysis of the degree of aging by infrared spectra, the characteristic peaks of infrared spectra vary more obviously in the first, second and third regions, and the analysis results were that the UV aging degree of UV-531/SBS asphalt with 0.7% admixture was significantly lower than that of SBS-modified asphalt.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Liu, H.; Zhang, Z.; Tian, Z.; Lu, C. Exploration for UV Aging Characteristics of Asphalt Binders based on Response Surface Methodology: Insights from the UV Aging Influencing Factors and Their Interactions. Constr. Build. Mater. 2022, 347, 128460. [Google Scholar] [CrossRef]
- Liu, L.; Liu, Z.; Hong, L.; Huang, Y. Effect of ultraviolet absorber (UV-531) on the properties of SBS-modified asphalt with different block ratios. Constr. Build. Mater. 2020, 234, 117388. [Google Scholar] [CrossRef]
- Zhang, Y.; Leng, Z. Quantification of bituminous mortar ageing and its application in ravelling evaluation of porous asphalt wearing courses. Mater. Des. 2017, 119, 1–11. [Google Scholar] [CrossRef]
- Liu, L.; Liu, Z.; Liu, J. Effects of Silane-Coupling Agent Pretreatment on Basalt Fibers: Analyzing the Impact on Interfacial Properties and Road Performance. J. Mater. Civ. Eng. 2020, 32, 04020041. [Google Scholar] [CrossRef]
- Mohammad Asib, A.S.; Rahman, R.; Romero, P.; Hoepfner, M.P.; Mamun, A. Physicochemical characterization of short and long-term aged asphalt mixtures for low-temperature performance. Constr. Build. Mater. 2022, 319, 30–38. [Google Scholar] [CrossRef]
- Behnood, A.; Modiri Gharehveran, M. Morphology, rheology, and physical properties of polymer-modified asphalt binders. Eur. Polym. J. 2019, 112, 766–791. [Google Scholar] [CrossRef]
- Behnood, A.; Olek, J. Rheological properties of asphalt binders modified with styrene-butadiene-styrene (SBS), ground tire rubber (GTR), or polyphosphoric acid (PPA). Constr. Build. Mater. 2017, 151, 464–478. [Google Scholar] [CrossRef]
- Li, Y.; Feng, J.; Wu, S.; Chen, A.; Kuang, D.; Bai, T.; Gao, Y.; Zhang, J.; Li, L.; Wan, L.; et al. Review of ultraviolet ageing mechanisms and anti-ageing methods for asphalt binders. J. Road Eng. 2022, 2, 137–155. [Google Scholar] [CrossRef]
- Liao, M.; Liu, Z.; Gao, Y.; Liu, L.; Xiang, S.J.C.; Materials, B. Study on UV aging resistance of nano-TiO2/montmorillonite/styrene-butadiene rubber composite modified asphalt based on rheological and microscopic properties. Constr. Build. Mater. 2021, 301, 124108. [Google Scholar] [CrossRef]
- Li, Y.; Feng, J.; Chen, A.; Wu, S.; Bai, T.; Liu, Q.; Zhu, H. Development Mechanism of Aging Depth of Bitumen with Increasing UV Aging Time. Case Stud. Constr. Mater. 2022, 2022, e01057. [Google Scholar] [CrossRef]
- Hai-lin, Z. Comparative study of multi-scale characteristics of hard-Grade asphalt and SBS modified asphalt under thermal oxygen and ultraviolet aging. J. China Foreign Highw. 2020, 40, 305–310. [Google Scholar] [CrossRef]
- Ma, L.; Wang, F.; Cui, P.; Yunusa, M.; Xiao, Y. Effect of aging on the constitutive models of asphalt and their mixtures. Constr. Build. Mater. 2021, 272, 121611. [Google Scholar] [CrossRef]
- Nobakht, M.; Sakhaeifar, M.S. Dynamic modulus and phase angle prediction of laboratory aged asphalt mixtures. Constr. Build. Mater. 2018, 190, 740–751. [Google Scholar] [CrossRef]
- Zheng, N.; Ji, X.; Hou, Y. Nonlinear Prediction of Attenuation of Asphalt Performance after Ultraviolet Aging. J. Highw. Transp. Res. Dev. 2009, 26, 33–37. [Google Scholar]
- Xiao, M.M.; Fan, L. Ultraviolet aging mechanism of asphalt molecular based on microscopic simulation. Constr. Build. Mater. 2022, 319, 126157. [Google Scholar] [CrossRef]
- Zhen-gang, F.; Hao, Z.; Xin-jun, L.; Pei-long, L.; Li-ke, Z. Effect of ultraviolet absorber UV531 on morphology of SBS modified bitumen. J. Wuhan Univ. Technol. 2015, 37, 53–58. [Google Scholar]
- Ling-ling, H.; Zhao-hui, L.; Guo-jie, F.; Sheng, L.; Li, L. Effect of Ultraviolet Absorber on Properties of SBS Modified Bitumen with Different Block Ratios. J. Wuhan Univ. Technol. 2017, 39, 28–36. [Google Scholar] [CrossRef]
- Li, Q.; Zeng, X.; Wang, J.; Luo, S.; Meng, Y.; Gao, L.; Wang, X. Aging performance of high viscosity modified asphalt under complex heat-light-water coupled conditions. Constr. Build. Mater. 2022, 325, 126314. [Google Scholar] [CrossRef]
- Ren, S.; Liu, X.; Fan, W.; Wang, H.; Erkens, S. Rheological Properties, Compatibility, and Storage Stability of SBS Latex-Modified Asphalt. Materials 2019, 12, 3683. [Google Scholar] [CrossRef] [Green Version]
- Ozdemir, D.K. High and low temperature Theological characteristics of linear alkyl benzene sulfonic acid modified bitumen. Constr. Build. Mater. 2021, 301, 124041. [Google Scholar] [CrossRef]
- Yaping, H.; Sanpeng, M.; Guitao, Z.; Wei, J. Application and Development Trend of Infrared Spectroscopy in Asphalt Analysis. Pet. Asph. 2021, 35, 35–39. [Google Scholar] [CrossRef]
- Xing, C.; Li, M.; Zhao, G.; Liu, N.; Wang, M. Analysis of bitumen material test methods and bitumen surface phase characteristics via atomic force microscopy-based infrared spectroscopy. Constr. Build. Mater. 2022, 346, 128373. [Google Scholar] [CrossRef]
- Wang, Z.; Wu, X.; Li, H.; Si, Y. Study on The Correlation between the Four Components of Matrix Asphalt and Conventional Indexes. Pet. Asph. 2020, 34, 26–32, 36. [Google Scholar] [CrossRef]
- Yu, H.; Bai, X.; Qian, G.; Wei, H.; Li, Z.J.P. Impact of Ultraviolet Radiation on the Aging Properties of SBS-Modified Asphalt Binders. Polymers 2019, 11, 1111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dokandari, P.A.; Topal, A.; Ozdemir, D.K. Rheological and Microstructural Investigation of the Effects of Rejuvenators on Reclaimed Asphalt Pavement Bitumen by DSR and AFM. Int. J. Civ. Eng. 2021, 19, 749–758. [Google Scholar] [CrossRef]
- Mamuye, Y.; Liao, M.C.; Do, N.D. Nano-Al2O3 composite on intermediate and high temperature properties of neat and modified asphalt binders and their effect on hot mix asphalt mixtures. Constr. Build. Mater. 2022, 331, 127304. [Google Scholar] [CrossRef]
- Investigation on the low temperature properties of asphalt binder: Glass transition temperature and modulus shift factor. Constr. Build. Mater. 2020, 245, 118351. [CrossRef]
- Feng, Z.G.; Wang, S.J.; Bian, H.J.; Guo, Q.L.; Li, X.J.J.C. FTIR and rheology analysis of aging on different ultraviolet absorber modified bitumens. Constr. Build. Mater. 2016, 115, 48–53. [Google Scholar] [CrossRef]
- Zhu, H.; Shen, J.N.; Yu, J. Micro and Macro-level Properties of Weathered Asphalt Binders. J. Mater. Sci. Eng. 2021, 39, 801–807. [Google Scholar] [CrossRef]
- Qu, X.; Liu, Q.; Guo, M.; Wang, D.; Oeser, M. Study on the effect of aging on physical properties of asphalt binder from a microscale perspective. Constr. Build. Mater. 2018, 187, 718–729. [Google Scholar] [CrossRef]
- Wang, F.; Zhang, L.; Zhang, X.; Li, H.; Wu, S. Aging mechanism and rejuvenating possibility of SBS copolymers in asphalt binders. Polymers 2020, 12, 92. [Google Scholar] [CrossRef] [PubMed]
Indicators | Technical Requirements | Indicators | Technical Requirements |
---|---|---|---|
Density/g/cm3 | 1.068 | Boiling/°C | 457.9 |
Melting point/°C | 47~49 | Flash point/°C | 155.1 |
Test Items | SBS-Modified Asphalt | ||
---|---|---|---|
Real Test | Technical Requirements | ||
Ductility (5 °C, 5 cm/min)/cm Not less than | 28.0 | 20 | |
Softening point (Global Law)/°C Not less than | 74.2 | 60 | |
Needle penetration (25 °C, 100 g, 5 s)/0.1 mm | 53.0 | 40~60 | |
Resilient Recovery (25 °C)/% Not less than | 94.0 | 75 | |
Flash Point/°C Not less than | 300 | 230 | |
Needle penetration index PI Not less than | 0.26 | 0 | |
Kinematic viscosity (135 °C)/Pa·s No greater than | 2.55 | 3.0 | |
Solubility (trichloroethylene)/% Not less than | 99.7 | 99 | |
After RTFOT test | Quality change/% No greater than | −0.008 | ±1.0 |
Ductility (5 °C)/cm Not less than | 19.7 | 15 | |
Needle penetration ratio (25 °C)/% Not less than | 83.2 | 65 |
Modified Asphalt | Number |
---|---|
SBS-Modified Asphalt | SBS |
0.4%UV-531 + SBS-Modified Asphalt | A |
0.7%UV-531 + SBS-Modified Asphalt | B |
1.0%UV-531 + SBS-Modified Asphalt | C |
Temperature (°C) | SBS | A | B | C | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
TR | TR | TR | TR | |||||||||
70 | 1977 | 3714 | 1.87 | 1462 | 2249 | 1.53 | 1413 | 2536 | 1.79 | 1490 | 1980 | 1.32 |
76 | 1201 | 2048 | 1.71 | 910 | 1399 | 1.54 | 869 | 1245 | 1.43 | 893 | 1207 | 1.35 |
82 | 771 | 1204 | 1.56 | 598 | 905 | 1.51 | 573 | 751 | 1.31 | 604 | 783 | 1.29 |
88 | 515 | 753 | 1.46 | 412 | 607 | 1.47 | 395 | 488 | 1.23 | 428 | 525 | 1.22 |
Asphalt Type | Original ηa | Aging ηa | C |
---|---|---|---|
SBS-modified asphalt | 773.918 | 1275.485 | 0.01571 |
A | 608.138 | 910.510 | 0.01297 |
B | 596.864 | 767.58 | 0.00814 |
C | 610.044 | 822.675 | 0.00964 |
Wave Number/cm−1 | 1595.046 | 2364.603 | 3705.059 |
Feature Peak | -C=O | -C≡C | -OH group of alcohols and phenols |
