Experimental Investigation of Hybrid Beams Utilizing Ultra-High Performance Concrete (UHPC) as Tension Reinforcement
Abstract
:1. Introduction
2. Experimental Program

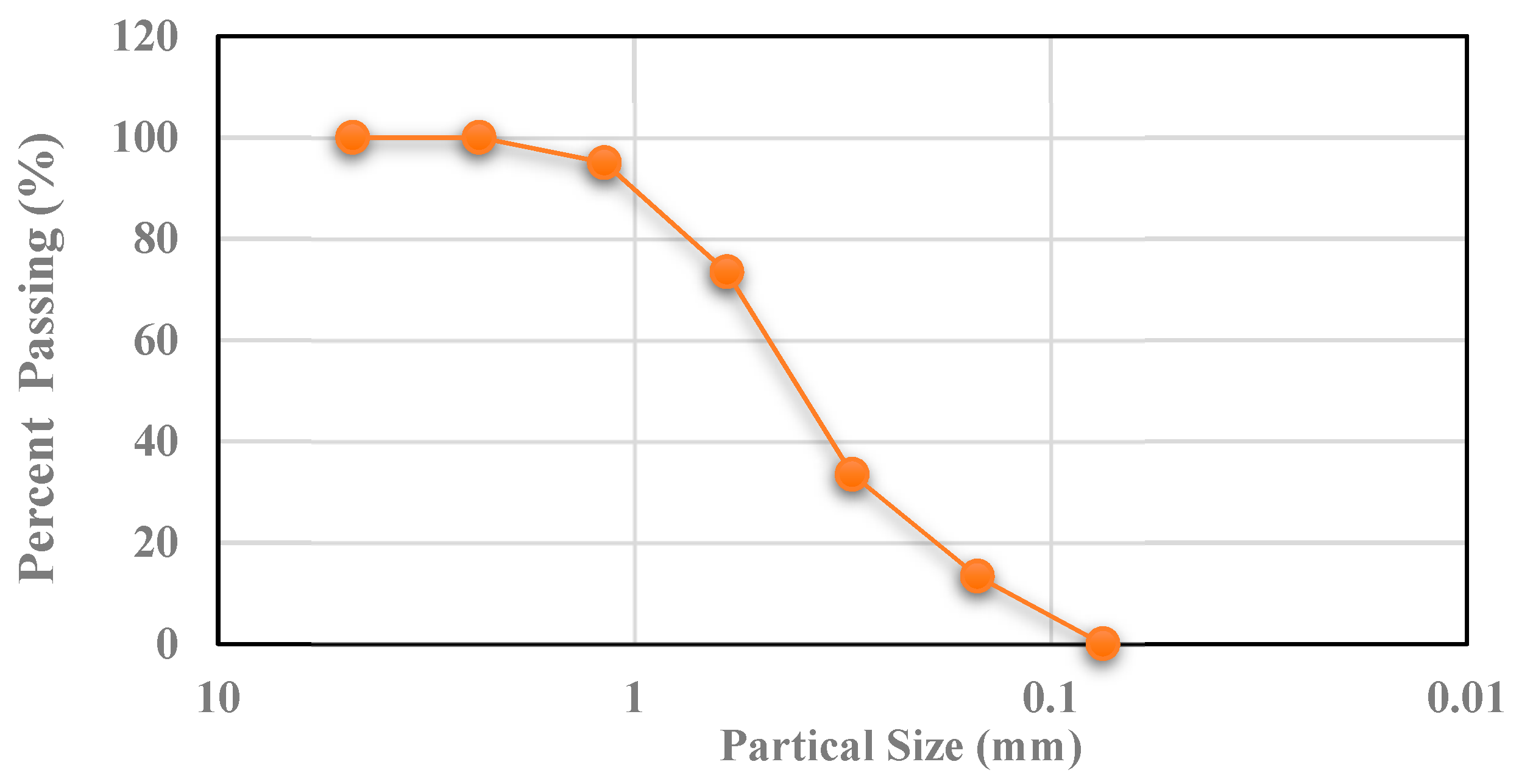

2.1. Materials and Mix Design

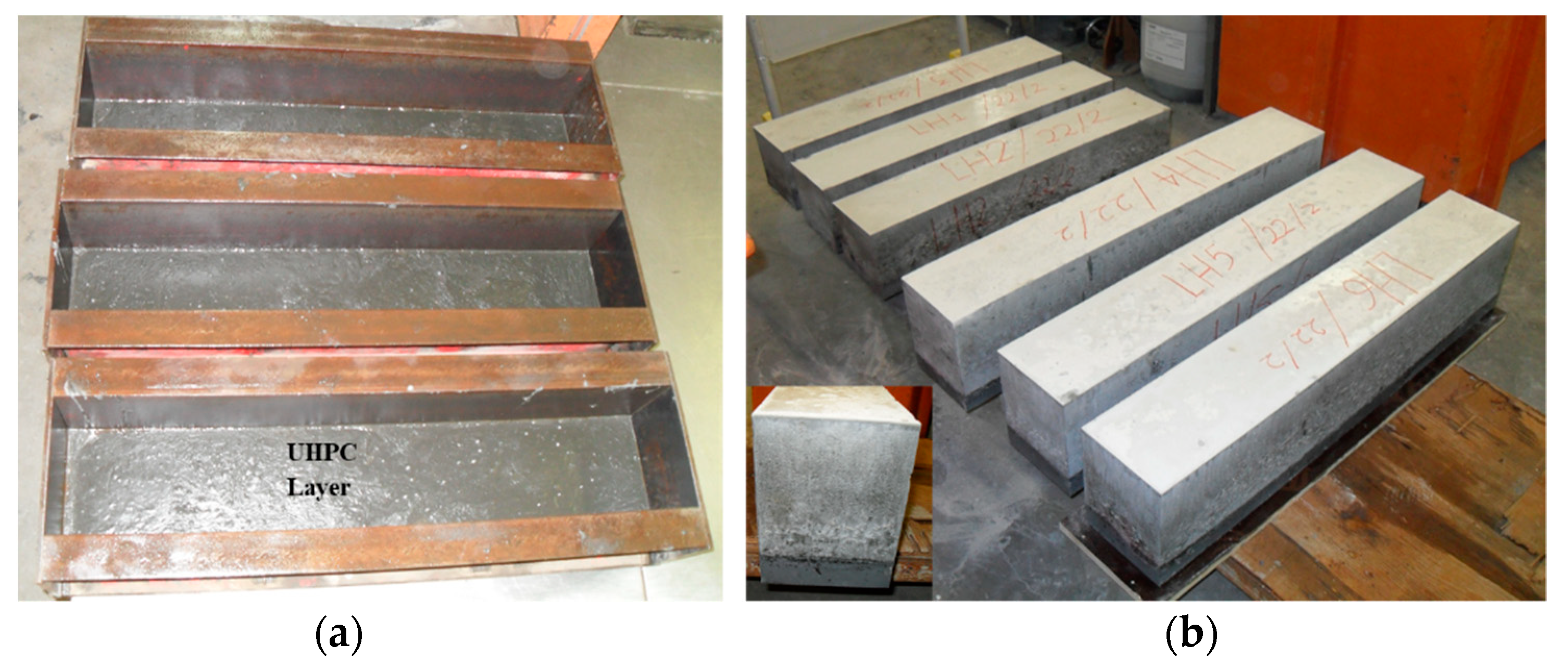

2.2. Preparation of the Test Specimens
2.3. Evaluation of Mechanical Properties of UHPC and NC

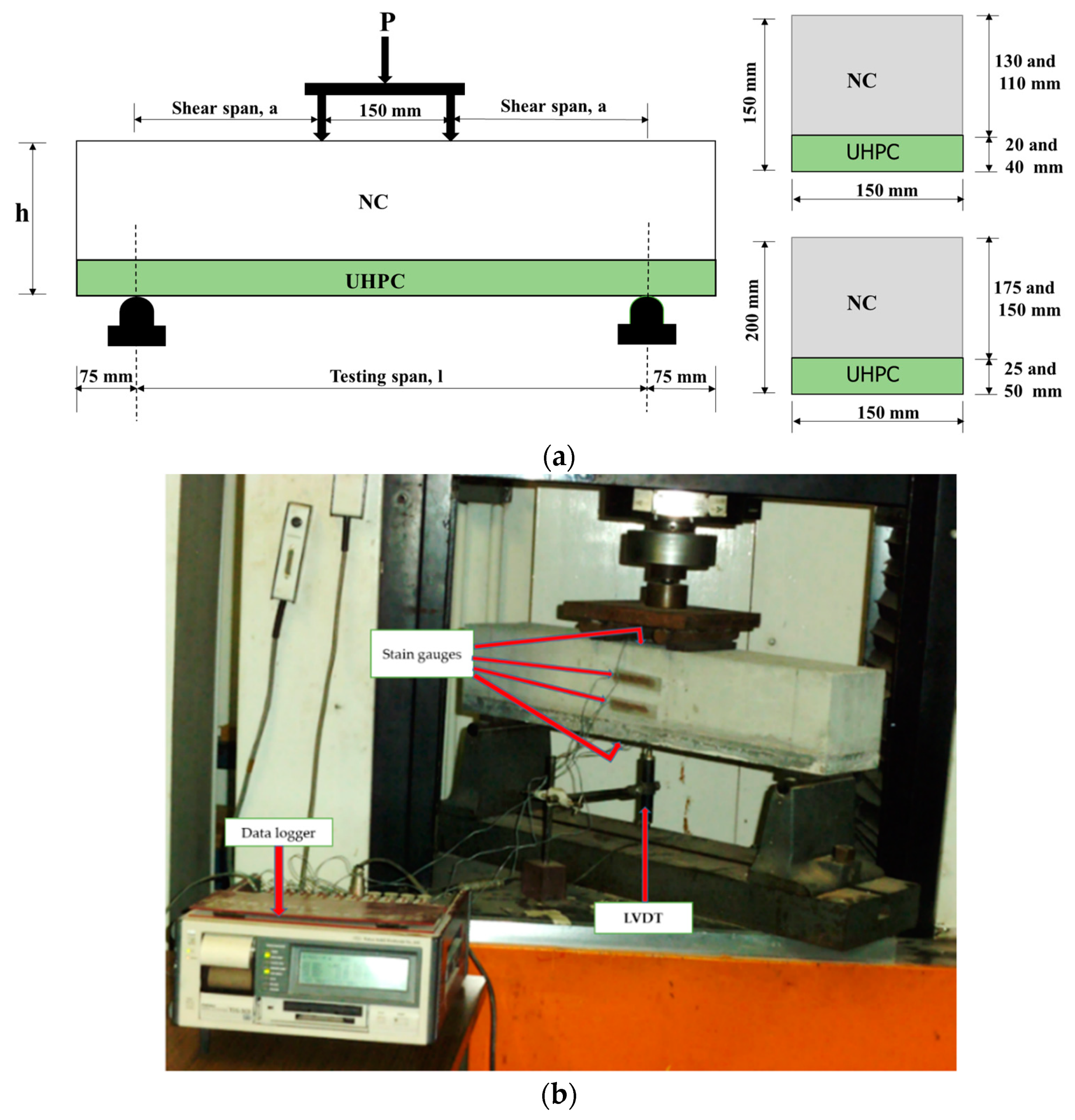

2.4. Testing Hybrid Beam Specimens
3. Experimental Results and Discussion
3.1. Results and Discussion for UHPC and NC Used in Hybrid Beams

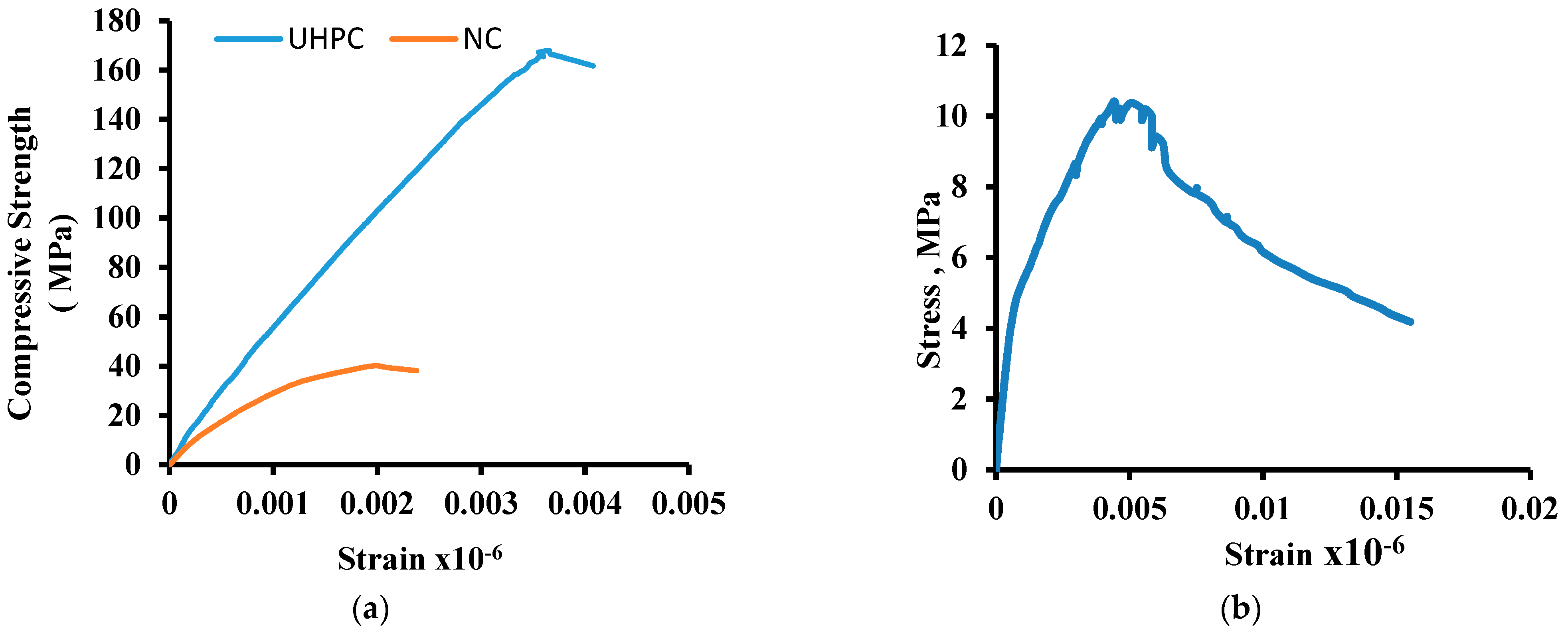

3.1.1. Compressive Strength of UHPC and NC
3.1.2. Split and Direct Tensile Strength of UHPC

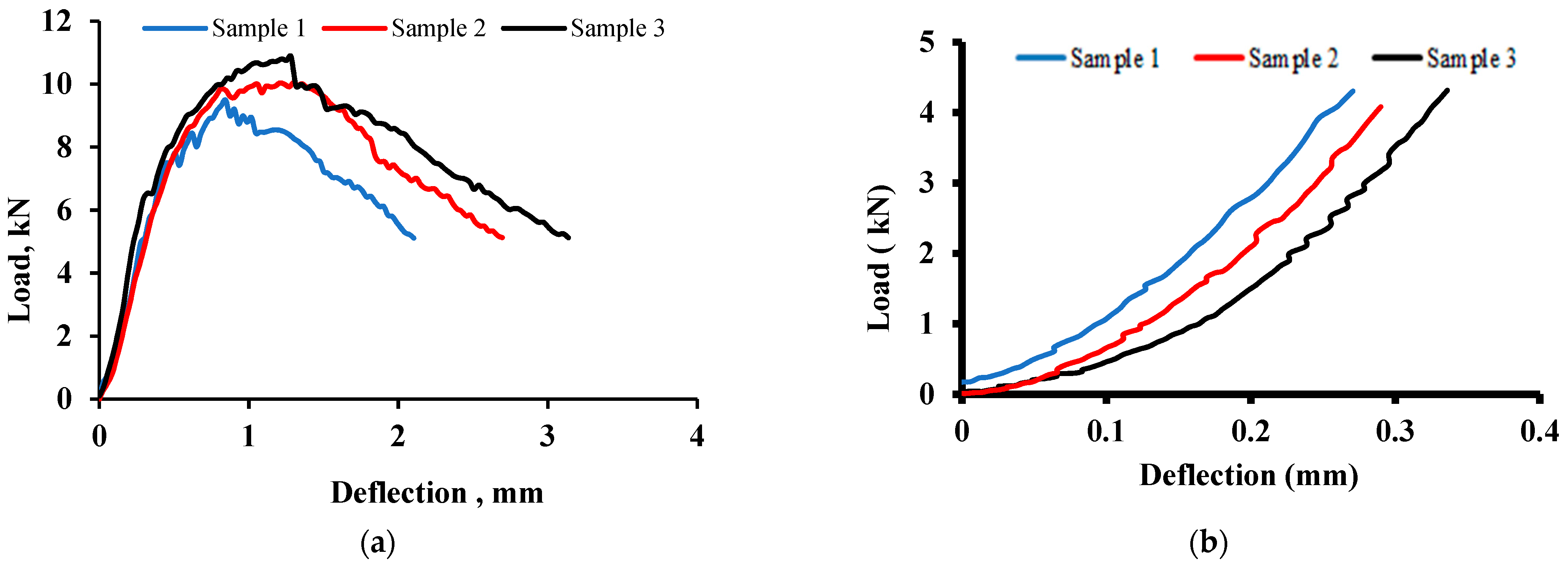

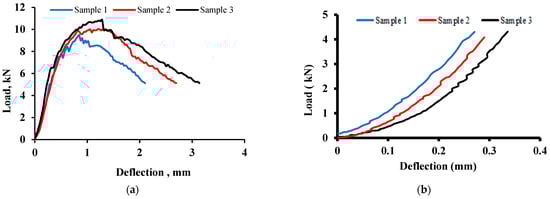

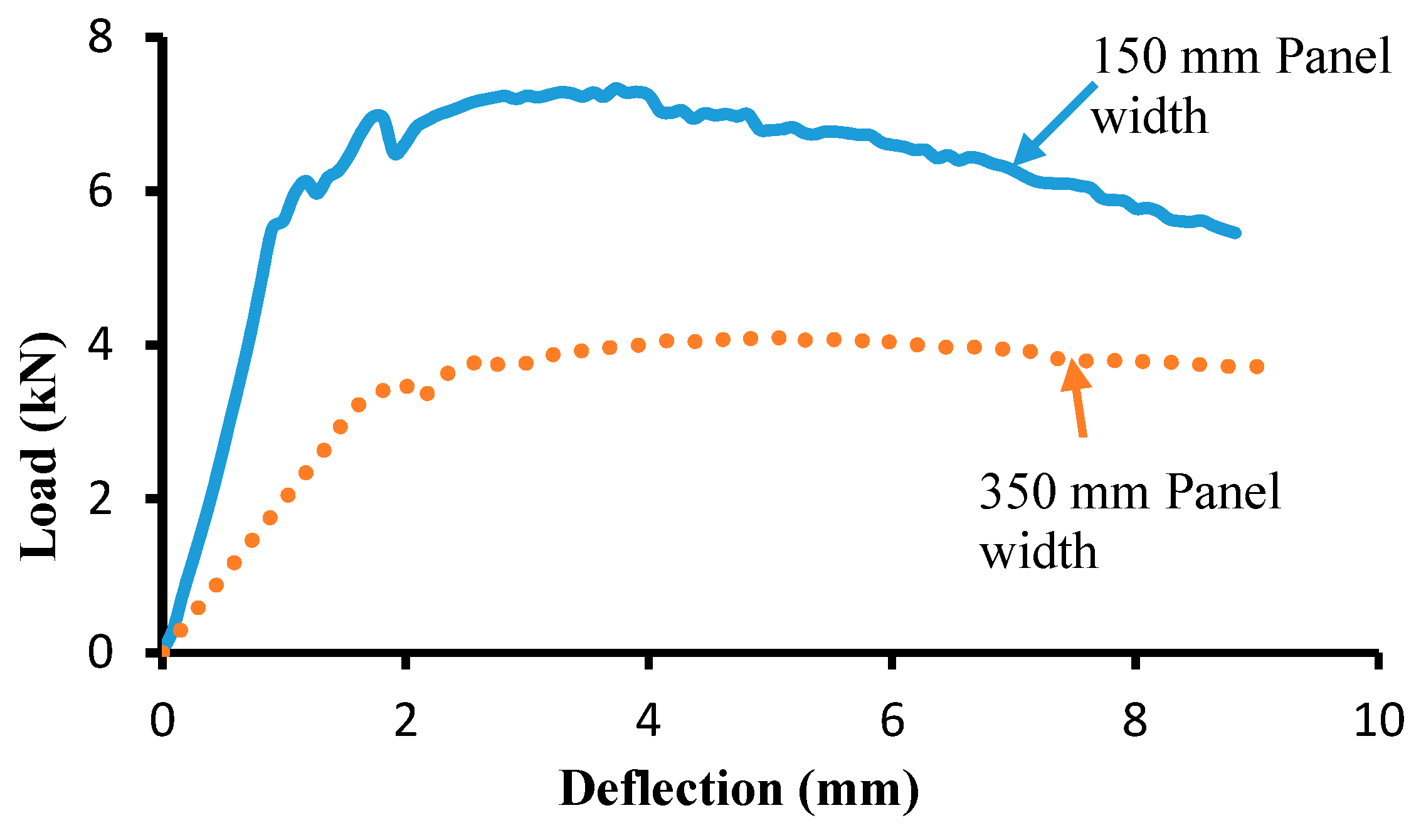

3.1.3. Flexural Strength of UHPC
3.1.4. Key Mechanical Properties of UHPC and NC
3.2. Results and Discussion of Hybrid NC-UHPC Beams

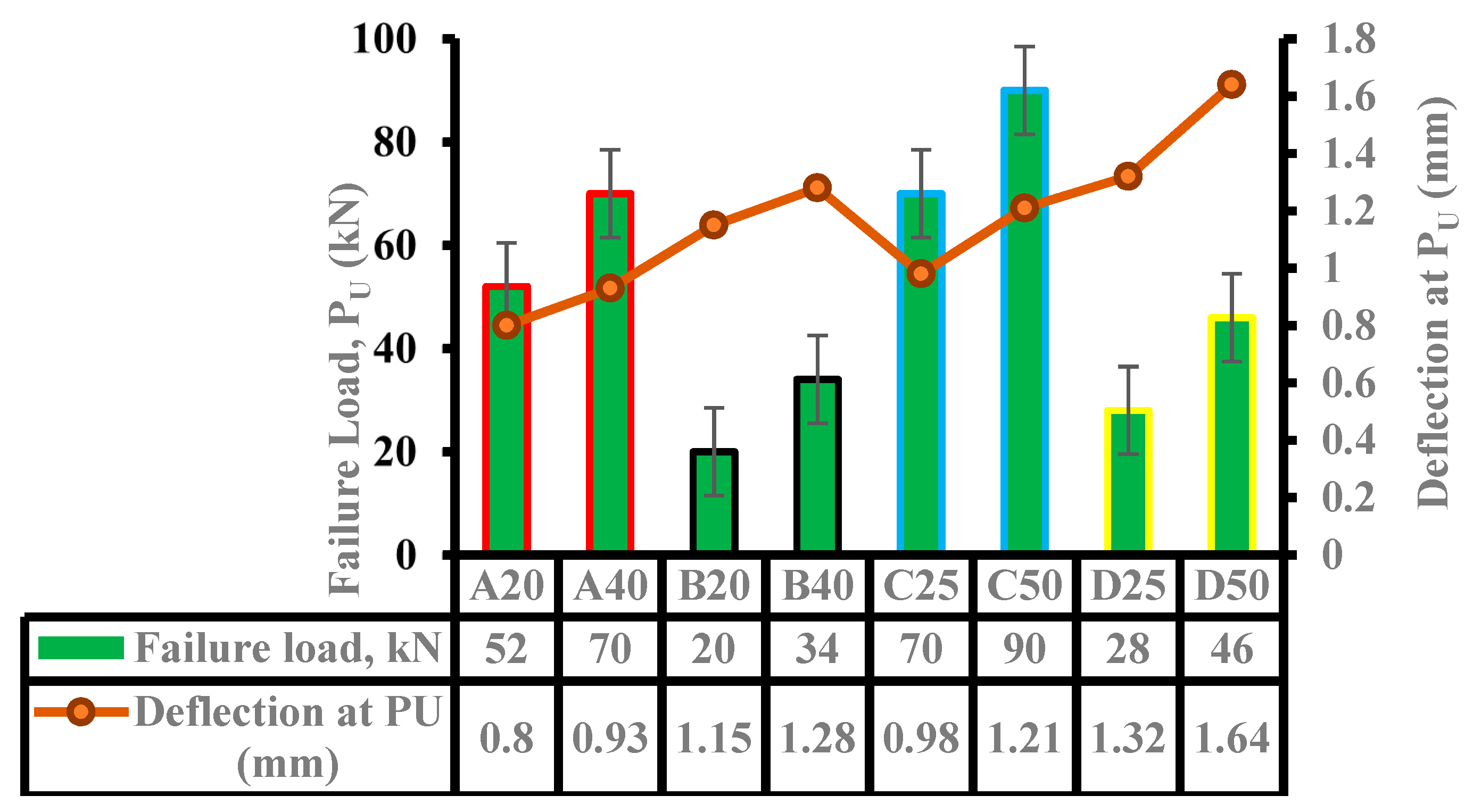

3.2.1. Flexural Load Test Results of Hybrid NC-UHPC Beams

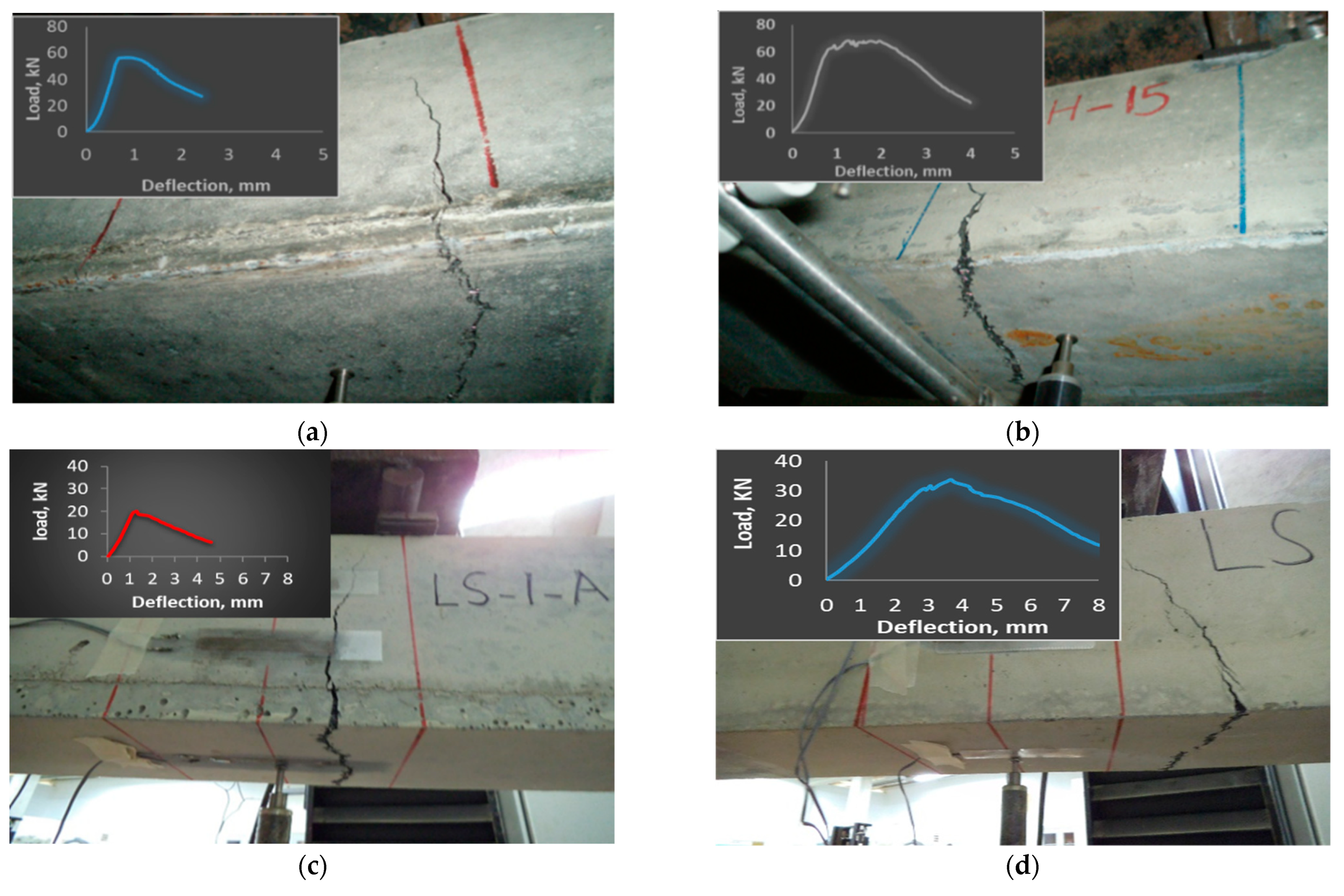

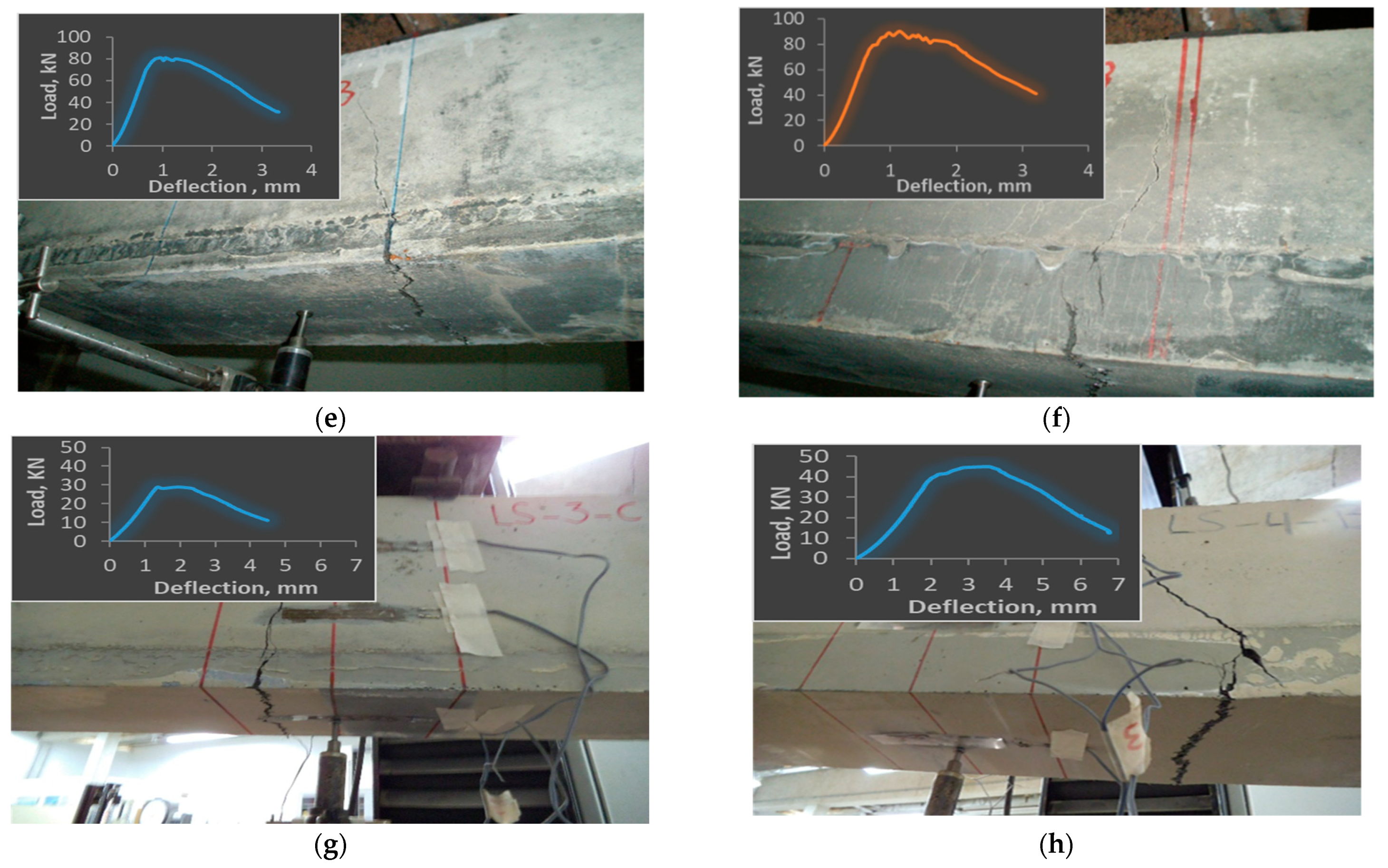

3.2.2. Mode of Failure of the Hybrid NC-UHPC Beams

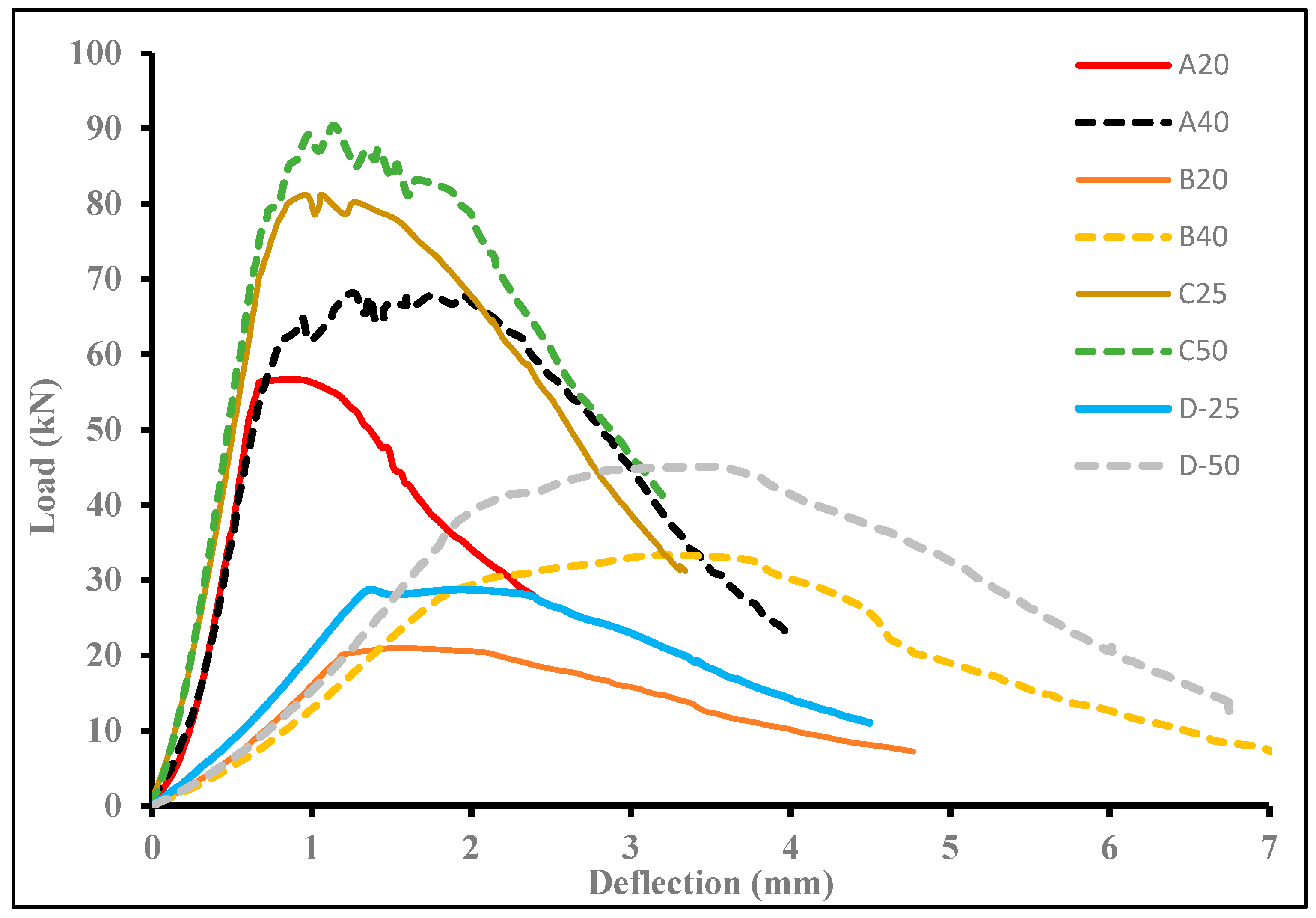

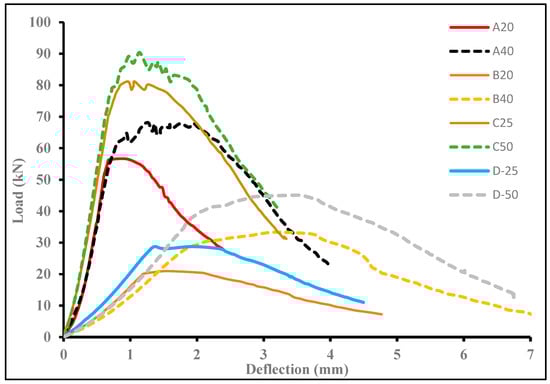

3.2.3. Load–Deflection Response of the Hybrid NC-UHPC Beams

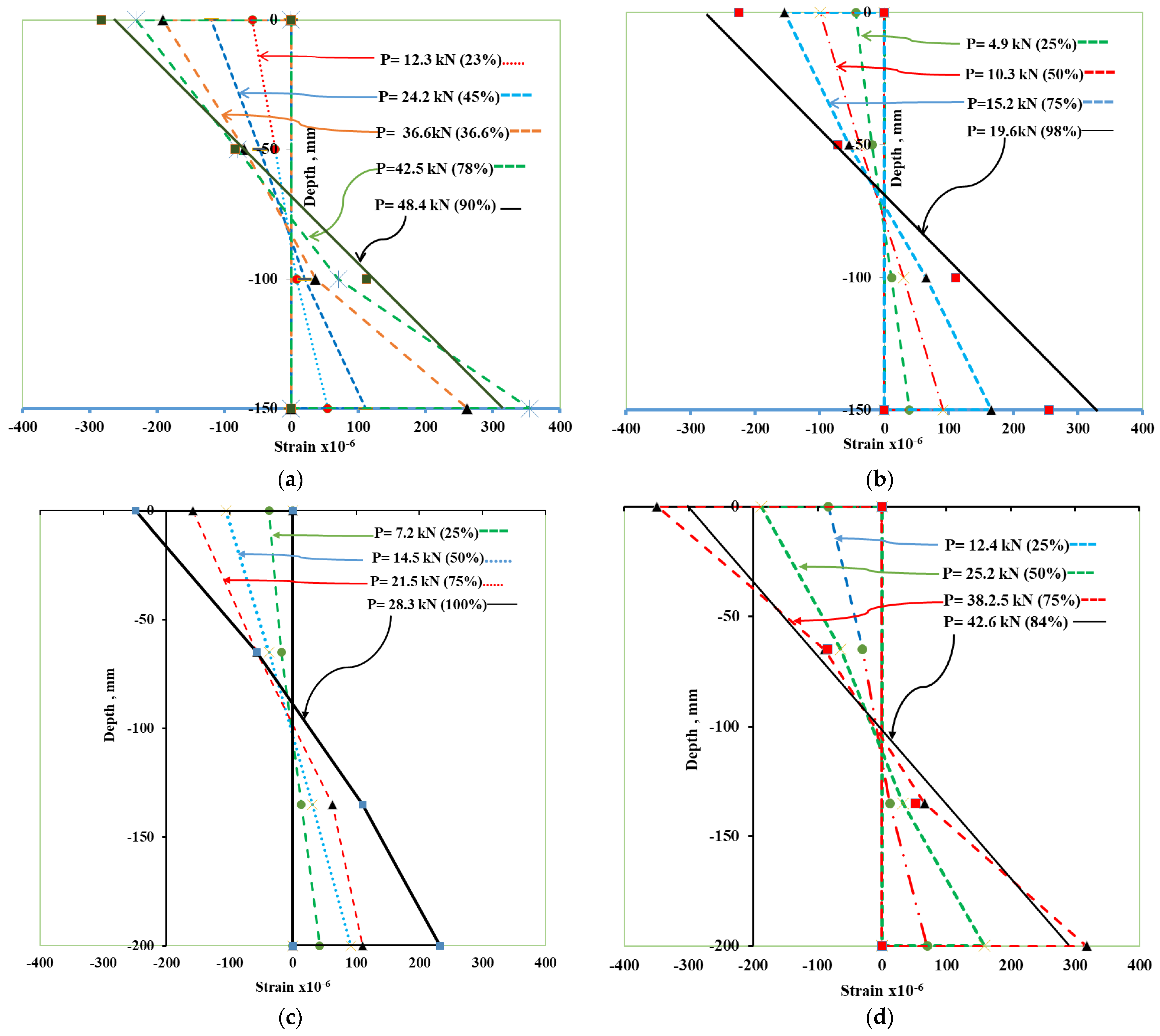

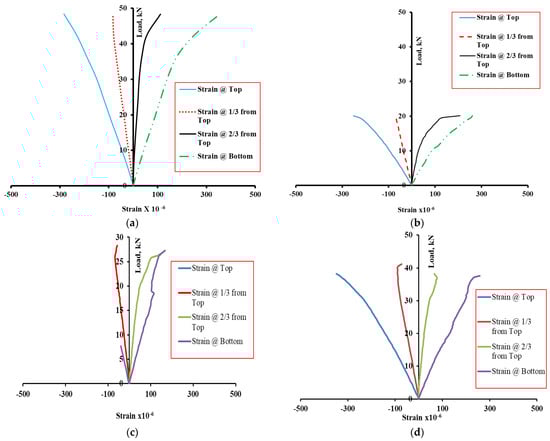

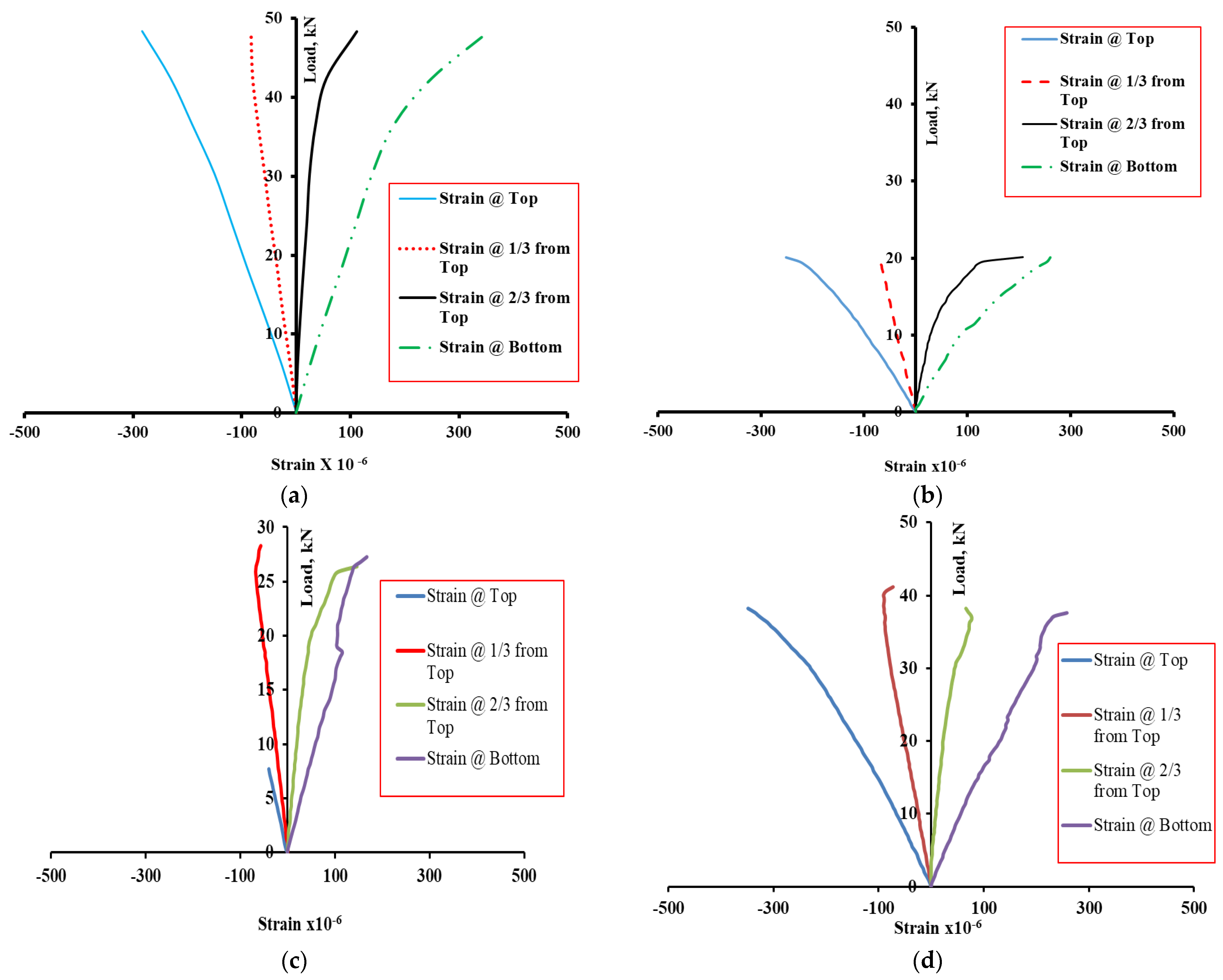

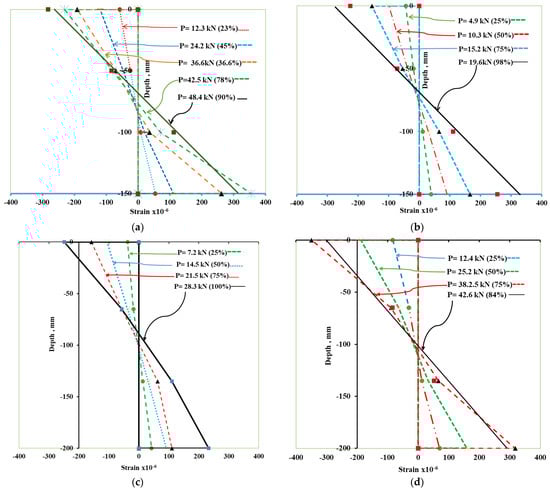

3.2.4. Strain Distribution across the Depth of the Beam
3.3. Analytical Computation of Stresses in Hybrid NC-UHPC Beams

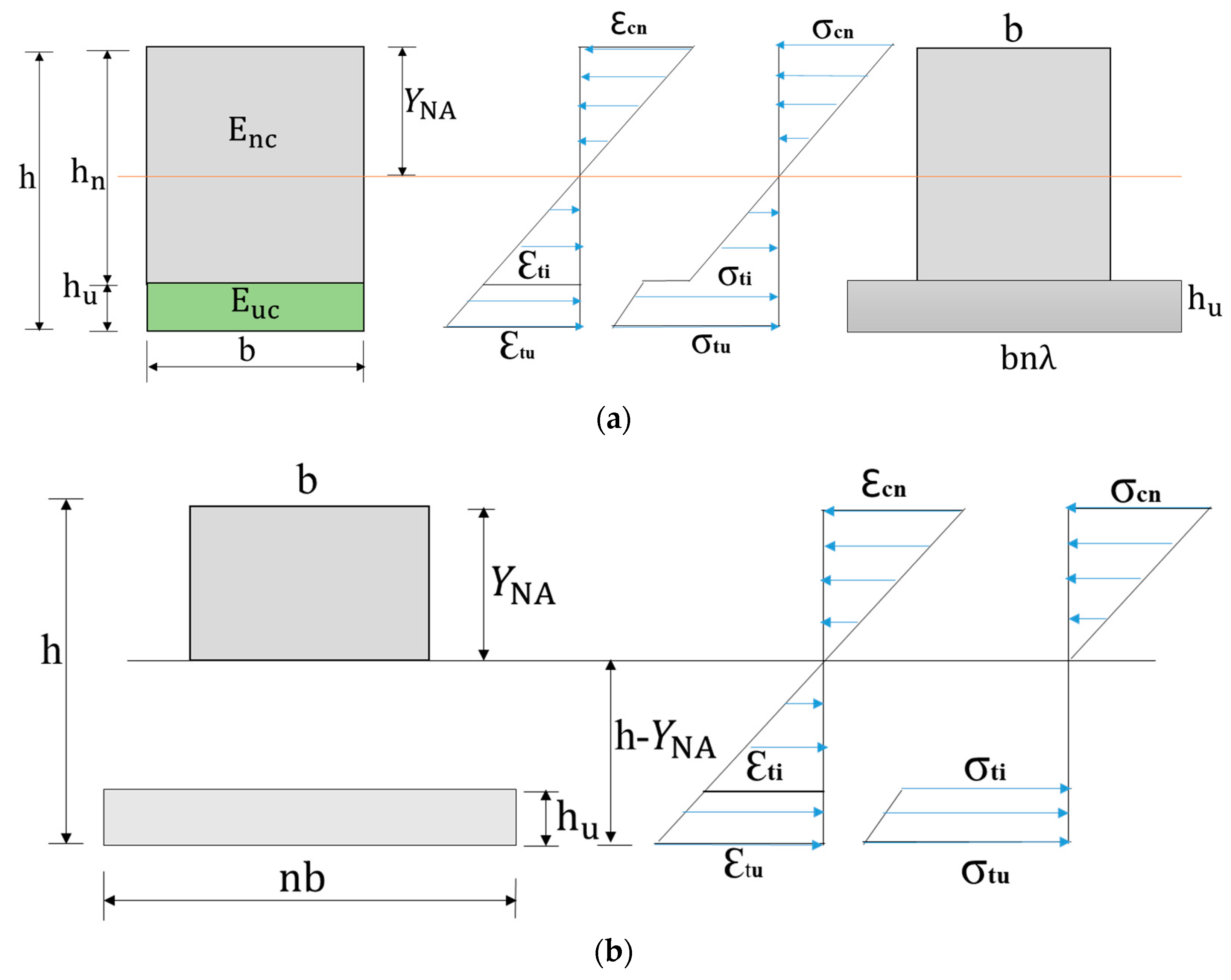

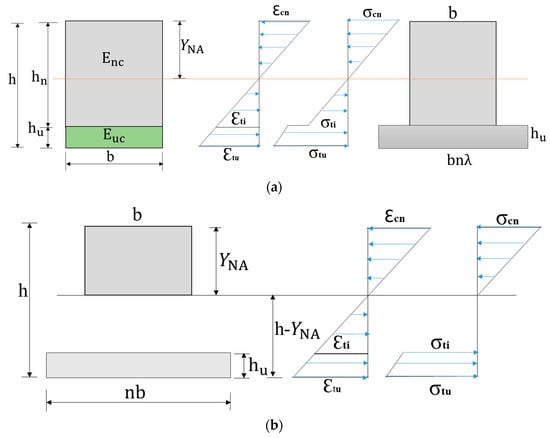

3.3.1. Neutral Axis and Moment of Inertia of Hybrid NC-UHPC Beams
- The beam section remains plane under loads;
- The beam bonding takes place without any slip at the NC-UHPC interface, i.e., there is a perfect bond;
- Properties of NC-UHPC in the hybrid beam are expressed by material constitutive law.

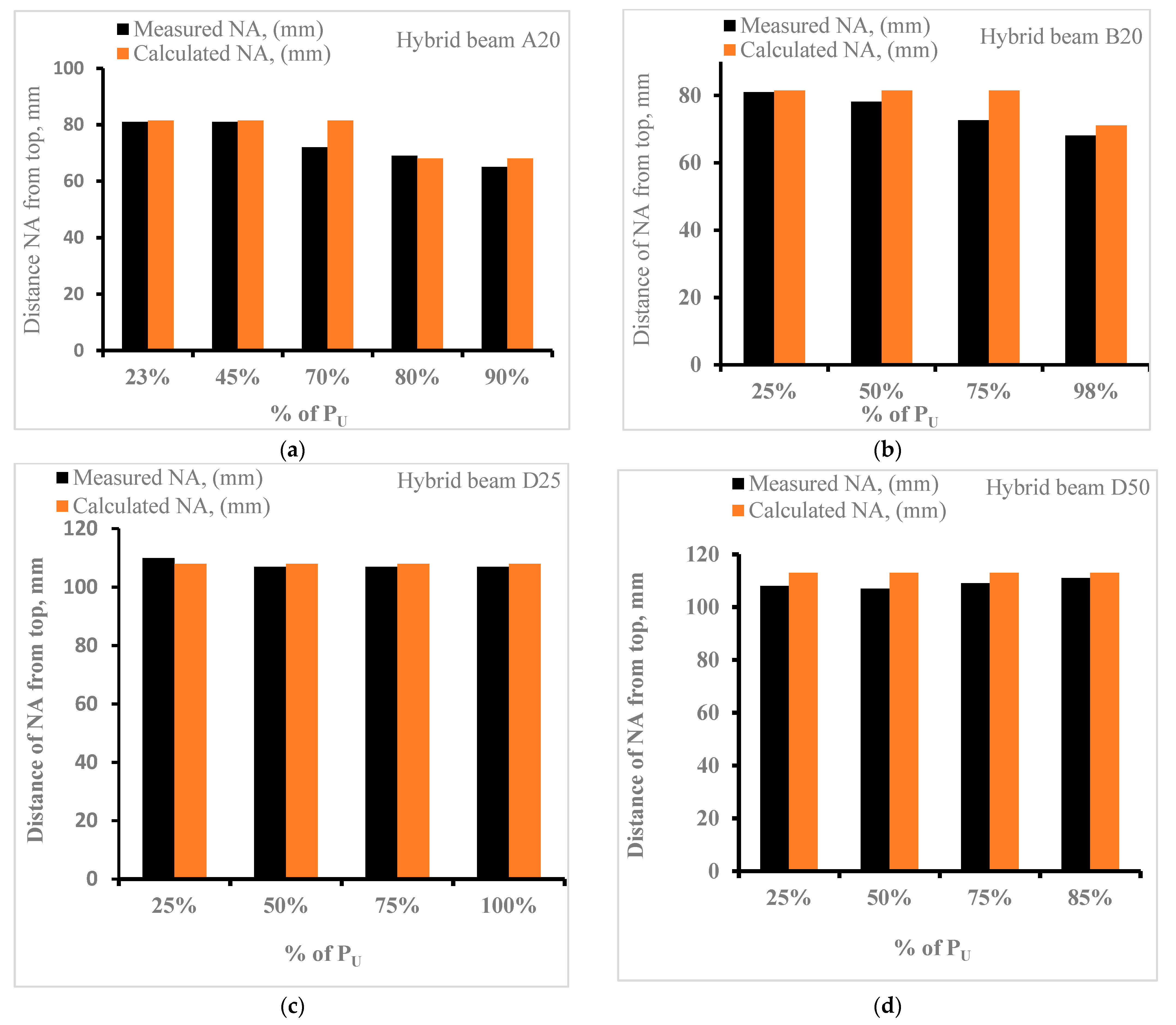

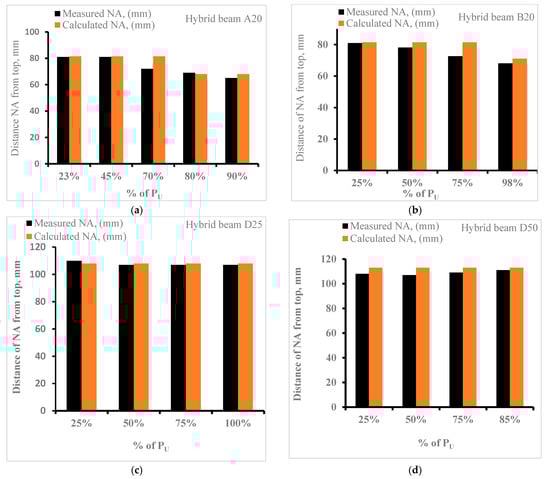

3.3.2. Depth of Neutral Axis

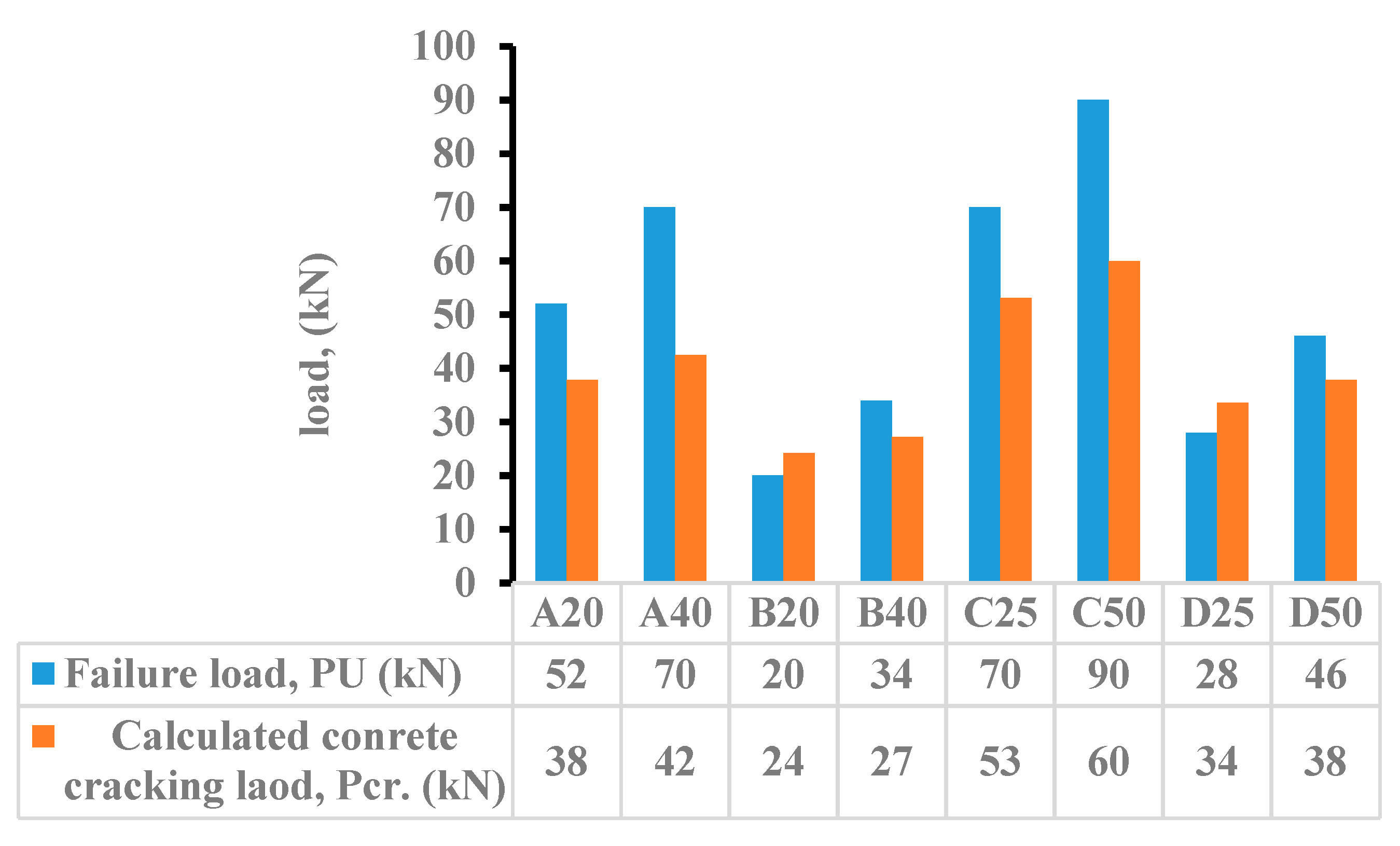

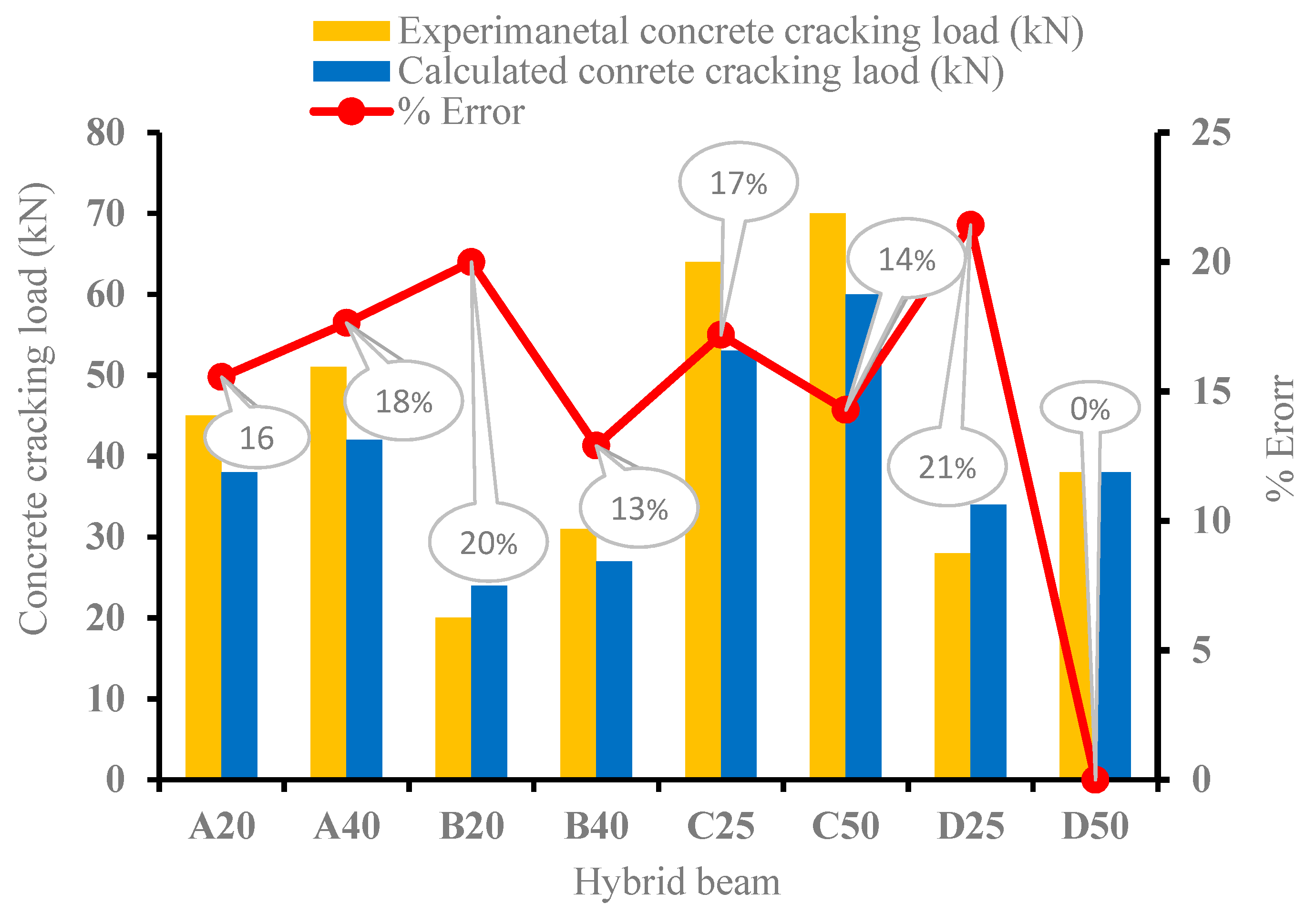

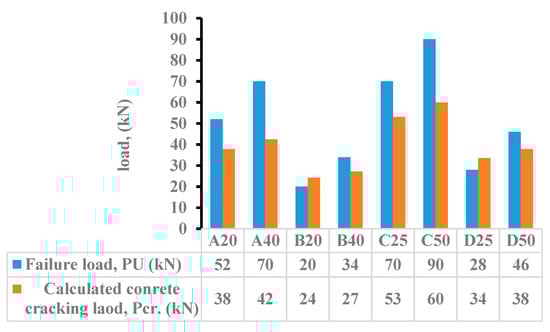

3.3.3. Cracking Load for the Hybrid Beams

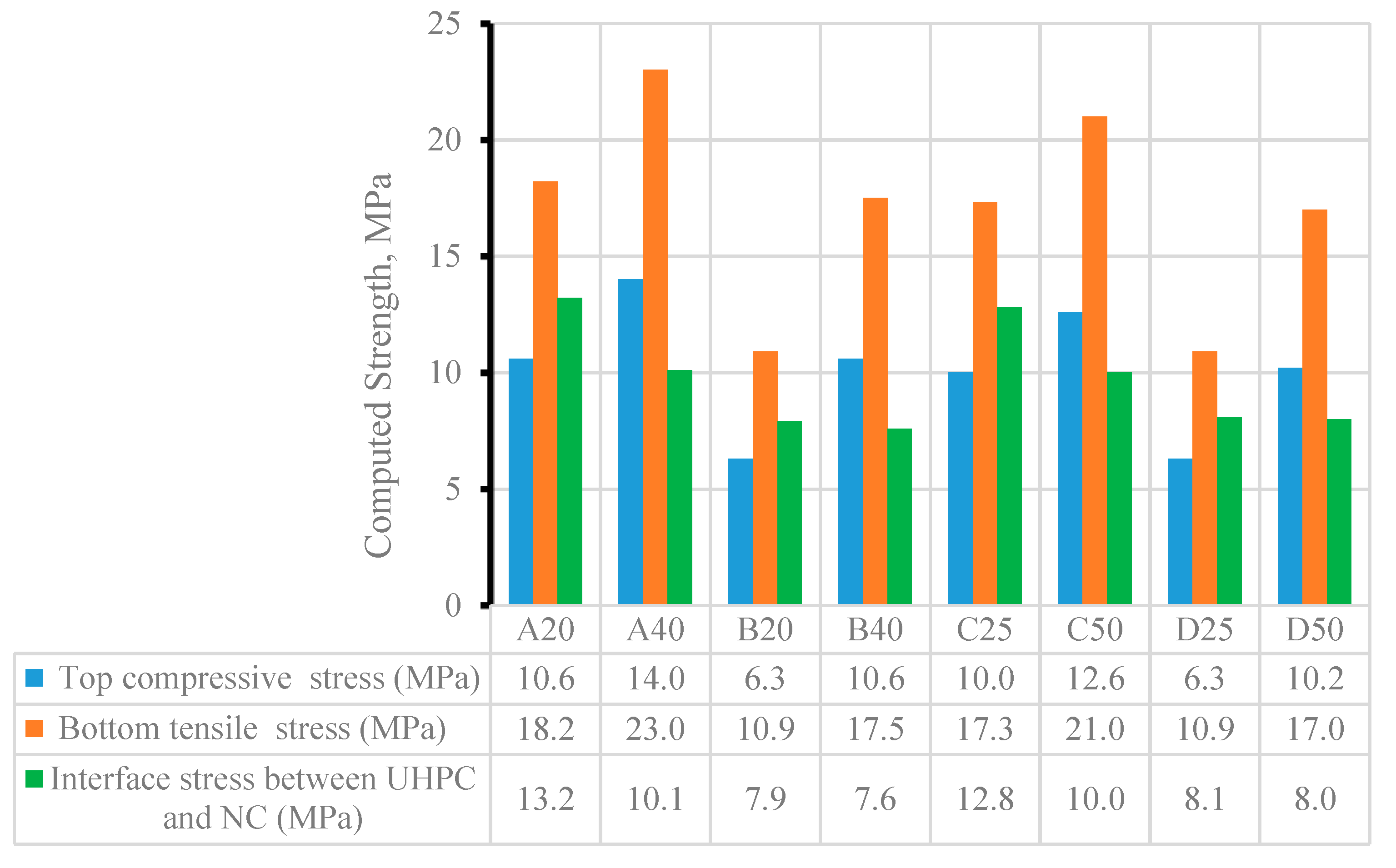

3.3.4. Computation of Moment Capacity and Stresses

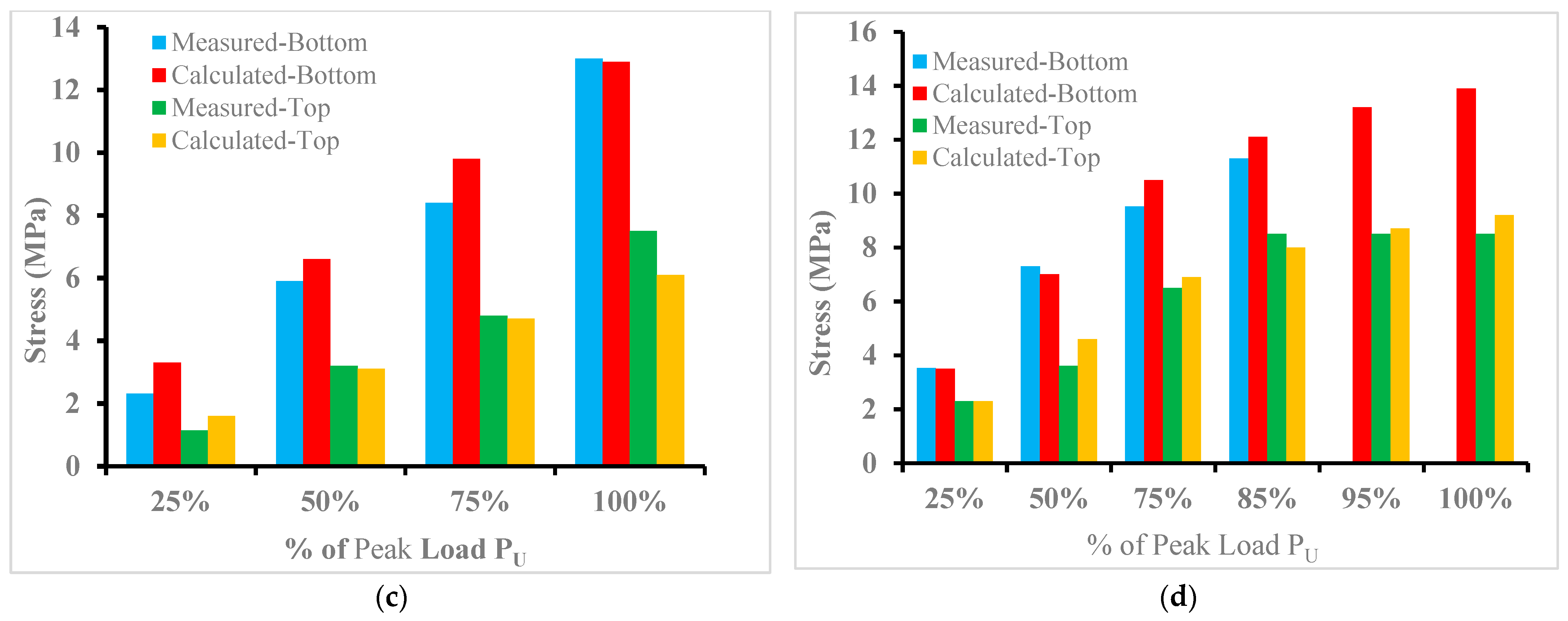

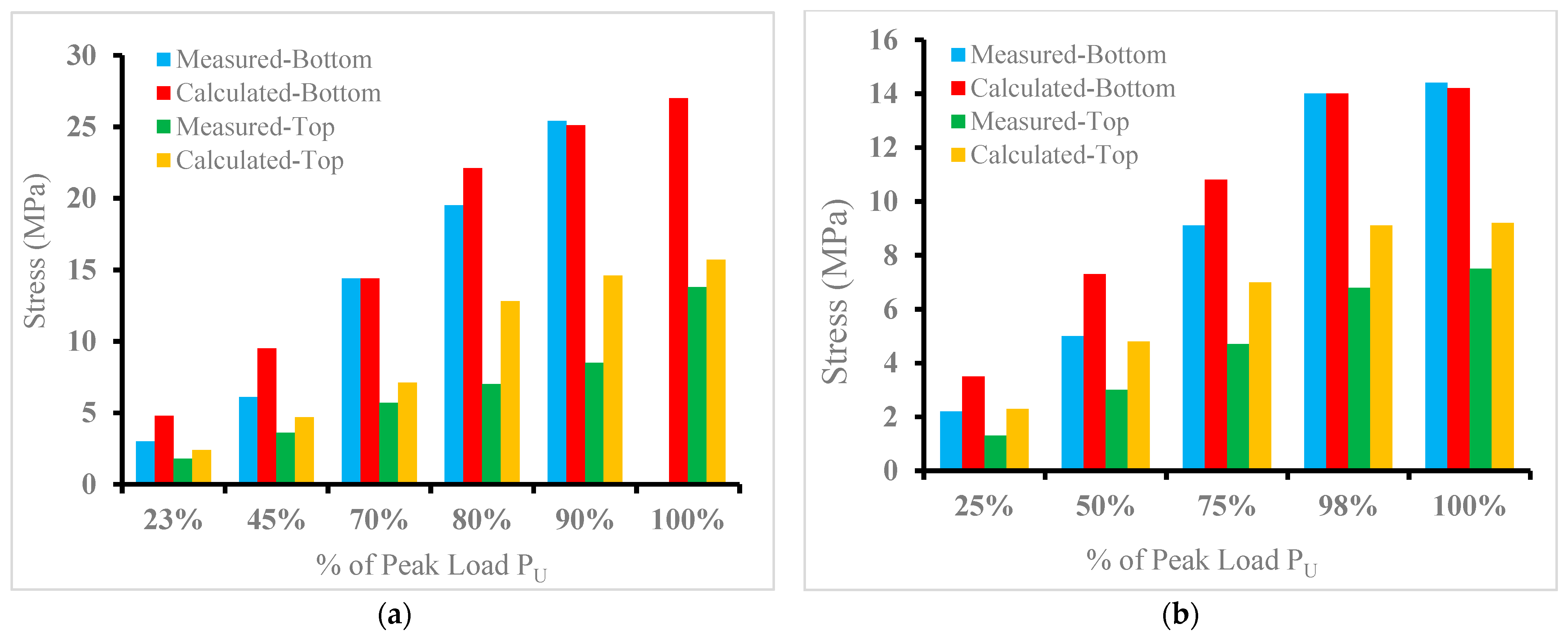

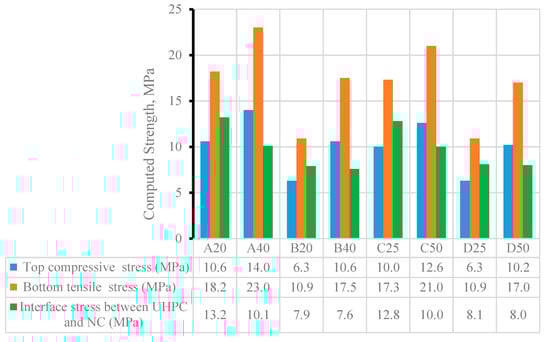

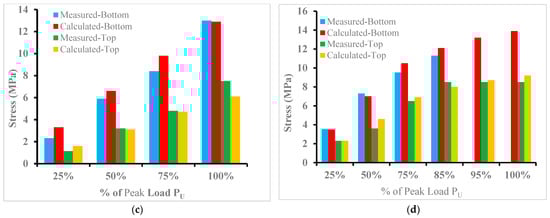

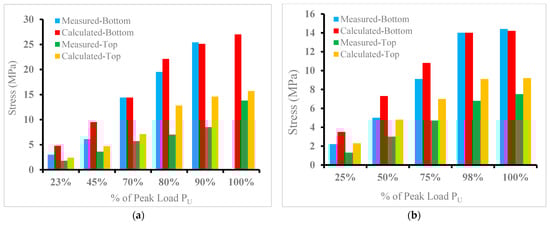

3.3.5. Comparison of Measured and Calculated Stresses

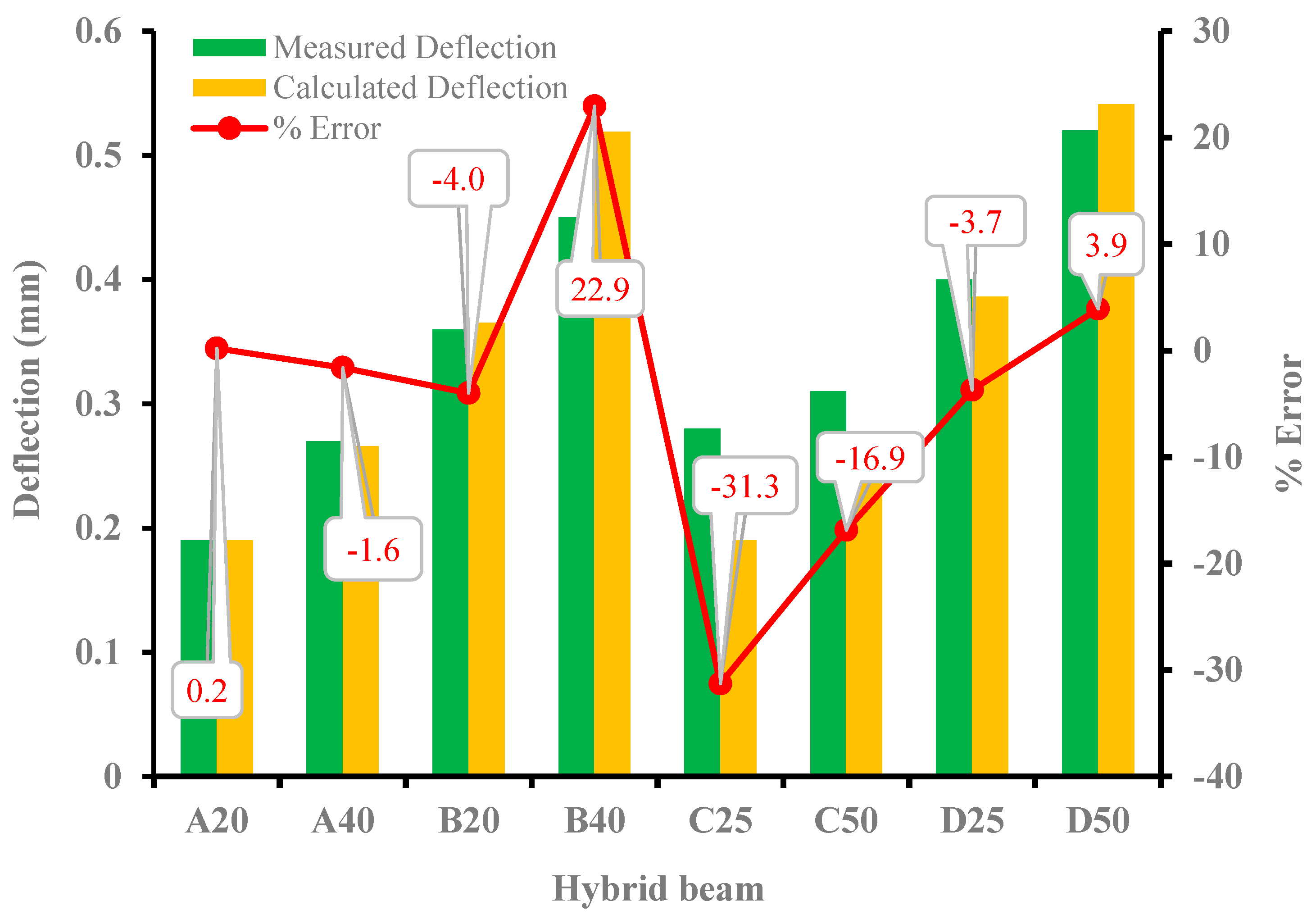

3.3.6. Comparison of Measured and Calculated Deflection in Beams
4. Conclusions
- The experimental results on small-scale specimens show that hybrid NC-UHPC sections with a thin layer of UHPC in the tension zone below the thicker NC layer can be adopted for simple span beam/one-way slab-type members to carry flexural loads without using passive steel reinforcement. The thickness of UHPC layers should preferably be conserved at a proper depth since a greater thickness is not very efficient structurally as a load-carrying part. Steel reinforcement-free concrete beams and slabs can eliminate corrosion-related durability problems;
- The mode of failure of the tested beams showed cracking in the UHPC layer predominantly with a single wide crack within the middle third. Additionally, the UHPC layer in the tension zone imparts a high ductility to the beam and significantly enhances the cracking resistance and moment capacity due to the presence of steel fiber;
- The moment capacity of a hybrid NC-UHPC beam used in the experimental program (150 × 150 mm) with a 20 mm to 50 mm thick UHPC layer was higher by 55% compared to the plain concrete beam of similar dimensions and span. The average moment capacity of the hybrid section (9 kN·m) was also close to the moment capacity of the NC beam reinforced with steel bars (10.7 kN·m);
- The hybrid NC-UHPC beam behaves linearly elastic up to cracking. This measured strain shows a linear behavior confirming that no bond slip occurs at the UHPC and NC interface in the hybrid beam. The linear behavior allows the usage of the transformed section to evaluate deflection, stress, and flexural bearing capacity. The UHPC layer needs to be partially cured with an unfinished top surface for at least 48 h first, and then the normal concrete is placed over it to increase the bond between both layers and consequently develop a complete composite system without any bond slip at the interface;
- The measured deflection in the hybrid beam at cracking can be computed with a reasonable accuracy using the moment of inertia for a cracked section in which the UHPC layer is cracked to a great extent. The difference between measured and computed deflections ranges from 0.2% to 31%.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Graybeal, B.A. Characterization of the Behavior of Ultra-High Performance Concrete. Ph.D. Thesis, The Faculty of the Graduate School of the University of Maryland, College Park, MD, USA, 2005. [Google Scholar]
- Yanni, V.Y. Multi-Scale Investigation of Tensile Creep of Ultra-High Performance Concrete for Bridge Applications. Ph.D. Thesis, Georgia Institute of Technology, Atlanta, GA, USA, December 2009. [Google Scholar]
- Flietstra Jason, C. Creep and Shrinkage Behavior of Ultra High Performance Concrete under Compressive Loading with Varying Curing Regimes. Master’s Thesis, Michigan Technological University, Houghton, MI, USA, 2011. [Google Scholar]
- Ebadollah, H.G. Fracture Toughness of Ultra High Performance Concrete. Master’s Thesis, University of New Mexico, Albuquerque, NM, USA, 2011. [Google Scholar]
- Heinz, D.; Ludwig, H.-M. Heat Treatment and the Risk of DEF Delayed Ettringite Formation in UHPC. In Proceedings of the International Symposium on Ultra-High Performance Concrete, Kassel, Germany, 13–15 September 2004; pp. 717–730. [Google Scholar]
- Graybeal, B.; Tanesi, J. Durability of an Ultrahigh-Performance Concrete. J. Mater. Civ. Eng. 2007, 19, 848–854. [Google Scholar] [CrossRef]
- Graybeal, B.A.; Hartmann, J.L. Strength and Durability of Ultra-High Performance Concrete. In The Concrete Bridge Conference; Portland Cement Association: Skokie, IL, USA, 3–5 October 2003. [Google Scholar]
- Habel, K.; Charron, J.-R.; Denarié, E.; Brühwiler, E. Autogenous Deformations and Viscoelasticity of UHPFRC in Structures, Magazine of Concrete Research. Mag. Concr. Res. 2006, 58, 135–145. [Google Scholar] [CrossRef]
- Cheyrezy, M.; Behloul, M. Creep and Shrinkage of Ultra-High Performance Concrete, Creep, Shrinkage and Durability Mechanisms of Concrete and other Quasi-Brittle Materials. In Proceedings of the Sixth International Conference, New Orleans, LA, USA, 15–18 June 2020; Elsevier: Amsterdam, The Nederlands, 2001; pp. 527–538. [Google Scholar]
- Graybeal, B.A. Material Property Characterization of Ultra-High Performance Concrete, FHWA-HRT-06-103; U.S. Department of Transportation: Washington, DC, USA, 2006.
- Loukili, A.; Khelidj, A.; Richard, P. Hydration Kinetics, Change of Relative Humidity, and Autogenous Shrinkage of Ultra-High-Strength Concrete. Cem. Concr. Res. 1999, 29, 577–584. [Google Scholar] [CrossRef]
- Habel, K.; Viviani, M.; Denarie’, E.; Brühwiler, E. Development of the Mechanical Properties of an Ultra-High Performance Fiber Reinforced Concrete (UHPFRC). Cem. Concr. Res. 2006, 36, 1362–1370. [Google Scholar] [CrossRef]
- Kang, S.-T.; Lee, Y.; Park, Y.-D.; Kim, J.-K. Tensile fracture properties of an Ultra High Performance Fiber Reinforced Concrete (UHPFRC) with steel fiber. Compos. Struct. 2010, 92, 61–71. [Google Scholar] [CrossRef]
- Skazlic´, M.; Bjegovic´, D. Toughness Testing of Ultra-high Performance Fibre Reinforced Concrete. Mater. Struct. 2009, 42, 1025–1038. [Google Scholar] [CrossRef]
- Mohamed, A.; Hakeem, I.Y.; Abdullah, M.; Bassam, A.; Ahmed, M.; Ibrahim, S. Influence of recycled aggregates and carbon Nano fibers on properties of ultra-high-performance concrete under elevated temperatures. Case Stud. Constr. Mater. 2022, 16, e01063. [Google Scholar]
- Hakeem, I.Y.; Mohamed, A.; Bassam, A.; Tayeh, B.A.; Fadi, A.; Ibrahim, S. Effects of Nano-silica and micro-steel fiber on the engineering properties of ultra-high performance concrete. Struct. Eng. Mech. 2022, 82, 295–312. [Google Scholar]
- Hakeem, I.; Azad, A.K.; Ahmad, S. Effect of Steel Fibers and Thermal Cycles on Fracture Properties of Ultra-High-Performance Concrete. J. Test. Eval. 2013, 41, 458–464. [Google Scholar] [CrossRef]
- Azad, A.K.; Ahmad, S.; Hakeem, I.Y. Effect of cyclic exposure and fiber content on tensile properties of ultrahigh performance concrete. Adv. Cem. Res. 2013, 25, 273–280. [Google Scholar] [CrossRef]
- Ahmad, S.; Hakeem, I.Y.; Azad, A.K. Effect of Curing, Fiber Content and Cyclic Exposures on the Compressive Strength and Modulus of Elasticity of Ultra-High Performance Concrete. Adv. Cem. Res. 2015, 27, 233–239. [Google Scholar] [CrossRef]
- Shamsad, A.; Hakeem, I.Y.; Mohammed, M. Development of UHPC mixtures utilizing natural and industrial waste materials as partial replacements of silica fume and sand. Sci. World J. 2014, 2014, 713531. [Google Scholar] [CrossRef]
- Shamsad, A.; Hakeem, I.Y.; Mohammed, M. Development of an Optimum Mixture of Ultra-High Performance Concrete. Eur. J. Environ. Civ. Eng. 2016, 20, 1106–1126. [Google Scholar]
- Bajaber, M.A.; Hakeem, I.Y. UHPC evolution, development, and utilization in construction: A review. J. Mater. Res. Technol. 2021, 10, 1058–1074. [Google Scholar] [CrossRef]
- Fadi, A.; Osama, Z.; de-Prado-Gil, J.; Covadonga, P.; Elias, A.; Hakeem, I.Y.; Rebeca, M. Impact of sulfate activation of rice husk ash on the performance of high strength steel fiber reinforced recycled aggregate concrete. J. Build. Eng. 2022, 54, 104610. [Google Scholar]
- Perry, V.; Zakariasen, D. First Use of Ultra-High Performance Concrete for an Innovative Train Station Canopy. Concr. Technol. Today 2004, 25, 1–2. [Google Scholar]
- Graybeal, B. UHPC in the U.S. Highway Infrastructure. In Designing and Building with UHPFRC: State of the Art and Development; UHPFRC: Marseille, France, 2009. [Google Scholar]
- Theresa, M.; Erron, J.; Donald, L. Ultra-High-Performance-Concrete for Michigan Bridges Material Performance—Phase I, Final Report, Center for Structural Durability Michigan Technological University; U.S. Department of Transportation: Washington, DC, USA, 2008.
- Tanaka, Y.; Musya, H.; Ootake, A. Design and Construction of Sakata-Mirai Footbridge Using Reactive Powder Concrete. In Proceedings of the First Fib Congress, Osaka, Japan, 13–19 October 2002; pp. 417–424. [Google Scholar]
- Cavill, B.; Chirgwin, G. The World’s First Ductal Road Bridge. In Proceedings of the CIA 21st Biennial Conference of the Concrete Institute of Australia, Brisbane, Australia, 17–19 July 2003. [Google Scholar]
- Tayeh, B.A.; Abu Bakar, B.; Johari, M.M.; Voo, Y.L. Mechanical and permeability properties of the interface between normal concrete substrate and ultra high performance fiber concrete overlay. Constr. Build. Mater. 2012, 36, 538–548. [Google Scholar] [CrossRef]
- Azad, A.K.; Hakeem, I.Y. Flexural behavior of hybrid concrete beams reinforced with ultra-high performance concrete bars. Constr. Build. Mater. 2013, 49, 128–133. [Google Scholar] [CrossRef]
- Azad, A.K.; Hakeem, I.Y. Ultra-High Performance Concrete Reinforcement Bars. U.S. Patent Application No. 13/737,876, 9 January 2013. [Google Scholar]
- Azad, A.K.; Hakeem, I.Y. Flexural Behaviour of Hybrid Hollow-Core Slab Built with Ultra High Performance Concrete Faces. Mater. Struct. 2016, 49, 3801–3813. [Google Scholar]
- Yuan, S.; Liu, Z.; Tong, T.; Fu, C.C. A Pilot Study on Structural Responses of Normal Concrete-UHPC Composite Bridge Decks w/wo Rebars through an Experimental-Numerical Approach. Adv. Civ. Eng. 2020, 2020, 8816337. [Google Scholar] [CrossRef]
- Liu, J.; Chen, Z.; Guan, D.; Lin, Z.; Guo, Z. Experimental study on interfacial shear behaviour between ultra-high performance concrete and normal strength concrete in precast composite members. Constr. Build. Mater. 2020, 261, 120008. [Google Scholar] [CrossRef]
- Guan, D.; Liu, J.; Jiang, C.; Chen, Z.; Guo, Z. Shear behaviour of the UHPC-NSC interface with castellated keys: Effects of castellated key dimension and dowel rebar. Structures 2021, 31, 172–181. [Google Scholar] [CrossRef]
- Rezakhani, R.; Scott, D.A.; Bousikhane, F.; Pathirage, M.; Moser, R.D.; Green, B.H.; Cusatis, G. Influence of steel fiber size, shape, and strength on the quasi-static properties of ultra-high performance concrete: Experimental investigation and numerical modeling. Constr. Build. Mater. 2021, 296, 123532. [Google Scholar] [CrossRef]
- ASTM C150-07; Standard Specification for Portland Cement. ASTM International: Bridgeport, NJ, USA, 2007. [CrossRef]
- ASTM C109; Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens). ASTM International: Bridgeport, NJ, USA, 2020.
- ASTM C39; Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. ASTM International: Bridgeport, NJ, USA, 2014.
- ASTM C496; Standard Test Method for Splitting Tensile Strength of Cylindrical Concrete Specimens. ASTM International: Bridgeport, NJ, USA, 2017.
- ASTM D638-10; Standard Test Method for Tensile Properties of Plastics. ASTM International: West Conshohocken, PA, USA, 2014.
- ASTM C78/C78M-18; Standard Test Method Flexural Strength Concrete (Using Simple Beam with Third-Point Loading). ASTM International: Bridgeport, NJ, USA, 2002.
- Zhang, H.; Ji, T.; Zeng, X.; Yang, Z.; Lin, X.; Liang, Y. Mechanical behavior of ultra-high performance concrete (UHPC) using recycled fine aggregate cured under different conditions and the mechanism based on integrated microstructural parameters. Constr. Build. Mater. 2018, 192, 489–507. [Google Scholar] [CrossRef]
- Hassan, A.M.T.; Jones, S.W.; Mahmud, G.H. Experimental test methods to determine the uniaxial tensile and compressive behavior of ultra-high performance fiber reinforced concrete (UHPFRC). Constr. Build. Mater. 2012, 37, 874–882. [Google Scholar] [CrossRef]
- Mishra, O.; Singh, S.P. An overview of microstructural and material properties of ultra-high-performance concrete. J. Sustain. Cem. Mater. 2019, 8, 97–143. [Google Scholar] [CrossRef]
- Weinberg, K.; Khosravani, M.R. On the tensile resistance of UHPC at impact. Eur. Phys. J. Spéc. Top. 2018, 227, 167–177. [Google Scholar] [CrossRef]
- Graybeal, B.A.; Baby, F. Development of Direct Tension Test Method for Ultra-High-Performance Fiber-Reinforced Concrete. ACI Mater. J. 2013, 110, 177. [Google Scholar]
- Yoo, D.-Y.; Kim, S.-W.; Park, J.-J. Comparative flexural behavior of ultra-high-performance concrete reinforced with hybrid straight steel fibers. Constr. Build. Mater. 2017, 132, 219–229. [Google Scholar] [CrossRef]
- Kang, S.-T.; Kim, J.-K. Investigation on the flexural behavior of UHPCC considering the effect of fiber orientation distribution. Constr. Build. Mater. 2012, 28, 57–65. [Google Scholar] [CrossRef]
- Boulekbache, B.; Hamrat, M.; Chemrouk, M.; Amziane, S. Flow ability of fiber reinforced concrete and its effect on the mechanical properties of the material. Constr. Build. Mater. 2010, 24, 1664–1671. [Google Scholar] [CrossRef]
- Larsen, I.L.; Thorstensen, R.T. The influence of steel fibres on compressive and tensile strength of ultra high performance concrete: A review. Constr. Build. Mater. 2020, 256, 119459. [Google Scholar] [CrossRef]
- Nezhentseva, A.; Sørensen, E.V.; Andersen, L.V.; Schuler, F. Distribution and Orientation of Steel Fibers in UHPFRC, DCE Technical Report No. 151, Aalborg University, Department of Civil Engineering, Division for Structures, Materials and Geotechnics. 2013. Available online: https://www.semanticscholar.org/paper/Distribution-and-Orientation-of-Steel-Fibres-in-Nezhentseva-S%C3%B8rensen/e3af9b686751583d9643610974173b34aa788054 (accessed on 10 February 2022).
- Barnett, S.J.; Lataste, J.F.; Parry, T.; Millard, S.G.; Soutsos, M.N. Assessment of fiber orientation in ultra-high performance fibre reinforced concrete and its effect on flexural strength. Mater. Struct. 2010, 43, 1009–1023. [Google Scholar] [CrossRef]
- Park, S.H.; Kim, D.J.; Ryu, G.S.; Koh, K.T. Tensile behavior of Ultra High Performance Hybrid Fiber Reinforced Concrete. Cem. Concr. Compos. 2012, 34, 172–184. [Google Scholar] [CrossRef]
- Magureanu, C.; Sosa, I.; Negrutiu, C.; Heghes, B. Mechanical Properties and Durability of Ultra-High-Performance Concrete. ACI Mater. J. 2012, 109, 177–183. [Google Scholar]
- Nguyen, D.L.; Kim, D.J.; Ryu, G.S.; Koh, K.T. Size effect on flexural behavior of ultra-high-performance hybrid fiber reinforced concrete. Compos. Part B Eng. 2013, 45, 1104–1116. [Google Scholar] [CrossRef]
Properties | OPC | MS | FA | CA |
---|---|---|---|---|
Physical | ||||
Bulk density (kg/m3) | 3150 | 395 | 1540 | 1600 |
Absorption (%) | - | - | 0.4 | 1.0 |
Specific gravity | 3.15 | 2.25 | 2.53 | 2.67 |
Specific area (cm2/gm) | 3200 | 20,000 | - | - |
Fineness modulus | - | - | 2.22 | 7.11 |
Average particle size (μm) | 1.64 | 0.142 | 600 | 10–20 mm |
Color | Grey | Light grey | - | - |
Chemical compositions (%) | ||||
SiO2 | 22 | 92.5 | - | - |
Al2O3 | 5.64 | 0.72 | - | - |
Fe2O3 | 3.8 | 0.96 | - | - |
CaO | 64.35 | 0.48 | - | - |
MgO | 2.11 | 1.78 | - | - |
SO3 | 2.1 | 0.15 | - | - |
K2O | 0.36 | 0.84 | - | - |
Na2O | 0.19 | 0.5 | - | - |
LOI | 0.7 | 1.55 | - | - |
Details | Copper-Coated Steel Fiber |
---|---|
Type | Straight |
Length | 13 mm |
Diameter | 0.2 mm |
Aspect ratio (L/D) | 65 |
Tensile strength | 2500 MPa |
Type | OPC | MS | FA | CA | Steel Fibers | Superplasticizer | Water |
---|---|---|---|---|---|---|---|
UHPC | 900 | 220 | 990 | - | 157 | 42 | 168 |
NC | 400 | - | 729 | 1092 | - | - | 184 |
Designation | Hybrid Beam Dimensions (mm), See Figure 3 | UHPC Thickness, (t) (mm) | Testing Dimensions (mm), See Figure 3 | a/h Ratio | |||
---|---|---|---|---|---|---|---|
b | h | L | Testing Span | Shear Span, (a) | |||
A20 | 150 | 150 | 760 | 20 | 630 | 240 | 1.6 |
A40 | 40 | ||||||
B20 | 150 | 150 | 1000 | 20 | 900 | 375 | 2.5 |
B40 | 40 | ||||||
C25 | 150 | 200 | 900 | 25 | 750 | 300 | 1.5 |
C50 | 50 | ||||||
D25 | 150 | 200 | 1200 | 25 | 1100 | 475 | 2.4 |
D50 | 50 |
Test | Specimens Size | Results (Average of 3 Specimens) (MPa) | |
---|---|---|---|
UHPC | Compressive strength | 50 mm cube | 172 |
Compressive strength | 75 mm dia. × 150 mm length (cylinder) | 160 | |
Elastic Modulus | 75 mm dia. × 150 mm length (cylinder) | 55,000 | |
Direct tensile strength | Dog-Bone Test Specimen (ASTM D638) | 10 | |
Flexural strength | 40 mm × 40 mm × 160 mm (prism) | 27 | |
Flexural strength (No fibers) | 40 mm × 40 mm × 160 mm (prism) | 13 | |
Splitting tensile strength | 75 mm dia. × 150 mm length (cylinder) | 15 | |
NC | Compressive strength | 100 mm cube | 45 |
Compressive strength | 75 mm dia. × 150 mm length (cylinder) | 40 | |
Elastic Modulus | 75 mm dia. × 150 mm length (cylinder) | 30,000 |
Specimens | Testing Span (mm) | Shear Span (a) (mm) | Shear Span/Total Depth (a/h) | Shear Span/UHPC Thickness (a/t) | Average Experimental Cracking Load (kN) | Average Failure Load (kN) | Average Moment Capacity kN·m |
---|---|---|---|---|---|---|---|
A20 | 630 | 240 | 1.6 | 12 | 45 | 52 | 6.24 |
A40 | 6 | 51 | 70 | 8.4 | |||
B20 | 900 | 375 | 2.5 | 18.8 | 20 | 20 | 3.8 |
B40 | 9.4 | 31 | 34 | 6.4 | |||
C25 | 750 | 300 | 1.5 | 12 | 64 | 70 | 10.5 |
C50 | 6 | 70 | 90 | 13.5 | |||
D25 | 1100 | 475 | 2.4 | 19 | 28 | 28 | 6.7 |
D50 | 9.5 | 38 | 46 | 10.9 |
Hybrid Beam ID | Pcr. (kN) | Level of Load (kN) | % of PU | Measured Strain × 10−6 | Measured NA from Top mm | |||
---|---|---|---|---|---|---|---|---|
Top Side | 1/3rd from Top | 2/3rd from Top | Bottom Side | |||||
A20 | 45 | 12.3 | 23 | −58 | −24 | 8 | 54 | 81 |
24.2 | 45 | −119 | −47 | 20 | 111 | 81 | ||
36.6 | 70 | −119 | −70 | 36 | 262 | 72 | ||
42.5 | 80 | −231 | −80 | 56 | 300 | 69 | ||
48.4 | 90 | −283 | −83 | 112 | 350 | 65 | ||
B20 | 20 | 4.9 | 25 | −44 | −19 | 11 | 39 | 81 |
10.3 | 50 | −99 | −38 | 30 | 91 | 78.1 | ||
15.2 | 75 | −155 | −55 | 65 | 166 | 72.6 | ||
19.6 | 98 | −225 | −72 | 110 | 255 | 68 |
Hybrid Beam ID | Pcr. (kN) | Level of Load (kN) | Percentage of PU | Measured Strain × 10−6 | Measured NA from Top, mm | |||
---|---|---|---|---|---|---|---|---|
Top Side | 1/3rd from Top | 2/3rd from Top | Bottom Side | |||||
D25 | 28 | 7.2 | 25 | −38 | −18 | 13 | 42 | 105 |
14.5 | 50 | −106 | −38 | 31 | 92 | 105 | ||
21.5 | 75 | −158 | −57 | 63 | 110 | 98 | ||
28.3 | 100 | −249 | −57 | 110 | 233 | 86 | ||
D50 | 38 | 11.3 | 25 | −75 | −30 | 19 | 64 | 108 |
22.6 | 50 | −120 | −63 | 40 | 132 | 107 | ||
33.9 | 75 | −217 | −100 | 71 | 173 | 109 | ||
39.3 | 85 | −282 | −120 | 55 | 205 | 111 |
Hybrid Beam ID | Uncracked | Cracked NC Layer | Cracked UHPC | |||
---|---|---|---|---|---|---|
NA from Top (mm) | Iuc × 106 | NA from Top (mm) | Icrn × 106 | NA from Top (mm) | Icru × 106 | |
(mm4) | (mm4) | (mm4) | ||||
A20 | 81.5 | 51.8 | 71.1 | 44.3 | 68.0 | 31.9 |
A40 | 85.0 | 55.2 | 83.0 | 54.4 | 61.8 | 25.3 |
B20 | 81.5 | 51.8 | 71.1 | 44.3 | 68.0 | 31.9 |
B40 | 85.0 | 55.2 | 83.0 | 54.4 | 61.8 | 25.3 |
C25 | 108.3 | 121.8 | 93.1 | 102.0 | 91.3 | 77.0 |
C50 | 112.9 | 130.4 | 109.5 | 127.5 | 83.4 | 61.5 |
D25 | 108.3 | 121.8 | 93.1 | 102.0 | 91.3 | 77.0 |
D50 | 112.9 | 130.4 | 109.5 | 127.5 | 83.4 | 61.5 |
Hybrid Beam ID | Exp. Cracking Load (kN) | Exp. Moment Capacity (kN·m) | Calculated Cracking Load | Calculated Moment Capacity (kN·m) | Moment Capacity of Plain NC Section (kN·m) | Moment Capacity of Reinforced NC Section (kN·m) |
---|---|---|---|---|---|---|
(kN) | ||||||
A20 | 45 | 5.4 | 38 | 4.6 | 3.4 | 7.5 |
A40 | 51 | 6.1 | 42 | 5.0 | 3.4 | 7.5 |
B20 | 20 | 3.8 | 24 | 4.5 | 3.4 | 7.5 |
B40 | 31 | 5.8 | 27 | 5.1 | 3.4 | 7.5 |
C25 | 64 | 9.6 | 53 | 8.0 | 6.0 | 10.7 |
C50 | 70 | 10.5 | 60 | 9.0 | 6.0 | 10.7 |
D25 | 28 | 6.7 | 34 | 8.1 | 6.0 | 10.7 |
D50 | 38 | 9.0 | 38 | 9.0 | 6.0 | 10.7 |
Hybrid Beam ID | Measured Deflection (mm) | Calculated Deflection Iun (mm)/%Error | Calculated Deflection Icrn (mm)/%Error | Calculated Deflection Icru (mm)/%Error | |||
---|---|---|---|---|---|---|---|
A20 | 0.19 | 0.117 | −61.75 | 0.137 | −38.28 | 0.190 | 0.21 |
A40 | 0.27 | 0.122 | −121.83 | 0.124 | −118.32 | 0.266 | −1.60 |
B20 | 0.38 | 0.225 | −68.57 | 0.264 | −44.11 | 0.365 | −3.99 |
B40 | 0.4 | 0.238 | −68.24 | 0.242 | −65.58 | 0.519 | 22.94 |
C25 | 0.25 | 0.120 | −107.79 | 0.144 | −73.92 | 0.190 | −31.28 |
C50 | 0.31 | 0.125 | −147.73 | 0.128 | −142.23 | 0.265 | −16.86 |
D25 | 0.4 | 0.244 | −64.14 | 0.291 | −37.38 | 0.386 | −3.70 |
D50 | 0.52 | 0.255 | −103.69 | 0.261 | −99.17 | 0.541 | 3.92 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Hakeem, I.Y.; Rahman, M.K.; Althoey, F. Experimental Investigation of Hybrid Beams Utilizing Ultra-High Performance Concrete (UHPC) as Tension Reinforcement. Materials 2022, 15, 5619. https://doi.org/10.3390/ma15165619
Hakeem IY, Rahman MK, Althoey F. Experimental Investigation of Hybrid Beams Utilizing Ultra-High Performance Concrete (UHPC) as Tension Reinforcement. Materials. 2022; 15(16):5619. https://doi.org/10.3390/ma15165619
Chicago/Turabian StyleHakeem, Ibrahim Y., Muhammad Kalimur Rahman, and Fadi Althoey. 2022. "Experimental Investigation of Hybrid Beams Utilizing Ultra-High Performance Concrete (UHPC) as Tension Reinforcement" Materials 15, no. 16: 5619. https://doi.org/10.3390/ma15165619
APA StyleHakeem, I. Y., Rahman, M. K., & Althoey, F. (2022). Experimental Investigation of Hybrid Beams Utilizing Ultra-High Performance Concrete (UHPC) as Tension Reinforcement. Materials, 15(16), 5619. https://doi.org/10.3390/ma15165619
