Pressure-Dependent Structure of BaZrO₃ Crystals as Determined by Raman Spectroscopy

Abstract

The structure of dielectric perovskite BaZrO₃, long known to be cubic at room temperature without any structural phase transition with variation in temperature, has been recently disputed to have different ground state structures with lower symmetries involving octahedra rotation. Pressure-dependent Raman scattering measurements can identify the hierarchy of energetically-adjacent polymorphs, helping in turn to understand its ground state structure at atmospheric pressure. Here, the Raman scattering spectra of high-quality BaZrO₃ single crystals grown by the optical floating zone method are investigated in a pressure range from 1 atm to 42 GPa. First, based on the analyses of the infrared and Raman spectra measured at atmospheric pressure, it was found that all the observed vibrational modes could be assigned according to the cubic $Pm\overline{3}m$ structure. In addition, by applying pressure, two structural phase transitions were found at 8.4 and 19.2 GPa, one from the cubic to the rhombohedral R$\overline{3}$c phase and the other from the rhombohedral to the tetragonal I4/mcm phase. Based on the two pressure-induced structural phase transitions, the true ground state structure of BaZrO₃ at room temperature and ambient pressure was corroborated to be cubic while the rhombohedral phase was the closest second.

1. Introduction

The dielectric oxide BaZrO₃ (BZO) with a perovskite structure exhibits a high structural stability, low thermal conductivity, and good refractory character such that it has been widely used, e.g., as a thermal barrier coating in aerospace industries [1] and as an inert crucible [2] and substrate [3] in laboratories. With an intrinsic dielectric constant as high as 43 [4], BZO shows enhanced piezoelectric properties upon being alloyed with BaTiO₃ [5]; Ba(Zr,Ti)O₃ has thus been widely used in lead-free piezoelectric actuators, transducers, and sensors and for wireless communications [6]. The application of BZO extends to the development of proton conductors [7], hydrogen separation reactors [8,9], and humidity sensors [10]. Befitting such a variety of applications requiring thermal and structural stability, BZO is known to maintain its cubic structure from 2 to 1473 K according to neutron and X-ray diffraction (XRD) studies [11,12].

However, several density functional theory (DFT) calculations have proposed that the true structural ground state may be of tetragonal I4/mcm symmetry due to the unstable antiphase antiferrodistortive (AFD) phonons of oxygen octahedra [13,14,15], and that the local tetragonal distortions can be averaged out and may have been undetectable in the diffraction experiments which identified the cubic $Pm\overline{3}m$ BZO structure. Seemingly supporting the DFT calculation results, a group of peaks was observed in the Raman spectra of BZO [16,17,18,19], although an ideal cubic perovskite has no first-order Raman-active optical phonons [20]. Hence, the observed Raman modes were interpreted to represent the short-ranged structural distortions in BZO [17,18,19]. Besides, in addition to the octahedral rotations, a Brillouin light-scattering experiment reported a loss of centro-symmetry due to local distortion in a commercially available BZO crystal in a temperature range from 93 to 1273 K [21]. Concrete interpretation of the vibrational modes observed in one of the highest-quality BZO single crystals is therefore necessary to resolve whether symmetry breaking is intrinsic or not.

There was another viewpoint which ascribed the observed Raman shifts to classical two-phonon modes from the cubic structure [16], as similarly demonstrated in other cubic perovskites such as SrTiO₃ and KTaO₃ [22,23]. Vibrational spectra measured by Raman scattering [16] and the phonon density of states from inelastic neutron scattering studies [24] indeed exhibited no sign of structural phase transitions in BZO in a wide temperature range (4–1200 K), suggesting that the cubic structure remains persistently. The absence of experimental evidence of any structural phase transition in BZO was attributed to zero-point fluctuations [11] and nonlocal exchange-correlation effects [25]. As an alternative scenario, it was also suggested that the energetic proximity of I4/mcm, Imma, and R$\overline{3}$c structures each involving AFD distortions [25,26] can quench the manifestation of a certain distorted structure in BZO [27]. As the small energy differences among these tilt polymorphs can be effectively discriminated by means of external perturbation [26], the application of high pressure might be an effective way to sort out the energetic hierarchy of the competing polymorphs.

A previous study of pressure-dependent Raman scattering with BZO ceramics grown by the solid-state reaction method found two structural phase transitions at 9 and 23 GPa [19], which were assigned as a transition from a cubic to a rhombohedral $R\overline{3}c$ phase and one from a rhombohedral to an orthorhombic Imma structure, respectively. On the other hand, another structural study on a commercial BZO powder with a synchrotron XRD measurement identified only one pressure-induced transition at 17.2 GPa from a cubic to a tetragonal I4/mcm phase [28]. As BZO ceramics grown by solid-state reaction can often possess local symmetry breaking by octahedra rotation due to the local strain at grain boundaries [6,29,30], the discrepancies in the number of phase transitions and the transition pressures reported by the two former high-pressure studies might originate from the polycrystalline nature of the samples. Therefore, a high-pressure experiment on a single crystal of BZO is desirable to resolve the discrepancy in the high-pressure results of the polycrystalline BZO specimens.

In this article, the Raman spectra of a BZO single crystal grown by the optical floating-zone method are investigated. Based on the comparison with infrared (IR) spectra and the DFT prediction on the phonon spectra, it is shown that all the Raman shifts of the BZO crystals can be successfully assigned to the two-phonon modes in the cubic phase. At higher pressures, there exist emergent first-order Raman modes, of which frequencies can be successfully assigned by the new crystal symmetry stabilized above 8.4 or 19.2 GPa. Based on the full assignment of the measured Raman spectra, it is concluded that BaZrO₃ crystals undergo phase transitions from the cubic to the rhombohedral R$\overline{3}$c phase at 8.4 GPa, and subsequently to the tetragonal I4/mcm phase at 19.2 GPa.

2. Experimental Methods

2.1. Sample Preparation

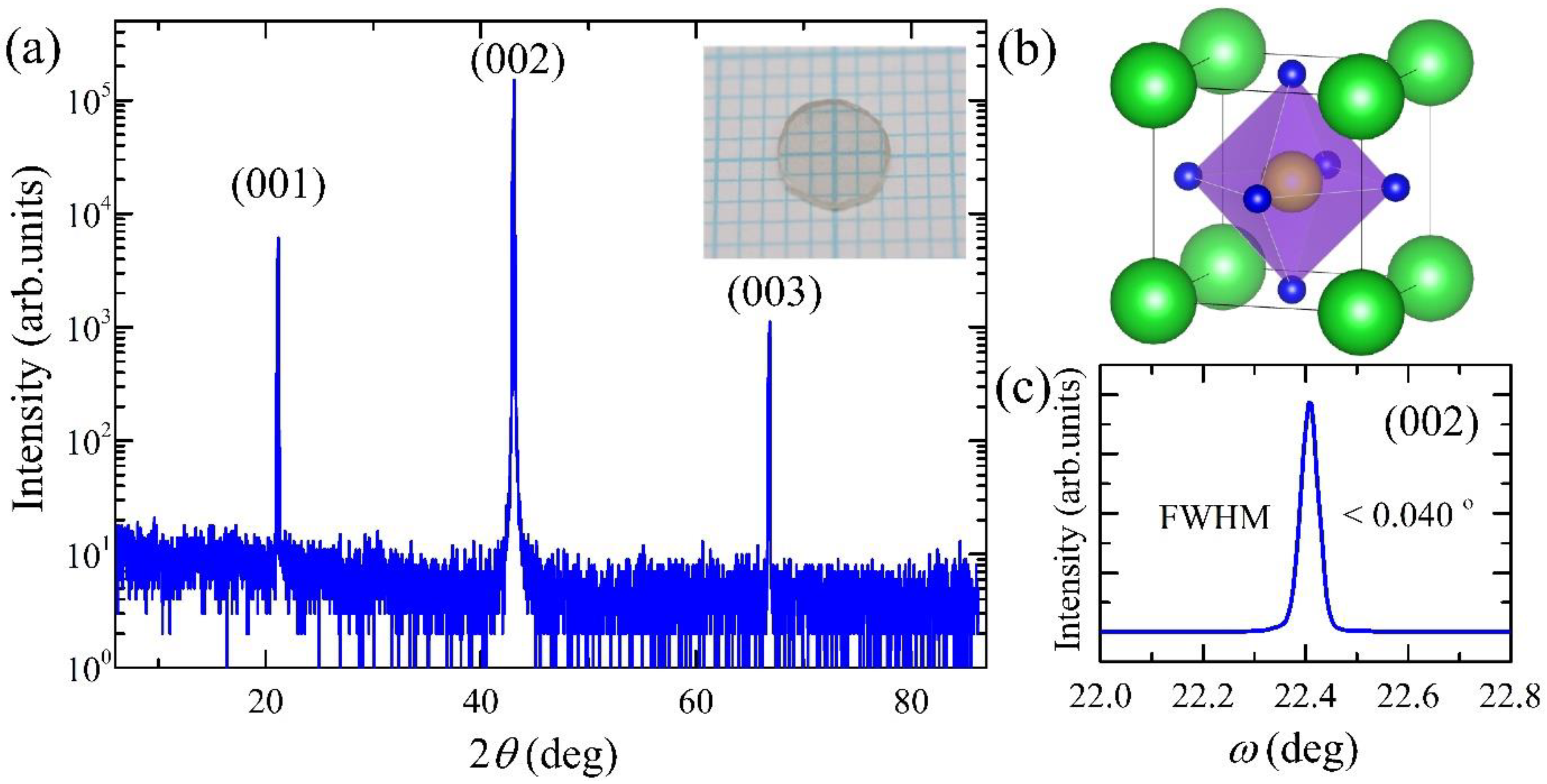

High-quality BaZrO₃ single crystals were grown by the optical floating-zone technique [31] in an O₂/Ar mixed gas environment. Polycrystalline BaZrO₃ feed rods were prepared as stoichiometric BaO and ZrO₂, mixed, ground, pelletized, and sintered at 1650 °C for 24 h in air. The as-grown single crystals were annealed at 1650 °C in O₂ flow. Each single crystal was cut into a circular disk with a typical diameter of 4 mm and thickness of 1 mm. Figure 1 shows the XRD results of the polished (001) surface of the BaZrO₃ single crystal.

2.2. Pressure-Dependent Raman Spectroscopy Experiment

Back-scattered Raman spectra of the BZO single crystal were measured with a commercial Raman spectrometer (Nanobase, XperRam200^TM) equipped with a 20× objective lens and a Nd:YAG laser with a 532 nm wavelength. To load the specimen into the diamond anvil cell (DAC) for the high-pressure Raman scattering experiments, the rectangular-shaped crystal was further cut into a small piece with a typical lateral size ~50 μm and thickness ~5 μm, the widest surface of which corresponds to the (001) plane. The pressure media comprised a liquid blend of methanol–ethanol with a 4:1 ratio. The applied pressure was estimated from an R1 photoluminescent line of ruby particles inserted inside a gasket next to the sample [32]. All the measurements were performed at room temperature (298 K), and a linearly polarized laser with the power of 0.6 mW was focused as a few μm² beam spot on the diamond anvils. A polarizing filter was used to collect the parallel- polarized Raman spectra from the DAC, which are denoted by $z\left(xx\right)\overline{z}$ in the figures. Here, x and z in the Porto’s notation are parallel to the [100]_pc and [001] _pc axes of the pseudo-cubic (pc) lattice, respectively. The polarization of the incident laser light and outgoing scattering light, denoted by (xx) in this case, was maintained during the high-pressure measurements. Then, the DAC was decompressed to 1 GPa and compressed subsequently to collect the unpolarized Raman spectra without using the polarizing filter, which are denoted by $z\left(xx+xy\right)\overline{z}$ in the figures. The parallel- and cross-polarized spectra at atmospheric pressure (Figure 2a,b) were measured outside the DAC using the polarizer filter. As a reference, the Raman spectra were also measured at atmospheric pressure in a BaZrO₃ polycrystalline pellet synthesized by the solid-state reaction method.

2.3. Infrared Spectroscopy Experiment at the Atmospheric Pressure

In order to identify the exact energies of the zone-center optical phonons at atmospheric pressure, the IR reflectivity of the (001) plane of the BZO crystal was measured from 100 to 8000 cm⁻¹ using a Fourier-transform infrared spectrometer with in-situ gold overcoating technique. The real and imaginary parts of the dielectric function were obtained by Kramers–Kronig transformation of the reflectivity data. For the transformation, the complex dielectric function in the energy between 6000 and 50,000 cm⁻¹ obtained via spectroscopic ellipsometer was used. The reflectivity below the low-frequency cutoff of our measurements was extrapolated as a constant.

3. Results and Discussions

3.1. Vibrational Modes at Ambient Pressure

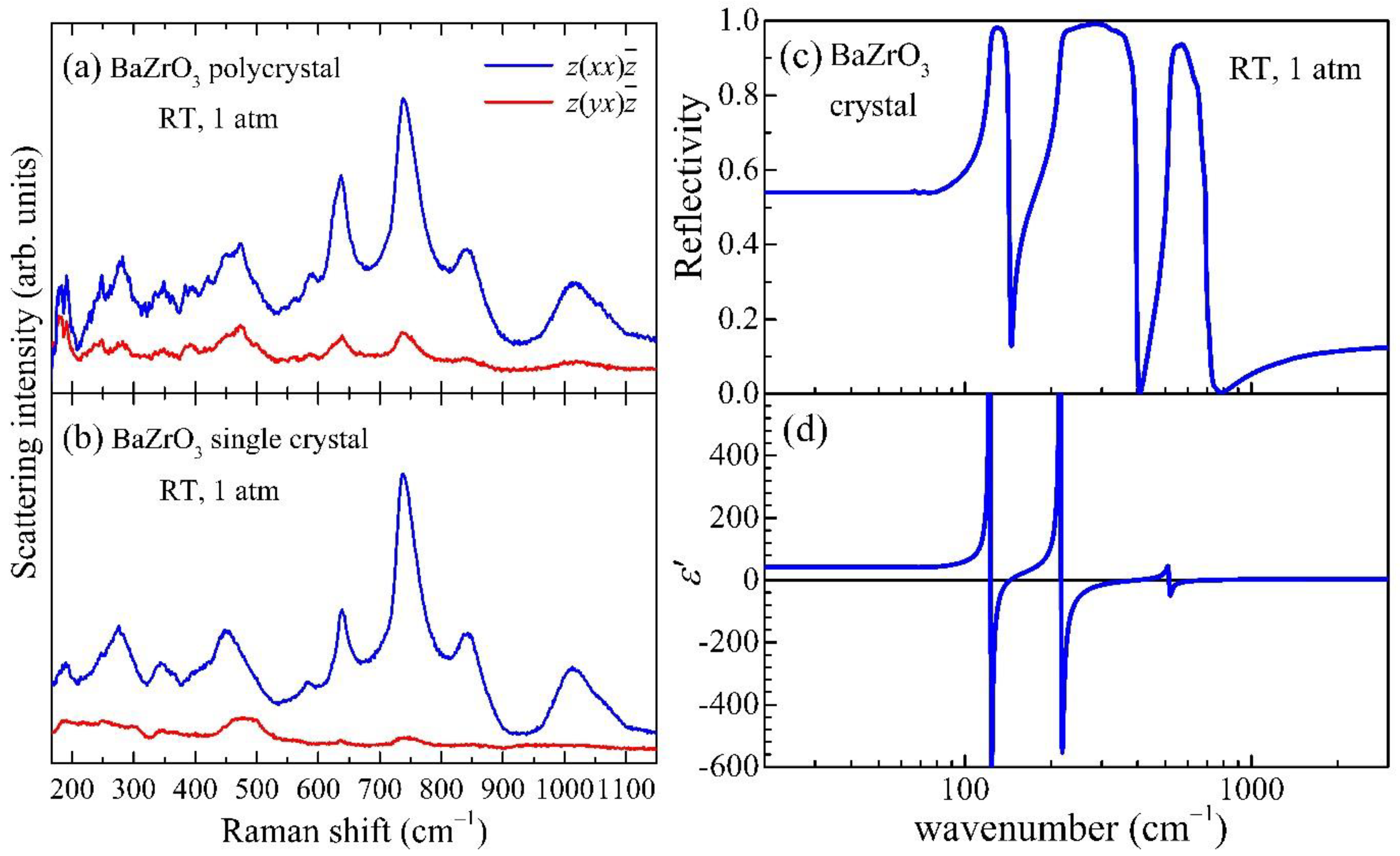

Figure 2a,b shows the polarized Raman spectra of a polycrystalline BaZrO₃ ceramic specimen and a BaZrO₃ single crystal, respectively. The overall features of the Raman spectra of the polycrystal qualitatively agree with those of the single crystal. Moreover, the Raman data in Figure 2b nearly reproduce the recently reported Raman scattering results on the single crystals at ambient pressure [16,31]. However, it should be noted that several additional peaks, located at 179, 248, 392, and 473 cm⁻¹, are found only in the ceramic sample (Figure 2a) and are not clearly identified in the single crystal (Figure 2b). In the frequency window of those additional peaks, the single crystal data merely exhibit a hump or a broadened peak feature. This indicates that the additional peaks are broadened or suppressed in the single crystal. It is further noted that a larger number of peaks have been found in the previously reported Raman spectra of BZO ceramics [33,34]. The previous and current Raman spectra on the ceramic specimens thus indicate that the scattering amplitudes of several additional phonons might be enhanced in the polycrystal, presumably due to the presence of local distortion or disorder.

It is well known that cubic perovskite with the space group $Pm\overline{3}m$ allows three pairs of IR-active transverse optical (TO) and longitudinal optical (LO) phonon modes with the irreducible representation (irrep) ${\mathsf{\Gamma }}_4^{-}$, and one degenerate IR- and Raman- inactive mode, called a silent mode, with irrep ${\mathsf{\Gamma }}_5^{-}$. Because the three IR-active TO and LO phonons are only IR-active, the phonon frequencies as determined from the IR measurements can be useful for identifying phonons observed in the Raman spectra. Although two former measurements on the IR phonon spectra of BZO ceramics have been reported [34,35], their phonon frequencies exhibit sizable discrepancies up to 110 cm⁻¹. Therefore, we have measured the IR reflectivity of the BZO single crystal and obtained the dielectric function after the Kramers–Kronig transformation as shown in Figure 2c,d. To identify the TO and LO frequencies, we have chosen peak and zero positions of the imaginary and real parts of dielectric functions, respectively. The frequencies of each TO and LO phonon obtained in this way are summarized in

Table 1. A summary of the BaZrO₃ optical phonons at 1 atm. The first and second columns denote the observed Raman shifts, the third column lists the frequencies of the zone-center phonons determined from the IR spectra, and the fourth column shows the calculated frequencies of the relevant zone-boundary phonons in the literature. Frequencies are presented in wavenumbers (cm⁻¹). Abbreviations in the fifth column are as follows: out-of-phase antiferrodistortive mode (OOP-AFD), A-type antiferroelectric mode (A-AFE), in-phase antiferrodistortive mode (IP-OOP), G-type antiferroelectric mode (G-AFE), scissor mode (Scissor), and Jahn–Teller-like rotation mode (JT-Rot).

Polycrystal Raman Shift	Single Crystal Raman Shift	Single Crystal IR Mode	Zone-Boundary Phonon (DFT)	Assignment
(Figure 2a)	(Figure 2b)	(Figure 2d)	[24,25]
179	-			$2X_5^{+}$ (Ba)
199	189			$2M_3^{+}$ (O6)
248	-			2TO1
280	276			2LO1
348	343			TO1+TO2
392	-			LO2
444	447			2TO2
473	-			$R_5^{+}$$+R_5^{+}$ (Ba,O6)
588	584			$R_4^{+}$$+R_3^{+}$ (O6)
637	639			TO1 + TO3
738	738			TO2 + TO3
842	843			LO1 + LO3
1017	1013			2TO3
		123		TO1 (Ba–O)
		144		LO1 (Ba–O)
		217		TO2 (Zr–O)
		398		LO2 (Zr–O)
		516		TO3 (O–O)
		701		LO3 (O–O)
			48	$R_4^{+}$(O6, OOP-AFD)
			87	$X_5^{+}$(Ba, A-AFE)
			95	$M_3^{+}$(O6, IP-AFD)
			106	$R_5^{+}$(Ba, G-AFE)
			373	$R_5^{+}$(O6, Scissor)
			545	$R_3^{+}$(JT-Rot.)

, which shows a good agreement with the latest first-principles calculations results [24,25]. Table 1 also summarizes the Raman peaks found in both ceramic (Figure 2a) and single-crystal (Figure 2b) specimens.

As evident from direct comparison with the IR data, the main Raman peak positions do not coincide with those zone-center ${\mathsf{\Gamma }}_4^{-}$phonon frequencies, i.e., TO_i and LO_i (i = 1-3) mode frequencies, observed in the IR spectra. The fact that each ${\mathsf{\Gamma }}_4^{-}$ phonon remains Raman-inactive rules out the 45 crystal structures involving polar ${\mathsf{\Gamma }}_4^{-}$ displacements among the descendent 60 structures of the parental$Pm\overline{3}m$ lattice [36]. In addition, we confirmed that the respective zone-boundary phonons at the R, M, or X points with each energy predicted by the DFT computations [25] even fail to match with the measured Raman signals (as tabulated in Table 1). If the symmetry was lowered by distortion, at least one of the phonons located at the relevant k-points of cubic perovskites ought to become a Raman-active mode by relocating itself into the new Γ point in a folded zone of the supercell. For example, AFD $R_4^{+}$ distortions can construct one of three symmetries, tetragonal I4/mcm, orthorhombic Imma, or rhombohedral R$\overline{3}$c structures, all of which can make R point phonons become Raman-active while leaving the original Γ point phonons Raman-inactive. However, it was found that the major peak frequencies in the measured Raman data disagree with those predicted by R or M point phonons (Table 1), clearly precluding the possibility of the other 15 lattice structures induced by AFD octahedra rotations with irreps $M_3^{+}$ and $R_4^{+}$ [37].

To fully understand the Raman spectra of the BZO crystal, the multi-phonon excitations must then be considered. In a Raman scattering process, the crystal with inversion symmetry indeed allows the creation of phonon pairs throughout the Brillouin zone (BZ) with opposite wave vectors, thus satisfying momentum conservation [38]. It is customary to regard combinations and overtones of phonons at the k-points with high symmetries such as Γ, R, M, and X of cubic perovskites since the scattering rates of two-phonon modes are weighted by the phonon density of states. It was indeed found that the two-phonon energies at Γ, R, and M points are sufficient to assign the observed modes completely as summarized in Table 1; one can corroborate that ${\mathsf{\Gamma }}_4^{-}$phonon frequencies as determined by IR spectroscopy comprise the majority of the assignments such as 2LO₁, 2TO₂, TO₁ + TO₂, TO₂ + TO₃, and so on. On the other hand, solo phonons located at the zone center and boundaries, implying short-ranged or local lattice distortions [39,40], are unnecessary to explain the overall frequencies in the spectra. Therefore, the Raman scattering data at atmospheric pressure can be unambiguously identified by the multi-phonon excitations, consequently supporting a cubic$Pm\overline{3}m$ symmetry as the structural ground state of the BZO crystal.

3.2. Raman Scattering at Higher Pressures

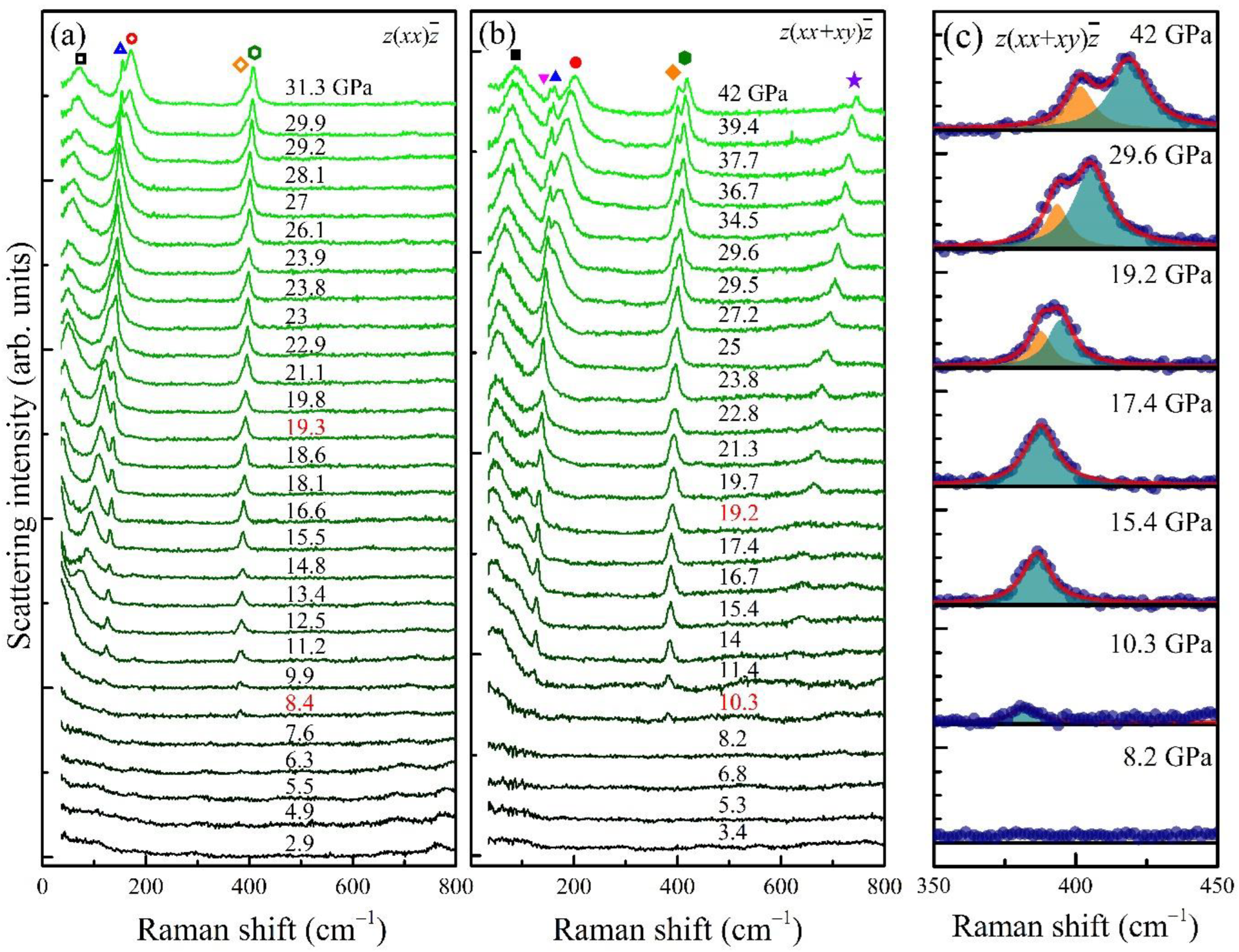

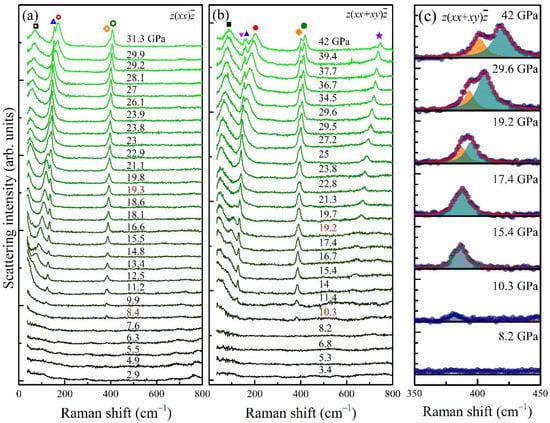

The Raman spectra of the BaZrO₃ single crystals measured at high pressures are displayed in Figure 3. It turns out that the overall Raman modes featured in the high-pressure spectra are analogous to those in [19], in which the Raman modes of BaZrO₃ ceramics were reported at high pressures. It is important to notice in Figure 3 that several new peaks start to appear from 8.4 GPa, and one of them at ~390 cm⁻¹ splits into two above 19.2 GPa (Figure 3c). All these findings indicate that there exist two major structural changes at ~8.4 and ~19.2 GPa. The mode frequencies as determined from Lorentzian fits are summarized in Figure 3 at each pressure. The symbols used in the legend indices in Figure 4a represent the Raman frequencies obtained from the Lorentzian fits in the phonon spectra shown in Figure 3a,b; note that the same symbols are used to represent the corresponding phonon modes in Figure 3a,b. It is found that all the newly-observed peaks above ~8.4 GPa can be assigned as the phonons stemming from the R point of the original cubic BZ (vide infra).

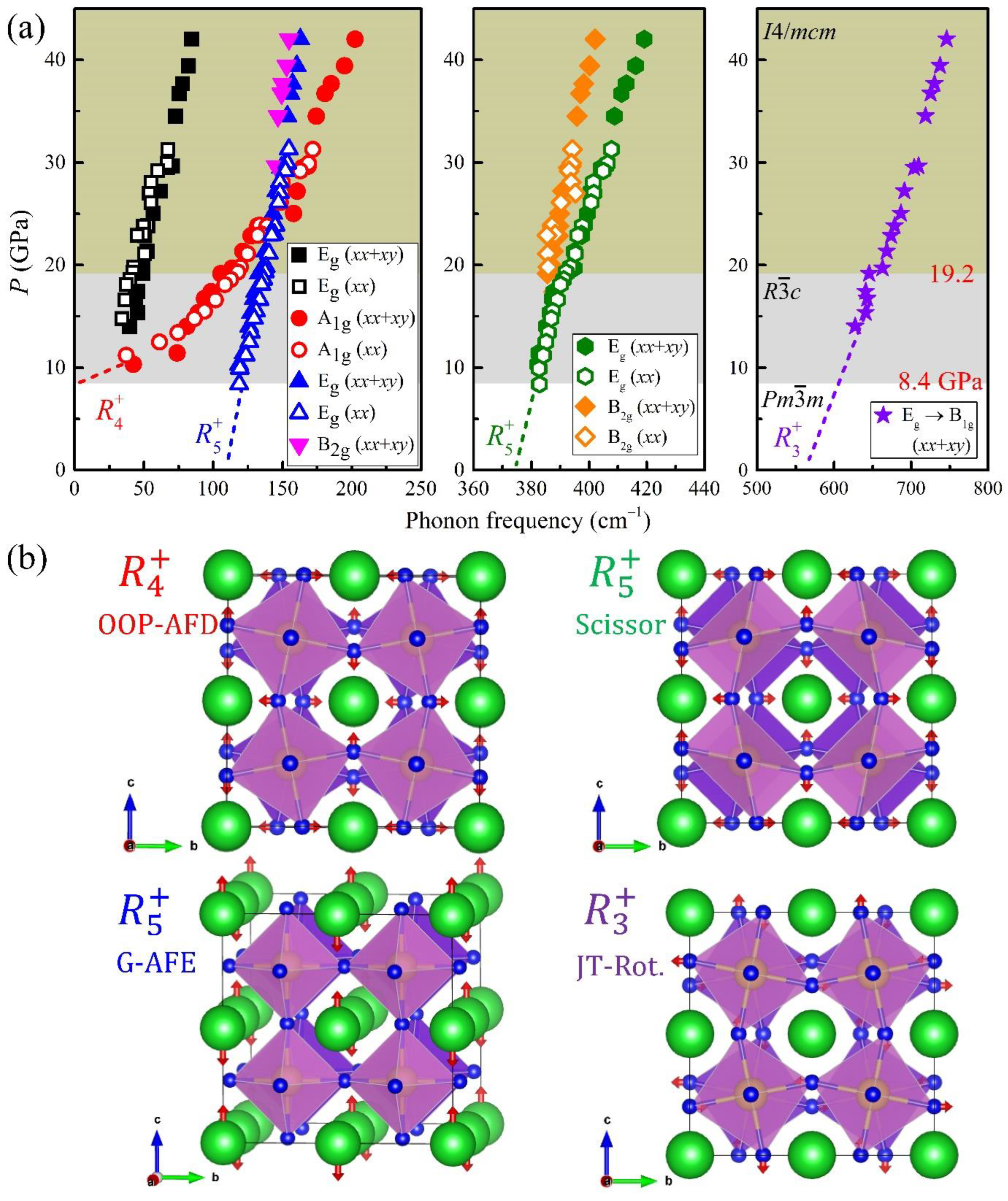

One of the key observations in the high-pressure spectra is the presence of two peaks ≈ 390 cm⁻¹ above 19.2 GPa (Figure 3 and Figure 4a). This is a single peak in the pressure range between 8.4 and 18.6 GPa, whose extrapolation down to 0 GPa arrives at a frequency around 370 cm⁻¹. This frequency corresponds to a Raman-inactive, zone-boundary $R_5^{+}$ phonon, which describes the scissor mode of the octahedra in the $Pm\overline{3}m$ phase, according to the DFT calculations [24,25]. According to the symmetry analysis, this mode is supposed to split into two Raman-active modes (E_g and B_2g) in the tetragonal I4/mcm structure, three Raman-active modes (B_2g, B_3g, and A_g) in the orthorhombic Imma structure, and one Raman-active (E_g) and another Raman-inactive (A_2g) modes in the rhombohedral R$\overline{3}$c structure. Therefore, the appearance of a single peak above 8.4 GPa and its splitting above 19.2 GPa are again supportive of the two successive structural phase transitions at each pressure, i.e., one from the cubic to the rhombohedral structure and another from the rhombohedral to the tetragonal structure.

Among the two separated modes, the strength of the B_2g peak should be suppressed in the parallel-polarized spectra by symmetry. Despite the finite leakage from the diamond anvils, the relative amplitude of the peaks with lower energies (marked with orange lozenges) is clearly reduced in the parallel-polarized spectra (Figure 3a). Therefore, we could further assign the different symmetries of the two peaks; one with lower frequency can be assigned to the B_2g and the other to the E_g mode. The splitting of the peak into two above 19.2 GPa agrees well with the data of polycrystals [19]. Nonetheless, the authors in [19] interpreted the peak splitting as a signature of a phase transition from the R$\overline{3}$c to the Imma, which requires three split peaks above 19.2 GPa. We believe this assignment is inconsistent with the experimental finding of the two peaks above 19.2 GPa.

The emergence of other peaks is also consistent with multiple phase transitions. The high-frequency peak located ~630 cm⁻¹ starts to appear above ~14 GPa and increases its frequency with increasing pressure. Therefore, its Raman frequency is extrapolated to ~580 cm⁻¹ upon being extended into 0 GPa, as indicated by a violet dashed line in Figure 4a. The mode frequency of ~560 cm⁻¹ at 0 GPa is roughly close to the $R_3^{+}$ mode frequency of 545 cm⁻¹ (Table 1) in the cubic symmetry, which describes the Jahn–Teller-like rotation mode of the octahedra according to the DFT calculations [24,25]. The Jahn–Teller-like rotation mode generates one Raman-active E_g mode in the R$\overline{3}$c phase and one Raman-active B_1g mode in the tetragonal phase, consistent with the observed data. The peak abruptly gains intensity above 19.2 GPa in the unpolarized spectra (Figure 3b) while it remains silent in the parallel-polarized spectra (Figure 3a). As the B_1g mode is generally known to appear in the cross-polarization spectra, the strongly enhanced intensity above 19.2 GPa clearly supports the assignment of the phonon mode to the B_1g symmetry in the tetragonal phase. If the system were to exhibit the orthorhombic Imma symmetry, this mode would result in two Raman-active modes. Therefore, the evolution of the E_g mode in the R$\overline{3}$c phase into only one B_1g mode above 19.2 GPa again supports that the structural phase transition at 19.2 GPa should be from the rhombohedral to the tetragonal structure.

Another peak located at 120 cm⁻¹ develops in the $R\overline{3}c$ phase above 8.4 GPa and extrapolates to a frequency of ~110 cm⁻¹ at 0 GPa, which is close to the $R_5^{+}$ mode frequency of 106 cm⁻¹ (Table 1) as predicted by the DFT calculations for describing the antiphase antiferroelectric (AFE) motions of Ba atoms [24,25]. The observation of one mode is consistent with the prediction that there exists one Raman-active mode (E_g) and one Raman-inactive mode (A_2g) in the R$\overline{3}$c phase. At pressures above 19.2 GPa in the tetragonal I4/mcm structure, it is expected to present two Raman-active modes (E_g and B_2g). Remarkably, we were able to resolve the two peaks above 30 GPa due to the considerable overlap of the two modes (inverted magenta and upright blue triangles in Figure 3a,b and Figure 4). Furthermore, the higher-frequency peak (upright blue triangles) survives in the parallel-polarized spectra (Figure 3a), which is expected for the E_g mode. Accordingly, the peak with a lower frequency (inverted magenta triangles) is assigned as the B_2g mode.

At the lowest measured frequencies, two peaks located ~43 cm⁻¹ appear above 10.3 GPa, which can be assigned as the out-of-phase AFD $R_4^{+}$ soft mode [24,25]. In the cubic symmetry at 0 GPa, this AFD mode ($R_4^{+}$) should be close to ~48 cm⁻¹ according to the DFT calculations (Table 1). However, due to the soft mode feature, the $R_4^{+}$ mode frequency near the structural phase boundary of 8.4 GPa is extrapolated to become zero. At higher pressures above 8.4 GPa, this AFD mode seems to gradually split into doubly degenerate E_g and nondegenerate A_1g modes, both of which are stabilized in both R$\overline{3}$c and I4/mcm phases. The two corresponding modes can be clearly distinguished above 11.4 GPa, and their frequencies become further apart with increasing pressure. The relative intensity of the higher-frequency mode (red circles) is pronounced in the parallel-polarized spectra corresponding to the A_1g irrep, while the lower-frequency E_g peak (black squares) exhibits a robust relative intensity in both the polarized and unpolarized spectra as compared to the other E_g modes.

In the assignment of the crystal symmetry based on the Raman spectra, there is always a possibility that the actual crystal symmetry may be lower than the assignment—as the expected Raman-active modes in a given structure may not be fully resolved in the experiments. Therefore, to validate the assigned crystal symmetry in the high-pressure range, it is worthwhile to compare at least the number of measured phonons with the expected ones based on the symmetries. It is known in the rhombohedral R$\overline{3}$c perovskites that among the total 18 optical phonons (A_1g + 2A_1u + 3A_2g + 3A_2u + 5E_u + 4E_g), only 5 optical phonons (A_1g + 4E_g) can appear in the Raman spectra. Besides this, in the tetragonal I4/mcm perovskites, among the total 19 optical phonons (A_1g + A_1u + 2A_2g + 3A_2u + B_1g + B_1u + 2B_2g + 5E_u + 3E_g), only 7 optical phonons (A_1g + B_1g + 2B_2g + 3E_g) are known to become Raman-active. As summarized in Figure 4a, all the expected number of phonons for the assigned crystal symmetry were indeed confirmed, namely the five modes above 8.4 GPa and the seven modes above 19.2 GPa. Consequently, the observed high-pressure Raman modes coherently support a two-step structural transition from the cubic to rhombohedral to tetragonal phases, and all the irreps of the modes can be successfully assigned according to each lattice structure.

It should be noted that the pressure-dependent measurements presented in Figure 3a,b, albeit from independent two runs, have exhibited nearly-consistent phonon mode behaviors, as confirmed in the open and solid symbols in Figure 4a. On the other hand, given that the 4:1 methanol–ethanol liquid used as the pressure medium freezes and starts to lose hydrostaticity from 10 GPa, it might still be necessary to confirm the experimental observations by using a different pressure medium offering more reliable hydrostatic conditions. Hence, the pressure-dependent Raman experiment was repeated using NaCl as a pressure medium, which is known to provide decent quasi-hydrostaticity up to a pressure above 20 GPa [41], comparable to inert gases such as N₂ and Ar [42]. As summarized in Figure S1 of the Supplementary Materials, the first structural transition is found at 8.9 GPa, and the second transition occurs at a pressure above 18.6 GPa when NaCl is used. In addition, the observed phonon evolutions in the two pressure ranges (8.9 ≤ P ≤ 18.6 GPa, and 18.6 GPa < P) are consistent with the results measured with the 4:1 methanol–ethanol mixture in Figure 3 and Figure 4. Based on these results, we conclude that the two pressure-induced phase transitions should be understood as the inherent nature of BZO crystals independent of the choice of pressure medium.

It is worthwhile discussing how structural transitions may occur in BZO upon the application of pressure. Firstly, the large ionic radius of Ba as well as the smaller ionic charge of Ba²⁺ relative to Zr⁴⁺ ensures that the compressibility of the BaO₁₂ polyhedra becomes greater than that of the ZrO₆ octahedra, causing the ZrO₆ octahedra to tilt under pressure [43]. Secondly, if the octahedra rotations bring the oxygen atoms and their next-nearest-neighbor Zr atoms closer, the hybridization between the empty Zr-3d and O-2p states renders the next-nearest-neighbor Zr–O interactions stronger to drive the AFD distortion [43]. Finally, continuous lattice deformation by applied pressures should yield an elastic strain that renormalizes the structural anisotropy from [111]_pc to [001]_pc [26]. Therefore, the energetic stability of the $R\overline{3}c$ and I4/mcm phases can be switched by compression, in agreement with the observed second transition at 19.2 GPa.

A recent Brillouin scattering experiment [21] claimed that the inversion symmetry breaking may occur in BZO at room temperature and ambient pressure in a form of short-ranged ferroelectric (FE) distortions. If the claim is true, one may argue that the intermediate R$\overline{3}$c state may be helpful to develop a short-range FE distortion near the Ba site by stabilizing the noncentrosymmetric R3c phase at ambient pressure. However, the FE mode which takes the $R\overline{3}c$ structure to the noncentrosymmetric R3c phase should involve considerable Ba displacements, which is unlikely to occur for the large Ba²⁺ ions [44]. Furthermore, if the short-range FE distortion occurs at the Zr sites, it is expected that the phonon modes found in the IR spectra should also become Raman-active. However, no sign of the first-order Raman-active phonon mode was found at ambient pressure, supporting that inversion symmetry was preserved in the high-quality BZO single crystal synthesized by optical floating-zone technique.

4. Conclusions

In conclusion, the structure of BaZrO₃ single crystals has been determined at atmospheric and high pressures by Raman scattering measurement. All the Raman modes observed at ambient pressure can be assigned to the multi-phonon scatterings allowed in the cubic perovskite structure by referring to the complementary infrared phonon data and recent DFT calculations. Based on the observation of the appearance of new peaks at high pressures and their splitting, two pressure-induced structural phase transitions were identified: $Pm\overline{3}m$ → R$\overline{3}$c at 8.4 GPa and R$\overline{3}$c → I4/mcm at 19.2 GPa. The evolution of the spectra at high pressures undoubtedly originates from the octahedra rotations; therefore, the absence of such features at atmospheric pressure corroborates the cubic $Pm\overline{3}m$ structure as the ground state of BaZrO₃ near 0 GPa. Moreover, the results imply that the R$\overline{3}$c structure is closer to the ground state than the I4/mcm or Imma phases. It is expected that the comprehensive understanding of the intrinsic structural phases of the BZO crystal could be helpful for strain engineering or chemical substitution, as well as the characterizations of other crystalline forms such as ceramics and nanocrystals relevant to industrial applications.
