The Potential Application of Natural Clinoptilolite-Rich Zeolite as Support for Bacterial Community Formation for Wastewater Treatment

Research Institute for Analytical Instrumentation Subsidiary, National Institute for Research and Development of Optoelectronics Bucharest INOE 2000, 67 Donath Street, 400293 Cluj-Napoca, Romania
Faculty of Materials and Environmental Engineering, Technical University, 103-105 Muncii Boulevard, 400641 Cluj-Napoca, Romania
Tomas Prodimpex SRL, 18 B-dul Eroilor Street, 400129 Cluj-Napoca, Romania
Author to whom correspondence should be addressed.
Materials 2022, 15(10), 3685;
Submission received: 14 April 2022 / Revised: 12 May 2022 / Accepted: 18 May 2022 / Published: 20 May 2022
(This article belongs to the Special Issue Physico-Chemical Analysis of Engineered Nanomaterials)


The aim of this study was to investigate the use of natural zeolite as support for microbial community formation during wastewater treatment. Scanning electron microscopy (SEM), thermal decomposition and differential thermogravimetric curves (TGA/DGT) techniques were used for the physicochemical and structural characterization of zeolites. The chemical characterization of wastewater was performed before and after treatment, after 30 days of using stationary zeolite as support. The chemical composition of wastewater was evaluated in terms of the products of nitrification/denitrification processes. The greatest ammonium (NH4+) adsorption was obtained for wastewater contaminated with different concentrations of ammonium, nitrate and nitrite. The wastewater quality index (WWQI) was determined to assess the effluent quality and the efficiency of the treatment plant used, showing a maximum of 71% quality improvement, thus suggesting that the treated wastewater could be discharged into aquatic environments. After 30 days, NH4+ demonstrated a high removal efficiency (higher than 98%), while NO3+ and NO2+ had a removal efficiency of 70% and 54%, respectively. The removal efficiency for metals was observed as follows (%): Mn > Cd > Cr > Zn > Fe > Ni > Co > Cu > Ba > Pb > Sr. Analysis of the microbial diversity in the zeolite samples indicated that the bacteria are formed due to the existence of nutrients in wastewater which favor their formation. In addition, the zeolite was characterized by SEM and the results indicated that the zeolite acts as an adsorbent for the pollutants and, moreover, as a support material for microbial community formation under optimal conditions. Comparing the two studied zeolites, NZ1 (particle size 1–3 mm) was found to be more suitable for wastewater treatment. Overall, the natural zeolite demonstrated high potential for pollutant removal and biomass support for bacteria community growth in wastewater treatment.

1. Introduction

Biological processes that remove nitrogen from wastewater generally involve the transformation of different species of nitrogen into gaseous nitrogen, which is then released into the atmosphere without major risks [1,2]. Biological wastewater treatment plants are based on two processes: nitrification and denitrification. Both processes take place in the presence of bacteria growth and are maintained in the presence and in the absence of oxygen, respectively [3,4]. In the nitrification process, ammonium nitrogen is oxidized by autotrophic bacteria (also called ammonia oxidation bacteria) to nitrite. Nitrous-oxidizing autotrophic bacteria oxidize nitrite to nitrate. Denitrification transforms NO3-N into elemental nitrogen. Because both nitrates and nitrites are toxic, they must be removed from wastewater [3,5]. The introduction of a combination of growth media and biological reactants into a wastewater treatment plant aims to improve and increase the capacity of the purification process [5,6].
In the last 10–15 years, there has been interest in the use of growth systems by adding suspended substrates to activated sludge, due to the repeated elimination of activated sludge at the time of settling. Any agent or combination of agents that can improve or extend the operating range for pilot installations, as well as for flow installations, will increase the profitability of the installation [7,8]. Various studies and research have been conducted on the use of zeolites in the biological processes of wastewater treatment and anaerobic digestion. Zeolites are porous aluminosilicates with a crystalline structure and have many uses, including as sorbents for pollutants, in catalytic processes, and as fertilizer additives [9]. Natural zeolites are used as adsorbents for many pollutants such as heavy metals (cooper, lead, nickel, cobalt, and arsenic), chlorinated volatile organic compounds, antibiotics, dye, humic acid, and phenolics [10]. Gani et al. [11] reported the use of natural zeolite for simultaneous sulfur dioxide and mercury removal during combustion of coal.
Most of them are used for removing pollutants after activation of their structure by reaction with acids, base, calcination or modification with inorganic salt (NaCl, CaCl2, BaCl2, NH4Cl, FeCl3) or cationic surfactant. Modification of natural zeolites was performed in order to increase their adsorption capacity [12]. Currently, nanomaterials are used for wastewater treatment for the removal of contaminates, such as inorganics, organics, and microorganisms. Different types of nanomaterials are used for wastewater treatment, including various metal nanoparticles for degradation of dye-contained wastewater [13], colloidal solutions of silver nanoparticles used for environmental safety [14], silver nanocrystals stabilized with Ag+ and Ag0 for treatment of azo-contaminated wastewater [15]. In addition, Vellaichamy et al. [16] used composites of polyaniline/manganese dioxide/titanium dioxide (PANI/MnO2/TiO2) for Cr6+ reduction from wastewater. Advantages of zeolites include low cost, and greater availability in comparison to nanomaterials which are synthesized by physical, chemical and biological methods.
There are over 40 types of natural zeolites and there are over 100 types of synthetic or modified zeolites. In order to improve the performance of natural zeolites, various synthetic and modified zeolites can be produced for more applications. Synthetic zeolites are mainly produced by alkali treatment of silica and alumina with materials of synthetic, natural or waste origin [17]. A variety of zeolites (NaA, NaX, NaY, NaP1, Kchabazite, Linde F, ZSM-5, and ZSM-48) have been synthesized using clay minerals as an aluminosilicate source, while others have been sourced from waste materials, such as coal fly ash, rice husk ash, oil shale ash, municipal solid waste, and incineration ash [18]. Several studies have compared the adsorption performances of natural and synthesized zeolites, and their adsorption characteristics depending on their ion-exchange capacity [19,20].
Zeolites can be used successfully to improve the performance of wastewater treatment plants, and can provide a stabilizing effect, both in the short term and for the sedimentation of activated sludge and bacterial mass [21,22]. They not only act as agents that favor the settling of sludge but also as supports for the growth of bacteria, thus fulfilling a function similar to that of a suspended bacterial growth system. Zeolitic material functions as a weighting agent, a substrate and structural unit for bacterial growth. In wastewater treatment, the cultivation of bacteria assimilated to the composition of wastewater influences the performance of the treatment process. In order to obtain a high level of water purification, it is mandatory to determine the optimal amount of zeolite to be used [22]. This amount should not be too large because the bacteria must grow and create a culture on the zeolitic material. This is directly related to the retention time of the solids. Skleničková et al. [23] used zeolites as filters in fish-breeding recirculation systems and studied their effects on nitrifying bacteria. According to their study, zeolites are able to remove more ammonium cations than the nitrifying bacteria used in biological filters—such as Nitrosomonas and Nitrospira species. Additionally, Perez et al. [24] used natural zeolite as support for treatment of synthetic swine wastewater in an expanded granular sludge bed (EGSB) reactor for 255 days, which resulted in a positive influence on microbial community formation.
Yang [25] studied the use of new biotechnology for co-immobilization of nitrifying bacteria and zeolite in a batchwise fluidized bed to enhance biological nitrification under different ammonia concentrations. According to their work, the presence of ammonia positively influences the nitrification process when at concentrations lower than 50 mg/L.
The microbial community present in biological wastewater treatment plants contains aerobic, anaerobic and facultatively aerobic bacteria. Lipid analysis can give the composition of the microbial community. The adhesion of bacteria to various surfaces has received a lot of attention. Phospholipid fatty acids (PLFAs) can be used to determine the microbial community and estimate the bacteria species in one single analysis by measuring specific substances [26,27,28]. PLFAs were identified by identifying each fatty acid (FA) peak based on retention time during their separation in the gas chromatograph. However, limited studies exist about the use of zeolite as biomass for inoculated bacteria, and the structure and composition of microbial communities.
Generally, soil analysis tests for biomarkers of the microbial community. Each FA has a specific signature for a functional group within the microbial community.
This study was focused on zeolite material used for biological purification and nitrifying bacterial products. PLFA analysis was used to identify the microbial communities produced during the biological purification of wastewater. The presence of each species of microbial community was evaluated and expressed as fungi, Gram-negative bacteria, Gram-positive bacteria, actinomycetes, arbuscular mycorrhizal fungi and microeukaryotes. The quality of wastewater before and after purification was evaluated.

2. Materials and Methods

2.1. Zeolite Materials

The zeolite used in this research was a natural clinoptilolite-rich zeolite with two particle sizes of 1–3 mm (NZ1), and <10 µm (NZ2), respectively. The natural zeolite was obtained from Racos, Brasov County, Romania. The raw zeolite was crushed and sieved to obtain the desired sizes, and then washed several times with distilled water to remove impurities. The obtained zeolites were activated by heat treatment at 200 °C for 4 h.

2.2. Chemicals

All the used chemicals were of analytical reagent grade. Hydrochloric acid (37%), nitric acid (65%), nitrite (1000 mg/L), nitrate (1000 mg/L) and ammonium solutions (1000 mg/L) were purchased from Merck (Darmstadt, Germany). Fatty acid methyl esters (FAME), purchased from Merck (Darmstadt, Germany), were used to confirm the presence of biomarkers as aerobic, anaerobic and facultatively aerobic species. All solutions were prepared using ultrapure water (18.2 MΩ cm−1 at 20 °C) obtained from a Direct-Q3 UV Water Purification System (Millipore, Molsheim, France).

2.3. Solution Tested in the Used Equipment for Wastewater Treatment

In order to identify the ability of zeolitic material to purify wastewater, raw wastewater and wastewater contaminated with different concentrations of ammonium, nitrate and nitrite, dye, metals were tested. Volumes of 1 L aqueous solutions were used in each experiment, and 100 g of zeolite were used as adsorbents. The chemical solutions used to perform the experiments are presented in Table 1.
The equipment used for wastewater purification consists of: 1—zeolite material, 2—submodules (filter components), 3—cylinder filled with zeolite (constitutes the filter of the equipment), 4—compressed air source and 5—compressed air diffusers (according to the schematic representation in Figure 1). The activated zeolites were introduced in each of the cylindrical-shaped elements of the submodules. A tubular cylindrical shape perforated at the bottom was placed crossing the submodules, allowing a downward circuit of water without moistening the zeolite filter material. When wastewater enters the lower submodule of the filter, the flow is ascending through the zeolite mass in each submodule of the cylinder, with aeration favoring the ascending circulation of water through the filter. The compressed air source located at the bottom of the filter ensures the supply of compressed air to the air diffusers. The device was ventilated by air circulation for 30 days. The equipment used for wastewater purification was a joinder between a moving bed biofilm reactor (MBBR) and a sequencing batch reactor (SBR) generally used for treatment of wastewater. The equipment can realize both nitrification/denitrification processes in the same enclosure by altering the aeration of the elements that contain the zeolite.
The proposed mass of zeolite was immersed in real and contaminated wastewater for 30 days, under continuous aeration provided by a compressed air pump. The air flow was maintained at 0.5 L/min during the experiments. All solutions were analyzed to determine the concentrations of ammonium, nitrites and nitrates.

2.4. Chemical Characterization of Wastewater

The pH and electrical conductivity (EC) of wastewater were determined using a Seven Excellence multiparameter (Mettler Toledo, Switzerland) after 1 h of settling. Specific metal co (Mn, Al, K, Ca, Na, Fe, Mg, Cu, Pb, Zn, Ni, Cd, and Cr) content was determined by the digestion of samples with a mixture of 65% HNO3 and 37% HCl at a volume ratio of 1:3 in a closed polytetrafluoroethylene (PTFE) vessel, using a microwave digestion system (Speedwave MWS-3+, Berghof, Eningen, Germany). The resulting solutions were measured using inductively coupled plasma—optical emission spectrometry (ICP-OES, 5300 Optima DV, Perkin Elmer, Whaltham, MA, USA) [29]. Anionic surfactants from wastewater were determined according to EN 903 [30]. Anion (NO2 and NO3) content was measured by ion chromatography using a 761 IC compact ion chromatograph (Metrohm, Herisau, Switzerland) according to standard ISO 10301-1 [31]. The wastewater samples were filtered through 0.45 μm polytetrafluoroethylene membrane filters to eliminate the solid particles [31]. Ammonium (NH4+) content was determined with a Lambda UV–Vis Spectrophotometer (Perkin Elmer, Waltham, MA, USA) applying the salicylate–hypochlorite method [32]. Biological oxygen demand (BOD) was determined according to ISO 5815 [33] and chemical oxygen demand (COD) was determined according to ISO 6060 [34].

2.5. Chemical Characterization of Zeolites

In order to determine the cation exchange capacity (CEC), the zeolites were treated with 35 mL sodium acetate 1 N for 5 min (the procedure was repeated for five times), according to the US EPA [35]. Excess sodium acetate was washed out with ethylic alcohol, and Na content was measured by an inductively coupled plasma optical emission spectrometer (ICP-OES). Mn, Al, K, Ca, Na, Fe and Mg content was determined by ICP-OES after the digestion method. Si content was determined by the SEM-EDX method using a scanning electron microscope (SEM VEGAS 3 SBU, Tescan, Brno-Kohoutovice, Czech Republic) with an EDX detector. Loss of ignition (LOI) was determined by the calcination of samples at 550 °C in an oven.

2.6. Structural Characterization of Zeolites

2.6.1. Scanning Electron Microscopy (SEM) Analysis and Adsorption Porosimeter Analysis

SEM VEGA 3 SBU with a EDX detector was used to determine the particle size and the morphology of the NZ1 and NZ2 samples. A semiquantitative chemical analysis of zeolites was performed in order to determine the concentration of Si. The specific surface area (SBET), volume pore (Vp), and average pore radius (r) were obtained from N2 adsorption–desorption isotherms (measured at −196 °C) using the BET method and the Dollimore–Heal model for porosity data with a Sorptomatic 1990 apparatus (Thermo Electron Corporation, Waltham, MA, USA).

2.6.2. TGA/DTG Analysis

Thermogravimetric analysis (TGA/DTG) of zeolites was conducted with a SDT O 600 (TA Instruments, New Castle, DE, USA), at a temperature range from 30 to 1000 °C, at 10 °C per minute. Under a nitrogen atmosphere, a mass of 5.942 ± 0.3 mg of the dried samples was used for the test. The experiments were repeatable with a standard deviation in peak temperature value.

2.7. Determination of Nutrient Removal and Wastewater Quality Index

The amounts of nitrate (NO3) and nitrite (NO2) in the zeolite samples used as zeolite support were measured before and after purification. Before each analysis, the samples were filtered through a 0.22 µm syringe filter. Removal efficiency (E) was calculated using the Equation (1) [36].
E   ( % ) = C I C F C I × 100
where CI is the initial concentration of the parameter (nitrite, nitate, ammonium), and NF represents the final concentration of the parameter.
The quantity of ammonia removed confirms the nitrification process. The removal efficiency for each parameter found in wastewater was estimated based on the concentration of the parameter at time 0 and at time t = 30 days.
To assess the improvement in wastewater quality, the wastewater quality index (WWQI) was computed. The WWQI is an efficient mechanism to express the overall condition of wastewater that cumulatively describes the quality of multiple chemical parameters [37]. After treatment, wastewater should have a relatively low WWQI, indicating that release into surrounding water bodies is safe. The WWQI is calculated in four steps. In the first step, for each of the 13 physicochemical parameters considered (pH, NH4+, NO2, NO3, P, Cu, Pb, Zn, Mn, Ni, Cd, Cr and MBAS), a relative weight (wi) on a scale of 1 to 5 is assigned based on their critical health effects. The second step is to calculate the relative weight Wi and establish the quality rating qi (Equations (2) and (3)), followed by calculation of the subindex SIi for each indicator (Equations (4)), and computing of the WWQI (Equation (5)) [38,39].
W i = w i i = 1 n w i
q i = C i S i × 100
S I i = W i × q i
W W Q I = i = 1 n S I i
where wi denotes each parameter (3 for pH, NH4+ and MBAS; 4 for all the other metals; 5 for NO3 and NO2), Wi is the relative weight, qi is the rating for each parameter, Ci is the measured concentration, Si is the guideline value according to the drinking water quality guidelines established by Romanian Government Decision no. 188/2002 for the approval of some norms regarding the conditions for discharging wastewater into aquatic environments [40], and SIi represents the subindex of each parameter [41].

2.8. Phospholipid Fatty Acid (PLFA) Analysis

At the end of the experiment (day 30), the zeolite sample was collected from the reactor and used for microbial community identification. The microbial community found on the zeolite surface was determined by the standard PLFA method. The extraction method was realized according to Kovacs et al. [42]. The fatty acids methyl esters were identified based on the MIDI SherlockTM Microbial Identification System (Microbial ID, Inc., Newark, DE, USA).

2.9. Statistics

The statistical processing of the data was performed using OriginPro Data Analysis and Graphing Software (OriginLab Corporation, Northampton, MA, USA), and the Tukey method in order to determine the differences between the varieties. Significance was declared at p < 0.05 for all statistical analyses. The a, b, c, d, e, f, g, h, i, j and k letters indicate statistically significant differences at p < 0.05.

3. Results and Discussion

3.1. Chemical Characterization of Zeolites

Zeolites are extremely natural and important materials, with advantages such as low cost of exploitation, easy to prepare, and an exceptional surface area of contact with water compared to unit of volume, making their use as supports for microbial community formation in wastewater treatment a reliable and affordable method.
Physicochemical characterization and comparison of the studied zeolites are provided in Table 2, and SEM images are presented in Figure 2. The analyzed zeolites contained the following oxides: SiO2, Al2O3, K2O, CaO, Fe2O3, Na2O, and MgO. CEC was much higher for powdered zeolite (1.32 meq/g) than for granulated zeolite. A BET analysis was performed of both the zeolites used in the experiments. SBET and Vp are important parameters for adsorption capacity. The results showed that NZ2 has the largest specific surface area, with a pore volume of 0.261 ± 0.001 cm3/g. The average pore radius was 21 Å for NZ2 and 25 Å for NZ1. It was observed that fine granulation (NZ2) resulted in a higher pore volume, which can cause the blockage of zeolite pores. According to Chong et al. [43], an increase in the of activation temperature of zeolites to 400–600 °C led to a reduction in BET surface area. Thus, a temperature of 200 °C was chosen as optimal for zeolite activation and wastewater purification. The chemical composition showed that SiO2 and Al2O3 are the predominant oxides. Small quantities of K2O, CaO, Fe2O3, Na2O and MgO were found [44].

3.2. Structural Characterization of Zeolites

A SEM analysis was performed to determine the morphology of zeolites. The SEM images revealed two different structures: the structure of NZ2 is porous, whereas the structure of NZ1 is more compacted. The obtained activated structures of zeolites are recommended for the purification of wastewater.
The TGA/DTG curves of the NZ1 zeolite are presented in Figure 3. The zeolite was heated from room temperature to 1000 °C at a rate of 10 °C min−1 in an N2 atmosphere. TGA analysis showed three regions depending on the activation temperature values of the zeolite samples: the first region, from room temperature to 200 °C, is attributed to evaporation of water; the second region, between 200 and 400 °C, corresponds to dealumination of zeolites. According to Garcia-Basabe et al. [45], dealumination of natural zeolite begins before 150 °C and was associated with the lack of extra-framework cations and the strongly bound water molecule within the pore. Another explanation could be the depolymerization of T–O–T bonds (T = Si, Al) and the appearance of the soluble silicates [46]. The third region is the domain 400–800 °C where significant loss of biomass occurs. This temperature range could be associated with the decomposition of zeolite at high temperatures. The activation of natural zeolites was realized using a rigid framework including pores and channels created by a tetrahedral TO4 structure. The thermal activation of zeolites at 200 °C enhanced pore volume by removing the water molecules.

3.3. Operational Performance of Wastewater Purification and Water Quality Index

Due to the varied chemical composition, biological purification of wastewater in the presence of zeolites is relatively difficult. In this regard, research has been conducted to evaluate the efficiency of biological purification of wastewater using zeolites as a biomass support for microbial community formation.
Table 3 shows the results obtained from the analysis of the wastewater sample before and after zeolite support use (30 days).
Parameters that indicate the degree of contamination of wastewater are pH, solid suspensions, BOD and COD. The removal efficiency of COD in S2 was 66.8% and 79.1% in the case of BOD, indicating organic matter consumption.
The presence of non-biodegradable substances is highlighted by analysis of nitrogen (in the form of ammonia, nitrates and nitrite), salts (sulfites, sulfates and chloride), metals and hard biodegradable substances (cyanides and benzene, toluene, ethylbenzene and xylenes (BTEX)) [47]. The change in pH from 7.4 ± 0.1 to 8.2 ± 0.64 could be attributed to the oxidation of organic substances present in wastewater. During incubation, the pH of the medium increased and could become more electronegative, due to the formation of bacteria biofilm of on the surface of the zeolites and the possibility of their further growth according to Cayetano et al. [48], who identify biofilm formation as enhancing anaerobic digestion.
Among the negative charges of zeolites and bacteria in the process of their adhesion to zeolites, there are certain repulsions due to their hydrophobicity. The conductivity of 1284 ± 85.7 µS/cm was based on the existing load carried that moves freely in wastewater. In the nitrification process, zeolite can be used as an ion exchange material due to its ability to remove ammonium ions from wastewater, along with its ability to carry biofilm. According to the bioregeneration mechanism of zeolites, the microorganisms are attached to the surface of the zeolites and are trapped in the zeolite powder particles with which they form a microbial biofilm. This microbial zeolite biofilm adsorbs ammonia. Denitrification can occur if electron donors are present. In the aerobic phase, the adsorbed ammonium is released into the liquid phase due to the chemical equilibrium and transformed from nitrite to nitrate, after which nitrate is transformed into gaseous nitrogen and brought back into the atmosphere [49,50].
According to Yang et al. [51], nitrogen removal mechanisms depend on wastewater composition, environmental and operating conditions, such as nitrification and denitrification processes and the possible coexistence of partial nitrification to nitrite or nitrate. Nitrate content in the unpurified wastewater (S1) was 0.5 mg/L while the nitrite was absent. The low removal efficiency of nitrate removal for the S5–S9 samples was attributed to a lack of a source of organic matter. Having in view these results, the concentrations of ammonium (NH4+), nitrate (NO3) and nitrite (NO2) were analyzed for each solution tested (Figure 4 and Figure 5). In all cases, the removal efficiency of NH4+ was higher than 98%. These results indicated that both zeolites were capable of removing NH4+ from wastewater enriched with different pollutants. An ammonium removal efficiency of 96% was obtained from unpurified wastewater (S1). In the case of using NZ2 zeolite, the removal efficiency has a slightly higher value, maybe due to the granular surface. The nitrate removal efficiency in the S2 samples was 55.0%, whereas the nitrite removal was 46.5%. According to Liu et al. 2022 [1], the high removal efficiency of NH4+-N promotes biomass growth. The low efficiency of removing nitrates and nitrites from wastewater was attributed to the presence of toxic compounds in sample matrices. The same efficiency of removal was obtained in S3 and S4 (presence of dye). The oxidizing process of ammonia in the presence of dyes was greater than in their absence. This could be due to the presence of favorable conditions (source of organic carbon) for the growth of nitrifying bacteria. The increase in nitrification and denitrification efficiency, respectively, was attributed to the dye that acted as an electron donor if the solution contained nitrites and nitrates. Thus, denitrification is favored by the appearance of heterotrophic bacteria. According to the results presented in Table 3, the concentrations of BOD and COD decreased significantly. The organic substances are considerably reduced due to the adsorption on the surface of the zeolites and the microbial respiration that takes place. The zeolites showed significant differences in nitrification efficiency based on nitrate and nitrite efficiency (presented in Figure 4). According to Kim et al. [52], the zeolite did not need an adaptation period for nitrification and the process can be observed without considering the concentration of ammonia from wastewater. Additionally, the zeolite is regenerated by nitrifiers, and the nitrite and nitrate are desorbed from the zeolite.
Therefore, the results obtained in the present work demonstrate that zeolite particle size does influence ammonium adsorption. High ammonium adsorption was assigned to the effect of air-stripping and nitrification processes carried out in the continuous mode. The greatest removal of ammonia was likely due to zeolite exchanging metal ions with lower charge density cations (such as NH4+). The sorption mechanism of ammonia was due to cation exchange with Na+. The zeolite served dual roles as an ion exchanger and a biomass carrier for bacteria. Comparing the two studied zeolites, NZ1 (particle size 1–3 mm) was found to be more suitable for wastewater treatment. The different ratios of Si/Al from the zeolite framework influence the negative charge of the extended framework. The lower Si/Al ratio increases the negative charge of the zeolite (due to the higher amount of Al3+ that replaces Si4+ in the zeolite structure) and thus increases zeolite capacity to attract cations.
Removal efficiency varied as follows (%): Mn > Cd > Cr > Zn > Fe > Ni > Co > Cu > Ba > Pb > Sr (Figure 6). The highest efficiency of 99.6% was obtained for Mn and Cd. The removal of metal ions was due to their adsorption to the structure of zeolites by ion exchange with the interchangeable ions of Na, Ca, K and Mg in the zeolite structure. In the S10 sample, the initial concentration of wastewater was still enriched with another 1 mg/L metal mixture. The final concentrations were Na—66.17 mg/L, Ca—27.9 mg/L. K—7.18 mg/L and Mg—0.782 mg/L. Enrichment with metals such as Na, Ca, K and Mg can be attributed to their presence in the zeolite structure and its ion exchange capacity. According to Gong et al. [53], zeolites can produce strong ion exchange and adsorption effects on heavy metals in solution through the silicon–oxygen tetrahedron and aluminum–oxygen octahedron structures, thus reducing the effectiveness of heavy metals.
Wastewater quality before and after zeolite support purification was expressed as the WWQI and the results obtained are presented in Table 4. In the case of untreated wastewater, the WWQI ranged from 306 to 1050, with a mean value of 756 according to the drinking water standards (DWS) [54]), and between 55.8 and 329, with a mean value of 242, according to the standards for discharging wastewater into aquatic environments (DWAES) Government Decision 188/20.03.2002 for the approval of some norms regarding unloading conditions for discharging of wastewater into aquatic environments [40]. The values obtained for wastewater indices indicate a high level of polluted water before purification. The highest indices were obtained for the S4, S7 and S9 samples, due to the high concentration of ammonium, nitrite and nitrate. After treatment, the WWQI ranged between 27.1 and 401, and 10.4 and 200, indicating that purified wastewater could be released into the municipal network.
After treatment, it was found, by analytical determination, that wastewater was purified with an efficiency of 71%: S1 was of excellent quality; S5, S10, were of good quality, suitable for household activities and irrigation purposes; and S2 was of medium quality, suitable for irrigation purposes without any further treatment.

3.4. PLFAs as Biomarkers for the Microbial Community

The PLFA profile of zeolites used as support for bacteria growth was analyzed by gas chromatography with flame ionizing detection (GC–FID). Table 5 summarizes the results of the microbial community analysis. Aerobic bacteria were associated with saturated and hydroxy groups, whereas anaerobic bacteria were associated with unsaturated and branched acids. The facultatively aerobic bacteria also contain unsaturated, branched, and hydroxy fatty acids. The FAME standard was used for the identification of each fatty acid biomarker. According to Quezada et al. [55], fatty acids that indicate eukaryote bacteria are sulfate-reducing bacteria and polyunsaturated fatty acids. Additionally, Gram-positive bacteria contain branched-chain fatty acids, and Gram-negative contain monounsaturated fatty acids. Moreover, actinomycetes contain methyl-branched and unsaturated fatty acids. The analysis of all the microorganisms found on the surface of zeolites used as biomass support for the purification process provided a quantitative description of the microbial community in the aqueous environment. Variation in pollutant concentrations in each solution tested led to the generation of different amounts of microorganisms.
The extraction of fatty acids from the samples was performed with organic solvents (methanol and hexane). After 30 days of incubation, most of the bacteria were immobilized on zeolite. The majority of the bacteria were methanotrophic, anaerobic, arbuscular mycorrhizal and Gram positive. The microbial indices present in each PLFA marker were detailed in Tian et al. [56]. The fatty acid 16:1ω5c was quantified as arbuscular mycorrhizae and quantified as 56.1 ± 3.2 nmol/g zeolite (S2) and 38.6 ± 3.4 nmol/g zeolite (S10). Fungal biomass was quantified as linoleic acid (18:2ω6) content. Other studies reported the use of oleic acid (18:2ω9) as a fungal marker [57,58], but in this study, it was not identified. According to [49], fungi and actinomycetes are responsible for the decomposition of organic residues.
Bacterial biomass was quantified as the sum of 15:0, 17:0, 15:0iso, 15:0anteiso, 16:0iso, 17:0iso, 17:0anteiso, 16:1ω7, 17:0cyclo, 18:1ω7 and 19:0cycloω8 fatty acids and was quantified as 689.9 ± 71.3 nmol/g zeolite (S2) and 801.5 nmol/g zeolite (S10). The aerobic FAME biomarkers that characterize the Actinomyces bacteria were found in the amount of 53.3 ± 1.4 nmol/g zeolite, while the anaerobic bacteria were found in the amount of 174.5 ± 12.3 nmol/g zeolite. The fatty acids 16:0 10-methyl, 17:0 10-methyl and 18:0 10-methyl were used to quantify Actinomycetes bacteria. The presence of metals in wastewater solution led to a decrease in the concentration of methanotroph bacteria and Arbuscular mycorrhizal, responsible for the denitrification process. The presence of a microbial community was influenced by the composition of wastewater.

3.5. Structural Characterization of Zeolites Used as Biomass Support for Microbial Community Production

SEM micrographs were used to study the biofilm morphologies of zeolite used as support for biofilm. The SEM images of the zeolite used as support for microbial community formation for the S2 samples are shown in Figure 7. The zeolite showed a homogenous morphology with a crystal structure of the granular type of NZ1.
The SEM image of the zeolite sample after being used as support for biomass revealed a particle size of less than 5 µm and is characteristic of a cube shape. As shown in SEM images of zeolite, the structure of zeolite used as microbial community support had more pores, protuberances, and a tough-like surface. This structure suggested the capability of zeolite, not only to adsorb the pollutant on an active site, but also to be a better medium to create optimal conditions for the reproduction of microbial bacteria. SEM images of NZ2 after 30 days stationary in the wastewater installation showed an irregular structure with biofilm formation (Figure 8). The photograph of zeolite NZ2 also shows the formation of zeolite floc.
According to Montalvo et al. [5], addition of a natural zeolite in the biological process enhanced membrane permeability due to the formation of rigid floc with increased nitrification efficiency due to improving the level of microorganism survival. The results showed that the use of zeolites as support for wastewater treatment has many advantages: they can be used as ion exchange materials due to their ability to remove ammonium ions along with their ability to carry biofilm; the permeability of the filter can be considerably increased due to the formation of a rigid structure that has a lower specific resistant than that of the used sludge. The adsorption of pollutants from wastewater and biological purification was the result of multiple mechanisms. The denitrification process was proved by nitrate removal and facultative and anaerobic bacteria are known to be responsible for this process [59]. Nitrate was negatively charged and electrostatic adsorption can explain the observed nitrate removal efficiency. The biological purification of wastewater by a zeolite filter was based on three mechanisms: ion exchange with ammonium, nitrification, and adsorption (Figure 9).
The removal of COD proved that biodegradation of organic contaminates was correlated with nitrifying bacteria.

4. Conclusions

This study indicated the potential of using zeolites as biomass support for microbial community formation, and thus purification of wastewater. Wastewater enriched with different concentrations of ammonia, nitrite and nitrate was used to demonstrate the improvement in the nitrification process and the formation of bacteria. Zeolites are carries of bacteria and favor accessibility of microorganisms through cavities. Activated zeolites offer more attachment points for microorganisms. Based on the performed experiments, the use of zeolites in wastewater treatment plants could be a solution for replacing the used sludge or using sludge and zeolite simultaneously. The quality of wastewater determined with the WWQI indicated that the treated wastewater could be discharged into aquatic environments. Microbial communities, identified on zeolite surfaces used for water purification, play an important role in the biological treatment of wastewater, with zeolites being used in ammonia removal from wastewater specifically by ion exchange and capacity for biofilm formation. In conclusion, the implementation of methods in wastewater treatment plants should be tested in order to improve the bioregeneration of zeolites and to reduce the high concentration of contaminants.

Author Contributions

Conceptualization—L.S.; methodology—A.H., D.K. and A.M.; software—I.A.T.; investigation—D.K. and D.S.; writing (original draft)—L.S., M.S., A.M. and I.A.T.; resources—C.H.T.; supervision—M.S.; writing (review and editing)—L.S., A.M., A.H. and C.H.T. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Competitiveness Operational Programme of the Ministry of European Funds, contract no. 7/1 September 2016, code MY SMIS 105654, and the article processing charge (APC) was funded by the Ministry of Research, Innovation and Digitization through Program 1—Development of the national research & development system, Subprogram 1.2—Institutional performance—Projects that finance the RDI excellence, contract no. 18PFE/30 December 2021.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Liu, Y.; Guo, L.; Ren, X.; Zhao, Y.; Jin, C.; Gao, M.; Ji, J.; She, Z. Effect of magnetic field intensity on aerobic granulation and partial nitrification-denitrification performance. Process Saf. Environ. Prot. 2022, 160, 859–867. [Google Scholar] [CrossRef]
  2. Song, T.; Zhang, X.; Li, J.; Wu, X.; Feng, H.; Dong, W. A review of research progress of heterotrophic nitrification and aerobic denitrification microorganisms (HNADMs). Sci. Total Environ. 2021, 801, 149319. [Google Scholar] [CrossRef] [PubMed]
  3. Rahimi, S.; Modin, O.; Mijakovic, I. Technologies for biological removal and recovery of nitrogen from wastewater. Biotechnol. Adv. 2020, 43, 107570. [Google Scholar] [CrossRef] [PubMed]
  4. Ye, Y.; Ngo, H.H.; Guo, W.; Liu, Y.; Chang, S.W.; Nguyen, D.D.; Liang, H.; Wang, J. A critical review on ammonium recovery from wastewater for sustainable wastewater management. Bioresour. Technol. 2018, 268, 749–758. [Google Scholar] [CrossRef]
  5. Montalvo, S.; Huiliñir, C.; Borja, R.; Sánchez, E.; Herrmann, C. Application of zeolite for biological treatment processes of solid wastes and wastewaters—A review. Bioresour. Technol. 2020, 301, 122808. [Google Scholar] [CrossRef]
  6. Narayanan, C.; Narayan, V. Biological wastewater treatment and bioreactor design: A review. Sustain. Environ. Res. 2019, 29, 33. [Google Scholar] [CrossRef] [Green Version]
  7. Al-Asheh, S.; Bagheri, M.; Aidan, A. Membrane bioreactor for wastewater treatment: A review. Case Study Chem. Environ. Eng. 2021, 4, 100109. [Google Scholar] [CrossRef]
  8. Kharraz, J.A.; Khanzada, N.K.; Farid, M.U.; Kim, J.; Jeong, S.; An, A.K. Membrane distillation bioreactor (MDBR) for wastewater treatment, water reuse, and resource recovery: A review. J. Water Process. Eng. 2022, 47, 102687. [Google Scholar] [CrossRef]
  9. Jarosz, R.; Szerement, J.; Gondek, K.; Mierzwa-Hersztek, M. The use of zeolites as an additive to fertilisers—A review. Catena 2022, 213, 106125. [Google Scholar] [CrossRef]
  10. Rad, L.R.; Anbia, M. Zeolite-baded composites for the adsorption of toxic matters from waster: A review. J. Environ. Chem. Eng. 2021, 9, 106088. [Google Scholar]
  11. Gani, A.; Wattimena, Y.; Erdiwansyah; Mahidin; Muhibbuddin; Riza, M. Simultaneous sulfur dioxide and mercury removal during low-rank coal combustion by natural zeolite. Heliyon 2021, 7, e07052. [Google Scholar] [CrossRef]
  12. Dippong, T.; Mihali, C.; Hoaghia, M.A.; Cical, E.; Cosma, A. Chemical modeling of groundwater quality in the aquifer of Seini town—Someș Plain, Northwestern Romania. Ecotoxicol. Environ. Saf. 2019, 168, 88–101. [Google Scholar] [CrossRef]
  13. Wan, H.; Li, C.; Mahmud, S.; Liu, H. Kappa carrageenan reduced-stabilized colloidal silver nanoparticles for the degradation of toxic azo compounds. Colloids Surf. A Physicochem. Eng. Asp. 2021, 107, 2411–2502. [Google Scholar] [CrossRef]
  14. Mia, R.; Sk, M.S.; Oli, Z.B.S.; Ahmed, T.; Kabir, S.; Waqar, M.A. Functionalizing cotton fabrics through herbally synthesized nanosilver. Chem. Eng. Technol. 2021, 4, 100227. [Google Scholar]
  15. Wang, H.; Zhang, G.; Mia, R.; Wang, W.; Xie, L.; Lü, S.; Mahmud, S.; Liu, H. Bioreduction (Ag+ to Ag0) and stabilization of silver nanocatalyst using hyaluronate biopolymer for azo-contaminated wastewater treatment. J. Alloys Compd. 2022, 894, 162502. [Google Scholar] [CrossRef]
  16. Vellaichamy, B.; Periakaruppan, P.; Nagulan, B. Reduction of Cr6+ from Wastewater Using a Novel in Situ-Synthesized PANI/MnO2/TiO2 Nanocomposite: Renewable, Selective, Stable, and Synergistic Catalysis. ACS Sustain. Chem. Eng. 2017, 5, 9313–9324. [Google Scholar] [CrossRef]
  17. Kuwahara, Y.; Ohmichi, T.; Kamegawa, T.; Mori, K.; Yamashita, H. A novel conversion process for waste slag: Synthesis of a hydrotalcite-like compound and zeolite from blast furnace slag and evaluation of adsorption capacities. J. Mater. Chem. 2010, 20, 5052. [Google Scholar] [CrossRef]
  18. Yuna, Z. Review of the Natural, Modified, and Synthetic Zeolites for Heavy Metals Removal from Wastewater. Environ. Eng. Sci. 2016, 33, 443–454. [Google Scholar] [CrossRef]
  19. Król, M. Natural vs. Synthetic Zeolites. Crystals 2020, 10, 622. [Google Scholar] [CrossRef]
  20. Belova, T.P. Adsorption of heavy metal ions (Cu2+, Ni2+, Co2+, and Fe2+) from aqueous solutions by natural zeo-lite. Heliyon 2019, 5, e02320. [Google Scholar] [CrossRef]
  21. Rahman, R.O.A.; El-Kamash, A.M.; Hung, Y.-T. Applications of nano-zeolites in wastewater treatment: An overview. Water 2022, 14, 137. [Google Scholar] [CrossRef]
  22. Mery, C.; Guerrero, L.; Alonso-Gutiérrez, J.; Figueroa, M.; Lema, J.M.; Montalvo, S.; Borja, R. Evaluation of natural zeolite as microorganism support medium in nitrifying barch reactor: Influence of zeolite particle size. J. Environ. Sci. Health A. Tox. Hazard Subst. Environ. Eng. 2014, 47, 420–427. [Google Scholar] [CrossRef] [Green Version]
  23. Skleničková, K.; Koloušek, D.; Pečenka, M.; Vejmelková, D.; Šlouf, M.; Růžičková, I. Application of zeolite filters in fish breeding recirculation systems and their effect on nitrifying bacteria. Aquaculture 2020, 516, 734605. [Google Scholar] [CrossRef]
  24. Perez, T.P.; Correira, G.T.; Reyes, I.P.; Pozzi, E. Performance of EGSB reactor using natural zeolite as support for treatment of synthetic swine wastewater. J. Environ. Chem. Eng. 2020, 9, 104922. [Google Scholar] [CrossRef]
  25. Yang, L. Investigation of nitrification by co-immobilized nitrifying bacteria and zeolite in a batchwise fluidized bed. Water Sci. Technol. 1997, 35, 169–175. [Google Scholar] [CrossRef]
  26. Lewe, N.; Hermans, S.; Lear, G.; Kelly, L.T.; Thomson-Laing, G.; Weisbrod, B.; Wood, S.A.; Keyzers, R.A.; Deslippe, J.R. Phospholipid fatty acid (PLFA) analysis as a tool to estimate absolute abundances from compositional 16S rRNA bacterial metabarcoding data. J. Microbiol. Methods 2021, 188, 106271. [Google Scholar] [CrossRef]
  27. Zhang, X.; Chen, Q.; Wang, C.; Zhang, H.; Zhao, Y.; Zhang, L.; Liu, B.; Wu, Z.; Zhou, Q. Characteristic analysis of phospholipid fatty acids (PLFAs) in typical nutrient polluted lake sediment in Wuhan. Int. J. Sediment Res. 2021, 36, 221–228. [Google Scholar] [CrossRef]
  28. Li, M.; Zhou, Q.; Tao, M.; Wang, Y.; Jiang, L.; Wu, Z. Comparative study of microbial community structure in different filter media of constructed wetland. J. Environ. Sci. 2010, 22, 127–133. [Google Scholar] [CrossRef]
  29. Senila, M.; Cadar, O.; Senila, L.; Hoaghia, A.; Miu, I. Mercury Determination in Natural Zeolites by Thermal Decomposition Atomic Absorption Spectrometry: Method Validation in Compliance with Requirements for Use as Dietary Supplements. Molecules 2019, 24, 4023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. EN 903-1; Water Quality—Determination of Anionic Surfactants by Measurement of the Methylene Blue Index MBAS. ISO: Geneva, Switzerland, 2003.
  31. ISO 10301; Water Quality—Determination of Dissolved Anionis by Liquid Chromatography of Ions, Part 1—Determination of Bromide, Choride, Fluoride, Nitrate, Nitrite, Phosphate and Sulfate. ISO: Geneva, Switzerland, 2009.
  32. ISO 7150-1; Water Quality—Determination of Ammonium—Part 1: Manual Spectrometric Method. ISO: Geneva, Switzerland, 2001.
  33. ISO 5815; Water Quality—Determination of Biochemical Oxygen Demand after n Days (BODn)—Part 1: Dilution and Seeding Method with Allylthiourea Addition. ISO: Geneva, Switzerland, 2019.
  34. ISO 6060; Water Quality—Determination of the Chemical Oxygen Demand. ISO: Geneva, Switzerland, 1996.
  35. US EPA. Cation-Exchange Capacity of Soils (Ammonium Acetate): Test Methods for Evaluating Solid Waste; SW-846, Method 9080; US EPA, Office of Solid Waste and Emergency Response: Washington, DC, USA, 1986. [Google Scholar]
  36. Ozay, Y.; Dizge, N. The effect of pre-treatment methods on membrane flux, COD, and total phenol removal efficiencies for membrane treatment of pistachio wastewater. J. Environ. Manag. 2022, 310, 114762. [Google Scholar] [CrossRef] [PubMed]
  37. Nadella, A.; Sen, D. Application of wastewater quality index (WWQI) as an evaluation tool: A case of stormwater flow channel (SWF) of Kolkata, India. Environ. Monit. Assess. 2022, 194, 80. [Google Scholar] [CrossRef]
  38. Moldovan, A.; Torok, A.I.; Mirea, I.C.; Micle, V.; Moldovan, O.T.; Levei, E.A. Health risk assessment in southern Carpathians small rural communities using karst springs as a drinking water source. Int. J. Environ. Res. Public Health 2022, 19, 234. [Google Scholar] [CrossRef]
  39. Tampo, L.; Mande, S.A.; Adekanmbi, A.O.; Boguido, G.; Akpataku, K.V.; Ayah, M.; Tchakala, I.; Gnazou, M.D.T.; Bawa, L.M.; Djaneye-Boundjou, G.; et al. Treated wastewater suitability for reuse in comparison to groundwater and surface water in a peri-urban area: Implications for water quality management. Sci. Total Environ. 2022, 815, 152780. [Google Scholar] [CrossRef]
  40. Romanian Government Decision no. 188/2002-NTPA 002 for the Approval of Some Norms Regarding the Conditions for Discharging Wastewater into the Aquatic Environment. No. 188 from 28 February 2002, Bucharest, Romania. Available online: (accessed on 19 May 2022). (In Romanian).
  41. Roșca, O.; Dippong, T.; Marian, M.; Mihali, C.; Mihalescu, L.; Hoaghia, M.A.; Jelea, M. Romania, Impact of anthropogenic activities on water quality parameters of glacial lakes from Rodnei mountains. Environ. Res. 2020, 182, 109136. [Google Scholar] [CrossRef]
  42. Kovacs, E.D.; Silaghi-Dumitrescu, L.; Roman, C.; Tian, D. Structural and Metabolic Profiling of Lycopersicon esculentum Rhizosphere Microbiota Artificially Exposed at Commonly Used Non-Steroidal Anti-Inflammatory Drugs. Microorganisms 2022, 10, 254. [Google Scholar] [CrossRef]
  43. Chong, M.N.; Tneu, Z.Y.; Poh, P.E.; Lin, B.; Aryal, R. Synthesis, characterization and application of TiO2 -zeolite nanocomposites for the advanced treatment of industrial dye wastewater. J. Taiwan Inst. Chem. Eng. 2015, 50, 288–296. [Google Scholar] [CrossRef]
  44. Senila, L.; Neag, E.; Cadar, O.; Becze, A.; Scurtu, D.A.; Tomoiag, C.H.; Senila, M. Removal of methylene blue on thermally treated natural zeolites. Anal. Lett. 2021, 55, 226–236. [Google Scholar] [CrossRef]
  45. Garcia-Basabe, Y.; Rodriguez-Iznaga, I.; de Menorval, L.-C.; Llewellyn, P.; Maurin, G.; Lewis, D.W.; Binions, R.; Autie, M.; Ruiz-Salvador, A.R. Step-wise dealumination of natural clinoptilolite: Structural and physicochemical characterization. Microporous Mesoporous Mater. 2010, 135, 187–196. [Google Scholar] [CrossRef]
  46. Duthade, G.S.; Joshi, U.D.; Kodape, M.M.; Mardikar, S.P.; Uke, S.J.; Pnadit, V.; Lokhande, M.N. Synthesis, X-ray diffraction, physical, thermal behavior and chemical studies of Fe/Zn/Cu-NaX zeolite. Mater. Todays 2022, 53, 15–23. [Google Scholar] [CrossRef]
  47. Tri, N.L.M.; Thang, P.Q.; Tan, L.V.; Huong, P.T.; Kim, J.; Viet, N.M.; Phuong, N.M.; Tahtamouni, T.M.A. Removal of phenolic compounds from wastewaters by using synthesized Fe-nano zeolite. J. Water Process. Eng. 2020, 33, 101070. [Google Scholar] [CrossRef]
  48. Cayetano, R.D.A.; Kim, G.-B.; Park, J.; Yang, Y.-H.; Jeon, B.-H.; Jang, M.; Kim, S.-H. Biofilm formation as a method of improved treatment during anaerobic digestion of organic matter for biogas recovery. Bioresour. Technol. 2022, 344, 126309. [Google Scholar] [CrossRef]
  49. Hossaina, M.I.; Cheng, L.; Cord-Ruwisch, R. Sustained and enhanced anaerobic removal of COD and nitrogen in a zeolite amended glycogen accumulating organism dominated biofilm process. Sci. Total Environ. 2022, 807, 150602. [Google Scholar] [CrossRef]
  50. Sabbah, I.; Baransi, K.; Massalha, N.; Saadi, I.; Nejidat, A. Efficient ammonia removal from wastewater by a microbial biofilm in tuff-based intermittent biofilters. Ecol. Eng. 2013, 53, 354–360. [Google Scholar] [CrossRef]
  51. Yang, P.; Hou, R.; Li, D.; Yuan, R.; Wang, F.; Chen, Z.; Zhou, B.; Chen, H. Nitrogen removal from rural domestic wastewater by subsurface wastewater infiltration system: A review. Process Saf. Environ. Prot. 2022, 159, 309–322. [Google Scholar] [CrossRef]
  52. Kim, J.-S.; Lee, J.-Y.; Choi, S.-K.; Zhu, Q.; Lee, S.-I. Nitrification of low concentration ammonia nitrogen using zeolite biological aerated filter (ZBAF). Environ. Eng. Res. 2020, 25, 554–560. [Google Scholar] [CrossRef] [Green Version]
  53. Gong, L.; Wang, J.; Abbas, T.; Zhang, Q.; Cai, M.; Tahir, M.; Wu, D.; Di, H. Immobilization of exchangeable Cd in soil using mixed amendment and its effect on soil microbial communities under paddy upland rotation system. Chemosphere 2021, 262, 127827. [Google Scholar] [CrossRef]
  54. WHO. Guidelines for Drinking-Water Quality, 4th ed.; Incorporating First Addendum; World Health Organization: Geneva, Switzerland, 2017; Available online: (accessed on 8 April 2021).
  55. Quezada, M.; Buitrón, G.; Moreno-Andrade, I.; Moreno, G.; López-Marín, L.M. The use of fatty acid methyl esters as biomarkers to determine aerobic, facultatively aerobic and anaerobic communities in wastewater treatment systems. FEMS Microbiol. Lett. 2007, 266, 75–82. [Google Scholar] [CrossRef]
  56. Tian, T.; Yang, Q.; Wei, G.; Cheung, S.G.; Shin, P.K.S.; Wong, Y.S.; Li, Z.; Chen, Z.; Tam, N.F.Y. Change of substrate microbial biomass and community composition in a constructed mangrove wetland for municipal wastewater treatment during 10-years operation. Mar. Pollut. Bull. 2020, 155, 111095. [Google Scholar] [CrossRef]
  57. Joergensen, R.G.; Wichern, F. Quantitative assessment of the fungal contribution to microbial tissue in soil. Soil Biol. Biochem. 2008, 40, 2977–2991. [Google Scholar] [CrossRef]
  58. Willers, C.; Rensburg, J.; Claassens, S. Phospholipid fatty acid profiling of microbial communities—A review of interpretations and recent applications. J. Appl. Microbiol. 2015, 119, 1207–1218. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, G.; Yi, Y.; Huang, L.; Wang, J.; Fang, Z. Efficient removal of norfloxacin by biological aerated filter Effect of zeolite modifications and analysis of microbial communities. J. Water Process. Eng. 2021, 40, 101799. [Google Scholar] [CrossRef]

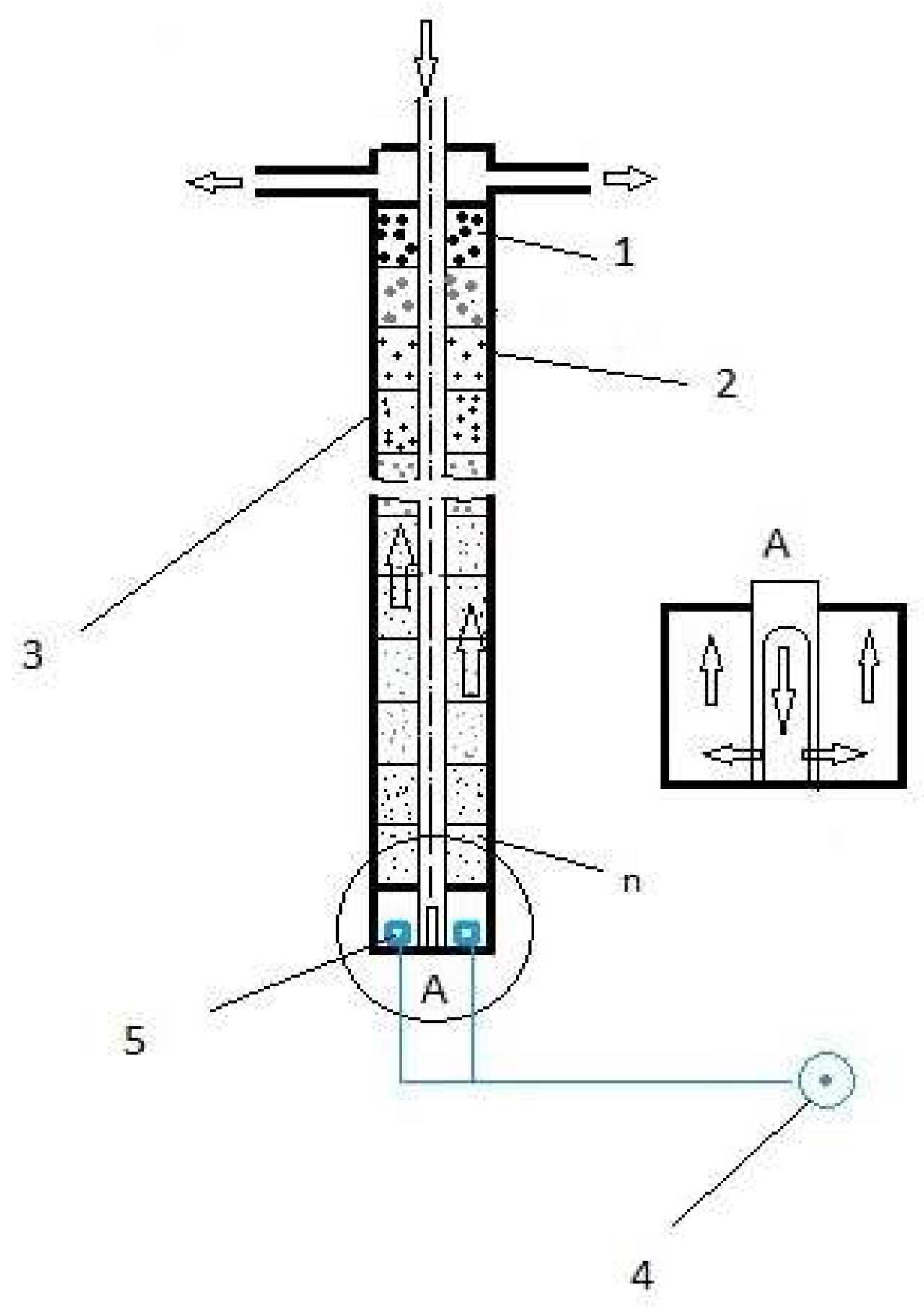

Figure 1. Schematic representation of biological purification of wastewater based on using the zeolite as biomass support.
Figure 1. Schematic representation of biological purification of wastewater based on using the zeolite as biomass support.
Materials 15 03685 g001
Figure 2. SEM images of (a) NZ1 and (b) NZ2.
Figure 2. SEM images of (a) NZ1 and (b) NZ2.
Materials 15 03685 g002

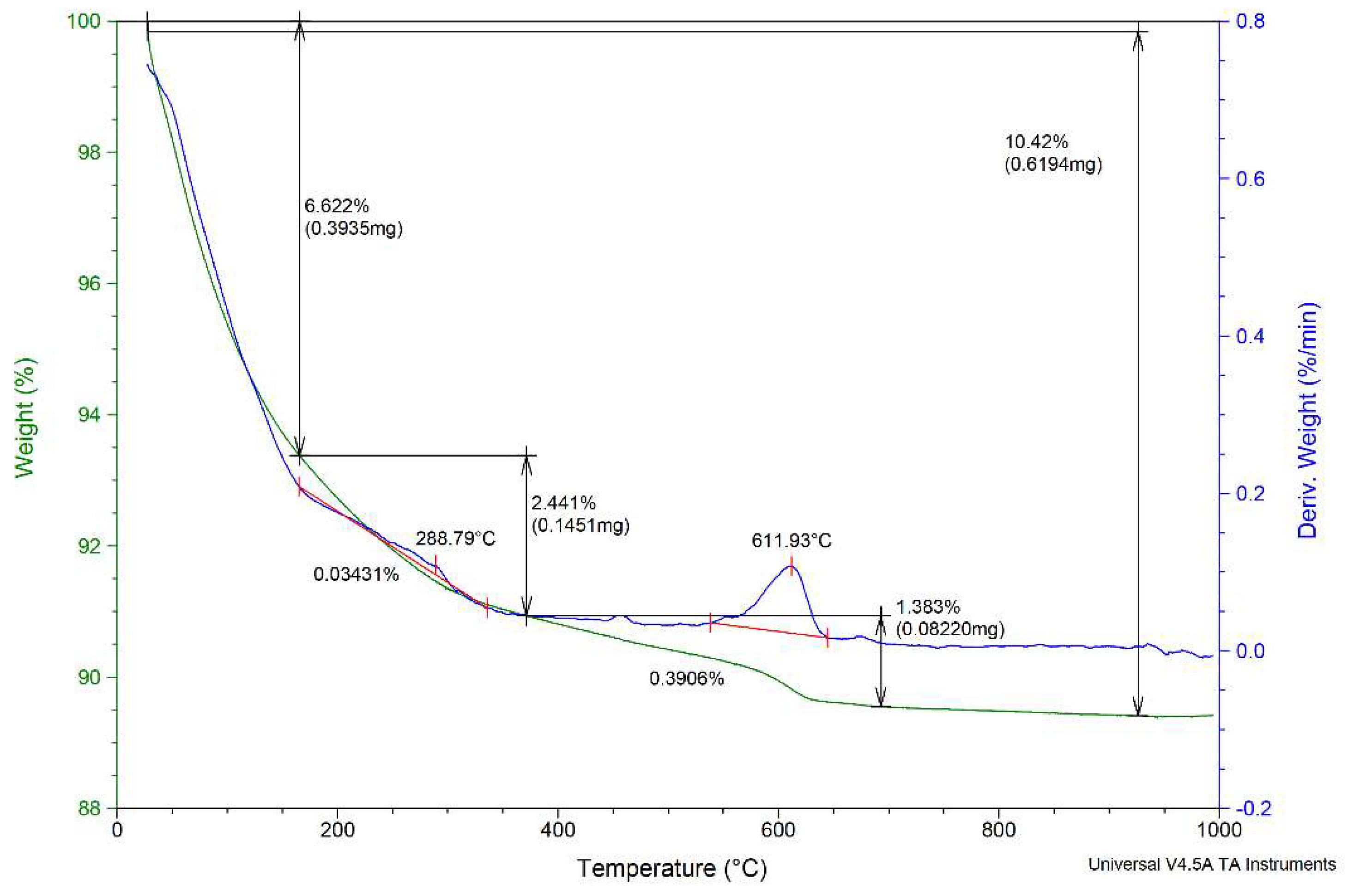

Figure 3. The TGA/DTG analysis of the NZ1 zeolite sample.
Figure 3. The TGA/DTG analysis of the NZ1 zeolite sample.
Materials 15 03685 g003

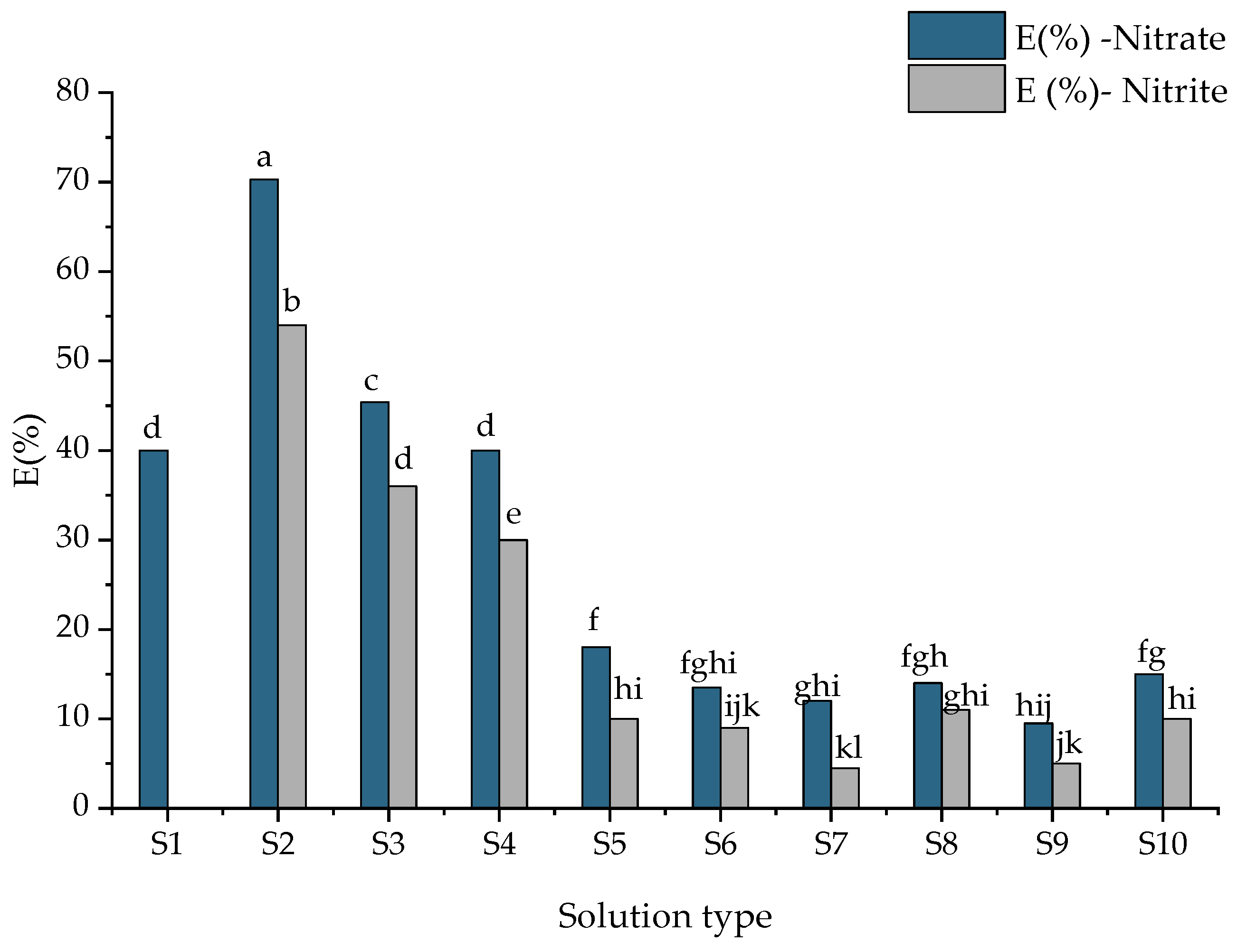

Figure 4. Nitrate and nitrite removal efficiency (E, %) depending on sample types. Data are the mean ± standard deviation (n = 3). Means with different letters (a–k) above the bars indicate significant differences based on Tukey’s test (p < 0.05).
Figure 4. Nitrate and nitrite removal efficiency (E, %) depending on sample types. Data are the mean ± standard deviation (n = 3). Means with different letters (a–k) above the bars indicate significant differences based on Tukey’s test (p < 0.05).
Materials 15 03685 g004

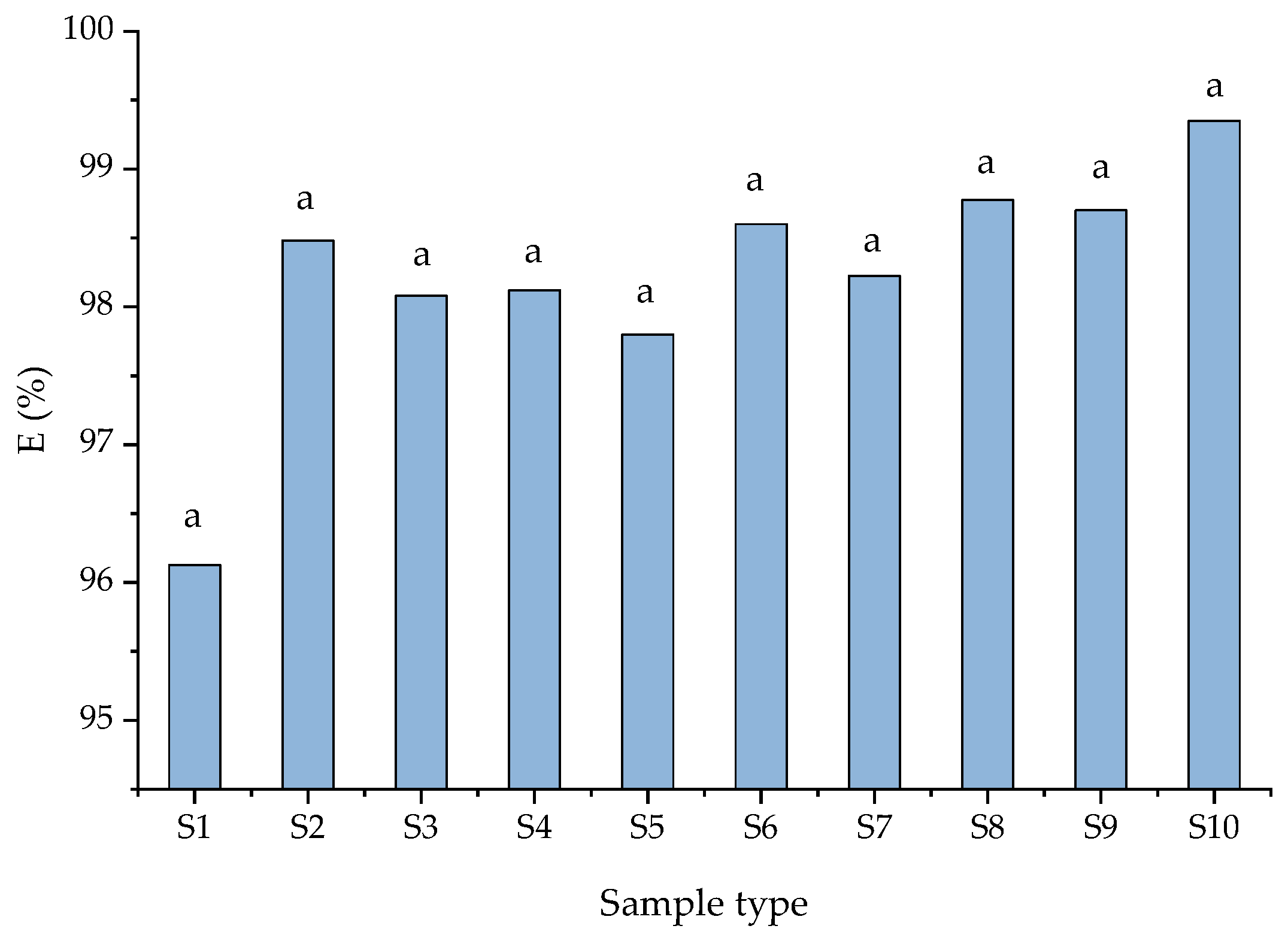

Figure 5. The removal efficiency (%) of ammonium ions depends on sample type. Data are the mean ± standard deviation (n = 3) and the same letters show no significant difference (p > 0.05).
Figure 5. The removal efficiency (%) of ammonium ions depends on sample type. Data are the mean ± standard deviation (n = 3) and the same letters show no significant difference (p > 0.05).
Materials 15 03685 g005

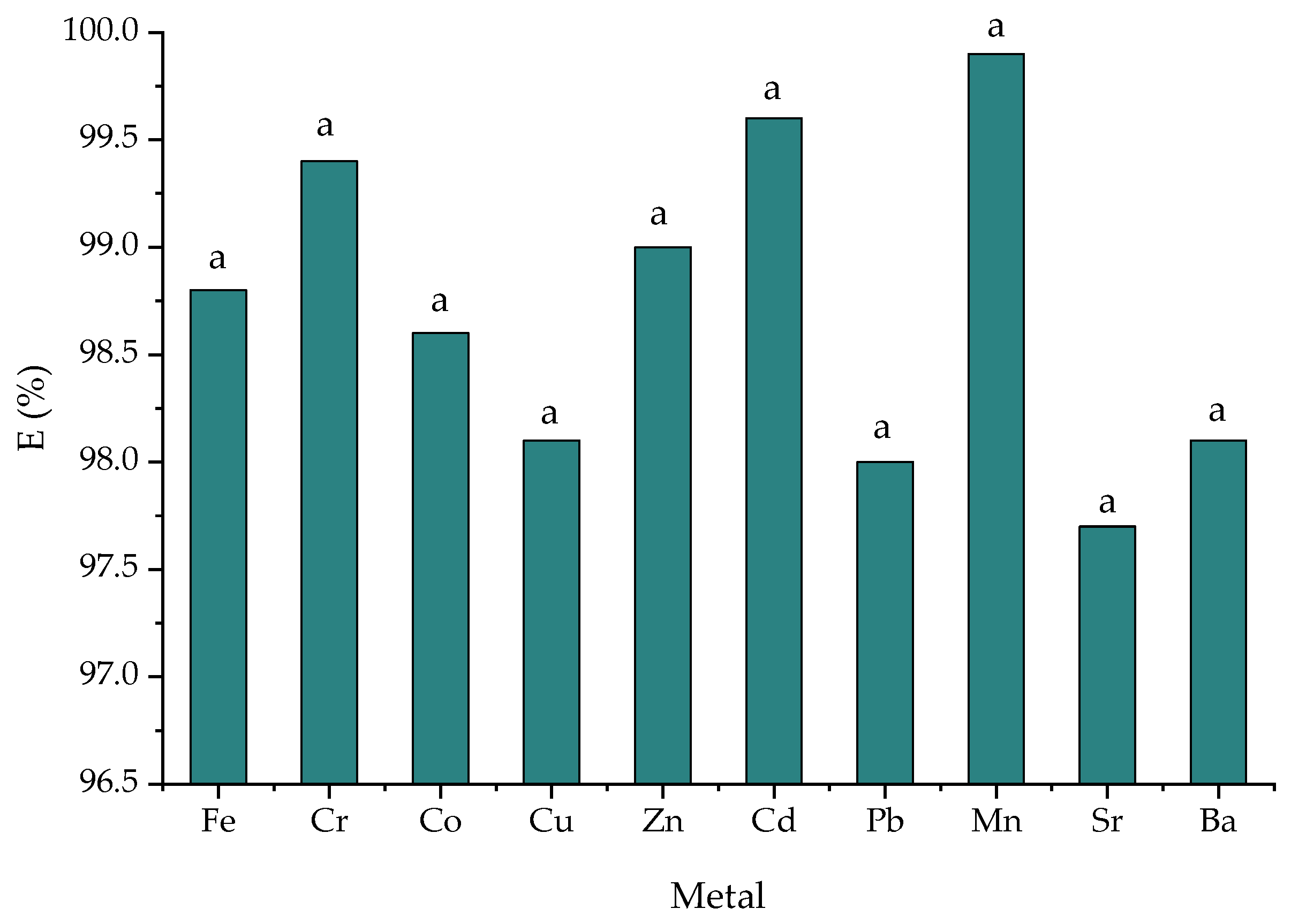

Figure 6. The metal removal efficiency in the S10 sample. Data are the mean ± standard deviation (n = 3); the same letters show no significant difference (p > 0.05).
Figure 6. The metal removal efficiency in the S10 sample. Data are the mean ± standard deviation (n = 3); the same letters show no significant difference (p > 0.05).
Materials 15 03685 g006
Figure 7. SEM images of NZ 1: (a) biofilm of sample S2 at 5 µm and (b) biofilm of sample S2 at 20 µm.
Figure 7. SEM images of NZ 1: (a) biofilm of sample S2 at 5 µm and (b) biofilm of sample S2 at 20 µm.
Materials 15 03685 g007
Figure 8. SEM images of: (a) biofilm of sample S9 and (b) biofilm of sample S10.
Figure 8. SEM images of: (a) biofilm of sample S9 and (b) biofilm of sample S10.
Materials 15 03685 g008

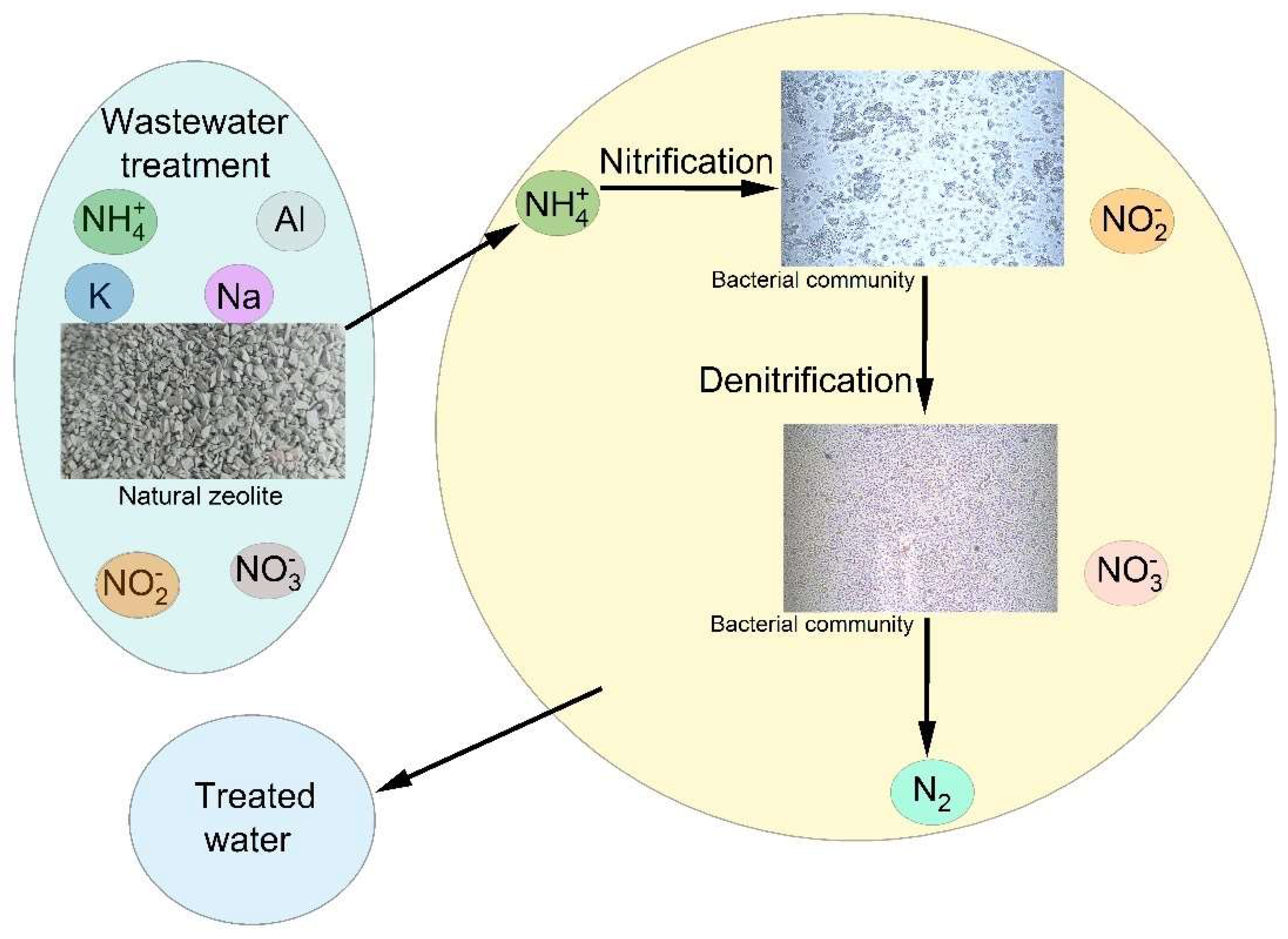

Figure 9. Schematic representation of the mechanism of wastewater treatment.
Figure 9. Schematic representation of the mechanism of wastewater treatment.
Materials 15 03685 g009
Table 1. Solutions used for experiments.
Table 1. Solutions used for experiments.
Solution TypesContainZeoliteCode
1.Raw wastewaterNZ1S1
2.S1 contaminated with: 50 mg/L ammonia, 50 mg/L nitrite and 50 mg/L nitrateNZ1S2
3.S1 contaminated with: 10 mg/L methylene blue, 50 mg/L ammonia, 50 mg/L nitrite and 50 mg/L nitrateNZ1S3
4.S1 contaminated with: 10 mg/L rhodamine, 50 mg/L ammonia, 50 mg/L nitrite and 50 mg/L nitrateNZ1S4
5.S1 contaminated with: 10 mg/L ammonia, 10 mg/L nitrite and 10 mg/L nitrateNZ1S5
6.S1 contaminated with: 20 mg/L ammonia, 20 mg/L nitrite and 20 mg/L nitrateNZ1S6
7.S1 contaminated with: 40 mg/L ammonia, 40 mg/L nitrite and 40 mg/L nitrateNZ1S7
8.S1 contaminated with: 20 mg/L ammonia, 20 mg/L nitrite and 20 mg/L nitrateNZ2S8
9.S1 contaminated with: 40 mg/L ammonia, 40 mg/L nitrite and 40 mg/L nitrateNZ2S9
10.S1 contaminated with: 1 mg/L metals, 40 mg/L ammonia, 40 mg/L nitrite and 40 mg/L nitrateNZ2S10
Table 2. Physical and chemical composition (% w/w) of zeolites used in the experiments (mean ± standard deviation, n = 3).
Table 2. Physical and chemical composition (% w/w) of zeolites used in the experiments (mean ± standard deviation, n = 3).
pH (pH unit)8.2 ± 0.1 e8.4 ± 0.1 d
CEC (meq/g)1.20 ± 0.1 h1.32 ± 0.1 f
SBET (m2/g)52.85 ± 0.6 b73.1 ± 2.7 a
Vp (cm3/g)0.127 ± 0.001 h0.261 ± 0.001 f
r (Å)25.0 ± 0.57 c21.0 ± 0.50 b
SiO265.2 ± 2.7 a72.6 ± 3.1 a
Al2O313.7 ± 1.1 d14.9 ± 1.1 c
CaO2.5 ± 0.1 gh2.54 ± 0.03 ef
K2O2.42 ± 0.1 gh2.19 ± 0.09 ef
Na2O0.70 ± 0.05 h0.69 ± 0.01 f
Fe2O31.18 ± 0.6 h1.02 ± 0.1 f
MgO0.75 ± 0.05 h0.65 ± 0.01 f
LOI6.2 ± 0.41 ef5.4 ± 0.3 de
Si/Al4.6 ± 0.15 fg5.24 ± 0.4 de
LOI—loss of ignition. Different letters of each column showed a significant difference at the level of p ≤ 0.05.
Table 3. The chemical composition of wastewater before and after purification on zeolite support. (Data represent the mean ± standard deviation; n = 3 parallel measurements.)
Table 3. The chemical composition of wastewater before and after purification on zeolite support. (Data represent the mean ± standard deviation; n = 3 parallel measurements.)
ParametersWastewater (S2)Wastewater (After Purification)
pH la 20.0 °C7.4 ± 0.1 fg8.2 ± 0.64 c
Electrical conductivity (µS/cm)1300 ± 61.2 a1284 ± 85.7 a
Suspended solids (mg/L)19.0 ± 1.3 efg32.0 ± 0.95 c
Biologycal oxigen demand (BOD)66.5 ± 2.5 cd13.9 ± 0.61 c
Chemical oxygen demand (COD)307 ± 5.5 b169.0 ± 3.07 b
Ammonia * (NH4+-N)(mg/L)64.2 ± 3.2 cde0.974 ± 0.06 c
Chlorides (mg/L)89.0 ± 4.1 c24.0 ± 0.69 c
Nitrite * (NO3 mg/L)50.0 ± 3.4 cde23.0 ± 0.47 c
Nitrate * (NO2 mg/L)50.5 ± 2.6 cdef15.0 ± 0.2 c
Phosphates (mg/L)<0.05<0.05
Sulfates (mg/L)23.0 ± 2.2 defg34 ± 0.98 c
Surfactants (mg/L) 13.5 ± 0.61 efg1.0 ± 0.06 c
Fosfor total (mg/L)3.05 ± 0.06 g0.5 ± 0.01 c
Cooper (mg/L)0.55 ± 0.06 g<0.02
Lead (mg/L)0.52 ± 0.06 g<0.05
Zinc (mg/L)1.00 ± 0.07 g<0.01
Manganese (mg/L)0.0675 ± 0.001 g<0.01
Nickel (mg/L)0.0995 ± 0.0006 g<0.05
Cadmium (mg/L)0.0261 ± 0.002 g<0.02
Cromium (mg/L)0.0628 ± 0.001 g<0.05
Note: * The raw wastewater (S1) was contaminated with 50 mg/L of ammonia, nitrite and nitrate. Values indicated with different letters are significantly different from each other at p  ≤  0.05 levels, whereas those indicated with the same letters show no significant differences (p > 0.05). Columns with different letters show a significant difference at the level of p ≤ 0.05.
Table 4. Water quality index before and after zeolite purification.
Table 4. Water quality index before and after zeolite purification.
Before PurificationAfter Purification
Note: * DSW represents the guideline values according to the World Health Organization (WHO) [54]; ** DWAES represents the standards for discharging wastewater into aquatic environments [40].
Table 5. The microbial community (data represent the mean ± standard deviation; n = 3; parallel measurements).
Table 5. The microbial community (data represent the mean ± standard deviation; n = 3; parallel measurements).
TypesQuantity (nmol/g Zeolite) S2Quantity (nmol/g Zeolite) S10FAME Marker
General FAME (bacterial biomass)689.9 ± 71.3 a801.5 ± 1.5 a15:0, 17:0, 15:0iso, 15:0anteiso, 16:0iso, 17:0iso, 17:0anteiso, 16:1ω7, 17:0cyclo, 18:1ω7 and 19:0cycloω8
Arbuscular mycorrhizal fungi 145.2± 14.9 b12.5 ± 1.31 e16:1ω5
Methanotrop (Gram negative)673.5 ± 26.1 a78.9 ± 6.7 de18:1ω7c; 17:0cy; 19:0cy
Microeukaryote98.3 ± 5.5 bc544.3 ± 31.0 b20:4ω6c
Fungal biomass56.1 ± 3.2 c38.6 ± 3.4 e18:2ω6
Gram-positive bacteria106.1 ± 8.8 bc145.6 ± 9.5 cd15:0i; 15:0a; 16:0i; 17:0i; 17:0a
Anaerobe bacteria174.5 ± 12.3 b192.4 ± 1.0 c17:0cyclo, 19:0cyclo
Actinomycetes (actinobacteria) 53.3 ± 1.4 c37.7 ± 3.5 e16:0 10-Me; 17:0 10-Me; 18:0 10-Me
Note: Values indicated with different letters were significantly different from each other at p  ≤  0.05 levels, whereas those indicated with the same letters showed no significant differences (p > 0.05). Columns with different letters showed a significant difference at the level of p ≤ 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Senila, L.; Hoaghia, A.; Moldovan, A.; Török, I.A.; Kovacs, D.; Simedru, D.; Tomoiag, C.H.; Senila, M. The Potential Application of Natural Clinoptilolite-Rich Zeolite as Support for Bacterial Community Formation for Wastewater Treatment. Materials 2022, 15, 3685.

AMA Style

Senila L, Hoaghia A, Moldovan A, Török IA, Kovacs D, Simedru D, Tomoiag CH, Senila M. The Potential Application of Natural Clinoptilolite-Rich Zeolite as Support for Bacterial Community Formation for Wastewater Treatment. Materials. 2022; 15(10):3685.

Chicago/Turabian Style

Senila, Lacrimioara, Alexandra Hoaghia, Ana Moldovan, Iulia Anamaria Török, Dalma Kovacs, Dorina Simedru, Calin Horea Tomoiag, and Marin Senila. 2022. "The Potential Application of Natural Clinoptilolite-Rich Zeolite as Support for Bacterial Community Formation for Wastewater Treatment" Materials 15, no. 10: 3685.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
