Microstructure, Micro-Mechanical and Tribocorrosion Behavior of Oxygen Hardened Ti–13Nb–13Zr Alloy
Abstract
:1. Introduction
2. Materials and Methods
3. Results

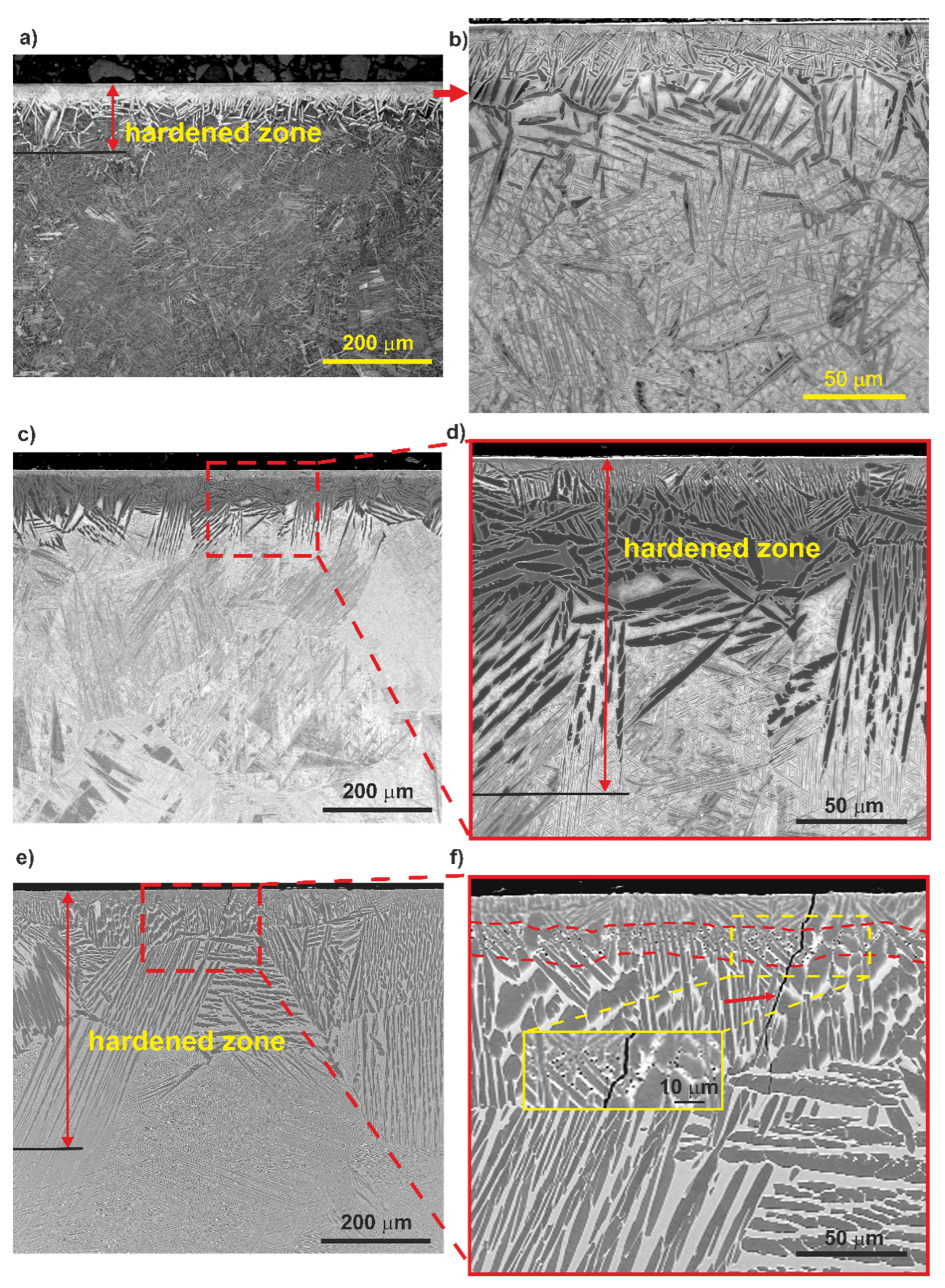

3.1. Microstructure of the Oxygen Hardened Alloy

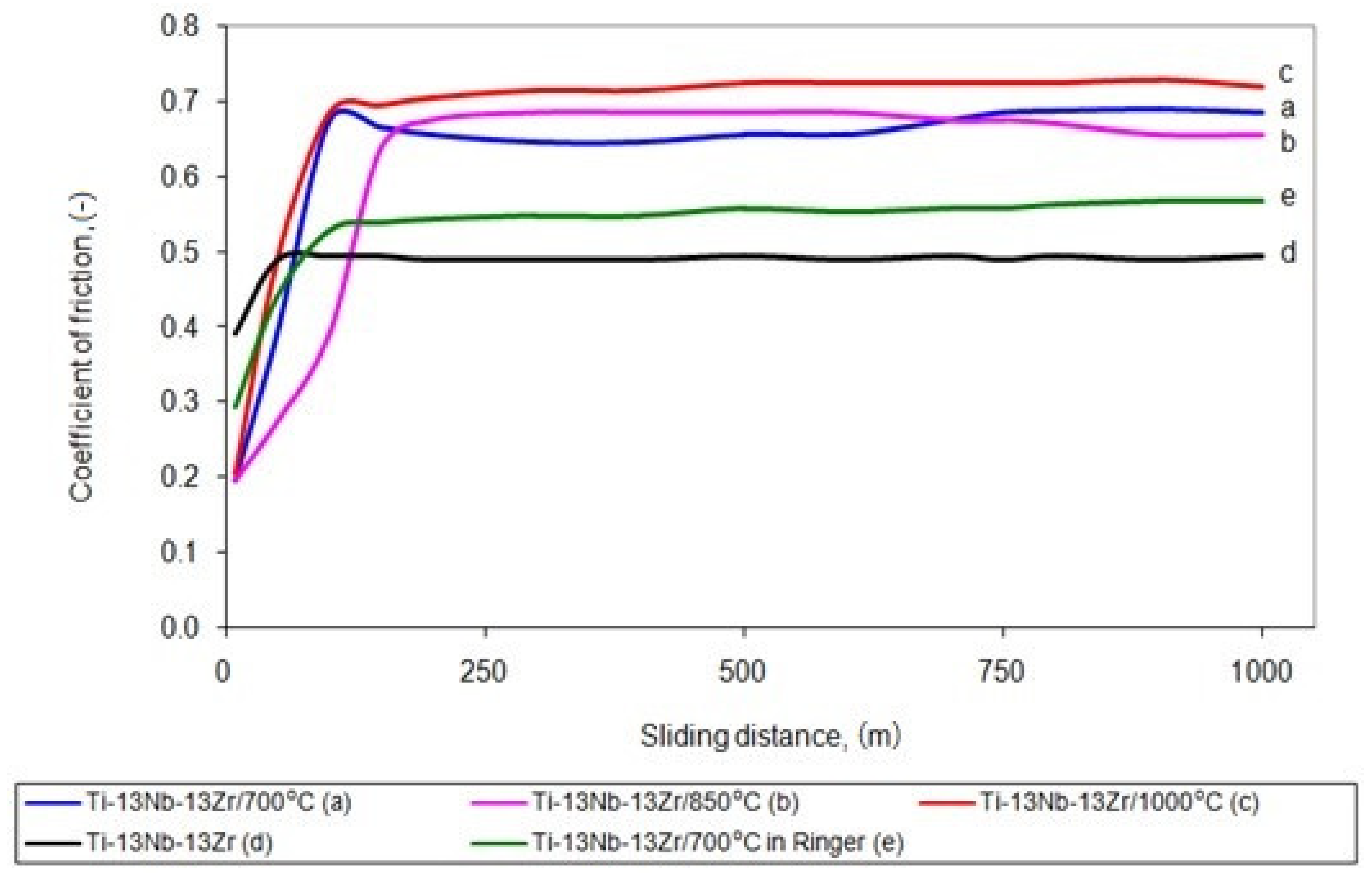

3.2. Micromechanical and Tribological Properties

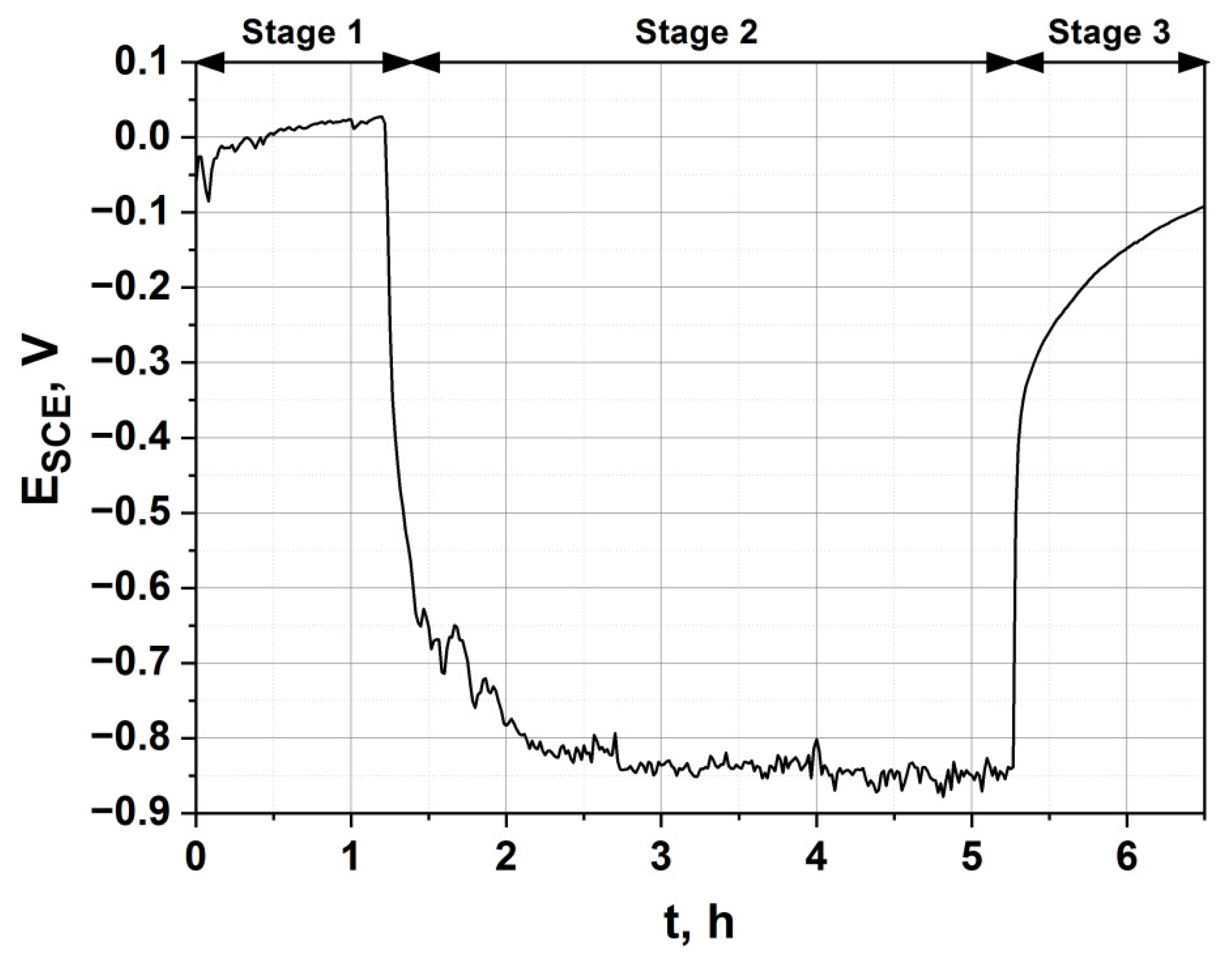

- i)
- Stage 1—increase and stabilization of the stationary potential;
- ii)
- Stage 2—a drop of the corrosion potential, resulting from the wear of the alloy’s surface, with the assumed sliding distance equaling 1000 m;
- iii)
- Stage 3—an increase of the stationary potential after the interruption of the friction process of the alloy’s surface.
4. Conclusions
- The hardening temperature had a significant influence on the alloy microstructure and thickness of the hardened zone. A refinement of the α’ laths of the near β-phase Ti alloy was observed. The thickness of the hardened zone and grain size of the bulk alloy both increased with increasing temperature. In addition, voids and microcracks were observed in the near-surface zone of the alloy treated at 1000 °C;
- The outer hardened zone consisted mainly of the Ti α’ (O) solid solution with small amounts of fine laths of the Ti α’’ (O) solid solution in the β phase. Oxygen enrichment in a depth of up to 6 μm was found;
- The oxidation of the Ti–13Nb–13Zr alloy under glow discharge conditions resulted in a significant increase of hardness and elastic modulus compared with the base alloy. The best results were found for the alloy hardened at 700 °C. With an increasing temperature, a decrease in both hardness and modulus of elasticity in the hardened zone were observed;
- The hardened titanium alloy zone significantly reduces abrasive wear, and the wear resistance is proportional to the hardness of the alloy;

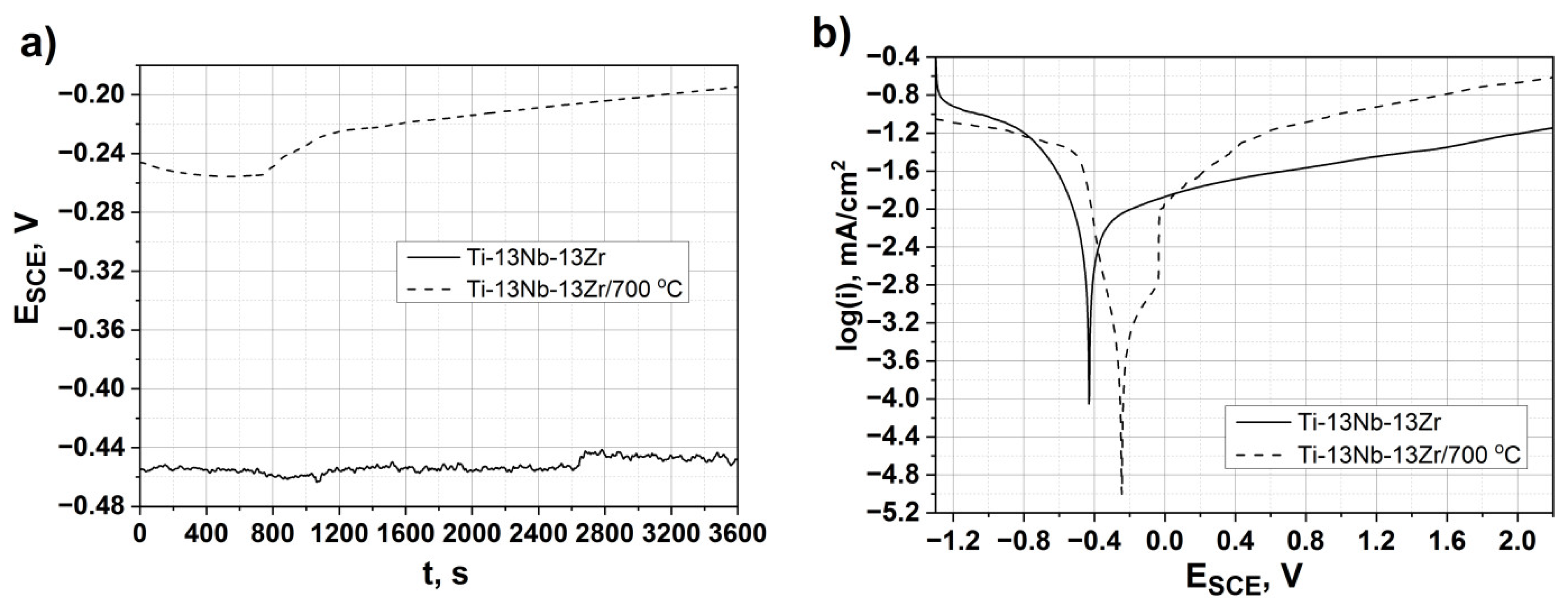

- Oxygen hardened alloy does not adversely affect the corrosion resistance;
- The friction reduces the corrosion resistance of the oxygen-hardened Ti–13Nb–13Zr alloy. However, when the friction process was stopped, the corrosion potential was quickly restored. The strengthened outer layer of the alloy treated at 700 °C provides good protection against tribological wear in a corrosive environment.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Slokar, L.; Matković, T.; Matković, P. Alloy design and property evaluation of new Ti–Cr–Nb alloys. Mater. Des. 2012, 33, 26–30. [Google Scholar] [CrossRef]
- Cojocaru, V.D.; Raducanu, D.; Cinca, I.; Dan, I.; Ivanescu, S.; Jalba, E. The mechanical properties evaluation for an as-cast Ti-Ta-Zr alloy. Metal. Int. 2011, 16, 35–38. [Google Scholar] [CrossRef]
- Raducanu, D.; Vasilescu, E.; Cojocaru, V.D.; Cinca, I.; Drob, P.; Vasilescu, C.; Drob, S.I. Mechanical and corrosion resistance of a new nanostructured Ti-Zr-Ta-Nb alloy. J. Mech. Behav. Biomed. Mater. 2011, 4, 1421–1430. [Google Scholar] [CrossRef]
- Tong, Y.X.; Guo, B.; Zheng, Y.F.; Chung, C.Y.; Ma, L.W. Effects of Sn and Zr on the Microstructure and Mechanical Properties of Ti-Ta-Based Shape Memory Alloys. J. Mater. Eng. Perform. 2011, 20, 762–766. [Google Scholar] [CrossRef] [Green Version]
- Niinomi, M. Mechanical properties of biomedical titanium alloys. Mater. Sci. Eng. A 1998, 243, 231–236. [Google Scholar] [CrossRef]
- Niinomi, M. Mechanical biocompatibilities of titanium alloys for biomedical applications. J. Mech. Behav. Biomed. Mater. 2008, 1, 30–42. [Google Scholar] [CrossRef]
- Cremasco, A.; Messias, A.D.; Esposito, A.R.; de RezendeDuek, E.A.; Caram, R. Effects of alloying elements on the cytotoxic response of titanium alloys. Mater. Sci. Eng. C 2011, 31, 833–839. [Google Scholar] [CrossRef]
- Robin, A.; Carvalho, O.A.S.; Schneider, S.G.; Schneider, S. Corrosion behavior of Ti-xNb-13Zr alloys in Ringer’s solution. Mater. Corros. 2008, 59, 929–933. [Google Scholar] [CrossRef]
- Khan, M.A.; Williams, R.L.; Williams, D.F. The corrosion behaviour of Ti-6Al-4V, Ti-6Al-7Nb and Ti-13Nb-13Zr in protein solutions. Biomaterials 1999, 20, 631–637. [Google Scholar] [CrossRef]
- Zhao, C.; Zhang, X.; Cao, P. Mechanical and electrochemical characterization of Ti–12Mo–5Zr alloy for biomedical application. J. Alloys Compd. 2011, 509, 8235–8238. [Google Scholar] [CrossRef]
- Geetha, M.; Singh, A.K.; Asokamani, R.; Gogia, A.K. Ti based biomaterials, the ultimate choice for orthopaedic implants—A review. Prog. Mater. Sci. 2009, 54, 397–425. [Google Scholar] [CrossRef]
- Ke, Z.; Yi, C.; Zhang, L.; Yuan, Z.; He, Z.; Tan, J.; Jiang, Y. Characterization of a new Ti-13Nb-13Zr-10Cu alloy with enhanced antibacterial activity for biomedical applications. Mater. Lett. 2019, 253, 335–338. [Google Scholar] [CrossRef]
- Mohammed, M.; Khan, Z.; Siddiquee, A. Beta Titanium Alloys: The Lowest Elastic Modulus for Biomedical Applications: A review. Int. J. Chem. Mol. Nucl. Mater. Metall. Eng. 2014, 8, 822–827. [Google Scholar] [CrossRef]
- Barjaktarević, D.; Medjo, B.; Gubeljak, N.; Cvijović-Alagić, I.; Štefane, P.; Djokic, V.; Rakin, M. Experimental and numerical analysis of tensile properties of Ti-13Nb-13Zr alloy and determination of influence of anodization process. Procedia Struct. Integr. 2020, 28, 2187–2194. [Google Scholar] [CrossRef]
- Mohan, P.; Rajak, D.K.; Pruncu, C.I.; Behera, A.; Amigó-Borrás, V.; Abou Bakr Elshalakany, A. Influence of β-phase stability in elemental blended Ti-Mo and Ti-Mo-Zr alloys. Micron 2021, 142, 102992. [Google Scholar] [CrossRef]
- Dong, H. Tribological properties of titanium-based alloys. In Woodhead Publishing Series in Metals and Surface Engineering. Surface Engineering of Light Alloys. Aluminium, Magnesium and Titanium Alloys; Dong, H., Ed.; Woodhead Publishing: Cambridge, UK, 2010; pp. 58–80. [Google Scholar] [CrossRef]
- Garbacz, H.; Wieciński, P.; Ossowski, M.; Ortore, G.; Wierzchoń, T.; Kurzydłowski, K.J. Surface engineering techniques used for improving the mechanical and tribological properties of the Ti6A14V alloy. Surf. Coat. Technol. 2008, 202, 2453–2457. [Google Scholar] [CrossRef]
- Dong, H.; Bell, T. Enhanced wear resistance of titanium surfaces by a new thermal oxidation treatment. Wear 2000, 238, 131–137. [Google Scholar] [CrossRef]
- Muraleedharan, T.M.; Meletis, E.I. Surface modification of pure titanium and Ti-6A1-4V by intensified plasma ion nitriding. Thin Solid Films 1992, 221, 104–113. [Google Scholar] [CrossRef]
- Hutchings, R.; Oliver, W.C. A study of the improved wear performance of nitrogen-implanted Ti-6Al-4V. Wear 1983, 92, 143–153. [Google Scholar] [CrossRef]
- Wilson, A.D.; Leyland, A.; Matthews, A. A comparative study of the influence of plasma treatments, PVD coatings and ion implantation on the tribological performance of Ti–6Al–4V. Surf. Coat. Technol. 1999, 114, 70–80. [Google Scholar] [CrossRef]
- Zhou, L.; Tiechui Yuan, T.; Ruidi Li, R.; Lanbo Li, L. Two ways of evaluating the wear property of Ti-13Nb-13Zr fabricated by selective laser melting. Mater. Lett. 2019, 242, 9–12. [Google Scholar] [CrossRef]
- Kong, Q.; Lai, X.; An, X.; Feng, W.; Lu, C.; Wu, J.; Wu, C.; Wu, L.; Wang, Q. Characterization and corrosion behaviour of Ti-13Nb-13Zr alloy prepared by mechanical alloying and spark plasma sintering. Mater. Today Commun. 2020, 23, 101130. [Google Scholar] [CrossRef]
- Jugowiec, D.; Kot, M.; Moskalewicz, T. Electrophoretic deposition and characterization of chitosan coating on near-beta titanium alloy. Arch. Metall. Mater. 2016, 61, 657–664. [Google Scholar] [CrossRef]
- Sak, A.; Moskalewicz, T.; Zimowski, S.; Cieniek, Ł.; Dubiel, B.; Radziszewska, A.; Kot, M.; Łukaszczyk, A. Influence of polyetheretherketone coatings on the Ti-13Nb-13Zr titanium alloy’s bio-tribological properties and corrosion resistance. Mater. Sci. Eng. C 2016, 63, 52–61. [Google Scholar] [CrossRef] [PubMed]
- Hornberger, H.; Randow, C.; Fleck, C. Fatigue and surface structure of titanium after oxygen diffusion hardening. Mater. Sci. Eng. A 2015, 630, 51–57. [Google Scholar] [CrossRef]
- Grabarczyk, J.; Batory, D.; Kaczorowski, W.; Pązik, B.; Januszewicz, B.; Burnat, B.; Czerniak-Reczulska, M.; Makówka, M.; Niedzielski, P. Comparison of Different Thermo-Chemical Treatments Methods of Ti-6Al-4V Alloy in Terms of Tribological and Corrosion Properties. Materials 2020, 13, 5192. [Google Scholar] [CrossRef]
- Dong, H.; Li, X.Y. Oxygen boost diffusion for the deep-case hardening of titanium alloys. Mater. Sci. Eng. A 2000, 280, 303–310. [Google Scholar] [CrossRef]
- Zhang, Z.X.; Dong, H.; Bell, T.; Xu, B.S. The effect of deep-case oxygen hardening on the tribological behaviour of a-C:H DLC coatings on Ti6Al4V alloy. J. Alloys Compd. 2008, 464, 519–525. [Google Scholar] [CrossRef]
- Zabler, S. Interstitial Oxygen diffusion hardening—A practical route for the surface protection of titanium. Mater. Charact. 2011, 62, 1205–1213. [Google Scholar] [CrossRef]
- Jamesha, M.; Sankara Narayanan, T.S.N.; Chu, P.K. Thermal oxidation of titanium: Evaluation of corrosion resistance as a function of cooling rate. Mater. Chem. Phys. 2013, 138, 565–572. [Google Scholar] [CrossRef]
- Januszewicz, B.; Siniarski, D. The glow discharge plasma influence on the oxide layer and diffusion zone formation during process of thermal oxidation of titanium and its alloys. Vacuum 2006, 81, 215–220. [Google Scholar] [CrossRef]
- Moskalewicz, T.; Wendler, B.; Zimowski, S.; Dubiel, B.; Czyrska-Filemonowicz, A. Microstructure, micro-mechanical and tribological properties of the nc-WC/a-C nanocomposite coatings magnetron sputtered on non-hardened and oxygen hardened Ti–6Al–4V alloy. Surf. Coat. Technol. 2010, 205, 2668–2677. [Google Scholar] [CrossRef]
- Poggie, R.A.; Kovacs, P.; Davidson, J.A. Oxygen Diffusion Hardening of Ti-Nb-Zr Alloys. Mater. Manuf. Process. 1996, 11, 185–197. [Google Scholar] [CrossRef]
- Barril, S.; Mischler, S.; Landolt, D. Electrochemical effects on the fretting corrosion behaviour of Ti6Al4V in 0.9% sodium chloride solution. Wear 2005, 259, 282–291. [Google Scholar] [CrossRef]
- Albayrak, Ç.; Hacısalihoğlu, İ.; Yenalvangölü, S.; Alsaran, A. Tribocorrosion behavior of duplex treated pure titanium in Simulated Body Fluid. Wear 2013, 302, 1642–1648. [Google Scholar] [CrossRef]
- Davidson, J.A.; Mishra, A.K.; Kovacs, P.; Poggie, R.A. New surface-hardened, low-modulus, corrosion-resistant Ti-13Nb-13Zr alloy for total hip arthroplasty. Biomed. Mater. Eng. 1994, 4, 231–243. [Google Scholar] [CrossRef]
- Langford, R.M.; Clinton, C. In situ lift-out using a FIB-SEM system. Micron 2004, 35, 607–611. [Google Scholar] [CrossRef] [PubMed]
- Oliver, W.C.; Pharr, G.M. Measurement of hardness and elastic modulus by instrumented indentation: Advances in understanding and refinements to methodology. J. Mater. Res. 2004, 19, 3–20. [Google Scholar] [CrossRef]
- ISO 20808:2016 Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Determination of Friction and Wear Characteristics of Monolithic Ceramics by Ball-on-Disc Method. Available online: https://www.iso.org/standard/65415.html (accessed on 10 April 2021).
- Massalski, T.B.; Okamoto, H.; Subramanian, P.R.; Kacprzak, L. Binary Alloy Phase Diagrams; ASM International: Materials Park, OH, USA, 1990; Volume 3. [Google Scholar] [CrossRef]
- Lee, T. Variation in Mechanical Properties of Ti-13Nb-13Zr Depending on Annealing Temperature. Appl. Sci. 2020, 10, 7896. [Google Scholar] [CrossRef]
- Lederer, S.; Lutz, P.; Fürbeth, W. Surface modification of Ti 13Nb 13Zr by plasma electrolytic oxidation. Surf. Coat. Technol. 2018, 335, 62–71. [Google Scholar] [CrossRef]
- Krishna, D.S.R.; Brama, Y.L.; Sun, Y. Thick rutile layer on titanium for tribological applications. Tribol. Int. 2007, 40, 329–334. [Google Scholar] [CrossRef]
- Kolubaev, A.V.; Tarasov, S.Y. Studies on formation and destruction of surface layers under severe friction. Facta Univ. 1997, 1, 429–432. [Google Scholar]
- Majumdar, P.; Singh, S.B.; Chakraborty, M. Wear response of heat-treated Ti–13Zr–13Nb alloy in dry condition and simulated body fluid. Wear 2008, 264, 1015–1025. [Google Scholar] [CrossRef]
- Mohan, L.; Anandan, C. Wear and corrosion behavior of oxygen implanted biomedical titanium alloy Ti–13Nb–13Zr. Appl. Surf. Sci. 2013, 282, 281–290. [Google Scholar] [CrossRef]
- Mc Cafferty, E.; Hubler, G.K. Electrochemical behavior of palladium implanted titanium. J. Electrochem. Soc. 1978, 125, 1892–1893. [Google Scholar] [CrossRef]
Sample of Ti–13Nb–13Zr Alloy | hmax (nm) | HIT (GPa) | EIT (GPa) | Wv·10−6 (mm3/Nm) |
---|---|---|---|---|
Hardened at 700 °C | 880 ± 37 | 12.8 ± 0.8 | 180 ± 16 | 2.3 ± 0.3 |
Hardened at 850 °C | 925 ± 52 | 9.8 ± 0.9 | 175 ± 20 | 3.1 ± 0.3 |
Hardened at 1000 °C | 1407 ± 131 | 6.9 ± 0.7 | 152 ± 17 | 5.8 ± 0.7 |
As-received | 1662 ± 82 | 3.9 ± 0.2 | 79 ± 9 | 1250 ± 46 |

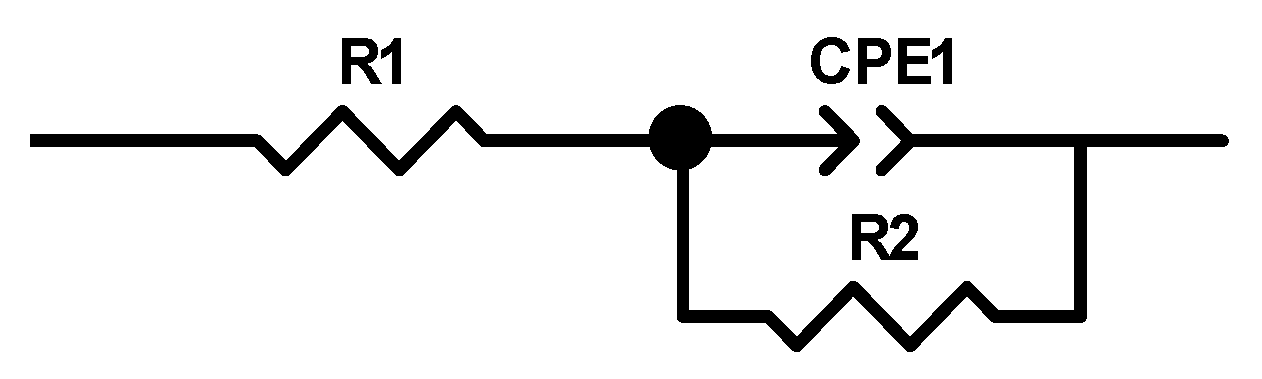

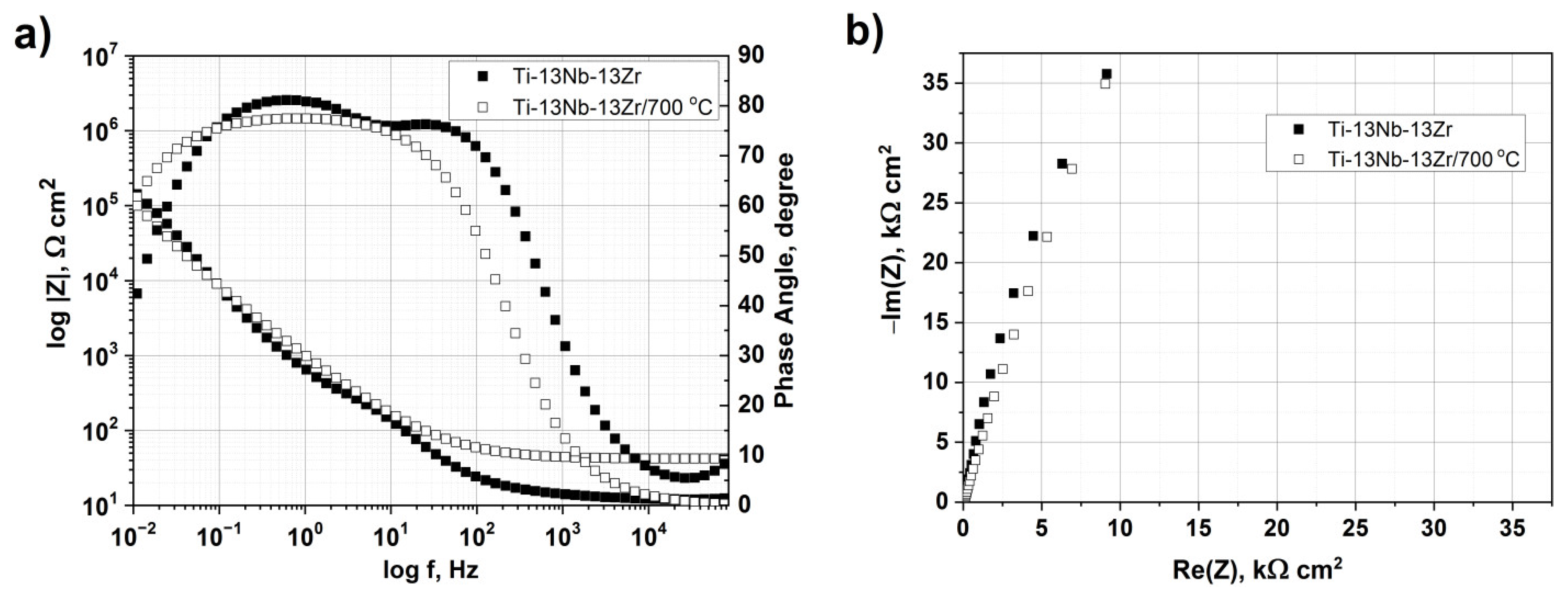

Sample | χ2 | R1 (Ω * cm2) | CPE-T (Fsn−1 cm−2) | CPE-P | R2 (Ω * cm2) |
---|---|---|---|---|---|
As-received alloy | 0.005 | 12.30 ± 0.12 | 4.31 × 10−5 ± 0.03 × 10−5 | 8.96 × 10−1 ± 0.02 × 10−1 | 3.22 × 105 ± 0.06 × 105 |
Alloy hardened at 700 °C | 0.004 | 41.99 ± 0.25 | 4.35 × 10−5 ± 0.02 × 10−5 | 8.70 × 10−1 ± 0.01 × 10−1 | 7.26 × 105 ± 0.11 × 105 |
