Effect of Cr on Aqueous and Atmospheric Corrosion of Automotive Carbon Steel
Abstract
1. Introduction

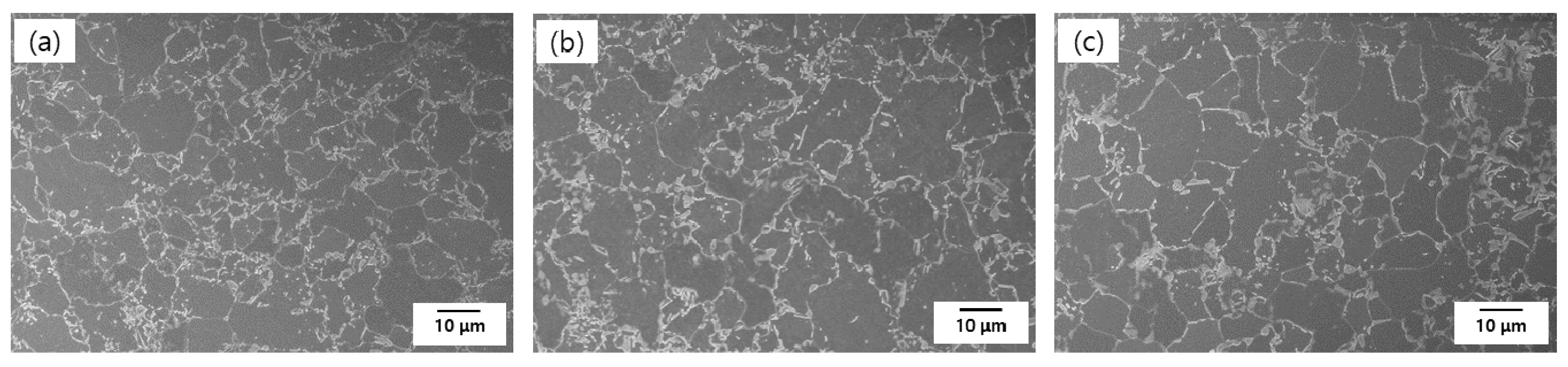

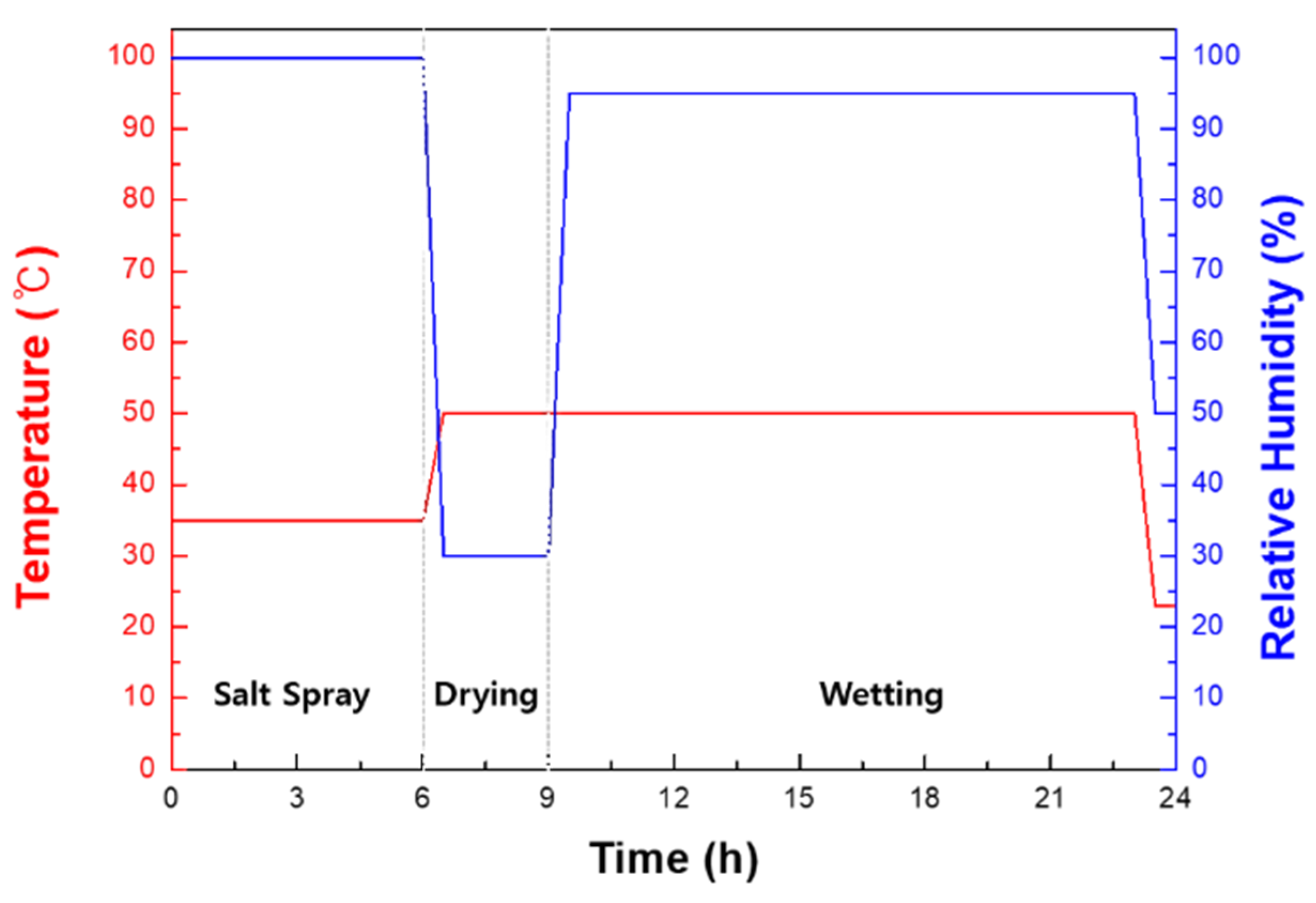

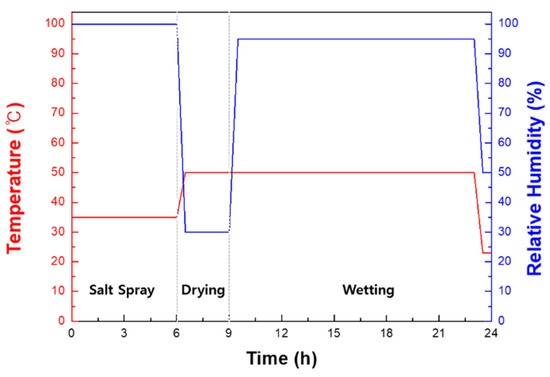

2. Materials and Methods
3. Results and Discussion

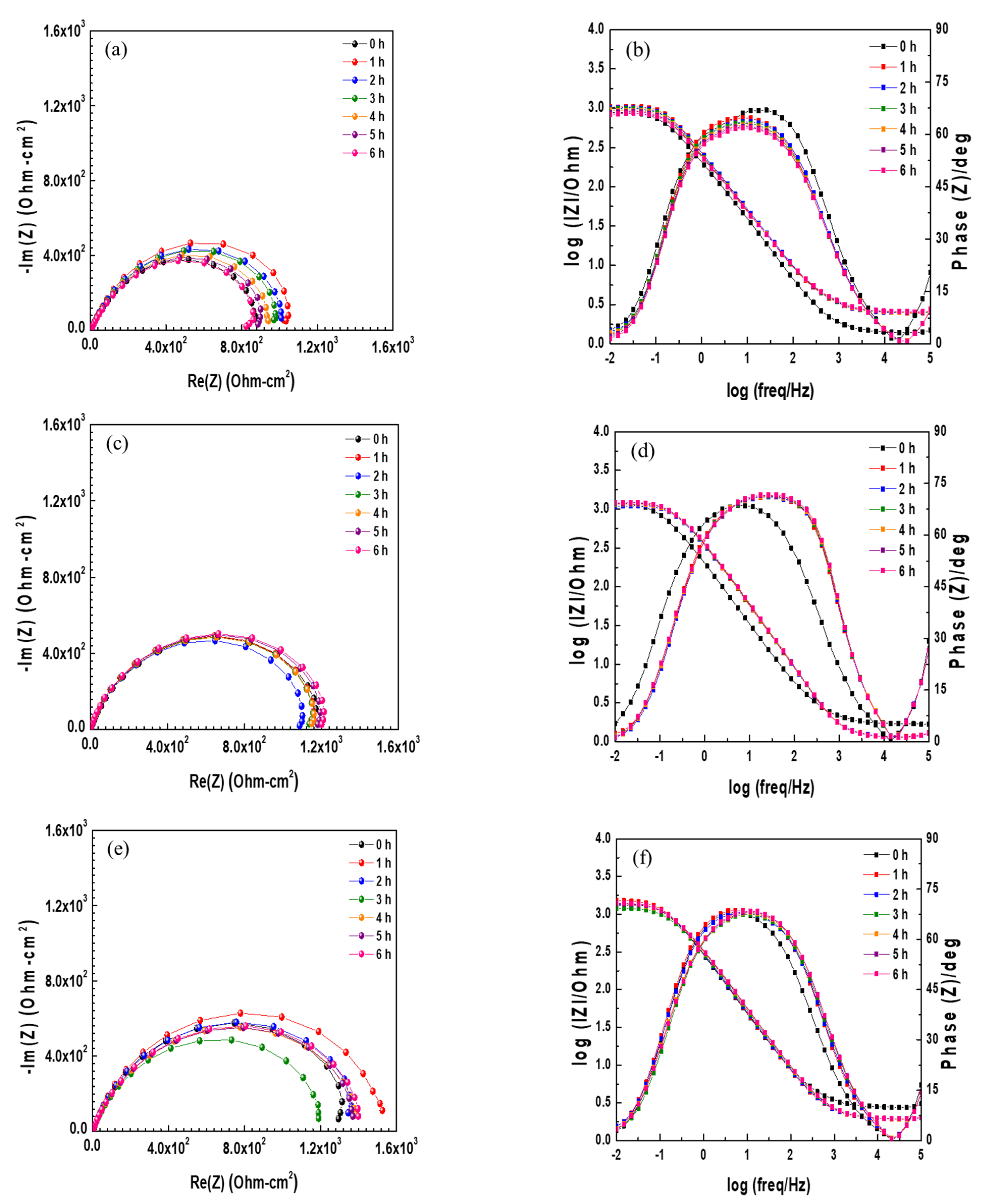

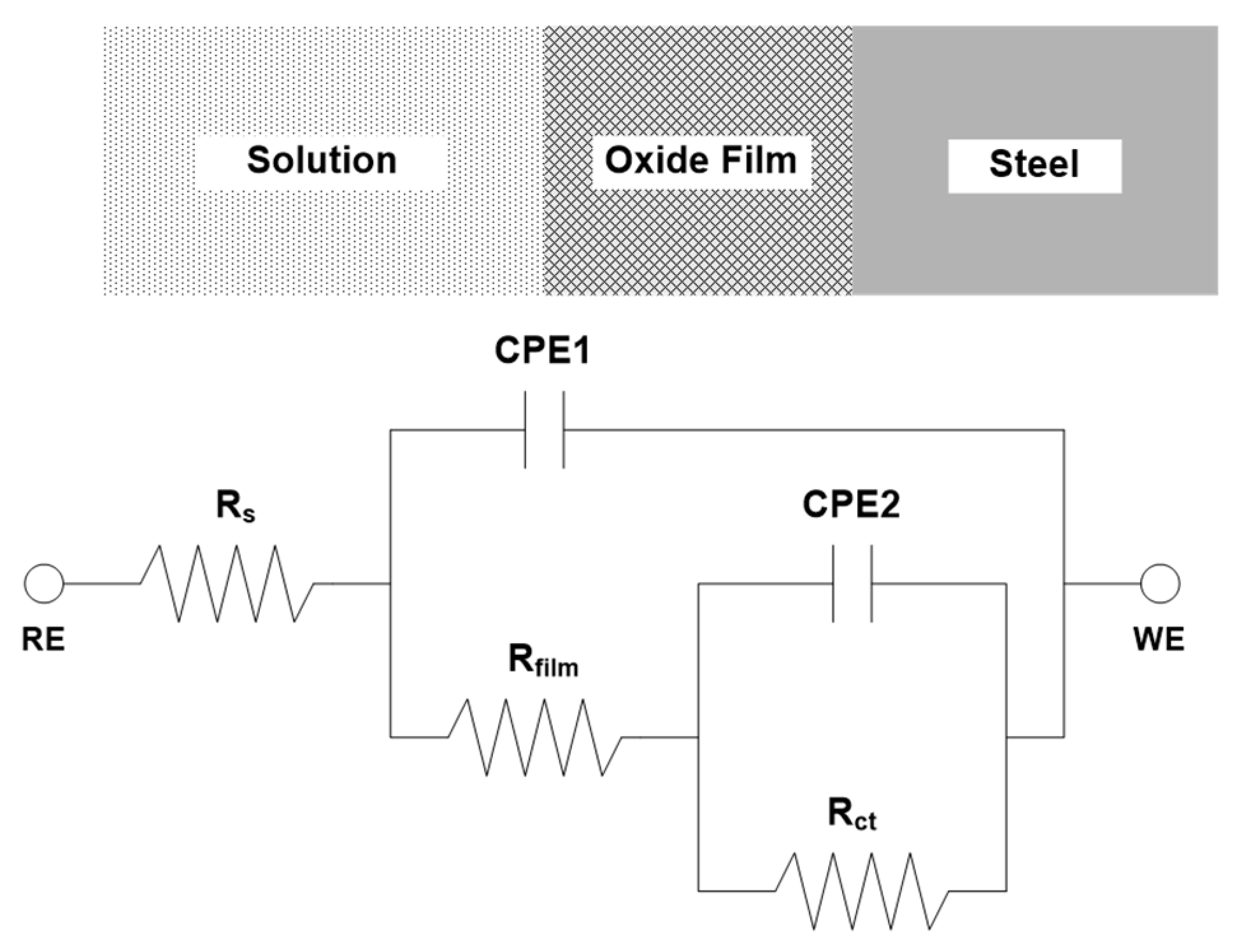

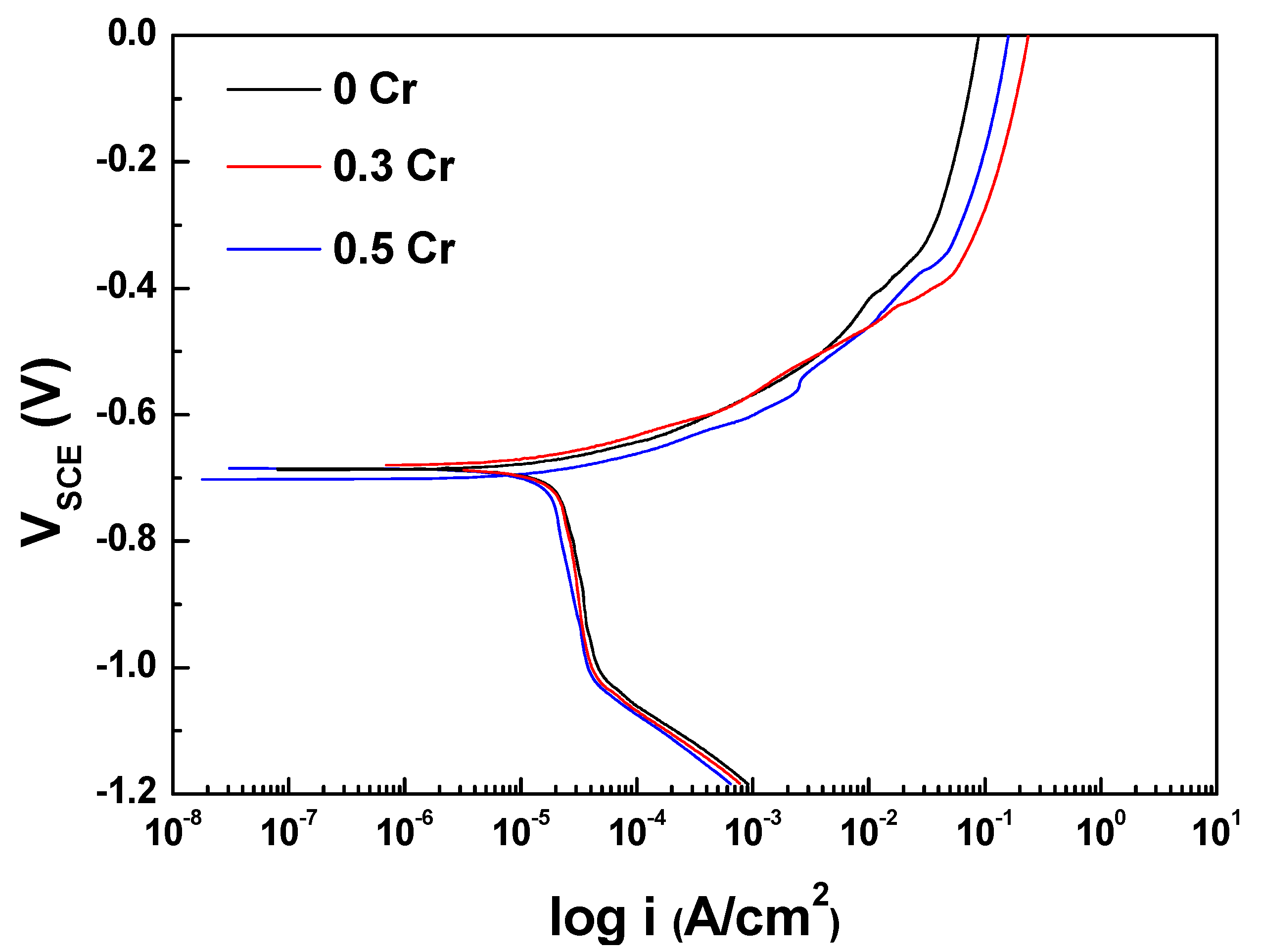

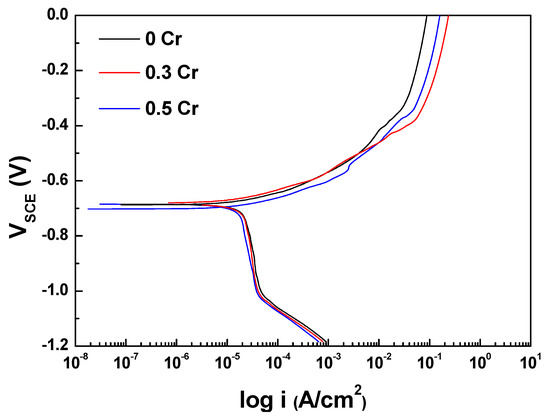

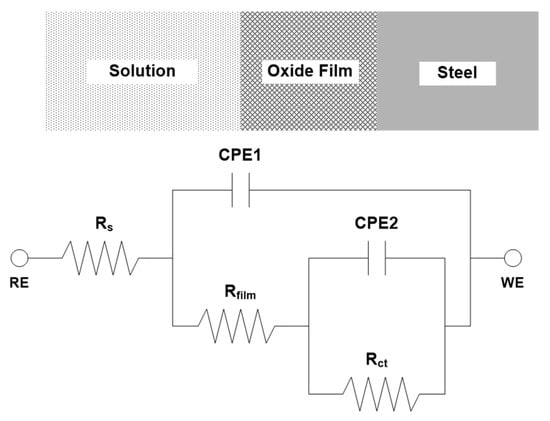

3.1. Electrochemical Measurement

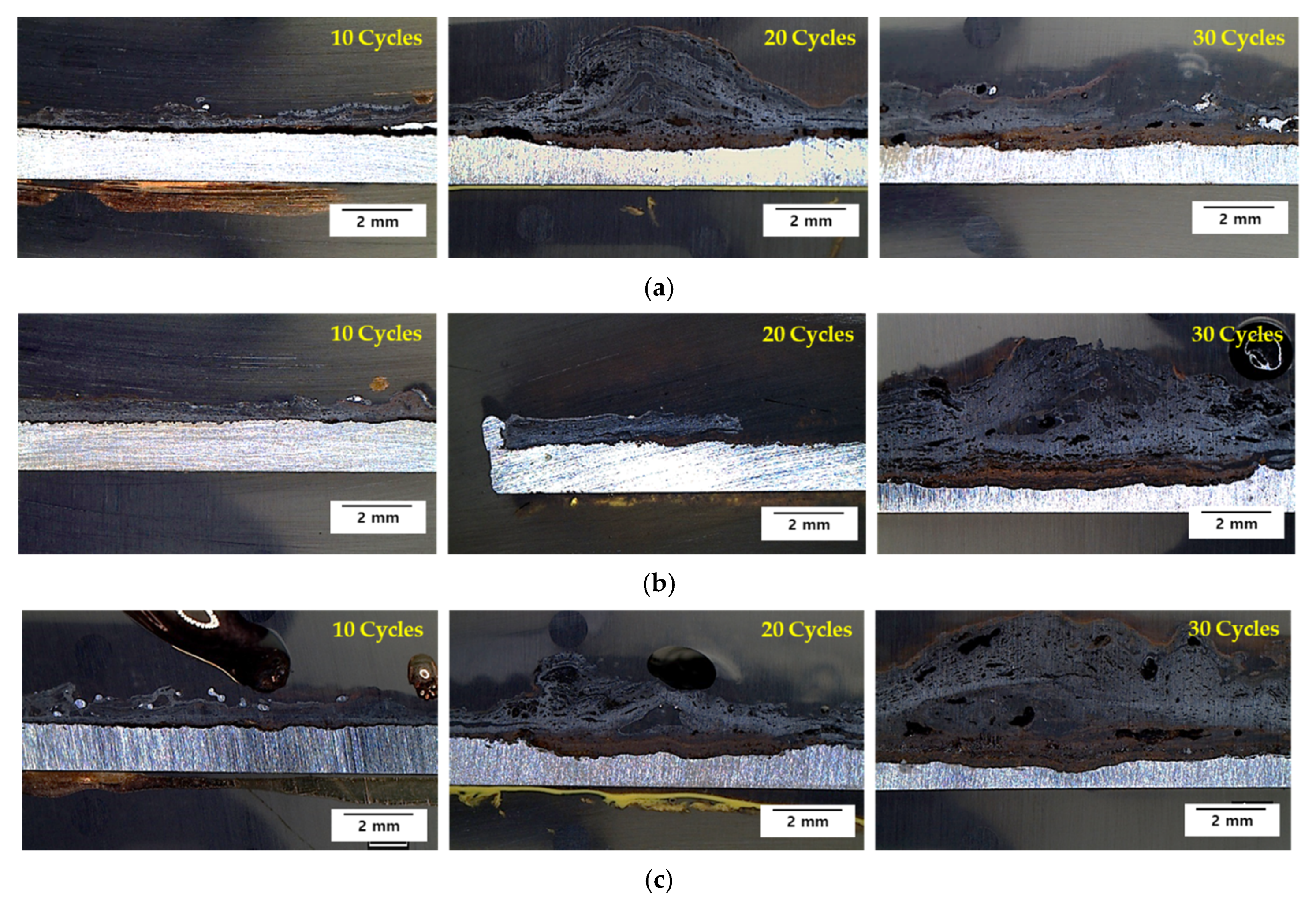

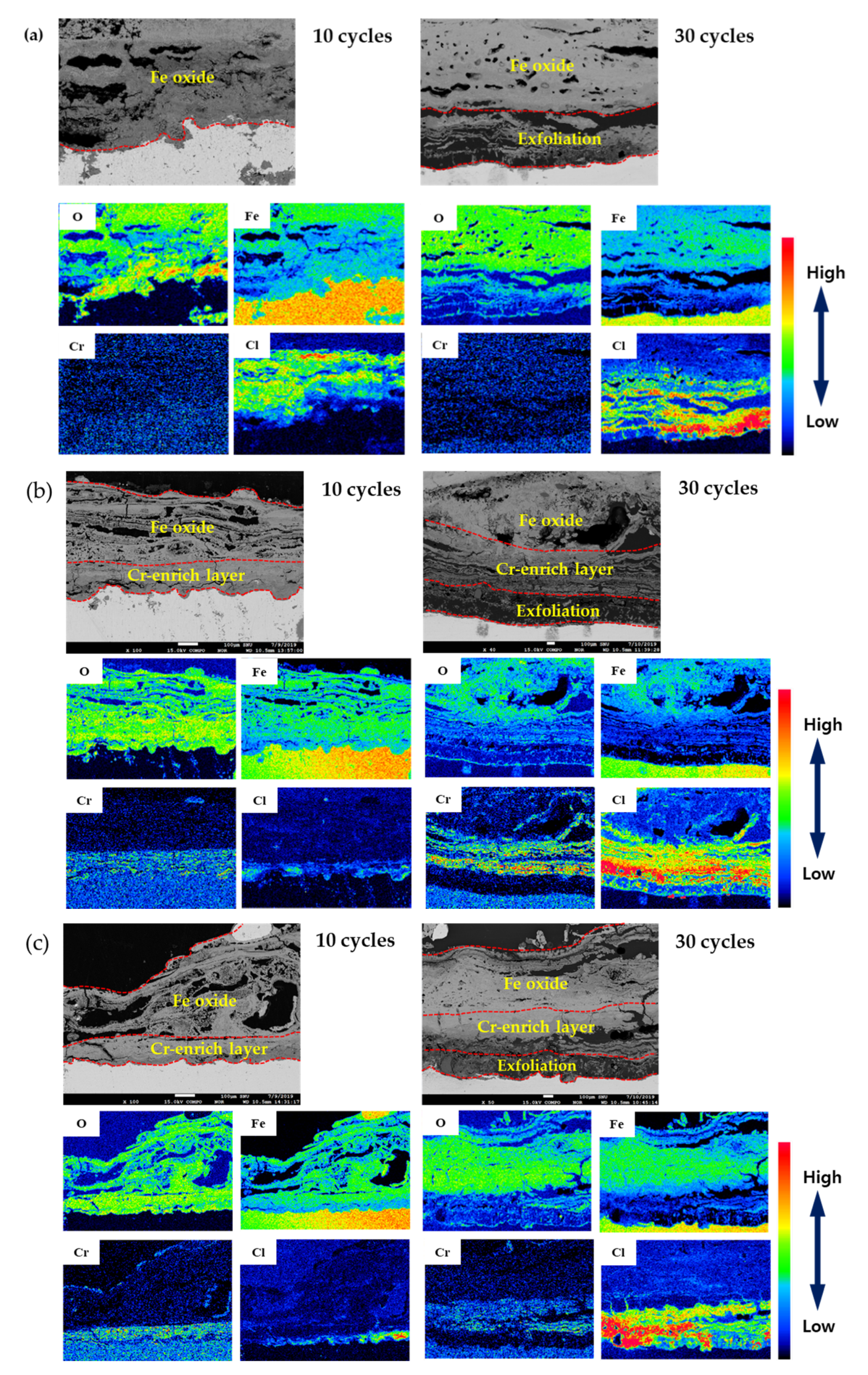

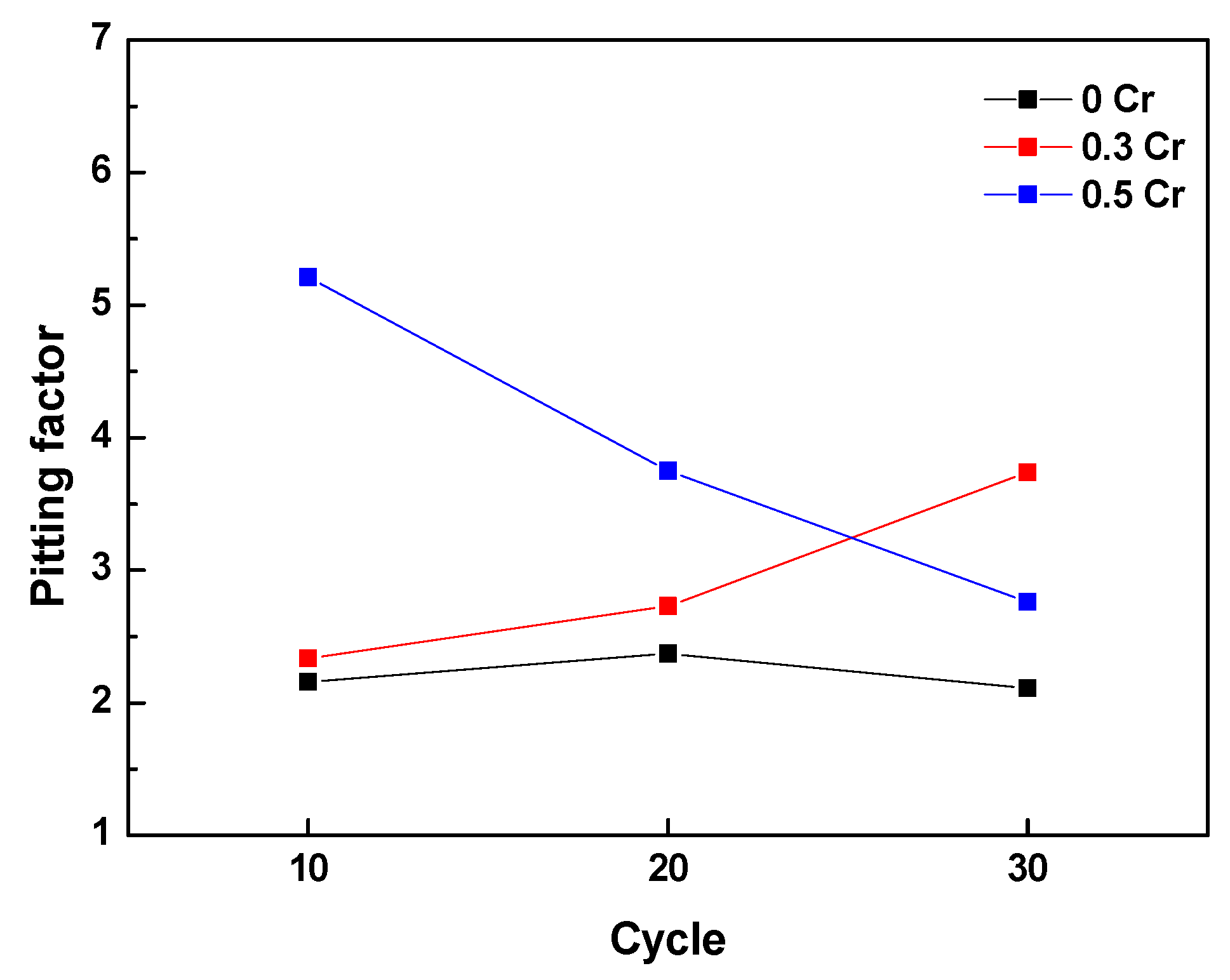

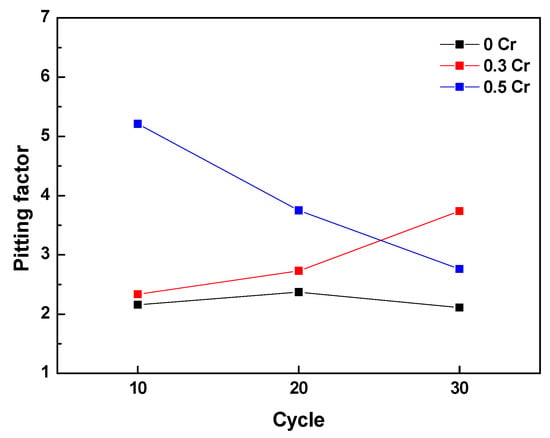

3.2. Cyclic Corrosion Test Results

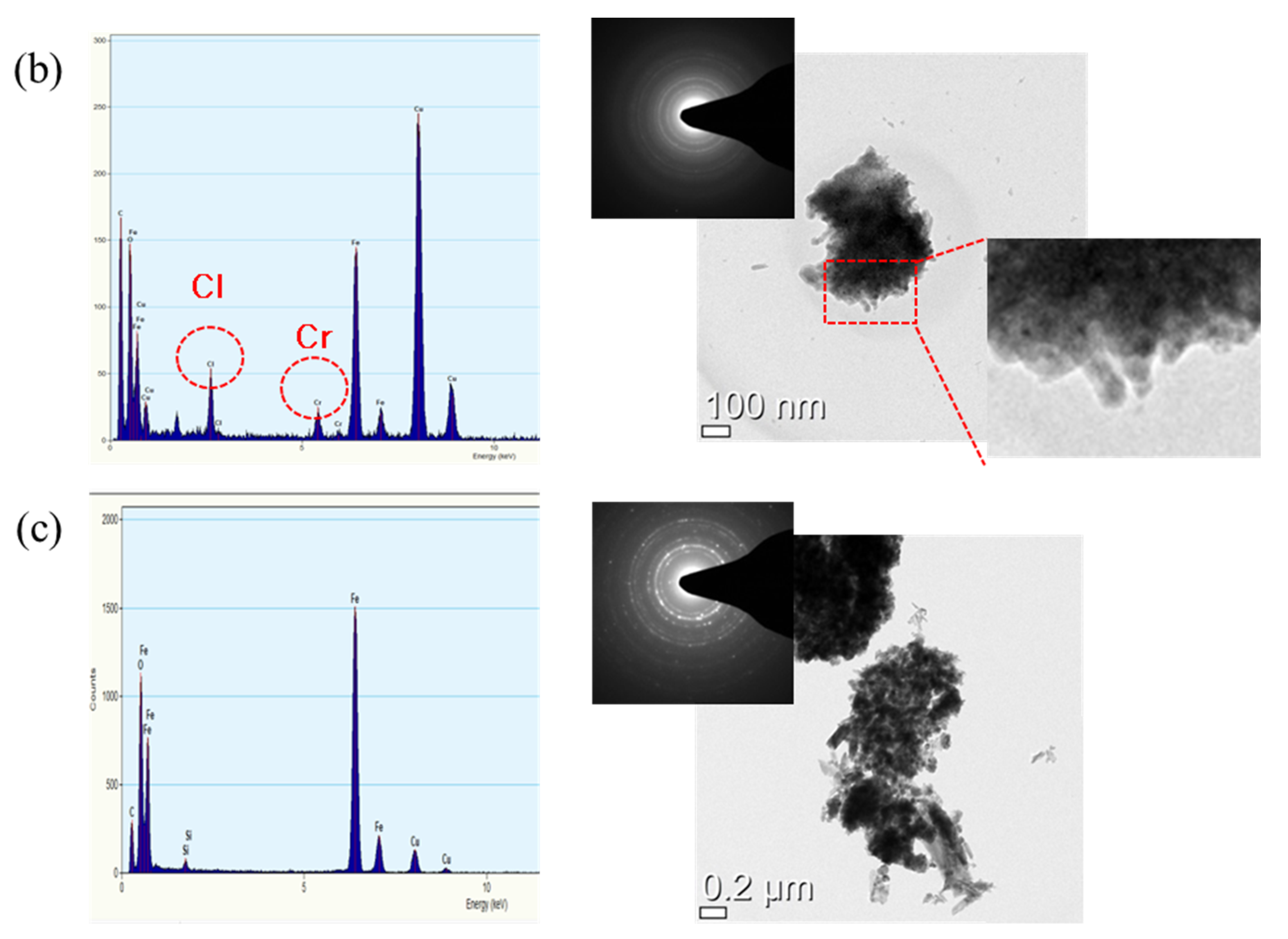

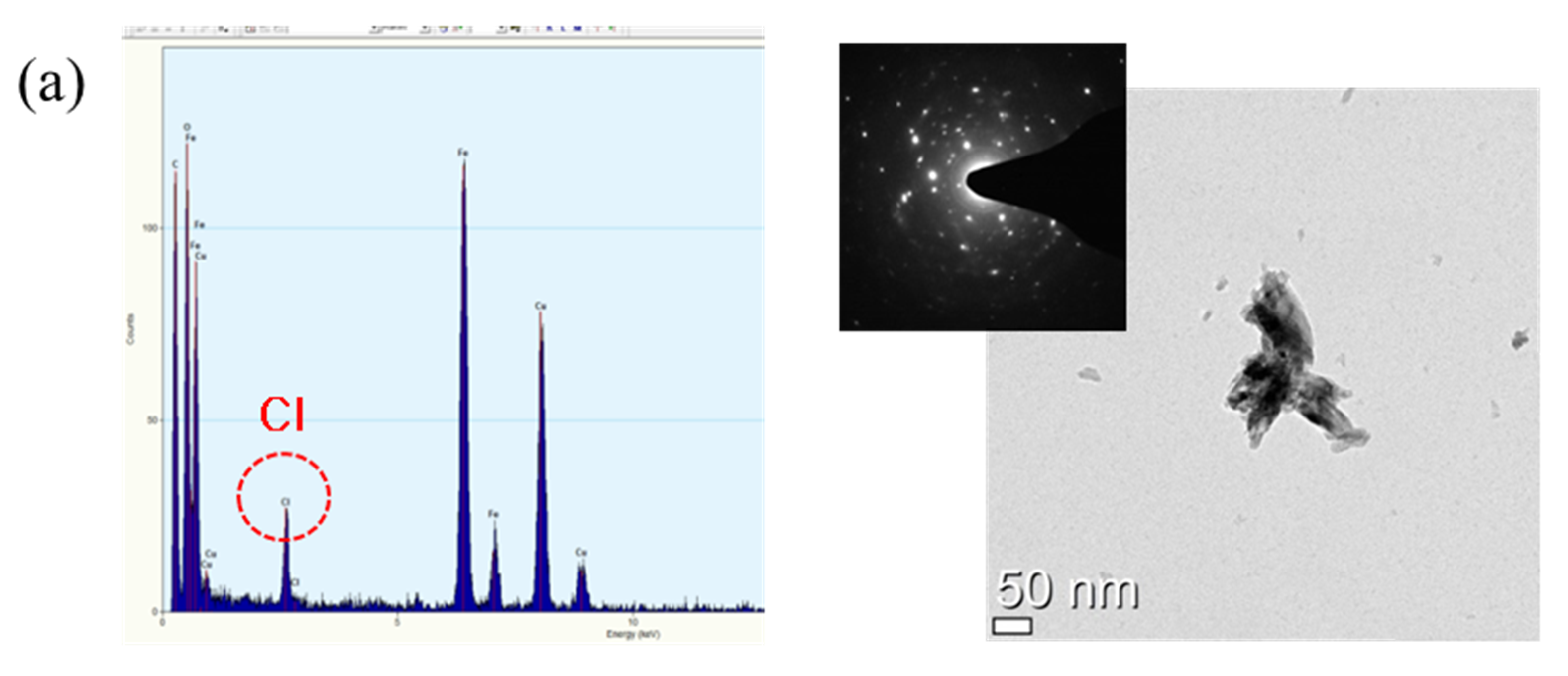

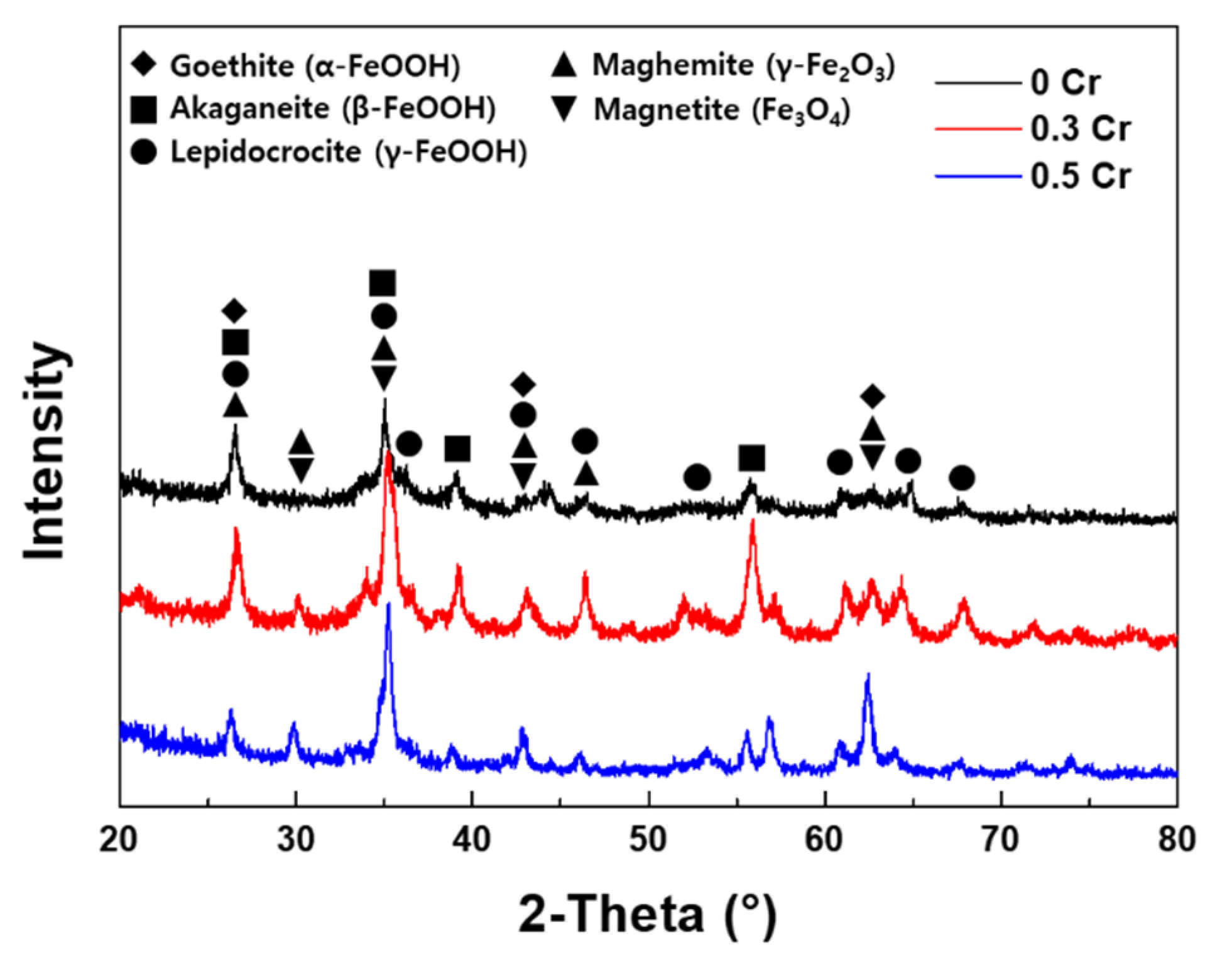

3.3. Rust Constituent Analysis

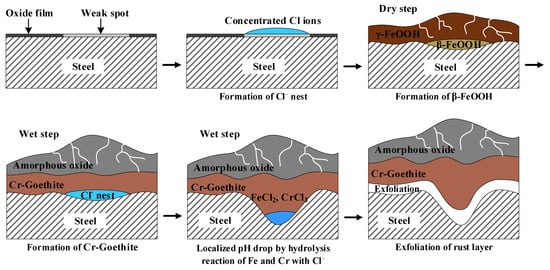

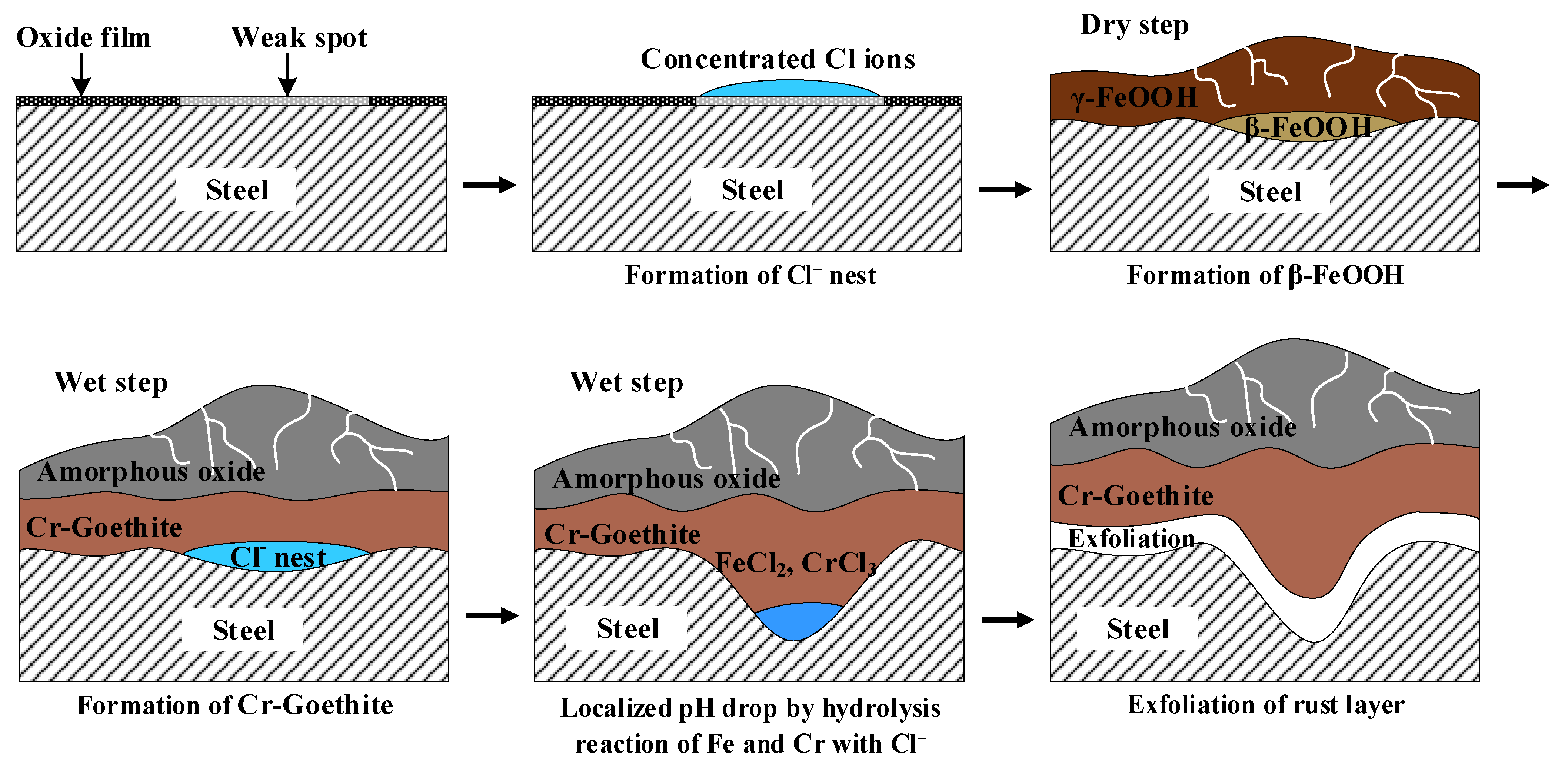

3.4. Localized Corrosion Mechanism of Cr-Added Steel under Wet/Dry Conditions
4. Conclusions
- In the electrochemical measurement results, the Cr alloying element improves the corrosion resistance of the ACS that was immersed in the Cl-containing aqueous solution.
- Cl is concentrated at the metal/rust interface in all of the specimens regardless of Cr content after the CCT. The Cl is uniformly concentrated and distributed on the 0 Cr steel, whereas Cl is localized and non-uniformly concentrated on the Cr-added steels. The PF of the Cr-added steels is higher than that of the 0 Cr steel during the CCT.
- The inner rust layer consists of Cl-containing akaganeite and Cr-goethite, while the outer rust layer is composed of amorphous iron oxyhydroxide mixed with various types of rust.
- FeCl2 and CrCl3 are formed from the Cl nest developed in the early stage, and the pitting at CrCl3-formed regions is locally accelerated because Cr is strongly hydrolyzed to a very low pH.
