Corrosion Behavior of Cold-Formed AA5754 Alloy Sheets
Faculty of Materials Science and Engineering, Warsaw University of Technology, 02-507 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(2), 394; https://doi.org/10.3390/ma14020394
Received: 29 December 2020
/
Revised: 10 January 2021
/
Accepted: 11 January 2021
/
Published: 14 January 2021
(This article belongs to the Special Issue Microstructure and Corrosion Behavior of Advanced Alloys)

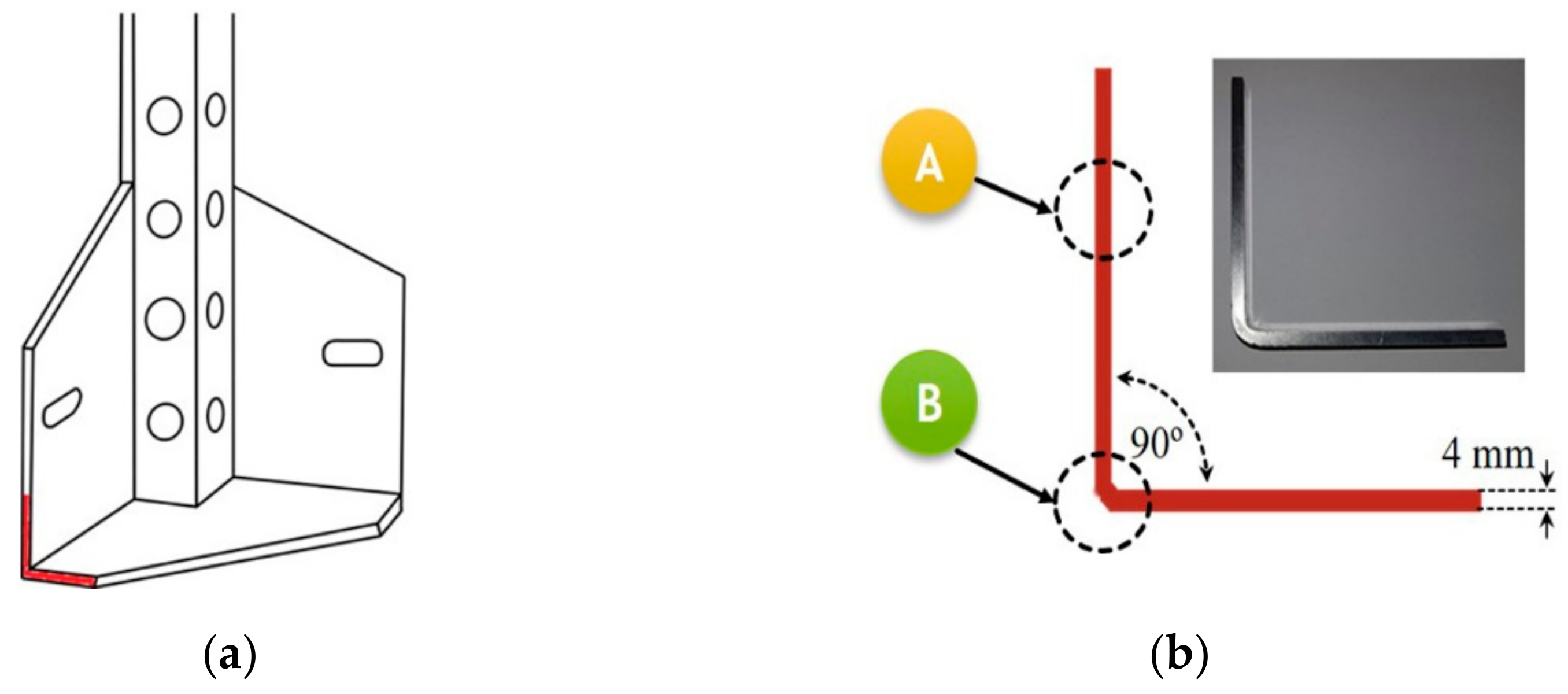

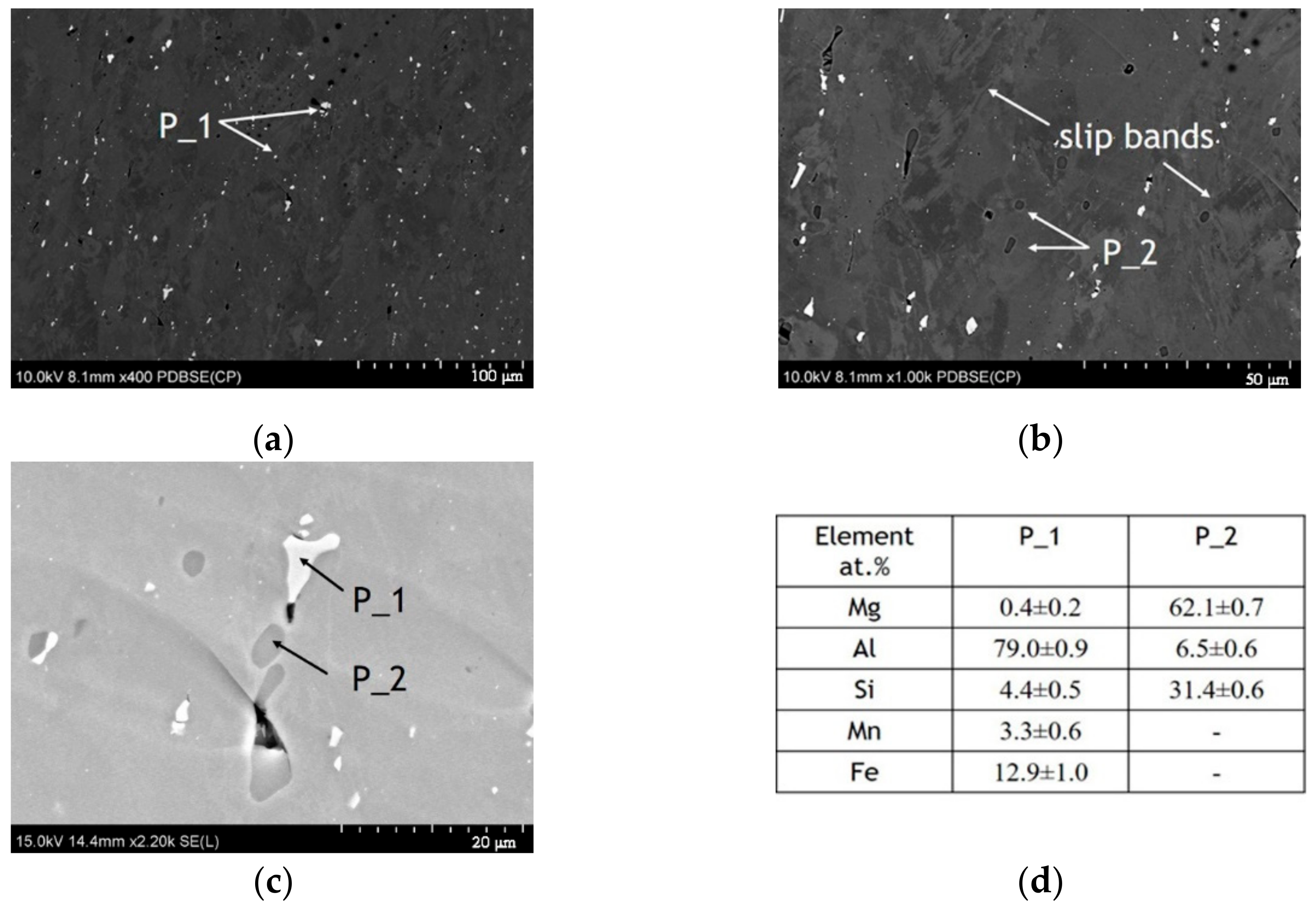

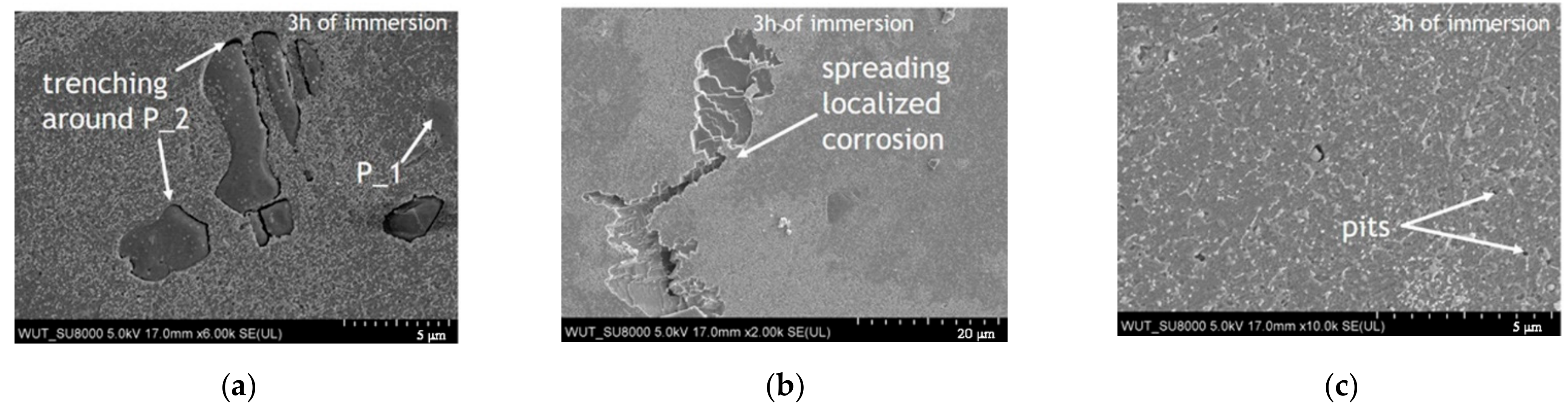

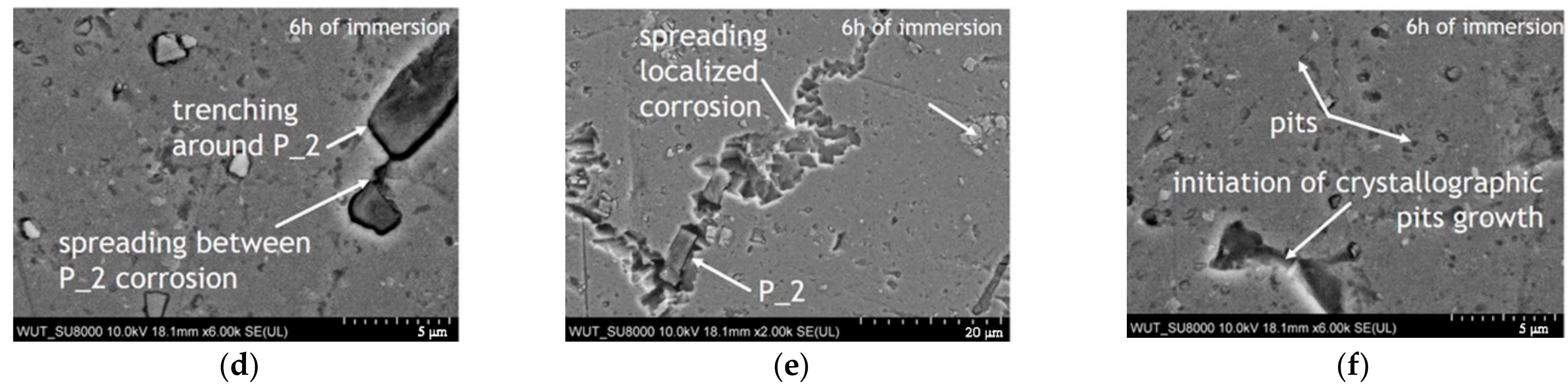

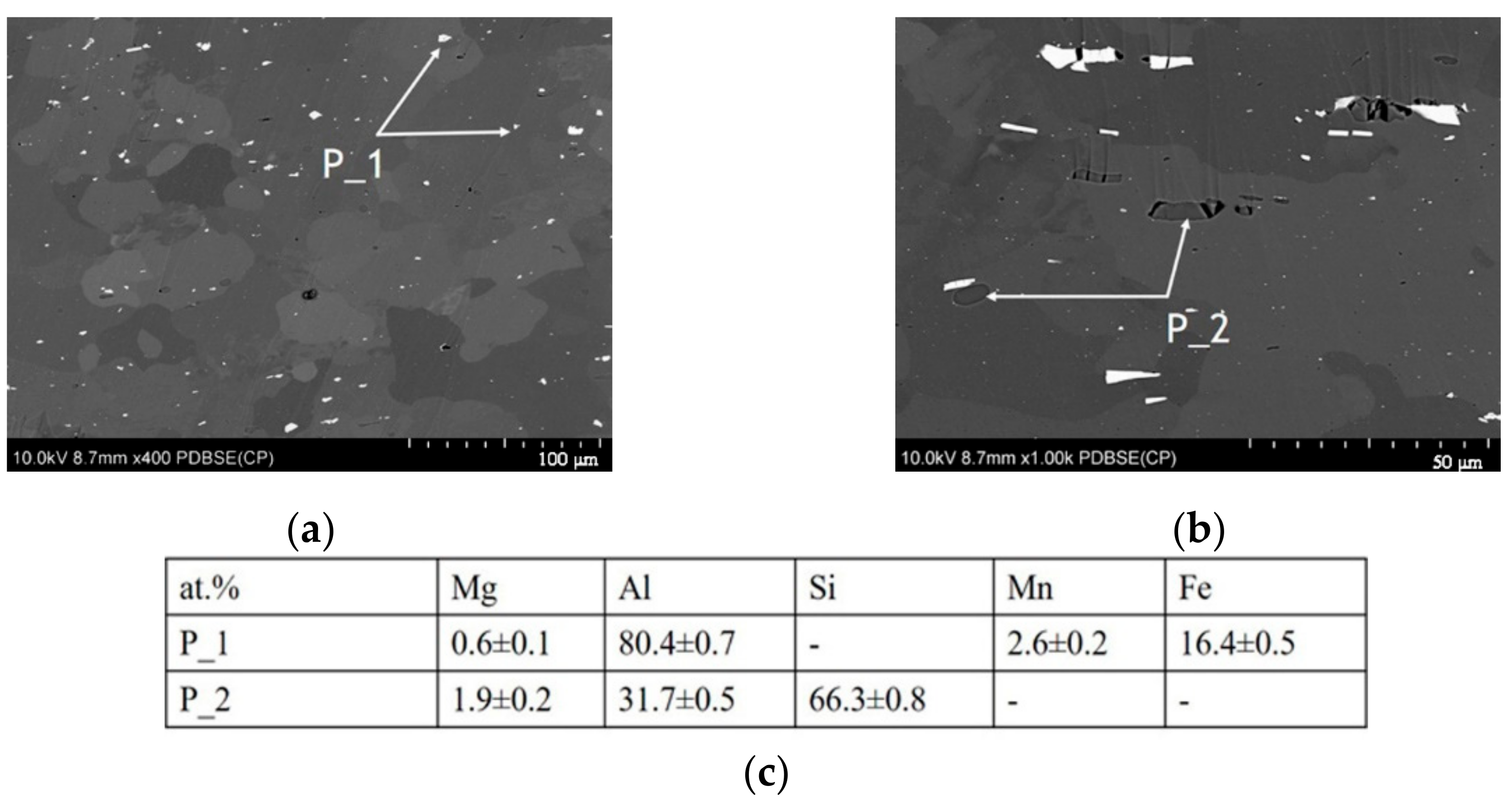

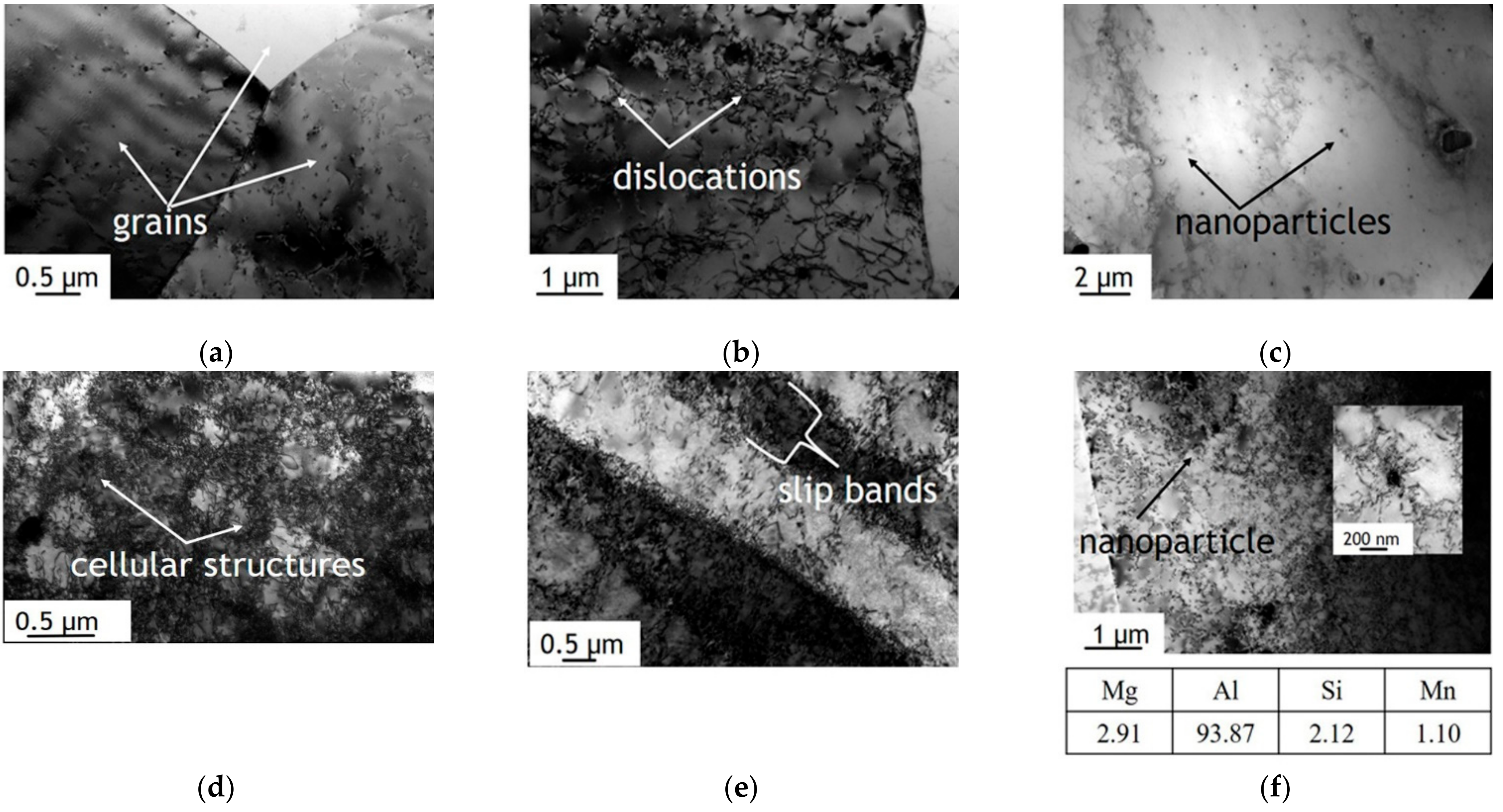

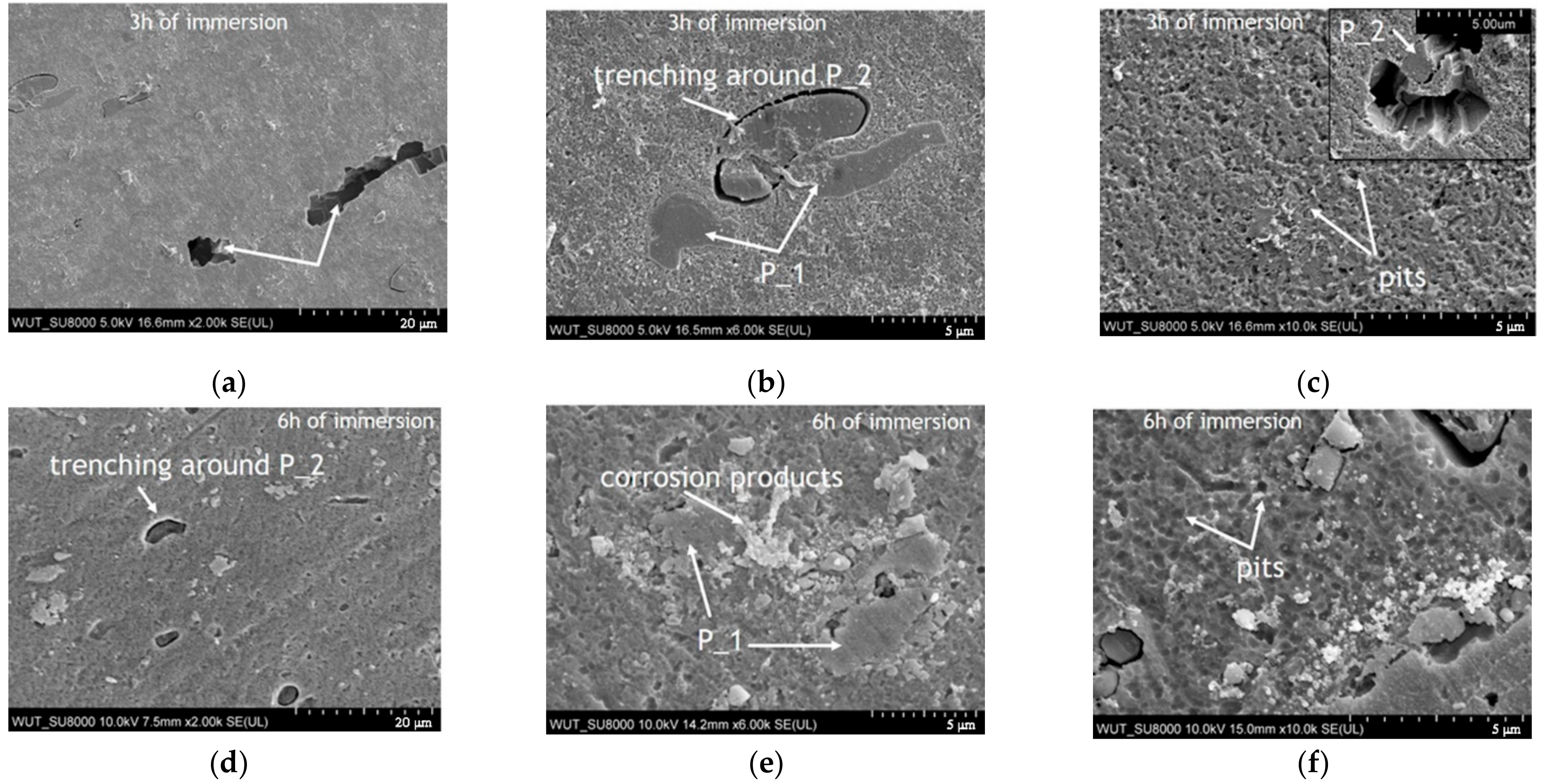

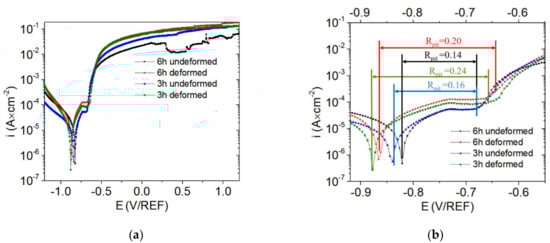

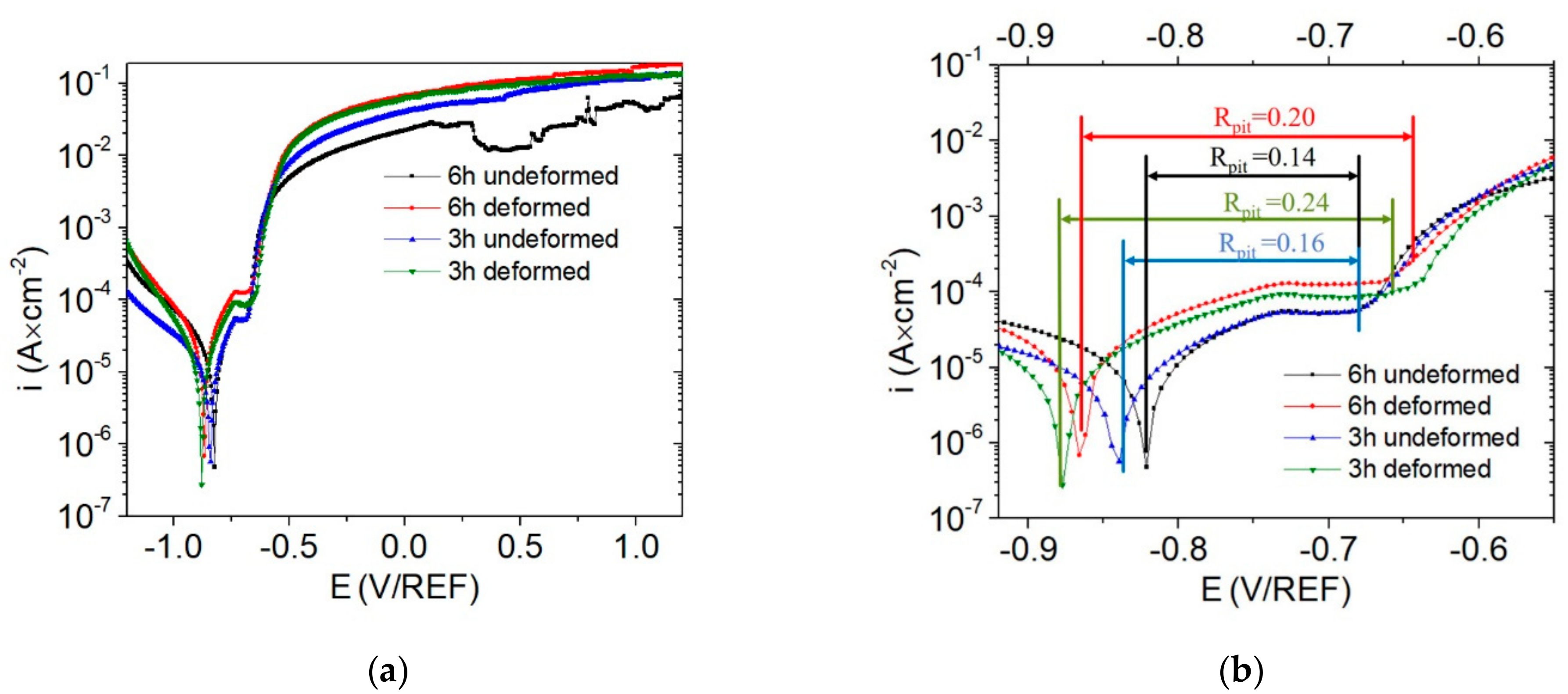

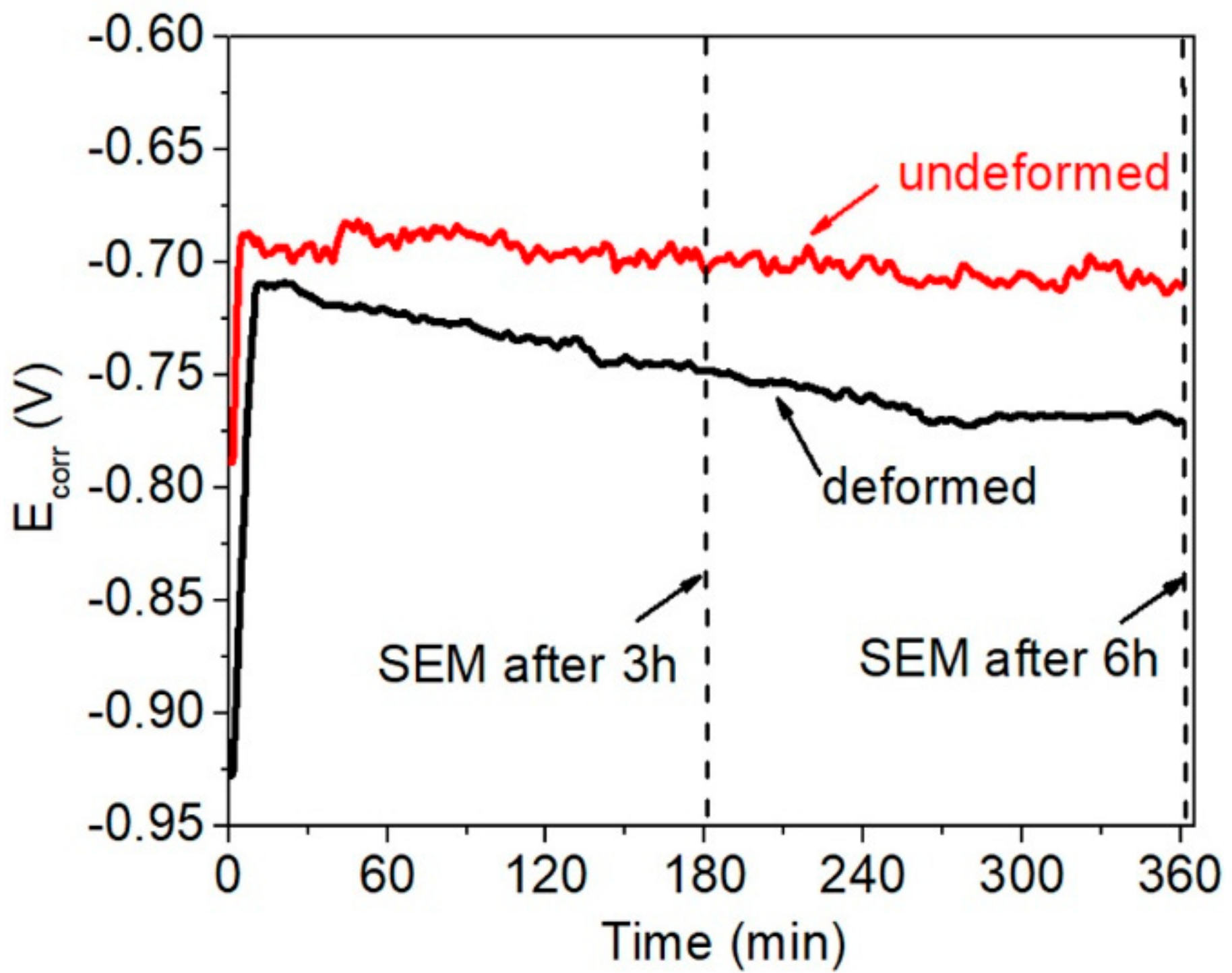

In this work, the influence of bending an AA5457 alloy sheet and the resulting microstructural changes on its corrosion behavior was investigated. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were used to perform detailed microstructural analyses of the alloy in its original form and after bending. After immersion in naturally-aged NaCl under open-circuit conditions (0.5 M, adjusted to 3 by HCl), post-corrosion observations were made, and electrochemical polarization measurements were performed to investigate the corrosion mechanisms occurring on both surfaces. The results showed that the corrosion of AA5457 is a complex process that mainly involves trenching around coarse Si-rich particles, crystallographically-grown large pits, and the formation of multiple tiny pits around Si-rich nanoparticles. The experimental data showed that bending AA5457 changed the shape and distribution of Si-rich coarse particles, cumulated a higher dislocation density in the material, especially around Si-rich nanoparticles, and all of these factors caused that corrosion behavior of the AA5754 in the bending area was lowered.
View Full-Text
Keywords:
AA5754; corrosion; microstructure
▼
Show Figures
Graphical abstract
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Dobkowska, A.; Sotniczuk, A.; Bazarnik, P.; Mizera, J.; Garbacz, H. Corrosion Behavior of Cold-Formed AA5754 Alloy Sheets. Materials 2021, 14, 394. https://doi.org/10.3390/ma14020394
AMA Style
Dobkowska A, Sotniczuk A, Bazarnik P, Mizera J, Garbacz H. Corrosion Behavior of Cold-Formed AA5754 Alloy Sheets. Materials. 2021; 14(2):394. https://doi.org/10.3390/ma14020394
Chicago/Turabian StyleDobkowska, Anna, Agata Sotniczuk, Piotr Bazarnik, Jarosław Mizera, and Halina Garbacz. 2021. "Corrosion Behavior of Cold-Formed AA5754 Alloy Sheets" Materials 14, no. 2: 394. https://doi.org/10.3390/ma14020394
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
